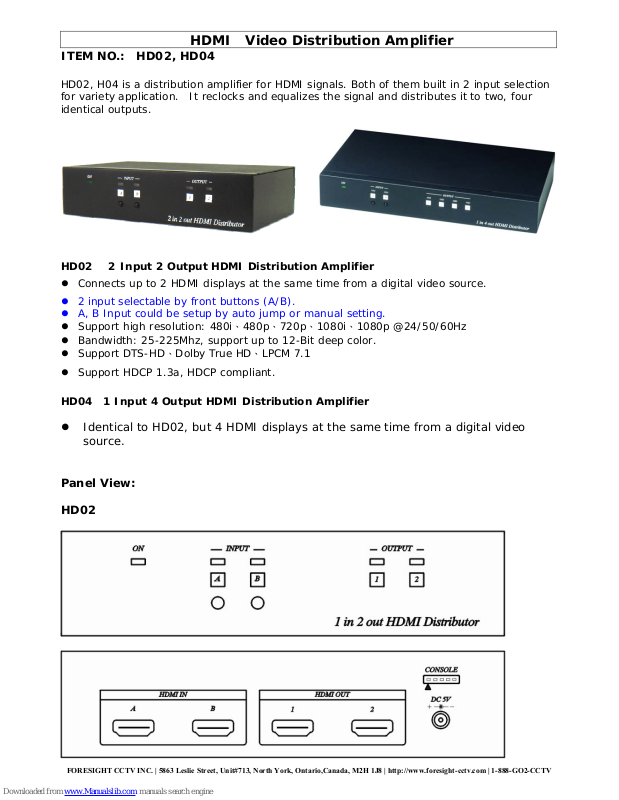

HDMI Video Distribution Amplifier
ITEM NO.: HD02, HD04
HD02, H04 is a distribution amplifier for HDMI signals. Both of them built in 2 input selection
for variety application. It reclocks and equalizes the signal and distributes it to two, four
identical outputs.
HD02 2 Input 2 Output HDMI Distribution Amplifier
Connects up to 2 HDMI displays at the same time from a digital video source.
2 input selectable by front buttons (A/B).
A, B Input could be setup by auto jump or manual setting.
Support high resolution: 480i、480p、720p、1080i、1080p @24/50/60Hz
Bandwidth: 25-225Mhz, support up to 12-Bit deep color.
Support DTS-HD、Dolby True HD、LPCM 7.1
Support HDCP 1.3a, HDCP compliant.
HD04 1 Input 4 Output HDMI Distribution Amplifier
Identical to HD02, but 4 HDMI displays at the same time from a digital video
source.

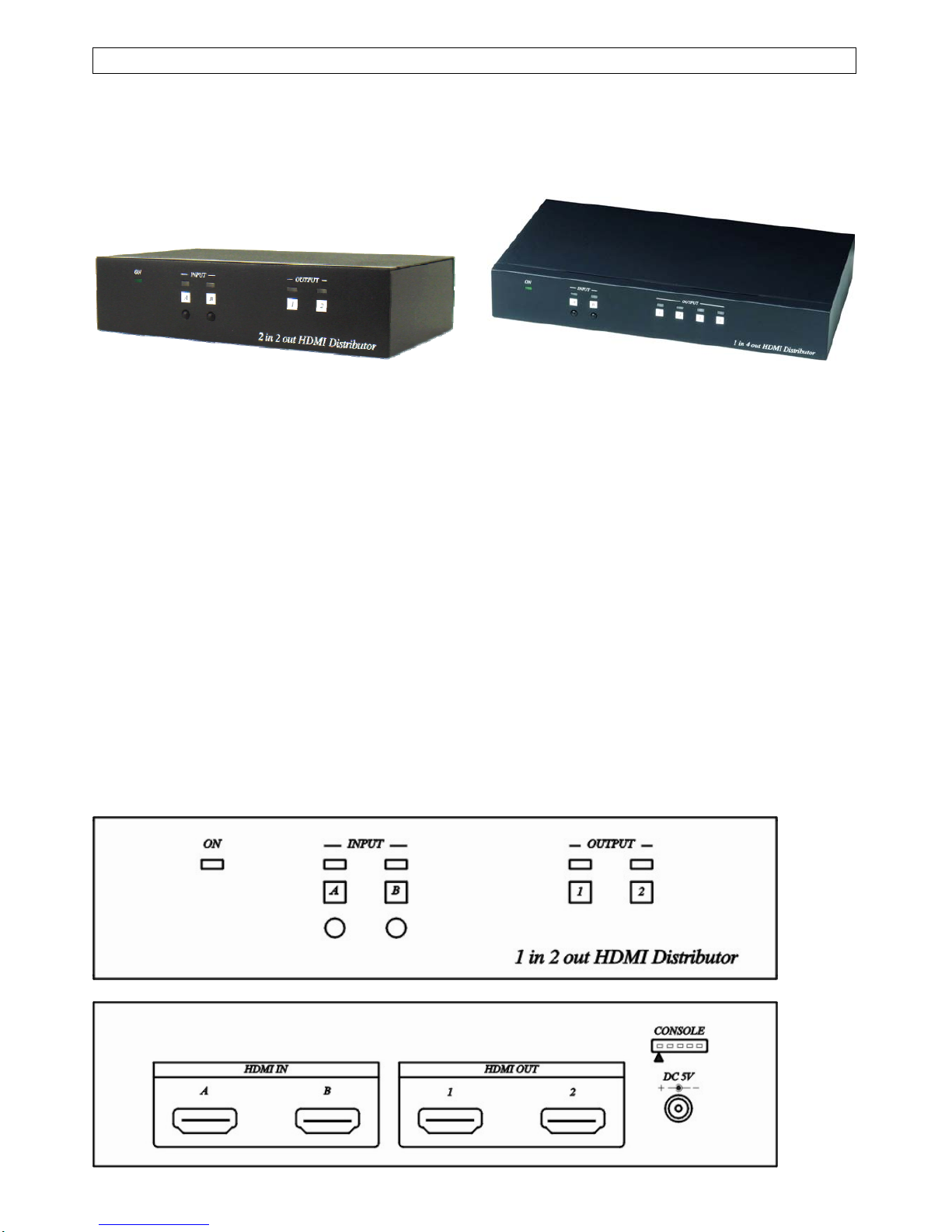

Panel View:
HD02
FORESIGHT CCTV INC. | 5863 Leslie Street, Unit#713, North York, Ontario,Canada, M2H 1J8 | http://www.foresight-cctv.com | 1-888-GO2-CCTV
Page 2

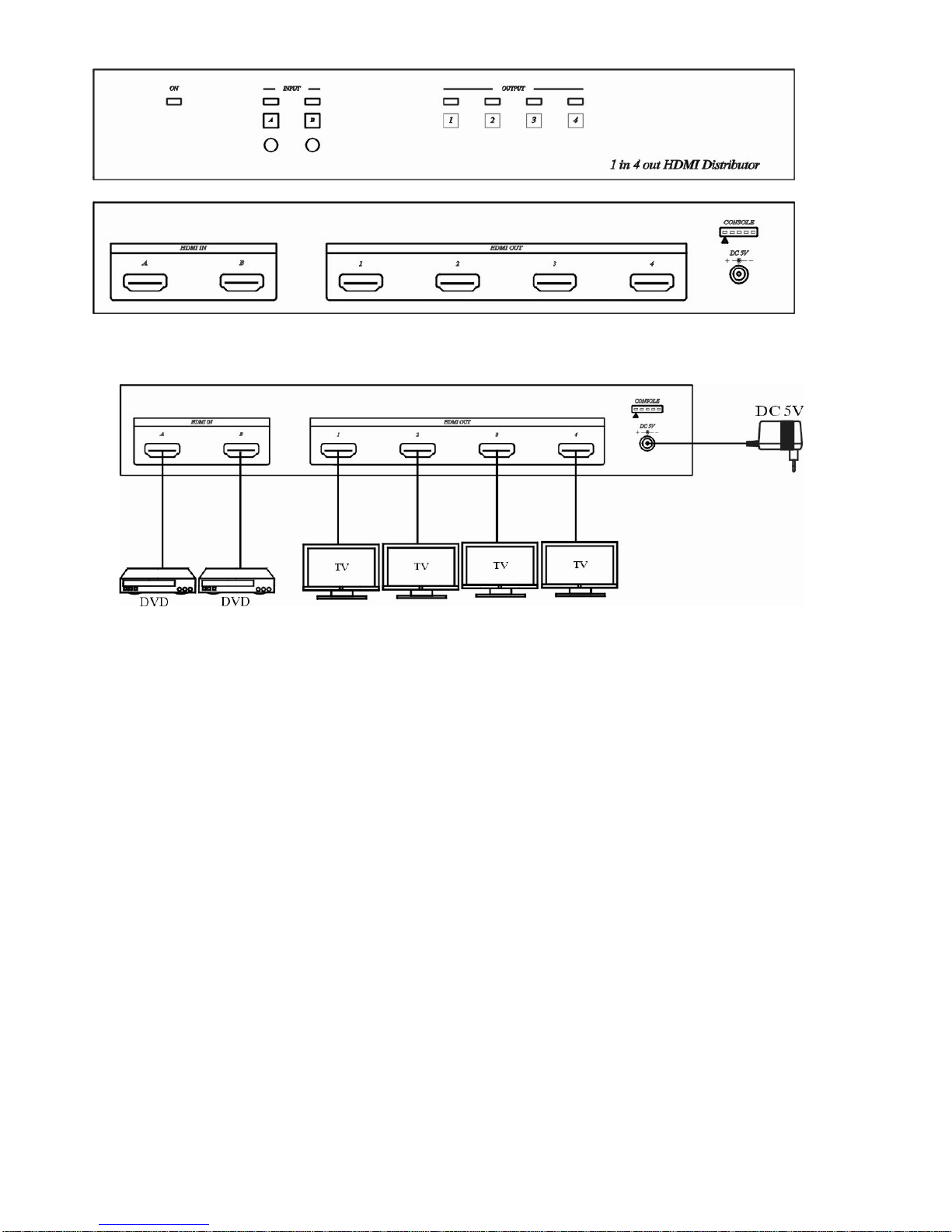

HD04
Installation View:
1. Connect HDMI source to HDMI splitter Input A or B input，Output 1~4 to monitor.
2. Output 1 as EDID Master Port. Recommend connect all HDMI equipments first, then
power on, it will auto copy Master Port EDID for HDMI source reference which take around
10 seconds.
3. Input A、B by front button selection.
4. Input LED flash: no any signal detected.
5. Press A, B buttons together to activated/disabled auto jump function.
6. Auto Jump function ON: A, B Blue LED flash at same time.
7. Auto Jump function OFF: A, B Blue LED on at same time.
LED Indication:
POWER ON/OFF Green
INPUT A Blue
INPUT B Blue
OUTPUT 1 Blue
OUTPUT 2 Blue
OUTPUT 3 Blue
OUTPUT 4 Blue
Remark：
1. There are some DVD equipments still have +5V signal output under power off status, it will
cause auto jump function abnormal, please disable auto jump and setup by press A, B button to
avoid any abnormal operation.
2. HD02/H04 no memory function, it will back to factory default once power off. (input A , auto
jump function off)
2
FORESIGHT CCTV INC. | 5863 Leslie Street, Unit#713, North York, Ontario,Canada, M2H 1J8 | http://www.foresight-cctv.com | 1-888-GO2-CCTV
Page 3
Specification:
ITEM NO. HD02 HD04
Resolution
480i/p、720p、1080i/p @24/50/60Hz
HDMI Connector
Input: 2 port (HDMI Type A),
Output: 2 port ( HDMI Type A)
Input: 2 port (HDMI Type A),
Output: 4 port ( HDMI Type A)
A / B input
Button switch x 2
Supports Bandwidth
25-225Mhz, support up to 12-Bit deep color
Supports Resolution
480i,576i,480p,720p,1080i,1080p
Operation Temperature
-10℃~45℃
Storage Temperature
-30℃~70℃
Power Consumption
1500mA (Max) 1500mA (Max)
Power Supply
DC5V2AMP
DIMENSIONS W x H x D mm
167 x 96 x 40 (mm) 253 x 138.5 x 40 (mm)
Weight
450 g 800g
3
