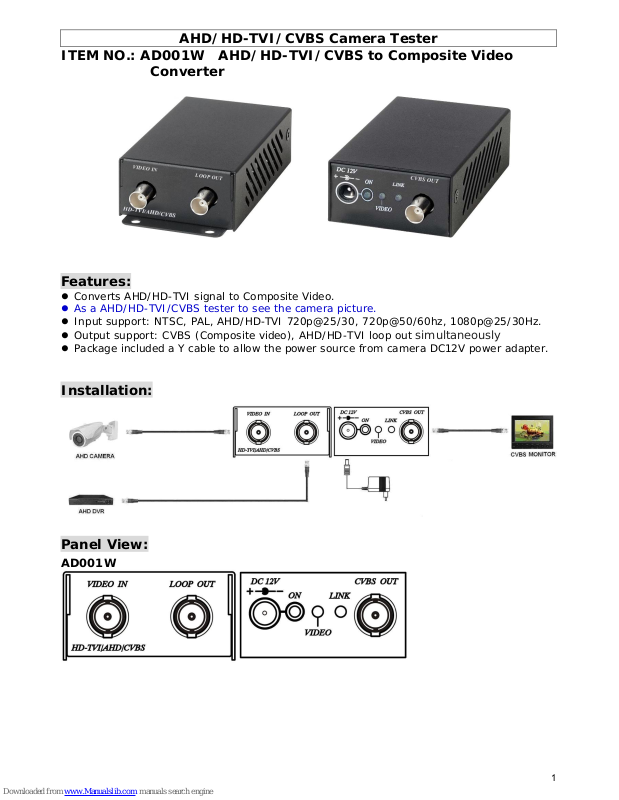

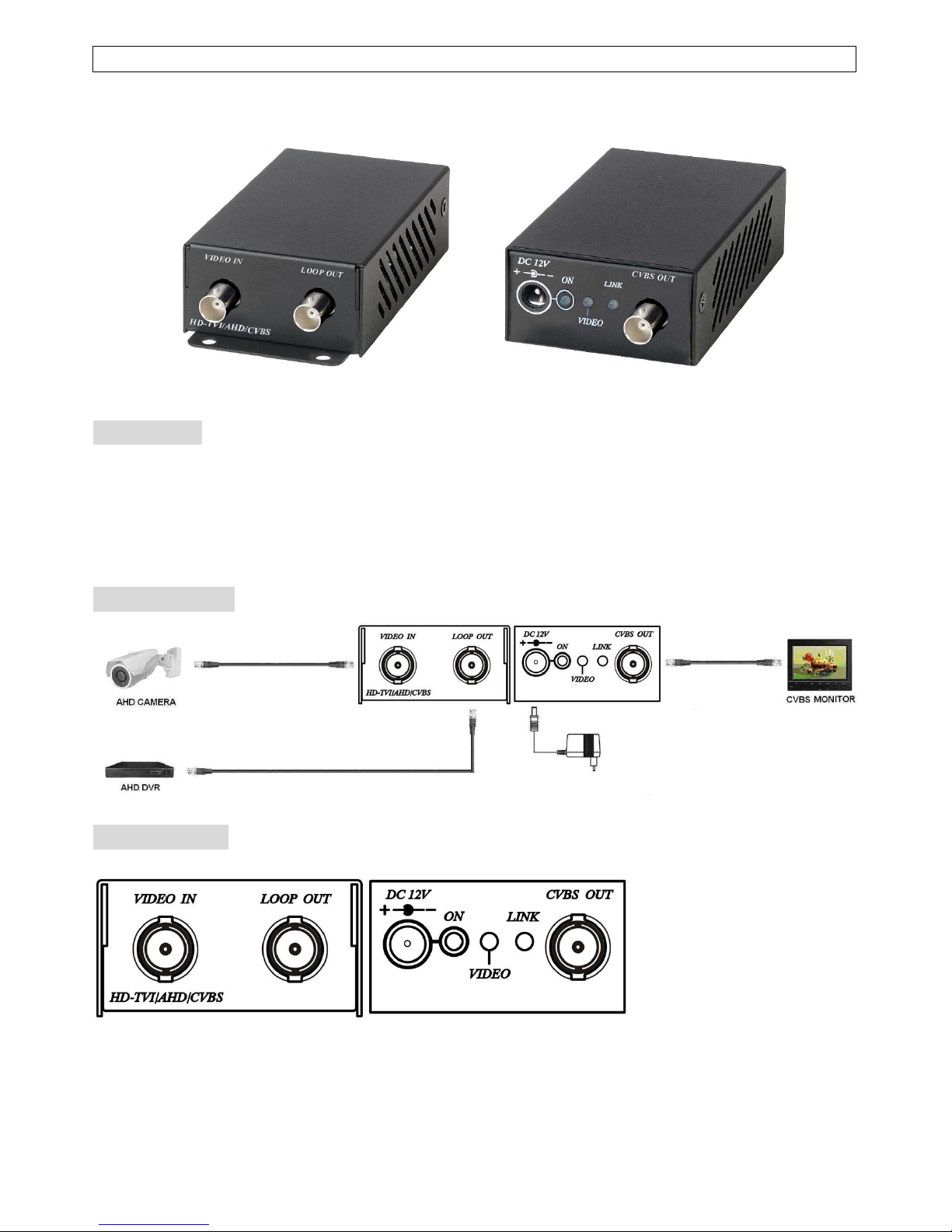

AHD/HD-TVI/CVBS Camera Tester
ITEM NO.: AD001W AHD/HD-TVI/CVBS to Composite Video
Converter
Features:
Converts AHD/HD-TVI signal to Composite Video.
As a AHD/HD-TVI/CVBS tester to see the camera picture.
Input support: NTSC, PAL, AHD/HD-TVI 720p@25/30, 720p@50/60hz, 1080p@25/30Hz.
Output support: CVBS (Composite video), AHD/HD-TVI loop out
simultaneously
Package included a Y cable to allow the power source from camera DC12V power adapter.
Installation:
Panel View:
AD001W
Page 2
2
LED Indication:
Green Power ON/OFF
Blue Input video locked
Red Linking
Dip Switch :
DIP Switch 1: HD/SD video source selection (Default ON), need reboot after change
ON: HD mode for HD-TVI/AHD camer a
OFF: SD Mode for CVBS (Composite Video) camera
DIP Switch 2、3: Reserved (Default OFF)
No function
DIP Switch 4: ISP function (Default ON), need reboot after change
ON: Normal mode
OFF: ISP Mode for firmware update
Caution
1. Before use Y cable with camera’s power adapter, please make sure the power adapter is
enough for camera use plus AD001W DC12 500mA
Specification:
ITEM NO AD001W
Video Support Resolution
NTSC, PAL,
AHD/HD-TVI 720p@25/30, 720p@50/60hz, 1080p@25/30Hz
Video Input Connector BNC x 2
Video Output Connector BNC x1
LED Indication LED x 3 ( Green, Blue, Red)
Power Supply DC12V From camera power adapter
Power Consumption 350mA (Max) 4-5 Watts
Temperature Operation: 0 to 55 , Storage: ℃ -20 to 85 , Humidity: up to 95%℃
Dimension (mm) 49.2 x 111.4 x 25
Weight (g) 160
Rev. A 2016/10/07
