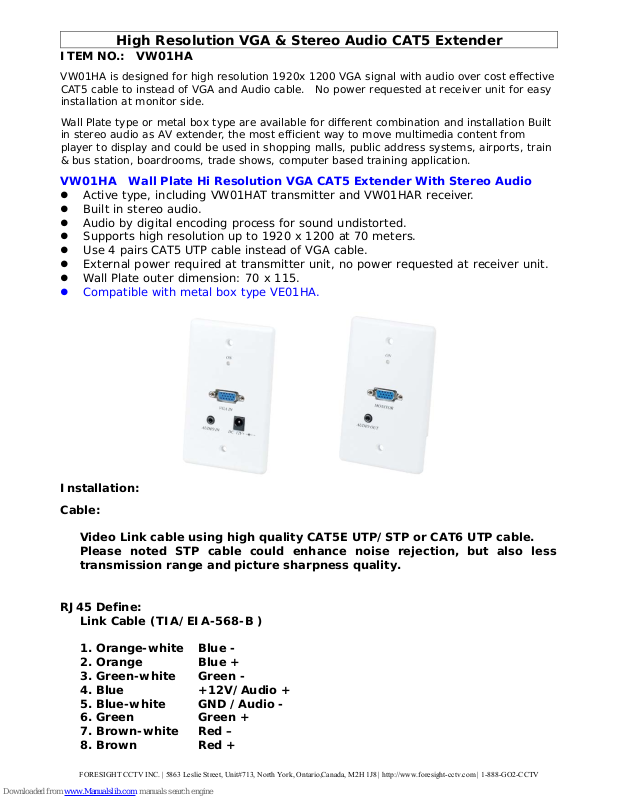

High Resolution VGA & Stereo Audio CAT5 Extender
ITEM NO.: VW01HA
VW01HA is designed for high resolution 1920x 1200 VGA signal with audio over cost effective
CAT5 cable to instead of VGA and Audio cable. No power requested at receiver unit for easy
installation at monitor side.
Wall Plate type or metal box type are available for different combination and installation Built
in stereo audio as A V exten der, the most efficient way to move multimedia content from
player to display and could be used in shopping malls, public address systems, airports, train
& bus station, boardrooms, trade shows, computer based training application.
VW01HA Wall Plate Hi Resolution VGA CAT5 Extender With Stereo Audio
Active type, including VW01HAT transmitter and VW01HAR receiver.
Built in stereo audio.
Audio by digital encoding process for sound undistorted.
Supports high resolution up to 1920 x 1200 at 70 meters.
Use 4 pairs CAT5 UTP cable instead of VGA cable.
External power required at transmitter unit, no power requested at r eceiver unit.
Wall Plate outer dimension: 70 x 115.
Compatible with metal box type VE01HA.
Installation:
Cable:
Video Link cable using high quality CAT5E UTP/STP or CAT6 UTP cable.
Please noted STP cable could enhance noise rejection, but also less
transmission range and picture sharpness quality.
RJ45 Define:
Link Cable (TIA/EIA-568-B )
1. Orange-white Blue -
2. Orange Blue +
3. Green-white Green -
4. Blue +12V/Audio +
5. Blue-white GND /Audio -
6. Green Green +
7. Brown-white Red –
8. Brown Red +
FORESIGHT CCTV INC. | 5863 Leslie Street, Unit#713, North York, Ontario,Canada, M2H 1J8 | http://www.foresight-cctv.com | 1-888-GO2-CCTV
Page 2

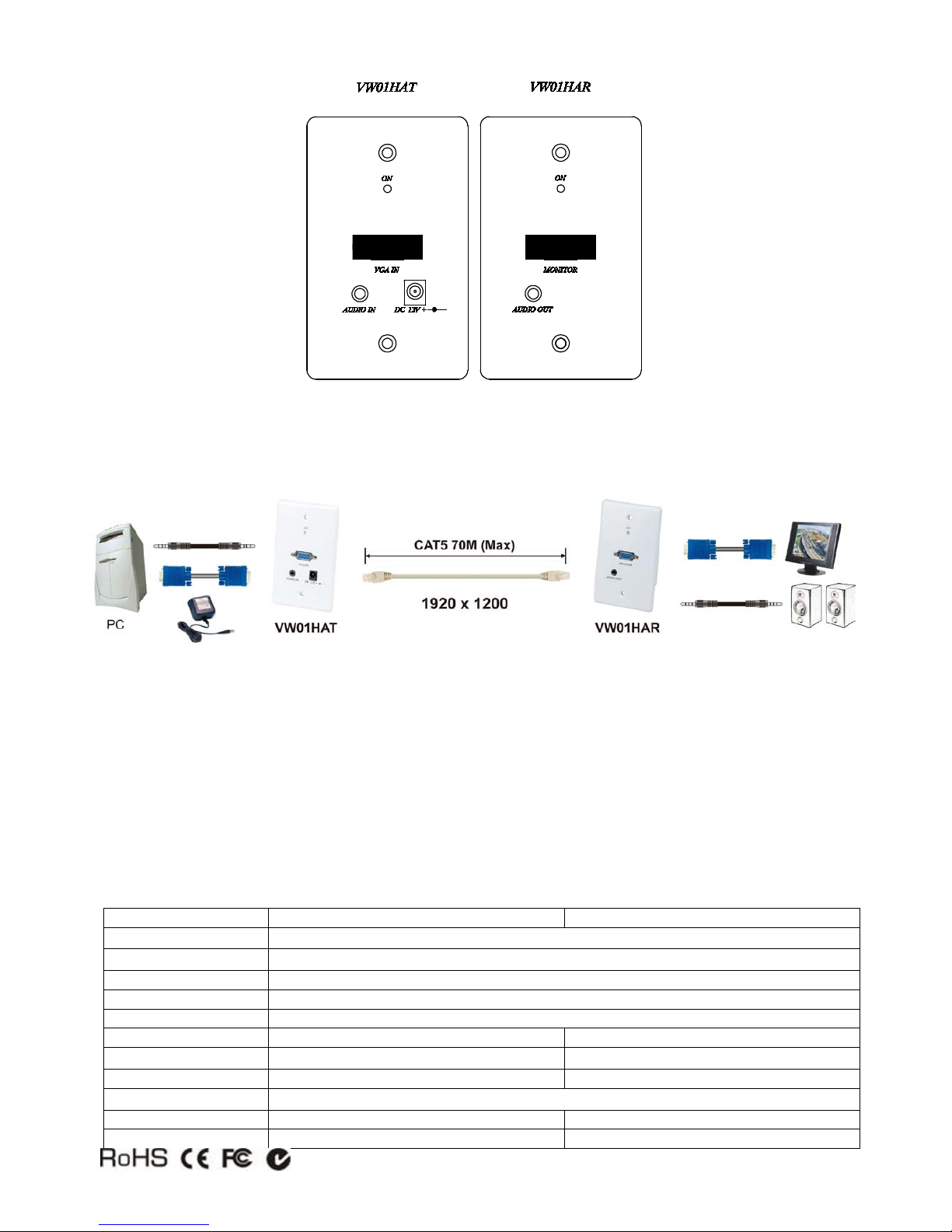

Panel View:
Installation View:
VW01HA
VW01HA(T+R) LED :
Blue LED : power on/off
Caution:
1. This device not Ethernet product, do not connect any Ethernet.
2. The cabling must away from any equipment with electromagnetic wave, i.e.:
microwave, radio equipment, high voltage lines.
Specification:
ITEM
VW01HAT
VW01HAR
VGA Connector
DB15 x 1 ( RGB Analog．0.7 Vp-p 75Ω)
Audio Connector
Stereo Phone Jack 3.5mm x 1 ( 2Vp-p Max．10KΩ)
Video bandwidth
700 MHz, -3dB
Audio bandwidth
20 ~ 20K Hz, -3db
Data Link
RJ45 x 1
DC Jack
Ø 2.0 mm x 1
X
Power Supply
DC 12V．500mA
X
Power Consumption
400 mA (Max)
Temperature
Operation: 0 to 55℃, Storage: -20 TO 85℃, Humidity: up to 95%
Dimensions mm
70.3 x 31.6 x 115
70.3 x 31.6 x 115
Weight g
78
75
Rev. B
