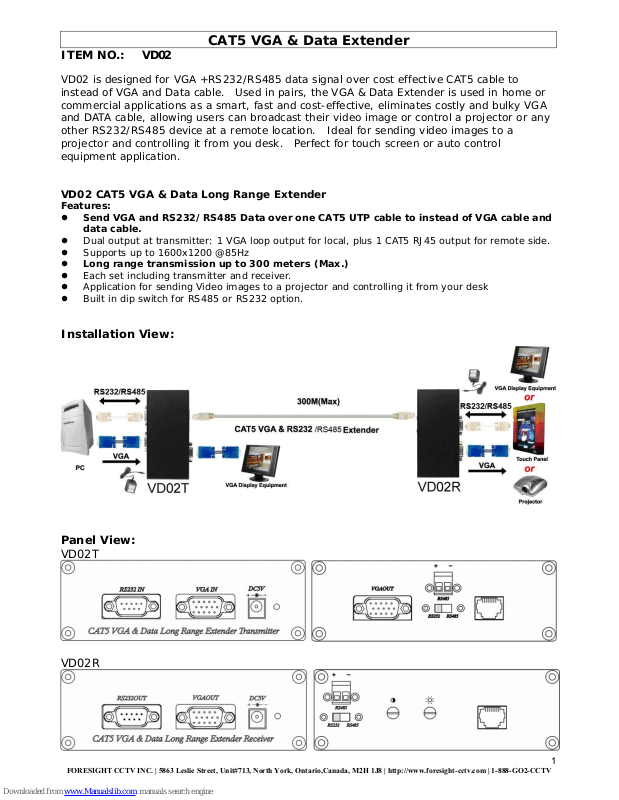

Page 1
CAT5 VGA & Data Extender
ITEM NO.: VD02
VD02 is designed for VGA +RS232/RS485 data signal over cost effective CAT5 cable to
instead of VGA and Data cable. Used in pairs, the VGA & Data Extender is used in home or
commercial applications as a smart, fast and cost-effective, eliminates costly and bulky VGA
and DATA cable, allowing users can broadcast their video image or control a projector or any
other RS232/RS485 device at a remote location. Ideal for sending video images to a
projector and controlling it from you desk. Perfect for touch screen or auto control
equipment application.
VD02 CAT5 VGA & Data Long Range Extender
Features:
Send VGA and RS232/RS485 Data over one CAT5 UTP cable to instead of VGA cable and
data cable.
Dual output at transmitter: 1 VGA loop output for local, plus 1 CAT5 RJ45 output for remote side.
Supports up to 1600x1200 @85Hz
Long range transmission up to 300 meters (Max.)
Each set including transmitter and receiver.
Application for sending Video images to a projector and controlling it from your desk
Built in dip switch for RS485 or RS232 option.

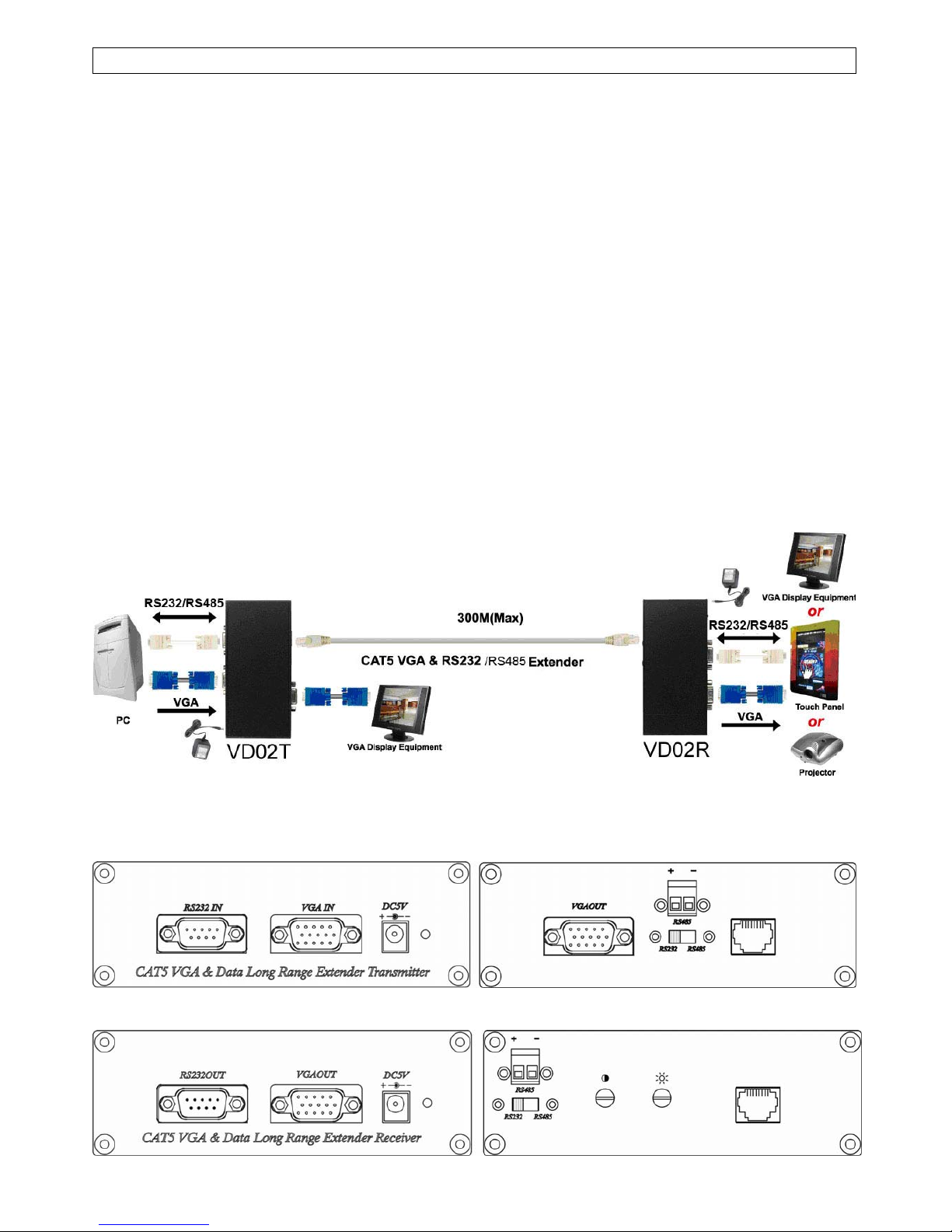

Installation View:
Panel View:
VD02T
VD02R
1
FORESIGHT CCTV INC. | 5863 Leslie Street, Unit#713, North York, Ontario,Canada, M2H 1J8 | http://www.foresight-cctv.com | 1-888-GO2-CCTV
Page 2
Specification:
ITEM NO. VD02
Support Resolution Up to 1600 x 1200 @ 85 Hz
Transmission Distance Up to 1000 ft. (300 m)
Video Amplifier Bandwidth 150MHz
RGB Analog (75Ω, 0.7Vp-p)+ DATA
Sync Signal H/V Separated (TTL)
Input Signals
RS232 Data DB9 connector / RS485 terminal block
Horizontal Frequency Range 30-95KHz
Vertical Frequency Range 50-180Hz
VGA Connector 15-pin Mini D-Sub (High Density)
Link Connector RJ-45
Power Supply 2 x 5V DC 1000mA (External)
Power Consumption VD02T 400mA (Max), VD02R 400mA (Max)
CABLE FOR RJ-45 CAT 5 unshielded Twisted Pair Cable (UTP) x 1
Temperature Operation: 0 to 55 , Storage: ℃ -20 TO 85 , Humidity: up to 95%℃
Dimensions W x H x D mm VD02T: 133*76*44 , VD02R: 133*72.5*44
Weight g 300

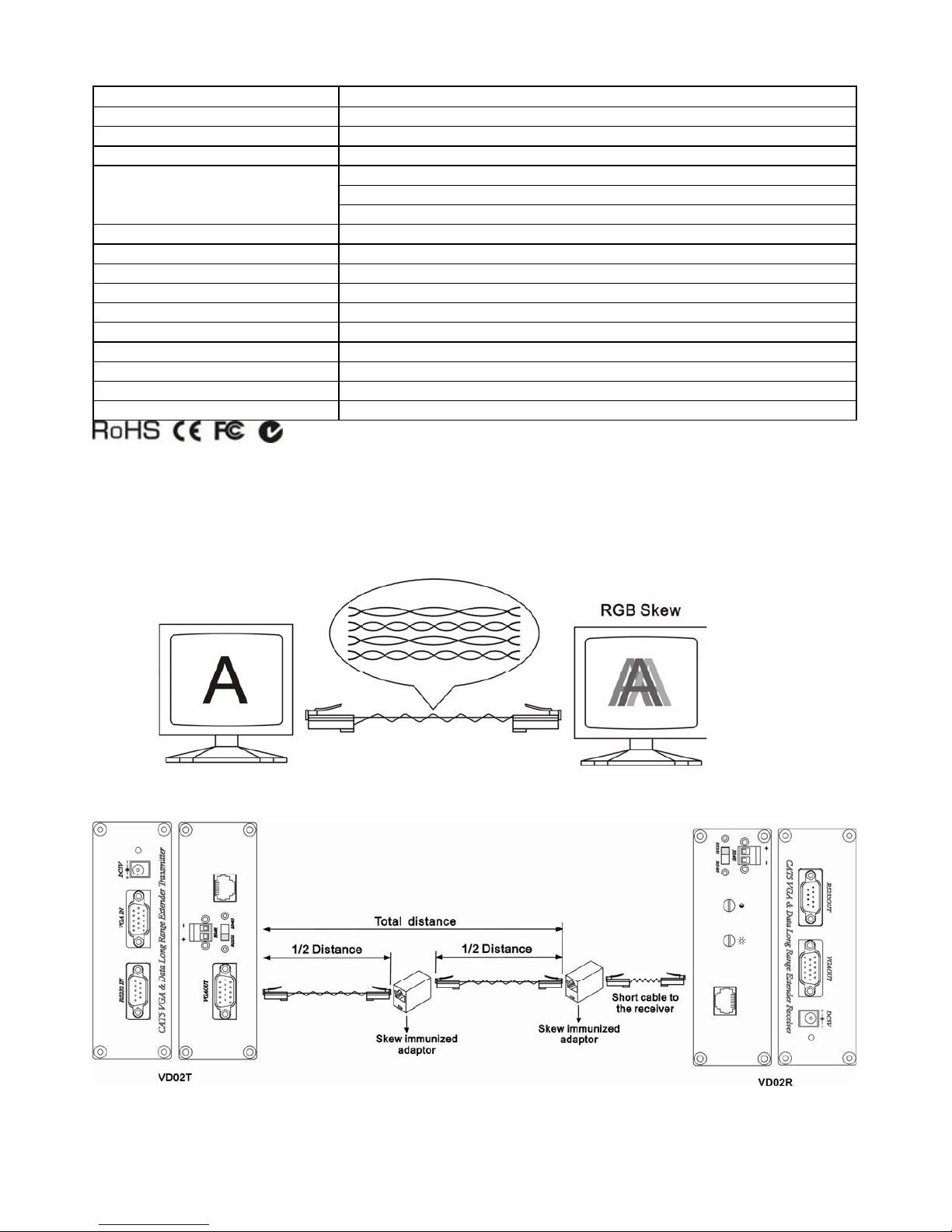

Installation Tips:
1. Due to the inside of CAT5 cable that the pairs of wires are twisted at different rates, AND the
different quality on cable itself and installation that will cause different signal arrival time at
each pair. If there are big different at arrival time, that will cause RGB skew status.. This is
seen on the monitor as separation, or lack of convergence in colors. Normally it happens on
long CAT 5 cable runs.
2. Recommend to use following cabling way to reduce skew status, to add special made “skew
immunized adaptor”, 2 pieces included at the package.
CAUTION: to avoid display equipment damaged, be sure to make correct
cable connection and power for both VD02T before connecting VD02R
2
