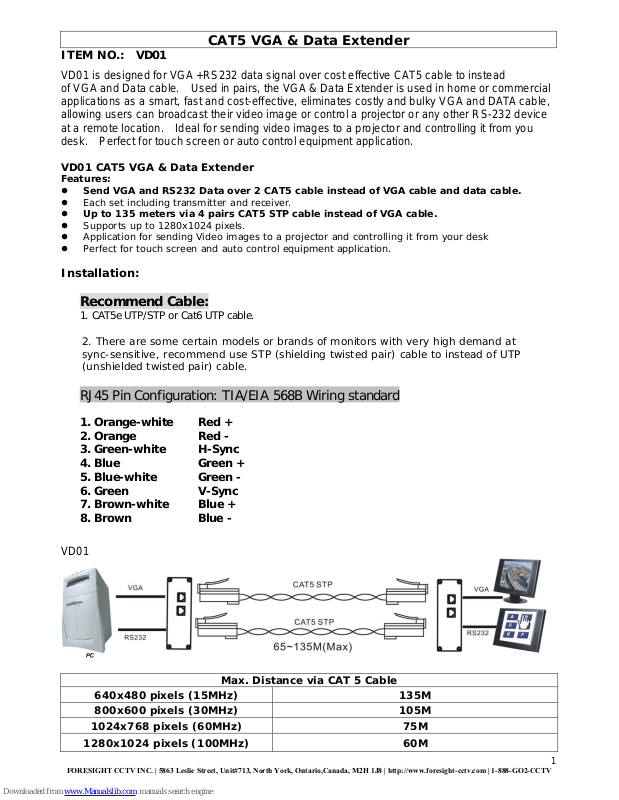

CAT5 VGA & Data Extender
ITEM NO.: VD01
VD01 is designed for VGA +RS232 data signal over cost effective CAT5 cable to instead
of VGA and Data cable. Used in pairs, the VGA & Data Extender is used in home or commercial
applications as a smart, fast and cost-effective, eliminates costly and bulky VGA and DATA cable,
allowing users can broadcast their video image or control a projector or any other RS-232 device
at a remote location. Ideal for sending video images to a projector and controlling it from you
desk. Perfect for touch screen or auto control equipment application.
VD01 CAT5 VGA & Data Extender
Features:
z Send VGA and RS232 Data over 2 CAT5 cable instead of VGA cable and data cable.
z Each set including transmitter and receiver.
z Up to 135 meters via 4 pairs CAT5 STP cable instead of VGA cable.
z Supports up to 1280x1024 pixels.
z Application for sending Video images to a projector and controlling it from your desk
z Perfect for touch screen and auto control equipment application.
Installation:
Recommend Cable:
1. CAT5e UTP/STP or Cat6 UTP cable.
2. There are some certain models or brands of monitors with very high demand at
sync-sensitive, recommend use STP (shielding twisted pair) cable to instead of UTP
(unshielded twisted pair) cable.
RJ45 Pin Configuration: TIA/EIA 568B Wiring standard
1. Orange-white Red +
2. Orange Red -
3. Green-white H-Sync
4. Blue Green +
5. Blue-white Green -
6. Green V-Sync
7. Brown-white Blue +
8. Brown Blue -
VD01
Max. Distance via CAT 5 Cable
640x480 pixels (15MHz) 135M
800x600 pixels (30MHz) 105M
1024x768 pixels (60MHz) 75M
1280x1024 pixels (100MHz) 60M
1
FORESIGHT CCTV INC. | 5863 Leslie Street, Unit#713, North York, Ontario,Canada, M2H 1J8 | http://www.foresight-cctv.com | 1-888-GO2-CCTV
DATA( RS232 )
VD01T / VD02T VD01R/VD02R
Panel View:
VD01T
VD01R
Specification:
ITEM NO. VD01
Environment VGA. VESA VP&D 1.0, VIP ver 2.0
Transmission Distance 60 -135 meters depend on image resolution
Devices VGA monitors, LCD projection screen, Laptops, PCs.
Video : 1.1V P-P
Horiz & Vert Sync : TTL standard. 300kHz max. bandwidth
Input Signals
RS232 Data DB9 connector
Insertion Loss Less than 3dB per pair over the frequency range
Video Signal Return Loss -15dB max from DC to 60Mhz
RJ45 Pin Configuration
( RJ1)
R video (Red): Pin 1 (+), Pin 2 (-) Balanced
Gvideo (Green): Pin 4 (+), Pin 5 (-) Balanced
B video (Blue): Pin 7 (+), Pin 8 (-) Balanced
Horizontal Sync: Pin 3, Vertical Sync: Pin 6
RJ2 RS232 Sync
Input : RGB 75 ohms (DB15 HD) Unbalanced
Output : RGB 100 ohms (RJ45 shielded) Balanced
Impedance
Horizontal and vertical sync : TTL standard
CABLE FOR RJ-45 CAT 5 Shielded Twisted Pair Cable (STP) x 2
Power Supply 2 x 12V DC 500mA (External)
Power Consumption VD01T 200 (Max), VD01R 200 (Max)
Temperature Operation: 0 to 55 C, Storage: -20 TO 85 c, Humidity: up to 95%
DIMENSIONS W x H x D mm
VD10T：133*70*44 VD01R：133*70*44
Weight g 300
