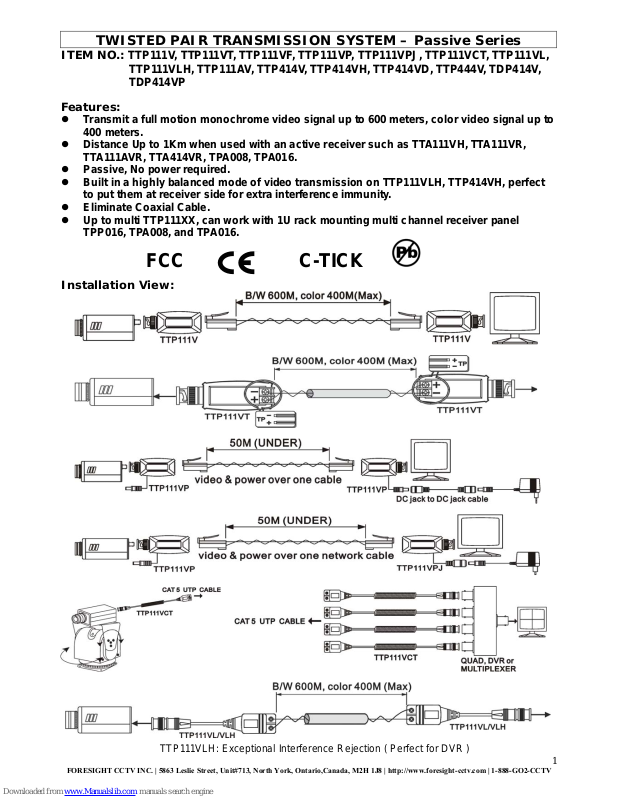

TWISTED PAIR TRANSMISSION SYSTEM – Passive Series
ITEM NO.: TTP111V, TTP111VT, TTP111VF, TTP111VP, TTP111VPJ, TTP111VCT, TTP111VL,
TTP111VL H, TTP111AV, TTP414V, TTP414VH, TTP414VD, TTP444V, TDP414V,
TDP414VP
Features:
z Transmit a full motion monochrome video signal up to 600 meters, color video signal up to
400 meters.
z Dist
ance Up to 1Km when used with an active receiver such as TTA111VH, TTA111VR,
TTA111AVR, TTA414VR, TPA008, TPA016.
z Passi
ve, No power required.
z Built in a highly
balanced mode of video transmission on TTP111VLH, TTP414VH, perfect
to put them at receiver side for extra interference immunity.
z Eliminate Coaxi
al Cable.
z Up to multi TTP1
11XX, can work with 1U rack mounting multi channel receiver panel
TPP016, TPA008, and TPA016.
FCC C-TICK

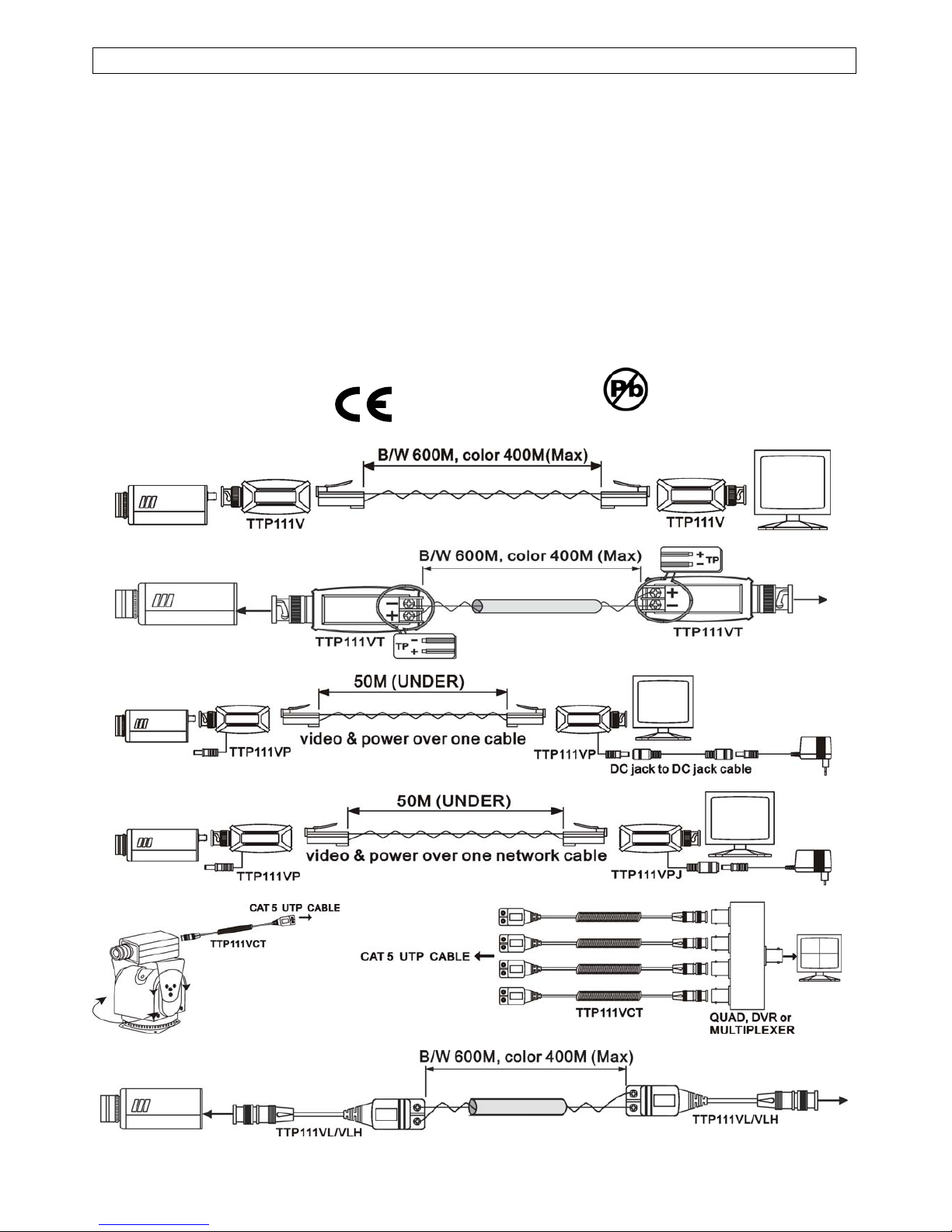

Installation View:
1
TTP111VLH: Exceptional Interference Rejection ( Perfect for DVR )
FORESIGHT CCTV INC. | 5863 Leslie Street, Unit#713, North York, Ontario,Canada, M2H 1J8 | http://www.foresight-cctv.com | 1-888-GO2-CCTV
Built in a highly balanced mode of video transmission, which is immune to interference from these, and
other sources of noise: Data Signals, Other Video Signals, Nearby Power, Ringing Telephones, Fluorescent
Lights, Transformers, And More...
Note: Camera power send from TDP414VP cable hub station (50meters), work with TTP111VP.
TDP414VP including “ regulated power adapter” must work with “non-regulated camera”. Once
your camera built in regulated IC, the adapter must alternate to NON-Regulated.
TTP414VH: Exceptional interference rejection for all 4 channels ( Perfect for DVR )
Built in a highly balanced mode of video transmission, which is immune to interference from these, and
other sources of noise: Data Signals, Other Video Signals, Nearby Power, Ringing Telephones, Fluorescent
Lights, Transformers, And More...
2
FORESIGHT CCTV INC. | 5863 Leslie Street, Unit#713, North York, Ontario,Canada, M2H 1J8 | http://www.foresight-cctv.com | 1-888-GO2-CCTV
Panel View:
TTP111V / TTP111VP TTP111VF
Front Rear Front Rear
TTP111VT
Front Rear
TTP111AV
Front View Rear View
TTP414V
Front View Rear View
TTP414VH
Front View Rear View
TTP414VD
Front View Rear View
TTP444V
Front View Rear View
TDP414V
Front View Rear View
3
FORESIGHT CCTV INC. | 5863 Leslie Street, Unit#713, North York, Ontario,Canada, M2H 1J8 | http://www.foresight-cctv.com | 1-888-GO2-CCTV
TDP414VP
Front View Rear View
RJ-45 Jack Pin Define
NOTE : These devices is reversible, BNC connector ＝ RJ45
PAIR2 & PAIR3 : POWER (TTP111VP, TTP111VPJ) Î POWER+ : PIN 6, PIN 4, POWER- :
PIN 3, PIN 5
PAIR4 : VIDEO
Specification:
ITEM NO. TTP111V TTP111VT TTP111VF TTP111VP TTP111VPJ
VIDEO INPUT (BNC Connector) 1 1 F 1 1
VIDEO INPUT 1V p-p, 75 Ohms
AUDIO INPUT (RCA Connector) X
AUDIO INPUT X
RJ-45 INPUT X
RJ-45 OUTPUT 1 Terminal Terminal 1 1
TRANSMISSION DISTANCE 600M(B/W), 400M(COLOR)
CABLE FOR RJ-45 Twisted Pair CAT 5 (AWG24)
POWER X X X V V
DIMENSIONS W x H x D mm 69x25x22 69x25x22 69x25x22 69x25x22 69x25x22
ITEM NO. TTP111VCT TTP111VL TTP111VLH TTP111AV TTP414V
VIDEO INPUT (BNC Connector) 1 1 1 1 4
VIDEO INPUT 1V p-p, 75 Ohms
AUDIO INPUT (RCA Connector) X X X 2 WAY X
AUDIO INPUT X X X 2V p-p X
RJ-45 INPUT X X X X X
RJ-45 OUTPUT SCREW Terminal Terminal 1 1
TRANSMISSION DISTANCE 600M(B/W), 400M(COLOR)
CABLE FOR RJ-45 Twisted Pair CAT 5 (AWG24)
POWER X X X X X
DIMENSIONS W x H x D mm 23x23x550mm
With 18cm
Retractile Cord
23x23x320mm
With 25cm mini
coax cable
23x23x330mm
With 25cm mini
coax cable
110x77x24 110x77x24
ITEM NO. TTP414VH TTP414VD TTP444V TDP414V TDP414VP
VIDEO INPUT (BNC Connector) 4 4 4 X X
VIDEO INPUT 1V p-p, 75 Ohms
AUDIO INPUT (RCA Connector) X X X X X
AUDIO INPUT X X X X X
RJ-45 INPUT X X X 4 4
RJ-45 OUTPUT 1 1 4 1 1
TRANSMISSION DISTANCE 600M(B/W), 400M(COLOR) X X
CABLE FOR RJ-45 Twisted Pair CAT5 (AWG24)
POWER X X X X V
DIMENSIONS W x H x D mm 138x66x28 138x66x28 110x77x24 110x77x24 110x77x24
4
