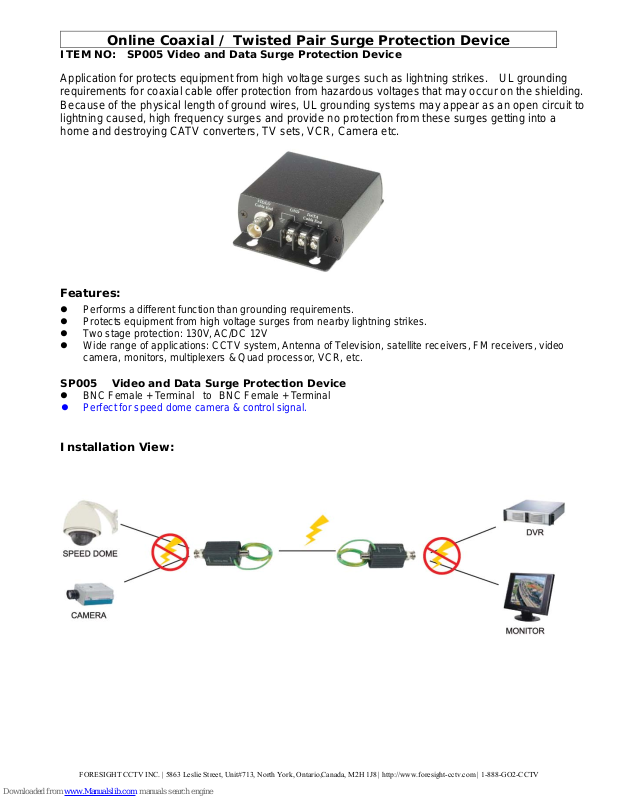

Online Coaxial / Twisted Pair Surge Protection Device
ITEM NO: SP005 Video and Data Surge Protection Device
Application for protects equipment from high voltage surges such as lightning strikes. UL grounding
requirements for coaxial cable offer protection from hazardous voltages that may occur on the shielding.
Because of the physical length of ground wires, UL grounding systems may appear as an open circuit to
lightning caused, high frequency surges and provide no protection from these surges getting into a
home and destroying CATV converters, TV sets, VCR, Camera etc.
Features:
Performs a different function than grounding requirements.
Protects equipment from high voltage surges from nearby lightning strikes.
Two stage protection: 130V , AC/DC 12V
Wide range of applications: CCTV system, Antenna of Television, satellite receivers, FM receivers, video
camera, monitors, multiplexers & Quad processor, VCR, etc.
SP005 Video and Data Surge Protection Device
BNC Female + Terminal to BNC Female + Terminal
Perfect for speed dome camera & control signal.

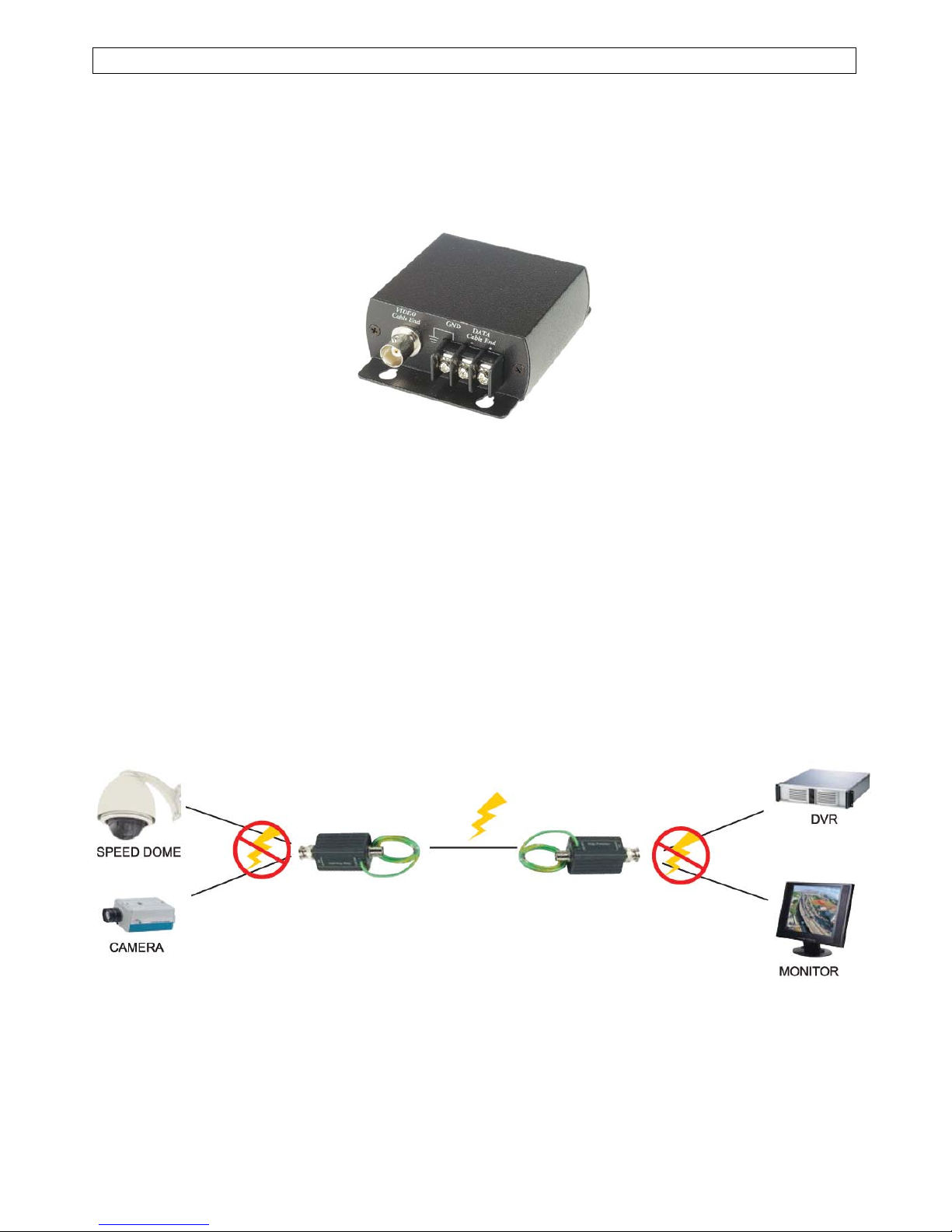

Installation View:
FORESIGHT CCTV INC. | 5863 Leslie Street, Unit#713, North York, Ontario,Canada, M2H 1J8 | http://www.foresight-cctv.com | 1-888-GO2-CCTV
Page 2

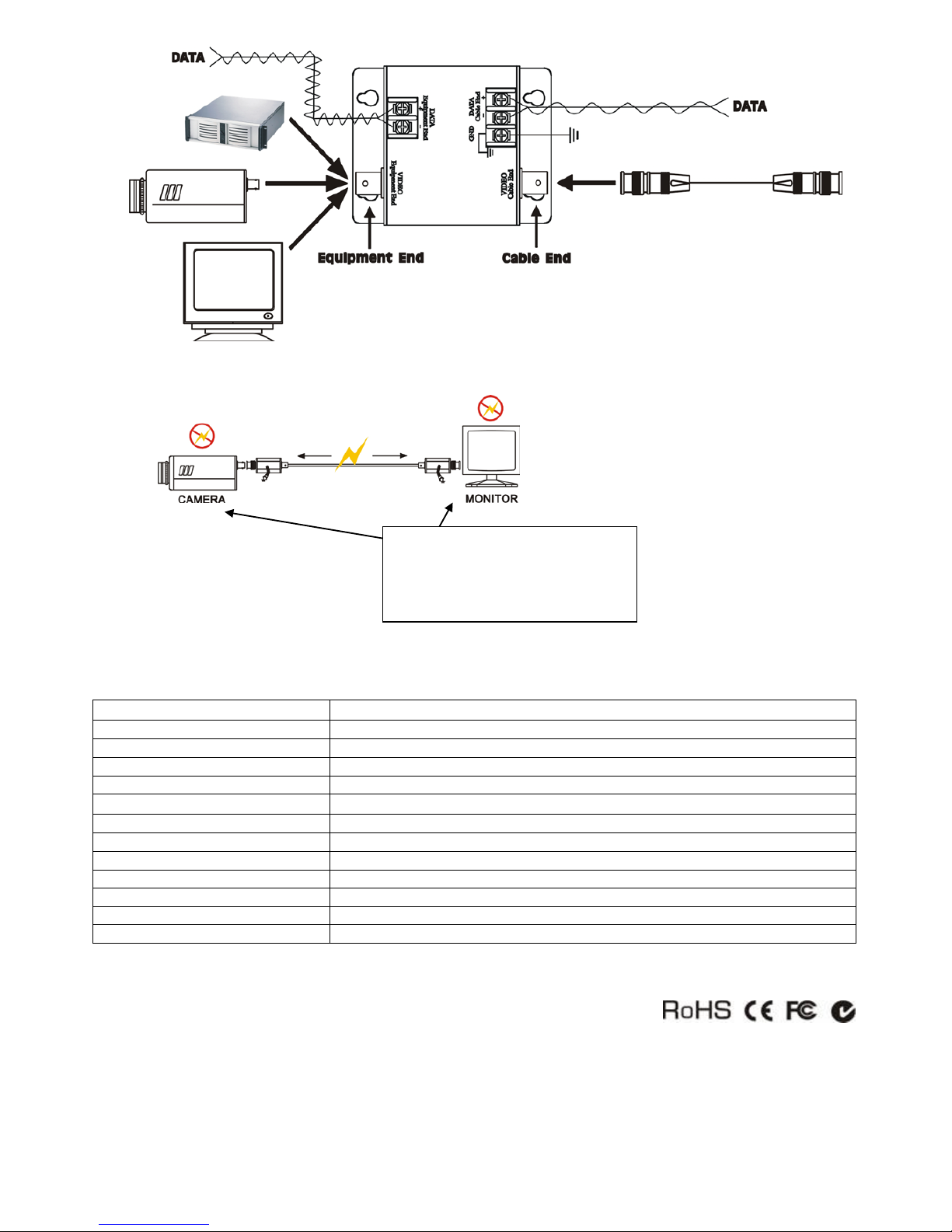

Application
CATV System
Antenna of Television
Video Cassette Recorders
FM receivers
Video Cameras and monitors
Multiplexers and Quad Processor
Specification:
ITEM NO. SP005
Surge Protection Attack Time
1 ns
Maximum Surge Voltage
4 KV
Surge Life
300 surges of 100Amps
Normal Resistance Across Coax
10,000 MΩ
Surge Resistance
Approx. 0Ω
BAND PASS
0~1 GHZ
Power Passing Capability
130V AC / DC, 65 Vrms at10 Amps
Insertion Loss
Less than 0.2 dB
Return Loss (75 ohms)
16dB
Connectors
Terminal
Dimensions W x H x D mm
65x25x25
WEIGHT g
65
Note:
For ensuring the unit can
protect equipment s, t h e cable
must be connected to ground.
