FORESIGHT RB01, RT01, RV01 User Manual

19” 3U Rack Card Series: VGA & Stereo Audio CAT5 Distribution
System – Multi Input/Output
ITEM NO.: RB01, RV01, RT01

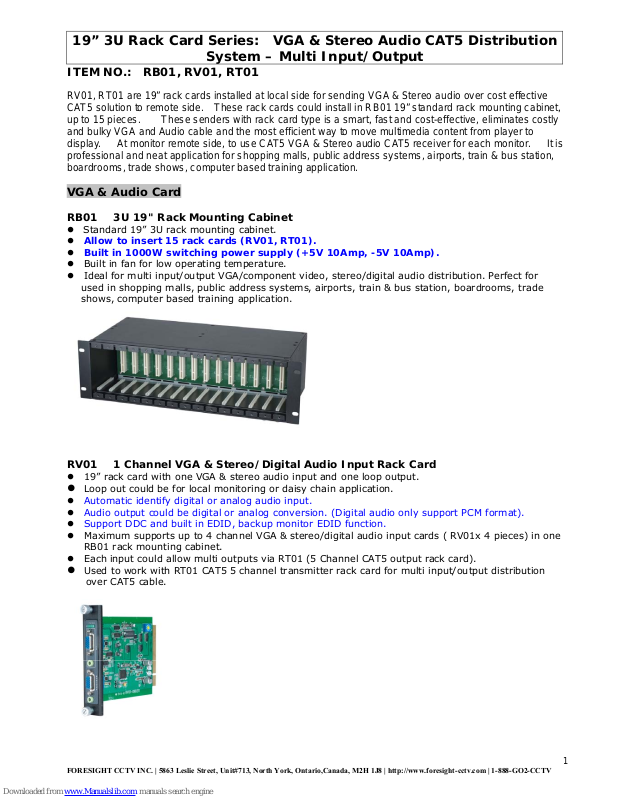

RV01, RT01 are 19” rack cards installed at local side for sending VGA & Stereo audio over cost effective CAT5 solution to remote side. These rack cards could install in RB01 19” standard rack mounting cabinet, up to 15 pieces. These senders with rack card type is a smart, fast and cost-effective, eliminates costly and bulky VGA and Audio cable and the most efficient way to move multimedia content from player to display. At monitor remote side, to use CAT5 VGA & Stereo audio CAT5 receiver for each monitor. It is professional and neat application for shopping malls, public address systems, airports, train & bus station, boardrooms, trade shows, computer based training application.
VGA & Audio Card
RB01 3U 19" Rack Mounting Cabinet
Standard 19” 3U rack mounting cabinet.
Allow to insert 15 rack cards (RV01, RT01). Built in 1000W switching power supply (+5V 10Amp, -5V 10Amp). Built in fan for low operating temperature. Ideal for multi input/output VGA/component video, stereo/digital audio distribution. Perfect for
used in shopping malls, public address systems, airports, train & bus station, boardrooms, trade shows, computer based training application.
RV01 1 Channel VGA & Stereo/Digital Audio Input Rack Card
19” rack card with one VGA & stereo audio input and one loop output.
Loop out could be for local monitoring or daisy chain application.
Automatic identify digital or analog audio input. Audio output could be digital or analog conversion. (Digital audio only support PCM format). Support DDC and built in EDID, backup monitor EDID function. Maximum supports up to 4 channel VGA & stereo/digital audio input cards ( RV01x 4 pieces) in one
RB01 rack mounting cabinet.
Each input could allow multi outputs via RT01 (5 Channel CAT5 output rack card).
Used to work with RT01 CAT5 5 channel transmitter rack card for multi input/output distribution
over CAT5 cable.
1
FORESIGHT CCTV INC. | 5863 Leslie Street, Unit#713, North York, Ontario,Canada, M2H 1J8 | http://www.foresight-cctv.com | 1-888-GO2-CCTV
RT01 5 Channel CAT5 VGA/Component & Audio Outpu t Rack C a rd
19” rack card with 5 Channel CAT5 output as a CAT5 transmitter, to extend VGA/Component Video
& audio over one CAT5 cable.
Remote monitoring side using CAT5 receiver box, such a VE02ALR, VE02DALS, YE02DALR,
YE02DALS.
VGA resolution support up to 1600 x 1200@85Hz. Component video support Full HD 1080p.
Long range transmission up to 300 meters (Max.)
4 input signal option with LED indication.
Automatic scan each channel.
Allow up to 14 pieces RT01 CAT5 transmitter card at RB01, to send multi distribution up to 70
remote monitors.
Rack Card Install to Rack Card Cabinet:
1. Put the Rack card into cabinet, then screw A and A’.
2. The unit must cooperate with cabinet RB01.
3. When video signal input, signal detector LED will light, if no function, please check cable connection.
==================================================================================
RB01 Setting:
LED indication: Power on/off at back side of RB01 3U 19" Rack Mounting Cabinet
Rack Card model:
Rack Card Series: RV01, RY01, RT01
==================================================================================
RV01 Setting:
After setup rotary switch, then insert into RB01 rack cabinet. (Hot pluggable)
Rotary Dip Switch Define:
0: Setup EDID from VGA Loop out terminal monitor and remove built in Monitor EDID. 5: Setup EDID from RV01 built in standard monitor EDID.
(Resolution: 1600x1200@60Hz)
6: Setup EDID from RV01 built in wide screen monitor EDID.
(Resolution: 1680x1050@60Hz)
2
FORESIGHT CCTV INC. | 5863 Leslie Street, Unit#713, North York, Ontario,Canada, M2H 1J8 | http://www.foresight-cctv.com | 1-888-GO2-CCTV
3
7: Setup EDID from RV01 backup monitor EDID and backup EDID from VGA Loop out
terminal monitor 1: Setup CH1 output. 2: Setup CH2 output. 3: Setup CH3 output. 4: Setup CH4 output.
Set up EDID Mode:
Choose EDID mode(rotary dip switch 0, 5, 6, 7), insert RV01 into RB01 rack cabinet and wait LED on to finish setup. (Recommend not to connect VGA cable under EDID set up MODE)
Backup MONITOR EDID:
Rotary dip switch set up at “7”, then insert into RB01 rack cabinet; connect monitor to loop out VGA terminal to start backup, the all 1,2,3,4 LED will be on until finish EDID backup with “ 3 & 4 “LED on only. (Recommend not to connect VGA cable under backup EDID)
Input channel option:
Choose input channel (rotary dip switch 1, 2, 3, 4), then insert into RB01 rack cabinet.
Dip Switch Define:
1 = Auto identify digital or analog audio input. = Setup digital audio input.
2 = Audio Loop Out as normal mode. = Audio Loop Out as special mode. (Ref. to below chart)
DIP SW 2 Audio In Audio Out
Analog Audio Analog Audio
Digital Audio Digital Audio
Analog Audio Digital Audio ※1
Digital Audio Analog Audio ※2
Output mode 48K / 16 Bit PCM. Only Support PCM decoder output.
LED Indication:
1234 ■ = OFF □ = ON ☆ = FLASH
■■■■ 4 LED OFF: finish “0” setup and off output. □□□□ 4 LED ON: system is under setup mode. □■■■ one LED ON only: input channel ☆■■■
one LED FLASH: no signal input at this channel
(based on vertical SYNC signal).
□■■□ ON 1 & 4: finish “5” setup.
■□■□ ON 2 & 4: finish “6” setup.
■■□□
ON 3 & 4: finish “7” setup.
☆☆☆☆ 4 LED FLASH: wrong setup, please reset.
Caution:
To avoid signal conflict with other input card, the card can not setup t he channel already used at other input card.
FORESIGHT CCTV INC. | 5863 Leslie Street, Unit#713, North York, Ontario,Canada, M2H 1J8 | http://www.foresight-cctv.com | 1-888-GO2-CCTV
4
===================================================================================
RT01 Setting:
After setup rotary switch, then insert into RB01 rack cabinet. (Hot pluggable)
Rotary Dip Switch Define:
0: Off output.
1: Setup CH1 input. 2: Setup CH2 input. 3: Setup CH3 input. 4: Setup CH4 input. 5 Auto selection CH1 or CH2 input. 6 Auto selection CH3 or CH4 input. 7 Auto selection CH1 or CH4 input.
LED Indication:
1234 ■ = OFF □ = ON ☆ = FLASH
■■■■ 4 LED OFF: finish “0” setup and off output. □□□□ 4 LED ON: system is under setup mode. □■■■ one LED ON only: input channel ☆■■■ one LED FLASH: no signal input at this channel
(Based on vertical SYNC signal).
RJ45 Define:
Link Cable (TIA/EIA-568-B ) No. Color Signal
------------------------------------
1. Orange-white Video Red+ / Pr+
2. Orange Video Red- / Pr-
3. Green-white Video Green+ / Y+
4. Blue Digital Audio -
5. Blue-white Digital Audio +
6. Green Video Green- / Y-
7. Brown-white Video Blue+ / Pb+
8. Brown Video Blue- / Pb-
Optional Model:
Rack Series: RB01, RV01, RY01. VGA Series: VE01R (no audio), VE02ALR, VE02DAR, VE02DALS. YUV Series: YE02DALR, YE02DALS. Audio Series: AE03 (no video), AE04 (no video).
Cable:
Video Link cable using hi quality CAT5E UTP/STP or CAT6 UTP cable. Please noted STP cable could enhance noise rejection, but also less transmission range and picture sharpness quality.
Caution:
The cabling must away from any equipment with electromagnetic wave, i.e.: microwave, radio equipment, high voltage lines.
===================================================================================
FORESIGHT CCTV INC. | 5863 Leslie Street, Unit#713, North York, Ontario,Canada, M2H 1J8 | http://www.foresight-cctv.com | 1-888-GO2-CCTV
View of Installation:
Option Model: – CAT5 Receiver at Remote Site:
VE02ALR VGA & Stereo Audio CAT5 Receiver– Chainable function
Work with VE02ALT, VE02ALR as receiver for extra remote VGA display equipment. It could be daisy chained for another VE02ALR to extended working range over 300 meters and
multiple displays.
Built in equalization, gain adjustment. Supports up to 1600x1200 @85Hz.
5
FORESIGHT CCTV INC. | 5863 Leslie Street, Unit#713, North York, Ontario,Canada, M2H 1J8 | http://www.foresight-cctv.com | 1-888-GO2-CCTV
VE02DALS VGA & Stereo Audio, Digital Audio CAT5 Receiver– Built in Skew
Adjustment
Identical to the above VE02ALR receiver, but built in RGB skew corrector for the optimum video
performance under long cable run.
Built in digital audio output ( coaxial, optical)
Specification:
ITEM NO. RB01
Slot for Rack Card 15 pieces
Power Input 100VAC ~ 240VAC / 50 ~ 60Hz Power Output 1000W / +5VDC 10A / -5VDC 10A Fan 8cm / 3100rpm Material Metal Dimensions W x H x D mm 482x205x133 (3U) Weight g
ITEM NO. RV01
Video Input / Output 15 Pin D-SUB x 1 (R.G.B 1Vpp 75ΩH.V Sync TTL) Video Bandwidth 400MHz (Loop Out 750MHz -3dB)
Audio Input / Output Stereo 3.5 Phone Jack (Analog 3Vpp, 10KΩ, Digital 75Ω) Analog Audio Bandwidth 20 - 20KHz Digital Audio Resolution 16Bit / 48K PCM (AC3, DTS Bypass Through) Power Consumption Dimensions W x H x D mm
125x125x27.5 mm
Weight g
ITEM NO. RT01
Video Resolution (Max) VGA 1600x1200 @85Hz, YUV 1080p Video Bandwidth 350MHz -3dB Audio Support SPDIF
6
FORESIGHT CCTV INC. | 5863 Leslie Street, Unit#713, North York, Ontario,Canada, M2H 1J8 | http://www.foresight-cctv.com | 1-888-GO2-CCTV
Po
wer Consumption
Dimensions W x H x D mm
125x125x27.5 mm
Weight g
ITEM NO. VE02ALR
Resolution Up to 1600 x 1200 non-interlaced to 85 Hz Video Bandwidth 150MHz Video Output RGB Analog, 75Ω, 0.7Vp-p Sync Output H/V Separated, 5V TTL Horizontal Frequency 30-95 KHz Vertical Frequency 50-180 Hz VGA Connector 15-pin Mini D-Sub (High Density) Analog Audio Output 10KΩ, 3Vp-p (Max) Analog Audio Bandwidth 20-20KHz Analog Audio Bandwidth 20-20KHz Analog Audio Connector 3.5mm Stereo Phone jack Link Connector RJ-45 Max Distance Up to 1000 ft. (300M) Power Supply 5V DC 2000mA Regulated (External) Power Consumption 700mA (Max) Dimensions (mm) 88 x 96 x 30 Weight (g) 200
ITEM NO. VE02DALS
Resolution Up to 1600 x 1200 non-interlaced to 85 Hz Video Bandwidth 122MHz(-3dB) Video Output
15 Pin D-SUB x 1 (R.G.B 1V p-p 75Ω.H.V Sync TTL)
Sync Output H/V Separated, 5V TTL Horizontal Frequency 30-95 KHz Vertical Frequency 50-180 Hz VGA Connector 15-pin Mini D-Sub (High Density)
Audio Output
Analog audio: 3.5mm Stereo Phone jack 10KΩ, 3Vp-p (Max)
Digital audio: Optical x 1, coax RCA x 1
Audio Bandwidth 20-20KHz (-3dB) Skew adjustment 0 – 62ns ( 2ns Step ) Link Connector RJ-45
Max Distance Up to 1000 ft. (300M) Power Supply 5V DC 2000mA Regulated (External) Power Consumption 1000mA (Max) Dimensions (mm) 125 x 95 x 30 Weight (g) 280
