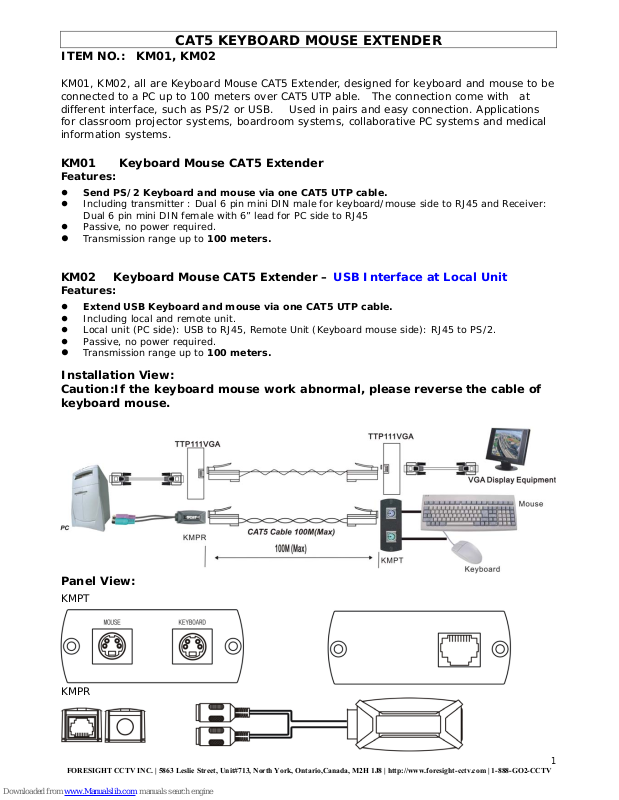

CAT5 KEYBOARD MOUSE EXTENDER
ITEM NO.: KM01, KM02
KM01, KM02, all are Keyboard Mouse CAT5 Extender, designed for keyboard and mouse to be
connected to a PC up to 100 meters over CAT5 UTP able. The connection come with at
different interface, such as PS/2 or USB. Used in pairs and easy connection. Applications
for classroom projector systems, boardroom systems, collaborative PC systems and medical
information systems.
KM01 Keyboard Mouse CAT5 Extender
Features:
z Send PS/2 Keyboard and mouse via one CAT5 UTP cable.
z Including transmitter : Dual 6 pin mini DIN male for keyboard/mouse side to RJ45 and Receiver:
Dual 6 pin mini DIN female with 6” lead for PC side to RJ45
z Passive, no power required.
z Transmission range up to 100 meters.
KM02 Keyboard Mouse CAT5 Extender – USB Interface at Local Unit
Features:
z Extend USB Keyboard and mouse via one CAT5 UTP cable.
z Including local and remote unit.
z Local unit (PC side): USB to RJ45, Remote Unit (Keyboard mouse side): RJ45 to PS/2.
z Passive, no power required.
z Transmission range up to 100 meters.

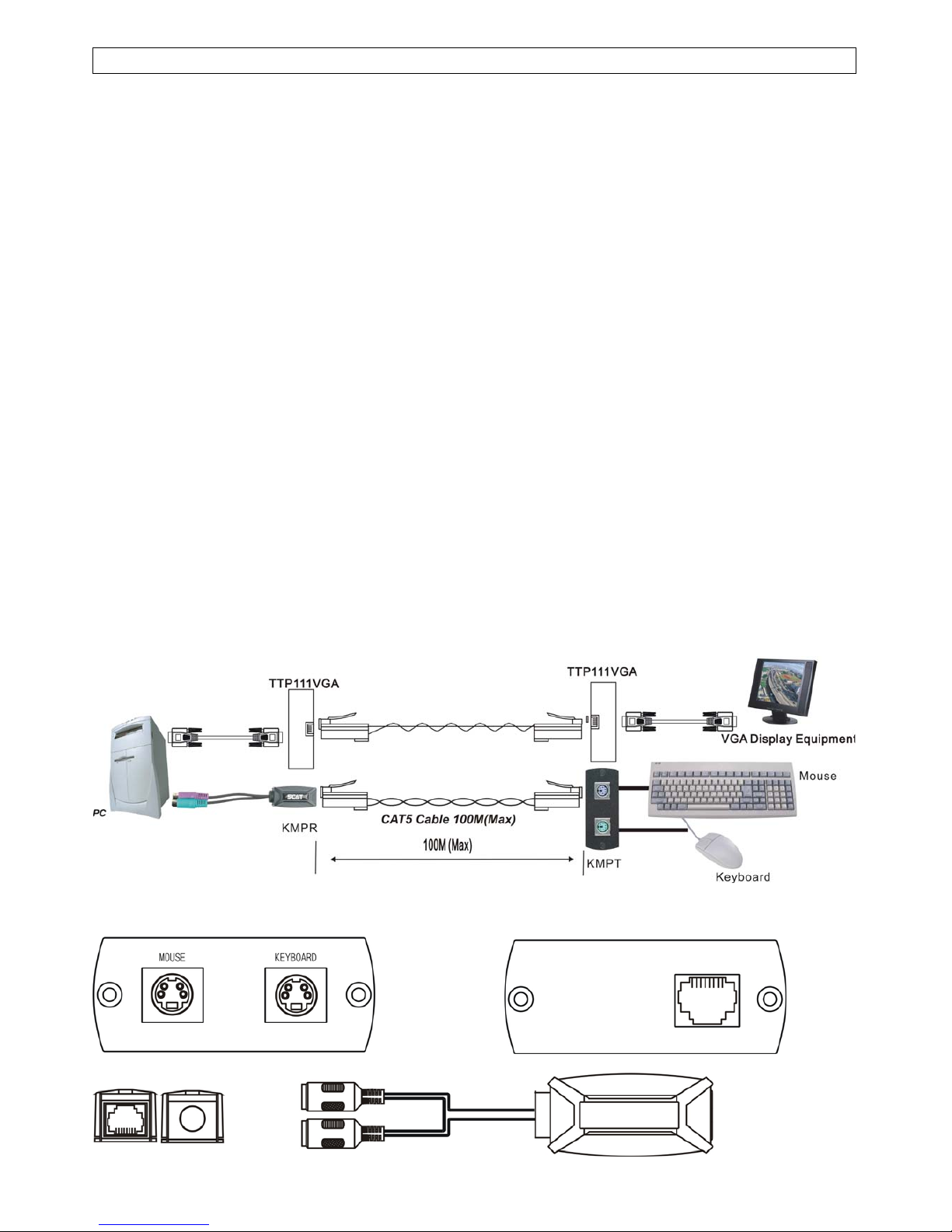

Installation View:
Caution:If the keyboard mouse work abnormal, please reverse the cable of
keyboard mouse.

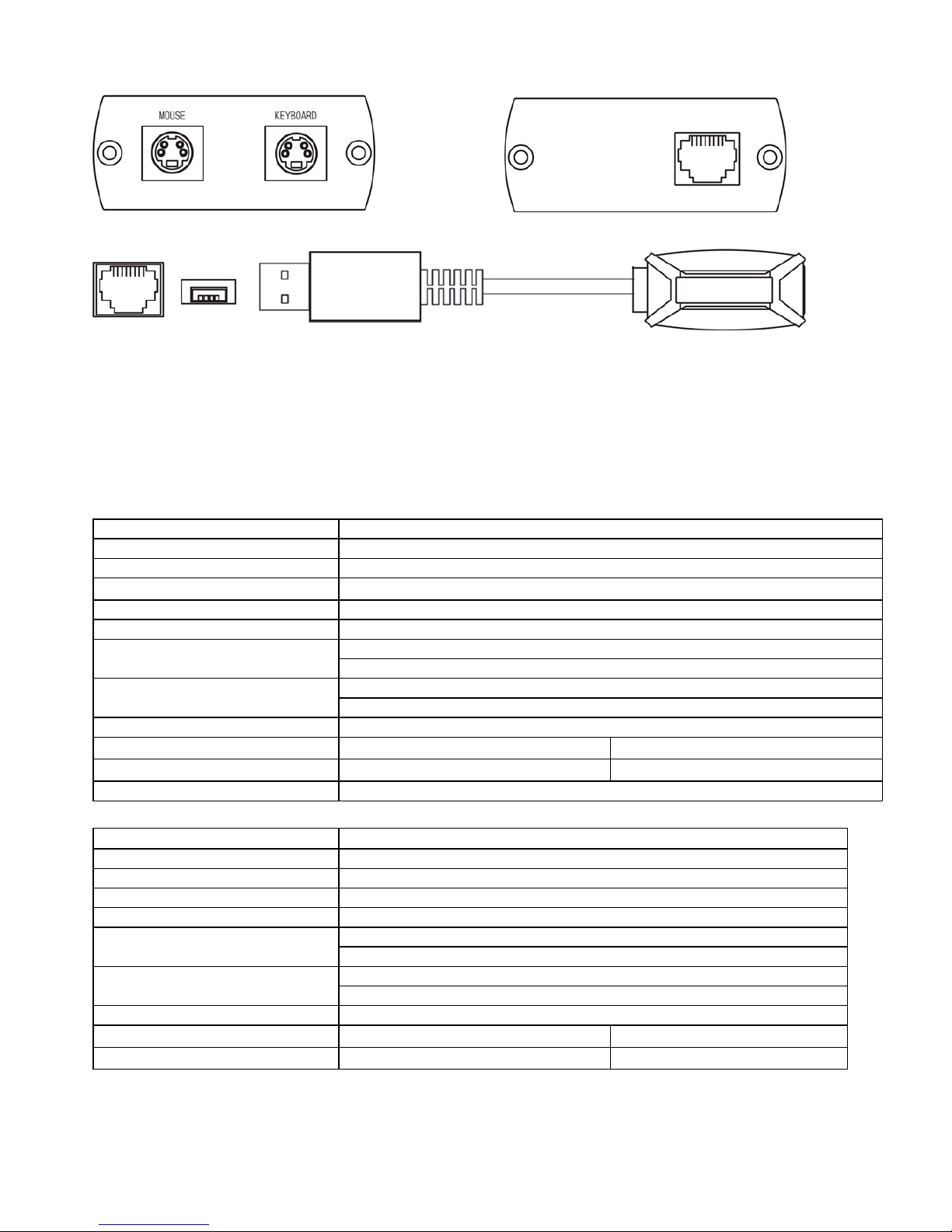

Panel View:
KMPT
KMPR
1
FORESIGHT CCTV INC. | 5863 Leslie Street, Unit#713, North York, Ontario,Canada, M2H 1J8 | http://www.foresight-cctv.com | 1-888-GO2-CCTV
Page 2
KMPT
KMUR
Specification:
ITEM NO. KM01
Input PS/2 keyboard/mouse
Bandwidth DC to 1Mhz
Link Signals
Mous＆e data, mouse clock, keyboard data, keyboard clock, VCC, ground
Distance 106 meters (Max.)
Cable CAT5 cable
Keyboard: pin 1, pin 2
RJ45 Pin Configuration
Mouse: pin 7, pin8
Keyboard: Purple
Color Code
Mouse: Green
Temperature Operation: 0 to 55 , Storage: ℃ -20 TO 85 , Humidity: up to 95%℃
Dimensions W x H x D mm
KMPT：43*67*27 KMPR：69x25x22
Weight g
KMPT：100 KMPR：35
PS2 150mm with cable
ITEM NO.
KM02
Input PS/2 keyboard/mouse
Bandwidth DC to 1Mhz
Distance 106 meters (Max.)
Cable CAT5 cable
Keyboard: pin 1, pin 2
RJ45 Pin Configuration
Mouse: pin 7, pin8
Keyboard: Purple
Color Code
Mouse: Green
Temperature
Operation: 0 to 55 , Storage: ℃ -20 TO 85 , Humidity: up to 95%℃
Dimensions W x H x D mm
KMPT：43*67*27 KMUR：69x25x22
Weight g
KMPT：100 KMUR：35
2
