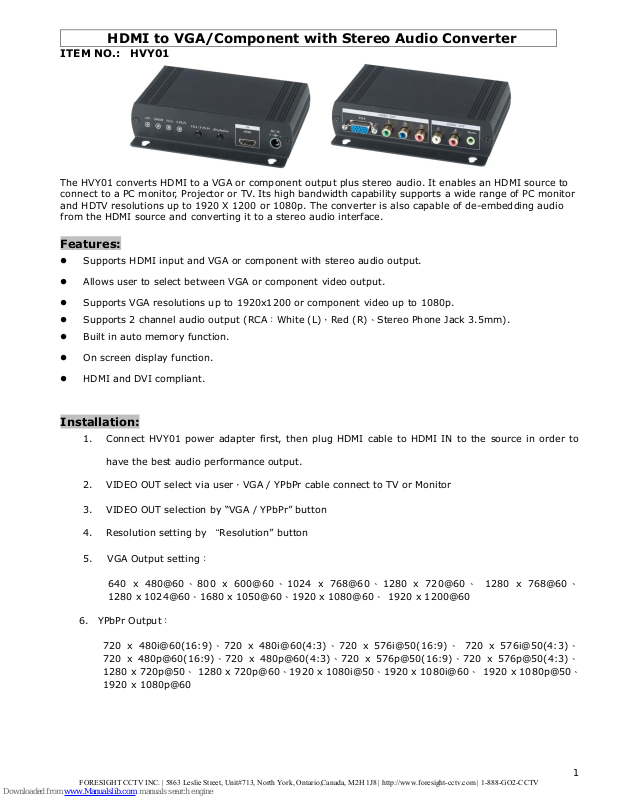

HDMI to VGA/Component with Stereo Audio Converter
ITEM NO.: HVY01

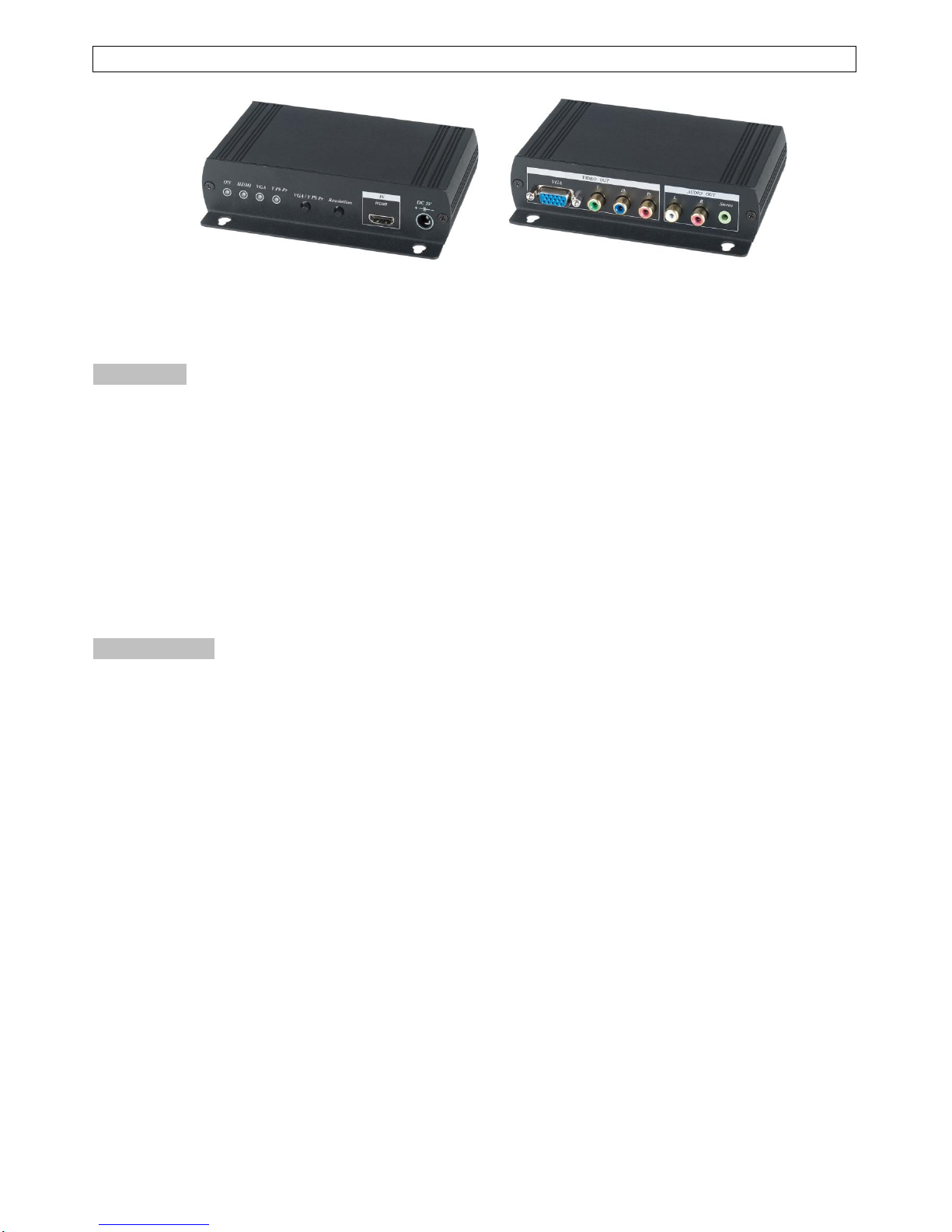

The HVY01 converts HDMI to a VGA or component output plus stereo audio. It enables an HDMI source to
connect to a PC monitor, Projector or TV. Its high bandwidth capability supports a wide range of PC monitor
and HDTV resolutions up to 1920 X 1200 or 1080p. The converter is also capable of de-embedding audio
from the HDMI source and converting it to a stereo audio interface.
Features:
Supports HDMI input and VGA or component with stereo audio output.
Allows user to select between VGA or component video output.
Supports VGA resolutions up to 1920x1200 or component video up to 1080p.
Supports 2 channel audio output (RCA：White (L)，Red (R)、Stereo Phone Jack 3.5mm).
Built in auto memory function.
On screen display function.
HDMI and DVI compliant.
Installation:
1. Connect HVY01 power adapter first, then plug HDMI cable to HDMI IN to the source in order to
have the best audio performance output.
2. VIDEO OUT select via user，VGA / YPbPr cable connect to TV or Monitor
3. VIDEO OUT selection by “VGA / YPbPr” button
4. Resolution setting by “Resolution” button
640 x 480@60 、 800 x 600@60 、 1024 x 768@60 、 1280 x 720@60 、 1280 x 768@60 、
1280 x 1024@60、1680 x 1050@60、1920 x 1080@60、 1920 x 1200@60
720 x 480i@60(16:9)、 720 x 480i@60(4:3) 、 720 x 576i@50(16:9) 、 720 x 576i@50(4:3)、
720 x 480p@60(16:9)、720 x 480p@60(4:3)、 720 x 576p@50(16:9) 、720 x 576p@50(4:3)、
1280 x 720p@50、 1280 x 720p@60、1920 x 1080i@50、1920 x 1080i@60、 1920 x 1080p@50、
1920 x 1080p@60
FORESIGHT CCTV INC. | 5863 Leslie Street, Unit#713, North York, Ontario,Canada, M2H 1J8 | http://www.foresight-cctv.com | 1-888-GO2-CCTV
Page 2
2

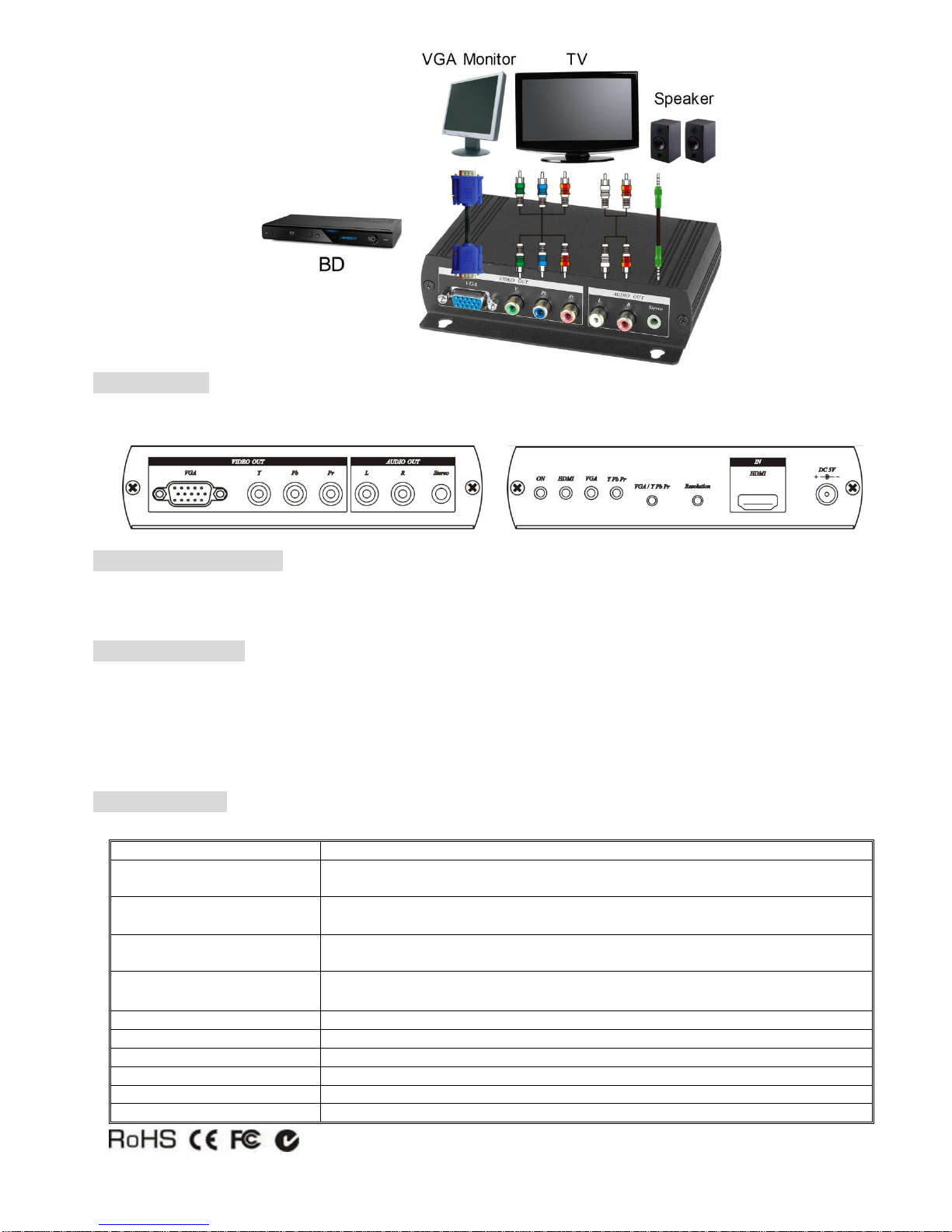

Panel View:
HVY01
Switch Instruction:
VGA / YPbPr VGA / YPbPr Output setting
Resolution Resolution setting
LED Indication:
POWER On/off
HDMI HDMI signal input indication
VGA VGA signal output indication
YPbPr YPbPr signal output indication
Specification:
ITEM NO.
HVY01
HDMI Input Connector
HDMI Type A 480i/p, 576i/p, 720p, 1080i/p
VGA Output Connector
15-pin Mini D-sub ( High Density)75Ω 0.7 Vp-p
640 x 480p@60、1280 x 720@60、1920 x 1080@60, 1920 x 1200@60
YPbPr Output Connector
RCA x 3 ( Y 75Ω 0.7 Vp-p, Pb 75Ω 0.3Vp-p, Pr 75Ω 0.3Vp-p)
480i/p, 576i/p, 720i/p, 1080i/p.
Audio Output Connector
Stereo Phone Jack 3.5mm x 1、RCA x 2
1Vp-p Max．10KΩ
Function Button
Button x 2
Power Consumption
750mA (Max)
Power Supply
Switching DC5V 2AMP
Temperature
Operation: 0 to 55℃, Storage: -20 to 85℃, Humidity: up to 95%
Dimensions
140 x 95 x 32 (mm)
Weight
300 g
Rev. A
