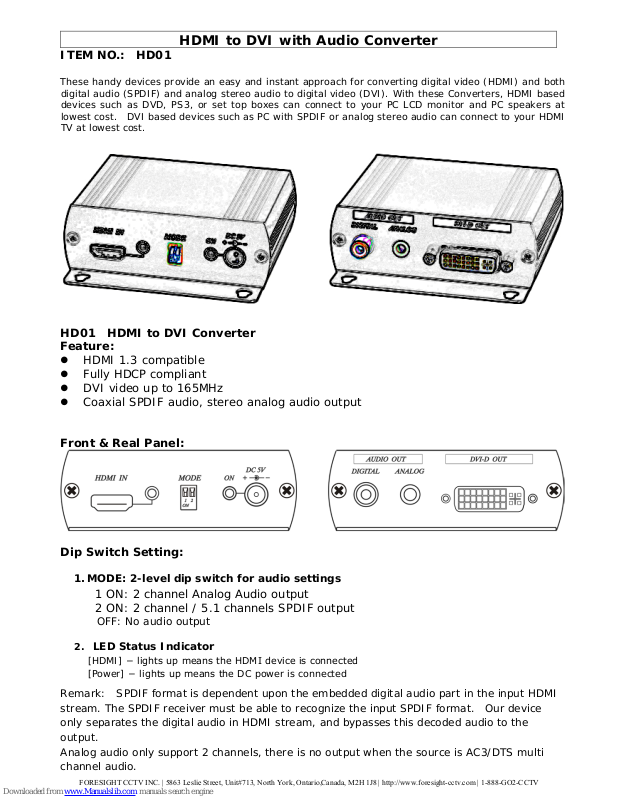

HDMI to DVI with Audio Converter
ITEM NO.: HD01
These handy devices provide an easy and instant approach for converting digital video (HDMI) and both
digital audio (SPDIF) and analog stereo audio to digital video (DVI). With these Converters, HDMI ba se d
devices such as DVD, PS3, or set t op boxes can connect t o your PC LCD monitor a nd PC speakers at
lowest cost. DVI based devices such as PC with SPDIF or analog stereo audio can connect to your HDMI
TV at lowest cost.
HD01 HDM I to DVI Converter
Feature:
HDMI 1.3 compatible
Fully HDCP compliant
DVI video up to 165MHz
Coaxial SPDIF audio, stereo analog audio output

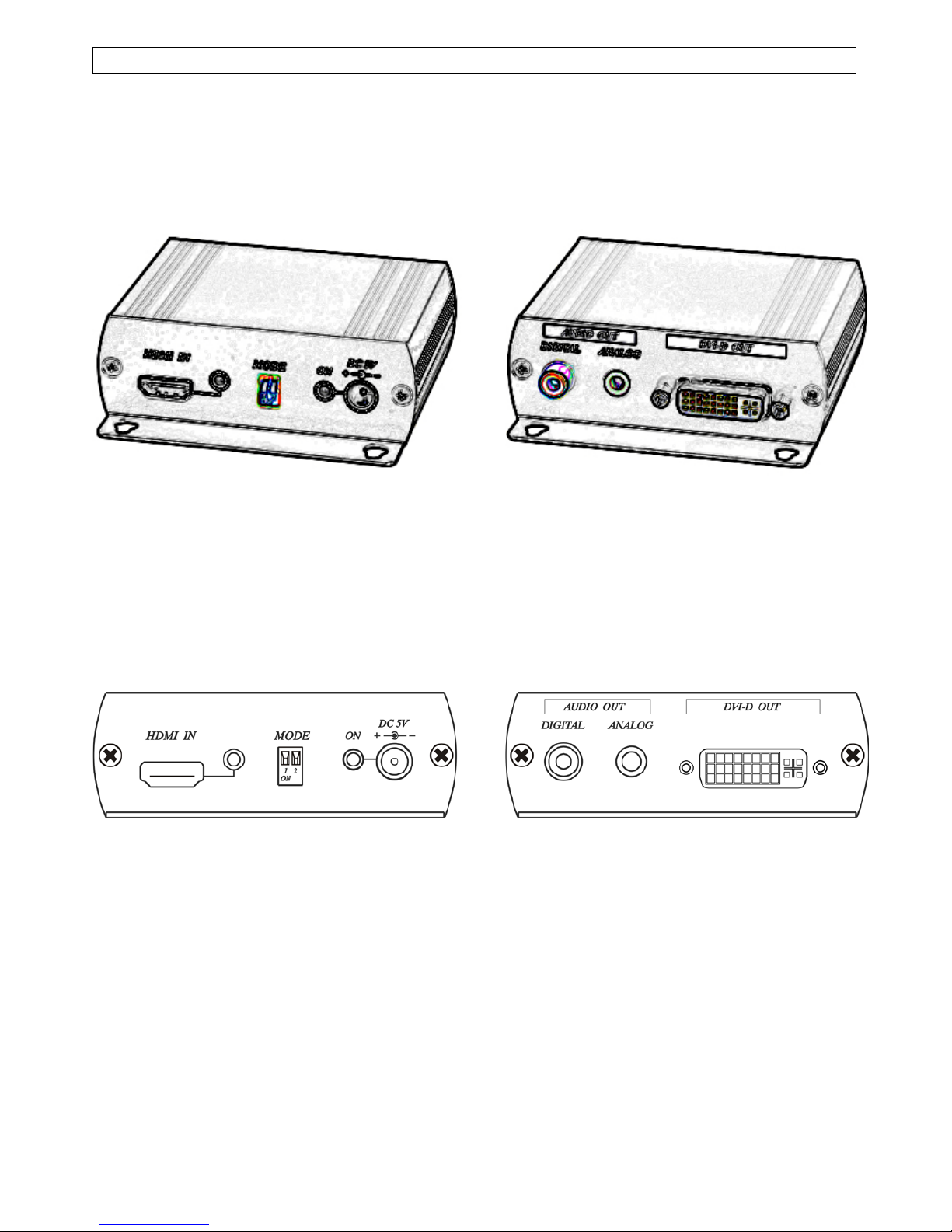

Front & Real Panel:
Dip Switch Setting:
1. MODE: 2-level dip switch for audio settings
1 ON: 2 channel Analog Audio output
2 ON: 2 channel / 5.1 channels SPDIF output
OFF: No audio output
2. LED Status Indicator
[HDMI] − lights up means the HDMI device is connected
[Power] − lights up means the DC power is connected
Remark: SPDIF format is dependent upon the embedded digital audio part in the input HDMI
stream. The SPDIF receiver must be able to recognize the input SPDIF format. Our device
only separates the digital audio in HDMI stream, and bypasses this decoded audio to the
output.
Analog audio only support 2 channels, there is no output when the source is AC3/DTS multi
channel audio.
FORESIGHT CCTV INC. | 5863 Leslie Street, Unit#713, North York, Ontario,Canada, M2H 1J8 | http://www.foresight-cctv.com | 1-888-GO2-CCTV
Page 2

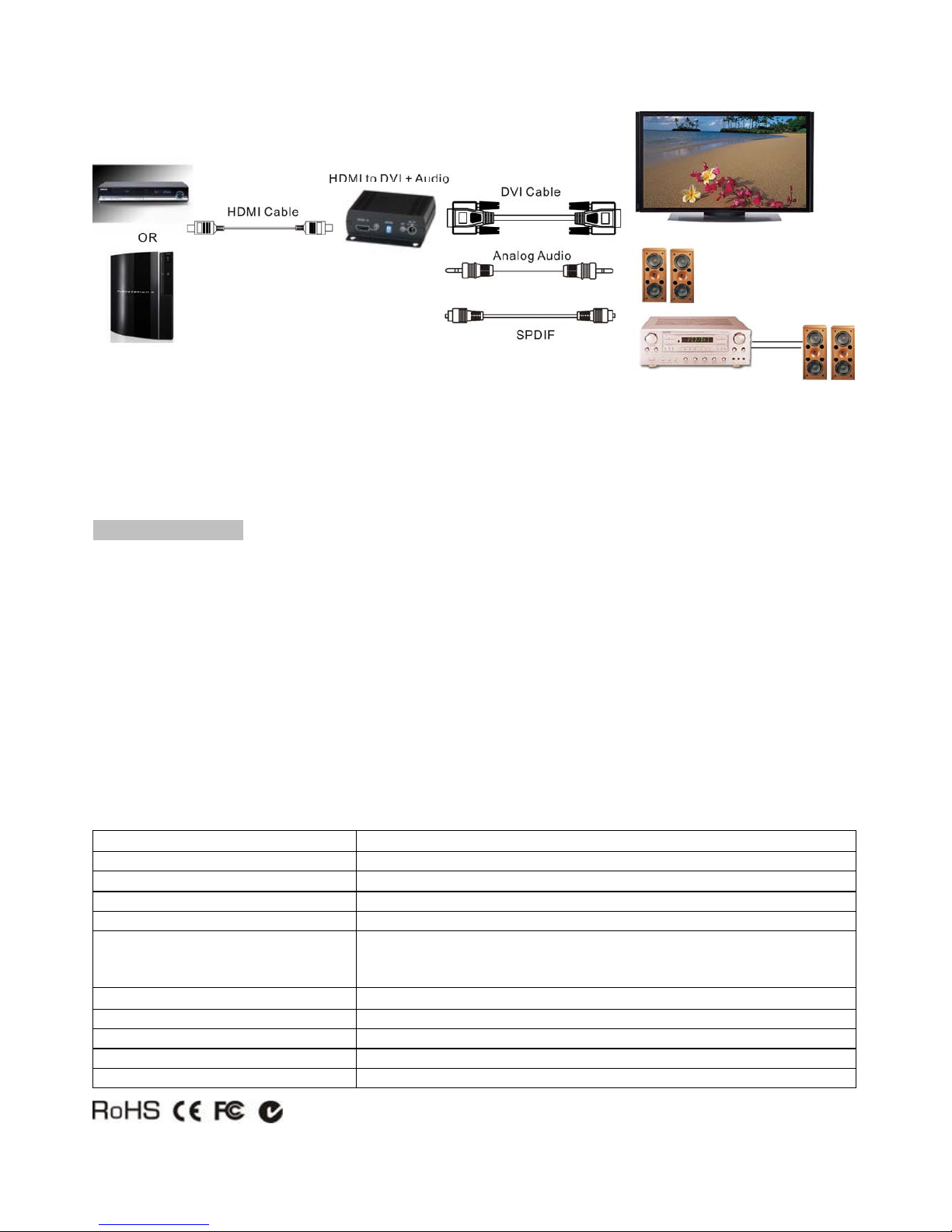

Installation View:
HD01
REMARK:
EDID: Extended display identification data is a data structure provided by a computer display to describe
its capabilities to a graphics car d . It is what enables a modern personal computer to know what kind of
monitor is connected
Trouble Shooting:
1. Only HDMI enabled TV sets with underscan/overscan* support, the full active video can be accurately
displayed. Some HDMI equipped TV sets may not support this feature. If underscan/overscan* is NOT
supported, the top, bottom, left and right border of the active video may be screened, and the S/PDIF
audio may not sound right.
2. S/PDIF audio input can support up to 6-channel audio input. If your TV not supports Dolb y Digital or
dts audio decoding, then you will add audio decoder or amplifier.
3. S/PDIF supports only 48 KHz audio sample rate. Other than t his rate, t he input digital audio should be
adjusted to 48 KHz in order to get audio signal correctly sent.
Specification:
ITEM NO. HD01
Video Amplifier Bandwidth
1.65 Gbps
Output Video Signal
1.2 Volts p-p
Output DDC Signal
5 Volts p-p (TTL)
Single Link Rang
1080P/1920x1200
Input/Output Connector DVI-I 29 pin female (digital only)
HDMI Type A 19 PIN
RCA Connector: Coax SPDIF, 3.5mm Phone Jack: Analog stereo
Temperature
Operation:-10℃~45℃, Storage: -30℃~70℃
Power Consumption
440mA (max)
Power Supply
DC5V 1AMP
DIMENSIONS W x H x D mm
88 x 95 x 30
Weight
190
Rev. B
