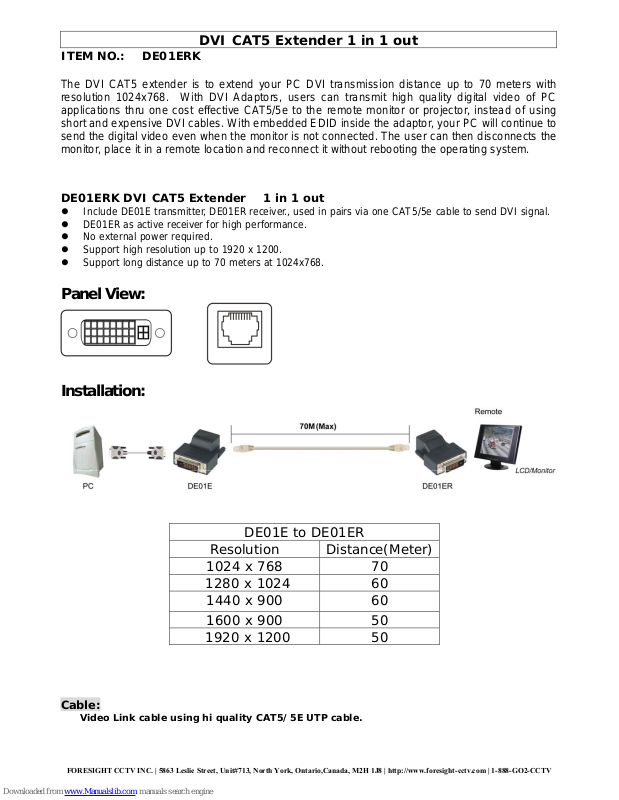

DVI CAT5 Extender 1 in 1 out
ITEM NO.: DE01ERK
The DVI CAT5 extender is to extend your PC DVI transmission distance up to 70 meters with
resolution 1024x768. With DVI Adaptors, users can transmit high quality digital video of PC
applications thru one cost effective CAT5/5e to the remote monitor or projector, instead of using
short and expensive DVI cables. With embedded EDID inside the adaptor, your PC will continue to
send the digital video even when the monitor is not connected. The user can then disconnects the
monitor, place it in a remote location and reconnect it without rebooting the operating system.
DE01ERK DVI CAT5 Extender 1 in 1 out
Include DE01E transmitter, DE01ER receiver., used in pairs via one CAT5/5e cable to send DVI signal.
DE01ER as active receiver for high performance.
No external power required.
Support high resolution up to 1920 x 1200.
Support long distance up to 70 meters at 1024x768.

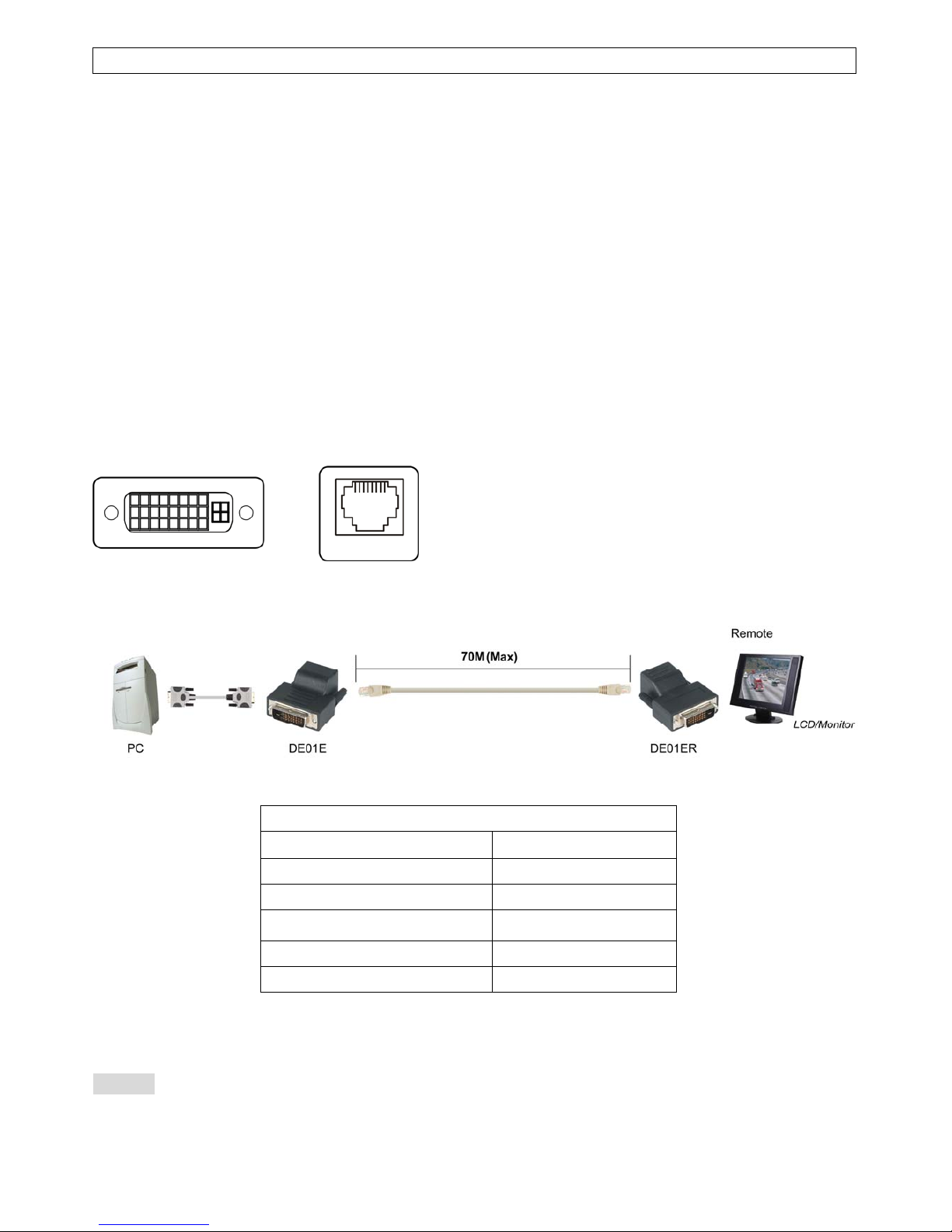

Panel View:
Installation:
DE01E to DE01ER
Resolution Distance(Meter)
1024 x 768 70
1280 x 1024 60
1440 x 900 60
1600 x 900 50
1920 x 1200 50
Cable:
Video Link cable using hi quality CAT5/5E UTP cable.
FORESIGHT CCTV INC. | 5863 Leslie Street, Unit#713, North York, Ontario,Canada, M2H 1J8 | http://www.foresight-cctv.com | 1-888-GO2-CCTV
Page 2
RJ45 Pin Define:
Link Cable (TIA/EIA-568-B )
1. Orange-white TMDS DATA0 -
2. Orange TMDS DATA0 +
3. Green-white TMDS CLOCK -
4. Blue TMDS DATA1 -
5. Blue-white TMDS DATA1 +
6. Green TMDS CLOCK +
7. Brown-white TMDS DATA2 -
8. Brown TMDS DATA2 +
LED Indication:
Green Status Normal
Yellow Loss of Clock Signal
Caution:
1. The cabling must away from any equipment with electromagnetic wave, i.e.: microwave,
radio equipment, high voltage.
2. Working distance will be variety based on different equipment.
3. The picture may come with noise under the resolution 640 x 480
4. HDCP not supported.
Specification:
ITEM NO. DE01ERK
Video Bandwidth 1.65 Gbps ( DVI 1.1)
Resolution Up to 1920 x 1200 @60hz
Input TMDS Video Signal 1.2 volts p-p
Input DDC Signal 5 volts p-p (TTL)
Link Cable Distance 1024x 768@70M, 1920x1200@50M
DVI Connector DVI-D 29 pin
Link Connector RJ-45 Shielded x 1
Power Supply X
Temperature
Operation: 0 to 55℃, Storage: -20 TO 85℃, Humidity:
up to 95%
DIMENSIONS W x H x D
mm
DE01E:150 x 40 x 20, DE01ERK 40 × 56 × 24.5
Weight g DE01E: 45g ,DE01ERK:50g
