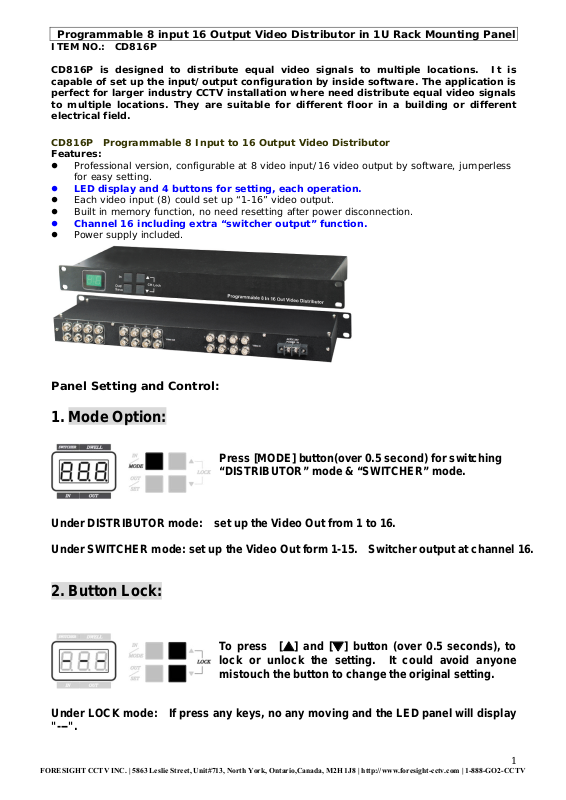

Programmable 8 input 16 Output Video Distributor in 1U Rack Mounting Panel
FORESIGHT CCTV INC. | 5863 Leslie Street, Unit#713, North York, Ontario,Canada, M2H 1J8 | http://www.foresight-cctv.com | 1-888-GO2-CCTV
ITEM NO.: CD816P
CD816P is designed to distribute equal video signals to
capable of set up the input/output configuration by inside software. The application is
perfect for larger industry CCTV installation where need distribute equal video signals
to multiple locations. They are suitable for different floor in a building or different
electrical field.
multiple locations. It is
CD816P Programmable 8 Input to 16 Output Video Distributor
Features:
rofessional version, configurable at 8 video input/16 video output by software, jumperless
z P
for easy setting.
z LED dis
z Each
z Bui
z Channel
ower supply included.
z P
play and 4 buttons for setting, each operation.
video input (8) could set up “1-16” video output.
lt in memory function, no need resetting after power disconnection.
16 including extra “switcher output” function.
Panel Setting and Control:

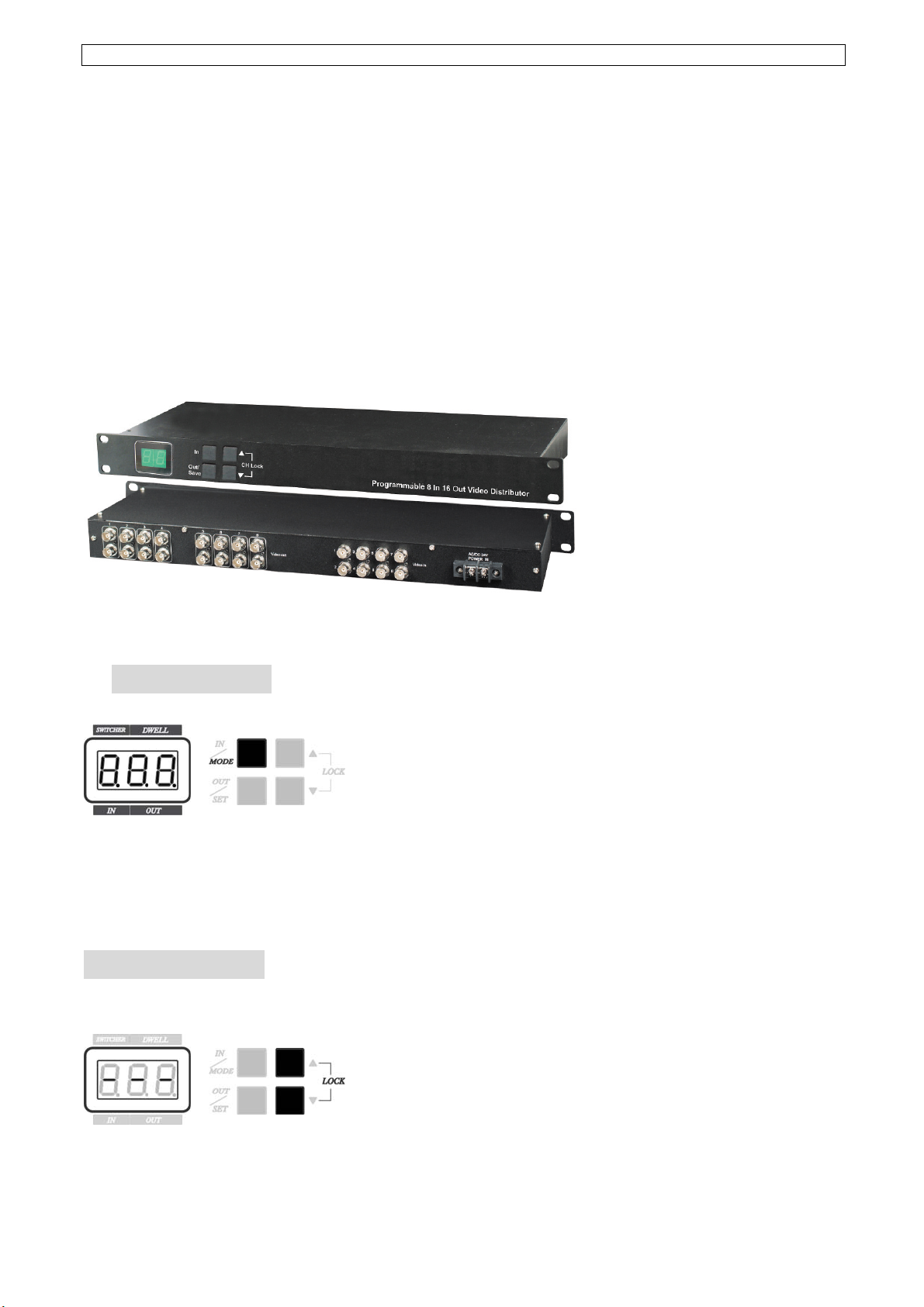

1. Mode Option:
Press [MODE] button(over 0.5 second) for switching
“DISTRIBUTOR” mode & “SWITCHER” mode.
Under DISTRIBUTOR mode: set up the Video Out from 1 to 16.
Under SWITCHER mode: set up the Video Out form 1-15. Switcher output at channel 16.
2. Button Lock:
To press [▲] and [▼] button (over 0.5 seconds), to
lock or unlock the setting. It could avoid anyone
mistouch the button to change the original setting.
Under LOCK mode: If press any keys, no any moving and the LED panel will display
"---".
1
3.DISTRIBUTOR Mode:
FORESIGHT CCTV INC. | 5863 Leslie Street, Unit#713, North York, Ontario,Canada, M2H 1J8 | http://www.foresight-cctv.com | 1-888-GO2-CCTV
Under DISTRIBUTOR mode, IN number = Video Channel Input .
Under DISTRIBUTOR mode, OUT number = Video Channel Output.
OUT MODE: The point on display keep “light” mean effect the
distribution function.
OUT MODE: The point on display keep “flash” mean not effect the
distribution function.

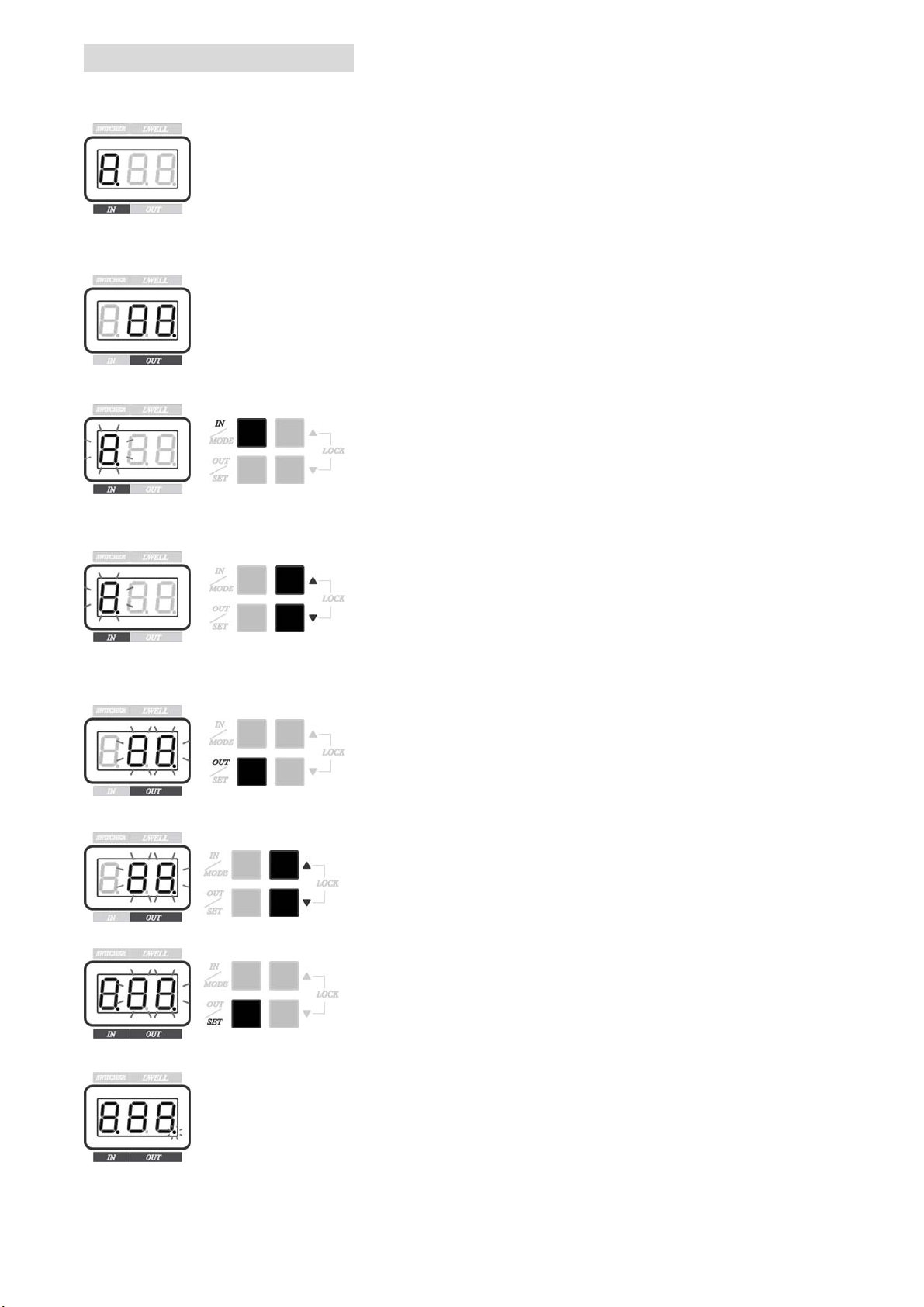

Press [IN] button to set up “Video In”, Under “Video
In” mode, the number (IN) will be flash on the Display
panel.
Under “Video In” mode, press [▲] or [▼] button to
set up the Video In channel.
Press [OUT] button to set up “Video Out”, Under
“Video Out” mode, the number (OUT) will be flash.
Under Video Out mode, press [▲] or [▼] button to set
up the Video Out channel..
Under Video Out mode, press [SET] button for set up
the distributor function.
2
4.SWITCHER Mode:
FORESIGHT CCTV INC. | 5863 Leslie Street, Unit#713, North York, Ontario,Canada, M2H 1J8 | http://www.foresight-cctv.com | 1-888-GO2-CCTV

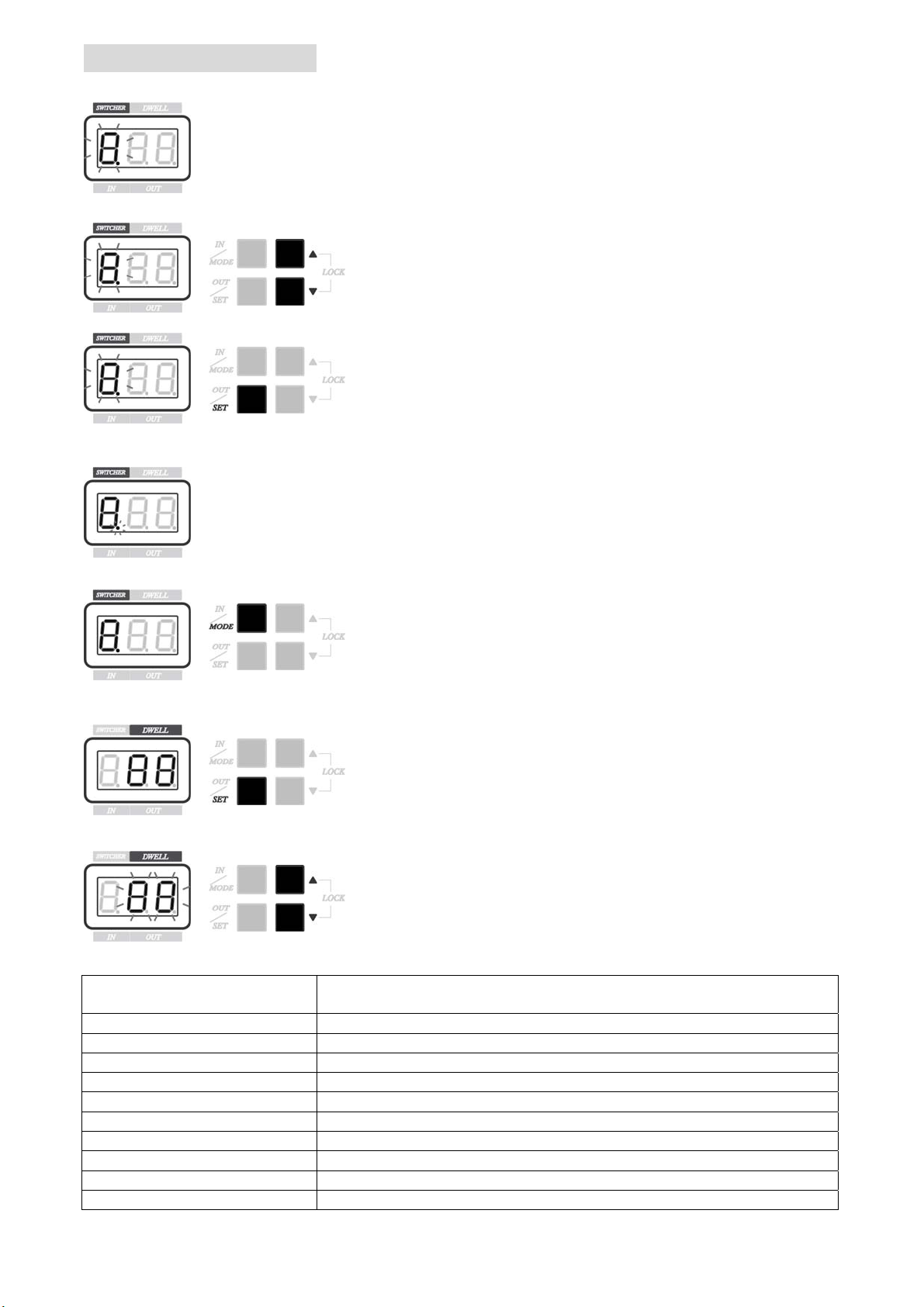

Under “SWITCHER” Mode, the number “flash” on display panel mean
Video IN channel.
To press [▲] or [▼] button to set up the Video In
channel, and the picture will be display on Video Out
16.
Press [SET] button to set up Video In channel for
switcher function.
SWITCH MODE: The point on display keep “light” mean effect the
switching function on Video In channel.
SWITCH MODE: The point on display keep “flash” mean not effect
switching function on Video In channel.
Under “SWITCHER” mode, press [MODE] button to
start or stop. The number will stop flash and the
picture of switching channel will be display on VIDEO
Out 16.
Under “SWITCHER”, press [SET] to display the
DWELL time.
Under “SWITCHER”, press [▲] or [▼] button to adjust
the DWELL time. (Minimum: 1 second, Maximum: 30
seconds.)
Specifications
Specifications
Item
Video Input Channel 1-8
Video Output Channel 1-16
Video Input Level 0.8~1.2Vp-p, 75 Ohms
Video Output Level 1Vp-p (Standard), 75 Ohms
Video Bandwidth 10hz - 10MHz
Power Supply DC12V/500mA
Power Consumption 300mA
Dimensions (mm) 482x170x 44 standard 1U Rack Panel
Weight 3500g
Material Metal Black
CD816P
3
