Foreseen BTR105 Users manual

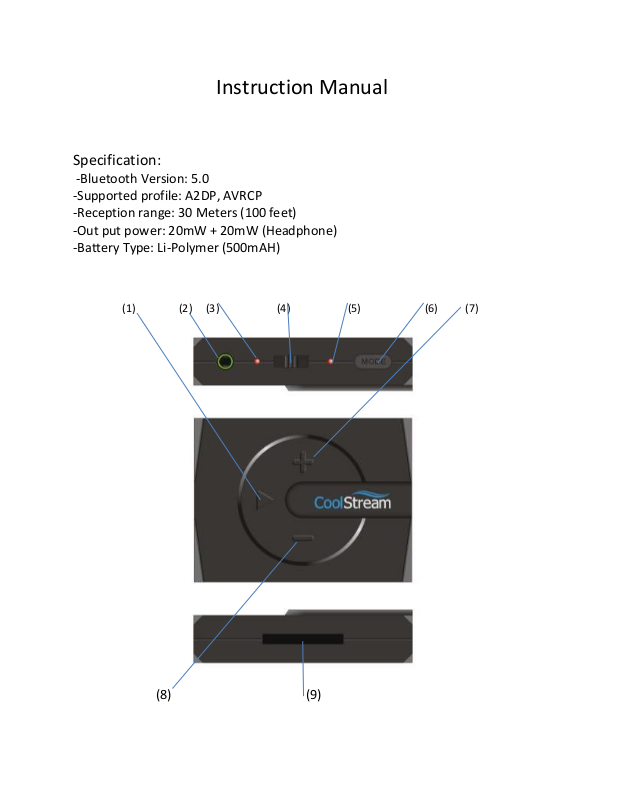

Instruction Manual

Specification:

-Bluetooth Version: 5.0

-Supported profile: A2DP, AVRCP

-Reception range: 30 Meters (100 feet)

-Out put power: 20mW + 20mW (Headphone)

-Battery Type: Li-Polymer (500mAH)

(1) (2) (3) (4) (5) (6) (7)

(8) (9)

Control and Operation:

BTR105

BTR105 ,

(1) Play/Pause button
(2) 3.5mm jack for the connection of Headphone or any audio device
(3) Tri-color LED for 3D Mode indication
(4) On/Off Switch for battery mode
(5) Bi-color LED for Bluetooth pairing & battery charges status indication
(6) Mode button for cyclic selection of 3D EQ MODE (music ,movie ,game)
(7) Light press to increase VOLUME, long press for next song
(8) Light press to decrease VOLUME, long press for previous song
(9) 30Pin female socket for the insertion to 30Pin iPod Docking System

Bluetooth Pairing:

The unit will auto power up and start auto pairing when insert to the 30Pin
Docking System, waiting for a while BT-91H will be appeared on the screen,
Tap the screen for the connection of BT-91H, a “ beep” sound come out from
The speaker when the connection is succeeded.

FCC RULES:

This product is complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:

(1) This device may not cause harmful interference
(2) This device must accept any interference received, including interference

that may cause undesired operation
NOTE: The grantee is not responsible for any changes or modifications not
expressly approved by the party responsible for compliance. Such modifications
could void the user’s authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference ina
residential installation. This equipment generates uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
