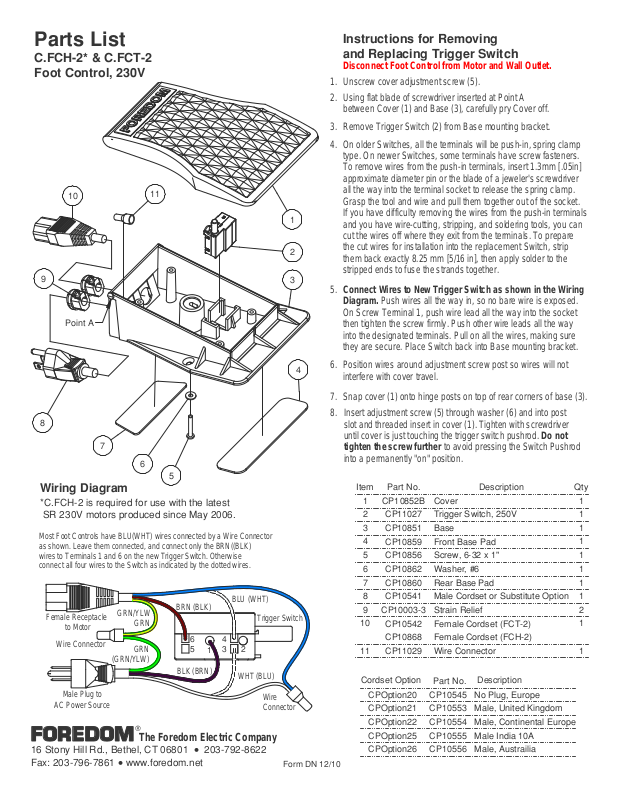

Page 1

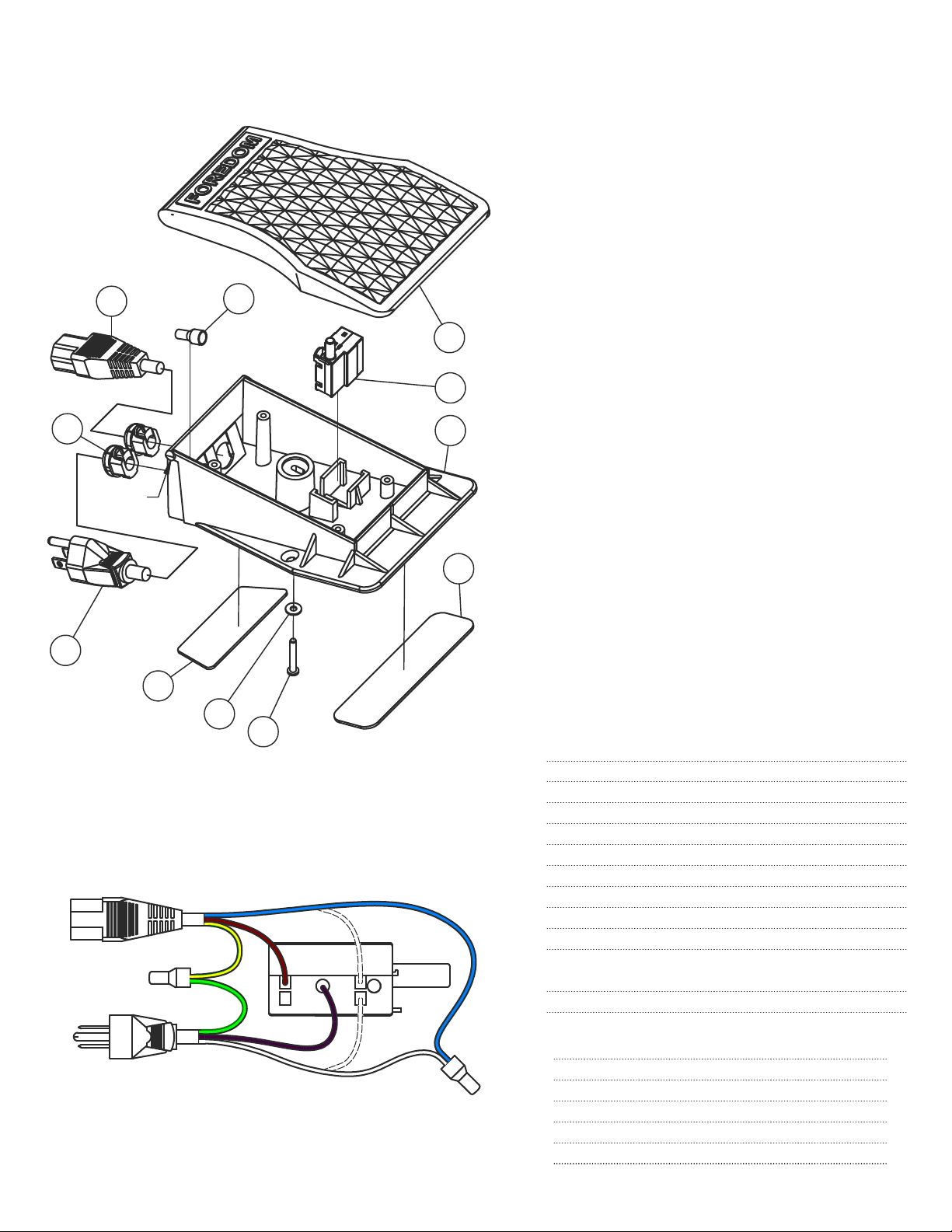

Parts List
C.FCH−2* & C.FCT−2
Foot Control, 230V
10
9
Point A
11
Instructions for Removing
and Replacing Trigger Switch
Disconnect Foot Control from Motor and Wall Outlet.
1.
Unscrew cover adjustment screw (5).
2.
Using flat blade of screwdriver inserted at Point A
between Cover (1) and Base (3), carefully pry Cover off.
3.
Remove Trigger Switch (2) from Base mounting bracket.
4.
On older Switches, all the terminals will be push-in, spring clamp
type. On newer Switches, some terminals have screw fasteners.
To remove wires from the push-in terminals, insert 1.3mm [.05in]
approximate diameter pin or the blade of a jewele r's screwdriver
all the way into the terminal socket to release the spring clamp.
Grasp the tool and wire and pull them together out of the socket.
1
2
3
If you have difficulty removing the wires from the push-in terminals
and you have wire-cutting, stripping, and soldering tools, you can
cut the wires off where they exit from the terminals. To prepare
the cut wires for installation in to the replacement Switch, strip
them back exactly 8.25 mm [5/16 in], then apply solder to the
stripped ends to fuse the strands together.
5.
Connect Wires to New Trigger Switch as shown in the Wiring
Diagram. Push wires all the way in, so no bare wire is exposed.
On Screw Terminal 1, push wire lead all the way into the socket
then tighten the screw firmly. Push other wire leads all the way
into the designated terminals. Pull on all the wires, making sure
they are secure. Place Switch back into Base mo un ting bracket.
8
7
6
5
Wiring Diagram
*C.FCH−2 is required for use with the latest
SR 230V motors produced since May 2006.
Most Foot Controls have BLU(WHT) wires connected by a Wire Connector
as shown. Leave them connected, and connect only the BRN((BLK)
wires to Terminals 1 and 6 on the new Trigger Switch. Otherwise
connect all four wires to the Switch as indicated by the dotted wires.
1
BLU (WHT)
4
3
2
WHT (BLU)
Trigger Switch
Wire
Connector
Female Receptacle
to Motor
Wire Connector
Male Plug to
AC Power Source
GRN/YLW
GRN
GRN
(GRN/YLW)
}
BRN (BLK)
6
5
BLK (BRN)
FOREDOM The Foredom Electric Company
16 Stony Hill Rd., Bethel, CT 06801 • 203−792−8622
Fax: 203−796−7861
• www.foredom.net
4
6.
7.
8.
Form DN 12/10
Position wires around adjustment sc rew post so wires will not
interfere with cover travel.
Snap cover (1) onto hinge posts on top of rear corners of base (3).
Insert adjustment screw (5) through washer (6) and into post
slot and threaded insert in cover (1). Tighten with screwdriver
until cover is just touching the trigger switch pushrod.
tighten the screw further
to avoid pressing the Switch Pushrod
Do not
into a permanently "on" posi tion.
QtyDescriptionPart No.Item
1
2
3
CP10851
4
CP10859
5
6
CP10862
7
CP10860
8
9
10
CP10542
CP10868
11
Cordset Option
CPOption20 CP10545 No Plug, Europe
CPOption21 CP10553 Male, United Kingdom
CPOption22 CP10554 Male, Continental Europe
CPOption25 CP10555 Male India 10A
CPOption26 CP10556 Male, Austrailia
CoverCP10852B
Trigger Switch, 250VCP11027
Base
Front Base Pad
Screw, 6−32 x 1"CP10856
Washer, #6
Rear Base Pad
Male Cordset or Substitute OptionCP10541
Strain ReliefCP10003−3
Female Cordset (FCT−2)
Female Cordset (FCH−2)
Wire ConnectorCP11029
Part No.
Description
1
1
1
1
1
1
1
1
2
1
1
