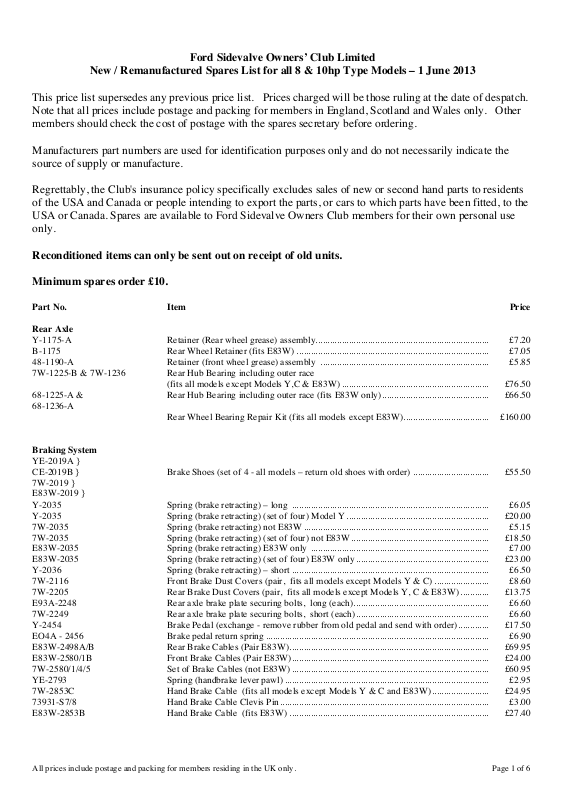

Ford Sidevalve Owners’ Club Limited
New / Remanufactured Spares List for all 8 & 10hp Type Models – 1 June 2013
This price list supersedes any previous price list. Prices charged will be those ruling at the date of despatch.
Note that all prices include postage and packing for members in England, Scotland and Wales only. Other
members should check the cost of postage with the spares secretary before ordering.
Manufacturers part numbers are used for identification purposes only and do not necessarily indicate the
source of supply or manufacture.
Regrettably, the Club's insurance policy specifically excludes sales of new or second hand parts to residents
of the USA and Canada or people intending to export the parts, or cars to which parts have been fitted, to the
USA or Canada. Spares are available to Ford Sidevalve Owners Club members for their own personal use
only.
Reconditioned items can only be sent out on receipt of old units.
Minimum spares order £10.
Part No. Item Price
Rear Axle
Y-1175-A Retainer (Rear wheel grease) assembly......................................................................... £7.20
B-1175 Rear Wheel Retainer (fits E83W) ................................................................................. £7.05
48-1190-A Retainer (front wheel grease) assembly ....................................................................... £5.85
7W-1225-B & 7W-1236 Rear Hub Bearing including outer race
(fits all models except Models Y,C & E83W) .............................................................. £76.50
68-1225-A & Rear Hub Bearing including outer race (fits E83W only)............................................. £66.50
68-1236-A
Rear Wheel Bearing Repair Kit (fits all models except E83W).................................... £160.00
Braking System
YE-2019A }
CE-2019B } Brake Shoes (set of 4 - all models – return old shoes with order) ................................ £55.50
7W-2019 }
E83W-2019 }
Y-2035 Spring (brake retracting) – long ................................................................................... £6.05
Y-2035 Spring (brake retracting) (set of four) Model Y............................................................ £20.00
7W-2035 Spring (brake retracting) not E83W .............................................................................. £5.15
7W-2035 Spring (brake retracting) (set of four) not E83W.......................................................... £18.50
E83W-2035 Spring (brake retracting) E83W only ........................................................................... £7.00
E83W-2035 Spring (brake retracting) (set of four) E83W only........................................................ £23.00
Y-2036 Spring (brake retracting) – short ................................................................................... £6.50
7W-2116 Front Brake Dust Covers (pair, fits all models except Models Y & C) ....................... £8.60
7W-2205 Rear Brake Dust Covers (pair, fits all models except Models Y, C & E83W) ............ £13.75
E93A-2248 Rear axle brake plate securing bolts, long (each)......................................................... £6.60
7W-2249 Rear axle brake plate securing bolts, short (each)........................................................ £6.60
Y-2454 Brake Pedal (exchange - remove rubber from old pedal and send with order)............. £17.50
EO4A - 2456 Brake pedal return spring .............................................................................................. £6.90
E83W-2498A/B Rear Brake Cables (Pair E83W).................................................................................... £69.95
E83W-2580/1B Front Brake Cables (Pair E83W)................................................................................... £24.00
7W-2580/1/4/5 Set of Brake Cables (not E83W)................................................................................... £60.95
YE-2793 Spring (handbrake lever pawl) ...................................................................................... £2.95
7W-2853C Hand Brake Cable (fits all models except Models Y & C and E83W)........................ £24.95
73931-S7/8 Hand Brake Cable Clevis Pin........................................................................................ £3.00
E83W-2853B Hand Brake Cable (fits E83W) .................................................................................... £27.40
All prices include postage and packing for members residing in the UK only. Page 2 of 6
Steering and Suspension
CE-3030B Bolt (front axle to radius rod, not Models Y & E83W) ................................................ £38.50
E83W-3032 Bolt (front axle to radius rod E83W)............................................................................. £34.50
YE-3290-E and E93A-3290 Track Rod Ends (pair) all saloons and 5cwt vans ......................................................... £65.00
Track Rod Ends (pair) E83W........................................................................................ £60.00
YE-3304C Draglink (Y model) ...................................................................................................... £72.75
E493A-3304 Draglink (C, 7Y, 7W, Anglia, Popular, Prefect, 5cwt vans)......................................... £67.50
YE-3332 Trackrod End Dust Cover (each, fits all models).......................................................... £4.20
YE-33111 King Pin Set, complete (Model Y) .............................................................................. £70.00
CE - 33111 King Pin Set, complete (Model C) ............................................................................... £70.00
7W - 33111 King Pin Set, complete (7Y,7W, Anglia,Popular,Prefects,5cwt vans) ........................ £79.95
E83W - 33111 King Pin Set, complete (E83W)................................................................................... £59.00
7W-3590-A Arm (steering gear) (fits models 1937 to 1949)............................................................ £20.00
Y - 3446 Front axle A-frame Bush (fits all models).................................................................... £6.55
YE - 3616B Horn Button & Nut (Y model) ..................................................................................... £8.20
E93A - 4020 Shackle Bush (metalastic type) saloons and 5cwt vans 1946 onwards......................... £7.85
E93A - 4020 Shackle Bush (metalastic type) saloons and 5cwt vans 1946 onwards (set of four) .... £24.00
YE-4035 Gasket (Rear Housing) – 6 thou or 10 thou – please specify size................................. £2.75
E493A 4050 Retainer (rear axle shaft grease).................................................................................... £7.50
Y-4217 Bolt (diff gear case) ...................................................................................................... £5.20
18-4217 Bolt (diff gear case) ...................................................................................................... £5.40
Y-4243 Key (rear axle shaft)...................................................................................................... £6.00
Y-4507 Gasket (torque tube to differential housing cap)........................................................... £1.75
7W-4507 Gasket (torque tube to differential housing cap)........................................................... £1.75
Y-4515 Gasket (universal joint housing cap)............................................................................. £1.69
E93A - 4607 Pin (Drive Shaft) ........................................................................................................... £2.09
Y-4615-B Bearing (drive pinion) assembly (Model Y) ................................................................. £15.00
Y - 4636 Lock Washer (pinion bearing nut) all models except E83W ....................................... £2.55
Y - 4637 Thrust Washer (pinion bearing) all models except E83W ........................................... £1.99
Y-4655 Torque tube bearing sleeve............................................................................................ £9.95
E93A-18055A Front shock absorber link to fit E493A, E494A and 103E ........................................... £20.50
E93A-18055B Rear shock absorber link to fit E493A, E494A and 103E............................................. £20.50
E83W-18055B Front shock absorber link to fit E83W .......................................................................... £25.00
6E-18055B Rear shock absorber link to fit E83W ........................................................................... £25.00
Shock absorber, offside front to fit E493A, E494A and 103E...................................... £85.00
Shock absorber, nearside front to fit E493A, E494A and 103E.................................... £85.00
Shock absorber, offside rear to fit E493A, E494A and 103E ....................................... £85.00
Shock absorber, nearside rear to fit E493A, E494A and 103E .................................... £85.00
Shock absorber, offside front to fit E83W .................................................................... £85.00
Shock absorber, nearside front to fit E83W .................................................................. £85.00
Shock absorber, offside rear to fit E83W...................................................................... £85.00
Shock absorber, nearside rear to fit E83W................................................................... £85.00
Front wheel bearings (wheel, not E83W)...................................................................... £56.00
Front wheel bearings (per axle set, not E83W)............................................................. £110.00
Front wheel bearings (wheel, E83W)............................................................................ £56.50
Front wheel bearings (per axle set, E83W) ................................................................... £110.50
Suspension Buffer (fits all models except Model Y) ................................................... £24.00
Panhard Rod front – suitable for post 1947 103E, E493A, E494A, EO4A and
commercial equivalents ................................................................................................. £70.00
Panhard Rod rear – suitable for post 1947 103E, E493A, E494A, EO4A and
commercial equivalents................................................................................................. £70.00
Panhard Rod front and rear – suitable for post 1947 103E, E493A, E494A, EO4A and
commercial equivalents................................................................................................. £125.00
Exhaust Systems
Y - 5230 Model Y stainless steel exhaust system ........................................................................ £117.00
E04C - 5230-A 5cwt van stainless steel exhaust system (all 5cwt vans) ............................................... £111.00
E83W - 5230-A E83W stainless steel exhaust system............................................................................. £106.50
E93A-5230 / E93A-5255-C Prefect and 7W stainless steel exhaust system .............................................................. £199.00
E93A-5230 / E04A-5255-B Anglia, 103E and 7Y mild steel exhaust system........................................................... £170.00
Y-5251 Manifold to exhaust clamp............................................................................................ £9.95
