Ford Ranger 2015 User Manual

FORD RANGER Owner's Manual

The information contained in this publication was correct at the time of going to print. In the interest of continuous development, we reserve the right to change specifications, design or equipment at any time without notice or obligation. No part of this publication may be reproduced, transmitted, stored in a retrieval system or translated into any language in any form by any means without our written permission. Errors and omissions excepted.

Part Number: DB39120609AD (CG3575en) 09/2014 20141027035551

Introduction

About This Manual...........................................7

Symbols Glossary.............................................7

Data Recording..................................................9

Replacement Parts

Recommendation......................................10

Special Notices................................................10

Mobile Communications

Equipment.....................................................10

At a Glance

Front Exterior Overview.................................12

Rear Exterior Overview..................................13

Vehicle Interior Overview.............................14

Instrument Panel Overview.........................15

Child Safety

Installing Child Seats.....................................18

Child Seat Positioning...................................21

Child Safety Locks..........................................23

Safety Belts

Principle of Operation..................................24

Fastening the Safety Belts..........................24

Safety Belt Height Adjustment.................25

Safety Belt Minder.........................................26

Supplementary Restraints

System

Principle of Operation...................................27

Driver Airbag.....................................................27

Passenger Airbag...........................................28

Side Airbags.....................................................29

Driver Knee Airbag.........................................29

Side Curtain Airbags.....................................29

Keys and Remote Controls

General Information on Radio

Frequencies...................................................31

Remote Control................................................31

Replacing a Lost Key or Remote

Control............................................................33

Security

Passive Anti-Theft System.........................34

Anti-Theft Alarm............................................34

Locks

Locking and Unlocking.................................36

Steering Wheel

Adjusting the Steering Wheel...................39

Audio Control...................................................39

Voice Control...................................................40

Cruise Control.................................................40

Wipers and Washers

Windshield Wipers..........................................41

Autowipers........................................................41

Windshield Washers.....................................42

Lighting

General Information......................................43

Lighting Control..............................................43

Autolamps........................................................44

Instrument Lighting Dimmer.....................44

Headlamp Exit Delay....................................44

Daytime Running Lamps.............................45

Front Fog Lamps............................................45

Rear Fog Lamps.............................................46

Headlamp Leveling.......................................46

Direction Indicators........................................47

Approach Lamps............................................47

Interior Lamps..................................................47

Windows and Mirrors

Power Windows.............................................49

Interior Mirror...................................................50

Exterior Mirrors.................................................51

Ranger (TKE) Vehicles Built From: 01-10-2014, DB39120609AD (CG3575en) enGBR, Edition date: 09/2014, First Printing

Table of Contents

Sliding Windows.............................................52

Instrument Cluster

Gauges...............................................................53

Warning Lamps and Indicators.................53

Audible Warnings and Indicators.............57

Information Displays

General Information......................................59

Clock....................................................................61

Trip Computer..................................................61

Personalized Settings...................................63

Climate Control

Principle of Operation..................................65

Air Vents............................................................65

Manual Climate Control..............................66

Automatic Climate Control........................68

Heated Windows and Mirrors....................70

Seats

Sitting in the Correct Position....................72

Manual Seats...................................................72

Power Seats.....................................................74

Head Restraints..............................................76

Rear Seats.........................................................76

Heated Seats...................................................78

Auxiliary Power Points

Auxiliary Power Points..................................79

Cigar Lighter.....................................................79

Storage Compartments

Cup Holders.....................................................80

Glove Box..........................................................80

Center Console...............................................80

Cool Box.............................................................81

Ashtray................................................................81

Glasses Holder.................................................81

Rear Seat Armrest..........................................81

Starting and Stopping the

Engine

General Information......................................82

Ignition Switch.................................................82

Steering Wheel Lock.....................................82

Starting a Gasoline Engine.........................83

Starting a Diesel Engine..............................84

Diesel Particulate Filter...............................84

Switching Off the Engine............................85

Fuel and Refueling

Safety Precautions........................................86

Fuel Quality......................................................87

Running Out of Fuel......................................87

Catalytic Converter.......................................88

Refueling...........................................................88

Fuel Consumption.........................................90

Technical Specifications..............................91

Transmission

Manual Transmission...................................93

Automatic Transmission.............................93

Four-Wheel Drive

Principle of Operation...................................97

Using Four-Wheel Drive...............................97

Rear Axle

Limited Slip Differential.............................102

Electronic Locking Differential................102

Brakes

Principle of Operation.................................103

Hints on Driving With Anti-Lock

Brakes...........................................................103

Parking Brake.................................................103

Hill Start Assist.............................................104

Ranger (TKE) Vehicles Built From: 01-10-2014, DB39120609AD (CG3575en) enGBR, Edition date: 09/2014, First Printing

Table of Contents

Traction Control

Principle of Operation................................106

Using Traction Control...............................106

Stability Control

Principle of Operation.................................107

Using Stability Control................................107

Terrain Response

Principle of Operation................................109

Using Hill Descent Control.......................109

Parking Aids

Principle of Operation...................................111

Parking Aid........................................................111

Rear View Camera.........................................113

Cruise Control

Principle of Operation..................................116

Using Cruise Control.....................................116

Load Carrying

General Information.....................................118

Luggage Covers..............................................118

Roof Racks and Load Carriers.................120

Load Retaining Fixtures...............................121

Tailgate.............................................................124

Towing

Towing a Trailer..............................................125

Trailer Sway Control....................................126

Recommended Towing Weights............126

Tow Ball............................................................129

Towing Points................................................130

Towing the Vehicle on Four Wheels.......131

Driving Hints

Breaking-In......................................................132

General Driving Points.................................132

Cold Weather Precautions........................132

Reduced Engine Performance.................132

Driving Through Water................................133

Floor Mats........................................................133

Roadside Emergencies

Hazard Warning Flashers...........................135

First Aid Kit......................................................135

Warning Triangle...........................................135

Jump Starting the Vehicle.........................136

Fuses

Fuse Box Locations......................................138

Fuse Specification Chart...........................140

Changing a Fuse...........................................149

Maintenance

General Information....................................150

Opening and Closing the Hood...............150

Under Hood Overview - 2.5L Duratec-HE

(122kW/165PS) - MI4..............................152

Under Hood Overview - 2.2L

Duratorq-TDCi (Puma) Diesel............154

Under Hood Overview - 3.2L

Duratorq-TDCi (Puma) Diesel............156

Engine Oil Dipstick - 2.5L Duratec-HE

(122kW/165PS) - MI4.............................158

Engine Oil Dipstick - 2.2L Duratorq-TDCi

(Puma) Diesel/3.2L Duratorq-TDCi

(Puma) Diesel...........................................158

Engine Oil Check...........................................158

Engine Coolant Check................................159

Power Steering Fluid Check.....................159

Brake and Clutch Fluid Check.................160

Draining the Fuel Filter Water Trap........160

Washer Fluid Check......................................161

Changing the 12V Battery...........................161

Checking the Wiper Blades.......................161

Changing the Wiper Blades.......................161

Changing a Bulb............................................162

Bulb Specification Chart...........................168

Ranger (TKE) Vehicles Built From: 01-10-2014, DB39120609AD (CG3575en) enGBR, Edition date: 09/2014, First Printing

Table of Contents

Technical Specifications...........................169

Vehicle Care

Cleaning the Exterior....................................172

Cleaning the Interior.....................................172

Repairing Minor Paint Damage................173

Cleaning the Alloy Wheels.........................173

Wheels and Tires

General Information....................................174

Using Winter Tires........................................174

Using Snow Chains......................................174

Changing a Road Wheel............................174

Technical Specifications...........................180

Capacities and Specific-

ations

Vehicle Dimensions.....................................182

Towbar Dimensions.....................................187

Vehicle Identification Plate......................190

Vehicle Identification Number................190

SYNC™

General Information.....................................191

Using Voice Recognition............................192

Using SYNC™ With Your Phone.............195

SYNC™ Applications and Services......206

Using SYNC™ With Your Media

Player.............................................................213

SYNC™ Troubleshooting..........................219

Navigation introduction

General Information...................................229

Road Safety...................................................229

Navigation Quick start

Navigation Quick start................................231

Navigation unit overview

Navigation unit overview...........................232

Loading the navigation data...................234

System settings

System settings............................................235

Navigation system

Route options menu...................................238

Route displays..............................................239

Traffic Message Channel

Principle of Operation...............................240

Using TMC.....................................................240

Map updates

Map updates..................................................241

Audio introduction

Important audio information..................242

Audio unit overview

Audio unit overview ...................................243

Audio System Security

Security code..................................................251

Audio Unit Clock and Date

Displays

Setting the clock on the audio unit.......252

Audio unit operation

On/off control...............................................254

Sound button................................................254

Waveband button.......................................254

Station tuning control................................254

Station preset buttons..............................255

Autostore control.........................................255

Traffic information control.......................256

Ranger (TKE) Vehicles Built From: 01-10-2014, DB39120609AD (CG3575en) enGBR, Edition date: 09/2014, First Printing

Table of Contents

Audio unit menus

Automatic volume control........................257

Digital signal processing (DSP)..............257

News broadcasts.........................................257

Alternative frequencies..............................257

Regional mode (REG)...............................258

Compact Disc Player

Compact disc playback............................259

Track selection.............................................259

Fast forward/reverse..................................259

Shuffle/random...........................................259

Repeat compact disc tracks...................259

Compact disc track scanning.................260

MP3 file playback........................................260

MP3 display options...................................262

Ending compact disc playback..............263

Auxiliary input jack

Auxiliary input jack......................................264

Audio system care

Antenna...........................................................265

Audio Troubleshooting

Audio troubleshooting..............................266

Appendices

Type approvals.............................................267

Electromagnetic Compatibility..............267

Ranger (TKE) Vehicles Built From: 01-10-2014, DB39120609AD (CG3575en) enGBR, Edition date: 09/2014, First Printing

Table of Contents

Ranger (TKE) Vehicles Built From: 01-10-2014, DB39120609AD (CG3575en) enGBR, Edition date: 09/2014, First Printing

ABOUT THIS MANUAL

Thank you for choosing Ford. We recommend that you take some time to get to know your vehicle by reading this manual. The more that you know about it, the greater the safety and pleasure you will get from driving it.

WARNING

Driving while distracted can result in loss of vehicle control, crash and

injury. We strongly recommend that you use extreme caution when using any device that may take your focus off the road. Your primary responsibility is the safe operation of your vehicle. We recommend against the use of any hand-held device while driving and encourage the use of voice-operated systems when possible. Make sure you are aware of all applicable local laws that may affect the use of electronic devices while driving.

Note: This manual describes product features and options available throughout the range of available models, sometimes even before they are generally available. It may describe options not fitted to the vehicle you have purchased.

Note: Some of the illustrations in this manual may show features as used in different models, so may appear different to you on your vehicle.

Note: Always use and operate your vehicle in line with all applicable laws and regulations.

Note: Pass on this manual when selling your vehicle. It is an integral part of your vehicle.

This manual may qualify the location of a component as left-hand side or right-hand side. The side is determined when facing forward in the seat.

Right-hand side.A

Left-hand side.B

SYMBOLS GLOSSARY

These are some of the symbols you may see on your vehicle.

Safety alert

See Owner's Manual

Air conditioning system

Anti-lock braking system

Avoid smoking, flames or sparks

Battery

Battery acid

Brake fluid - non petroleum based

Ranger (TKE) Vehicles Built From: 01-10-2014, DB39120609AD (CG3575en) enGBR, Edition date: 09/2014, First Printing

Introduction

Brake system

Cabin air filter

Check fuel cap

Child safety door lock or unlock

Child seat lower anchor

Child seat tether anchor

Cruise control

Do not open when hot

Engine air filter

Engine coolant

Engine coolant temperature

Engine oil

Explosive gas

Fan warning

Fasten safety belt

Front airbag

Front fog lamps

Fuse compartment

Hazard warning flashers

Heated rear window

Heated windshield

Interior luggage compartment release

Jack

Lighting control

Lock rear window

Low tire pressure warning

Maintain correct fluid level

Panic alarm

Parking aid

Parking brake

Ranger (TKE) Vehicles Built From: 01-10-2014, DB39120609AD (CG3575en) enGBR, Edition date: 09/2014, First Printing

Introduction

Power steering fluid

Power windows front/rear

Service engine soon

Side airbag

Stability control

Windshield wash and wipe

Keep out of reach of children

Recyclable product

Do not dispose of in the trash because the material contains lead

Use safety glasses when handling

DATA RECORDING

A large number of electronic components of your vehicle contain data storage modules temporarily or permanently storing technical data about the condition of the vehicle, events and errors.

In general, this technical information documents the condition of parts, modules, systems or the environment:

• Operating conditions of system components (e.g. filling levels).

• Status messages of the vehicle and its individual components (e.g. number of wheel revolutions/rotational speed, deceleration, lateral acceleration).

• Malfunction and defects in important system components (e.g. lighting and brake system).

• Vehicle reactions in particular driving situations (e.g. inflation of an airbag, activation of the stability regulation system).

• Environmental conditions (e.g. temperature).

These data are exclusively technical and help identification and correction of errors as well as optimisation of vehicle functions. Motion profiles indicating travelled routes cannot be created with these data.

If services are used (e.g. repair works, service processes, warranty cases, quality assurance), employees of the service network (including manufacturers) are able to read out this technical information from the event and error data storage modules using special diagnostic devices. If required, you will receive further information. After an error has been corrected, these data are deleted from the error storage module or they are constantly overwritten.

When using the vehicle, situations may occur in which these technical data related to other information (accident report, damages on the vehicle, witness statements etc.) may be associated with a specific person - possibly, with the assistance of an expert.

Ranger (TKE) Vehicles Built From: 01-10-2014, DB39120609AD (CG3575en) enGBR, Edition date: 09/2014, First Printing

Introduction

Additional functions contractually agreed upon with the client (e.g. vehicle location in emergency cases) allow the transmission of particular vehicle data from the vehicle.

REPLACEMENT PARTS RECOMMENDATION

Your vehicle has been built to the highest standards using quality parts. We recommend that you demand the use of genuine Ford and Motorcraft parts whenever your vehicle requires scheduled maintenance or repair. You can clearly identify genuine Ford and Motorcraft parts by looking for the Ford, FoMoCo or Motorcraft branding on the parts or their packaging.

Scheduled Maintenance and Mechanical Repairs

One of the best ways for you to make sure that your vehicle provides years of service is to have it maintained in line with our recommendations using parts that conform to the specifications detailed in this Owner’s Manual. Genuine Ford and Motorcraft parts meet or exceed these specifications.

Collision Repairs

We hope that you never experience a collision, but accidents do happen. Genuine Ford replacement collision parts meet our stringent requirements for fit, finish, structural integrity, corrosion protection and dent resistance. During vehicle development we validate these parts deliver the intended level of protection as a whole system. A great way to know for sure you are getting this level of protection is to use genuine Ford replacement collision parts.

Warranty on Replacement Parts

Genuine Ford and Motorcraft replacement parts are the only replacement parts that benefit from a Ford Warranty. Damage caused to your vehicle as a result of the failure of non-Ford parts may not be covered by the Ford Warranty. For additional information, refer to the terms and conditions of the Ford Warranty.

SPECIAL NOTICES

If converting or modifying your vehicle from production specification, refer to the Body and Equipment Mounting Manual at www.etis.ford.com/fordservice.

MOBILE COMMUNICATIONS EQUIPMENT

Using mobile communications equipment is becoming increasingly important in the conduct of business and personal affairs. However, you must not compromise your own or others’ safety when using such equipment. Mobile communications can enhance personal safety and security when appropriately used, particularly in emergency situations. Safety must be paramount when using mobile communications equipment to avoid negating these benefits. Mobile communication equipment includes, but is not limited to, cellular phones, pagers, portable email devices, text messaging devices and portable two-way radios.

Ranger (TKE) Vehicles Built From: 01-10-2014, DB39120609AD (CG3575en) enGBR, Edition date: 09/2014, First Printing

Introduction

WARNING

Driving while distracted can result in loss of vehicle control, crash and

Ranger (TKE) Vehicles Built From: 01-10-2014, DB39120609AD (CG3575en) enGBR, Edition date: 09/2014, First Printing

Introduction

FRONT EXTERIOR OVERVIEW

See Locking and Unlocking (page 36).A See Changing the Wiper Blades (page 161).B See Maintenance (page 150).C See Changing a Bulb (page 162).D Tire pressure. See Technical Specifications (page 180).E See Changing a Road Wheel (page 174).F

Ranger (TKE) Vehicles Built From: 01-10-2014, DB39120609AD (CG3575en) enGBR, Edition date: 09/2014, First Printing

At a Glance

REAR EXTERIOR OVERVIEW

Fuel filler flap. See Refueling (page 88).A See Changing a Bulb (page 162).B Auxiliary battery. See Changing the 12V Battery (page 161).C See Changing a Bulb (page 162).D Tire pressure. See Technical Specifications (page 180).E See Changing a Road Wheel (page 174).F

Ranger (TKE) Vehicles Built From: 01-10-2014, DB39120609AD (CG3575en) enGBR, Edition date: 09/2014, First Printing

At a Glance

VEHICLE INTERIOR OVERVIEW

See Transmission (page 93).A See Locks (page 36).B See Power Windows (page 49). See Exterior Mirrors (page 51).C See Head Restraints (page 76).D See Fastening the Safety Belts (page 24).E See Rear Seats (page 76).F See Parking Brake (page 103).G

Ranger (TKE) Vehicles Built From: 01-10-2014, DB39120609AD (CG3575en) enGBR, Edition date: 09/2014, First Printing

At a Glance

See Manual Seats (page 72). See Power Seats (page 74).H See Opening and Closing the Hood (page 150).I

INSTRUMENT PANEL OVERVIEW

Right-Hand Drive

Ranger (TKE) Vehicles Built From: 01-10-2014, DB39120609AD (CG3575en) enGBR, Edition date: 09/2014, First Printing

At a Glance

Left-Hand Drive

Door lock button. See Locking and Unlocking (page 36).

Audio unit. See Audio unit overview (page 243).

Multi-functional display.C

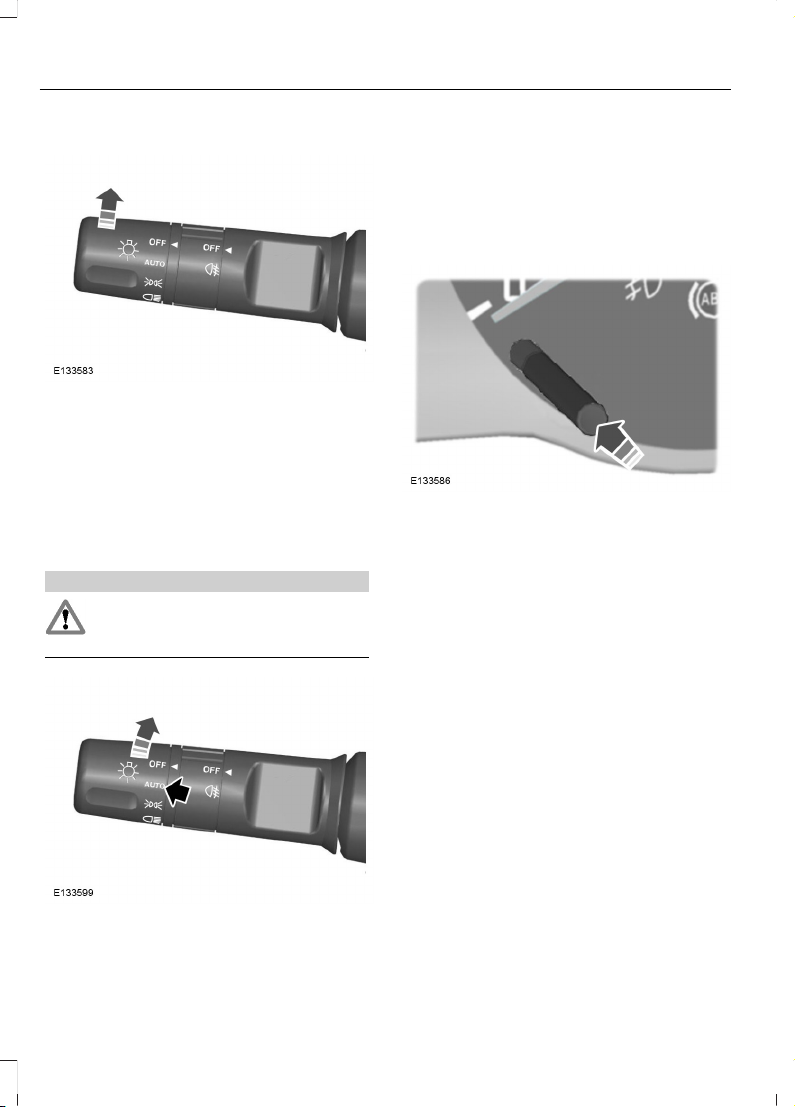

Multi-function lever: Direction indicators. See Direction Indicators (page 47). Main Beam. See Lighting Control (page 43). or Wiper lever. See Wipers and Washers (page

41).

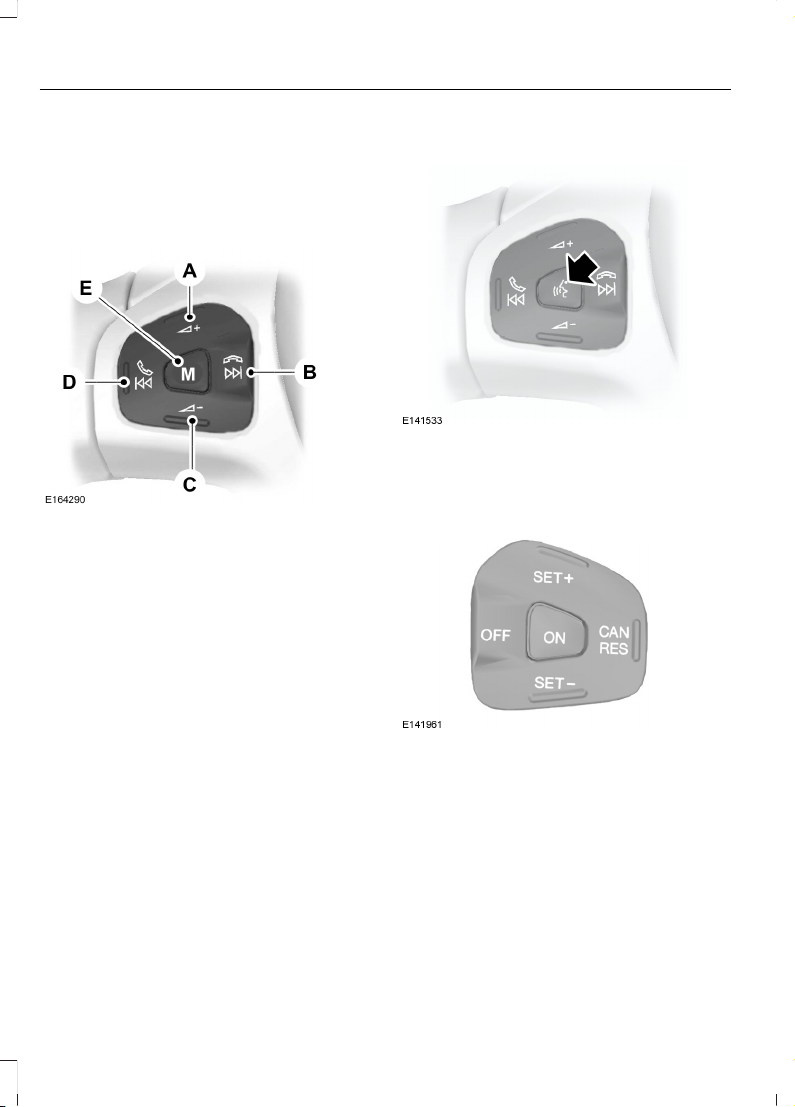

Audio control. See Audio Control (page 39).

Ranger (TKE) Vehicles Built From: 01-10-2014, DB39120609AD (CG3575en) enGBR, Edition date: 09/2014, First Printing

At a Glance

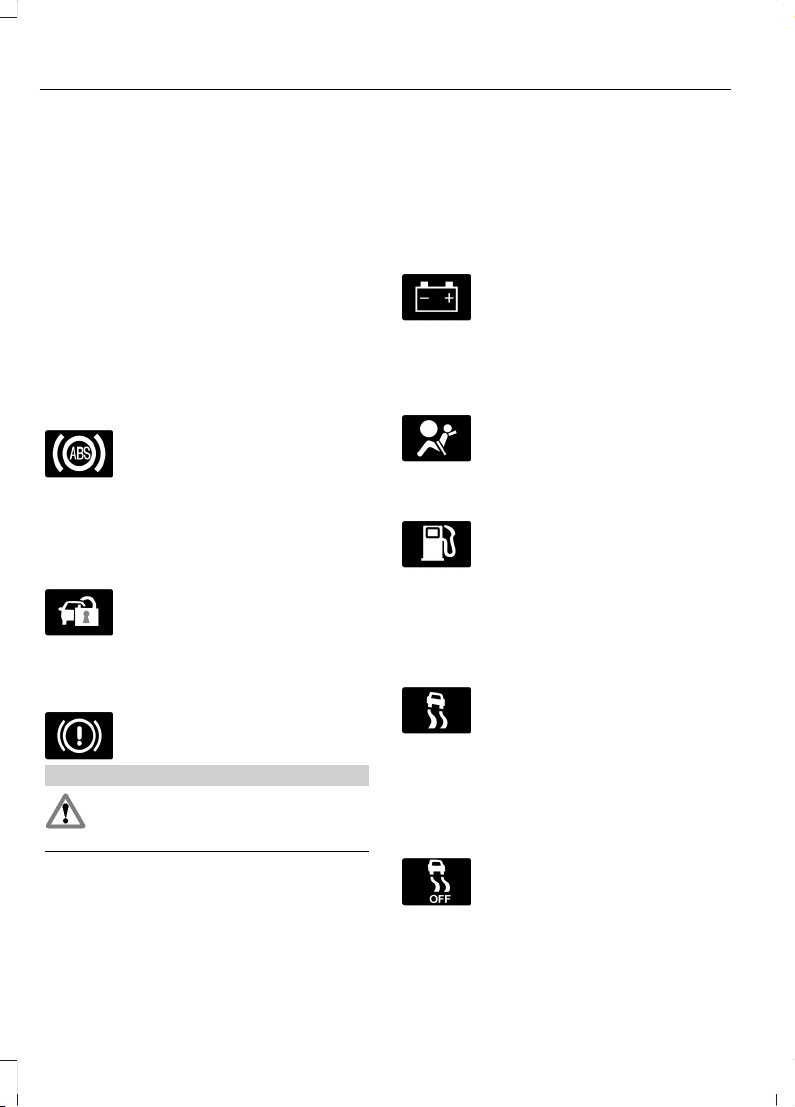

Instrument cluster. See Gauges (page 53). See Warning Lamps and Indicators (page 53).

Multi-function lever: Direction indicators. See Direction Indicators (page 47). Main Beam. See Lighting Control (page 43). or Wiper lever. See Wipers and Washers (page

41).

Exterior mirror control. See Exterior Mirrors (page 51).

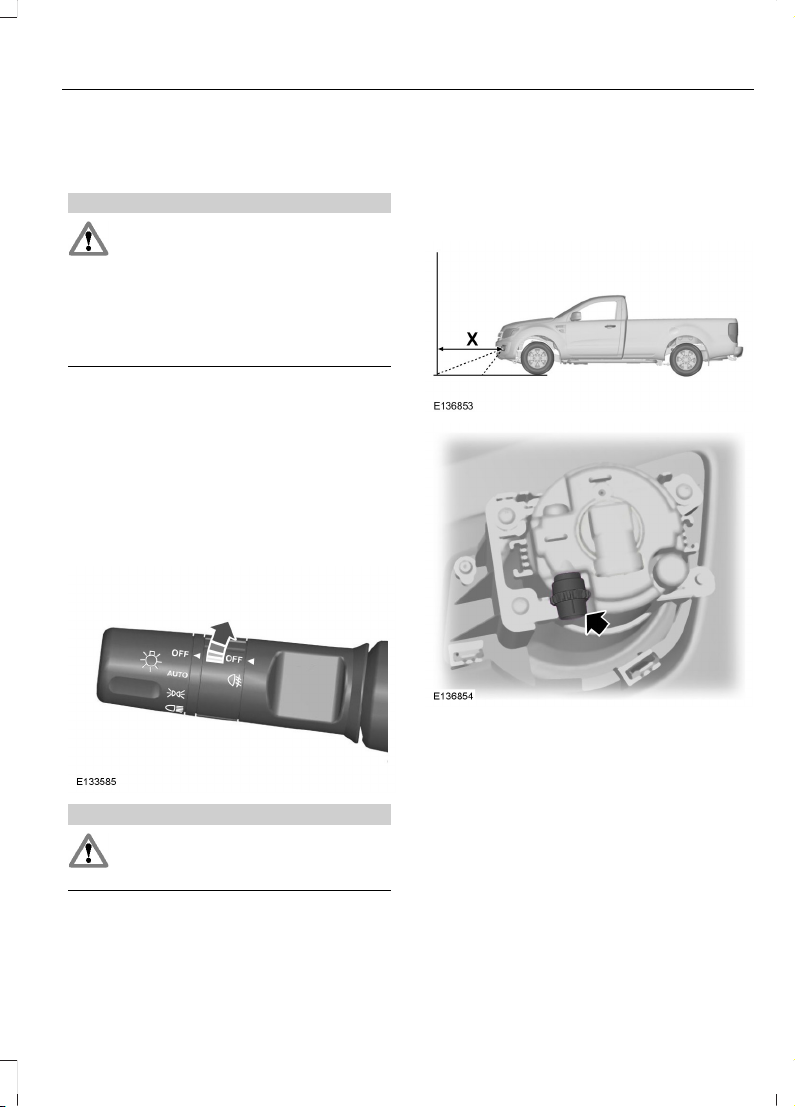

Headlamp levelling switch. See Headlamp Leveling (page 46).

Air vents. See Air Vents (page

65).

Bonnet release lever. See

Opening and Closing the Hood (page 150).

Driver side storage compartment. See Glove Box (page 80).

Cruise control. See Cruise Control (page 116).

Ignition switch. See Ignition Switch (page 82).

Horn.O Driver knee airbag. See Principle

of Operation (page 27).

Stability control (ESP) switch. See Using Stability Control (page 107).

Passenger airbag deactivation warning lamp. See Passenger Airbag (page 28).

Auxiliary power sockets. See Auxiliary Power Points (page

79).

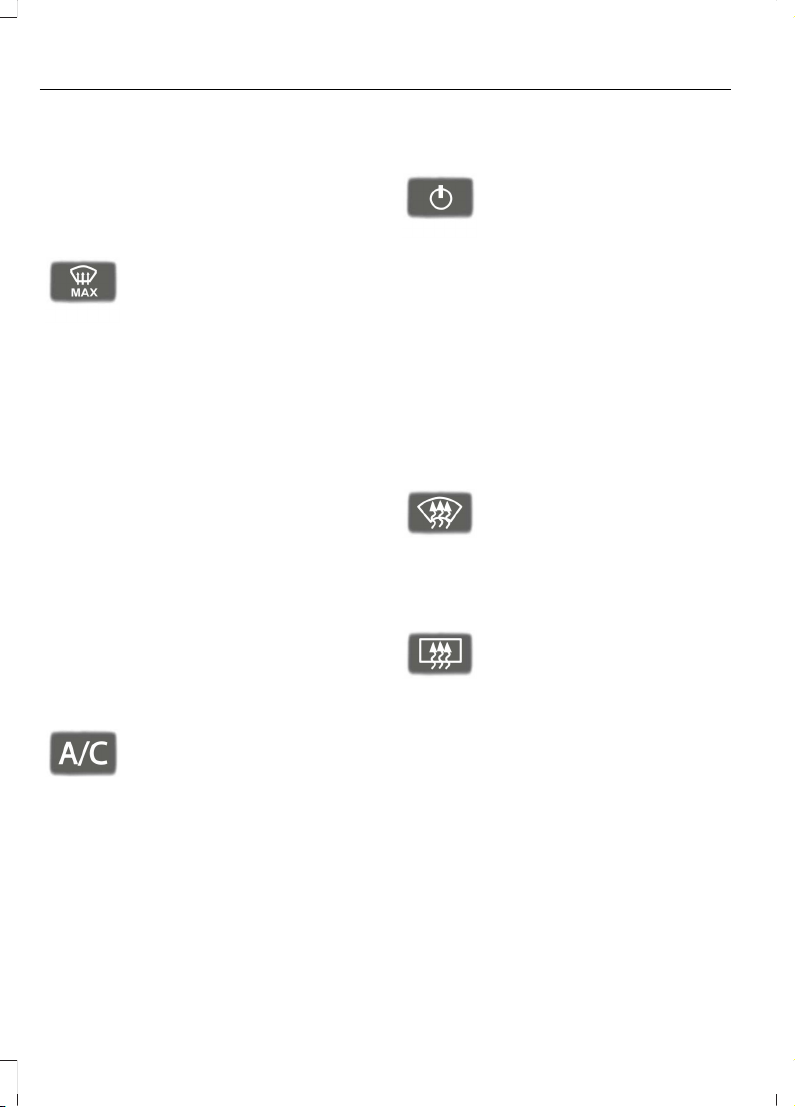

Climate controls. See Manual Climate Control (page 66).

Auxiliary input and USB See Auxiliary input jack (page 264). or Auxiliary switches.

Hazard warning flasher switch. See Hazard Warning Flashers (page 135).

Electronic Locking Differential (ELD) button. See Electronic Locking Differential (page 102).

Hill descent control. See Terrain Response (page 109).

Ranger (TKE) Vehicles Built From: 01-10-2014, DB39120609AD (CG3575en) enGBR, Edition date: 09/2014, First Printing

At a Glance

INSTALLING CHILD SEATS

WARNINGS

Use an approved child seat to secure children less than 59 inches (150 centimeters) tall in the rear seat.

Extreme Hazard! Do not use a rearward facing child seat on a seat protected by an air bag in front of it!

Read and follow the manufacturer’s instructions when you are installing a child seat.

Do not modify child seats in any way.

Do not hold a child on your lap when your vehicle is moving.

Do not leave unattended children in your vehicle.

WARNINGS

If your vehicle has been involved in a crash, have the child seats checked by an authorized dealer.

Note: Mandatory use of child seats varies from country to country.

Only child seats certified to ECE-R44.03 (or later) have been tested and approved for use in your vehicle. A choice of these are available from an authorized dealer.

Child Seats for Different Mass Groups

Use the correct child seat as follows:

Baby Safety Seat

Secure children that weigh less than 29 pounds (13 kilograms) in a rearward facing baby safety seat (Group 0+) on the rear seat.

Ranger (TKE) Vehicles Built From: 01-10-2014, DB39120609AD (CG3575en) enGBR, Edition date: 09/2014, First Printing

Child Safety

Child Safety Seat

Secure children that weigh between 29 and 40 pounds (13 and 18 kilograms) in a child safety seat (Group 1) on the rear seat.

Booster Seats

WARNINGS

Do not install a booster seat or a

booster cushion with only the lap

strap of the safety belt.

Do not install a booster seat or a

booster cushion with a safety belt

that is slack or twisted.

Do not put the safety belt under your

child’s arm or behind their back.

Do not use pillows, books or towels

to boost your child’s height.

Make sure that your children sit in an

upright position.

Note: When using a child seat on a rear seat, make sure that the child seat rests tightly against the vehicle seat. It may be necessary to lift or remove the head restraint. See Head Restraints (page 76).

Booster Seat (Group 2)

Secure children that weigh more than 33 pounds (15 kilograms) but are less than 59 inches (150 centimeters) tall in a booster seat or a booster cushion.

We recommend that you use a booster seat that combines a cushion with a backrest instead of a booster cushion only. The raised seating position will allow you to position the shoulder strap of the adult safety belt over the center of your child’s shoulder and the lap strap tightly across their hips.

Booster Cushion (Group 3)

Ranger (TKE) Vehicles Built From: 01-10-2014, DB39120609AD (CG3575en) enGBR, Edition date: 09/2014, First Printing

Child Safety

ISOFIX Anchor Points

WARNING

Use an anti-rotation device when using the ISOFIX system. We recommend the use of a top tether

or support leg.

Note: When you are purchasing an ISOFIX seat, make sure that you know the correct mass group and ISOFIX size class for the intended seating locations. See Child Seat Positioning (page 21).

Your vehicle has ISOFIX anchor points that accommodate universally approved ISOFIX child seats.

The ISOFIX system comprises two rigid attachment arms on the child seat that attach to anchor points on the outboard rear seats, where the cushion and backrest meet. Tether anchor points are located in the back panel trim for child seats with a top tether.

Top Tether Anchor Points

Attaching a Child Seat with Top Tethers

WARNINGS

Do not attach a tether strap to anything other than the correct tether anchor point.

Make sure that the top tether strap is not slack or twisted and is properly located on the anchor point.

make sure

Note: You may need to raise or remove the head restraint to ease installation. See Head Restraints (page 76).

1. Place the child seat on the back seat cushion and fold the relevant seatback forward. See Rear Seats (page 76).

2. Route the tether strap under the head restraint to the anchor point.

3. Push the seatback to the upright position.

4. Push the child seat back firmly to engage the ISOFIX lower anchor points.

5. Tighten the tether strap in line with the child seat manufacturer's instructions.

Ranger (TKE) Vehicles Built From: 01-10-2014, DB39120609AD (CG3575en) enGBR, Edition date: 09/2014, First Printing

Child Safety

CHILD SEAT POSITIONING

WARNINGS

See an authorized dealer for the latest details relating to our recommended child seats.

Extreme Hazard! Do not use a rearward facing child seat on a seat protected by an air bag in front of it!

WARNINGS

When using a child seat with a support leg, the support leg must rest securely on the floor.

When using a child seat with a safety belt, make sure that the safety belt is not slack or twisted.

The child seat must rest tightly against the vehicle seat. It may be necessary to lift or remove the head

restraint. See Head Restraints (page 76).

Mass group categories

Seating positions

3210+0

46 - 79 lbs

(22 - 36 kg)

33 - 55 lbs

(15 - 25 kg)

20 - 40 lbs

(9 - 18 kg)

Up to 29

lbs (13 kg)

Up to 22

lbs (10 kg)

UF¹UF¹UF¹XX

Front passenger seat with airbag ON

U¹U¹U¹U¹U¹

Front passenger seat with airbag OFF

UUUUURear seats

XXXXXSingle cab center seat

X Not suitable for children in this mass group.

U Suitable for universal category child seats approved for use in this mass group.

U¹ Suitable for universal category child seats approved for use in this mass group. However, we recommend that you secure children in a government approved child seat, on the rear seat.

UF¹ Suitable for universal category forward facing child seats approved for use in this mass group. However, we recommend that you secure children in a government approved child seat, on the rear seat.

Note: When using a child seat on a front seat, always adjust the front passenger's seat to its fully rearward position. If it proves difficult to tighten the lap section of the safety belt without slack remaining, adjust the seatback to the fully upright position and raise the height of the seat. See Seats (page 72).

Ranger (TKE) Vehicles Built From: 01-10-2014, DB39120609AD (CG3575en) enGBR, Edition date: 09/2014, First Printing

Child Safety

ISOFIX Child Seats

Mass group categories

Seating positions

10+

Forward facingRear facing

20 - 40 lbs (9 - 18 kg)Up to 29 lbs (13 kg)

Not ISOFIX equipped

Size classFront seat

Seat type

A, B, B1, C, D

C, D, E

Size class

Rear outboard seat ISOFIX

IL, IUF

Seat type

Not ISOFIX equipped

Size classRear center seat

Seat type

IL Suitable for particular ISOFIX child seat systems of the semi-universal category. Please consult child seat systems suppliers' vehicle recommendation lists.

IUF Suitable for ISOFIX forward facing child seat systems of universal category approved for use in this mass group and ISOFIX size class.

The ISOFIX size class for both universal and semi-universal child seat systems is defined

by the capital letters A to G. These identification letters are displayed on ISOFIX child seat.

At time of publishing the recommended Group O+ ISOFIX baby safety seat is the Britax

Romer Baby Safe. See an authorized dealer for the latest details relating to our recommended child seats.

At time of publishing the recommended Group 1 ISOFIX child seat is the Britax Romer

Duo. See an authorized dealer for the latest details relating to our recommended child seats.

Ranger (TKE) Vehicles Built From: 01-10-2014, DB39120609AD (CG3575en) enGBR, Edition date: 09/2014, First Printing

Child Safety

CHILD SAFETY LOCKS

WARNING

You cannot open the doors from inside if you have put the child safety locks on.

Left-hand side

Turn counterclockwise to lock and clockwise to unlock.

Right-hand side

Turn clockwise to lock and counterclockwise to unlock.

Ranger (TKE) Vehicles Built From: 01-10-2014, DB39120609AD (CG3575en) enGBR, Edition date: 09/2014, First Printing

Child Safety

PRINCIPLE OF OPERATION

WARNINGS

Wear a seat belt and keep sufficient distance between yourself and the

steering wheel. Only when you use the seat belt properly, can it hold you in a position to achieve its optimum effect.

Never use a seat belt for more than

one person.

Use the correct buckle for each seat

belt.

Do not use a seat belt that is slack

or twisted.

Do not wear thick clothing. The seat

belt must fit tightly around your body

to achieve its optimum effect.

Position the shoulder strap of the

seat belt over the center of your

shoulder and position the lap strap tightly across your hips.

The driver and front passenger seat belt retractors are fitted with a seat belt pretensioner. Seat belt pretensioners have a lower deployment threshold than the air bags. During minor collisions, it is possible that only the seat belt pretensioners will deploy.

Status After a Collision

WARNING

If your vehicle has been involved in

an accident, have the seat belts and

anchorages checked by properly trained technicians.

FASTENING THE SAFETY BELTS

WARNINGS

Insert the tongue into the buckle until you hear a distinct click. You have not fastened the safety belt correctly

if you do not hear a click.

Make sure that your safety belt is securely stored away and is not outside your vehicle when closing the

door.

Ranger (TKE) Vehicles Built From: 01-10-2014, DB39120609AD (CG3575en) enGBR, Edition date: 09/2014, First Printing

Safety Belts

Pull the belt out steadily. It may lock if you pull it sharply or if your vehicle is on a slope.

The rear outer safety belts can lock if you return the seatback from a folded position to the upright position forcefully. Should the safety belt lock, recline the seat using the recline adjustment. See Rear Seats (page 76).

Press the red button on the buckle to release the belt. Hold the tongue and let it retract completely and smoothly to its stowed position.

Using Safety Belts During Pregnancy

WARNING

Position the safety belt correctly for your safety and that of your unborn child. Do not use only the lap strap

or the shoulder strap.

Pregnant women should always wear their safety belt. The lap belt portion of a combination lap and shoulder belt should be positioned low across the hips below the belly and worn as tight as comfort will allow. The shoulder belt should be positioned to cross the middle of the shoulder and the center of the chest.

SAFETY BELT HEIGHT ADJUSTMENT

WARNING

Position the safety belt height adjuster so that the safety belt rests

across the middle of your shoulder. Failure to adjust the safety belt correctly could reduce its effectiveness and increase the risk of injury in a crash.

Ranger (TKE) Vehicles Built From: 01-10-2014, DB39120609AD (CG3575en) enGBR, Edition date: 09/2014, First Printing

Safety Belts

To adjust the shoulder belt height, pull the button and slide the height adjuster up or down.

SAFETY BELT MINDER

WARNING

The system will only provide protection when you use the safety belt correctly.

Type 1: The warning lamp illuminates for 6 seconds when you switch the ignition on to remind the driver to fasten the safety belt.

Type 2: The warning lamp continues to illuminate when the driver’s safety belt is not fastened.

Type 3: The warning lamp illuminates and a tone sounds when the following conditions have been met:

• The front safety belts have not been fastened.

• Your vehicle exceeds a relatively low speed.

It will also illuminate when a front safety belt is unfastened in an occupied seat and your vehicle is moving.

If you do not fasten your safety belt, the audible warning will turn off automatically after approximately five minutes. The warning lamp continues to illuminate until you fasten the safety belt.

Switching the Safety Belt Minder Off

See an authorized dealer.

Ranger (TKE) Vehicles Built From: 01-10-2014, DB39120609AD (CG3575en) enGBR, Edition date: 09/2014, First Printing

Safety Belts

PRINCIPLE OF OPERATION

WARNINGS

Extreme Hazard! Never use a rearward facing child restraint on a

seat protected by an active airbag in front of it. Death or serious injury to the child can occur.

Do not modify the front of your

vehicle in any way. This could

adversely affect deployment of the airbags. Failure to adhere to this warning could result in serious personal injury or death.

Wear a safety belt and keep

sufficient distance between yourself

and the steering wheel. Only when you use the safety belt correctly, can it hold you in a position that allows the airbag to achieve its optimum effect. See Sitting in the Correct Position (page 72). Failure to adhere to this warning could result in serious personal injury or death.

Repairs to the steering wheel,

steering column, seats, airbags and

safety belts must be carried out by an authorized dealer. Failure to adhere to this warning could result in serious personal injury or death.

Keep the areas in front of the airbags

free from obstruction. Do not affix

anything to or over the airbag covers. In the event of a crash, hard objects could cause serious personal injury or death.

Do not puncture the seat with sharp

objects. This could damage and

adversely affect deployment of the airbags. Failure to adhere to this warning could result in serious personal injury or death.

Use seat covers designed for seats

with side airbags. Have these fitted

by an authorized dealer. Failure to adhere to this warning could result in serious personal injury or death.

Note: You will hear a loud bang and see a cloud of harmless powdery residue if an airbag deploys. This is normal.

Note: Only wipe airbag covers with a damp cloth.

DRIVER AIRBAG

The airbag will deploy during significant frontal collisions or collisions that are up to 30 degrees from the left or the right. The airbag will inflate within a few thousandths of a second and deflate on contact with the occupant, thus cushioning forward body movement. During minor frontal collisions, overturns, rear collisions and side collisions, the airbag will not deploy.

Ranger (TKE) Vehicles Built From: 01-10-2014, DB39120609AD (CG3575en) enGBR, Edition date: 09/2014, First Printing

Supplementary Restraints System

PASSENGER AIRBAG

The airbag will deploy during significant frontal crashes or crashes that are up to 30 degrees from the left or the right. The airbag will inflate within a few thousandths of a second and deflate on contact with the occupant, thus cushioning forward body movement. During minor frontal crashes, overturns, rear crashes and side crashes, the airbag will not deploy.

Fitting the Passenger Airbag Deactivation Switch

WARNING

If you need to fit a child restraint on a seat protected by an operational

airbag in front of it, have a passenger airbag deactivation switch fitted. Have this fitted by an authorized dealer.

If the airbag warning lamp illuminates or flashes when you are driving, this indicates a malfunction. Remove the child restraint and have the system checked immediately.

Switching the Passenger Airbag Off

WARNING

You must switch the airbag off when using a rearward facing child seat on the front seat.

Switch offA

Switch onB

Turn the switch to position A.

When you switch the ignition on, check that the airbag deactivation warning lamp

illuminates.

Note: The key switch is located in the glove compartment with the airbag deactivation warning lamp in the instrument panel.

Ranger (TKE) Vehicles Built From: 01-10-2014, DB39120609AD (CG3575en) enGBR, Edition date: 09/2014, First Printing

Supplementary Restraints System

Switching the Passenger Airbag On

WARNING

You must switch the airbag on when you are not using a child seat on the front seat.

Turn the switch to position B.

When you switch the ignition on, check that the airbag activation warning lamp illuminates.

Note: The key switch is located in the glove compartment with the airbag deactivation warning lamp in the instrument panel.

SIDE AIRBAGS

WARNING

Use seat covers designed for seats with side airbags. Have these fitted by an authorized dealer.

The airbags are located inside the seatback of the front seats. There is a label attached to the side of the seatback to indicate this.

The airbag will deploy during significant lateral collisions. The airbag will not deploy in minor lateral and frontal collisions, rear collisions, or overturns.

DRIVER KNEE AIRBAG

WARNING

Do not attempt to open the airbag cover.

The airbag will deploy during frontal collisions or collisions that are up to 30 degrees from the left or the right. The airbag will inflate within a few thousandths of a second and deflate on contact with the occupants, thus providing a cushion between the driver’s knees and the steering column. During overturns, rear collisions and side collisions, the knee airbag will not deploy.

For item location: See Instrument Panel

Overview (page 15). Note: The airbag has a lower deployment

threshold than the front airbags. During a minor collision, it is possible that only the knee airbag will deploy.

SIDE CURTAIN AIRBAGS

The airbags are located over the front and rear side windows.

Ranger (TKE) Vehicles Built From: 01-10-2014, DB39120609AD (CG3575en) enGBR, Edition date: 09/2014, First Printing

Supplementary Restraints System

The airbag will deploy during significant lateral collisions. It will also deploy during significant frontal angled collisions. The curtain airbag will not deploy in minor lateral and frontal collisions, rear collisions, or overturns.

Ranger (TKE) Vehicles Built From: 01-10-2014, DB39120609AD (CG3575en) enGBR, Edition date: 09/2014, First Printing

Supplementary Restraints System

GENERAL INFORMATION ON RADIO FREQUENCIES

Note: Changes or modifications not

expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

The typical operating range for your transmitter is approximately 33 ft (10 m).

A decrease in operating range could be caused by:

• weather conditions

• nearby radio towers

• structures around your vehicle

• other vehicles parked next to your

vehicle.

The radio frequency used by your remote control can also be used by other short distance radio transmissions (e.g. amateur radios, medical equipment, wireless headphones, remote controls and alarm systems). If the frequencies are jammed, you will not be able to use your remote control. You can lock and unlock the doors with the key.

Note: Make sure your vehicle is locked before leaving it unattended.

Note: If you are in range, the remote control will operate if you press any button unintentionally.

Note: The remote control contains sensitive electrical components. Exposure to moisture or impact may cause permanent damage.

REMOTE CONTROL

You can program a maximum of eight remote controls to your vehicle. This includes any that were supplied with your vehicle. The remote controls must remain inside your vehicle during the programming procedure. Fasten the front safety belts and close all doors to make sure that conflicting chimes do not sound during programming.

Programming a New Remote Control

1. Turn the ignition key from position 0 to position II four times within six seconds.

2. Turn the ignition to position 0. A tone sounds to indicate that it is now possible to program a remote control.

3. Press any button on a new remote control within 10 seconds. A tone will sound as confirmation.

4. Repeat step three within 10 seconds for each new remote control. Do not remove the key from the ignition when pressing the button on the remote control.

5. Switch the ignition back on (position II) or wait for 10 seconds without programming another remote control to end the key programming. Only the remote controls which you have just programmed are now able to lock and unlock your vehicle.

Reprogramming the Unlocking Function

Note: When you press the unlock button

either all the doors are unlocked or only the driver’s door and the liftgate are unlocked. Pressing the unlock button again unlocks all the doors.

Ranger (TKE) Vehicles Built From: 01-10-2014, DB39120609AD (CG3575en) enGBR, Edition date: 09/2014, First Printing

Keys and Remote Controls

Press and hold the unlock and lock buttons on the remote control simultaneously for at least four seconds with the ignition off. The direction indicators will flash twice to confirm the change.

To return to the original unlocking function, repeat the process.

Programming the additional key

Note: You will need to have two

programmed keys for this procedure.

1. Insert the first key and turn the ignition on.

2. Remove the key within 10 seconds.

3. Insert the second key within 10 seconds and turn the ignition on.

4. Remove the key within 10 seconds.

5. Insert the additional key within 10 seconds which need to be programmed.

Changing the Remote Control Battery

Make sure that you dispose of old batteries in an

environmentally friendly way. Seek advice from your local authority regarding recycling.

Remote Control With a Folding Key Blade

1. Insert a screwdriver as far as possible into the slot on the side of the remote control, gently push the clip.

2. Press the clip down to release the battery cover.

3. Carefully remove the cover.

4. Turn the remote control over to remove the battery.

Ranger (TKE) Vehicles Built From: 01-10-2014, DB39120609AD (CG3575en) enGBR, Edition date: 09/2014, First Printing

Keys and Remote Controls

Note: Do not touch the battery contacts or

the printed circuit board with the screwdriver.

5. Install a new battery (3V CR 2032) with the + facing upwards.

6. Replace the battery cover.

REPLACING A LOST KEY OR REMOTE CONTROL

Replacement keys or remote controls can be purchased from an authorized dealer. Authorized dealers can program remote controls for your vehicle. See Passive Anti-Theft System (page 34).

To re-program the passive anti-theft system see an authorized dealer.

Ranger (TKE) Vehicles Built From: 01-10-2014, DB39120609AD (CG3575en) enGBR, Edition date: 09/2014, First Printing

Keys and Remote Controls

PASSIVE ANTI-THEFT SYSTEM

Principle of Operation

The system prevents someone from starting the engine with an incorrectly coded key.

Coded Keys

If you lose a key, you can obtain a replacement from an authorized dealer. If possible, provide them with the key number from the tag provided with the original keys. You can also obtain extra keys from an authorized dealer.

Note: Have all of your remaining keys erased and recoded if you lose a key. Have replacement keys coded together with recoding your remaining keys. See an authorized dealer for further information.

Note: Do not shield your keys with metal objects. This may prevent the receiver from recognizing a coded key.

Arming the Engine Immobilizer

When you switch the ignition off the engine immobilizer will arm automatically after a short time.

Disarming the Engine Immobilizer

When you switch the ignition on the engine immobilizer will disarm automatically if a correctly coded key is used.

If you are unable to start the engine with a correctly coded key, have your vehicle checked by an authorized dealer.

ANTI-THEFT ALARM

Alarm System

Your vehicle may have one of the following alarm systems:

• Perimeter alarm with interior sensors.

• Perimeter alarm with interior sensors

and battery back-up sounder.

Perimeter Alarm

The perimeter alarm is a deterrent against unauthorized access to your vehicle through the doors and the hood.

Interior Sensors

WARNINGS

Do not cover up the interior lamp unit sensors.

Do not arm the alarm with full guard if passengers, animals or other moving objects are inside your

vehicle.

Do not leave the rear seat cushion folded up in the double cab when the interior sensors are armed.

Do not leave the glasses holder open.

The sensors act as a deterrent against unauthorized intrusion by sensing any movement within your vehicle.

Arming the alarm will activate the interior sensors.

Note: To permanently deactivate the interior motion sensor, see an authorized dealer.

Ranger (TKE) Vehicles Built From: 01-10-2014, DB39120609AD (CG3575en) enGBR, Edition date: 09/2014, First Printing

Security

Note: Fuel fired heater may trigger false

alarms. If you are using the fuel fired heater, direct the air flow towards the foot well.

Battery Back-up Sounder

The battery back-up sounder is an additional alarm system that will sound a siren when the alarm is triggered. When you lock your vehicle the system is armed. The sounder has its own battery and will sound an alarm siren even if someone disconnects your vehicle battery or the battery back-up sounder itself.

Triggering the Alarm

Once armed, the alarm is triggered in any of the following ways:

• If someone opens a door or the hood without a valid key or remote control.

• If someone removes the multi-function display.

• If you switch the ignition on without a valid key.

• If the interior sensors detect movement within your vehicle.

• On vehicles with a battery back-up sounder, if someone disconnects your vehicle battery or the battery back-up sounder itself.

If the alarm is triggered, the alarm horn will sound for 30 seconds and the hazard warning flasher will flash for five minutes.

Any further attempts to perform one of the above will trigger the alarm again.

Full and Reduced Guard

Full Guard

Full guard is the standard setting.

In full guard, the interior sensors are on when you arm the alarm.

Note: This may result in false alarms if animals or moving objects are inside your vehicle.

Reduced Guard

Note: To switch this feature on or off, see

an authorized dealer.

In reduced guard, the interior sensors are off when you arm the alarm.

Note: Reduced guard is available only on vehicles with remote central locking.

Note: You can set the alarm to reduced guard for the current ignition cycle only. The alarm will reset to full guard the next time you unlock and then relock the vehicle with the remote control.

Selecting Full or Reduced Guard

To activate reduced guard, lock the doors with the key.

To deactivate reduced guard, unlock the doors with the key or remote control.

To activate full guard, lock the doors with the remote control.

Note: You can set the alarm to reduced guard for the current ignition cycle only. The alarm will reset to full guard the next time you unlock and then relock the vehicle with the remote control.

Arming the Alarm

To arm the alarm, lock your vehicle. See

Locks (page 36).

Disarming the Alarm

Disarm and silence the alarm by unlocking the doors with the key and switching the ignition on with a correctly coded key within 12 seconds or unlocking the doors with the remote control.

Ranger (TKE) Vehicles Built From: 01-10-2014, DB39120609AD (CG3575en) enGBR, Edition date: 09/2014, First Printing

Security

LOCKING AND UNLOCKING

Note: Do not leave your keys in the vehicle. Note: All the doors will lock automatically

when the vehicle is driven at or above 7 Km/h (4.3 mph). This function can be enabled or disabled, see driver configuration mode later in this procedure.

Locking and unlocking the doors with the key

UnlockA

LockB

Note: To double lock the doors, turn the key to the lock position twice within three seconds.

Locking and unlocking the doors with the remote control

Automatic relocking: The doors will

relock automatically if you do not open a door within 45 seconds of unlocking the doors with the remote control. The door locks and the alarm will return to their previous state.

Key fold/unfold buttonA

UnlockB

LockC

Press the button B once to unlock the vehicle.

Press the button C once to activate central locking.

Note: Central locking is activated only when all the passenger doors are closed.

Press the button C twice within four seconds to double lock the doors.

Note: Double locking is activated only when all the passenger doors are closed and the hood is closed in the vehicle fitted with alarm.

Ranger (TKE) Vehicles Built From: 01-10-2014, DB39120609AD (CG3575en) enGBR, Edition date: 09/2014, First Printing

Locks

WARNING

Do not activate double locking when persons or animals are inside the

vehicle. You will not be able to unlock the doors from inside if you have double locked them.

Note: If the ignition is switched on with the double locking function activated, the lock will automatically return to single lock stage.

Double locking is a theft protection feature that prevents someone from opening the doors from the inside.

Note: The driver’s door can be unlocked with the key. This needs to be used if the remote control is not functioning.

Note: If the vehicle remains locked for several weeks, the remote control will be disabled. The vehicle must be unlocked and the engine started using the key. Unlocking and starting the vehicle once will enable the remote control.

Reprogramming the unlocking function

The unlocking function may be reprogrammed so that only the driver’s door is unlocked. See Remote Control (page 31).

Locking and unlocking confirmation

Note: When you lock the doors, the

direction indicators will flash once.

When you double lock the doors, the direction indicators will flash twice. When you unlock the doors the direction indicators will flash one long flash.

Child play protection function

If the remote control buttons are pressed continuously several times, the locking and unlocking function will be blocked for a while to avoid door latches from overheating.

Locking and unlocking the doors from inside

Press the button. For item location. See Instrument Panel Overview (page 15).

UnlockA

OpenB

Driver configuration mode

Note: This operation has to be done within

30 seconds.

1. Switch the ignition ON.

2. Press door lock button three times.

3. Switch the ignition OFF.

4. Press door lock button three times.

5. Switch the ignition ON.

6. Press door lock button two times.

The system will chirp twice to indicate that the driver configuration mode is enabled.

Once in driver configuration mode, follow the steps mentioned below to toggle the status of the automatic locking by speed or automatic unlocking.

Ranger (TKE) Vehicles Built From: 01-10-2014, DB39120609AD (CG3575en) enGBR, Edition date: 09/2014, First Printing

Locks

Automatic locking by speed

Press the central lock or unlock button twice within three seconds and wait for three seconds to toggle the automatic locking by speed function. The system will chirp when toggling.

Automatic unlocking

Note: Automatic unlock is default enabled.

Press the central lock or unlock button three time within three seconds and wait for three seconds to toggle the automatic unlocking function.

If the automatic unlocking function is enabled:

• All doors will be unlocked while opening the driver door or front passenger door (vehicles not delivered with remote control) from inside, with the key in ignition.

If the automatic unlocking function is disabled:

• Only the respective door will be unlocked while opening from inside.

Note: Opening the rear doors will never unlock the other doors, when opened from inside.

Locking the doors individually with the key

Note: If the central locking function fails to

operate, the doors can be individually locked using the key in the position shown.

Left-hand side

Turn clockwise to lock.

Right-hand side

Turn counterclockwise to lock.

Unlocking

Note: If the child safety locks have also

been activated, pulling the internal lever will only deactivate the emergency locking and not the child safety lock. The doors can only be opened using the external door handle.

Note: If the doors have been unlocked, they have to be locked individually using this method until the central locking function has been repaired.

Unlock the driver's door using the key. The other doors can be unlocked individually by pulling the interior door handles on those doors.

Ranger (TKE) Vehicles Built From: 01-10-2014, DB39120609AD (CG3575en) enGBR, Edition date: 09/2014, First Printing

Locks

ADJUSTING THE STEERING WHEEL

WARNING

Do not adjust the steering wheel when your vehicle is moving.

Note: Make sure that you are sitting in the correct position. See Sitting in the Correct Position (page 72).

1. Unlock the steering column.

2. Adjust the steering wheel to the desired position.

3. Lock the steering column.

AUDIO CONTROL

Select the required source on the audio unit.

You can operate the following functions with the control:

Type 1

Volume upA

Seek up, next or end callB

Ranger (TKE) Vehicles Built From: 01-10-2014, DB39120609AD (CG3575en) enGBR, Edition date: 09/2014, First Printing

Steering Wheel

Volume downC

Seek down, previous or accept call

Type 2

Volume upA

Seek up or nextB

Volume downC

Seek down or previousD

ModeE

Press M to select the audio source.

Seek, Next or Previous

Press the seek button to:

• tune the radio to the next or previous stored preset.

• play the next or the previous track.

Press and hold the seek button to:

• tune the radio to the next station up or down the frequency band.

• seek through a track.

VOICE CONTROL (If Equipped)

Push the control to switch on or off the voice control.

CRUISE CONTROL

See Cruise Control (page 116).

Ranger (TKE) Vehicles Built From: 01-10-2014, DB39120609AD (CG3575en) enGBR, Edition date: 09/2014, First Printing

Steering Wheel

WINDSHIELD WIPERS

CAUTION

Operating this function with the engine off will drain the battery.

Single wipeA

Intermittent wipe or autowipersB

Normal wipeC

High speed wipeD

Intermittent wipe

Long wipe intervalA

Intermittent wipeB

Short wipe intervalC

AUTOWIPERS

CAUTIONS

Do not switch autowipers on in dry weather conditions. The rain sensor

is very sensitive and the wipers may operate if dirt, mist or insects hit the windshield.

Replace the wiper blades as soon as

they begin to leave bands of water

and smears. If you do not replace them, the rain sensor will continue to detect water on the windshield and the wipers will operate, even though the majority of the windshield is dry.

Fully defrost the windshield in icy

conditions before you switch

autowipers on.

Switch autowipers off before you

enter a car wash.

High sensitivityA

OnB

Low sensitivityC

If you switch autowipers on, the wipers will not cycle until water is detected on the windshield. The rain sensor will then continuously measure the amount of water on the windshield and adjust the speed of the wipers automatically.

Ranger (TKE) Vehicles Built From: 01-10-2014, DB39120609AD (CG3575en) enGBR, Edition date: 09/2014, First Printing

Wipers and Washers

Adjust the sensitivity of the rain sensor using the rotary control. With low sensitivity, the wipers will operate when the sensor detects a lot of water on the windshield. With high sensitivity, the wipers will operate if the sensor detects a small amount of water on the windshield.

WINDSHIELD WASHERS

CAUTION

Operating this function with the engine off will drain the battery.

WARNING

Do not operate the windshield washers for more than 10 seconds or when the reservoir is empty.

Ranger (TKE) Vehicles Built From: 01-10-2014, DB39120609AD (CG3575en) enGBR, Edition date: 09/2014, First Printing

Wipers and Washers

GENERAL INFORMATION

Condensation in Lamp Assemblies

Exterior lamps have vents to accommodate normal changes in air pressure.

Condensation can be a natural by-product of this design. When moist air enters the lamp assembly through the vents, there is a possibility that condensation can occur when the temperature is cold. When normal condensation occurs, a fine mist can form on the interior of the lens. The fine mist eventually clears and exits through the vents during normal operation.

Clearing time may take as long as 48 hours under dry weather conditions.

Examples of acceptable condensation are:

• The presence of a fine mist (no streaks, drip marks or large droplets).

• A fine mist covers less than 50% of the lens.

Examples of unacceptable condensation are:

• A water puddle inside the lamp.

• Streaks, drip marks or large droplets

present on the interior of the lens.

If you see any unacceptable condensation, have your vehicle checked by an authorized dealer.

LIGHTING CONTROL

OffA

Auto-light controlB

HeadlampsC

Parking lamps, instrument panel lamps, license plate lamps and tail lamps

Parking Lamps

WARNING

Prolonged use of the parking lamps when the ignition is off will cause the battery to run out of charge.

Select position D on the lighting control to switch the parking lamps on. The parking lamps operate with the ignition on or off.

Move the lever up or down to switch the right or left hand side parking lamp.

Note: Switch on the parking lamp within 10 minutes from the key out, reinsert the key if exceeded.

Ranger (TKE) Vehicles Built From: 01-10-2014, DB39120609AD (CG3575en) enGBR, Edition date: 09/2014, First Printing

Lighting

High Beams

Pull the lever toward you to switch between high beam and low beam.

Headlamp Flasher

Pull the lever toward you slightly and release it to flash the headlamps.

AUTOLAMPS

WARNING

In severe weather conditions, it may be necessary to switch your headlamps on manually.

Note: If you have switched autolamps on, you can only switch the high beam on when autolamps has switched the headlamps on.

The headlamps will come on and go off automatically depending on the ambient light.

INSTRUMENT LIGHTING DIMMER

Press it repeatedly or press it and hold it until the desired level is reached.

Note: If you disconnect the battery or it loses charge the instrument lighting will return to its brightest setting.

HEADLAMP EXIT DELAY

Switch the ignition off and pull the direction indicator lever toward you to switch the headlamps on. A short tone will sound. They will automatically turn off after three minutes or 30 seconds after the last door is closed.

Opening any door within 30 seconds after closing all the doors will result in three minute timer starting again.

Switch the ignition on or pull the direction indicator lever towards you again to switch the headlamp exit delay off.

Ranger (TKE) Vehicles Built From: 01-10-2014, DB39120609AD (CG3575en) enGBR, Edition date: 09/2014, First Printing

Lighting

DAYTIME RUNNING LAMPS (If

Equipped)

WARNING

Always remember to switch your headlamps on in low light situations

or during inclement weather. The system does not activate the tail lamps and may not provide adequate lighting during these conditions. Failure to activate your headlamps under these conditions may result in a collision.

To switch the system on:

1. Switch the ignition on.

2. Switch the lighting control to the off or

autolamp position.

FRONT FOG LAMPS

Control lever

WARNING

Only use the front fog lamps when

visibility is considerably restricted by

fog, snow or rain.

Note: You cannot switch the front fog lamps on unless you have switched the headlamps on.

Adjustment

You can adjust the front fog lamp aiming slightly for driving comfort.

Note: Fog lamp adjustment must meet the local regulation requirements.

1. Position the unloaded vehicle on a flat, level surface.

2. Seat one person in the driver’s seat.

3. Start the engine so that the battery remains charged.

4. Turn the front fog lamp on.

5. Adjust the fog lamp aiming such that the cut off line is not more than X: 20 m (65.6 ft).

Ranger (TKE) Vehicles Built From: 01-10-2014, DB39120609AD (CG3575en) enGBR, Edition date: 09/2014, First Printing

Lighting

REAR FOG LAMPS

WARNINGS

Only use the rear fog lamps when visibility is restricted to less than 50 meters (164 feet).

Do not use the rear fog lamps when it is raining or snowing and visibility is more than 50 meters (164 feet).

Note: You cannot switch the rear fog lamps on unless you have switched the headlamps and front fog lamp on.

HEADLAMP LEVELING

Without headlamp levelingA

With headlamp levelingB

You can adjust the level of the headlamp beams according to the vehicle load.

Ranger (TKE) Vehicles Built From: 01-10-2014, DB39120609AD (CG3575en) enGBR, Edition date: 09/2014, First Printing

Lighting

Raised headlamp beamsA

Lowered headlamp beamsB

Set the headlamp leveling control to zero when your vehicle is unloaded. Set it to provide illumination between 35 and 100 meters (114 and 328 feet) when your vehicle is partially or fully loaded.

DIRECTION INDICATORS

Right-hand sideA

Left-hand sideB

APPROACH LAMPS (If Equipped)

The side repeaters, number plate lamp and the puddle lamps will come on and stays illuminated for 25 seconds when the vehicle is unlocked with the remote control.

If you open a door the light will stay on until:

• The door is closed

• Ignition is turned on

• 10 minutes

INTERIOR LAMPS

Courtesy lamp

OffA

Door contactB

OnC

If you set the switch to position B, the courtesy lamp will come on when you unlock or open a door. If you leave a door open with the ignition switch off, the courtesy lamp will go off automatically after some time to prevent the vehicle battery from discharging. To switch it back on, switch on the ignition for a short time.

The courtesy lamp will also come on when you switch off the ignition. It will go off automatically after a short time or when you start or restart the engine.

Ranger (TKE) Vehicles Built From: 01-10-2014, DB39120609AD (CG3575en) enGBR, Edition date: 09/2014, First Printing

Lighting

If you set the switch to position C with the ignition switch off, the courtesy lamp will come on. It will go off automatically after a short time to prevent the vehicle battery from discharging. To switch it back on, switch on the ignition for a short time.

Reading lamps

If you switch off the ignition, the reading lamps will go off automatically after some time to prevent the vehicle battery from discharging. To switch them back on, switch on the ignition for a short time.

Ranger (TKE) Vehicles Built From: 01-10-2014, DB39120609AD (CG3575en) enGBR, Edition date: 09/2014, First Printing

Lighting

POWER WINDOWS

WARNINGS

Do not leave children unattended in your vehicle and do not let them play with the power windows. They may

seriously injure themselves.

When closing the power windows, you should verify they are free of

obstructions and make sure that children and pets are not in the proximity of the window openings.

Note: You may hear a pulsing noise when just one of the windows is open. Lower the opposite window slightly to reduce this noise.

Press the switch to open the window.

Lift the switch to close the window.

Note: Window operation may stop or delay during low battery conditions and engine starting.

Note: If you repeatedly open and close the window several times within one minute, the system may disable to protect the motors from overheating.

Note: If you operate both the switch on the relevant door and the switch for that window on the driver’s door at the same time, the window will stop moving.

One-Touch Down (If Equipped)

Press the switch fully and release it. Press again or lift it to stop the window.

One-Touch Up (If Equipped)

Lift the switch fully and release it. Press or lift it again to stop the window.

Window Lock

Press the control to lock or unlock the rear window controls.

Bounce-Back (If Equipped)

The window will stop automatically while closing. It will reverse some distance if there is an obstacle in the way.

Overriding the Bounce-Back Feature

WARNING

When you override the bounce-back feature the window will not reverse

if it detects an obstacle. Take care when closing the windows to avoid personal injury or damage to your vehicle.

Ranger (TKE) Vehicles Built From: 01-10-2014, DB39120609AD (CG3575en) enGBR, Edition date: 09/2014, First Printing

Windows and Mirrors

Proceed as follows to override this protection feature when there is a resistance, for example in winter:

1. Close the window twice until it reaches the point of resistance and let it reverse.

2. Close the window a third time to the point of resistance. The bounce-back feature is now disabled and you can close the window manually. The window will go past the point of resistance and you can close it fully.

See an authorized dealer as soon as possible if the window does not close after the third attempt.

Resetting the Bounce-Back Feature

WARNING

The bounce-back feature remains turned off until you reset the memory.

In an event of a flat battery or if you have disconnected the battery, you must reset the bounce-back memory separately for each window.

1. Open the window.

2. Lift and hold the switch to second action point until the window is fully closed.

3. Hold the switch lifted for few more second and release.

4. Open the window using the first action point and try to close it automatically using second action point.

5. If the window does not open or close automatically when the switch is pressed or lifted to second action points, repeat the procedure.

Safety Mode

WARNING

Bounce-back feature is not active in safety mode.

If the system detects a malfunction, it enters a safety mode. The windows will move for only about 0.5 seconds at a time and then stop. Close the windows by pulling the switch again when the windows stop moving. Have this checked immediately.

Accessory Delay (If Equipped)

You can use the window switches for several minutes after you have switched the ignition off or until either front door is opened.

INTERIOR MIRROR

WARNING

Do not adjust the mirror when your vehicle is moving.

Note: Do not clean the housing or glass of any mirror with harsh abrasives, fuel or other petroleum or ammonia-based cleaning products.

You can adjust the interior mirror to your preference. Some mirrors also have a second pivot point. This lets you move the mirror head up or down and from side to side.

Pull the tab below the mirror toward you to reduce glare at night.

Ranger (TKE) Vehicles Built From: 01-10-2014, DB39120609AD (CG3575en) enGBR, Edition date: 09/2014, First Printing

Windows and Mirrors

Auto-Dimming Mirror (If Equipped)

Note: Do not block the sensors on the front

and back of the mirror. Mirror performance may be affected. A rear center passenger or raised rear center head restraint may also block light from reaching the sensor.

The mirror will dim automatically to reduce glare when bright lights are detected from behind your vehicle. It will automatically return to normal reflection when you select reverse gear to make sure you have a clear view when backing up.

EXTERIOR MIRRORS

Power Exterior Mirrors

WARNING

Do not adjust the mirrors when your vehicle is moving. This could result in the loss of control of your vehicle,

serious personal injury or death.

Left-hand mirrorA

OffB

Right-hand mirrorC

Press the controller in the direction of the arrows to adjust the mirror.

The power exterior mirrors are fitted with a heating element that will defrost or demist the mirror glass. See Heated

Windows and Mirrors (page 70).

Manual Folding and Unfolding

The power folding mirrors operate with the ignition on, and for several minutes after you switch the ignition off.

Note: They will no longer operate if you switch the ignition off and open a door.

Press the button to fold or unfold the mirrors.

Press the button again to stop and reverse the direction of movement.

Ranger (TKE) Vehicles Built From: 01-10-2014, DB39120609AD (CG3575en) enGBR, Edition date: 09/2014, First Printing

Windows and Mirrors

Fold-Away Exterior Mirrors

Push the mirror toward the door window glass. Make sure that you fully engage the mirror in its support when returning it to its original position.

SLIDING WINDOWS

Ranger (TKE) Vehicles Built From: 01-10-2014, DB39120609AD (CG3575en) enGBR, Edition date: 09/2014, First Printing

Windows and Mirrors

GAUGES

TachometerA

Fuel gaugeB

Engine coolant temperature gauge

SpeedometerD

Illumination dimming buttonE

Information displayF

Trip computer display select and reset button

Tachometer

Indicates the engine speed in revolutions per minute. Driving with your tachometer pointer continuously at the top of the scale may damage the engine.

Fuel Gauge

Switch the ignition on. The fuel gauge will indicate approximately how much fuel is left in the fuel tank. The fuel gauge may vary slightly when your vehicle is moving or on a gradient. The arrow adjacent to the fuel pump symbol indicates on which side of the vehicle the fuel filler door is located.

Engine Coolant Temperature Gauge

WARNING

Never remove the coolant reservoir cap while the engine is running or hot.

At normal operating temperature, the needle will remain in the center section.

Note: Do not restart the engine until the cause of overheating has been resolved.

If the needle enters the red section, the engine is overheating. Stop the engine, switch the ignition off and determine the cause once the engine has cooled down. See Trip Computer (page 61).

Information Display

• Odometer/Trip odometer/Instantaneous Fuel Consumption

• Outside Air Temperature (if equipped)

• Trip Computer See Trip Computer

(page 61).

• Average Fuel Consumption

• Distance to Empty

WARNING LAMPS AND INDICATORS

The following warning lamps and indicators as applicable will come on briefly when you switch the ignition on to confirm that the system is operational:

• ABS warning lamp

• Vehicle immobilizer indicator

• Brake system warning lamp

• Ignition warning lamp

• Airbag warning lamp

• Low fuel level warning lamp

• Stability control (ESP) indicator

Ranger (TKE) Vehicles Built From: 01-10-2014, DB39120609AD (CG3575en) enGBR, Edition date: 09/2014, First Printing

Instrument Cluster

• Oil pressure warning lamp

• Oil Change Reminder Indicator (Diesel

only)

• Engine warning lamps

• Four-wheel drive indicator

• Four-wheel drive low (4L) indicator

• Electronic locking differential (ELD)

indicator

• Water-in-fuel indicator (Diesel only)

• Washer fluid level indicator

• DPF (Diesel Particulate Filter)

• Ice/Frost warning indicator

ABS warning lamp

If it illuminates when you are driving, this indicates a

malfunction. You will continue to have normal braking (without ABS). Have the system checked by a properly trained technician as soon as possible.

Vehicle immobilizer indicator

The immobilizer indicator will

blink if the key is removed from

the ignition or a wrong key is inserted.

Brake system warning lamp

It illuminates when the parking

brake is engaged.

WARNING

Reduce your speed gradually and stop your vehicle as soon as it is safe to do so. Use your brakes with care.

If it illuminates when you are driving, check that the parking brake is not engaged. If the parking brake is not engaged, this indicates a malfunction. Have the system checked by a properly trained technician immediately.

Ignition warning lamp

If it illuminates when driving, this indicates a malfunction. Switch

off all unnecessary electrical equipment. Have your vehicle checked by an authorised dealer immediately.

Airbag warning lamp

If it illuminates while driving, this

indicates a malfunction. Have

this checked as soon as possible.

Low fuel level warning lamp

If the low fuel level warning lamp

comes on, refuel as soon as

possible.

The arrow adjacent to the fuel pump symbol tells you on which side of your vehicle the fuel filler cap is located.

Stability control (ESP) indicator

While driving, it flashes during

activation of the system. After

switching on the ignition, if it does not illuminate or illuminates continuously while driving, this indicates a malfunction. During a malfunction, the system switches off. Have the system checked by a properly trained technician as soon as possible.

If you switch ESP off, the

warning lamp will flash twice

and remain illuminated. The lamp will go out when you switch the system back on or when you switch the ignition off.

Ranger (TKE) Vehicles Built From: 01-10-2014, DB39120609AD (CG3575en) enGBR, Edition date: 09/2014, First Printing

Instrument Cluster

Oil pressure warning lamp

CAUTION

Do not resume your journey if the oil pressure warning lamp comes on despite the oil level being correct.

Have this checked immediately.

If the oil pressure warning lamp comes on when you are driving, this indicates a malfunction.

Stop, and switch the engine off and check the engine oil level. See Engine Oil Check (page 158).

Oil Change Reminder Indicator (Diesel only)

The oil change reminder indicator informs that the engine

requires an engine oil change due to excessive build up of soot within the engine oil.

Engine warning lamps

Malfunction indicator lamp

Powertrain warning lamp

All vehicles

If either lamp illuminates when the engine is running, this indicates a fault. The engine will continue to run but it may have limited power. If it flashes when you are driving, reduce the speed of your vehicle immediately. If it continues to flash, avoid heavy acceleration or deceleration. Have the system checked by a properly trained technician immediately.

WARNING

Have this checked immediately.

If both lamps illuminate together, stop your vehicle as soon as it is safe to do so (continued use may cause reduced power and cause the engine to stop). Turn the ignition off and attempt to restart the engine. If the engine restarts have the system checked by a properly trained technician immediately. If the engine does not restart the vehicle must be checked before continuing your journey.

Four-wheel drive indicator

The four-wheel drive indicator lamp will come on when the

transfer shift switch is in the 4H or 4L position. This will flash while engaging to 4H or 4L. See Using

Four-Wheel Drive (page 97).

Four-wheel drive low (4L) indicator

The four-wheel drive low (4L)

indicator lamp will come on

when the transfer shift switch is in 4L position. It will flash while engaging to 4L position. See Using Four-Wheel

Drive (page 97).

Electronic locking differential (ELD) indicator

The ELD indicator lamp will

come on when the rear

differential is locked. The lamp will flash if an error has been detected or if the engage or disengage request cannot be completed. See Using Four-Wheel Drive (page 97).

Ranger (TKE) Vehicles Built From: 01-10-2014, DB39120609AD (CG3575en) enGBR, Edition date: 09/2014, First Printing

Instrument Cluster

Water-in-fuel indicator (Diesel only)

The water-in-fuel indicator lamp will come on if there is excess water in the fuel filter. Drain off

the water immediately. See Draining the

Fuel Filter Water Trap (page 160).

Washer fluid level indicator

It illuminates when the windshield washer fluid level goes below the minimum mark.

See Washer Fluid Check (page 161).

DPF (Diesel Particulate Filter)

If this illuminates, have the system checked by a properly trained technician as soon as

possible.

Ice/Frost warning indicator

WARNING

Even if the temperature rises to above +4°C (39°F) there is no guarantee that the road is free of

hazards caused by inclement weather.

It will illuminate and glow orange when the outside air

temperature is between 4°C and 0°C (39°F and 32°F). It will glow red when the temperature is below 0°C (32°F).

Door open warning lamp

The door open warning lamp will

come on when you switch the

ignition on and if you have not closed the doors properly.

Glow plug indicator - For Diesel vehicles

See Starting a Diesel Engine (page 84).

Direction indicators

Right side turn indicator

Left side turn indicator

The direction indicator will flash when you use the direction indicators. A sudden increase in the rate of flashing warns of a failed bulb.

Headlamp indicator

The headlamp indicator will come on when you switch the side and tail lamps on.

High beam indicator

The high beam indicator will come on when you switch the headlamp high beam on. It will

flash when you use the headlamp flasher.

Front fog lamp indicator

The front fog lamp indicator will come on when you switch the front fog lamps on.

Rear fog lamp indicator

The rear fog lamp indicator lamp will come on when you switch the rear fog lamps on.

Ranger (TKE) Vehicles Built From: 01-10-2014, DB39120609AD (CG3575en) enGBR, Edition date: 09/2014, First Printing

Instrument Cluster

Safety belt indicator

See Safety Belt Minder (page

26).

Gear shift indicator lamp (Manual only)

It will illuminate to inform you that shifting to a higher gear may give better fuel economy and

lower CO2 emissions.

Cruise control

It will illuminate when you have set a speed using the cruise control system.

AUDIBLE WARNINGS AND INDICATORS

Door open warning

The door open warning chime will sound if the vehicle speed exceeds approximately 10 km/h (6.2 mph) and you have not closed the doors.

Lights on warning

The lights on warning chime will sound if you the key is not in position II or III and open any door before switching off the lights.

Not in park warning

The not in park warning chime will sound if the automatic transmission lever is not in park position and you open the driver door.

Parking brake warning

The parking brake warning chime will sound if the parking brake is left engaged and the vehicle speed exceeds approximately 5 km/h (3 mph).

Restraints back-up warning

The restraints back-up warning chime will sound if there is a malfunction in the restraints warning lamp. 5 sets of 5 tone bursts will be heard every 30 minutes.

Low fuel level warning

Low fuel level warning chime will sound when the low fuel level warning lamp is activated and/or the information display is showing 80, 40, 20, 0 km (50, 25, 10, 0 miles) remaining.

Direction indicator

The direction indicator chime will sound when the left or right direction indicator is activated.

Direction indicators warning

The direction indicator warning chime will sound if the left or right direction indicator is left on and driven for more than approximately 3.2 km (1.98 miles).

One side park light

One side park light chime will sound when the one side park light is activated.

Home safe

Home safe warning chime will sound when the home safe lighting is activated.

Safety belt minder

The safety belt warning chime will sound if the driver or passenger safety belt is unbuckled and the vehicle speed exceeds approximately 25 km/h (15.5 mph).

Ranger (TKE) Vehicles Built From: 01-10-2014, DB39120609AD (CG3575en) enGBR, Edition date: 09/2014, First Printing

Instrument Cluster

Alarm warning

The alarm warning chime will sound if the vehicle is unlocked with the mechanical key and not the remote key. The chime will sound for up to 12 seconds until the unlock button is pressed on the remote key or a correctly coded key is inserted into the ignition and turned to position II or III. If 12 second elapses before this occurs, the vehicle alarm will sound.

Key in ignition warning

The key in ignition warning chime will sound if the key is inserted into the ignition (but not turned to position II or III) and the driver door is opened.

Over speed warning

Over speed warning chime will sound if the vehicle speed exceeds approximately 120 km/h (74.5 mph) indicated.

Low washer fluid warning

Low washer fluid warning chime will sound if the washer fluid level in the washer bottle is low.

Missed lock warning

Missed lock warning chime will sound if the door is not locked after pressing the lock button.

Note: This feature is default off. To activate it, contact your Ford dealer.

Ranger (TKE) Vehicles Built From: 01-10-2014, DB39120609AD (CG3575en) enGBR, Edition date: 09/2014, First Printing

Instrument Cluster

GENERAL INFORMATION

WARNING

Driving while distracted can result in loss of vehicle control, crash and

Note: The information display will remain on for several minutes after you switch the ignition off.

Gear display (Automatic transmission)

Trip computer displayB

Odometer displayC

Device List

There are various icons placed around the display screen which light up when a function is active (for example CD, Radio or Aux).

Information Display Controls

Various systems on your vehicle can be controlled using the information display controls on your audio unit. Corresponding information is displayed in the information display.

To use the controls:

• Press the up or down arrow button to scroll through and highlight the options within a menu.

• Press the right arrow button to enter a submenu.

• Press the left arrow button to exit a submenu.

• Press and hold the left arrow button at any time to return to the main menu display.

• Press the OK button to choose and confirm settings or messages.

Menu Structure - Information Display

You can access the menu using the information display control.

Ranger (TKE) Vehicles Built From: 01-10-2014, DB39120609AD (CG3575en) enGBR, Edition date: 09/2014, First Printing

Information Displays

Note: Some options may appear slightly

different or not at all if the items are optional.

Route optionsNavigation

Map display

Assistance options

Personal data

Reset all settings

Adaptive volumeAudio settings

Sound

NAV audio mixing

DSP settings

DSP equalizer

Traffic

News

Alt. frequency

RDS Regional

Bluetooth

Auto time (GPS)Clock settings

Set time

Set date

Set time zone

Summer time

24-hour mode

Ranger (TKE) Vehicles Built From: 01-10-2014, DB39120609AD (CG3575en) enGBR, Edition date: 09/2014, First Printing

Information Displays

CLOCK

For detailed instructions on how to adjust the clock See Setting the clock on the

audio unit (page 252).

TRIP COMPUTER

Controls

For item location: See Gauges (page 53). .

Press the SET/RESET button less than 2 seconds to:

• Select between the trip computer displays

Press and hold the SET/RESET button for more than two seconds to:

• Reset trip A

• Reset trip B

• Reset average fuel consumption

• Reset average speed

The trip computer display includes the following information displays:

Tripmeter (A and B)

Ranger (TKE) Vehicles Built From: 01-10-2014, DB39120609AD (CG3575en) enGBR, Edition date: 09/2014, First Printing

Information Displays

Registers the mileage of individual journeys.

Distance to empty

Indicates the approximate distance the vehicle will travel on the fuel remaining in the tank. Changes in driving pattern may cause the value to vary.

Average fuel consumption

Indicates the average fuel consumption since the function was last reset.

Instantaneous fuel consumption

Indicates the current average fuel consumption.

Ranger (TKE) Vehicles Built From: 01-10-2014, DB39120609AD (CG3575en) enGBR, Edition date: 09/2014, First Printing

Information Displays

Average speed

Indicates the average speed calculated since the function was last reset.

Outside air temperature

Shows the outside air temperature.

Note: The position of the trip computer display may vary depending on the information shown in the display.

PERSONALIZED SETTINGS

Language setting

Language set menu activeA

Language title displayB

A choice of eleven languages are available from 01 to 11 in the order shown below:

01: English - GB

02: Swedish - S

03: German - D

04: Dutch - NL

05: French - F

06: Italian - I

07: Spanish - E

08: Portuguese - P

09: Turkish - TR

10: Russian - RUS

11: Polish - PL

To enter the language set menu:

1. With ignition off, press and hold the light dimming button. For item location: See Gauges (page 53). and switch ignition to on.

2. The display will show the language set menu active.

Ranger (TKE) Vehicles Built From: 01-10-2014, DB39120609AD (CG3575en) enGBR, Edition date: 09/2014, First Printing

Information Displays

3. Press the SET/RESET to select

between the different languages.

4. Press and hold the SET/RESET

button to set the currently displayed language.

5. A chime will be heard to confirm the selection.

6. The display will then return to normal operation.

Units of measure

To select metric or imperial units for outside temperature display:

1. Change display mode to "Outside Temperature."

2. Press and hold the SET/RESET button for more than two seconds and the units will change.

Toggling the units of measure using this display will affect the following displays:

• Outside air temperature.

• The temperature display in the

automatic climate control.

• The set temperature in the multi-function display.

Ranger (TKE) Vehicles Built From: 01-10-2014, DB39120609AD (CG3575en) enGBR, Edition date: 09/2014, First Printing

Information Displays

PRINCIPLE OF OPERATION

Outside Air

Keep the air intakes in front of the windshield free from obstruction (such as snow or leaves) to allow the climate control system to function effectively.

Recirculated Air

WARNING

Prolonged use of recirculated air may cause the windows to mist up. If the windows mist up, follow the settings

for demisting the windshield.

The air currently in the passenger compartment recirculates. Outside air does not enter your vehicle.

Heating

Heating performance depends on the temperature of the engine coolant.

General Information on Controlling the Interior Climate

Fully close all the windows.

Warming the Interior

Direct the air toward your feet. In cold or humid weather conditions, direct some of the air toward the windshield and the door windows.

Cooling the Interior

Direct the air toward your face.

Air Conditioning

The system directs air through the evaporator for cooling. The evaporator extracts humidity from the air to help keep the windows free of mist. The system directs the resulting condensation to the outside of your vehicle, which may cause a small pool to form under your vehicle. This is normal.

Note: The air conditioning operates only when the temperature is above 39°F (4°C).

Note: When you use air conditioning, your vehicle uses more fuel.

AIR VENTS

Ranger (TKE) Vehicles Built From: 01-10-2014, DB39120609AD (CG3575en) enGBR, Edition date: 09/2014, First Printing

Climate Control

MANUAL CLIMATE CONTROL

Air distribution control

Face levelA

Face level and footwellB

FootwellC

Footwell and windshieldD

WindshieldE

You can set the air distribution control to any of the indicated positions. A small amount of air is directed towards the windshield in positions B and C.

Blower

OffA

Temperature control

ColdBlue

WarmRed

Maximum coolingA/C

MAX

Recirculated air

Press the recirculated air button to toggle between outside air and recirculated air.

System settings

Note: Set all controls to the positions

shown.

Heating the interior quickly

Select the outside air.

Ranger (TKE) Vehicles Built From: 01-10-2014, DB39120609AD (CG3575en) enGBR, Edition date: 09/2014, First Printing

Climate Control

Ventilation

Face level and footwellA

Face levelB

Set the air distribution control to position A or position B. Set the blower and temperature to any position and select the outside air. Open the air vents to suit individual requirements.

Switching the air conditioning on and off

Press the A/C button to switch the air conditioning on and off.

Cooling with outside air

Switch the air conditioning on and select the outside air.

Cooling the interior quickly

Selecting the A/C MAX will provide maximum occupant cooling. To switch the A/C MAX off deselect the A/C or recirculated air.

Defrosting and demisting the windshield quickly

Selecting air to windshield will automatically switch the A/C on and select the outside air.

Reducing interior air humidity

Ranger (TKE) Vehicles Built From: 01-10-2014, DB39120609AD (CG3575en) enGBR, Edition date: 09/2014, First Printing

Climate Control

Selecting air to windshield will automatically switch the A/C on and select the outside air.

AUTOMATIC CLIMATE CONTROL

The system controls the temperature, amount and distribution of the air flow automatically and adjusts them according to the driving and weather conditions. A short press of the AUTO button once switches on the auto mode.

Note: When in AUTO, ensure that the temperature is set to the desired level 22°C (71°F) is preferred).

Note: If the climate control is operated, information relating to this system is displayed in the information display. See Information Displays (page 59).

Note: Avoid adjusting the settings when the vehicle interior is extremely hot or cold. The automatic climate control adjusts to the current circumstances automatically. For the system to function properly, the side and center vents should be fully open.

Note: The sunload sensor is located on top of the instrument panel. Do not cover the sensor with any objects.

Note: The in car temperature sensor is located behind the grill below the air distribution control. Do not cover the grill with any objects.

Note: At low outside temperatures, when the system is in auto mode, the air flow will be low and the air stream will be directed to the windshield and the side windows as long as the engine is cold.

Air distribution control

WindshieldA

Face levelB

FootwellC

To adjust air distribution, press the desired button. The combination of settings that can be selected are A, B, C, A and C and

B and C.

Blower

Ranger (TKE) Vehicles Built From: 01-10-2014, DB39120609AD (CG3575en) enGBR, Edition date: 09/2014, First Printing

Climate Control

Note: When the blower is in AUTO mode,

no blower setting indicators will be illuminated.

When the blower speed is controlled manually by operationg the blower dial, the blower setting is indicated in the display above the air distribution controls.

To return to auto mode, short press the

AUTO button.

Temperature control

You can set the temperature between 16°C (61°F) and 28°C (82°F) in steps of 0.5°C (1°F). In position LO (below 16°C (61°F)) the system will switch to permanent cooling, in HI (above 28°C (82°F)) to permanent heating, and not regulate a stable temperature.

Mono Mode

In Mono mode the temperature settings for both the driver’s and passenger’s side are linked. If you adjust the temperature using the rotary control on the driver’s side, the settings will be adjusted to the same setting on the passenger’s side.

To switch dual mode on

Long press of the AUTO button or selecting the temperature for the passenger’s side with the rotary control on the passenger’s side. The temperature for the driver’s side will remain unchanged. You can now adjust the driver and passenger side temperatures independently. The temperature settings for each side are shown in the display. You can set a temperature difference of up to 4°C (8°F).

Note: If you set a temperature difference of greater than 4°C (8°F), the temperature on the other side will be adjusted so that the difference remains 4°C (8°F).

To switch dual mode off

Press the AUTO button for three seconds or select HI or LO on the driver's side. The passenger’s side temperature will be adjusted to the driver’s side temperature.

Recirculated air

Press the recirculated air button to toggle between fresh air and recirculated air.

Note: When the system is in auto mode and the interior and exterior temperatures are quite hot, the system selects recirculated air automatically to maximize cooling of the interior. Once the selected temperature is reached, the system will reselect outside air automatically.

Cooling the interior quickly

Ranger (TKE) Vehicles Built From: 01-10-2014, DB39120609AD (CG3575en) enGBR, Edition date: 09/2014, First Printing

Climate Control

Selecting the A/C MAX will provide maximum occupant cooling. A second press of the A/C MAX button will switch the A/C MAX off.

Windshield defrosting and demisting

Press the MAX defrost button for quick demisting of the windshield.

Fresh air will flow into the vehicle and A/C is automatically selected. The blower speed, temperature control and fresh air operate automatically and cannot be adjusted in this mode. The blower is set to maximum speed and the temperature to HI.

When you select MAX defrost, the heated windows switch on automatically and switch off after a preset time.

A second press of the MAX defrost button will return the system to the previous settings.

To return to auto mode, short press the

AUTO button.

Switching the air conditioning on and off

Press the A/C button to switch the air conditioning on and off. The light in the button indicates the status of the A/C.

Note: The A/C operates only when the engine is running.

Switching off the automatic climate control

Press the power button to switch the system on and off. When switched off, recirculated air is selected but it is also possible to manually select the fresh air.

HEATED WINDOWS AND MIRRORS

Note: Make sure the engine is running

before operating the heated windows.

Heated Windshield

Press the button to clear the window of thin ice and fog.

Heated Rear Window

Press the button to clear the window of thin ice and fog. Press the button again within 10 minutes to switch it off. It switches off automatically after 10 minutes, or when you switch the ignition off.

Note: Do not use razor blades or other sharp objects to clean the inside of the rear window or to remove decals from the inside of the rear window. This may cause damage to the heated grid lines and will not be covered by your warranty.

Ranger (TKE) Vehicles Built From: 01-10-2014, DB39120609AD (CG3575en) enGBR, Edition date: 09/2014, First Printing

Climate Control

Heated Exterior Mirror (If Equipped)

Note: Do not remove ice from the mirrors

with a scraper or attempt to readjust the mirror glass if it is frozen in place. These actions could cause damage to the glass and mirrors.

Note: Do not clean the housing or glass of any mirror with harsh abrasives, fuel or other petroleum-based cleaning products.

Both mirrors are heated to remove ice, mist and fog when the heated rear window is switched on.

Ranger (TKE) Vehicles Built From: 01-10-2014, DB39120609AD (CG3575en) enGBR, Edition date: 09/2014, First Printing

Climate Control

SITTING IN THE CORRECT POSITION

WARNINGS

Do not recline the seat backrest too far as this can cause the occupant

to slide under the safety belt, resulting in serious injury in the event of a crash.

Sitting improperly, out of position or

with the seat backrest reclined too

far, can result in serious injury or death in the event of a crash. Always sit upright against your seat backrest, with your feet on the floor.

Do not place objects higher than the

seat backrest to reduce the risk of

serious injury in the event of a crash or during heavy braking.

When you use them properly, the seat, head restraint, safety belt and airbags will provide optimum protection in the event of a crash.

We recommend that you follow these guidelines:

• Sit in an upright position with the base

of your spine as far back as possible.

• Do not recline the seat backrest more

than 30 degrees.

• Adjust the head restraint so that the top of it is level with the top of your head and as far forward as possible. Make sure that you remain comfortable.

• Keep sufficient distance between yourself and the steering wheel. We recommend a minimum of 10 inches (25 centimeters) between your breastbone and the airbag cover.

• Hold the steering wheel with your arms slightly bent.

• Bend your legs slightly so that you can press the pedals fully.

• Position the shoulder strap of the safety belt over the center of your shoulder and position the lap strap tightly across your hips.

Make sure that your driving position is comfortable and that you can maintain full control of your vehicle.

MANUAL SEATS

WARNINGS

Use seat covers designed for seats with side airbags. Have these fitted by an authorized dealer.

Do not adjust the driver seat when your vehicle is moving.

Note: Seat covers fitted to your vehicle as part of a special equipment pack are washable without removing them from the seats.

Note: Seat covers are designed and fitted to work with the seat's existing features and safety systems, and should not require adjustment. If seat cover removal and installation is required, see an authorized Ford dealer.

Ranger (TKE) Vehicles Built From: 01-10-2014, DB39120609AD (CG3575en) enGBR, Edition date: 09/2014, First Printing

Seats

Moving the Seat Backward and Forward

WARNINGS

Make sure the driver seat fully locks into place by rocking it backward and forward.

Do not move the front seats too close to the instrument panel.

Adjusting the Lumbar Support

Adjusting the Height of the Driver's Seat

Ranger (TKE) Vehicles Built From: 01-10-2014, DB39120609AD (CG3575en) enGBR, Edition date: 09/2014, First Printing

Seats

Recline Adjustment

Folding the Seatback - Stretch cab

Folding the front passenger seat allows easy access to the rear seat.

Bench seat

POWER SEATS

WARNINGS

Use seat covers designed for seats with side airbags. Have these fitted by an authorized dealer.

Do not adjust the driver seat when your vehicle is moving.

Do not place cargo or any objects behind the seatback before returning it to the original position.

Note: Seat covers fitted to your vehicle as part of a special equipment pack are washable without removing them from the seats.

Ranger (TKE) Vehicles Built From: 01-10-2014, DB39120609AD (CG3575en) enGBR, Edition date: 09/2014, First Printing

Seats

Moving the Seat Backward and Forward

WARNING

Do not move the front seats too close to the instrument panel.

Adjusting the Height of the Driver's Seat

Recline Adjustment

Ranger (TKE) Vehicles Built From: 01-10-2014, DB39120609AD (CG3575en) enGBR, Edition date: 09/2014, First Printing

Seats

Tilting the Seat

HEAD RESTRAINTS

WARNINGS

Raise the rear head restraint when the rear seat is occupied by a passenger.

When front seats are in use the head restraints must not be removed.

Adjusting the head restraints

Adjust the head restraint so that the top of it is level with the top of your head.

Removing the head restraints

Front head restraints

Press locking button 1 and at the same time release the retaining clip 2 using a suitable implement.

Rear outer head restraints

Pull to move the head restraint upward. Press the locking button 1 to lower the head restraint or to remove the head restraint.

REAR SEATS

Note: Stow the rear seat belt tongue into

the pockets provided in the sides of the rear seat back to prevent rattling when not in use.

Ranger (TKE) Vehicles Built From: 01-10-2014, DB39120609AD (CG3575en) enGBR, Edition date: 09/2014, First Printing

Seats

Note: Seat covers fitted to your vehicle as

part of a special equipment pack are washable without removing them from the seats.

Folding the Seat Cushion

Stretch cab

Double cab

Unfolding the Seat Cushion

Note: The cushion tether strap must be

stowed in the pocket provided.

Folding the Seatback

Double cab

WARNINGS

When folding the seatbacks down, take care not to get your fingers caught between the seatback and

seat frame.

Do not use the rear surface of the rear seat back as a load floor.

Do not de-latch and fold the seatback when the seat cushion is folded up.

1. Pull the release strap upward.

2. Push the seatback forward.

Ranger (TKE) Vehicles Built From: 01-10-2014, DB39120609AD (CG3575en) enGBR, Edition date: 09/2014, First Printing

Seats

Unfolding the Seatback

Double cab

WARNINGS

When folding the seatbacks up, make sure that the safety belts are visible to an occupant and not

caught behind the seat.

Make sure that the seats and the seatbacks are secure and fully engaged in their catches.

HEATED SEATS

WARNING

People who are unable to feel pain to their skin because of advanced

age, chronic illness, diabetes, spinal cord injury, medication, alcohol use, exhaustion or other physical conditions, must exercise care when using the heated seat. The heated seat may cause burns even at low temperatures, especially if used for long periods of time. Do not place anything on the seat that insulates against heat, such as a blanket or cushion. This may cause the heated seat to overheat. Do not puncture the seat with pins, needles or other pointed objects. This may damage the heating element which may cause the heated seat to overheat. An overheated seat may cause serious personal injury.

Do not do the following:

• Place heavy objects on the seat.

• Operate the heated seat if water or any

other liquid is spilled on the seat. Allow the seat to dry thoroughly.

• Operate the heated seats unless the

engine is running. Doing so could drain your vehicle battery.

For item location: See Climate Control (page 65).

The heated seat will only operate with the ignition switched on.

The maximum temperature is reached after five or six minutes. It is regulated thermostatically.

The heated seat will remain on until either the heated seat switch or the ignition is switched off.

Adjust the control to the desired heat setting.

Ranger (TKE) Vehicles Built From: 01-10-2014, DB39120609AD (CG3575en) enGBR, Edition date: 09/2014, First Printing

Seats

12 Volt DC Power Point

WARNING

Do not plug optional electrical accessories into the cigar lighter

socket. Incorrect use of the lighter can cause damage not covered by your warranty, and can result in fire or serious injury.

Note: When you switch the ignition on, you can use the socket to power 12 volt appliances with a maximum current rating of 20 amps.

After you switch the ignition off the power supply will only work for a maximum of 30 minutes. Note: Do not insert objects other than an accessory plug into the power point. This will damage the outlet and blow the fuse.

Note: Do not hang any type of accessory or accessory bracket from the plug.

Note: Do not use the power point over the vehicle capacity of 12 volt DC 180 watt or a fuse may blow.

Note: Do not use the power point for operating a cigar lighter element.

Note: Incorrect use of the power point can cause damage not covered by your warranty.

Note: Always keep the power point caps closed when not in use.

Run the engine for full capacity use of the power point.

To prevent the battery from running out of charge:

• Do not use the power point longer than

necessary when the engine is not running.

• Do not leave devices plugged in

overnight or when your vehicle is parked for extended periods.

Location

Power points may be found:

• on the center stack.

CIGAR LIGHTER

Note: Do not hold the cigar lighter element

pressed in. Note: If you use the socket when the engine

is not running, the battery may lose charge. Note: When you switch the ignition on, you

can use the socket to power 12 volt appliances with a maximum current rating of 20 amps.

Note: After you switch the ignition off the power supply will only work for a maximum of 30 minutes.

Note: Use only Ford accessory connectors or connectors specified for use with SAE standard sockets.

Press the element in to use the cigar lighter. It will pop out automatically.

Ranger (TKE) Vehicles Built From: 01-10-2014, DB39120609AD (CG3575en) enGBR, Edition date: 09/2014, First Printing

Auxiliary Power Points

CUP HOLDERS

Note: Stow items in the cupholder carefully

as items may become loose during hard braking, acceleration or crashes, including hot drinks which may spill.

WARNING

Use only soft cups in the cup holders. Hard objects can injure you in a crash.

GLOVE BOX

Driver Side

Passenger Side

CENTER CONSOLE

Ranger (TKE) Vehicles Built From: 01-10-2014, DB39120609AD (CG3575en) enGBR, Edition date: 09/2014, First Printing

Storage Compartments

COOL BOX

OpenA

CloseB

ASHTRAY

You can place the removable ashtray in any of the cup holders.

GLASSES HOLDER (If Equipped)

The glasses must be placed in the glasses holder with the lenses facing downward as shown in the picture. If not, the glasses can fall down when the glasses holder is open.

REAR SEAT ARMREST

1. Push the armrest into the seatback and hold.

2. Pull the strap and open the armrest.

Ranger (TKE) Vehicles Built From: 01-10-2014, DB39120609AD (CG3575en) enGBR, Edition date: 09/2014, First Printing

Storage Compartments

GENERAL INFORMATION

WARNINGS

Extended idling at high engine speeds can produce very high

temperatures in the engine and exhaust system, creating the risk of fire or other damage.

Do not park, idle or drive your vehicle

on dry grass or other dry ground

cover. The emission system heats up the engine compartment and exhaust system, creating the risk of fire.

Do not start the engine in a closed

garage or in other enclosed areas.

Exhaust fumes can be toxic. Always open the garage door before you start the engine.

If you smell exhaust fumes inside

your vehicle, have it checked by a

Ford Dealer immediately. Do not drive your vehicle if you smell exhaust fumes.

If you disconnect the battery, your vehicle may exhibit some unusual driving characteristics for approximately 5 mi (10 km) after you reconnect it. This is because the engine management system must realign itself with the engine. You can disregard any unusual driving characteristics during this period.

When you start the engine, avoid pressing the accelerator pedal before and during operation. Only use the accelerator pedal when you have difficulty starting the engine.

IGNITION SWITCH

0(off) - The ignition is off. Note: When you switch the ignition off and

leave your vehicle, do not leave your key in the ignition. This could cause your vehicle battery to lose charge.

I (accessory) - Allows the electrical accessories such as the radio to operate while the engine is not running.

Note: Do not leave the ignition key in this position for too long to avoid your vehicle battery losing charge.

II (on) - All electrical circuits operational. Warning lamps and indicators are illuminated.

III (start) - cranks the engine. Release the key as soon as the engine starts.

STEERING WHEEL LOCK

WARNING

Always check that the steering is unlocked before attempting to move your vehicle.

Vehicles without Keyless Starting

To lock the steering wheel:

1. Remove the key from the ignition switch.

2. Rotate the steering wheel slightly to engage the lock.

Ranger (TKE) Vehicles Built From: 01-10-2014, DB39120609AD (CG3575en) enGBR, Edition date: 09/2014, First Printing

Starting and Stopping the Engine

Unlocking the Steering Wheel

Vehicles With Automatic Transmission

Switch the ignition on or press the brake pedal.

Vehicles With Manual Transmission

Switch the ignition on or press the clutch pedal.

STARTING A GASOLINE ENGINE

Note: You can only operate the starter 10

seconds. The number of start attempts is limited to approximately six. If you exceed this limit, the system does not allow you to try again for about 30 minutes.

Cold or Hot Engine

Vehicles with Manual Transmission

Note: Do not touch the accelerator pedal. Note: Releasing the clutch pedal while the

engine is starting stops the engine cranking and returns the ignition to on.

1. Fully depress the clutch pedal.

2. Start the engine.

Vehicles with Automatic Transmission

Note: Do not touch the accelerator pedal.

1. Depress the brake pedal.

2. Move the transmission selector lever

to position P or N.

3. Start the engine.

All Vehicles

If the engine does not start within 10 seconds, wait for a short period and try again.

If the engine does not start after three attempts, wait 10 seconds and follow the flooded engine procedure.

If you have difficulty starting the engine when the temperature is below -13°F (-25°C), press the accelerator pedal to the mid-way point of its travel and try again.

Flooded Engine

Vehicles with Manual Transmission

1. Fully depress the clutch pedal.

2. Fully depress the accelerator pedal and hold it there.

3. Start the engine.

Vehicles with Automatic Transmission

1. Depress the brake pedal.

2. Move the transmission selector lever to position P or N.

3. Fully depress the accelerator pedal and hold it there.

4. Start the engine.

All Vehicles

If the engine does not start, repeat the cold or hot engine procedure.

Engine Idle Speed after Starting

The speed at which the engine idles immediately after starting minimizes vehicle emissions and maximizes cabin comfort and fuel economy.

The idle speed varies depending on certain factors. These include vehicle component and ambient temperatures as well as electrical and climate system demands.

Ranger (TKE) Vehicles Built From: 01-10-2014, DB39120609AD (CG3575en) enGBR, Edition date: 09/2014, First Printing

Starting and Stopping the Engine

Failure to Start

Vehicles with Manual Transmission

If the engine does not crank when you full depress the clutch pedal with the ignition key in position III, follow this procedure:

1. Fully depress the clutch and brake pedals.

2. Turn the key to position III until the engine has started.

STARTING A DIESEL ENGINE

Cold or Hot Engine

All Vehicles

Note: When the temperature is below 5°F

(-15°C), you may need to crank the engine for up to 10 seconds.

Note: You can only operate the starter for a limited period of time.

Note: After a limited number of attempts to start your engine, the system will not allow you to try again until a period of time has elapsed, for example 30 minutes.

Switch the ignition on and wait until the glow plug indicator goes off.

Vehicles With Manual Transmission

Note: Do not touch the accelerator pedal. Note: Releasing the clutch pedal while the

engine is starting will stop the engine cranking and return to ignition on.

1. Fully depress the clutch pedal.

2. Start the engine.

Vehicles With Automatic Transmission

Note: Do not touch the accelerator pedal.

Note: Releasing the brake pedal while the

engine is starting will stop the engine cranking and return to ignition on.

1. Move the transmission selector lever

to position P or N.

2. Fully depress the brake pedal.

3. Start the engine.

Failure to Start

Vehicles With Manual Transmission

If the engine does not crank when the clutch pedal has been fully depressed and the ignition key is turned to position III.

1. Fully depress the clutch and brake pedals.

2. Turn the key to position III until the engine has started.

DIESEL PARTICULATE FILTER

The filter forms part of the emissions reduction system on your vehicle. It filters harmful diesel particulates (soot) from the exhaust gas.

Regeneration

WARNING

Do not park or idle your vehicle over dry leaves, dry grass or other

combustible materials. The regeneration process creates very high exhaust gas temperatures and the exhaust will radiate a considerable amount of heat during and after regeneration and after you have switched the engine off. This is a potential fire hazard.

Note: Avoid running out of fuel.

Ranger (TKE) Vehicles Built From: 01-10-2014, DB39120609AD (CG3575en) enGBR, Edition date: 09/2014, First Printing

Starting and Stopping the Engine

Note: During regeneration at low speed or

engine idle, you may smell a hot metallic odor and could notice a clicking metallic sound. This is due to the high temperatures reached during regeneration and is normal.

Note: Changes in the engine or exhaust sound may be heard during the regeneration process.

Note: After you have switched your engine off the fans may continue to run for a short period of time.

The diesel particulate filter on your vehicle requires periodic regeneration to maintain its correct function. Your vehicle will carry out this process automatically.

If your journeys meet one of the following conditions:

• You drive only short distances.

• You frequently switch the ignition on

and off.

• Your journeys contain a high level of acceleration and deceleration.

You must carry out occasional trips with the following conditions to assist the regeneration process:

• Drive your vehicle in more favorable conditions, which you will find at higher vehicle speeds in normal driving, on a main road or freeway for a minimum of 20 minutes. This drive may include short stops that will not affect the regeneration process.

• Avoid prolonged idling and always observe speed limits and road conditions.

• Do not switch the ignition off.

• Select a suitable gear to ideally

maintain engine speed between 1500 and 3000 RPM.

SWITCHING OFF THE ENGINE

Vehicles With a Turbocharger

WARNING

Do not switch the engine off when it is running at high speed. If you do, the

turbocharger will continue running after the engine oil pressure has dropped to zero. This will lead to premature turbocharger bearing wear.

Release the accelerator pedal. Wait until the engine has reached idle speed and then switch it off.

Ranger (TKE) Vehicles Built From: 01-10-2014, DB39120609AD (CG3575en) enGBR, Edition date: 09/2014, First Printing

Starting and Stopping the Engine

SAFETY PRECAUTIONS

WARNINGS

Do not overfill the fuel tank. The pressure in an overfilled tank may cause leakage and lead to fuel spray

and fire.

The fuel system may be under pressure. If you hear a hissing sound

near the fuel filler door (Easy Fuel capless fuel system), do not refuel until the sound stops. Otherwise, fuel may spray out, which could cause serious personal injury.

Automotive fuels can cause serious

injury or death if misused or

mishandled.

Flow of fuel through a fuel pump

nozzle can produce static electricity.

This can cause a fire if you are filling an ungrounded fuel container.

Fuel ethanol and gasoline may

contain benzene, which is a

cancer-causing agent.

When refueling always shut the

engine off and never allow sparks or

open flames near the filler neck. Never smoke or use a cell phone while refueling. Fuel vapor is extremely hazardous under certain conditions. Avoid inhaling excess fumes.

Observe the following guidelines when handling automotive fuel:

• Extinguish all smoking materials and

any open flames before refueling your vehicle.

• Always turn off the vehicle before

refueling.

• Automotive fuels can be harmful or fatal if swallowed. Fuel such as gasoline is highly toxic and if swallowed can cause death or permanent injury. If fuel is swallowed, call a physician immediately, even if no symptoms are immediately apparent. The toxic effects of fuel may not be visible for hours.

• Avoid inhaling fuel vapors. Inhaling too much fuel vapor of any kind can lead to eye and respiratory tract irritation. In severe cases, excessive or prolonged breathing of fuel vapor can cause serious illness and permanent injury.

• Avoid getting fuel liquid in your eyes. If fuel is splashed in the eyes, remove contact lenses (if worn), flush with water for 15 minutes and seek medical attention. Failure to seek proper medical attention could lead to permanent injury.

• Fuels can also be harmful if absorbed through the skin. If fuel is splashed on the skin, clothing or both, promptly remove contaminated clothing and wash skin thoroughly with soap and water. Repeated or prolonged skin contact with fuel liquid or vapor causes skin irritation.

• Be particularly careful if you are taking “Antabuse” or other forms of disulfiram

for the treatment of alcoholism. Breathing gasoline vapors, or skin contact could cause an adverse reaction. In sensitive individuals, serious personal injury or sickness may result. If fuel is splashed on the skin, promptly wash skin thoroughly with soap and water. Consult a physician immediately if you experience an adverse reaction.

Ranger (TKE) Vehicles Built From: 01-10-2014, DB39120609AD (CG3575en) enGBR, Edition date: 09/2014, First Printing

Fuel and Refueling

FUEL QUALITY

WARNINGS

Do not mix gasoline with oil, diesel or other liquids. This could cause a chemical reaction.

Do not use leaded gasoline or gasoline with additives containing

other metallic compounds (e.g. manganese-based). They could damage the emission system.

Note: We recommend that you use only high quality fuel.

Note: We do not recommend the use of additional additives or other engine treatments for normal vehicle use.

Use minimum 91 octane unleaded gasoline that meets the specification defined by EN 228 or the equivalent national specification.

Your vehicle is suitable for use with ethanol blends up to 20% (E20).

Long-Term Storage

Most gasoline contains ethanol. We recommend that you fill the fuel tank with fuel that does not contain ethanol if you intend to store your vehicle for more than two months. Alternatively, we recommend that you seek advice from an authorized dealer.

FUEL QUALITY

WARNINGS

Do not mix diesel with oil, gasoline

or other liquids. This could cause a

chemical reaction.

Do not add kerosene, paraffin or

gasoline to diesel. This could cause

damage to the fuel system.

WARNINGS

Use diesel that meets the specification defined by EN 590 or the relevant national specification.

Note: We recommend that you use only high quality fuel.

Note: We do not recommend the use of additional additives or other engine treatments for normal vehicle use.

Note: We do not recommend the use of additional additives to prevent fuel waxing.

Long-Term Storage

Most diesel fuels contain biodiesel. We recommend that you fill the fuel tank with fuel that does not contain biodiesel if you intend to store your vehicle for more than two months. Alternatively, we recommend that you seek advice from your dealer.

RUNNING OUT OF FUEL

Avoid running out of fuel because this situation may have an adverse effect on engine components.

If you have run out of fuel:

• You may need to cycle the ignition from off to on several times after refueling to allow the fuel system to pump the fuel from the tank to the engine. On restarting, cranking time will take a few seconds longer than normal. With keyless ignition, just start the engine. Crank time will be longer than usual.

• Normally, adding 3.8 liters of fuel is enough to restart the engine. If the vehicle is out of fuel and on a steep grade, more than 3.8 liters may be required.

Ranger (TKE) Vehicles Built From: 01-10-2014, DB39120609AD (CG3575en) enGBR, Edition date: 09/2014, First Printing

Fuel and Refueling

Filling a Portable Fuel Container

Use the following guidelines to avoid electrostatic charge build-up when filling an ungrounded fuel container:

• Only use an approved fuel container to transfer fuel to your vehicle. Place the container on the ground when filling.

• Do not fill a fuel container while it is inside your vehicle (including the cargo area).

• Keep the fuel pump nozzle in contact with the fuel container while filling.

• Do not use a device that holds the fuel pump nozzle lever in the fill position.

CATALYTIC CONVERTER

WARNING

Do not park or idle your vehicle over dry leaves, dry grass or other

combustible materials. The exhaust will radiate a considerable amount of heat during use, and after you have switched the engine off. This is a potential fire hazard.

Driving with a Catalytic Converter

WARNINGS

Avoid running out of fuel.

Do not crank the engine for long

periods.

Do not run the engine when a spark

plug lead is disconnected.

Do not push-start or tow-start your

vehicle. Use booster cables. See

Jump Starting the Vehicle (page

136).

Do not switch the ignition off when

driving.

REFUELING

WARNINGS

Do not attempt to start the engine if you have filled the fuel tank with the

incorrect fuel. This could damage the engine. Have your vehicle checked by an authorized dealer immediately.

Do not use any kind of flames or heat

near the fuel system. The fuel system

is under pressure. There is a risk of injury if the fuel system is leaking.

If you use a high pressure spray to

wash your vehicle, only spray the fuel

filler flap briefly from a distance not less than 8 inches (200 millimeters).

We recommend that you wait at

least 10 seconds before removing the

fuel nozzle to allow any residual fuel to drain into the fuel tank.

Stop refueling after the fuel nozzle

stops the second time. Additional

fuel will fill the expansion space in the fuel tank which could lead to fuel overflowing. Fuel spillage could be hazardous to other road users.

Do not remove the fuel nozzle from

its fully inserted position during the

entire refueling process.

Note: Central locking also locks and unlocks the fuel filler flap. See Locking and Unlocking (page 36).

Ranger (TKE) Vehicles Built From: 01-10-2014, DB39120609AD (CG3575en) enGBR, Edition date: 09/2014, First Printing

Fuel and Refueling

Vehicles with Fuel Filler Cap

1. Press the flap to open it.

2. Open the flap fully until it engages.

3. Turn the fuel filler cap anti-clockwise.

4. To close, turn the fuel filler cap clockwise until it clicks.

5. Close and push the fuel filler flap to lock it.

Note: Disregard the hissing noise while opening the filler cap. This is normal.

If you must replace the fuel filler cap, replace only with the cap designed for your vehicle. The customer warranty may be void for any damage to the fuel tank or fuel system if the correct genuine Ford fuel filler cap is not used.

Vehicles without Fuel Filler Cap

1. Press the flap to open it. Open the flap fully until it engages.

Note: When you insert the correct size fuel nozzle, a spring loaded inhibitor will open. This helps to avoid filling up with the incorrect fuel.

2. Insert the fuel nozzle up to and including the first notch on the fuel nozzle A. Keep it resting on the cover of the fuel pipe opening.

Ranger (TKE) Vehicles Built From: 01-10-2014, DB39120609AD (CG3575en) enGBR, Edition date: 09/2014, First Printing

Fuel and Refueling

3. Hold the fuel nozzle in position B during refueling. Holding the fuel nozzle in position A can affect the flow of fuel and shut off the fuel nozzle before the fuel tank is full.

4. Slightly raise the fuel nozzle to remove it.

Note: A funnel is located in the glove box. Use this when refilling with a fuel can.

FUEL CONSUMPTION

We derive CO2 and fuel consumption figures in laboratory tests according to Regulation (EC) 715/2007 or CR (EC) 692/2008 and subsequent amendments.

They are intended as a comparison between makes and models of vehicles. They are not intended to represent the real world fuel consumption you may get from your vehicle.

Real world fuel consumption is governed by many factors, for example driving style, high speed driving, stop-start driving, air conditioning usage, the accessories fitted, payload and towing.

The advertised capacity is the indicated capacity and the empty reserve combined. Indicated capacity is the difference in the amount of fuel in the fuel tank and when the fuel gauge indicates empty. Empty reserve is the amount of fuel in the fuel tank after the fuel gauge indicates empty.

Note: The amount of fuel in the empty reserve varies and should not be relied upon to increase driving range. When refueling your vehicle after the fuel gauge indicates empty, you might not be able to refuel the full amount of the advertised capacity due to the empty reserve still present in the fuel tank.

Filling the Fuel Tank

For consistent results when refueling:

• Switch the ignition off.

• Allow no more than two automatic

shut-offs when refueling.

Results are most accurate when the refueling method is consistent.

Calculating Fuel Economy

Do not measure fuel economy during the first 1000 mi (1,600 km) of driving (this is the engine break-in period). A more accurate measurement is obtained after 2500 mi (4,000 km). Also, fuel expense, frequency of fill ups or fuel gauge readings are not accurate ways to measure fuel economy.

1. Fill the fuel tank completely and record the initial odometer reading.

2. Each time you fill the fuel tank, record the amount of fuel added.

Ranger (TKE) Vehicles Built From: 01-10-2014, DB39120609AD (CG3575en) enGBR, Edition date: 09/2014, First Printing

Fuel and Refueling

3. After at least three fill ups, fill the fuel tank and record the current odometer reading.

4. Subtract your initial odometer reading from the current odometer reading.

5. Calculate fuel economy by dividing miles traveled by gallons used (For Metric: Multiply liters used by 100, then divide by kilometers traveled).

Keep a record for at least one month and record the type of driving (city or freeway). This provides an accurate estimate of your vehicle’s fuel economy under current driving conditions. Additionally, keeping records during summer and winter show how temperature impacts fuel economy. In general, your vehicle will use more fuel in cold temperatures.

TECHNICAL SPECIFICATIONS

Fuel Consumption Figures

CO2 Emis-

sions

CombinedExtra-UrbanUrban

Variant

g/km

l/100 km

(mpg)

l/100 km

(mpg)

l/100 km

(mpg)

24410.2 (27.7)8.2 (34.4)13.6 (20.7)

Vehicles with a 2.5L Duratec-HE engine - 2wheel drive

25910.8 (26.1)8.9 (31.7)14.1 (20.0)

Vehicles with a 2.5L Duratec-HE engine - 4wheel drive

2037.6 (37.2)6.8 (41.5)9.0 (31.4)

Vehicles with a 2.2L Duratorq-TDCi engine - 2wheel drive (manual transmission - MT82)

2178.1 (34.9)7.1 (39.8)9.9 (28.5)

Vehicles with a 2.2L Duratorq-TDCi engine - 4wheel drive (manual transmission - MT82)

2388.9 (31.7)7.6 (37.2)11.1 (25.4)

Vehicles with a 2.2L Duratorq-TDCi engine - 2wheel drive (automatic transmission)

2519.4 (30.0)7.9 (35.7)12.1 (23.3)

Vehicles with a 2.2L Duratorq-TDCi engine - 4wheel drive (automatic transmission)

Ranger (TKE) Vehicles Built From: 01-10-2014, DB39120609AD (CG3575en) enGBR, Edition date: 09/2014, First Printing

Fuel and Refueling

CO2 Emis-

sions

CombinedExtra-UrbanUrban

Variant

g/km

l/100 km

(mpg)

l/100 km

(mpg)

l/100 km

(mpg)

2228.4 (33.6)7.0 (40.3)10.8 (26.1)

Vehicles with a 3.2L Duratorq-TDCi engine - 2wheel drive (manual transmission - MT82)

2419.1 (31.0)7.6 (37.1)11.8 (23.9)

Vehicles with a 3.2L Duratorq-TDCi engine - 4wheel drive (manual transmission - MT82)

2398.9 (31.7)7.4 (38.2)11.6 (24.3)

Vehicles with a 3.2L Duratorq-TDCi engine - 2wheel drive (automatic transmission)

2519.4 (30.0)7.9 (35.7)12 (23.5)

Vehicles with a 3.2L Duratorq-TDCi engine - 4wheel drive (automatic transmission)

Ranger (TKE) Vehicles Built From: 01-10-2014, DB39120609AD (CG3575en) enGBR, Edition date: 09/2014, First Printing

Fuel and Refueling

MANUAL TRANSMISSION

Selecting Reverse Gear

Do not engage reverse gear when your vehicle is moving. This can cause damage to the transmission.

Raise the collar when you select reverse gear.

AUTOMATIC TRANSMISSION

WARNING

Always set the parking brake fully and make sure you move the

transmission selector lever to park. Switch the ignition off and remove the key whenever you leave your vehicle.

Selector lever positions

ParkP

ReverseR

NeutralN

DriveD

Sport mode and manual shiftingS

Manual shift upS+

Manual shift downS-

WARNING

Apply the brakes before moving the selector lever and keep them applied until you are ready to move off.

Note: A cold engine has a higher idle speed. This will increase the tendency for your vehicle to creep when you have selected a drive gear.

Press the button on the transmission selector lever to select reverse and park.

The transmission selector lever position will be shown in the instrument cluster display.

Ranger (TKE) Vehicles Built From: 01-10-2014, DB39120609AD (CG3575en) enGBR, Edition date: 09/2014, First Printing

Transmission

P (Park)

WARNINGS

Move the transmission selector lever to park only when your vehicle is stationary.

Apply the parking brake and move the transmission selector lever to

park before leaving your vehicle. Make sure that the transmission selector lever is latched in position.

Note: To move the selector lever from park position, apply the footbrake and ignition key in position II.

In this position, power is not transmitted to the drive wheels and the transmission is locked. You can start the engine with the transmission selector lever in this position.

Note: An audible warning will sound if you open the drivers door and you have not moved the transmission selector lever to park.

Note: The battery saver will deactivate the audible warning after a period of time.

R (Reverse)

WARNINGS

Move the transmission selector lever

to reverse only when your vehicle is

stationary and the engine is at idle speed.

Always come to a complete stop

before shifting the transmission

selector lever out of reverse.

Move the transmission selector lever to reverse to allow your vehicle to move backward.

N (Neutral)

In this position, power is not transmitted to the drive wheels but the transmission is not locked. You can start the engine with the transmission selector lever in this position.

D (Drive)

Note: A shift will occur only when your

vehicle speed and the engine speed are appropriate.

Select drive to shift automatically through the forward gears.

The transmission will select the appropriate gear for optimum performance based on ambient temperature, road gradient, vehicle load and your input.

Sport Mode and Manual Shifting

Sport mode

Note: In sport mode the transmission

operates as normal but gears are selected more quickly and at higher engine speeds.

Note: In sport mode S will be shown in the instrument cluster display.

Note: When towing heavy loads or in hilly terrain, it is recommended that sport mode is selected. This will result in cooler transmission temperatures and additional engine braking.

Switch on sport mode by moving the transmission selector lever from drive position towards the driver. Sport mode will remain on until either you shift manually up or down the gears using + and -.

Manual shifting

WARNINGS

Do not hold the transmission selector lever permanently in - or +.

Ranger (TKE) Vehicles Built From: 01-10-2014, DB39120609AD (CG3575en) enGBR, Edition date: 09/2014, First Printing

Transmission

WARNINGS

The transmission will automatically downshift when the engine speed is too low.

Manual shifting can be done only when the selector lever is in position S. Move the transmission selector lever forward to downshift and backward to upshift.

When the vehicle is stationary, only the 1st and 2nd gears can be selected.

Manual shifting is sequential, therefore gears cannot be skipped.

The transmission will remain in the selected gear. When the engine speed is too low or idle, it will downshift to 2nd gear. The selected gear is indicated in the instrument cluster. See General Information (page 59).

Manual mode also provides a kickdown function. See Kickdown.

Hints on driving with an automatic transmission

WARNING

Do not idle the engine for long periods of time in drive with the brakes applied.

Moving off

WARNING

It is not possible to tow-start or push-start a vehicle fitted with an automatic transmission. See Jump

Starting the Vehicle (page 136).

1. Release the parking brake.

2. Release the brake pedal and press the accelerator pedal.

Stopping

1. Release the accelerator pedal and press the brake pedal.

2. Apply the parking brake.

3. Move the transmission selector lever to N or P.

Kickdown

Press the accelerator pedal fully with the transmission selector lever in the drive position to select the next highest gear for optimum performance. Release the accelerator pedal when you no longer require kickdown.

If Your Vehicle Gets Stuck In Mud or Snow

Note: Do not rock your vehicle if the engine

is not at normal operating temperature or damage to the transmission may occur.

Note: Do not rock your vehicle for more than a minute or damage to the transmission and tires may occur, or the engine may overheat.

Ranger (TKE) Vehicles Built From: 01-10-2014, DB39120609AD (CG3575en) enGBR, Edition date: 09/2014, First Printing

Transmission

If your vehicle gets stuck in mud or snow, it may be rocked out by shifting between forward and reverse gears, stopping between shifts in a steady pattern. Press lightly on the accelerator in each gear.

Emergency Park Position Release Lever

WARNINGS

Do not drive your vehicle until you verify that the brake lamps are working.

If the parking brake is fully released, but the brake warning lamp remains

illuminated, the brakes may not be working correctly. See an authorized dealer.

Use the button to move the transmission selector lever from the park position in the event of an electrical malfunction or if your vehicle battery has no charge.

1. Apply the parking brake and switch the

ignition off before performing this procedure.

2. Lift up the cover in the center console

next to the transmission selector lever with a suitable tool.

3. Push down the locking button in the slot and simultaneously move the selector lever out of the P position.

Note: Take care when opening the cover. Note: See an authorized dealer as soon as

possible if this procedure is used.

Ranger (TKE) Vehicles Built From: 01-10-2014, DB39120609AD (CG3575en) enGBR, Edition date: 09/2014, First Printing

Transmission

PRINCIPLE OF OPERATION

This system is a proactive system. It has the ability to anticipate wheel slip and transfer torque to the rear wheels before slip occurs. Even when wheel slip is not present, the system is continuously making adjustments to the torque distribution, in an attempt to improve straight line and cornering behavior, both on and off road.

The system automatically turns on every time you switch the ignition on.

All components of the system are sealed and do not require maintenance.

USING FOUR-WHEEL DRIVE

Note: A clicking sound from the drive line

may be heard while shifting between ranges, which is normal.

Two-Wheel Drive, High Range (2H)

Use for all normal road driving and also for off-road driving across dry, level terrain.

Four-Wheel Drive, High Range (4H)

WARNING

Do not use four-wheel drive 4H for normal road driving.

Use for off-road driving.

We recommend that you frequently inspect your vehicle's chassis components if your vehicle is subject to off-road use.

Note: The four-wheel drive indicator lamp will come on when the transfer shift switch is in the 4H position. See Warning Lamps and Indicators (page 53).

Four-Wheel Drive, Low Range (4L)

WARNING

Do not use four-wheel drive 4H for normal road driving.

Use for more extreme off-road conditions, such as steep ascents and descents.

Also use when low speed manoeuvring is necessary, such as reversing a trailer or negotiating a boulder-strewn river bed.

We recommend that you frequently inspect your vehicle's chassis components if your vehicle is subject to off-road use.

Note: The four-wheel drive low range 4L and four-wheel drive indicator lamps will come on when the transfer shift switch is in the 4L position. See Warning Lamps and Indicators (page 53).

Shifting Between 2H and 4H

Note: Shift to 2H will reactivate all the

stability control (ESP) functions.

Ranger (TKE) Vehicles Built From: 01-10-2014, DB39120609AD (CG3575en) enGBR, Edition date: 09/2014, First Printing

Four-Wheel Drive

Shift between 2H and 4H can be done with the vehicle moving up to 68.4 mph (110 km/h), but only with the accelerator pedal released. During the shift the indicator lamp will flash.

Shifting Between 2H and 4L

Note: Shift to 4L will deactivate Engine

Traction Control and Trailer Stability Control but Hill Descent Control, Hill Start Assist and Brake Traction Control remain active.

Note: Shift to 2H will reactivate all the stability control (ESP) functions.

1. Stop the vehicle when it is safe to do so.

2. Fully depress the clutch pedal (manual transmission).

3. Move the transmission selector lever to position N (automatic transmission).

4. Turn the transfer shift switch from 2H to 4L or 4L to 2H.

During the shift the indicator lamp will flash. If it continues to flash, check meeting the above conditions.

Shifting Between 4H and 4L

Note: Shift to 4L will deactivate Engine

Traction Control and Trailer Stability Control but Hill Descent Control, Hill Start Assist and Brake Traction Control remain active.

1. Stop the vehicle when it is safe to do so.

2. Fully depress the clutch pedal (manual transmission).

3. Move the transmission selector lever to position N (automatic transmission).

4. Turn the transfer shift switch from 4H to 4L or 4L to 4H.

During the shift the indicator lamp will flash. If it continues to flash, check meeting the above conditions.

Driving in Special Conditions With Four-Wheel Drive

Four-wheel drive vehicles are suitable for driving on sand, snow, mud and rough roads and have operating characteristics that are somewhat different from conventional vehicles, both on and off the freeway.

When driving at slow speeds off road under high load conditions, use a low gear when possible. Low gear operation will maximize the engine and transmission cooling capability.

Basic Operating Principles

• Drive slower in strong crosswinds which can affect the normal steering characteristics of your vehicle.

• When driving your vehicle on surfaces made slippery by loose sand, water, gravel, snow or ice proceed with care.

If Your Vehicle leaves the Road

If your vehicle leaves the road, reduce your vehicle speed and avoid severe braking. When your vehicle speed has been reduced ease your vehicle back onto the road. Do not turn the steering wheel sharply while returning your vehicle to the road.

It may be safer to stay on the shoulder of the road and slow down gradually before returning to the road. You may lose control if you do not slow down or if you turn the steering wheel too sharply or abruptly.

It may be less risky to strike small objects, such as freeway reflectors, with minor damage to your vehicle rather than attempt a sudden return to the road which could cause your vehicle to slide sideways out of control or roll over. Remember, your safety and the safety of others should be your primary concern.

Ranger (TKE) Vehicles Built From: 01-10-2014, DB39120609AD (CG3575en) enGBR, Edition date: 09/2014, First Printing

Four-Wheel Drive

Ford Ranger 2015 User Manual
