M-5230-V6

Ford M-5230-V6 Installation Instructions Manual

Download

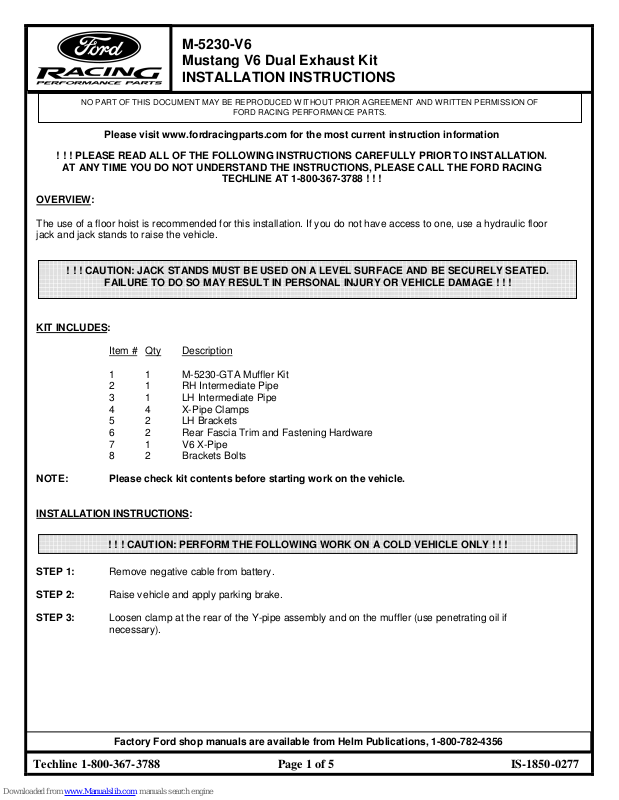

Page 1
M-5230-V6
! ! ! CAUTION: JACK STANDS MUST BE USED ON A LEVEL SURFACE AND BE SECURELY SEATED.
! ! ! CAUTION: PERFORM THE FOLLOWING WORK ON A COLD VEHICLE ONLY ! ! !
Mustang V6 Dual Exhaust Kit INSTALLATION INSTRUCTIONS
NO PART OF THIS DOCUMENT MAY BE REPRODUCED WITHOUT PRIOR AGREEMENT AND WRITTEN PERMISSION OF
Please visit www.fordracingparts.com for the most current instruction information
! ! ! PLEASE READ ALL OF THE FOLLOWING INSTRUCTIONS CAREFULLY PRIOR TO INSTALLATION.
AT ANY TIME YOU DO NOT UNDERSTAND THE INSTRUCTIONS, PLEASE CALL THE FORD RACING
OVERVIEW:
The use of a floor hoist is recommended for this installation. If you do not have access to one, use a hydraulic floor jack and jack stands to raise the vehicle.
KIT INCLUDES:
NOTE: Please check kit contents before starting work on the vehicle.
INSTALLATION INSTRUCTIONS:
STEP 1: Remove negative cable from battery.
STEP 2: Raise vehicle and apply parking brake.
STEP 3: Loosen clamp at the rear of the Y-pipe assembly and on the muffler (use penetrating oil if
Techline 1-800-367-3788 Page 1 of 5 IS-1850-0277
FAILURE TO DO SO MAY RESULT IN PERSONAL INJURY OR VEHICLE DAMAGE ! ! !
Item # Qty Description
1 1 M-5230-GTA Muffler Kit 2 1 RH Intermediate Pipe 3 1 LH Intermediate Pipe 4 4 X-Pipe Clamps 5 2 LH Brackets 6 2 Rear Fascia Trim and Fastening Hardware 7 1 V6 X-Pipe 8 2 Brackets Bolts
necessary).
FORD RACING PERFORMANCE PARTS.
TECHLINE AT 1-800-367-3788 ! ! !

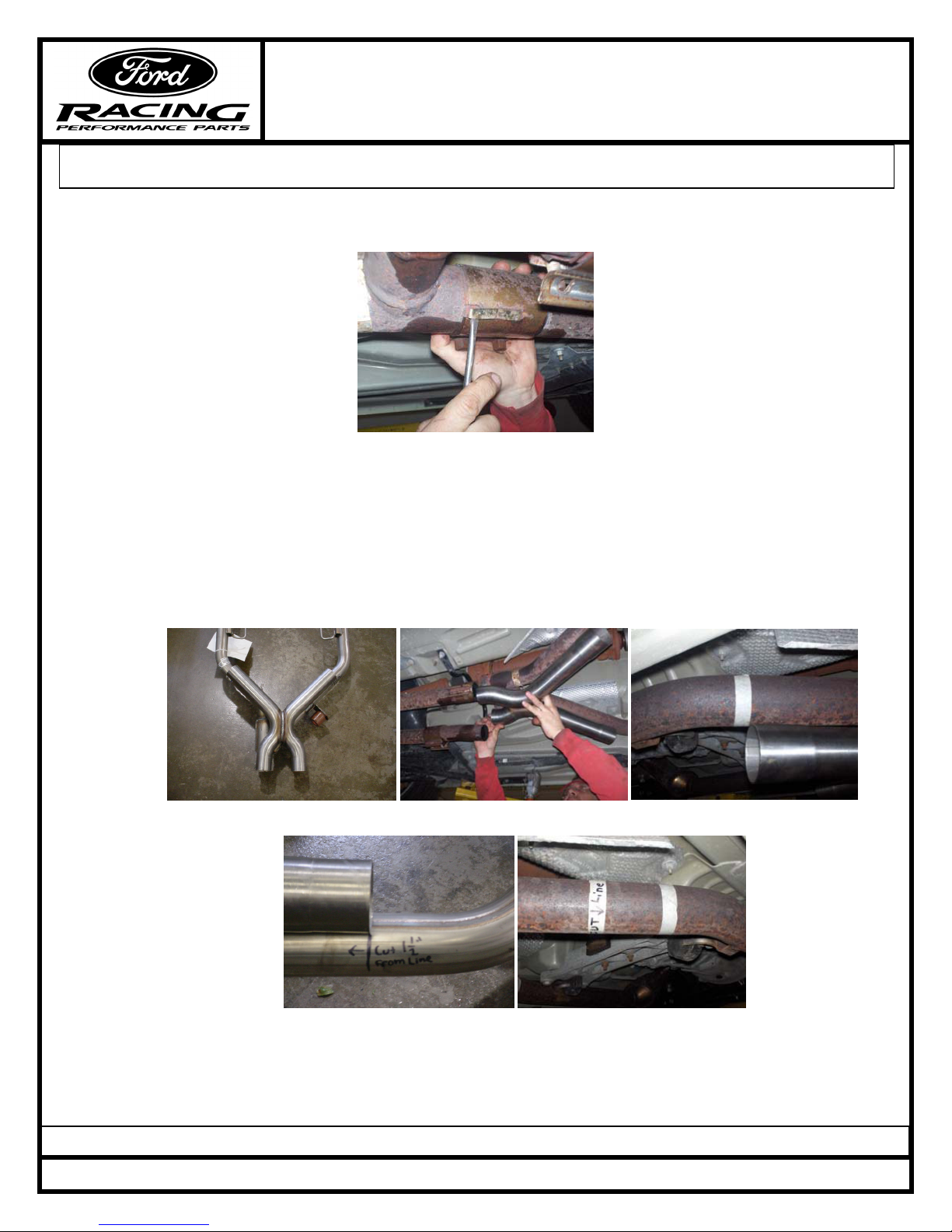

Page 2
M-5230-V6 Mustang V6 Dual Exhaust Kit INSTALLATION INSTRUCTIONS
STEP 4: Use a screwdriver to lift retaining clip on clamp at rear of the Y-pipe and slide back (See Fig. 1).
NO PART OF THIS DOCUMENT MAY BE REPRODUCED WITHOUT PRIOR AGREEMENT AND WRITTEN PERMISSION OF
FORD RACING PERFORMANCE PARTS.
Fig. 1
STEP 5: Remove pipe from muffler (cut pipe in front of the rear axle if ground clearance is an issue).
STEP 6: To remove muffler, spray penetrating oil on front inner hanger and pry rubber hanger free from the hook.
Slide the muffler toward the front of vehicle to remove from the other hangers.
STEP 7: Place X-pipe on the Y-pipe assembly to determine cut location (See Fig. 2). Be sure to center the new X-
pipe as best as possible to the center of the vehicle (See Fig. 3). Mark the end of the tube with tape (See Fig. 4). Measure back 1½ inches (40 mm) from the tape and mark the cut line with tape (See Fig. 5 & 6).
Fig. 2 Fig. 3 Fig. 4
Fig. 5 Fig. 6
Techline 1-800-367-3788 Page 2 of 5 IS-1850-0277

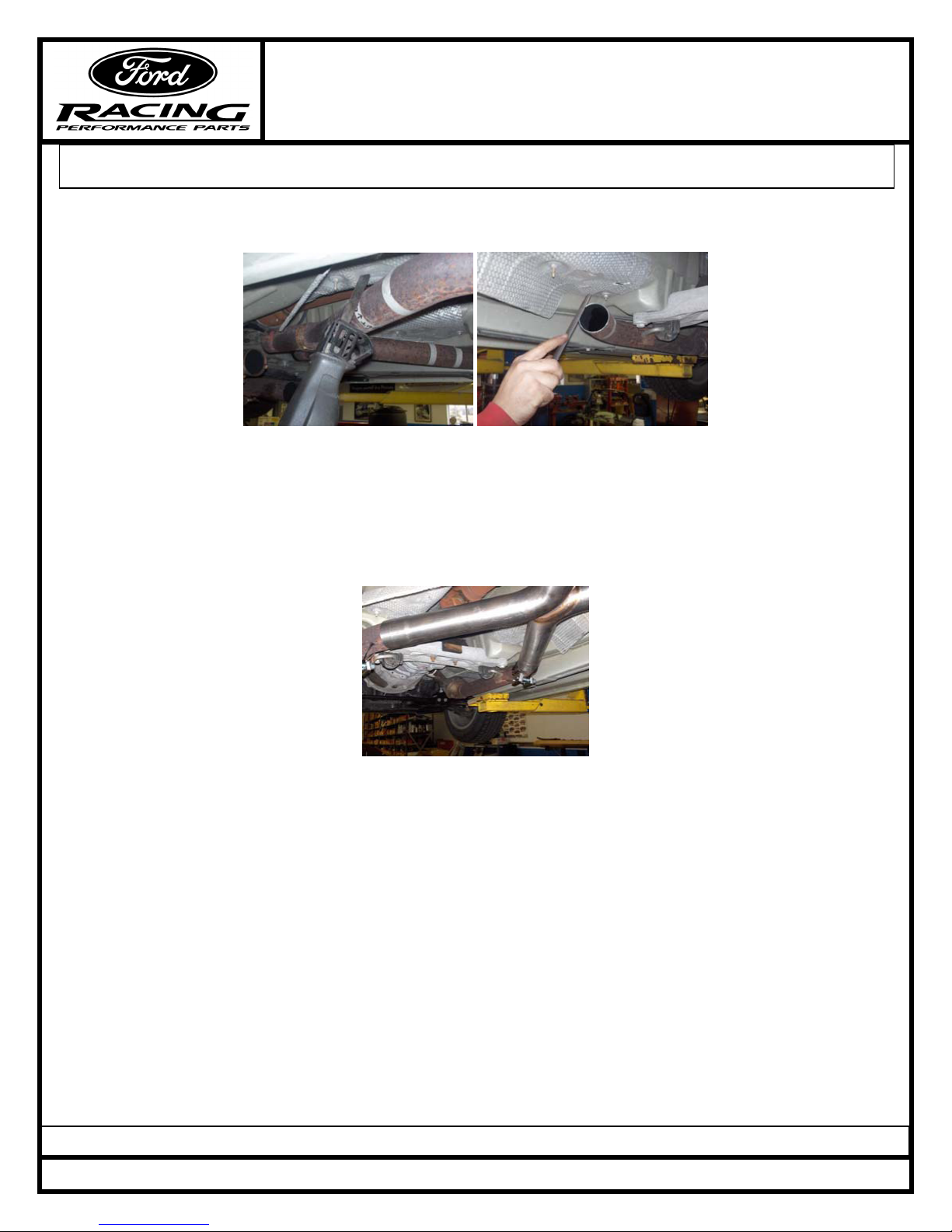

Page 3
M-5230-V6 Mustang V6 Dual Exhaust Kit INSTALLATION INSTRUCTIONS
STEP 8: Cut the Y-pipe and de-burr the inside and outside of the pipe (See Fig. 7 & 8).
NO PART OF THIS DOCUMENT MAY BE REPRODUCED WITHOUT PRIOR AGREEMENT AND WRITTEN PERMISSION OF
FORD RACING PERFORMANCE PARTS.
Fig. 7 Fig. 8
STEP 9: Remove the right hand Y-pipe tube and loosen the left hand (be sure to unplug sensor on right hand side
before removing).
STEP 10: Use penetrating oil to lubricate the end of the Y-pipe tubes. Slide the X-pipe over the left hand Y-pipe
tube and then insert the right hand tube into the X-pipe and reattach it to the exhaust manifold installing nuts hand tight. Re-connect the sensor connector (See Fig. 9).
Fig. 9
STEP 11: Tighten pipe to manifold nuts.
STEP 12: Install left hand muffler hangers. Tap bosses using M8 X 1.25 tap and then install hanger with M8 bolts.
Techline 1-800-367-3788 Page 3 of 5 IS-1850-0277

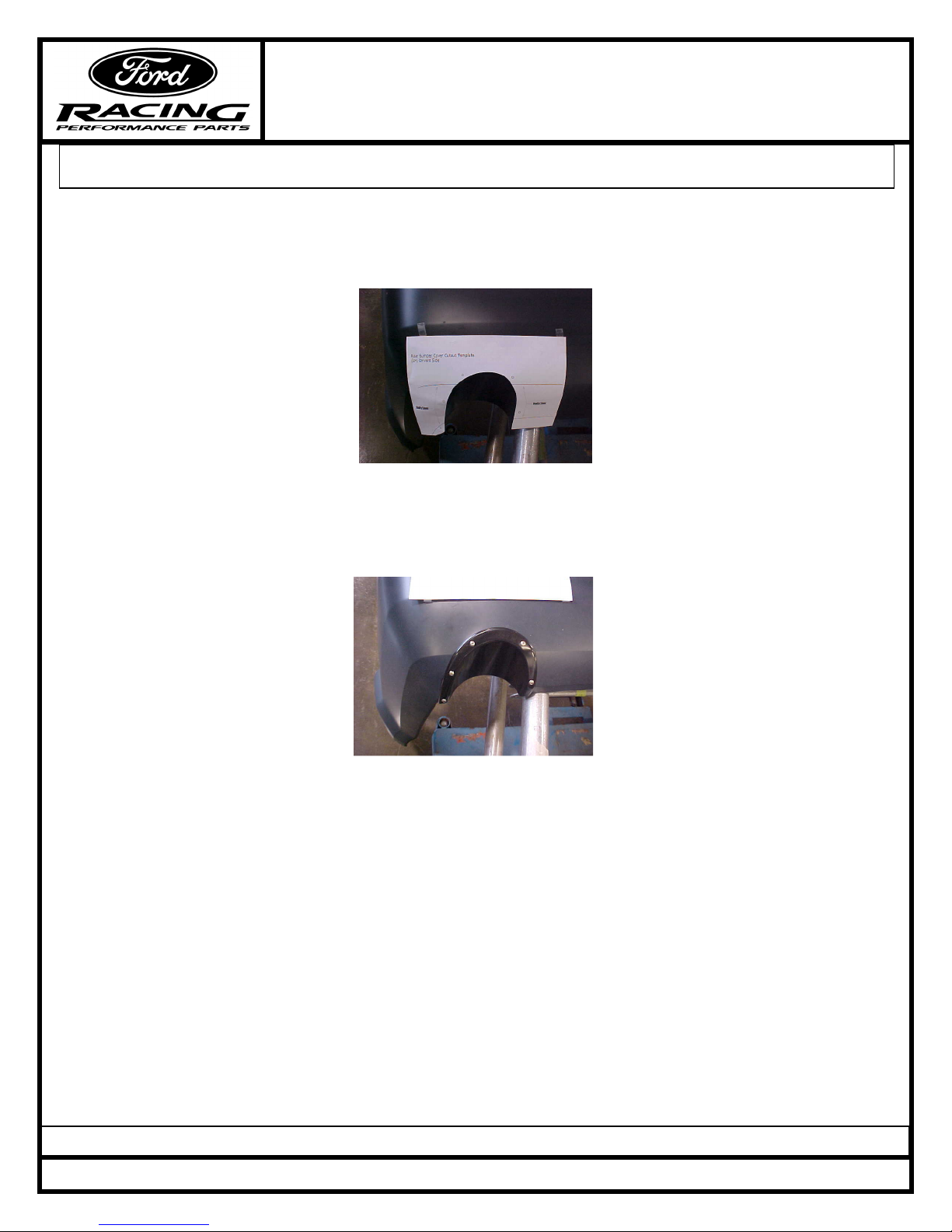

Page 4
M-5230-V6 Mustang V6 Dual Exhaust Kit INSTALLATION INSTRUCTIONS
STEP 13: Place supplied template on rear fascia as shown and trace where cut will be (See Fig. 10).
NOTE: Tape off area to be cut to protect the painted surfaces.
NO PART OF THIS DOCUMENT MAY BE REPRODUCED WITHOUT PRIOR AGREEMENT AND WRITTEN PERMISSION OF
FORD RACING PERFORMANCE PARTS.
Fig. 10
STEP 14: Cut fascia along traced lines and drill holes with a 3/16” drill bit.
STEP 15: Install fascia outlets with supplied hardware (See Fig. 11).
Fig. 11
STEP 16: Install mufflers. Place the band clamp on the inlet to the muffler.
STEP 17: Install underbody pipes. Place band clamps on the inlet of the underbody pipes. Insert into mufflers.
Techline 1-800-367-3788 Page 4 of 5 IS-1850-0277

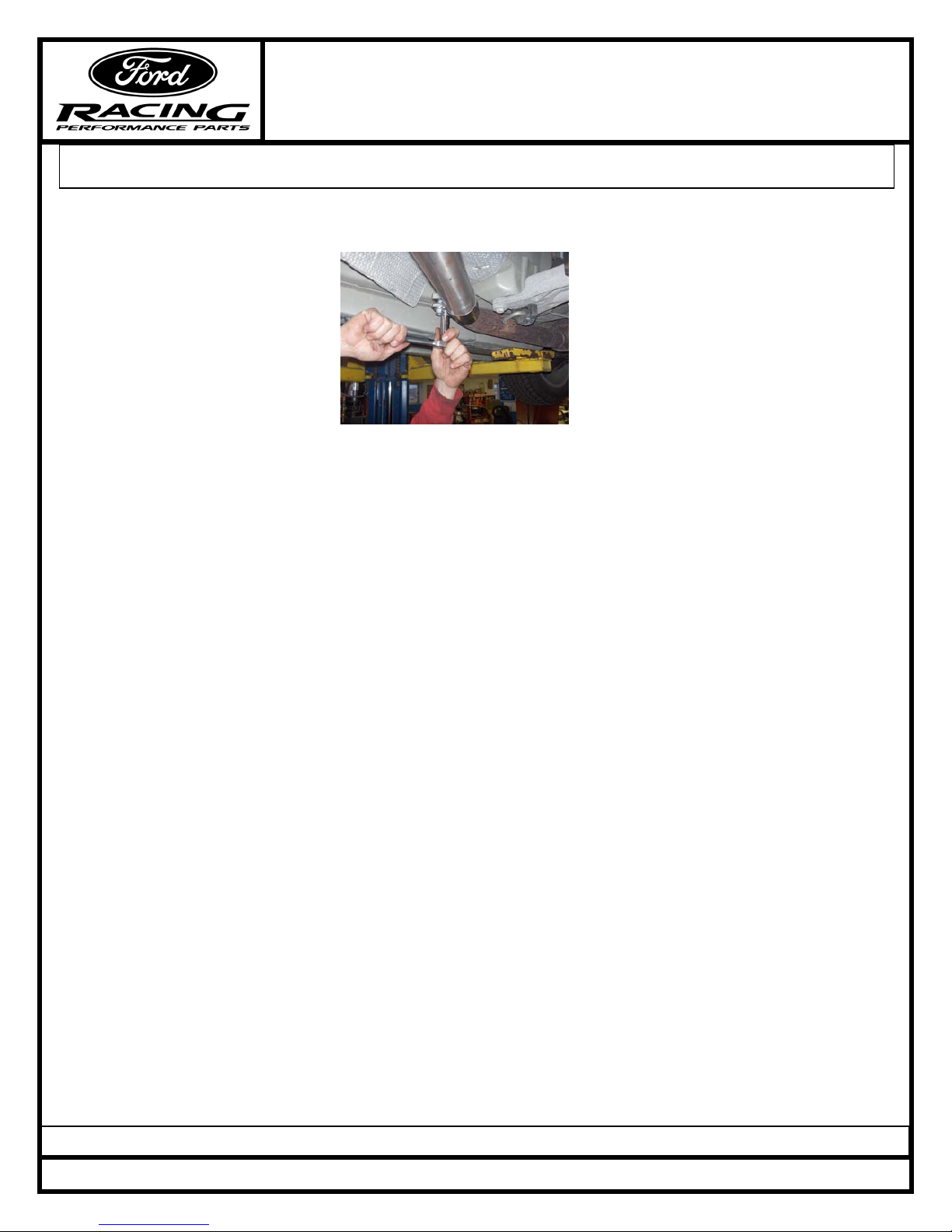

Page 5
M-5230-V6 Mustang V6 Dual Exhaust Kit INSTALLATION INSTRUCTIONS
STEP 18: Tighten all connections, etc. (See Fig. 12). Torque clamps to 40 lb-ft / 54 nm.
NO PART OF THIS DOCUMENT MAY BE REPRODUCED WITHOUT PRIOR AGREEMENT AND WRITTEN PERMISSION OF
FORD RACING PERFORMANCE PARTS.
Fig. 12
STEP 19: Lower vehicle and re-connect the negative battery cable.
STEP 20: Start vehicle and check for exhaust leaks.
Techline 1-800-367-3788 Page 5 of 5 IS-1850-0277
