Ford FX1-94 Instruction Manual

Download

Page 1

LINE

EN · PT

INSTRUCTION MANUAL

MANUAL DE INSTRUÇÕES

FX1-94

ROTATING SANDER

LIXADEIRA ROTATIVA

YEAR

WARR ANT Y

Page 2

FX1-94

Operation manual and security

instructions inside the box.

Use safety glasses.

Keep this tool away from children.

Ford Motor Company trademarks

and trade dress used under license

to Nine HKG, Ltd.

fordmotorcompany.com

Made in P.R.C. / EU-Importer:

Herculano Santos, Lda

Apartado 325, Rua Vale do Salgueiro, 1115

Raso do Salgueiro, Z.I. EN1 Norte

3754-909 Águeda, Portugal

tl. +351 234 622 848 - fx. +351 234 625 032

geral@hs-ferragens.com

Page 3

EN ENGLISH ORIGINAL INSTRUCTION MANUAL PT PORTUGUÊS TRADUÇÃO DO MANUAL DE INSTRUÇÕES ORIGINAL

Page 4

FX1-94 EN

1 APPLICATION ............................................................................. 2

2 DESCRIPTION (FIG A) ............................................................ 2

3 PACKAGE CONTENT LIST ....................................................... 2

4 SYMBOLS ...................................................................................... 3

5 GENERAL POWER TOOL SAFETY WARNINGS ................ 3

5.1 Working area ..................................................................................................... 3

5.2 Electrical safety ................................................................................................. 3

5.3 Personal safety .................................................................................................. 4

5.4 Power tool use and care ................................................................................ 4

5.5 Service .................................................................................................................. 5

6 ADDITIONAL SAFETY INSTRUCTIONS FOR FOR

SANDERS ...................................................................................... 5

7 OPERATING INSTRUCTIONS ................................................ 6

7.1 Auxiliary handle ................................................................................................ 6

7.2 Switch action ..................................................................................................... 6

7.3 Speed adjusting dial ........................................................................................ 6

7.4 Attaching the sandpaper................................................................................ 6

7.5 Attaching the dust collector (micro-filter system) ............................... 7

8 TECHNICAL DATA ..................................................................... 7

9 SOUND EMISSIONS ................................................................. 7

10 CLEANING AND MAINTENANCE .......................................... 7

10.1 Cleaning ............................................................................................................... 7

11 SERVICE DEPARTMENT .......................................................... 8

12 STORAGE ...................................................................................... 8

13 WARRANTY ................................................................................. 8

14 ENVIRONMENT .......................................................................... 9

15 DECLARATION OF CONFORMITY ...................................... 10

Page 5

FX1-94 EN

ROTATING SANDER 450W FX1-94

1 APPLICATION

The sander is used to sand and buff wood, plastic and similar materials. It is very important to use the correct sandpaper! It is not designed for commercial use.

WARNING! Please read and understand this operating manual before use and keep it for your future reference. Your power tool should only be passed on together with these instructions.

2 DESCRIPTION (FIG A)

1. Speed control dial

2. ON/OFF Switch button

3. Main handle

4. Dust collection box

5. Hook and loop sanding plate

6. Auxiliary handle

7. Adjustment knob for auxiliary handle

3 PACKAGE CONTENT LIST

 Remove all packing materials  Remove remaining packaging and transit supports (if existing)  Check the completeness of the packing content  Check the appliance, the power cord, the power plug and all accessories for

transportation damages.

 Keep the packaging materials as far as possible till the end of the warranty

period. Dispose it into your local waste disposal system afterwards.

WARNING Packing materials are no toys! Children must not play with plastic bags! Danger of suffocation!

1 x Rotating Sander 450W 1 x case 1 x Dust collector (micro filter system) 3 x Sanding paper (1 x 60gr, 1 x 120gr, 1 x 240gr) 1 x instruction manual

When parts are missing or damaged, please contact your dealer.

Page 6

FX1-94 EN

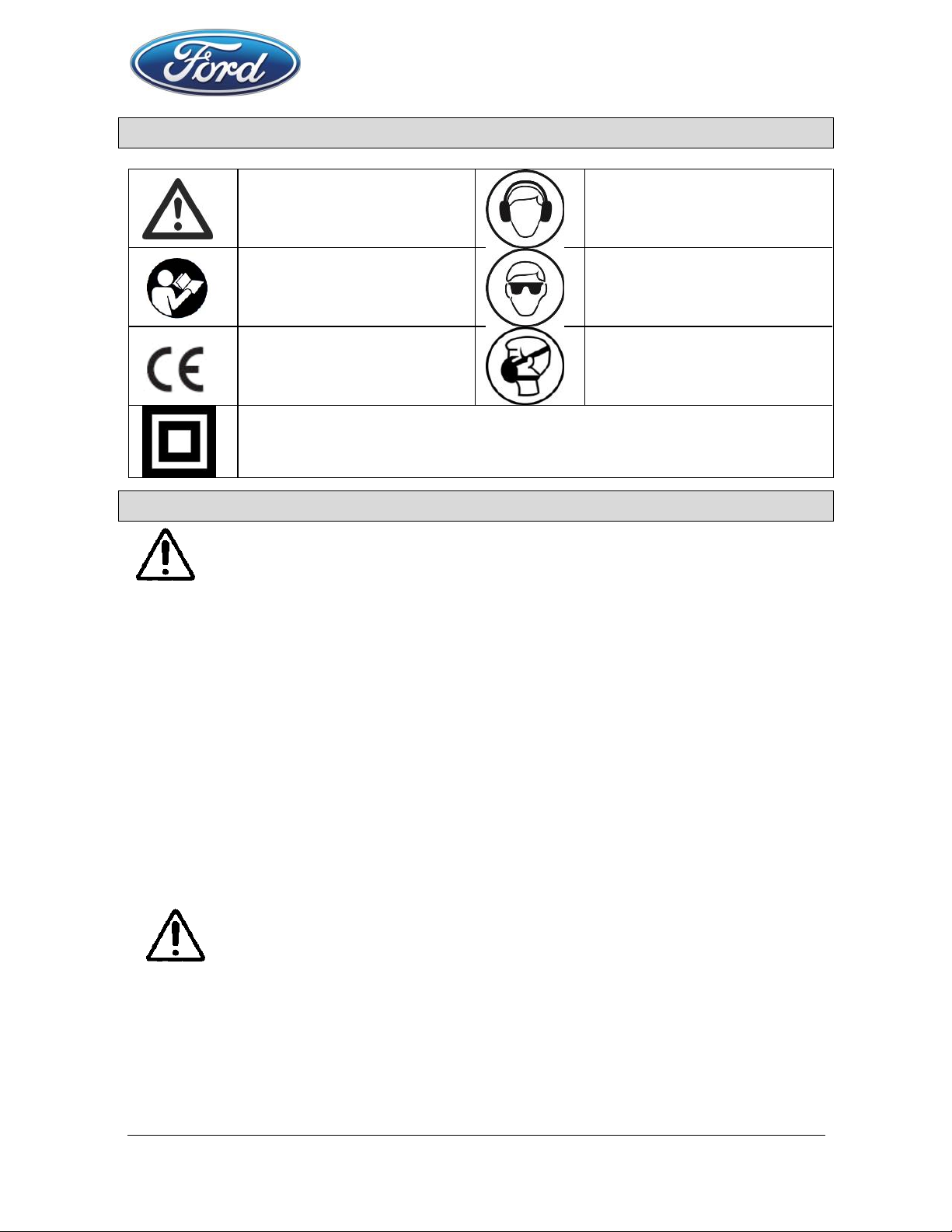

4 SYMBOLS

The following symbols are used in this manual and/or on the machine:

Denotes risk of personal injury or damage to the tool.

Wear noise protection

Read manual before use

Wear eye protection

In accordance with essential requirements of the European directive(s)

Wear a mask In dusty conditions

"Class II - The machine is double insulated; Earthing wire is therefore not necessary

5 GENERAL POWER TOOL SAFETY WARNINGS

Attention ! Read all safety warnings and instructions. Failure to heed

warnings and follow instructions may result in electric shock, fire and/or serious injury.

Keep safety warnings and instructions for future reference.

The term "power tool" in the safety warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

5.1 Working area

 Keep working area clean and well lit. Untidy and dark areas can lead to

accidents.

 Do not operate power tools in potentially explosive surroundings, for

example, in the presence of inflammable liquids, gases or dust. Power

tools create sparks which may ignite the dust or fumes.

 Keep children and bystanders at a distance when operating a power

tool. Distractions can cause you to lose control of it.

5.2 Electrical safety

Always check that the power supply corresponds to the voltage on the rating plate.

 Power tool plugs must match the outlet. Never modify the plug in

any way. Do not use adapter plugs with earthed power tools.

Unmodified plugs and matching outlets will reduce the risk of a lethal electric shock.

 Avoid body contact with earthed surfaces such as pipes, radiators,

kitchen ranges and refrigerators. There is an increased risk of a lethal

electric shock if your body is earthed.

Page 7

FX1-94 EN

 Do not expose power tools to rain or wet conditions. If water gets

inside a power tool, it will increase the risk of a lethal electric shock.

 Do not damage the cord. Never use the cord for carrying, pulling or

unplugging the power tool. Keep the cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of a

lethal electric shock.

 When operating a power tool outdoors, use an extension cable

suitable for outdoor use. Using a cord suitable for outdoor use reduces the

risk of a lethal electric shock.

 If operating a power tool in a damp location is unavoidable, use a

power supply protected by a residual current device (RCD). Using an

RCD reduces the risk of a lethal electric shock.

5.3 Personal safety

 Stay alert, watch what you are doing and use common sense when

operating a power tool. Do not use a power tool when you are tired or under the influence of drugs, alcohol or medication. A moment of

inattention when operating a power tool may result in serious personal injury.

 Use safety equipment. Always wear eye protection. Using safety

equipment such as a dust mask, non-skid safety shoes, a hard hat, or hearing protection whenever it is needed will reduce the risk of personal injury.

 Avoid accidental starts. Ensure the switch is in the off position before

inserting the plug. Carrying power tools with your finger on the switch or

plugging in power tools when the switch is in the on position makes accidents more likely.

 Remove any adjusting keys or spanners before turning on the power

tool. A spanner or key left attached to a rotating part of the power tool may

result in personal injury.

 Do not reach out too far. Keep your feet firmly on the ground at all

times. This will enable you retain control over the power tool in unexpected

situations.

 Dress properly. Do not wear loose clothing or jewellery. Keep your

hair, clothing and gloves away from the power tool. Loose clothes,

jewellery or long hair can become entangled in the moving parts.

 If there are devices for connecting dust extraction and collection

facilities, please ensure that they are attached and used correctly.

Using such devices can reduce dust-related hazards.

5.4 Power tool use and care

 Do not expect the power tool to do more than it can. Use the correct

power tool for what you want to do. A power tool will achieve better

results and be safer if used in the context for which it was designed.

 Do not use the power tool if the switch cannot turn it on and off. A

power tool with a broken switch is dangerous and must be repaired.

 Disconnect the plug from the power source before making

adjustments, changing accessories, or storing power tools. Such

preventive safety measures reduce the risk of starting the power tool accidentally.

Page 8

FX1-94 EN

 Store power tools, when not in use, out of the reach of children and

do not allow people who are not familiar with the power tool or these instructions to operate it. Power tools are potentially dangerous in the

hands of untrained users.

 Maintenance. Check for misalignment or jammed moving parts,

breakages or any other feature that might affect the operation of the power tool. If it is damaged, the power tool must be repaired. Many

accidents are caused by using poorly maintained power tools.

 Keep cutting tools sharp and clean. Properly maintained cutting tools

with sharp cutting edges are less likely to jam and are easier to control.

 Use the power tool, accessories and cutting tools, etc., in accordance

with these instructions and in the manner intended for the particular type of power tool, taking into account the working conditions and the work which needs to be done. Using a power tool in ways for which it

was not intended can lead to potentially hazardous situations.

5.5 Service

 Your power tool should be serviced by a qualified specialist using

only standard spare parts. This will ensure that it meets the required

safety standards.

6 ADDITIONAL SAFETY INSTRUCTIONS FOR FOR SANDERS

 Always wear safety-goggles and a dust-mask during your work with the

finishing-sander.

 Always secure the work piece by clamps or else to avoid slipping away.  Always keep the holes in the base plate clean from dust.  Always connect a vacuum cleaner to the attached adaptor during your work.  Take special care when sanding lead based paint:

 All persons entering the work area must wear a mask specially designed for

protection against lead paint dust and fumes.

 Children and pregnant women must not enter the work area.  Do not eat, drink or smoke in the work area.  Do not leave the tool running. Operate the tool only when hand-held.

 Ventilate your work area adequately when you perform sanding operations.  Be sure that there are no cracks or breakage on the pad before use. Cracks or

breakage may cause a personal injury.

Page 9

FX1-94 EN

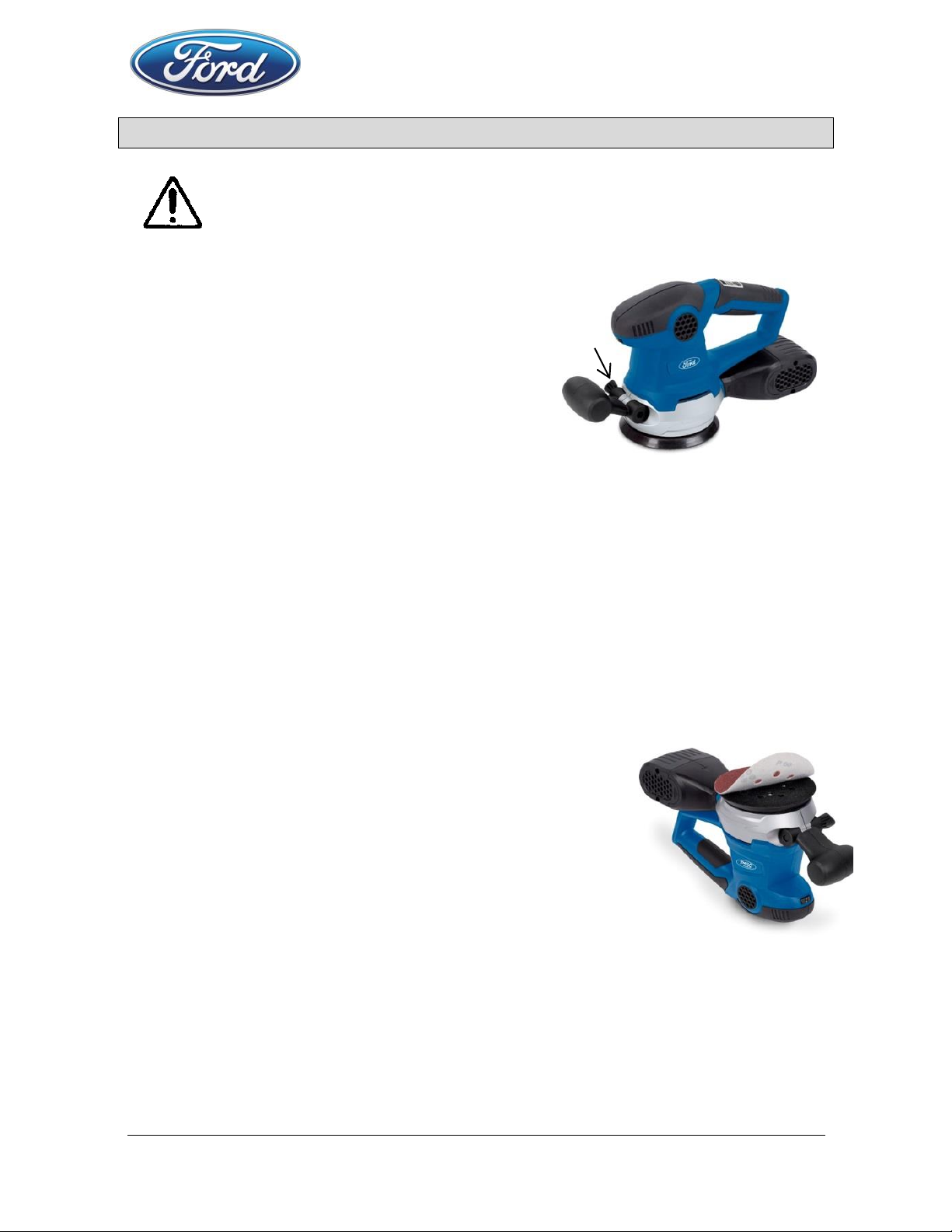

7 OPERATING INSTRUCTIONS

Do not sand plaster surfaces, (WARNING: In this case your guarantee becomes void) this may clog the motor (brushes, ball bearings,…).

7.1 Auxiliary handle

 This tool has an auxiliary handle (1) on the

front.

 Turn and loosen the adjustment knob (7)

counterwise.

 Place the auxiliary handle in the desired

position and

 tighten the adjustment knob firmly.

7.2 Switch action

Switch the power tool on: push the ON/OFF switch button(2) forwards into the

“I” position. Switch the powertool off: push the ON/OFF switch button backwards to the “O”

position.

7.3 Speed adjusting dial

 This tool has a speed control dial at the front.  The speed can be adjusted between 0 rpm and 13000 rpm.  Higher speed is obtained when the speed control dial is turned  Into the MAX direction.

7.4 Attaching the sandpaper

 To attach sanding paper, first remove all dirt or

foreign matter from the sanding base plate. Then attach the sanding paper to the sanding base plate, using the hook-and-loop system of the sanding paper and the sanding base plate.

 Make sure the perforations in the paper coincide with

those on the sanding base plate, to ensure optimal dust collection.

 The sandpaper should rest flush on the base plate

and must not come loose.

 Select sandpaper with the correct grain size.  You can be sure to find the right sandpaper among

our product range (see accessories).

Page 10

FX1-94 EN

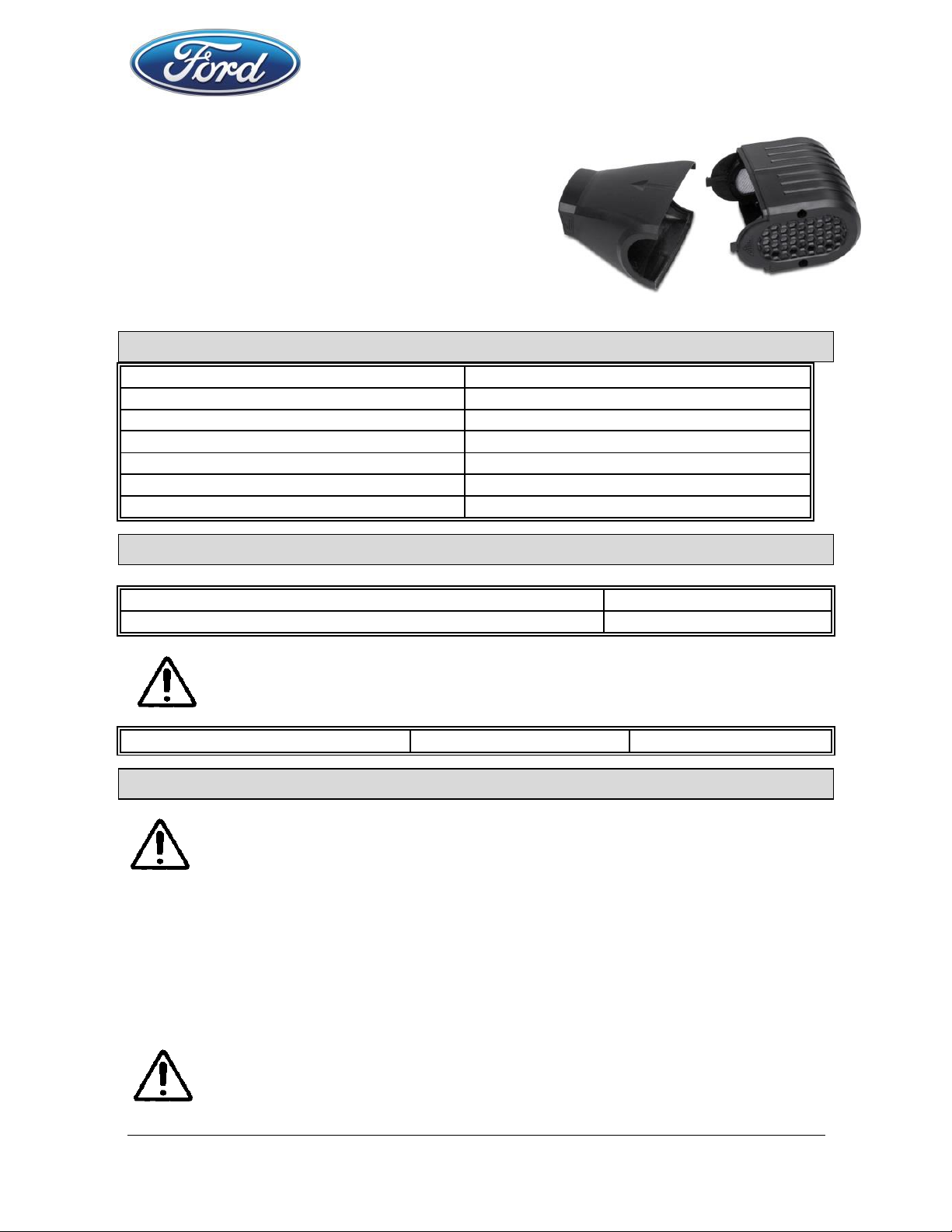

7.5 Attaching the dust collector (micro-filter system)

 Slide dust collection box into the dust

extraction port

 Make sure the latches on the right and left

are into place before beginning the operation.

 There are release buttons on the sides of

the rear cover. Using your fingers, press the release button in and pull the rear cover off.

8 TECHNICAL DATA

Model

FX1-94

Nominal voltage

230-240V~ 50Hz

Power consumption

450W

Sanding plate

125mm

No load speed

0-13000min-1

Weight

2.06kg

Safety class

9 SOUND EMISSIONS

Noise values measured according to relevant standard. (K = 3)

Acoustic pressure level LpA

97 dB(A)

Acoustic power level LwA

98 dB(A)

ATTENTION! The sound power level may exceed 85 dB(A), in this case individual hearing protection shall be worn.

aw (Vibration)

Max 10.5 m/s²

K = 1.5 m/s²

10 CLEANING AND MAINTENANCE

Attention ! - Before performing any work on the equipment, pull the power plug.

10.1 Cleaning

 Keep the ventilation slots of the machine clean to prevent overheating of

the engine.

 Regularly clean the machine housing with a soft cloth, preferably after

each use.

 Keep the ventilation slots free from dust and dirt.  If the dirt does not come off use a soft cloth moistened with soapy water.

Never use solvents such as petrol, alcohol, ammonia water, etc. These solvents may damage the plastic parts.

Page 11

FX1-94 EN

11 SERVICE DEPARTMENT

 Damaged switches must be replaced by our after-sales service department.  If the connecting cable (or mains plug) is damaged, it must be replaced by a

particular connecting cable which is available from our service department. Replacement of the connecting cable must only be carried out by our service department (see last page) or by a qualified person (qualified electrician).

12 STORAGE

 Thoroughly clean the whole machine and its accessories.  Store it out of the reach of children, in a stable and secure position, in a cool

and dry place, avoid too high and too low temperatures.

 Protect it from exposure to direct sunlight. Keep it in the dark, if possible.  Don’t keep it in plastic bags to avoid humidity build-up.

13 WARRANTY

 This product is warranted as provided by law for a 24 -month period effective

from the date of purchase by the first user.

 This warranty covers all material or production flaws excluding: batteries,

chargers, defective parts subject to normal wear & tear such as bearings, brushes, cables, and plugs, or accessories such as drills, drill bits, saw blades, etc. ; damage or defects resulting from maltreatment, accidents or alterations; nor the cost of transportation.

 Damage and/or defects resulting from inappropriate use also do not fall under

the warranty provisions.

 We also disclaim all liability for any bodily injury resulting from inappropriate

use of the tool.

 Repairs may only be carried out by an authorised customer service centre for

FORD tools.

 You can always obtain more information at the number Customer phone

number +351 234 604 097

 Any transportation costs shall always be borne by the customer, unless agreed

otherwise in writing.

 At the same time, no claim can be made on the warranty if the damage of the

device is the result of negligent maintenance or overload.

 Definitely excluded from the warranty is damage resulting from fluid

permeation, excessive dust penetration, intentional damage (on purpose or by gross carelessness), inappropriate usage (use for purposes for which the device is not suitable), incompetent usage (e.g. not following the instructions given in the manual), inexpert assembly, lightning strike, erroneous net voltage. This list is not exhaustive.

 Acceptance of claims under warranty can never lead to the prolongation of the

warranty period nor commencement of a new warranty period in case of a device replacement.

 Devices or parts which are replaced under the warranty therefore remain the

property of Herculano Santos, Lda.

 We reserve the right to reject a claim whenever the purchase cannot be

verified or when it is clear that the product has not been properly maintained. (Clean ventilation slots, carbon brushes serviced regularly, etc.).

 Your purchase receipt must be kept as proof of date of purchase.

Page 12

FX1-94 EN

 Your appliance must be returned undismantled to your dealer in an acceptably

clean state, (in its original blow-moulded case if applicable to the unit), accompanied by proof of purchase.

14 ENVIRONMENT

Should your appliance need replacement after extended use, do not discard it with the household rubbish but dispose of it in an environmentally safe way. Waste produced by electrical machine items should not be handled like normal household rubbish. Please recycle where recycle facilities exist. Check with your Local Authority or retailer for recycling advice.

Page 13

FX1-94 EN

15 DECLARATION OF CONFORMITY

Herculano Santos, Lda, declares that,

Product : Rotating Sander 450W

Trade mark : Ford-tools

Model : FX1-94

Is in conformity with the essential requirements and other relevant provisions of

the applicable European Directives, based on the application of European

harmonized standards. Any unauthorized modification of the apparatus voids this

declaration.

European Directives (including, if applicable, their amendments):

2011/65/EU

2004/108/EC

2006/42/EC

European harmonized standards (including, if applicable, their amendments):

EN60745-1 : 2009

EN60745-2-4 : 2009

EN55014-1 : 2006

EN55014-2 : 1997 EN61000-3-2 : 2006 EN61000-3-3 : 2008

Keeper of the technical documentation :

Herculano Santos, Lda

The undersigned acts on behalf of the company management,

Agnelo Amaro

Engineering Department Director

Date : 01/03/15
