Introduction

CONGRATULATIONS

Congratulations on acquiring your new Ford Motor Company product. Please take the time to get well acquainted with your vehicle by reading this handbook. The more you know and understand about your vehicle, the greater the safety and pleasure you will derive from driving it.

For more information on Ford Motor Company and its products visit the following website:

• In the United States: www.ford.com

• In Canada: www.ford.ca

• In Mexico: www.ford.com.mx

• In Australia: www.ford.com.au

Additional owner information is given in separate publications.

This vehicle’s Owner’s Guide describes every option and model variant available and therefore some of the items covered may not apply to your particular vehicle. Furthermore, due to printing cycles it may describe options before they are generally available.

Remember to pass on this vehicle’s Owner’s Guide when reselling the vehicle. It is an integral part of the vehicle.

SAFETY AND ENVIRONMENT PROTECTION

Warning symbols in this guide

How can you reduce the risk of personal injury to yourself or others? In this guide, answers to such questions are contained in comments highlighted by the warning triangle symbol. These comments should be read and observed.

Warning symbols on your vehicle

When you see this symbol, it is imperative that you consult the relevant section of this guide before touching or attempting adjustment of any kind.

2011 Fusion (fsn) Owners Guide, 1st Printing USA (fus)

Introduction

Protecting the environment

We must all play our part in protecting the environment. Correct vehicle usage and the authorized disposal of waste, cleaning and lubrication materials are significant steps towards this aim. Information in this respect is highlighted in this guide with the tree symbol.

CALIFORNIA Proposition 65 Warning

WARNING: Engine exhaust, some of its constituents, and

certain vehicle components contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. In addition, certain fluids contained in vehicles and certain products of component wear contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

PERCHLORATE MATERIAL

Certain components of this vehicle such as airbag modules, seat belt pretensioners, and button cell batteries may contain Perchlorate Material – Special handling may apply for service or vehicle end of life disposal. See www.dtsc.ca.gov/hazardouswaste/perchlorate.

BREAKING-IN YOUR VEHICLE

Your vehicle does not need an extensive break-in. Try not to drive continuously at the same speed for the first 1,000 miles (1,600 km) of new vehicle operation. Vary your speed frequently in order to give the moving parts a chance to break in.

Do not add friction modifier compounds or special break-in oils since these additives may prevent piston ring seating. See Engine oil in the Maintenance and Specifications chapter for more information on oil usage.

SPECIAL NOTICES

New Vehicle Limited Warranty

For a detailed description of what is covered and what is not covered by your vehicle’s New Vehicle Limited Warranty, refer to the Warranty Guide that is provided to you along with your Owner’s Guide.

2011 Fusion (fsn) Owners Guide, 1st Printing USA (fus)

Introduction

Special instructions

For your added safety, your vehicle is fitted with sophisticated electronic controls.

WARNING: Please read the section Airbag Supplemental Restraint System (SRS) in the Seating and Safety Restraints

chapter. Failure to follow the specific warnings and instructions could result in personal injury.

WARNING: Front seat mounted rear-facing child or infant seats should NEVER be placed in front of an active passenger airbag.

DATA RECORDING

Service Data Recording

Service data recorders in your vehicle are capable of collecting and storing diagnostic information about your vehicle. This potentially includes information about the performance or status of various systems and modules in the vehicle, such as engine, throttle, steering or brake systems. In order to properly diagnose and service your vehicle, Ford Motor Company, Ford of Canada, and service and repair facilities may access or share among them vehicle diagnostic information received through a direct connection to your vehicle when diagnosing or servicing your vehicle. For U.S. only (if equipped), if you choose to use the SYNC威 Vehicle Health Report, you consent that certain diagnostic information may also be accessed electronically by Ford Motor Company and Ford authorized service facilities, and that the diagnostic information may be used for any purpose. See your SYNC威 supplement for more information.

Event Data Recording

This vehicle is equipped with an event data recorder (EDR). The main purpose of an EDR is to record, in certain crash or near crash-like situations, such as an airbag deployment or hitting a road obstacle; this data will assist in understanding how a vehicle’s systems performed. The EDR is designed to record data related to vehicle dynamics and safety systems for a short period of time, typically 30 seconds or less. The EDR in this vehicle is designed to record such data as:

• How various systems in your vehicle were operating;

• Whether or not the driver and passenger seatbelts were

buckled/fastened;

2011 Fusion (fsn) Owners Guide, 1st Printing USA (fus)

Introduction

• How far (if at all) the driver was depressing the accelerator

and/or the brake pedal; and

• How fast the vehicle was travelling; and

• Where the driver was positioning the steering wheel.

This data can help provide a better understanding of the circumstances in which crashes and injuries occur.

Note: EDR data is recorded by your vehicle only if a non-trivial crash situation occurs; no data is recorded by the EDR under normal driving conditions and no personal data or information (e.g., name, gender, age, and crash location) is recorded (see limitations regarding 911 Assist and Traffic, directions and Information privacy below). However, parties, such as law enforcement, could combine the EDR data with the type of personally identifying data routinely acquired during a crash investigation.

To read data recorded by an EDR, special equipment is required, and access to the vehicle or the EDR is needed. In addition to the vehicle manufacturer, other parties, such as law enforcement, that have such special equipment, can read the information if they have access to the vehicle or the EDR. Ford Motor Company and Ford of Canada do not access event data recorder information without obtaining consent, unless pursuant to court order or where required by law enforcement, other government authorities or other third parties acting with lawful authority. Other parties may seek to access the information independently of Ford Motor Company and Ford of Canada.

Note: Including to the extent that any law pertaining to Event Data Recorders applies to SYNC威 or its features, please note the following: Once 911 Assist (if equipped) is enabled (set ON), 911 Assist may, through any paired and connected cell phone, disclose to emergency services that the vehicle has been in a crash involving the deployment of an airbag or, in certain vehicles, the activation of the fuel pump shut-off. Certain versions or updates to 911 Assist may also be capable of being used to electronically or verbally provide to 911 operators the vehicle location (such as latitude and longitude), and/or other details about the vehicle or crash or personal information about the occupants to assist 911 operators to provide the most appropriate emergency services. If you do not want to disclose this information, do not activate the 911 Assist feature. See your SYNC威 supplement for more information.

2011 Fusion (fsn) Owners Guide, 1st Printing USA (fus)

Introduction

Additionally, when you connect to Traffic, Directions and Information (if equipped, U.S. only) the service uses GPS technology and advanced vehicle sensors to collect the vehicle’s current location, travel direction, and speed (“vehicle travel information”) only to help provide you with the directions, traffic reports, or business searches your request. If you do not want Ford or its vendors to receive this information, do not activate the service. Ford Motor Company and the vendors it uses to provide you with this information do not store your vehicle travel information. For more information, see Traffic, Directions and Information, Terms and Conditions. See your SYNC威 supplement for more information.

CELL PHONE USE

The use of Mobile Communications Equipment has become increasingly important in the conduct of business and personal affairs. However, drivers must not compromise their own or others’ safety when using such equipment. Mobile Communications can enhance personal safety and security when appropriately used, particularly in emergency situations. Safety must be paramount when using mobile communications equipment to avoid negating these benefits.

Mobile Communication Equipment includes, but is not limited to, cellular phones, pagers, portable email devices, text messaging devices and portable two-way radios.

WARNING: Driving while distracted can result in loss of vehicle

control, accident and injury. Ford strongly recommends that you use extreme caution when using any device or feature that may take your focus off the road. Your primary responsibility is the safe operation of your vehicle. We recommend against the use of any handheld device while driving and that you comply with all applicable laws.

2011 Fusion (fsn) Owners Guide, 1st Printing USA (fus)

Introduction

EXPORT UNIQUE (NON–UNITED STATES/CANADA) VEHICLE SPECIFIC INFORMATION

For your particular global region, your vehicle may be equipped with features and options that are different from the features and options that are described in this Owner’s Guide. A market unique supplement may be supplied that complements this book. By referring to the market unique supplement, if provided, you can properly identify those features, recommendations and specifications that are unique to your vehicle. This Owner’s Guide is written primarily for the U.S. and Canadian Markets. Features or equipment listed as standard may be different on units built for Export. Refer to this Owner’s Guide for all other required

information and warnings.

2011 Fusion (fsn) Owners Guide, 1st Printing USA (fus)

Introduction

These are some of the symbols you may see on your vehicle.

Vehicle Symbol Glossary

Safety Alert

Fasten Safety Belt Airbag - Front

Airbag - Side

Child Seat Tether Anchor

Anti-Lock Brake System Parking Brake System

Brake Fluid Non-Petroleum Based

Stability Control System Speed Control

Master Lighting Switch Hazard Warning Flasher

Fog Lamps-Front Fuse Compartment

See Owner’s Guide

Child Seat Lower Anchor

Brake System

Parking Aid System

Fuel Pump Reset Windshield Wash/Wipe

Windshield Defrost/Demist

Rear Window Defrost/Demist

2011 Fusion (fsn) Owners Guide, 1st Printing USA (fus)

Vehicle Symbol Glossary

Introduction

Power Windows Front/Rear

Child Safety Door Lock/Unlock

Power Window Lockout

Interior Luggage Compartment Release

Panic Alarm Engine Oil

Engine Coolant

Engine Coolant Temperature

Do Not Open When Hot Battery

Avoid Smoking, Flames, or Sparks

Battery Acid

Explosive Gas Fan Warning

Power Steering Fluid

Maintain Correct Fluid Level

Service Engine Soon Engine Air Filter

MAX

MIN

Passenger Compartment Air Filter

Check Fuel Cap

2011 Fusion (fsn) Owners Guide, 1st Printing USA (fus)

Jack

Low Tire Pressure Warning

Instrument Cluster

WARNING LIGHTS AND CHIMES

Standard instrument cluster shown; metric, optional and manual transmission clusters similar

Warning lights and gauges can alert you to a vehicle condition that may become serious enough to cause extensive repairs. A warning light may illuminate when a problem exists with one of your vehicle’s functions. Many lights will illuminate when you start your vehicle to make sure the bulbs work. If any light remains on after starting the vehicle, refer to the respective system warning light for additional information.

Service engine soon: The service engine soon indicator light illuminates when the ignition is first turned to the on position to check the bulb and to indicate whether the vehicle is ready for Inspection/Maintenance (I/M) testing. Normally, the service engine soon light will stay on until the engine is cranked, then turn itself off if no malfunctions are present. However, if after 15 seconds the service engine soon light blinks eight times, it means that the vehicle is not ready for I/M testing. See the Readiness for Inspection/Maintenance (I/M) testing in the Maintenance and Specifications chapter.

Solid illumination after the engine is started indicates the on-board diagnostics system (OBD-II) has detected a malfunction. Refer to On-board diagnostics (OBD-II) in the Maintenance and Specifications chapter. If the light is blinking, engine misfire is occurring which could

2011 Fusion (fsn) Owners Guide, 1st Printing USA (fus)

Instrument Cluster

damage your catalytic converter. Drive in a moderate fashion (avoid heavy acceleration and deceleration) and contact your authorized dealer as soon as possible.

WARNING: Under engine misfire conditions, excessive exhaust

temperatures could damage the catalytic converter, the fuel system, interior floor coverings or other vehicle components, possibly causing a fire.

Brake system warning light: To confirm the brake system warning light is functional, it will momentarily illuminate when the ignition is turned to the on position when the engine is not running, or in a position between on and start, or by applying the parking brake when the ignition is turned to the on position. If the brake system warning light does not illuminate at this time, seek service immediately from your authorized dealer. Illumination after releasing the parking brake indicates low brake fluid level or a brake system malfunction and the brake system should be inspected immediately by your authorized dealer.

WARNING: Driving a vehicle with the brake system warning

light on is dangerous. A significant decrease in braking performance may occur. It will take you longer to stop the vehicle. Contact your authorized dealer as soon as possible. Driving extended distances with the parking brake engaged can cause brake failure and the risk of personal injury.

Anti-lock brake system: If the ABS light stays illuminated or continues to flash, a malfunction has been detected. Contact your authorized dealer as soon as possible. Normal braking is still functional unless the brake warning light also is illuminated.

Airbag readiness: If this light fails to illuminate when the ignition is turned to on, continues to flash or remains on, contact your authorized dealer as soon as possible. A chime will sound when there is a malfunction in the indicator light.

BRAKE

ABS

2011 Fusion (fsn) Owners Guide, 1st Printing USA (fus)

Instrument Cluster

Safety belt: Reminds you to fasten your safety belt. A Belt-Minder威 chime will also sound to remind you to fasten your safety belt. Refer to the Seating and Safety Restraints chapter to activate/deactivate the Belt-Minder威 chime feature.

Charging system: Illuminates when the battery is not charging properly. If it stays on while the engine is running, there may be a malfunction with the charging system. Contact your authorized dealer as soon as possible. This indicates a problem with the electrical system or a related component.

Engine oil pressure: Illuminates when the oil pressure falls below the normal range, refer to Engine oil in the Maintenance and Specifications chapter.

AdvanceTrac威: Illuminates when AdvanceTrac威 is active. If the light remains on, contact your authorized dealer as soon as possible. Refer to the Driving chapter for more information.

AdvanceTrac威 off light:

Illuminates when AdvanceTrac威 has been disabled by the driver. Refer to the Driving chapter for more information.

Overdrive cancel and grade assist (if equipped): Illuminates

when the overdrive function of the transmission has been turned off and the grade assist function has been turned on, refer to the Driving chapter.

Low tire pressure warning:

Illuminates when your tire pressure is low. If the light remains on at start up or while driving, the tire pressure should be checked. Refer

OFF

2011 Fusion (fsn) Owners Guide, 1st Printing USA (fus)

Instrument Cluster

to Inflating your tires in the Tires, Wheels and Loading chapter. When the ignition is first turned to on, the light will illuminate for three seconds to ensure the bulb is working. If the light does not turn on or begins to flash, contact your authorized dealer as soon as possible. For more information on this system, refer to Tire pressure monitoring system (TPMS) in the Tires, Wheels and Loading chapter.

Speed control: The speed control system uses two different–colored indicator lights to indicate what mode the system is in:

• On (amber light): Illuminates when the speed control system is turned on. Turns off when the speed control system is engaged or turned off.

• Engaged (green light): Illuminates when the speed control system is engaged. Turns off when the speed control system is disengaged.

Door ajar: Illuminates when the ignition is in the on position and any door or decklid is open.

Anti-theft system: Flashes when the SecuriLock威 passive anti-theft system has been activated.

Throttle control/transmission:

Illuminates when a powertrain or a AWD fault has been detected. If the indicator stays on or continues to come on, contact your authorized dealer for service as soon as possible.

Turn signal: Illuminates when the left or right turn signal or the hazard lights are turned on. If the indicators flash faster, check for a burned out bulb.

High beams: Illuminates when the high beam headlamps are turned on.

Key-in-ignition warning chime: Sounds when the key is left in the ignition in the off, lock or accessory position and the driver’s door is opened.

2011 Fusion (fsn) Owners Guide, 1st Printing USA (fus)

Instrument Cluster

Headlamps on warning chime: Sounds when the headlamps or parking lamps are on, the ignition is off (the key is not in the ignition) and the driver’s door is opened.

Parking brake on warning chime: Sounds when the parking brake is engaged and the vehicle is driven. If the warning remains after the parking brake is disengaged, contact your authorized dealer as soon as possible.

Message center activation chime: Sounds when some messages appear in the message center display for the first time.

Turn signal on warning chime: Sounds when the turn signal has been left on for an extended period of time.

Perimeter alarm warning chime: Sounds when using a key to unlock the driver’s doors and the perimeter alarm is armed.

GAUGES

Standard measure cluster shown, metric similar. Speedometer: Indicates the

current vehicle speed.

2011 Fusion (fsn) Owners Guide, 1st Printing USA (fus)

Instrument Cluster

Engine coolant temperature gauge: Indicates engine coolant

temperature. At normal operating temperature, the needle will be in the normal range (between “H” and “C”). If it enters the red section,

the engine is overheating. Stop the vehicle as soon as safely possible, switch off the engine and let the engine cool.

WARNING: Never remove the coolant reservoir cap while the

engine is running or hot.

Fuel gauge: Indicates approximately how much fuel is left in the fuel tank (when the ignition is in the on position). The fuel gauge may vary slightly when the vehicle is in motion or on a grade.

The fuel icon and arrow indicates which side of the vehicle the fuel filler door is located.

Refer to Filling the tank in the Maintenance and Specifications chapter for more information.

Tachometer: Indicates the engine speed in revolutions per minute. Driving with your tachometer pointer continuously at the top of the scale may damage the engine.

Odometer: Registers the total miles (kilometers) of the vehicle.

Refer to Message center in this chapter on how to switch the display from Metric to English.

2011 Fusion (fsn) Owners Guide, 1st Printing USA (fus)

Instrument Cluster

Trip odometer: See TRIP A/B under Message center in this chapter.

MESSAGE CENTER

Your vehicle’s message center allows you to configure/personalize certain vehicle options to suit your needs.

The message center is also capable of monitoring many vehicle systems and will alert you to potential vehicle problems and various conditions with an informational message followed by a long indicator chime.

The message center display is located in the instrument cluster.

Info (information menu)

Press INFO repeatedly to cycle through the following features:

TRIP A/B

Registers the distance of individual journeys. Press and release INFO until the A or B trip appears in the display (this represents the trip mode). Press and hold RESET for two seconds to reset.

Refer to UNITS later in this section to switch the display from Metric to English.

MYKEY MILES (km) (if programmed)

For more information refer to MyKey™ in the Locks and Security chapter.

MILES (km) TO E

This displays an estimate of approximately how far you can drive with the fuel remaining in your tank under normal driving conditions. Remember to turn the ignition off when refueling to allow this feature to correctly detect the added fuel.

2011 Fusion (fsn) Owners Guide, 1st Printing USA (fus)

Instrument Cluster

LOW FUEL LEVEL will display when you have approximately 50 miles (80 km), to empty. Press RESET to clear this warning message. It will return at approximately 25 miles (40 km), 10 miles (16 km) and 0 miles (0 km) miles to empty.

Distance to empty is calculated using a running average fuel economy, which is based on your recent driving history of 500 miles (800 km). This value is not the same as the average fuel economy display. The running average fuel economy is re-initialized to a factory default value if the battery is disconnected.

AVG MPG (L/100km)

Average fuel economy displays your average fuel economy in miles/gallon or liters/100 km.

If you calculate your average fuel economy by dividing distance traveled by gallons of fuel used (liters of fuel used by 100 kilometers traveled), your figure may be different than displayed for the following reasons:

• Your vehicle was not perfectly level during fill-up

• Differences in the automatic shut-off points on the fuel pumps at

service stations

• Variations in top-off procedure from one fill-up to another

• Rounding of the displayed values to the nearest 0.1 gallon (liter)

To determine your average highway fuel economy, do the following:

1. Drive the vehicle at least 5 miles (8 km) with the speed control

system engaged to display a stabilized average.

2. Record the highway fuel economy for future reference.

It is important to press the RESET button (press and hold RESET for two seconds in order to reset the function) after setting the speed control to get accurate highway fuel economy readings.

For more information refer to Essentials of good fuel economy in the Maintenance and Specifications chapter.

MPG (L/km)

This displays instantaneous fuel economy as a bar graph ranging from ↓ poor economy to ↑ excellent economy.

Your vehicle must be moving to calculate instantaneous fuel economy. When your vehicle is not moving, this function shows ↓, one or no bars illuminated. Instantaneous fuel economy cannot be reset.

2011 Fusion (fsn) Owners Guide, 1st Printing USA (fus)

Instrument Cluster

TIMER

Timer displays the trip elapsed drive time. To operate, do the following:

1. Press and release RESET in order to start the timer.

2. Press and release RESET to pause the timer.

3. Press and hold RESET until the timer resets.

Blank Screen

The message center display will be blank after cycling through all of the Info menu items.

System check and vehicle feature customization

Press the SETUP button repeatedly to cycle the message center through the following features:

RESET FOR SYSTEM CHECK

When this message appears, press the RESET button and the message center will begin to cycle through the following systems and provide a status of the item if needed.

1. XXX% OIL LIFE

2. DOORS STATUS

3. TRUNK CLOSED

4. BLIND SPOT SYSTEM (if equipped)

5. CROSS TRAFFIC SYSTEM (if equipped) 20

2011 Fusion (fsn) Owners Guide, 1st Printing USA (fus)

Instrument Cluster

6. BRAKE SYSTEM

7. FUEL LEVEL

8. MYKEY DISTANCE (If MyKey™ is programmed)

9. MYKEY(S) PROGRAMMED

10. ADMIN KEYS PROGRAMMED

Note: Some systems show a message only if a condition is present.

OIL LIFE

This displays the remaining oil life. An oil change is required whenever indicated by the message center and

according to the recommended maintenance schedule. USE ONLY RECOMMENDED ENGINE OILS.

To reset the oil monitoring system to 100% after each oil change, perform the following:

1. Press and release SETUP to display “OIL LIFE XXX% HOLD RESET =

NEW”.

2. Press and hold RESET for two seconds and release to reset the oil life

to 100%. Note: To change oil life value to another value, proceed to Step 3.

3. Once “OIL LIFE SET TO XXX%” is displayed, release and press the

RESET button to change the Oil Life Start Value. Each release and press will reduce the value by 10%.

UNITS

Displays the current units English or Metric. Press RESET to change from English to Metric.

AUTOLAMP (SEC)

This feature keeps your headlights on for up to three minutes after the ignition is switched off.

Press RESET to select the new Autolamp delay values of 0, 10, 20, 30, 60, 90, 120 or 180 seconds.

AUTOLOCK

This feature automatically locks all vehicle doors when the vehicle is shifted into any gear, putting the vehicle in motion.

Press RESET to turn autolock on or off.

2011 Fusion (fsn) Owners Guide, 1st Printing USA (fus)

Instrument Cluster

AUTOUNLOCK

This feature automatically unlocks all vehicle doors when the driver’s door is opened within 10 minutes of the ignition being turned off.

Press RESET to turn autounlock on or off.

BLIND SPOT (if equipped)

The Blind Spot Information System (BLIS威) is designed to assist the driver by monitoring the side areas on both sides of the vehicle.

Press RESET to turn it off or on.

CROSS TRAFFIC (if equipped)

This system is designed to assist and warn the driver when backing out of parking spaces.

Press RESET to turn it off or on.

PARK AID (Reverse sensing system–if equipped)

This feature sounds a warning tone to warn the driver of obstacles near the rear bumper, and functions only when R (Reverse) gear is selected.

Press RESET to turn the rear park assist off.

CREATE MYKEY / MYKEY SETUP/ CLEAR MYKEY

For more information refer to MyKey™ in the Locks and Security chapter.

LANGUAGE = ENGLISH / SPANISH / FRENCH

Allows you to choose which language the message center will display in. Selectable languages are English, Spanish, or French.

Waiting four seconds or pressing the RESET button cycles the message center through each of the language choices.

Press and hold RESET for two seconds to set the language choice.

System warnings

System warnings alert you to possible problems or malfunctions in your vehicle’s operating systems.

In the event of a multiple warning situation, the message center will cycle the display to show all warnings by displaying each one for several seconds.

The message center will display the last selected feature if there are no more warning messages. This allows you to use the full functionality of the message center after you acknowledge the warning by pressing the RESET control and clearing the warning message.

2011 Fusion (fsn) Owners Guide, 1st Printing USA (fus)

Instrument Cluster

Warning messages that have been reset are divided into three categories:

• They will not disappear until a condition is changed.

• They will reappear on the display 10 minutes from the reset.

• They will not reappear until an ignition off/on cycle has been

completed.

This acts as a reminder that these warning conditions still exist within the vehicle.

PARK BRAKE ENGAGED — Displayed when the park brake is engaged. If the warning stays on after the park brake is off, contact your authorized dealer as soon as possible.

CHECK BRAKE SYSTEM — Displayed when the brake system needs servicing. If the warning stays on or continues to come on, contact your authorized dealer as soon as possible.

DRIVER DOOR AJAR — Displayed when the driver’s door is not completely closed.

PASSENGER DOOR AJAR — Displayed when the passenger side door is not completely closed.

REAR LEFT DOOR AJAR — Displayed when the rear left door is not completely closed.

REAR RIGHT DOOR AJAR — Displayed when the rear right door is not completely closed.

FUEL LEVEL LOW — Displayed as an early reminder of a low fuel condition.

CHECK FUEL FILL INLET — Displayed when the fuel fill inlet may not be properly closed. Refer to Easy Fuel™ “no cap” fuel system in the Maintenance and Specifications chapter.

BRAKE FLUID LEVEL LOW — Indicates the brake fluid level is low and the brake system should be inspected immediately. Refer to Brake fluid in the Maintenance and Specifications chapter.

CHECK PARK AID (if equipped) — Displayed when the transmission is in R (Reverse) and the reverse sensing system (park aid) is disabled. Refer to Reverse sensing system (Park Aid) in this section to enable.

LOW TIRE PRESSURE — Displayed when one or more tires on your vehicle have low tire pressure. Refer to Inflating your tires in the Tires, Wheels and Loading chapter.

TIRE PRESSURE MONITOR FAULT — Displayed when the tire pressure monitoring system is malfunctioning. If the warning stays on or continues to come on, contact your authorized dealer as soon as possible.

2011 Fusion (fsn) Owners Guide, 1st Printing USA (fus)

Instrument Cluster

TIRE PRESSURE SENSOR FAULT — Displayed when a tire pressure sensor is malfunctioning, or your spare tire is in use. For more information on how the system operates under these conditions, refer to

Tire Pressure Monitoring System (TPMS) in the Tires, Wheels and Loading chapter. If the warning stays on or continues to come on,

contact your authorized dealer as soon as possible. POWER STEERING ASSIST FAULT (if equipped) — The power

steering system has disabled power steering assist due to a system error, service is required.

SERVICE POWER STEERING (if equipped) — The power steering system has detected a condition that requires service.

SERVICE POWER STEERING NOW (if equipped) — The power steering system has detected a condition within the power steering system that requires service immediately.

SERVICE ADVANCETRAC — Displayed when the AdvanceTrac威 system has detected a condition that requires service.

TRUNK AJAR — Displayed when the trunk is not completely closed. REMOVE OBJECTS NEAR PASS SEAT — Displayed when objects

are by the passenger seat. After the objects are moved away from the seat, if the warning stays on or continues to come on, contact your authorized dealer as soon as possible.

ENGINE OIL CHANGE SOON — Displayed when the engine oil life remaining is 10% or less. When oil life left is between 10% and 0%, the XX% OIL LIFE CHANGE SOON message will be displayed.

OIL CHANGE REQUIRED — Displayed when the oil life left reaches 0%.

BLIND SPOT SYSTEM FAULT (if equipped) — Displayed when a fault with the blind spot information system has occurred. Contact your authorized dealer as soon as possible.

CROSS TRAFFIC SYSTEM FAULT (if equipped) — Displayed when a fault with the cross traffic alert system has occurred. Contact your authorized dealer as soon as possible.

BLIND SPOT NOT AVAILABLE (if equipped) — Displayed when blind spot information system is not available. See Blind Spot Information System (BLIS威) with Cross Traffic Alert in the Driving chapter.

CROSS TRAFFIC NOT AVAILABLE (if equipped) — Displayed when cross traffic alert is not available. See Blind Spot Information System (BLIS威) with Cross Traffic Alert in the Driving chapter.

2011 Fusion (fsn) Owners Guide, 1st Printing USA (fus)

Instrument Cluster

SENSOR BLOCKED SEE MANUAL (if equipped) — Displayed when the blind spot information system/cross traffic alert system sensors are blocked. See Blind Spot Information System (BLIS威) with Cross Traffic Alert in the Driving chapter.

VEHICLE COMING FROM LEFT (if equipped) — Displayed when the blind spot information system with cross traffic alert (CTA) system is operating and senses a vehicle. See Blind Spot Information System (BLIS威) with Cross Traffic Alert in the Driving chapter.

VEHICLE COMING FROM RIGHT (if equipped) — Displayed when the blind spot information system with cross traffic alert (CTA) system is operating and senses a vehicle. See Blind Spot Information System (BLIS威) with Cross Traffic Alert in the Driving chapter.

CHECK AWD (if equipped) — Displayed when a problem exists with the AWD system. Contact your authorized dealer as soon as possible.

AWD OFF (if equipped) — Displayed when the AWD system has been automatically disabled to protect itself. This is caused by operating the vehicle with the compact spare tire installed or if the system is overheating. The AWD system will resume normal function and clear this message after driving a short distance with the road tire re-installed or after the system is allowed to cool.

TO STOP ALARM START VEHICLE — Displayed when the perimeter alarm system is armed and the vehicle is entered using the key on the driver’s side door. In order to prevent the perimeter alarm system from triggering, the ignition must be turned to start or on before the 12 second chime expires. See Perimeter alarm system in the Locks and security chapter.

INTKEY COULD NOT PROGRAM — Displayed when an attempt is made to program an invalid key or more than the maximum number of integrated keys allowed. For more information on integrated key, refer to the Locks and Security chapter.

MYKEY ACTIVE DRIVE SAFELY — Displayed at startup when MyKey™ is in use. Refer to MyKey™ in the Locks and Security chapter for more information.

KEY COULD NOT PROGRAM — Displayed when an attempt is made to program a spare key using two existing MyKeys. Refer to MyKey™ in the Locks and Security chapter for more information.

VEHICLE SPEED 80 MPH MAX — Displayed when a MyKey™ is in use and the admin has enabled the MyKey speed limit and the vehicle speed is 80 mph (130 km/h). Refer to MyKey™ in the Locks and Security chapter for more information.

2011 Fusion (fsn) Owners Guide, 1st Printing USA (fus)

Instrument Cluster

SPEED LIMITED TO 80 MPH — Displayed when starting the vehicle and MyKey™ is in use and the MyKey speed limit is on. Refer to MyKey™ in the Locks and Security chapter for more information.

CHECK SPEED DRIVE SAFELY — Displayed when a MyKey™ is in use and the optional setting is on and the vehicle exceeds a preselected speed. Refer to MyKey™ in the Locks and Security chapter for more information.

VEHICLE NEAR TOP SPEED — Displayed when a MyKey™ is in use and the MyKey speed limit is on and the vehicle speed is approaching 80 mph (130 km/h). Refer to MyKey™ in the Locks and Security chapter for more information.

TOP SPEED MYKEY SETTING — Displayed when a MyKey™ is in use and the MyKey speed limit is on and the vehicle speed is 80 mph (130 km/h). Refer to MyKey™ in the Locks and Security chapter for more information.

BUCKLE UP TO UNMUTE AUDIO — Displayed when a MyKey™ is in use and Belt-Minder威 is activated. Refer to MyKey™ in the Locks and Security chapter for more information.

ADVTRAC ON MYKEY SETTING — Displayed when a MyKey™ is in use when trying to disable the AdvanceTrac威 system and the optional setting is on. Refer to MyKey™ in the Locks and Security chapter for more information.

2011 Fusion (fsn) Owners Guide, 1st Printing USA (fus)

Entertainment Systems

AUDIO SYSTEMS

AM/FM/single CD MP3 satellite compatible sound system

WARNING: Driving while distracted can result in loss of vehicle

control, accident and injury. Ford strongly recommends that drivers use extreme caution when using any device or feature that may take their focus off the road. Your primary responsibility is the safe operation of the vehicle. We recommend against the use of any handheld device while driving and that you comply with all applicable laws.

Accessory delay: Your vehicle is equipped with accessory delay. With this feature, the radio and other electrical accessories may be used for up to 10 minutes after the ignition is turned off or until either front door is opened.

Setting the clock

To set the time, press CLOCK#. The display will read SET TIME. Use the memory preset numbers (0–9) to enter in the desired time–hours and minutes and press OK. The clock will then begin from that time.

AM/FM Radio

/ VOL (Power/Volume): Press to turn the radio on/off. Turn the knob to increase/decrease volume. If the volume is set above a certain level and the ignition is turned off, the volume will come back on at a nominal listening level when the ignition switch is turned back on.

2011 Fusion (fsn) Owners Guide, 1st Printing USA (fus)

Entertainment Systems

AM/FM: Press repeatedly to select AM/FM1/FM2 frequency band. TUNE: Turn the knob to go up/down the frequency band in individual

increments. DIRECT: Press DIRECT and then select the desired radio frequency

(i.e. 93.9) using the memory preset numbers (0–9).

SEEK/TRACK: Press previous/next strong radio station.

SCAN: Press for a brief sampling of all strong radio stations. MEMORY PRESETS (0–9): When tuned to any station, press and hold

a preset button until sound returns and PRESET # SAVED appears in the display. You can save up to 30 stations, 10 in AM, 10 in FM1 and FM2.

Saving presets automatically– Autoset allows you to set the strongest local radio stations without losing your original manually set preset stations for AM/FM1/FM2.

To activate the autoset feature: Press MENU repeatedly until AUTO PRESET ON/OFF appears in the display. Use toggle AUTO PRESET to ON, and either wait five seconds for the search

to initiate or press OK to immediately initiate the search. If you press another control within those five seconds, the search will not initiate. The 10 strongest stations will be filled and the station stored in preset 1 will begin playing.

If there are fewer then 10 strong stations, the system will store the last one in the remaining presets.

RDS (Radio Data System) Radio

Available only in FM mode. This feature allows you to search RDS-equipped stations for a certain category of music format: CLASSIC, COUNTRY, JAZZ/RB, ROCK, etc.

To activate: Press MENU repeatedly until RDS (ON/OFF) appears in the display. Use OFF, you will not be able to search for RDS equipped stations or view

the station name or type. CAT/FOLD (Category/Folder): This feature allows you to select from

various music categories. To change RDS categories: Press MENU repeatedly until RDS ON/OFF

appears in the display. Use 28

SEEK/TRACK to toggle RDS ON/OFF. When RDS is

SEEK/TRACK to access the

SEEK/TRACK to

/ to toggle RDS to ON. Press CAT.

2011 Fusion (fsn) Owners Guide, 1st Printing USA (fus)

Entertainment Systems

PRESS UP OR DOWN TO CHANGE RDS CATEGORY will appear in the display. Press

desired category appears in the display, press find the next station playing that selection or press SCAN for a brief

sampling of all stations playing that category of music.

CD/MP3 Player

CD: Press to enter CD/MP3 mode. If a disc is already loaded into the system, CD/MP3 play will begin where it ended last. If no CD is loaded, NO DISC will appear in the display.

LOAD: To load a CD, simply insert the disc, label side up, into the CD slot.

EJECT: Press EJECT to eject the CD.

/ Play/Pause: Press to play/pause a track when playing a

CD.

/ to scroll through all possible categories. When the

SEEK/TRACK to

SEEK/TRACK: Press previous/next track.

CAT (Category) / FOLD (Folder):

In MP3 mode only– Press CAT/FOLD and then press SEEK/TRACK to access the previous/next folder.

SCAN: Press for a brief sampling of all tracks on the current disc or MP3 folder.

DIRECT:

In CD mode– Press DIRECT. The display will read DIRECT TRACK MODE SELECT TRACK. Enter the desired track number using the memory preset buttons (0–9). The system will then begin playing that track.

In MP3 folder mode– Press DIRECT and the memory preset buttons (0–9) of the desired folder. The system will advance to that specific folder.

TEXT:

In MP3 mode only– Press TEXT repeatedly to view Album (AL), Folder (FL), Song (SO) and Artist (AR) in the display, if available.

SEEK/TRACK to access the

2011 Fusion (fsn) Owners Guide, 1st Printing USA (fus)

Entertainment Systems

In TEXT MODE: Sometimes the display requires additional text to be displayed. When the</>indicatorisactive,pressTEXT and then

press

COMPRESSION: Press MENU repeatedly until COMPRESSION ON/OFF appears in the display. Use ON/OFF. When COMPRESSION is ON, the system will bring the soft and

loud CD passages together for a more consistent listening level. SHUFFLE: Press MENU repeatedly until SHUFFLE ON/OFF appears in

the display. Use you wish to engage shuffle mode right away, press

SEEK/TRACK to begin random play. Otherwise, random play will begin when the current track is finished playing. The system will only shuffle the currently playing disc.

Satellite Radio (if equipped)

Satellite radio is available only with a valid SIRIUS威 radio subscription. Check with your authorized dealer for availability.

SIRIUS: Press repeatedly to access satellite radio mode, if equipped. Press repeatedly to cycle through SAT1, SAT2 and SAT3 modes.

TUNE/OK: Turn the knob to go to the next / previous available SIRIUS威 satellite station.

DIRECT: Press DIRECT then enter the desired channel (i.e. 002) using the memory preset buttons (0–9). If you only enter one digit, press OK and the system will go to that satellite channel. If you enter three digits, the system will automatically go to that channel, if available. You may cancel your entry by pressing DIRECT. If an invalid station number is entered, INVALID CHANNEL will appear in the display and the system will continue playing the current station.

SEEK/TRACK: Press previous/next channel. If a specific category is selected, (Jazz, Rock, News, etc.), press

channel in the selected category. Press and hold to fast seek through the previous/next channels.

SCAN: Press SCAN for a brief sampling of all available SIRIUS威 satellite channels. If a specific category is selected, (Jazz, Rock, News, etc.) press SCAN for a brief sampling of all available SIRIUS威 satellite channels within the selected category.

SEEK/TRACK to view the additional display text.

SEEK/TRACK to toggle between

SEEK/TRACK to toggle between ON/OFF. If

SEEK/TRACK to seek to the

SEEK/TRACK to seek to the previous/next

SEEK/TRACK

2011 Fusion (fsn) Owners Guide, 1st Printing USA (fus)

Entertainment Systems

MEMORY PRESETS (0–9): There are 30 available presets, 10 each for SAT1, SAT2 and SAT3. To save satellite channels in your memory presets, tune to the desired channel then press and hold a memory preset number (0–9) until sound returns.

TEXT: Press and release to display the artist and song title. While in TEXT MODE, press again to scroll through the Artist (AR), Song (SO), Channel (CH) and Category (CA).

In TEXT MODE: Sometimes the display requires additional text to be displayed. When the</>indicatorisactive,pressTEXT and then

press

CAT (Category) / FOLD (Folder): Press to toggle between turning the most recently selected satellite radio category on or off. The category icon (CAT) will illuminate in the display when a specific category is selected (the icon will not illuminate during CATEGORY ALL). If no category has ever been selected, NO CATEGORY SELECTED will display.

Note: Separate categories can be set for SAT1, SAT2 or SAT3. Refer to Satellite radio menu for further information on selecting a satellite radio category.

SATELLITE RADIO MENU: Press MENU when satellite radio mode is active to access. Press OK to enter into the satellite radio menu.

Press

• CATEGORY MENU- Press OK to enter category mode.

Press Categories (Pop, Rock, News, etc.) Press OK when the desired

category appears in the display. After a category is selected, press (i.e. ROCK). You may also select CATEGORY ALL to seek all available

SIRIUS威 categories and channels. Press OK to close and return to the main menu.

• SONG SEEK MENU- Press OK to enter song seek menu.

Press a. SAVE THIS SONG: Press OK to save the currently playing song’s

title in the system’s memory. (If you try to save something other than a song, CANT SAVE will appear in the display.) When the chosen song is playing on any satellite radio channel, the system will alert you with an audible prompt. Press OK while SONG ALERT is in the display and

SEEK/TRACK to view the additional display text.

/ to cycle through the following options:

/ to scroll through the list of available SIRIUS威 channel

/ to search for that specific category of channels only

/ to scroll through the following options:

2011 Fusion (fsn) Owners Guide, 1st Printing USA (fus)

Entertainment Systems

the system will take you to the channel playing the desired song. You can save up to 20 song titles. If you attempt to save more than 20 titles, the display will read REPLACE SONG? Press OK to access the

saved titles and press the song title appears in the display that you would like to replace,

press OK. SONG REPLACED will appear in the display. b. DELETE A SONG: Press OK to delete a song from the system’s

memory. Press song appears in the display that you would like to delete, press OK.

The song will appear in the display for confirmation. Press OK again and the display will read SONG DELETED. If you do not want to

delete the currently listed song, press RETURN or CANCEL.

Note: If there are no songs presently saved, the display will read NO SONGS. c. DELETE ALL SONGS: Press OK to delete all song’s from the system’s memory. The display will read ARE YOU SURE ? Press OK to confirm deletion of all saved songs and the display will read ALL DELETED. Note: If there are no songs presently saved, the display will read NO SONGS. d. DISABLE ALERTS/ENABLE ALERTS: Press OK to enable/disable the satellite alert status which alerts you when your selected songs are playing on a satellite radio channel. (The system default is disabled.) SONG ALERTS ENABLED/DISABLED will appear in the display. The menu listing will display the opposite state. For example, if you have chosen to enable the song alerts, the menu listing will read DISABLE as the alerts are currently on, so your other optionistoturnthemoff.

• CHANNEL LOCKOUT MENU- Press OK to enter the Channel Lockout menu. Press the options:

a. LOCK/UNLOCK THIS CHANNEL: Press OK when LOCK/UNLOCK THIS CHANNEL is displayed and the display will read ENTER PIN. Enter your four-digit PIN (initial PIN is 1234) and the system will lock/unlock the channel and CHANNEL LOCKED or UNLOCKED will be displayed. Note: You must be tuned to the specific channel you want to lock/unlock when using this feature. b. CHANGE PIN: Press OK when CHANGE PIN is displayed. The display will read ENTER OLD PIN. Enter your current (old) PIN and

/ to cycle through the saved songs. When the

/ to cycle through the saved titles. When

/ to select either

/ to scroll through the following

2011 Fusion (fsn) Owners Guide, 1st Printing USA (fus)

Entertainment Systems

when the system accepts your entry it will display ENTER NEW PIN. Enter your new four-digit PIN and the system will save the new PIN and PIN SAVED will display. c. UNLOCK ALL CHANNELS: Press OK when UNLOCK ALL CHANNELS is displayed and the display will read ENTER PIN. Enter your four-digit PIN and the system will unlock all channels and the display will read CHANNEL UNLOCKED. d. RESET PIN: Press OK when RESET PIN is displayed. The display will read ARE YOUR SURE. Press OK again to automatically reset the PIN to its initial password setting (1234). PIN RESET TO DEFAULT PIN will be displayed. e. RETURN: Press OK when RETURN is displayed and the system will exit back to the satellite radio menu.

Sound Adjustments

Press SOUND repeatedly to cycle through the following features:

BASS: Press

TREBLE: Press

BALANCE: Press

the left (L) and right (R) speakers. FADE: Press

back (B) and front (F) speakers. SPEED COMPENSATED VOLUME: With this feature on, radio volume

automatically gets louder with increasing vehicle speed to compensate for road and wind noise.

The default setting is off. Use

1–7: Increasing the level from 1 (lowest setting) to 7 (highest setting) allows the radio volume to automatically change slightly with vehicle speed to compensate for road and wind noise.

Recommended level is 1–3; SPEED OFF turns the feature off and level 7 is the maximum setting.

ALL SEATS (Occupancy mode, if equipped): Press SOUND repeatedly to reach the Occupancy mode setting. Press

SEEK/TRACK to select and optimize sound for ALL SEATS, DRIVERS SEAT or REAR SEATS.

Extra Features

AUX: Press repeatedly to cycle through LINE IN (auxiliary audio mode), and SYNC威 (if equipped).

SEEK/TRACK to adjust between SPEED OFF and levels

SEEK/TRACK to adjust the level of bass.

SEEK/TRACK to adjust the level of treble.

SEEK/TRACK to adjust the audio between

SEEK/TRACK to adjust the audio between the

2011 Fusion (fsn) Owners Guide, 1st Printing USA (fus)

Entertainment Systems

For location and further information on auxiliary audio mode, refer to Auxiliary input jack later in this chapter.

If your vehicle is equipped with SYNC威, please refer to the SYNC威 information included with your vehicle for further information.

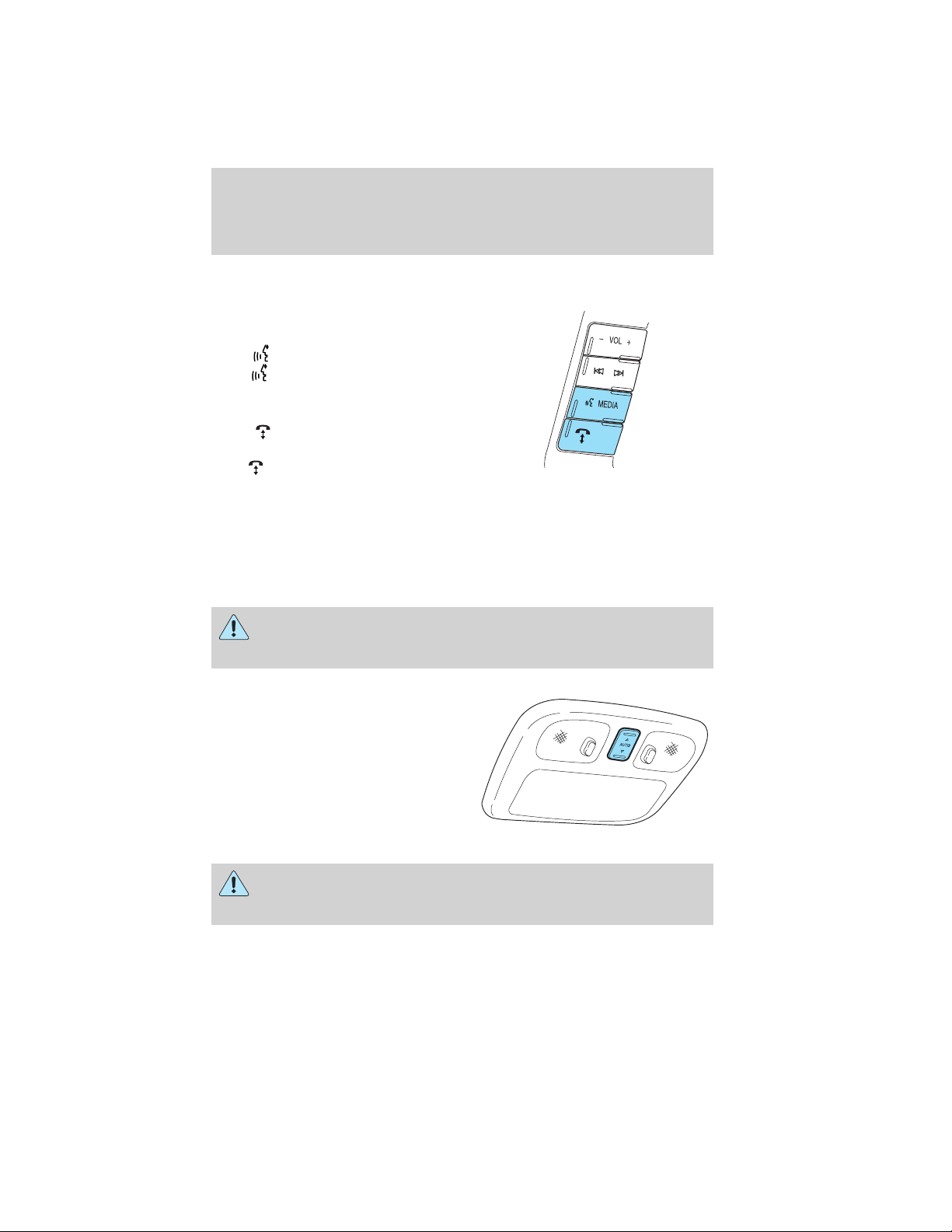

OK: Your vehicle may be equipped with special phone and media features which will require you to confirm commands by pressing OK. For further information, refer to the SYNC威 information included with your vehicle for further information.

(Phone): If your vehicle is equipped with SYNC威, press to access SYNC PHONE features. For further information, please refer to the SYNC威 information included with your vehicle for further information. If your vehicle is not equipped with SYNC威, the display will read NO PHONE.

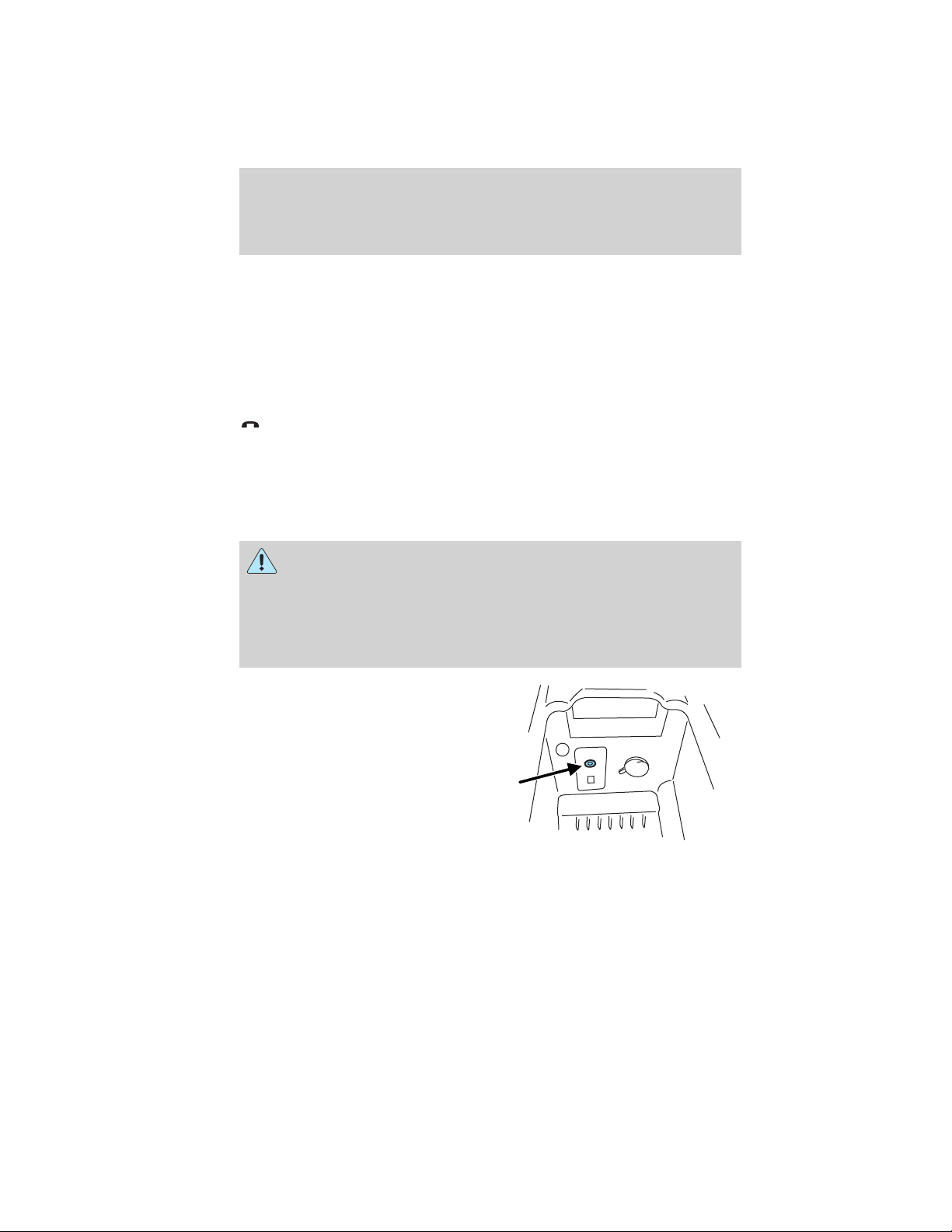

Auxiliary input jack (Line in)

WARNING: Driving while distracted can result in loss of vehicle

Your vehicle is equipped with an auxiliary input jack (AIJ). The auxiliary input jack provides a way to connect your portable music player to the in-vehicle audio system. This allows the audio from a portable music player to be played through the vehicle speakers with high fidelity. To achieve optimal performance, please observe the following instructions when attaching your portable music device to the audio system. If your vehicle is equipped with a navigation system, refer to Auxiliary

input jack section in the Audio features chapter of your Navigation System supplement.

2011 Fusion (fsn) Owners Guide, 1st Printing USA (fus)

Entertainment Systems

Required equipment:

1. Any portable music player designed to be used with headphones

2. An audio extension cable with stereo male 1/8 in. (3.5 mm) connectors at each end

To play your portable music player using the auxiliary input jack:

1. Begin with the vehicle parked and the radio turned off.

2. Ensure that the battery in your portable music player is new or fully charged and that the device is turned off.

3. Attach one end of the audio extension cable to the headphone output of your player and the other end of the audio extension cable to the AIJ in your vehicle.

4. Turn the radio on, using either a tuned FM station or a CD loaded into the system. Adjust the volume to a comfortable listening level.

5. Turn the portable music player on and adjust the volume to 1/2 the volume.

6. Press AUX on the vehicle radio repeatedly until LINE, LINE IN or SYNC LINE IN appears in the display. You should hear audio from your portable music player, although it may be low.

7. Adjust the sound on your portable music player until it reaches the level of the FM station or CD by switching back and forth between the AUX and FM or CD controls.

Troubleshooting:

1. Do not connect the audio input jack to a line level output. Line level outputs are intended for connection to a home stereo and are not compatible with the AIJ. The AIJ will only work correctly with devices that have a headphone output with a volume control.

2. Do not set the portable music player’s volume level higher than is necessary to match the volume of the CD or FM radio in your audio system as this will cause distortion and will reduce sound quality. Many portable music players have different output levels, so not all players should be set at the same levels. Some players will sound best at full volume and others will need to be set at a lower volume.

3. If the music sounds distorted at lower listening levels, turn the portable music player volume down. If the problems persists, replace or recharge the batteries in the portable music player.

4. The portable music player must be controlled in the same manner when it is used with headphones as the AIJ does not provide control (play, pause, etc.) over the attached portable music player.

2011 Fusion (fsn) Owners Guide, 1st Printing USA (fus)

Entertainment Systems

5. For safety reasons, connecting or adjusting the settings on your portable music player should not be attempted while the vehicle is moving. Also, the portable music player should be stored in a secure location, such as the center console or the glove box, when the vehicle is in motion. The audio extension cable must be long enough to allow the portable music player to be safely stored while the vehicle is in motion.

USB port (if equipped)

WARNING: Driving while distracted can result in loss of vehicle

Your vehicle may be equipped with a USB port inside your center console. This feature allows you to plug in media playing devices, memory sticks, and also to charge devices if they support this feature. For further information on this feature, refer to Accessing and using your USB port in the SYNC威 supplement or Navigation System supplement.

GENERAL AUDIO INFORMATION

Radio frequencies:

AM and FM frequencies are established by the Federal Communications Commission (FCC) and the Canadian Radio and Telecommunications Commission (CRTC). Those frequencies are:

AM: 530, 540–1700, 1710 kHz FM: 87.7, 87.9–107.7, 107.9 MHz

Radio reception factors:

There are three factors that can affect radio reception:

• Distance/strength: The further you travel from an FM station, the weaker the signal and the weaker the reception.

2011 Fusion (fsn) Owners Guide, 1st Printing USA (fus)

Entertainment Systems

• Terrain: Hills, mountains, tall buildings, power lines, electric fences, traffic lights and thunderstorms can interfere with your reception.

• Station overload: When you pass a broadcast tower, a stronger signal may overtake a weaker one and play while the weak station frequency is displayed.

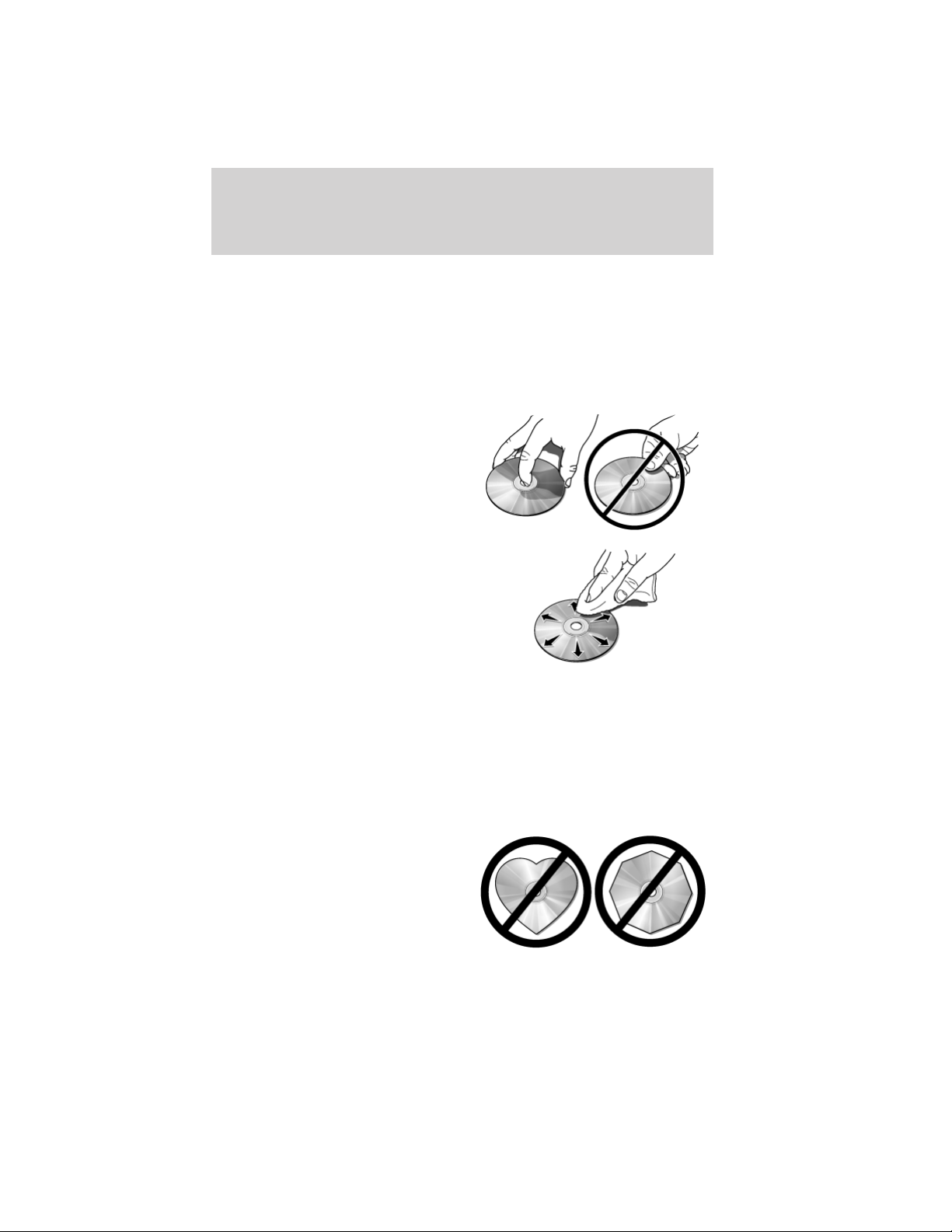

CD/CD player care

Do:

• Handle discs by their edges only. (Never touch the playing surface).

• Inspect discs before playing.

• Clean only with an approved CD

cleaner.

• Wipe discs from the center out.

Don’t:

• Expose discs to direct sunlight or heat sources for extended periods of time.

• Clean using a circular motion.

CD units are designed to play commercially pressed 4.75 in (12 cm) audio compact discs only. Due to technical incompatibility, certain recordable and re-recordable compact discs may not function correctly when used in Ford CD players.

Do not use any irregular shaped CDs or discs with a scratch protection film attached.

2011 Fusion (fsn) Owners Guide, 1st Printing USA (fus)

Entertainment Systems

CDs with homemade paper (adhesive) labels should not be inserted into the CD player as the label may peel and cause the CD to become jammed. It is recommended that homemade CDs be identified with permanent felt tip marker rather than adhesive labels. Ballpoint pens may damage CDs. Please contact your authorized dealer for further information.

Audio system warranty and service

Refer to the Warranty Guide for audio system warranty information. If service is necessary, see your dealer or qualified technician.

MP3 track and folder structure

Your MP3 system recognizes MP3 individual tracks and folder structure as follows:

• There are two different modes for MP3 disc playback: MP3 track mode (system default) and MP3 folder mode. For more information on track and folder mode, refer to Sample MP3 structure in the following section.

• MP3 track mode ignores any folder structure on the MP3 disc. The player numbers each MP3 track on the disc (noted by the .mp3 file extension) from T001 to a maximum of T255. Note: The maximum number of playable MP3 files may be less depending on the structure of the CD and exact model of radio present.

• MP3 folder mode represents a folder structure consisting of one level of folders. The CD player numbers all MP3 tracks on the disc (noted by the .mp3 file extension) and all folders containing MP3 files, from F001 (folder) T001 (track) to F253 T255.

• Creating discs with only one level of folders will help with navigation through the disc files.

2011 Fusion (fsn) Owners Guide, 1st Printing USA (fus)

Entertainment Systems

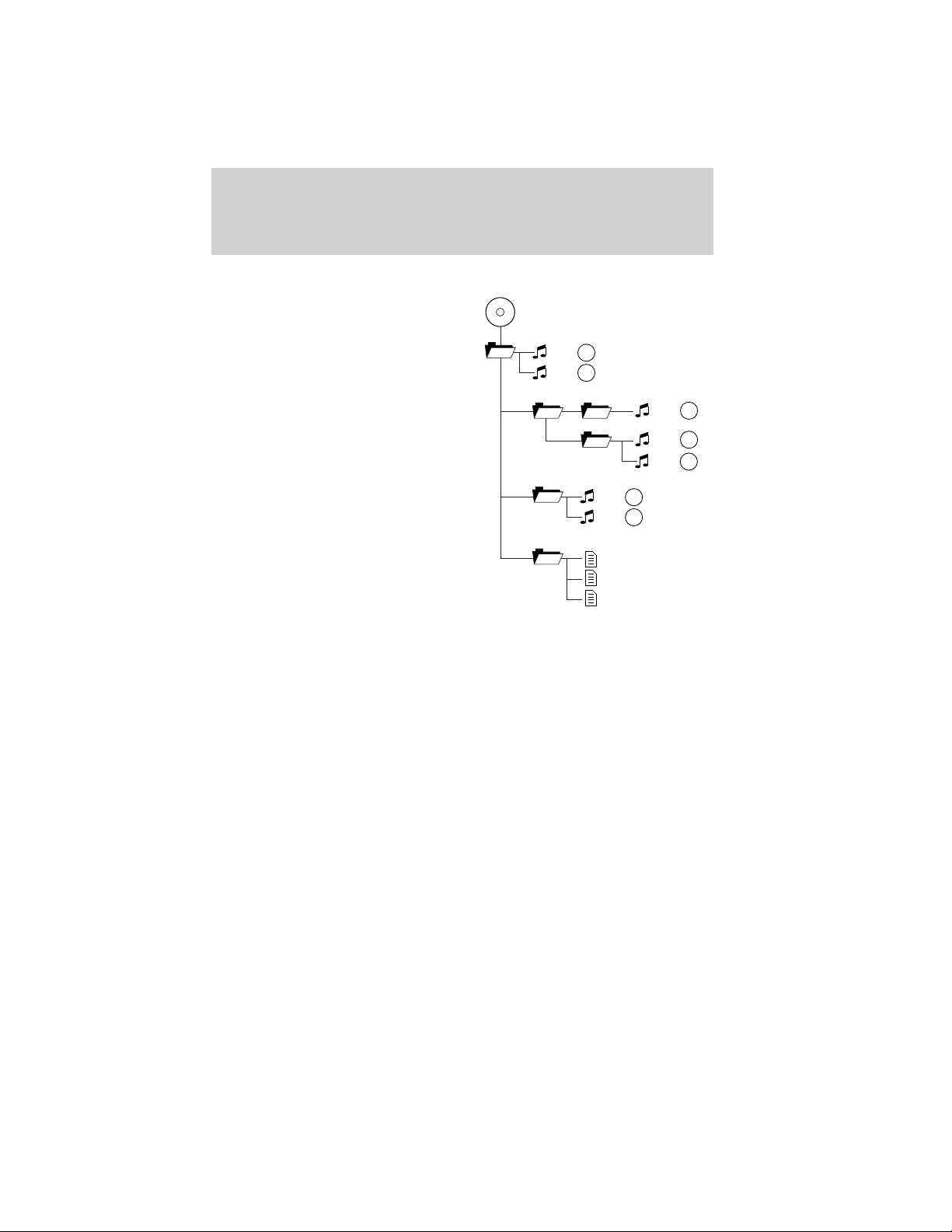

Sample MP3 structure

If you are burning your own MP3 discs, it is important to understand how the system will read the structures you create. While various files may be present, (files with extensions other than mp3), only files with the .mp3 extension will be played. Other files will be ignored by the system. This enables you to use the same MP3 disc for a variety of tasks on your work computer, home computer and your in-vehicle system.

In track mode, the system will display and play the structure as if it were only one level deep (all .mp3 files will be played, regardless of being in a specific folder). In folder mode, the system will only play the .mp3 files in the current folder.

Satellite radio information (if equipped)

Satellite radio channels: SIRIUS威 broadcasts a variety of music, news, sports, weather, traffic and entertainment satellite radio channels. For more information and a complete list of SIRIUS威 satellite radio channels, visit www.sirius.com in the United States, www.sirius-canada.ca in Canada, or call SIRIUS威 at 1–888–539–7474.

Satellite radio reception factors: To receive the satellite signal, your vehicle has been equipped with a satellite radio antenna located on the roof of your vehicle. The vehicle roof provides the best location for an unobstructed, open view of the sky, a requirement of a satellite radio system. Like AM/FM, there are several factors that can affect satellite radio reception performance:

• Antenna obstructions: For optimal reception performance, keep the antenna clear of snow and ice build-up and keep luggage and other material as far away from the antenna as possible.

.mp3

.doc

.ppt

.xls

.mp3

2011 Fusion (fsn) Owners Guide, 1st Printing USA (fus)

Entertainment Systems

• Terrain: Hills, mountains, tall buildings, bridges, tunnels, freeway overpasses, parking garages, dense tree foliage and thunderstorms can interfere with your reception.

• Station overload: When you pass a ground based broadcast repeating tower, a stronger signal may overtake a weaker one and result in an audio mute.

Unlike AM/FM audible static, you will hear an audio mute when there is a satellite radio signal interference. Your radio display may display NO SIGNAL to indicate the interference.

SIRIUS威 satellite radio service: SIRIUS威 satellite radio is a subscription based satellite radio service that broadcasts music, sports, news and entertainment programming. A service fee is required in order to receive SIRIUS威 service. Vehicles that are equipped with a factory installed SIRIUS威 satellite radio system include hardware and a limited subscription term, which begins on the date of sale or lease of the vehicle.

For information on extended subscription terms, the online media player and other SIRIUS威 features, please contact SIRIUS威 at 1–888–539–7474.

Note: SIRIUS威 reserves the unrestricted right to change, rearrange, add or delete programming including canceling, moving or adding particular channels, and its prices, at any time, with or without notice to you. Ford Motor Company shall not be responsible for any such programming changes.

Satellite radio electronic serial number (ESN): This 12–digit Satellite Serial Number is needed to activate, modify or track your satellite radio account. You will need this number when communicating with SIRIUS威. While in satellite radio mode, you can view this number on the radio display by pressing the AUX and preset 1 controls simultaneously.

2011 Fusion (fsn) Owners Guide, 1st Printing USA (fus)

Entertainment Systems

Radio Display Condition Action Required

ACQUIRING Radio requires more

than two seconds to

produce audio for

the selected

channel.

SAT FAULT Internal module or

system failure

present.

INVALID CHNL Channel no longer

available.

UNSUBSCRIBED Subscription not

available for this

channel.

NO TEXT Artist information

not available.

NO TEXT Song title

information not

available.

No action required. This

message should disappear

shortly.

If this message does not clear within a short period of time, or with an ignition

key cycle, your receiver

may have a fault. See your

authorized dealer for

service.

This previously available

channel is no longer

available. Tune to another

channel. If the channel was

one of your presets, you

may choose another

channel for that preset

button.

Contact SIRIUS威 at 1–888–539–7474 to

subscribe to the channel or

tune to another channel.

Artist information not

available at this time on

this channel. The system is

working properly.

Song title information not

available at this time on

this channel. The system is

working properly.

2011 Fusion (fsn) Owners Guide, 1st Printing USA (fus)

Entertainment Systems

Radio Display Condition Action Required

NO TEXT Category

information not

available.

NO SIGNAL Loss of signal from

the SIRIUS威

satellite or SIRIUS威

tower to the vehicle

antenna.

UPDATING Update of channel

programming in

progress.

CALL SIRIUS威 1–888–539–7474

NAVIGATION SYSTEM (IF EQUIPPED)

Your vehicle may be equipped with a navigation system. Refer to the Navigation System supplement for further information.

Satellite service has

been deactivated by

SIRIUS威 satellite

radio.

Category information not

available at this time on

this channel. The system is

working properly.

You are in a location that is blocking the SIRIUS威 signal

(i.e., tunnel, under an

overpass, dense foliage,

etc). The system is working

properly. When you move

into an open area, the

signal should return.

No action required. The

process may take up to

three minutes.

Call SIRIUS威 at

1–888–539–7474 to

re-activate or resolve

subscription issues.

SYNC姞 (IF EQUIPPED)

Your vehicle may be equipped with SYNC威, a hands-free communications and entertainment system with special phone and media features. For more information, please refer to the SYNC威 supplement or to the SYNC威 section in the Navigation System supplement (if equipped).

2011 Fusion (fsn) Owners Guide, 1st Printing USA (fus)

Climate Controls

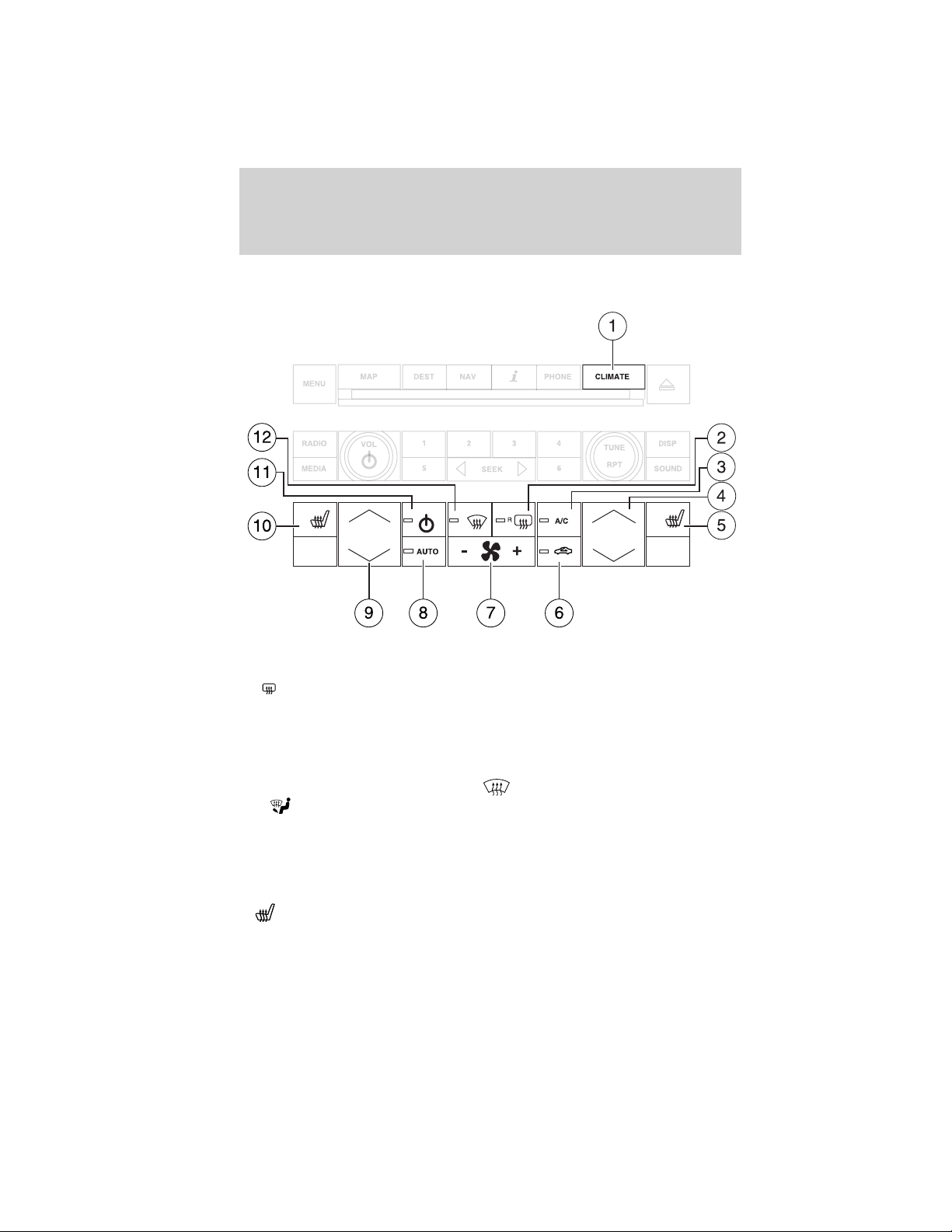

MANUAL HEATING AND AIR CONDITIONING SYSTEM (IF EQUIPPED)

Fan speed adjustment: Turn to select fan speed.

Rear defroster: Press to activate/deactivate the rear window defroster. Refer to Rear window defroster later in this chapter for more information.

3. vents and demister vents. Can be used to clear the windshield of fog and thin ice. The system will automatically provide outside air to reduce window fogging. Press this button again to return to the previous air flow selection.

4. vents, floor vents and rear seat floor vents. The system will automatically provide outside air to reduce window fogging.

5. When the system is off, outside air is prevented from entering the vehicle through the vents.

7. : Distributes air through the instrument panel vents, demister vents, floor vents and rear seat floor vents.

8. seat floor vents.

Defrost: Distributes outside air through the windshield defroster

: Distributes air through the windshield defroster vents, demister

Power: Press to activate/deactivate the climate control system.

: Distributes air through the instrument panel vents.

: Distributes air through the demister vents, floor vents and rear

2011 Fusion (fsn) Owners Guide, 1st Printing USA (fus)

Climate Controls

9. Temperature control: Controls the temperature of the airflow in the vehicle.

10. in the vehicle. Recirculated air may reduce the amount of time needed to cool down the interior of the vehicle, when used with A/C, and may also help reduce undesired odors from reaching the interior of the vehicle. Recirculated air engages automatically when MAX A/C is selected or can be engaged manually in any airflow mode except Recirculated air may turn off automatically in all airflow modes except MAX A/C. When the ignition switch is turned off and back on, the climate system will return to the recirculated air mode only if the A/C button LED is illuminated and the air distribution selection is

either

11. MAX A/C: Distributes recirculated air through the instrument panel vents to cool the vehicle. This re-cooling of the interior air is more economical and efficient. Recirculated air may also help reduce undesirable odors from entering the vehicle. Press the MAX A/C button again for normal A/C operation.

12. A/C: Press to activate/deactivate air conditioning. Use with recirculated air to improve cooling performance and efficiency. Engages

automatically in MAX A/C,

Outside temperature (if equipped): The outside temperature will appear in the display and is labeled EXT TEMP.

Operating tips

• To reduce fog build-up on the windshield during humid weather,

• To reduce humidity build-up inside the vehicle, do not drive with the

• Do not put objects under the front seats that will interfere with the

• Remove any snow, ice or leaves from the air intake area at the base of

• To improve the time to reach comfort in hot weather, drive with the

• A small amount of air may be felt from the floor vent regardless of the

Recirculated air: Press to activate/deactivate air recirculation

(defrost).

(panel) or (panel/floor).

(defrost) and (floor/defrost).

select

system off or with

airflow to the back seats.

the windshield.

windows slightly open for 2-3 minutes after start up or until the vehicle has been “aired out.”

air distribution setting that is selected.

(defrost) or (floor/defrost).

(recirculated air) engaged and A/C off.

2011 Fusion (fsn) Owners Guide, 1st Printing USA (fus)

Climate Controls

During extreme high ambient temperatures when idling stationary for extended periods of time in gear, it is recommended to run the A/C in the MAX A/C position, reduce blower fan speed from the highest setting and put the vehicle’s transmission into the P (Park) gear position (automatic transmission only) to continue to receive cool air from your A/C system.

For maximum cooling performance in MAX A/C mode:

1. Select MAX A/C.

2. Select the coolest temperature setting.

3. Set the fan to the highest speed initially. As the interior starts to cool down, adjust the fan speed to maintain comfort.

To aid in side window defogging/demisting in cold weather:

1. Select

2. Select A/C.

3. Adjust the temperature control to maintain comfort.

4. Set the fan speed to the highest setting.

5. Direct the outer instrument panel vents towards the side windows. To increase airflow to the outer instrument panel vents, close the vents

located in the middle of the instrument panel.

DUAL AUTOMATIC TEMPERATURE CONTROL (IF EQUIPPED)

1. AUTO/Driver temperature: Press to engage full automatic operation. Select the desired temperature using the temperature control.

2011 Fusion (fsn) Owners Guide, 1st Printing USA (fus)

Climate Controls

The system will automatically determine fan speed, airflow distribution, A/C on or off, and outside or recirculated air, to heat or cool the vehicle to reach the desired temperature. Turn to increase/decrease the temperature on the driver side of the vehicle. The control also adjusts the passenger side temperature when PASS TEMP is disengaged. The recommended initial setting is between 72°F (22°C) and 75°F (24°C), then adjust for comfort. The driver side temperature setting will appear in the upper left corner of the display.

Rear defroster: Press to activate/deactivate the rear window defroster. The button will also activate/deactivate the heated mirrors (if equipped). Refer to Rear window defroster later in this chapter for more information.

4. vents, floor vents and rear seat floor vents. The system will automatically provide outside air to reduce window fogging. To return to full automatic control, press AUTO.

5. system. When the system is off, outside air is prevented from entering the vehicle through the vents. Press + fan speed manually. To return to full automatic control, press AUTO.

6. full automatic control, press AUTO.

7. vents, floor vents and rear seat floor vents. To return to full automatic control, press AUTO.

8. seat floor vents. To return to full automatic control, press AUTO.

9. PASS TEMP (passenger temperature): Press to engage/disengage separate passenger side temperature control. Turn to increase/decrease the temperature on the passenger side of the vehicle. The recommended initial setting is between 72°F (22°C) and 75°F (24°C), then adjust for comfort. The passenger side temperature setting will appear in the upper right corner of the display.

Defrost: Distributes outside air through the windshield defroster

: Distributes air through the windshield defroster vents, demister

Power/ : Press to activate/deactivate the climate control

or – to select the desired

: Distributes air through the instrument panel vents. To return to

: Distributes air through the instrument panel vents, demister

: Distributes air through the demister vents, floor vents and rear

2011 Fusion (fsn) Owners Guide, 1st Printing USA (fus)

Climate Controls

10. Passenger heated seat control (if equipped): Press to activate/deactivate the passenger heated seat. See Heated seats in the Seating and Safety Restraints chapter.

11. the vehicle. Recirculated air may reduce the amount of time needed to cool down the interior of the vehicle, when used with A/C, and may also help reduce undesired odors from reaching the interior of the vehicle. Recirculated air engages automatically when MAX A/C is selected or can be engaged manually in any airflow mode except Recirculated air may turn off automatically in all airflow modes except MAX A/C. When the ignition switch is turned off and back on, the climate system will return to the recirculated air mode only if the A/C button LED is illuminated and the air distribution selection is

either

12. MAX A/C: Distributes recirculated air through the instrument panel vents to cool the vehicle. This re-cooling of the interior air is more economical and efficient. Recirculated air may also help reduce undesirable odors from entering the vehicle. Press the MAX A/C button again for normal A/C operation.

13. A/C: Press to activate/deactivate air conditioning. Use with recirculated air to improve cooling performance and efficiency. Engages

automatically in MAX A/C,

Recirculated air: Press to activate/deactivate air recirculation in

(defrost).

(panel) or (panel/floor).

(defrost) and (floor/defrost).

14. activate/deactivate the driver heated seat. See Heated seats in the Seating and Safety Restraints chapter.

Outside temperature: The outside temperature will appear in the display and is labeled EXT TEMP.

Temperature conversion: To switch between Fahrenheit and Celsius, refer to Message center in the Instrument Cluster chapter.

Driver heated seat control (if equipped): Press to

2011 Fusion (fsn) Owners Guide, 1st Printing USA (fus)

Climate Controls

DUAL ZONE AUTOMATIC TEMPERATURE CONTROL (NAVIGATION BASED – IF EQUIPPED)

1. CLIMATE: Press to control the climate control system through the touch display screen. See Touchscreen functions later in this section.

Rear defroster: Press to activate/deactivate the rear window

2. defroster. this button will also activate/deactivate the heated mirrors (if equipped). Refer to Rear window defroster later in this chapter for more information.

3. A/C: Press to activate/deactivate air conditioning. Use with recirculated air to improve cooling performance and efficiency. A/C engages automatically in MAX A/C,

and

4. Passenger temperature: Press to increase/decrease the air temperature on the passenger side of the vehicle. The recommended initial temperature setting is between 72°F (22°C) and 75°F (24°C), then adjust for comfort. The passenger side temperature setting will appear in the display.

5. activate/deactivate the passenger heated seat. Refer to Heated seats in the Seating and Safety Restraints chapter for more information.

(floor/defrost).

Passenger heated seat (if equipped): Press to

(defrost)

2011 Fusion (fsn) Owners Guide, 1st Printing USA (fus)

Climate Controls

6. Recirculated air: Press to activate/deactivate air recirculation in the vehicle. Recirculated air may reduce the amount of time needed to cool down the interior of the vehicle, when used with A/C, and may also help reduce undesired odors from reaching the interior of the vehicle. Recirculated air engages automatically when MAX A/C is selected or can be engaged manually in any airflow mode except Recirculated air may turn off automatically in all airflow selections except MAX A/C. When the ignition switch is turned off and back on, the climate system will return to the recirculated air mode only if the A/C button LED is illuminated and the air distribution selection is

either

7. – Manual fan speed will appear in the touchscreen. To return to full automatic control, press AUTO.

8. AUTO: Press to engage full automatic operation. The system will automatically determine fan speed, airflow distribution, A/C on or off, and outside or recirculated air, to heat or cool the vehicle to reach the desired temperature.

9. Driver temperature: Press to increase/decrease the air temperature on the driver side of the vehicle. This control also adjusts the passenger side temperature when DUAL is disengaged. The recommended initial temperature setting is between 72°F (22°C) and 75°F (24°C), then adjust for comfort. The driver side temperature setting will appear in the display.

10. heated seat. Refer to Heated seats in the Seating and Safety Restraints chapter for more information.

11. When the system is off, outside air is prevented from entering the vehicle. The climate status in the touchscreen will also be turned off.

12. defroster vents and demister vents. Can be used to clear the windshield of fog and thin ice. The system will automatically provide outside air to reduce window fogging. Press this button again to return to the previous air flow selection. To return to full automatic mode, press AUTO.

Outside temperature: The outside temperature will appear in the display as EXT XX.

Temperature conversion: To switch between Fahrenheit and Celsius, refer to Message center in the Instrument Cluster chapter.

(panel) or (floor/panel).

+ Fan speed control: Press to increase/decrease the fan speed.

Driver heated seat (if equipped): Press to control the driver

Power: Press to activate/deactivate the climate control system.

Defrost: Distributes outside air through the windshield

(defrost).

2011 Fusion (fsn) Owners Guide, 1st Printing USA (fus)

Climate Controls

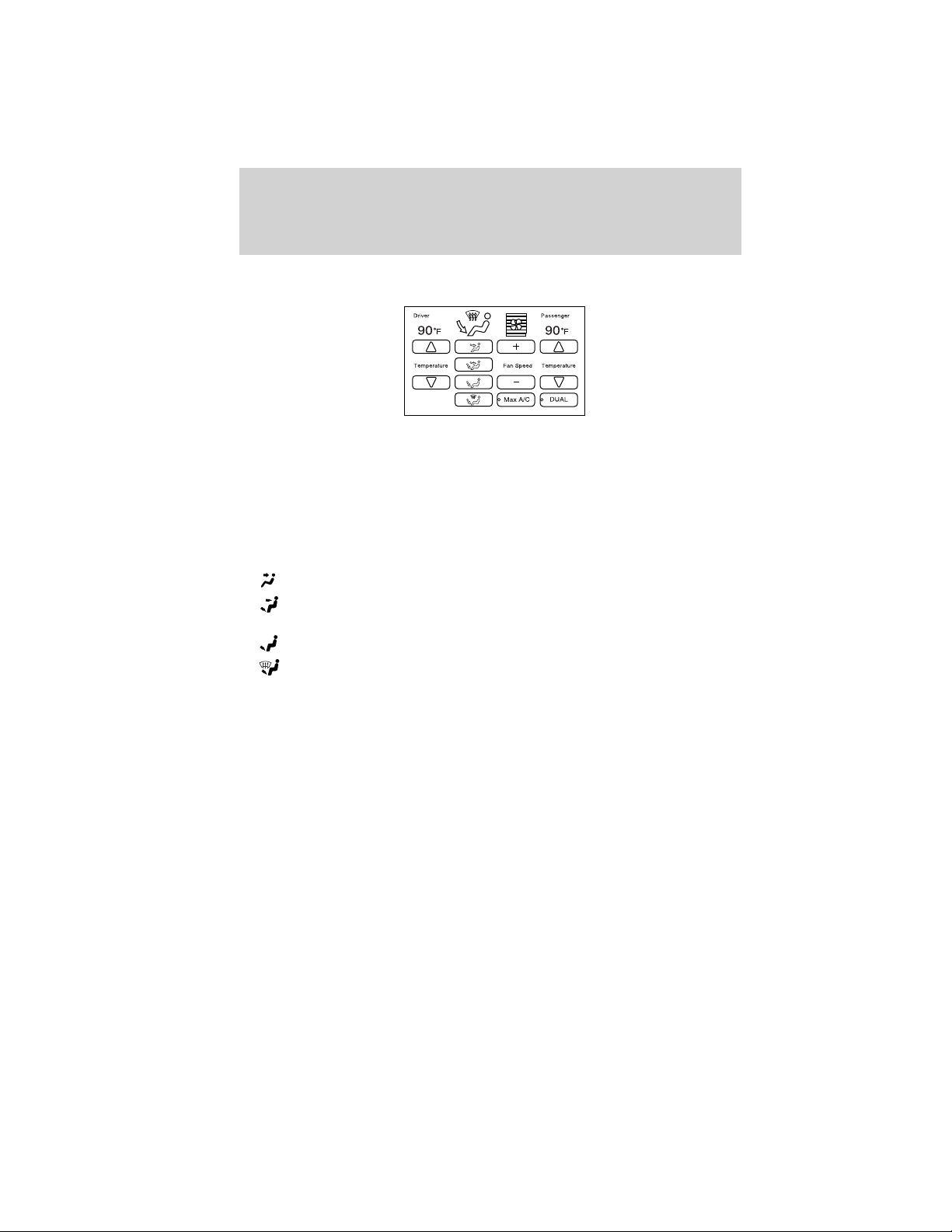

TOUCHSCREEN FUNCTIONS

Temperature conversion: To switch between Fahrenheit and Celsius, refer to Message center in the Instrument Cluster chapter.

Temperature: Press the up and down arrows on the left side of the screen to increase/decrease the airflow temperature for the driver side of the vehicle. This control also adjusts the passenger side temperature when dual zone operation is disengaged. Press the up and down arrows on the right side of the screen to increase/decrease the airflow temperature for the passenger side of the vehicle.

•

: Distributes air through the instrument panel vents.

•

Fan Speed: Press to decrease/increase the fan speed. Dual: Press to activate/deactivate separate driver and passenger

temperature controls. Max A/C: Distributes recirculated air through the instrument panel

vents to cool the vehicle. This re-cooling of the interior air is more economical and efficient. Recirculated air may also help reduce undesirable odors from entering the vehicle. Press the Max A/C button again for normal A/C operation.

: Distributes air through the instrument panel vents, floor vents,

rear seat floor vents and de-mister vents.

: Distributes air through the floor vents, rear seat floor vents.

: Distributes air through the windshield defroster vents, de-mister

vents, floor vents and rear seat floor vents. The system will automatically provide outside air to reduce window fogging.

To return to full automatic control, press AUTO on the main bezel.

VOICE COMMANDS IN CLIMATE MODE

Please refer to the Voice commands in climate mode section of the Navigation Supplement for more information on using voice commands

with the climate control system. 50

2011 Fusion (fsn) Owners Guide, 1st Printing USA (fus)

Climate Controls

Operating tips

• To reduce fog build-up on the windshield during humid weather, select

• To reduce humidity build-up inside the vehicle, do not drive with the system OFF or with

• Do not put objects under the front seats that will interfere with the airflow to the back seats.

• Remove any snow, ice or leaves from the air intake area at the base of the windshield.

• To improve the A/C cool down, drive with the windows slightly open for 2-3 minutes after start up or until the vehicle has been “aired out.”

• A small amount of air may be felt from the floor vent regardless of the air distribution setting that is selected.

During extreme high ambient temperatures when idling stationary for extended periods of time in gear, it is recommended to run the A/C in the MAX A/C position, reduce blower fan speed from the highest setting and put the vehicle’s transmission into the P (Park) gear position (for automatic transmissions) to continue to receive cool air from your A/C system.

For maximum cooling performance:

• Automatic operation:

1. Press AUTO for full automatic operation.

2. Do not override A/C or

3. Set the temperature to 60°F (16°C).

• Manual operation:

1. Select MAX A/C.

2. Select

(defrost) or (floor/defrost).

(recirculated air) engaged and A/C off.

(recirculated air).

or .

3. Select (recirculated air) to provide colder airflow.

4. Set the temperature to 60°F (16°C).

5. Set highest fan setting initially, then adjust to maintain comfort.

To aid in side window defogging/demisting in cold weather:

1. Select

2. Select A/C.

2011 Fusion (fsn) Owners Guide, 1st Printing USA (fus)

Climate Controls

3. Adjust the temperature control to maintain comfort.

4. Set the fan speed to the highest setting.

5. Direct the outer instrument panel vents towards the side windows. To increase airflow to the outer instrument panel vents, close the vents

located in the middle of the instrument panel.

REAR WINDOW DEFROSTER

The rear defroster control is located on the climate control panel and works to clear the rear window of fog and thin ice.

The engine must be running to operate the rear window defroster.

Press

to turn the rear window defroster on. An indicator light on the button will illuminate when active. The rear window defroster turns off automatically after a predetermined amount of time, if a low battery condition is detected or when the ignition is turned off or to the accessory position. To manually turn off the rear window defroster at any time, press the control again.

If your vehicle is equipped with both rear defroster and heated mirrors, the same button will activate both. Refer to Exterior mirrors in the Driver Controls chapter.

Do not use razor blades or other sharp objects to clean the inside of the rear window or to remove decals from the inside or the rear window. This may cause damage to the heated grid lines and will not be covered by your warranty.

2011 Fusion (fsn) Owners Guide, 1st Printing USA (fus)

Lights

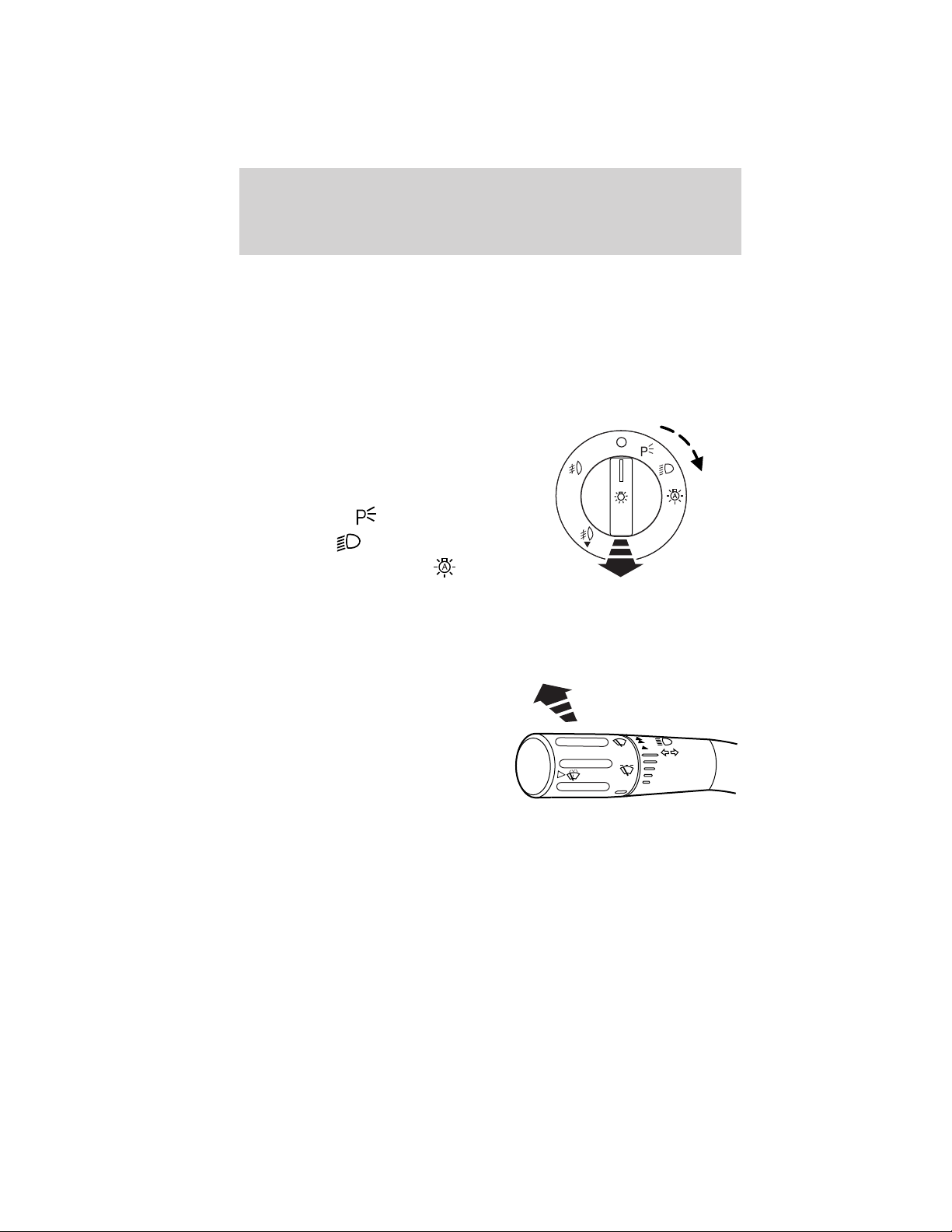

HEADLAMP CONTROL

Turns the lamps off.

Turns on the parking lamps, instrument panel lamps, license plate lamps and tail lamps.

Turns the low beam headlamps

on.

Autolamp control (if equipped)

The autolamp system provides light sensitive automatic on-off control of the exterior lights normally controlled by the headlamp control.

• To turn autolamps on, rotate the

control to

• To turn autolamps off, rotate the

control from the autolamp position.

The autolamp system also keeps the lights on for a predetermined amount of time after the ignition switch is turned to off. You can change the amount of time the lamps stay on by using the programming procedure that follows:

Note: If the vehicle is equipped with autolamps, it will have the headlamps on with windshield wipers feature. If the windshield wipers are turned on, the exterior lamps will turn on with the headlamp control in the autolamp position.

Autolamps - programmable exit delay

Programmable exit delay allows the length of the autolamp exit delay to be changed.

To program the auto lamp exit time delay:

1. Start with the ignition in the off position and the headlamp control in the autolamp position.

2. Turn the headlamp control to off.

3. Turn the ignition switch to on and then back to off.

2011 Fusion (fsn) Owners Guide, 1st Printing USA (fus)

Lights

4. Turn the headlamp control to the autolamp position. The headlamps will turn on.

5. Wait the desired amount of time for the exit delay you want (up to three minutes), then turn the headlamps off.

See Message center in the Instrument Cluster section for more information.

Fog lamp control (if equipped)

With the ignition on, the fog lamps can be turned on when the headlamp control is pulled toward you and is in any of the following positions:

• Parking lamps

• Low beams

• Autolamps (when active)

The fog lamp indicator light will illuminate when the fog lamps have been turned on. The fog lamps will not operate when the high beams are active.

High beams

Push the lever toward the instrument panel to activate. Pull the lever toward you to deactivate.

2011 Fusion (fsn) Owners Guide, 1st Printing USA (fus)

Lights

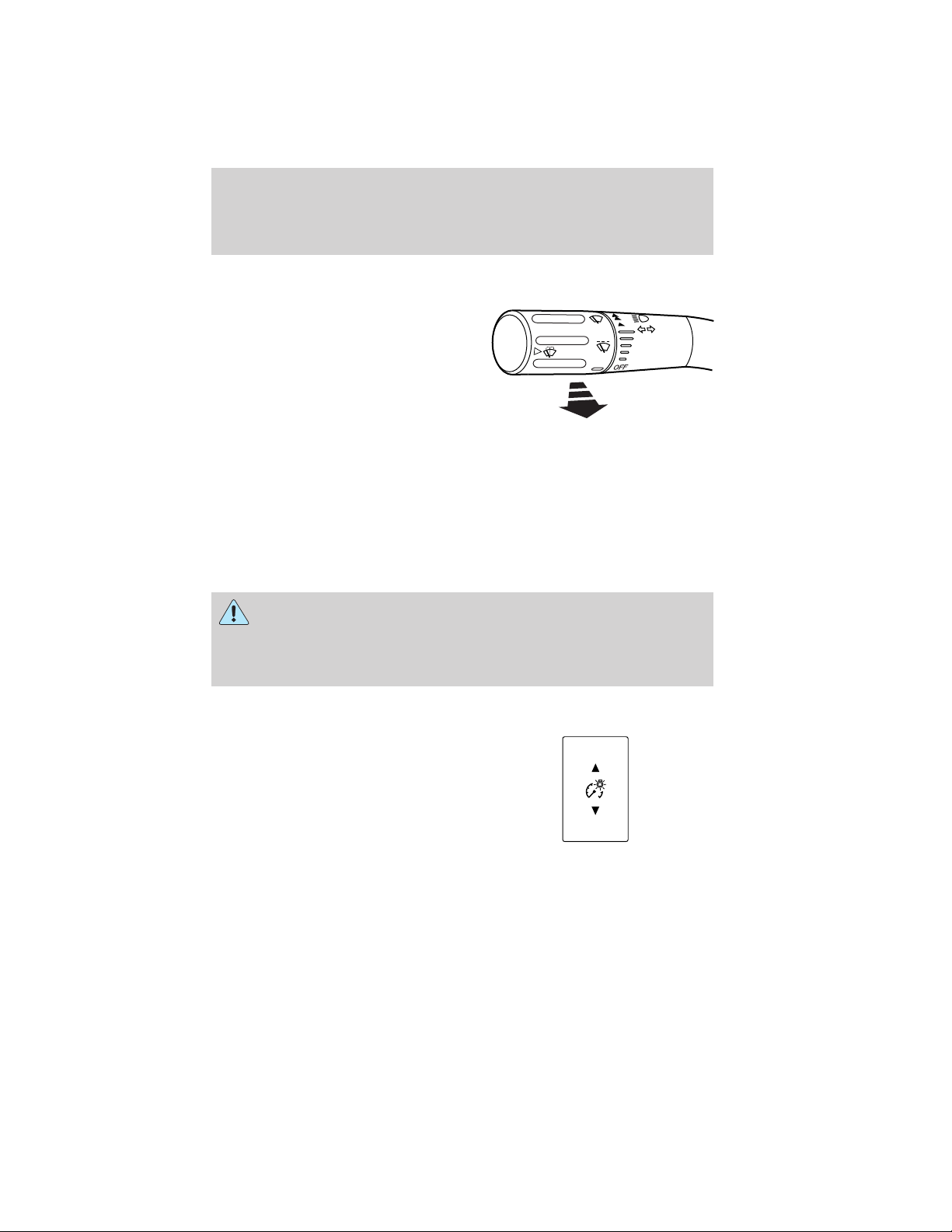

Flash-to-pass

Pull toward you slightly to activate and release to deactivate.

Daytime running lamps (DRL) (if equipped)

Turns the headlamps on with a reduced output. To activate:

• the ignition must be in the on position,

• the headlamp control is in the off, autolamps or parking lamp position

and

• the transmission must be out of the P (Park) position.

WARNING: Always remember to turn on your headlamps at

dusk or during inclement weather. The Daytime Running Lamp (DRL) system does not activate the tail lamps and generally may not provide adequate lighting during these conditions. Failure to activate your headlamps under these conditions may result in a collision.

PANEL DIMMER CONTROL

Use to adjust the brightness of the instrument panel and all applicable lit components in the vehicle during headlamp and parking lamp operation.

• Tapthetoporbottomofthe control to brighten/dim all interior lit components incrementally, or

• Press and hold at the first position the top or bottom of the control until the desired lighting level is reached.

• Press and hold the top of the control to the full on position to activate the “dome on” feature. This will turn on the interior courtesy lights. The lights will remain on until the bottom of the control is pressed.

2011 Fusion (fsn) Owners Guide, 1st Printing USA (fus)

Lights

AIMING THE HEADLAMPS

The headlamps on your vehicle are properly aimed at the assembly plant. If your vehicle has been in an accident, the alignment of your headlamps should be checked by your authorized dealer.

Vertical aim adjustment

1. Park the vehicle directly in front of a wall or screen on a level surface, approximately 25 feet (7.6 meters) away.

• (1) 8 feet (2.4 meters)

• (2) Center height of lamp to

ground

• (3) 25 feet (7.6 meters)

• (4) Horizontal reference line

2. Measure the height of the headlamp bulb center from the ground and mark an 8 foot (2.4 meter) horizontal reference line on the vertical wall or screen at this height (a piece of masking tape works well).

3. Turn on the low beam headlamps to illuminate the wall or screen and open the hood.

To see a clearer light pattern for adjusting, you may want to block the light from one headlamp while adjusting the other.

4. On the wall or screen you will observe an area of high intensity light. The top of the high intensity area should touch the horizontal reference line, if not, the beam will need to be adjusted using the next step.

2011 Fusion (fsn) Owners Guide, 1st Printing USA (fus)

Lights

5. Locate the vertical adjuster on

each headlamp. Using a Phillips #2 screwdriver, turn the adjuster either clockwise (to adjust down) or counterclockwise (to adjust up). The horizontal edge of the brighter light should touch the horizontal reference line.

6. Close the hood and turn off the

lamps.

HORIZONTAL AIM IS NOT REQUIRED FOR THIS VEHICLE AND IS NON-ADJUSTABLE.

TURN SIGNAL CONTROL

• Push down to activate the left turn signal.

• Push up to activate the right turn signal.

INTERIOR LAMPS

Dome lamps and map lamps

The map lamps are located on the overhead console. Press the controls to turn on the lamps.

2011 Fusion (fsn) Owners Guide, 1st Printing USA (fus)

Lights

Your vehicle may also have reading lamps within the rear dome lamp(s).

Press the switches on either side of the dome lamp to turn on the lamps.

Ambient lighting (if equipped)

Illuminates footwells, storage bins and cupholders with a choice of several colors. The ambient lighting control is located on the instrument panel. To activate, press and release the control to cycle through the color choices plus the off state.

The lights come on whenever the ignition is in either the on or accessory position.

Note: The ambient lights will stay on until the ignition is placed in the off position and either of the front doors are opened or the accessory delay timer expires.

BULB REPLACEMENT

Lamp assembly condensation

Exterior lamps are vented to accommodate normal changes in pressure. Condensation can be a natural by-product of this design. When moist air enters the lamp assembly through the vents, there is a possibility that condensation can occur when the temperature is cold. When normal condensation occurs, a thin film of mist can form on the interior of the lens. The thin mist eventually clears and exits through the vents during normal operation. Clearing time may take as long as 48 hours under dry weather conditions.

Examples of acceptable condensation are:

• Presence of thin mist (no streaks, drip marks or droplets)

• Fine mist covers less than 50% of the lens

Examples of unacceptable moisture (usually caused by a lamp water leak) are:

• Water puddle inside the lamp 58

2011 Fusion (fsn) Owners Guide, 1st Printing USA (fus)

Lights

• Large water droplets, drip marks or streaks present on the interior of the lens

Take your vehicle to a dealer for service if any of the above conditions of unacceptable moisture are present.

Using the right bulbs

Replacement bulbs are specified in the chart below. Headlamp bulbs must be marked with an authorized “D.O.T.” for North America and an “E” for Europe to ensure lamp performance, light brightness and pattern and safe visibility. The correct bulbs will not damage the lamp assembly or void the lamp assembly warranty and will provide quality bulb burn time.

Function Number of bulbs

* Headlamp high beam 2 H7LL * Headlamp low beam 2 H11LL Front sidemarker lamp 2 168

* Front park/turn signal lamp 2

* Rear sidemarker lamp N/A LED Stop/tail/turn lamp 2 T20 Backup lamp 2 921 License plate lamp 2 C5W * High-mount brake lamp N/A LED Fog lamp (if equipped) 2 H11 Map lamp 2 12V6W Dome/reading lamp 6 578 Visor vanity lamp - Slide on

Rail system (SOR) (if equipped)

Puddle lamp (if equipped) 2 W5W Luggage compartment lamp 1 578 * To replace these lamps - see your authorized dealer. All replacement bulbs are clear in color except where noted. To replace all instrument panel lights - see your authorized dealer.

Trade

number

3457NAK

(amber)

37 or

14V1CP

2011 Fusion (fsn) Owners Guide, 1st Printing USA (fus)

Lights

Replacing interior bulbs

Check the operation of all bulbs frequently.

Replacing exterior bulbs

Check the operation of all the bulbs frequently.

Replacing headlamp bulbs (2.5L/3.0L engines)

High beam/low beam bulb replacement

For driver side replacement of this bulb, do the following:

WARNING: To reduce the risk of vehicle damage and/or personal burn injuries do not start your engine with the air

cleaner removed and do not remove it while the engine is running.

1. Release the clamps that secure the air filter housing cover. See Changing the air filter element in the Maintenance & Specifications section for more information.

2. Carefully separate the two halves of the air filter housing.

3. Locate the mass air flow sensor electrical connector on the air outlet tube. This connector will need to be unplugged.

4. Remove the air filter assembly.

5. Remove the rubber headlamp bulb access cover.

High beam

2011 Fusion (fsn) Owners Guide, 1st Printing USA (fus)

Lights

Low beam

6. Disconnect the electrical connector.

To install, reverse the removal procedure.

For passenger side replacement of the high beam bulb, do the following:

1. Make sure the headlamp control is in the off position, then open the

hood.

2. Reach over the front bolster.

3. Disengage the windshield washer bottle flexible neck strap attachment

and move it to gain access to the bulb.

4. Remove the rubber headlamp bulb access cover.

5. Remove the bulb socket by

rotating it counterclockwise, then pull it straight out of the lamp assembly.

2011 Fusion (fsn) Owners Guide, 1st Printing USA (fus)

Lights

6. Disconnect the electrical connector.

7. Carefully pull bulb straight out of socket and install the new one.

WARNING: Handle a halogen headlamp bulb carefully and keep

out of children’s reach. Grasp the bulb only by its plastic base and do not touch the glass. The oil from your hand could cause the bulb to break the next time the headlamps are operated.

8. Install the rubber bulb access cover to the housing.

9. Re-apply pressure around the housing to make sure the protective cover is completely seated.

10. Turn the headlamps on and make sure they work properly. If the headlamp was correctly aligned before you changed the bulb, you should not need to align it again.

Low beam bulb replacement

For passenger side replacement of the low beam bulb, do the following:

1. Make sure headlamp control is in the off position, then open the hood.

2. At the wheel well, remove the press pins from the splash shield.

2011 Fusion (fsn) Owners Guide, 1st Printing USA (fus)

Lights

3. Reaching through the wheel well, remove the rubber bulb access cover from the housing.

4. Remove the bulb socket by rotating it counterclockwise, then pull it straight out of the lamp assembly.

5. Disconnect the electrical connector from the bulb socket and discard the old bulb socket.

WARNING: Handle a halogen headlamp bulb carefully and keep

out of children’s reach. Grasp the bulb only by its plastic base and do not touch the glass. The oil from your hand could cause the bulb to break the next time the headlamps are operated.

6. Connect the new bulb socket to the electrical connector.

7. Install the new bulb socket into the lamp assembly by aligning the indexing fingers, then rotate clockwise to the locked position.

8. Install the rubber bulb access cover to the housing.

9. Re-apply pressure around the housing to make sure the protective rubber cover is completely seated.

10. Turn the headlamps on and make sure they work properly. If the headlamp was correctly aligned before you changed the bulb, you should not need to align it again.

2011 Fusion (fsn) Owners Guide, 1st Printing USA (fus)

Lights

Replacing headlamp bulbs (3.5L engine)

High beam/low beam bulb replacement

For driver side replacement of the high beam/low beam bulbs, do the following:

1. Make sure the headlamp switch is in the off position, then open the hood.

2. Reach over the front bolster and remove the rubber bulb access cover from the headlamp housing.

3. Remove the bulb socket by rotating it counterclockwise, then pull it straight out of the lamp assembly.

4. Disconnect the electrical connector.

For passenger side replacement of the high beam bulb, see your authorized dealer.

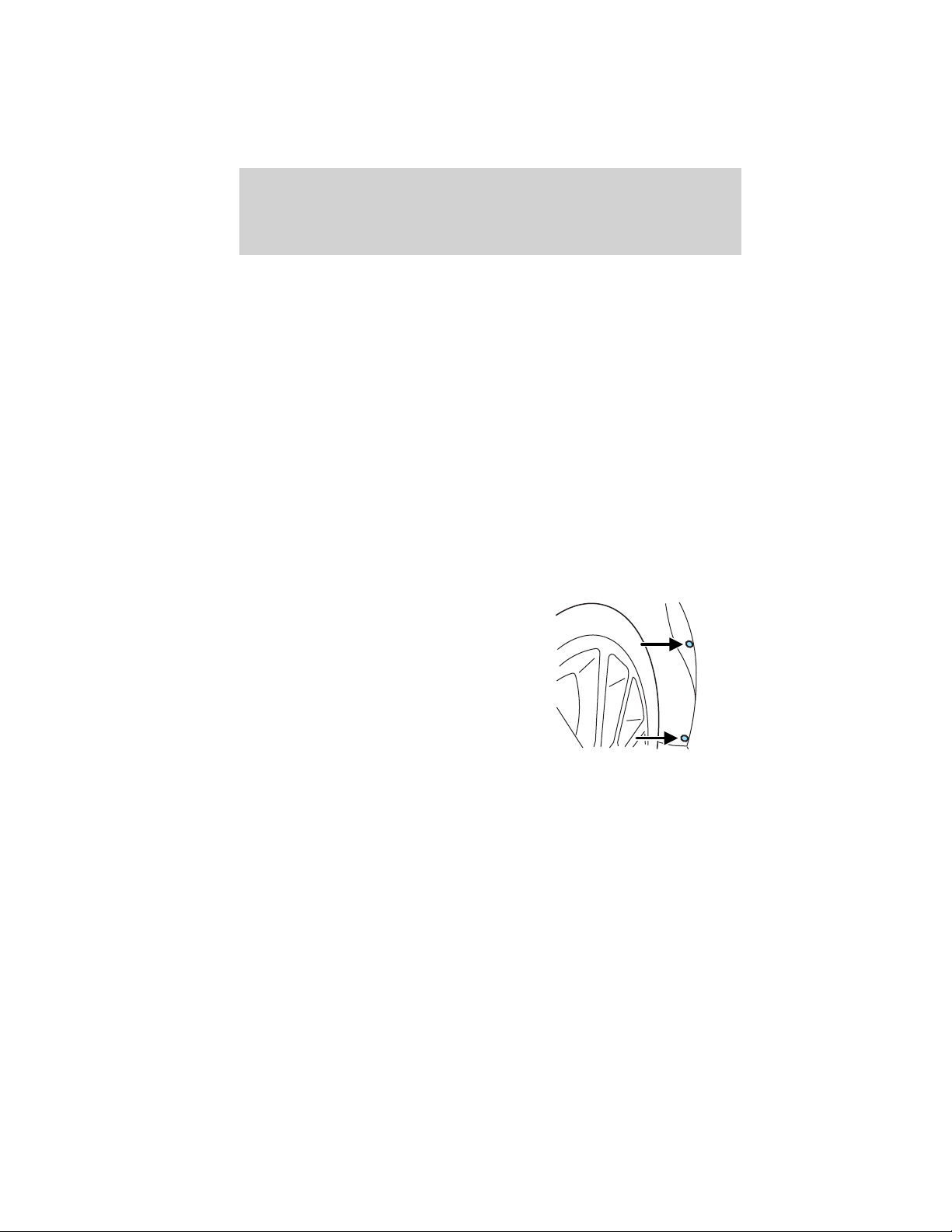

For passenger side replacement of the low beam bulb, do the following:

1. Turn the steering wheel all the way to the left.

2. Remove the press pins located in the wheel well and pull the wheel liner back.

3. Reaching through the wheel well, remove the rubber headlamp bulb access cover.

4. Rotate the headlamp bulb counterclockwise and remove the headlamp bulb

5. Disconnect the electrical connector.

2011 Fusion (fsn) Owners Guide, 1st Printing USA (fus)

Lights

Replacing front parking lamp/turn signal bulbs (2.5L/3.0L engines)

1. Make sure headlamp control is in the off position, then open the hood.

2. Reach over the front bolster.

3. Disengage the windshield washer bottle flexible neck strap attachment and move it to gain access to the bulb.

4. Remove the bulb socket by rotating it counterclockwise, then pull it out of the lamp assembly.

5. Carefully pull bulb straight out of socket and push in the new one.

6. Install new bulb socket into the lamp assembly by aligning the indexing fingers, then rotate clockwise to locked position.

2011 Fusion (fsn) Owners Guide, 1st Printing USA (fus)

Lights

Replacing front parking lamp/turn signal bulb (3.5L engine)

For driver side replacement of the front parking lamp/turn signal bulb, do the following:

WARNING: To reduce the risk of vehicle damage and/or personal burn injuries do not start your engine with the air

cleaner removed and do not remove it while the engine is running.

1. Release the clamps (2) that secure the air filter housing cover.

2. Carefully separate the two halves of the air filter housing.

3. Locate the mass air flow sensor electrical connector on the air outlet tube (1). This connector will need to be unplugged.

4. Remove the air filter assembly.

5. Remove the bolts on the air inlet (3), then remove the air inlet.

6. Reach over the front bolster to access the bulb.

7. Remove the bulb socket by rotating it counterclockwise, then pull it straight out of the lamp assembly.

Reverse these steps to complete the process. 66

2011 Fusion (fsn) Owners Guide, 1st Printing USA (fus)

Lights

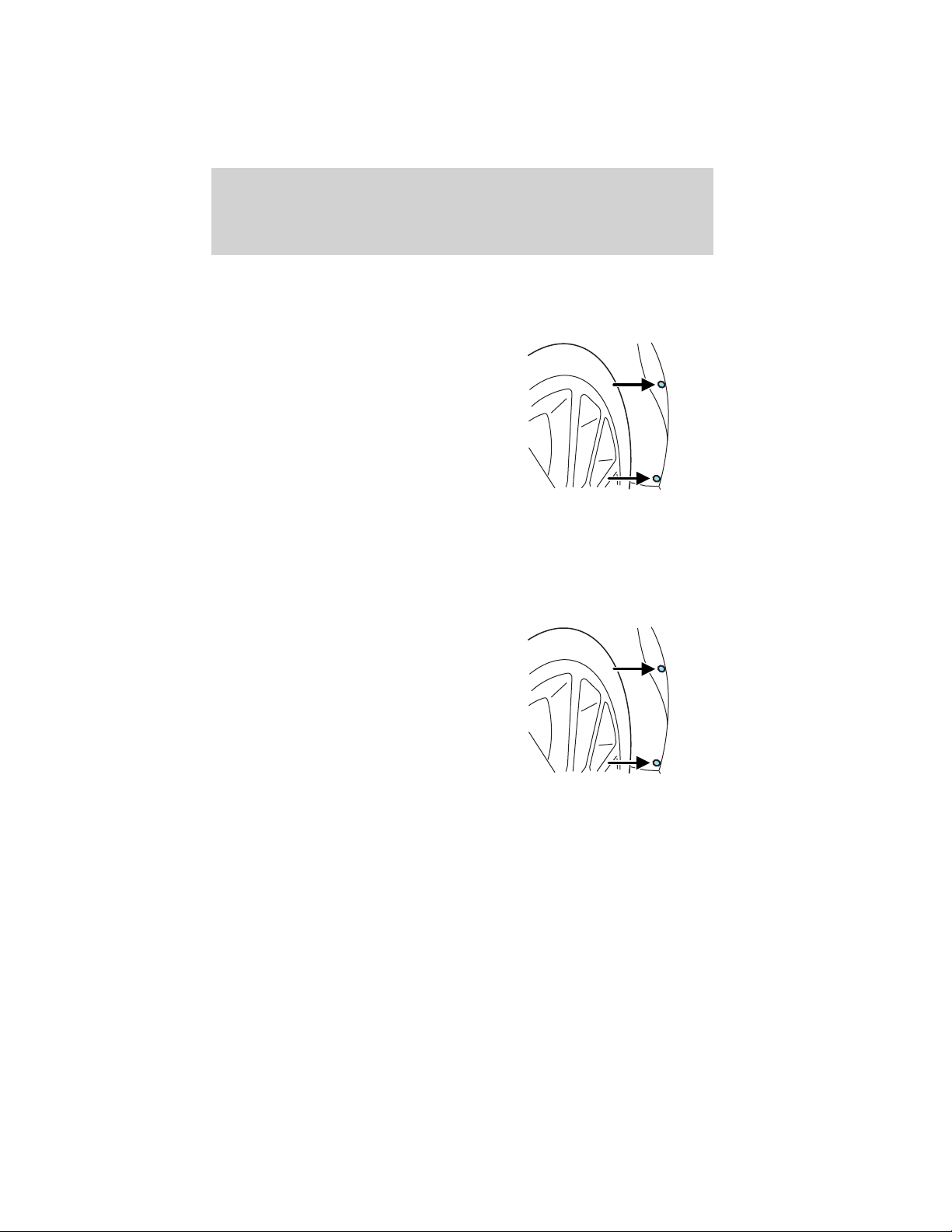

For passenger side replacement of the front park/turn signal bulb, do the following:

1. Turn the steering wheel left to gain access to the wheel well.

2. Remove the press pins located in the wheel well and pull the splash shield back.

3. Remove the bulb socket by rotating it counterclockwise, then pull it straight out of the lamp assembly.

Replace with a new bulb, and reverse the removal steps to complete the process.

Replacing front side marker bulbs

1. Make sure the headlamp control is in the off position.

2. From underneath the vehicle, partially remove the tire splash shield by removing the press pins. After removing to allow free access to the front side marker lamp bulb and electrical wire harness, the splash shield should be able to be repositioned.

3. Rotate the lamp clockwise while holding the electrical connector in place. After rotating the lamp 90 degrees clockwise, pull and disengage the wire harness and bulb from the lamp.

2011 Fusion (fsn) Owners Guide, 1st Printing USA (fus)

Lights

4. With the bulb exposed, carefully remove the bulb from the socket by grasping the bulb and pulling it away from the wire harness.

Replace with a new bulb, and reverse the removal steps to complete the process.

Replacing rear side marker lamp

For replacement of the rear side marker lamp, see your authorized dealer.

Replacing tail/brake/turn signal/backup lamp bulbs

The tail/brake/turn signal and backup lamp bulbs are located in the tail lamp assembly. Follow the same steps to replace either bulb.

1. Make sure the headlamp control is in the off position and open the trunk.

2. Lift out trunk floor carpeting panel to access a luggage scuff plate (hard molding) and a trunk side panel (dark grey, soft wheelhouse side trim panel) at the lamp area.

3. Carefully pull/push the trunk side panel (dark grey, soft wheelhouse side trim panel) outboard to expose the lamp assembly. The most effective point to grasp the trunk side panel when pulling it out from the luggage scuff plate is at it’s bottom edge where that edge meets the exposed sheet metal of the trunk floor.

Note: Do not allow the trunk side panel to remain bent and untucked from the luggage scuff plate (hard molding) for a long period of time. Doing so may result in permanent deformation.

2011 Fusion (fsn) Owners Guide, 1st Printing USA (fus)

Lights

4. Remove the bulb socket by turning it counterclockwise and pulling it straight out.

5. Pull the bulb from the socket and push in the new bulb.

6. Install the bulb socket into the lamp assembly by rotating it clockwise.

7. Carefully push the trunk side panel (dark grey, soft wheelhouse side trim panel) back in position to the luggage scuff plate (hard molding).

8. Install trunk floor carpeting panel.

Replacing high-mount brake lamp bulb

Your vehicle is equipped with an LED center high-mount stop lamp. It is designed to last the life of the vehicle. If replacement is required, see your authorized dealer.

Replacing license plate lamp bulbs

1. Make sure the headlamp control is in the off position.

2. Remove the screws from the license plate lamp assembly.

3. Remove bulb socket by turning counterclockwise.

4. Carefully pull the bulb out from the socket.

Install new bulb(s) in reverse order.

Replacing fog lamp bulbs

1. Make sure the fog lamp switch is in the off position.

2. From underneath the vehicle, partially remove the tire splash shield by removing four drive screws.

After removing to allow free access to the front fog lamp bulb and electrical wire harness, the splash shield flap can be repositioned.

2011 Fusion (fsn) Owners Guide, 1st Printing USA (fus)

Lights

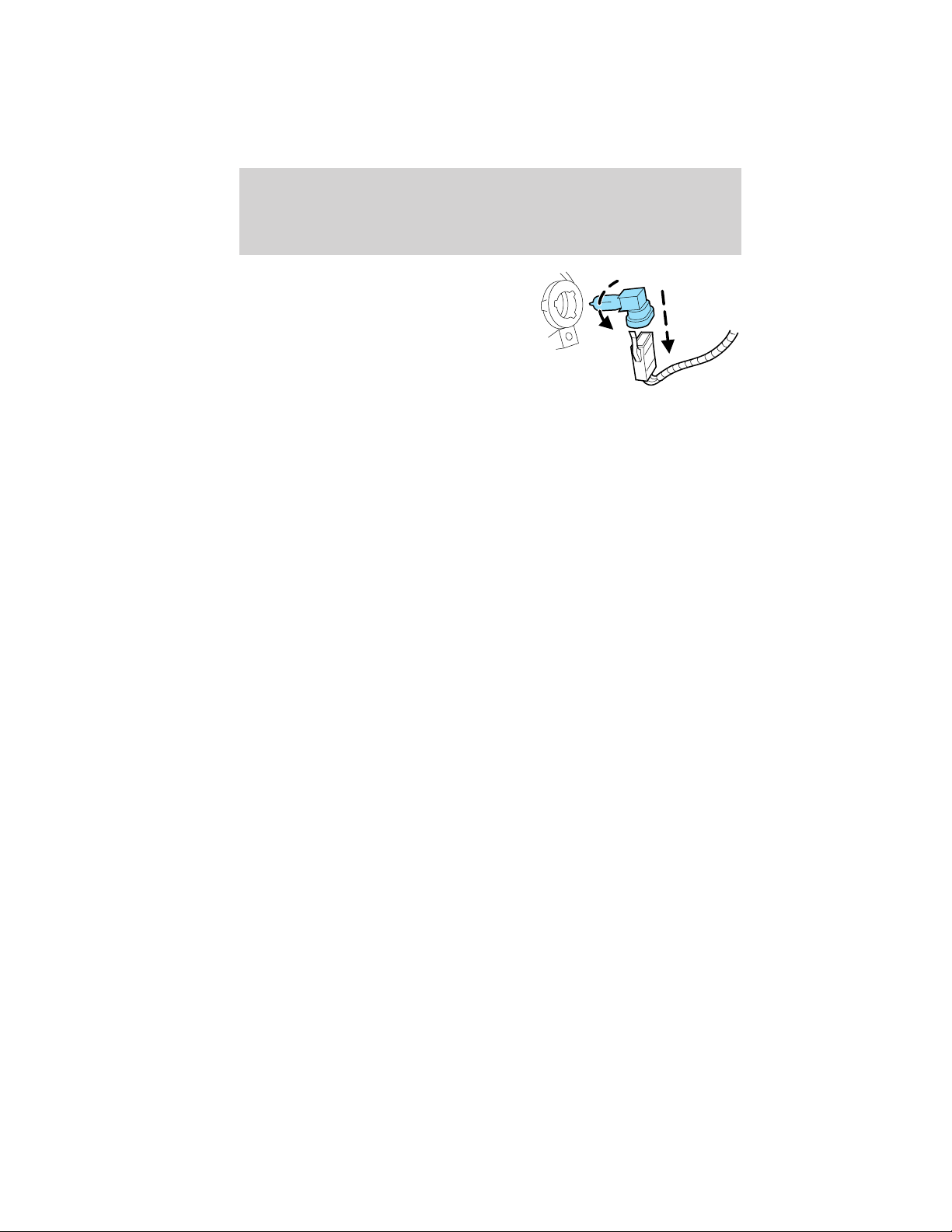

3. Rotate the harness/bulb assembly counterclockwise to remove from the fog lamp.

4. Carefully disconnect the bulb from the harness assembly via the two snap clips.

Install the new bulb in reverse order.

2011 Fusion (fsn) Owners Guide, 1st Printing USA (fus)

Driver Controls

MULTI-FUNCTION LEVER

Windshield wiper: Rotate the end of the control away from you to increase the speed of the wipers; rotate towards you to decrease the speed of the wipers.

Speed dependent wipers: When the wiper control is set to any of the interval settings except the longest pause setting, the pause time between wiping will automatically adjust with the vehicle speed. The faster your vehicle is travelling the shorter the pause time between wipes will become.

Rain-sensing wipers (if equipped): The rain-sensing wipers will automatically activate when moisture is present on the windshield and the multi-function switch is set to one of five auto/interval moisture sensitivity settings. Rotate the end of the control toward the windshield to increase the sensitivity. The speed of the rain-sensitive wipers will vary based on the amount of moisture detected on the windshield and the auto/interval setting. There are no interval (intermittent wipe) settings on vehicles with rain-sensing wipers. The wipers will continue to wipe as long as the presence of moisture is detected on the windshield. More or less wiping may occur depending on humidity, mist or light rain, or road spray.

Keep the outside of the windshield clean, especially the area around the rear view mirror where the sensor is located or rain sensor performance may be affected.

Note: During winter driving conditions with ice, snow or a salty road mist, inconsistent or unexpected wiping or smearing may occur. In these conditions, you can lower the sensitivity to reduce the amount of smearing or override the feature by selecting low- or high-speed wiping or turning the wiper system off.

Note: The wipers must be turned off before entering a car wash.

2011 Fusion (fsn) Owners Guide, 1st Printing USA (fus)

Driver Controls

Windshield washer: Press the end of the stalk:

• briefly: causes a single swipe of the wipers without washer fluid.

• a quick press and hold: the wipers will swipe three times with washer fluid.

• a long press and hold: the wipers and washer fluid will be activated for up to ten seconds.

Courtesy wipe feature: One extra wipe will occur a few seconds after washing the front window to clear any excess washer fluid remaining on the windshield.

Note: Do not operate the washer when the washer reservoir is empty. This may cause the washer pump to overheat. Check the washer fluid level frequently. Do not operate the wipers when the windshield is dry. This may scratch the glass, damage the wiper blades and cause the wiper motor to burn out. Before operating the wiper on a dry windshield, always use the windshield washer. In freezing weather, be sure the wiper blades are not frozen to the windshield before operating the wipers.

Windshield wiper rainlamp feature (if equipped with autolamp)

When the windshield wipers are turned on during daylight, and the headlamp control is in the autolamp position, the exterior lamps will turn on after a brief delay and will remain on until the wipers are turned off.

TILT/TELESCOPE STEERING WHEEL

To adjust the steering wheel:

1. Pull the lever down to unlock the

steering column.

2. While the lever is in the down

position, move the steering wheel up or down and in or out until you find the desired position.

3. While holding the steering wheel

in place, pull the lever up to its original position to lock the steering column.

2011 Fusion (fsn) Owners Guide, 1st Printing USA (fus)

WARNING: Never adjust the steering wheel when the vehicle is moving.

ILLUMINATED VISOR MIRROR (IF EQUIPPED)

Lift the mirror cover to turn on the visor mirror lamps.

Slide-on-rod feature (if equipped)

Rotate the visor towards the side window and extend it rearward for additional sunlight coverage.

Note: To stow the visor back into the headliner, visor must be retracted before moving it back towards the windshield.

Driver Controls

OVERHEAD CONSOLE (IF EQUIPPED)

The appearance of your vehicle’s overhead console will vary according to your option package.

2011 Fusion (fsn) Owners Guide, 1st Printing USA (fus)

Driver Controls

Storage compartment

Press on the rear edge of the compartment door to open.

The storage compartment may be used to secure sunglasses or a similar object.

ELECTRONIC COMPASS (IF EQUIPPED)

The compass heading is displayed in the center integrated display (CID).

The compass reading may be affected when you drive near large buildings, bridges, power lines and powerful broadcast antenna. Magnetic or metallic objects placed in, on or near the vehicle may also affect compass accuracy.

Usually, when something affects the compass readings, the compass will correct itself after a few days of operating your vehicle in normal conditions. If the compass still appears to be inaccurate, a manual calibration may be necessary. Refer to Compass calibration

adjustment.

Most geographic areas (zones) have a magnetic north compass point that varies slightly from the northerly direction on maps. This variation is four degrees between adjacent zones and will become noticeable as the vehicle crosses multiple zones. A correct zone setting will eliminate this error. Refer to Compass zone adjustment.

2011 Fusion (fsn) Owners Guide, 1st Printing USA (fus)

Compass zone adjustment

1. Determine which magnetic zone you are in for your geographic location by referring to the zone map.

2. Turn ignition to the on position.

3. Press and hold the 7 and 9 radio preset buttons together for approximately five seconds until ZONE XX appears in the CID.

4. Press and release the 7 and 9 radio preset buttons together, repeatedly until ZONE XX changes to the correct zone (1–15) in the CID.

5. The direction will display after the buttons are released. The zone is now updated.

Driver Controls

123

6 7 8 9 1011

14 13

Compass calibration adjustment

Perform compass calibration in an open area free from steel structures and high voltage lines. For optimum calibration, turn off all electrical accessories (heater/air conditioning, wipers, etc.) and make sure all vehicle doors are shut.

1. Start the vehicle.

2011 Fusion (fsn) Owners Guide, 1st Printing USA (fus)

Driver Controls

2. To calibrate, press and hold the 7

and 9 radio preset buttons together for approximately 10 seconds until CAL appears. Release the buttons.

3. Slowly drive the vehicle in a

circle (less than 3 mph [5 km/h]) until the CAL display changes to the direction value (N, S, E, W, etc.). It may take up to five circles to complete calibration.

4. The compass is now calibrated.

CENTER CONSOLE

Your vehicle may be equipped with a variety of console features. These include:

1. Cupholders (with ambient lighting

[if equipped]).

2. Secondary storage bin (on hinges

inside utility compartment).

3. Utility compartment with power

point, auxiliary input jack (AIJ), USB port (if equipped), and coin holder inside.

WARNING: Use only soft cups in the cup holder. Hard objects can injure you in a collision.

2011 Fusion (fsn) Owners Guide, 1st Printing USA (fus)

Driver Controls

INSTRUMENT PANEL STORAGE COMPARTMENT

The storage compartment may be used to secure sunglasses or similar sized objects. Press the button to open the storage compartment.

AUXILIARY POWER POINT (12V DC)

Power outlets are designed for accessory plugs only. Do not insert any other object in the power outlet as this will damage the outlet and blow the fuse. Do not hang any type of accessory or accessory bracket from the plug. Improper use of the power outlet can cause damage not covered by your warranty.

Auxiliary power points can be found in the following locations:

• On the instrument panel

• In the center console utility compartment

Do not use the power point for operating the cigarette lighter element (if equipped).

To prevent the fuse from being blown, do not use the power point(s) over the vehicle capacity of 12V DC/180W. If the power point is not working, a fuse may have blown. Refer to Fuses and relays in the Roadside Emergencies chapter for information on checking and replacing fuses.

To have full capacity usage of your power point, the engine is required to be running to avoid unintentional discharge of the battery. To prevent the battery from being discharged:

• do not use the power point longer than necessary when the engine is not running,

• do not leave battery chargers, video game adapters, computers and other devices plugged in overnight or when the vehicle is parked for extended periods.

Always keep the power point caps closed when not being used.

2011 Fusion (fsn) Owners Guide, 1st Printing USA (fus)

Driver Controls

POWER WINDOWS

WARNING: Do not leave children unattended in the vehicle and do not let children play with the power windows. They may

seriously injure themselves.

WARNING: When closing the power windows, you should verify they are free of obstructions and ensure that children and/or

pets are not in the proximity of the window openings.

Press and pull the window switches to open and close windows.

• Press down (to the first detent) and hold the switch to open.

• Pull up (to the first detent) and hold the switch to close.

Rear Window Buffeting: When one or both of the rear windows are open, the vehicle may demonstrate a wind throb or buffeting noise. This noise can be alleviated by lowering a front window approximately 2–3 inches (5–8 cm).

One-touch up or down

This feature allows the driver’s and passenger’s window to open or close fully without holding the control down.

Driver’s window

2011 Fusion (fsn) Owners Guide, 1st Printing USA (fus)

Driver Controls

Driver’s and passenger’s window (if equipped)

To operate one touch-down, press the switch completely down to the second detent and release quickly. The window will open fully. Momentarily press the switch to any position to stop the window operation.

To operate one-touch up, pull the switch completely up to the second detent and release quickly. The window will close fully. Momentarily press the switch to any position to stop the window operation.

Global open windows (if equipped)

Press and hold front windows and (if equipped) vent the moon roof.

• The the opening operation and fully vent the moon roof.

• If and moon roof movement will stop.

Note: The ignition must be in the off position and the accessory delay feature must be not activated in order for this feature to operate.

Note: To disable this feature, contact your authorized dealer.

control can then be released and the windows will complete

or is pressed during the opening operation, both windows

on the remote transmitter to begin opening the two

Bounce-back

When an obstacle has been detected in the window opening as the window is moving upward, the window will automatically reverse direction and move down. This is known as “bounce-back”. If the ignition is turned off (without accessory delay being active) during bounce-back, the window will move down until the bounce-back position is reached.

Security override

To override a bounce-back condition, within two seconds after the window reaches the bounce-back position, pull and hold the switch up and the window will travel up with no bounce-back or pinch protection. If the switch is released before the window is fully closed,

2011 Fusion (fsn) Owners Guide, 1st Printing USA (fus)

Driver Controls

the window will stop. For example, this can be used to overcome the resistance of ice on the window or seals.

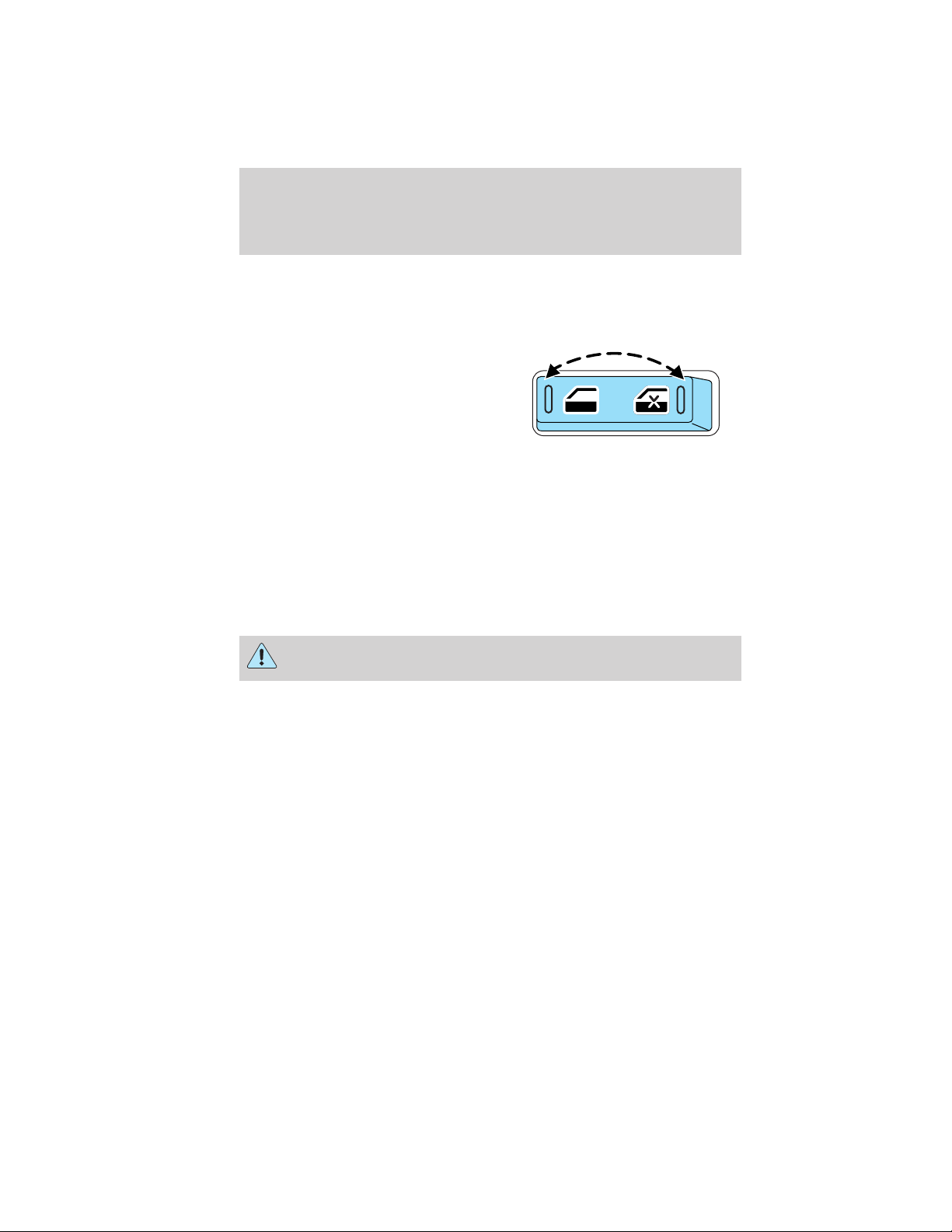

Window lock

The window lock feature allows only the driver and front passenger to operate the power windows.

To lock out all the window controls (except for the driver and front passenger) press the right side of the control. Press the left side to restore the window controls.

Accessory delay

With accessory delay, the window switches, audio system and moon roof (if equipped) may be used for up to 10 minutes after the ignition switch is turned off or until either front door is opened.

INTERIOR MIRROR

The interior rear view mirror has two pivot points on the support arm which lets you adjust the mirror up or down and from side to side.

WARNING: Do not adjust the mirror while the vehicle is in motion.

Automatic dimming interior rear view mirror (if equipped)

The interior rear view mirror has an auto-dimming function. The electronic day/night mirror will change from the normal (high reflective) state to the non-glare (darkened) state when bright lights (glare) reach the mirror. When the mirror detects bright light from behind the vehicle, it will automatically adjust (darken) to minimize glare.

The mirror will automatically return to the normal state whenever the vehicle is placed in R (Reverse) to ensure a bright clear view when backing up.

Do not block the sensors on the front and back of the interior rear view mirror since this may impair proper mirror performance.

Note: A rear center passenger and/or raised rear center headrest (if

equipped) may also block the light from reaching the sensor. 80

2011 Fusion (fsn) Owners Guide, 1st Printing USA (fus)

Driver Controls

Do not clean the housing or glass of any mirror with harsh abrasives, fuel or other petroleum-based cleaning products.

Note: If equipped with a rearview camera system, a video image will

display in the mirror or the navigation system display (if equipped) when the vehicle is put in R (Reverse). As you shift into any other gear from R (Reverse), the image will remain for a few seconds and then turn off. Refer to Rearview camera system in the Driving chapter.

EXTERIOR MIRRORS

Power side view mirrors

WARNING: Do not adjust the mirror while the vehicle is in motion.

To adjust your mirrors:

1. Rotate the control clockwise to

adjust the right mirror and rotate the control counterclockwise to adjust the left mirror.

2. Move the control in the direction

you wish to tilt the mirror.

3. Return to the center position to lock mirrors in place.

Heated mirrors (if equipped)

Both mirrors are heated automatically to remove ice, mist and fog when the rear window defrost is activated.

Do not remove ice from the mirrors with a scraper or attempt to readjust the mirror glass if it is frozen in place. These actions could cause damage to the glass and mirrors.

Blind spot mirrors (if equipped)

Your vehicle may be equipped with blind spot mirrors or a blind spot information system. Refer to Blind spot mirrors or Blind spot

information system (BLIS威) with cross traffic alert (CTA) in the Driving chapter.

2011 Fusion (fsn) Owners Guide, 1st Printing USA (fus)

Driver Controls

SPEED CONTROL

With speed control set, you can maintain a set speed without keeping your foot on the accelerator pedal.

WARNING: Do not use the speed control in heavy traffic or on roads that are winding, slippery or unpaved.

Using speed controls

The speed controls are located on the steering wheel. The following buttons work with speed control:

– SET +: Press to set a speed or to increase or decrease the set speed.

CNCL (Cancel)/RSM (Resume):

Press to return cancel or resume a set speed.

ON/OFF: Press to turn speed controlonoroff.

The speed control system uses two instrument cluster:

• an amber indicator light which illuminates when the system is on, and

• a green indicator light which illuminates when the system is engaged.

Setting speed control

To set speed control:

1. Press and release ON.

2. Accelerate to the desired speed.

3. Press and release SET +.

4. Take your foot off the accelerator pedal.

5. The green indicator

Note:

• Vehicle speed may vary momentarily when driving up and down a steep hill.

• If the vehicle speed increases above the set speed on a downhill, you may want to apply the brakes to reduce the speed.

• If the vehicle speed decreases more than 10 mph (16 km/h) below your set speed on an uphill, your speed control will disengage.

indicator lights in the

light on the instrument cluster will turn on.

2011 Fusion (fsn) Owners Guide, 1st Printing USA (fus)

Driver Controls

Disengaging speed control

To disengage speed control, tap the brake pedal or clutch pedal (if equipped) or press CNCL.

Disengaging the speed control will not erase the previous set speed.

Note: When you use the clutch pedal to disengage the speed control, the engine speed may briefly increase, this is normal.

Resuming a set speed

Press and release RSM. This will automatically return the vehicle to the previously set speed.

Increasing speed while using speed control

To increase the set speed:

• Press and hold SET + until you get to the desired speed, then release. You can also use SET + to operate the tap-up function. Press and release SET + to increase the vehicle set speed in 1 mph (1.6 km/h) increments.

• Use the accelerator pedal to get to the desired speed then press and release SET +.

Reducing speed while using speed control

To reduce the set speed:

• Press and hold – SET until you get to the desired speed, then release. You can also use – SET to operate the tap-down function. Press and release – SET to decrease the vehicle set speed in 1 mph (1.6 km/h) increments.

• Press the brake pedal or the clutch pedal (if equipped) until the desired vehicle speed is reached then press SET +.

Turning off speed control

To turn off the speed control, press OFF or turn off the ignition.

Note: When you turn off the speed control or the ignition, your speed control set speed memory is erased.

2011 Fusion (fsn) Owners Guide, 1st Printing USA (fus)

Driver Controls

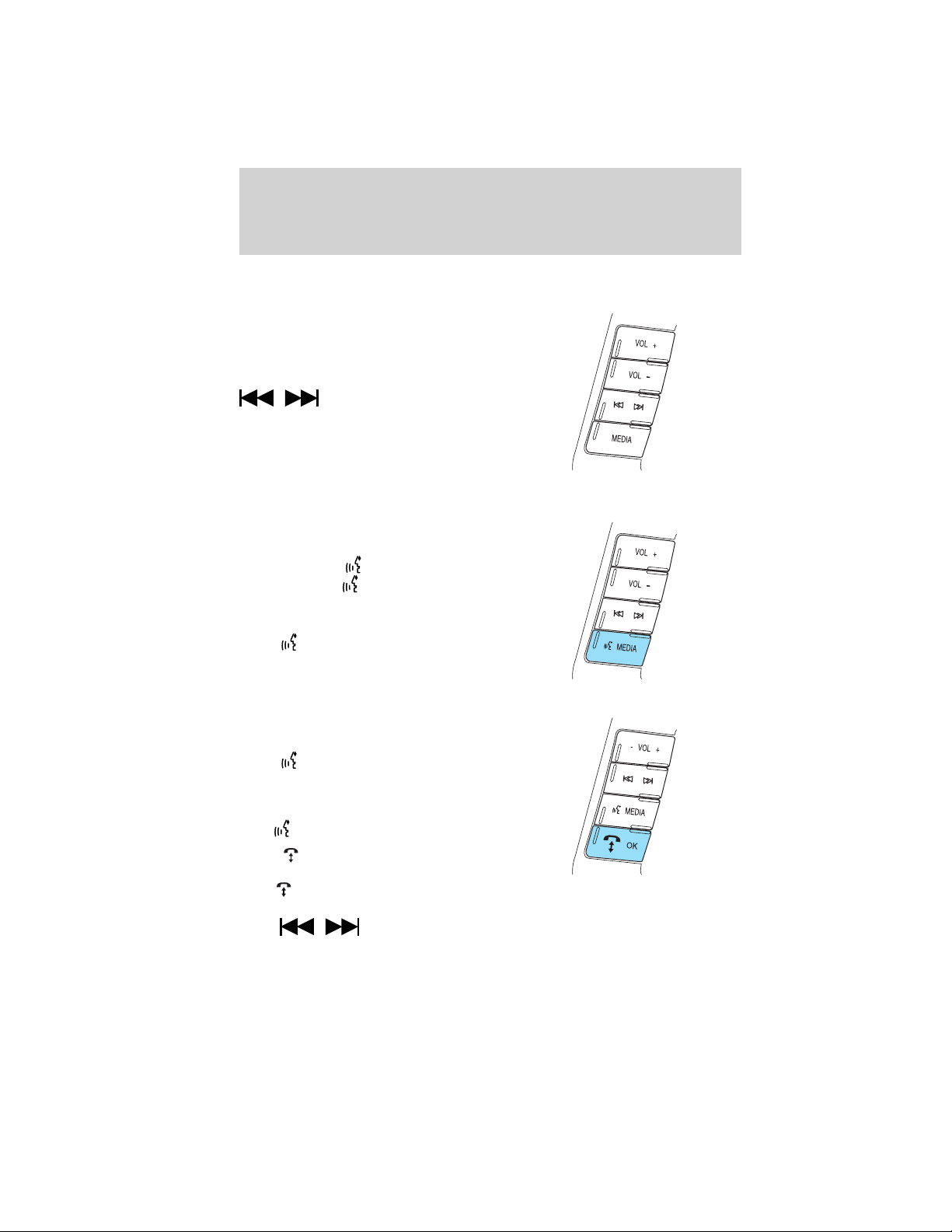

STEERING WHEEL CONTROLS (IF EQUIPPED) Radio control features

VOL + (Volume): Press to increase the volume.

VOL – (Volume): Press to decrease the volume.

(Seek): Press to select

the previous/next radio station preset, CD track or satellite radio channel (if equipped) depending on which media mode you are in.

MEDIA: Press repeatedly to scroll through available audio modes.

Navigation system hands free control features (if equipped)

Press and hold until the voice

the navigation display to use the voice command feature.

Press command.

For further information on the navigation system, refer to the Navigation System supplement.

SYNC威 system hands free control feature (if equipped)

Press command feature. You will hear a tone and LISTENING will appear in the radio display. Press and hold

Press answer a phone call. Press and hold mode.

Press OK to confirm your selection. 84

to complete a voice

briefly to use the voice

to exit voice command.

to activate phone mode or

to end a call or exit phone

control briefly

icon appears on

to scroll through various menus and selections. Press

2011 Fusion (fsn) Owners Guide, 1st Printing USA (fus)

Driver Controls

For further information on the SYNC威 system, refer to the SYNC威 supplement.

Navigation system/SYNC威 hands free control features (if equipped)

Press control briefly until the voice icon appears on the

Navigation display to use the voice command feature.

Press answer a phone call. Press and hold a call.

For further information on the Navigation system/SYNC威 system, refer to the Navigation System and SYNC威 supplements.

MOON ROOF (IF EQUIPPED)

You can move the glass panel of the moon roof back to open or tilt up (from the closed position) to ventilate the vehicle.

themselves.

To open the moon roof:

The moon roof is equipped with an automatic, one-touch, express opening, closing and venting feature. Press and release the rear portion of the control. To stop motion at any time during the one-touch operation, press the control a second time.

to activate phone mode or

to exit phone mode or end

WARNING: Do not let children play with the moon roof or leave children unattended in the vehicle. They may seriously hurt

WARNING: When closing the moon roof, you should verify that it is free of obstructions and ensure that children and/or pets are

not in the proximity of the moon roof opening.

2011 Fusion (fsn) Owners Guide, 1st Printing USA (fus)

Driver Controls

To close the moon roof:

The moon roof is equipped with an automatic, one-touch, express closing feature. Press and release the front portion of the control. To stop motion at any time during the one-touch closing, press the control again.

Bounce-back:

When an obstacle has been detected in the moon roof opening as the moon roof is closing, the moon roof will automatically open and stop at a prescribed position. This is known as “bounce-back”. If the ignition is turned off (without accessory delay being active) during bounce-back, the moon roof will move until the bounce-back position is reached.

Bounce-back override:

To override bounce-back, press and hold the front portion of the control. For example: Bounce-back can be used to overcome the resistance of ice on the moon roof or seals. If during a bounce-back condition, the control is released to the neutral position, then held in the one-touch position within two seconds after the moon roof reaches the bounce-back position, the moon roof will travel with no bounce-back protection. If the control is released before the moon roof reaches fully closed or the ignition is turned off (without accessory delay being active), the moon roof will stop. Security override can be used if the moon roof movement is restricted in some way, for example, if there is ice on the moon roof or seals.

To vent:

• To tilt the moon roof into the vent position (when the glass panel is closed), press and release the front portion of the control.

• To close the moon roof from the vent position, press and hold the rear portion of the control until the glass panel stops moving.

The moon roof has a sliding shade that can be opened or closed when the glass panel is shut. To close the shade, pull it toward the front of the vehicle

Accessory delay:

With accessory delay, the window switches, audio system, and moon roof (if equipped) may be used for up to 10 minutes after the ignition switch is turned off or until any door is opened.

Note: If equipped with global open windows, you can open the vehicle’s front windows and moon roof (if equipped) by using the control on the remote transmitter. Refer to Global open windows earlier in this chapter.

2011 Fusion (fsn) Owners Guide, 1st Printing USA (fus)

Driver Controls

UNIVERSAL GARAGE DOOR OPENER (IF EQUIPPED)

Your vehicle may be equipped with a universal garage door opener which can be used to replace the common hand-held transmitter.

Car2U姞 Home Automation System (if equipped)

The Car2U威 Home Automation System is a universal transmitter located in the driver’s visor that includes two primary features – a garage door opener and a platform for remote activation of devices within the home. The Car2U威 system’s garage door opener function replaces the common hand-held garage door opener with a three-button transmitter that is integrated into the interior of your vehicle. After being programmed for garage doors, the Car2U威 system transmitter can be programmed to operate security devices and home lighting systems.

WARNING: Make sure that people and objects are clear of the garage door or security device you are programming. Do not

program the Car2U威 system with the vehicle in the garage.

Do not use the Car2U威 system with any garage door opener that lacks safety stop and reverse features as required by U.S. Federal Safety Standards (this includes any garage door opener manufactured before April 1, 1982).

Be sure to keep the original remote control transmitter for use in other vehicles as well as for future Car2U威 system programming. It is also recommended that upon the sale or lease termination of the vehicle, the programmed Car2U威 system buttons should be erased for security reasons. Refer to Erasing the Car2U威 Home Automation System buttons later in this section.

Read the instructions completely before attempting to program the Car2U威 system. Because of the steps involved, it may be helpful to have another person assist you in programming the transmitter.

Additional Car2U威 system information can be found on-line at www.learcar2U.com or by calling the toll-free Car2U威 system help line at 1-866-572-2728.

2011 Fusion (fsn) Owners Guide, 1st Printing USA (fus)

Driver Controls

Types of garage door openers (rolling code and fixed code)

The Car2U威 Home Automation System may be programmed to operate rolling code and fixed code garage door openers.

• Rolling code garage door openers were produced after 1996 and are code protected. Rolling code means the coded signal is changed every time your remote control garage door opener is used.

• Fixed code garage door openers were produced prior to 1996. Fixed code uses the same coded signal every time. It is manually programmed by setting DIP switches for a unique personal code.

If you do not know if your garage door opener is a rolling code or fixed code device, open your garage door opener’s remote control battery

206-1

2 T

124

cover. If a panel of DIP switches is present your garage door opener is a fixed code device. If not, your garage door opener is a rolling code device.

Rolling code programming

Note: Programming the rolling code garage door opener involves time-sensitive actions. Read the entire procedure prior to beginning so you will know which actions are time-sensitive. If you do not follow the time-sensitive actions, the device will time out and you will have to repeat the procedure.

Note: Do not program the Car2U威 system with the vehicle in the garage.

Make sure that your key is on and engine off while programming the transmitter.

2011 Fusion (fsn) Owners Guide, 1st Printing USA (fus)

Driver Controls

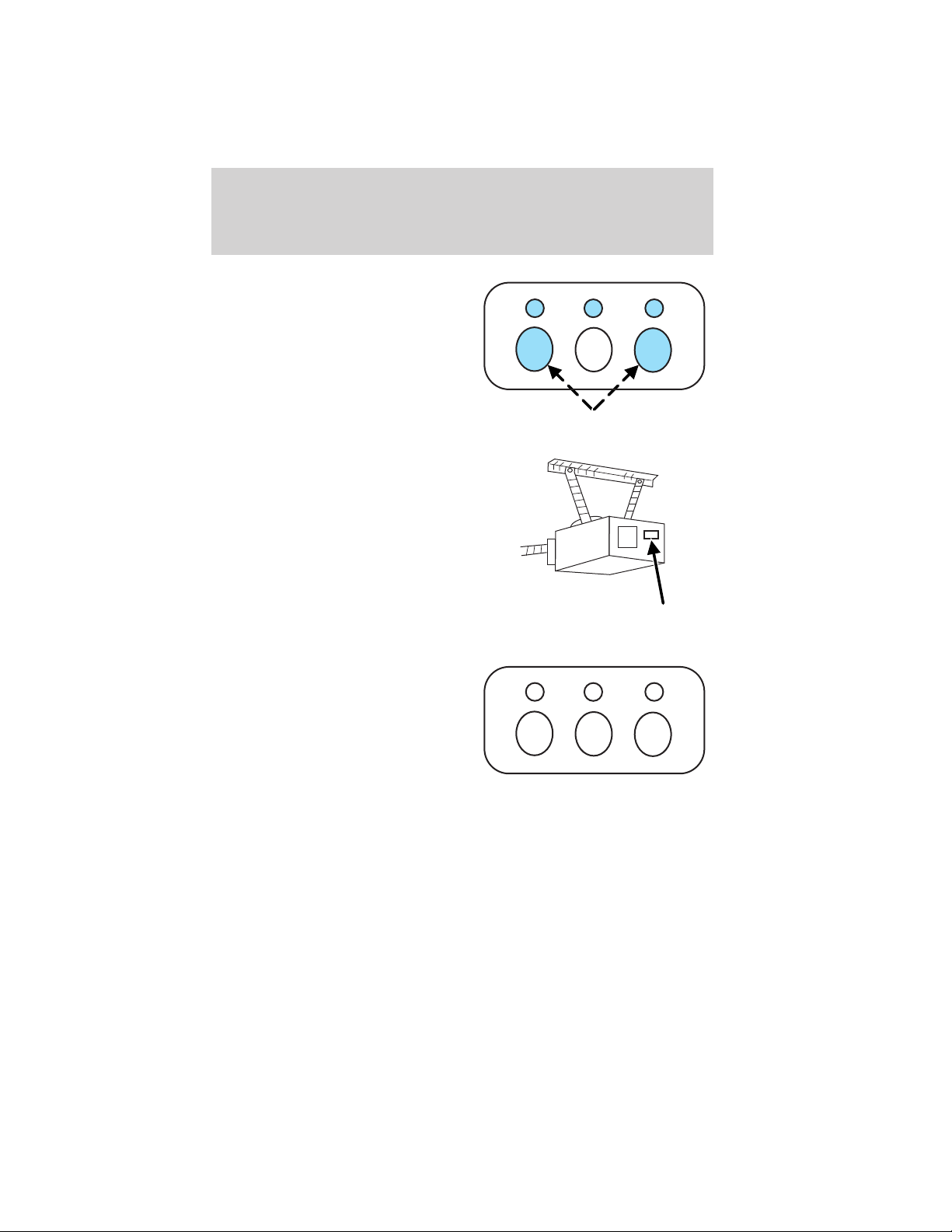

1. Firmly press the two outer Car2U威 system buttons for 1–2 seconds, then release.

Go to the garage to locate the

2. garage door opener motor and its “learn” button. You may need a ladder to reach the unit and you may need to remove the unit’s cover or light lens to locate the “learn” button. Press the “learn” button, after which you will have 10–30 seconds to return to your vehicle and complete the following steps. If you cannot locate the “learn” button, refer to the Owner’s Guide of your garage door opener or call the toll-free Car2U威 system help line at 1-866-57Car2U (1-866-572-2728).

3. Return to your vehicle. Press and hold the Car2U威 system button you would like to use to control the garage door. You may need to hold the button from 5–20 seconds, during which time the selected button indicator light will blink slowly. Immediately (within 1 second) release the button once the garage door moves. When the button is released, the indicator light will begin to blink rapidly until programming is complete.

4. Press and release the button again. The garage door should move, confirming that programming is successful. If your garage door does not operate, repeat the previous steps in this section.

After successful programming, you will be able to operate your Car2U威 system by pressing the button you programmed to activate the opener. The indicator light above the selected button will turn on to confirm that the Car2U威 system is responding to the button command.

2011 Fusion (fsn) Owners Guide, 1st Printing USA (fus)

Driver Controls

To program another rolling code device such as an additional garage door opener, a security device or home lighting, repeat Steps 1 through 4 substituting a different function button in Step 3 than what you used for the garage door opener. For example, you could assign the left-most button to the garage door, the center button to a security device, and the right-most button to another garage door opener.

Note: The Car2U威 system allows for three devices to be programmed. If you need to change or replace any of the three devices after it has been initially programmed, it is necessary to erase the current settings using the Erasing the Car2U威 Home Automation System buttons procedure and then programming all of the devices being used.

Fixed code programming

Note: Do not program the Car2U威 system with the vehicle in the garage. Make sure that your key is on and engine off while programming the

transmitter.

1. To program units with fixed code DIP switches, you will need the

garage door hand-held transmitter, paper and a pen or pencil.

2. Open the battery cover and record the switch settings from left to

right for all 8 to 12 switches. Use the figure below: When a switch is in the up, on, or + position, circle “L.” When a switch is in the middle, neutral, or 0 position, circle “M.” When a switch is in the down, off, or – position, circle “R.”

Switch position 12345678 9101112 Up,onor+ LLLLLLLLLLLL Middle, neutral or 0 MMMMMMMMMMMM Down, off or – RRRRRRRRRRRR L=left; M=middle; R=right

2011 Fusion (fsn) Owners Guide, 1st Printing USA (fus)

Driver Controls

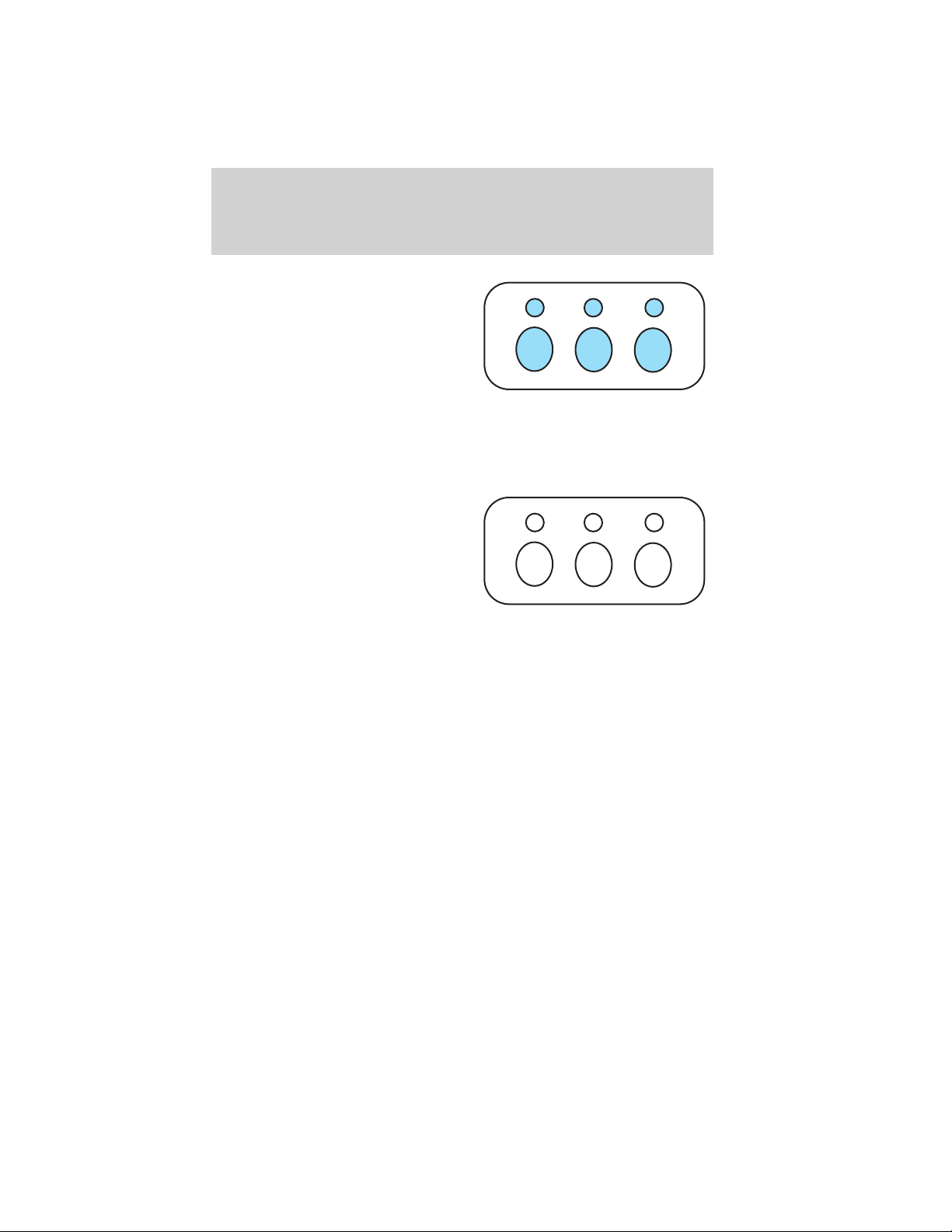

3. To input these positions into the Car2U威 system, simultaneously press all three Car2U威 system buttons for a few seconds and then release to put the device into programming mode. The indicator lights will blink slowly. Within

2.5 minutes enter your corresponding DIP switch settings from left to right into your Car2U威 system by pressing and releasing the buttons corresponding to the settings you circled.

4. After inputting switch settings, simultaneously press and release all three Car2U威 system buttons. The indicator lights will turn on.

5. Press and hold the Car2U威 system button you would like to use to control the garage door. Immediately (within 1 second) release the button once the garage door moves. During this time the selected button indicator light will blink slowly. Do not release the button until you see the garage door move. Most garage doors open quickly. You may need to hold the button from 5–55 seconds before observing movement of the garage door.

6. The indicator light will (begin to) blink rapidly until programming is complete. If your garage door opener does not operate following these steps, repeat Steps 2 through 6. Otherwise, call the toll-free Car2U威 help line at 1-866-57Car2U (1-866-572-2728).

Erasing the Car2U姞 Home Automation System buttons

Note: The system allows for three devices to be programmed. If you need to change or replace any of the three devices after it has been initially programmed, it will be necessary to erase the current settings using the procedure below and then reprogramming all of the devices being used.

2011 Fusion (fsn) Owners Guide, 1st Printing USA (fus)

Driver Controls

To erase programming on the Car2U威 system (individual buttons cannot be erased), use the following procedure:

1. Firmly press the two outside

Car2U威 system buttons simultaneously for approximately 20 seconds until the indicator lights begin to blink rapidly. The indicator lights are located directly above the buttons.

2. Once the indicator lights begin to

blink, release your fingers from the buttons. The codes for all buttons are erased.

If you sell your vehicle equipped with the Car2U威 system, it is recommended that you erase the programming for security reasons.

FCC and RSS-210 Industry Canada Compliance

The Car2U威 system complies with Part 15 of the FCC rules and with RSS-210 of Industry Canada. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received including interference that may cause undesired operation.

Changes and modifications to the Car2U威 system transmitter by other than an authorized service facility could void authorization to use the equipment.

POSITIVE RETENTION FLOOR MAT

WARNING: Do not install additional floor mats on top of the factory installed floor mats as they may interfere with the

accelerator or the brake pedals.

2011 Fusion (fsn) Owners Guide, 1st Printing USA (fus)

Position the floor mat so that the eyelet is over the retention post and press down to lock in. Make sure that the mat does not interfere with the operation of the accelerator or the brake pedal. To remove the floor mat, reverse the installation procedure.

INTERIOR TRUNK CONTROL

Press the remote trunk release control on the instrument panel to the left of the steering wheel.

Driver Controls

2011 Fusion (fsn) Owners Guide, 1st Printing USA (fus)

Locks and Security

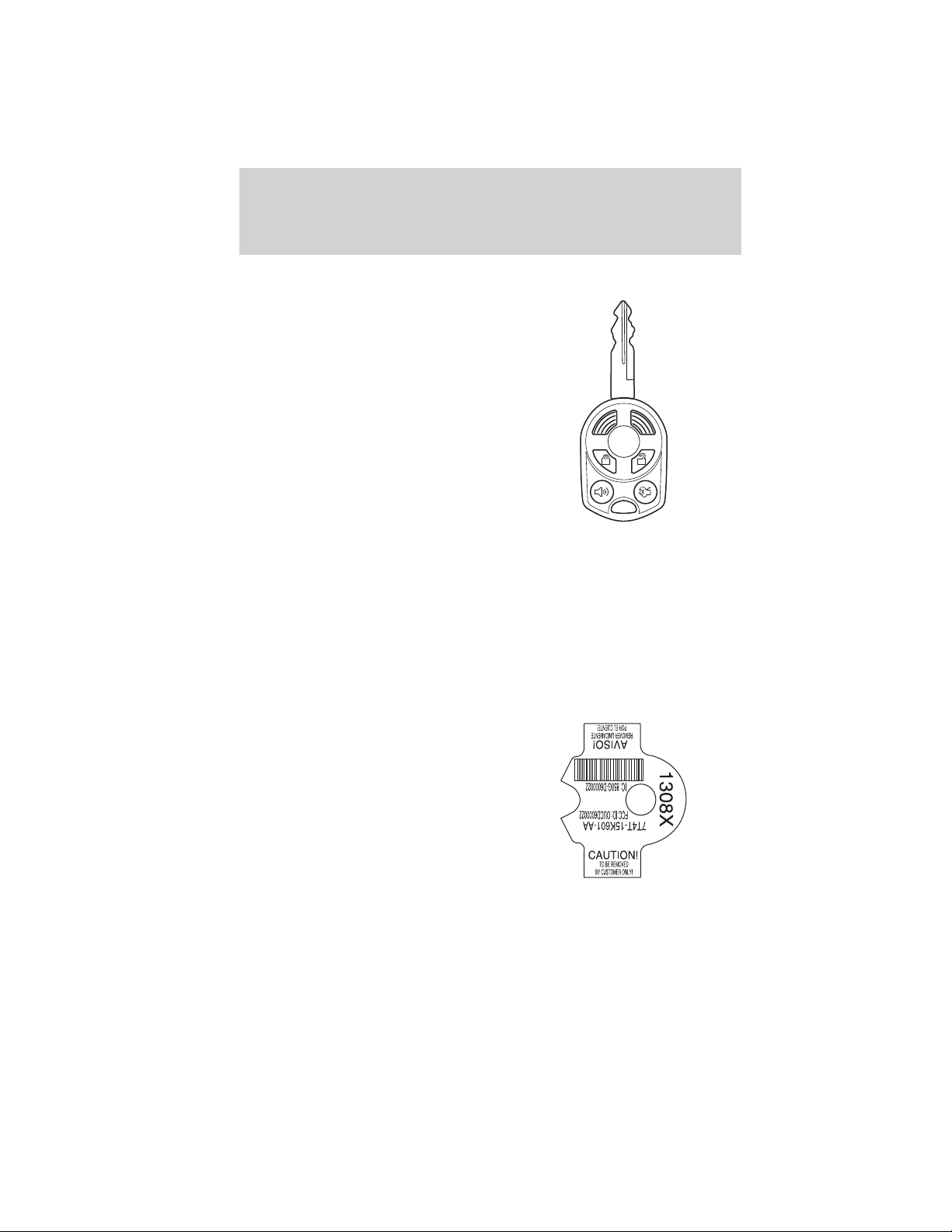

KEYS

Your vehicle is equipped with two Integrated Keyhead Transmitters (IKTs). The key blade functions as a programmed key which starts the vehicle and unlocks/locks all the doors. The transmitter portion functions as the remote entry transmitter.

Your IKTs are programmed to your vehicle; using a non-programmed key will not permit your vehicle to start. If you lose your authorized dealer supplied IKTs, replacement IKTs are available through your authorized dealer. Standard SecuriLock威 keys without remote entry transmitter functionality can also be purchased from your authorized dealer if desired.

Always carry a spare key with you in case of an emergency. For more information regarding programming replacement IKTs, refer to

the SecuriLock威 passive anti-theft system section later in this chapter. Note: Your vehicle’s IKTs were

issued with a security label that provides important vehicle key cut information. It is recommended that you keep the label in a safe place for future reference.

2011 Fusion (fsn) Owners Guide, 1st Printing USA (fus)

Locks and Security

MYKEY™

The MyKey™ feature allows you to program a restricted driving mode to promote good driving habits. All but one of the keys programmed to the vehicle can be activated as a MyKey™. The key will remain restricted until MyKey™ is cleared. Any remaining keys are referred to as an “administrator key” or admin key. The admin key can be used to create a MyKey™, program optional MyKey™ settings, and clear the MyKey™ feature. When the MyKey™ feature is enabled the user can use system check in the message center to see how many MyKeys™ and admin keys are programmed to the vehicle, and see the total distance the vehicle has been driven with the MyKey™ active.

MyKey™ restricted features

Standard settings – these settings cannot be changed

• Belt-Minder cannot be disabled. The audio system will be muted whenever Belt-Minder威 is activated until the safety belts are buckled. Refer to the Seating and Safety Restraints chapter for a detailed description of Belt-Minder威 operation.

• Low fuel warnings are displayed in the message center followed by a chime when the distance to empty value reaches 75 miles (120 km).

• The following systems, if equipped, cannot be turned off: reverse sensing system, Blind Spot Information System (BLIS威) with cross traffic alert and collision warning system.

Optional settings – these settings can be changed

• Vehicle speed is limited to 80 mph (130 km/h). Visual warnings are displayed followed by a chime when the vehicle speed has reached 80 mph (130 km/h).

• Visual warnings are displayed followed by a chime when a preselected vehicle speed of 45, 55 or 65 mph (75, 90, or 105 km/h) is exceeded.

• The maximum volume of the audio system is limited to 45%. MYKEY VOLUME LIMITED will be displayed in the audio system display when attempting to exceed the limited volume.

• The AdvanceTrac威 system cannot be turned off. When this optional setting is on, the MyKey™ user will not be able to deactivate the system. Note: It may be beneficial to deactivate the AdvanceTrac威 system if the vehicle is stuck in snow, mud or sand.

2011 Fusion (fsn) Owners Guide, 1st Printing USA (fus)

Locks and Security

Create a MyKey™

To program MyKey™ on one of the keys programmed to the vehicle, insert the key that you want to make a MyKey™ into the ignition. Turn the ignition on. Use the message center buttons to do the following:

1. Press SETUP until PRESS RESET TO CREATE MYKEY is displayed.

2. Press and release the RESET button. HOLD RESET TO CONFIRM MYKEY will be displayed.

3. Press and hold the RESET button for two seconds until MARK THIS AS RESTRICTED is displayed.

4. Wait until KEY RESTRICTED AT NEXT START is displayed. MyKey™ is successfully programmed. Make sure you label it so you can

distinguish it from the admin keys. Note: To program the optional settings go to Step 2 in the Programming MyKey™ Optional Settings section. If your vehicle is equipped with remote start, see the Using MyKey™ with Remote Start Systems section.

Note: The MyKey™ can be cleared within the same key cycle that it was created, otherwise a standard key (administrator key) is required to clear the MyKey™ programming. To clear all MyKeys™ go to Step 2 in the Clear MyKey™ section.

Programming MyKey™ Optional Settings

Turn the ignition on using an admin key. To program the optional settings, use the message center buttons to do the following:

1. Press SETUP until RESET FOR MYKEY SETTINGS is displayed.

2. Press and release the RESET button to display MyKey setup menus. The first menu shown is:

MYKEY MAX MPH <80 MPH> OFF

3. If you don’t want to change the maximum speed setting, press the SETUP button to display the next menu. The remaining menus appear as follows with the default settings shown:

MYKEY MPH TONES 45 55 65 <OFF> MYKEY VOLUME LIMIT <ON> OFF MYKEY ADVTRAC CTRL ON <OFF>.

4. On any of the menus press RESET to highlight your choice with the <…>.

5. Press SETUP to enter your choice. The next optional setting will be displayed.

6. Repeat Steps 4 and 5 until you are done changing the optional settings.

2011 Fusion (fsn) Owners Guide, 1st Printing USA (fus)

Locks and Security

Clear MyKey™

To reset all MyKeys™ as admin keys, do the following:

1. Turn the vehicle on using the admin key.

2. Press SETUP until PRESS RESET TO CLEAR MYKEY is displayed.

3. Press and release the RESET button. HOLD RESET TO CONFIRM

CLEAR is displayed.

4. Press and hold the RESET button for two seconds until ALL MYKEYS

CLEARED is displayed.

Check MyKey™ system status

The vehicle system check will provide the status of the following MyKey™ parameters:

• MYKEY MILES — This odometer only tracks mileage when a MyKey™ is used. If mileage does not accumulate as expected, then the MyKey™ is not being used by the intended user. The only way to reset this odometer to zero is by clearing MyKey™. If this odometer is lower than the last time you checked, then the MyKey™ system has been recently cleared.

• # MYKEY(S) PROGRAMMED — Indicates how many MyKeys™ are programmed to the vehicle. Can be used to detect deletion of a MyKey™.

• # ADMIN KEYS PROGRAMMED — Indicates how many admin keys are programmed to the vehicle. Can be used to detect if an additional spare key has been programmed to the vehicle

Refer to Message center in the Instrument Cluster chapter for MyKey™ system warnings displays.

Using MyKey™ with remote start systems

MyKey™ is not compatible with non-Ford approved aftermarket remote start systems. If you choose to install a remote start system please see your authorized dealer for a Ford approved remote start system.

When using a Ford-approved remote start system, the default settings will recognize the remote start system as an additional admin key with its associated privileges. Program the remote start system as a MyKey™ in addition to the key that they have already programmed as a MyKey™. To program the remote start system as MyKey™, do the following:

1. Enter the vehicle and close all doors.

2. Remote start the vehicle using a remote start fob.

3. Follow Steps 1-4 in the Create a MyKey™ section.

2011 Fusion (fsn) Owners Guide, 1st Printing USA (fus)

Locks and Security

Note: For all vehicles, the number of MYKEY(S) PROGRAMMED or ADMIN KEYS PROGRAMMED that is displayed in the MyKey™ system status menus will include the remote start system as an additional key in the total count. See the Check MyKey™ system status section.

Note: For all vehicles with remote start installed, it is possible to program all ’real’ keys as MyKeys™, in which case, you will need to use your remote start system to reset all MyKeys™ as admin keys by doing the following:

1. Enter the vehicle, close all doors.

2. Remote start the vehicle using your remote start fob.

3. Follow Steps 1-4 in the Clear MyKey™ section.

Troubleshooting

Condition Potential Causes

Can’t create a MyKey™ • Key in the ignition is already a

MyKey™.

• Key in the ignition is the last remaining admin key (there always has to be at least one admin key).

•SecuriLock威 Passive Anti-Theft System is disabled or in unlimited mode

• Vehicle has been started using a remote start system that is programmed as MyKey™. Refer to

Using MyKey™ with remote start systems section.

Cannot program the MyKey™ optional settings

• Key in the ignition is a MyKey™

• No MyKeys™ are programmed to

the vehicle. Refer to Create a MyKey™ section

• Vehicle has been started using a remote start system that is programmed as a MyKey™. Refer to

Using MyKey™ with remote start systems section.

2011 Fusion (fsn) Owners Guide, 1st Printing USA (fus)

Locks and Security

Condition Potential Causes

Cannot clear MyKey™ • Key in the ignition is a MyKey™

• No MyKeys™ are programmed to

the vehicle. Refer to Create a MyKey™ section

• Vehicle has been started using a remote start system that is programmed as a MyKey™. Refer to

MyKey™ with remote start systems

section.

Lost the only admin key • Purchase a new key from your

authorized dealer

Lost any key • For programming spare keys, refer

to the Programming spare keys section in this chapter.

I accidentally programmed all keys as MyKeys™

MyKey™ programmed total includes one additional key

Admin keys programmed total includes one additional key

MyKey™ miles do not accumulate

• Vehicle has a remote start system that is recognized as an admin key. Refer to the Using MyKey™ with remote start systems section to reset all MyKeys™ as admin keys.

• Unknown key has been programmed to the vehicle as a MyKey™.

• Vehicle is equipped with a remote start system. Refer to Using MyKey™ with remote start systems section.

• Unknown key has been programmed to the vehicle as admin key.

• Vehicle is equipped with a remote start system. Refer to Using MyKey™ with remote start systems section.

• MyKey™ is not being used by the intended user.

• MyKey™ system has been recently cleared.

2011 Fusion (fsn) Owners Guide, 1st Printing USA (fus)

Locks and Security

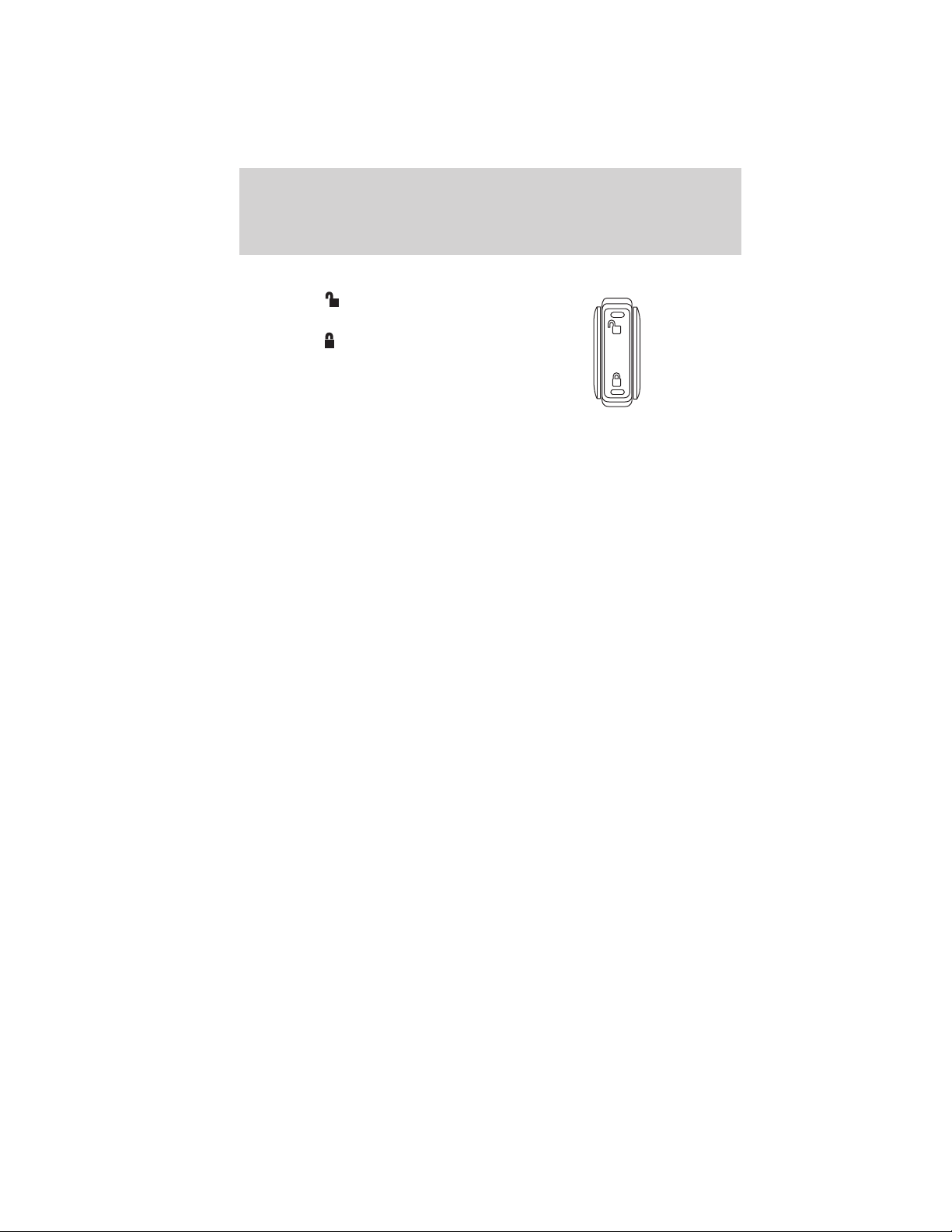

POWER DOOR LOCKS

• Press the control to unlock all doors.

• Press the doors.

Smart locks

This feature attempts to help prevent you from locking yourself out of the vehicle if your key is still in the ignition.

When you open one of the front doors and you lock the vehicle with the power door lock control (on the driver or passenger door trim panel), all the doors will lock, then all doors will automatically unlock reminding you that your key is still in the ignition.

The vehicle can still be locked, with the key in the ignition, using the manual lock control on the door, locking the driver’s door with a key, or using the lock control on the remote entry transmitter portion of your Integrated Keyhead Transmitter.

If both front doors are closed, the vehicle can be locked from any method, regardless of whether the key is in the ignition or not.

Autolock feature

The autolock feature will lock all the doors when:

• all the doors are closed,

• the ignition is in the on position,

• you shift into any gear putting the vehicle in motion, and

• the vehicle attains a speed greater than 12 mph (20 km/h).

The autolock feature repeats when:

• any door is opened then closed while the ignition is in the on position and the vehicle speed is 9 mph (15 km/h) or lower, and

• the vehicle then attains a speed greater than 12 mph (20 km/h).

control to lock all

100

2011 Fusion (fsn) Owners Guide, 1st Printing USA (fus)

FORD Fusion 2011 User Manual v.1

Specifications and Main Features

Frequently Asked Questions

User Manual

Table of Contents

Introduction

CONGRATULATIONS

SAFETY AND ENVIRONMENT PROTECTION

Warning symbols in this guide

Warning symbols on your vehicle

Protecting the environment

PERCHLORATE MATERIAL

BREAKING-IN YOUR VEHICLE

SPECIAL NOTICES

New Vehicle Limited Warranty

Special instructions

DATA RECORDING

Service Data Recording

Event Data Recording

CELL PHONE USE

EXPORT UNIQUE (NON–UNITED STATES/CANADA) VEHICLE SPECIFIC INFORMATION

Instrument Cluster

WARNING LIGHTS AND CHIMES

GAUGES

MESSAGE CENTER

Info (information menu)

System check and vehicle feature customization

System warnings

Entertainment Systems

AUDIO SYSTEMS

AM/FM/single CD MP3 satellite compatible sound system

Setting the clock

AM/FM Radio

RDS (Radio Data System) Radio

CD/MP3 Player

Satellite Radio (if equipped)

Sound Adjustments

Extra Features

Auxiliary input jack (Line in)

USB port (if equipped)

GENERAL AUDIO INFORMATION

Satellite radio information (if equipped)

NAVIGATION SYSTEM (IF EQUIPPED)

Climate Controls

MANUAL HEATING AND AIR CONDITIONING SYSTEM (IF EQUIPPED)

Operating tips

DUAL AUTOMATIC TEMPERATURE CONTROL (IF EQUIPPED)

DUAL ZONE AUTOMATIC TEMPERATURE CONTROL (NAVIGATION BASED – IF EQUIPPED)

TOUCHSCREEN FUNCTIONS

VOICE COMMANDS IN CLIMATE MODE

Operating tips

REAR WINDOW DEFROSTER

Lights

HEADLAMP CONTROL

Autolamp control (if equipped)

Autolamps - programmable exit delay

Fog lamp control (if equipped)

High beams

Flash-to-pass

Daytime running lamps (DRL) (if equipped)

PANEL DIMMER CONTROL

AIMING THE HEADLAMPS

Vertical aim adjustment

TURN SIGNAL CONTROL

INTERIOR LAMPS

Dome lamps and map lamps

Ambient lighting (if equipped)

BULB REPLACEMENT

Lamp assembly condensation

Using the right bulbs

Replacing interior bulbs

Replacing exterior bulbs

Replacing headlamp bulbs (2.5L/3.0L engines)

Replacing headlamp bulbs (3.5L engine)

Replacing front parking lamp/turn signal bulbs (2.5L/3.0L engines)

Replacing front parking lamp/turn signal bulb (3.5L engine)

Replacing front side marker bulbs

Replacing rear side marker lamp

Replacing tail/brake/turn signal/backup lamp bulbs

Replacing high-mount brake lamp bulb
