FORD Fusion 2008 User Manual

Page 1

Introduction 4

Instrument Cluster 10

Warning lights and chimes 10 Gauges 14

Entertainment Systems 17

How to get going 17 AM/FM stereo with CD 21 AM/FM stereo with in-dash six CD 29 Auxiliary input jack (Line in) 37 USB port 38 Satellite radio information 42 Navigation system 45

Climate Controls 46

Manual heating and air conditioning 46 Automatic temperature control 48 Rear window defroster 53

Lights 54

Headlamps 54 Turn signal control 58 Bulb replacement 59

Driver Controls 69

Windshield wiper/washer control 69 Steering wheel adjustment 70 Power windows 73 Mirrors 75 Speed control 76 Moon roof 81 Message center 83

2008 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

Page 2

Table of Contents

Locks and Security 93

Keys 93 Locks 95 Anti-theft system 109

Seating and Safety Restraints 114

Seating 114 Safety restraints 121 Airbags 135 Child restraints 150

Tires, Wheels and Loading 162

Tire information 162 Tire inflation 164 Tire Pressure Monitoring System (TPMS) 177 Vehicle loading 181 Trailer towing 186 Recreational towing 186

Driving 188

Starting 188 Brakes 193 Traction Control™ 195 Transmission operation 197

Roadside Emergencies 212

Getting roadside assistance 212 Hazard flasher switch 214 Fuel pump shut-off switch 214 Fuses and relays 215 Changing tires 221 Lug nut torque 226 Jump starting 227 Wrecker towing 232

2008 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

Page 3

Table of Contents

Customer Assistance 233

Reporting safety defects (U.S. only) 239 Reporting safety defects (Canada only) 240

Cleaning 241

Maintenance and Specifications 249

Engine compartment 251 Engine oil 254 Battery 259 Engine coolant 261 Fuel information 267 Air filter(s) 284 Part numbers 286 Maintenance product specifications and capacities 288 Engine data 291

Accessories 294

Index 296

All rights reserved. Reproduction by any means, electronic or mechanical including photocopying, recording or by any information storage and retrieval system or translation in whole or part is not permitted without written authorization from Ford Motor Company. Ford may change the contents without notice and without incurring obligation.

2008 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

Page 4

Introduction

CALIFORNIA Proposition 65 Warning

WARNING: Engine exhaust, some of its constituents, and

certain vehicle components contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. In addition, certain fluids contained in vehicles and certain products of component wear contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

PERCHLORATE MATERIAL

Certain components of this vehicle such as airbag modules, seat belt pretensioners, and button cell batteries may contain Perchlorate Material – Special handling may apply for service or vehicle end of life disposal. See www.dtsc.ca.gov/hazardouswaste/perchlorate.

CONGRATULATIONS

Congratulations on acquiring your new Ford. Please take the time to get well acquainted with your vehicle by reading this handbook. The more you know and understand about your vehicle, the greater the safety and pleasure you will derive from driving it.

For more information on Ford Motor Company and its products visit the following website:

• In the United States: www.ford.com

• In Canada: www.ford.ca

• In Australia: www.ford.com.au

• In Mexico: www.ford.com.mx

Additional owner information is given in separate publications. This Owner’s Guide describes every option and model variant available

and therefore some of the items covered may not apply to your particular vehicle. Furthermore, due to printing cycles it may describe options before they are generally available.

Remember to pass on this Owner’s Guide when reselling the vehicle. It is an integral part of the vehicle.

Fuel pump shut-off switch: In the event of an accident the

safety switch will automatically cut off the fuel supply to the engine. The switch can also be activated through sudden vibration (e.g. collision when parking). To reset the switch, refer to the Fuel pump shut-off switch in the Roadside Emergencies chapter.

2008 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

Page 5

Introduction

SAFETY AND ENVIRONMENT PROTECTION

Warning symbols in this guide

How can you reduce the risk of personal injury to yourself or others? In this guide, answers to such questions are contained in comments highlighted by the warning triangle symbol. These comments should be read and observed.

Warning symbols on your vehicle

When you see this symbol, it is imperative that you consult the relevant section of this guide before touching or attempting adjustment of any kind.

Protecting the environment

We must all play our part in protecting the environment. Correct vehicle usage and the authorized disposal of waste, cleaning and lubrication materials are significant steps towards this aim. Information in this respect is highlighted in this guide with the tree symbol.

BREAKING-IN YOUR VEHICLE

Your vehicle does not need an extensive break-in. Try not to drive continuously at the same speed for the first 1,000 miles (1,600 km) of new vehicle operation. Vary your speed frequently in order to give the moving parts a chance to break in.

Do not add friction modifier compounds or special break-in oils during the first few thousand miles (kilometers) of operation, since these additives may prevent piston ring seating. See Engine oil in the Maintenance and Specifications chapter for more information on oil usage.

SPECIAL NOTICES

New Vehicle Limited Warranty

For a detailed description of what is covered and what is not covered by your vehicle’s New Vehicle Limited Warranty, refer to the Warranty Guide that is provided to you along with your Owner’s Guide.

2008 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

Page 6

Introduction

Special instructions

For your added safety, your vehicle is fitted with sophisticated electronic controls.

Please read the section Airbag supplemental restraint system

(SRS) in the Seating and Safety Restraints chapter. Failure to follow the specific warnings and instructions could result in personal injury.

Front seat mounted rear-facing child or infant seats should

NEVER be placed in front of an active passenger airbag.

Service Data Recording

Service data recorders in your vehicle are capable of collecting and storing diagnostic information about your vehicle. This potentially includes information about the performance or status of various systems and modules in the vehicle, such as engine, throttle, steering or brake systems. In order to properly diagnose and service your vehicle, Ford Motor Company, Ford of Canada, and service and repair facilities may access vehicle diagnostic information through a direct connection to your vehicle when diagnosing or servicing your vehicle.

Event Data Recording

Other modules in your vehicle — event data recorders — are capable of collecting and storing data during a crash or near crash event. The recorded information may assist in the investigation of such an event. The modules may record information about both the vehicle and the occupants, potentially including information such as:

• how various systems in your vehicle were operating;

• whether or not the driver and passenger seatbelts were buckled;

• how far (if at all) the driver was depressing the accelerator and/or the

brake pedal;

• how fast the vehicle was traveling; and

• where the driver was positioning the steering wheel.

2008 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

Page 7

Introduction

To access this information, special equipment must be directly connected to the recording modules. Ford Motor Company and Ford of Canada do not access event data recorder information without obtaining consent, unless pursuant to court order or where required by law enforcement, other government authorities or other third parties acting with lawful authority. Other parties may seek to access the information independently of Ford Motor Company and Ford of Canada.

Cell phone use

The use of Mobile Communications Equipment has become increasingly important in the conduct of business and personal affairs. However, drivers must not compromise their own or others’ safety when using such equipment. Mobile Communications can enhance personal safety and security when appropriately used, particularly in emergency situations. Safety must be paramount when using mobile communications equipment to avoid negating these benefits.

Mobile Communication Equipment includes, but is not limited to cellular phones, pagers, portable email devices, in-vehicle communications systems, telematics devices and portable two-way radios.

Driving while distracted can result in loss of vehicle control,

accident and injury. Ford strongly recommends that drivers use extreme caution when using any device that may take their focus off the road. The drivers primary responsibility is the safe operation of their vehicle. Only use cell phones and other devices not essential to the driving task when it is safe to do so.

Export unique (Non–United States/Canada) vehicle specific information

For your particular global region, your vehicle may be equipped with features and options that are different from the ones that are described in this Owner’s Guide. A market unique supplement may be supplied that complements this book. By referring to the market unique supplement, if provided, you can properly identify those features, recommendations and specifications that are unique to your vehicle. This Owner’s Guide is written primarily for the U.S. and Canadian Markets. Features or equipment listed as standard may be different on units built for Export. Refer to this Owner’s Guide for all other required

information and warnings.

2008 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

Page 8

Introduction

These are some of the symbols you may see on your vehicle.

Vehicle Symbol Glossary

Safety Alert

Fasten Safety Belt Airbag - Front

Airbag - Side

Child Seat Tether Anchor

Anti-Lock Brake System Parking Brake System

Brake Fluid Non-Petroleum Based

Stability Control System Speed Control

Master Lighting Switch Hazard Warning Flasher

Fog Lamps-Front Fuse Compartment

See Owner’s Guide

Child Seat Lower Anchor

Brake System

Parking Aid System

Fuel Pump Reset Windshield Wash/Wipe

Windshield Defrost/Demist

Rear Window Defrost/Demist

2008 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

Page 9

Vehicle Symbol Glossary

Introduction

Power Windows Front/Rear

Child Safety Door Lock/Unlock

Power Window Lockout

Interior Luggage Compartment Release

Panic Alarm Engine Oil

Engine Coolant

Engine Coolant Temperature

Do Not Open When Hot Battery

Avoid Smoking, Flames, or Sparks

Battery Acid

Explosive Gas Fan Warning

Power Steering Fluid

Maintain Correct Fluid Level

Service Engine Soon Engine Air Filter

MAX

MIN

Passenger Compartment Air Filter

Check Fuel Cap

2008 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

Jack

Low Tire Pressure Warning

Page 10

Instrument Cluster

WARNING LIGHTS AND CHIMES

Standard instrument cluster

Optional instrument cluster

Warning lights and gauges can alert you to a vehicle condition that may become serious enough to cause extensive repairs. A warning light may illuminate when a problem exists with one of your vehicle’s functions. Many lights will illuminate when you start your vehicle to make sure the bulbs work. If any light remains on after starting the vehicle, refer to the respective system warning light for additional information.

Service engine soon: The Service engine soon indicator light

illuminates when the ignition is first turned to the ON position to check

2008 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

Page 11

Instrument Cluster

the bulb and to indicate whether the vehicle is ready for Inspection/Maintenance (I/M) testing. Normally, the ⬙Service engine soon⬙ light will stay on until the engine is cranked, then turn itself off if no malfunctions are present. However, if after 15 seconds the ⬙Service engine soon⬙ light blinks eight times, it means that the vehicle is not ready for I/M testing. See the Readiness for Inspection/Maintenance (I/M) testing in the Maintenance and Specifications chapter.

Solid illumination after the engine is started indicates the On Board Diagnostics System (OBD-II) has detected a malfunction. Refer to On board diagnostics (OBD-II) in the Maintenance and Specifications chapter. If the light is blinking, engine misfire is occurring which could damage your catalytic converter. Drive in a moderate fashion (avoid heavy acceleration and deceleration) and have your vehicle serviced immediately by your authorized dealer.

Under engine misfire conditions, excessive exhaust temperatures

could damage the catalytic converter, the fuel system, interior floor coverings or other vehicle components, possibly causing a fire.

Check fuel cap: Illuminates when the fuel cap may not be properly installed. Continued driving with this light on may cause the Service engine soon warning light to come on, refer to Fuel filler cap in the Maintenance and Specification chapter.

Brake system warning light: To confirm the brake system warning light is functional, it will momentarily illuminate when the ignition is turned to the ON position when the engine is not running, or in a position between ON and START, or by applying the parking brake when the ignition is turned to the ON position. If the brake system warning light does not illuminate at this time, seek service immediately from your authorized dealer. Illumination after releasing the parking brake indicates low brake fluid level or a brake system malfunction and the brake system should be inspected immediately by your authorized dealer.

BRAKE

2008 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

Page 12

Instrument Cluster

Driving a vehicle with the brake system warning light on is

dangerous. A significant decrease in braking performance may occur. It will take you longer to stop the vehicle. Have the vehicle checked by your authorized dealer. Driving extended distances with the parking brake engaged can cause brake failure and the risk of personal injury.

Anti-lock brake system (if equipped): If the ABS light

stays illuminated or continues to flash, a malfunction has been detected, have the system serviced immediately by your authorized dealer. Normal braking is still functional unless the brake warning light also is illuminated.

Airbag readiness: If this light fails to illuminate when the ignition is turned to ON, continues to flash or remains on, have the system serviced immediately by your authorized dealer. A chime will also sound when a malfunction in the supplemental restraint system has been detected.

Safety belt: Reminds you to fasten your safety belt. A Belt-Minder威 chime will also sound to remind you to fasten your safety belt. Refer to the Seating and safety restraints chapter to activate/deactivate the Belt-Minder威 chime feature.

Charging system: Illuminates when the battery is not charging properly.

ABS

Engine oil pressure: Illuminates when the oil pressure falls below the normal range, refer to Engine oil in the Maintenance and Specifications chapter.

2008 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

Page 13

Instrument Cluster

Traction Control™: Illuminates when the Traction Control™ is active. If the light remains on, have the system serviced immediately, refer to the Driving chapter for more information.

Low tire pressure warning:

Illuminates when your tire pressure is low. If the light remains ON at start up or while driving, the tire pressure should be checked. Refer to Inspecting and Inflating Your Tires in the Tires, Wheels and Loading chapter. When the ignition is first turned to ON, the light will illuminate for 3 seconds to ensure the bulb is working. If the light does not turn ON or begins to flash, have the system inspected by your authorized dealer. For more information on this system, refer to

Understanding Your Tire Pressure Monitoring System in the Tires, Wheels and Loading chapter.

Low fuel (if equipped):

Illuminates when the fuel level in the fuel tank is at or near empty (refer to Fuel gauge in this chapter).

Speed control: Illuminates when the speed control is engaged. Turns off when the speed control system is disengaged.

Door ajar (if equipped):

Illuminates when the ignition is in the ON position and any door or decklid is open.

Anti-theft system: Flashes when the SecuriLock™ Passive Anti-theft System has been activated.

2008 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

Page 14

Instrument Cluster

Throttle Control/Transmission:

Illuminates when a powertrain or a AWD fault has been detected. Contact your authorized dealer as soon as possible.

Turn signal: Illuminates when the left or right turn signal or the hazard lights are turned on. If the indicators flash faster, check for a burned out bulb.

High beams: Illuminates when the high beam headlamps are turned on.

Key-in-ignition warning chime: Sounds when the key is left in the ignition in the OFF/LOCK or ACCESSORY position and the driver’s door is opened.

Headlamps on warning chime: Sounds when the headlamps or parking lamps are on, the ignition is off (the key is not in the ignition) and the driver’s door is opened.

Parking brake ON: Sounds when the parking brake is left ON and driven. If the warning stays on after the park brake is off, contact your authorized dealer as soon as possible.

GAUGES

2008 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

Page 15

Instrument Cluster

Speedometer: Indicates the current vehicle speed.

Engine coolant temperature gauge: Indicates engine coolant

temperature. At normal operating temperature, the needle will be in the normal range (between “H” and “C”). If it enters the red section,

the engine is overheating. Stop the vehicle as soon as safely possible, switch off the engine and let the engine cool.

Never remove the coolant reservoir cap while the engine is

running or hot.

Fuel gauge: Indicates approximately how much fuel is left in the fuel tank (when the ignition is in the ON position). The fuel gauge may vary slightly when the vehicle is in motion or on a grade.

The FUEL icon and arrow indicates which side of the vehicle the fuel filler door is located.

Refer to Filling the tank in the Maintenance and Specifications chapter for more information.

2008 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

Page 16

Instrument Cluster

Tachometer: Indicates the engine speed in revolutions per minute. Driving with your tachometer pointer continuously at the top of the scale may damage the engine.

Odometer: Registers the total miles (kilometers) of the vehicle.

• Without Message Center

• With Message Center

Refer to Message Center in the Driver Controls chapter on how to switch the display from Metric to English.

Trip odometer: Registers the miles (kilometers) of individual journeys.

• Without Message Center Tap on the button to toggle the

display between the trip and the odometer. Holding the TRIP/RESET button for two seconds or more will reset the trip odometer to zero.

• With Message Center Press and release the message

center INFO button until “TRIP” appears in the display (this represents the trip mode). Press the control again to select Trip A and Trip B features. Press and hold the RESET button for two seconds to reset.

2008 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

Page 17

Entertainment Systems

AUDIO SYSTEMS Quick start — How to get going

Driving while distracted can result in loss of vehicle control,

Listening to the radio

1. If the audio system is off, press VOL-PUSH to turn the radio on. Turn VOL-PUSH to adjust the volume.

Note: The system may take a few moments to turn on.

2. Press AM/FM repeatedly to choose between AM/FM1/FM2 frequency bands.

3. Press up/down the frequency band.

/ to manually go

Press down/up the chosen frequency band

for the next strongest station. To disengage SEEK mode,

press

4. Once you are tuned to the desired station, press and hold a memory preset (1–6) to save the station. PRESET SAVED will appear on the display and the sound will return signifying the station has been saved. You can save up to six stations in each frequency band — six in AM, six in FM1 and six in FM2.

To access your saved stations, press the corresponding memory preset. The memory preset # and the station frequency will appear on the display.

SEEK to search

/ .

2008 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

Page 18

Entertainment Systems

Listening to satellite radio (if equipped)

1. If the audio system is turned off, press VOL-PUSH to turn the radio on. Turn VOL-PUSH to adjust the volume.

Note: The system may take a few moments to turn on.

2. Press AUX repeatedly to cycle through auxiliary audio sources. Select SAT1, SAT2 or SAT3 to listen to satellite radio.

3. Press access the previous or next satellite

channel. You may also seek by music

category. For further information, refer to CATEGORY listing under the MENU control on your specific audio system.

4. Once you are tuned to the desired channel, press and hold a memory preset (1–6) to save the channel. PRESET SAVED will appear on the display and the sound will return signifying the station has been saved. You can save up to six channels in each — six in SAT1, six in SAT2, and six in SAT3.

To access your saved channels, press the corresponding memory preset. The memory preset # and the channel name will appear on the display.

SEEK, SEEK to

Listening to a CD/MP3 (if equipped)

1. If the audio system is turned off, press VOL-PUSH to turn the radio on. Turn VOL-PUSH to adjust the volume.

Note: The system may take a few moments to turn on.

2. Press CD to enter CD mode. If a disc is already loaded into the system, CD play will begin where it ended last.

2008 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

Page 19

Entertainment Systems

For a single CD system, if a disc is not already loaded, insert only one, label side up into the CD slot. LOADING CD and READING DISC will appear in the display. The first track on the disc will begin playing.

For an in-dash six CD system, if a disc is not already loaded, press LOAD. Select a slot number using memory presets 1–6. When the display reads LOAD CD#, load the desired disc, label side up. If you do not choose a slot within 5 seconds, the system will choose for you. Once loaded, the first track will begin to play. To auto load up to 6 discs, press and hold LOAD until the display reads AUTOLOAD#. Load the desired disc, label side up. The system will prompt you to load discs for the remaining available slots. Insert the discs, one at a time, label side up, when prompted. Once loaded, the last loaded disc will begin to play.

Note: An MP3 disc with folders will show F001 (folder #) T001 (track #) in the display. An MP3 disc without folders will show T001 (track#) in the display. Refer to MP3 folder structure later in this chapter for further information.

3. In CD/MP3 mode, you can access the following features:

Press access the previous/next tracks.

SEEK, SEEK to

Press and hold REW to manually reverse in a CD/MP3 track.

Press and hold FF to manually advance in a CD/MP3 track.

While in folder mode, press FOLDER to access the previous folder on MP3 discs, if available.

While in folder mode, press FOLDER folder on MP3 discs, if available.

to access the next

2008 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

Page 20

Entertainment Systems

Press SHUFFLE to engage shuffle mode. SHUFFLE ON will appear in the display. If you wish to engage shuffle mode right away, press SEEK to begin random play. Otherwise, random play will begin when the current track is finished playing. CD SHUF will appear in the display. To disengage, press SHUFFLE again. SHUFFLE OFF will appear in the display.

Note: In track mode, all tracks on the current disc will shuffle in random order. In MP3 folder mode, the system will randomly play all tracks within the current folder.

Press CD/MP3 is playing to pause the disc.

CD PAUSE will appear in the display. Press again to resume play.

4. For a single cd system, press The display will read CD EJECT.

For an in-dash six CD system,

press number using memory presets 1–6. When ready, the system will eject the disc and the display will read REMOVE CD. If the disc is not removed in 15 seconds, the system will reload the disc. To auto eject up to 6 discs, press and hold begins ejecting all loaded discs. If the discs are not removed, the system will reload the discs.

/ (play/pause) when a

to eject the current disc.

. Select the correct slot

until the system

2008 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

Page 21

Entertainment Systems

AM/FM Single CD/MP3 satellite compatible sound system (if equipped)

Driving while distracted can result in loss of vehicle control,

Accessory delay: Your vehicle is equipped with accessory delay. With this feature, the window switches, radio and moon roof (if equipped) may be used for up to ten minutes after the ignition is turned off or until either front door is opened.

/ (Tuner): Press to

1. manually go up or down the radio

frequency. Also use in menu mode to select various settings.

In satellite radio mode (if equipped), press next/previous channel.

/ to tune to the

2008 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

Page 22

Entertainment Systems

In CATEGORY MODE, press / to scroll through the list of available SIRIUS channel Categories (Pop, Rock, News, etc.). Refer to

Category Mode under Menu for further information. Satellite radio is available only with a valid SIRIUS subscription. Check with your authorized dealer for availability.

(Phone): If your vehicle is

2. equipped with SYNC (late availability), press to access SYNC PHONE features. Refer to your SYNC supplement for further information. If your vehicle is not equipped with SYNC, the display will read NO PHONE.

3. MENU: Press repeatedly to access the following settings:

SATELLITE RADIO MENU (if equipped): Press MENU when satellite radio mode is active to access. Press OK to enter into the satellite radio

menu. Press

/ to cycle through the following options:

• CATEGORY: Press OK to enter category mode. Press scroll through the list of available SIRIUS channel Categories (Pop,

Rock, News, etc.) Press OK when the desired category appears in the display. After a category is selected, press SEEK to search for that specific category of channels only (i.e. ROCK). You may also select CATEGORY ALL to seek all available SIRIUS categories and channels. Press OK to close and return to the main menu.

• SAVE SONG: Press OK to save the currently playing song’s title in the system’s memory. (If you try to save something other than a song, CANT SAVE will appear in the display.) When the chosen song is playing on any satellite radio channel, the system will alert you with an audible prompt. Press OK while SONG ALERT is in the display and the system will take you to the channel playing the desired song. You can save up to 20 song titles. If you attempt to save more than 20 titles, the display will read REPLACE SONG? Press OK to access the

saved titles and press the song title appears in the display that you would like to replace,

press OK. SONG REPLACED will appear in the display.

/ to cycle through the saved titles. When

/ to

2008 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

Page 23

Entertainment Systems

• DELETE SONG: Press OK to delete a song from the system’s memory. Press song appears in the display that you would like to delete, press OK.

The song will appear in the display for confirmation. Press OK again and the display will read SONG DELETED. If you do not want to

delete the currently listed song, press RETURN or CANCEL.

Note: If there are no songs presently saved, the display will read NO SONGS.

• DELETE ALL SONGS: Press OK to delete all song’s from the system’s memory. The display will read ARE YOU SURE ? Press OK to confirm deletion of all saved songs and the display will read ALL DELETED. Note: If there are no songs presently saved, the display will read NO SONGS.

• ENABLE ALERTS / DISABLE ALERTS: Press OK to enable/disable the satellite alert status which alerts you when your selected songs are playing on a satellite radio channel. (The system default is disabled.) SONG ALERTS ENABLED/DISABLED will appear in the display. The menu listing will display the opposite state. For example, if you have chosen to enable the song alerts, the menu listing will read DISABLE as the alerts are currently on, so your other option is to turn them off.

Satellite radio is available only with a valid SIRIUS radio subscription. Check with your authorized dealer for availability.

Setting the clock: If your vehicle is equipped with an in-dash clock, refer to Clock in the Driver Controls chapter for instructions on how to set the time.

If your vehicle is not equipped with an in-dash clock, press MENU until SET HOURS or SET MINUTES appears in the display. Press adjust the hours/minutes. Press OK to close and return to the main

menu. AUTOSET: Press MENU until the display reads AUTOSET. Autoset

allows you to set the strongest local radio stations without losing your original manually set preset stations for AM/FM1/FM2. Use

SEEK, SEEK to turn on/off.

When the six strongest stations are filled, the station stored in preset 1 will begin playing. If there are less than six strong stations, the system will store the last one in the remaining presets. Press OK to close and return to the main menu.

/ to cycle through the saved songs. When the

/ to select either

/ to

/ /

2008 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

Page 24

Entertainment Systems

RBDS: Available only in FM mode. This feature allows you to search RBDS-equipped stations for a certain category of music format: CLASSIC, COUNTRY, INFORM, JAZZ/RB, ROCK, etc. To activate, press MENU repeatedly until RBDS (ON/OFF) appears in

the display. Use RBDS is OFF, you will not be able to search for RBDS equipped stations

or view the station name or type. Press OK to close and return to the main menu.

To search for specific RBDS music categories: When the desired category appears in the display, press

then press and release begin the search.

To view the station name or type: When the desired category appears in the display, press TEXT/SCAN to toggle between displaying the station type (COUNTRY, ROCK, etc.) or the station name (WYCD, WXYZ, etc.).

BASS: Press MENU to reach the bass setting. Use Press OK to close and return to the main menu.

TREB (Treble): Press MENU to reach the treble setting. Use adjust. Press OK to close and return to the main menu.

BAL (Balance): Press MENU to reach the balance setting. Use to adjust the audio between the left (L) and right (R) speakers. Press

OK to close and return to the main menu.

FADE: Press MENU to reach the fade setting. Use audio between the back (B) and front (F) speakers. Press OK to close

and return to the main menu. SPEEDVOL (Speed sensitive volume, if equipped): Press MENU to

reach the SPEEDVOL setting. Radio volume automatically gets louder with increasing vehicle speed to compensate for road and wind noise.

Use

The default setting is off; increasing your vehicle speed will not change the volume level. Press OK to close and return to the main menu.

Adjust 1–7: Increasing this setting from 1 (lowest setting) to 7 (highest setting) allows the radio volume to automatically change slightly with vehicle speed to compensate for road and wind noise.

Recommended level is 1–3; SPEED OFF turns the feature off and level 7 is the maximum setting.

/ to adjust.

/ / SEEK to toggle RBDS ON/OFF. When

/ to find the desired type,

SEEK, SEEK or press and hold SCAN to

/ to adjust.

/ to

/ to adjust the

2008 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

Page 25

Entertainment Systems

Track/Folder mode: Available only on MP3 discs in CD mode. In track mode, press the disc In folder mode, press within the selected folder. Press available). Press OK to close and return to the main menu.

COMPRESS (Compression): Available only in CD/MP3 mode. Press MENU until COMPRESS ON/OFF appears in the display. Use

system will bring the soft and loud CD passages together for a more consistent listening level. Press OK to close and return to the main menu.

4. AUX:Press repeatedly to cycle

through LINE IN (auxiliary audio mode), SAT1, SAT2 and SAT3 modes (satellite radio, if equipped) and SYNC (late availability - if equipped). For location and further information on auxiliary audio mode, refer to

Auxiliary input jack later in this chapter. Satellite radio is available only with a valid SIRIUS radio subscription. Check with your authorized dealer for availability.

If your vehicle is equipped with SYNC, please refer to the SYNC supplement for further information.

5. SEEK: In radio mode, press

strong station.

In CD mode, press access the previous/next CD track.

In satellite radio mode (if equipped), press seek to the previous/next channel. If a specific category is selected, (Jazz, Rock, News, etc.), press previous/next channel in the selected category. Press and hold

In TEXT MODE, press previous/additional display text.

FOLDER, FOLDER to access the previous/next folder (if

SEEK, SEEK to toggle ON/OFF. When COMPRESS is ON, the

/ to access the previous/next

SEEK, SEEK to fast seek through the previous /next channels.

SEEK, SEEK to scroll through all tracks on

SEEK, SEEK to scroll through tracks

/ /

/ to

SEEK, SEEK to

SEEK, SEEK to seek to the

SEEK, SEEK to view the

2008 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

Page 26

Entertainment Systems

In CATEGORY MODE, press SEEK, SEEK to select a category.

Satellite radio is available only with a valid SIRIUS subscription. Check with your authorized dealer for availability.

/ OK:

(Play/Pause): Press to pause the CD that is playing. PAUSE will appear in the display. Press again to return to playback mode.

OK: Use in various menu selections. Your vehicle may be equipped with the SYNC system which has special phone and media features. For further information, refer to the SYNC supplement.

7. SHUFFLE: Press SHUFFLE to

engage shuffle mode. SHUFFLE ON will appear in the display. If you wish to engage shuffle mode right away, press SEEK to begin random play. Otherwise, random play will begin when the current track is finished playing. CD SHUF will appear in the display. To disengage, press SHUFFLE again. SHUFFLE OFF will appear in the display.

Note: In track mode, all tracks on the current disc will shuffle in random order. In MP3 folder mode, the system will randomly play all tracks within the current folder.

8. FOLDER

press FOLDER folder on MP3 discs, if available.

FOLDER: In folder mode,

press previous folder on MP3 discs, if available.

10. FF (Fast forward): Press FF

to manually advance in a CD/MP3 track.

11. REW (Rewind): Press REW to

manually reverse in a CD/MP3 track.

: In folder mode,

to access next

FOLDER to access the

2008 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

Page 27

Entertainment Systems

12. Memory presets: To set a

station, select the desired frequency band, AM, FM1 or FM2. Tune to the desired station. Press and hold a preset button until sound returns and PRESET # SAVED appears in the display. You can save up to 18 stations, six in AM, six in FM1 and FM2.

In satellite radio mode (if equipped), there are 18 available presets, six each for SAT1, SAT2 and SAT3. To save satellite channels in your memory presets, tune to the desired channel then press and hold a preset control until sound returns.

Satellite radio is available only with a valid SIRIUS radio subscription. Check with your authorized dealer for availability.

13. TEXT/SCAN: In radio and

CD/MP3 mode, press and hold for

a brief sampling of radio stations or CD tracks. Press again to stop. In MP3 mode, press and release to display track title, artist name, and disc title.

In satellite radio mode (if equipped), press and release to enter TEXT MODE and display the current song title. While in TEXT MODE, press again to scroll through the current song title, artist, channel category and the SIRIUS long channel name.

In TEXT MODE sometimes the display requires additional text to be displayed. When the “>” indicator is active, press SEEK additional display text. When the “<” indicator is active, press to view the previous display text.

In satellite radio mode (if equipped), press and hold to hear a brief sampling of the next channels. Press again to stop. In CATEGORY MODE, press SCAN to hear a brief sampling of the channels in the selected category. Press again to stop.

Satellite radio is available only with a valid SIRIUS radio subscription. Check with your authorized dealer for availability.

14. AM/FM: Press to select

AM/FM1/FM2 frequency band.

to view the

SEEK

2008 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

Page 28

Entertainment Systems

15. ON/OFF/Volume: Press to turn

ON/OFF. Turn to increase/decrease volume.

Note: If the volume is set above a certain level and the ignition is turned off, the volume will come back on at a “nominal” listening level when the ignition switch is turned back on.

16. CD: Press to enter CD/MP3

mode. If a CD/MP3 is already loaded into the system, CD/MP3 play will begin where it ended last. If no CD is loaded, NO DISC will appear in the display.

17.

CD/MP3.

18. CD slot: Insert a CD/MP3 label

side up in the CD slot.

(CD eject): Press to eject a

2008 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

Page 29

Entertainment Systems

Premium/Audiophile AM/FM in-dash six CD/MP3 satellite compatible sound system (if equipped)

Driving while distracted can result in loss of vehicle control,

Accessory delay: Your vehicle is equipped with accessory delay. With this feature, the window controls, radio and moon roof (if equipped) may be used for up to ten minutes after the ignition is turned off or until either front door is opened.

/ (Tune/Disc selector):

1. In radio mode, press to manually go up ( radio frequency. Press and hold for

a fast advance through radio frequencies.

In menu mode, use to select various settings. In CD/MP3 mode, press to select the desired disc.

) or down ( ) the

2008 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

Page 30

Entertainment Systems

In satellite radio mode (if equipped), press / to tune to the next/previous channel. In CATEGORY MODE, press available SIRIUS channel Categories (Pop, Rock, News, etc.). Refer to

Category Mode under Menu for further information. Satellite radio is available only with a valid SIRIUS radio subscription. Check with your authorized dealer for availability.

(Phone): If your vehicle is equipped with SYNC (late availability), press to access SYNC

PHONE features. Refer to your SYNC supplement for further information. If your vehicle is not equipped with SYNC, the display will read NO PHONE.

3. MENU: Press repeatedly to access the following settings:

SATELLITE RADIO MENU (if equipped): Press MENU when satellite radio mode is active to access. Press OK to enter into the satellite radio

menu. Press

/ to cycle through the following options:

/ to scroll through the list of

• CATEGORY: Press OK to enter category mode. Press

scroll through the list of available SIRIUS channel Categories (Pop, Rock, News, etc.) Press OK when the desired category appears in the display. After a category is selected, press SEEK to search for that specific category of channels only (i.e. ROCK). You may also select CATEGORY ALL to seek all available SIRIUS categories and channels. Press OK to close and return to the main menu.

• SAVE SONG: Press OK to save the currently playing song’s title in

the system’s memory. (If you try to save something other than a song, CANT SAVE will appear in the display.) When the chosen song is playing on any satellite radio channel, the system will alert you with an audible prompt. Press OK while SONG ALERT is in the display and the system will take you to the channel playing the desired song. You can save up to 20 song titles. If you attempt to save more than 20 titles, the display will read REPLACE SONG? Press OK to access the

saved titles and press the song title appears in the display that you would like to replace,

press OK. SONG REPLACED will appear in the display.

/ to cycle through the saved titles. When

/ to

2008 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

Page 31

Entertainment Systems

• DELETE SONG: Press OK to delete a song from the system’s

memory. Press song appears in the display that you would like to delete, press OK.

The song will appear in the display for confirmation. Press OK again and the display will read SONG DELETED. If you do not want to

delete the currently listed song, press RETURN or CANCEL.

Note: If there are no songs presently saved, the display will read NO SONGS.

• DELETE ALL SONGS: Press OK to delete all song’s from the

system’s memory. The display will read ARE YOU SURE ? Press OK to confirm deletion of all saved songs and the display will read ALL DELETED. Note: If there are no songs presently saved, the display will read NO SONGS.

• ENABLE ALERTS / DISABLE ALERTS: Press OK to enable/disable

the satellite alert status which alerts you when your selected songs are playing on a satellite radio channel. (The system default is disabled.) SONG ALERTS ENABLED/DISABLED will appear in the display. The menu listing will display the opposite state. For example, if you have chosen to enable the song alerts, the menu listing will read DISABLE as the alerts are currently on, so your other option is to turn them off.

Satellite radio is available only with a valid SIRIUS radio subscription. Check with your authorized dealer for availability.

Setting the clock: If your vehicle is equipped with an in-dash clock, refer to Clock in the Driver Controls chapter for instructions on how to set the time.

If your vehicle is not equipped with an in-dash clock, press MENU until SET HOURS or SET MINUTES appears in the display. Press adjust. Press OK to close and return to the main menu.

AUTOSET: Press MENU until the display reads AUTOSET. Autoset allows you to set the strongest local radio stations without losing your

original manually set preset stations for AM/FM1/FM2. Use

SEEK, SEEK to turn on/off.

/ to cycle through the saved songs. When the

/ to select either

/ to

/ /

2008 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

Page 32

Entertainment Systems

the display. Use RBDS is OFF, you will not be able to search for RBDS equipped stations

or view the station name or type. Press OK to close and return to the main menu.

To search for specific RBDS music categories: When the desired category appears in the display, press

then press and release begin the search.

BASS: Press MENU to reach the bass setting. Use Press OK to close and return to the main menu.

TREB (Treble): Press MENU to reach the treble setting. Use adjust. Press OK to close and return to the main menu.

BAL (Balance): Press MENU to reach the balance setting. Use to adjust the audio between the left (L) and right (R) speakers. Press

OK to close and return to the main menu.

FADE: Press MENU to reach the fade setting. Use audio between the back (B) and front (F) speakers. Press OK to close

and return to the main menu. SPEEDVOL (Speed sensitive volume, if equipped): Press MENU to

reach the SPEEDVOL setting. Radio volume automatically gets louder with increasing vehicle speed to compensate for road and wind noise.

Use

The default setting is off; increasing your vehicle speed will not change the volume level.

Adjust 1–7: Increasing this setting from 1 (lowest setting) to 7 (highest setting) allows the radio volume to automatically change slightly with vehicle speed to compensate for road and wind noise.

Recommended level is 1–3; SPEED OFF turns the feature off and level 7 is the maximum setting.

/ to adjust. Press OK to close and return to the main menu.

/ / SEEK to toggle RBDS ON/OFF. When

/ to find the desired type,

SEEK, SEEK or press and hold SCAN to

/ to adjust.

/ to

/ to adjust the

2008 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

Page 33

Entertainment Systems

COMPRESS (Compression): Available only in CD/MP3 mode. Press MENU until COMPRESS ON/OFF appears in the display. Use

system will bring the soft and loud CD passages together for a more consistent listening level. Press OK to close and return to the main menu.

ALL SEATS (Occupancy mode): Available on Audiophile audios only. Use SEAT or REAR SEATS. Press OK to close and return to the main menu.

4. AUX: Press repeatedly to cycle through LINE IN (auxiliary audio mode), SAT1, SAT2 and SAT3 (satellite radio, if equipped), and SYNC (late availability - if equipped). To return to radio mode, press AM/FM. For location and further information on auxiliary audio mode, refer to

Auxiliary input jack later in this chapter. Satellite radio is available only with a valid SIRIUS radio subscription. Check with your authorized dealer for availability.

If your vehicle is equipped with SYNC, please refer to the SYNC supplement for further information.

5. Seek: In radio and CD/MP3 mode, press to access the previous

( or track.

In satellite radio mode (if equipped), press the previous/next channel. If a specific category is selected, (Jazz, Rock, News, etc.), press

channel in the selected category. Press and hold SEEK, SEEK to fast seek through the previous /next channels.

FOLDER, FOLDER to access the previous/next folder (if

SEEK, SEEK to toggle ON/OFF. When COMPRESS is ON, the

/ to select and optimize sound for ALL SEATS, DRIVERS

) or next ( ) strong station

SEEK, SEEK to scroll through all tracks on

SEEK, SEEK to scroll through tracks

/ /

SEEK to seek to

SEEK, SEEK to seek to the previous/next

2008 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

Page 34

Entertainment Systems

In TEXT MODE, press SEEK, SEEK to view the previous/additional display text. In CATEGORY MODE, press

Satellite radio is available only with a valid SIRIUS subscription. Check with your authorized dealer for availability.

/ OK:

6. (Play/Pause): Press to pause the

CD that is playing. PAUSE will appear in the display. Press again to return to playback mode.

OK: Use in various menu selections. Your vehicle may be equipped with the SYNC system which has special phone and media features. For further information, refer to the SYNC supplement.

7. SHUFFLE: Press SHUFFLE to engage shuffle mode. SHUFFLE ON will appear in the display. If you wish to engage shuffle mode right away, press SEEK to begin random play. Otherwise, random play will begin when the current track is finished playing. CD SHUF will appear in the display. To disengage, press SHUFFLE again. SHUFFLE OFF will appear in the display.

Note: In track mode, all tracks on the current disc will shuffle in random order. In MP3 folder mode, the system will randomly play all tracks within the current folder.

8. FOLDER press FOLDER to access next

folder on MP3 discs, if available.

FOLDER: In folder mode,

9. press FOLDER to access the

previous folder on MP3 discs, if available.

10. FF (Fast forward): Press FF to manually advance in a CD/MP3 track.

11. REW (Rewind): Press REW to manually reverse in a CD/MP3 track.

: In folder mode,

SEEK, SEEK to select a category.

2008 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

Page 35

Entertainment Systems

12. Memory presets: To set a station, select the desired frequency band, AM, FM1 or FM2. Tune to the desired station. Press and hold a preset button until sound returns and PRESET # SAVED appears in the display. You can save up to 18 stations, six in AM, six in FM1 and FM2.

Satellite radio is available only with a valid SIRIUS radio subscription. Check with your authorized dealer for availability.

13. TEXT/SCAN: In radio and CD/MP3 mode, press and hold for

a brief sampling of radio stations or CD tracks. Press again to stop. In MP3 mode, press and release to display track title, artist name, and disc title.

Satellite radio is available only with a valid SIRIUS radio subscription. Check with your authorized dealer for availability.

14. AM/FM: Press to select AM/FM1/FM2 frequency band.

to view the

SEEK

2008 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

Page 36

Entertainment Systems

15. ON/OFF/Volume: Press to turn ON/OFF. Turn to increase/decrease volume.

Note:If the volume is set above a certain level and the ignition is turned off, the volume will come back on at a “nominal” listening level when the ignition switch is turned back on.

16. CD: Press to enter CD/MP3 mode. If a disc is already loaded into the system, CD/MP3 play will begin where it ended last. If no CD is loaded, NO DISC will appear in the display.

17. LOAD: To load a disc into the system, press LOAD. Select a slot number using memory presets 1–6. When the display reads LOAD CD#, load the desired disc, label side up. If you do not choose a slot within 5 seconds, the system will choose for you. Once loaded, the first track will begin to play. To auto load up to 6 discs, press and hold LOAD until the display reads AUTOLOAD#. Load the desired disc, label side up. The system will prompt you to load discs for the remaining available slots. Insert the discs, one at a time, label side up, when prompted. Once loaded, the disc in preset #1 will begin to play.

18. from the system, press . Select

the correct slot number using memory presets 1–6. When ready, the system will eject the disc and the display will read REMOVE CD. If the disc is not removed in 15 seconds, the system will reload the disc. To auto eject up to 6 CDs, press and hold ejecting all loaded discs. If the discs are not removed, the system will reload the discs.

(CD eject): To eject a disc

until the system begins

2008 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

Page 37

Entertainment Systems

19. CD slot: When prompted by the system, insert a CD/MP3 label side up.

Auxiliary input jack (Line in)

Driving while distracted can result in loss of vehicle control,

Your vehicle is equipped with an Auxiliary Input Jack (AIJ). The Auxiliary Input Jack provides a way to connect your portable music player to the in-vehicle audio system. This allows the audio from a portable music player to be played through the vehicle speakers with high fidelity. To achieve optimal performance, please observe the following instructions when attaching your portable music device to the audio system.

Required equipment:

1. Any portable music player designed to be used with headphones

2. An audio extension cable with stereo male 1/8 in. (3.5 mm) connectors at each end

To play your portable music player using the auxiliary input jack:

1. Begin with the vehicle parked and the radio turned off.

2. Ensure that the battery in your portable music player is new or fully charged and that the device is turned off.

3. Attach one end of the audio extension cable to the headphone output of your player and the other end of the audio extension cable to the AIJ in your vehicle.

4. Turn the radio on, using either a tuned FM station or a CD loaded into the system. Adjust the volume to a comfortable listening level.

5. Turn the portable music player on and adjust the volume to 1/2 the volume.

2008 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

Page 38

Entertainment Systems

6. Press AUX on the vehicle radio repeatedly until LINE IN appears in the display. You should hear audio from your portable music player, although it may be low.

7. Adjust the sound on your portable music player until it reaches the level of the FM station or CD by switching back and forth between the AUX and FM or CD controls.

Troubleshooting:

1. Do not connect the audio input jack to a line level output. Line level outputs are intended for connection to a home stereo and are not compatible with the AIJ. The AIJ will only work correctly with devices that have a headphone output with a volume control.

2. Do not set the portable music player’s volume level higher than is necessary to match the volume of the CD or FM radio in your audio system as this will cause distortion and will reduce sound quality. Many portable music players have different output levels, so not all players should be set at the same levels. Some players will sound best at full volume and others will need to be set at a lower volume.

3. If the music sounds distorted at lower listening levels, turn the portable music player volume down. If the problems persists, replace or recharge the batteries in the portable music player.

4. The portable music player must be controlled in the same manner when it is used with headphones as the AIJ does not provide control (play, pause, etc.) over the attached portable music player.

5. For safety reasons, connecting or adjusting the settings on your portable music player should not be attempted while the vehicle is moving. Also, the portable music player should be stored in a secure location, such as the center console or the glove box, when the vehicle is in motion. The audio extension cable must be long enough to allow the portable music player to be safely stored while the vehicle is in motion.

USB port (if equipped)

Driving while distracted can result in loss of vehicle control,

2008 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

Page 39

Entertainment Systems

Your vehicle may be equipped with a USB port inside your center console. This feature allows you to plug in media playing devices, memory sticks, and also to charge devices. For further information on this feature, refer to Using your USB port in the SYNC supplement.

GENERAL AUDIO INFORMATION

Radio frequencies:

AM and FM frequencies are established by the Federal Communications Commission (FCC) and the Canadian Radio and Telecommunications Commission (CRTC). Those frequencies are:

AM: 530, 540–1700, 1710 kHz

FM: 87.7, 87.9–107.7, 107.9 MHz

Radio reception factors:

There are three factors that can affect radio reception:

• Distance/strength: The further you travel from an FM station, the weaker the signal and the weaker the reception.

• Terrain: Hills, mountains, tall buildings, power lines, electric fences, traffic lights and thunderstorms can interfere with your reception.

• Station overload: When you pass a broadcast tower, a stronger signal may overtake a weaker one and play while the weak station frequency is displayed.

CD/CD player care

Do:

• Handle discs by their edges only. (Never touch the playing surface).

• Inspect discs before playing.

• Clean only with an approved CD

cleaner.

2008 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

Page 40

Entertainment Systems

• Wipe discs from the center out.

Don’t:

• Expose discs to direct sunlight or heat sources for extended periods of time.

• Clean using a circular motion.

CD units are designed to play commercially pressed 4.75 in (12 cm) audio compact discs only. Due to technical incompatibility, certain recordable and re-recordable compact discs may not function correctly when used in Ford CD players.

Do not use any irregular shaped CDs or discs with a scratch protection film attached.

CDs with homemade paper (adhesive) labels should not be inserted into the CD player as the label may peel and cause the CD to become jammed. It is recommended that homemade CDs be identified with permanent felt tip marker rather than adhesive labels. Ballpoint pens may damage CDs. Please contact your authorized dealer for further information.

2008 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

Page 41

Entertainment Systems

Audio system warranty and service

Refer to the Warranty Guide for audio system warranty information. If service is necessary, see your dealer or qualified technician.

MP3 track and folder structure

Your MP3 system recognizes MP3 individual tracks and folder structure as follows:

• There are two different modes for MP3 disc playback: MP3 track mode (system default) and MP3 folder mode. For more information on track and folder mode, refer to Sample MP3 structure in the following section.

• MP3 track mode ignores any folder structure on the MP3 disc. The player numbers each MP3 track on the disc (noted by the .mp3 file extension) from T001 to a maximum of T255. Note: The maximum number of playable MP3 files may be less depending on the structure of the CD and exact model of radio present.

• MP3 folder mode represents a folder structure consisting of one level of folders. The CD player numbers all MP3 tracks on the disc (noted by the .mp3 file extension) and all folders containing MP3 files, from F001 (folder) T001 (track) to F253 T255.

• Creating discs with only one level of folders will help with navigation through the disc files.

2008 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

Page 42

Entertainment Systems

Sample MP3 structure

If you are burning your own MP3 discs, it is important to understand how the system will read the structures you create. While various files may be present, (files with extensions other than mp3), only files with the .mp3 extension will be played. Other files will be ignored by the system. This enables you to use the same MP3 disc for a variety of tasks on your work computer, home computer and your in vehicle system.

In track mode, the system will display and play the structure as if it were only one level deep (all .mp3 files will be played, regardless of being in a specific folder). In folder mode, the system will only play the .mp3 files in the current folder.

Satellite radio information (if equipped)

Satellite radio channels: SIRIUS broadcasts a variety of music, news, sports, weather, traffic and entertainment satellite radio channels. For more information and a complete list of SIRIUS satellite radio channels, visit www.sirius.com in the United States, www.sirius-canada.ca in Canada, or call SIRIUS at 1–888–539–7474.

Satellite radio reception factors: To receive the satellite signal, your vehicle has been equipped with a satellite radio antenna located on the roof of your vehicle. The vehicle roof provides the best location for an unobstructed, open view of the sky, a requirement of a satellite radio system. Like AM/FM, there are several factors that can affect satellite radio reception performance:

• Antenna obstructions: For optimal reception performance, keep the antenna clear of snow and ice build-up and keep luggage and other material as far away from the antenna as possible.

.mp3

.doc

.ppt

.xls

.mp3

2008 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

Page 43

Entertainment Systems

• Terrain: Hills, mountains, tall buildings, bridges, tunnels, freeway overpasses, parking garages, dense tree foliage and thunderstorms can interfere with your reception.

• Station overload: When you pass a ground based broadcast repeating tower, a stronger signal may overtake a weaker one and result in an audio mute.

Unlike AM/FM audible static, you will hear an audio mute when there is a satellite radio signal interference. Your radio display may display NO SIGNAL to indicate the interference.

SIRIUS satellite radio service: SIRIUS Satellite Radio is a subscription based satellite radio service that broadcasts music, sports, news and entertainment programming. A service fee is required in order to receive SIRIUS service. Vehicles that are equipped with a factory installed SIRIUS Satellite Radio system include:

• Hardware and limited subscription term, which begins on the date of sale or lease of the vehicle.

• Online media player providing access to all 65 SIRIUS music channels over the internet (U.S. customers only).

For information on extended subscription terms, contact SIRIUS at 1–888–539–7474.

Note: SIRIUS reserves the unrestricted right to change, rearrange, add or delete programming including canceling, moving or adding particular channels, and its prices, at any time, with or without notice to you. Ford Motor Company shall not be responsible for any such programming changes.

Satellite Radio Electronic Serial Number (ESN): This 12–digit Satellite Serial Number is needed to activate, modify or track your satellite radio account. You will need this number when communicating with SIRIUS. While in Satellite Radio mode, you can view this number on the radio display by pressing AUX and Preset 1 control simultaneously.

2008 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

Page 44

Entertainment Systems

Radio Display Condition Action Required

ACQUIRING Radio requires more

than two seconds to

produce audio for the

selected channel.

SAT FAULT Internal module or

system failure

present.

INVALID CHNL Channel no longer

available.

UNSUBSCRIBED Subscription not

available for this

channel.

NO TEXT Artist information not

available.

No action required.

This message should

disappear shortly.

If this message does

not clear within a short

period of time, or with

an ignition key cycle,

your receiver may have

a fault. See your

authorized dealer for

service.

This previously

available channel is no

longer available. Tune to another channel. If

the channel was one of

your presets, you may

choose another channel

for that preset button.

Contact SIRIUS at

1–888–539–7474 to

subscribe to the

channel or tune to

another channel.

Artist information not

available at this time on

this channel. The

system is working

properly.

2008 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

Page 45

Entertainment Systems

Radio Display Condition Action Required

NO TEXT Song title information

not available.

NO TEXT Category information

not available.

NO SIGNAL Loss of signal from

the SIRIUS satellite or

SIRIUS tower to the

vehicle antenna.

UPDATING Update of channel

programming in

progress.

CALL SIRIUS 1–888–539–7474

Satellite service has

been deactivated by

SIRIUS Satellite

Radio.

Song title information

not available at this

time on this channel.

The system is working

properly.

Category information

not available at this

time on this channel.

The system is working

properly.

You are in a location

that is blocking the

SIRIUS signal (i.e.,

tunnel, under an

overpass, dense foliage,

etc). The system is

working properly. When

you move into an open

area, the signal should

return.

No action required. The

process may take up to

three minutes. Call SIRIUS at

1–888–539–7474 to

re-activate or resolve

subscription issues.

NAVIGATION SYSTEM (IF EQUIPPED)

Your vehicle may be equipped with a Navigation System. Refer to the Navigation supplement for further information.

SYNC SYSTEM (LATE AVAILABILITY — IF EQUIPPED)

Your vehicle may be equipped with SYNC, a multi-media system with special phone and media features. Refer to your SYNC supplement for further information.

2008 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

Page 46

Climate Controls

MANUAL HEATING AND AIR CONDITIONING SYSTEM (IF EQUIPPED)

1. Temperature selection:

Controls the temperature of the airflow in the vehicle.

2. Air flow selections: Controls

the direction of the airflow in the vehicle. See the following for a brief description on each control setting:

MAX A/C: Distributes recirculated air through the instrument panel vents only to cool the vehicle. This re-cooling of the interior air is more economical and efficient. Recirculated air may also help reduce undesirable odors from entering the vehicle.

: Distributes air through the instrument panel vents.

: Distributes air through the instrument panel vents and floor vents.

O (OFF): Outside air is shut out and the climate system is turned off.

: Distributes air through the floor vents. Note: You may notice a

small amount of air flowing from the demister and defroster vents.

: Distributes air through the windshield defroster vents, demisters

and floor vents.

: Distributes outside air through the windshield defroster and demister vents. Can be used to clear thin ice or fog from the windshield. To exit

3. Rear defroster: Press to activate/deactivate rear window defroster. Refer to Rear window defroster in this section for more information.

4. in the vehicle cabin. Recirculated air may reduce the amount of time to cool down the interior of the vehicle and may also help reduce undesired odors from reaching the interior of the vehicle. Recirculation engages automatically with selection of MAX A/C or can be engaged manually in any other airflow selection except defrost. Recirculation may turn off automatically in all airflow selections except MAX A/C.

5. A/C: Press to activate/deactivate air conditioning. Use with recirculated air to improve cooling performance and efficiency. Engages

automatically in MAX A/C, Cannot be disabled in MAX A/C mode.

select another mode.

Recirculated air: Press to activate/deactivate air recirculation

(defrost) and (floor/defrost).

2008 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

Page 47

Climate Controls

6. Fan speed adjustment: Controls the volume of air circulated in the vehicle.

Manual heating and air conditioning system operating tips

• To reduce fog build up on the windshield during humid weather, place

the air flow selector in the

• To reduce humidity build up inside the vehicle: do not drive with the

airflow selector in the O (OFF) position or with recirculated air engaged and A/C off.

• Do not put objects under the front seats that will interfere with the

airflow to the back seats.

• Remove any snow, ice or leaves from the air intake area at the base of

the windshield.

• To improve the A/C cool down, drive with the windows slightly open

for 2–3 minutes after start up or until the vehicle has been “aired out.”

• For maximum cooling performance (MAX A/C):

In the MAX A/C mode:

• Move the temperature control selector to the coldest setting.

• Set the fan to the highest speed initially, then adjust to maintain

passenger comfort.

position.

In the

• Move the temperature control selector to the coldest setting.

• Select A/C and recirculated air

colder airflow.

• Set the fan to the highest speed initially, then adjust to maintain

passenger comfort.

• To aid in side window defogging/demisting in cold weather:

1. Select

2. Select A/C.

3. Set the temperature control to full heat.

4. Set the fan speed to the highest setting.

5. Direct the outer instrument panel vents towards the side windows.

and modes:

. Use with A/C to provide

2008 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

Page 48

Climate Controls

Do not place objects on top of the instrument panel as these objects may become projectiles in a collision or sudden stop.

AUTOMATIC TEMPERATURE CONTROL (ATC) SYSTEM (IF EQUIPPED)

Temperature conversion: To switch between Fahrenheit and Celsius: If your vehicle is equipped with a full message center, refer to Setup menu in the Message center section of the Driver Controls chapter for more information. If your vehicle is equipped with a mini message center, see your authorized dealer for temperature conversion.

MAX A/C setting: In order to achieve maximum cooling performance, press highest blower setting.

1. and demister vents. Can be used to clear thin ice or fog from the windshield. To exit

2. Fan speed control: Press to manually increase or decrease the fan speed. To return to automatic fan operation, press AUTO.

3. Rear window defroster in this section for more information. If your vehicle is equipped with both rear defroster and heated mirrors, the same button will activate both.

, A/C, , and set the temperature to 60° F (16° C) and the

Defrost: Distributes outside air through the windshield defroster

select another mode.

Rear defroster: Press to defrost the rear window. Refer to

2008 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

Page 49

Climate Controls

4. Recirculation control: Press to activate/deactivate air recirculation in cabin. Recirculated air may reduce the amount of time to cool down the interior of the vehicle and may also help reduce undesired odors from reaching the interior of the vehicle. Recirculation can be engaged manually in any other airflow selection except Recirculation may turn off automatically in all airflow selections except MAX A/C.

5. A/C control: Press to activate/deactivate air conditioning. Use with recirculated air to improve cooling performance and efficiency. Engages

automatically in AUTO,

(defrost) and (floor/defrost).

(defrost).

6. outlets, and the front and rear seat floor ducts. The system will automatically provide outside air to reduce window fogging.

8. registers (if equipped) and the front and rear seat floor ducts.

9. registers (if equipped).

10. Manual override controls: Allows you to manually select where airflow is directed. To return to full automatic control, press AUTO.

11. OFF: Outside air is shut out and the fan will not operate.

12. Temperature control: Controls the temperature in the cabin of the vehicle. Press to increase/decrease the temperature.

13. AUTO: To engage automatic temperature control, press AUTO and select the desired temperature using the temperature control. The system will automatically determine fan speed, airflow location, A/C on or off, and outside or recirculated air, to heat or cool the vehicle to reach the desired temperature.

14. EXT: Press to display outside temperature. Press again to display cabin temperature settings.

: Distributes air through the windshield defroster ducts, demister

: Distributes air through the floor and rear seat floor ducts.

: Distributes air through the instrument panel and center console

2008 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

Page 50

Climate Controls

Automatic Temperature Control (ATC) system with heated seats (if equipped)

Temperature conversion: To switch between Fahrenheit and Celsius: If your vehicle is equipped with a full message center, refer to Units (Fahrenheit/Celsius) in the Driver Controls chapter. If your vehicle is equipped with a mini message center, see your authorized dealer for temperature conversion.

MAX A/C setting: In order to achieve maximum cooling performance, press highest blower setting.

1. and demister vents. Can be used to clear thin ice or fog from the windshield. To exit

2. fan speed. To return to automatic fan operation, press AUTO.

3. Rear window defroster in this section for more information. If your vehicle is equipped with both rear defroster and heated mirrors, the same button will activate both.

4. seat. Press once to activate high heat (two indicator lights). Press again to activate low heat (one indicator light). Press again to deactivate the passenger heated seat.

, A/C, , and set the temperature to 60° F (16° C) and the

Defrost: Distributes outside air through the windshield defroster

select another mode.

Fan speed control: Press to manually increase or decrease the

Rear defroster: Press to defrost the rear window. Refer to

Passenger heated seat control: Press to heat the passenger

2008 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

Page 51

Climate Controls

5. : Distributes air through the windshield defroster ducts, demister outlets, and the front and rear seat floor ducts. The system will automatically provide outside air to reduce window fogging.

: Distributes air through the floor and rear seat floor ducts.

7. registers (if equipped) and the front and rear seat floor ducts.

8. registers (if equipped).

9. once to activate high heat (two indicator lights). Press again to activate low heat (one indicator light). Press again to deactivate the driver heated seat.

10. Manual override controls: Allows you to manually select where airflow is directed. To return to full automatic control, press AUTO.

11. recirculation in cabin. Recirculated air may reduce the amount of time to cool down the interior of the vehicle and may also help reduce undesired odors from reaching the interior of the vehicle. Recirculation can be engaged manually in any other airflow selection except Recirculation may turn off automatically in all airflow selections except MAX A/C.

12. A/C control: Press to activate/deactivate air conditioning. Use with recirculated air to improve cooling performance and efficiency. Engages

automatically in AUTO,

13. OFF: Outside air is shut out and the fan will not operate.

14. Temperature control: Press to increase/decrease the temperature in the vehicle cabin.

15. AUTO: To engage automatic temperature control, press AUTO and select the desired temperature using the temperature control. The system will automatically determine fan speed, airflow location, A/C on or off, and outside or recirculated air, to heat or cool the vehicle to reach the desired temperature.

16. EXT: Press to display outside temperature. Press again to display cabin temperature settings.

: Distributes air through the instrument panel and center console

Driver heated seat control: Press to heat the driver seat. Press

Recirculation control: Press to activate/deactivate air

(defrost).

(defrost) and (floor/defrost).

2008 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

Page 52

Climate Controls

Automatic Temperature Control (ATC) system operating tips

• To reduce fog build up on the windshield during humid weather, place

the air flow selector in the

• To reduce humidity build up inside the vehicle, do not drive with the

system OFF, or with recirculated air

• Do not put objects under the front seats that will interfere with the

airflow to the back seats.

• Remove any snow, ice or leaves from the air intake area at the base of

the windshield.

• To improve the A/C cool down, drive with the windows slightly open

for 2-3 minutes after start up or until the vehicle has been “aired out.”

• For maximum cooling performance (MAX A/C):

Automatic operation:

• Press AUTO for full automatic operation.

• Do not override A/C or

• Set the temperature to 60° F (16° C).

Override operation:

• Select air distribution.

• Select A/C and

with A/C to provide colder airflow.

• Set the temperature to 60° F (16° C).

• Set highest fan speed initially, then adjust to maintain comfort.

In MAX A/C setting:

• Move the temperature control to full cold.

• Set highest fan speed initially, then adjust to maintain comfort.

• Move temperature control to full cold.

• Select A/C and

• Set highest fan speed initially, then adjust to maintain comfort.

• To aid in side window defogging/demisting in cold weather:

1. Select

(panel) or (panel/floor) modes:

to provide colder airflow.

(recirculated air). Use (recirculated air)

(recirculated air). Use recirculated air with A/C

position.

engaged and A/C off.

(recirculated air).

2008 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

Page 53

Climate Controls

2. Select A/C.

3. Adjust the temperature control to maintain comfort.

4. Set the fan speed to the highest setting.

5. Direct the outer instrument panel vents towards the side windows. To increase airflow to the outer instrument panel vents, close the vents

located in the middle of the instrument panel.

Do not place objects on top of the instrument panel as these objects may become projectiles in a collision or sudden stop.

REAR WINDOW DEFROSTER

The rear defroster control is located on the climate control panel and works to clear the rear window of fog and thin ice.

The ignition must be in the 3 (RUN) position to operate the rear window defroster.

The rear defroster turns off automatically after 10 minutes or when the ignition is turned to the 1 (LOCK) position. To manually turn off the defroster before 10 minutes have passed, push the control again.

Do not use razor blades or other sharp objects to clean the inside of the rear window or to remove decals from the inside of the rear window. This may cause damage to the heated grid lines and will not be covered by your warranty.

2008 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

Page 54

Lights

HEADLAMP CONTROL

Turns the lamps off.

Turns on the parking lamps, instrument panel lamps, license plate lamps and tail lamps.

Turns the headlamps on.

Autolamp control (if equipped)

The autolamp system provides light sensitive automatic on-off control of the exterior lights normally controlled by the headlamp control.

• To turn autolamps on, rotate the

control counterclockwise to

• To turn autolamps off, rotate the

control clockwise to

The autolamp system also keeps the lights on for a predetermined amount of time after the ignition switch is turned to LOCK. You can change the amount of time the lamps stay on by using the programming procedure that follows:

Note: If the vehicle is equipped with autolamps it will have the headlamps on with windshield wipers feature. If the windshield wipers are turned on (for a fixed period of time) the exterior lamps will turn on with headlamp control in the Autolamp position.

Autolamps - Programmable exit delay

Programmable exit delay allows the length of the autolamp exit delay to be changed.

To program the auto lamp exit time delay:

1. Start with the ignition in the LOCK position and the headlamp control in the autolamp position.

2. Turn the headlamp switch to

2008 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

Page 55

Lights

3. Turn the ignition switch to RUN and then back to LOCK.

4. Turn the headlamp switch to the autolamp position. The headlamps will turn on.

5. Wait the desired amount of time for the exit delay you want (up to three minutes), then turn the headlamp switch to will turn off.

Fog lamp control (if equipped)

With the ignition on, the fog lamps can be turned on when the headlamp control is pulled toward you and is in any of the following positions:

• Parking lamps

• Low beams

• Autolamps (when active)

The fog lamps will not operate when the high beams are active.

Daytime running lamps (DRL) (if equipped)

Turns the headlamps on with a reduced output.

To activate:

• the ignition must be in the ON position,

• the headlamp control is in the OFF, autolamps or parking lamp

position and

• the transmission must be out of the Park position.

. The headlamps

Always remember to turn on your headlamps at dusk or during

inclement weather. The Daytime Running Lamp (DRL) system does not activate the tail lamps and generally may not provide adequate lighting during these conditions. Failure to activate your headlamps under these conditions may result in a collision.

2008 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

Page 56

Lights

High beams

Push the lever toward the instrument panel to activate. Pull the lever towards you to deactivate.

OFF

Flash to pass

Pull toward you slightly to activate and release to deactivate.

PANEL DIMMER CONTROL

Use to adjust the brightness of the instrument panel and all applicable switches in the vehicle during headlamp and parking lamp operation.

Move the control to the full upright position, past detent, to turn on the interior lamps.

Note: If the battery is disconnected, discharged, or a new battery is installed, the dimmer switch requires re-calibration. Rotate the dimmer switch from the full dim position to the full Dome/ON position to reset. This will ensure that your displays are visible under all lighting conditions.

2008 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

Page 57

Lights

AIMING THE HEADLAMPS

The headlamps on your vehicle are properly aimed at the assembly plant. If your vehicle has been in an accident the alignment of your headlamps should be checked by your authorized dealer.

Vertical aim adjustment

1. Park the vehicle directly in front of a wall or screen on a level surface, approximately 25 feet (7.6 meters) away.

• (1) 8 feet (2.4 meters)

• (2) Center height of lamp to

ground

• (3) 25 feet (7.6 meters)

• (4) Horizontal reference line

2. Measure the height of the headlamp bulb center from the ground and mark an 8 foot (2.5 meter) horizontal reference line on the vertical wall or screen at this height (a piece of masking tape works well).

3. Turn on the low beam headlamps to illuminate the wall or screen and open the hood.

To see a clearer light pattern for adjusting, you may want to block the light from one headlamp while adjusting the other.

4. On the wall or screen you will observe an area of high intensity light. The top of the high intensity area should touch the horizontal reference line, if not, the beam will need to be adjusted using the next step.

2008 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

Page 58

Lights

5. Locate the vertical adjuster on each headlamp. Using a Phillips #2 screwdriver, turn the adjuster either clockwise (to adjust down) or counterclockwise (to adjust up). The horizontal edge of the brighter light should touch the horizontal reference line.

6. Close the hood and turn off the lamps.

HORIZONTAL AIM IS NOT REQUIRED FOR THIS VEHICLE AND IS NON-ADJUSTABLE.

TURN SIGNAL CONTROL

• Push down to activate the left turn signal.

• Push up to activate the right turn signal.

INTERIOR LAMPS

Dome lamps and map lamps

The map lamps are located on the overhead console. Press the controls to turn on the lamps.

2008 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

Page 59

Your vehicle may also have reading lamps within the rear dome lamp(s).

Press the switches on either side of the dome lamp to turn on the lamps.

Ambient/Mood lighting (if equipped)

Never adjust the ambient/mood lighting when the vehicle is moving.

Illuminates 4 footwells, 2 console cupholders and the console bin with a choice of 7 colors. The ambient lighting control switch is located on the center console near the gearshift lever. To activate, press and release the control switch to cycle through the 7 color choices plus the OFF state.

Note: The ambient lights will stay ON until any door is opened.

BULB REPLACEMENT

Lights

Headlamp Condensation

The headlamps are vented to equalize pressure. When moist air enters the headlamp(s) through the vents, there is a possibility that condensation can occur. This condensation is normal and will clear within 45 minutes of headlamp operation.

Using the right bulbs

Replacement bulbs are specified in the chart below. Headlamp bulbs must be marked with an authorized “D.O.T.” for North America and an “E” for Europe to ensure lamp performance, light brightness and pattern and safe visibility. The correct bulbs will not damage the lamp assembly or void the lamp assembly warranty and will provide quality bulb burn time.

2008 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

Page 60

Lights

Function Number of bulbs

Headlamp high beam 2 H7 Headlamp low beam 2 H11LL Front sidemarker lamp 2 168 Front park/turn signal

lamp Rear sidemarker lamp 2 194 Stop/tail/turn lamp 2 4157 K Backup lamp 2 921 License plate lamp 2 C5W High-mount brake lamp 1 921 Fog lamp (if equipped) 2 H11 Map lamp 2 12V6W Dome/reading lamp 6 578 Visor vanity lamp - Slide

on Rail system (SOR) (if equipped)

Puddle lamp (if equipped) 2 W5W Glove box lamp 1 194 Luggage compartment

lamp All replacement bulbs are clear in color except where noted. To replace all instrument panel lights - see your authorized dealer.

2 37 or 14V1CP

1 578

Trade

number

3457NAK

(amber)

Replacing exterior bulbs

Check the operation of all the bulbs frequently.

Replacing headlamp bulbs

Highbeam bulb (lower) replacement

1. Make sure headlamp switch is in the OFF position, then open the

hood.

2. Reach over the front bolster.

2008 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

Page 61

Lights

3. Disengage top of flexible washer

bottle filler neck from snap strap attachment and position it to gain access path to the high beam bulb (Passenger Side Only with ABS).

Note: After completing Step 3. if the bulb is not accessible, see your authorized dealer for bulb replacement.

4. Remove the protective cap/grill

from the headlamp housing by grabbing it and pulling rearward.

5. Remove the bulb socket by

rotating it counterclockwise, then pulling it straight out of the lamp assembly.

6. Carefully pull bulb straight out of

socket and push in the new one.

Handle a halogen headlamp

bulb carefully and keep out of children’s reach. Grasp the bulb only by its plastic base and do not touch the glass. The oil from your hand could cause the bulb to break the next time the headlamps are operated.

7. For ease of bulb socket installation into the lamp assembly, hold the bulb socket at 15 degrees clockwise from a vertical position. Using the 2 lead wires oriented exactly up to represent the vertical reference position.

8. From the 15 degree position rotate the bulb socket clockwise to a locked position.

2008 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

Page 62

Lights

9. Tuck the 2 lead wires into the lamp housing to assure that they are not pinched when installing the protective rubber cap.

10. Install the protective cap/grill to the housing circular ring by pushing and pressing it forward.

11. Re-apply pressure around the complete circular ring on the housing to make sure the protective cap is completely seated.

12. Reconnect the washer bottle neck by reversing Step 3 (Passenger side only with ABS).

13. Turn the headlamps on and make sure they work properly. If the headlamp was correctly aligned before you changed the bulb, you should not need to align it again.

Lowbeam bulb (upper) replacement

1. Make sure headlamp switch is in OFF position, then open the hood.

2. Remove the vertical shield from the bolster by disengaging the S-shaped clip and rotate it up in a clockwise direction. (Driver’s side only)

3. Remove the AirTube from the air filter assembly. (Driver’s side only).

2008 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

Page 63

Lights

4. Remove screw from oval splash shield access panel from the exterior wheel well area. Lift up and rearward to release a hidden finger attachment at the lower portion of the panel (Passenger side only with ABS).

5. From the exterior wheel well area reach arm through splash shield opening to access bulb socket (Passenger side only with ABS).

6. Remove the protective cap/grill from the housing by grabbing it and pulling rearward.

7. Remove the bulb socket by rotating it counterclockwise, then pulling it straight out of the lamp assembly.

8. Let go of the bulb socket and leave it dangling near the lamp housing (Passenger side only with ABS).

9. Reach over the front bolster in the engine area, with a tool if necessary, bring the bulb socket upwards into an unobstructed area to replace the bulb (Passenger side only with ABS).

10. Disconnect the electrical connector from the bulb socket and discard the old bulb socket.

11. Connect the new bulb socket to the electrical connector.

2008 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

Page 64

Lights

Handle a halogen headlamp bulb carefully and keep out of

children’s reach. Grasp the bulb only by its plastic base and do not touch the glass. The oil from your hand could cause the bulb to break the next time the headlamps are operated.

12. After the new bulb is installed, carefully let the bulb socket dangle downward near the lamp housing (Passenger side only with ABS).

13. From the exterior wheel well area reach arm through splash shield opening to install bulb socket with new bulb (Passenger side only with ABS).

14. Install the new bulb socket into the lamp assembly by aligning the indexing fingers, then rotate clockwise to locked position.

15. Install the protective cap/grill to the housing circular ring by pushing and pressing it forward.

16. Re-apply pressure around the complete circular ring on the housing to make sure the protective cap is completely seated.

17. Reinstall splash shield access panel with screw (Passenger side only with ABS).

18. Reinstall the AirTube to the air filter assembly. (Driver’s side only).

19. Reinstall the vertical shield to the bolster. (Driver’s side only).

20. Turn the headlamps on and make sure they work properly. If the headlamp was correctly aligned before you changed the bulb, you should not need to align it again.

Replacing front parking lamp/turn signal bulbs

1. Make sure headlamp switch is in the OFF position, then open the hood.

2. Reach over the front bolster.

2008 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

Page 65

Lights

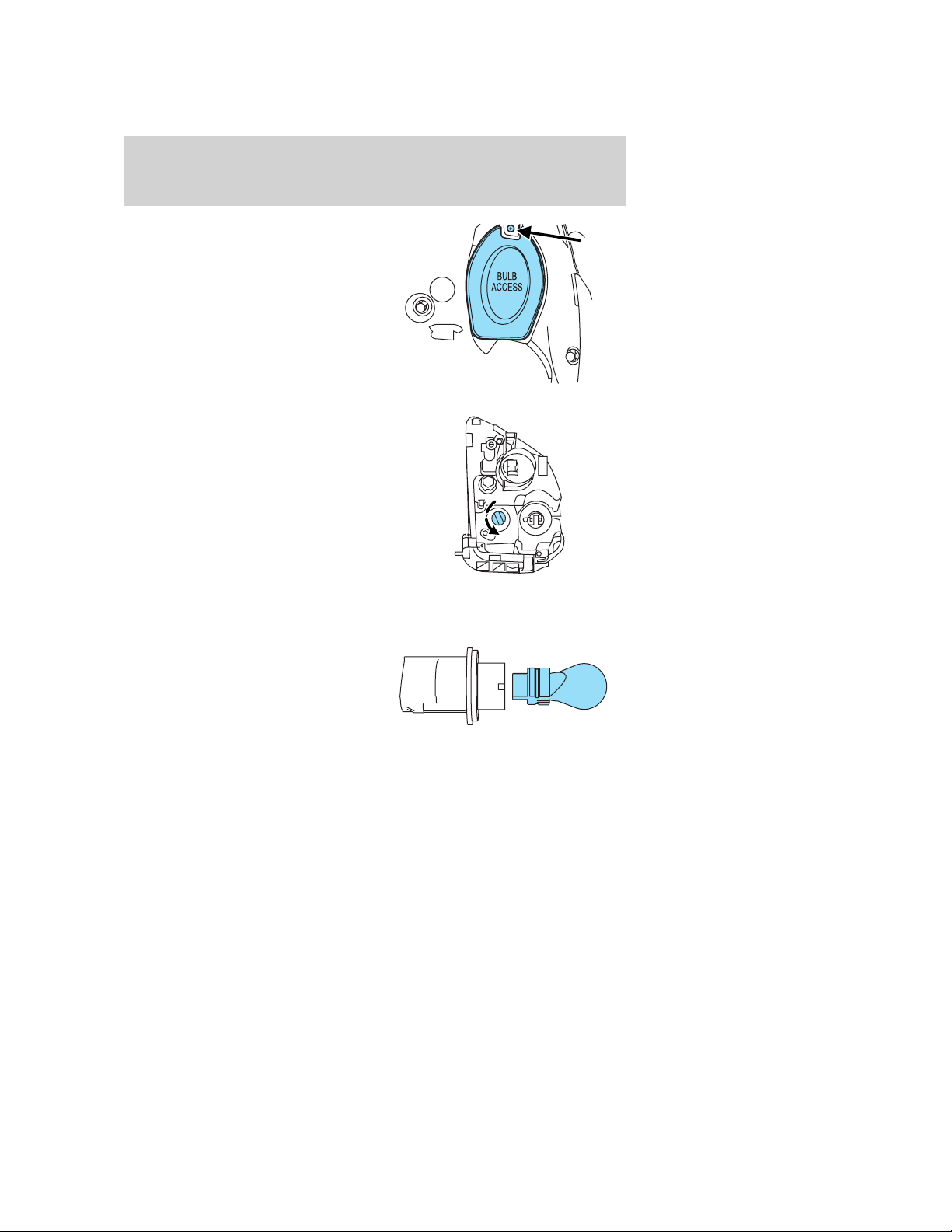

3. Remove screw from oval splash shield access panel from the exterior wheel well area. Lift up and rearward to release a hidden finger attachment at the lower portion of the panel (Passenger side only with ABS).

4. From the exterior wheel well area reach arm through splash shield opening to access bulb socket (Passenger side only with ABS).

5. Remove the bulb socket by rotating it counterclockwise, then pulling it out of the lamp assembly.

6. Let go of the bulb socket and let the bulb socket dangle downward near the lamp housing (Passenger side only with ABS).

7. Reach over the front bolster in the engine area, with a tool if necessary, bring the bulb socket upwards into an unobstructed area to replace the bulb (Passenger side only with ABS).

8. Carefully pull bulb straight out of socket and push in the new one.

9. After the new bulb is installed, carefully let the bulb socket dangle downward near the lamp housing (Passenger side only with ABS).

10. From the exterior wheel well area reach arm through splash shield opening to install bulb socket with new bulb (Passenger side only with ABS).

11. Install new bulb socket into the lamp assembly by aligning the indexing fingers, then rotate clockwise to locked position.

12. Reinstall splash shield access panel with screw (Passenger side only with ABS).

2008 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

Page 66

Lights

Replacing front side marker bulbs

1. Make sure the headlamp control is in the OFF position.

2. Pry the lamp away from the vehicle at the rear of lamp at the wheel opening. (Rotate lamp from the wheel opening away from the vehicle), as the lamp separates from the vehicle, slide the lamp towards the wheel opening to disengage lamp

3. Rotate the lamp clockwise while holding the electrical connector in place with your other hand. After rotating the lamp 90 degrees clockwise, pull and disengage the wire harness and bulb from the lamp.

4. With the bulb exposed, carefully remove the bulb from the socket by grasping the bulb and pulling it away from the wire harness.

Replace with a new bulb, and reverse the removal steps to complete the process.

Replacing tail/brake/turn signal/backup lamp bulbs

The tail/brake/turn signal and backup lamp bulbs are located in the tail lamp assembly. Follow the same steps to replace either bulb.

1. Make sure the headlamp switch is in the OFF position and open the trunk.

2. Lift out trunk floor carpeting panel to access a Luggage Scuff Plate (Hard Molding) shingles and a Trunk Side Panel (dark grey, soft wheelhouse side trim panel) at the lamp area.

3. Carefully pull/push the Trunk Side Panel (dark grey, soft wheelhouse side trim panel) outboard to expose the lamp assembly. The most effective point to grasp the Trunk Side Panel when pulling it out from the Luggage Scuff Plate is at it’s bottom edge where that edge meets the exposed sheet metal of the trunk floor.

Note: Do not allow the Trunk Side Panel to remain bent and untucked from the Luggage Scuff Plate (hard molding) for a long period of time. Doing so may result in permanent deformation.

2008 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

Page 67

Lights

4. Remove the bulb socket by turning it counterclockwise and pulling it straight out.

5. Pull the bulb from the socket and push in the new bulb.

6. Install the bulb socket into the lamp assembly by rotating it clockwise.

7. Carefully push the Trunk Side Panel (dark grey, soft wheelhouse side trim panel) back to the shingle position to the Luggage Scuff Plate (hard molding).

8. Install trunk floor carpeting panel.

Replacing high-mount brake lamp bulb

1. Make sure the ignition control is in the LOCK (OFF) position.

2. Open the trunk and reach underneath package tray to locate lamp assembly.

3. Remove the bulb socket by rotating it counterclockwise, then pulling it out of the lamp assembly.

4. Pull the bulb straight from the socket and push in the new bulb.

5. Install the bulb socket into the lamp assembly by rotating it clockwise.

Replacing license plate lamp bulbs

1. Make sure the headlamp switch is in the OFF position.

2. Remove the two screws from the license plate lamp assembly.

3. Remove bulb socket by turning counterclockwise.

4. Carefully pull the bulb out from the socket.

Install new bulb(s) in reverse order.

2008 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

Page 68

Lights

Replacing fog lamp bulbs (if equipped)

1. Make sure the fog lamp switch is in the OFF position.

2. From underneath the vehicle, partially remove the tire splash shield by removing four drive screws.

After removing to allow free access to the front fog lamp bulb and electrical wire harness, the splash shield flap should be able to be repositioned.

3. Rotate the harness/bulb assembly counterclockwise, to remove from the fog lamp.

4. Carefully disconnect the bulb from the harness assembly via the two snap clips.

Install the new bulb in reverse order.

2008 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

Page 69

Driver Controls

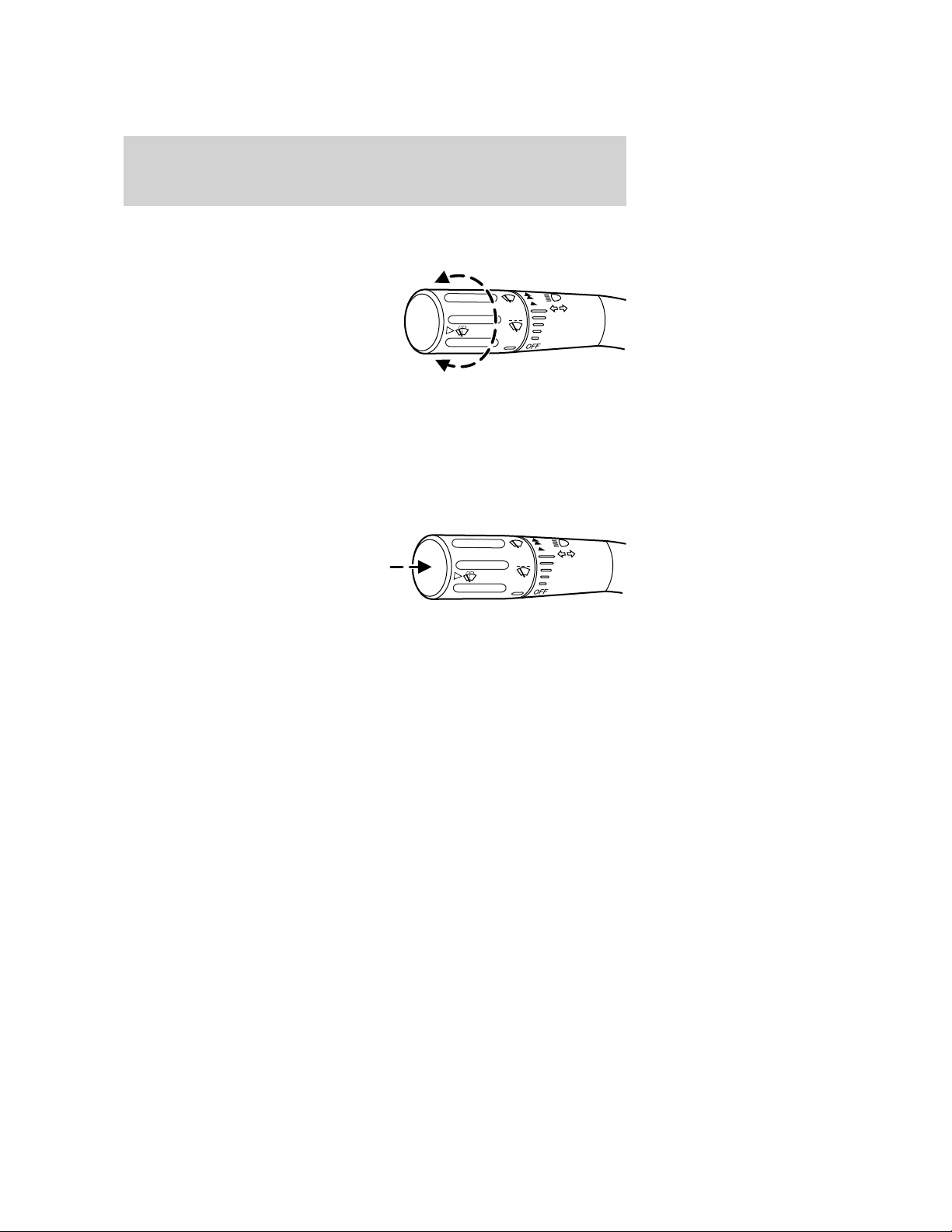

MULTI-FUNCTION LEVER

Windshield wiper: Rotate the end of the control away from you to increase the speed of the wipers; rotate towards you to decrease the speed of the wipers.

Speed dependent wipers: When the wiper control is set on the intermittent settings, the speed of the wipers will automatically adjust with the vehicle speed. The faster your vehicle is travelling the faster the wipers will go.

Windshield washer: Push the end of the stalk:

• briefly: causes a single swipe of the wipers without washer fluid.

• a quick push and hold: the wipers will swipe three times with washer fluid.

• a long push and hold: the wipers and washer fluid will be activated for up to ten seconds.

Courtesy wipe feature: One extra wipe will happen a few seconds after washing the front window to clear any water that is dripping down from the top of the windshield caused by the washing.

Note: Do not operate the washer when the washer reservoir is empty. This may cause the washer pump to overheat. Check the washer fluid level frequently. Do not operate the wipers when the windshield is dry. This may scratch the glass, damage the wiper blades and cause the wiper motor to burn out. Before operating the wiper on a dry windshield, always use the windshield washer. In freezing weather, be sure the wiper blades are not frozen to the windshield before operating the wipers.

Windshield wiper features (if equipped with Autolamp feature)

The exterior lamps will turn on with the ignition on, headlamp control in the Autolamp position and the windshield wipers are turned on (for a fixed period of time).

2008 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

Page 70

Driver Controls

TILT/TELESCOPE STEERING WHEEL

To adjust the steering wheel:

1. Pull the lever down to unlock the

steering column.

2. While the lever is in the down

position, move the steering wheel up or down and in or out until you find the desired position.

3. While holding the steering wheel

in place, pull the lever up to its original position to lock the steering column.

Never adjust the steering wheel when the vehicle is moving.

ILLUMINATED VISOR MIRROR (IF EQUIPPED)

Lift the mirror cover to turn on the visor mirror lamp.

Slide on rod feature (if equipped)

Rotate the visor towards the side window and extend it rearward for additional sunlight coverage.

Note: To stow the visor back into the headliner, visor must be retracted before moving it back towards the windshield.

2008 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

Page 71

Driver Controls

OVERHEAD CONSOLE (IF EQUIPPED)

The appearance of your vehicle’s overhead console will vary according to your option package.

Storage compartment

Press on the rear edge of the compartment door to open.

The storage compartment may be used to secure sunglasses or a similar object.

CENTER CONSOLE

Your vehicle may be equipped with a variety of console features. These include:

1. Cup holders

2. Secondary storage bin (on hinges

inside utility compartment)

3. Utility compartment with power

point and coin holder inside

Use only soft cups in the cupholder. Hard objects can injure you in a collision.

2008 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

Page 72

Driver Controls

CLOCK (IF EQUIPPED)

Press the right (+) control to move the time display forwards.

Press the left (-) control to move the time display backwards.

INSTRUMENT PANEL STORAGE COMPARTMENT

The storage compartment may be used to secure sunglasses or similar sized objects. Press the control to open the storage compartment.

AUXILIARY POWER POINT (12VDC)

Power outlets are designed for accessory plugs only. Do not insert any other object in the power outlet as this will damage the outlet and blow the fuse. Do not hang any type of accessory or accessory bracket from the plug. Improper use of the power outlet can cause damage not covered by your warranty.

The auxiliary power points are located on the instrument panel and in the center console utility compartment.

Do not use the power point for operating the cigarette lighter element (if equipped).

2008 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

Page 73

Driver Controls

To prevent the fuse from being blown, do not use the power point(s) over the vehicle capacity of 12 VDC/180W. If the power point or cigar lighter socket is not working, a fuse may have blown. Refer to Fuses and relays in the Roadside Emergencies chapter for information on checking and replacing fuses.

To have full capacity usage of your power point, the engine is required to be running (in a safe manner) to avoid unintentional discharge of the battery. To prevent the battery from being discharged:

• do not use the power point longer than necessary when the engine is not running,

• do not leave battery chargers, video game adapters, computers and other devices plugged in overnight or when the vehicle is parked for extended periods.

Always keep the power point caps closed when not being used.

Cigar/Cigarette lighter (if equipped)

Do not plug optional electrical accessories into the cigarette lighter socket.

Do not hold the lighter in with your hand while it is heating, this will damage the lighter element and socket. The lighter will be released from its heating position when it is ready to be used.

Improper use of the lighter can cause damage not covered by your warranty.

POWER WINDOWS

Do not leave children unattended in the vehicle and do not let children play with the power windows. They may seriously injure

themselves.

When closing the power windows, you should verify they are free of obstructions and ensure that children and/or pets are not in

the proximity of the window openings.

2008 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

Page 74

Driver Controls

Press and pull the window switches to open and close windows.

• Push down (to the first detent) and hold the switch to open.

• Pull up (to the first detent) and hold the switch to close.

Rear Window Buffeting: When one or both of the rear windows are open, the vehicle may demonstrate a wind throb or buffeting noise. This noise can be alleviated by lowering a front window approximately two to three inches.

One touch down (AUTO)

Allows the driver’s window to open fully without holding the control down. Push the switch completely down to the second detent and release quickly. The window will open fully. Momentarily press the switch to any position to stop the window operation.

Accessory delay

With accessory delay, the window switches, audio system, and moonroof (if equipped) may be used for up to 10 minutes after the ignition switch is turned to the 1 (LOCK) (OFF) position or until either front door is opened.

Window lock

The window lock feature allows only the driver to operate the power windows.

To lock out all the window controls (except for the driver’s) press the right side of the control. Press the left side to restore the window controls.

2008 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

Page 75

Driver Controls

INTERIOR MIRROR

The interior rear view mirror has two pivot points on the support arm which lets you adjust the mirror UP or DOWN and from SIDE to SIDE.

Do not adjust the mirror while the vehicle is in motion.

Automatic dimming interior rear view mirror (if equipped)

Your vehicle may be equipped with an interior rear view mirror that has an auto-dimming function. The electronic day/night mirror will change from the normal (high reflective) state to the non-glare (darkened) state when bright lights (glare) reach the mirror. When the mirror detects bright light from behind the vehicle, it will automatically adjust (darken) to minimize glare.

Without voice activated Navigation System or SYNC

With voice activated Navigation System or SYNC

The mirror will automatically return to the normal state whenever the vehicle is placed in R (Reverse) to ensure a bright clear view when backing up.

Do not block the sensors on the front and back of the interior rear view mirror since this may impair proper mirror performance.

Do not clean the housing or glass of any mirror with harsh abrasives, fuel or other petroleum-based cleaning products.

2008 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

Page 76

Driver Controls

EXTERIOR MIRRORS

Power side view mirrors

To adjust your mirrors:

1. Rotate the control clockwise to

adjust the right mirror and rotate the control counterclockwise to adjust the left mirror.

2. Move the control in the direction

you wish to tilt the mirror.

3. Return to the center position to

lock mirrors in place.

Heated mirrors (if equipped)

Both mirrors are heated automatically to remove ice, mist and fog when the rear window defrost is activated.

Do not remove ice from the mirrors with a scraper or attempt to readjust the mirror glass if it is frozen in place. These actions could cause damage to the glass and mirrors.

SPEED CONTROL

With speed control set, you can maintain a set speed without keeping your foot on the accelerator pedal.

Do not use the speed control in heavy traffic or on roads that are winding, slippery or unpaved.

Setting speed control

Note: The appearance of your vehicle’s speed control switches may vary according to your option package.

2008 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

Page 77

Driver Controls

The controls for using your speed control are located on the steering wheel for your convenience.

1. Press the ON control and release

it.

2. Accelerate to the desired speed.

3. Press the SET + control and

release it.

4. Take your foot off the accelerator

pedal.

5. The indicator

instrument cluster will turn on.

Note:

• Vehicle speed may vary momentarily when driving up and down a steep hill.

• If the vehicle speed increases above the set speed on a downhill, you may want to apply the brakes to reduce the speed.

• If the vehicle speed decreases more than 10 mph (16 km/h) below your set speed on an uphill, your speed control will disengage.

light on the

Disengaging speed control

To disengage the speed control:

• Tap the brake pedal or clutch pedal (if equipped)

Disengaging the speed control will not erase previous set speed.

2008 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

Page 78

Driver Controls

Resuming a set speed

Press the RESUME control and release it. This will automatically return the vehicle to the previously set speed.

Increasing speed while using speed control

There are two ways to set a higher speed:

• Press and hold the SET + control until you get to the desired speed, then release the control. You can also use the SET + control to operate the Tap-Up function. Press and release this control to increase the vehicle set speed in small amounts by 1 mph (1.6 km/h).

• Use the accelerator pedal to get to the desired speed. When the vehicle reaches that speed press and release the SET + control.

Reducing speed while using speed control

There are two ways to reduce a set speed:

• Press and hold the SET - control until you get to the desired speed, then release the control. You can also use the SET control to operate the Tap-Down function. Press and release this control to decrease the vehicle set speed in small amounts by 1 mph (1.6 km/h).

• Depress the brake pedal until the desired vehicle speed is reached and press the SET + control.

2008 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

Page 79

Driver Controls

Turning off speed control

There are two ways to turn off the speed control:

• Press the speed control OFF control.

• Turn OFF the ignition.

Note: When you turn off the speed control or the ignition, your speed control set speed memory is erased.

STEERING WHEEL CONTROLS (IF EQUIPPED)

Driving while distracted can result in loss of vehicle control,

accident and injury. Ford strongly recommends that drivers use extreme caution when using any device that may take their focus off the road. The drivers primary responsibility is the safe operation of their vehicle. Only use steering wheel controls and other devices not essential to the driving task when it is safe to do so.

Radio control features

Press MEDIA to select:

• AM, FM1, FM2, or CD

• SAT1, SAT2 or SAT3 (Satellite

Radio mode if equipped).

• LINE IN (Auxiliary input jack) (if equipped)

2008 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

Page 80

Driver Controls

In Radio mode:

• Press next/previous preset station.

In CD mode:

• Press next track on the disc.

In Satellite radio mode (if equipped):

• Press

In any mode:

• Press VOL + or - to adjust the volume.

Navigation system hands free control features (if equipped)

Press and hold until the voice

the Navigation display to use the voice command feature.

Press command.

For further information on the Navigation system, refer to the Navigation supplement.

to complete a voice

to access the

to listen to the

to advance through preset channels.

control briefly

icon appears on

2008 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

Page 81

Driver Controls

SYNC system hands free control feature (if equipped)

Press and hold voice

to use the voice command feature.

Press and hold text message.

Press OK to confirm your selection. For further information on the

SYNC system, refer to the SYNC supplement.

Navigation system/SYNC hands free control features (if equipped)

Press and hold the until the voice

the Navigation display to use the voice command feature.

Press command.

For further information on the Navigation system/SYNC system, refer to the Navigation and SYNC supplements.

icon appears on the display

to complete a voice

briefly until the

to send a call or

control briefly

icon appears on

MOON ROOF (IF EQUIPPED)

You can move the glass panel of the moon roof back to open or tilt up (from the closed position) to ventilate the vehicle.

Do not let children play with the moon roof or leave children unattended in the vehicle. They may seriously hurt themselves.

2008 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

Page 82

Driver Controls

To open the moon roof:

The moon roof is equipped with an automatic, one-touch, express opening, closing and venting feature. Press and release the rear portion of the control. To stop motion at any time during the one-touch operation, press the control a second time.

When closing the moon roof, you should verify that it is free of obstructions and ensure that children and/or pets are not in the

proximity of the moon roof opening.

To close the moon roof:

The moon roof is equipped with an automatic, one-touch, express closing feature. Press and release the front portion of the control. To stop motion at any time during the one-touch closing, press the control again.

Bounce back:

When an obstacle has been detected in the moon roof opening as the moon roof is closing, the moon roof will automatically open and stop at a prescribed position. This is known as “bounce-back”. If the ignition is turned OFF (without accessory delay being active) during bounce-back, the moon roof will move until the bounce back position is reached.

Bounce back override:

To override bounce back, press and hold the front portion of the control. For example: Bounce back can be used to overcome the resistance of ice on the moon roof or seals. If during a bounce-back condition, the control is released to the neutral position, then held in the one touch position within two seconds after the moon roof reaches the bounce-back position, the moon roof will travel with no bounce-back protection. If the control is released before the moon roof reaches fully closed or the ignition is turned OFF (without accessory delay being active), the moon roof will stop. Security override can be used if the moon roof movement is restricted in some way, for example, if there is ice on the moon roof or seals.

To vent:

• To tilt the moon roof into the vent position (when the glass panel is closed), press and release the front portion of the control.

• To close the moon roof from the vent position, press and hold the rear portion of the control until the glass panel stops moving.

2008 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

Page 83

Driver Controls

The moon roof has a sliding shade that can be opened or closed when the glass panel is shut. To close the shade, pull it toward the front of the vehicle

Accessory delay:

With accessory delay, the window switches, audio system, and moon roof (if equipped) may be used for up to 10 minutes after the ignition switch is turned to the 1 (LOCK) (OFF) position or until any door is opened

MESSAGE CENTER (IF EQUIPPED)

With the ignition in the RUN position, the message center, located on your instrument cluster, displays important vehicle information through a constant monitor of vehicle systems. You may select display features on the message center for a display of status preceded by a brief indicator chime. The system will also notify you of potential vehicle problems with a display of system warnings followed by a long indicator chime.

Selectable features

Reset

Press this control to select and reset functions shown in the INFO menu and SETUP menu.

Info menu

This control displays the following control displays:

• Odometer

• Trip Odometer A or B

• Distance to Empty

• Average Fuel Economy

• Average Speed

• Trip Elapsed Drive Time 1 or 2

• Compass (if equipped)

2008 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

Page 84

Driver Controls

Odometer/Trip odometer

Refer to Gauges in the Instrument Cluster chapter.

Distance to empty (DTE)

Selecting this function from the INFO menu estimates approximately how far you can drive with the fuel remaining in your tank under normal driving conditions. Remember to turn the ignition OFF when refueling to allow this feature to correctly detect the added fuel.

The DTE function will display LOW FUEL LEVEL when you have approximately 50 miles (80 km) to empty. If you RESET this warning message, this display will return within 10 minutes.

DTE is calculated using a running average fuel economy, which is based on your recent driving history of 500 miles (800 km). This value is not the same as the average fuel economy display. The running average fuel economy is reinitialized to a factory default value if the battery is disconnected.

Average fuel economy (AFE)

Select this function from the INFO menu to display your average fuel economy in miles/gallon or liters/100 km.

If you calculate your average fuel economy by dividing 100 miles traveled by gallons of fuel used (kilometers traveled by liters used), your figure may be different than displayed for the following reasons:

• Your vehicle was not perfectly level during fill-up

• Differences in the automatic shut-off points on the fuel pumps at

service stations

• Variations in top-off procedure from one fill-up to another

• Rounding of the displayed values to the nearest 0.1 gallon (liter)

1. Drive the vehicle at least 5 miles (8 km) with the speed control

system engaged to display a stabilized average.

2. Record the highway fuel economy for future reference.

It is important to press the RESET control (press and hold RESET for 2 seconds in order to reset the function) after setting the speed control to get accurate highway fuel economy readings.

2008 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

Page 85

Driver Controls

For more information refer to Fuel Information in the Maintenance and Specifications chapter.

Average Speed

Select this function from the INFO menu to display AVERAGE SPEED and press the RESET control (press and hold RESET for 2 Seconds in order to reset the function). Your average speed from that point will be displayed until RESET is pressed and held for two seconds again.

Trip elapsed drive time

Select this function from the INFO menu to display a timer.

To operate the Trip Elapsed Drive Time perform the following:

1. Press and release RESET in order

to start the timer.

2. Press and release RESET to pause the timer.

3. Press and hold RESET for 2 seconds in order to reset the timer.

Compass display (if equipped)

Select this function from the INFO menu. Press the INFO button repeatedly until the Compass and Odometer are displayed. (Do not select Trip, DTE, or AFE. The top of the message center must be blank).

The compass reading may be affected when you drive near large buildings, bridges, power lines and powerful broadcast antenna. Magnetic or metallic objects placed in, on or near the vehicle may also affect compass accuracy.

Usually, when something affects the compass readings, the compass will correct itself after a few days of operating your vehicle in normal conditions. If the compass still appears to be inaccurate, a manual calibration may be necessary. Refer to Compass zone/calibration

adjustment.

Most geographic areas (zones) have a magnetic north compass point that varies slightly from the northerly direction on maps. This variation is four degrees between adjacent zones and will become noticeable as the vehicle crosses multiple zones. A correct zone setting will eliminate this error. Refer to Compass zone/calibration adjustment.

2008 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

Page 86

Driver Controls

Compass zone/calibration adjustment

Perform this adjustment in an open area free from steel structures and high voltage lines.

For optimum calibration, turn off all electrical accessories (heater/air conditioning, wipers, etc.) and make sure all vehicle doors are shut.

1. Turn ignition to the RUN position.

2. Start the engine.

3. Press the INFO button repeatedly until the Compass and Odometer

are displayed. (Do not select Trip, DTE, or AFE. The top of the message center must be blank).

Note: If the compass displays ⬙CAL 000000.0 mi⬙ instead of heading information, the compass will need to be calibrated. Slowly drive the vehicle in a circle (less than 3 mph [5 km/h]) until the ⬙CAL⬙ indicator changes to display compass heading. This may take up to 3 circles to complete calibration.

4. Determine your magnetic zone by

referring to the zone map.

123

14 13

6 7 8 9 1011

5. Press and hold the RESET until

the message center display changes to show the current zone setting.

6. Release the RESET control, then

slowly press RESET down again.

7. Press the SETUP control

repeatedly until the correct zone setting for your geographic location is displayed on the message center. To exit the zone setting mode press and release the RESET control.

2008 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

Page 87

Driver Controls

8. Press the RESET control to start

the compass calibration function.

9. Slowly drive the vehicle in a

circle (less than 3 mph [5 km/h]) until the CIRCLE SLOWLY TO CALIBRATE indicator changes to CALIBRATION COMPLETED. This will take up to three circles to complete calibration.

10. The compass is now calibrated.

Setup menu

Press this control for the following displays:

• System Check

• Units (English/Metric)

• Language

• Easy entry/exit seat (if equipped)

• Reverse sensing system (Park Assist) (if equipped)

System check

Selecting this function from the SETUP menu causes the message center to cycle through each of the systems being monitored.

Pressing the RESET control cycles the message center through each of the systems being monitored.

Some monitored systems show message only if a warning is present. The sequence of the system check report is as follows:

1. DOORS CLOSED

2. ENGINE TEMPERATURE

3. OIL PRESSURE

4. BRAKE FLUID LEVEL

5. TIRE PRESSURE MONITORING SYSTEM (if equipped and warning is

present)

2008 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

Page 88

Driver Controls

6. EXTERIOR LAMPS (if equipped)

7. REMOVE OBJECT NEAR PASSENGER SEAT (if warning is present)

8. PARKING AID (if equipped and warning is present)

9. FUEL LEVEL

10. DISTANCE TO EMPTY

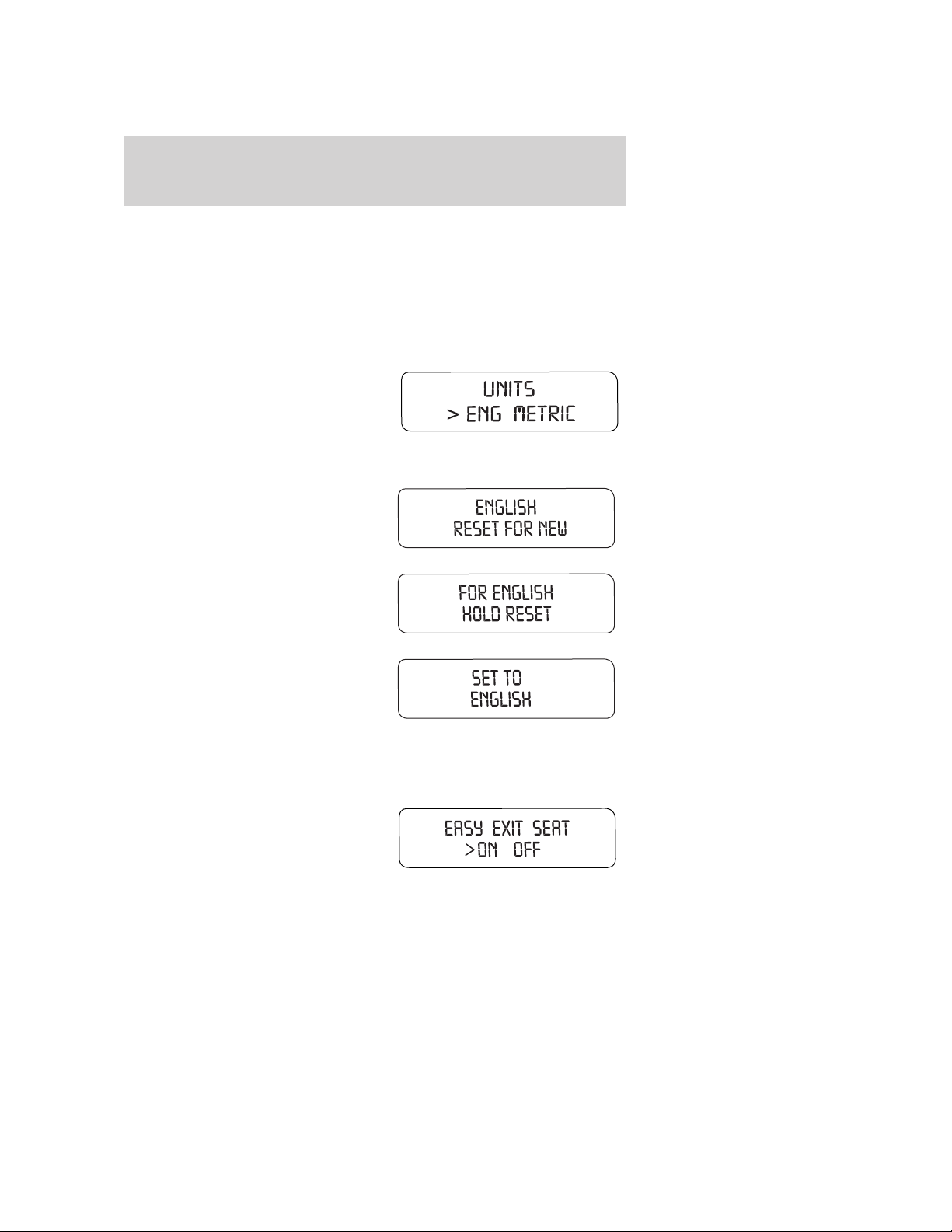

Units (English/Metric)

1. Select this function from the

SETUP menu for the current units to be displayed.

2. Press the RESET control to

change from English to Metric.

Language

1. Select this function from the

SETUP menu for the current language to be displayed.

2. Pressing the RESET control

cycles the message center through each of the language choices.

3. Press and hold the RESET

control to set the language choice.

Easy entry/exit (if equipped)

This feature automatically moves the drivers seat backwards for easy exit from the vehicle.

1. To disable/enable the easy

entry/exit seat feature, select this function from the SETUP control for the current display mode.

2. Press the RESET control to turn

the easy entry/exit seat ON or OFF.

2008 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

Page 89

Driver Controls

Reverse Sensing System (Park assist) (if equipped)

This feature sounds a warning tone to warn the driver of obstacles near the rear bumper, and functions only when R (Reverse) gear is selected.

1. Select this function from the

SETUP menu to disable the reverse sensing system feature.

2. Press the RESET control to turn

the rear park assist OFF. When R (Reverse) gear is selected, PARK AID OFF will be displayed.

System warnings

System warnings alert you to possible problems or malfunctions in your vehicle’s operating systems.

In the event of a multiple warning situation, the message center will cycle the display to show all warnings by displaying each one for several seconds.

The message center will display the last selected feature if there are no more warning messages. This allows you to use the full functionality of the message center after you acknowledge the warning by pressing the RESET control and clearing the warning message.

Warning messages that have been reset are divided into three categories:

• They will not disappear until a condition is changed.

• They will reappear on the display ten minutes from the reset.

• They will not reappear until an ignition LOCK/OFF-RUN cycle has

been completed.

This acts as a reminder that these warning conditions still exist within the vehicle.

2008 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

Page 90

Driver Controls

Warnings Status

Driver’s door ajar Warning cannot be reset (CLOSE Passenger door ajar Left rear door ajar Right rear door ajar Park brake engaged RELEASE PARK BRAKE will be

Low fuel level Warning returns after 10 minutes Check brake system Check park aid (if equipped) Warning returns after the ignition key Low brake fluid Low tire pressure Tire pressure monitor fault Tire pressure sensor fault Trunk ajar Clear objects by pass seat Compass error Lamp outage Integrated key programming

status

DRIVER DOOR AJAR. Displayed when the driver’s door is not completely closed.

PASSENGER DOOR AJAR. Displayed when the passenger side door is not completely closed.

REAR LEFT DOOR AJAR. Displayed when the rear left door is not completely closed.

REAR RIGHT DOOR AJAR. Displayed when the rear right door is not completely closed.

PARK BRAKE ENGAGED. Displayed when the park brake is engaged. If the warning stays on after the park brake is off, contact your authorized dealer as soon as possible.

CHECK BRAKE SYSTEM. Displayed when the brake system needs servicing. If the warning stays on or continues to come on, contact your authorized dealer as soon as possible.

DOOR TO RESET) will be displayed

displayed

is turned from OFF to RUN

Maximum number of Integrated Keys exceeded

2008 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

Page 91

Driver Controls

LOW BRAKE FLUID. Indicates the brake fluid level is low and the brake system should be inspected immediately. Refer to Brake fluid reservoir in the Maintenance and Specifications chapter.

CHECK PARK AID (if equipped). Displayed when the transmission is in R (Reverse) and the Reverse Sensing System (Park Aid) is disabled. Refer to Reverse Sensing System (Park Aid) in this section to enable.

CHECK TIRE PRESSURE.Displayed when one or more tires on your vehicle have low tire pressure. Refer to Inflating Your Tires in the Tires, Wheels and Loading chapter.

TIRE PRESSURE MONITOR FAULT. Displayed when the Tire Pressure Monitoring System is malfunctioning. If the warning stays on or continues to come on, have the system inspected by your authorized dealer.

TIRE PRESSURE SENSOR FAULT. Displayed when a tire pressure sensor is malfunctioning, or your spare tire is in use. For more information on how the system operates under these conditions, refer to

Understanding Your Tire Pressure Monitoring System in the Tires, Wheels and Loading chapter. If the warning stays on or continues to

come on, have the system inspected by your authorized dealer.

TRUNK AJAR. Displayed when the trunk is not completely closed. CLEAR OBJECTS BY PASS SEAT. Displayed when objects are by the

passenger seat. After the objects are moved away from the seat, if the warning stays on or continues to come on contact your authorized dealer.

COMPASS ERROR (if equipped). Displayed when the compass is not operating properly. If the warning stays on or continues to come on, contact your authorized dealer as soon as possible.

CHECK LEFT OR RIGHT HEADLAMPS. Displayed when the headlamps are activated and at least one low beam is burned out. Check the lamps as soon as possible and have the burned out lamp replaced. Refer to Replacing headlamp bulbs in the Lights chapter.

CHECK LF OR RF TURN LAMPS. Displayed when the turn signals are activated and at least one is burned out. Check the lamps as soon as safely possible and have the burned out lamp replaced. Refer to Replacing headlamp bulbs in the Lights chapter.

2008 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

Page 92

Driver Controls

CHECK LR OR RR TURN LAMPS. Displayed when the rear turn signals are activated and at least one is burned out. Check the lamps as soon as safely possible and have the burned out lamp replaced. Refer to Replacing headlamp bulbs in the Lights chapter.

INTEGRATED KEY PROGRAMMING STATUS. Displayed when an attempt is made to program a fifth Integrated Key to the Remote Key Entry System. For more information on Integrated Key, refer to Locks and Security chapter in this manual.

INTERIOR TRUNK CONTROL

Press the remote trunk release control on the instrument panel to the left of the steering wheel.

2008 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

Page 93

Locks and Security

KEYS

Your vehicle is equipped with two Integrated Keyhead Transmitters (IKTs). The IKT functions as both a programmed ignition key that operates all the locks and starts the vehicle, and a remote keyless entry transmitter.

Your IKTs are programmed to your vehicle; using a non-programmed key will not permit your vehicle to start. If you lose your authorized dealer supplied IKTs, replacement IKTs are available through your authorized dealer. Standard SecuriLock™ keys without remote entry transmitter functionality can also be purchased from your authorized dealer if desired.

Always carry a spare key with you in case of an emergency.

For more information regarding programming replacement IKTs, refer to the SecuriLock™ passive anti-theft system section later in this chapter.

Note: Your vehicle’s IKTs were issued with an adhesive security label on them that provides important vehicle key cut information. It is recommended that you maintain the label in a safe place for future reference, such as the inside front cover of this

Owner’s Guide.

2008 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

Page 94

Locks and Security

Recommended handling of the Integrated Keyhead Transmitter (IKT)

To avoid inadvertently activating the remote entry functions of your vehicle, it is recommended that the Integrated Keyhead Transmitter (IKT) be handled properly when starting and turning off your vehicle.

When inserting the IKT into the ignition cylinder, place your thumb on the center thumb rest of the IKT and forefinger on the logo badge on the opposite side.

To gain more leverage when rotating the IKT in the ignition lock cylinder, you can readjust the location of your thumb to grasp the IKT on the outer edge next to the

control.

Likewise, when rotating the IKT to the 1 (LOCK) position in the ignition lock cylinder, the bottom edge of the IKT adjacent to the control can be utilized.

2008 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

Page 95

Locks and Security

POWER DOOR LOCKS

• Press the doors.

Smart locks

This feature attempts to help prevent you from locking yourself out of the vehicle if your key is still in the ignition.

When you open one of the front doors and you lock the vehicle with the power door lock control (on the driver or passenger door trim panel), all the doors will lock, then all doors will automatically unlock reminding you that your key is still in the ignition.

The vehicle can still be locked, with the key in the ignition, using the manual lock control on the door, locking the driver’s door with a key, or using the lock control on the remote entry transmitter portion of your Integrated Keyhead Transmitter.

If both front doors are closed, the vehicle can be locked from any method, regardless of whether the key is in the ignition or not.

Power door lock/unlock inhibit feature

As a theft deterrent, the power door lock controls and the interior trunk release control can be disabled 20 seconds after the ignition has been turned to the 1 (LOCK) position and the vehicle is locked using any of the following:

• Remote entry transmitter portion of your Integrated Keyhead Transmitter,

• Keyless entry keypad (if equipped), or

• Driver power door lock control (Note: The driver’s door must be

open, then closed).

The door lock controls are reenabled when any of the following occurs:

• Unlock using the remote entry transmitter portion of your IKT,

• Unlock using the keyless entry keypad (if equipped),

• Opening any door from the interior of the vehicle, or

control to unlock all

control to lock all

2008 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

Page 96

Locks and Security

• Turning the key in the ignition to the 3 (RUN) position.

Note: This feature is configured off by default. This feature can be turned on or off using the following procedure:

Before starting, ensure the ignition is in the 1 (LOCK) position and all vehicle doors are closed. You must complete Steps 1–5 within 30 seconds or the procedure will have to be repeated. If the procedure needs to be repeated, wait a minimum of 30 seconds before beginning again.

1. Place the key in the ignition and turn the ignition to the 3 (RUN)

position.

2. Press the power door unlock control on the door panel three times.

3. Turn the ignition from the 3 (RUN) position to the 1 (LOCK) position.

4. Press the power door unlock control on the door panel three times.

5. Turn the ignition back to the 3 (RUN) position. The horn will chirp

one time to confirm programming mode has been entered and is active.

6. Press the power door lock control on the door panel two times within

five seconds. The horn will chirp one time to confirm the feature is off; the horn will chirp one time and honk one time to confirm the feature is on.

7. Turn the ignition from the 3 (RUN) position to the 1 (LOCK) position.

The horn will chirp one time to confirm the programming mode has been exited.

Repeat the procedure to turn the feature on or off.

Autolock feature

The autolock feature will lock all the doors when:

• all the doors are closed,

• the ignition is in the 3 (RUN) position,

• you shift into any gear putting the vehicle in motion, and

• the vehicle attains a speed greater than 12 mph (20 km/h).

The autolock feature repeats when:

• any door is opened then closed while the ignition is in the 3 (RUN) position and the vehicle speed is 9 mph (15 km/h) or lower, and

• the vehicle then attains a speed greater than 12 mph (20 km/h).

Note: The autolock feature is not available on vehicles equipped with a manual transmission

2008 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

Page 97

Locks and Security

Autounlock feature

The autounlock feature will unlock all the doors when:

• the ignition is in the 3 (RUN) position, all the doors are closed, and the vehicle has been in motion at a speed greater than 12 mph (20 km/h);

• the vehicle has then come to a stop and the ignition is turned to the 1 (LOCK) or 2 (ACC) position; and

• the driver door is opened within 10 minutes of the ignition being transitioned to the 1 (LOCK) or 2 (ACC) position.

Note: The doors will not autounlock if the vehicle has been electronically locked before the driver door is opened.

Note: The autounlock feature is disabled on vehicles equipped with a manual transmission.

Deactivating/activating autolock feature

Your vehicle comes with the autolock features activated; there are three methods to enable/disable this feature:

• Through your authorized dealer,

• by using a power door unlock/lock sequence, or

• by using the keyless entry pad (if equipped).

Note: The autolock feature can be activated/deactivated independently of the autounlock feature.

1. Place the key in the ignition and

turn the ignition to the 3 (RUN) position.

2. Press the power door unlock

control on the door panel three times.

3. Turn the ignition from the 3

(RUN) position to the 1 (LOCK) position.

4. Press the power door unlock control on the door panel three times.

5. Turn the ignition back to the 3 (RUN) position. The horn will chirp

one time to confirm programming mode has been entered and is active.

2008 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

Page 98

Locks and Security

6. To enable/disable the autolock feature, press the unlock control, then

press the lock control. The horn will chirp once if autolock was deactivated or twice (one short and one long chirp) if autolock was activated.

7. Turn the ignition to the 1 (LOCK) position. The horn will chirp once

to confirm the procedure is complete.

Keyless entry key pad procedure

1. Turn the ignition to the 1 (LOCK)

position.

2. Close all the doors.

3. Enter factory–set 5–digit entry

code.

4. Press and hold the 3 • 4. While holding the 3 • 4 press the 7 • 8.

5. Release the 7 • 8.

6. Release the 3 • 4.

The user should receive a horn chirp to indicate the system has been disabled or a chirp followed by a honk to indicate the system has been enabled.

Deactivating/activating autounlock feature

Your vehicle comes with the autounlock features activated; there are three methods to enable/disable this feature:

• Through your authorized dealer,

• by using a power door unlock/lock sequence. or

• by using the keyless entry keypad (if equipped).

Note: The autounlock feature can be activated/deactivated independently of the autolock feature.

2008 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

Page 99

Locks and Security

1. Place the key in the ignition and

turn the ignition to the 3 (RUN) position.

2. Press the power door unlock

control on the door panel three times.

3. Turn the ignition from the 3

(RUN) position to the 1 (LOCK) position.

4. Press the power door unlock control on the door panel three times.

5. Turn the ignition back to the 3 (RUN) position. The horn will chirp

one time to confirm programming mode has been entered and is active.

6. To enable/disable the autounlock feature, press the lock control, then

press the unlock control. The horn will chirp once if autounlock was deactivated or twice (one short and one long chirp) if autounlock was activated.

7. Turn the ignition to the 1 (LOCK) position. The horn will chirp once

to confirm the procedure is complete.

Keyless entry key pad procedure

1. Turn the ignition to the 1 (LOCK)

position.

2. Close all the doors.

3. Enter factory–set 5–digit entry

code.

4. Press and hold the 3 • 4. While holding the 3 • 4, press and release

the 7 • 8. While still holding the 3 • 4, press and release the 7 • 8a second time.

5. Release the 3 • 4.

The user should receive a horn chirp to indicate the system has been disabled or a chirp followed by a honk to indicate the system has been enabled.

2008 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

Page 100

Locks and Security

CHILDPROOF DOOR LOCKS

• When these locks are set, the rear doors cannot be opened from the inside.

• The rear doors can be opened from the outside when the doors are unlocked.

The childproof locks are located on rear edge of each rear door and must be set separately for each door. Setting the lock for one door will not automatically set the lock for both doors.

• Insert the key and turn to the lock position (key at an angle) to engage the childproof locks.

• Insert the key and turn to the unlock position (key horizontal) to disengage the childproof locks.

INTERIOR LUGGAGE COMPARTMENT RELEASE

Your vehicle is equipped with a mechanical interior luggage compartment release handle that provides a means of escape for children and adults in the event they become locked inside the luggage compartment.

Adults are advised to familiarize themselves with the operation and location of the release handle.

100

2008 Fusion (fsn) Owners Guide (post-2002-fmt) USA (fus)

FORD Fusion 2008 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Table of Contents

Introduction

PERCHLORATE MATERIAL

CONGRATULATIONS

SAFETY AND ENVIRONMENT PROTECTION

Warning symbols in this guide

Warning symbols on your vehicle

Protecting the environment

BREAKING-IN YOUR VEHICLE

SPECIAL NOTICES

New Vehicle Limited Warranty

Special instructions

Service Data Recording

Event Data Recording

Cell phone use

Export unique (Non–United States/Canada) vehicle specific information

Instrument Cluster

WARNING LIGHTS AND CHIMES

GAUGES

Entertainment Systems

Listening to the radio

Listening to satellite radio (if equipped)

Listening to a CD/MP3 (if equipped)

AM/FM Single CD/MP3 satellite compatible sound system (if equipped)

Premium/Audiophile AM/FM in-dash six CD/MP3 satellite compatible sound system (if equipped)

Auxiliary input jack (Line in)

USB port (if equipped)

GENERAL AUDIO INFORMATION

Satellite radio information (if equipped)

NAVIGATION SYSTEM (IF EQUIPPED)

SYNC SYSTEM (LATE AVAILABILITY — IF EQUIPPED)

Climate Controls

MANUAL HEATING AND AIR CONDITIONING SYSTEM (IF EQUIPPED)

Manual heating and air conditioning system operating tips

AUTOMATIC TEMPERATURE CONTROL (ATC) SYSTEM (IF EQUIPPED)

Automatic Temperature Control (ATC) system with heated seats (if equipped)

Automatic Temperature Control (ATC) system operating tips

REAR WINDOW DEFROSTER

Lights

HEADLAMP CONTROL

Autolamp control (if equipped)

Autolamps - Programmable exit delay

Fog lamp control (if equipped)

Daytime running lamps (DRL) (if equipped)

High beams

Flash to pass

PANEL DIMMER CONTROL

AIMING THE HEADLAMPS

Vertical aim adjustment

TURN SIGNAL CONTROL

INTERIOR LAMPS

Dome lamps and map lamps

Ambient/Mood lighting (if equipped)

BULB REPLACEMENT

Headlamp Condensation

Using the right bulbs

Replacing exterior bulbs

Replacing headlamp bulbs

Replacing front parking lamp/turn signal bulbs

Replacing front side marker bulbs

Replacing tail/brake/turn signal/backup lamp bulbs

Replacing high-mount brake lamp bulb

Replacing license plate lamp bulbs

Replacing fog lamp bulbs (if equipped)

Driver Controls

MULTI-FUNCTION LEVER

Windshield wiper features (if equipped with Autolamp feature)

TILT/TELESCOPE STEERING WHEEL

ILLUMINATED VISOR MIRROR (IF EQUIPPED)

OVERHEAD CONSOLE (IF EQUIPPED)

Storage compartment

CENTER CONSOLE

CLOCK (IF EQUIPPED)

INSTRUMENT PANEL STORAGE COMPARTMENT

AUXILIARY POWER POINT (12VDC)

POWER WINDOWS
