ABOUT THIS SUPPLEMENT
Congratulations on your decision to
purchase or lease the latest from Ford
Performance – the Focus ST. If you have
owned or leased an SVT or ST product in
the past, we are glad you are back. If this
is your first Ford Performance vehicle,
welcome to the family! We are confident
that our dedication to performance,
quality, craftsmanship and customer
service will provide many miles of
exhilarating, safe and comfortable driving
in your new ST vehicle.
E194505
Your choice of a Ford Performance product
is an intelligent and informed one. We
strive to build engaging vehicles that
involve the driver in every aspect of the
driving experience. Although performance
is at the heart of every Ford Performance
developed vehicle, we go much further.
Our goal is to deliver a comprehensive,
complete vehicle, sweating the details
such as the sound of the exhaust, the
quality of the interior materials, and the
functionality and the comfort of the seats,
to make sure that the driver enjoys not only
exceptional performance but an
outstanding driving environment as well.
In the Focus ST, that philosophy is
expressed by a sophisticated powertrain,
outstanding chassis dynamics and
significant interior and exterior
enhancements.
3
Focus (CDH) ST, Canada/Mexico/United States of America, enUSA, First Printing
Introduction
Page 7
This supplement complements your Focus
Owner’s Manual and provides information
specific to the Focus ST. By referring to the
pages listed in this supplement, you can
identify those features, recommendations
and specifications unique to your Ford
Performance vehicle. If there are any
discrepancies between this supplement
and the Focus Owner’s Manual, this
supplement supersedes the information
found in the Focus Owner’s Manual.
If you have any questions or concerns
regarding your Focus ST, please call the
Ford Performance Info Center at
1-800-FORD-SVT (367-3788).
PRODUCT HISTORY
The Ford Special Vehicle Team (SVT) was
established in 1991 to polish the Ford Oval
by creating low-volume, factory-produced
vehicles designed for those select few
whose idea of driving is a high-powered,
passionate experience – not just a means
of getting from point A to point B.
In a move to support this spirited
enthusiasm, Ford Motor Company carefully
integrated the wide array of talent in the
company into a small, cross-functional
group of engineers and product planners,
housed together under one roof with a
common mission: to create vehicles
specifically designed to meet the unique
needs and desires of the knowledgeable
driving enthusiast.
More than 250000 SVT vehicles have
been produced since the 1993 model year.
These include the SVT Mustang Cobra and
the Cobra R, the SVT F-150 Lightning, the
SVT Contour, the SVT Focus, Ford GT,
Shelby GT500, GT500KR and the F-150
SVT Raptor.
Team RS History
Team RS traces its roots back nearly 60
years from the Lotus Ford Cortina and Twin
Cam Escorts of the mid 1960’s, through
the first RS branded Escorts of the 1970’s
to the founding of Special Vehicle
Engineering (SVE) in 1980. Through the
1980s and 90s, SVE delivered a breadth
of vehicles from exciting XR and RS
branded road going performance cars
through homologation specials such as
the iconic Sierra Cosworth RS500. The first
ST (Sport Technology) vehicle appeared
in 1996 as the ST24 Mondeo. The first
collaboration between Ford’s European
and North American performance teams
appeared in 2002 as the ST170 in Europe
and SVT Focus in North America. In 2003,
Team RS replaced SVE in Europe as
performance car and motorsport personnel
were brought together as one team. Team
RS subsequently created the 2004 Fiesta
ST, 2005 Focus ST, 2009 Focus RS, 2013
Focus ST and 2014 Fiesta ST.
Ford Performance
SVT and Team RS officially began working
together as one team in 2009. In 2015,
these two teams, along with Ford Racing,
were formally combined, establishing Ford
Performance as a single team. Ford
Performance is responsible for all
performance- and racing-oriented
products and activities worldwide at Ford
Motor Company. This Focus represents the
best of what Ford Performance has to offer
from around the globe. Your vehicle has
been designed and developed with the four
hallmarks of Ford Performance in mind:
Performance, Substance, Exclusivity and
Value. We are proud and passionate about
what we do, and we are glad you have
made us your choice.
4
Focus (CDH) ST, Canada/Mexico/United States of America, enUSA, First Printing
Introduction
Page 8
E194501
• 2.0L GTDI EcoBoost I4 engine.
• Overboost function for increased
torque.
• Electronic over-rev function with 6800
RPM redline.
• ST-tuned 2.5 in (63.5 mm) center exit
exhaust system.
• Getrag-Ford MMT6 6-speed manual
transaxle.
• Active sound symposer.
• Modified front suspension knuckle for
improved wheel end geometry.
• Cast rear knuckle (improved stiffness)
and alternative anti-roll-bar mounting
for improved efficiency.
• ST-tuned springs and dampers.
• Increased diameter (13 in (335 mm))
front brake rotors and unique calipers
with ST tuned pad formulation front
and rear.
• Enhanced torque vectoring control with
cornering understeer control.
• ST-tuned electric power assisted
steering.
• AdvanceTrac® stability enhancement
system with three modes: Normal,
Sport and Disabled.
• 20 in (45.7 cm) x 7.99 in (20.3 cm),
2.17 in (55 mm) offset aluminum ST
wheels.
• P235/40-18 directional Goodyear
Eagle F1 summer only performance
tires (standard).
5
Focus (CDH) ST, Canada/Mexico/United States of America, enUSA, First Printing
At a Glance
Page 9
• P235/40-18 Pirelli P-Zero Nero
performance all-season tires
(optional).
• ST-engineered front and rear fascias
and rear wing.
• Optional Recaro front seats with
increased lateral support and matching
rear seat covers.
• Leather wrapped ST sport steering
wheel with improved grip contour.
• ST-unique instrument panel appliques,
shift knob, shift boot and pedal pads.
• ST high-speed instrument cluster and
auxiliary cluster with oil temperature,
oil pressure and boost gauges.
Vehicle Specifications
E194502
DescriptionItem
GFT MMT6 6-speed manual with 240 millimeter clutch and dual
mass flywheel
Transmission
Final driveRatioGearGear ratios
4.0633.2311st
6
Focus (CDH) ST, Canada/Mexico/United States of America, enUSA, First Printing
At a Glance
Page 10
DescriptionItem
4.0631.9522nd
4.0631.3213rd
4.0631.3214th
2.9551.1295th
2.9550.9436th
2.9554.600Reverse
Engine Specifications
DescriptionItem
Transversely mounted I4, cast aluminum
cylinder block and cylinder heads
Configuration
3.4 in (87.5 mm) bore x 3.2717 in (83.1 mm)
stroke
Bore x stroke
122 in³ (1,999 cm³)Displacement
9.3:1Compression ratio
252 hp @ 5500 RPM on 93 octaneHorsepower
243 hp @ 5500 RPM on 87 octane
270 lb-ft @ 2500 RPM on 93 octaneTorque
270 lb-ft @ 2500 RPM on 87 octane
6500 RPM continuousRedline
6800 RPM three-second overspeed
126 horsepower per literSpecific output
Twin independent variable cam timingValvetrain
Coil-on-plugIgnition
150 bar fuel pumpFuel system
2.2 in (57 mm)Throttle body
Cast aluminumPistons
Cast ironCrankshaft
Forged steelConnecting rods
7
Focus (CDH) ST, Canada/Mexico/United States of America, enUSA, First Printing
At a Glance
Page 11
DescriptionItem
Single scroll / 21 psi max boost*Turbo
2.5 in (63.5 mm) diameterExhaust system
* SAE Certified Performance ratings are achieved with 19.5 psi, but up to 21 psi can be
delivered to maximize power depending on fuel quality and atmospheric conditions.
Suspension Specifications
DescriptionItem
MacPherson strut with L-arm front
suspension and revised knuckle
Front suspension
Fully independent control blade SLA with
revised stabar routing
Rear suspension
171 lb/in (30 N/mm)Front spring rate
183 lb/in (32 N/mm)Rear spring rate
0.945 in (24 mm) diameter x 0.157 in
(4 mm) thick hollow
Front stabilizer bar
0.866 in (22 mm) diameterRear stabilizer bar
8
Focus (CDH) ST, Canada/Mexico/United States of America, enUSA, First Printing
At a Glance
Page 12
GAUGES
E194323
Tachometer.A
Fuel gauge.B
Coolant temperature gauge.C
Speedometer.D
9
Focus (CDH) ST, Canada/Mexico/United States of America, enUSA, First Printing
Instrument Cluster
Page 13
E215771
Oil temperature gauge.A
Turbocharger boost gauge.B
Oil pressure gauge.C
Oil Temperature Gauge
Indicates the temperature of the engine
oil.
If it enters the red section, the engine is
overheating. Reduce engine speed as soon
as safely possible to allow the engine to
cool. If the engine continues to be driven
at high engine speeds with the needle in
the red section, the engine speed reduces
automatically to prevent engine damage.
Turbocharger Boost Gauge
Indicates the added intake pressure
provided by the turbocharger.
Oil Pressure Gauge
Indicates engine oil pressure.
During normal driving, the indicated oil
pressure varies with engine speed, the
pressure rising as engine speed rises and
dropping as engine speed drops.
If the engine oil pressure drops below the
normal range, the oil pressure gauge
pointer drops into the red section of the
gauge scale and the engine oil pressure
warning lamp in the main instrument
cluster illuminates. Stop the vehicle as
soon as safely possible and switch off the
engine immediately. Check the oil level and
add oil if needed.
10
Focus (CDH) ST, Canada/Mexico/United States of America, enUSA, First Printing
Instrument Cluster
Page 14
MANUAL TRANSMISSION
E144954

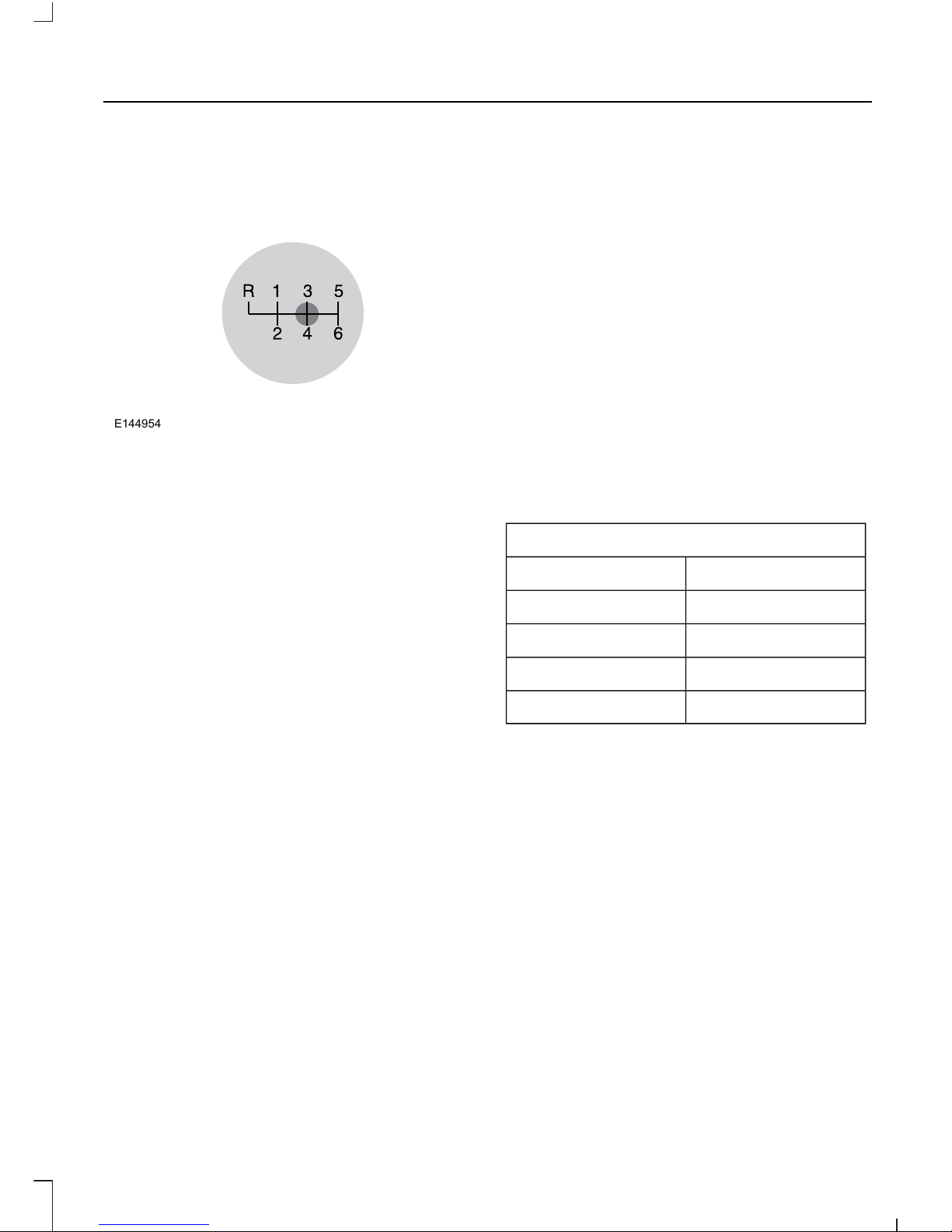

Using the Clutch
Note: During each shift, you must fully press
the clutch pedal to the floor and fully
release the accelerator. Failure to follow
this may cause increased shift efforts,
prematurely wear transmission
components, or cause gear clash or damage
to the transmission. Make sure you properly
position the floor mat so it does not interfere
with the full extension of the clutch pedal.
Note: If you attempt to shift when the drive
wheels are spinning with a loss of traction,
it is possible to cause damage to the
transmission. Do not attempt to shift when
the drive wheels do not have traction.
Note: Do not drive with your foot resting on
the clutch pedal or use the clutch pedal to
hold your vehicle at a standstill while
waiting on a hill. These actions will reduce
the life of the clutch.
Your vehicle has a twin disc clutch. Due to
the high performance of the powertrain, a
certain amount of noise from the
transmission is normal.
The manual transmission has a starter
interlock that prevents cranking the engine
unless you fully press the clutch pedal.
To start the vehicle:
1. Make sure the parking brake is fully set.
2. Press the clutch pedal to the floor, then
put the transmission in neutral (N).
3. Start the engine, then press the brake
pedal and release the parking brake.
4. Move the transmission to position 1 ,
then slowly release the clutch pedal
while slowly pressing on the
accelerator.
5. To reverse, lift up on the reverse
lockout ring found under the shift knob
and move the transmission fully to the
left and forward.
Recommended Shift Speeds for
Maximum Fuel Economy
When accelerating, upshift according to
the following chart:
Shift from:
15 mph (24 km/h)1-2
25 mph (40 km/h)2-3
40 mph (64 km/h)3-4
45 mph (72 km/h)4-5
50 mph (80 km/h)5-6
Operating at High Speeds
Your ST vehicle is capable of high speeds
and has tires rated for the vehicle’s
maximum speed. Remember to drive
safely, obey all traffic laws and only
operate your ST vehicle at high speeds at
locations equipped and designed to do so
safely.
11
Focus (CDH) ST, Canada/Mexico/United States of America, enUSA, First Printing
Transmission
Page 15
Before operating your vehicle at high
speeds:
• Verify correct tire pressures. See Tires
(page 20).
• Inspect wheels and tires for wear and
damage. Replace any wheels or tires
that have damage.
• Do not operate your vehicle at high
speeds with more than two passengers
or while carrying cargo.
12
Focus (CDH) ST, Canada/Mexico/United States of America, enUSA, First Printing
Transmission
Page 16
USING STABILITY CONTROL
The AdvanceTrac® system includes
traction control and electronic stability
control. See the Traction Control and
Stability Control chapters of the Owner's
Manual for more information.
Never switch off stability control or select
sport mode when an emergency wheel or
compact wheel is fitted as spare wheel.

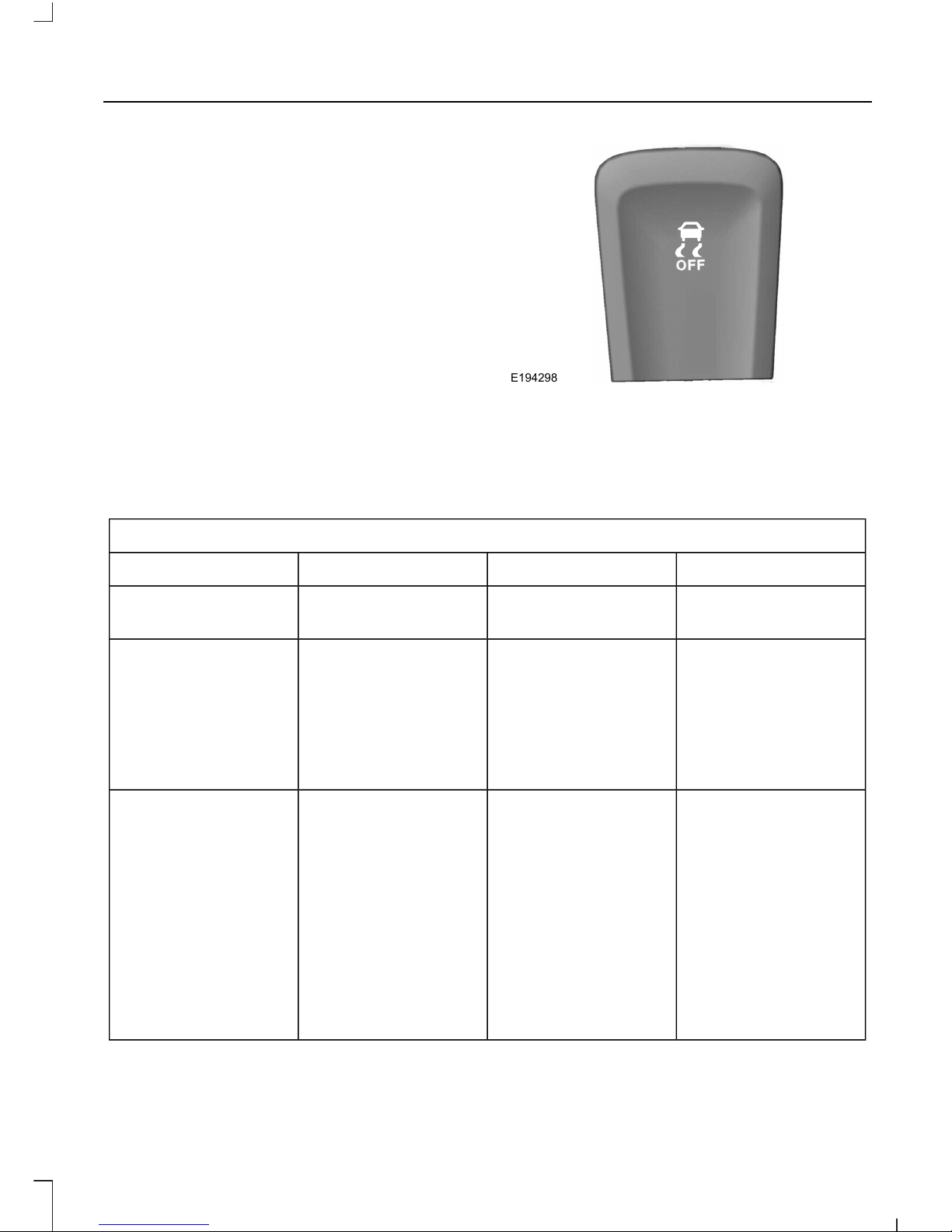

E194298
AdvanceTrac® provides three modes of
operation specially calibrated for the Focus
ST. These are controlled through the
AdvanceTrac® button on the center
console.
AdvanceTrac Modes
DisplayButton operationDescriptionMode
NoneNoneDaily usage with all
driver aids engaged.
Normal
• Message center
displays: Sport
Mode.
• Amber light in
cluster illumin-
ates.
Single pressSpirited driving.
Thresholds altered
on traction control
and electronic
stability control to
allow more tire spin
and vehicle slip.
Sport
Press and hold for
five seconds
Track Use Only.
Traction control and
electronic stability
control are disabled.
Off • Message center
displays: Hold to
switch electronic
stability control
off.
• Electronic
Stability Control
off.
• Amber light in
cluster illumin-
ates.
13
Focus (CDH) ST, Canada/Mexico/United States of America, enUSA, First Printing
Stability Control
Page 17
Enhanced Torque Vectoring
Control
Enhanced torque vectoring control is
comprised of two elements:
• Torque vectoring control, which applies
brake torque on the inner wheel in a
curve for better traction and less
understeer.
• Cornering understeer control which
controls the yaw response of the
vehicle under braking and acceleration
on high and low friction surfaces.
Unlike electronic stability control,
enhanced torque vectoring control does
not slow the vehicle. It helps control
excessive wheel slip and gives the vehicle
cornering agility. The system only increases
performance. Because of this, the system
does not disable enhanced torque
vectoring control when the AdvanceTrac®
system is off.
14
Focus (CDH) ST, Canada/Mexico/United States of America, enUSA, First Printing
Stability Control
Page 18
ENGINE OVERSPEED
Note: Always wait until the engine is
properly warmed up before running high
engine speeds.
Your vehicle has an over-rev feature to
increase the performance range. The
standard maximum engine speed of 6500
RPM is indicated by a narrow red line on
the tachometer face. The red line becomes
thicker at the over-rev engine speed of
6800 RPM.
This feature allows three seconds of
over-rev above 6500 RPM. Once the three
second limit has been reached, the
electronically controlled rev limit ramps
down to 6500 RPM and holds there. Once
the engine speed has dropped below 6300
RPM, the over-rev timer is reset and three
seconds of over-rev up to a maximum of
6800 RPM is enabled.
Do not operate the engine at high RPM and
low load for sustained periods of time, as
damage may occur.
ENGINE OVERBOOST
Your vehicle offers a period of additional
torque delivery referred to as overboost or
overtorque. This feature of the engine
calibration broadens the RPM range of the
peak torque curve. This gives improved
performance during maneuvers such as
passing and vehicle launch.
Note: The overboost feature controls a
variety of engine parameters to deliver
additional torque. Overboost is built into the
engine calibration on your vehicle and no
action is required by the driver to engage.
15
Focus (CDH) ST, Canada/Mexico/United States of America, enUSA, First Printing
Driving Hints
Page 19
ROADSIDE ASSISTANCE
Vehicles Sold in the United States:
Getting Roadside Assistance
To fully assist you should you have a
vehicle concern, Ford Motor Company
offers a complimentary roadside
assistance program. This program is
separate from the New Vehicle Limited
Warranty. The service is available:
• 24 hours a day, seven days a week.
• For the coverage period listed on the
Roadside Assistance Card included in
your Owner's Manual portfolio.
Roadside Assistance covers:
• A flat tire change with a good spare, if
provided with the vehicle (except
vehicles supplied with a tire inflation
kit).
• Battery jump start.
• Lock-out assistance (key replacement
cost is the customer's responsibility).
• Fuel delivery — independent service
contractors, if not prohibited by state,
local or municipal law, shall deliver up
to 2 gal (7.6 L) of gasoline or 5 gal
(18.9 L) of diesel fuel to a disabled
vehicle. Roadside Assistance limits fuel
delivery service to two no-charge
occurrences within a 12-month period.
• Winch out — available within 100 ft
(30.5 m) of a paved or county
maintained road, no recoveries.
• Towing — independent service
contractors, if not prohibited by state,
local or municipal law, shall tow Ford
eligible vehicles to an authorized dealer
within 35 mi (56 km) of the
disablement location or to the nearest
authorized dealer. If a member
requests a tow to an authorized dealer
that is more than 35 mi (56 km) from
the disablement location, the member
shall be responsible for any mileage
costs in excess of 35 mi (56 km).
Roadside Assistance includes up to $200
for a towed trailer if the disabled eligible
vehicle requires service at the nearest
authorized dealer. If the towing vehicle is
operational but the trailer is not, then the
trailer does not qualify for any roadside
services.
Vehicles Sold in the United States:
Using Roadside Assistance
Complete the roadside assistance
identification card and place it in your
wallet for quick reference. This card is in
the owner's information portfolio in the
glove compartment.
United States Ford vehicle customers who
require Roadside Assistance, call
1-800-241-3673.
If you need to arrange roadside assistance
for yourself, Ford Motor Company
reimburses a reasonable amount for
towing to the nearest dealership within
35 mi (56 km). To obtain reimbursement
information, United States Ford vehicle
customers call 1-800-241-3673.
Customers need to submit their original
receipts.
Vehicles Sold in Canada: Getting
Roadside Assistance
To fully assist you should you have a
vehicle concern, Ford Motor Company of
Canada, Limited offers a complimentary
roadside assistance program. This program
is eligible within Canada or the continental
United States.
16
Focus (CDH) ST, Canada/Mexico/United States of America, enUSA, First Printing
Roadside Emergencies
Page 20
This program is separate from the New
Vehicle Limited Warranty, but the coverage
is concurrent with the powertrain coverage
period of your vehicle.
Canadian customers who require roadside
assistance, call 1-800-665-2006.
Vehicles Sold in Canada: Using
Roadside Assistance
Complete the roadside assistance
identification card and place it in your
wallet for quick reference.
In Canada, this card is found in the
Warranty Guide in the glove compartment
of your vehicle.
Vehicles Sold in Canada: Roadside
Assistance Program Coverage
The service is available 24 hours a day,
seven days a week.
Canadian roadside coverage and benefits
may differ from the U.S. coverage.
For complete program coverage details
you may contact your dealer, you can call
us in Canada at 1-800-665-2006, or visit
our website at www.ford.ca.
17
Focus (CDH) ST, Canada/Mexico/United States of America, enUSA, First Printing
Roadside Emergencies
Page 21
UNDER HOOD OVERVIEW - 2.0L ECOBOOST™
E180866
Engine coolant reservoir.A
Engine oil dipstick.B
Engine oil filler cap.C
Brake fluid and clutch fluid reservoir.D
Battery.E
Engine compartment fuse box.F
Engine air cleaner.G
Washer fluid reservoir.H
18
Focus (CDH) ST, Canada/Mexico/United States of America, enUSA, First Printing
Maintenance
Page 22

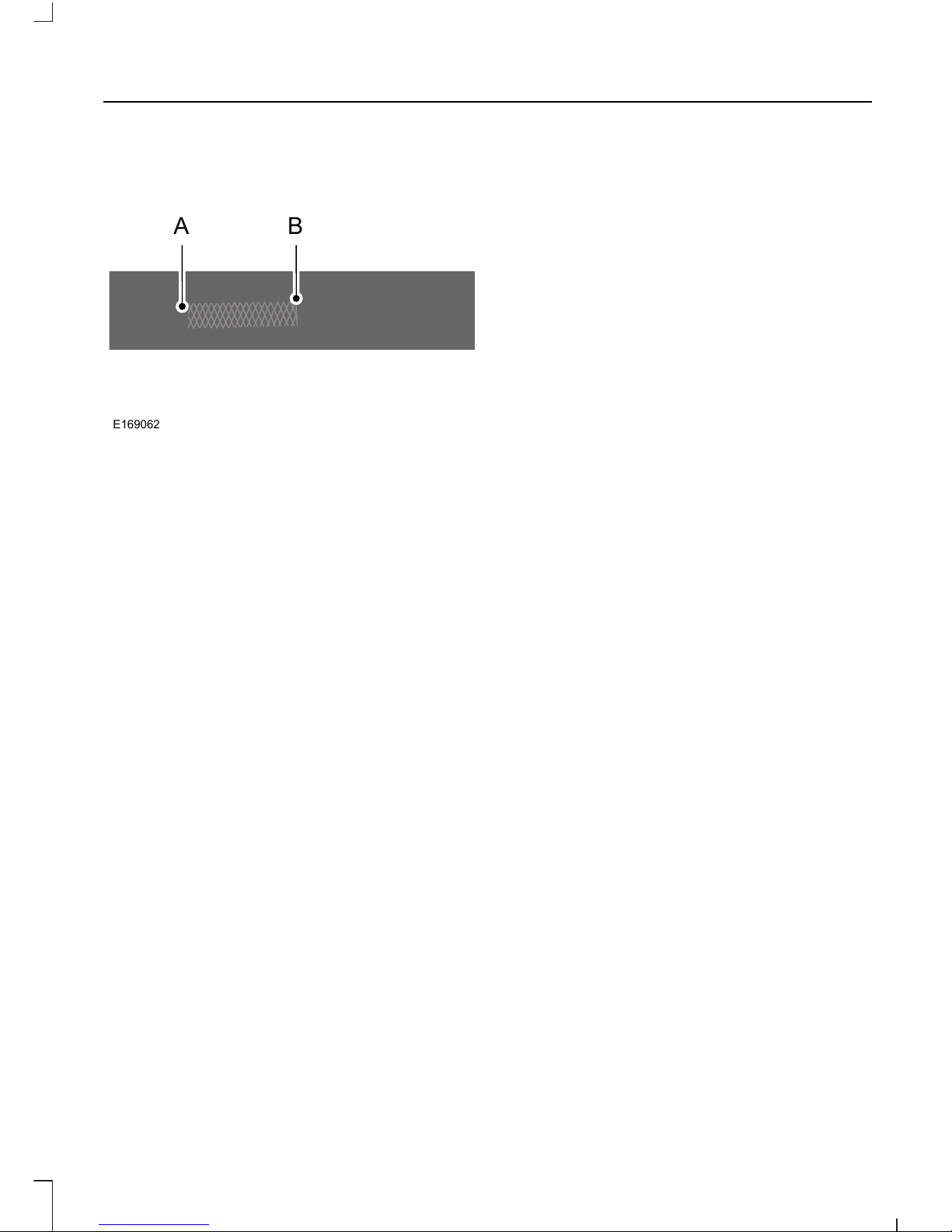

ENGINE OIL DIPSTICK
A B
E169062
Minimum.A
Maximum.B
19
Focus (CDH) ST, Canada/Mexico/United States of America, enUSA, First Printing
Maintenance
Page 23
TIRES
OptionalStandardTires
Pirelli P-Zero NeroGoodyear Eagle F1
235/40-18235/40-18Size
WYSpeed rating
9595Load rating
All seasonSummer onlyUsage
18 in. x 8.0 in., 55 mm offset aluminum wheelsWheels
As standard, your ST vehicle is equipped
with low profile, high performance tires
that are designed to optimize the driving
dynamics you expect in a ST vehicle. These
tires are not optimized for off-road or
winter (snow or cold weather)
performance, and the ride, noise and wear
characteristics are different than
non-performance tires. Also, because of
their lower profile, the tires are more
susceptible to damage due to potholes
and rough roads. To make sure that your
tires perform as intended, it is important
that you maintain your tires properly:
Note: Do not use tire chains on the original
wheels and tires of your vehicle. The use of
any type of tire chain on these tires may
damage your vehicle.
• Do not overload your vehicle. Maximum
vehicle and axle weights are listed on
the tire information placard.
• Take extra caution when operating the
vehicle near its maximum load,
including assuring proper tire pressure
and reducing speeds.
• Take extra caution when operating on
rough roads to avoid impacts that
could cause tire damage.
• If you encounter an abnormally harsh
impact, inspect your tires for damage.
• Inspect your tires for damage on a
regular basis. If a tire is damaged,
replace it immediately.
• Proper suspension alignment is critical
for maximum performance and
optimal tire wear. If you notice uneven
tire wear, have your alignment checked.
• When replacing tires, the only way to
maintain original performance is to use
the original equipment tire. If a different
summer tire is used, it should be the
same size, speed rating and load rating
as the originally equipped tire. Replace
tires as a set of four. Never mix tire
brands or models.
Tire Pressure
Note: You may need to remove the spare
wheel from the spare wheel well to check
the tire pressure.
• For tire pressures, see the placard
located on the B-pillar inside the
driver's door.
• Always maintain your tire pressures
according to the tire information
placard on the driver's door jamb, using
an accurate gauge.
20
Focus (CDH) ST, Canada/Mexico/United States of America, enUSA, First Printing
Wheels and Tires
Page 24
• Tire pressures are specified cold. Check
them after the vehicle has been parked
for at least three hours. Do not reduce
pressure of warm tires.
• Check your tire pressure often to
maintain it properly. Tire pressure can
diminish over time and fluctuate with
temperature.
Optional All-Season Tires
Your Focus ST may come equipped with
an optional All-Season performance tire.
This choice will provide the benefit of four
season mobility without requiring the
installation of winter tires. It is important
to realize that ultimate summer
performance will be reduced relative to
the standard equipment summer only tire.
Additionally, ultimate winter traction and
control will be less than a dedicated winter
tire would provide. If you drive during the
winter months in areas with heavy snowfall
and/or hilly terrain, you may wish to install
a dedicated winter tire if ultimate traction
and control are desired.
USING WINTER TIRES
The standard equipment tires on your ST
vehicle are designed for maximum
performance in dry and wet summer
conditions. They are not designed for
winter use on ice or snow and you cannot
use them with snow chains. Ford does not
recommend using the original equipment
tires when temperatures drop to
approximately 41°F (5°C) or below
(depending on tire wear and environmental
conditions) or in snow and ice conditions.
You must use winter or all-season tires if
you will be operating your vehicle in these
conditions.
• Even with clear, dry driving conditions
do not operate your vehicle above
posted speed limits or perform high
speed maneuvers with winter tires.
• Do not use tire chains on the original
wheels and tires of your vehicle. The
use of any type of tire chain on these
tires may damage your vehicle.
The following table lists acceptable tire
sizes for winter tires. Tire speed and load
ratings should match those of the originally
equipped tires as closely as possible. If it
is required to fit winter tires with a speed
rating less than the original equipment tires
(to fit snow chains, for example), be aware
of the maximum speed rating for the tire
and never exceed.
Compatible Snow Tire and Wheel Packages
Required wheel.Tire size
Original equipment ST wheel or equivalent.235/40-18
Owner supplied. See your Ford dealer for
suitable wheels from the Focus lineup.
235/45-17
215/50-17
*
* Required size to prevent vehicle damage if snow chain use is required.
21
Focus (CDH) ST, Canada/Mexico/United States of America, enUSA, First Printing
Wheels and Tires
Page 25
Please call the Ford Performance Info
Center at 1-800-FORD-SVT (367-3788)
for specific winter tire recommendations.
TECHNICAL SPECIFICATIONS
WHEELS
Wheel Specification
18 inches x 8.0 inchesDiameter and width
2.2 in (55 mm)Offset
6.7 in (16.949 cm)Backspacing
2.5 in (63.5 mm)Center bore
25 lb (11 kg)Weight
Your ST vehicle is equipped with unique wheels matched to the tires. These wheels are
more susceptible to damage due to their diameter, width and low profile tires. To avoid
damage to your wheels:
• Maintain proper tire pressure.
• Exercise caution when using automated, commercial car washes. Hand washing or
using touchless commercial car washes without mechanical tracks is the best way
to avoid potential damage.
• When installing wheels, always torque lug nuts to specification with a torque wrench.
• Inspect your wheels for damage on a regular basis. If a wheel is damaged, replace it
immediately.
• If you encounter an abnormally harsh impact, inspect the outer diameter of your
wheels, both inside and out, for damage.
Full Size Spare
Continental ContiProContactSpare tire
215/50R17Size
HSpeed rating
91Load rating
22
Focus (CDH) ST, Canada/Mexico/United States of America, enUSA, First Printing
Wheels and Tires
Page 26
Continental ContiProContactSpare tire
All SeasonUsage
17 in. x 7.5 in, 52.5mm offset steel wheelWheel
See the Wheels and Tires chapter of your owner's manual for instructions on changing
a road wheel.
Your ST vehicle is equipped with a full-size, dissimilar spare tire assembly. Although the
spare is a traditional, full size tire (as opposed to a mini-spare), it is different in both size
and handling characteristics from the standard Focus ST performance tire. If you need
to install the spare tire, you must adhere to the following precautions:
• Because of the different performance characteristics of the spare tire, avoid aggressive
steering, braking, acceleration or high speeds when you install the spare tire.
• Never enable electronic stability control sport mode or fully disable electronic stability
control when you install the spare tire.
• Replace the spare tire with the correct original equipment specified tire as soon as
possible.
The table lists the specifications for the full size spare tire and wheel assembly. Tire speed
and load ratings should match those of the originally equipped tires as closely as possible.
23
Focus (CDH) ST, Canada/Mexico/United States of America, enUSA, First Printing
Wheels and Tires
Page 27
ENGINE SPECIFICATIONS
2.0L EcoBoost engineEngine
122Cubic inches
Minimum 87 octaneRequired fuel
1–3–4–2Firing order
Coil on plugIgnition system
9.3:1Compression ratio
0.027-0.031 in (0.70-0.80 mm)Spark plug gap
Drivebelt Routing
2.0L EcoBoost
E180867
A. Long drivebelt is on the first pulley
groove closest to the engine.
B. Short drivebelt is on the second pulley
groove farthest from the engine.
MOTORCRAFT PARTS
Part NumberComponent
FA-1908Air filter element
FL-910-SOil filter
BXT-96R-590Battery
SP-537 / CYFS12Y2Spark plugs
Lifetime FilterEngine fuel filter
24
Focus (CDH) ST, Canada/Mexico/United States of America, enUSA, First Printing
Capacities and Specifications
Page 28
Part NumberComponent
FP-70Cabin air filter
WW-2802 (driver side)Windshield wiper blade
WW-2803 (passenger side)
WW-1295 (rear)
We recommend Motorcraft replacement parts available at your Ford dealer or at
fordparts.com for scheduled maintenance. These parts meet or exceed Ford Motor
Company’s specifications and are engineered for your vehicle. Use of other parts may
impact vehicle performance, emissions and durability. Your warranty may be void for any
damage related to use of other parts.
If a Motorcraft oil filter is not available, use an oil filter that meets industry performance
specification SAE/USCAR-36.
For spark plug replacement, contact an authorized dealer. Replace the spark plugs at the
appropriate intervals.
25
Focus (CDH) ST, Canada/Mexico/United States of America, enUSA, First Printing
Capacities and Specifications
Page 29
TRANSMISSION CODE DESIGNATION
CodeDescription
VGetrag-Ford Transmission (GFT)
Six-speed manual transmission (MMT6)
26
Focus (CDH) ST, Canada/Mexico/United States of America, enUSA, First Printing
Capacities and Specifications
Page 30
Capacities
CapacityItem
5.7 qt (5.4 L)Engine oil
5.3 qt (5.0 L)Engine coolant
Between MIN and MAX on brake fluid reservoirBrake fluid
1.8 qt (1.7 L)
*
Manual transmission fluid
*
Approximate dry fill capacity. Actual amount may vary during fluid changes.
Specifications
Materials
SpecificationName
WSS-M2C946-ARecommended motor oil (U.S.):
Motorcraft SAE 5W-30 Premium Synthetic Blend
Motor Oil
XO-5W30-QSP
WSS-M2C946-ARecommended motor oil (Canada):
Motorcraft SAE 5W-30 Super Premium Motor Oil
CXO-5W30-LSP12
WSS-M2C946-ARecommended motor oil (Mexico):
Motorcraft SAE 5W-30 Synthetic Motor Oil
MXO-5W30-QSP
WSS-M2C946-AOptional motor oil (U.S. and Mexico):
Motorcraft SAE 5W-30 Full Synthetic Motor Oil
XO-5W30-QFS
WSS-M2C946-AOptional motor oil (Canada):
Motorcraft SAE 5W-30 Full Synthetic Motor Oil
CXO-5W30-LFS12
WSS-M97B44-D2Engine coolant (U.S. and Mexico):
Motorcraft Orange Antifreeze/Coolant Prediluted
VC-3DIL-B
27
Focus (CDH) ST, Canada/Mexico/United States of America, enUSA, First Printing
Capacities and Specifications
Page 31
SpecificationName
WSS-M97B44-D2Engine coolant (Canada):
Motorcraft Orange Antifreeze/Coolant Prediluted
CVC-3DIL-B
WSS-M6C65-A2Brake fluid:
Motorcraft DOT 4 Low Viscosity (LV) High Performance Motor Vehicle Brake Fluid
PM-20
WSS-M2C200-D2Manual transmission fluid:
Motorcraft Dual Clutch Transmission Fluid
XT-11-QDC
If you use oil and fluids that do not meet
the defined specification and viscosity
grades this may lead to:
• Component damage which may not be
covered by the vehicle Warranty.
• Longer engine cranking periods.
• Increased emission levels.
• Reduced engine performance.
• Reduced fuel economy.
• Degraded brake performance.
We recommend Motorcraft motor oil for
your vehicle. If Motorcraft oil is not
available, use motor oils of the
recommended viscosity grade that meet
API SN requirements and display the API
Certification Mark for gasoline engines. Do
not use oil labeled with API SN service
category unless the label also displays the

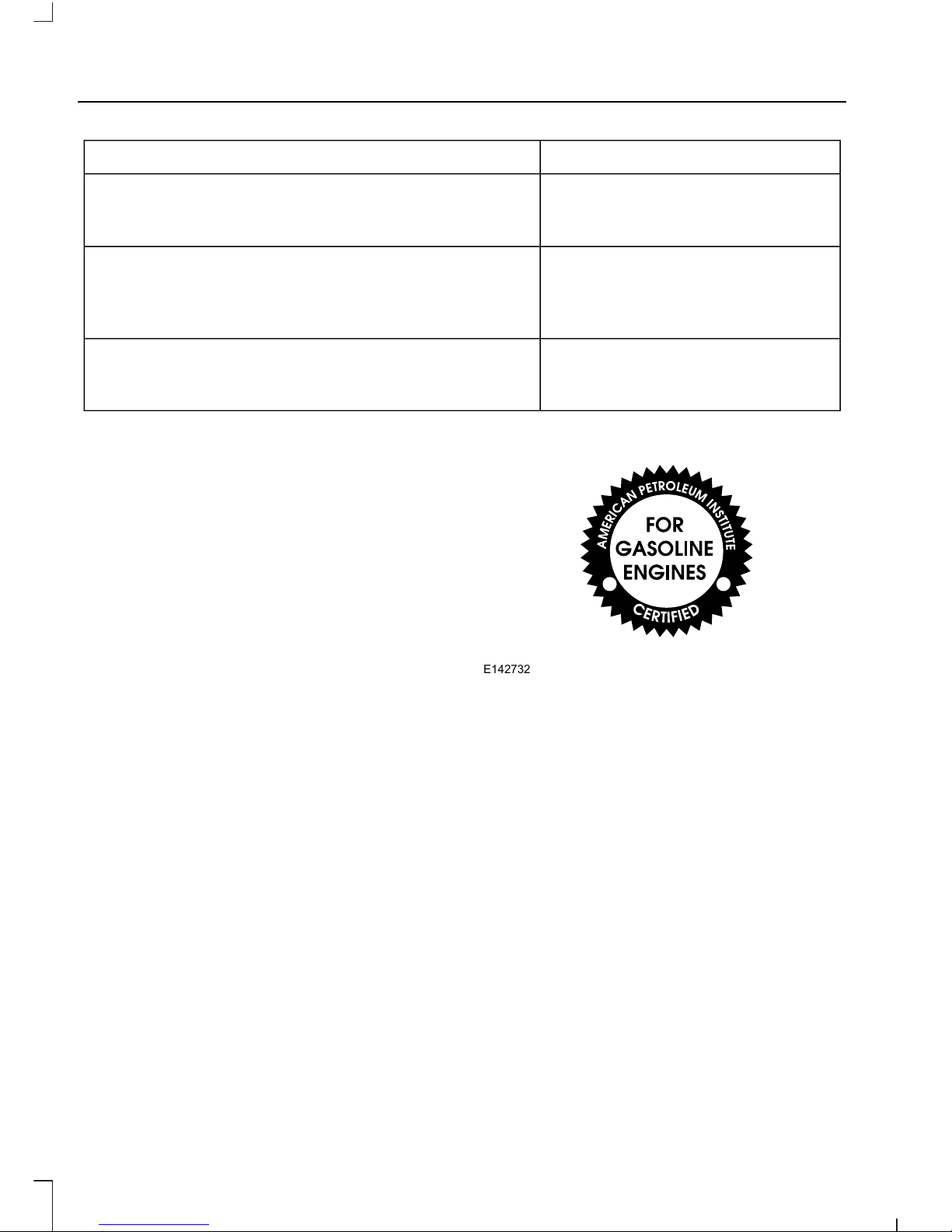

API certification mark.
E142732
An oil that displays this symbol conforms
to current engine, emission system and
fuel economy performance standards of
the International Lubricants Specification
Advisory Council (ILSAC).
Do not use supplemental engine oil
additives because they are unnecessary
and could lead to engine damage that may
not be covered by your vehicle warranty.
28
Focus (CDH) ST, Canada/Mexico/United States of America, enUSA, First Printing
Capacities and Specifications
Page 32
Note: Ford recommends using DOT 4 Low
Viscosity (LV) High Performance Brake Fluid
or equivalent meeting WSS-M6C65-A2. Use
of any fluid other than the recommended
fluid may cause degraded brake
performance and not meet the Ford
performance standards. Keep brake fluid
clean and dry. Contamination with dirt,
water, petroleum products or other
materials may result in brake system
damage and possible failure.
29
Focus (CDH) ST, Canada/Mexico/United States of America, enUSA, First Printing
Capacities and Specifications
Page 33
BASE WARRANTY
The Focus ST carries the same warranty
as other Ford Focus models. This
information is covered in its entirety in the
warranty information.
You can obtain warranty service for your
ST vehicle or any ST vehicle at any Ford
dealer nationwide.
Ford Global Performance does not
recommend modifying or racing ST, SVT
or RS vehicles, as they are designed and
built to be driven as delivered from the
factory. The warranty information
discusses vehicle usage and the
installation of aftermarket parts and their
effect on warranty coverage.
In the event the vehicle is intended for track
use, and the loss of warranty coverage is
not of concern, the following vehicle
durability actions are required:
• Perform multi-point inspection and the
maintenance outlined in the
150,000 mi (240,000 km) normal
maintenance schedule of the
scheduled maintenance before and
after track use. See the vehicle service
manual for removal and installation
procedures.
• Replace with Genuine Ford and
Motorcraft service parts as needed.
These actions may not necessarily protect
your vehicle from damage in competition
conditions. Subjecting your vehicle to
competition conditions even with this
recommended action may render repairs
non-reimbursable under the warranty.
30
Focus (CDH) ST, Canada/Mexico/United States of America, enUSA, First Printing
Warranty Terms and Conditions
Page 34
A
About This Supplement.................................3
At a Glance..........................................................5
Engine Specifications............................................7
Suspension Specifications.................................8
Vehicle Specifications...........................................6
B
Base Warranty.................................................30
C
Capacities and Specifications...................27
Capacities................................................................27
Specifications.........................................................27
D
Driving Hints......................................................15
E
Engine Oil Dipstick..........................................19
Engine Overboost...........................................15
Engine Overspeed...........................................15
Engine Specifications...................................24
Drivebelt Routing..................................................24
G
Gauges..................................................................9
Oil Pressure Gauge...............................................10
Oil Temperature Gauge......................................10
Turbocharger Boost Gauge...............................10
I
Instrument Cluster...........................................9
Introduction........................................................3
M
Maintenance.....................................................18
Manual Transmission......................................11
Operating at High Speeds...................................11
Recommended Shift Speeds for Maximum
Fuel Economy.....................................................11
Using the Clutch.....................................................11
Motorcraft Parts.............................................24
P
Product History..................................................4
Ford Performance..................................................4
Team RS History......................................................4
R
Roadside Assistance.....................................16
Vehicles Sold in Canada: Getting Roadside
Assistance...........................................................16
Vehicles Sold in Canada: Roadside
Assistance Program Coverage.....................17
Vehicles Sold in Canada: Using Roadside
Assistance...........................................................17
Vehicles Sold in the United States: Getting
Roadside Assistance......................................16
Vehicles Sold in the United States: Using
Roadside Assistance......................................16
Roadside Emergencies.................................16
S
Stability Control...............................................13
T
Technical Specifications
See: Capacities and Specifications...............24
Tires.....................................................................20
Optional All-Season Tires..................................21
Tire Pressure..........................................................20
Tires
See: Wheels and Tires........................................20
Transmission Code Designation...............26
Transmission......................................................11
Transmission
See: Transmission..................................................11
31
Focus (CDH) ST, Canada/Mexico/United States of America, enUSA, First Printing
Index
Page 35
U
Under Hood Overview - 2.0L
EcoBoost™....................................................18
Using Stability Control..................................13
Enhanced Torque Vectoring Control..............14
Using Winter Tires...........................................21
W
Warranty Terms and Conditions..............30
Wheels and Tires...........................................20
Technical Specifications....................................22
Winter Tires
See: Using Winter Tires.......................................21
32
Focus (CDH) ST, Canada/Mexico/United States of America, enUSA, First Printing
Index
Loading...
