2014 FOCUS ELECTRIC Owner’s Manual

Page 2

Table of Contents 1

Introduction 7

Child Safety 15

Child seat positioning ...................................17

Booster seats .........................................19

Installing child seats ....................................22

Child safety locks ......................................30

Safety Belts 31

Fastening the safety belts ................................33

Safety belt height adjustment .............................36

Safetybeltwarninglightandindicatorchime..................37

Child restraint and safety belt maintenance ...................40

Personal Safety System 41

Supplementary Restraints System 42

Driver and passenger airbags .............................44

Knee airbag ..........................................49

Side airbags ..........................................50

Side curtain airbags ....................................51

Crash sensors and airbag indicator .........................53

Airbag disposal........................................54

Keys and Remote Control 55

General information on radio frequencies.....................55

Remote control .......................................56

Replacing a lost key or remote control.......................59

MyKey 60

Settings, MyKey .......................................60

Creating.............................................61

Clearing.............................................62

System status.........................................62

Remote start, MyKey ...................................63

Troubleshooting, MyKey .................................65

2014 Focus Electric Vehicle (fob) Owners Guide gf, 1st Printing, May 2013 USA (fus)

Page 3

2 Table of Contents

Locks 67

Locking and unlocking ..................................67

Trunk release .........................................72

Security 73

SecuriLock® passive anti-theft system.......................73

Steering Wheel 75

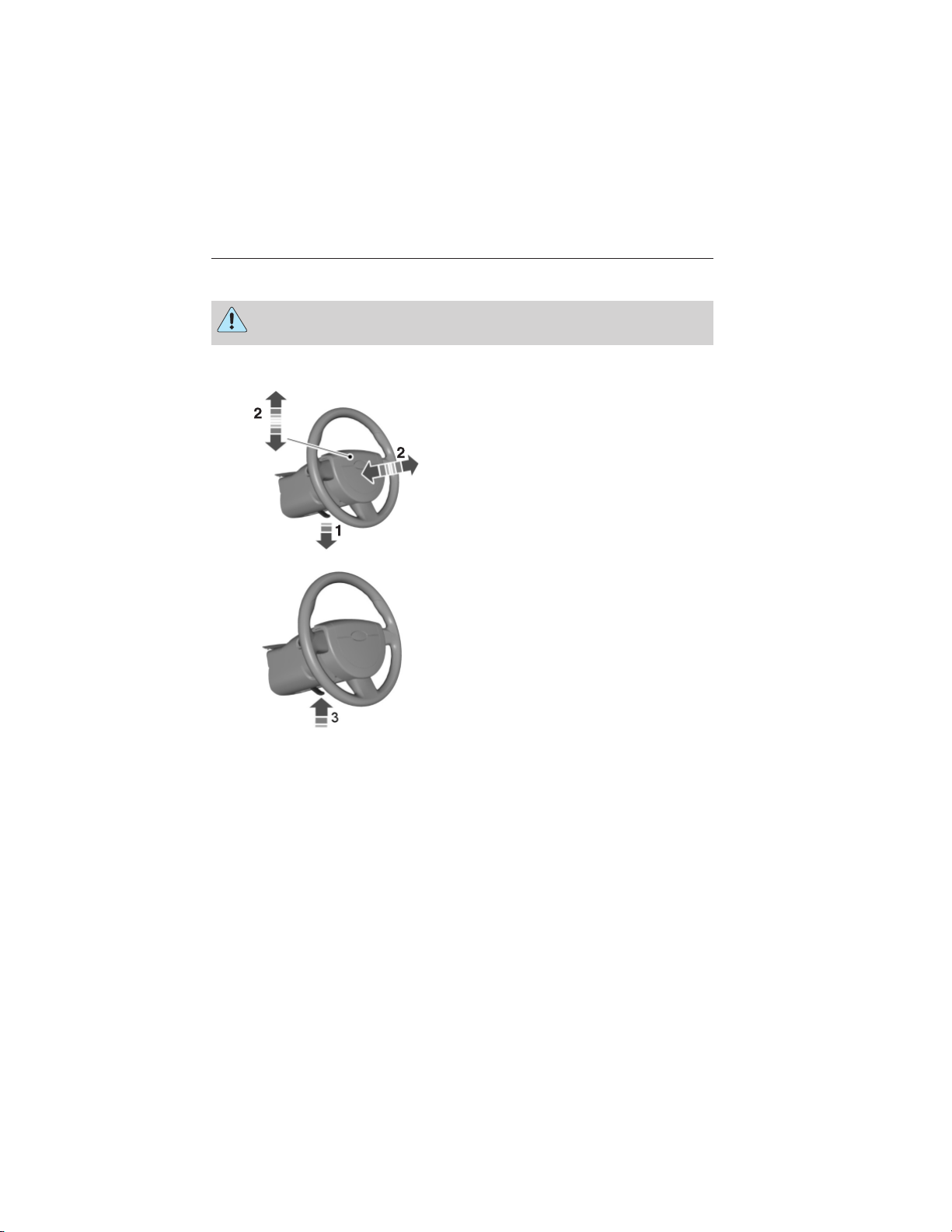

Adjusting the steering wheel ..............................75

Steering wheel controls .................................76

Wipers and Washers 78

Windshield wipers .....................................78

Windshield washers ....................................79

Rear-window wiper and washer ............................79

Lighting 81

Headlamps ...........................................81

Autolamps ...........................................82

Panel dimmer control ...................................83

Headlamp exit delay ....................................84

Daytime running lamps ..................................84

Front fog lamps.......................................84

Interior lamps ........................................85

Windows and Mirrors 89

Power windows .......................................89

Exteriormirrors.......................................91

Interiormirrors .......................................93

Sunvisors...........................................94

Instrument Cluster 95

Gauges .............................................95

Warning lamps and indicators .............................97

Audible warnings and indicators ..........................101

2014 Focus Electric Vehicle (fob) Owners Guide gf, 1st Printing, May 2013 USA (fus)

Page 4

Table of Contents 3

Information Displays 102

Message center.......................................102

Information messages ..................................110

Climate Control 120

Rear window defroster .................................124

Seats 127

Sitting in the correct position ............................127

Head restraints.......................................128

Manual seats ........................................131

Power seats .........................................133

Heated seats ........................................134

Rear seats ..........................................135

Auxiliary Power Points 137

Storage Compartments 138

Overhead console .....................................138

Starting and Stopping the Vehicle 139

Keyless starting ......................................139

High Voltage Battery 142

High-voltagebattery...................................142

Charging the high-voltage battery .........................142

High-voltageshut-off...................................148

Transmission 149

Automatic transmission.................................149

Hill start assist .......................................152

Brakes 153

Brakes .............................................153

Hints on driving with anti-lock brakes ......................154

Parking brake........................................155

2014 Focus Electric Vehicle (fob) Owners Guide gf, 1st Printing, May 2013 USA (fus)

Page 5

4 Table of Contents

Traction Control 156

TractionControl™....................................156

Stability Control 157

AdvanceTrac® .......................................158

Parking Aids 159

Sensing system.......................................159

Rear-view camera system ...............................160

Cruise Control 166

Driving Aids 168

Steering............................................168

Load Carrying 170

Vehicle loading .......................................170

Towing 177

Trailertowing........................................177

Wrecker towing ......................................177

Recreational towing ...................................178

Driving Hints 179

Floormats..........................................180

Roadside Emergencies 182

Getting roadside assistance ..............................182

Hazard warning flashers ................................183

Jump starting ........................................184

Guidance for electric and hybrid-electric vehicles ..............187

Customer Assistance 190

Reporting safety defects (U.S. only) .......................197

Reporting safety defects (Canada only) .....................197

2014 Focus Electric Vehicle (fob) Owners Guide gf, 1st Printing, May 2013 USA (fus)

Page 6

Table of Contents 5

Fuses 198

Changing a fuse ......................................198

Fuse specification chart ................................199

Maintenance 208

General information ...................................208

Motor/Electronics Coolant ...............................212

Battery ............................................216

Checking the wiper blades ..............................218

Adjusting the headlamps ................................219

Removing a headlamp ..................................221

Changing a bulb ......................................222

Vehicle Care 227

Waxing.............................................229

Repairing minor paint damage ............................229

Cleaning the windows and wiper blades .....................230

Cleaning the interior ...................................231

Cleaning the instrument panel and instrument cluster lens .......231

Cleaning leather seats ..................................232

Cleaning the alloy wheels ...............................233

Wheels and Tires 236

Tire care ...........................................236

Tire Pressure Monitoring System (TPMS) ...................252

Temporary mobility kit .................................256

Technical specifications.................................264

Wheel lug nut torque ..................................264

Capacities and Specifications 265

Maintenance product specifications and capacities .............265

Part numbers ........................................267

Vehicle identification number ............................267

Vehicle certification label ...............................268

Transmission code designation............................268

2014 Focus Electric Vehicle (fob) Owners Guide gf, 1st Printing, May 2013 USA (fus)

Page 7

6 Table of Contents

Accessories 269

Accessories .........................................269

Ford Extended Service Plan 271

Audio System 274

AM/FMstereowithsingleCD ............................276

MyFord Touch® 279

Infotainment display ...................................286

Voice recognition .....................................287

Listening to music ....................................291

Phone features .......................................312

Information Menu .....................................328

Settings............................................341

Climatefeatures......................................352

Navigation system.....................................355

Appendices 368

Scheduled Maintenance 387

Normal scheduled maintenance and log .....................392

Index 397

The information contained in this publication was correct at the time of going to print. In the interest of continuous development, we reserve the right to change specifications, design or equipment at any time without notice or obligation. No part of this publication may be reproduced, transmitted, stored in a retrieval system or translated into any language in any form by any means without our written permission. Errors and omissions excepted.

2014 Focus Electric Vehicle (fob) Owners Guide gf, 1st Printing, May 2013 USA (fus)

Page 8

Introduction 7

ABOUT THIS MANUAL

Thank you for choosing Ford. We recommend that you take some time to get to know your vehicle by reading this manual. The more that you know about it, the greater the safety and pleasure you will get from driving it.

WARNING: Always drive with due care and attention when using and operating the controls and features on your vehicle.

Note: This manual describes product features and options available throughout the range of available models, sometimes even before they are generally available. It may describe options not fitted to your vehicle.

Note: Some of the illustrations in this manual may be used for different models, so may appear different to you on your vehicle. However, the essential information in the illustrations is always correct.

Note: Always use and operate your vehicle in line with all applicable laws and regulations.

Note: Pass on this manual when selling your vehicle. It is an integral part of the vehicle.

This manual may qualify the location of a component as left-hand side or right-hand side. The side is determined when facing forward in the seat.

A. Right-hand side B. Left-hand side

Protecting the Environment

You must play your part in protecting the environment. Correct vehicle usage and the authorized disposal of waste, cleaning and lubrication materials are significant steps toward this aim.

2014 Focus Electric Vehicle (fob) Owners Guide gf, 1st Printing, May 2013 USA (fus)

Page 9

8 Introduction

SYMBOL GLOSSARY

WARNING: You risk death or serious injury to yourself and others if you do not follow the instruction highlighted by the

warning symbol.

These are some of the symbols you may see on your vehicle.

Symbol Description Symbol Description Symbol Description

Safety alert See Owner’s

Manual

Avoid smoking, flames, or sparks

Brake fluid – non petroleum base

Check fuel cap

Child seat tether anchor

Engine air filter

Engine oil Explosive gas Fan warning

Battery Battery acid

Brake system Cabin air

Child Safety Door Lock and Unlock

Cruise control Do not open

Engine coolant

Anti-lock braking system

filter

Child seat lower anchor

when hot

Engine coolant temperature

Fasten safety belt

Front airbag Front fog

2014 Focus Electric Vehicle (fob) Owners Guide gf, 1st Printing, May 2013 USA (fus)

lamps

Page 10

Introduction 9

Symbol Description Symbol Description Symbol Description

Fuel pump reset

Heated rear window

Lighting control

Panic alarm Parking aid

Fuse compartment

Interior luggage compartment release

Low tire pressure warning

system

Hazard warning flasher

Jack

Maintain correct fluid level

Parking brake system

Power steering fluid

Service engine soon

Windshield defrost and demist

DATA RECORDING

Service Data Recording

Service data recorders in your vehicle are capable of collecting and storing diagnostic information about your vehicle. This potentially includes information about the performance or status of various systems and modules in the vehicle, such as engine, throttle, steering or brake systems. In order to properly diagnose and service your vehicle, Ford Motor Company, Ford of Canada, and service and repair facilities may access or share among them vehicle diagnostic information received through a direct connection to your vehicle when diagnosing or servicing your vehicle. Additionally, when your vehicle is in for service or repair,

Power windows front and rear

Side airbag Stability

Windshield washer and wiper

Power window lockout

control

2014 Focus Electric Vehicle (fob) Owners Guide gf, 1st Printing, May 2013 USA (fus)

Page 11

10 Introduction

Ford Motor Company, Ford of Canada, and service and repair facilities may access or share among them data for vehicle improvement purposes. For U.S. only (if equipped), if you choose to use the SYNC® Vehicle Health Report, you consent that certain diagnostic information may also be accessed electronically by Ford Motor Company and Ford authorized service facilities, and that the diagnostic information may be used for any purpose. See the SYNC® chapter for more information.

Event Data Recording

This vehicle is equipped with an event data recorder (EDR). The main purpose of an EDR is to record, in certain crash or near crash-like situations, such as an airbag deployment or hitting a road obstacle; this data will assist in understanding how a vehicle’s systems performed. The EDR is designed to record data related to vehicle dynamics and safety systems for a short period of time, typically 30 seconds or less. The EDR in this vehicle is designed to record such data as:

• How various systems in your vehicle were operating;

• Whether or not the driver and passenger safety belts were

buckled/fastened;

• How far (if at all) the driver was depressing the accelerator and/or the brake pedal;

• How fast the vehicle was travelling;

• Where the driver was positioning the steering wheel.

This data can help provide a better understanding of the circumstances in which crashes and injuries occur.

Note: EDR data is recorded by your vehicle only if a non-trivial crash situation occurs; no data is recorded by the EDR under normal driving conditions and no personal data or information (e.g., name, gender, age, and crash location) is recorded (see limitations regarding 911 Assist and Traffic, Directions and Information privacy below). However, parties, such as law enforcement, could combine the EDR data with the type of personally identifying data routinely acquired during a crash investigation.

2014 Focus Electric Vehicle (fob) Owners Guide gf, 1st Printing, May 2013 USA (fus)

Page 12

Introduction 11

To read data recorded by an EDR, special equipment is required, and access to the vehicle or the EDR is needed. In addition to the vehicle manufacturer, other parties, such as law enforcement, that have such special equipment, can read the information if they have access to the vehicle or the EDR. Ford Motor Company and Ford of Canada do not access event data recorder information without obtaining consent, unless pursuant to court order or where required by law enforcement, other government authorities or other third parties acting with lawful authority. Other parties may seek to access the information independently of Ford Motor Company and Ford of Canada.

Note: Including to the extent that any law pertaining to Event Data Recorders applies to SYNC® or its features, please note the following: Once 911 Assist (if equipped) is enabled (set ON), 911 Assist may, through any paired and connected cell phone, disclose to emergency services that the vehicle has been in a crash involving the deployment of an airbag or, in certain vehicles, the activation of the fuel pump shut-off. Certain versions or updates to 911 Assist may also be capable of being used to electronically or verbally provide to 911 operators the vehicle location (such as latitude and longitude), and/or other details about the vehicle or crash or personal information about the occupants to assist 911 operators to provide the most appropriate emergency services. If you do not want to disclose this information, do not activate the 911 Assist feature. See your SYNC® chapter for more information.

Additionally, when you connect to Traffic, Directions and Information (if equipped, U.S. only), the service uses GPS technology and advanced vehicle sensors to collect the vehicle’s current location, travel direction, and speed (“vehicle travel information”), only to help provide you with the directions, traffic reports, or business searches that you request. If you do not want Ford or its vendors to receive this information, do not activate the service. Ford Motor Company and the vendors it uses to provide you with this information do not store your vehicle travel information. For more information, see Traffic, Directions and Information, Terms and Conditions. See your SYNC® chapter for more information.

2014 Focus Electric Vehicle (fob) Owners Guide gf, 1st Printing, May 2013 USA (fus)

Page 13

12 Introduction

CALIFORNIA PROPOSITION 65

WARNING:

components, certain fluids contained in vehicles and certain products of component wear contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

PERCHLORATE MATERIAL

Note: Certain components in your vehicle, such as airbag modules, safety belt pretensioners, and remote control batteries, may contain perchlorate material. Special handling may apply for service or vehicle end of life disposal. See www.dtsc.ca.gov/hazardouswaste/perchlorate for more information.

FORD CREDIT (U.S. ONLY)

Ford Credit offers a full range of financing and lease plans to help you acquire your vehicle. If you have financed or leased your vehicle through Ford Credit, thank you for your business.

For your convenience, we offer a number of ways to contact us, as well as help manage your account.

Phone: 1-800-727-7000 For more information regarding Ford Credit, as well as access to

Account Manager, please go to www.fordcredit.com.

REPLACEMENT PARTS RECOMMENDATION

Your vehicle has been built to the highest standards using quality parts. We recommend that you demand the use of genuine Ford and Motorcraft parts whenever your vehicle requires scheduled maintenance or repair. You can clearly identify genuine Ford and Motorcraft parts by looking for the Ford, FoMoCo or Motorcraft branding on the parts or their packaging.

Some constituents of engine exhaust, certain vehicle

Scheduled Maintenance and Mechanical Repairs

One of the best ways for you to make sure that your vehicle provides years of service is to have it maintained in line with our recommendations using parts that conform to the specifications detailed in this owner’s manual. Genuine Ford and Motorcraft parts meet or exceed these specifications.

2014 Focus Electric Vehicle (fob) Owners Guide gf, 1st Printing, May 2013 USA (fus)

Page 14

Introduction 13

Collision Repairs

We hope that you never experience a collision, but accidents do happen. Genuine Ford replacement collision parts meet our stringent requirements for fit, finish, structural integrity, corrosion protection and dent resistance. During vehicle development, we validate that these parts deliver the intended level of protection as a whole system. A great way to know for sure you are getting this level of protection is to use genuine Ford replacement collision parts.

Warranty on Replacement Parts

Genuine Ford and Motorcraft replacement parts are the only replacement parts that benefit from a Ford Warranty. Damage caused to your vehicle as a result of the failure of non-Ford parts may not be covered by the Ford Warranty. For additional information, see the terms and conditions of the Ford Warranty.

SPECIAL NOTICES

New Vehicle Limited Warranty

For a detailed description of what is covered and what is not covered by your vehicle’s New Vehicle Limited Warranty, see the warranty information that is provided to you along with your owner’s manual.

Special Instructions

For your added safety, your vehicle is fitted with sophisticated electronic controls.

WARNING: Please read the Supplementary Restraints System chapter. Failure to follow the specific warnings and instructions

could result in personal injury.

WARNING: Front seat mounted rear-facing child or infant seats should NEVER be placed in front of an active passenger airbag.

Using your vehicle with a snowplow

Do not use this vehicle for snowplowing.

Your vehicle is not equipped with a snowplowing package.

2014 Focus Electric Vehicle (fob) Owners Guide gf, 1st Printing, May 2013 USA (fus)

Page 15

14 Introduction

Using your vehicle as an ambulance

Do not use this vehicle as an ambulance.

Your vehicle is not equipped with the Ford Ambulance Preparation Package.

MOBILE COMMUNICATIONS EQUIPMENT

Using mobile communications equipment is becoming increasingly important in the conduct of business and personal affairs. However, you must not compromise your own or others’ safety when using such equipment. Mobile communications can enhance personal safety and security when appropriately used, particularly in emergency situations. Safety must be paramount when using mobile communications equipment to avoid negating these benefits.

Mobile communication equipment includes, but is not limited to, cellular phones, pagers, portable email devices, text messaging devices and portable two-way radios.

WARNING: Driving while distracted can result in loss of vehicle

control, crash and injury. We strongly recommend that you use extreme caution when using any device that may take your focus off the road. Your primary responsibility is the safe operation of your vehicle. We recommend against the use of any handheld device while driving and encourage the use of voice-operated systems when possible. Make sure you are aware of all applicable local laws that may affect the use of electronic devices while driving.

EXPORT UNIQUE (NON–UNITED STATES/CANADA) VEHICLE SPECIFIC INFORMATION

For your particular global region, your vehicle may be equipped with features and options that are different from the features and options that are described in this owner’s manual. A market unique supplement may be supplied that complements this book. By referring to the market unique supplement, if provided, you can properly identify those features, recommendations and specifications that are unique to your vehicle. This owner’s manual is written primarily for the U.S. and Canadian Markets. Features or equipment listed as standard may be different on units built for Export. See this owner’s manual for all other required

information and warnings.

2014 Focus Electric Vehicle (fob) Owners Guide gf, 1st Printing, May 2013 USA (fus)

Page 16

Child Safety 15

GENERAL INFORMATION

See the following sections for directions on how to properly use safety restraints for children.

WARNING: Always make sure your child is secured properly in a

device that is appropriate for their height, age and weight. Child safety restraints must be bought separately from your vehicle. Failure to follow these instructions and guidelines may result in an increased risk of serious injury or death to your child.

WARNING:

recommendations for safety restraints are based on probable child height, age and weight thresholds from NHTSA and other safety organizations, or are the minimum requirements of law. Ford recommends checking with a NHTSA Certified Child Passenger Safety Technician (CPST) and consulting your pediatrician to make sure your child seat is appropriate for your child, and is compatible with and properly installed in your vehicle. To locate a child seat fitting station and CPST, contact the NHTSA toll free at 1-888-327-4236 or on the internet at http://www.nhtsa.dot.gov. In Canada, check with your local St. John Ambulance office for referral to a CPST or for further information, contact your provincial ministry of transportation, or locate your local St. John Ambulance office by searching for St. John Ambulance on the internet, or Transport Canada at 1–800–333–0371 (http://www.tc.gc.ca). Failure to properly restrain children in safety seats made especially for their height, age, and weight may result in an increased risk of serious injury or death to your child.

Recommendations for Safety Restraints for Children

Child size, height, weight, or age

Infants or toddlers

Children weighing 40 lb (18 kg) or less (generally age four or younger).

All children are shaped differently. The

Recommended restraint type

Use a child safety seat (sometimes called an infant carrier, convertible seat, or toddler seat).

2014 Focus Electric Vehicle (fob) Owners Guide gf, 1st Printing, May 2013 USA (fus)

Page 17

16 Child Safety

Recommendations for Safety Restraints for Children

Child size, height, weight, or age

Small children

Larger children

• You are required by law to properly use safety seats for infants and toddlers in the United States and Canada.

• Many states and provinces require that small children use approved booster seats until they reach age eight, a height of 4 feet 9 inches (1.45 meters) tall, or 80 pounds (36 kilograms). Check your local and state or provincial laws for specific requirements about the safety of children in your vehicle.

• When possible, always properly restrain children twelve (12) years of age and under in a rear seating position of your vehicle. Accident statistics suggest that children are safer when properly restrained in the rear seating positions than in a front seating position. See Front Passenger Sensing System in the Supplementary Restraints System chapter for more information.

Children who have outgrown or no longer properly fit in a child safety seat (generally children who are less than 4 ft. 9 in. (1.45 m) tall, are greater than age four (4) and less than age twelve (12), and between 40 lb (18 kg) and 80 lb (36 kg) and upward to 100 lb (45 kg) if recommended by your child restraint manufacturer).

Children who have outgrown or no longer properly fit in a belt-positioning booster seat (generally children who are at least 4 ft. 9 in. (1.45 m) tall or greater than 80 lb (36 kg) or 100 lb (45 kg) if recommended by child restraint manufacturer).

Recommended restraint type

Use a belt-positioning booster seat.

Use a vehicle safety belt having the lap belt snug and low across the hips, shoulder belt centered across the shoulder and chest, and seat back upright.

2014 Focus Electric Vehicle (fob) Owners Guide gf, 1st Printing, May 2013 USA (fus)

Page 18

Child Safety 17

CHILD SEAT POSITIONING

WARNING: Airbags can kill or injure a child in a child seat.

Never place a rear-facing child seat in front of an active airbag. If you must use a forward-facing child seat in the front seat, move the vehicle seat upon which the child seat is installed all the way back. When possible, all children age 12 and under should be properly restrained in a rear seating position. If all children cannot be seated and restrained properly in a rear seating position, properly restrain the largest child in the front seat.

WARNING:

provided by the manufacturer of any child restraint to determine if the restraint device is appropriate for your child’s size, height, weight, or age. Follow the child restraint manufacturer’s instructions and warnings provided for installation and use in conjunction with the instructions and warnings provided by your vehicle manufacturer. A safety seat that is improperly installed or utilized, is inappropriate for your child’s height, age or weight, or does not properly fit the child, may increase the risk of serious injury or death.

WARNING: Never let a passenger hold a child on his or her lap

while your vehicle is moving. The passenger cannot protect the child from injury in a crash, which may result in serious injury or death.

WARNING: Never use pillows, books, or towels to boost a child.

They can slide around and increase the likelihood of injury or death in a crash.

WARNING: Always restrain an unoccupied child seat or booster

seat. These objects may become projectiles in a crash or sudden stop, which may increase the risk of serious injury.

Always carefully follow the instructions and warnings

2014 Focus Electric Vehicle (fob) Owners Guide gf, 1st Printing, May 2013 USA (fus)

Page 19

18 Child Safety

WARNING: Never place, or allow a child to place, the shoulder

belt under a child’s arm or behind the back because it reduces the protection for the upper part of the body and may increase the risk of injury or death in a crash.

WARNING: To avoid risk of injury, do not leave children or pets

unattended in your vehicle.

Use any attachment method as indicated

below by X.

Combined

weight of Restraint Type

Rear-facing child seat

Forwardfacing child seat

Note: The child seat must rest tightly against the vehicle seat upon which it is installed. It may be necessary to lift or remove the head restraint. See the Seats chapter for information on head restraints.

child and

child

restraint

seat

Up to 65 lb (29.5 kg)

Over 65 lb (29.5 kg)

Up to 65 lb (29.5 kg)

Over 65 lb (29.5 kg) XX

LATCH (lower anchors and top tether anchor)

LATCH (lower anchors only)

XXX

Safety belt and top tether anchor

Safety belt and LATCH (lower anchors and top tether anchor)

Safety belt only

2014 Focus Electric Vehicle (fob) Owners Guide gf, 1st Printing, May 2013 USA (fus)

Page 20

Child Safety 19

BOOSTER SEATS

WARNING: Never place, or allow a child to place, the shoulder

belt under a child’s arm or behind the back because it reduces the protection for the upper part of the body and may increase the risk of injury or death in a crash.

Use a belt-positioning booster seat for children who have outgrown or no longer properly fit in a child safety seat (generally children who are less than 4 feet 9 inches (1.45 meters) tall, are greater than age four (4) and less than age twelve (12), and between 40 pounds (18 kilograms) and 80 pounds (36 kilograms) and upward to 100 pounds (45 kilograms) if recommended by your child restraint manufacturer). Many state and provincial laws require that children use approved booster seats until they reach age eight (8), a height of 4 feet 9 inches (1.45 meters) tall, or 80 pounds (36 kilograms).

Booster seats should be used until you can answer YES to ALL of these questions when the child is seated without a booster seat.

• Can the child sit all the way back against their vehicle seat with knees bent comfortably at the edge of the seat cushion?

• Can the child sit without slouching?

• Does the lap belt rest low across the hips?

• Is the shoulder belt centered on the shoulder and chest?

• Can the child stay seated like this for the whole trip?

Always use booster seats in conjunction with your vehicle lap and shoulder belt.

2014 Focus Electric Vehicle (fob) Owners Guide gf, 1st Printing, May 2013 USA (fus)

Page 21

20 Child Safety

Types of Booster Seats

• Backless booster seats

If your backless booster seat has a removable shield, remove the shield. If a vehicle seating position has a low seat back or no head restraint, a backless booster seat may place your child’s head (as measured at the tops of the ears) above the top of the seat. In this case, move the backless booster to another seating position with a higher seat back or head restraint and lap and shoulder belts, or consider using a high back booster seat.

• High back booster seats

If, with a backless booster seat, you cannot find a seating position that adequately supports your child’s head, a high back booster seat would be a better choice.

2014 Focus Electric Vehicle (fob) Owners Guide gf, 1st Printing, May 2013 USA (fus)

Page 22

Child Safety 21

Children and booster seats vary in size and shape. Choose a booster that keeps the lap belt low and snug across the hips, never up across the stomach, and lets you adjust the shoulder belt to cross the chest and rest snugly near the center of the shoulder. The following drawings compare the ideal fit (center) to a shoulder belt uncomfortably close to the neck and a shoulder belt that could slip off the shoulder. The drawings also show how the lap belt should be low and snug across the child’s hips.

If the booster seat slides on the vehicle seat upon which it is being used, placing a rubberized mesh sold as shelf or carpet liner under the booster seat may improve this condition. Do not introduce any item thicker than this under the booster seat. Check with the booster seat manufacturer’s instructions.

2014 Focus Electric Vehicle (fob) Owners Guide gf, 1st Printing, May 2013 USA (fus)

Page 23

22 Child Safety

INSTALLING CHILD SEATS

Child Seats

Use a child safety seat (sometimes called an infant carrier, convertible seat, or toddler seat) for infants, toddlers or children weighing 40 pounds (18 kilograms) or less (generally age four or younger).

Using Lap and Shoulder Belts

WARNING: Airbags can kill or injure a child in a child seat.

Never place a rear-facing child seat in front of an active airbag. If you must use a forward-facing child seat in the front seat, move the seat all the way back.

WARNING: Airbags can kill or injure a child in a child seat.

Children 12 and under should be properly restrained in the rear seat whenever possible.

WARNING: Depending on where you secure a child restraint,

and depending on the child restraint design, you may block access to certain safety belt buckle assemblies or LATCH lower anchors, rendering those features potentially unusable. To avoid risk of injury, occupants should only use seating positions where they are able to be properly restrained.

2014 Focus Electric Vehicle (fob) Owners Guide gf, 1st Printing, May 2013 USA (fus)

Page 24

Child Safety 23

When installing a child safety seat with combination lap and shoulder belts:

• Use the correct safety belt buckle for that seating position.

• Insert the belt tongue into the proper buckle until you hear a snap

and feel it latch. Make sure the tongue is securely fastened in the buckle.

• Keep the buckle release button pointing up and away from the safety seat, with the tongue between the child seat and the release button, to prevent accidental unbuckling.

• Place the vehicle seat upon which the child seat will be installed in the upright position.

• Put the safety belt in the automatic locking mode. See Step 5. This vehicle does not require the use of a locking clip.

Perform the following steps when installing the child seat with combination lap and shoulder belts:

Note: Although the child seat illustrated is a forward-facing child seat, the steps are the same for installing a rear-facing child seat.

1. Position the child safety seat in a seat with a combination lap and shoulder belt.

2. Pull down on the shoulder belt and then grasp the shoulder belt and lap belt together.

2014 Focus Electric Vehicle (fob) Owners Guide gf, 1st Printing, May 2013 USA (fus)

Page 25

24 Child Safety

While holding the shoulder and lap belt portions together, route the tongue through the child seat according to the child seat manufacturer’s instructions. Be sure the belt webbing is not twisted.

4. Insert the belt tongue into the proper buckle (the buckle closest to the direction the tongue is coming from) for that seating position until you hear a snap and feel the latch engage. Make sure the tongue is latched securely by pulling on it.

5. To put the retractor in the automatic locking mode, grasp the shoulder portion of the belt and pull downward until all of the belt is pulled out.

Note: The automatic locking mode is available on the front passenger and rear seats. This vehicle does not require the use of a locking clip.

6. Allow the belt to retract to remove slack. The belt will click as it retracts to indicate it is in the automatic locking mode.

7. Try to pull the belt out of the retractor to make sure the retractor is in the automatic locking mode. You should not be able to pull more belt out. If the retractor is not locked, unbuckle the belt and repeat Steps 5 and 6.

2014 Focus Electric Vehicle (fob) Owners Guide gf, 1st Printing, May 2013 USA (fus)

Page 26

Child Safety 25

8. Remove remaining slack from the belt. Force the seat down with extra weight, for example, by pressing down or kneeling on the child restraint while pulling up on the shoulder belt in order to force slack from the belt.

This is necessary to remove the remaining slack that will exist once the extra weight of the child is added to the child restraint. It also helps to achieve the proper snugness of the child seat to your vehicle. Sometimes, a slight lean toward the buckle will provide extra help to remove remaining slack from the belt.

9. Attach the tether strap (if the child seat is equipped). See Using Tether Straps later in this chapter.

10. Before placing the child in the seat, forcibly move the seat forward and back to make sure the seat is securely held in place.

To check this, grab the seat at the belt path and attempt to move it side to side and forward and back. There should be no more than 1 inch (2.5 centimeters) of movement for proper installation.

Ford recommends checking with a NHTSA Certified Child Passenger Safety Technician to make certain the child restraint is properly installed. In Canada, check with your local St. John Ambulance office for referral to a Child Passenger Safety Technician.

2014 Focus Electric Vehicle (fob) Owners Guide gf, 1st Printing, May 2013 USA (fus)

Page 27

26 Child Safety

Using Lower Anchors and Tethers for CHildren (LATCH)

WARNING: Never attach two child safety seats to the same

anchor. In a crash, one anchor may not be strong enough to hold two child safety seat attachments and may break, causing serious injury or death.

WARNING: Depending on where you secure a child restraint,

The LATCH system is composed of three vehicle anchor points: two lower anchors located where your vehicle seat back and seat cushion meet (called the seat bight) and one top tether anchor located behind that seating position.

LATCH compatible child safety seats have two rigid or webbing mounted attachments that connect to the two lower anchors at the LATCH equipped seating positions in your vehicle. This type of attachment method eliminates the need to use safety belts to attach the child seat, however the safety belt can still be used to attach the child seat. For forward-facing child seats, the top tether strap must also be attached to the proper top tether anchor, if a top tether strap has been provided with your child seat.

Your vehicle has LATCH lower anchors for child seat installation at the seating positions marked with the child seat symbol.

2014 Focus Electric Vehicle (fob) Owners Guide gf, 1st Printing, May 2013 USA (fus)

Page 28

Child Safety 27

The LATCH anchors are located at the rear section of the rear seat between the cushion and seat back below the symbols as shown. Follow the child seat manufacturer’s instructions to properly install a child seat with LATCH attachments.

Follow the instructions on attaching child safety seats with tether straps. See Using Tether Straps in this chapter.

Attach LATCH lower attachments of the child seat only to the anchors shown.

Use of Inboard Lower Anchors from the Outboard Seating Positions (Center Seating Use)

WARNING: The standardized spacing for LATCH lower anchors

is 11 inches (28 centimeters) center to center. Do not use LATCH lower anchors for the center seating position unless the child seat manufacturer’s instructions permit and specify using anchors spaced at least as far apart as those in this vehicle.

The lower anchors at the center of the second row rear seat are spaced 18 inches (46 centimeters) apart. A child seat with rigid LATCH attachments cannot be installed at the center seating position. LATCH compatible child seats (with attachments on belt webbing) can only be used at this seating position provided that the child seat manufacturer’s instructions permit use with the anchor spacing stated. Do not attach a child seat to any lower anchor if an adjacent child seat is attached to that anchor.

Each time you use the safety seat, check that the seat is properly attached to the lower anchors and tether anchor, if applicable. Tug the child seat from side to side and forward and back where it is secured to your vehicle. The seat should move less than one inch when you do this for a proper installation.

If the safety seat is not anchored properly, the risk of a child being injured in a crash greatly increases.

2014 Focus Electric Vehicle (fob) Owners Guide gf, 1st Printing, May 2013 USA (fus)

Page 29

28 Child Safety

Combining Safety Belt and LATCH Lower Anchors for Attaching Child Safety Seats

When used in combination, either the safety belt or the LATCH lower anchors may be attached first, provided a proper installation is achieved. Attach the tether strap afterward, if included with the child seat.

Using Tether Straps

Many forward-facing child safety seats include a tether strap which extends from the back of the child safety seat and hooks to an anchoring point called the top tether anchor.

Tether straps are available as an accessory for many older safety seats. Contact the manufacturer of your child seat for information about ordering a tether strap, or to obtain a longer tether strap if the tether strap on your safety seat does not reach the appropriate top tether anchor in the vehicle.

The rear seats of your vehicle are equipped with built-in tether strap anchors located on the back panel of the rear seat.

The tether strap anchors in your vehicle are in the following positions (shown from top view):

Attach the tether strap only to the appropriate tether anchor as shown. The tether strap may not work properly if attached somewhere other than the correct tether anchor.

Once the child safety seat has been installed using either the safety belt, the lower anchors of the LATCH system, or both, you can attach the top tether strap.

If you install a child seat with rigid LATCH attachments, do not tighten the tether strap enough to lift the child seat off the vehicle seat cushion when the child is seated in it. Keep the tether strap just snug without lifting the front of the child seat. Keeping the child seat just touching the vehicle seat gives the best protection in a severe crash.

2014 Focus Electric Vehicle (fob) Owners Guide gf, 1st Printing, May 2013 USA (fus)

Page 30

Child Safety 29

Perform the following steps to install a child safety seat with tether anchors:

1. Route the child safety seat tether strap over the back of the seat.

For outboard seating positions, route the tether strap under the head restraint and between the head restraint posts. For the center seating positions, route the tether strap over the top of the head restraint. If needed, the head restraints can also be removed. See the Seats chapter.

2. Locate the correct anchor for the selected seating position.

3. Rotate the tether hook, then move the hook under the anchor.

4. Clip the tether strap to the anchor as shown.

If the tether strap is clipped incorrectly, the child safety seat may not be retained properly in the event of a collision.

2014 Focus Electric Vehicle (fob) Owners Guide gf, 1st Printing, May 2013 USA (fus)

Page 31

30 Child Safety

5. Tighten the child safety seat tether strap according to the manufacturer’s instructions.

If the safety seat is not anchored properly, the risk of a child being injured in a crash greatly increases.

If your child restraint system is equipped with a tether strap, and the child restraint manufacturer recommends its use, Ford also recommends its use.

CHILD SAFETY LOCKS

When these locks are set, the rear doors cannot be opened from the inside.

The childproof locks are located on the rear edge of each rear door and must be set separately for each door.

• Driver side: turn counterclockwise to lock and clockwise to unlock.

• Passenger side: turn clockwise to lock and counterclockwise to unlock.

2014 Focus Electric Vehicle (fob) Owners Guide gf, 1st Printing, May 2013 USA (fus)

Page 32

Safety Belts 31

PRINCIPLES OF OPERATION

WARNING: Always drive and ride with your seatback upright and the lap belt snug and low across the hips.

WARNING: To reduce the risk of injury, make sure children sit where they can be properly restrained.

WARNING: Never let a passenger hold a child on his or her lap while the vehicle is moving. The passenger cannot protect the

child from injury in a collision.

WARNING: All occupants of the vehicle, including the driver,

should always properly wear their safety belts, even when an airbag supplemental restraint system is provided. Failure to properly wear your safety belt could seriously increase the risk of injury or death.

WARNING: It is extremely dangerous to ride in a cargo area,

inside or outside of a vehicle. In a crash, people riding in these areas are more likely to be seriously injured or killed. Do not allow people to ride in any area of your vehicle that is not equipped with seats and safety belts. Be sure everyone in your vehicle is in a seat and using a safety belt properly.

WARNING:

more likely to die than a person wearing a safety belt.

WARNING: Each seating position in your vehicle has a specific

safety belt assembly which is made up of one buckle and one tongue that are designed to be used as a pair. 1) Use the shoulder belt on the outside shoulder only. Never wear the shoulder belt under the arm. 2) Never swing the safety belt around your neck over the inside shoulder. 3) Never use a single belt for more than one person.

In a rollover crash, an unbelted person is significantly

2014 Focus Electric Vehicle (fob) Owners Guide gf, 1st Printing, May 2013 USA (fus)

Page 33

32 Safety Belts

WARNING: When possible, all children 12 years old and under should be properly restrained in a rear seating position. Failure

to follow this could seriously increase the risk of injury or death.

WARNING: Safety belts and seats can become hot in a vehicle

that has been closed up in sunny weather; they could burn a small child. Check seat covers and buckles before you place a child anywhere near them.

WARNING: Front and rear seat occupants, including pregnant

women, should wear safety belts for optimum protection in an accident.

All seating positions in this vehicle have lap and shoulder safety belts. All occupants of the vehicle should always properly wear their safety belts, even when an airbag supplemental restraint system is provided.

The safety belt system consists of:

• lap and shoulder safety belts.

• shoulder safety belt with automatic locking mode, (except driver

safety belt).

• height adjuster at the front outboard seating positions.

• safety belt pretensioner at the front outboard seating positions.

• belt tension sensor at the front outboard passenger seating position.

• safety belt warning light and chime. See Safety belt warning

light and indicator chime later in this chapter.

• crash sensors and monitoring system with readiness indicator. See Crash sensors and airbag indicator in the Supplemental Restraints System chapter.

The safety belt pretensioners at the front seating positions are designed to tighten the safety belts when activated. In frontal and near-frontal crashes, the safety belt pretensioners may be activated alone or, if the crash is of sufficient severity, together with the front airbags. The pretensioners may also activate when a side curtain airbag is deployed.

2014 Focus Electric Vehicle (fob) Owners Guide gf, 1st Printing, May 2013 USA (fus)

Page 34

Safety Belts 33

FASTENING THE SAFETY BELTS

The front outboard and rear safety restraints in your vehicle are combination lap and shoulder belts.

1. Insert the belt tongue into the proper buckle (the buckle closest to the direction the tongue is coming from) until you hear a snap and feel it latch. Make sure the tongue is securely fastened in the buckle.

2. To unfasten, press the release button and remove the tongue from the buckle.

2014 Focus Electric Vehicle (fob) Owners Guide gf, 1st Printing, May 2013 USA (fus)

Page 35

34 Safety Belts

Restraint of Pregnant Women

WARNING: Always ride and drive with your seat back upright

and the safety belt properly fastened. The lap portion of the safety belt should fit snug and be positioned low across the hips. The shoulder portion of the safety belt should be positioned across the chest. Pregnant women should also follow this practice. See the following figure.

Pregnant women should always wear their safety belts. The lap belt portion of a combination lap and shoulder belt should be positioned low across the hips below the belly and worn as tight as comfort will allow. The shoulder belt should be positioned to cross the middle of the shoulder and the center of the chest.

Safety Belt Locking Modes

WARNING: After any vehicle crash, the safety belt system at all

passenger seating positions must be checked by an authorized dealer to verify that the automatic locking retractor feature for child seats is still functioning properly. In addition, all safety belts should be checked for proper function.

WARNING: The belt and retractor assembly must be replaced if

the safety belt assembly automatic locking retractor feature or any other safety belt function is not operating properly when checked by an authorized dealer. Failure to replace the belt and retractor assembly could increase the risk of injury in crashes.

2014 Focus Electric Vehicle (fob) Owners Guide gf, 1st Printing, May 2013 USA (fus)

Page 36

Safety Belts 35

All safety restraints in the vehicle are combination lap and shoulder belts. The driver safety belt has the first type of locking mode, and the front outboard passenger and rear seat safety belts have both types of locking modes described as follows:

Vehicle Sensitive Mode

This is the normal retractor mode, which allows free shoulder belt length adjustment to your movements and locking in response to vehicle movement. For example, if the driver brakes suddenly or turns a corner sharply, or the vehicle receives an impact of about 5 mph (8 km/h) or more, the combination safety belts will lock to help reduce forward movement of the driver and passengers.

In addition, the retractor is designed to lock if the webbing is pulled out too quickly. If this occurs, let the belt retract slightly and pull webbing out again in a slow and controlled manner.

Automatic Locking Mode

In this mode, the shoulder belt is automatically pre-locked. The belt will still retract to remove any slack in the shoulder belt. The automatic locking mode is not available on the driver safety belt.

When to Use the Automatic Locking Mode

This mode should be used any time a child safety seat, except a booster, is installed in passenger front or rear seating positions. Children 12 years old and under should be properly restrained in a rear seating position whenever possible. See the Child Safety chapter.

How to Use the Automatic Locking Mode

1. Buckle the combination lap and shoulder belt.

2. Grasp the shoulder portion and pull downward until the entire belt is pulled out.

3. Allow the belt to retract. As the belt retracts, you will hear a clicking sound. This indicates the safety belt is now in the automatic locking mode.

2014 Focus Electric Vehicle (fob) Owners Guide gf, 1st Printing, May 2013 USA (fus)

Page 37

36 Safety Belts

How to Disengage the Automatic Locking Mode

Unbuckle the combination lap and shoulder belt and allow it to retract completely to disengage the automatic locking mode and activate the vehicle sensitive (emergency) locking mode.

Safety Belt Extension Assembly

WARNING: Do not use extensions to change the fit of the

shoulder belt across the torso.

If the safety belt is too short when fully extended, you can obtain a safety belt extension assembly from an authorized dealer.

Use only extensions manufactured by the same supplier as the safety belt. Manufacturer identification is located at the end of the webbing on the label. Also, use the safety belt extension only if the safety belt is too short for you when fully extended.

SAFETY BELT HEIGHT ADJUSTMENT

WARNING: Position the safety belt height adjusters so that the

belt rests across the middle of your shoulder. Failure to adjust the safety belt properly could reduce the effectiveness of the safety belt and increase the risk of injury in a crash.

Adjust the height of the shoulder belt so the belt rests across the middle of your shoulder.

To adjust the shoulder belt height:

1. Squeeze the button and slide the height adjuster up or down.

2. Release the button and pull down on the height adjuster to make sure it is locked in place.

2014 Focus Electric Vehicle (fob) Owners Guide gf, 1st Printing, May 2013 USA (fus)

Page 38

Safety Belts 37

SAFETY BELT WARNING LIGHT AND INDICATOR CHIME

This lamp illuminates and an audible warning will sound if the driver’s safety belt has not been fastened when the vehicle’s ignition is turned on.

Conditions of Operation

If... Then...

The driver’s safety belt is not buckled before the ignition switch is turned to the on position...

The driver’s safety belt is buckled while the indicator light is illuminated and the warning chime is sounding...

The driver’s safety belt is buckled before the ignition switch is turned to the on position...

Safety Belt-Minder®

The Belt-Minder feature is a supplemental warning to the safety belt warning function. This feature provides additional reminders by intermittently sounding a chime and illuminating the safety belt warning light in the instrument cluster when the driver’s or front passenger’s seat is occupied and the safety belt is unbuckled.

The Belt-Minder feature uses information from the front passenger sensing system to determine if a front seat passenger is present and therefore potentially in need of a warning. To avoid activating the Belt-Minder feature for objects placed in the front passenger seat, warnings will only be given to large front seat occupants as determined by the front passenger sensing system.

Both the driver’s and passenger’s safety belt usages are monitored and either may activate the Belt-Minder feature. The warnings are the same for the driver and the front passenger. If the Belt-Minder warnings have expired (warnings for about five minutes) for one occupant (driver or front passenger), the other occupant can still activate the Belt-Minder feature.

The safety belt warning light illuminates 1-2 minutes and the warning chime sounds 4-8 seconds.

The safety belt warning light and warning chime turn off.

The safety belt warning light and indicator chime remain off.

2014 Focus Electric Vehicle (fob) Owners Guide gf, 1st Printing, May 2013 USA (fus)

Page 39

38 Safety Belts

If... Then...

The driver’s and front passenger’s safety belts are buckled before the ignition switch is turned to the on position or less than 1-2 minutes have elapsed since the ignition switch has been turned to on...

The driver’s or front passenger’s safety belt is not buckled when the vehicle has reached at least 6 mph (9.7 km/h) and 1-2 minutes have elapsed since the ignition switch has been turned to on...

The driver’s or front passenger’s safety belt becomes unbuckled for about one minute while the vehicle is traveling at least 6 mph (9.7 km/h) and more than 1-2 minutes have elapsed since the ignition switch has been turned to on...

The Belt-Minder feature will not activate.

The Belt-Minder feature is activated the safety belt warning light illuminates and the warning chime sounds for six seconds every 25 seconds, repeating for about five minutes or until the safety belts are buckled.

Deactivating and Activating the Belt-Minder® Feature (If Equipped)

WARNING: While the design allows you to deactivate your

Belt-Minder, this system is designed to improve your chances of being safely belted and surviving an accident. We recommend you leave the Belt-Minder system activated for yourself and others who may use the vehicle. To reduce the risk of injury, do not deactivate or activate the Belt-Minder feature while driving the vehicle.

2014 Focus Electric Vehicle (fob) Owners Guide gf, 1st Printing, May 2013 USA (fus)

Page 40

Safety Belts 39

Note: The driver and front passenger Belt-Minder are deactivated and activated independently. When deactivating or activating one seating position, do not buckle the other position as this will terminate the process.

Read Steps1-4thoroughly before proceeding with the programming procedure.

The driver and front passenger Belt-Minder features can be deactivated or activated by performing the following procedure:

Before following the procedure, make sure that:

• the parking brake is set

• the transmission selector lever is in position P

• the vehicle is off

• the driver and front passenger safety belts are unbuckled

1. Turn the vehicle on. Do not start the vehicle (Ready to Drive light must not be lit)

2. Wait until the safety belt warning light turns off (about one minute).

• Once the next step is started, the procedure must be completed within 60 seconds.

3. For the seating position being disabled, buckle then unbuckle the

safety belt four times at a moderate speed, ending in the unbuckled state.

• After Step 3, the safety belt warning light will turn on.

4. While the safety belt warning light is on, buckle and then unbuckle the

safety belt.

• After Step 4, the safety belt warning light will flash for confirmation.

• This will disable the Belt-Minder feature for that seating position if it

is currently enabled.

• This will enable the Belt-Minder feature for that seating position if it is currently disabled.

2014 Focus Electric Vehicle (fob) Owners Guide gf, 1st Printing, May 2013 USA (fus)

Page 41

40 Safety Belts

CHILD RESTRAINT AND SAFETY BELT MAINTENANCE

Inspect the vehicle safety belts and child safety seat systems periodically to make sure they work properly and are not damaged. Inspect the vehicle and child seat safety belts to make sure there are no nicks, tears or cuts. Replace if necessary. All vehicle safety belt assemblies, including retractors, buckles, front safety belt buckle assemblies, buckle support assemblies (slide bar-if equipped), shoulder belt height adjusters (if equipped), shoulder belt guide on seat back (if equipped), child safety seat LATCH and tether anchors, and attaching hardware, should be inspected after a crash. Read the child restraint manufacturer’s instructions for additional inspection and maintenance information specific to the child restraint.

Ford Motor Company recommends that all safety belt assemblies in use in vehicles involved in a crash be replaced. However, if the crash was minor and an authorized dealer finds that the belts do not show damage and continue to operate properly, they do not need to be replaced. Safety belt assemblies not in use during a crash should also be inspected and replaced if either damage or improper operation is noted.

For proper care of soiled safety belts, see Cleaning the Interior in the Vehicle Care chapter.

2014 Focus Electric Vehicle (fob) Owners Guide gf, 1st Printing, May 2013 USA (fus)

Page 42

Personal Safety System 41

PERSONAL SAFETY SYSTEM™

The Personal Safety System provides an improved overall level of frontal crash protection to front seat occupants and is designed to help further reduce the risk of airbag-related injuries. The system is able to analyze different occupant conditions and crash severity before activating the appropriate safety devices to help better protect a range of occupants in a variety of frontal crash situations.

Your vehicle’s Personal Safety System consists of:

• Driver and passenger dual-stage airbag supplemental restraints.

• Front outboard safety belts with pretensioners, energy management

retractors (first row only), and safety belt usage sensors.

• Driver’s seat position sensor.

• Front passenger sensing system.

• Passenger airbag off and on indicator lamp.

• Front crash severity sensors.

• Restraints control module with impact and safing sensors.

• Restraint system warning light and backup tone.

• The electrical wiring for the airbags, crash sensor(s), safety belt

pretensioners, front safety belt usage sensors, driver seat position sensor, front passenger sensing system, and indicator lights.

How Does the Personal Safety System Work?

The Personal Safety System can adapt the deployment strategy of your vehicle’s safety devices according to crash severity and occupant conditions. A collection of crash and occupant sensors provides information to the restraints control module. During a crash, the restraints control module may activate the safety belt pretensioners and/or either one or both stages of the dual-stage airbag supplemental restraints based on crash severity and occupant conditions.

2014 Focus Electric Vehicle (fob) Owners Guide gf, 1st Printing, May 2013 USA (fus)

Page 43

42 Supplementary Restraints System

PRINCIPLES OF OPERATION

WARNING: Airbags do not inflate slowly or gently, and the risk of injury from a deploying airbag is the greatest close to the trim

covering the airbag module.

WARNING: All occupants of your vehicle, including the driver,

WARNING: Airbags can kill or injure a child in a child seat.

Always transport children 12 years old and under in the back seat and always properly use appropriate child restraints.

WARNING: Never place your arm over the airbag module, as a

deploying airbag can result in serious arm fractures or other injuries.

WARNING: Airbags can kill or injure a child in a child seat.

Never place a rear-facing child seat in front of an active airbag. If you must use a forward-facing child seat in the front seat, move the seat upon which the child seat is installed all the way back.

WARNING: Do not attempt to service, repair, or modify the

airbag supplemental restraint systems or its fuses as you could be seriously injured or killed. Contact your authorized dealer as soon as possible.

WARNING: Several airbag system components get hot after

inflation. Do not touch them after inflation as this may result in serious injury.

2014 Focus Electric Vehicle (fob) Owners Guide gf, 1st Printing, May 2013 USA (fus)

Page 44

Supplementary Restraints System 43

WARNING: If the airbag has deployed, the airbag will not

function again and must be replaced immediately. If the airbag is not replaced, the unrepaired area will increase the risk of injury in a crash.

The airbags are a supplemental restraint system and are designed to work with the safety belts to help protect the driver and right front passenger from certain upper body injuries. Airbags do not inflate slowly; there is a risk of injury from a deploying airbag.

Note: You will hear a loud bang and see a cloud of harmless powdery residue if an airbag deploys. This is normal.

The airbags inflate and deflate rapidly upon activation. After airbag deployment, it is normal to notice a smoke-like, powdery residue or smell the burnt propellant. This may consist of cornstarch, talcum powder (to lubricate the bag) or sodium compounds (for example, baking soda) that result from the combustion process that inflates the airbag. Small amounts of sodium hydroxide may be present which may irritate the skin and eyes, but none of the residue is toxic.

While the system is designed to help reduce serious injuries, contact with a deploying airbag may also cause abrasions or swelling. Temporary hearing loss is also a possibility as a result of the noise associated with a deploying airbag. Because airbags must inflate rapidly and with considerable force, there is the risk of death or serious injuries, such as fractures, facial and eye injuries or internal injuries, particularly to occupants who are not properly restrained or are otherwise out of position at the time of airbag deployment. Thus, it is extremely important that occupants be properly restrained as far away from the airbag module as possible while maintaining vehicle control.

Routine maintenance of the airbags is not required.

SOS POST-CRASH ALERT SYSTEM™

The system flashes the turn signal lamps and sounds the horn (intermittently) in the event of a serious impact that deploys an airbag equipped on your vehicle, such as front, side, side curtain or Safety Canopy.

The horn and lamps will turn off when:

• you press the hazard control button

• you press the panic button (if equipped) on the remote entry

transmitter, or

• your vehicle runs out of power.

2014 Focus Electric Vehicle (fob) Owners Guide gf, 1st Printing, May 2013 USA (fus)

Page 45

44 Supplementary Restraints System

DRIVER AND PASSENGER AIRBAGS

WARNING: Never place your arm or any objects over an airbag

module. Placing your arm over a deploying airbag can result in serious arm fractures or other injuries. Objects placed on or over the airbag inflation area may cause those objects to be propelled by the airbag into your face and torso causing serious injury.

WARNING: Airbags can kill or injure a child in a child seat.

The driver and front passenger airbags will deploy during significant frontal and near-frontal crashes.

The driver and passenger front airbag system consists of:

• driver and passenger airbag modules

• crash sensors and monitoring system with readiness

indicator. See Crash Sensors and Airbag Indicator later in this chapter.

• front passenger sensing system

2014 Focus Electric Vehicle (fob) Owners Guide gf, 1st Printing, May 2013 USA (fus)

Page 46

Supplementary Restraints System 45

Proper Driver and Front Passenger Seating Adjustment

WARNING:

recommends a minimum distance of at least 10 inches (25 centimeters) between an occupant’s chest and the driver airbag module. Failure to follow this could seriously increase the risk of injury or death.

To properly position yourself away from the airbag:

• Move your seat to the rear as far as you can while still reaching the pedals comfortably.

• Recline the seat slightly (one or two degrees) from the upright position.

After all occupants have adjusted their seats and put on safety belts, it is very important that they continue to sit properly. Properly seated occupants sit upright, lean against the seat back, and center themselves on the seat cushion, with their feet comfortably extended on the floor. Sitting improperly can increase the chance of injury in a crash event. For example, if an occupant slouches, lies down, turns sideways, sits forward, leans forward or sideways, or puts one or both feet up, the chance of injury during a crash is greatly increased.

Children and Airbags

WARNING: Airbags can kill or injure a child in a child seat.

The National Highway Traffic Safety Administration

Children must always be properly restrained. Accident statistics suggest that children are safer when properly restrained in the rear seating positions than in the front seating position. Failure to follow these instructions may increase the risk of injury in a crash.

2014 Focus Electric Vehicle (fob) Owners Guide gf, 1st Printing, May 2013 USA (fus)

Page 47

46 Supplementary Restraints System

FRONT PASSENGER SENSING SYSTEM

WARNING: Even with Advanced Restraints Systems, children 12

and under should be properly restrained in a rear seating position. Failure to follow this could seriously increase the risk of injury or death.

WARNING: Sitting improperly out of position or with the seat

back reclined too far can take off weight from the seat cushion and affect the decision of the front passenger sensing system, resulting in serious injury or death in a crash. Always sit upright against your seatback, with your feet on the floor.

WARNING: To reduce the risk of possible serious injury:

Do not stow objects in seat back map pocket (if equipped) or hang objects off seat back if a child is in the front passenger seat. Do not place objects underneath the front passenger seat or between the seat and the center console (if equipped). Check the passenger airbag off indicator lamp for proper airbag Status. Failure to follow these instructions may interfere with the passenger seat sensing system.

WARNING: Any alteration or modification to the front passenger

seat may affect the performance of the front passenger sensing system.

This system works with sensors that are part of the front passenger’s seat and safety belt to detect the presence of a properly seated occupant and determine if the front passenger’s frontal airbag should be enabled (may inflate) or not.

The front passenger sensing system uses a pass airbag off indicator which will illuminate and stay lit to

BAG

remind you that the front passenger frontal airbag is disabled.

2014 Focus Electric Vehicle (fob) Owners Guide gf, 1st Printing, May 2013 USA (fus)

Page 48

Supplementary Restraints System 47

The indicator lamp is located under the climate controls. The indicator lamp will illuminate for a short period of time when the ignition is turned to the on position to confirm it is functional.

Note: When the passenger airbag off light is illuminated, the passenger (seat mounted) side airbag may be disabled to avoid the risk of airbag deployment injuries.

The front passenger sensing system is designed to disable (will not inflate) the front passenger’s frontal airbag when the front passenger seat is unoccupied, or a rear facing infant seat, a forward-facing child restraint, or a booster seat is detected. Even with this technology, parents are strongly encouraged to always properly restrain children in the rear seat. The sensor also turns off the passenger front airbag and seat-mounted side airbag when the passenger seat is empty.

• When the front passenger sensing system disables (will not inflate) the front passenger frontal airbag, the passenger airbag status indicator will illuminate the OFF lamp and stay lit to remind you that the front passenger frontal airbag is disabled.

• If the child restraint has been installed and the indicator lamp is not lit, then turn the vehicle off, remove the child restraint from the vehicle and reinstall the restraint following the child restraint manufacturer’s instructions.

The front passenger sensing system is designed to enable (may inflate) the front passenger’s frontal airbag anytime the system senses that a person of adult size is sitting properly in the front passenger seat.

• When the front passenger sensing system enables the front passenger frontal airbag (may inflate), the indicator will be unlit and stay unlit.

If a person of adult size is sitting in the front passenger’s seat, but the pass airbag off indicator lamp is lit, it is possible that the person isn’t sitting properly in the seat. If this happens:

• Turn the vehicle off and ask the person to place the seat back in the full upright position.

• Have the person sit upright in the seat, centered on the seat cushion, with the person’s legs comfortably extended.

• Restart the vehicle and have the person remain in this position for about two minutes. This will allow the system to detect that person and enable the passenger’s frontal airbag.

• If the indicator lamp remains lit even after this, the person should be advised to ride in the rear seat.

2014 Focus Electric Vehicle (fob) Owners Guide gf, 1st Printing, May 2013 USA (fus)

Page 49

48 Supplementary Restraints System

Occupant

Empty Unlit Disabled Child Lit Disabled Adult Unlit Enabled

After all occupants have adjusted their seats and put on safety belts, it’s very important that they continue to sit properly. A properly seated occupant sits upright, leaning against the seat back, and centered on the seat cushion, with their feet comfortably extended on the floor. Sitting improperly can increase the chance of injury in a crash event. For example, if an occupant slouches, lies down, turns sideways, sits forward, leans forward or sideways, or puts one or both feet up, the chance of injury during a crash is greatly increased.

If you think that the status of the passenger airbag off indicator lamp is incorrect, check for the following:

• Objects lodged underneath the seat

• Objects between the seat cushion and the center console

• Objects hanging off the seat back

• Objects stowed in the seatback map pocket

• Objects placed on the occupant’s lap

• Cargo interference with the seat

• Other passengers pushing or pulling on the seat

• Rear passenger feet and knees resting or pushing on the seat

The conditions listed above may cause the weight of a properly seated occupant to be incorrectly interpreted by the passenger sensing system. The person in the front passenger seat may appear heavier or lighter due to the conditions described in the list above.

To know if the front passenger sensing system is operating properly, see Crash Sensors and Airbag Indicator later in this chapter.

If the airbag readiness lamp is lit, do the following:

The driver or adult passengers should check for any objects that may be lodged underneath the front passenger seat or cargo interfering with the seat.

Pass Airbag Off Indicator Lamp

Passenger Airbag

2014 Focus Electric Vehicle (fob) Owners Guide gf, 1st Printing, May 2013 USA (fus)

Page 50

Supplementary Restraints System 49

If objects are lodged or cargo is interfering with the seat; please take the following steps to remove the obstruction:

• Pull the vehicle over.

• Turn the vehicle off.

• Driver or adult passengers should check for any objects lodged

underneath the front passenger seat or cargo interfering with the seat.

• Remove the obstruction(s) (if found).

• Restart the vehicle.

• Wait at least two minutes and verify that the airbag readiness lamp is

no longer illuminated

• If the airbag readiness lamp remains illuminated, this may or may not be a problem due to the front passenger sensing system.

Do not attempt to repair or service the system. Take your vehicle immediately to an authorized dealer.

If it is necessary to modify an advanced front airbag system to accommodate a person with disabilities, contact the Ford Customer Relationship Center at the phone number shown in the Customer Assistance section of this Owner’s Manual.

KNEE AIRBAG

A driver’s knee airbag is located under or within the instrument panel. During a crash, the restraints control module may activate the driver’s knee airbag based on crash severity and occupant conditions. Under certain crash and occupant conditions, the driver’s knee airbag may deploy but the driver’s front airbag may not activate. As with front and side airbags, it is important to be properly seated and restrained to reduce the risk of death or serious injury.

To know if the knee airbag is operating properly, see Crash Sensors and Airbag Indicator in this chapter.

2014 Focus Electric Vehicle (fob) Owners Guide gf, 1st Printing, May 2013 USA (fus)

Page 51

50 Supplementary Restraints System

SIDE AIRBAGS

WARNING:

the airbag cover, on the side of the seat backs (of the front seats), or in front seat areas that may come into contact with a deploying airbag. Failure to follow these instructions may increase the risk of personal injury in the event of a crash.

WARNING: Do not use accessory seat covers. The use of

accessory seat covers may prevent the deployment of the side airbags and increase the risk of injury in an accident.

WARNING: Do not lean your head on the door. The side airbag

could injure you as it deploys from the side of the seat back.

WARNING: Do not attempt to service, repair, or modify the

airbag, its fuses or the seat cover on a seat containing an airbag, as you could be seriously injured or killed. Contact your authorized dealer as soon as possible.

WARNING: If the side airbag has deployed, the airbag will not

function again. The side airbag system (including the seat) must be inspected and serviced by an authorized dealer. If the airbag is not replaced, the unrepaired area will increase the risk of injury in a crash.

The side airbags are located on the outboard side of the seat backs of the front seats. In certain sideways crashes, the airbag on the side affected by the crash will be inflated. The airbag was designed to inflate between the door panel and occupant to further enhance the protection provided occupants in side impact crashes.

Do not place objects or mount equipment on or near

2014 Focus Electric Vehicle (fob) Owners Guide gf, 1st Printing, May 2013 USA (fus)

Page 52

Supplementary Restraints System 51

The system consists of the following:

• a tag on the seat back indicating that side airbags are found on your vehicle

• side airbags located inside the seat back of the driver and front passenger seats.

• crash sensors and monitoring system with readiness indicator. See Crash Sensors and Airbag Indicator later in this chapter.

• front passenger sensing system.

Note: The passenger sensing system will deactivate the passenger seat-mounted side airbag if it detects an empty passenger seat.

The design and development of the side airbag system included recommended testing procedures that were developed by a group of automotive safety experts known as the Side Airbag Technical Working Group. These recommended testing procedures help reduce the risk of injuries related to the deployment of side airbags.

SIDE CURTAIN AIRBAGS

WARNING: Do not place objects or mount equipment on or near

the headliner at the siderail that may come into contact with a deploying side curtain airbag. Failure to follow these instructions may increase the risk of personal injury in the event of a crash.

WARNING: Do not lean your head on the door. The curtain

airbag could injure you as it deploys from the headliner.

WARNING: Do not attempt to service, repair, or modify the

side curtain airbags, its fuses, the A, B, or C pillar trim, or the headliner on a vehicle containing side curtain airbags as you could be seriously injured or killed. Contact your authorized dealer as soon as possible.

2014 Focus Electric Vehicle (fob) Owners Guide gf, 1st Printing, May 2013 USA (fus)

Page 53

52 Supplementary Restraints System

WARNING: All occupants of the vehicle including the driver

should always wear their safety belts even when an airbag supplemental restraint system and side curtain airbag is provided. Failure to properly wear your safety belt could seriously increase the risk of injury or death.

WARNING: To reduce the risk of injury, do not obstruct or place

objects in the deployment path of the side curtain airbag.

WARNING: If the side curtain airbags have deployed, the side

curtain airbags will not function again. The side curtain airbags (including the A, B and C pillar trim and headliner) must be inspected and serviced by an authorized dealer. If the side curtain airbag is not replaced, the unrepaired area will increase the risk of injury in a crash.

A side curtain airbag will deploy during significant side crashes. The airbags are mounted to the roof side-rail sheet metal, behind the headliner, above each row of seats. In certain sideways crashes, the side curtain airbag on the impacted side of the vehicle will be activated. The side curtain airbags are designed to inflate between the side window area and occupants to further enhance protection provided in side impact crashes.

The system consists of:

• side curtain airbags located above the trim panels over the front and rear side windows identified by a label or wording on the headliner or roof-pillar trim.

• a flexible headliner which opens above the side doors to allow side air curtain deployment.

• crash sensors and monitoring system with readiness indicator. See Crash sensors and Airbag Indicator later in this chapter.

2014 Focus Electric Vehicle (fob) Owners Guide gf, 1st Printing, May 2013 USA (fus)

Page 54

Supplementary Restraints System 53

Children 12 years old and under should always be properly restrained in the back seats. The side curtain airbags will not interfere with children restrained using a properly installed child or booster seat because it is designed to inflate downward from the headliner above the doors along the side window opening.

The design and development of the side curtain airbags included recommended testing procedures that were developed by a group of automotive safety experts known as the Side Airbag Technical Working Group. These recommended testing procedures help reduce the risk of injuries related to the deployment of side curtain airbags.

CRASH SENSORS AND AIRBAG INDICATOR

WARNING: Modifying or adding equipment to the front end of

your vehicle (including frame, bumper, front end body structure and tow hooks) may affect the performance of the airbag system, increasing the risk of injury. Do not modify the front end of your vehicle.

Your vehicle has a collection of crash and occupant sensors which provide information to the restraints control module which deploys (activates) the front safety belt pretensioners, driver airbag, passenger airbag, knee airbag, seat mounted side airbags, and the side curtain airbags. Based on the type of crash (frontal impact or side impact) the restraints control module will deploy the appropriate safety devices.

The restraints control module also monitors the readiness of the above safety devices plus the crash and occupant sensors. The readiness of the safety system is indicated by a warning indicator light in the instrument cluster or by a backup tone if the warning light is not working. See the Instrument Cluster chapter. Routine maintenance of the airbag is not required.

2014 Focus Electric Vehicle (fob) Owners Guide gf, 1st Printing, May 2013 USA (fus)

Page 55

54 Supplementary Restraints System

A difficulty with the system is indicated by one or more of the following:

• The readiness light will either flash or stay lit.

• The readiness light will not illuminate immediately after the

ignition is turned on.

• A series of five beeps will be heard. The tone pattern will repeat periodically until the problem or light are repaired.

If any of these things happen, even intermittently, have the supplemental restraint system serviced at an authorized dealer immediately. Unless serviced, the system may not function properly in the event of a crash.

The safety belt pretensioners and the airbag supplemental restraint system are designed to activate when the vehicle sustains frontal deceleration sufficient to cause the restraints control module to deploy a safety device.

The fact that the safety belt pretensioners or front airbags did not activate for both front seat occupants in a crash does not mean that something is wrong with the system. Rather, it means the restraints control module determined the accident conditions (such as crash severity, belt usage) were not appropriate to activate these safety devices.

• The design of the front airbags is to activate only in frontal and near-frontal crashes (not rollovers, side impacts or rear impacts) unless the crash causes sufficient frontal deceleration.

• The design of the safety belt pretensioners is to activate in frontal and near-frontal crashes, and may also activate when a side curtain deploys.

• The driver’s knee airbag may deploy based on crash severity and occupant conditions.

• The design of the side airbags and side curtain airbags is to inflate in certain side impact crashes. Side airbags may activate in other types of crashes if the vehicle experiences sufficient sideways motion or deformation.

AIRBAG DISPOSAL

Contact your authorized dealer as soon as possible. Airbags must be disposed of by qualified personnel.

2014 Focus Electric Vehicle (fob) Owners Guide gf, 1st Printing, May 2013 USA (fus)

Page 56

Keys and Remote Control 55

GENERAL INFORMATION ON RADIO FREQUENCIES

This device complies with part 15 of the FCC Rules and with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

Note: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. The term IC before the radio certification number only signifies that Industry Canada technical specifications were met.

The typical operating range for your transmitter is approximately 33 feet (10 meters). Vehicles with the remote start feature will have a greater range. A decrease in operating range could be caused by:

• weather conditions

• nearby radio towers

• structures around your vehicle

• other vehicles parked next to your vehicle.

The radio frequency used by your remote control can also be used by other short-distance radio transmissions, for example amateur radios, medical equipment, wireless headphones, remote controls and alarm systems. If the frequencies are jammed, you will not be able to use your remote control. You can lock and unlock the doors with the key.

Note: Make sure your vehicle is locked before leaving it unattended. Note: If you are in range, the remote control will operate if you press

any button unintentionally.

Intelligent Access

The system uses a radio frequency signal to communicate with your vehicle and authorize your vehicle to unlock when one of the following conditions is met:

• You touch the inside of the front exterior door handle.

• You press the luggage compartment button.

• You press a button on the transmitter.

If excessive radio frequency interference is present in the area or if the transmitter battery is low, it may be necessary to mechanically unlock your door. You can use the mechanical key blade in your intelligent access key to open the driver door in this situation. Refer to Remote Control in this chapter for more information on the location and use of the mechanical key blade.

2014 Focus Electric Vehicle (fob) Owners Guide gf, 1st Printing, May 2013 USA (fus)

Page 57

56 Keys and Remote Control

REMOTE CONTROL

Intelligent Access Key

Your intelligent access keys operate the power locks and the remote start system. The key must be in your vehicle to activate the push-button start system.

The intelligent access key also contains a removable mechanical key blade that you can use to unlock the driver door. Slide the release on the back of the transmitter to release the mechanical key blade, and then pull the blade out.

Note: Your vehicle’s back-up keys came with a security tag that provides important vehicle key cut information. Keep the tag in a safe place for future reference.

Replacing the Battery

Note: Refer to local regulations when disposing of transmitter batteries. Note: Do not wipe off any grease on the battery terminals or on the

back surface of the circuit board. Note: Replacing the battery will not delete the transmitter from your

vehicle. The transmitter should operate normally. The remote control uses one coin-type three-volt lithium battery CR2032

or equivalent.

2014 Focus Electric Vehicle (fob) Owners Guide gf, 1st Printing, May 2013 USA (fus)

Page 58

Keys and Remote Control 57

Intelligent Access Transmitter

1. Remove the backup key from the transmitter.

2. Twist a thin coin under the tab hidden behind the backup key head to remove the battery cover. Do not use the backup key to remove the cover or you could damage the intelligent access key.

3. Remove the old battery.

4. Insert a new battery with the + facing downward. Press the battery down to make sure it is fully in the housing.

5. Snap the battery cover back onto the transmitter and install the backup key.

Car Finder

Press the button twice within three seconds. The horn will sound and the turn signals will flash. We recommend you use this method to locate your vehicle, rather than using the panic alarm.

Sounding a Panic Alarm

Press the button to activate the alarm. Press the button again or switch the ignition on to deactivate.

Note: The panic alarm will only operate when the ignition is off.

2014 Focus Electric Vehicle (fob) Owners Guide gf, 1st Printing, May 2013 USA (fus)

Page 59

58 Keys and Remote Control

Remote Start

The remote start button is on the transmitter.

This feature allows you to start your vehicle from outside your vehicle. The transmitter has an extended operating range.

Vehicles with automatic climate control can be configured to operate when the vehicle is remote started. Refer to the Climate Control chapter for more information.

Many states and provinces have restrictions for the use of remote start. Check your local and state or provincial laws for specific requirements regarding remote start systems.

The remote start system will not work if:

• the vehicle is on

• the alarm system is triggered

• you disable the feature

• the hood open

• the transmission is not in P

• the vehicle battery voltage is too low

• the powertrain malfunction/reduced power indicator was on the last

time your vehicle was driven.

Remote Starting the Vehicle

Note: You must press each button within three seconds of each other. Your vehicle will not remote start and the horn will not sound if you do not follow this sequence.

The label on your transmitter details the starting procedure.

To remote start your vehicle:

1. Press the lock button to lock all the doors.

2. Press the remote start button twice. The exterior lamps flash twice.

2014 Focus Electric Vehicle (fob) Owners Guide gf, 1st Printing, May 2013 USA (fus)

Page 60

Keys and Remote Control 59

The horn will sound if the system fails to start, unless quiet start is on. Quiet start will run the blower fan at a slower speed to reduce noise. You can switch it on or off in the information display. See the Information Displays chapter.

Note: If you remote start your vehicle, you must have a programmed intelligent access key inside your vehicle and press the START/STOP button on the instrument panel once while applying the brake pedal before driving your vehicle.

The power windows will not work during the remote start and the radio will not turn on automatically.

The parking lamps will remain on and the vehicle will run for 5, 10, or 15 minutes, depending on the setting. See the Information Displays chapter to select the duration of the remote start system.

Extending the Vehicle Run Time

Repeat Steps 1 and 2 with the vehicle still running to extend the run time for another remote start duration. If the duration is set to last 10 minutes, the system will add another 10 minutes. For example, if the vehicle had been running from the first remote start for five minutes, the vehicle will continue to run now for a total of 20 minutes. You can extend the remote start up to a maximum of 30 minutes.

Wait at least five seconds before remote starting after a vehicle shutdown.

Turning the Vehicle Off After Remote Starting

Press the button once. The parking lamps will turn off.

You may have to be closer to your vehicle than when starting due to ground reflection and the added noise of the running vehicle.

You can disable or enable the remote start system through the information display. Refer to the Information Display chapter.

REPLACING A LOST KEY OR REMOTE CONTROL

You can purchase replacement or additional keys or remote controls from an authorized dealer. A dealer can program the transmitters to your vehicle or you may be able to program them yourself. See the Security chapter for information on programming your transmitters.

2014 Focus Electric Vehicle (fob) Owners Guide gf, 1st Printing, May 2013 USA (fus)

Page 61

60 MyKey

PRINCIPLES OF OPERATION

MyKey allows you to program keys with restricted driving modes to promote good driving habits. All but one of the keys programmed to the vehicle can be activated with these restricted modes.

Any keys that have not been programmed are referred to as administrator keys or admin keys. These can be used to:

• create a MyKey

• program configurable MyKey settings

• clear all MyKey features.

When you have programmed a MyKey, you can access the following information using the information display:

• How many admin keys and MyKeys are programmed to your vehicle.

• The total distance your vehicle has traveled using a MyKey.

Note: All MyKeys are programmed to the same settings. You cannot program them individually. Note: For vehicles with intelligent access key (push-button start), when both a MyKey and an admin intelligent access key (fob) are present, the admin fob will be recognized to start the vehicle.

Non-configurable Settings

The following settings cannot be changed:

• Belt-Minder. You cannot disable this feature. The audio system will mute when the front seat occupants’ safety belts are not fastened.

• Early distance to stop. Warnings are displayed in the information display control followed by an audible tone at 15 miles to stop.

• Driver assist features, if equipped on your vehicle, are forced on: parking aid, blind spot information system (BLIS) with cross traffic alert and the forward collision warning system.

Configurable Settings

With an admin key, you can configure certain MyKey settings when you first create a MyKey and before you recycle the key or restart the vehicle. You can also change the settings afterward with an admin key.

• A vehicle speed limit can be set. Warnings will be shown in the display followed by an audible tone when your vehicle reaches the set speed. You cannot override the set speed by fully depressing the accelerator pedal or by setting cruise control.

• Vehicle speed minders of 45, 55 or 65 mph (75, 90 or 105 km/h). Once you select a speed, it will be shown in the display, followed by an audible tone when the preselected vehicle speed is exceeded.

2014 Focus Electric Vehicle (fob) Owners Guide gf, 1st Printing, May 2013 USA (fus)

Page 62

MyKey 61

• Audio system maximum volume of 45%. A message will be shown in the display when you attempt to exceed the limited volume. Also, the speed-sensitive or compensated automatic volume control will be disabled.

• Always on setting. When this is selected, you will not be able to turn off AdvanceTrac (if your vehicle is equipped with this feature).

Creating a MyKey

Use the information display to create a MyKey:

1. Hold the key next to the symbol on the right side of the steering

column (or next to the back-up location on the right side of the steering column).

See Starting and Stopping the Vehicle chapter for more backup slot information.

2. Switch the ignition on.

3. Access the main menu on the information display controls, and select Settings, then MyKey by pressing OK or the > button.

4. Press OK to select Create MyKey.

5. When prompted, hold the OK button until you see a message

informing you to label this key as a MyKey. The key will be restricted at the next start.

MyKey is successfully created. Make sure you label it so you can distinguish it from the admin keys.

You can also program configurable settings for the key(s). See Programming/Changing Configurable Settings.

2014 Focus Electric Vehicle (fob) Owners Guide gf, 1st Printing, May 2013 USA (fus)

Page 63

62 MyKey

Programming/Changing Configurable Settings

Use the information display to access your configurable MyKey settings.

1. Switch the ignition on with an admin key.

2. Access the main menu on the information display controls, and select Settings, then MyKey by pressing OK or > button.

3. Use the arrow buttons to get to a feature.

4. Press OK or > to make a selection. Note: You can clear or change your MyKey settings at any time during the same key cycle as you created the MyKey. Once you have switched the vehicle off, however, you will need an admin key to change or clear your MyKey settings.

CLEARING ALL MYKEYS

You can clear all MyKeys within the same key cycle as you created the MyKey. If you switch your ignition off, however, you will need to use an admin key to clear your MyKeys. Note: When you clear your MyKeys, you remove all restrictions and return all MyKeys to their original admin key status at once.

To clear all MyKeys of all MyKey settings, use the information display to do the following:

1. Access the main menu and select Settings, then MyKey.

2. Scroll to Clear All and press the OK button.

3. Hold the OK button until ALL MYKEYS CLEARED displays .

CHECKING MYKEY SYSTEM STATUS

You can find information about your programmed MyKeys by using the information display.

MYKEY DISTANCE

Tracks the distance when drivers use a MyKey. The only way to delete the accumulated distance is by using an admin key to clear your MyKey. If the distance does not accumulate as expected, then the intended user is not using the MyKey, or an admin key user recently cleared and then recreated a MyKey.

NUMBER OF MYKEY(S)

Indicates the number of MyKeys programmed to your vehicle. Use this feature to detect how many MyKeys you have for your vehicle and determine when a MyKey has been deleted.

2014 Focus Electric Vehicle (fob) Owners Guide gf, 1st Printing, May 2013 USA (fus)

Page 64

MyKey 63

NUMBER OF ADMIN KEY(S)

Indicates how many admin keys are programmed to your vehicle. Use this feature to determine how many unrestricted keys you have for your vehicle, and detect if an additional MyKey has been programmed.

USING MYKEY WITH REMOTE START SYSTEMS

MyKey is not compatible with non-Ford-approved aftermarket remote start systems. If you choose to install a remote start system, please see your Ford authorized dealer for a Ford-approved remote start system .

Vehicles With Ford-approved Aftermarket Remote Start Systems

When using a Ford-approved aftermarket remote start system, the vehicle recognizes the remote start system as an additional admin key. It is the vehicle’s default setting. You can also program the remote start as a MyKey. As a result, the MyKey system status menu display includes the remote start system as an additional key in the total count of MYKEY(S) PROGRAMMED or ADMIN KEYS PROGRAMMED. See Checking MyKey System Status.

When you start your vehicle with a Ford-approved aftermarket remote start system, the system stalls the vehicle after you open the door or shift the vehicle into gear. This is intentional. When you restart your vehicle, it reads your real key (traditional key or intelligent key fob) status instead of the remote start system’s status.

As an added precaution, owners of vehicles equipped with traditional keys may want to program the remote start system as a MyKey, if the MyKey driver uses the remote start fob. That way, when the MyKey driver starts the vehicle with the remote start system, the MyKey restrictions remain active.

With a Ford-approved aftermarket remote start system, it is possible to program all real keys as MyKeys unintentionally. If this happens, then the remote start fob is the admin key. If you want to have only one real key as a MyKey, or do not want to have any MyKeys, then you need to use your remote start to clear all MyKeys. In that case, follow these steps:

• Enter the vehicle and close all doors.

• Remote start the vehicle using your remote start fob.

• See Clearing All MyKeys. Follow Steps 1-3.

After clearing your MyKeys, you can create a new MyKey. See Creating a MyKey.

2014 Focus Electric Vehicle (fob) Owners Guide gf, 1st Printing, May 2013 USA (fus)

Page 65

64 MyKey

Note: For vehicles with intelligent access keys (push-button start), you cannot program the remote start system as a MyKey. Always treat the remote start fob as you would any other admin key.

Vehicles With Non-Ford-approved Aftermarket Remote Start Systems

MyKey is not compatible with non-Ford-approved aftermarket remote start systems. If you choose to install a remote start system, please see a Ford authorized dealer for a Ford-approved system.

The following information may help customers who choose to install a non-Ford-approved remote start system. The actions provided below do not make MyKey compatible with non-Ford-approved remote start systems, but may help you retain some MyKey functions.

When using a non-Ford-approved remote start system, the vehicle may recognize the remote start system as an additional admin key with its associated privileges. If you restart the vehicle by inserting a key into the ignition cylinder and recycling the ignition completely, then you may retain some MyKey functions. This action forces your vehicle to read the traditional key instead of the remote start fob and then uses the key’s associated privileges. Note: The MyKey system status menu display may include the remote start system as an additional key in the total count of MYKEY(S)

PROGRAMMED or ADMIN KEYS PROGRAMMED. See Checking MyKey System Status.

With a non-Ford-approved aftermarket remote start system, it is possible to program all real keys as MyKeys unintentionally. If this happens, then the remote start fob is the admin key. If you want to have only one real key as a MyKey, or do not want to have any MyKeys, then you need to use your remote start to clear all MyKeys. In that case, follow these steps:

• Enter the vehicle and close all doors.

• Remote start the vehicle using your remote start fob.

• See Clearing All MyKeys. Follow Steps 1-3.

After clearing your MyKeys, you can create a new MyKey. See Creating a MyKey.

2014 Focus Electric Vehicle (fob) Owners Guide gf, 1st Printing, May 2013 USA (fus)

Page 66

MyKey 65

Note: For vehicles with intelligent access keys (push-button start), you cannot program the remote start system as a MyKey. Always treat the remote start fob as you would any other admin key.

MYKEY TROUBLESHOOTING

Condition Potential causes

I cannot create a MyKey.

I cannot program the configurable settings.

• The key or fob used to start the vehicle does not have admin privileges.

• The key or fob used to start the vehicle is the only admin key (there always has to be at least one admin key).

• Vehicles with push button start: The intelligent access key is not positioned correctly next to the steering column or placed in a backup slot. See Starting and Stopping the Vehicle.

• SecuriLock passive anti-theft system is disabled or in unlimited mode.

• The vehicle has been started using a remote start system that is not programmed with admin privileges. See Using MyKey With Remote Start Systems.

• The key or fob used to start the vehicle does not have admin privileges.

• No MyKeys are created. See Creating a MyKey.

• The vehicle has been started using a remote start system that is not programmed with admin privileges. See Using MyKey With Remote Start Systems.

2014 Focus Electric Vehicle (fob) Owners Guide gf, 1st Printing, May 2013 USA (fus)

Page 67

66 MyKey

Condition Potential causes

I cannot clear the MyKeys.

I lost the only admin key.

I lost a key. • Program a spare key. See SecuriLock in the

I accidentally programmed all keys as MyKeys.

MyKey total includes one additional key.

Admin key total includes one additional key.

MyKey distances do not accumulate.

No MyKey functions with the Intelligent Access key.

• The key or fob used to start the vehicle does not have admin privileges.

• No MyKeys are created. See Creating a MyKey.

• The vehicle has been started using a remote start system that is not programmed with admin privileges. See Using MyKey With

Remote Start Systems

• Purchase a new key from your authorized dealer.

Security chapter.

• The vehicle has a remote start system that is recognized as an admin key. Clear all MyKeys by using the remote start. See Using MyKey With Remote Start Systems.

• Your vehicle’s system does not recognize any programmed MyKeys. See Creating a MyKey.

• An unknown key has been created as a MyKey.

• The vehicle has a remote start system. See Using MyKey With Remote Start Systems.

• An unknown key has been programmed to the vehicle as an admin key.

• The vehicle has a remote start system. See Using MyKey With Remote Start Systems.

• The MyKey user is not using the MyKey.

• An admin key holder cleared the MyKeys

and created new MyKeys.

• The key system has been reset.

• An admin fob is present at the vehicle start.

• No MyKeys are created. See Creating a

MyKey.

2014 Focus Electric Vehicle (fob) Owners Guide gf, 1st Printing, May 2013 USA (fus)

Page 68

Locks 67

LOCKING AND UNLOCKING

You can use the power door lock control or the remote control to lock and unlock your vehicle.

Power Door Locks

The power door lock control is located on the instrument panel near the radio.

Press the control to lock or unlock the doors. It will illuminate when you lock the doors and luggage compartment. When the light is off it indicates one or more doors are unlocked.

Remote Control

Unlocking the Doors (Two-Stage Unlock)

Press the button to unlock the driver door. Press the button again within three seconds to unlock all doors.

The turn signals will flash.

Press and hold both the lock and unlock buttons on the remote control for four seconds to disable or enable two-stage unlocking. Disabling two-stage unlocking allows all vehicle doors to unlock with one press of the button. The turn signals will flash twice to indicate a change to the unlocking mode. The unlocking mode applies to the remote control and intelligent access.

Intelligent access at the driver door will unlock all doors when you disable two-stage unlocking.

Locking the Doors

Press the button to lock all the doors. The turn signals will flash.

Press the button again within three seconds to confirm that all the doors are closed. The doors will lock again, the horn will sound and the turn signals will flash if all the doors and the luggage compartment are closed.

2014 Focus Electric Vehicle (fob) Owners Guide gf, 1st Printing, May 2013 USA (fus)

Page 69

68 Locks

Note: If locking was not successful or any door or the liftgate is open, or if the hood is open on vehicles with a perimeter alarm or remote start, the horn will sound twice and the lamps will not flash.

Opening the Luggage Compartment

Press twice to unlatch the luggage compartment lid.

Mechanical Key

Turn the top of the key toward the front of your vehicle once to lock all doors.

Turn the top of the key toward the rear of your vehicle once to unlock the driver door only.

Locking the Doors Individually

If the power locks fail to operate, lock the doors individually using the key in the position shown.

Left-Hand Side

Turn clockwise to lock.

Right-Hand Side

Turn counterclockwise to lock.

Opening a Rear Door from Inside

Pull the interior door release handle twice to unlock and open a rear door. The first pull unlocks the door and the second pull will unlatch the door.

Activating Intelligent Access

The intelligent access key must be within 3 feet (1 meter) of your vehicle.

2014 Focus Electric Vehicle (fob) Owners Guide gf, 1st Printing, May 2013 USA (fus)

Page 70

Locks 69

At the Front Doors

Pull a front exterior door handle to unlock and open the door.

Press and hold the door handle lock sensor to lock your vehicle. To avoid unlocking the door inadvertently, be sure to only touch the lock sensor and not other areas of the door handle.

Note: Keep the door handle surface clean to avoid issues with operation.

At the Luggage Compartment

Press the exterior release button above the license plate.

Autolock (If Equipped)

The autolock feature will lock all the doors when:

• all doors are closed,

• the ignition is on,

• you shift into any gear putting your vehicle in motion, and

• your vehicle attains a speed greater than 4 mph (7 km/h).

2014 Focus Electric Vehicle (fob) Owners Guide gf, 1st Printing, May 2013 USA (fus)

Page 71

70 Locks

Autounlock (If Equipped)

The autounlock feature will unlock all the doors when:

• the ignition is on, all the doors are closed, and your vehicle has been in motion at a speed greater than 4 mph (7 km/h);

• your vehicle comes to a stop and you switch the ignition off or to accessory; and

• you open the driver door within 10 minutes of the switching the ignition off or to accessory.

Note: The doors will not autounlock if you electronically lock your vehicle after you switch the ignition off and before you open the driver door.

Enabling or Disabling Autolock and Autounlock

Note: Your authorized dealer can perform this procedure, or you can do the procedure yourself.

To enable or disable these features, do the following: Note: You will have 30 seconds to complete the procedure.

1. Switch the ignition on.

2. Press the power door unlock button three times.

3. Switch the ignition off.

4. Press the power door unlock button three times.

5. Switch the ignition on. The horn will sound indicating your vehicle is

in programming mode. Autolock: Press the power door unlock button then the lock button.

The horn will sound once if disabled or twice (one short and one long) if enabled.

Autounlock: Press the power door lock button then the unlock button. The horn will sound once if disabled or twice (one short and one long) if enabled.

After programming the feature, switch the ignition off. The horn will sound once indicating programming is complete.

Note: You can enabled or disabled the autounlock feature independently of the autolock feature.

2014 Focus Electric Vehicle (fob) Owners Guide gf, 1st Printing, May 2013 USA (fus)

Page 72

Locks 71

Illuminated Entry

The interior lamps and select exterior lamps will illuminate when you unlock the doors with the remote entry system.

The illuminated entry system will turn off the lights if:

• you start your vehicle,

• you press the remote control lock button, or

• after 25 seconds of illumination.

The lights will not turn off if:

• you turn them on with the lamp control, or

• any door is open.

Illuminated Exit

The interior lamps and select exterior lamps will illuminate when all doors are closed and you switch the ignition off.

The lamps will turn off if all the doors remain closed and:

• 25 seconds elapse

• you lock your vehicle from the outside.

Battery Saver

If you leave the courtesy lamps or dome lamps on and switch the ignition off, the battery saver shuts them off after some time.

Accessory Mode Battery Saver for Intelligent Access Keys (If Equipped)

If you leave the ignition on after leaving your vehicle, it will shut off 15 minutes after you close all of the doors.

2014 Focus Electric Vehicle (fob) Owners Guide gf, 1st Printing, May 2013 USA (fus)

Page 73

72 Locks

TRUNK RELEASE

With the Remote Control

Press twice within three seconds.

From Inside Your Vehicle (If Equipped)

Press the button located on the instrument panel.

From Outside Your Vehicle

Press the release button above the license plate to unlatch the trunk. Your vehicle must be unlocked or have the intelligent access transmitter within 3 feet (1 meter) of the trunk.

Note: On a locked vehicle, you can press the trunk button on the remote control once. The vehicle will remain locked but you will have 20 seconds to press the outside release button.

2014 Focus Electric Vehicle (fob) Owners Guide gf, 1st Printing, May 2013 USA (fus)

Page 74

Security 73

SECURILOCK® PASSIVE ANTI-THEFT SYSTEM

Note: The system is not compatible with non-Ford aftermarket remote start systems. Use of these systems may result in vehicle starting problems and a loss of security protection.

Note: Metallic objects, electronic devices or a second coded key on the same key chain may cause vehicle starting issues if they are too close to the key when starting your vehicle. Prevent these objects from touching the coded key while starting your vehicle. Switch the ignition off, move all objects on the key chain away from the coded key and restart the vehicle if a problem occurs.

Note: Do not leave a duplicate coded key in the vehicle. Always take your keys and lock all doors when leaving the vehicle.

The system helps prevent the vehicle from starting unless you use a coded key programmed to your vehicle. Using the wrong key may prevent your vehicle from starting. A message may appear in the information display.

If you are unable to start your vehicle with a correctly coded key, a malfunction has happened and a message may appear in the information display.

Automatic Arming

Your vehicle arms immediately after you switch the ignition off.

Automatic Disarming

Your vehicle disarms when you switch the ignition on with a coded key.

Replacement Keys

Note: Your vehicle comes with two intelligent access keys. The intelligent access key functions as a programmed key that operates

the driver door lock and activates the intelligent access with push button start systems, as well as a remote control.

If your intelligent access key is lost or stolen and you do not have an extra coded key, you will need to have your vehicle towed to an authorized dealer. The key codes need to be erased from your vehicle and new coded keys will need to be programmed.

Store an extra programmed key away from your vehicle in a safe place to help prevent any inconveniences. See an authorized dealer to purchase additional spare or replacement keys.

2014 Focus Electric Vehicle (fob) Owners Guide gf, 1st Printing, May 2013 USA (fus)

Page 75

74 Security

Programming a Spare Intelligent Access Key

See your authorized dealer to have additional keys programmed to your vehicle.

ANTI-THEFT ALARM

The system will warn you of an unauthorized entry to your vehicle. The park and turn lamps flash and the horn sounds if unauthorized entry

is attempted while the alarm is armed. It triggers immediately if the luggage compartment or the hood opens, and after a 12-second delay if any door opens.

Take all remote controls to an authorized dealer if there is any potential alarm problem with your vehicle.

Arming the Alarm

The alarm is ready to arm when there is not a key in the ignition. Lock the vehicle to arm the alarm.

The message indicator flashes when theft protection is active.

Disarming the alarm

Disarm the alarm by any of the following actions:

• Unlock the doors or luggage compartment with the remote control.

• Turn the ignition on or start the vehicle.

• Use a key in the driver door to unlock your vehicle, then turn the

ignition on within 12 seconds.

2014 Focus Electric Vehicle (fob) Owners Guide gf, 1st Printing, May 2013 USA (fus)

Page 76

Steering Wheel 75

ADJUSTING THE STEERING WHEEL

WARNING: Do not adjust the steering wheel when your vehicle is moving.

Note: Make sure that you are sitting in the correct position. See Sitting in the Correct Position in the Seats chapter.

1. Unlock the steering column.

2. Adjust the steering wheel to the desired position.

3. Lock the steering column.

2014 Focus Electric Vehicle (fob) Owners Guide gf, 1st Printing, May 2013 USA (fus)

Page 77

76 Steering Wheel

AUDIO CONTROL

Select the required source on the audio unit.

You can operate the following functions with the control:

A. Volume up B. Seek up or next C. Volume down D. Seek down or previous

Seek, Next or Previous

Press the seek button to:

• tune the radio to the next or previous stored preset

• play the next or previous track.

Press and hold the seek button to:

• tune the radio to the next station up or down the frequency band

• seek through a track.

VOICE CONTROL (IF EQUIPPED)

Pull the control to select or deselect voice control. See the MyFord Touch chapter.

2014 Focus Electric Vehicle (fob) Owners Guide gf, 1st Printing, May 2013 USA (fus)

Page 78

Steering Wheel 77

CRUISE CONTROL

INFORMATION DISPLAY CONTROL

See the Cruise Control chapter.

Use the arrows on the left side of the steering wheel to navigate the information display. See the Information Displays chapter for more information.

Multimedia Controls

Use the arrows on the right side of steering wheel to navigate through the available menus. Press OK to make a selection.

2014 Focus Electric Vehicle (fob) Owners Guide gf, 1st Printing, May 2013 USA (fus)

Page 79

78 Wipers and Washers

WINDSHIELD WIPERS

Note: Fully defrost the windshield before switching on the windshield wipers.

Note: Make sure the windshield wipers are switched off before entering car wash.

Note: Clean the windshield and wiper blades if they begin to leave streaks or smears. If that does not resolve the issue, install new wiper blades.

Note: Do not operate the wipers on a dry windshield. This may scratch the glass, damage the wiper blades or cause the wiper motor to burn out. Always use the windshield washer before wiping a dry windshield.

Intermittent Wipe

A. Single wipe B. Intermittent wipe C. Normal wipe D. High-speed wipe

A. Shortest wipe interval

B. Intermittent wipe C. Longest wipe interval Use the rotary control to adjust the

intermittent wipe interval.

Speed Dependent Wipers

When your vehicle speed increases, the interval between wipes will decrease when intermittent wipe is selected.

2014 Focus Electric Vehicle (fob) Owners Guide gf, 1st Printing, May 2013 USA (fus)

Page 80

Wipers and Washers 79

WINDSHIELD WASHERS

Note: Do not operate the washers when the washer reservoir is empty. This may cause the washer pump to overheat.

Pull the lever toward you to spray the windshield. After you release the lever, the wipers will operate for a short time.

A wipe will occur a few seconds after washing to clear any remaining washer fluid.

REAR WINDOW WIPER AND WASHERS (IF EQUIPPED)

Rear Window Wiper

A. Intermittent wipe B. Low-speed wipe C. Off

Press the top of the button at the end of the lever to switch on the intermittent wiper. Press the button again to switch on low-speed wipe. Press the bottom of the button to switch the wiper off, or to change the wiper speed from low-speed to intermittent.

When you shift into R (Reverse), the rear wiper will turn on to intermittent if the front wipers are activated.

2014 Focus Electric Vehicle (fob) Owners Guide gf, 1st Printing, May 2013 USA (fus)

Page 81

80 Wipers and Washers

Rear Window Washers

Note: Do not operate the washers when the washer reservoir is empty. This may cause the washer pump to overheat.

To use the rear washer function, push the lever away from you. When you release the lever, the wiper will operate for a short time.

2014 Focus Electric Vehicle (fob) Owners Guide gf, 1st Printing, May 2013 USA (fus)

Page 82

HEADLAMP CONTROL

High beams

Flash-to-pass

Lighting 81

A. Off B. Parking lamps, instrument panel

lamps, license plate lamps and tail lamps

C. Headlamps.

• Push the lever toward the instrument panel to activate.

• Push the lever toward the instrument panel again or pull the lever towards you to deactivate.

Pull toward you slightly to activate and release to deactivate.

2014 Focus Electric Vehicle (fob) Owners Guide gf, 1st Printing, May 2013 USA (fus)

Page 83

82 Lighting

Autolamp control (if equipped)

Rotate the lighting control to to turn the autolamps on.

The headlamps will switch on and off automatically in low light situations or during inclement weather.

The headlamps will remain on for a period of time after you switch the ignition off. You can adjust the time delay using the information display controls.

Note: It may be necessary to switch your headlamps on manually in severe weather conditions.

Note: If you switch autolamps on in conjunction with autowipers, low beam headlamps will illuminate automatically when the rain sensor activates the windshield wipers continuously.

Autolamp delay system (if equipped)

If your vehicle is equipped with autolamps, you can set the delay time to keep the headlights on for up to one minute after the key is turned off. The home light delay settings are adjusted through the message center in the instrument cluster. The default delay time from the factory is set to 20 seconds.

Note: The headlamps can be activated manually by pulling the high beam/flash-to-pass lever toward you. The headlamps are deactivated after 30 seconds or three minutes if any door is open.

2014 Focus Electric Vehicle (fob) Owners Guide gf, 1st Printing, May 2013 USA (fus)

Page 84

PANEL DIMMER CONTROL

Lighting 83

With liftgate release:

• Press repeatedly or press and hold until the desired level is reached.

Without liftgate release:

• Press the right control repeatedly to brighten incrementally or press and hold until the desired level is reached

• Press the left control repeatedly to dim incrementally or press and hold until the desired level is reached.

Note: If the low voltage battery under the hood is disconnected, discharged, or a new low voltage battery is installed, the dimmer will set the illuminated components to the maximum setting automatically. This will ensure that your displays are visible under all lighting conditions. The brightness can then be adjusted to the users preference.

2014 Focus Electric Vehicle (fob) Owners Guide gf, 1st Printing, May 2013 USA (fus)

Page 85

84 Lighting

HEADLAMP EXIT DELAY

With the ignition switch off, the headlamps can be activated manually by pulling the high beam/flash-to-pass lever toward you. You will hear a short tone. The headlamps will go off automatically after 3 minutes with any door open, or 30 seconds after the last door has been closed.

The home safe lights can be cancelled by either pulling the high beam/flash-to-pass indicator lever towards the steering wheel again or by turning the ignition switch ON.

DAYTIME RUNNING LAMPS (DRL) (IF EQUIPPED)

WARNING: Always remember to turn on your headlamps in low

light situations or during inclement weather. The daytime running lamp system does not activate the tail lamps and may not provide adequate lighting during these conditions. Failure to activate your headlamps under these conditions may result in a collision.

To switch the Daytime Running Lamp system on:

1. Turn the ignition to the on position

2. Switch the lighting control to the off, autolamp or parking lamp position.

Vehicle With High Intensity Discharge Headlamps

The Daytime Running Lamp system switches the fog lamps on in day light conditions (Not available in all markets).

FRONT FOG LAMPS

Press the control to switch the fog lamps on or off.

You can switch the fog lamps on when the lighting control is in any position except off and the high beams are not on.

2014 Focus Electric Vehicle (fob) Owners Guide gf, 1st Printing, May 2013 USA (fus)

Page 86

Lighting 85

INTERIOR LAMPS

The lamps will switch on when one of the following conditions have been met:

• You open any door.

• You press a remote control button.

• You press switch D on the front interior lamp.

Press switch C on the front interior lamp to switch the courtesy

Note:

and door illumination function off when you open any door. The indicator lamp will illuminate yellow when the door function is off. When the door function is off and you open a door, the courtesy and door lamps will stay off.

Press switch C again to switch them back on. The indicator lamp will illuminate blue when the door function is on. When the door function is on and you open a door, the courtesy and door lamps will switch on.

Front Interior lamp (if equipped)

Note: Some interior lamps are equipped with a single switch for the left and right map lamps.

A. Left map lamp switch, if equipped

B. Right map lamp switch, if equipped

C. Door function switch D. All lamps on and off switch

2014 Focus Electric Vehicle (fob) Owners Guide gf, 1st Printing, May 2013 USA (fus)

Page 87

86 Lighting

Front/Rear Interior lamp (if equipped)

Press switch A to switch individual map lamps on and off (if equipped).

Front dome/map lamp

C B

Press switch A to activate the map lamp(s).

Press switch C on the front interior lamp to switch the courtesy

Note:

A. Map lamp on and off switch B. Door function switch C. All lamps on and off switch The dome lamp will turn on when:

• any door is opened.

• the remote control (keyfob) unlock button

is pressed and the vehicle is off.

• you press switch C on the front interior lamp.

2014 Focus Electric Vehicle (fob) Owners Guide gf, 1st Printing, May 2013 USA (fus)

Page 88

Lighting 87

Rear dome/map lamp (if equipped)

Type A

The dome lamp will turn on when:

• any door is opened.

• any of the remote entry controls are pressed and the vehicle

is off.

• all lamps on and off switch on the front dome/map lamp is pressed.

Press to manually turn on the map lamp(s) (if equipped).

Type B

The dome lamp will turn on when:

• any door is opened.

• any of the remote entry controls are pressed and the

vehicle is off.

• all lamps on and off switch is pressed on the front dome/map lamp.

2014 Focus Electric Vehicle (fob) Owners Guide gf, 1st Printing, May 2013 USA (fus)

Page 89

88 Lighting

Ambient lighting (if equipped)

A B C

• Press C to switch on all interior lamps and all ambient lighting. Press C again to switch off the interior lamps and return the ambient lighting to the previously selected color.

The ambient lighting will switch on when the following conditions have been met:

• you switch the ignition on

• you switch the headlamp to the parking lamp position

The ambient lighting will remain on until you switch the ignition off and one of the following conditions have been met:

• you lock your vehicle

• the accessory delay timer expires.

A. Color palette B. Control knob C. Search mode

• Rotate B to switch on and adjust to the desired brightness.

• Press A to cycle through the color choices.

2014 Focus Electric Vehicle (fob) Owners Guide gf, 1st Printing, May 2013 USA (fus)

Page 90

Windows and Mirrors 89

POWER WINDOWS

WARNING: Do not leave children unattended in your vehicle and do not let them play with the power windows. They may

seriously injure themselves.

WARNING: When closing the power windows, you should verify they are free of obstructions and make sure that children and

pets are not in the proximity of the window openings.

Note: You may hear a pulsing noise when just one of the windows is open. Lower the opposite window slightly to reduce this noise.

Press the switch to open the window. Lift the switch to close the window.

One-Touch Down

Press the switch fully and release it. Press again or lift it to stop the window.

One-Touch Up

Lift the switch fully and release it. Press or lift it again to stop the window.

2014 Focus Electric Vehicle (fob) Owners Guide gf, 1st Printing, May 2013 USA (fus)

Page 91

90 Windows and Mirrors

Window Lock

Press the control to lock or unlock the rear window controls. It illuminates when you lock the rear window controls.

Bounce-Back (If Equipped)

The window will stop automatically while closing. It will reverse some distance if there is an obstacle in the way.

Overriding the Bounce-Back Feature

WARNING: When you override the bounce-back feature the window will not reverse if it detects an obstacle. Take care when

closing the windows to avoid personal injury or damage to your vehicle.

Proceed as follows to override this protection function when there is a resistance, for example in the winter:

1. Close the window twice until it reaches the resistance and let it reverse.

2. Close the window a third time to the resistance. The bounce-back function is disabled and you can close the window manually. The window will override the resistance and you can close it fully.

Contact your authorized dealer as soon as possible if the window does not close after the third attempt.

Resetting the Bounce-Back Feature

WARNING: The bounce-back function remains deactivated until you have reset the memory.

You must reset the bounce-back memory separately for each window after the battery has been disconnected.

1. Lift and hold the switch until the window is fully closed.

2. Release the switch.

2014 Focus Electric Vehicle (fob) Owners Guide gf, 1st Printing, May 2013 USA (fus)

Page 92

Windows and Mirrors 91

3. Lift the switch again for one more second.

4. Press and hold the switch until the window is fully open.

5. Release the switch

6. Lift and hold the switch until the window is fully closed.

7. Open the window and then try to close it automatically.

8. Reset and repeat the procedure if the window does not close automatically.

Accessory Delay (If Equipped)

You can use the window switches for several minutes after the you switch the ignition off, or until you open either front door.

EXTERIOR MIRRORS

Power Exterior Mirrors

WARNING: Do not adjust the mirror while your vehicle is in motion.

A. Left-hand mirror B. Off C. Right-hand mirror

Press the arrows to adjust the mirror.

2014 Focus Electric Vehicle (fob) Owners Guide gf, 1st Printing, May 2013 USA (fus)

Page 93

92 Windows and Mirrors

Foldaway Exterior Mirrors

Push the mirror toward the door window glass. Make sure that you fully engage the mirror in its support when returning it to its original position.

Signal Indicator Mirrors

The outer portion of the appropriate mirror housing blinks when you activate the turn signal.

Heated Exterior Mirror

The heated exterior mirrors switch on with the heated rear window. See Heated Windows and Mirrors in the Climate Control chapter.

Integrated Blind Spot Mirrors

WARNING: Objects in the blind spot mirror are closer than they appear.

Blind spot mirrors have an integrated convex mirror built into the upper outboard corner of the exterior mirrors. They are designed to assist you by increasing visibility along the side of your vehicle.

Check the main mirror first before a lane change, then check the blind spot mirror. If no vehicles are present in the blind spot mirror and the traffic in the adjacent lane is at a safe distance, signal that you are going to change lanes. Glance over your shoulder to verify traffic is clear, and carefully change lanes.

2014 Focus Electric Vehicle (fob) Owners Guide gf, 1st Printing, May 2013 USA (fus)

Page 94

INTERIOR MIRROR

WARNING: Do not adjust the mirror when your vehicle is moving.

Windows and Mirrors 93

The image of the approaching vehicle is small and near the inboard edge of the main mirror when it is at a distance. The image becomes larger and begins to move outboard across the main mirror as the vehicle approaches (A). The image will transition from the main mirror and begin to appear in the blind spot mirror as the vehicle approaches (B). The vehicle will transition to your peripheral field of view as it leaves the blind spot mirror (C).

Note: Do not clean the housing or glass of any mirror with harsh abrasives, fuel or other petroleum or ammonia based cleaning products.

You can adjust the interior mirror to your preference. Some mirrors also have a second pivot point. This lets you move the mirror head up or down and from side to side.

Pull the tab below the mirror toward you to reduce glare at night.

2014 Focus Electric Vehicle (fob) Owners Guide gf, 1st Printing, May 2013 USA (fus)

Page 95

94 Windows and Mirrors

SUN VISORS

Slide-On-Rod (If Equipped)

Rotate the visor toward the side window and extend it rearward for extra sunlight coverage.

Retract the visor before moving it back toward the windshield and storing it.

Illuminated Visor Vanity Mirror

Lift the cover to switch on the lamp.

2014 Focus Electric Vehicle (fob) Owners Guide gf, 1st Printing, May 2013 USA (fus)

Page 96

Instrument Cluster 95

GAUGES

Cluster shown in standard measure – metric clusters similar.

A C

A. Left information display: See Information Displays for more information.

B. Speedometer C. Right information display: See MyTouch for more information.

Common Displays

Note: Some features can be switched on and off through the message center.

Battery Gauge: The high voltage battery gauge appears on the right side of the message center screen. This provides State of Charge, Range Estimate and Regen Display.

• State of Charge - The state of charge for the high voltage battery is shown as a colored fill. The fill color is normally blue. When a low battery condition is reached the fill turns amber. When the battery is depleted the fill turns red. See the Information Messages section for details on associated Low Battery and Depleted Battery warnings.

• Distance to Empty - The Range Estimate in the Battery Gauge is personalized to the driver’s key. This is the estimated distance the vehicle will travel before needing a recharge. The Range Estimate is based on your typical energy usage while driving. This includes your Drive Habits as well as your use of accessories such as Climate Control. Your Range Estimate may change immediately when you change your Climate Control settings.

2014 Focus Electric Vehicle (fob) Owners Guide gf, 1st Printing, May 2013 USA (fus)

Page 97

96 Instrument Cluster

• Regen Display-Acirculararrowsymbol appears in the center of the Battery Gauge when energy is being recaptured through the regenerative braking system.

Brake Coach Display: The Brake Coach appears after the vehicle has come to a stop. It coaches you to brake in a manner which maximizes the amount of energy returned through the regenerative braking system. The percent displayed is an indication of the regenerative braking efficiency with 100% representing the maximum amount of energy recovery. If desired, this feature can be disabled in the Display section of the Settings menu.

Trip Summary and Lifetime Summary: These will be displayed upon shutting off the vehicle. Trip Summary will appear first, then Lifetime Summary will be displayed. You can toggle between these displays using the up and down arrow keys on the left hand steering wheel controls.

Trip Summary data is from the last power cycle, while Lifetime Summary data is cumulative from the last Lifetime Summary reset done through the Settings menu in the message center.

Trip Summary:

• Distance - The total distance travelled, and regen distance are displayed. Regen distance is the estimated range gained from energy recaptured through regenerative braking.

• Energy Used - The total kilowatt hours and average watt hours per unit of distance are displayed. The average watt hours per mi (km) will be shown in blue if less than (better than) the lifetime average watt hours per mi (km).

• Brake Score - The percentage of braking energy recaptured and returned to the high voltage battery through regenerative braking. The brake score will be shown in blue if greater than (better than) the lifetime brake score.

Lifetime Summary:

• Distance - The total regen distance, which is the estimated range gained from energy recaptured through regenerative braking.

• Energy Used - The average watt hours per mi (km).

• Brake Score - The average percentage of braking energy recaptured

and returned to the high voltage battery through regenerative braking.

2014 Focus Electric Vehicle (fob) Owners Guide gf, 1st Printing, May 2013 USA (fus)

Page 98

Instrument Cluster 97

WARNING LAMPS AND INDICATORS

These indicators can alert you to a vehicle condition that may become serious enough to cause expensive repairs. Many lights will illuminate when you start your vehicle to make sure they work. If any light remains on after starting the vehicle, refer to the respective system warning light for additional information.

Note: Some warning indicators are reconfigurable telltales (RTT). These indicators appear in the information display and function the same as a warning light, but do not display on startup.

Airbag readiness

If this light fails to illuminate when the ignition is turned on, continues to flash or remains on, contact your authorized dealer as soon as possible. A chime will sound when there is a

malfunction in the indicator light.

Anti-lock brake system

If the ABS light stays illuminated or continues to flash, a malfunction has been detected. Contact your authorized dealer as soon as possible. Normal braking is still functional unless the

brake warning light also is illuminated.

Brake system warning light

To confirm the brake system warning light is functional, it will momentarily illuminate when the vehicle is switched on, to accessory or Ready to Drive mode.

If it illuminates when you are driving, check that the parking brake is not engaged. If the parking brake is not engaged, this indicates low brake fluid level or a brake system malfunction. Have the system checked immediately by your authorized dealer.

WARNING: Driving a vehicle with the brake system warning

light on is dangerous. A significant decrease in braking performance may occur. It will take you longer to stop the vehicle. Have the vehicle checked by your authorized dealer as soon as possible. Driving extended distances with the parking brake engaged can cause brake failure and the risk of personal injury.

2014 Focus Electric Vehicle (fob) Owners Guide gf, 1st Printing, May 2013 USA (fus)

Page 99

98 Instrument Cluster

Charging system (RTT)

Illuminates when the 12–volt battery is not charging properly. Contact your authorized dealer as soon as possible. This indicates a problem with the electrical system or a related component.

Door ajar (RTT)

Displays when the ignition is on and any door is not completely closed.

High beams

Illuminates when the high-beam headlamps are on.

High voltage battery low or depleted (RTT)

• Amber: Illuminates when the battery level is low. May also be accompanied by a message suggesting the driver reduce usage of the climate system.

• Red: Illuminates when the battery level is depleted. The vehicle must be charged before it will operate. If you are driving when this occurs, and cannot make it to a charge point, stop the vehicle in a safe place and have it towed to a charge point.

Liftgate ajar (RTT)

Displays when the ignition is on and liftgate is not completely closed.

Limited performance (RTT)

• Amber: Indicates limited vehicle performance due to a cold or hot battery. This will be accompanied by a corresponding message.

• Red: Indicates severely limited vehicle performance due to a cold or hot battery. This will be accompanied by a corresponding message. Drive with caution. Keep the vehicle plugged in when not in use to maintain battery temperature.

2014 Focus Electric Vehicle (fob) Owners Guide gf, 1st Printing, May 2013 USA (fus)

Page 100

Instrument Cluster 99

Low tire pressure warning

Illuminates when your tire pressure is low. If the light remains on at start up or while driving, the tire pressure should be

checked. When the vehicle is first turned on, the light will illuminate for 3 seconds to ensure the bulb is working. If the light does not turn on or begins to flash, contact your authorized dealer as soon as possible.

Low washer fluid (RTT)

Illuminates when the windshield washer fluid is low.

Motor coolant overheat warning (RTT)

Illuminates when the motor cooling system is overheating. Stop

the vehicle in a safe place and contact your authorized dealer.

Overdrive cancel and grade assist (if equipped)

Illuminates when the overdrive function of the transmission has

been turned off and the grade assist function has been turned on.

Park lamps

Illuminates when the park lamps are on.

Powertrain malfunction/reduced power (RTT)

Illuminates when a powertrain or high-voltage charge system

fault has been detected. If the indicator stays on or continues

to come on, contact your authorized dealer as soon as possible.

Ready to drive

Illuminates once the vehicle has been switched on and is ready

to drive. A corresponding message may display stating ready to

drive or a message regarding budget if a charge point has not been entered.

Safety belt

Reminds you to fasten your safety belt. A Belt-Minder® chime

will also sound to remind you to fasten your safety belt.

2014 Focus Electric Vehicle (fob) Owners Guide gf, 1st Printing, May 2013 USA (fus)

FORD Focus Electric 2014 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Table of Contents 1

Introduction 7

ABOUT THIS MANUAL

Protecting the Environment

SYMBOL GLOSSARY

DATA RECORDING

Service Data Recording

Event Data Recording

CALIFORNIA PROPOSITION 65

PERCHLORATE MATERIAL

FORD CREDIT (U.S. ONLY)

REPLACEMENT PARTS RECOMMENDATION

Scheduled Maintenance and Mechanical Repairs

Collision Repairs

Warranty on Replacement Parts

SPECIAL NOTICES

New Vehicle Limited Warranty

Special Instructions

Using your vehicle with a snowplow

Using your vehicle as an ambulance

MOBILE COMMUNICATIONS EQUIPMENT

EXPORT UNIQUE (NON–UNITED STATES/CANADA) VEHICLE SPECIFIC INFORMATION

Child Safety 15

GENERAL INFORMATION

CHILD SEAT POSITIONING

BOOSTER SEATS

Types of Booster Seats

INSTALLING CHILD SEATS

Child Seats

Using Lap and Shoulder Belts

Using Lower Anchors and Tethers for CHildren (LATCH)

Use of Inboard Lower Anchors from the Outboard Seating Positions (Center Seating Use)

Combining Safety Belt and LATCH Lower Anchors for Attaching Child Safety Seats

Using Tether Straps

CHILD SAFETY LOCKS

Safety Belts 31

PRINCIPLES OF OPERATION

FASTENING THE SAFETY BELTS

Restraint of Pregnant Women

Safety Belt Locking Modes

Vehicle Sensitive Mode

Automatic Locking Mode

When to Use the Automatic Locking Mode

How to Use the Automatic Locking Mode

How to Disengage the Automatic Locking Mode

Safety Belt Extension Assembly

SAFETY BELT HEIGHT ADJUSTMENT

SAFETY BELT WARNING LIGHT AND INDICATOR CHIME

Conditions of Operation

Safety Belt-Minder®

Deactivating and Activating the Belt-Minder® Feature (If Equipped)

CHILD RESTRAINT AND SAFETY BELT MAINTENANCE

Personal Safety System 41

PERSONAL SAFETY SYSTEM™

How Does the Personal Safety System Work?

42 Supplementary Restraints System

PRINCIPLES OF OPERATION

SOS POST-CRASH ALERT SYSTEM™

DRIVER AND PASSENGER AIRBAGS

Proper Driver and Front Passenger Seating Adjustment

Children and Airbags

FRONT PASSENGER SENSING SYSTEM

KNEE AIRBAG

SIDE AIRBAGS

SIDE CURTAIN AIRBAGS

CRASH SENSORS AND AIRBAG INDICATOR

AIRBAG DISPOSAL

Keys and Remote Control 55

GENERAL INFORMATION ON RADIO FREQUENCIES

Intelligent Access

REMOTE CONTROL

Intelligent Access Key

Replacing the Battery

Intelligent Access Transmitter

Car Finder

Sounding a Panic Alarm
