This Supplement is not intended to
replace your vehicle Owner ’s Manual
which contains more detailed
information concerning the features
of your vehicle, as well as important
safety warnings designed to help
reduce the risk of injury to you and
your passengers. Please read your
entire Owner’s Manual carefully as
you begin learning about your new
vehicle and refer to the appropriate
sections when questions arise.
All information contained in this
supplement was accurate at the
time of duplication. We reserve the
right to change features, operation
and/or functionality of any vehicle
specification at any time. Your Ford
dealer is the best source for the most
current information. For detailed
operating and safety information,
please consult your Owner ’s Manual.
Page 2
The information contained in this publication was correct at the time of going to print. In the interest of
continuous development, we reserve the right to change specifications, design or equipment at any time
without notice or obligation. No part of this publication may be reproduced, transmitted, stored in a
retrieval system or translated into any language in any form by any means without our written permission.
Errors and omissions excepted.
© Ford Motor Company 2017
All rights reserved.
Part Number: JE8J 19A285 HA 201706 20170824122121
Page 3
Page 4
Introduction
About This Supplement.................................3
SVT.........................................................................4
Team RS...............................................................4
Ford Performance............................................4
At a Glance
At a Glance..........................................................6
Transmission

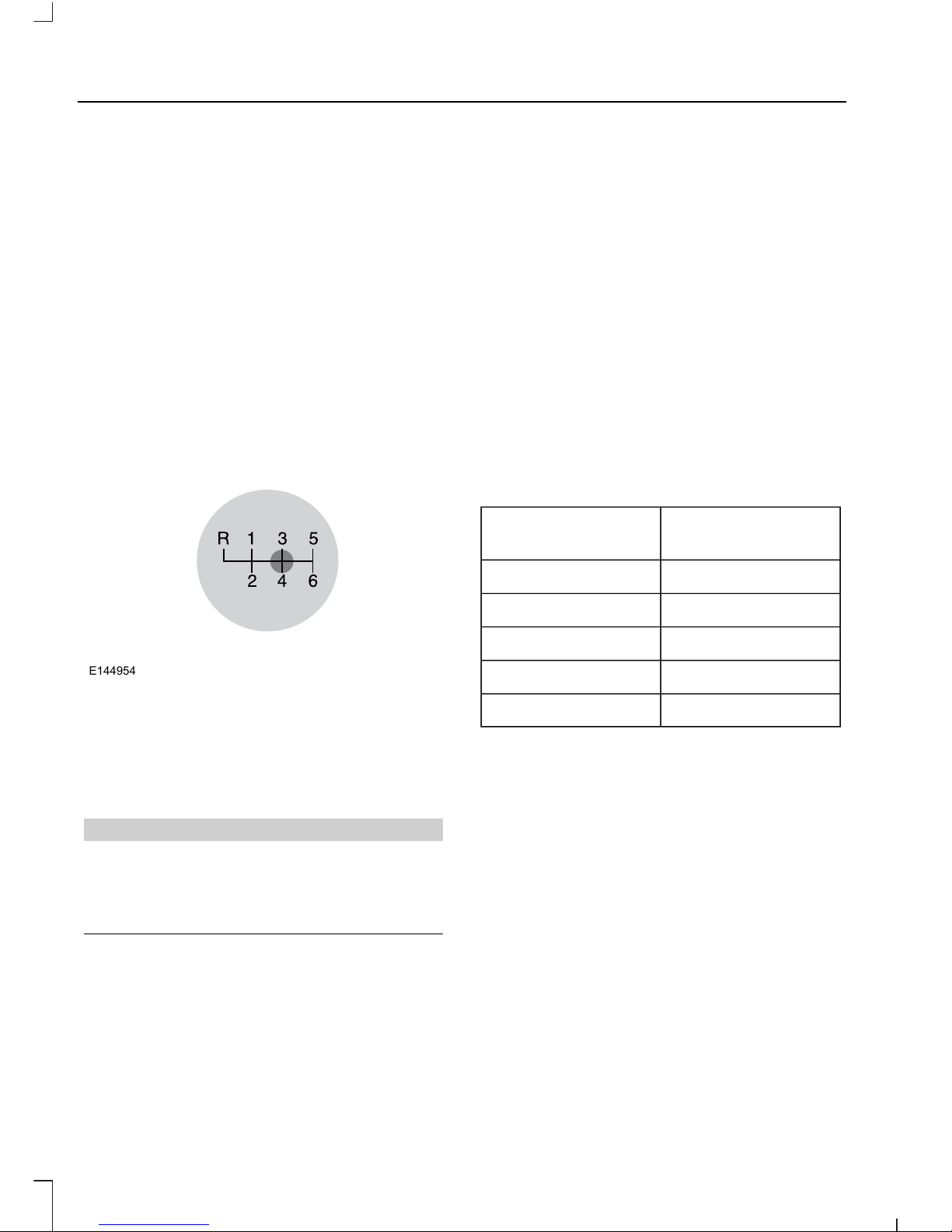

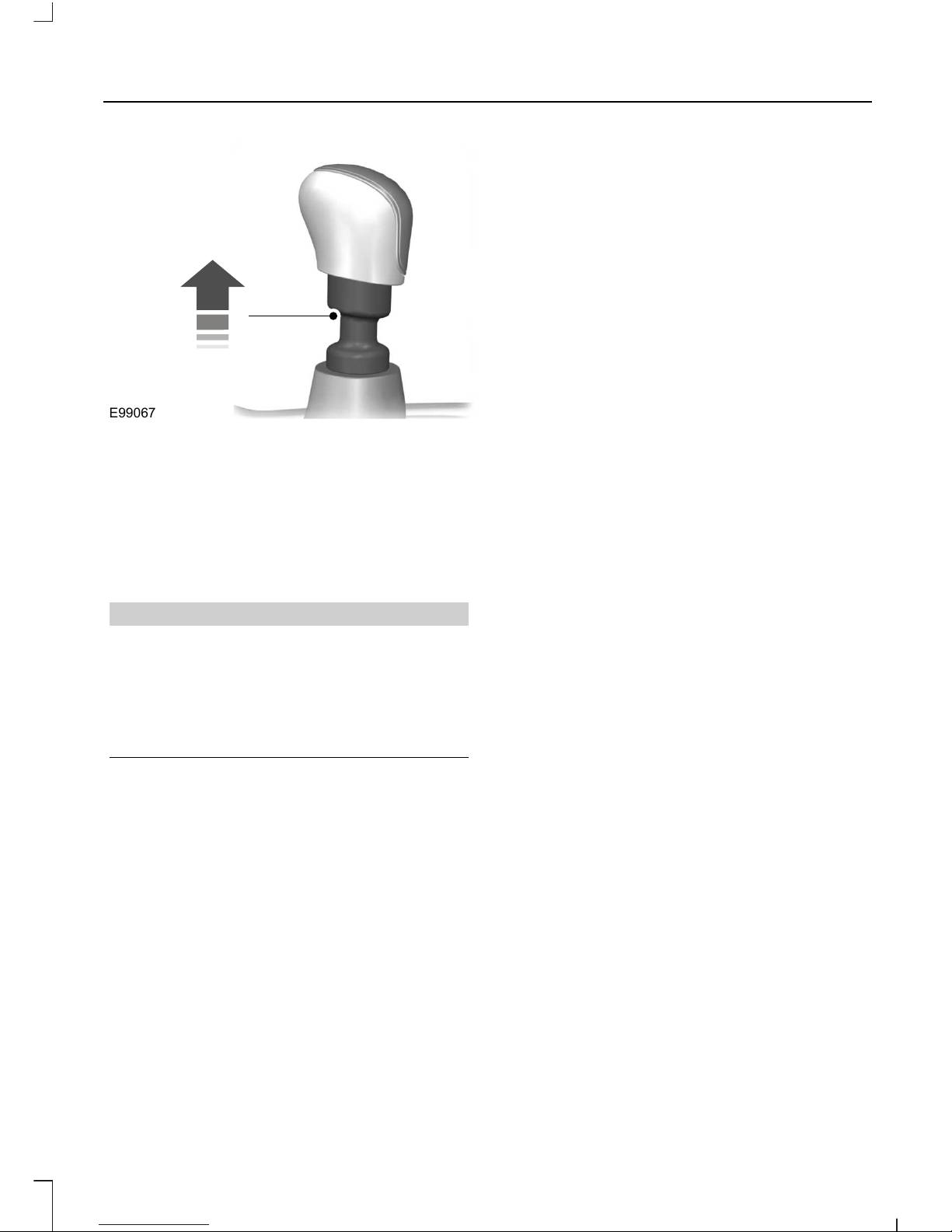

Manual Transmission....................................10
Stability Control
Using Stability Control..................................12
Driving Hints
Breaking-In........................................................14
General Driving Points...................................14
Engine Overspeed...........................................14
Engine Overboost...........................................14
Roadside Emergencies

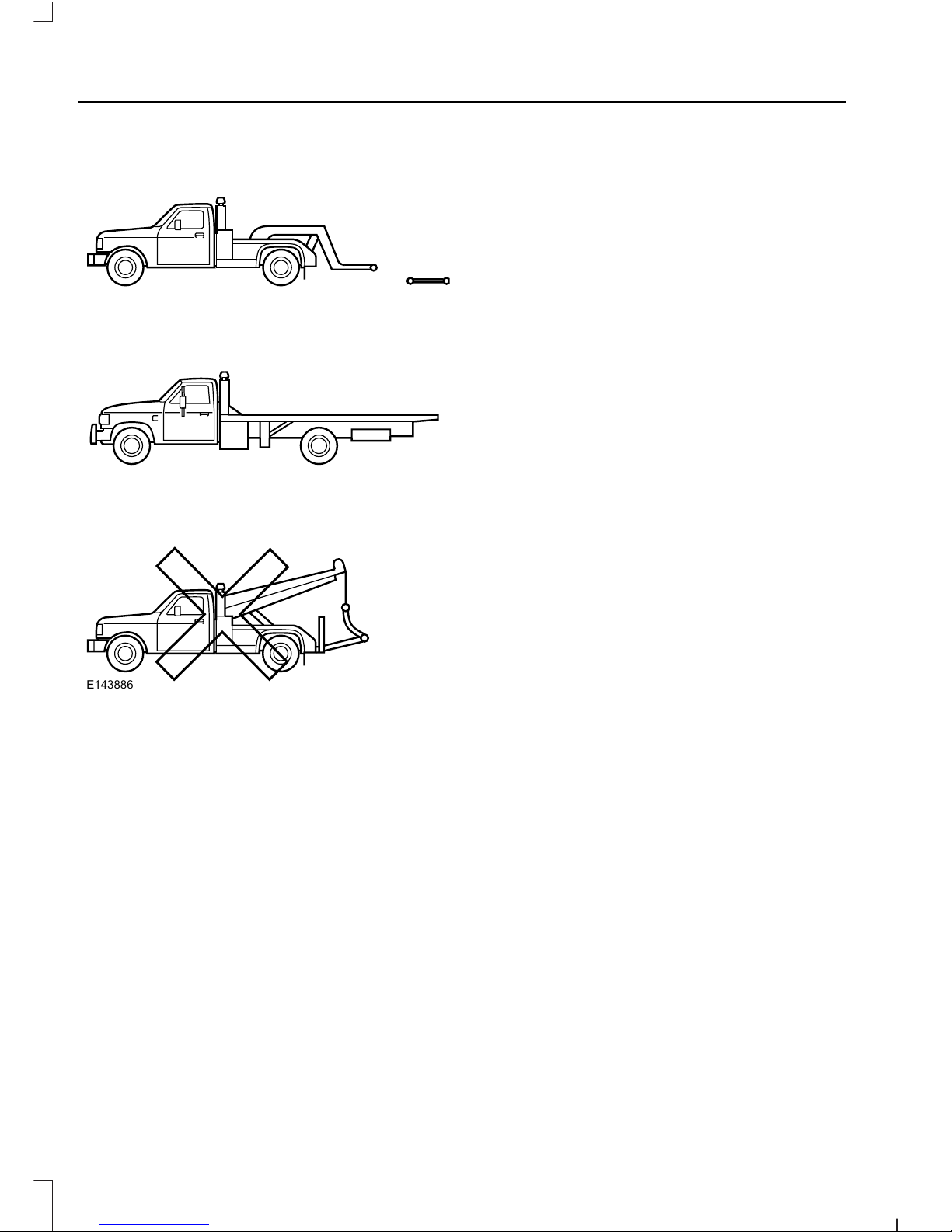

Roadside Assistance.....................................16
Maintenance
Under Hood Overview...................................17
Engine Oil Dipstick..........................................18
Drive Belt Routing...........................................18
Wheels and Tires
Wheels................................................................19
Tires......................................................................19
Using Winter Tires..........................................20
Tire Pressure Monitoring System..............21
Changing a Road Wheel..............................22
Technical Specifications.............................24
Capacities and Specific-
ations
Engine Specifications...................................25
Transmission Specifications......................25
Motorcraft Parts.............................................26
Capacities and Specifications...................27
Warranty Terms and
Conditions
Base Warranty.................................................30
1
2018 Fiesta ST (CCT) ST, Canada/Mexico/United States of America, JE8J 19A285 HA enUSA, Edition date: 201706, First Printing
Table of Contents
Page 5
2
2018 Fiesta ST (CCT) ST, Canada/Mexico/United States of America, JE8J 19A285 HA enUSA, Edition date: 201706, First Printing
Page 6
ABOUT THIS SUPPLEMENT
Congratulations on your decision to
purchase or lease the latest from Ford
Performance — the Fiesta ST. If you have
owned or leased an SVT or ST product in
the past, we are glad you are back. If this
is your first Ford Performance vehicle,
welcome to the family! We are confident
that our dedication to performance,
quality, craftsmanship and customer
service will provide many miles of
exhilarating, safe and comfortable driving
in your new ST vehicle.
E163959
Your choice of a Ford Performance product
is an intelligent and informed one. We
strive to build engaging vehicles that
involve the driver in every aspect of the
driving experience. Although performance
is at the heart of every Ford
Performance-developed vehicle, we go
much further. Our goal is to deliver a
comprehensive, complete vehicle,
sweating the details such as the sound of
the exhaust, the quality of the interior
materials, and the functionality and the
comfort of the seats, to make sure that the
driver enjoys not only exceptional
performance but an outstanding driving
environment as well. In the Fiesta ST, that
philosophy is expressed by a sophisticated
powertrain, outstanding chassis dynamics
and significant interior and exterior
enhancements.
This supplement complements your Fiesta
Owner’s Manual and provides information
specific to the Fiesta ST. By referring to the
pages listed in this supplement, you can
identify those features, recommendations
and specifications unique to your ST
vehicle. If there are any discrepancies
between this supplement and the Fiesta
Owner’s Manual, this supplement shall
supersede the information found in the
Fiesta Owner’s Manual.
If you have any questions or concerns
regarding your vehicle, please call the Ford
Performance Info Center at
1-800-FORD-SVT (367-3788).
3
2018 Fiesta ST (CCT) ST, Canada/Mexico/United States of America, JE8J 19A285 HA enUSA, Edition date: 201706, First Printing
Introduction
Page 7
SVT
The Special Vehicle Team (SVT) was
established in 1991 to polish the Ford Oval
by creating low-volume, factory-produced
vehicles designed for people whose idea
of driving is a high-powered, passionate
experience - not just a means of getting
from A to B.
To support such spirited enthusiasm, we
carefully integrated the wide array of talent
in the company into a small,
cross-functional group of engineers and
product planners and located them under
one roof with a common mission to create
vehicles specifically designed to meet the
unique needs and desires of the driving
enthusiast.
We produced more than 250,000 SVT
vehicles since 1993 model year including
the SVT Mustang Cobra and the Cobra R,
the SVT F-150 Lightning, the SVT Contour,
the SVT Focus, Ford GT, Shelby GT500,
GT500KR and the F-150 SVT Raptor.
TEAM RS
Team RS traces its roots back nearly 60
years from the Lotus Cortina and Twin
Cam Escorts of the mid-1960s, through
the first RS branded Escorts of the 1970s
to the founding of Special Vehicle
Engineering (SVE) in 1980. Through the
1980s and 90s, SVE delivered a breadth
of vehicles from exciting XR and RS
branded road going performance cars
through homologation specials including
the iconic Sierra Cosworth RS500 and
RS200. The first ST vehicle appeared in
1996 as the ST24 Mondeo. The first
collaboration between our European and
North American performance teams
appeared in 2002 as the ST170 in Europe
and SVT Focus in North America. In 2003,
Team RS replaced SVE in Europe when we
brought performance car and motorsport
personnel together as one team.
FORD PERFORMANCE
Welcome to the Ford Performance family!
Performance and racing are deeply
embedded in Ford’s DNA, dating back to
October 10, 1901 when Henry Ford won his
first race against Alexander Winton,
America’s greatest racer at the time. Henry
Ford founded Ford Motor Company 18
months later with capital raised on the
back of this remarkable upset victory.
Today, that spirit of passion, innovation
and performance lives on through Ford
Performance. Established in 2015, the
company’s performance teams -- Ford
Special Vehicle Team (United States),
Team RS (Europe), Ford Performance
(Australia) and Ford Racing (United
States) – have unified under the mission
to create the world’ s leading performance
vehicles, parts, accessories and
experiences for enthusiasts. This includes
accelerating the development of advanced
aerodynamics, lightweighting, electronics,
powertrain performance, fuel efficiency
and other technologies that can be applied
across Ford’s product portfolio.
We are proud and passionate about what
we do and we look forward to a long and
exciting relationship with you. Thank you
for choosing Ford Performance!
4
2018 Fiesta ST (CCT) ST, Canada/Mexico/United States of America, JE8J 19A285 HA enUSA, Edition date: 201706, First Printing
Introduction
Page 8
E211570
5
2018 Fiesta ST (CCT) ST, Canada/Mexico/United States of America, JE8J 19A285 HA enUSA, Edition date: 201706, First Printing
Introduction
Page 9
E163958
• 1.6L GTDI EcoBoost I4 engine
• Overboost function for increased
torque
• Electronic overspeed function with
6500 RPM redline
• ST-tuned 55 millimeters (2.17 inches)
exhaust system with dual tips
• Ford B6 6-speed manual transaxle
• Sound symposer
• ST-tuned electric power assisted
steering
• Modified front suspension knuckle for
improved wheel end geometry
• ST-tuned springs, dampers, stabilizer
bar and rear twist beam
• Increased diameter front brake rotors
(278 millimeters x 23 millimeters) (10.9
inches x 0.91 inches) with unique
calipers and ST-tuned brake pads
• Rear brake rotors (253 millimeters x
10.2 millimeters) (9.9 inches x 0.40
inches) with unique calipers and
ST-tuned brake pads
• Enhanced torque vectoring with
understeer control
• AdvanceTrac stability enhancement
system with three modes: Normal,
Sport and Disabled
• 17 inch x 7.0 inch wheels with 47.5
millimeter offset
• P205/40-R17 Bridgestone RE050A
summer-only tires
• Optional P205/40-R17 Michelin Pilot
Sport A/S3 all-season performance
tire
• ST-engineered front and rear fascias
and rear wing
• Optional Recaro front seats with
increased lateral support and matching
rear seat covers
• ST-unique instrument panel appliques,
shift knob, steering wheel and rocker
scuff panels
• ST high-speed instrument cluster
6
2018 Fiesta ST (CCT) ST, Canada/Mexico/United States of America, JE8J 19A285 HA enUSA, Edition date: 201706, First Printing
At a Glance
Page 10
Vehicle Specifications
E163960
DescriptionItem
Ford B6 6-speed manual with 228 millimeter clutch and dual
mass flywheel
Transmission
Final driveRatioGearGear ratios
3.823.7271st
3.822.0982nd
3.821.3573rd
3.821.0304th
3.820.8215th
3.820.6906th
3.823.818Reverse
7
2018 Fiesta ST (CCT) ST, Canada/Mexico/United States of America, JE8J 19A285 HA enUSA, Edition date: 201706, First Printing
At a Glance
Page 11
Engine Specifications
DescriptionItem
Transversely mounted I4, cast aluminum cylinder block and
cylinder heads
Configuration
3.1 in (79 mm) bore x 3.2 in (81.4 mm) strokeBore x stroke
97 in³ (1,597 cm³)Displacement
10.0:1Compression ratio
197 hp @ 6350 RPM on 93 octaneHorsepower
202 lb-ft @ 4200 RPM on 93 octaneTorque
6375 RPM continuousRedline
6500 RPM three second overspeed
123 horsepower per literSpecific output
Twin independent variable cam timingValvetrain
Coil-on-plugIgnition
Pressurize, direct injection, electric returnless fuel systemFuel system
2.0 in (52 mm)Throttle body
Die cast aluminum alloyPistons
Cast ironCrankshaft
Sinter forged steelConnecting rods
Borg Warner KP39Turbo
2.17 in (55 mm) diameterExhaust system
8
2018 Fiesta ST (CCT) ST, Canada/Mexico/United States of America, JE8J 19A285 HA enUSA, Edition date: 201706, First Printing
At a Glance
Page 12
Suspension Specifications
DescriptionItem
MacPherson strut with L-arm front suspension and revised
knuckle
Front suspension
Twist beam 0.3 in (8.5 mm) thickRear suspension
154 lb/in (27N/mm)Front spring rate
131 lb/in (23N/mm)Rear spring rate
0.83 in (21 mm)Front stabilizer bar
9
2018 Fiesta ST (CCT) ST, Canada/Mexico/United States of America, JE8J 19A285 HA enUSA, Edition date: 201706, First Printing
At a Glance
Page 13
MANUAL TRANSMISSION
Using the Clutch
Note: Failure to fully depress the clutch
pedal to the floor may cause increased shift
efforts, prematurely wear transmission
components or damage the transmission.
Note: Do not drive with your foot resting on
the clutch pedal or use the clutch pedal to
hold your vehicle at a standstill while
waiting on a hill. These actions will reduce
the life of the clutch and could nullify a
clutch warranty claim.
E144954
Manual transmission vehicles have a
starter interlock that prevents cranking the
engine unless the clutch pedal is fully
depressed.
Starting Your Vehicle
WARNING
Make sure the floor mat is positioned
correctly so that it does not interfere
with the full extension of the clutch
pedal.
1. Make sure the parking brake is fully set
and shift the gearshift lever to the
neutral position.
2. Fully depress the clutch pedal then
start the engine.
3. Press the brake pedal and shift the
gearshift lever to first or reverse gear.
4. Release the parking brake and slowly
release the clutch pedal while slowly
pressing on the accelerator.
During each shift, make sure you fully
depress the clutch pedal.
Recommended Shift Speeds
Note: Do not shift the gearshift lever to first
gear when your vehicle is moving faster than
15 mph (24 km/h). This will damage the
clutch.
We recommend you change gear
according to the following guide to achieve
the best fuel economy for your vehicle.
Recommended
speed
Shift from
12 mph (19 km/h)1 - 2
23 mph (37 km/h)2 - 3
32 mph (51 km/h)3 - 4
41 mph (66 km/h)4 - 5
42 mph (67 km/h)5 - 6
Reverse
Note: Do not shift the gearshift lever to
reverse gear when your vehicle is moving.
This can cause damage to the transmission.
1. Fully depress the clutch pedal to
disengage the clutch.
2. Shift the gearshift lever to the neutral
position and wait at least three
seconds before moving it to reverse.
3. Raise the collar below the gearshift
lever to shift to reverse gear.
Note: This is a lockout feature which
protects the transmission from accidentally
engaging reverse gear when intending to
select first gear.
10
2018 Fiesta ST (CCT) ST, Canada/Mexico/United States of America, JE8J 19A285 HA enUSA, Edition date: 201706, First Printing
Transmission
Page 14
E99067
If reverse gear is not fully engaged, press
the clutch pedal down and shift the
gearshift lever to the neutral position.
Release the clutch pedal for a moment,
then raise the collar and shift the gearshift
lever to reverse again.
Parking Your Vehicle
WARNING
Do not park your vehicle with the
gearshift lever in the neutral position.
Your vehicle may move unexpectedly
and injure someone. Shift the gearshift
lever to first gear and set the parking brake
fully.
To park your vehicle:
1. Press the brake pedal and shift the
gearshift lever to the neutral position.
2. Fully apply the parking brake and
switch the ignition off.
3. Hold the clutch pedal down, and shift
the gearshift lever to first gear.
11
2018 Fiesta ST (CCT) ST, Canada/Mexico/United States of America, JE8J 19A285 HA enUSA, Edition date: 201706, First Printing
Transmission
Page 15
USING STABILITY CONTROL
The AdvanceTrac system includes traction
control and electronic stability control. See
the Traction Control and Stability Control
chapters of the Owner's Manual for more
information.
AdvanceTrac provides three modes of
operation specially calibrated for your
vehicle.

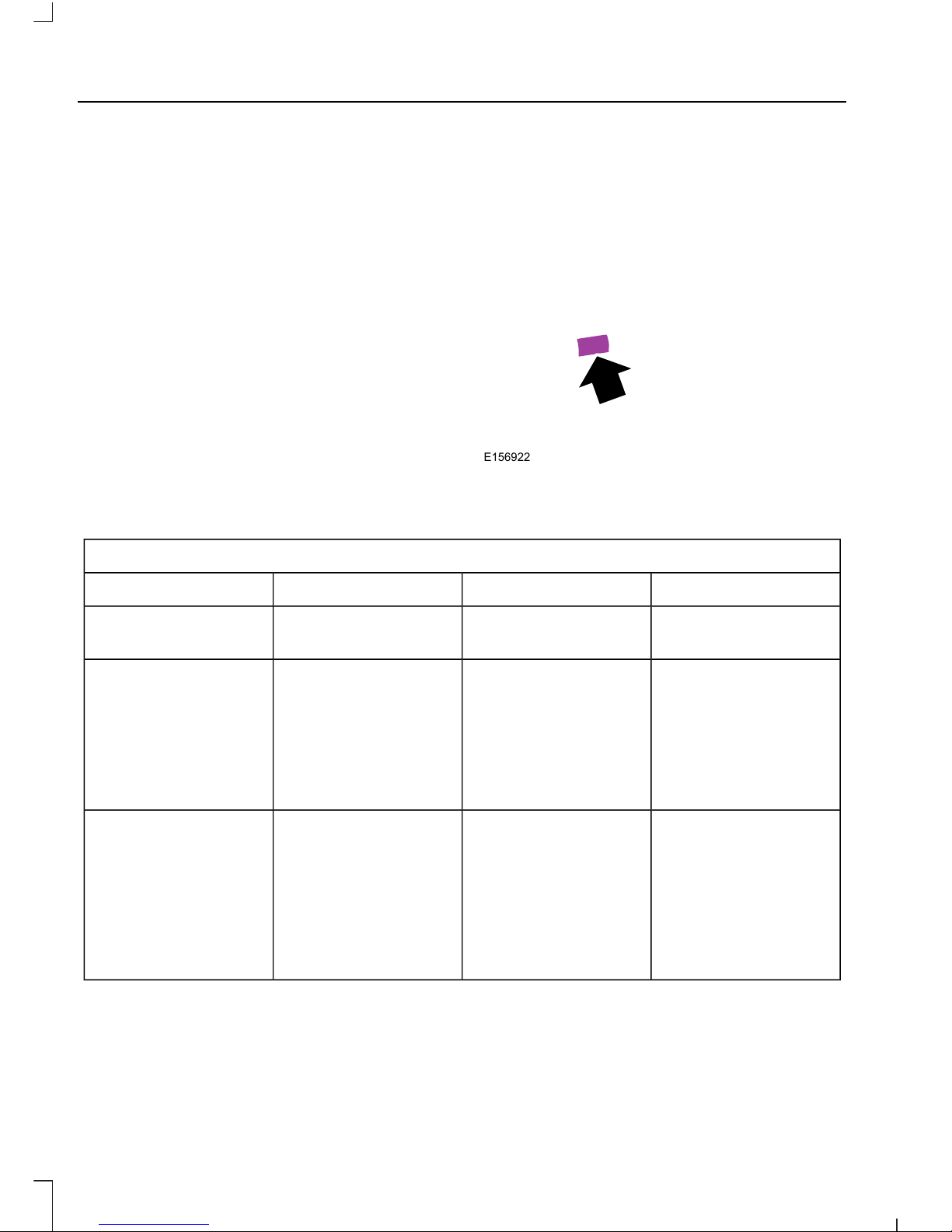

E156922
Press the AdvanceTrac button on the
center console to select these modes.
AdvanceTrac Modes
DisplayButton operationDescriptionMode
NoneNoneDaily usage with all
driver aids engaged
Normal
-Message center
displays Sport Mode
Single pressSpirited driving.
Thresholds altered
on traction control
and electronic
stability control to
allow more tire spin
and vehicle slip
Sport
-Amber light in
cluster illuminates
-Message center
displays Hold to
switch ESC OFF,
then
Press and hold for
five seconds
-Track Use Only
-Traction control
and electronic
stability control are
disabled
Off
-Electronic Stability
Control off
-Amber light in
cluster illuminates
12
2018 Fiesta ST (CCT) ST, Canada/Mexico/United States of America, JE8J 19A285 HA enUSA, Edition date: 201706, First Printing
Stability Control (If Equipped)
Page 16
Enhanced Torque Vectoring
Control
Enhanced torque vectoring control is
comprised of two elements:
• Torque vectoring control which applies
brake torque on the inner wheel in a
curve for better traction and less
understeer.
• Cornering understeer control which
controls the yaw response of your
vehicle when you accelerate on high
and low friction surfaces.
No action is required to activate torque
vectoring control. It operates automatically
due to vehicle operating conditions.
Unlike electronic stability control,
enhanced torque vectoring control does
not slow the vehicle but does help control
excessive wheel slip and gives the vehicle
cornering agility. The system only increases
performance. Because of this, enhanced
torque vectoring control is not disabled
when the AdvanceTrac system is off.
13
2018 Fiesta ST (CCT) ST, Canada/Mexico/United States of America, JE8J 19A285 HA enUSA, Edition date: 201706, First Printing
Stability Control (If Equipped)
Page 17
BREAKING-IN
Your vehicle does not need an extensive
break–in. Try not to drive continuously at
the same speed for the first 1000 miles
(1600 kilometers) of new vehicle
operation. Vary your speed frequently in
order to give the moving parts a chance to
break in.
Do not add friction modifier compounds
or special break–in oils since these
additives may prevent piston ring seating.
GENERAL DRIVING POINTS
Operating at High Speeds
Your ST vehicle is capable of high speeds
and is equipped with tires rated for the
vehicle’s maximum speed. Remember to
drive safely, obey all traffic laws and only
operate your ST vehicle at high speeds at
locations equipped and designed to do so
safely. Before operating your vehicle at
high speeds:
• Verify correct tire pressures. See Tires
(page 19).
• Inspect wheels and tires for wear and
damage. Replace any damaged wheels
or tires.
• Do not operate your vehicle at high
speeds with more than two passengers
or while carrying cargo.
Curbs, Parking Lot Obstacles and
Commercial Car Washing
As part of its performance tuning package,
your ST vehicle has a lower ride height than
a standard Fiesta. Because of lower ground
clearance, use caution when approaching
curbs, speed bumps or steep driveway
ramps. It is recommended to cross speed
bumps or driveway curbs slowly and at a
45 degree angle to reduce the risk of
vehicle damage. Also, exercise extreme
care if using automated commercial car
washes. Do not drive through car washes
with the vehicle heavily loaded (multiple
passengers or luggage). Use only
commercial car washes without
mechanical tracks or hand wash to avoid
potential damage.
ENGINE OVERSPEED
Note: Always wait until the engine is
properly warmed up before running high
engine speeds.
Your ST vehicle is equipped with an
overspeed feature to increase its
performance range. The standard
maximum engine speed of 6375 RPM is
indicated by a narrow redline on the
tachometer face. The redline becomes
thicker at the overspeed engine speed of
6500 RPM.
This feature allows three seconds of
overspeed above 6375 RPM. Once the
three second limit has been reached, the
electronically controlled rev limit ramps
down to 6375 RPM and holds there. Once
engine speed has dropped below 6175
RPM, the overspeed timer is reset and
three seconds of overspeed up to a
maximum of 6500 RPM is enabled.
Do not operate the engine at high RPM and
low load for sustained periods of time, as
damage may occur.
ENGINE OVERBOOST
Your vehicle has an engine overboost
feature to allow additional torque delivery.
The overboost feature controls a variety
of engine parameters to deliver additional
torque. This feature widens the engine
speed range of the peak torque curve,
giving maximum performance while
passing another vehicle or launching from
a standing start.
14
2018 Fiesta ST (CCT) ST, Canada/Mexico/United States of America, JE8J 19A285 HA enUSA, Edition date: 201706, First Printing
Driving Hints
Page 18
The system allows a maximum of 20
seconds of engine overboost. After this
the system reduces turbo charger boost
and maximizes it at a predetermined limit.
Once the turbo charger boost drops below
the predetermined limit the system resets
and a further 20 seconds of engine
overboost is permitted.
Note: You do not need to take any action
as the system allows overboost when you
demand it.
15
2018 Fiesta ST (CCT) ST, Canada/Mexico/United States of America, JE8J 19A285 HA enUSA, Edition date: 201706, First Printing
Driving Hints
Page 19
ROADSIDE ASSISTANCE
E143886
Contact your roadside assistance center
or a professional towing service if you need
to have your vehicle towed.
Ford recommends that your vehicle be
towed with a wheel lift and dollies or with
flatbed equipment. When towing with a
flatbed, 4x4 blocks may help prevent
damage when loading or unloading your
vehicle. Do not tow with a slingbelt. Ford
Motor Company has not approved a
slingbelt towing procedure.
Note: If the vehicle is towed by other means
or incorrectly, vehicle damage may occur.
16
2018 Fiesta ST (CCT) ST, Canada/Mexico/United States of America, JE8J 19A285 HA enUSA, Edition date: 201706, First Printing
Roadside Emergencies
Page 20
UNDER HOOD OVERVIEW
E163014
A B C D E
FGH
Engine coolant reservoirA
Engine oil filler capB
Engine oil dipstickC
BatteryD
Brake and clutch fluid reservoirE
Engine compartment fuse boxF
Windshield and rear window washer fluid reservoirG
Air cleanerH
17
2018 Fiesta ST (CCT) ST, Canada/Mexico/United States of America, JE8J 19A285 HA enUSA, Edition date: 201706, First Printing
Maintenance
Page 21
ENGINE OIL DIPSTICK
E199415
A
B
Minimum.A
Maximum.B
DRIVE BELT ROUTING
E161372
18
2018 Fiesta ST (CCT) ST, Canada/Mexico/United States of America, JE8J 19A285 HA enUSA, Edition date: 201706, First Printing
Maintenance
Page 22
WHEELS
Your ST vehicle is equipped with unique
wheels matched to the tires. These wheels
are more susceptible to damage due to
their diameter, width and low profile tires.
To avoid damage to your wheels:
• Maintain proper tire pressure.
• Exercise caution when using
automated, commercial car washes.
Hand washing or using touchless
commercial car washes without
mechanical tracks is the best way to
avoid potential damage.
• When installing wheels, always torque
lug nuts to specification with a torque
wrench.
• Inspect your wheels for damage on a
regular basis. If a wheel is damaged,
replace it immediately.
• If you encounter an abnormally harsh
impact, inspect the outer diameter of
your wheels, both inside and out, for
damage.
TIRES
Optional
Michelin Pilot Sport
A/S3
Standard
Bridgestone Potenza
RE050 A
Tires
205/40 R17205/40 R17Size
VWSpeed rating
8484Load rating
Performance all seasonSummer onlyUsage
17 in. x 7.0 in, 47.5 mm offset aluminum wheelsWheels
Your ST vehicle is equipped with low
profile, high performance tires that are
designed to optimize the driving dynamics
you expect in an ST vehicle. These tires are
not optimized for off-road or winter (snow
or cold weather) performance, and their
ride, noise and wear characteristics are
different than non-performance tires. Also,
because of their lower profile, the tires are
more susceptible to damage due to
potholes and rough roads. To make sure
that your tires perform as intended, it is
important that you maintain your tires
properly:
Note: Do not use tire chains on the original
wheels and tires of your vehicle. The use of
any type of tire chain on these tires may
damage your vehicle.
• Do not overload your vehicle. Maximum
vehicle and axle weights are listed on
the tire information placard.
• Take extra caution when operating the
vehicle near its maximum load,
including assuring proper tire pressure
and reducing speeds.
• Take extra caution when operating on
rough roads to avoid impacts that
could cause tire damage.
19
2018 Fiesta ST (CCT) ST, Canada/Mexico/United States of America, JE8J 19A285 HA enUSA, Edition date: 201706, First Printing
Wheels and Tires
Page 23
• If you encounter an abnormally harsh
impact, inspect your tires for damage.
• Inspect your tires for damage on a
regular basis. If a tire is damaged,
replace it immediately.
• Proper suspension alignment is critical
for maximum performance and
optimal tire wear. If you notice uneven
tire wear, have your alignment checked.
• When replacing tires, the only way to
maintain original performance is to use
the original equipment tire. If a different
summer tire is used, it should be the
same size, speed rating and load rating
as the originally equipped tire. Replace
tires as a set of four. Never mix tire
brands or models.
Tire Pressure
• For tire pressures, see the placard
located on the B-pillar inside the driver
door.
• Always maintain your tire pressures
according to the tire information
placard on the driver door jamb, using
an accurate gauge.
• Tire pressures are specified cold. Check
them after the vehicle has been parked
for at least three hours. Do not reduce
pressure of warm tires.
• Check your tire pressure often to
maintain it properly. Tire pressure can
diminish over time and fluctuate with
temperature.
Tire Pressure for High Speed Usage
If you are operating your ST vehicle in areas
that allow high-speed driving over 100 mph
(160 km/h), increase the tire pressure in
all four tires by 3 psi above the pressures
listed on the Tire Pressure placard located
on the driver side b-pillar.
Optional All-Season Tires
Your ST vehicle may come equipped with
an optional All-Season performance tire.
This choice will provide the benefit of four
season mobility without requiring the
installation of winter tires. It is important
to realize that ultimate summer
performance will be reduced relative to
the standard equipment summer only tire.
Additionally, ultimate winter traction and
control will be less than a dedicated winter
tire would provide. If you drive during the
winter months in areas with heavy snowfall
or hilly terrain, you may wish to install a
dedicated winter tire if ultimate traction
and control are desired.
USING WINTER TIRES
If so equipped, the original equipment
summer-only tires on your ST vehicle are
designed for maximum performance in dry
and wet summer conditions. They are not
designed for winter use on ice or snow and
cannot be used with snow chains. Ford
does not recommend using the original
equipment tires when temperatures drop
to approximately 40°F (5°C) or below
(depending on tire wear and environmental
conditions) or in snow and ice conditions.
You must use winter or all-season tires if
you will be operating your vehicle in these
conditions.
• Even with clear, dry driving conditions
do not operate your vehicle above
posted speed limits or perform high
speed maneuvers with winter tires.
• Do not use tire chains on the original
wheels and tires of your vehicle. The
use of any type of tire chain on these
tires may damage your vehicle.
20
2018 Fiesta ST (CCT) ST, Canada/Mexico/United States of America, JE8J 19A285 HA enUSA, Edition date: 201706, First Printing
Wheels and Tires
Page 24
The following table lists acceptable tire
sizes for winter tires. Tire speed and load
ratings should match those of the originally
equipped tires as closely as possible. If it
is required to fit winter tires with a speed
rating less than the original equipment tires
(to fit snow chains, for example), be aware
of the maximum speed rating for the tire
and never exceed.
Compatible Snow Tire and Wheel Packages
Required wheelTire size
Original equipment ST wheel or equivalent205/40 R17
Owner supplied. See your Ford dealer for
suitable wheels from the Fiesta lineup.
195/45 R16*
* Required size to prevent vehicle damage if snow chain use is required
Please call the Ford Performance Info
Center at 1-800-FORD-SVT (367-3788)
for specific winter tire recommendations.
TIRE PRESSURE MONITORING
SYSTEM
Tire Pressure Monitoring System
Reset Procedure
You must perform the tire pressure
monitoring system reset procedure after
each tire rotation on vehicles with different
recommended front and rear tire pressures.
This procedure provides the tire pressure
monitoring system with the location of
each tire so it can detect and properly warn
of low tire pressures.
WARNING
To determine the required
pressure(s) for your vehicle, see the
Safety Compliance Certification
Label (affixed to either the door hinge
pillar, door-latch post, or the door edge
that meets the door-latch post, next to the
driver's seating position), or Tire Label
located on the B-Pillar or the edge of the
driver's door.
System reset tips:
• To reduce the chances of interference
from another vehicle, perform the
system reset procedure at least three
feet (one meter) away from another
Ford Motor Company vehicle
undergoing the system reset procedure
at the same time.
• Do not wait more than two minutes
between resetting each tire sensor or
the system will time-out and you will
need to repeat the entire procedure on
all four wheels.
• A double horn will sound indicating the
need to repeat the procedure.
Performing the System Reset
Procedure
Read the entire procedure before
attempting.
1. Drive the vehicle above 20 mph (32
km/h) for at least two minutes, then
park in a safe location where you can
easily get to all four tires and have
access to an air pump.
2. Place the ignition in the off position and
keep the key in the ignition (vehicles
with keys only).
3. Turn the ignition on.
21
2018 Fiesta ST (CCT) ST, Canada/Mexico/United States of America, JE8J 19A285 HA enUSA, Edition date: 201706, First Printing
Wheels and Tires
Page 25
4. Turn the hazard flashers on then off
three times. You must accomplish this
within 10 seconds. If you have entered
the reset mode successfully, the horn
will sound once, the system indicator
will flash and a message appears in the
information display. If this does not
occur, please try again starting at Step
2. If after repeated attempts to enter
the reset mode, the horn does not
sound, the system indicator does not
flash and no message is shown in the
information display, seek service from
your authorized dealer.
5. Train the tire pressure monitoring
system sensors in the tires using the
following system reset sequence. Start
with the left front tire in the following
clockwise order: left front (driver's side
front tire), right front (passenger's side
front tire), right rear (passenger's side
rear tire), and left rear (driver's side rear
tire).
6. Remove the valve cap from the valve
stem on the left front tire. Decrease the
air pressure until the horn sounds.
Note: The horn will sound once when
the module learns the sensor
identification code for this position. If
you hear the horn sound twice, the
reset procedure was unsuccessful, and
you must repeat the entire procedure.
7. Remove the valve cap from the valve
stem on the right front tire. Decrease
the air pressure until the horn sounds.
8. Remove the valve cap from the valve
stem on the right rear tire. Decrease the
air pressure until the horn sounds.
9. Remove the valve cap from the valve
stem on the left rear tire. Decrease the
air pressure until the horn sounds.
Training is complete after the horn
sounds for the last tire trained (driver's
side rear tire), the system indicator
stops flashing, and a message is shown
in the information display.
10. Turn the ignition off. If you hear the
horn sound twice, the reset procedure
was unsuccessful and you must
repeat it. If after repeating the
procedure and you hear the horn
sound twice when you turn the
ignition off, seek assistance from your
authorized dealer.
11. Set all four tires to the recommended
air pressure as indicated on the
Safety Compliance Certification
Label (affixed to either the door hinge
pillar, door-latch post, or the door
edge that meets the door-latch post,
next to the driver's seating position)
or Tire Label located on the B-Pillar
or the edge of the driver's door.
CHANGING A ROAD WHEEL
See the Wheels and Tires chapter of your
owner's manual for instructions on
changing a road wheel.
Full Size Spare
Your ST vehicle is equipped with a full-size,
spare tire assembly. Although the spare is
a traditional, full size tire (as opposed to a
mini-spare), it is different in both size and
handling characteristics from the standard
Fiesta ST performance tire. If you need to
install the spare tire, you must adhere to
the following precautions:
• Because of the different performance
characteristics of the spare tire, avoid
aggressive steering, braking,
acceleration or high speeds when the
spare tire is installed.
• Never enable electronic stability
control sport mode or fully disable
electronic stability control when the
spare tire is installed.
• Replace the spare tire with the correct
original equipment specified tire as
soon as possible.
22
2018 Fiesta ST (CCT) ST, Canada/Mexico/United States of America, JE8J 19A285 HA enUSA, Edition date: 201706, First Printing
Wheels and Tires
Page 26

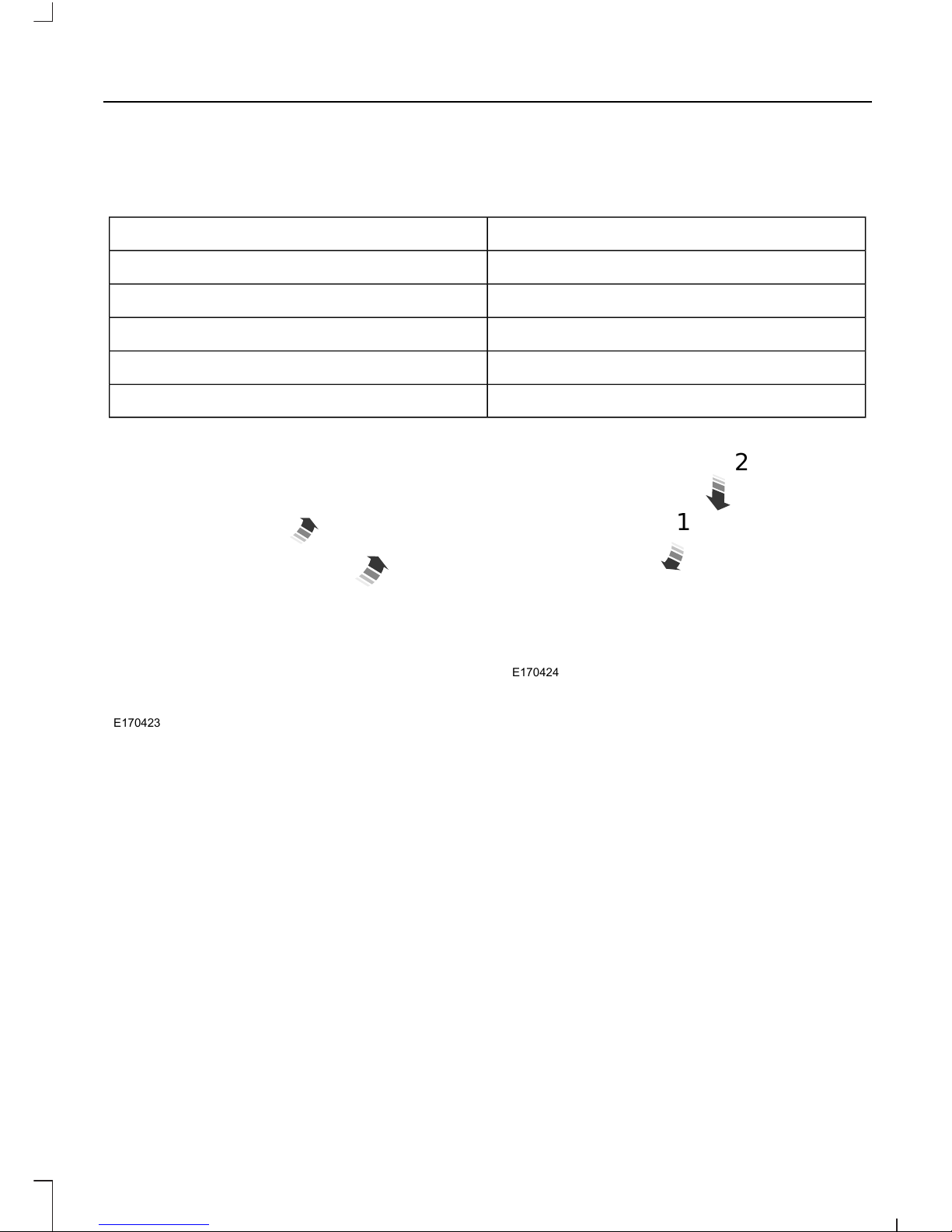

The following table lists the specifications
for the full size spare tire and wheel
assembly. Tire speed and load ratings
should match those of the originally
equipped tires as closely as possible.
-Spare tire
185/60 R15Size
HSpeed rating
84Load rating
All seasonUsage
15 in. x 6.0 in., 47.5 mm offset steel wheelsWheel
Removing the Spare Tire
E170423
To remove the wheel:
1. Lift the front of the wheel by gripping
it firmly and pulling up. The wheel is a
tight fit in the spare wheel well.
2. Remove the spare tire.
1
2
E170424
To reinstall the wheel:
1. Place the wheel in the spare wheel
well.
2. Push down firmly on the front of the
tire to fit it in the spare wheel well. The
wheel is a tight fit in the spare wheel
well.
23
2018 Fiesta ST (CCT) ST, Canada/Mexico/United States of America, JE8J 19A285 HA enUSA, Edition date: 201706, First Printing
Wheels and Tires
Page 27
Wheel Lug Nut Torque
Specifications
WARNING
When a wheel is installed, always
remove any corrosion, dirt or foreign
materials present on the mounting
surfaces of the wheel or the surface of the
wheel hub, brake drum or brake disc that
contacts the wheel. Make sure that any
fasteners that attach the rotor to the hub
are secured so they do not interfere with
the mounting surfaces of the wheel.
Installing wheels without correct
metal-to-metal contact at the wheel
mounting surfaces can cause the wheel
nuts to loosen and the wheel to come off
while the vehicle is in motion, resulting in
loss of control.
Retighten the lug nuts to the specified
torque at 500 miles (800 kilometers) after
any wheel disturbance (such as tire
rotation, changing a flat tire, wheel
removal).
lb-ft (Nm)*Bolt size
100 (135)M12 x 1.5
Torque specifications are for nut and bolt
threads free of dirt and rust. Use only Ford
recommended replacement fasteners.
TECHNICAL SPECIFICATIONS
Wheel specifications
17 in. x 7.0 in.Diameter and width
47.5 mmOffset
5.8 in. (149.5 mm)Backspacing
63.3 mmCenter bore
22.5 lb. (10.2 kg)Weight
24
2018 Fiesta ST (CCT) ST, Canada/Mexico/United States of America, JE8J 19A285 HA enUSA, Edition date: 201706, First Printing
Wheels and Tires
Page 28
ENGINE SPECIFICATIONS
Specification
98Cubic inches.
10:1Compression ratio.
Specification
Spark plug gap. 0.028–0.031 in
(0.7–0.8 mm)
Minimum 87 octaneRequired fuel.
TRANSMISSION SPECIFICATIONS
Gear Ratios
RatioItem
3.727:11st gear.
2.048:12nd gear.
1.357:13rd gear.
1.032:14th gear.
0.821:15th gear.
0.690:16th gear.
3.818:1Reverse gear.
3.824:1Final Drive.
25
2018 Fiesta ST (CCT) ST, Canada/Mexico/United States of America, JE8J 19A285 HA enUSA, Edition date: 201706, First Printing
Capacities and Specifications
Page 29
MOTORCRAFT PARTS
We recommend that you demand the use
of genuine Ford and Motorcraft parts
whenever your vehicle requires scheduled
maintenance or repair.
Incorrect component use can cause
damage not covered by the vehicle
Warranty. The Ford Warranty may not
cover damage caused to your vehicle as a
result of failed non-Ford parts.
Part NumberEngine Component
FA-1914Air filter.
BXT-96R-500Battery.
FL-910S
Oil filter.
1
SP-532
Spark plugs.
2
FP-69Cabin air filter.
WW-2430Windshield wiper blade - driver side.
WW-1613Windshield wiper blade - passenger side.
WW-1204Rear window wiper blade.
1
If a Motorcraft oil filter is not available, use an oil filter that meets industry performance
specification SAE/USCAR-36.
2
Replace the spark plugs at the appropriate intervals. For spark plug replacement, we
recommend that you contact an authorized dealer.
26
2018 Fiesta ST (CCT) ST, Canada/Mexico/United States of America, JE8J 19A285 HA enUSA, Edition date: 201706, First Printing
Capacities and Specifications
Page 30
CAPACITIES AND
SPECIFICATIONS
WARNING
The air conditioning refrigerant
system contains refrigerant under
high pressure. Only qualified
personnel should service the air
conditioning refrigerant system. Opening
the air conditioning refrigerant system can
cause personal injury.
Capacities
QuantityItem
1.1 gal (4.1 L)Engine oil fill capacity including the oil filter.
1.0 gal (3.75 L)Engine oil fill capacity excluding the oil filter.
2.1 gal (8 L)Engine coolant fill capacity.
0.4 gal (1.67 L)Manual transmission fluid fill capacity.
23.8 oz (0.675 kg)Air conditioning refrigerant fill capacity.
5.1 fl oz (150 ml)Air conditioning refrigerant compressor oil fill capacity.
12.4 gal (47 L)Fuel tank fill capacity.
0.8 gal (3.2 L)Washer system fill capacity.
Adding Engine Oil
Quantity
0.7 qt (0.7 L)
The quantity of engine oil required to raise
the indicated level on the dipstick from
minimum to maximum.
Specifications
Materials
SpecificationName
WSS-M2C945-AMotorcraft® SAE 5W-20 Synthetic Blend Motor Oil (U.S.)
Motorcraft® SAE 5W-20 Super Premium Motor Oil / Huile moteur
de très haute qualité SAE 5W-20 Motorcraft® (Canada)
XO-5W20-QSP (U.S.)
CXO-5W20-LSP12 (Canada)
27
2018 Fiesta ST (CCT) ST, Canada/Mexico/United States of America, JE8J 19A285 HA enUSA, Edition date: 201706, First Printing
Capacities and Specifications
Page 31
SpecificationName
WSS-M97B44-D2Motorcraft® Orange Prediluted Antifreeze/Coolant (U.S.)
Motorcraft® Orange Prediluted Antifreeze/Coolant / Antigel/liquide
de refroidissement prédilué orange Motorcraft® (Canada)
VC-3DIL-B (U.S.)
CVC-3DIL-B (Canada)
WSS-M2C200-D2Motorcraft® Dual Clutch Transmission Fluid (U.S.)
Motorcraft® Dual Clutch Transmission Fluid / Huile pour boîtes
embrayage double Motorcraft® (Canada)
XT-11-QDC (U.S. & Canada)
WSS-M6C65-A2Motorcraft® DOT 4 LV High Performance Motor Vehicle Brake Fluid
(U.S.)
Motorcraft® DOT 4 LV High Performance Motor Vehicle Brake Fluid
/ Liquide de frein automobile haute performance DOT 4 LV
Motorcraft® (Canada)
PM-20 (U.S. & Canada)
WSH-M17B19-AMotorcraft® R-134a Refrigerant (U.S.)
R-134a Refrigerant / Frigorigène R-134a (Canada)
YN-19 (U.S.)
CYN-19-R (Canada)
WSH-M1C231-BMotorcraft® PAG Refrigerant Compressor Oil (U.S.)
Motorcraft® PAG Refrigerant Compressor Oil / Huile PAG pour
compresseur frigorifique Motorcraft® (Canada)
YN-12-D (U.S. & Canada)
WSS-M14P19-AMotorcraft® Premium Windshield Wash Concentrate with Bitterant
(U.S.)
Motorcraft® Premium Quality Windshield Washer Fluid / Liquide
lave-glace de haute qualité Motorcraft® (Canada)
ZC-32-B2 (U.S.)
CXC-37-A/B/D/F (Canada)
ESB-M1C93-BMotorcraft® Multi-Purpose Grease Spray (U.S.)
Motorcraft® Multi-Purpose Grease Spray / Graisse tout usage en
aérosol Motorcraft® (Canada)
XL-5-A (U.S. & Canada)
-Motorcraft® Penetrating and Lock Lubricant (U.S.)
Motorcraft® Penetrating Fluid / Liquide dégrippant Motorcraft®
(Canada)
XL-1 (U.S.)
CXC-51-A (Canada)
Motor oils of the recommended viscosity
grade that display the API Certification
Mark for gasoline engines are also
acceptable. Do not use oil labeled with
API SN service category unless the label
also displays the API certification mark.
28
2018 Fiesta ST (CCT) ST, Canada/Mexico/United States of America, JE8J 19A285 HA enUSA, Edition date: 201706, First Printing
Capacities and Specifications
Page 32
E142732
An oil that displays this symbol conforms
to current engine, emission system and
fuel economy performance standards of
the International Lubricants Specification
Advisory Committee (ILSAC).
Note: Do not use more than 1.1 qt (1 L) of
the alternative engine oil between
scheduled service intervals.
Using oil and fluids that do not meet the
defined specification and viscosity grade
may lead to:
• Component damage which may not be
covered by the vehicle Warranty.
• Longer engine cranking periods.
• Increased emission levels.
• Reduced engine performance.
• Reduced fuel economy.
• Reduced brake performance.
Do not use supplemental engine oil
additives because they are unnecessary
and could lead to engine damage that may
not be covered by the vehicle Warranty.
29
2018 Fiesta ST (CCT) ST, Canada/Mexico/United States of America, JE8J 19A285 HA enUSA, Edition date: 201706, First Printing
Capacities and Specifications
Page 33
BASE WARRANTY
Your ST vehicle carries the same warranty
as other Ford Fiesta models. This
information is covered in its entirety in the
warranty information.
You can obtain warranty service for your
ST vehicle or any ST vehicle at any Ford
dealer nationwide.
Ford Global Performance does not
recommend modifying or racing ST, SVT
or RS vehicles, as they are designed and
built to be driven as delivered from the
factory. The warranty information
discusses vehicle usage and the
installation of aftermarket parts and their
effect on warranty coverage.
In the event the vehicle is intended for track
use, and the loss of warranty coverage is
not of concern, the following vehicle
durability actions are required:
• Perform multi-point inspection and the
maintenance outlined in the 150000
mile (240000 kilometer) normal
maintenance schedule of the
scheduled maintenance before and
after track use. See the vehicle service
manual for removal and installation
procedures.
• Replace with Genuine Ford and
Motorcraft service parts as needed.
These actions may not necessarily protect
your vehicle from damage in competition
conditions. Subjecting your vehicle to
competition conditions even with this
recommended action may render repairs
non-reimbursable under the warranty.
30
2018 Fiesta ST (CCT) ST, Canada/Mexico/United States of America, JE8J 19A285 HA enUSA, Edition date: 201706, First Printing
Warranty Terms and Conditions
Page 34
A
About This Supplement.................................3
At a Glance..........................................................6
Engine Specifications...........................................8
Suspension Specifications.................................9
Vehicle Specifications...........................................7
B
Base Warranty.................................................30
Breaking-In........................................................14
C
Capacities and Specifications...................27
Capacities................................................................27
Specifications.........................................................27
Changing a Road Wheel..............................22
Full Size Spare.......................................................22
Wheel Lug Nut Torque Specifications..........24
D
Drive Belt Routing...........................................18
Driving Hints......................................................14
E
Engine Oil Dipstick..........................................18
Engine Overboost...........................................14
Engine Overspeed...........................................14
Engine Specifications...................................25
F
Ford Performance............................................4
G
Gearbox
See: Transmission.................................................10
General Driving Points...................................14
Curbs, Parking Lot Obstacles and
Commercial Car Washing.............................14
Operating at High Speeds..................................14
I
Introduction........................................................3
L
Lug Nuts
See: Changing a Road Wheel..........................22
M
Maintenance......................................................17
Manual Transmission....................................10
Parking Your Vehicle..............................................11
Recommended Shift Speeds...........................10
Reverse.....................................................................10
Using the Clutch....................................................10
Motorcraft Parts.............................................26
R
Roadside Assistance.....................................16
Roadside Emergencies.................................16
Running-In
See: Breaking-In.....................................................14
S
Spare Wheel
See: Changing a Road Wheel..........................22
Stability Control...............................................12
SVT.........................................................................4
T
Team RS...............................................................4
Technical Specifications
See: Capacities and Specifications...............25
Tire Pressure Monitoring System..............21
Tire Pressure Monitoring System Reset
Procedure............................................................21
Tires......................................................................19
Tire Pressure..........................................................20
Tires
See: Wheels and Tires.........................................19
Transmission Specifications......................25
Transmission....................................................10
31
2018 Fiesta ST (CCT) ST, Canada/Mexico/United States of America, JE8J 19A285 HA enUSA, Edition date: 201706, First Printing
Index
Page 35
U
Under Hood Overview....................................17
Using Stability Control..................................12
Enhanced Torque Vectoring Control..............13
Using Winter Tires..........................................20
W
Warranty Terms and Conditions..............30
Wheel Nuts
See: Changing a Road Wheel..........................22
Wheels and Tires............................................19
Technical Specifications....................................24
Wheels................................................................19
Winter Tires
See: Using Winter Tires......................................20
32
2018 Fiesta ST (CCT) ST, Canada/Mexico/United States of America, JE8J 19A285 HA enUSA, Edition date: 201706, First Printing
Index
Loading...
