Ford Expedition 2wd Workshop Manual (V8-281 4.6L SOHC (1998))
Ford Workshop Manuals > Relays and Modules > Relays and Modules - Accessories and Optional Equipment > Accessory
Delay Module > Accessory Delay Relay > Component Information > Locations

Accessory Delay Relay: Locations
Instrument Panel View

Ford Expedition 2wd Workshop Manual (V8-281 4.6L SOHC (1998))
Ford Workshop Manuals > Relays and Modules > Relays and Modules - Accessories and Optional Equipment > Accessory
Delay Module > Accessory Delay Relay > Component Information > Locations > Page 8

Junction Box Fuse/Relay Panel (Part 1 Of 2)
The Accessory Delay Relay is located in the junction box fuse/relay panel.

Ford Expedition 2wd Workshop Manual (V8-281 4.6L SOHC (1998))
Ford Workshop Manuals > Relays and Modules > Relays and Modules - Accessories and Optional Equipment > Alarm
Module, (Vehicle Antitheft) > Component Information > Locations > Anti-Theft Transceiver Module

Alarm Module: Locations Anti-Theft Transceiver Module
Instrument Panel View
The Anti Theft-Transceiver Module is located behind the instrument panel.

Ford Expedition 2wd Workshop Manual (V8-281 4.6L SOHC (1998))
Ford Workshop Manuals > Relays and Modules > Relays and Modules - Accessories and Optional Equipment > Alarm
Module, (Vehicle Antitheft) > Component Information > Locations > Anti-Theft Transceiver Module > Page 13

Alarm Module: Locations Passive Anti-Theft System Module
Body View
The Passive Anti-Theft System Module is located behind center of the instrument panel.

Ford Expedition 2wd Workshop Manual (V8-281 4.6L SOHC (1998))
Ford Workshop Manuals > Relays and Modules > Relays and Modules - Accessories and Optional Equipment > Alarm
Module, (Vehicle Antitheft) > Component Information > Locations > Anti-Theft Transceiver Module > Page 14

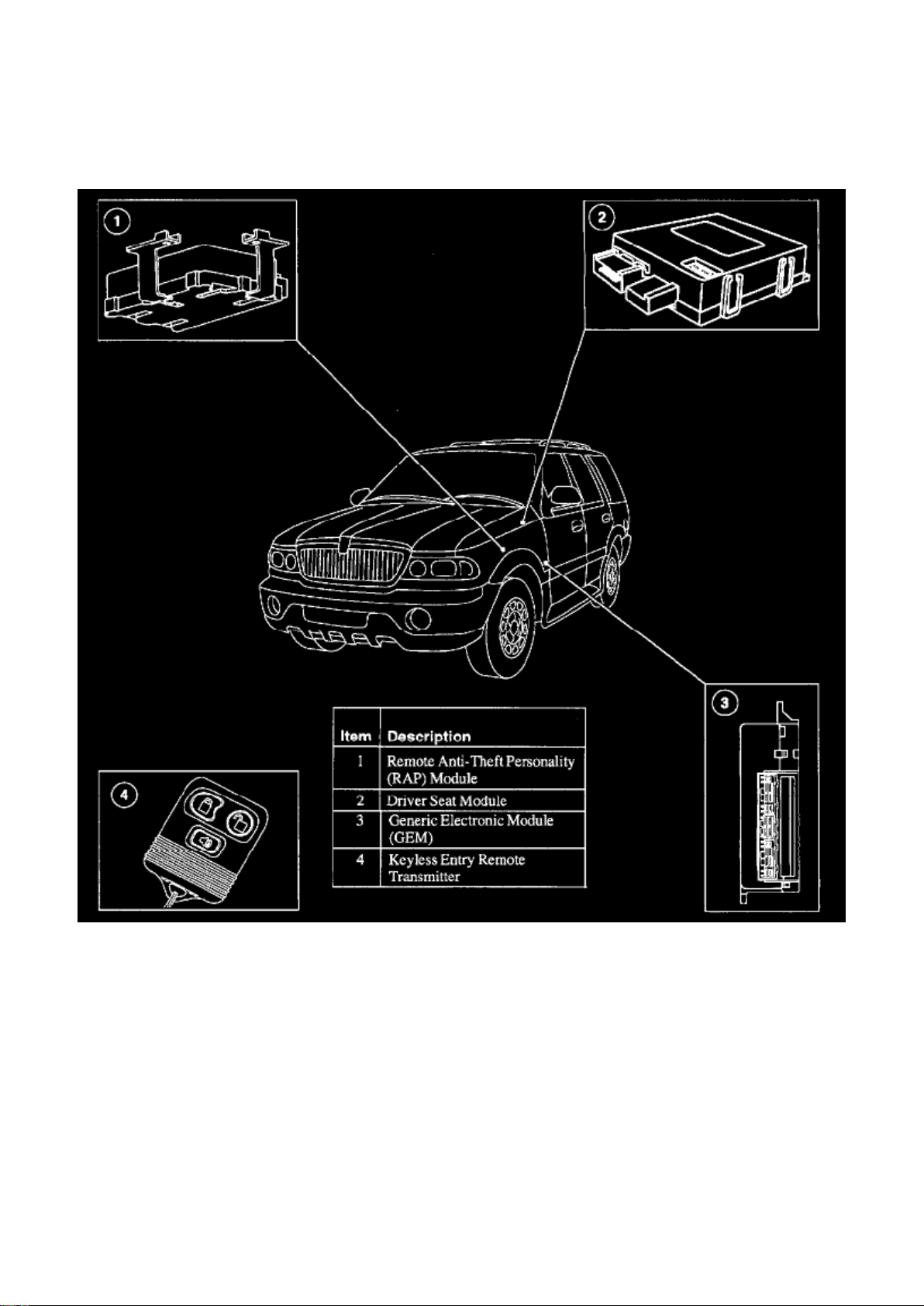

Alarm Module: Locations Remote Anti-Theft Personality Module
Body Views

Ford Expedition 2wd Workshop Manual (V8-281 4.6L SOHC (1998))
Ford Workshop Manuals > Relays and Modules > Relays and Modules - Accessories and Optional Equipment > Alarm
Module, (Vehicle Antitheft) > Component Information > Locations > Anti-Theft Transceiver Module > Page 15

The Remote Anti-Theft Personality Module is located behind left side of instrument panel.

Ford Expedition 2wd Workshop Manual (V8-281 4.6L SOHC (1998))
Ford Workshop Manuals > Relays and Modules > Relays and Modules - Accessories and Optional Equipment > Alarm
Module, (Vehicle Antitheft) > Component Information > Diagrams > Anti-Theft Controller Module

Passive Anti-theft System Control Module

Ford Expedition 2wd Workshop Manual (V8-281 4.6L SOHC (1998))
Ford Workshop Manuals > Relays and Modules > Relays and Modules - Accessories and Optional Equipment > Alarm
Module, (Vehicle Antitheft) > Component Information > Diagrams > Anti-Theft Controller Module > Page 18

Anti-theft Transceiver Module

Ford Expedition 2wd Workshop Manual (V8-281 4.6L SOHC (1998))
Ford Workshop Manuals > Relays and Modules > Relays and Modules - Accessories and Optional Equipment > Alarm
Module, (Vehicle Antitheft) > Component Information > Diagrams > Anti-Theft Controller Module > Page 19

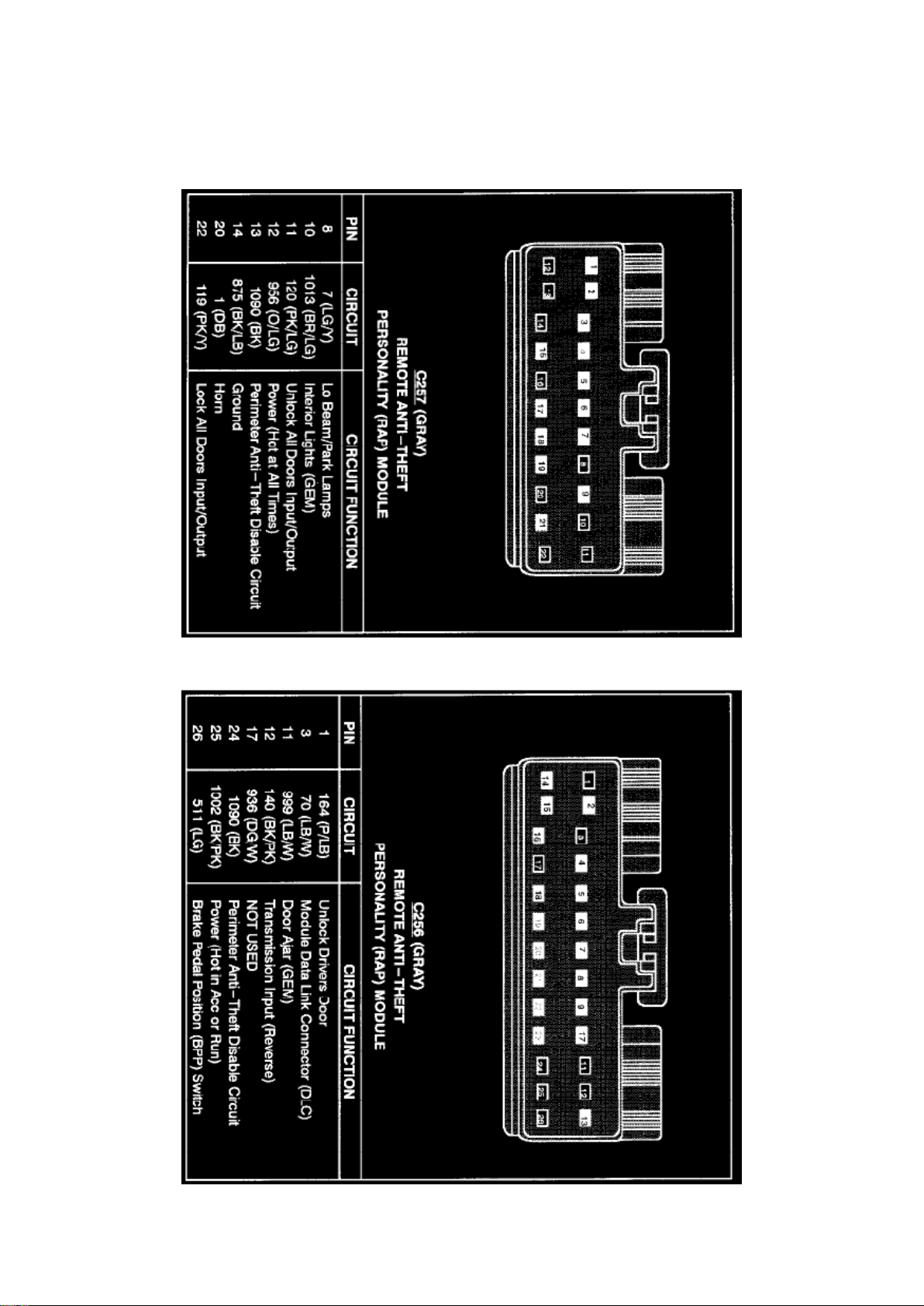

Alarm Module: Diagrams Remote Anti-Theft Personality Module
Remote Anti-Theft Personality Module (C257)
Remote Anti-Theft Personality Module (C256)

Ford Expedition 2wd Workshop Manual (V8-281 4.6L SOHC (1998))
Ford Workshop Manuals > Relays and Modules > Relays and Modules - Accessories and Optional Equipment > Alarm
Module, (Vehicle Antitheft) > Component Information > Service and Repair > Key Programming - New Key With Diagnostic

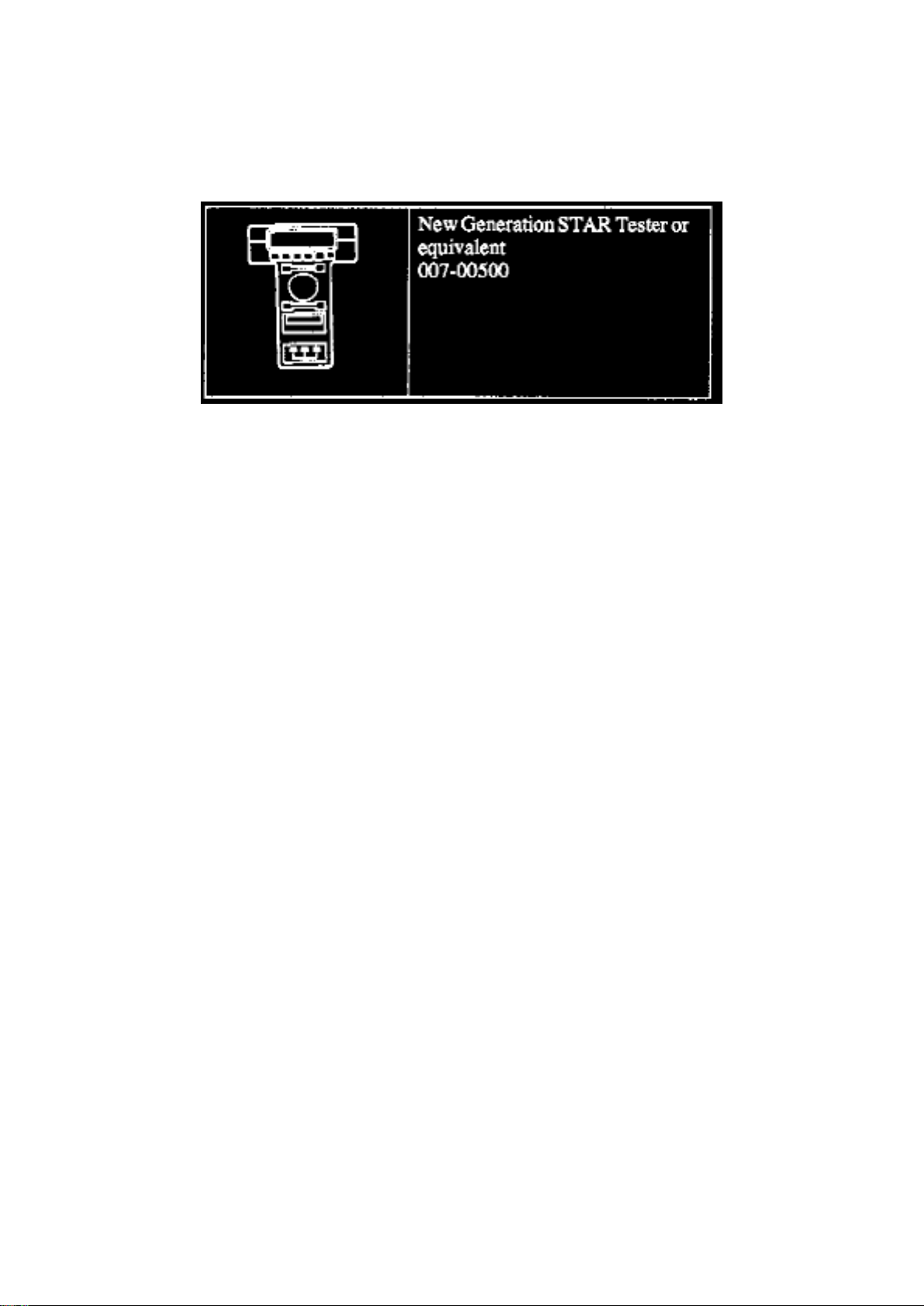

Tool

Alarm Module: Service and Repair Key Programming - New Key With Diagnostic Tool
NOTE: Before starting this procedure, make sure the key(s) you want to program have the correct

mechanical cut.

1. Plug in NGS tester (requires V10 card or higher).
^ (Or use V8.0 or higher and select DN101 4V as vehicle).

2. Turn the key to RUN. 3. If the key is already programmed, the THEFT indicator proves out after
two seconds or if the key is not programmed, the THEFT indicator

flashes rapidly.

4. Enter PATS Function Test and select ERASE IGNITION KEY. 5. TEST in PROGRESS will
display on the screen. If a programmed key is being used, all keys will be erased within five
seconds. If a non

programmed key is being used, erasing will take a minimum of eight minutes.

6. TEST COMPLETE will display on screen. All keys are now erased. 7. Turn the key to OFF, and
then back to RUN. 8. THEFT indicator proves out after two seconds. 9. PATS key is now
programmed.

10. Additional keys may be programmed.

Ford Expedition 2wd Workshop Manual (V8-281 4.6L SOHC (1998))
Ford Workshop Manuals > Relays and Modules > Relays and Modules - Accessories and Optional Equipment > Alarm
Module, (Vehicle Antitheft) > Component Information > Service and Repair > Key Programming - New Key With Diagnostic
Tool > Page 22

Alarm Module: Service and Repair Key Programming - New Key Without Diagnostic Tool

NOTE: Before starting this procedure, make sure the key(s) you want to program have the correct
mechanical cut.

1. Insert the non programmed key in the ignition and turn to RUN. 2. THEFT indicator flashes
rapidly. 3. After 15 minutes of flashing, the THEFT indicator will stop flashing. 4. Within five minutes
after the THEFT indicator has stopped flashing, turn the ignition key to OFF and back to RUN. 5.
After 15 minutes of flashing, the THEFT indicator will stop flashing. 6. Within five minutes after the
THEFT indicator has stopped flashing, turn the ignition key to OFF and back to RUN. 7. After 15
minutes of flashing, the THEFT indicator will stop flashing. 8. All originally programmed keys are
now erased, and only the key in the ignition is programmed. 9. Additional keys may be
programmed.

Ford Expedition 2wd Workshop Manual (V8-281 4.6L SOHC (1998))
Ford Workshop Manuals > Relays and Modules > Relays and Modules - Accessories and Optional Equipment > Alarm
Module, (Vehicle Antitheft) > Component Information > Service and Repair > Key Programming - New Key With Diagnostic
Tool > Page 23

Alarm Module: Service and Repair Key Programming - Spare Key

NOTE:
^ Before starting this procedure, make sure the key(s) you want to program have the correct

mechanical cut.
^ Performing this procedure does not erase existing programmed keys.

1. Insert the programmed key in the ignition. Turn to RUN. 2. THEFT indicator proves out after two
seconds. 3. Remove the programmed key. 4. Within 15 seconds, insert the new key in the ignition
and turn to RUN. 5. THEFT indicator proves out after two seconds. 6. The extra key is now
programmed.

Ford Expedition 2wd Workshop Manual (V8-281 4.6L SOHC (1998))
Ford Workshop Manuals > Relays and Modules > Relays and Modules - Accessories and Optional Equipment > Alarm
Module, (Vehicle Antitheft) > Component Information > Service and Repair > Key Programming - New Key With Diagnostic
Tool > Page 24

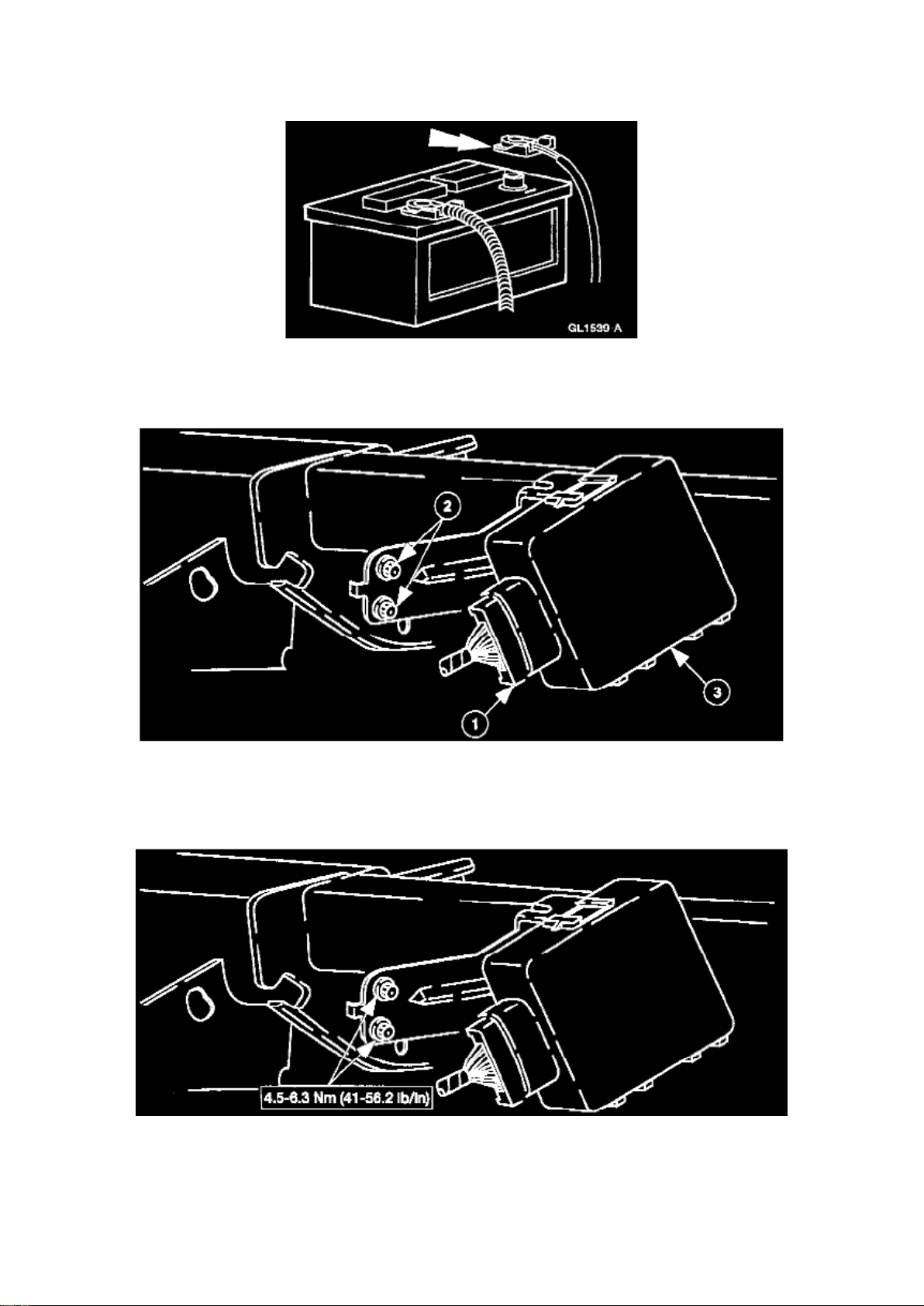

Alarm Module: Service and Repair Removal and Installation

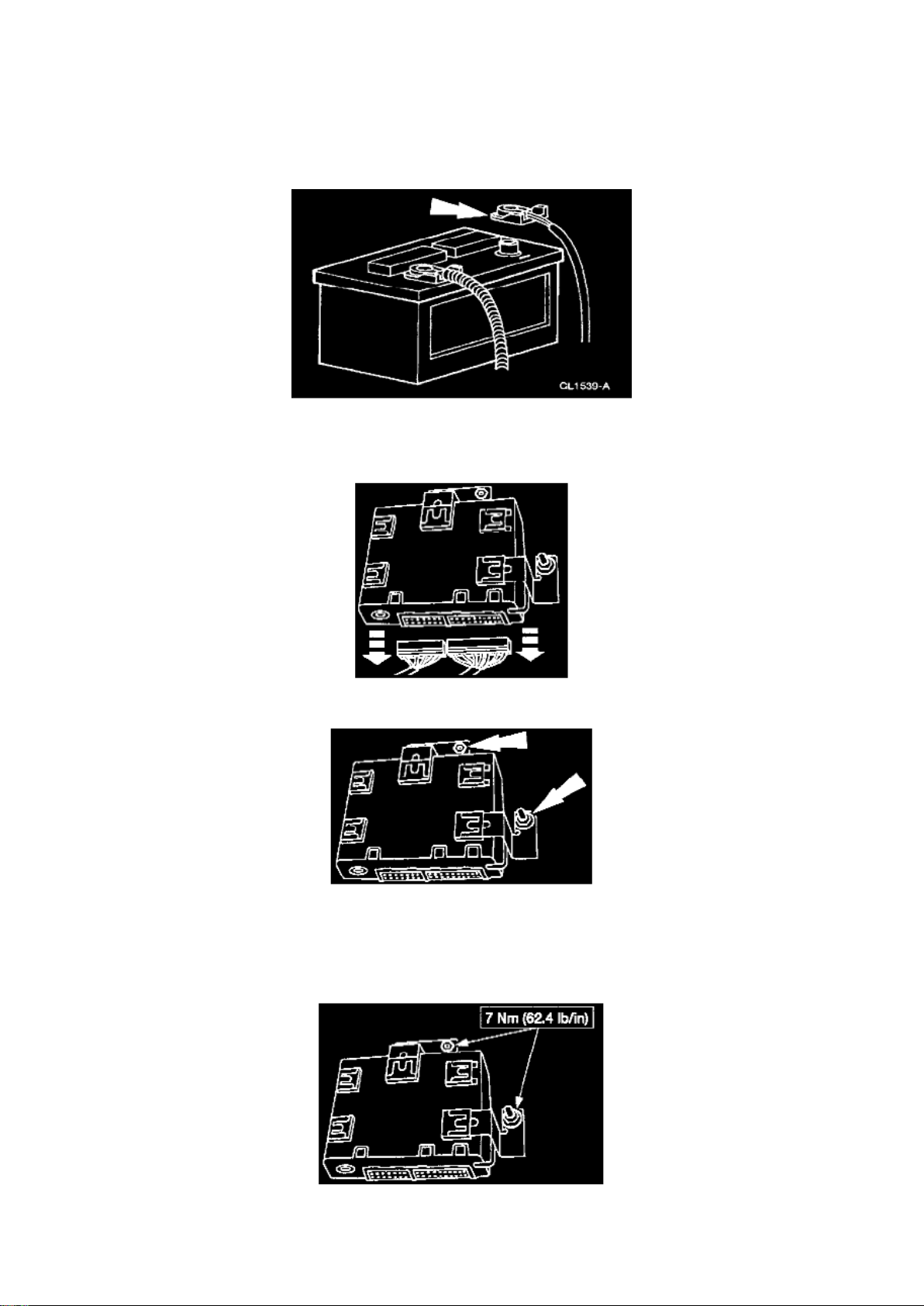

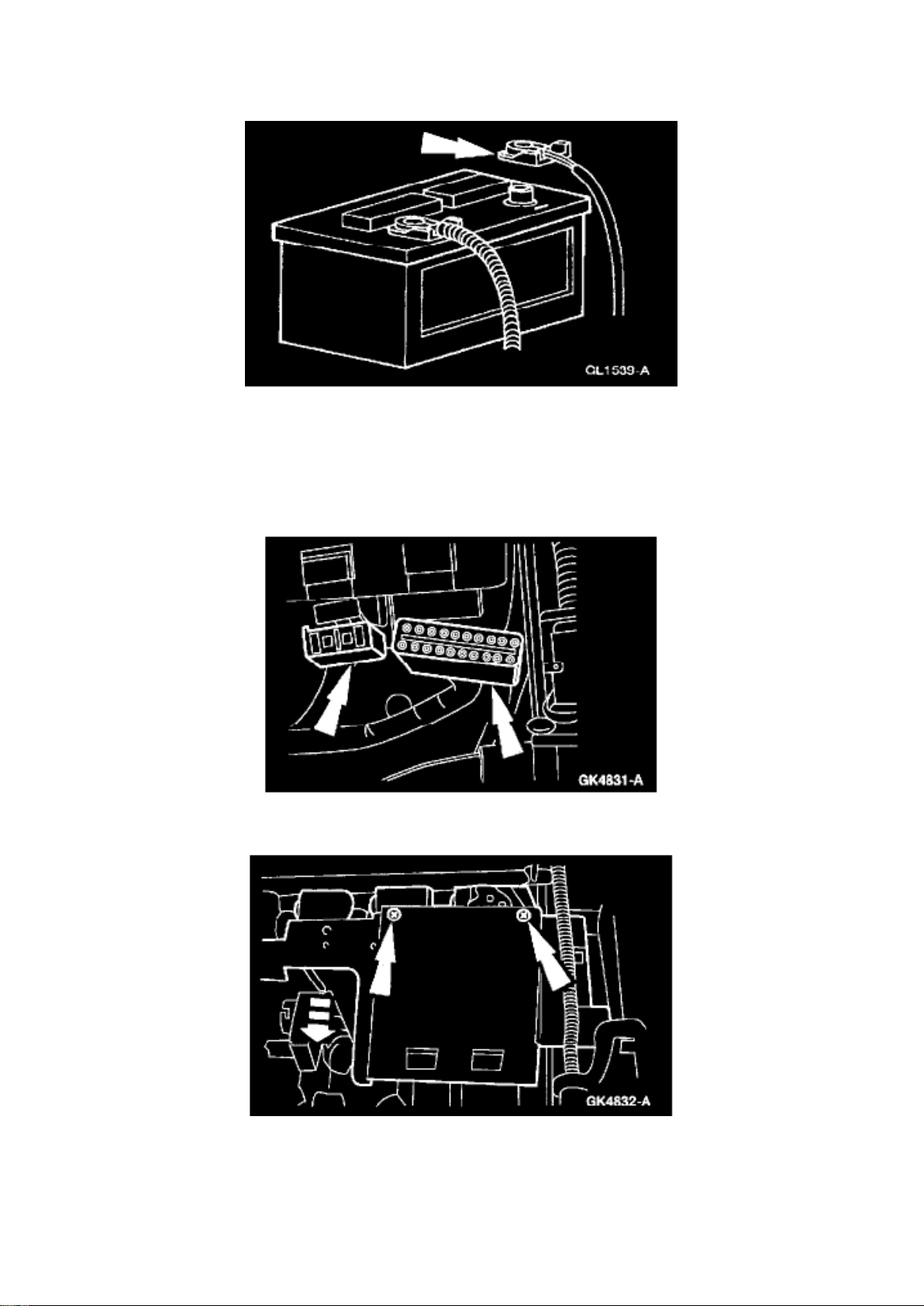

REMOVAL

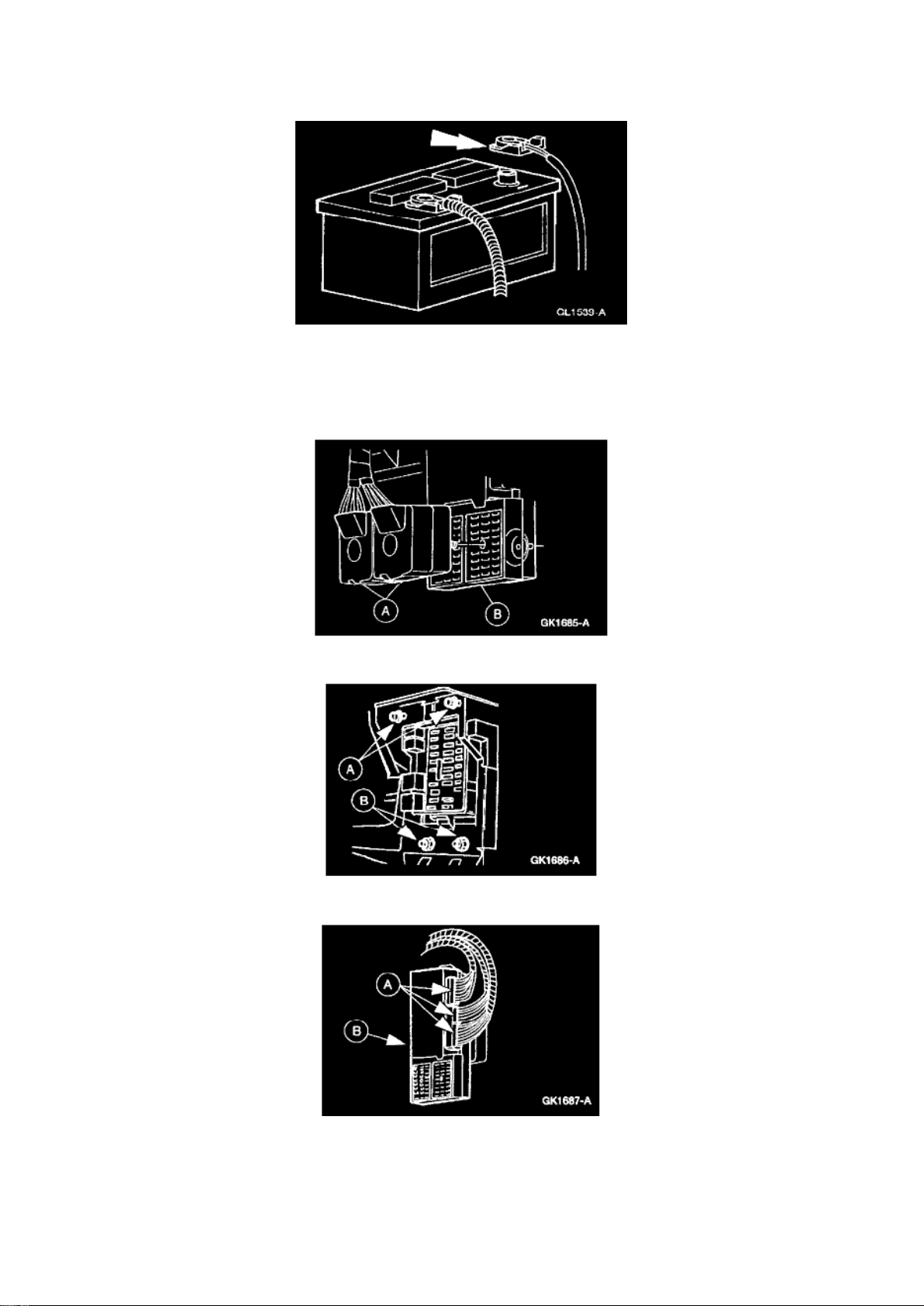

1. Disconnect the battery ground cable.
CAUTION: Electronic modules are sensitive to electrical charges. If exposed to these charges,

damage may result.

2. Remove the PATS module.
1 Disconnect the electrical connector.
2 Remove the screws.
3 Remove the PATS module.
INSTALLATION

1. To install, reverse the removal procedure.
NOTE: ^
When the battery is disconnected and reconnected, some abnormal drive symptoms may occur

while the vehicle relearns its adaptive strategy.

Ford Expedition 2wd Workshop Manual (V8-281 4.6L SOHC (1998))
Ford Workshop Manuals > Relays and Modules > Relays and Modules - Accessories and Optional Equipment > Alarm
Module, (Vehicle Antitheft) > Component Information > Service and Repair > Key Programming - New Key With Diagnostic
Tool > Page 25

The vehicle may need to be driven 16 km (10 mi) or more to relearn the strategy.

^ All vehicle keys must now be programmed. The first key will automatically program, and the
additional keys should follow spare key programming.

Ford Expedition 2wd Workshop Manual (V8-281 4.6L SOHC (1998))
Ford Workshop Manuals > Relays and Modules > Relays and Modules - Accessories and Optional Equipment >
Multifunction Electronic Control Module <--> [General Module] > Component Information > Specifications

Multifunction Electronic Control Module: Specifications

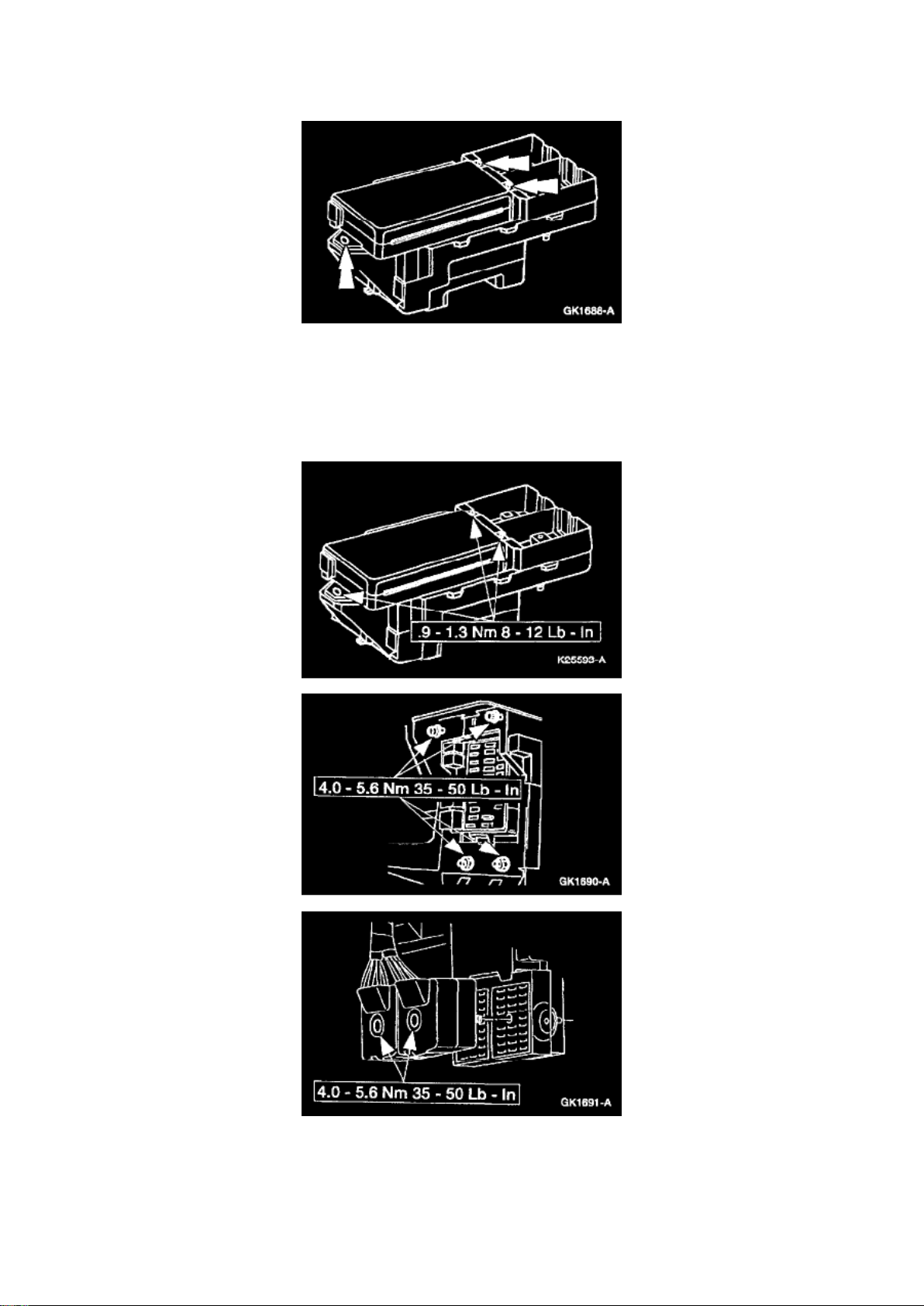

GEM Screws ........................................................................................................................................

........................................... 0.9-1.3 N.m (8-12 Lb/In)

Ford Expedition 2wd Workshop Manual (V8-281 4.6L SOHC (1998))
Ford Workshop Manuals > Relays and Modules > Relays and Modules - Accessories and Optional Equipment >
Multifunction Electronic Control Module <--> [General Module] > Component Information > Specifications > Page 29

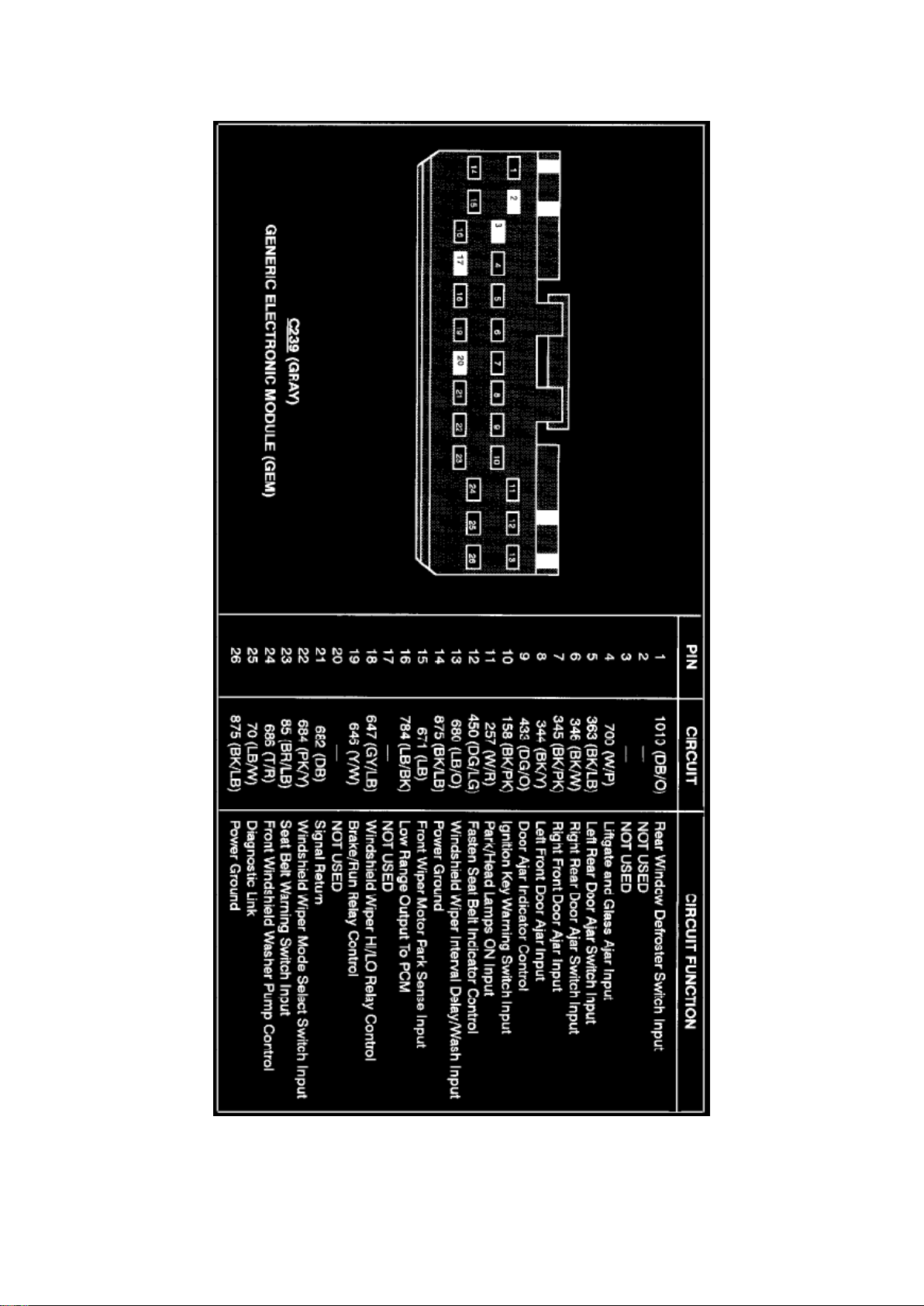

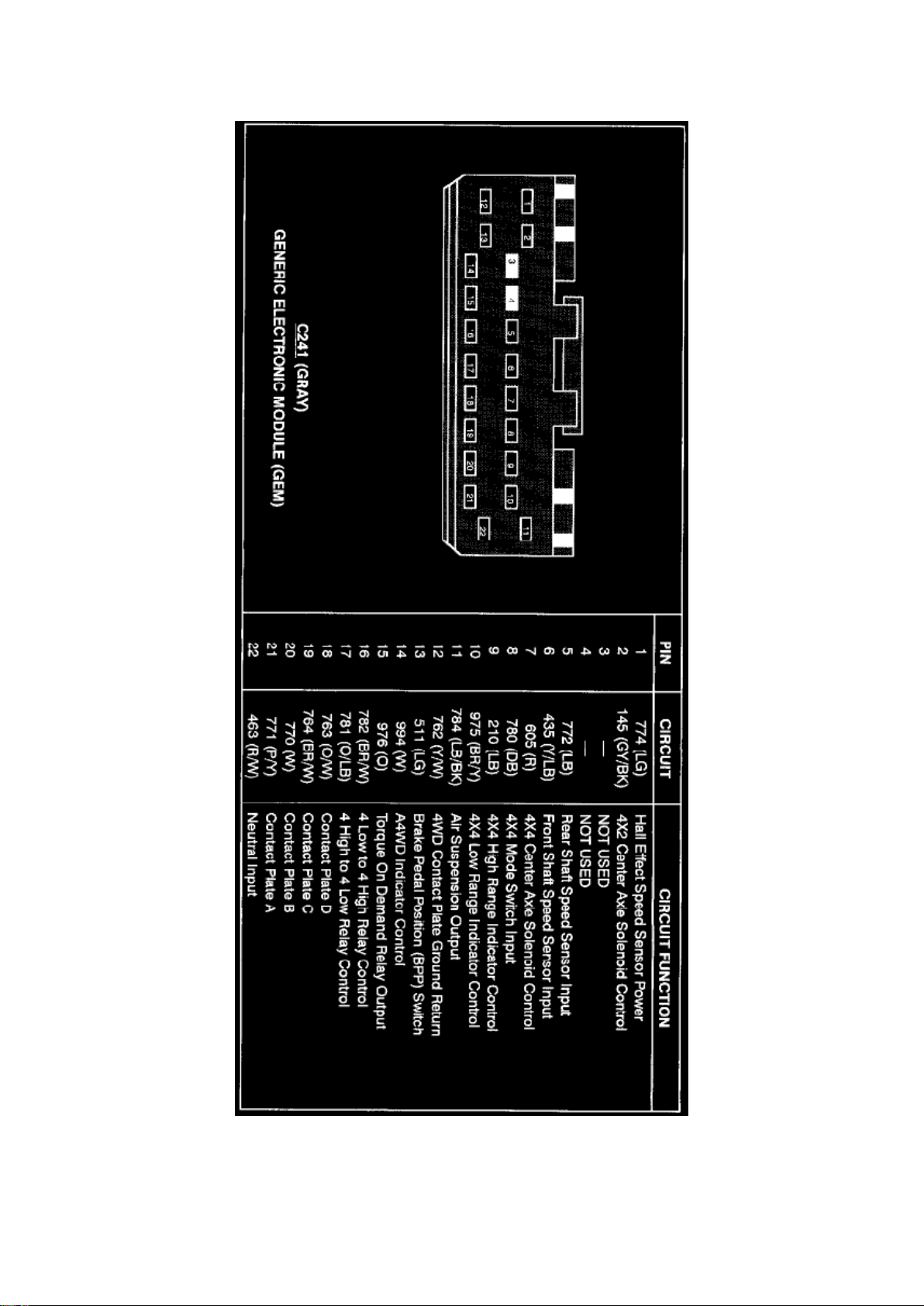

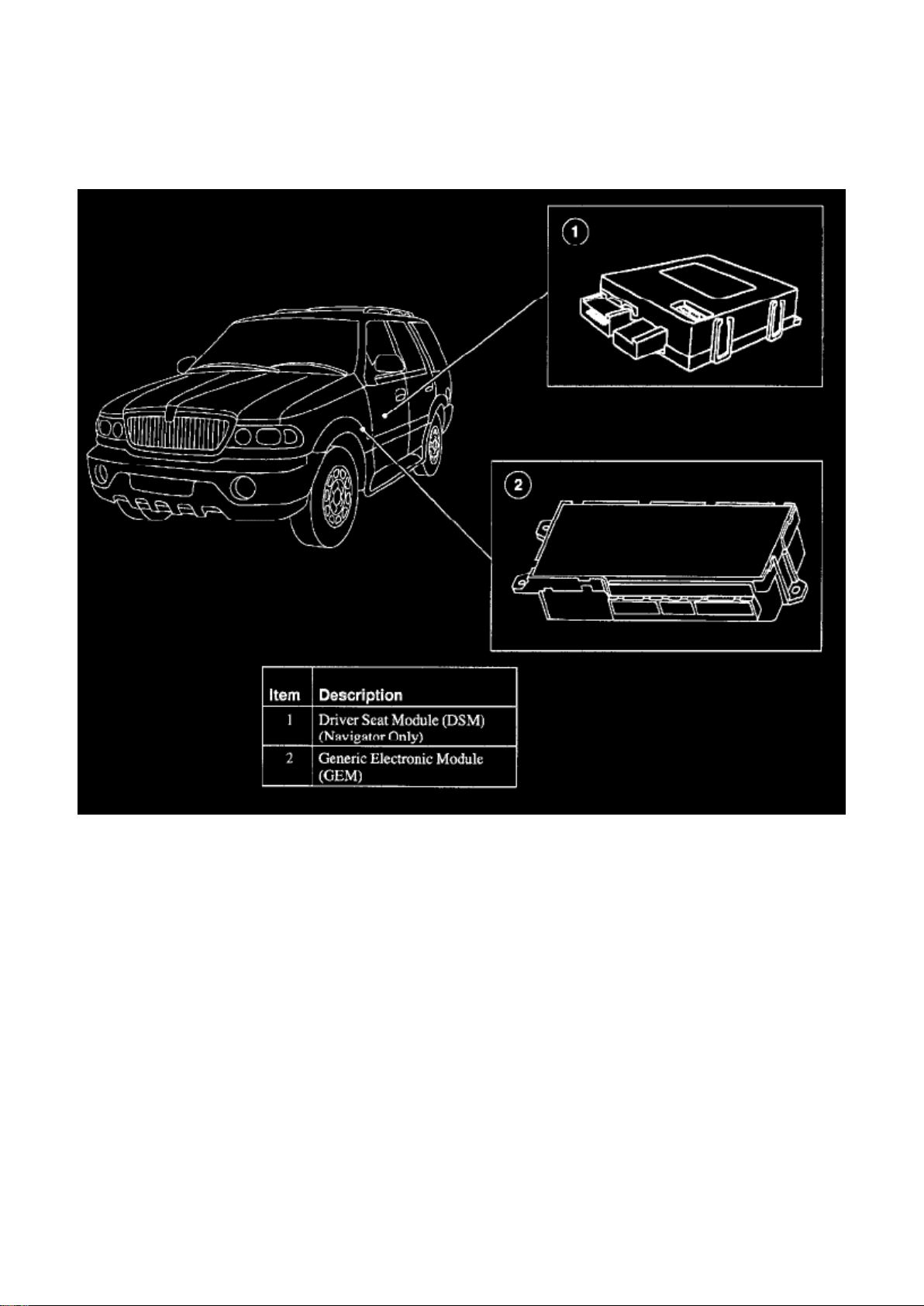

Multifunction Electronic Control Module: Locations
Instrument Panel View
The Generic Electronic Module is located behind center of the instrument panel.

Ford Expedition 2wd Workshop Manual (V8-281 4.6L SOHC (1998))
Ford Workshop Manuals > Relays and Modules > Relays and Modules - Accessories and Optional Equipment >
Multifunction Electronic Control Module <--> [General Module] > Component Information > Diagrams > Diagram Information
and Instructions

Multifunction Electronic Control Module: Diagram Information and Instructions
How to Find and Use These Diagrams
Diagrams are presented in three main categories:

- Power Distribution Diagrams

- System Diagrams

- Grounds Diagrams

Ford Expedition 2wd Workshop Manual (V8-281 4.6L SOHC (1998))
Ford Workshop Manuals > Relays and Modules > Relays and Modules - Accessories and Optional Equipment >
Multifunction Electronic Control Module <--> [General Module] > Component Information > Diagrams > Diagram Information
and Instructions > Page 32

Sample Power Distribution Diagram

Power Distribution Diagrams Provide the circuit details of how the system diagrams are powered.
The power distribution source is shown at the top of a diagram page. All wires, connectors, and
splices are shown in the same manner that the current flows, ending at the component/system
being powered near the bottom of a diagram page. Circuits that go from one diagram page to
another will be marked with large arrow heads.

The power distribution diagrams can be found at Starting and Charging/Power and Ground
Distribution.

Ford Expedition 2wd Workshop Manual (V8-281 4.6L SOHC (1998))
Ford Workshop Manuals > Relays and Modules > Relays and Modules - Accessories and Optional Equipment >
Multifunction Electronic Control Module <--> [General Module] > Component Information > Diagrams > Diagram Information
and Instructions > Page 33

Sample System Diagram

System Diagrams Components that work together are shown together in a system/subsystem
diagram or set of diagrams. The system feed (circuit breaker, fuse, etc.) is shown at the top of a
diagram page. All wires, connectors, components, and splices are shown in the same manner that
the current flows, ending at the ground at the bottom of a diagram page. Circuits that go from one
diagram page to another will be marked with large arrow heads.

Ford Expedition 2wd Workshop Manual (V8-281 4.6L SOHC (1998))
Ford Workshop Manuals > Relays and Modules > Relays and Modules - Accessories and Optional Equipment >
Multifunction Electronic Control Module <--> [General Module] > Component Information > Diagrams > Diagram Information
and Instructions > Page 34

Management, Radio/Stereo, etc.

Sample Grounds Diagram
Grounds Diagrams Provide the circuit details of how the system diagrams are grounded. This

information is useful for checking interconnections of the grounding circuits of different systems.
The components/systems being grounded are shown at the top of a diagram page. All wires,
connectors, and splices are shown in the same manner that the current flows, ending at the ground
at the bottom of a diagram page. Circuits that go from one diagram page to another will be marked
with large arrow heads.

The grounds diagrams can be found at Starting and Charging/Power and Ground Distribution.
Symbol Identification

Ford Expedition 2wd Workshop Manual (V8-281 4.6L SOHC (1998))
Ford Workshop Manuals > Relays and Modules > Relays and Modules - Accessories and Optional Equipment >
Multifunction Electronic Control Module <--> [General Module] > Component Information > Diagrams > Diagram Information
and Instructions > Page 35

ELECTRICAL SYMBOLS

Electrical Symbols

Ford Expedition 2wd Workshop Manual (V8-281 4.6L SOHC (1998))
Ford Workshop Manuals > Relays and Modules > Relays and Modules - Accessories and Optional Equipment >
Multifunction Electronic Control Module <--> [General Module] > Component Information > Diagrams > Diagram Information
and Instructions > Page 36

Electrical Symbols

VACUUM SYMBOLS

Ford Expedition 2wd Workshop Manual (V8-281 4.6L SOHC (1998))
Ford Workshop Manuals > Relays and Modules > Relays and Modules - Accessories and Optional Equipment >
Multifunction Electronic Control Module <--> [General Module] > Component Information > Diagrams > Diagram Information
and Instructions > Page 37

Vacuum Symbols

Wire Color Code Identification
BK: Black BL: Blue BR: Brown DB: Dark Blue

Ford Expedition 2wd Workshop Manual (V8-281 4.6L SOHC (1998))
Ford Workshop Manuals > Relays and Modules > Relays and Modules - Accessories and Optional Equipment >
Multifunction Electronic Control Module <--> [General Module] > Component Information > Diagrams > Diagram Information
and Instructions > Page 38

DG: Dark Green GY: Gray GN: Green LB: Light Blue LG: Light Green PK: Pink O: Orange P:
Purple R: Red T: Tan V: Violet W: White Y: Yellow

NOTE: Whenever a wire is labeled with two colors, the first color listed is the basic color of the
wire, and the second color listed is the stripe marking of the wire.

Ford Expedition 2wd Workshop Manual (V8-281 4.6L SOHC (1998))
Ford Workshop Manuals > Relays and Modules > Relays and Modules - Accessories and Optional Equipment >
Multifunction Electronic Control Module <--> [General Module] > Component Information > Diagrams > Diagram Information
and Instructions > Page 39

Multifunction Electronic Control Module: Connector Views

Generic Electronic Module (C239)

Ford Expedition 2wd Workshop Manual (V8-281 4.6L SOHC (1998))
Ford Workshop Manuals > Relays and Modules > Relays and Modules - Accessories and Optional Equipment >
Multifunction Electronic Control Module <--> [General Module] > Component Information > Diagrams > Diagram Information
and Instructions > Page 40

Generic Electronic Module (C267)

Generic Electronic Module (C240)

Ford Expedition 2wd Workshop Manual (V8-281 4.6L SOHC (1998))
Ford Workshop Manuals > Relays and Modules > Relays and Modules - Accessories and Optional Equipment >
Multifunction Electronic Control Module <--> [General Module] > Component Information > Diagrams > Diagram Information
and Instructions > Page 41

Generic Electronic Module (C241)

Ford Expedition 2wd Workshop Manual (V8-281 4.6L SOHC (1998))
Ford Workshop Manuals > Relays and Modules > Relays and Modules - Accessories and Optional Equipment >
Multifunction Electronic Control Module <--> [General Module] > Component Information > Diagrams > Diagram Information
and Instructions > Page 42

Multifunction Electronic Control Module: Electrical Diagrams

Generic Electronic Module (Part 1 Of 5)

Ford Expedition 2wd Workshop Manual (V8-281 4.6L SOHC (1998))
Ford Workshop Manuals > Relays and Modules > Relays and Modules - Accessories and Optional Equipment >
Multifunction Electronic Control Module <--> [General Module] > Component Information > Diagrams > Diagram Information
and Instructions > Page 43

Generic Electronic module (Part 2 of 5)

Ford Expedition 2wd Workshop Manual (V8-281 4.6L SOHC (1998))
Ford Workshop Manuals > Relays and Modules > Relays and Modules - Accessories and Optional Equipment >
Multifunction Electronic Control Module <--> [General Module] > Component Information > Diagrams > Diagram Information
and Instructions > Page 44

Generic Electronic module (Part 3 of 5)

Ford Expedition 2wd Workshop Manual (V8-281 4.6L SOHC (1998))
Ford Workshop Manuals > Relays and Modules > Relays and Modules - Accessories and Optional Equipment >
Multifunction Electronic Control Module <--> [General Module] > Component Information > Diagrams > Diagram Information
and Instructions > Page 45

Generic Electronic module (Part 4 of 5)

Ford Expedition 2wd Workshop Manual (V8-281 4.6L SOHC (1998))
Ford Workshop Manuals > Relays and Modules > Relays and Modules - Accessories and Optional Equipment >
Multifunction Electronic Control Module <--> [General Module] > Component Information > Diagrams > Diagram Information
and Instructions > Page 46

Generic Electronic module (Part 5 of 5)

Ford Expedition 2wd Workshop Manual (V8-281 4.6L SOHC (1998))
Ford Workshop Manuals > Relays and Modules > Relays and Modules - Accessories and Optional Equipment >
Multifunction Electronic Control Module <--> [General Module] > Component Information > Diagrams > Page 47

Multifunction Electronic Control Module: Description and Operation
The Generic Electronic Module (GEM) constantly monitors its subsystems for concerns. If a

concern is found in one of the subsystems, the GEM will record the concern in the form of a
Diagnostic Trouble Code (DTC).

The ignition switch position is very important to the GEM function. Often times, erratic or
unexpected GEM function can be traced to problems with these GEM inputs.

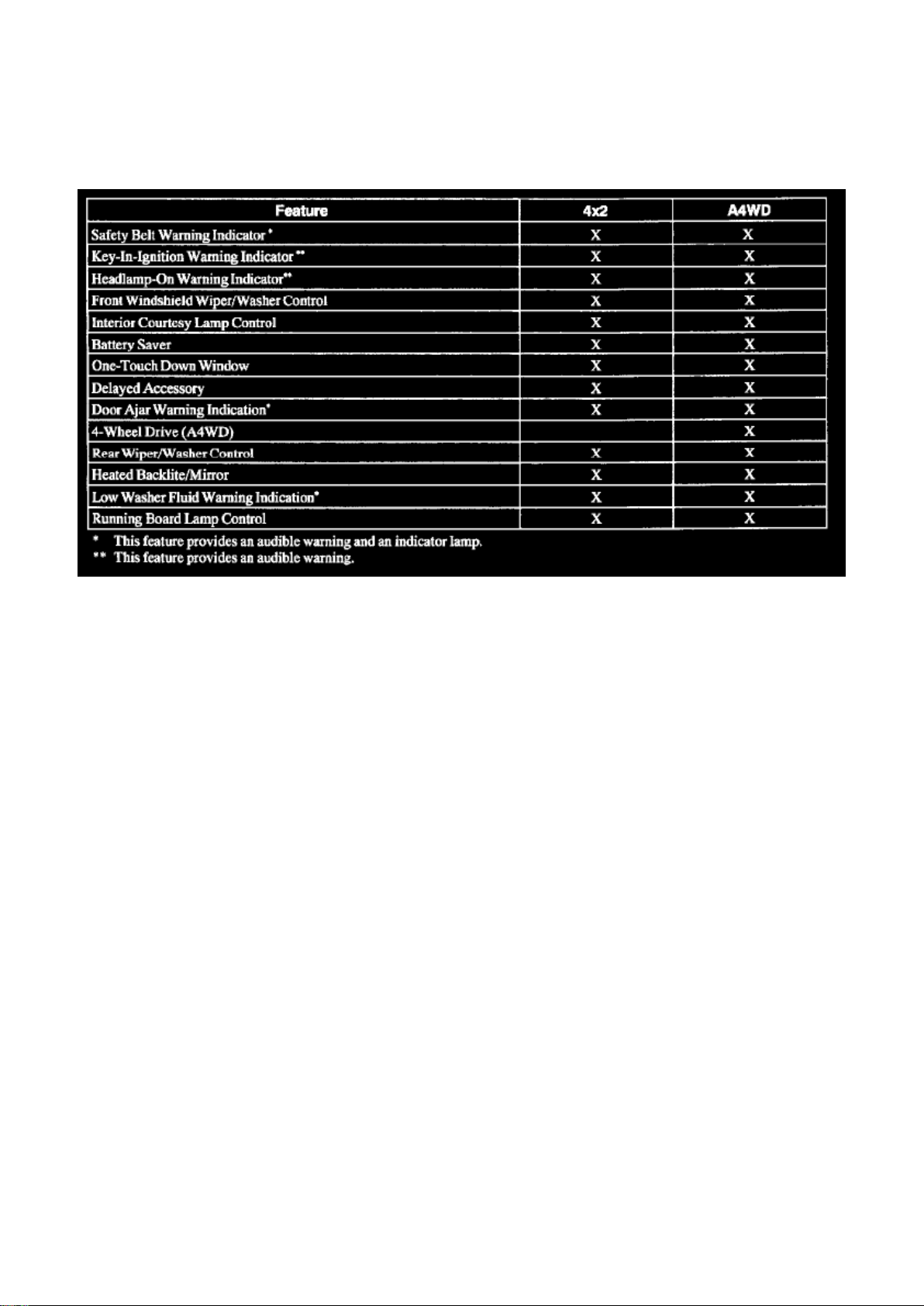

The GEM controls the following features:
^ Wipers/washers (front/rear).
^ Warning chimes.
^ Battery saver.
^ Illuminated entry and courtesy lamps.

^ Driver power window.
^ Accessory delay.
^ 4-wheel drive.

Ford Expedition 2wd Workshop Manual (V8-281 4.6L SOHC (1998))
Ford Workshop Manuals > Relays and Modules > Relays and Modules - Accessories and Optional Equipment >
Multifunction Electronic Control Module <--> [General Module] > Component Information > Diagrams > Page 48

There are four modes of operation for the front wipers: speed dependent interval, slow, fast and
wash. These modes are only active with the ignition switch in the RUN or ACC position.

The two modes of operation for the rear wipers are interval and wash. These modes are only active
with the ignition switch in the RUN or ACC positions and with both the liftgate and liftgate glass
closed.

The GEM controls five warning chimes and lamps: headlamps operating without the ignition on
(chime only), door ajar (chime and lamp), key-in-ignition (chime only), driver seat safety belt
warning (chime and lamp), and low washer fluid warning (chime and lamp).

The battery saver feature removes extended interior lamp power drains from the battery. The GEM
will keep power available for all interior lights and under hood lamp circuits for 40 minutes after the
ignition switch is turned off.

The GEM illuminates the interior courtesy lamps when any door is ajar. The GEM also provides
illuminated entry when the unlock button is used to unlock the vehicle.

The GEM illuminates the running board lamps when the interior lamps are activated (see courtesy
lamps and illuminated entry description above) and the ignition switch is not in the RUN position.

The delayed accessory feature provides power to the power windows for ten minutes after the
ignition switch is moved from the RUN to the OFF position. If during this ten-minute period either
front door is opened, the delayed accessory relay will be de-energized.

This system is equipped with Automatic 4-Wheel Drive (A4WD).

Ford Expedition 2wd Workshop Manual (V8-281 4.6L SOHC (1998))
Ford Workshop Manuals > Relays and Modules > Relays and Modules - Accessories and Optional Equipment >
Multifunction Electronic Control Module <--> [General Module] > Component Information > Service and Repair > Driver Seat
Module

Multifunction Electronic Control Module: Service and Repair Driver Seat Module

REMOVAL

1. Disconnect the battery ground cable.
CAUTION: Electronic modules are sensitive to electrical charges. If exposed to these charges,

damage may result.

2. Remove the driver seat.

3. Disconnect the driver seat module electrical connectors.

4. Remove the screws from the driver seat module and release the module retainers from the
module bracket.

INSTALLATION

1. To install, reverse the removal procedure.
NOTE: When the battery is disconnected and reconnected, some abnormal drive symptoms may

occur while the vehicle relearns its adaptive strategy. The vehicle may need to be driven 16 km (10
mi) or more to relearn the strategy.

Ford Expedition 2wd Workshop Manual (V8-281 4.6L SOHC (1998))
Ford Workshop Manuals > Relays and Modules > Relays and Modules - Accessories and Optional Equipment >
Multifunction Electronic Control Module <--> [General Module] > Component Information > Service and Repair > Driver Seat
Module > Page 51

Multifunction Electronic Control Module: Service and Repair Generic Electronic Module (GEM)

REMOVAL

1. Disconnect the battery ground cable.
CAUTION: Electronic modules are sensitive to electrical charges. If exposed to these charges,

damage may result.

2. Remove the steering column opening cover.

3. Remove the (A) bulkhead electrical connectors from the (B) instrument panel fuse junction
panel.

4. Remove the (A) instrument panel fuse junction panel bolts and remove the (B) interior fuse
junction panel nuts.

Ford Expedition 2wd Workshop Manual (V8-281 4.6L SOHC (1998))
Ford Workshop Manuals > Relays and Modules > Relays and Modules - Accessories and Optional Equipment >
Multifunction Electronic Control Module <--> [General Module] > Component Information > Service and Repair > Driver Seat
Module > Page 52

5. Disconnect the (A) GEM electrical connectors from the (B) GEM.

6. Remove the screws and the GEM.
INSTALLATION
NOTE: When the battery is disconnected and reconnected, some abnormal drive symptoms may

occur while the vehicle relearns its adaptive strategy. The vehicle may need to be driven 16 km (10
mi) or more to relearn the strategy.

1. To install, reverse the removal procedure.
^ Check for proper operation.

Ford Expedition 2wd Workshop Manual (V8-281 4.6L SOHC (1998))
Ford Workshop Manuals > Relays and Modules > Relays and Modules - Accessories and Optional Equipment > Keyless
Entry Module > Component Information > Specifications

Keyless Entry Module: Specifications

RAP Module Nuts ................................................................................................................................

......................................................... 7 Nm (62 in lb)

Ford Expedition 2wd Workshop Manual (V8-281 4.6L SOHC (1998))
Ford Workshop Manuals > Relays and Modules > Relays and Modules - Accessories and Optional Equipment > Keyless
Entry Module > Component Information > Specifications > Page 56

Keyless Entry Module: Locations
Body Views

Ford Expedition 2wd Workshop Manual (V8-281 4.6L SOHC (1998))
Ford Workshop Manuals > Relays and Modules > Relays and Modules - Accessories and Optional Equipment > Keyless
Entry Module > Component Information > Specifications > Page 57

The Remote Anti-Theft Personality Module is located behind left side of instrument panel.

Ford Expedition 2wd Workshop Manual (V8-281 4.6L SOHC (1998))
Ford Workshop Manuals > Relays and Modules > Relays and Modules - Accessories and Optional Equipment > Keyless
Entry Module > Component Information > Specifications > Page 58

Keyless Entry Module: Service and Repair
REMOVAL

1. Disconnect the battery ground cable.
CAUTION: Electronic modules are sensitive to electrical charges. If exposed to these charges,

damage may result.

2. Disconnect the C257 and C256 Remote Anti-theft Personality (RAP) module electrical
connectors.

3. Remove the nuts and the RAP module.
NOTE: On Expedition and later build Navigators, the antenna is internal to the module and must be

replaced as an assembly.
INSTALLATION

1. To install, reverse the removal procedure.
NOTE: When the battery is disconnected and reconnected, some abnormal drive symptoms may

occur while the vehicle relearns its adaptive

Ford Expedition 2wd Workshop Manual (V8-281 4.6L SOHC (1998))
Ford Workshop Manuals > Relays and Modules > Relays and Modules - Accessories and Optional Equipment > Keyless
Entry Module > Component Information > Specifications > Page 59

strategy. The vehicle may need to be driven 16 km (10 mi) or more to relearn the strategy.

Ford Expedition 2wd Workshop Manual (V8-281 4.6L SOHC (1998))
Ford Workshop Manuals > Relays and Modules > Relays and Modules - Body and Frame > Keyless Entry Module >
Component Information > Specifications

Keyless Entry Module: Specifications

RAP Module Nuts ................................................................................................................................

......................................................... 7 Nm (62 in lb)

Ford Expedition 2wd Workshop Manual (V8-281 4.6L SOHC (1998))
Ford Workshop Manuals > Relays and Modules > Relays and Modules - Body and Frame > Keyless Entry Module >
Component Information > Specifications > Page 64

Keyless Entry Module: Locations
Body Views

Ford Expedition 2wd Workshop Manual (V8-281 4.6L SOHC (1998))
Ford Workshop Manuals > Relays and Modules > Relays and Modules - Body and Frame > Keyless Entry Module >
Component Information > Specifications > Page 65

The Remote Anti-Theft Personality Module is located behind left side of instrument panel.
