FORD Expedition 2015 User Manual

Download

Page 1

2015 EXPEDITION Owner’s Manual

ford.cafordowner.com

July 2014

First Printing

Owner’s Manual

Expedition

Litho in U.S.A.

FL1J 19A321 AA

Page 2

Table of Contents 1

Introduction 9

Child Safety 17

Installing child seats ....................................19

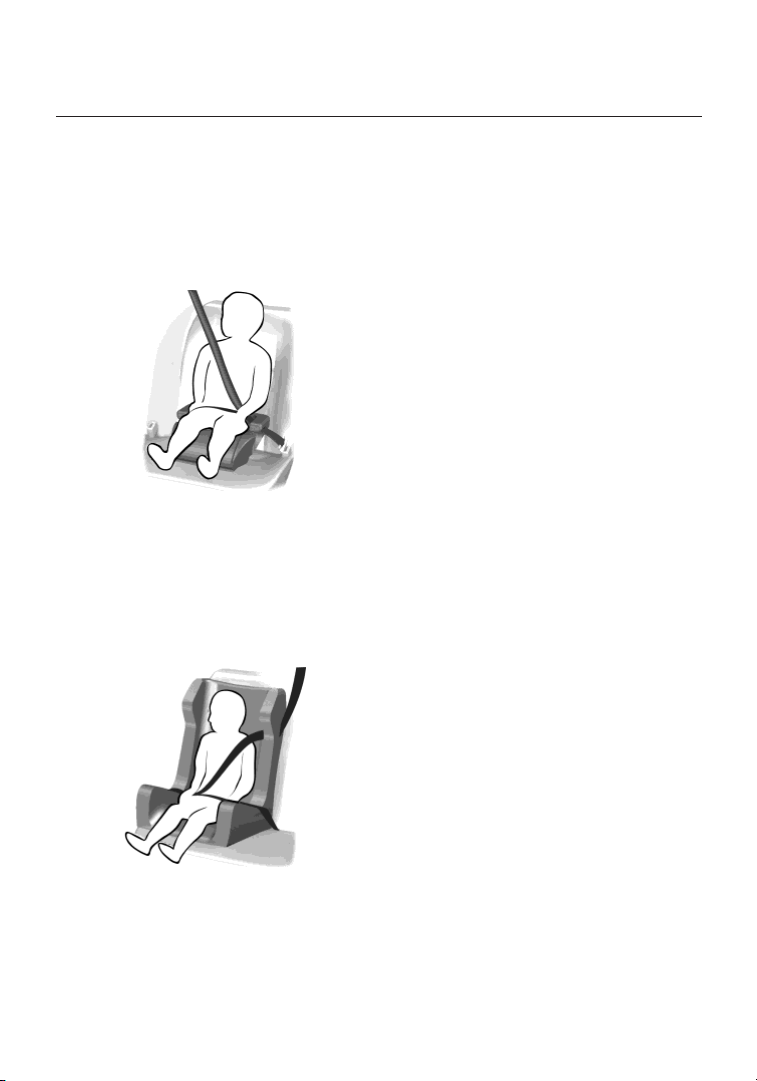

Booster seats .........................................29

Child seat positioning ...................................32

Child safety locks ......................................34

Safety Belts 35

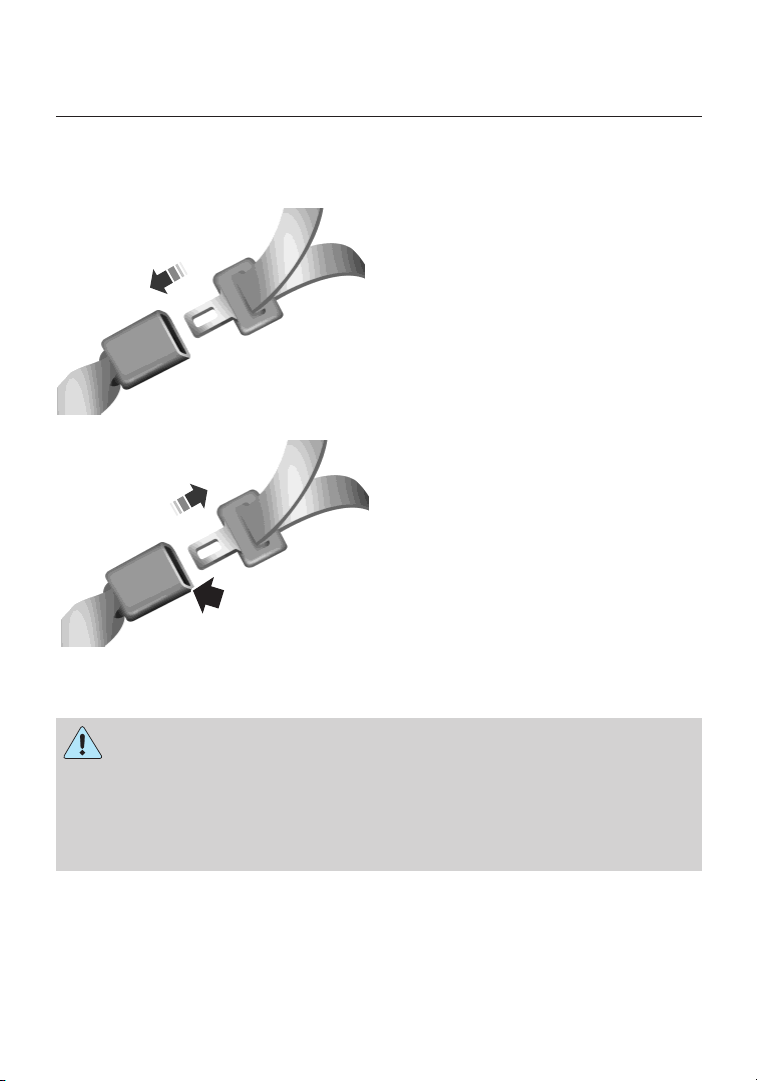

Fastening the safety belts ................................37

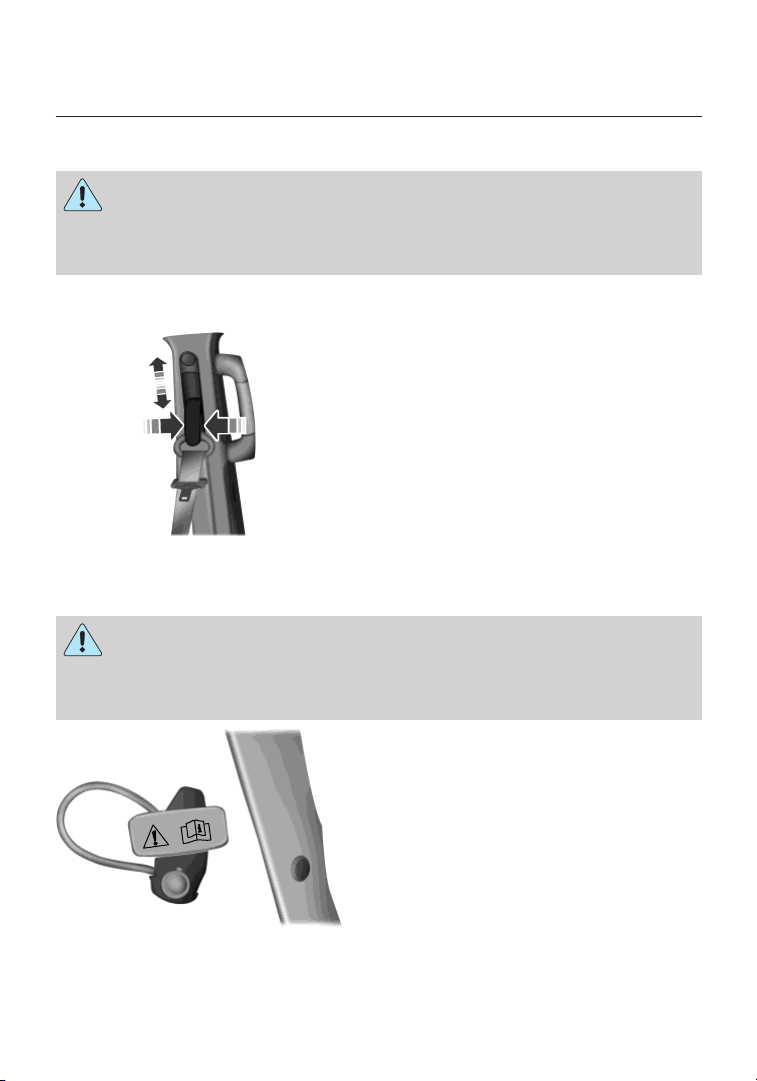

Safety belt height adjustment .............................40

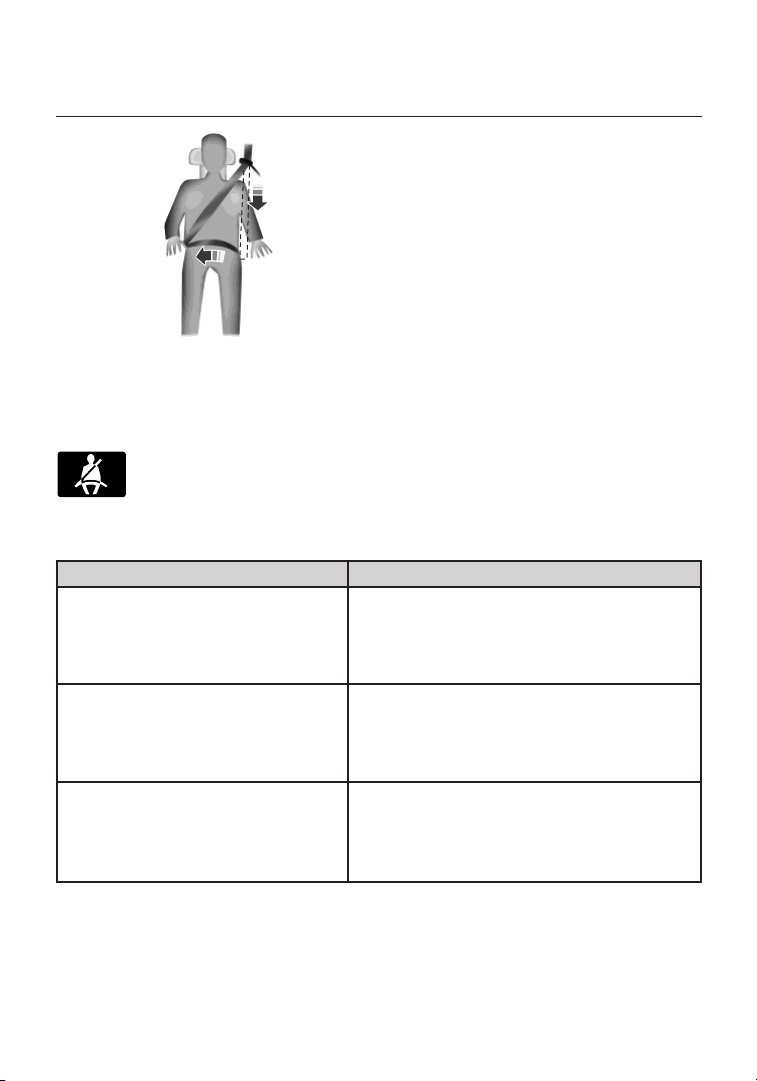

Safetybeltwarninglightandindicatorchime..................41

Safety belt-minder .....................................42

Child restraint and safety belt maintenance ...................43

Supplementary Restraints System 44

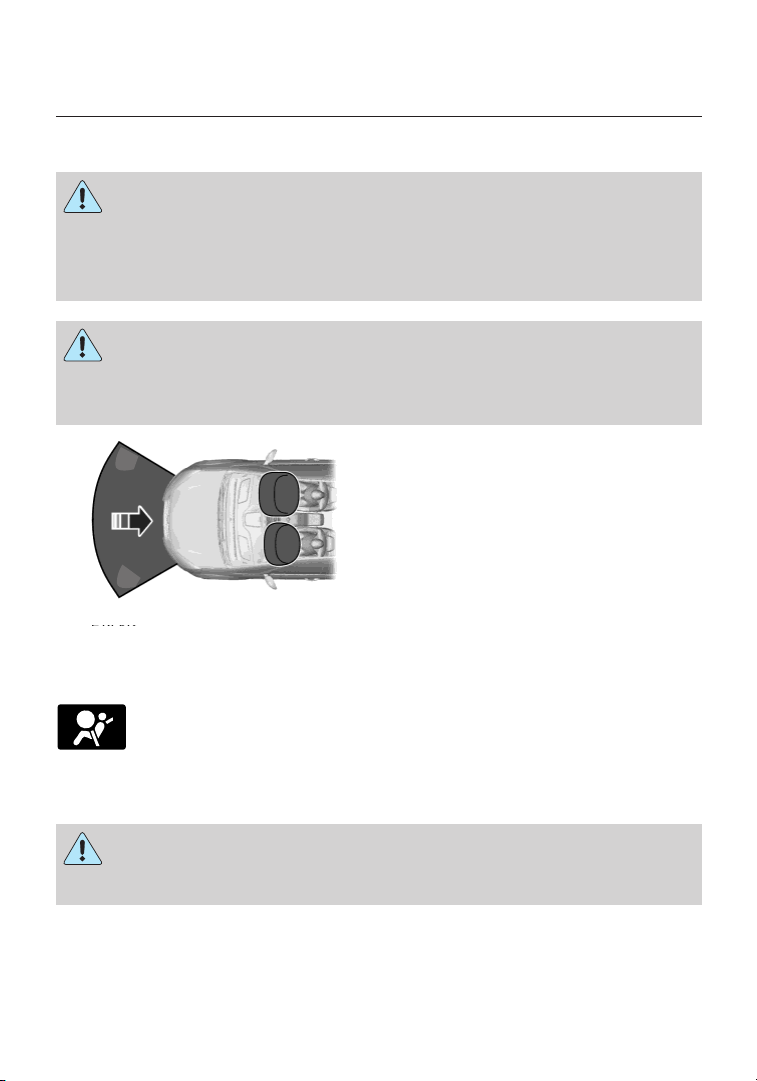

Driver and passenger airbags .............................47

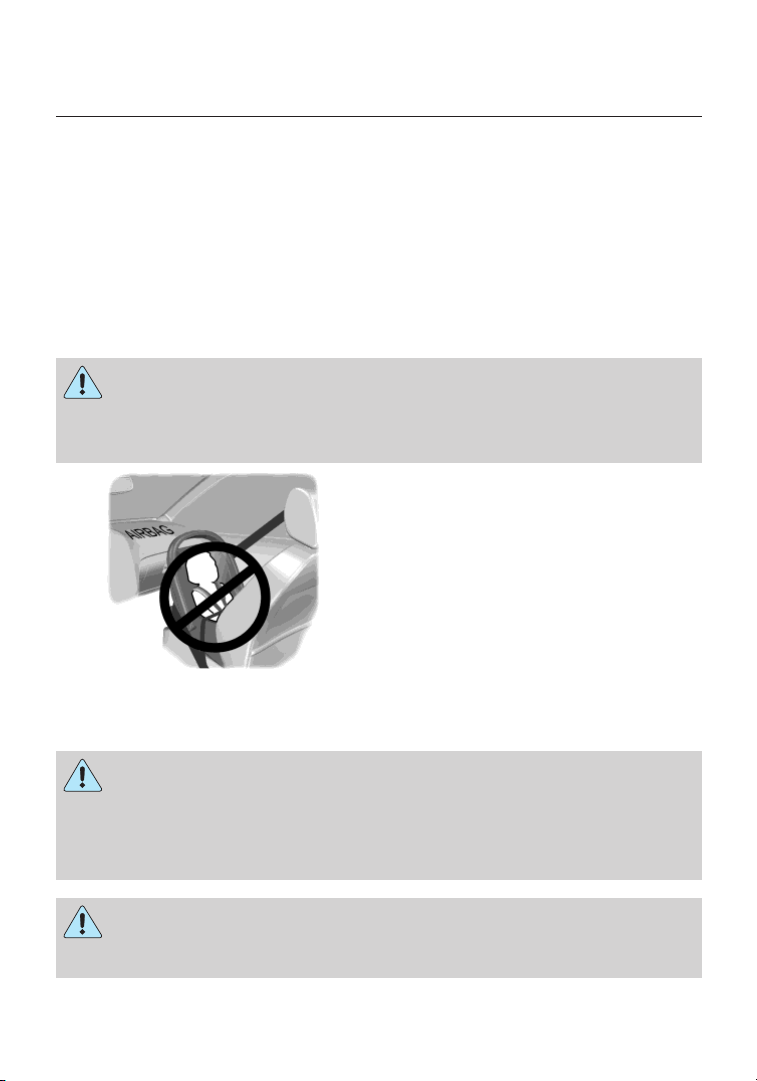

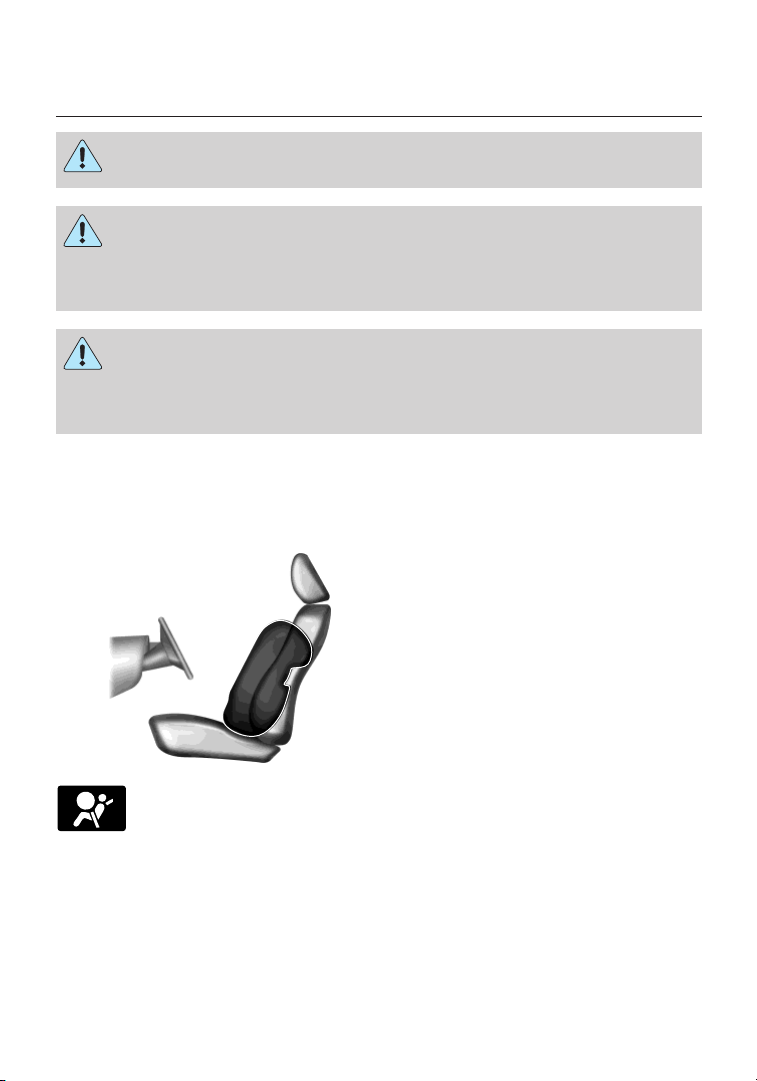

Side airbags ..........................................48

Safety canopy curtain airbags .............................50

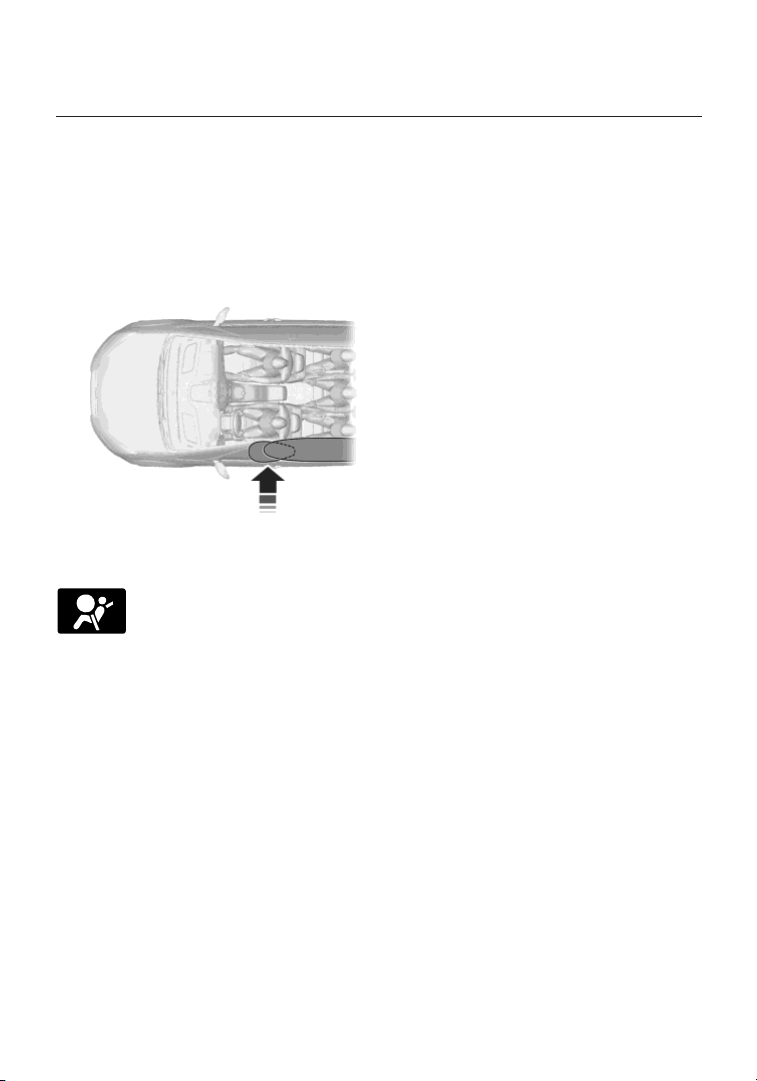

Crash sensors and airbag indicator .........................52

Airbag disposal........................................53

Keys and Remote Control 54

General information on radio frequencies.....................54

Remote control .......................................55

Keys ...............................................55

Replacing a lost key or remote control.......................61

MyKey 62

Settings, MyKey .......................................62

Creating.............................................63

Clearing.............................................64

System status.........................................64

Remote start, MyKey ...................................65

Troubleshooting, MyKey .................................67

Page 3

2 Table of Contents

Locks 69

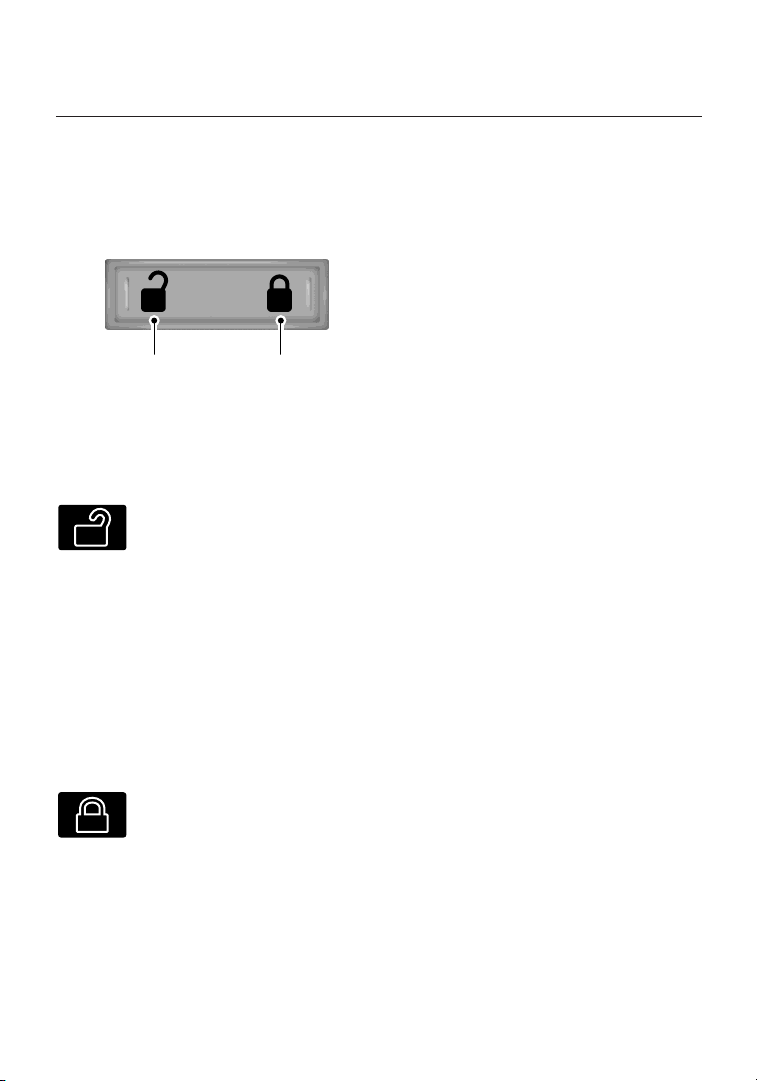

Locking and unlocking ..................................69

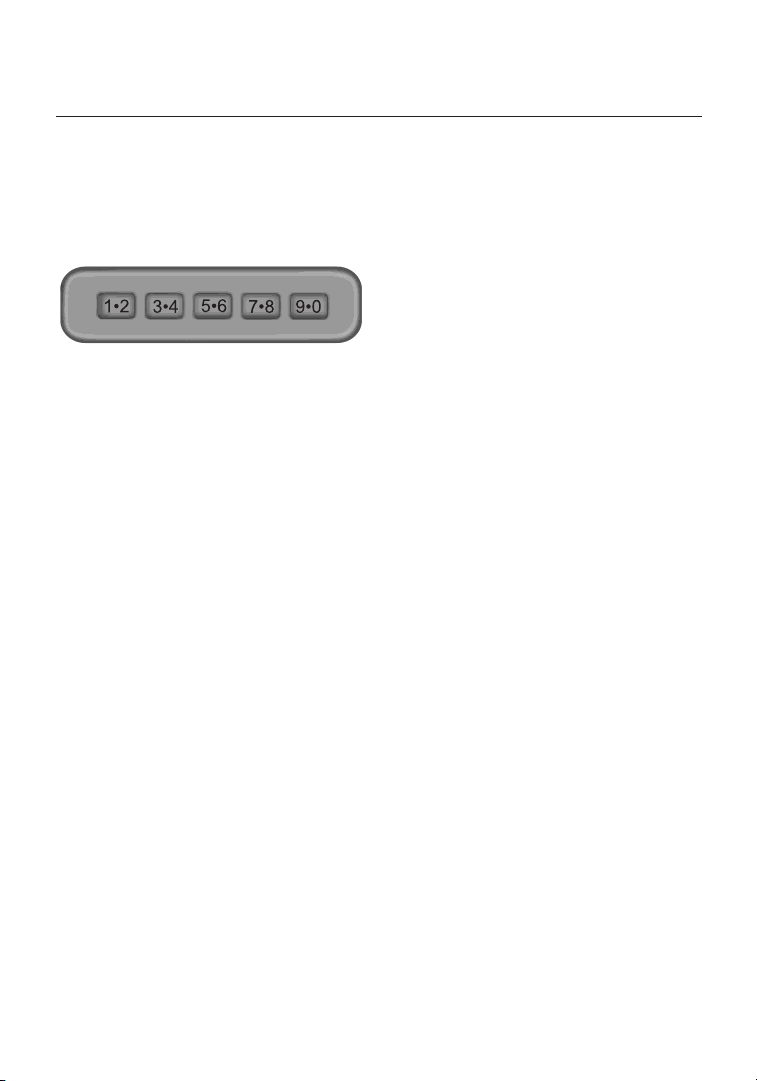

SecuriCode™ keyless entry keypad .........................77

Security 79

SecuriLock® passive anti-theft system.......................79

Anti-theft alarm .......................................82

Steering Wheel 83

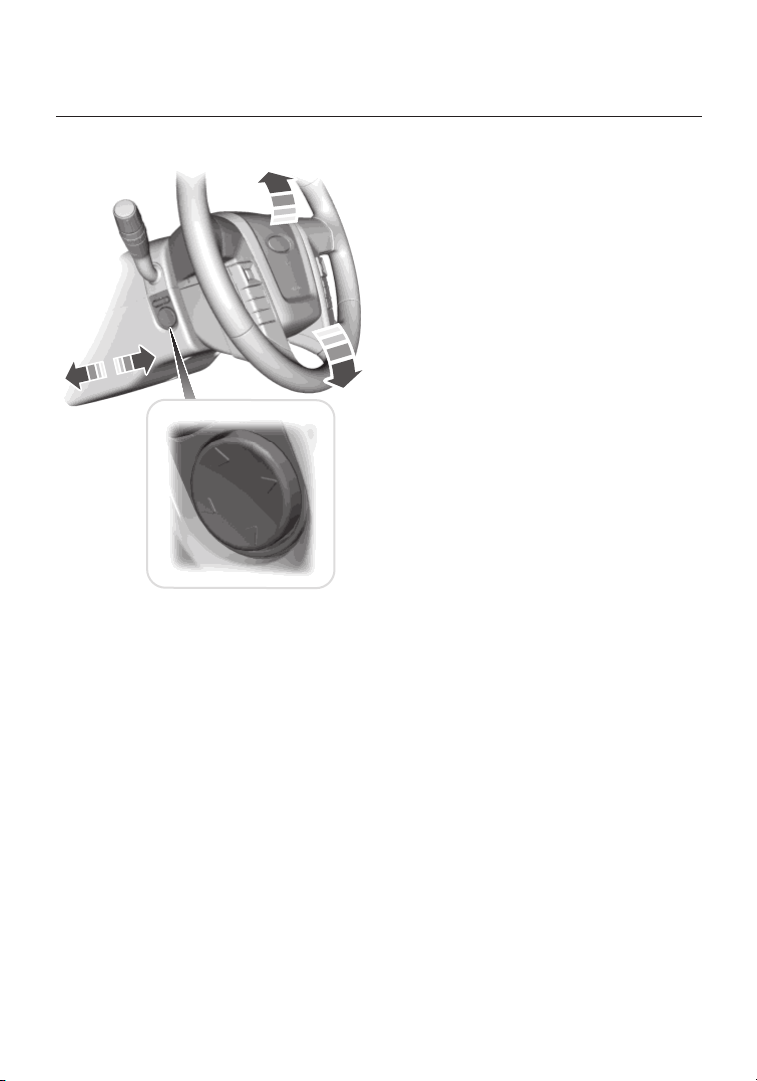

Adjusting the steering wheel ..............................83

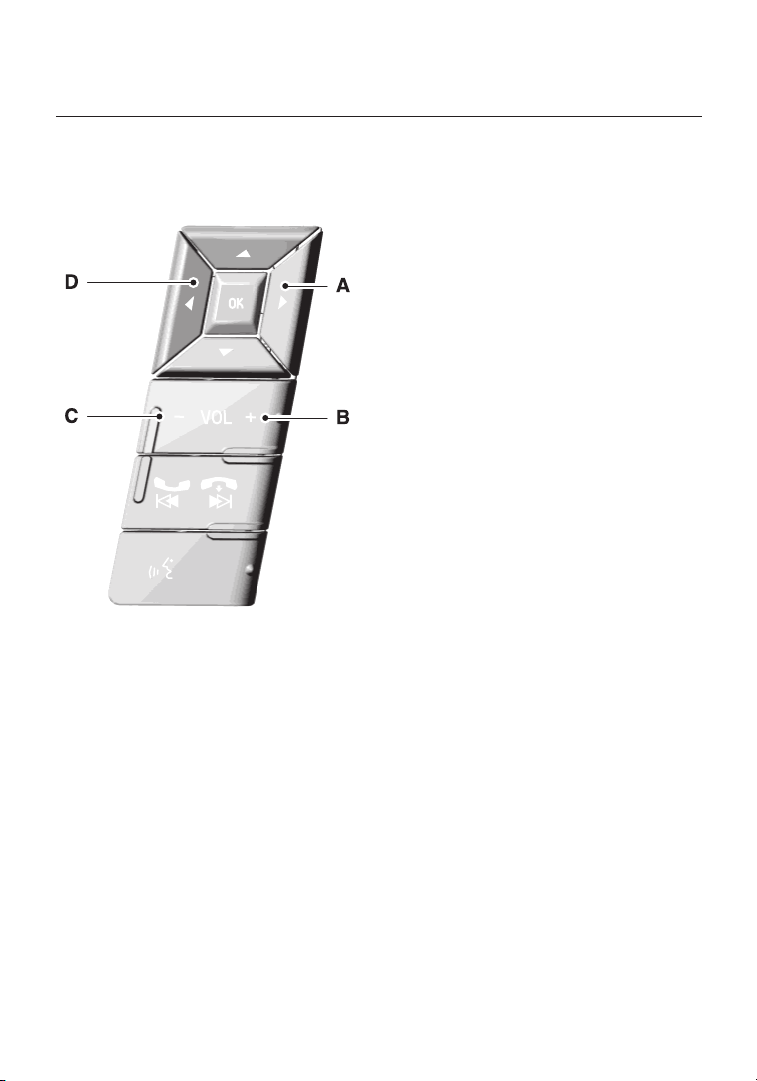

Steering wheel controls .................................85

Pedals 89

Adjustable pedals ......................................89

Wipers and Washers 90

Windshield wipers .....................................90

Rain-sensing wipers ....................................90

Windshield washers ....................................91

Rear-window wiper and washer ............................91

Lighting 92

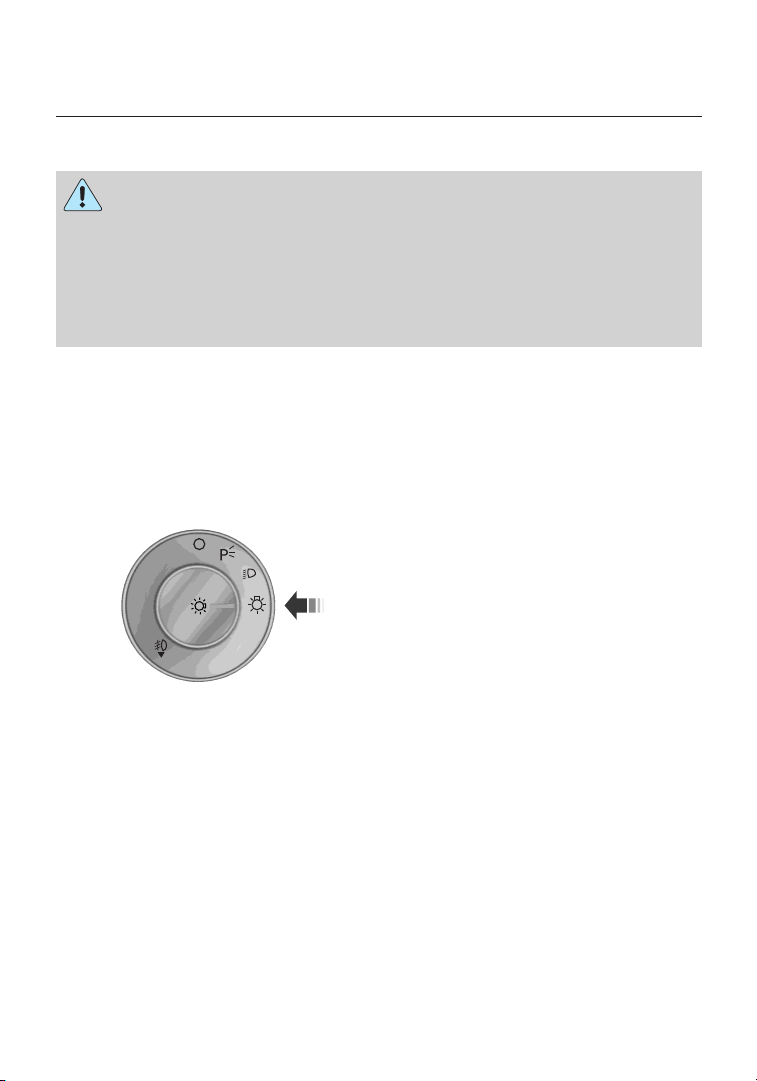

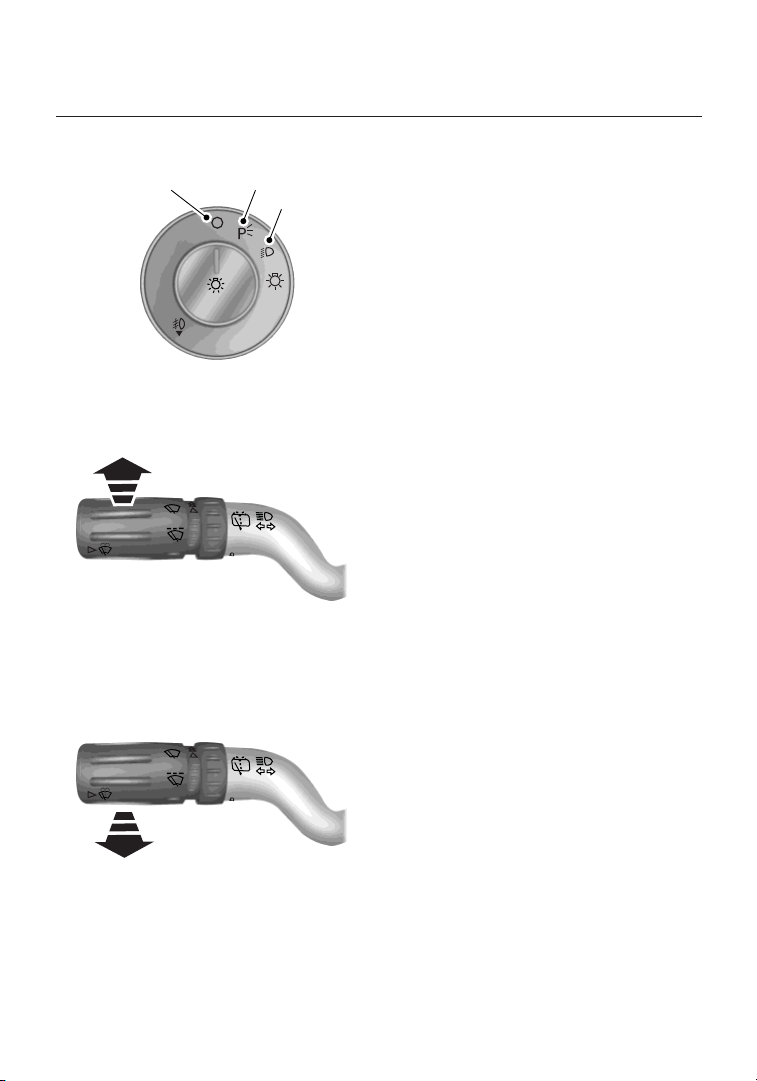

Lighting control .......................................92

Autolamps ...........................................93

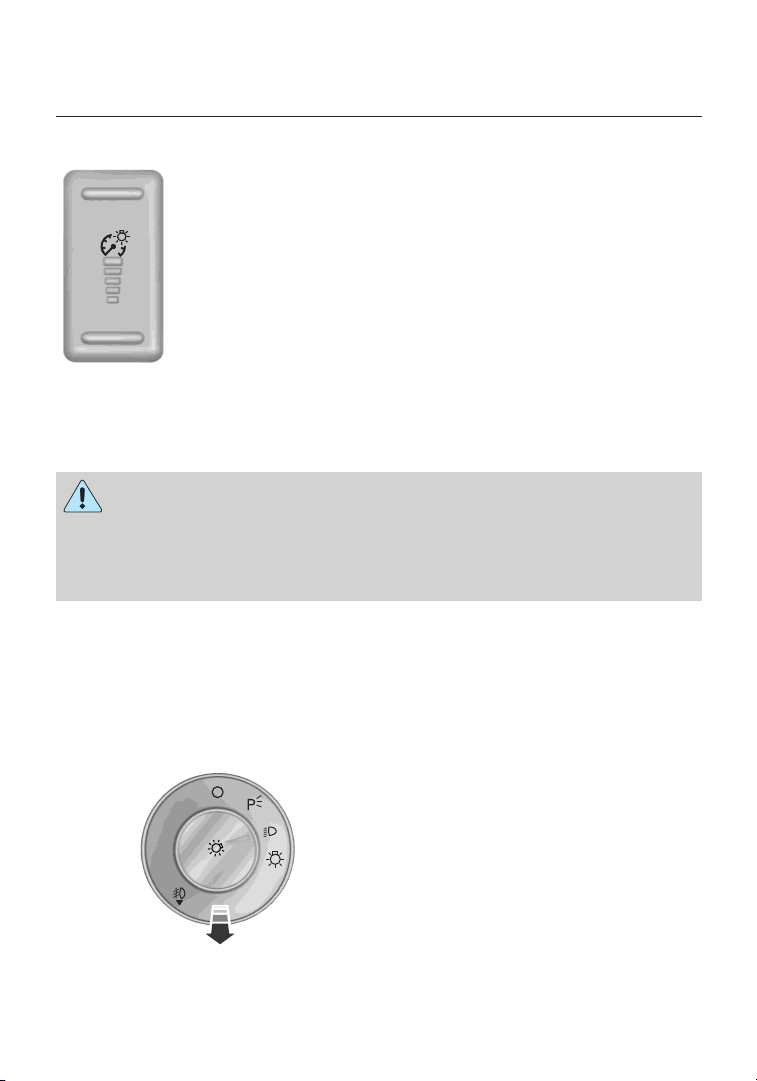

Instrument lighting dimmer...............................94

Daytime running lamps ..................................94

Front fog lamps.......................................94

Directionindicators ....................................95

Interior lamps ........................................95

Windows and Mirrors 97

Power windows .......................................97

Exteriormirrors.......................................98

Interiormirrors ......................................100

Sunvisors ..........................................102

Moonroof ...........................................102

Page 4

Table of Contents 3

Instrument Cluster 104

Gauges.............................................104

Warning lamps and indicators ............................107

Audible warnings and indicators ..........................111

Information Displays 112

Message center.......................................112

Information messages ..................................125

Climate Control 136

Manual heating and air conditioning........................136

Dual automatic temperature control........................140

Rear window defroster .................................146

Remote Start ........................................146

Seats 148

Sitting in the correct position ............................148

Head restraints.......................................149

Manual seats ........................................152

Power seats .........................................153

Memory function .....................................155

Rear seats ..........................................158

Universal Garage Door Opener (If Equipped) 168

HomeLink® wireless control system .......................169

Auxiliary Power Points 173

Storage Compartments 176

Center console .......................................176

Overhead console .....................................176

Starting and Stopping the Engine 177

Ignition switch .......................................178

Engine block heater ...................................182

Page 5

4 Table of Contents

Fuel and Refueling 184

Fuel quality .........................................185

Refueling...........................................188

Fuel consumption .....................................190

Transmission 194

Automatic transmission.................................194

Four-Wheel Drive (If Equipped) 203

Four wheel drive .....................................203

Brakes 212

Brakes .............................................212

Hints on driving with anti-lock brakes ......................213

Parking brake........................................213

Hill start assist .......................................213

Traction Control 215

TractionControl™....................................215

Stability Control 216

AdvanceTrac® .......................................217

Terrain Response 219

Hill descent control ...................................219

Parking Aids 221

Sensing system.......................................221

Rear-view camera system ...............................224

Cruise Control 228

Usingcruisecontrol...................................228

Page 6

Table of Contents 5

Driving Aids 230

Blind Spot Information System (BLIS) with Cross Traffic Alert

(CTA).............................................230

Steering ............................................235

Auto leveling suspension ................................236

Load Carrying 237

Roof racks and load carriers .............................237

Vehicle loading .......................................238

Cargo management system ..............................244

Towing 248

Trailertowing........................................248

Trailer brake controller-integrated .........................255

Wrecker towing ......................................261

Recreational towing ...................................262

Driving Hints 265

Economical driving ....................................265

Floormats..........................................266

Roadside Emergencies 268

Getting roadside assistance ..............................268

Hazard warning flashers ................................270

Fuel cut-off switch ....................................270

Jump-starting the vehicle ...............................271

Customer Assistance 274

Reporting safety defects (U.S. only) .......................281

Reporting safety defects (Canada only) .....................281

Fuses 282

Changing a fuse ......................................282

Fuse specification chart ................................282

Page 7

6 Table of Contents

Maintenance 290

General information ...................................290

Opening and closing the hood ............................291

Under hood overview ..................................292

Engine oil dipstick ....................................293

Engine oil check......................................293

Engine coolant check ..................................294

Automatic transmission fluid check ........................298

Brake fluid check .....................................299

Fuel filter...........................................299

Washer fluid check ....................................300

Battery ............................................300

Checking the wiper blades ..............................301

Changing the wiper blades ..............................302

Air filter(s) .........................................303

Adjusting the headlamps ................................306

Changing a bulb ......................................307

Removing a headlamp ..................................308

Vehicle Care 313

Cleaning products.....................................313

Cleaning the exterior ..................................313

Waxing.............................................315

Repairing minor paint damage ............................315

Cleaning the engine ...................................315

Cleaning the windows and wiper blades .....................316

Cleaning the interior ...................................317

Cleaning the instrument panel and instrument cluster lens .......318

Cleaning the alloy wheels ...............................320

Vehicle storage .......................................321

Page 8

Table of Contents 7

Wheels and Tires 324

Tire care ...........................................326

Tire Pressure Monitoring System (TPMS) ...................343

Changing a road wheel .................................347

Technical specifications.................................354

Wheel lug nut torque ..................................354

Capacities and Specifications 355

Engine specifications ..................................355

Engine drivebelt ......................................355

Part numbers ........................................360

Vehicle identification number ............................361

Vehicle certification label ...............................362

Transmission code designation............................362

Accessories 363

Accessories .........................................363

Extended Service Plan 365

Audio System 368

MyFord™ system .....................................370

Rear seat controls.....................................376

Satellite radio information ...............................380

Auxiliary input jack ...................................383

USBport...........................................384

SYNC® 386

Pairing your phone for the first time .......................391

911 Assist™ .........................................405

Vehicle Health Report ..................................408

Page 9

8 Table of Contents

MyFord Touch® (If Equipped) 436

Voice recognition .....................................443

Listening to music ....................................447

Phone features .......................................467

Information Menu .....................................474

Settings............................................486

Climatefeatures......................................498

Navigation system.....................................502

Appendices 520

Scheduled Maintenance 538

Normal scheduled maintenance and log .....................543

Index 556

The information contained in this publication was correct at the time of going to print. In the interest of continuous development, we reserve the right to change specifications, design or equipment at any time without notice or obligation. No part of this publication may be reproduced, transmitted, stored in a retrieval system or translated into any language in any form by any means without our written permission. Errors and omissions excepted.

Page 10

Introduction 9

ABOUT THIS MANUAL

Thank you for choosing Ford. We recommend that you take some time to get to know your vehicle by reading this manual. The more that you know about it, the greater the safety and pleasure you will get from driving it.

WARNING: Always drive with due care and attention when using and operating the controls and features on your vehicle.

Note: This manual describes product features and options available throughout the range of available models, sometimes even before they are generally available. It may describe options not fitted to your vehicle.

Note: Some of the illustrations in this manual may show features as used in different models, so they may appear different to you on your vehicle.

Note: Always use and operate your vehicle in line with all applicable laws and regulations.

Note: Pass on this manual when selling your vehicle. It is an integral part of the vehicle.

This manual may qualify the location of a component as left-hand side or right-hand side. The side is determined when facing forward in the seat.

A. Right-hand side B. Left-hand side

Protecting the Environment

You must play your part in protecting the environment. Correct vehicle usage and the authorized disposal of waste, cleaning and lubrication materials are significant steps toward this aim.

Page 11

10 Introduction

SYMBOL GLOSSARY

These are some of the symbols you may see on your vehicle.

Symbol Description Symbol Description Symbol Description

Safety alert See Owner’s

Manual

Avoid smoking, flames, or sparks

Brake fluid – non petroleum base

Check fuel cap

Child seat tether anchor

Battery Battery acid

Brake system Cabin air

Child Safety Door Lock and Unlock

Cruise control

Anti-lock braking system

filter

Child seat lower anchor

Do not open when hot

Engine air filter

Engine oil Explosive gas Fan warning

Fasten safety belt

Fuel pump reset

Heated rear window

Engine coolant

Front airbag Front fog

Fuse compartment

Interior luggage compartment release

Engine coolant temperature

lamps

Hazard warning flasher

Jack

Page 12

Introduction 11

Symbol Description Symbol Description Symbol Description

Lighting control

Panic alarm Parking aid

Low tire pressure warning

system

Maintain correct fluid level

Parking brake system

Power steering fluid

Service engine soon

Windshield defrost and demist

DATA RECORDING

Service Data Recording

Service data recorders in your vehicle are capable of collecting and storing diagnostic information about your vehicle. This potentially includes information about the performance or status of various systems and modules in the vehicle, such as engine, throttle, steering or brake systems. In order to properly diagnose and service your vehicle, Ford Motor Company, Ford of Canada, and service and repair facilities may access or share among them vehicle diagnostic information received through a direct connection to your vehicle when diagnosing or servicing your vehicle. Additionally, when your vehicle is in for service or repair, Ford Motor Company, Ford of Canada, and service and repair facilities may access or share among them data for vehicle improvement purposes. For U.S. only (if equipped), if you choose to use the SYNC® Vehicle Health Report, you consent that certain diagnostic information may also be accessed electronically by Ford Motor Company and Ford authorized service facilities, and that the diagnostic information may be used for any purpose. See the SYNC® chapter for more information.

Power windows front and rear

Side airbag Stability

Windshield washer and wiper

Power window lockout

control

Page 13

12 Introduction

Event Data Recording

This vehicle is equipped with an event data recorder (EDR). The main purpose of an EDR is to record, in certain crash or near crash-like situations, such as an airbag deployment or hitting a road obstacle; this data will assist in understanding how a vehicle’s systems performed. The EDR is designed to record data related to vehicle dynamics and safety systems for a short period of time, typically 30 seconds or less. The EDR in this vehicle is designed to record such data as:

• How various systems in your vehicle were operating;

• Whether or not the driver and passenger safety belts were

buckled/fastened;

• How far (if at all) the driver was depressing the accelerator and/or the brake pedal;

• How fast the vehicle was travelling;

• Where the driver was positioning the steering wheel.

This data can help provide a better understanding of the circumstances in which crashes and injuries occur.

Note: EDR data is recorded by your vehicle only if a non-trivial crash situation occurs; no data is recorded by the EDR under normal driving conditions and no personal data or information (e.g., name, gender, age, and crash location) is recorded (see limitations regarding 911 Assist and Traffic, Directions and Information privacy below). However, parties, such as law enforcement, could combine the EDR data with the type of personally identifying data routinely acquired during a crash investigation.

To read data recorded by an EDR, special equipment is required, and access to the vehicle or the EDR is needed. In addition to the vehicle manufacturer, other parties, such as law enforcement, that have such special equipment, can read the information if they have access to the vehicle or the EDR. Ford Motor Company and Ford of Canada do not access event data recorder information without obtaining consent, unless pursuant to court order or where required by law enforcement, other government authorities or other third parties acting with lawful authority. Other parties may seek to access the information independently of Ford Motor Company and Ford of Canada.

Page 14

Introduction 13

Note: Including to the extent that any law pertaining to Event Data Recorders applies to SYNC® or its features, please note the following: Once 911 Assist (if equipped) is enabled (set ON), 911 Assist may, through any paired and connected cell phone, disclose to emergency services that the vehicle has been in a crash involving the deployment of an airbag or, in certain vehicles, the activation of the fuel pump shut-off. Certain versions or updates to 911 Assist may also be capable of being used to electronically or verbally provide to 911 operators the vehicle location (such as latitude and longitude), and/or other details about the vehicle or crash or personal information about the occupants to assist 911 operators to provide the most appropriate emergency services. If you do not want to disclose this information, do not activate the 911 Assist feature. See your SYNC® chapter for more information.

Additionally, when you connect to Traffic, Directions and Information (if equipped, U.S. only), the service uses GPS technology and advanced vehicle sensors to collect the vehicle’s current location, travel direction, and speed (“vehicle travel information”), only to help provide you with the directions, traffic reports, or business searches that you request. If you do not want Ford or its vendors to receive this information, do not activate the service. For more information, see Traffic, Directions and Information, Terms and Conditions. See your SYNC® chapter for more information.

CALIFORNIA PROPOSITION 65

WARNING: Some constituents of engine exhaust, certain vehicle

components, certain fluids contained in vehicles and certain products of component wear contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

PERCHLORATE MATERIAL

Note: Certain components in your vehicle, such as airbag modules, safety belt pretensioners, and remote control batteries, may contain perchlorate material. Special handling may apply for service or vehicle end of life disposal. See www.dtsc.ca.gov/hazardouswaste/perchlorate for more information.

Page 15

14 Introduction

FORD CREDIT (U.S. ONLY)

Ford Credit offers a full range of financing and lease plans to help you acquire your vehicle. If you have financed or leased your vehicle through Ford Credit, thank you for your business.

For your convenience, we offer a number of ways to contact us, as well as help manage your account.

Phone: 1-800-727-7000 For more information regarding Ford Credit, as well as access to

Account Manager, please go to www.fordcredit.com.

REPLACEMENT PARTS RECOMMENDATION

Your vehicle has been built to the highest standards using quality parts. We recommend that you demand the use of genuine Ford and Motorcraft parts whenever your vehicle requires scheduled maintenance or repair. You can clearly identify genuine Ford and Motorcraft parts by looking for the Ford, FoMoCo or Motorcraft branding on the parts or their packaging.

Scheduled Maintenance and Mechanical Repairs

One of the best ways for you to make sure that your vehicle provides years of service is to have it maintained in line with our recommendations using parts that conform to the specifications detailed in this owner’s manual. Genuine Ford and Motorcraft parts meet or exceed these specifications.

Collision Repairs

We hope that you never experience a collision, but accidents do happen. Genuine Ford replacement collision parts meet our stringent requirements for fit, finish, structural integrity, corrosion protection and dent resistance. During vehicle development, we validate that these parts deliver the intended level of protection as a whole system. A great way to know for sure you are getting this level of protection is to use genuine Ford replacement collision parts.

Warranty on Replacement Parts

Genuine Ford and Motorcraft replacement parts are the only replacement parts that benefit from a Ford Warranty. Damage caused to your vehicle as a result of the failure of non-Ford parts may not be covered by the Ford Warranty. For additional information, see the terms and conditions of the Ford Warranty.

Page 16

Introduction 15

SPECIAL NOTICES

New Vehicle Limited Warranty

For a detailed description of what is covered and what is not covered by your vehicle’s New Vehicle Limited Warranty, see the warranty information that is provided to you along with your owner’s manual.

Special Instructions

For your added safety, your vehicle is fitted with sophisticated electronic controls.

WARNING: Please read the Supplementary Restraints System

chapter. Failure to follow the specific warnings and instructions could result in personal injury.

WARNING: Front seat mounted rear-facing child or infant seats

should NEVER be placed in front of an active passenger airbag.

Using your vehicle with a snowplow

Do not use this vehicle for snowplowing.

Your vehicle is not equipped with a snowplowing package.

Using your vehicle as an ambulance

Do not use this vehicle as an ambulance.

Your vehicle is not equipped with the Ford Ambulance Preparation Package.

Page 17

16 Introduction

MOBILE COMMUNICATIONS EQUIPMENT

Using mobile communications equipment is becoming increasingly important in the conduct of business and personal affairs. However, you must not compromise your own or others’ safety when using such equipment. Mobile communications can enhance personal safety and security when appropriately used, particularly in emergency situations. Safety must be paramount when using mobile communications equipment to avoid negating these benefits.

Mobile communication equipment includes, but is not limited to, cellular phones, pagers, portable email devices, text messaging devices and portable two-way radios.

WARNING: Driving while distracted can result in loss of vehicle

control, crash and injury. We strongly recommend that you use extreme caution when using any device that may take your focus off the road. Your primary responsibility is the safe operation of your vehicle. We recommend against the use of any handheld device while driving and encourage the use of voice-operated systems when possible. Make sure you are aware of all applicable local laws that may affect the use of electronic devices while driving.

EXPORT UNIQUE (NON–UNITED STATES/CANADA) VEHICLE SPECIFIC INFORMATION

For your particular global region, your vehicle may be equipped with features and options that are different from the features and options that are described in this owner’s manual. A market unique supplement may be supplied that complements this book. By referring to the market unique supplement, if provided, you can properly identify those features, recommendations and specifications that are unique to your vehicle. This owner’s manual is written primarily for the U.S. and Canadian Markets. Features or equipment listed as standard may be different on units built for Export. See this owner’s manual for all other required

information and warnings.

Page 18

Child Safety 17

GENERAL INFORMATION

See the following sections for directions on how to properly use safety restraints for children.

WARNING: Always make sure your child is secured properly in a

device that is appropriate for their height, age and weight. Child safety restraints must be bought separately from your vehicle. Failure to follow these instructions and guidelines may result in an increased risk of serious injury or death to your child.

WARNING: All children are shaped differently. The

recommendations for safety restraints are based on probable child height, age and weight thresholds from NHTSA and other safety organizations, or are the minimum requirements of law. Ford recommends checking with a NHTSA Certified Child Passenger Safety Technician (CPST) and consulting your pediatrician to make sure your child seat is appropriate for your child, and is compatible with and properly installed in your vehicle. To locate a child seat fitting station and CPST, contact the NHTSA toll free at 1-888-327-4236 or on the internet at http://www.nhtsa.dot.gov. In Canada, check with your local St. John Ambulance office for referral to a CPST or for further information, contact your provincial ministry of transportation, or locate your local St. John Ambulance office by searching for St. John Ambulance on the internet, or Transport Canada at 1–800–333–0371 (http://www.tc.gc.ca). Failure to properly restrain children in safety seats made especially for their height, age, and weight may result in an increased risk of serious injury or death to your child.

Page 19

18 Child Safety

Recommendations for Safety Restraints for Children

Child size, height, weight, or age

Infants or toddlers

Small children

Larger children

• You are required by law to properly use safety seats for infants and toddlers in the U.S. and Canada.

• Many states and provinces require that small children use approved booster seats until they reach age eight, a height of 4 feet 9 inches (1.45 meters) tall, or 80 pounds (36 kilograms). Check your local and state or provincial laws for specific requirements about the safety of children in your vehicle.

• When possible, always properly restrain children twelve (12) years of age and under in a rear seating position of your vehicle. Accident statistics suggest that children are safer when properly restrained in the rear seating positions than in a front seating position.

Children weighing 40 lb (18 kg) or less (generally age four or younger).

Children who have outgrown or no longer properly fit in a child safety seat (generally children who are less than 4 ft. 9 in. (1.45 m) tall, are greater than age four (4) and less than age twelve (12), and between 40 lb (18 kg) and 80 lb (36 kg) and upward to 100 lb (45 kg) if recommended by your child restraint manufacturer).

Children who have outgrown or no longer properly fit in a belt-positioning booster seat (generally children who are at least 4 ft. 9 in. (1.45 m) tall or greater than 80 lb (36 kg) or 100 lb (45 kg) if recommended by child restraint manufacturer).

Recommended restraint type

Use a child safety seat (sometimes called an infant carrier, convertible seat, or toddler seat).

Use a belt-positioning booster seat.

Use a vehicle safety belt having the lap belt snug and low across the hips, shoulder belt centered across the shoulder and chest, and seat back upright.

Page 20

Child Safety 19

INSTALLING CHILD SEATS

Child Seats

Use a child safety seat (sometimes called an infant carrier, convertible seat, or toddler seat) for infants, toddlers or children weighing 40 pounds (18 kilograms) or less (generally age four or younger).

Using Lap and Shoulder Belts

WARNING: Airbags can kill or injure a child in a child seat.

Never place a rear-facing child seat in front of an active airbag. If you must use a forward-facing child seat in the front seat, move the seat upon which the child seat is installed all the way back.

WARNING: Airbags can kill or injure a child in a child seat.

Children 12 and under should be properly restrained in the rear seat whenever possible.

WARNING: Depending on where you secure a child restraint,

and depending on the child restraint design, you may block access to certain safety belt buckle assemblies or LATCH lower anchors, rendering those features potentially unusable. To avoid risk of injury, occupants should only use seating positions where they are able to be properly restrained.

When installing a child safety seat with combination lap/shoulder belts:

• Use the correct safety belt buckle for that seating position.

• Insert the belt tongue into the proper buckle until you hear a snap

and feel it latch. Make sure the tongue is securely fastened in the buckle.

Page 21

20 Child Safety

• Keep the buckle release button pointing up and away from the safety seat, with the tongue between the child seat and the release button, to prevent accidental unbuckling.

• Place the vehicle seat upon which the child seat will be installed in the upright position.

• Put the safety belt in the automatic locking mode. See Step 5. This vehicle does not require the use of a locking clip.

Perform the following steps when installing the child seat with combination lap and shoulder belts:

Note: Although the child seat illustrated is a forward facing child seat, the steps are the same for installing a rear facing child seat.

1. Position the child safety seat in a seat with a combination lap and shoulder belt.

2. Pull down on the shoulder belt and then grasp the shoulder belt and lap belt together.

Page 22

Child Safety 21

3. While holding the shoulder and lap belt portions together, route the tongue through the child seat according to the child seat manufacturer’s instructions. Be sure the belt webbing is not twisted.

4. Insert the belt tongue into the proper buckle (the buckle closest to the direction the tongue is coming from) for that seating position until you hear a snap and feel the latch engage. Make sure the tongue is latched securely by pulling on it.

5. To put the retractor in the automatic locking mode, grasp the shoulder portion of the belt and pull downward until all of the belt is pulled out.

Note: The automatic locking mode is available on the front passenger and rear seats. This vehicle does not require the use of a locking clip.

6. Allow the belt to retract to remove slack. The belt will click as it

retracts to indicate it is in the automatic locking mode.

7. Try to pull the belt out of the retractor to make sure the retractor is

in the automatic locking mode (you should not be able to pull more belt out). If the retractor is not locked, unbuckle the belt and repeat Steps 5 and 6.

Page 23

22 Child Safety

8. Remove remaining slack from the belt. Force the seat down with extra weight, for example, by pressing down or kneeling on the child restraint while pulling up on the shoulder belt in order to force slack from the belt.

This is necessary to remove the remaining slack that will exist once the extra weight of the child is added to the child restraint. It also helps to achieve the proper snugness of the child seat to your vehicle. Sometimes, a slight lean toward the buckle will provide extra help to remove remaining slack from the belt.

9. Attach the tether strap (if the child seat is equipped). See Using

Tether Straps in this chapter.

10. Before placing the child in the seat, forcibly move the seat forward and back to make sure the seat is securely held in place.

To check this, grab the seat at the belt path and attempt to move it side to side and forward and back. There should be no more than 1 inch (2.5 centimeters) of movement for proper installation.

Ford recommends checking with a NHTSA Certified Child Passenger Safety Technician to make certain the child restraint is properly installed. In Canada, check with your local St. John Ambulance office for referral to a Child Passenger Safety Technician.

Page 24

Child Safety 23

Using Lower Anchors and Tethers for CHildren (LATCH)

WARNING: Never attach two child safety seats to the same

anchor. In a crash, one anchor may not be strong enough to hold two child safety seat attachments and may break, causing serious injury or death.

The LATCH system is composed of three vehicle anchor points: two lower anchors located where the vehicle seatback and seat cushion meet (called the seat bight) and one top tether anchor located behind that seating position.

LATCH compatible child safety seats have two rigid or webbing mounted attachments that connect to the two lower anchors at the LATCH equipped seating positions in your vehicle. This type of attachment method eliminates the need to use safety belts to attach the child seat, however the safety belt can still be used to attach the child seat. For forward-facing child seats, the top tether strap must also be attached to the proper top tether anchor, if a top tether strap has been provided with your child seat. Ford Motor Company recommends the use of a child safety seat having a top tether strap. See Using Tether Straps in this chapter.

Your vehicle has LATCH lower anchors for child seat installation at the seating positions marked with the child seat symbol.

Page 25

24 Child Safety

The LATCH anchors are located at the rear section of the rear seat between the cushion and seatback, below the locator symbols on the seatback. Follow the child seat manufacturer’s instructions to properly install a child seat with LATCH attachments.

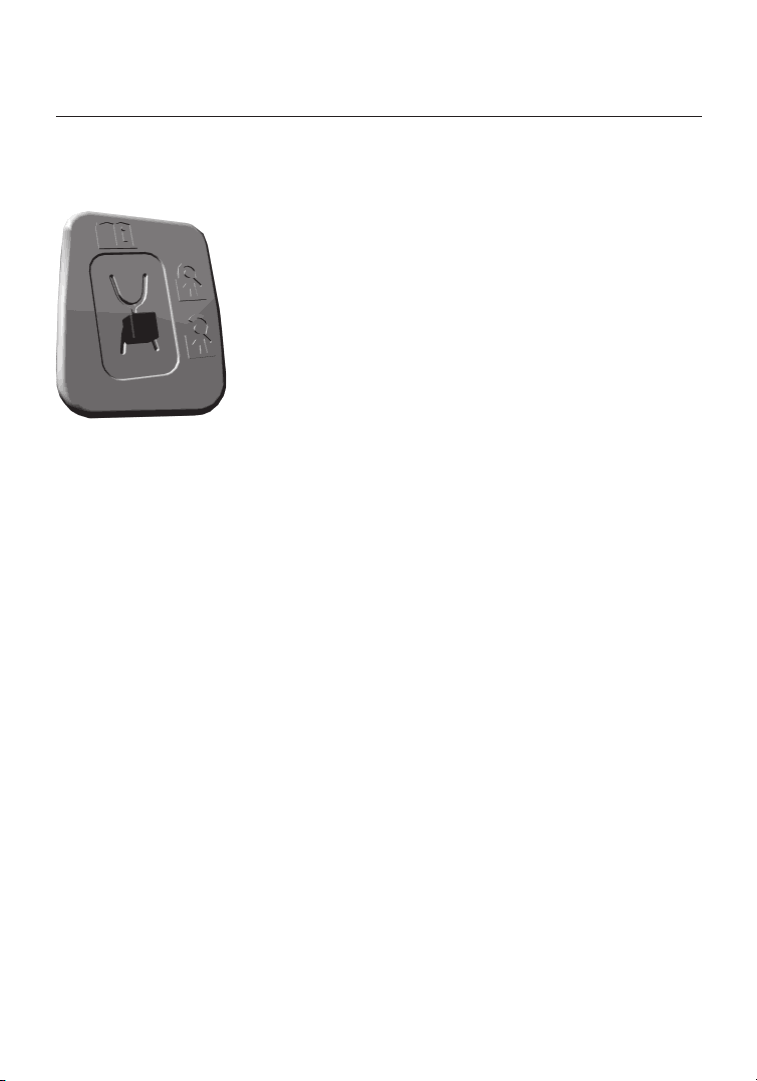

The locator symbols are on round plastic buttons for the center seat and on rectangular tags for the outboard seats.

Follow the instructions on attaching child safety seats with tether straps. See Using Tether Straps in this chapter.

Attach LATCH lower attachments of the child seat only to the anchors shown.

Each time you use the safety seat, check that the seat is properly attached to the lower anchors and tether anchor, if applicable. Tug the child seat from side to side and forward and back where it is secured to the vehicle. The seat should move less than one inch when you do this for a proper installation.

If the safety seat is not anchored properly, the risk of a child being injured in a crash greatly increases.

Combining Safety Belt and LATCH Lower Anchors for Attaching Child Safety Seats

When used in combination, either the safety belt or the LATCH lower anchors may be attached first, provided a proper installation is achieved. Attach the tether strap afterward, if included with the child seat.

Page 26

Child Safety 25

Using Tether Straps

Many forward-facing child safety seats include a tether strap which extends from the back of the child safety seat and hooks to an anchoring point called the top tether anchor.

Tether straps are available as an accessory for many older safety seats. Contact the manufacturer of your child seat for information about ordering a tether strap, or to obtain a longer tether strap if the tether strap on your safety seat does not reach the appropriate top tether anchor in the vehicle.

Some of the rear seats of your vehicle are equipped with built-in tether strap anchors located behind the seats as described below.

In the third row center seating position, the tether anchor is a loop at the bottom of the seat back.

The tether strap anchors in your vehicle are in the following positions (shown from top view).

• Second row bench seat

• Second row bucket seats

Attach the tether strap only to the appropriate tether anchor as shown. The tether strap may not work properly if attached somewhere other than the correct tether anchor.

Once the child safety seat has been installed using either the safety belt, the lower anchors of the LATCH system, or both, you can attach the top tether strap.

Page 27

26 Child Safety

If you install a child seat with rigid LATCH attachments, and have attached the top tether strap to the proper top tether anchor, do not tighten the tether strap enough to lift the child seat off the vehicle seat cushion when the child is seated in it. Keep the tether strap just snug without lifting the front of the child seat. Keeping the child seat just touching the vehicle seat gives the best protection in a severe crash.

Perform the following steps to install a child safety seat with tether anchors:

Second row seating positions

1. For center seating positions, route the child safety seat tether strap over the back of the seat.

For outboard seating positions, route the tether strap under the head restraint and between the head restraint posts. If the top of the safety seat hits the head restraint, recline the seat back slightly to obtain proper fit.

2. Locate the correct anchor for the selected seating position.

• Second row outboard seating positions

• Second row center seating position (if equipped)

Page 28

Child Safety 27

3. Grasp the tether strap and

position it to the seat frame.

4. Rotate the tether strap, and clip

the tether strap to the anchor on the seat frame.

5. Rotate the tether strap clip.

6. Tighten the child safety seat tether strap according to the manufacturer’s instructions.

Page 29

28 Child Safety

Third row center seating position

1. Route the child safety seat tether strap over the back of the seat.

2. Locate the anchor webbing loop for the seating position.

• You may need to pull back the top of the hinged panel along the bottom of the seat back to access the tether anchor.

3. Clip the tether strap through the anchor loop as shown. If the tether

strap is clipped incorrectly, the child safety seat may not be retained properly in the event of a crash.

Page 30

Child Safety 29

4. Tighten the child safety seat tether strap according to the manufacturer’s instructions. If the safety seat is not anchored properly, the risk of a child being injured in a crash greatly increases.

If your child restraint system is equipped with a tether strap, and the child restraint manufacturer recommends its use, Ford also recommends its use.

BOOSTER SEATS

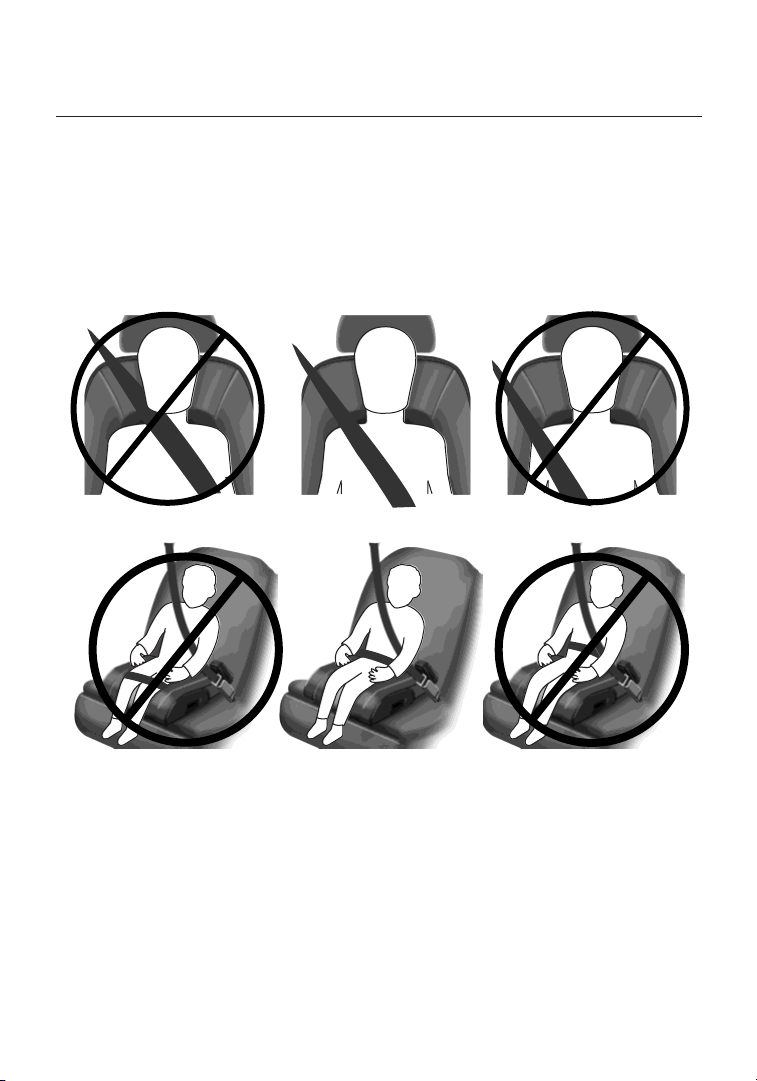

WARNING: Never place, or allow a child to place, the shoulder

belt under a child’s arm or behind the back because it reduces the protection for the upper part of the body and may increase the risk of injury or death in a crash.

Use a belt-positioning booster seat for children who have outgrown or no longer properly fit in a child safety seat (generally children who are less than 4 feet 9 inches (1.45 meters) tall, are greater than age four (4) and less than age twelve (12), and between 40 pounds (18 kilograms) and 80 pounds (36 kilograms) and upward to 100 pounds (45 kilograms) if recommended by your child restraint manufacturer). Many state and provincial laws require that children use approved booster seats until they reach age eight (8), a height of 4 feet 9 inches (1.45 meters) tall, or 80 pounds (36 kilograms).

Booster seats should be used until you can answer YES to ALL of these questions when the child is seated without a booster seat.

• Can the child sit all the way back against their vehicle seat with knees bent comfortably at the edge of the seat cushion?

• Can the child sit without slouching?

Page 31

30 Child Safety

• Does the lap belt rest low across the hips?

• Is the shoulder belt centered on the shoulder and chest?

• Can the child stay seated like this for the whole trip?

Always use booster seats in conjunction with your vehicle lap and shoulder belt.

Types of Booster Seats

• Backless booster seats

If your backless booster seat has a removable shield, remove the shield. If a vehicle seating position has a low seatback or no head restraint, a backless booster seat may place your child’s head (as measured at the tops of the ears) above the top of the seat. In this case, move the backless booster to another seating position with a higher seatback or head restraint and lap and shoulder belts, or consider using a high back booster seat.

• High back booster seats

If, with a backless booster seat, you cannot find a seating position that adequately supports your child’s head, a high back booster seat would be a better choice.

Page 32

Child Safety 31

Children and booster seats vary in size and shape. Choose a booster that keeps the lap belt low and snug across the hips, never up across the stomach, and lets you adjust the shoulder belt to cross the chest and rest snugly near the center of the shoulder. The following drawings compare the ideal fit (center) to a shoulder belt uncomfortably close to the neck and a shoulder belt that could slip off the shoulder. The drawings also show how the lap belt should be low and snug across the child’s hips.

If the booster seat slides on the vehicle seat upon which it is being used, placing a rubberized mesh sold as shelf or carpet liner under the booster seat may improve this condition. Do not introduce any item thicker than this under the booster seat. Check with the booster seat manufacturer’s instructions.

Page 33

32 Child Safety

CHILD SEAT POSITIONING

WARNING: Airbags can kill or injure a child in a child seat.

Never place a rear-facing child seat in front of an active airbag. If you must use a forward-facing child seat in the front seat, move the vehicle seat upon which the child seat is installed all the way back. When possible, all children age 12 and under should be properly restrained in a rear seating position. If all children cannot be seated and restrained properly in a rear seating position, properly restrain the largest child in the front seat.

WARNING: Always carefully follow the instructions and

warnings provided by the manufacturer of any child restraint to determine if the restraint device is appropriate for your child’s size, height, weight, or age. Follow the child restraint manufacturer’s instructions and warnings provided for installation and use in conjunction with the instructions and warnings provided by your vehicle manufacturer. A safety seat that is improperly installed or utilized, is inappropriate for your child’s height, age or weight, or does not properly fit the child, may increase the risk of serious injury or death.

WARNING: Never let a passenger hold a child on his or her lap

while your vehicle is moving. The passenger cannot protect the child from injury in a crash, which may result in serious injury or death.

WARNING: Never use pillows, books, or towels to boost a child.

They can slide around and increase the likelihood of injury or death in a crash.

WARNING: Always restrain an unoccupied child seat or booster

seat. These objects may become projectiles in a crash or sudden stop, which may increase the risk of serious injury.

Page 34

Child Safety 33

WARNING: Never place, or allow a child to place, the shoulder

belt under a child’s arm or behind the back because it reduces the protection for the upper part of the body and may increase the risk of injury or death in a crash.

WARNING: To avoid risk of injury, do not leave children or pets

unattended in your vehicle.

Recommendations for attaching child safety restraints for children

Use any attachment method as indicated

belowbyX.

LATCH

Combined Restraint Ty pe

Rear-facing child seat

Forward-facing child seat

Note: The child seat must rest tightly against the vehicle seat upon which it is installed. It may be necessary to lift or remove the head restraint. See the Seats chapter for information on head restraints.

weight of child and

child seat

Up to 65 lb (29.5 kg)

Over 65 lb (29.5 kg)

Up to 65 lb (29.5 kg)

Over 65 lb (29.5 kg)

(lower anchors and top tether anchor)

LATCH (lower anchors only)

XXX

Safety belt and top tether anchor

Safety belt and LATCH (lower anchors and top tether anchor)

Safety belt only

Page 35

34 Child Safety

CHILD SAFETY LOCKS

When these locks are set, the rear doors cannot be opened from the inside.

The childproof locks are located on the rear edge of each rear door and must be set separately for each door.

Move the lock control up to engage the childproof lock.

Move it down to disengage the lock.

Page 36

Safety Belts 35

PRINCIPLES OF OPERATION

WARNING: Always drive and ride with your seat back upright and the lap belt snug and low across the hips.

WARNING: To reduce the risk of injury, make sure children sit where they can be properly restrained.

WARNING: Never let a passenger hold a child on his or her lap while the vehicle is moving. The passenger cannot protect the

child from injury in a crash.

WARNING: All occupants of the vehicle, including the driver,

should always properly wear their safety belts, even when an airbag supplemental restraint system is provided. Failure to properly wear your safety belt could seriously increase the risk of injury or death.

WARNING: It is extremely dangerous to ride in a cargo area,

inside or outside of a vehicle. In a crash, people riding in these areas are more likely to be seriously injured or killed. Do not allow people to ride in any area of your vehicle that is not equipped with seats and safety belts. Be sure everyone in your vehicle is in a seat and using a safety belt properly.

WARNING: In a rollover crash, an unbelted person is

significantly more likely to die than a person wearing a safety belt.

WARNING: Each seating position in your vehicle has a specific

safety belt assembly which is made up of one buckle and one tongue that are designed to be used as a pair. 1) Use the shoulder belt on the outside shoulder only. Never wear the shoulder belt under the arm. 2) Never swing the safety belt around your neck over the inside shoulder. 3) Never use a single belt for more than one person.

Page 37

36 Safety Belts

WARNING: When possible, all children 12 years old and under

should be properly restrained in a rear seating position. Failure to follow this could seriously increase the risk of injury or death.

WARNING: Safety belts and seats can become hot in a vehicle

that has been closed up in sunny weather; they could burn a small child. Check seat covers and buckles before you place a child anywhere near them.

WARNING: Front and rear seat occupants, including pregnant

women, should wear safety belts for optimum protection in an accident.

All seating positions in this vehicle have lap and shoulder safety belts. All occupants of the vehicle should always properly wear their safety belts, even when an airbag supplemental restraint system is provided.

The safety belt system consists of:

• Lap and shoulder safety belts.

• Shoulder safety belt with automatic locking mode, (except driver

safety belt).

• Height adjuster at the front outboard seating positions.

• Safety belt pretensioner at the front outboard seating positions.

• Safety belt warning light and chime. See Safety Belt

Warning Light and Indicator Chime later in this chapter.

• Crash sensors and monitoring system with readiness indicator. See Crash Sensors and Airbag Indicator in the Supplemental Restraints System chapter.

The safety belt pretensioners are designed to activate in frontal, near-frontal and side crashes, and in rollovers. The safety belt pretensioners at the front seating positions are designed to tighten the safety belts firmly against the occupant’s body when activated. This helps increase the effectiveness of the safety belts. In frontal crashes, the safety belt pretensioners can be activated alone or, if the crash is of sufficient severity, together with the front airbags.

Page 38

Safety Belts 37

FASTENING THE SAFETY BELTS

The front outboard and rear safety restraints in your vehicle are combination lap and shoulder belts.

1. Insert the belt tongue into the proper buckle (the buckle closest to the direction the tongue is coming from) until you hear a snap and feel it latch. Make sure the tongue is securely fastened in the buckle.

2. To unfasten, press the release button and remove the tongue from the buckle.

Using Safety Belts During Pregnancy

WARNING: Always ride and drive with your seatback upright

and the safety belt properly fastened. The lap portion of the safety belt should fit snug and be positioned low across the hips. The shoulder portion of the safety belt should be positioned across the chest. Pregnant women should also follow this practice. See the following figure.

Page 39

38 Safety Belts

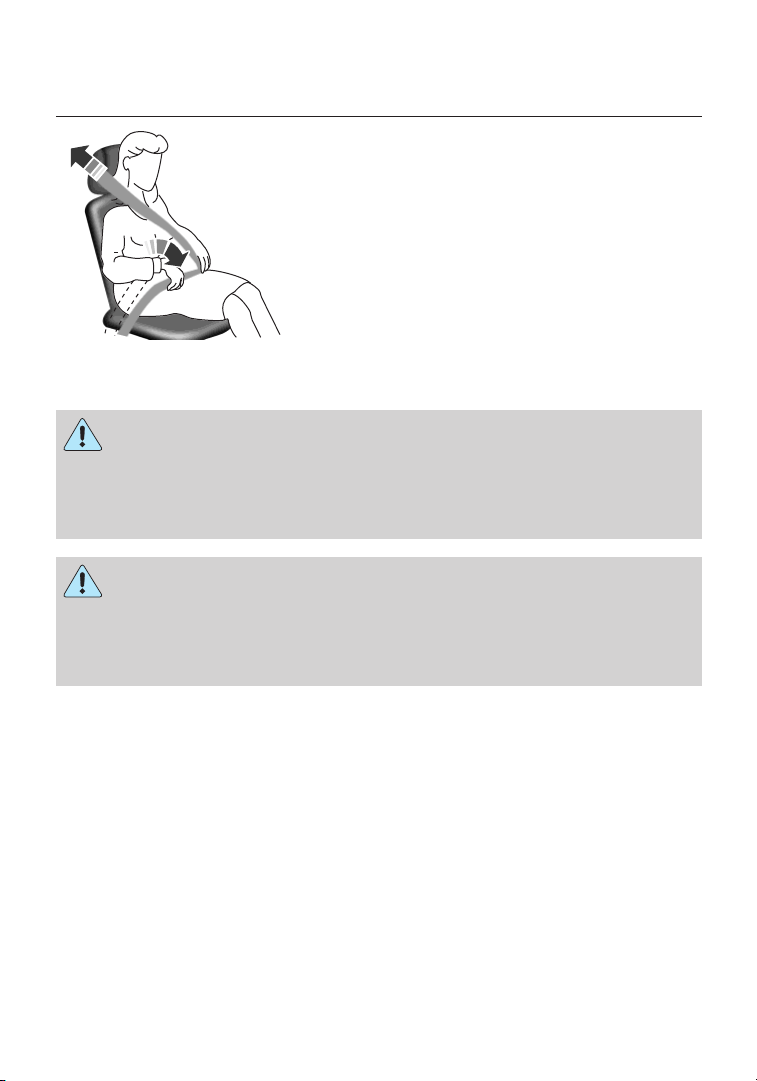

Pregnant women should always wear their safety belts. The lap belt portion of a combination lap and shoulder belt should be positioned low across the hips below the belly and worn as tight as comfort will allow. The shoulder belt should be positioned to cross the middle of the shoulder and the center of the chest.

Safety Belt Locking Modes

WARNING: After any vehicle crash, the safety belt system at all

passenger seating positions must be checked by an authorized dealer to verify that the automatic locking retractor feature for child seats is still functioning properly. In addition, all safety belts should be checked for proper function.

WARNING: The belt and retractor assembly must be replaced if

the safety belt assembly automatic locking retractor feature or any other safety belt function is not operating properly when checked by an authorized dealer. Failure to replace the belt and retractor assembly could increase the risk of injury in crashes.

All safety restraints in the vehicle are combination lap and shoulder belts. The driver safety belt has the first type of locking mode. The front outboard passenger and rear seat safety belts have both types of locking modes described as follows:

Vehicle Sensitive Mode

This is the normal retractor mode, which allows free shoulder belt length adjustment to your movements and locking in response to vehicle movement. For example, if the driver brakes suddenly or turns a corner sharply, or the vehicle receives an impact of about 5 mph (8 km/h) or more, the combination safety belts will lock to help reduce forward movement of the driver and passengers.

In addition, the retractor is designed to lock if the webbing is pulled out too quickly. If this occurs, let the belt retract slightly and pull webbing out again in a slow and controlled manner.

Page 40

Safety Belts 39

Automatic Locking Mode

In this mode, the shoulder belt is automatically pre-locked. The belt will still retract to remove any slack in the shoulder belt. The automatic locking mode is not available on the driver safety belt.

When to Use the Automatic Locking Mode

This mode should be used any time a child safety seat, except a booster, is installed in passenger front or rear seating positions. Children 12 years old and under should be properly restrained in a rear seating position whenever possible. See the Child Safety chapter.

How to Use the Automatic Locking Mode

1. Buckle the combination lap and shoulder belt.

2. Grasp the shoulder portion and pull downward until the entire belt is pulled out.

3. Allow the belt to retract. As the belt retracts, you will hear a clicking sound. This indicates the safety belt is now in the automatic locking mode.

How to Disengage the Automatic Locking Mode

Unbuckle the combination lap and shoulder belt and allow it to retract completely to disengage the automatic locking mode and activate the vehicle sensitive (emergency) locking mode.

Safety Belt Extension Assembly

WARNING: Do not use extensions to change the fit of the

shoulder belt across the torso.

If the safety belt is too short when fully extended, you can obtain a safety belt extension assembly from an authorized dealer.

Use only extensions manufactured by the same supplier as the safety belt. Manufacturer identification is on a label located either at the end of the webbing or on the retractor behind the trim. Also, use the safety belt extension only if the safety belt is too short for you when fully extended.

Page 41

40 Safety Belts

SAFETY BELT HEIGHT ADJUSTMENT

WARNING: Position the safety belt height adjusters so that the

belt rests across the middle of your shoulder. Failure to adjust the safety belt properly could reduce the effectiveness of the seat belt and increase the risk of injury in a crash.

Adjust the height of the shoulder belt so the belt rests across the middle of your shoulder.

To adjust the shoulder belt height:

1. Squeeze the side release buttons and slide the height adjuster up or down.

2. Pull down on the height adjuster to make sure it is locked in place.

Second Row Comfort Guide

WARNING: Position the safety belt comfort guide so that the

belt rests across the middle of your shoulder. Failure to adjust the safety belt properly could reduce the effectiveness of the safety belt and increase the risk of injury in a crash.

The second row outboard lap and shoulder belt is equipped with a belt comfort guide. This guide is attached to the quarter trim panel. Use it to adjust the comfort of the shoulder belt for smaller occupants in the outboard second row seats.

Page 42

Safety Belts 41

To adjust the comfort guide:

1. Slip the shoulder belt into the belt guide (the portion of the belt between the latch tongue and the D-ring, not the portion where the belt exits from the quarter trim panel).

2. Slide the guide up or down along the webbing so that the belt is centered on the occupant’s shoulder.

SAFETY BELT WARNING LIGHT AND INDICATOR CHIME

This lamp illuminates and an audible warning will sound if the driver’s safety belt has not been fastened when the vehicle’s ignition is turned on.

Conditions of Operation

If... Then...

The driver safety belt is not buckled before the ignition switch is turned to the on position...

The driver safety belt is buckled while the indicator light is illuminated and the warning chime is sounding...

The driver safety belt is buckled before the ignition switch is turned to the on position...

The safety belt warning light illuminates 1-2 minutes and the warning chime sounds 4-8 seconds.

The safety belt warning light and warning chime turn off.

The safety belt warning light and indicator chime remain off.

Page 43

42 Safety Belts

SAFETY BELT-MINDER™

This feature supplements the safety belt warning function by providing additional reminders that intermittently sound a tone and illuminate the safety belt warning light when you are in the driver seat and the safety belt is unbuckled.

If... Then...

You buckle your safety belt before you switch the ignition on or less than 1-2 minutes elapse after you switch the ignition on...

You do not buckle your safety belt before your vehicle reaches at least 6 mph (9.7 km/h) and 1-2 minutes elapse after you switch the ignition...

The driver safety belt is unbuckled for about one minute while the vehicle is traveling at least 6 mph (9.7 km/h) and more than 1-2 minutes elapse after you switch the ignition on...

The Belt-Minder feature will not activate.

The Belt-Minder feature activates, the safety belt warning light illuminates and a warning tone sounds for 6 seconds every 25 seconds, repeating for about 5 minutes or until you buckle your safety belt.

Deactivating and Activating the Belt-Minder™ Feature

WARNING: While the system allows you to deactivate it, this

system is designed to improve your chances of being safely belted and surviving an accident. We recommend you leave the system activated for yourself and others who may use the vehicle.

Read Steps1-4thoroughly before proceeding with the programming procedure.

Before following the procedure, make sure that:

• The parking brake is set.

• The transmission is in park (P).

Page 44

Safety Belts 43

• The ignition is off.

• All vehicle doors are closed.

• The driver safety belt is unbuckled.

1. Switch the ignition on. Do not start the vehicle.

2. Wait until the safety belt warning light turns off (about 1 to 2 minutes).

• You must complete Steps 3 and 4 within 60 seconds or you will have to repeat the procedure.

3. Buckle then unbuckle the safety belt three times, ending with the

safety belt unbuckled. The safety belt warning light will turn on.

4. Within seven seconds of the safety belt warning light turning off,

buckle then unbuckle the safety belt. The safety belt warning light will flash.

This will switch the feature off if it is currently on. This will switch the feature on if it is currently off.

CHILD RESTRAINT AND SAFETY BELT MAINTENANCE

Inspect the vehicle safety belts and child safety seat systems periodically to make sure they work properly and are not damaged. Inspect the vehicle and child seat safety belts to make sure there are no nicks, tears or cuts. Replace if necessary. All vehicle safety belt assemblies, including retractors, buckles, front safety belt buckle assemblies, buckle support assemblies (slide bar-if equipped), shoulder belt height adjusters (if equipped), shoulder belt guide on seat back (if equipped), child safety seat LATCH and tether anchors, and attaching hardware, should be inspected after a crash. Read the child restraint manufacturer’s instructions for additional inspection and maintenance information specific to the child restraint.

Ford Motor Company recommends that all safety belt assemblies in use in vehicles involved in a crash be replaced. However, if the crash was minor and an authorized dealer finds that the belts do not show damage and continue to operate properly, they do not need to be replaced. Safety belt assemblies not in use during a crash should also be inspected and replaced if either damage or improper operation is noted.

For proper care of soiled safety belts, see Cleaning the Interior in the Vehicle Care chapter.

Page 45

44 Supplementary Restraints System

PRINCIPLES OF OPERATION

WARNING: Airbags do not inflate slowly or gently, and the risk of injury from a deploying airbag is the greatest close to the trim

covering the airbag module.

WARNING:

WARNING: Airbags can kill or injure a child in a child seat.

Always transport children 12 years old and under in the back seat and always properly use appropriate child restraints.

WARNING: Never place your arm over the airbag module, as a

deploying airbag can result in serious arm fractures or other injuries.

WARNING: Airbags can kill or injure a child in a child seat.

WARNING: Do not attempt to service, repair, or modify the

airbag supplemental restraint systems or its fuses as you could be seriously injured or killed. Contact your authorized dealer as soon as possible.

WARNING: Several airbag system components get hot after

inflation. Do not touch them after inflation as this may result in serious injury.

All occupants of your vehicle, including the driver,

WARNING:

again and must be replaced immediately. If the airbag is not replaced, the unrepaired area will increase the risk of injury in a crash.

If the airbag has deployed, the airbag will not function

Page 46

Supplementary Restraints System 45

The airbags are a supplemental restraint system and are designed to work with the safety belts to help protect the driver and right front passenger from certain upper body injuries. Airbags do not inflate slowly; there is a risk of injury from a deploying airbag.

Note: You will hear a loud bang and see a cloud of harmless powdery residue if an airbag deploys. This is normal.

The airbags inflate and deflate rapidly upon activation. After airbag deployment, it is normal to notice a smoke-like, powdery residue or smell the burnt propellant. This may consist of cornstarch, talcum powder (to lubricate the bag) or sodium compounds (for example, baking soda) that result from the combustion process that inflates the airbag. Small amounts of sodium hydroxide may be present which may irritate the skin and eyes, but none of the residue is toxic.

While the system is designed to help reduce serious injuries, contact with a deploying airbag may also cause abrasions or swelling. Temporary hearing loss is also a possibility as a result of the noise associated with a deploying airbag. Because airbags must inflate rapidly and with considerable force, there is the risk of death or serious injuries, such as fractures, facial and eye injuries or internal injuries, particularly to occupants who are not properly restrained or are otherwise out of position at the time of airbag deployment. Thus, it is extremely important that occupants be properly restrained as far away from the airbag module as possible while maintaining vehicle control.

Routine maintenance of the airbags is not required.

RESTRAINT SAFETY SYSTEM

The Restraint Safety System provides an improved overall level of frontal crash protection to front seat occupants and is designed to help further reduce the risk of airbag-related injuries. The system is able to analyze different occupant conditions and crash severity before activating the appropriate safety devices to help better protect a range of occupants in a variety of frontal crash situations.

Your vehicle’s Restraint Safety System consists of:

• Driver and passenger dual-stage airbag supplemental restraints.

• Front outboard safety belts with pretensioners, energy management

retractors (first row only), and safety belt usage sensors.

• Driver seat position sensor.

Page 47

46 Supplementary Restraints System

• Front crash severity sensors.

• Restraints control module with impact and safing sensors.

• Restraint system warning light and backup tone.

• The electrical wiring for the airbags, crash sensor(s), safety belt

pretensioners, front safety belt usage sensors, driver seat position sensor, and indicator lights.

How does the Restraint Safety System work?

The Restraint Safety System can adapt the deployment strategy of your vehicle’s safety devices according to crash severity and occupant conditions. A collection of crash and occupant sensors provides information to the restraints control module. During a crash, the restraints control module may activate the safety belt pretensioners and/or either one or both stages of the dual-stage airbag supplemental restraints based on crash severity and occupant conditions.

SOS POST-CRASH ALERT SYSTEM™

The system flashes the direction indicator lamps and the horn sounds (intermittently) in the event of a serious impact that deploys an airbag equipped on your vehicle.

The horn and lamps turn off when:

• You press the hazard button.

• You press the panic button (if equipped) on the remote entry

transmitter.

• Your vehicle runs out of power.

Page 48

Supplementary Restraints System 47

DRIVER AND PASSENGER AIRBAGS

WARNING: Never place your arm or any objects over an airbag

module. Placing your arm over a deploying airbag can result in serious arm fractures or other injuries. Objects placed on or over the airbag inflation area may cause those objects to be propelled by the airbag into your face and torso causing serious injury.

WARNING: Airbags can kill or injure a child in a child seat.

The driver and front passenger airbags will deploy during significant frontal and near frontal crashes.

The driver and passenger front airbag system consists of:

• Driver and passenger airbag modules.

• Crash sensors and monitoring system with readiness

indicator. See Crash Sensors and Airbag Indicator later in this chapter.

Proper Driver and Front Passenger Seating Adjustment

WARNING:

recommends a minimum distance of at least 10 inches (25 centimeters) between an occupant’s chest and the driver airbag module.

To properly position yourself away from the airbag:

• Move your seat to the rear as far as you can while still reaching the pedals comfortably.

Recline the seat slightly (one or two degrees) from the upright position.

•

The National Highway Traffic Safety Administration

Page 49

48 Supplementary Restraints System

After all occupants have adjusted their seats and put on safety belts, it is very important that they continue to sit properly. Properly seated occupants sit upright, lean against the seat back, and center themselves on the seat cushion, with their feet comfortably extended on the floor. Sitting improperly can increase the chance of injury in a crash event. For example, if an occupant slouches, lies down, turns sideways, sits forward, leans forward or sideways, or puts one or both feet up, the chance of injury during a crash is greatly increased.

Children and Airbags

WARNING: Airbags can kill or injure a child in a child seat.

Children must always be properly restrained. Accident statistics suggest that children are safer when properly restrained in the rear seating positions than in the front seating position. Failure to follow these instructions may increase the risk of injury in a crash.

SIDE AIRBAGS

WARNING: Do not place objects or mount equipment on or near

the airbag cover, on the side of the seatbacks (of the front seats), or in front seat areas that may come into contact with a deploying airbag. Failure to follow these instructions may increase the risk of personal injury in the event of a crash.

WARNING: Do not use accessory seat covers. The use of

accessory seat covers may prevent the deployment of the side airbags and increase the risk of injury in an accident.

Page 50

Supplementary Restraints System 49

WARNING: Do not lean your head on the door. The side airbag

could injure you as it deploys from the side of the seatback.

WARNING: Do not attempt to service, repair, or modify the

airbag, its fuses or the seat cover on a seat containing an airbag, as you could be seriously injured or killed. Contact your authorized dealer as soon as possible.

WARNING: If the side airbag has deployed, the airbag will not

function again. The side airbag system (including the seat) must be inspected and serviced by an authorized dealer. If the airbag is not replaced, the unrepaired area will increase the risk of injury in a crash.

The side airbags are located on the outboard side of the seatbacks of the front seats. In certain sideways crashes, the airbag on the side affected by the crash will be inflated. The airbag was designed to inflate between the door panel and occupant to further enhance the protection provided occupants in side impact crashes.

The system consists of the following:

• A label or embossed side panel indicating that side airbags are found on your vehicle.

• Side airbags located inside the seatback of the driver and front passenger seats.

• Crash sensors and monitoring system with readiness indicator. See Crash Sensors and Airbag Indicator later in this chapter.

The design and development of the side airbag system included recommended testing procedures that were developed by a group of automotive safety experts known as the Side Airbag Technical Working Group. These recommended testing procedures help reduce the risk of injuries related to the deployment of side airbags.

Page 51

50 Supplementary Restraints System

SAFETY CANOPY™ CURTAIN AIRBAGS

WARNING: Do not place objects or mount equipment on or near

the headliner at the siderail that may come into contact with a deploying curtain airbag. Failure to follow these instructions may increase the risk of personal injury in the event of a crash.

WARNING: Do not lean your head on the door. The curtain

airbag could injure you as it deploys from the headliner.

WARNING: Do not attempt to service, repair, or modify the

curtain airbags, its fuses, the A, B, or C pillar trim, or the headliner on a vehicle containing curtain airbags, as you could be seriously injured or killed. Contact your authorized dealer as soon as possible.

WARNING: All occupants of your vehicle including the driver

should always wear their safety belts even when an airbag supplemental restraint system and curtain airbag is provided. Failure to properly wear your safety belt could seriously increase the risk of injury or death.

WARNING: To reduce risk of injury, do not obstruct or place

objects in the deployment path of the curtain airbag.

WARNING: If the curtain airbags have deployed, the curtain

airbags will not function again. The curtain airbags (including the A, B and C pillar trim and headliner) must be inspected and serviced by an authorized dealer. If the curtain airbag is not replaced, the unrepaired area will increase the risk of injury in a crash.

Page 52

Supplementary Restraints System 51

The Safety Canopy will deploy during significant side crashes or when a certain likelihood of a rollover event is detected by the rollover sensor. The Safety Canopy is mounted to the roof side-rail sheet metal, behind the headliner, above each row of seats. In certain sideways crashes or rollover events, the Safety Canopy will be activated, regardless of which seats are occupied. The Safety Canopy is designed to inflate between the side window area and occupants to further enhance protection provided in side impact crashes and rollover events.

The system consists of:

• Safety canopy curtain airbags located above the trim panels over the front and rear side windows identified by wording on the B-pillar trim.

• A flexible headliner which opens above the side doors to allow air curtain deployment.

• Crash sensors and monitoring system with readiness indicator. See Crash Sensors and Airbag Indicator in this chapter.

Children 12 years old and under should always be properly restrained in the rear seats. The Safety Canopy will not interfere with children restrained using a properly installed child or booster seat because it is designed to inflate downward from the headliner above the doors along the side window opening.

The design and development of the Safety Canopy included recommended testing procedures that were developed by a group of automotive safety experts known as the Side Airbag Technical Working Group. These recommended testing procedures help reduce the risk of injuries related to the deployment of side airbags (including the Safety Canopy).

Page 53

52 Supplementary Restraints System

CRASH SENSORS AND AIRBAG INDICATOR

WARNING: Modifying or adding equipment to the front end of

your vehicle (including frame, bumper, front end body structure and tow hooks) may affect the performance of the airbag system, increasing the risk of injury. Do not modify the front end of your vehicle.

Your vehicle has a collection of crash and occupant sensors which provide information to the restraints control module. The restraints control module deploys (activates) the front safety belt pretensioners, driver airbag, passenger airbag, seat mounted side airbags, and the Safety Canopy. Based on the type of accident (frontal impact, side impact or rollover) the restraints control module will deploy the appropriate safety devices.

The restraints control module also monitors the readiness of the above safety devices plus the crash and occupant sensors. The readiness of the safety system is indicated by a warning indicator light in the instrument cluster or by a backup tone if the warning light is not working. See the Instrument Cluster chapter. Routine maintenance of the airbag is not required.

A difficulty with the system is indicated by one or more of the following:

• The readiness light will either flash or stay lit.

• The readiness light will not illuminate immediately after the

ignition is turned on.

• A series of five beeps will be heard. The tone pattern will repeat periodically until the problem or light are repaired.

If any of these things happen, even intermittently, have the supplemental restraint system serviced at an authorized dealer immediately. Unless serviced, the system may not function properly in the event of a crash.

The safety belt pretensioners and the airbag supplemental restraint system are designed to activate when the vehicle sustains frontal or sideways deceleration sufficient to cause the restraints control module to deploy a safety device or when a certain likelihood of a rollover event is detected by the rollover sensor.

Page 54

Supplementary Restraints System 53

The fact that the safety belt pretensioners or airbags did not activate for both front seat occupants in a crash does not mean that something is wrong with the system. Rather, it means the restraints control module determined the accident conditions (for example, crash severity, belt usage) were not appropriate to activate these safety devices.

• The design of the front airbags is to activate only in frontal and near-frontal crashes (not rollovers, side impacts or rear impacts) unless the crash causes sufficient frontal deceleration.

• The design of the safety belt pretensioners is to activate in frontal, near-frontal and side crashes, and in rollovers.

• The design of the side airbags is to inflate in certain side impact crashes. Side airbags may activate in other types of crashes if the vehicle experiences sufficient sideways motion or deformation.

• The design of the Safety Canopy is to inflate in certain side impact crashes or rollover events. The Safety Canopy may activate in other types of crashes if the vehicle experiences sufficient sideways motion or deformation, or a certain likelihood of rollover.

AIRBAG DISPOSAL

Contact your authorized dealer as soon as possible. Airbags must be disposed of by qualified personnel.

Page 55

54 Keys and Remote Control

PRINCIPLE OF OPERATION

The remote control allows you to:

• remotely lock or unlock the vehicle doors

• remotely open the power liftgate (if equipped)

• remotely start or stop the engine (if equipped)

• arm and disarm the anti-theft system (if equipped)

• activate the panic alarm

GENERAL INFORMATION ON RADIO FREQUENCIES

This device complies with part 15 of the FCC Rules and with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

Note: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. The term IC before the radio certification number only signifies that Industry Canada technical specifications were met.

The typical operating range for your transmitter is approximately 33 feet (10 meters). Vehicles with the remote start feature will have a greater range. A decrease in operating range could be caused by:

• weather conditions

• nearby radio towers

• structures around your vehicle

• other vehicles parked next to your vehicle.

The radio frequency used by your remote control can also be used by other short-distance radio transmissions, for example amateur radios, medical equipment, wireless headphones, remote controls and alarm systems. If the frequencies are jammed, you will not be able to use your remote control. You can lock and unlock the doors with the key.

Note: Make sure your vehicle is locked before leaving it unattended. Note: If you are in range, the remote control will operate if you press

any button unintentionally.

Page 56

Keys and Remote Control 55

Intelligent Access (If Equipped)

The system uses a radio frequency signal to communicate with your vehicle and authorize your vehicle to unlock when one of the following conditions is met:

• You touch any button on the keypad.

• You press a button on the transmitter.

If excessive radio frequency interference is present in the area or if the transmitter battery is low, it may be necessary to mechanically unlock your door. You can use the mechanical key blade in your intelligent access key to open the driver door in this situation. Refer to Remote Control in this chapter for more information on the location and use of the mechanical key blade.

REMOTE CONTROL

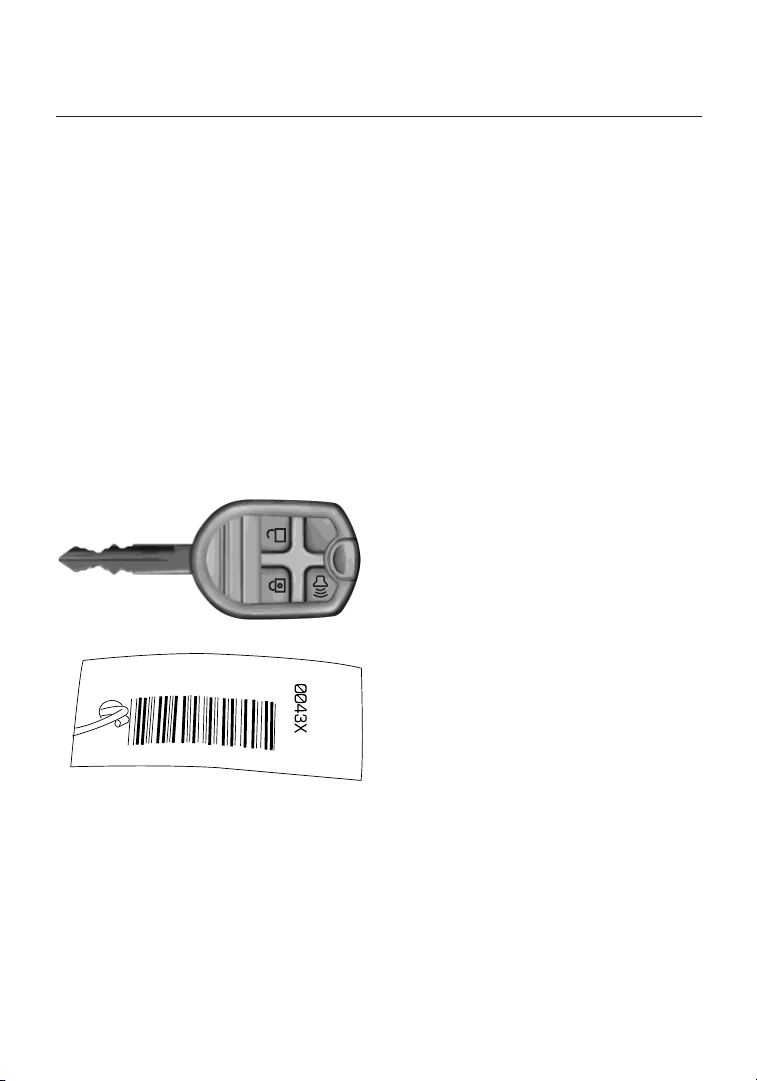

Integrated Keyhead Transmitters (IKTs) (If Equipped)

Use the key blade to start your vehicle and unlock or lock the driver door from outside your vehicle. The transmitter portion functions as the remote control.

Note: Your vehicle’s keys came with

BY CUSTOMER ONLY

TO BE REMOVED

a security label that provides

CAUTION

important key cut information. Keep the label in a safe place for future reference.

Page 57

56 Keys and Remote Control

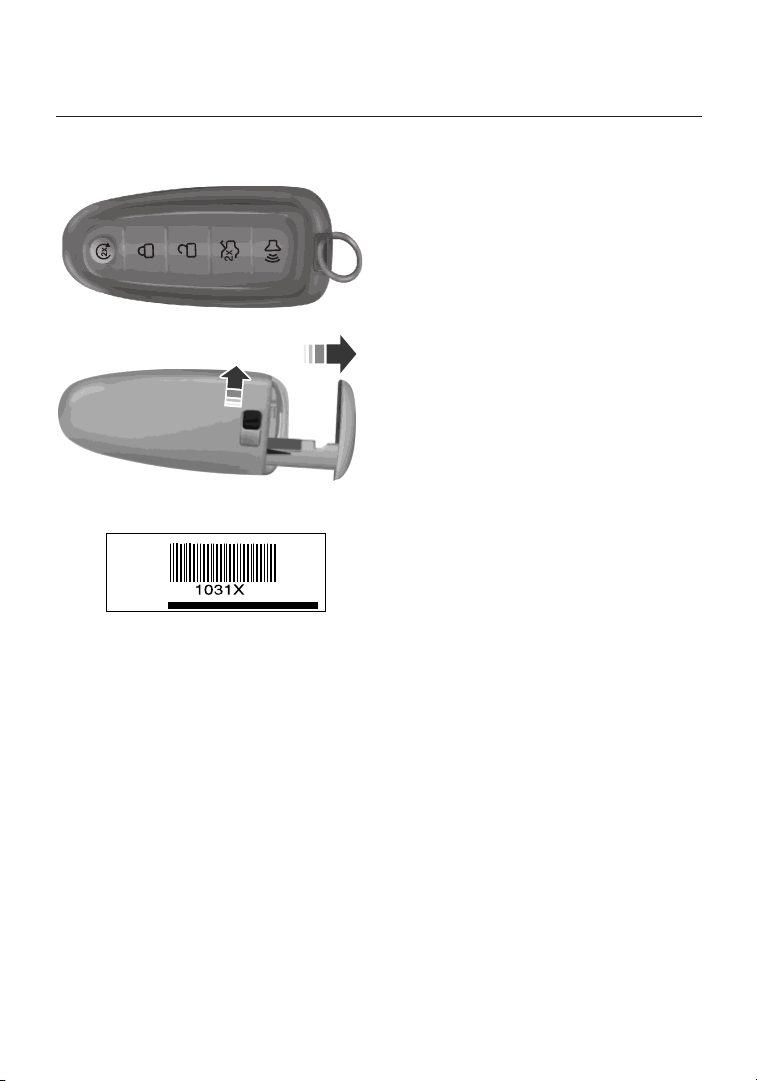

Intelligent Access Key (If Equipped)

Your intelligent access keys operate the power locks and the remote start system. The key must be in your vehicle to activate the push-button start system.

The intelligent access key also contains a removable mechanical key blade that you can use to unlock the driver door. Slide the release on the back of the transmitter to release the key blade, and then pull the blade out.

Note: Your vehicle’s back-up keys came with a security tag that provides important key cut information. Keep the tag in a safe place for future reference.

Replacing the Battery

Note: Refer to local regulations when disposing of transmitter batteries.

Note: Do not wipe off any grease on the battery terminals or on the

back surface of the circuit board.

Note: Replacing the battery will not delete the transmitter from your vehicle. The transmitter should operate normally.

The remote control uses one coin-type three-volt lithium battery CR2032 or equivalent.

Page 58

Keys and Remote Control 57

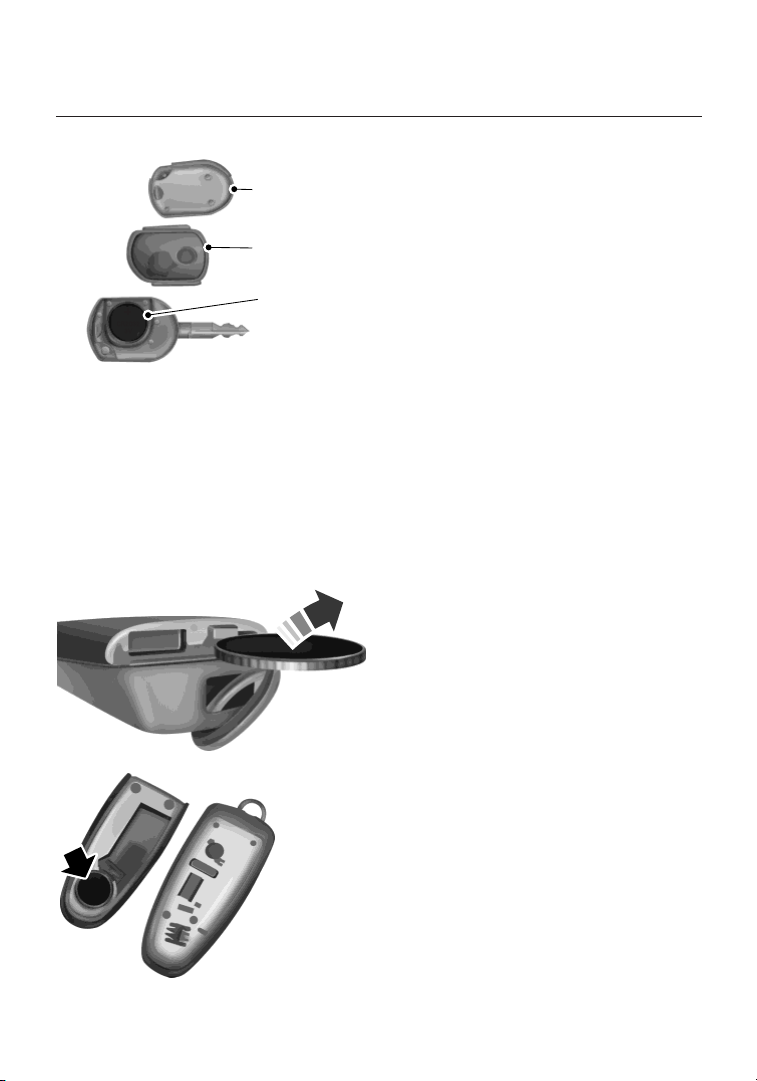

Integrated Keyhead Transmitter

1. Twist a thin coin in the slot near the key

ring to remove the battery cover (1).

2. Carefully peel up the rubber gasket (2) from the transmitter if it does not come off

with the battery cover.

3. Remove the old battery (3).

4. Insert the new battery. Refer to the instructions inside the integrated

keyhead transmitter for the correct orientation of the battery. Press the battery down to ensure that the battery is fully seated in the battery housing cavity.

5. Reinstall the rubber gasket.

6. Snap the battery cover back onto the key.

Intelligent Access Transmitter

1. Remove the backup key from the transmitter.

2. Twist a thin coin under the tab hidden behind the backup key head to remove the battery cover. Do not use the backup key to remove the cover or you could damage the intelligent access key.

3. Remove the old battery.

Page 59

58 Keys and Remote Control

4. Insert a new battery with the + facing downward. Press the battery

down to make sure it is fully in the housing.

5. Snap the battery cover back onto the transmitter and install the

backup key.

Memory Feature (If Equipped)

The memory feature allows you to recall the driver seat, power mirrors, power adjustable pedal and power steering column (if equipped) memory positions.

Press the unlock button on the remote control or activate intelligent access to recall memory. The mirrors and pedals will move to the memory position and the seat and steering column will move to the easy entry position (if you have switched on the easy entry feature). The seat and column will move to the final position when you switch on the ignition.

Programming Memory to the Remote Control

1. Turn the ignition on.

2. Move the memory features to the desired positions using the

4. Press the lock button on the remote control within three seconds.

5. Repeat this procedure for another memory button and transmitter if

desired.

associated controls.

3. Press and hold memory button 1, located on the driver seat side, for five seconds. A tone will sound in about two seconds. Continue to hold until you hear a second tone.

Deactivating Memory from the Remote Control

1. Press and hold the desired memory button for five seconds. You will

hear a tone in about two seconds. Continue to hold until you hear a second tone.

2. Press the unlock button on the remote control.

3. Repeat this procedure for each additional transmitter if desired.

Page 60

Keys and Remote Control 59

Car Finder

Press the button twice within three seconds. The horn will sound and the turn signals will flash. We recommend you use this method to locate your vehicle, rather than using the panic alarm.

Sounding a Panic Alarm

Press the button to activate the alarm. Press the button again or switch the ignition on to deactivate.

Note: The panic alarm will only operate when the ignition is off.

Remote Start (If Equipped)

WARNING: To avoid exhaust fumes, do not use remote start if your vehicle is parked indoors or areas that are not well

ventilated.

Note: Do not use remote start if your vehicle is low on fuel.

The remote start button is on the transmitter.

This feature allows you to start your vehicle from outside your vehicle. The transmitter has an extended operating range.

Vehicles with automatic climate control can be configured to operate when the vehicle is remote started. See the Climate Control chapter for more information. A manual climate control system will run at the setting it was set to when your vehicle was last turned off.

Many states and provinces have restrictions for the use of remote start. Check your local and state or provincial laws for specific requirements regarding remote start systems.

The remote start system will not work if:

• the ignition is on

• the alarm system is triggered

• you disable the feature

• the hood is open

• the transmission is not in P

• the vehicle battery voltage is too low

• the service engine soon light is on.

Page 61

60 Keys and Remote Control

Remote Starting the Vehicle

Note: You must press each button within three seconds of each other. Your vehicle will not remote start and the horn will not sound if you do not follow this sequence.

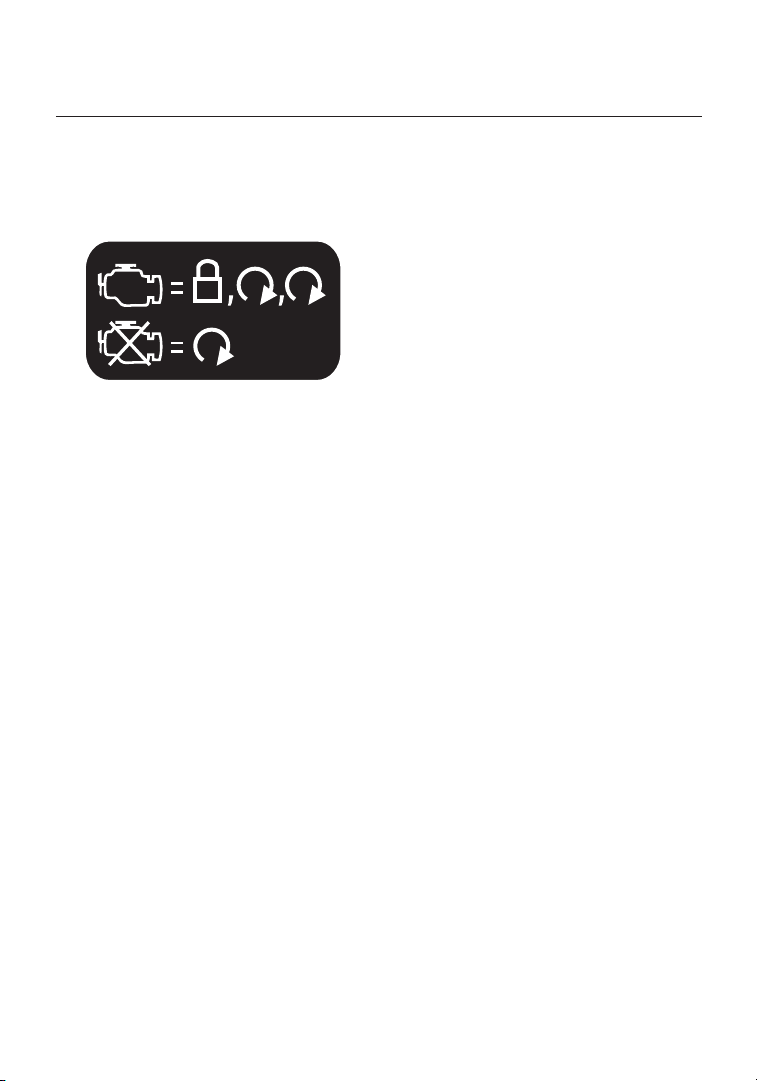

The label on your transmitter details the starting procedure.

To remote start your vehicle:

1. Press the lock button to lock all the doors.

2. Press the remote start button twice. The exterior lamps will flash twice.

The horn will sound if the system fails to start, unless quiet start is on. Quiet start will run the blower fan at a slower speed to reduce noise. You can switch it on or off in the information display. See the Information Displays chapter.

Note: If you remote start your vehicle with an integrated keyhead transmitter, you must switch the ignition on before driving your vehicle. If you remote start your vehicle with an intelligent access transmitter, you must have a programmed intelligent access key inside your vehicle and press the START/STOP button on the instrument panel once while applying the brake pedal before driving your vehicle.

The power windows will not work during the remote start and the radio will not turn on automatically.

The parking lamps will remain on and your vehicle will run for 5, 10, or 15 minutes, depending on the setting. See the Information Displays chapter to select the duration of the remote start system.

Extending the Vehicle Run Time

Repeat Steps 1 and 2 with your vehicle still running to extend the run time for another remote start duration. If the duration is set to last 10 minutes, the duration will extend by another 10 minutes beginning after what is left of the first activation time. For example, if your vehicle had been running from the first remote start for five minutes, your vehicle will continue to run now for a total of 15 minutes.

Wait at least five seconds before remote starting after a vehicle shutdown.

Page 62

Keys and Remote Control 61

Turning the Vehicle Off After Remote Starting

Press the button once. The parking lamps will turn off.

You may have to be closer to your vehicle than when starting due to ground reflection and the added noise of the running vehicle.

You can disable or enable the remote start system through the information display. See the Information Display chapter.

REPLACING A LOST KEY OR REMOTE CONTROL

You can purchase replacement or additional keys or remote controls from an authorized dealer. A dealer can program the transmitters to your vehicle or you may be able to program them yourself. See the Security chapter for information on programming your transmitters.

Page 63

62 MyKey

PRINCIPLES OF OPERATION

MyKey allows you to program keys with restricted driving modes to promote good driving habits. All but one of the keys programmed to the vehicle can be activated with these restricted modes.

Any keys that have not been programmed are referred to as administrator keys or admin keys. These can be used to:

• Create a MyKey.

• Program configurable MyKey settings.

• Clear all MyKey features.

When you have programmed a MyKey, you can access the following information using the information display:

• How many admin keys and MyKeys are programmed to your vehicle.

• The total distance your vehicle has traveled using a MyKey.

Note: All MyKeys are programmed to the same settings. You cannot program them individually.

Note: For vehicles with intelligent access (push-button start), when both a MyKey and an admin transmitter are present, the admin transmitter will be recognized to start the vehicle.

Non-configurable Settings

The following settings cannot be changed by an admin key user:

• Belt-Minder. You cannot disable this feature. The audio system will mute when the front seat occupants’ safety belts are not fastened.

• Early low fuel. The low-fuel warning activates earlier, giving the MyKey user more time to refuel.

• Driver assist features, if equipped on your vehicle, are forced on: traction control, parking aid, blind spot information system (BLIS) with cross traffic alert, lane departure warning and the forward collision warning system.

Configurable Settings

With an admin key, you can configure certain MyKey settings when you first create a MyKey and before you recycle the key or restart the vehicle. You can also change the settings afterward with an admin key.

• A vehicle speed limit can be set. Warnings will be shown in the display followed by an audible tone when your vehicle reaches the set speed. You cannot override the set speed by fully depressing the accelerator pedal or by setting cruise control.

• Various vehicle speed minders can be set. Once you select a speed, it will be shown in the display, followed by an audible tone when the preselected vehicle speed is exceeded.

Page 64

MyKey 63

• Audio system maximum volume of 45% for some audio systems. A message will be shown in the display when you attempt to exceed the limited volume. Also, the speed-sensitive or compensated automatic volume control will be disabled.

• Always on setting. When this is selected, you will not be able to turn off certain features.

CREATING A MYKEY

Use the information display to create a MyKey.

1. Insert the key you want to program into the ignition.

2. Switch the ignition on.

3. Access the main menu on the information display. Press SETUP

using the information display buttons until PRESS RESET TO CREATE MYKEY is displayed.

4. Press and release the RESET button. HOLD RESET TO

CONFIRM MYKEY will be displayed.

5. Press and hold the RESET button for two seconds until MARK

THIS AS RESTRICTED is displayed Wait until KEY RESTRICTED AT NEXT START is displayed.

MyKey is successfully created. Make sure you label it so you can distinguish it from the admin keys.

You can also program configurable settings for the key(s). Refer to Programming/Changing Configurable Settings.

Programming/Changing Configurable Settings

Use the Information display to access your configurable MyKey settings:

Switch the ignition on with an admin key. If your vehicle has keyless

start, place the intelligent access transmitter into the backup slot. The location of your backup slot is in another chapter. See Starting and Stopping the Engine.

2. Access the main menu on the information display controls and press

SETUP until you see RESET FOR MYKEY SETTINGS in the display.

3. Press and release the RESET button to display the MyKey setup menus.

4. Press the SETUP button to display the next menu and scroll through

your choices.

5. Within any of the menus, press RESET to highlight your choice. Use the

arrow buttons to make a selection.

6. Press SETUP to enter your choice. The next configurable setting will

display.

7. Repeat Steps 4 and 5 until you are done changing the configurable

settings.

Page 65

64 MyKey

CLEARING ALL MYKEYS

You can clear all MyKeys within the same key cycle as you created the MyKey. If you switch your ignition off, however, you will need to use an admin key to clear your MyKeys.

Note: When you clear your MyKeys, you remove all restrictions and return all MyKeys to their original admin key status at once.

To clear all MyKeys of all MyKey settings, use the information display to do the following:

1. Press SETUP until you see PRESS RESET TO CLEAR MYKEY in

the display.

2. Press and release the RESET button. You will see HOLD RESET

TO CONFIRM CLEAR in the display.

3. Press and hold the RESET button for two seconds until you see

ALL MYKEYS CLEARED in the display.

CHECKING MYKEY SYSTEM STATUS

You can find information about your programmed MyKeys by using the information display.

MYKEY DISTANCE

Tracks the distance when drivers use a MyKey. The only way to delete the accumulated distance is by using an admin key to clear your MyKey. If the distance does not accumulate as expected, then the intended user is not using the MyKey, or an admin key user recently cleared and then recreated a MyKey.

NUMBER OF MYKEY(S)

Indicates the number of MyKeys programmed to your vehicle. Use this feature to detect how many MyKeys you have for your vehicle and determine when a MyKey has been deleted.

NUMBER OF ADMIN KEY(S)

Indicates how many admin keys are programmed to your vehicle. Use this feature to determine how many unrestricted keys you have for your vehicle, and detect if an additional MyKey has been programmed.

Page 66

MyKey 65

USING MYKEY WITH REMOTE START SYSTEMS

MyKey is not compatible with non-Ford-approved aftermarket remote start systems. If you choose to install a remote start system, please see your Ford authorized dealer for a Ford-approved remote start system .

Vehicles With Ford-approved Aftermarket Remote Start Systems

When using a Ford-approved aftermarket remote start system, the vehicle recognizes the remote start system as an additional admin key. It is the vehicle’s default setting. You can also program the remote start as a MyKey. As a result, the MyKey system status menu display includes the remote start system as an additional key in the total count of MYKEY(S) PROGRAMMED or ADMIN KEYS PROGRAMMED. See Checking MyKey System Status.

When you start your vehicle with a Ford-approved aftermarket remote start system, the system stalls the vehicle after you open the door or shift the vehicle into gear. This is intentional. When you restart your vehicle, it reads your real key’s status instead of the remote start system’s status.

As an added precaution, owners may want to program the remote start system as a MyKey, if the MyKey driver uses the remote start fob. That way, when the MyKey driver starts the vehicle with the remote start system, the MyKey restrictions remain active.

With a Ford-approved aftermarket remote start system, it is possible to program all real keys as MyKeys unintentionally. If this happens, then the remote start fob is the admin key. If you want to have only one real key as a MyKey, or do not want to have any MyKeys, then you need to use your remote start to clear all MyKeys. In that case, follow these steps:

• Enter the vehicle and close all doors.

• Remote start the vehicle using your remote start fob.

• See Clearing All MyKeys. Follow Steps 1-3.

After clearing your MyKeys, you can create a new MyKey. See Creating a MyKey.

Page 67

66 MyKey

Vehicles With Non-Ford-approved Aftermarket Remote Start Systems

MyKey is not compatible with non-Ford-approved aftermarket remote start systems. If you choose to install a remote start system, please see a Ford authorized dealer for a Ford-approved system.

The following information may help customers who choose to install a non-Ford-approved remote start system. The actions provided below do not make MyKey compatible with non-Ford-approved remote start systems, but may help you retain some MyKey functions.

When using a non-Ford-approved remote start system, the vehicle may recognize the remote start system as an additional admin key with its associated privileges. If you restart the vehicle by inserting a key into the ignition cylinder and recycling the ignition completely, then you may retain some MyKey functions. This action forces your vehicle to read the traditional key instead of the remote start fob and then uses the key’s associated privileges.

Note: The MyKey system status menu display may include the remote start system as an additional key in the total count of MYKEY(S)

PROGRAMMED or ADMIN KEYS PROGRAMMED. See Checking MyKey System Status.

With a non-Ford-approved aftermarket remote start system, it is possible to program all real keys as MyKeys unintentionally. If this happens, then the remote start fob is the admin key. If you want to have only one real key as a MyKey, or do not want to have any MyKeys, then you need to use your remote start to clear all MyKeys. In that case, follow these steps:

• Enter the vehicle and close all doors.

• Remote start the vehicle using your remote start fob.

• See Clearing All MyKeys. Follow Steps 1-3.

After clearing your MyKeys, you can create a new MyKey. See Creating a MyKey.

Page 68

MyKey 67

MYKEY TROUBLESHOOTING

Condition Potential causes

I cannot create a MyKey.

I cannot program the configurable settings.

I cannot clear the MyKeys.

• The key or fob used to start the vehicle does not have admin privileges.

• The key or fob used to start the vehicle is the only admin key (there always has to be at least one admin key).

• Vehicles with push button start: The intelligent access key is not positioned correctly next to the steering column or placed in a backup slot. See Starting and Stopping the Vehicle.

• SecuriLock passive anti-theft system is disabled or in unlimited mode.

• The vehicle has been started using a remote start system that is not programmed with admin privileges. See Using MyKey With Remote Start Systems.

• The key or fob used to start the vehicle does not have admin privileges.

• No MyKeys are created. See Creating a MyKey.

• The vehicle has been started using a remote start system that is not programmed with admin privileges. See Using MyKey With Remote Start Systems.

• The key or fob used to start the vehicle does not have admin privileges.

• No MyKeys are created. See Creating a MyKey.

• The vehicle has been started using a remote start system that is not programmed with admin privileges. See Using MyKey With

Remote Start Systems

Page 69

68 MyKey

Condition Potential causes

I lost the only admin key.

I lost a key. • Program a spare key. See SecuriLock in the

I accidentally programmed all keys as MyKeys.

MyKey total includes one additional key.

Admin key total includes one additional key.

MyKey distances do not accumulate.

No MyKey functions with the Intelligent Access key.

• Purchase a new key from your authorized dealer.

Security chapter.

• The vehicle has a remote start system that is recognized as an admin key. Clear all MyKeys by using the remote start. See Using MyKey With Remote Start Systems.

• Your vehicle’s system does not recognize any programmed MyKeys. See Creating a MyKey.

• An unknown key has been created as a MyKey.

• The vehicle has a remote start system. See Using MyKey With Remote Start Systems.

• An unknown key has been programmed to the vehicle as an admin key.

• The vehicle has a remote start system. See Using MyKey With Remote Start Systems.

• The MyKey user is not using the MyKey.

• An admin key holder cleared the MyKeys

and created new MyKeys.

• The key system has been reset.

• An admin fob is present at the vehicle start.

• No MyKeys are created. See Creating a

MyKey.

Page 70

Locks 69

LOCKING AND UNLOCKING

You can use the power door lock control or the remote control to lock and unlock your vehicle.

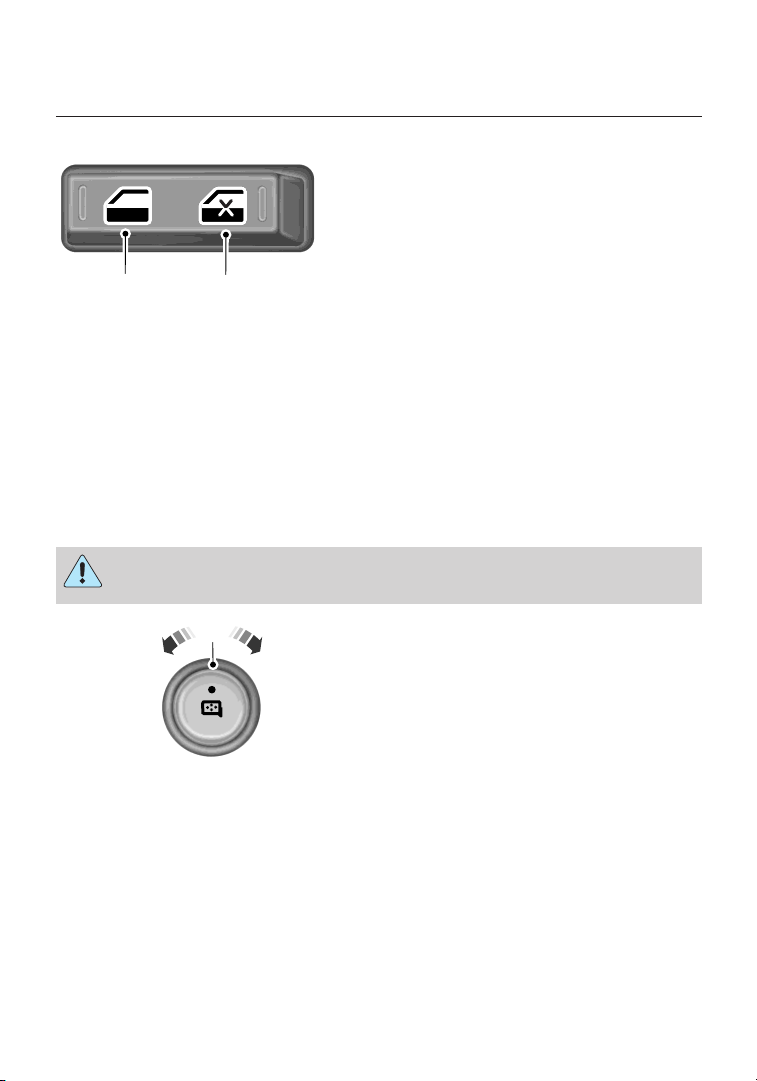

Power Door Locks

A. Unlock B. Lock

A B

Remote Control

You can use the remote control anytime your vehicle is not running.

Unlocking the Doors (Two-Stage Unlock)

Press the button to unlock the driver door. Press the button again within three seconds to unlock all doors.

The turn signals will flash.

Press and hold both the lock and unlock buttons on the remote control for four seconds to disable or enable two-stage unlocking. Disabling two-stage unlocking allows all vehicle doors to unlock with one press of the button. The turn signals will flash twice to indicate a change to the unlocking mode. The unlocking mode applies to the remote control, keyless entry keypad and intelligent access.

Intelligent access at the driver door unlocks all doors when you have disabled two-stage unlocking.

Locking the Doors

Press the button to lock all the doors. The turn signals will illuminate.

Press the button again within three seconds to confirm that all the doors are closed. The doors will lock again, the horn will sound and the turn signals will illuminate if all the doors and the luggage compartment are closed.

Note: If any door or the luggage compartment is open, or if the hood is open on vehicles with an anti-theft alarm or remote start, the horn sounds twice and the lamps will not flash.

Page 71

70 Locks

Activating Intelligent Access (If Equipped)

You must have the intelligent access key within 3 feet (1 meter) of your vehicle.

At the Front Driver Door

Press any number on the SecuriCode keyless entry keypad.

After locking the doors with the lock sensor, there is a brief delay before you can unlock your vehicle. This delay lets you pull the door handle to make sure that it locked.

Note: Keep the door handle surface clean to avoid issues with operation.

Smart Unlocks for Integrated Keyhead Transmitter

This feature helps to prevent you from locking yourself out of your vehicle if your key is still in the ignition.

When you open one of the front doors and lock your vehicle with the power door lock control, all the doors will lock then unlock if your key is still in the ignition.

You can still lock your vehicle with the key in the ignition. To do this, use the keyless entry keypad with the driver door closed, or press the lock button on the transmitter even if the doors are not closed.

If both front doors are closed, you can lock your vehicle by any method, regardless of whether the key is in the ignition or not.

Smart Unlocks for Intelligent Access Keys (If Equipped)

This feature helps to prevent you from unintentionally locking your intelligent access key inside your vehicle’s passenger compartment or rear cargo area.

When you lock your vehicle using the driver or passenger power door lock control (with the door open, transmission in P and ignition off), after you close the door your vehicle will search for an intelligent access key in the passenger compartment. If your vehicle finds a key, all of the doors will immediately unlock and the horn will sound, indicating that a key is inside.

You can override the smart unlock feature and intentionally lock the intelligent access key inside your vehicle. To do this, lock your vehicle after you have closed all the doors by:

• using the keyless entry keypad

Page 72

Locks 71

• pressing the lock button on another intelligent access key

When you open one of the front doors and lock your vehicle using the power door lock control, all doors will lock then unlock if:

• the ignition is on, or

• the ignition is off and the transmission is not in P.

Autolock Feature (If Enabled)

The autolock feature will lock all the doors when:

• all the doors are closed,

• the ignition is on,

• you shift into any gear putting your vehicle in motion, and

• your vehicle reaches a speed greater than 12 mph (20 km/h).

The autolock feature repeats when:

• you open then close any door while the ignition is on and the vehicle speed is 9 mph (15 km/h) or lower, and

• your vehicle then reaches a speed greater than 12 mph (20 km/h).

Autounlock Feature (If Enabled)

The autounlock feature will unlock all the doors when:

• the ignition is on, all the doors are closed, and your vehicle has been in motion at a speed greater than 12 mph (20 km/h);

• your vehicle has then come to a stop and the ignition is switched off or to accessory; and

• the driver door is opened within 10 minutes of the ignition being switched off or to accessory.

Note: The doors will not autounlock if you electronically lock the vehicle after you switch the ignition off and before you open the driver door.

Enabling or Disabling

Note: You can enable or disable the autolock and autounlock features independently of each other.

You can enable or disable these features:

• through an authorized dealer

• using the information display (if equipped with this feature).

Page 73

72 Locks

Illuminated Entry

The interior lamps and select exterior lamps illuminate when you use the integrated keyhead transmitter, intelligent access key or the keyless entry keypad to unlock the vehicle.

The system will turn off the lights if:

• you switch the ignition on

• you press the lock button on the remote control

• you lock your vehicle using the keyless entry keypad

• after 25 seconds of illumination.

The lights will not turn off if:

• you turn them on with the dimmer control

• any door is open.

Illuminated Exit

The interior lamps and select exterior lamps illuminate when all doors are closed and you switch the ignition off and remove the key from the ignition (integrated keyhead transmitter only).

The lamps turn off if all the doors remain closed and:

• 25 seconds elapse

• you insert the key in the ignition (integrated keyhead transmitter

only)

• you press the START/STOP button (intelligent access key only).

Battery Saver

If you leave the courtesy lamps, dome lamps or headlamps on, the battery saver shuts them off 10 minutes after you switch the ignition off.

Accessory Mode Battery Saver for Intelligent Access Keys (If Equipped)

If you leave your vehicle in the run ignition state, it will shut off once it detects a certain amount of battery drain or after 45 minutes.

Page 74

Locks 73

LIFTGATE

WARNING: Do not allow people to travel in any area of your

vehicle that does not have seats and safety belts. Riding in a cargo area, inside or outside of the vehicle, is extremely dangerous. In a crash, people riding in these areas are more likely to be seriously injured or killed. Make sure everyone in your vehicle is in a seat and using a safety belt correctly. Failure to follow this warning could result in serious personal injury or death.

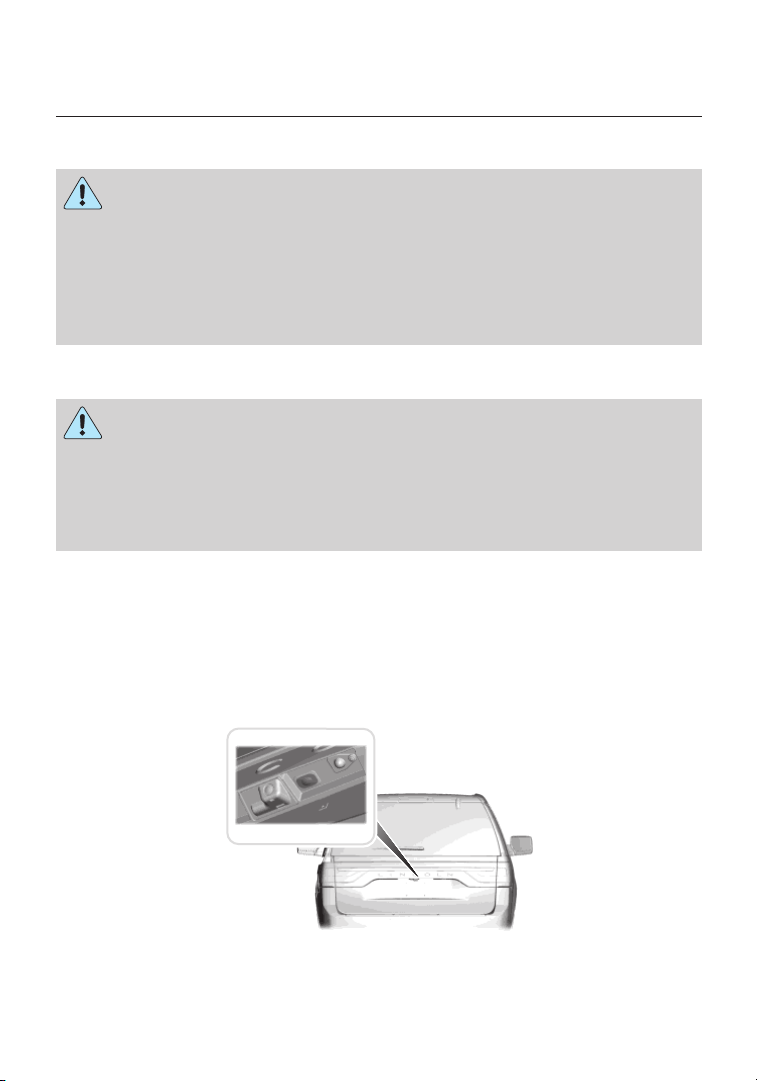

Manual Liftgate

WARNING: Make sure to close and latch the liftgate to prevent

drawing exhaust fumes into your vehicle. This will also prevent passengers and cargo from falling out. If you must drive with the liftgate open, keep the vents or windows open so outside air comes into your vehicle. Failure to follow this warning could result in serious personal injury.

Note: Be careful when opening or closing the liftgate in a garage or other enclosed area to avoid damaging the liftgate.

Note: Do not hang anything (bike rack, etc.) from the spoiler, glass or liftgate. This could damage the liftgate and its components.

Note: Do not leave the liftgate open while driving. This could damage the liftgate and its components.

The liftgate area is only intended for cargo, not passengers.

To open the liftgate: Press the button located inside of the liftgate handle.

Page 75

74 Locks

Power Liftgate (If Equipped)

WARNING: Make sure all persons are clear of the power liftgate

area before using the power liftgate control.

WARNING: Keep keys out of the reach of children. Do not allow

children to operate the power liftgate, or to play near an open or moving power liftgate.

Note: Cycling the ignition while the liftgate is power closing and is near the latch may cause the liftgate to reverse to full open position. Make sure you close the liftgate before operating or moving the vehicle, especially in an enclosure, such as a garage or a parking structure. You could damage the liftgate or its components.

Note: Do not drive with the liftgate open without first disabling the power function and securing the liftgate to the vehicle.

Note: In case of operation in extreme cold -40°F (-40°C), or on extreme inclines, manual operation of the liftgate is suggested.

You can enable or disable the power liftgate using the information display. The remote control and instrument panel button still operates the liftgate regardless of the setting.

Opening and Closing the Power Liftgate

Note: You can reverse the liftgate movement direction with a second press of the instrument panel button or the button on the liftgate, or a second double press of the transmitter button.

The liftgate only operates with the vehicle in P. Three tones sound as the liftgate begins to power close. A single tone

indicates a problem with the close request, caused by any of the following:

• The ignition is on and the transmission is not in P.

• The battery voltage is below the minimum operating voltage

• The vehicle speed is at or above 3 mph (5 km/h)

Page 76

Locks 75

If the liftgate reverses and starts to close after an open request, a fast continuous tone indicates excessive load on the gate or a possible strut failure. Have the system checked by an authorized dealer if you still have a fast tone after removing the load.

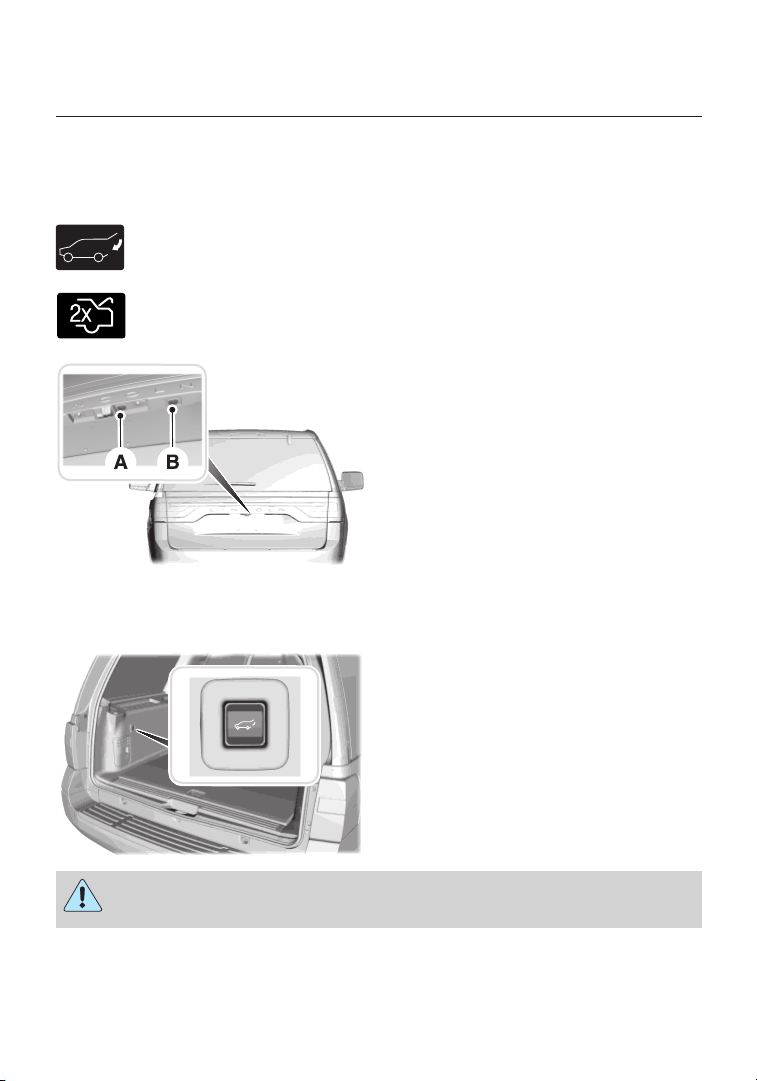

To open or close from the instrument panel: Press the

E187797

the liftgate may activate the system’s obstacle detection feature and stops the power operation.

instrument panel liftgate button.

To open or close with the remote control: Press the remote control liftgate-decklid button twice within three seconds.

To open with the liftgate control button in the liftgate handle:

1. Unlock the liftgate with the remote control or power door unlock button.

2. Press the control button A located on the inside of the liftgate pull handle.

Note: Allow the power system to open the liftgate after pressing the control. Manually pushing or pulling

To close with the cargo area liftgate control button: Press and

release the cargo area liftgate control button located on the left rear cargo area trim panel.

WARNING: Keep clear of the liftgate when activating the rear switch.

Page 77

76 Locks

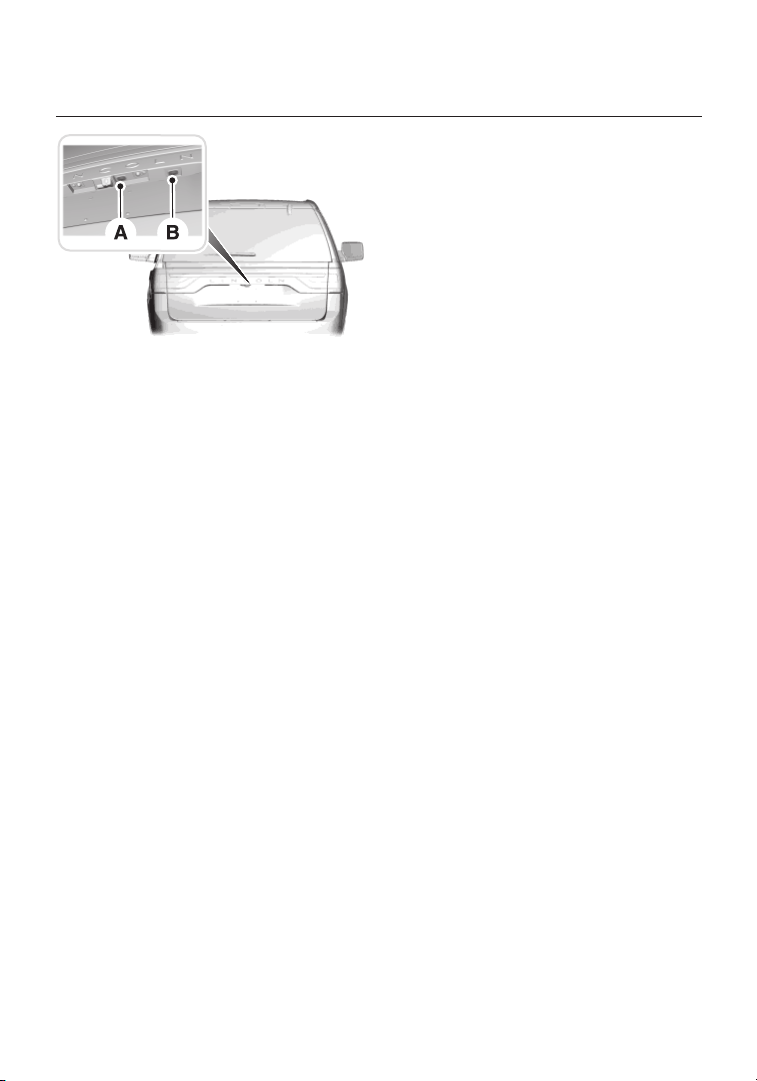

To open the liftgate window:

Press the window release button B located inside the liftgate pull handle.

Obstacle Detection

When closing: The liftgate reverses to full open when it detects an obstacle. A chime sounds three times as the liftgate begins to reopen. Remove the obstacle to close the liftgate.

Note: Entering your vehicle while the liftgate is closing can cause your vehicle to bounce and activate obstacle detection. To prevent this, let the power liftgate close completely before you enter your vehicle. Before driving off, check the instrument cluster for a liftgate or door ajar message or warning indicator. Failure to do this could result in unintentionally leaving the liftgate open while driving.

When opening: The system stops when it detects an obstacle and a tone sounds three times. Remove the obstacle to operate the liftgate.

Resetting the Power Liftgate

The liftgate may not operate properly and you may need to reset it if any of the following conditions occur:

• A low voltage or dead battery.

• Disconnected battery.

• The liftgate is manually closed and left ajar (unlatched).

To reset the power liftgate:

1. Disconnect the battery for 20 seconds, and then reconnect the battery.

2. Manually close and fully latch the liftgate.

3. Power open the liftgate by using the remote control or the instrument panel button.

Page 78

Locks 77

SECURICODE™ KEYLESS ENTRY KEYPAD (IF EQUIPPED)

The keypad, located near the driver window, is invisible until touched and then it lights up so you can see and touch the appropriate buttons.

Note: If you enter your entry code too fast on the keypad, the unlock function may not work. Enter your entry code again more slowly.

You can use the keypad to:

• lock or unlock the doors

• recall memory features

• enable or disable the autolock and

autounlock

• arm and disarm the anti-theft alarm

You can operate the keypad with the factory-set 5-digit entry code. This code is located on the owner’s wallet card in the glove box and is available from an authorized dealer. You can also create up to three of your own 5-digit personal entry codes.

Programming a Personal Entry Code

To create your own personal entry code:

1. Enter the factory-set code.

2. Press the 1•2 on the keypad within five seconds.

3. Enter your personal 5-digit code. You must enter each number within

five seconds of each other.

4. For memory recall feature, enter the sixth digit 1•2 to store driver 1

settings or 3•4 to store driver 2 settings. Note: Pressing 5•6, 7•8,or9•0 keypad numbers as a sixth digit will

not recall a driver memory setting. Note: The factory-set code cannot be associated with a memory setting.

5. The doors will lock and then unlock to confirm that programming is

complete. You may also program a personal entry code through the MyFord Touch

system. Refer to the MyFord Touch chapter.

Tips:

• Do not set a code that uses five of the same number.

• Do not use five numbers in sequential order.

• The factory-set code will work even if you have set your own personal

code.

Page 79

78 Locks

Erasing a Personal Code

1. Enter the factory-set 5-digit code.

2. Press and release 1•2 on the keypad within five seconds.

3. Press and hold 1•2 for two seconds. This must be done within five

seconds of completing Step 2. All personal codes are now erased and only the factory-set 5-digit code

will work.

Anti-Scan Feature

The keypad will go into an anti-scan mode if you enter the wrong code seven times (35 consecutive button presses). This mode disables the keypad for one minute and the keypad lamp will flash.

The anti-scan feature will turn off after:

• one minute of keypad inactivity

• pressing the unlock button on the remote control

• switching the ignition on

• unlocking the vehicle using intelligent access.

Unlocking and Locking the Doors

To unlock the driver door: Enter the factory-set 5-digit code or your personal code. You must press each number within five seconds of each other. The interior lamps will illuminate. Note: All doors will unlock if the two-stage unlocking feature is disabled. Refer to Locking and Unlocking earlier in this chapter.

To unlock all doors: Enter the factory-set code or your personal code, then press 3•4 within five seconds.

To lock all doors: Press and hold 7•8 and 9•0 at the same time with the driver door closed. You do not need to enter the keypad code first.

Page 80

Security 79

SECURILOCK® PASSIVE ANTI-THEFT SYSTEM

Note: The system is not compatible with non-Ford aftermarket remote start systems. Use of these systems may result in vehicle starting problems and a loss of security protection.

Note: Metallic objects, electronic devices or a second coded key on the same key chain may cause vehicle starting issues if they are too close to the key when starting your vehicle. Prevent these objects from touching the coded key while starting the engine. Switch the ignition off, move all objects on the key chain away from the coded key and restart your vehicle if a problem occurs.

Note: Do not leave a duplicate coded key in your vehicle. Always take your keys and lock all doors when leaving your vehicle.

The system helps prevent the engine from starting unless you use a coded key programmed to your vehicle. Using the wrong key may prevent your vehicle from starting. A message may appear in the information display.

If you are unable to start your vehicle with a correctly coded key, a malfunction has occurred. A message may appear in the information display.

Automatic Arming

Your vehicle arms immediately after you switch the ignition off.

Anti-Theft Indicator

The anti-theft indicator is located in the instrument cluster.

• When the ignition is off, the indicator will flash once every two seconds to indicate the SecuriLock system is functioning as a theft deterrent.

• When the ignition is on, the indicator will glow for three seconds, then turn off to indicate normal system functionality.

If a problem occurs with the SecuriLock system, the indicator will flash rapidly or glow steadily when the ignition is on. If this occurs, switch the ignition off then back on to make sure there was no electronic interference with the programmed key. If your vehicle does not start, try to start it with the second programmed key and if successful contact your authorized dealership for key replacement. If the indicator still flashes rapidly or glows steadily, your vehicle will not start. Contact your authorized dealer as soon as possible for service.

Automatic Disarming

Your vehicle disarms when you switch the ignition on with a coded key.

Page 81

80 Security

Replacement Keys

Note: Your vehicle may come with two integrated keyhead transmitters. The integrated keyhead transmitter functions as a programmed ignition

key that operates all the locks and starts the vehicle, as well as a remote control.

If your programmed transmitters or standard SecuriLock coded keys are lost or stolen and you do not have an extra coded key, you will need to have your vehicle towed to an authorized dealer. The key codes need to be erased from your vehicle and new coded keys will need to be programmed.

Store an extra programmed key away from the vehicle in a safe place to help prevent any inconveniences. See an authorized dealer to purchase additional spare or replacement keys.

Programming a Spare Key

Note: A maximum of eight coded keys can be programmed to your vehicle. Only four of these eight can be integrated keyhead transmitters.

You can program your own integrated keyhead transmitters or standard SecuriLock coded keys to your vehicle. This procedure will program both the engine immobilizer key code and the remote entry portion of the remote control to your vehicle.

Only use integrated keyhead transmitters or standard SecuriLock keys. You must have two previously programmed coded keys and the new

unprogrammed key readily accessible. See your authorized dealer to have the spare key programmed if two previously programmed coded keys are not available.

Read and understand the entire procedure before you begin.

1. Insert the first previously programmed coded key into the ignition.

2. Turn the ignition from off to on. Keep the ignition on for at least three

seconds, but no more than 10 seconds.

3. Turn the ignition off and remove the first coded key from the ignition.

4. After three seconds but within 10 seconds of turning the ignition off,

insert the second previously coded key into the ignition.

5. Turn the ignition from off to on. Keep the ignition on for at least three

seconds, but no more than 10 seconds.

Page 82

Security 81

6. Turn the ignition off and remove the second previously programmed

coded key from the ignition.

7. After three seconds but within 20 seconds of turning the ignition off

and removing the previously programmed coded key, insert the new unprogrammed key into the ignition.

8. Turn the ignition from off to on. Keep the ignition on for at least six

seconds.

9. Remove the newly programmed coded key from the ignition.

The key will start the vehicle’s engine and will operate the remote entry system (if the new key is an integrated keyhead transmitter) if it has been successfully programmed. The theft indicator light will illuminate for three seconds and then go out to indicate successful programming.

If the key was not successfully programmed, the theft indicator light may flash on and off. Wait 20 seconds and repeat Steps 1 through 8. Take your vehicle to your authorized dealer to have the new key programmed if you are still unsuccessful.

Wait 20 seconds and then repeat this procedure from Step 1 to program an additional key.

Intelligent Access Key (if equipped)

Your intelligent access key functions as a programmed key that operates the driver door lock and activates intelligent access with the push button start system, or the remote start system. If your programmed intelligent access transmitters are lost or stolen, and you do not have an extra coded key, you will need to have your vehicle towed to an authorized dealer. Your dealer will erase the key codes from your vehicle and program new coded keys. Store an extra programmed key away from the vehicle in a safe place to help prevent any inconvenience. See your authorized dealer to purchase additional spare or replacement keys.

Programming a Spare Intelligent Access Key

See an authorized dealer to have additional keys programmed to your vehicle.

Page 83

82 Security

ANTI-THEFT ALARM

The system will warn you of unauthorized entry to your vehicle. The turn signal lamps will flash and the horn will sound when:

• any door or the hood is opened without using the key or the remote control

• the ignition is turned on with an invalid key.

Take all keys and remote controls to your authorized dealer if there is any potential alarm problem with your vehicle.

Arming the Alarm

The system is ready to arm whenever the ignition is off. Lock the vehicle to arm the alarm.

The turn signal lamps will flash once after locking the vehicle to indicate the alarm is in the pre-armed mode and will become fully armed in 20 seconds.

Disarming the Alarm

To disarm the alarm, do any of the following:

• Press the power door unlock button within the 20-second pre-armed mode.

• Press the unlock button on the remote control.

• Unlock the doors with the keyless entry pad.

• Turn the ignition on with a valid key.

• Press the panic button on the remote control. The alarm system will

still be armed, but this shuts off the horn and turn lamps when the alarm is sounding.

Note: If the driver’s door is unlocked with a key, a chime will sound when you open the door. You will have 12 seconds to disarm the alarm using any of the actions above, otherwise the alarm will trigger.

Page 84

Steering Wheel 83

ADJUSTING THE STEERING WHEEL

WARNING: Do not adjust the steering wheel when your vehicle is moving.

Note: Make sure that you are sitting in the correct position. Refer to Sitting in the Correct Position in the Seats chapter.

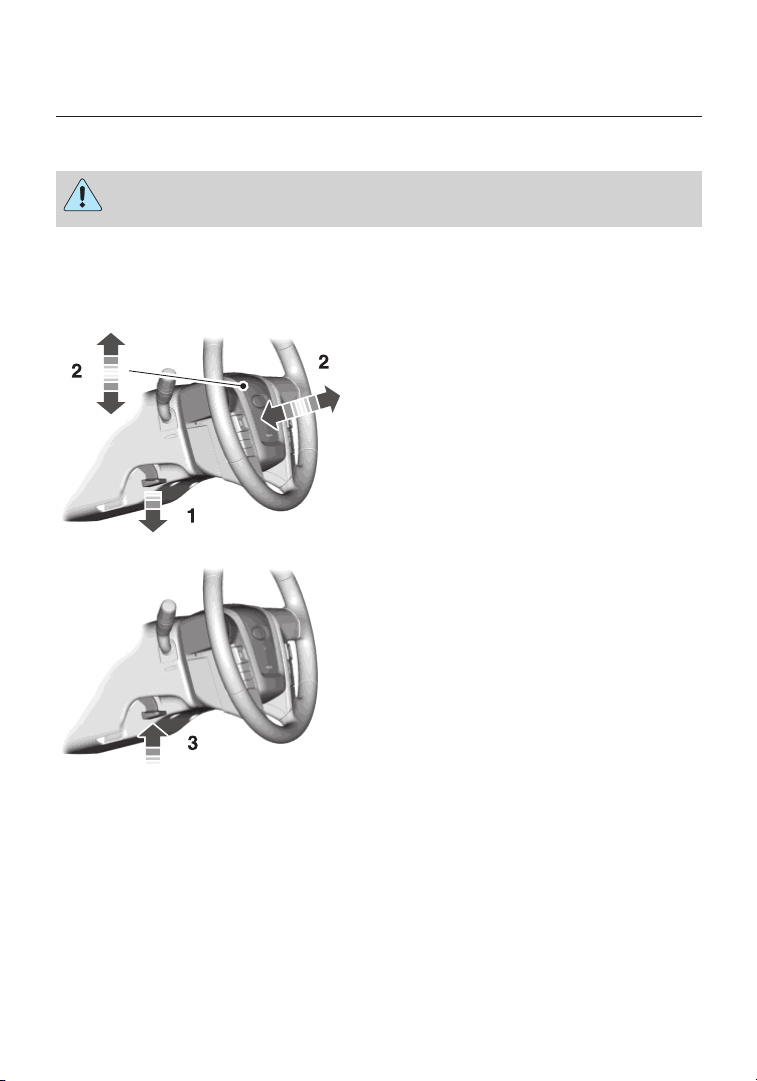

Manual Adjust Steering Wheel (If Equipped)

1. Unlock the steering wheel. Note: The telescopic adjustment is

an optional feature.

2. Adjust the steering wheel to the

desired position.

3. Lock the steering wheel.

Page 85

84 Steering Wheel

Power Adjust Steering Wheel (If Equipped)

Use the control on the side of the steering column to tilt the position.

Memory Feature

The steering column positions are saved and recalled with the memory feature. Refer to the Seats chapter.

Pressing the adjustment control during memory recall will cancel the operation. The column will respond to the adjustment control.

Easy Entry and Exit Feature

The column will move to the full up position when the ignition is switched off. It will return to the previous position when the ignition is switched on. This feature can be switched on or off in the information display.

Page 86

AUDIO CONTROL

Type One

Steering Wheel 85

A. Seek up or next B. Volume up C. Volume down D. Seek down or previous

Page 87

86 Steering Wheel

Type Two

A. Volume up B. Seek up or next C. Media D. Seek down or previous E. Volume down

Media

Press the media button repeatedly to scroll through available audio modes.

Seek, Next or Previous

Press the seek button to:

• tune the radio to the next or previous stored preset

• play the next or previous track.

Press and hold the seek button to:

• tune the radio to the next station up or down the frequency band

• seek through a track.

Page 88

Steering Wheel 87

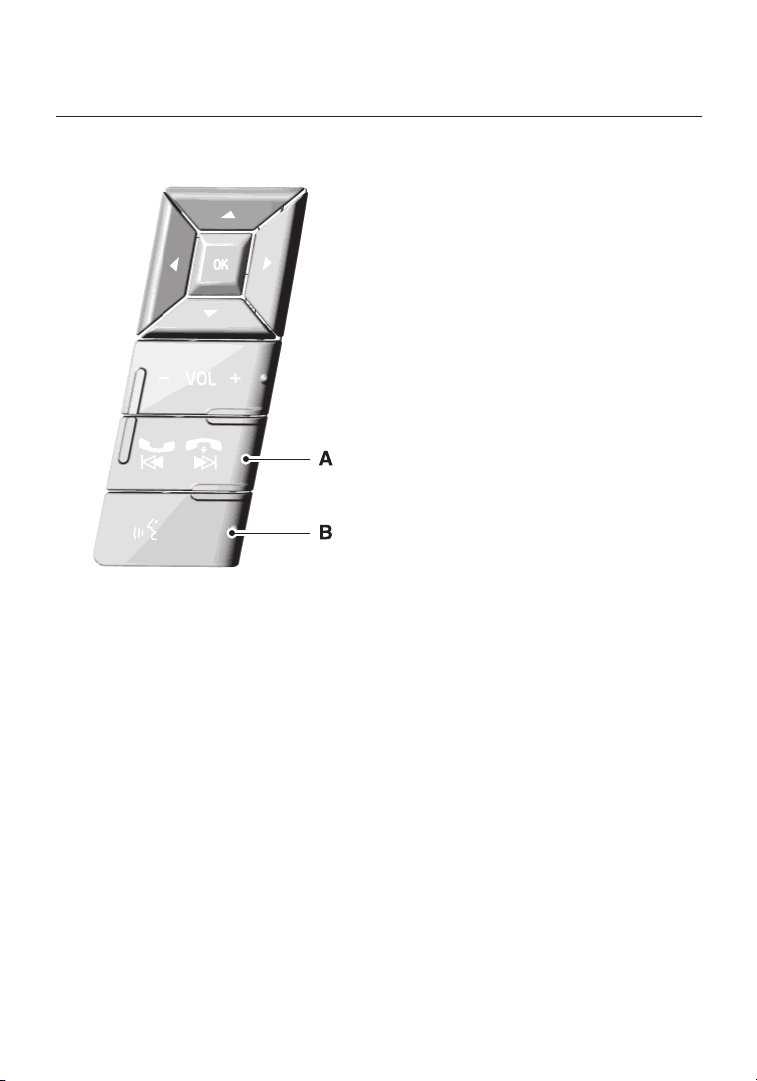

VOICE CONTROL (IF EQUIPPED)

Type One

A. Phone mode B. Voice recognition Press OK to confirm selection. See the SYNC or Navigation System chapter.

Page 89

88 Steering Wheel

Type Two

A. Phone mode B. Voice recognition Press OK to confirm selection. See the SYNC or Navigation System chapter.

CRUISE CONTROL

See the Cruise Control chapter.

Page 90

Pedals 89

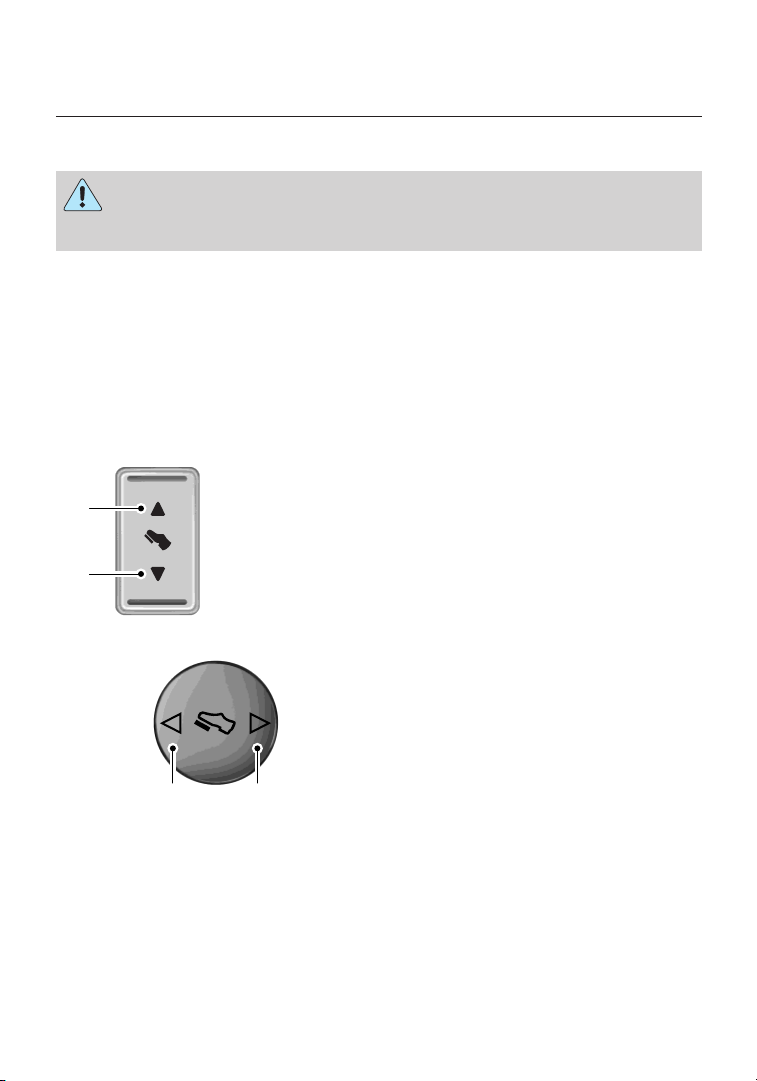

ADJUSTABLE PEDALS (IF EQUIPPED)

WARNING: Never use the controls when your feet are on the accelerator or brake pedals, especially when the vehicle is

moving.

Note: Adjust the pedals only when your vehicle is in park (P). Depending on your vehicle and equipment level, the shape and location

of your power-adjustable pedal control can vary.

• If your control is vertical, then it is to the left of the steering column and on the instrument panel.

• If your control is horizontal, then it is on the left side of the steering column.

The Vertical Control

A. Closer.

The Horizontal Control

B. Farther.

A. Farther. B. Closer.

A B

Both horizontal and vertical controls operate the same way:

1. Press and hold A to move the pedals away from you.

2. Press and hold B to move the pedals closer to you

You can save and recall the pedal positions with the memory feature (if equipped). Refer to the Seats chapter.

Page 91

90 Wipers and Washers

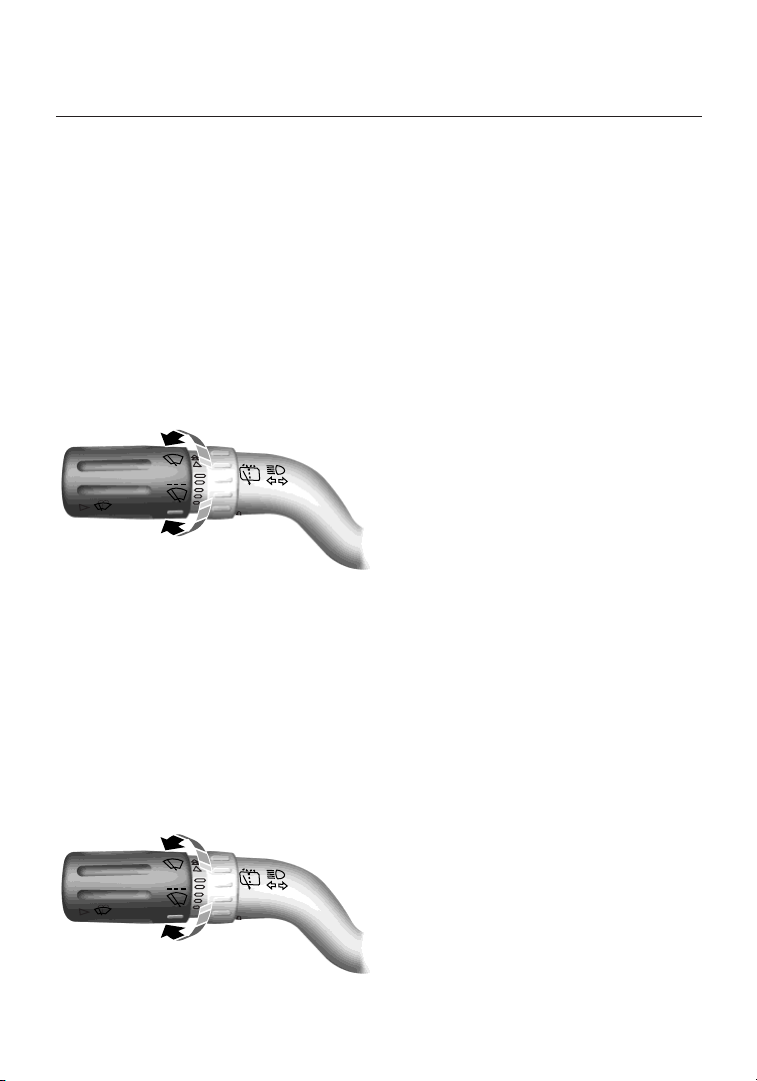

WINDSHIELD WIPERS

Note: Fully defrost the windshield before turning on the windshield wipers.

Note: Make sure the windshield wipers are turned off before entering a car wash.

Note: Clean the windshield and wiper blades if they begin to leave streaks or smears. If that does not resolve the issue, install new wiper blades.

Note: Do not operate the wipers on a dry windshield. This may scratch the glass, damage the wiper blades or cause the wiper motor to bun out. Always use the windshield washers before wiping a dry windshield.

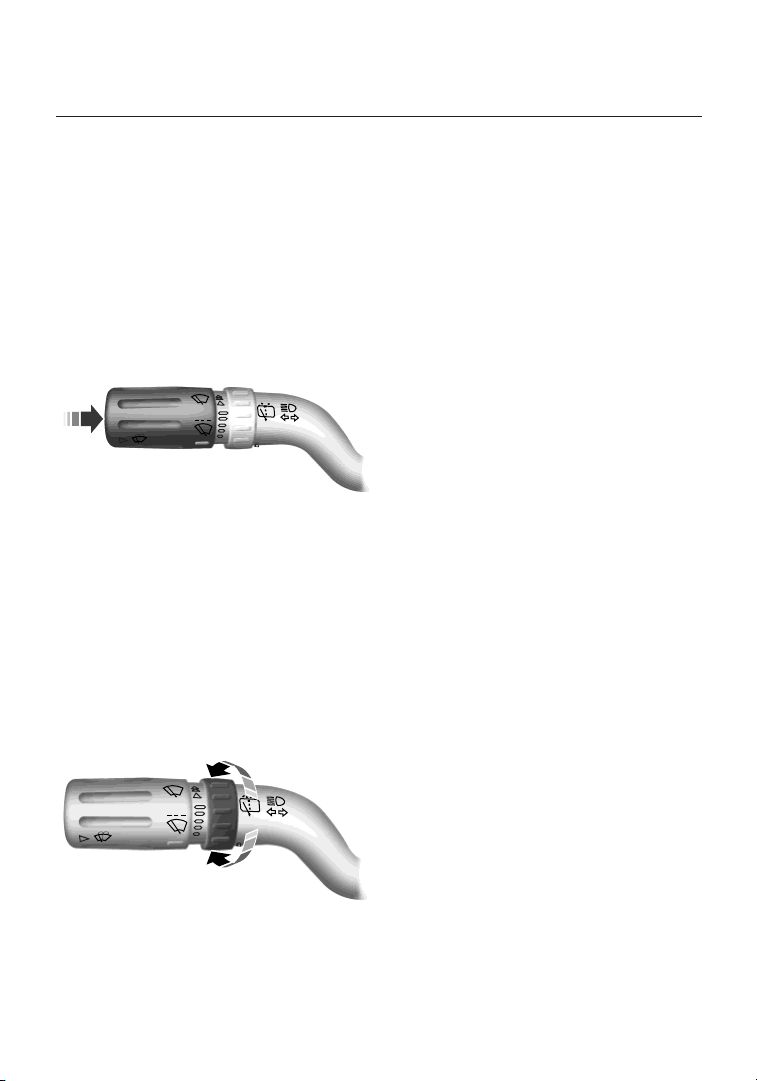

Rotate the end of the control:

• away from you to increase the

Speed Dependent Wipers

When your vehicle speed increases, the interval between wipes will decrease when intermittent wipe is selected.

wiper speed

• toward you to decrease the wiper speed.

RAIN-SENSING WIPERS (IF EQUIPPED)

Note: Wet road conditions may result in inconsistent or unexpected wiping or smearing. Lower the sensitivity, switch to normal or high-speed wiping or turn the wipers off to reduce smearing.

Note: Turn off the wipers before entering a car wash.

Use the rotary control to adjust the sensitivity to one of the interval moisture settings. The wipers will

not cycle until moisture is detected on the windshield. The wiper speed will vary based on the amount of moisture detected on the windshield and the sensitivity setting. The

wipers will continue to wipe as long as moisture is detected.

Page 92

Wipers and Washers 91

Keep the outside of the windshield clean, especially the area around the interior mirror where the sensor is located, or sensor performance may be affected.

WINDSHIELD WASHERS

Note: Do not operate the wipers on a dry windshield. This may scratch the glass, damage the wiper blades or cause the wiper motor to burn out. Always use the windshield washer before wiping a dry windshield.

Note: Do not operate the washer when the washer reservoir is empty. This may cause the washer pump to overheat.

Press the end of the stalk to activate the washer.

• A brief press causes a single wipe without washer fluid.

• A quick press and hold causes the wipers to swipe three times with

washer fluid.

• A long press and hold will activate the wipers and washer fluid for up to 10 seconds.

A wipe will occur a few seconds after washing to clear any remaining washer fluid.

REAR-WINDOW WIPER AND WASHERS

Rotate the control to select: 2 — Intermittent operation

(shortest pause between wipes). 1 — Intermittent operation (longest

pause between wipes). 0 — Off.

Rotate and hold the control to either the top or bottom position to activate the rear washer. The control will return to the 2 or 0 position when you release it.

Page 93

92 Lighting

LIGHTING CONTROL

High Beams

Headlamp Flasher

A. Off B. Parking lamps, instrument panel

lamps, license plate lamps and tail lamps

C. Headlamps

• Push the lever toward the instrument panel to switch on the high beams.

• Pull the lever toward you to switch of the high beams.

Pull the lever toward you slightly and release it to flash the headlamps.

Page 94

Lighting 93

AUTOLAMPS

WARNING: The daytime running lamps system does not activate

the rear lamps and may not provide adequate lighting during low visibility driving conditions. Also, the autolamps switch position may not activate the headlamps in all low visibility conditions, such as daytime fog. Always ensure that your headlamps are switched to auto or on, as appropriate, during all low visibility conditions. Failure to do so may result in a collision.

When the lighting control is in the autolamps position, the headlamps will automatically turn on in low light situations or when wipers are activated.

The headlamps remain on for a period of time after you switch the ignition off. Use the information display controls to adjust the period of time that the headlamps remain on.

If your vehicle is equipped

Note:

with autolamps, it will have the

windshield wiper activated headlamps. The windshield wiper

The headlamps will not turn on by wiper activation:

• During a single wipe.

• When the wipers are on to clear washer fluid during a wash condition.

• If the wipers are in intermittent mode.

Note: If you have autolamps and autowipers switched on, the low beam headlamps will turn on automatically when the windshield wipers operate continuously.

activated headlamps turn on within 10 seconds when you switch the windshield wipers on and the lighting control switch is in the autolamps position. They will turn off approximately 60 seconds after you switch the windshield wipers off.

Page 95

94 Lighting

INSTRUMENT LIGHTING DIMMER

Use to adjust the brightness of the instrument panel and all applicable lit components in the vehicle during headlamp and parking lamp operation.

• Tap the top or bottom of the control to brighten/dim all interior lit components incrementally, or

• Press and hold at the first position the top or bottom of the control until the desired lighting level is reached.

• Press and hold the top of the control to the full on position to activate the “dome on” feature. This will turn on the interior courtesy lights. Press and hold the

bottom of the control to turn off the interior courtesy lights.

DAYTIME RUNNING LAMPS (IF EQUIPPED)

WARNING: Always remember to switch your headlamps on in

low light situations or during inclement weather. The system does not activate the tail lamps and may not provide adequate lighting during these conditions. Failure to activate your headlamps under these conditions may result in a collision.

The system turns the headlamps on with a reduced intensity output in daylight conditions.

To switch the system on, ignition must be in the on position, then switch the lighting control to the off, autolamp, or parking lamp position.

FRONT FOG LAMPS

The fog lamps can be turned on when the lighting control is pulled toward you and in the headlamps, parking lamps or autolamps

positions. The fog lamps will not operate

when the high beams are active.

Page 96

Lighting 95

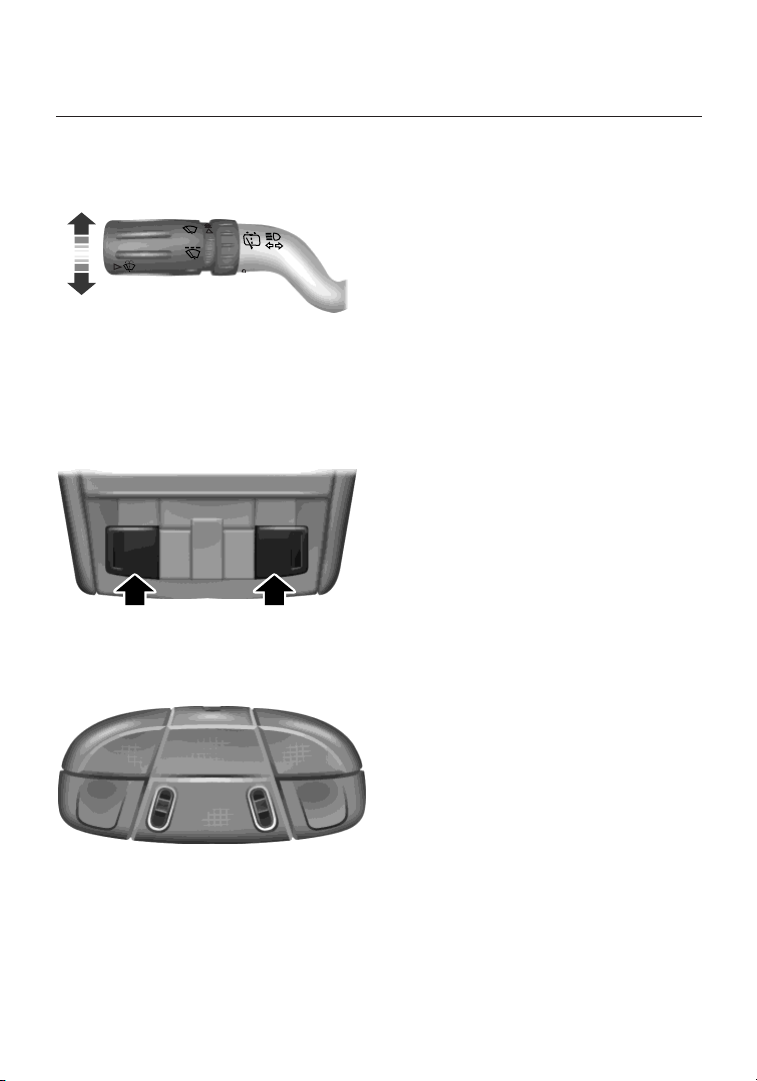

DIRECTION INDICATORS

• Push down to activate the left turn signal.

• Push up to activate the right turn

INTERIOR LAMPS

Front Row Map Lamps (If Equipped)

• the remote entry controls are pressed and the ignition is off.

signal.

To turn on the map lamps, press the outer edge of the clear lens. The front row map lamp lights when:

• any door is opened.

• the instrument panel dimmer

switch is rotated until the courtesy lamps come on.

Front Row Map and Dome Lamps (If Equipped)

The dome lamp lights when:

• any door is opened,

• the instrument panel dimmer

switch is rotated up until the courtesy lamps come on, and

• any of the remote entry controls are pressed and the ignition is off. The map lamps are activated by pressing the controls on either side of

the lens.

Page 97

96 Lighting

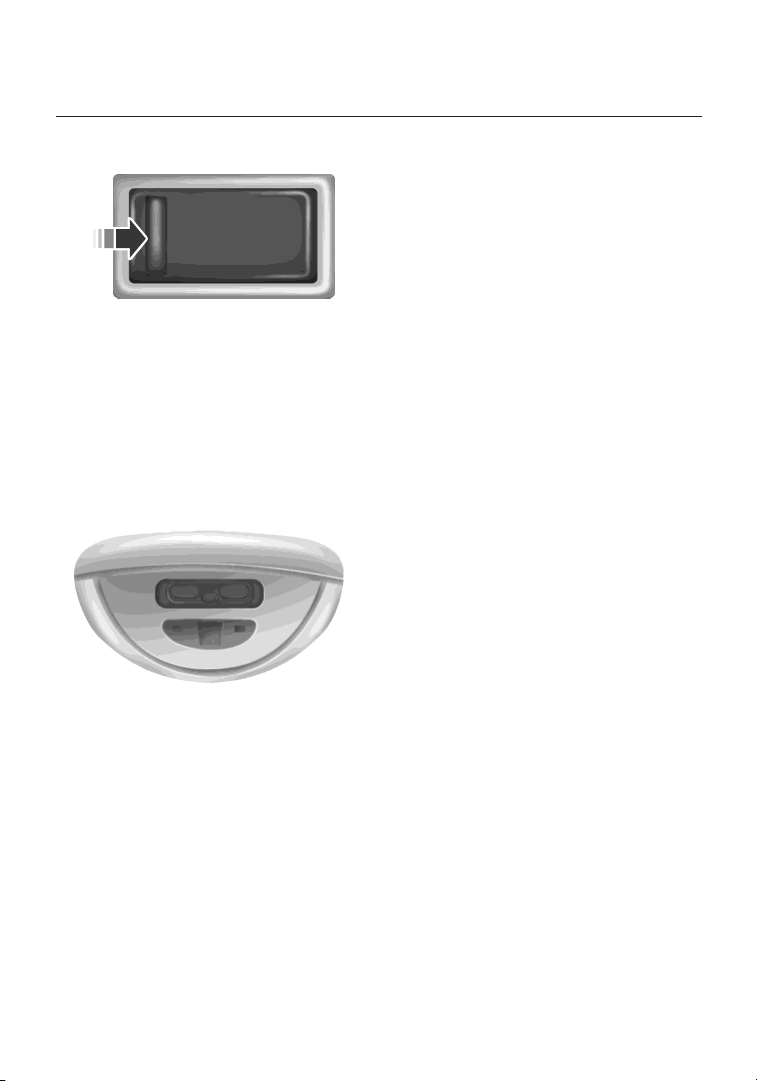

Second Row Map Lamps (If Equipped)

The second row map lamps are located in the headliner above the second row seats.

The second row map lamp lights when:

• any door is opened,

• the instrument panel dimmer

switch is rotated up until the courtesy lamps come on, and

• any of the remote entry controls are pressed and the ignition is off. Press the controls to activate the lamps.

Rear Cargo Lamp

The rear cargo lamp lights when:

• any door is opened, and the switch is in the middle position.

• the instrument panel dimmer switch is rotated until the courtesy lamps come on.

• any of the remote entry controls are pressed and ignition is off (and switch is in the middle position).

With the ignition key in the accessory or on position, the rear cargo lamp can be turned on or off by sliding the control.

Battery saver

The battery saver will shut off the exterior lamps and interior lamps, except the hazard warning lamps if activated, 10 minutes after the ignition control has been turned off. The system will not turn off the parking lamps if the lighting control is in the parking lamps on position.

Page 98

Windows and Mirrors 97

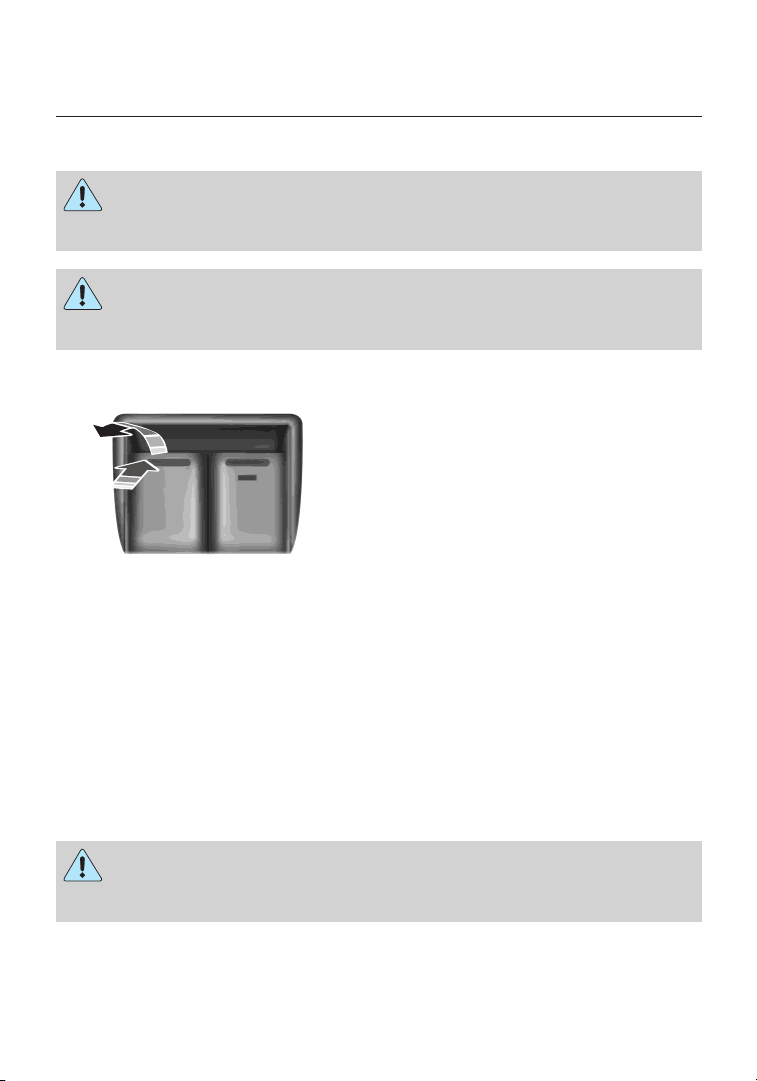

POWER WINDOWS

WARNING: Do not leave children unattended in your vehicle and do not let them play with the power windows. They may

seriously injure themselves.

WARNING: When closing the power windows, you should verify they are free of obstructions and make sure that children and

pets are not in the proximity of the window openings.

Note: You may hear a pulsing noise when just one of the windows is open. Lower the opposite window slightly to reduce this noise.

Press the switch to open the window.

AUTO

One-Touch Down (If Equipped)

Press the switch fully and release it. Press again or lift it to stop the window.

One-Touch Up (If Equipped)

Lift the switch fully and release it. Press or lift it again to stop the window.

Lift the switch to close the window.

Bounce-Back (If Equipped)

The window will stop automatically while closing and reverse some distance if there is an obstacle in the way.

Overriding the Bounce-Back Feature

WARNING: When you override the bounce-back feature the window will not reverse if it detects an obstacle. Take care when

closing the windows to avoid personal injury or damage to your vehicle.

Pull up the window switch and hold within two seconds of the window reaching the bounce-back position. The window will travel up with no bounce-back protection. The window will stop if your release the switch before the window is fully closed.

Page 99

98 Windows and Mirrors

Window Lock

A. Unlock B. Lock

Press the control to lock or unlock the rear and front passenger window controls.

Accessory Delay

You can use the window switches for several minutes after you switch the ignition off, or until you open either front door.

EXTERIOR MIRRORS

Power Exterior Mirrors

WARNING: Do not adjust the mirror while your vehicle is in motion.

To adjust your mirrors:

1. Select the mirror you want to adjust.

2. Move the control in the direction you want to tilt the mirror.

3. Return the control to the center position to lock mirrors in place.

A. Left mirror B. Off C. Right mirror

Foldaway Exterior Mirrors

Push the mirror toward the door window glass. Make sure that you fully engage the mirror in its support when returning it to its original position.

Page 100

Windows and Mirrors 99

Power-Folding Mirrors (If Equipped)

Note: Using the mirrors 10 or more times within one minute, or repeated folding and unfolding of the mirrors while holding the control down during full travel, may disable the system to protect motors from overheating. Wait approximately three minutes with your vehicle running, and up to 10 minutes with your vehicle off, for the system to reset and for function to return to normal.

Pull the control back to fold the mirrors.

Loose Mirror

If your power-folding mirrors are manually folded, they may not work properly, even after you reposition them. You need to reset them if:

• The mirrors vibrate when you drive.

• The mirrors feel loose.

• The mirrors do not stay in the folded or unfolded position.

• One of the mirrors is not in its normal driving position.

To reset the power-fold feature, use the power-folding mirror control to fold and unfold the mirrors. You may hear a loud noise as you reset the power-folding mirrors. This sound is normal. Repeat this process as needed each time the mirrors are manually folded.

Heated Exterior Mirror

The heated exterior mirrors switch on with the heated rear window. See Heated Windows and Mirrors in the Climate Control chapter.

Memory Mirrors (If Equipped)

You can save and recall the mirror positions through the memory function. See Memory function in the Seats chapter.
