2024 FORD E-SERIES Owner's Manual

Page 2

Page 3

The information contained in this publication was correct at the time of release. In the interest of continuous development, we reserve the right to change specifications, design or equipment at any time without notice or obligation. No part of this publication may be reproduced, transmitted, stored in a retrieval system or translated into any language in any form by any means without our written permission. Errors and omissions excepted.

Part Number: -202210-20221028183855

California Proposition 65

WARNING: Operating, servicing and maintaining a passenger vehicle or off-highway motor vehicle

can expose you to chemicals including engine exhaust, carbon monoxide, phthalates, and lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. To minimize exposure, avoid breathing exhaust, do not idle the engine except as necessary, service your vehicle in a well-ventilated area and wear gloves or wash your hands frequently when servicing your vehicle. For more information go to www.P65Warnings.ca.gov/passenger-vehicle.

WARNING: Battery posts, terminals and related accessories contain lead and lead compounds, chemicals known to the State of California to cause cancer and reproductive harm.

Wash your hands after handling.

Page 4

Page 5

Introduction

About This Manual ..........................................7

Perchlorate .........................................................7

Ford Credit ..........................................................7

Replacement Parts Recommendation

.............................................................................8

Special Notices ................................................8

Mobile Communications Equipment

...........................................................................10

Symbols Glossary

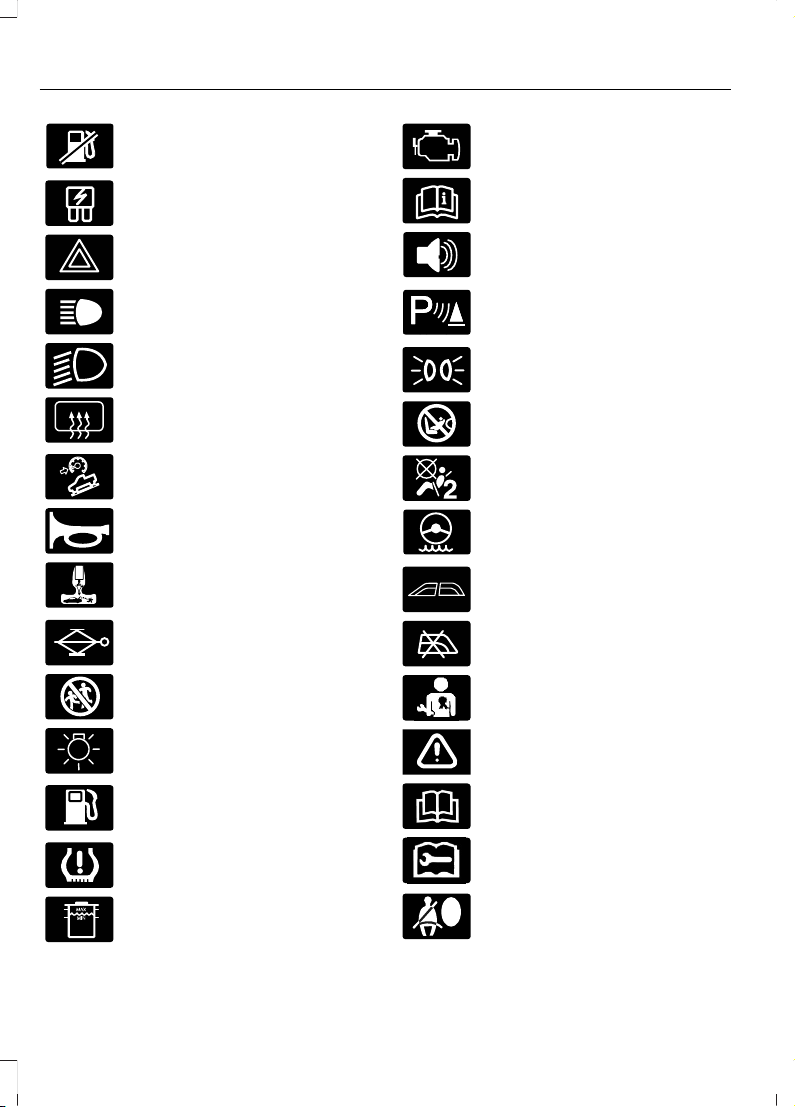

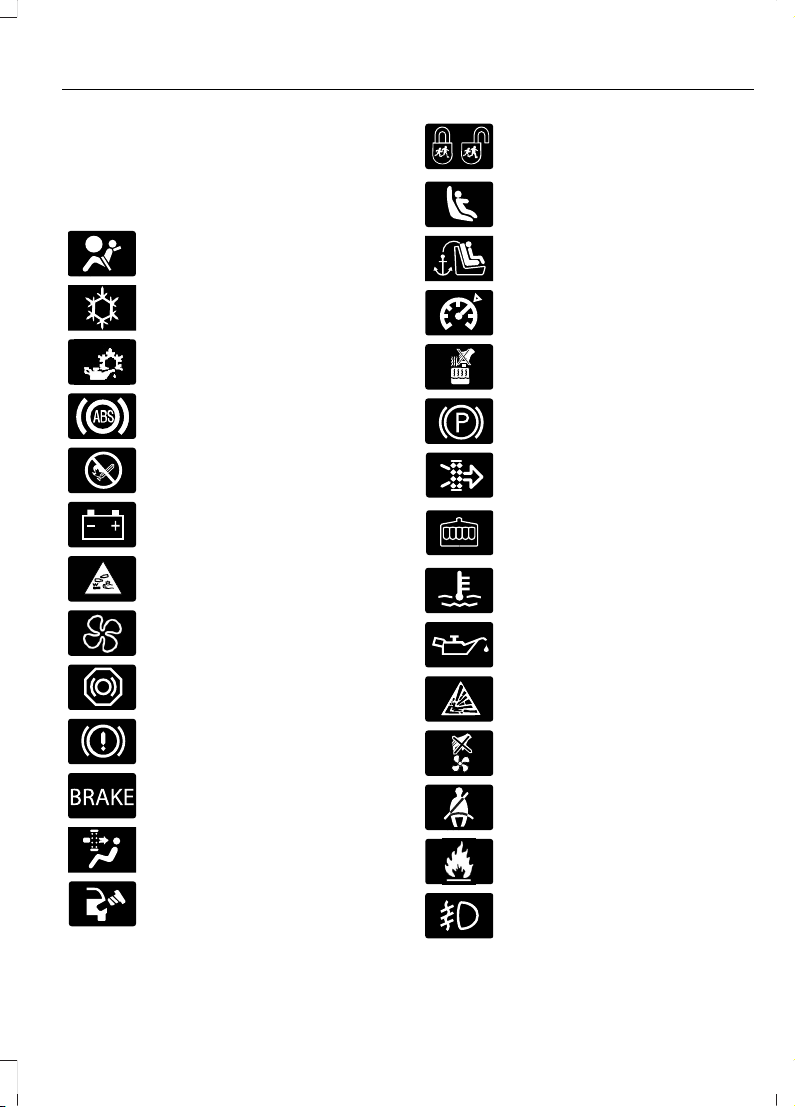

Symbols Used on Your Vehicle ..................11

Data Privacy

Data Privacy .....................................................14

Service Data .....................................................15

Event Data ........................................................15

Connected Vehicle Data ..............................16

Emergency Call System Data ....................16

Environment

Protecting the Environment .......................17

At a Glance

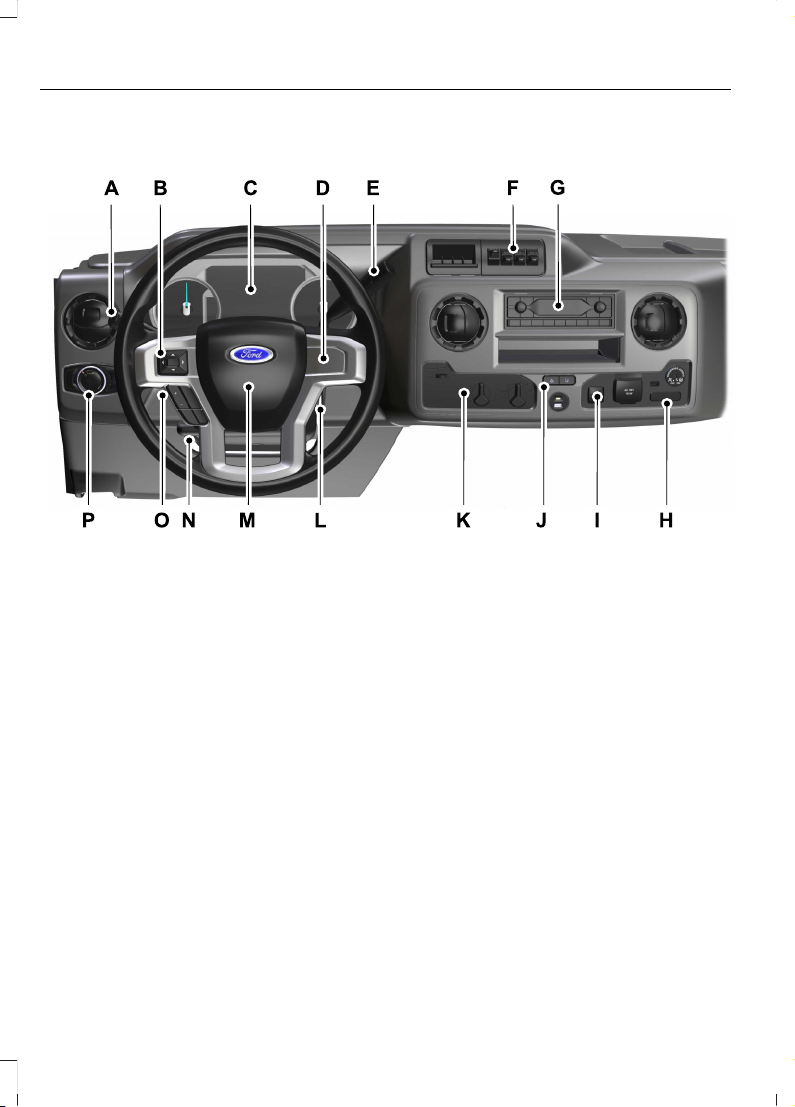

Instrument Panel ...........................................18

Child Safety

General Information .....................................20

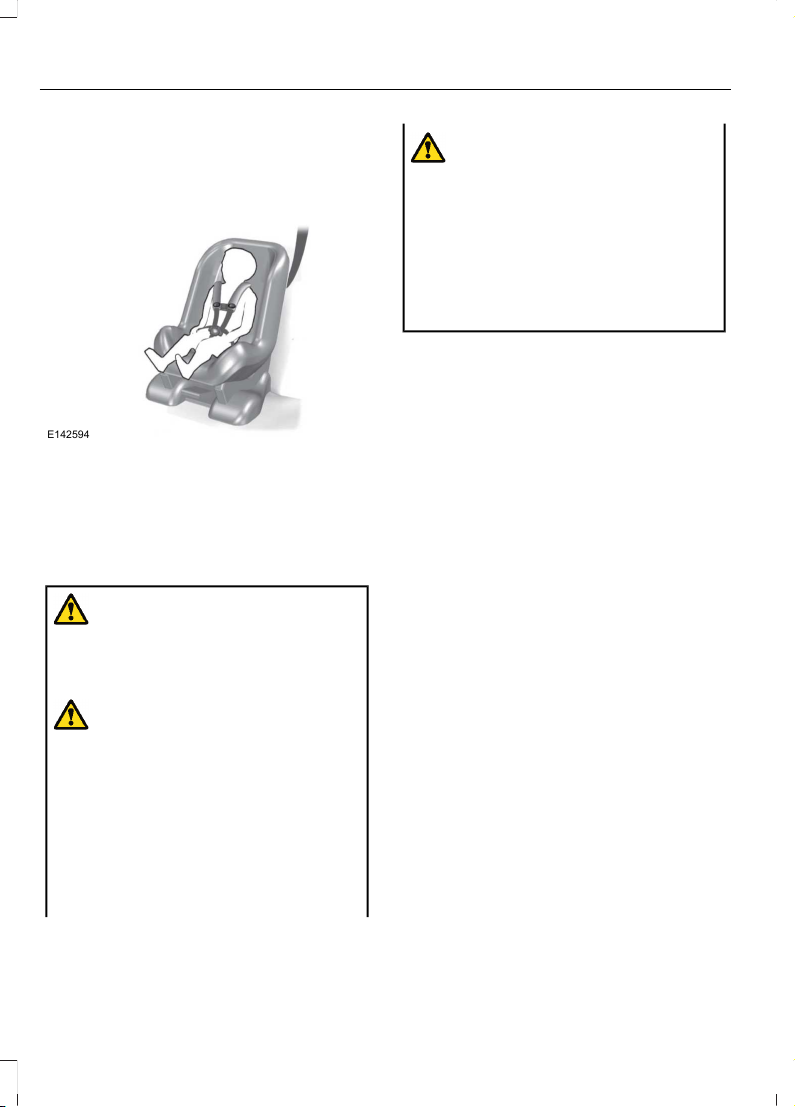

Installing Child Restraints ..........................22

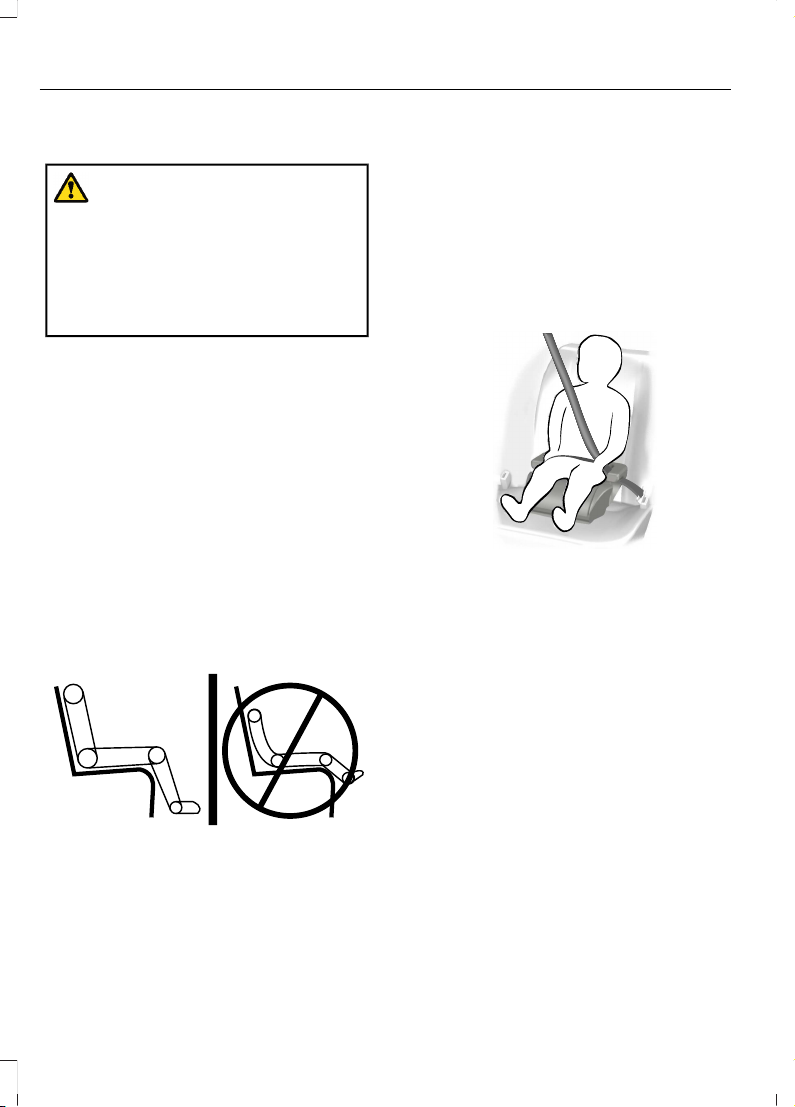

Booster Seats .................................................26

Child Restraint Positioning ........................28

Seatbelts

Principle of Operation .................................30

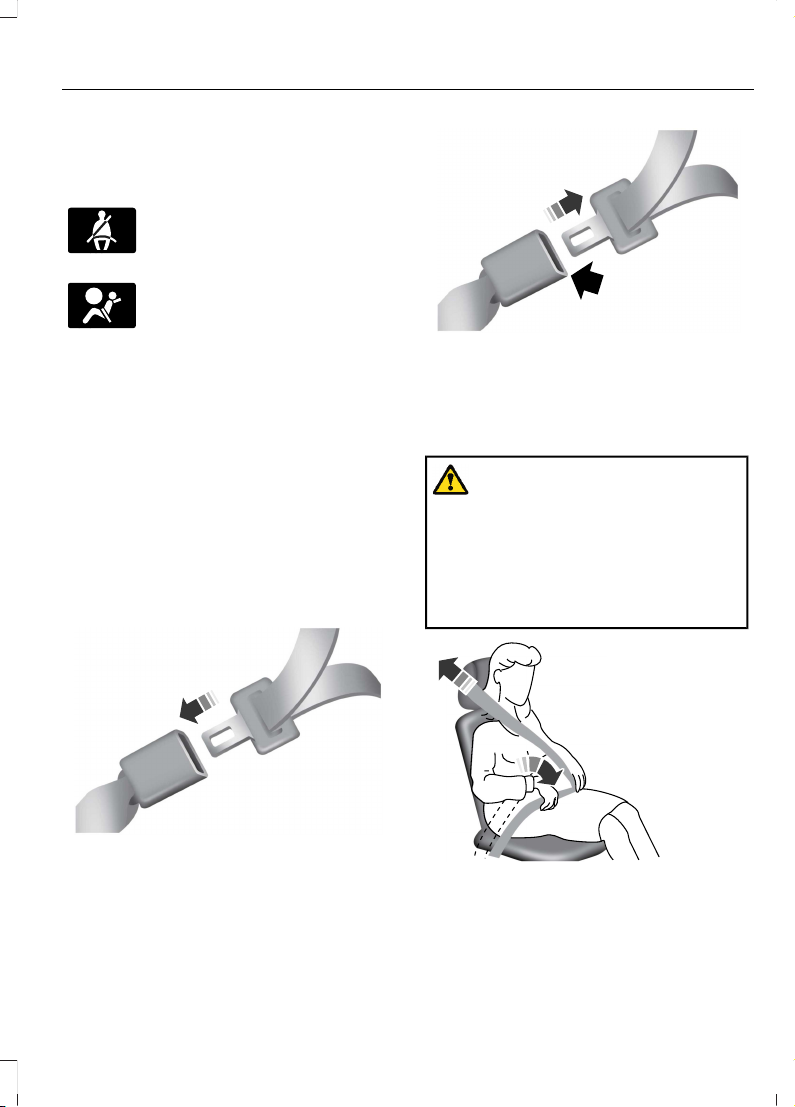

Fastening the Seatbelts ...............................31

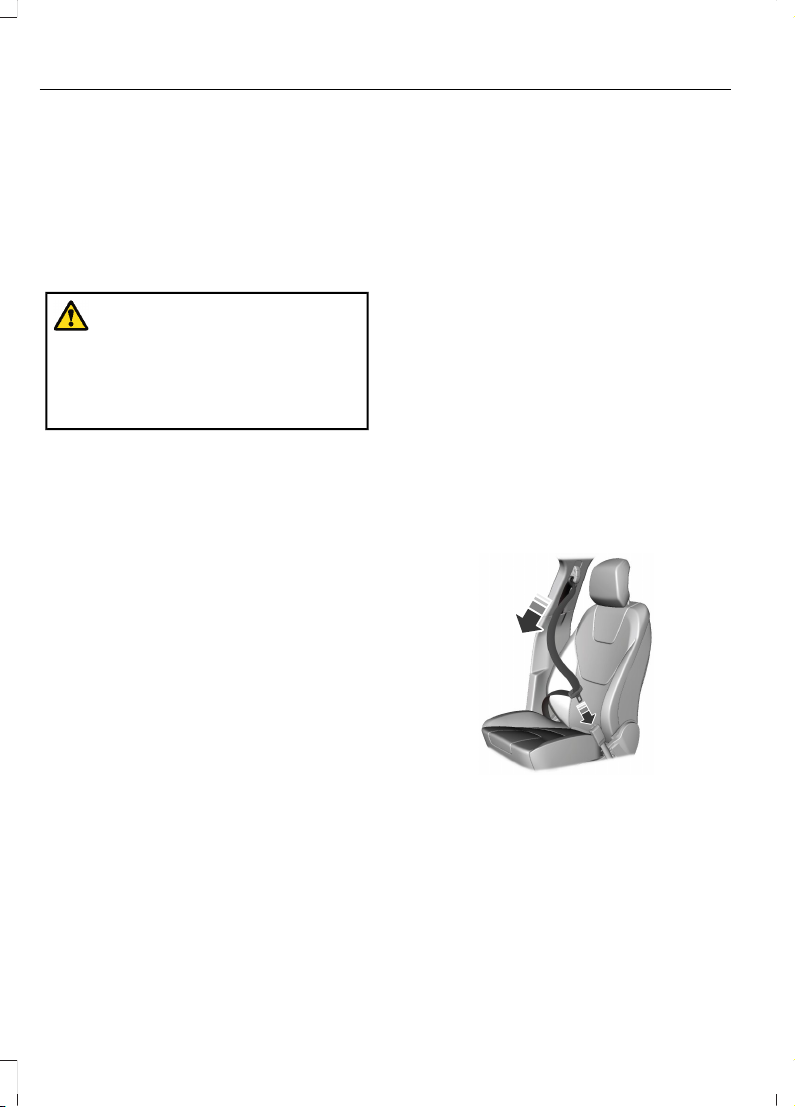

Seatbelt Height Adjustment .....................33

Seatbelt Warning Lamp and Indicator

Chime ............................................................33

Child Restraint and Seatbelt

Maintenance ...............................................34

Seatbelt Extensions .....................................34

Supplementary Restraints

System

Principle of Operation .................................35

Driver and Passenger Airbags ..................36

Crash Sensors and Airbag Indicator ......40

Airbag Disposal ...............................................41

Keys and Remote Controls

General Information on Radio

Frequencies .................................................42

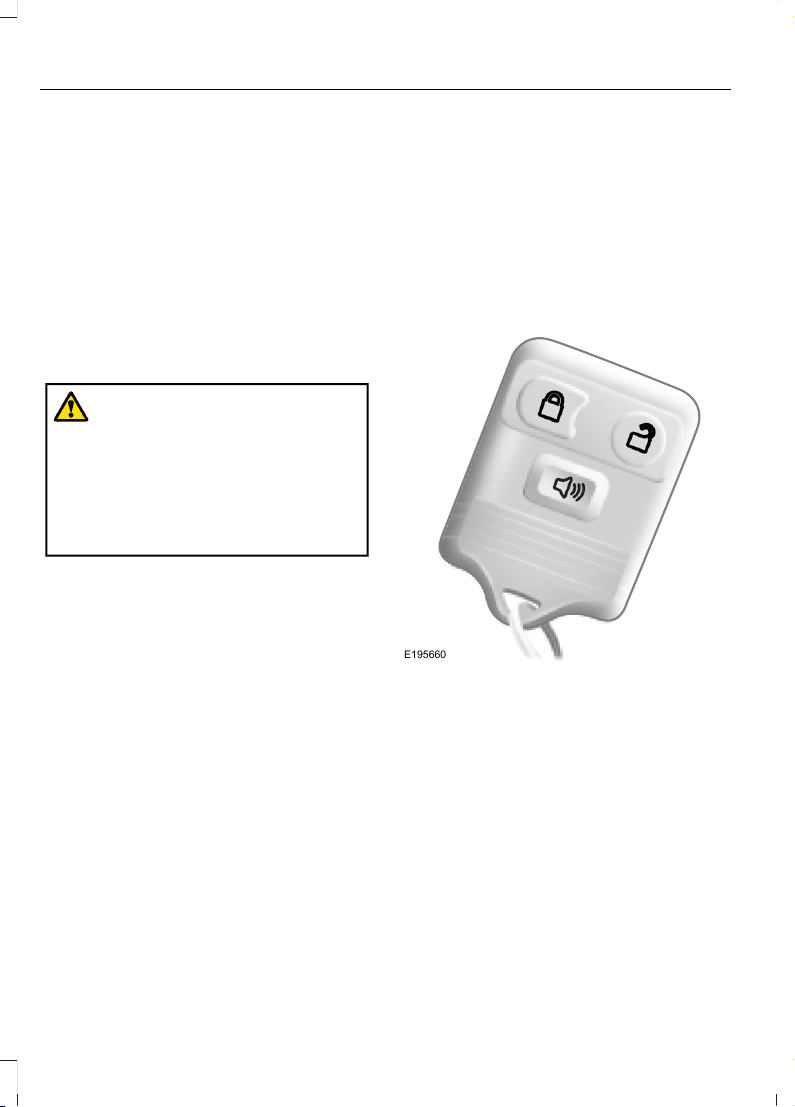

Remote Control .............................................42

Replacing a Lost Key or Remote Control

..........................................................................44

Doors and Locks

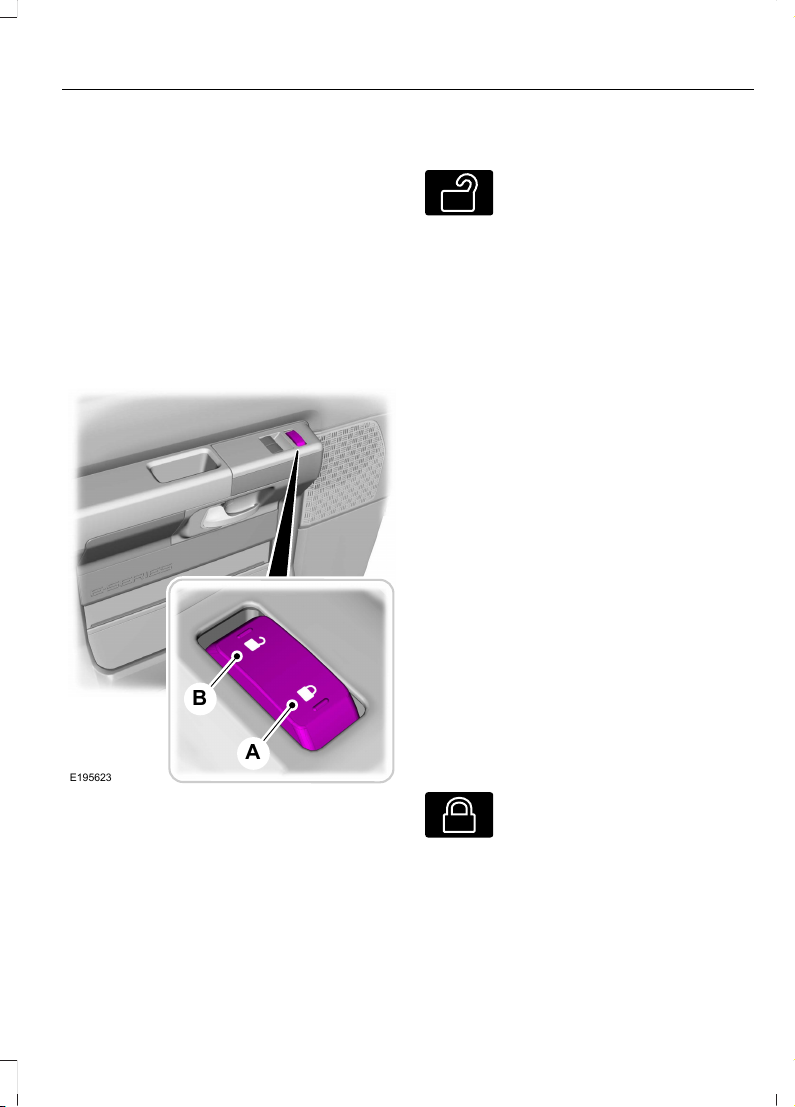

Locking and Unlocking ................................45

Security

Passive Anti-Theft System ........................47

Steering Wheel

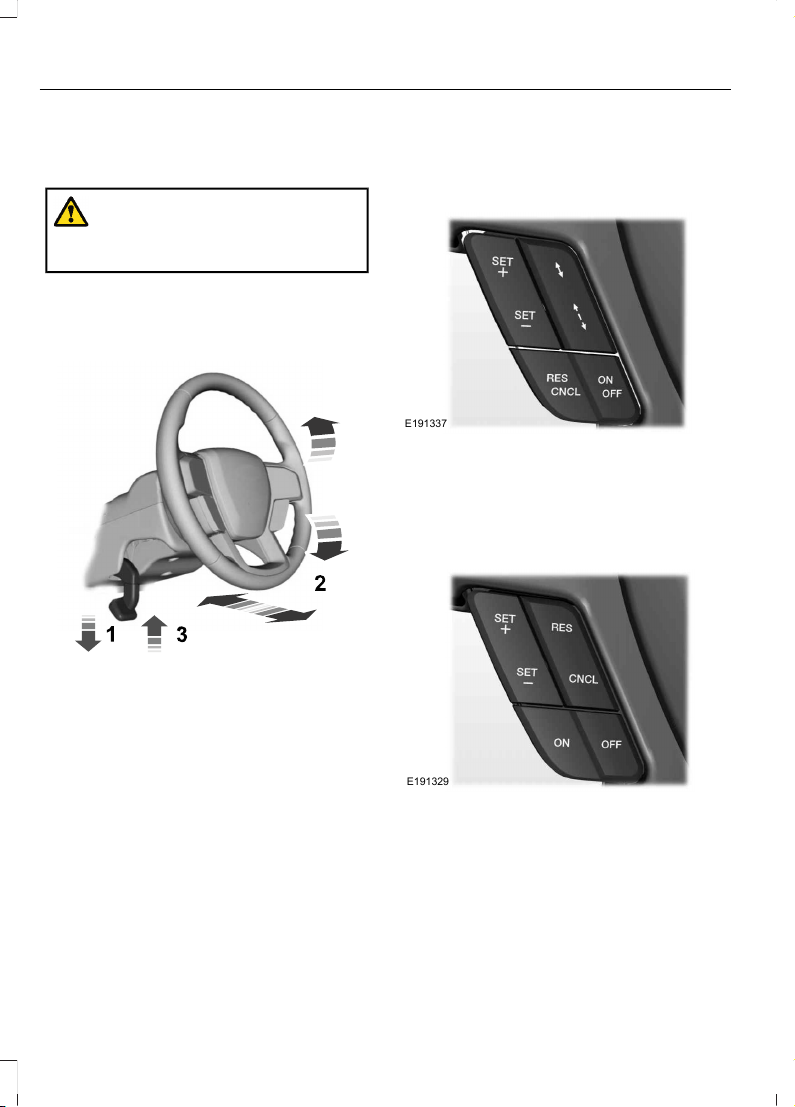

Adjusting the Steering Wheel ..................48

Cruise Control - Vehicles With: Adaptive

Cruise Control ............................................48

Cruise Control - Vehicles With: Cruise

Control ..........................................................48

Information Display Control .....................49

Horn ...................................................................49

Wipers and Washers

Windshield Wipers .......................................50

Windshield Washers ....................................50

Lighting

General Information ......................................51

Lighting Control ..............................................51

Autolamps .......................................................52

Instrument Lighting Dimmer .....................52

2024 E-Series (TE4) Canada/United States of America, enUSA, Edition date: 202210, First-Printing

Page 6

Daytime Running Lamps - Vehicles With:

Configurable Daytime Running Lamps

...........................................................................52

Daytime Running Lamps - Vehicles With:

Daytime Running Lamps (DRL) ..........53

Direction Indicators ......................................53

Automatic High Beam Control

What Is Automatic High Beam Control

..........................................................................54

Switching Automatic High Beam Control

On and Off ...................................................54

Automatic High Beam Control Indicators

..........................................................................54

Overriding Automatic High Beam Control

..........................................................................55

Windows and Mirrors

Power Windows ............................................56

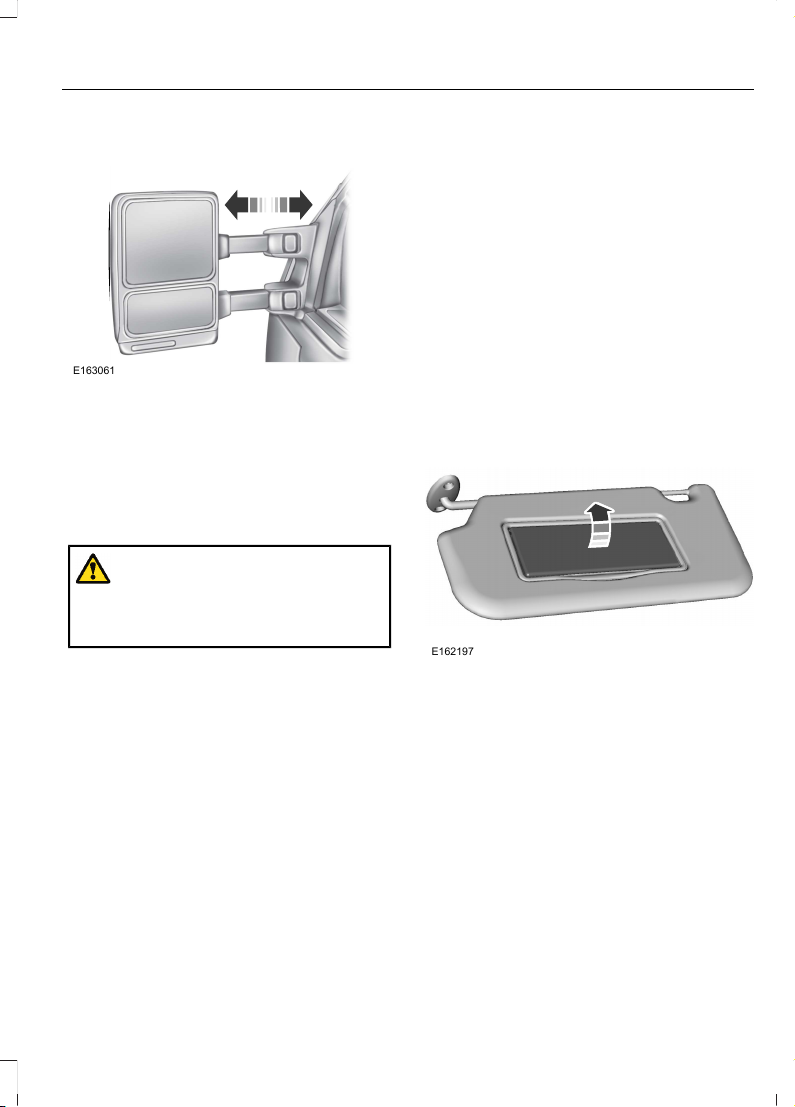

Exterior Mirrors ...............................................56

Interior Mirror ...................................................57

Sun Visors .........................................................57

Instrument Cluster

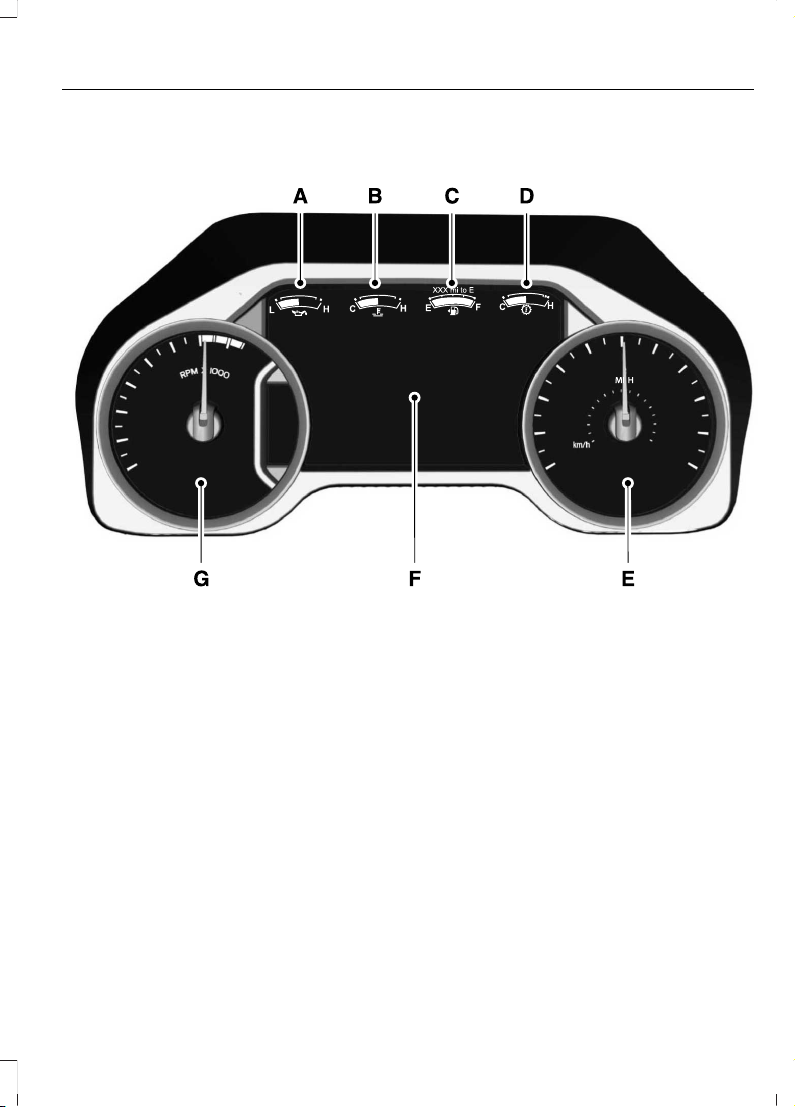

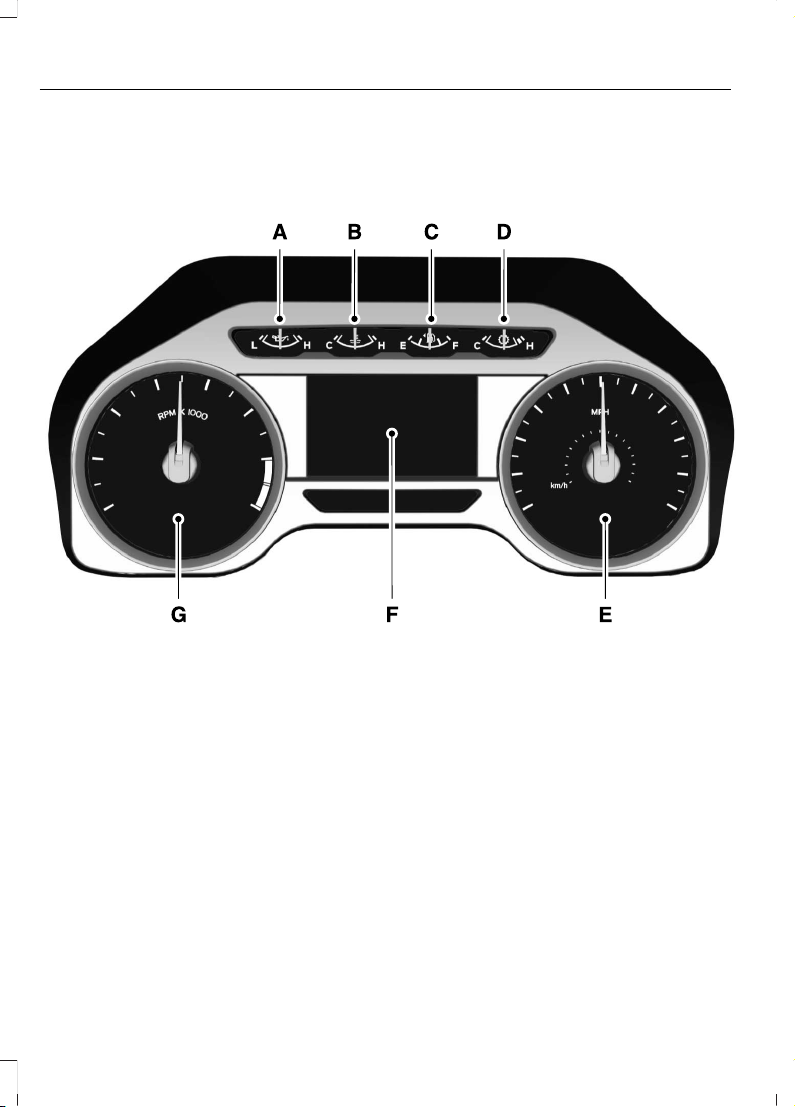

Gauges ..............................................................58

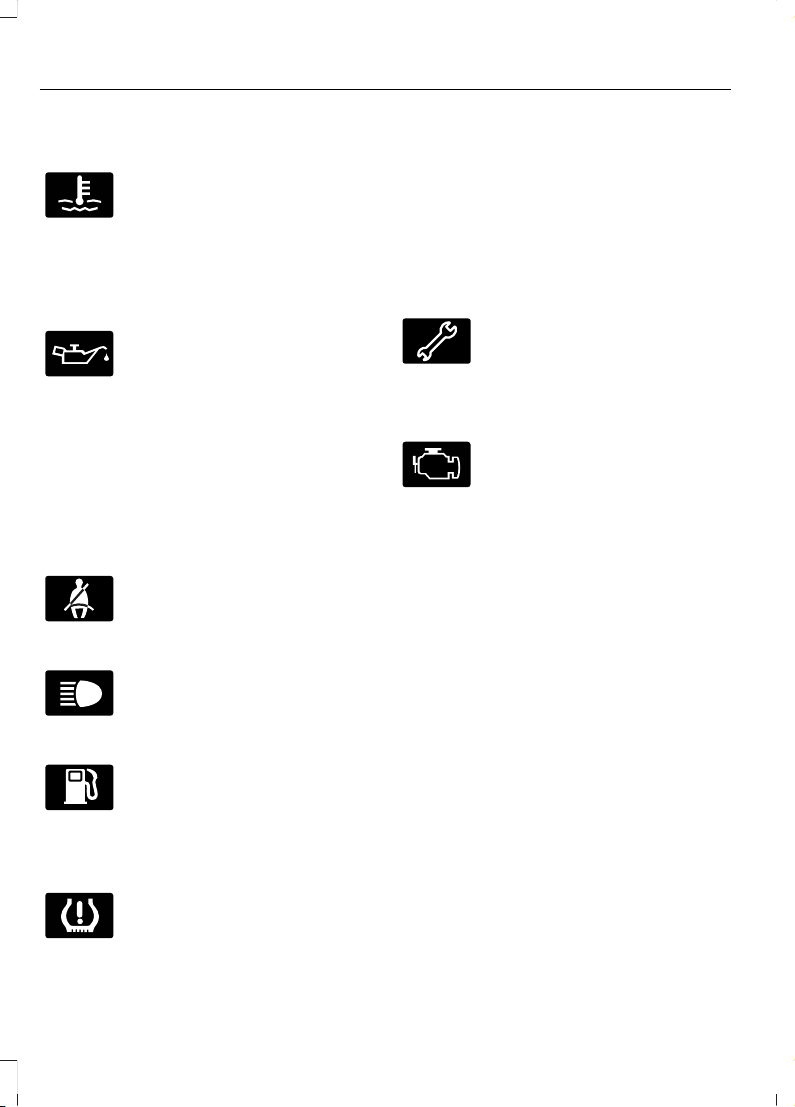

Warning Lamps and Indicators .................61

Audible Warnings and Indicators ............63

Information Displays

General Information ....................................64

Information Messages ................................68

Climate Control

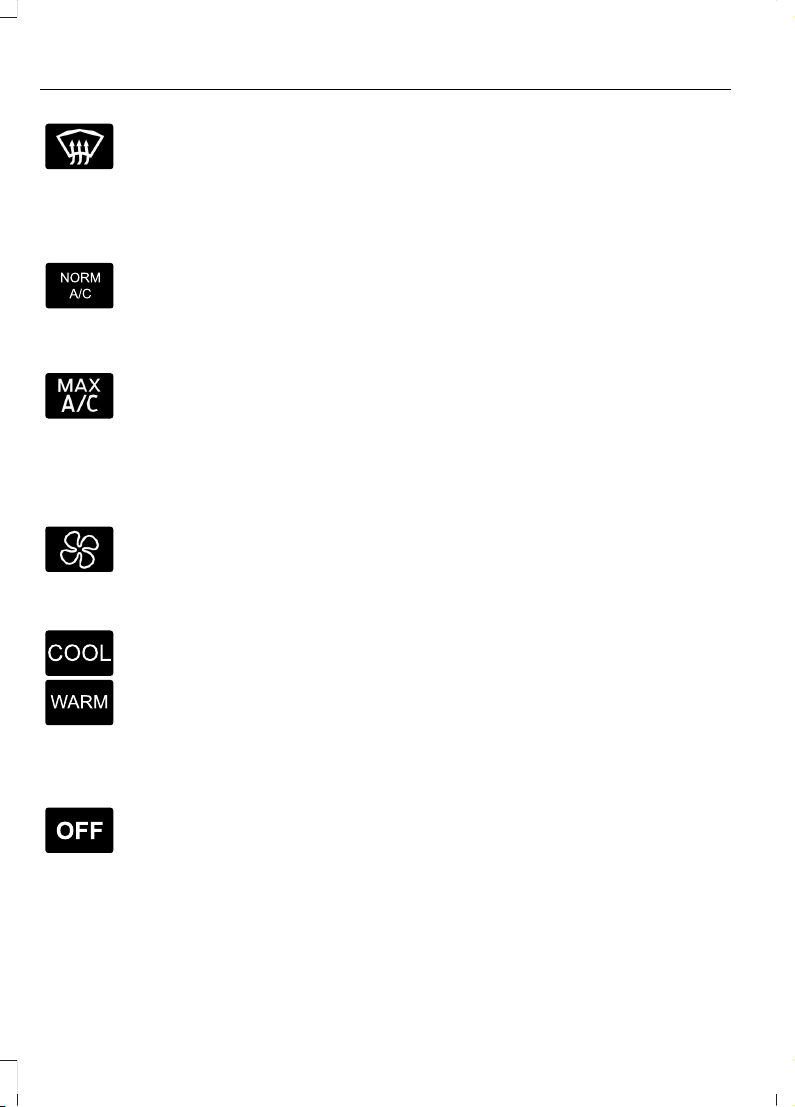

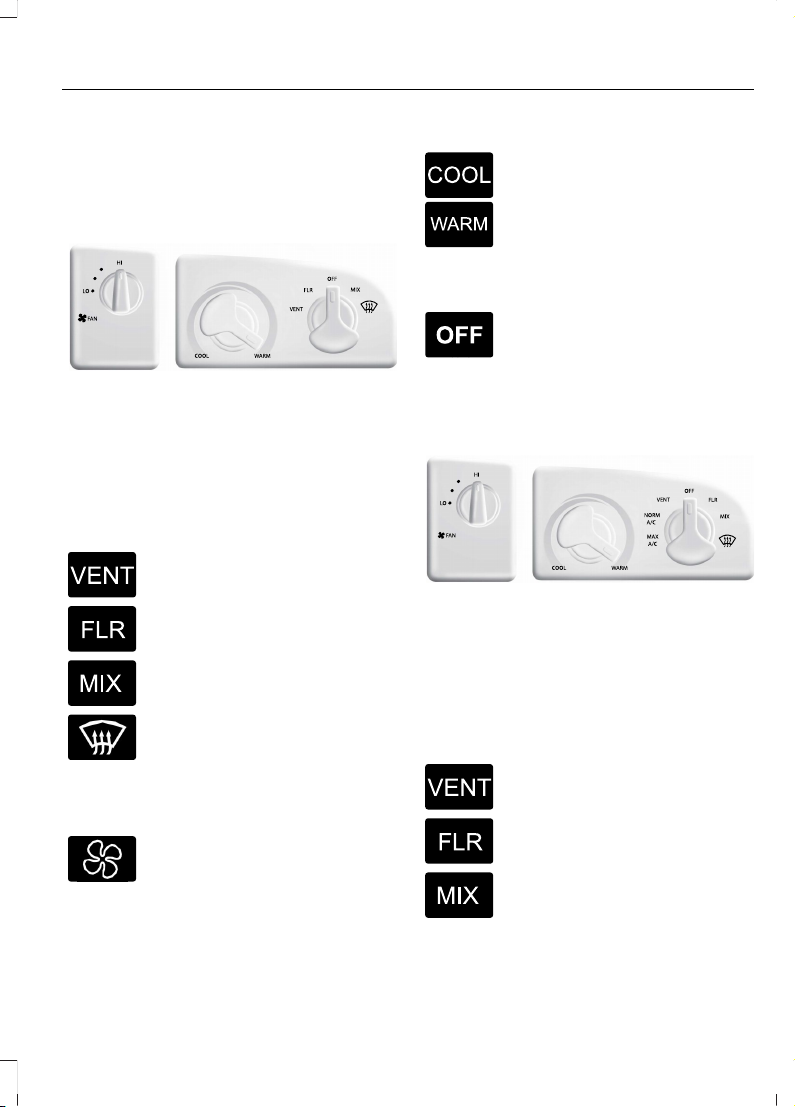

Manual Climate Control ..............................73

Hints on Controlling the Interior Climate

...........................................................................74

Rear Passenger Climate Controls ...........75

Seats

Sitting in the Correct Position ...................76

Head Restraints .............................................76

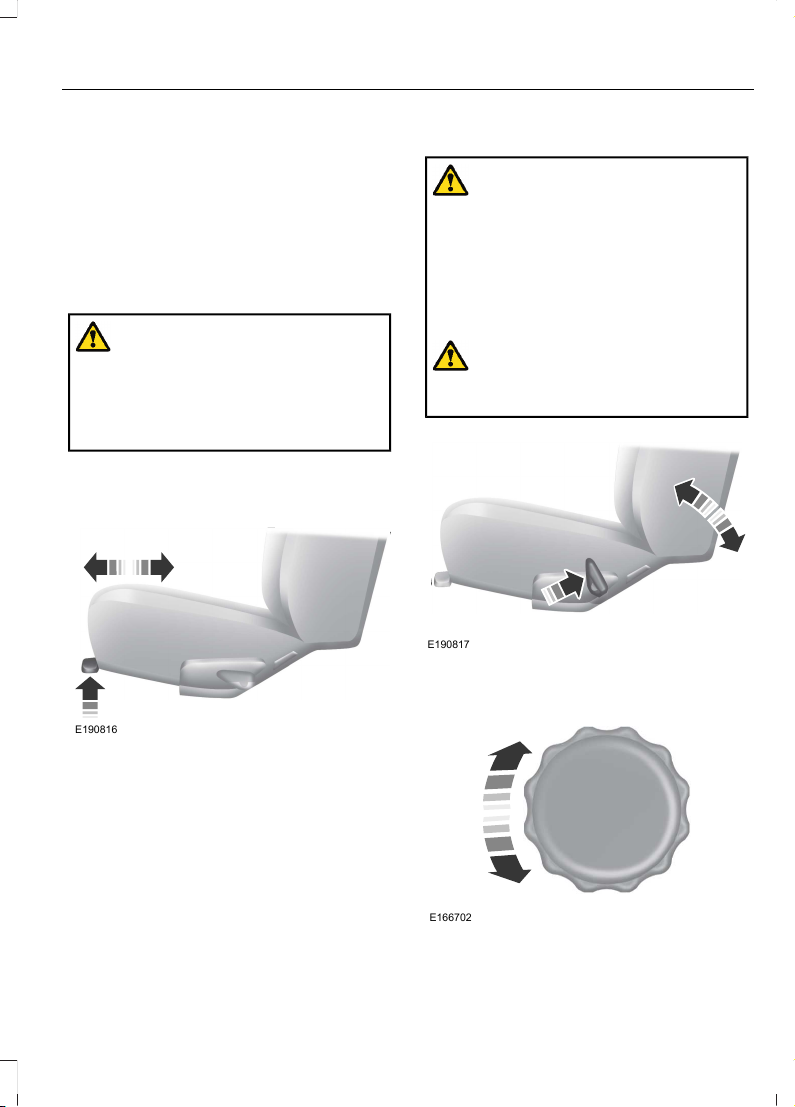

Manual Seats ...................................................77

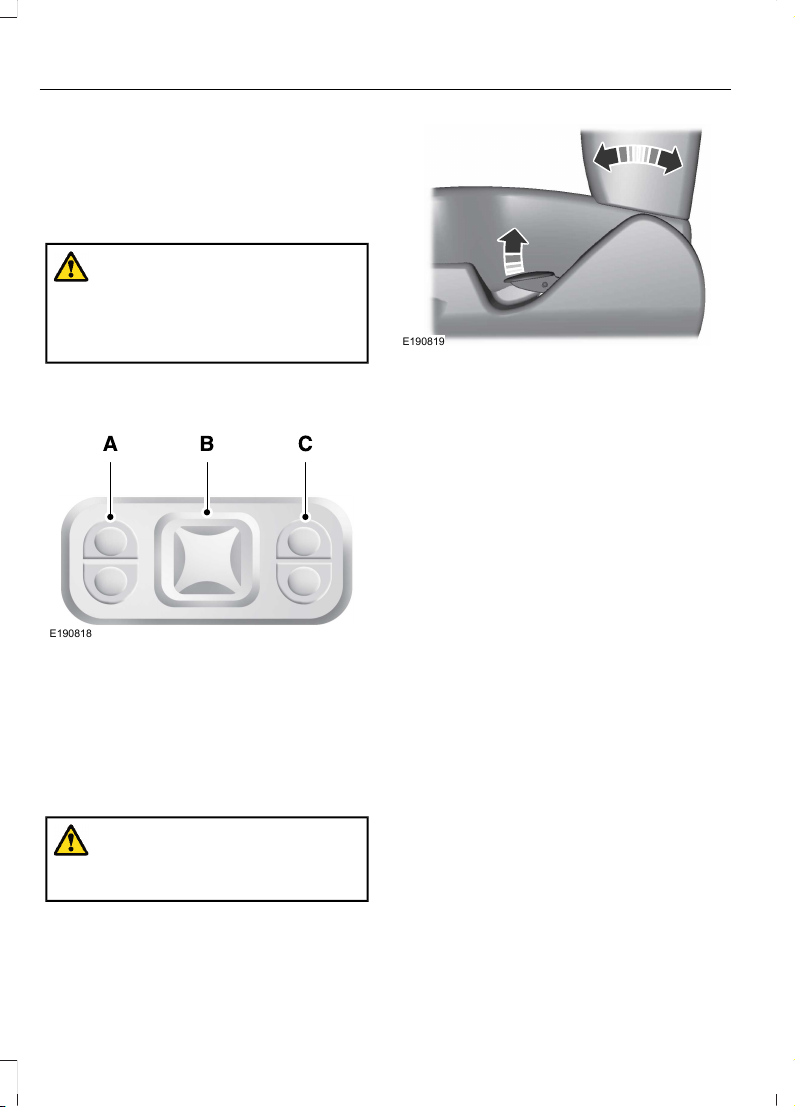

Power Seats ....................................................78

Auxiliary Power Points

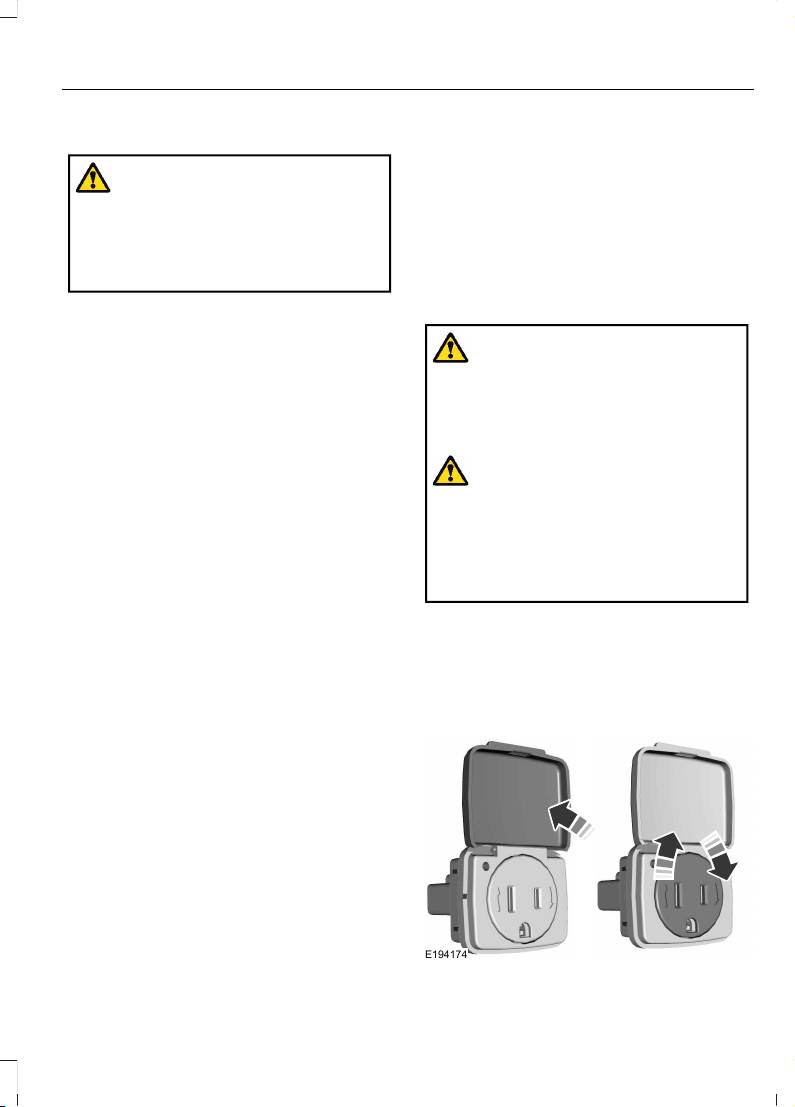

Auxiliary Power Points .................................79

Starting and Stopping the

Engine

General Information ......................................81

Ignition Switch ................................................81

Starting a Gasoline Engine ........................82

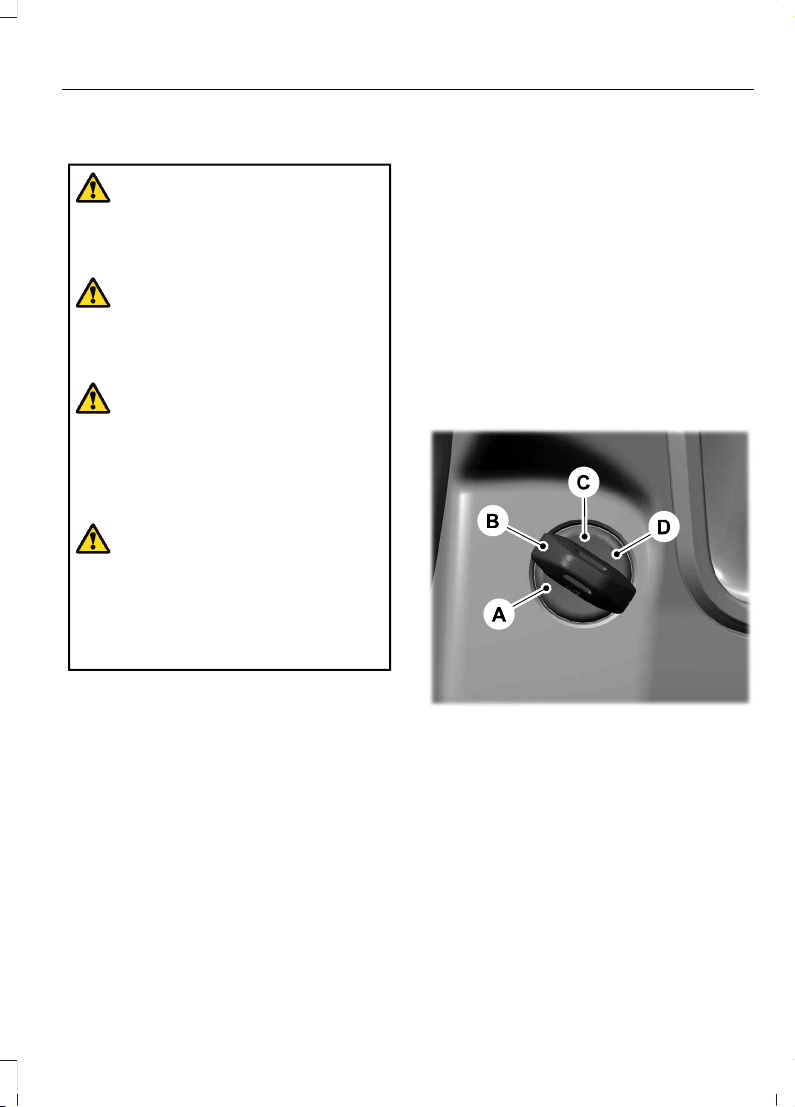

Engine Block Heater .....................................83

Fuel and Refueling

Safety Precautions .......................................85

Fuel Quality - E85 .........................................85

Fuel Quality - Gasoline ................................87

Running Out of Fuel .....................................87

Refueling ..........................................................88

Fuel Consumption ........................................89

Engine Emission Control

Emission Law ...................................................91

Catalytic Converter .......................................92

Transmission

Automatic Transmission ............................95

Brakes

General Information ....................................99

Hints on Driving With Anti-Lock Brakes

........................................................................100

Parking Brake ................................................100

Hill Start Assist ..............................................101

Traction Control

Principle of Operation ................................102

Using Traction Control ...............................102

2024 E-Series (TE4) Canada/United States of America, enUSA, Edition date: 202210, First-Printing

Table of Contents

Page 7

Stability Control

Principle of Operation ................................103

Using Stability Control ..............................104

Parking Aids

Rear View Camera ......................................105

Cruise Control

What Is Cruise Control ..............................106

Switching Cruise Control On and Off

........................................................................106

Setting the Cruise Control Speed .........106

Canceling the Set Speed ..........................107

Resuming the Set Speed ..........................107

Cruise Control Indicators ..........................107

Using Adaptive Cruise Control ................107

Driving Aids

Driver Alert .......................................................114

Lane Keeping System .................................115

Steering ............................................................118

Pre-Collision Assist ......................................118

Load Carrying

Load Limit .......................................................122

Towing

Towing a Trailer .............................................127

Recommended Towing Weights ...........128

Essential Towing Checks ..........................129

Towing the Vehicle on Four Wheels ......135

Driving Hints

Reduced Engine Performance ................136

Economical Driving .....................................136

Breaking-In .....................................................137

Driving Through Water ...............................137

Floor Mats .......................................................137

Roadside Emergencies

Hazard Flashers ...........................................139

Jump Starting the Vehicle ........................139

Transporting the Vehicle ..........................140

Crash and Breakdown

Information

Roadside Assistance ..................................142

Post-Collision Braking ...............................143

Automatic Crash Shutoff .........................143

Customer Assistance

Getting the Services You Need ..............144

In California (U.S. Only) ............................145

The Better Business Bureau (BBB) Auto

Line Program (U.S. Only) .....................146

Getting Assistance Outside the U.S. and

Canada ........................................................147

Ordering Additional Owner's Literature

.........................................................................148

Reporting Safety Defects (U.S. Only)

.........................................................................148

Reporting Safety Defects (Canada Only)

.........................................................................149

Fuses

Fuse Specification Chart ..........................150

Changing a Fuse ..........................................159

Maintenance

General Information ....................................161

Opening and Closing the Hood ...............161

Under Hood Overview ...............................162

Engine Oil Dipstick ......................................163

Engine Oil Check ..........................................163

Oil Change Indicator Reset ......................164

Changing the Engine Air Filter ................165

Engine Coolant Check ...............................165

Automatic Transmission Fluid Check

.........................................................................170

Brake Fluid Check .........................................172

2024 E-Series (TE4) Canada/United States of America, enUSA, Edition date: 202210, First-Printing

Table of Contents

Page 8

Power Steering Fluid Check .....................173

Changing the 12V Battery ..........................173

Adjusting the Headlamps .........................176

Washer Fluid Check .....................................177

Fuel Filter ........................................................178

Checking the Wiper Blades ......................178

Changing the Wiper Blades .....................178

Removing a Headlamp ..............................179

Changing a Bulb ...........................................179

Vehicle Care

General Information ...................................182

Cleaning Products .......................................182

Cleaning the Exterior ..................................183

Waxing .............................................................184

Cleaning the Engine ...................................184

Cleaning the Windows and Wiper Blades

.........................................................................185

Cleaning the Interior ...................................185

Cleaning the Instrument Panel and

Instrument Cluster Lens .......................186

Cleaning Leather Seats .............................186

Repairing Minor Paint Damage ...............187

Cleaning the Wheels ..................................187

Vehicle Storage .............................................187

Wheels and Tires

General Information ...................................190

Tire Care ...........................................................191

Using Snow Chains .....................................212

Tire Pressure Monitoring System ...........213

Changing a Road Wheel ...........................218

Technical Specifications ..........................225

Capacities and Specifications

Engine Specifications ...............................226

Motorcraft Parts - 7.3L ...............................227

Bulb Specification Chart ..........................228

Engine Oil Capacity and Specification

........................................................................229

Cooling System Capacity and

Specification ............................................230

Fuel Tank Capacity ......................................231

Air Conditioning System Capacity and

Specification .............................................232

Washer Fluid Specification .....................232

Automatic Transmission Fluid Capacity

and Specification ....................................233

Brake Fluid Specification .........................234

Rear Axle Fluid Capacity and

Specification ............................................234

Hydraulic Power Steering Fluid Capacity

and Specification ...................................236

Vehicle Identification

Vehicle Identification Number ...............237

Connected Vehicle

Connected Vehicle Requirements .......238

Connected Vehicle Limitations .............238

Connecting the Vehicle to a Mobile

Network ......................................................238

Connected Vehicle – Troubleshooting

........................................................................238

Audio System

General Information ..................................239

Audio Unit ......................................................239

Connecting a Bluetooth® Device .........242

Streaming Bluetooth Audio ....................242

Playing Media From a USB Device .......242

USB Port ........................................................243

Using Voice Recognition ..........................243

Accessories

Accessories ...................................................244

Auxiliary Switches ......................................245

2024 E-Series (TE4) Canada/United States of America, enUSA, Edition date: 202210, First-Printing

Table of Contents

Page 9

Ford Protect

Ford Protect ..................................................247

Scheduled Maintenance

General Maintenance Information ......249

Normal Scheduled Maintenance ..........252

Special Operating Conditions Scheduled

Maintenance ............................................255

Customer Information

Radio Frequency Certification Labels

........................................................................258

Warranty Information ...............................268

Appendices

Electromagnetic Compatibility .............270

End User License Agreement .................273

2024 E-Series (TE4) Canada/United States of America, enUSA, Edition date: 202210, First-Printing

Table of Contents

Page 10

2024 E-Series (TE4) Canada/United States of America, enUSA, Edition date: 202210, First-Printing

Page 11

ABOUT THIS MANUAL

Thank you for choosing Ford. We recommend that you take some time to get to know your vehicle by reading this manual. The more that you know about your vehicle, the greater the safety and pleasure you will get from driving it.

WARNING: Driving while distracted can result in loss of vehicle control, crash and injury. We strongly recommend that you use extreme caution when using any device that may take your focus off the road. Your primary responsibility is the safe operation of your vehicle. We recommend against the use of any hand-held device while driving and encourage the use of voice-operated systems when possible. Make sure you are aware of all applicable local laws that may affect the use of electronic devices while driving.

Note: This manual describes product features and options available throughout the range of available models, sometimes even before they are generally available. It may describe options not fitted to the vehicle you have purchased.

Note: Some of the illustrations in this manual may show features as used in different models, so may appear different to you on your vehicle.

Note: Always use and operate your vehicle in line with all applicable laws and regulations.

Note: Pass on this manual when selling your vehicle. It is an integral part of your vehicle.

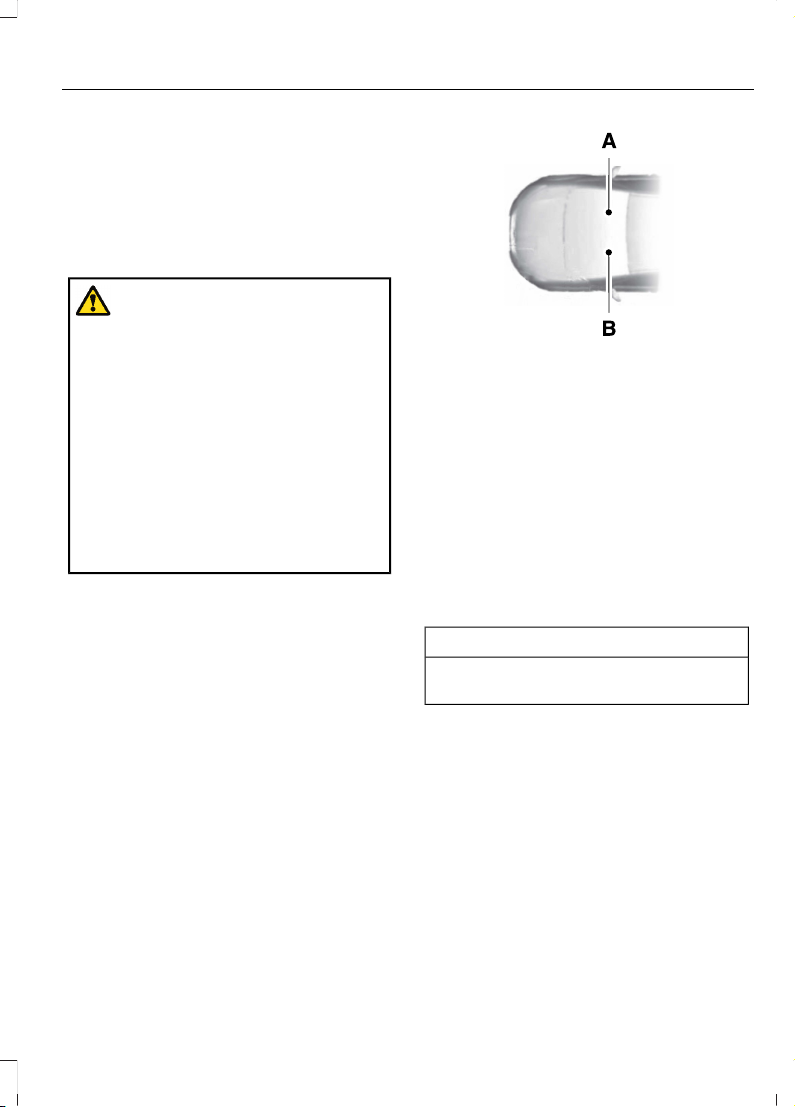

This manual may qualify the location of a component as left-hand side or right-hand side. The side is determined when facing forward in the seat.

E154903

Right-hand side.A Left-hand side.B

PERCHLORATE

Certain components in your vehicle such as airbag modules, seatbelt pretensioners and remote control batteries may contain perchlorate material. Special handling may apply for service or vehicle end of life disposal.

For more information visit:

Web Address

www.dtsc.ca.gov/hazard-

ouswaste/perchlorate

FORD CREDIT

US Only

Ford Credit/Ford Pro FinSimple offers a full range of financing and lease plans to help you acquire our vehicle. If you have financed or leased your vehicle through Ford Credit/Ford Pro FinSimple, thank you for your business.

2024 E-Series (TE4) Canada/United States of America, enUSA, Edition date: 202210, First-Printing

Introduction

Page 12

For assistance:

• Call 1-800-727-7000.

• For more information about Ford Credit

and access to the online Account Manager tool, visit www.ford.com/finance.

• For more information about Ford Pro FinSimple, visit https://fordpro.com/en-us/financing/.

REPLACEMENT PARTS RECOMMENDATION

We have built your vehicle to the highest standards using quality parts. We recommend that you demand the use of genuine Ford and Motorcraft parts whenever your vehicle requires scheduled maintenance or repair. You can clearly identify genuine Ford and Motorcraft parts by looking for the Ford, FoMoCo or Motorcraft branding on the parts or their packaging.

Scheduled Maintenance and Mechanical Repairs

One of the best ways for you to make sure that your vehicle provides years of service is to have it maintained in line with our recommendations using parts that conform to the specifications detailed in this Owner’s Manual.

Genuine Ford and Motorcraft parts meet or exceed these specifications.

Collision Repairs

We hope that you never experience a collision, but accidents happen sometimes.

Genuine Ford replacement collision parts meet our stringent requirements for fit, finish, structural integrity, corrosion protection and dent resistance. During vehicle development we validate that these parts deliver the intended level of protection as a whole system. A great way to know for sure you are getting this level of protection is to use genuine Ford replacement collision parts.

Warranty on Replacement Parts

Genuine Ford and Motorcraft replacement parts are the only replacement parts that benefit from a Ford Warranty.

The Ford Warranty may not cover damage caused to your vehicle as a result of failed non-Ford parts.

For additional information, refer to the terms and conditions of the Ford Warranty.

SPECIAL NOTICES

New Vehicle Limited Warranty

For a detailed description of what is covered by your New Vehicle Limited Warranty, see your warranty guide that is available online. For more information, refer to our website and download your copy of the warranty guide.

Special Instructions

For your added safety, your vehicle is fitted with sophisticated electronic controls.

WARNING: You risk death, fire, or serious injury to yourself and others if you do not follow the instruction highlighted by the warning symbol.

WARNING: Never place front seat mounted rear-facing child or infant seats in front of an active passenger airbag.

2024 E-Series (TE4) Canada/United States of America, enUSA, Edition date: 202210, First-Printing

Introduction

Page 13

Fleet Telematics Modem (If Equipped)

The onboard modem provides access to data to support telematics services such as location, speed, idle time, fuel, vehicle diagnostics and maintenance alerts. To explore data, telematics services, third party service provider support and to manage existing telematics accounts, refer to www.commericalsolutions.ford.com or call 833-FCS-FORD.

Note: This is not available with FordPass Connect.

FordPass Connect (If Equipped)

With a FordPass Connect-equipped vehicle, you can use FordPass to track your vehicle’s location and remotely access vehicle features such as start, lock and unlock and vehicle status including fuel level and approximate mileage. Message and data rates may apply. Services may be limited by mobile phone network coverage area. For additional information, refer to www.fordpass.com.

On Board Diagnostics Data Link Connector

WARNING: Do not connect

wireless plug-in devices to the data link connector. Unauthorized third parties could gain access to vehicle data and impair the performance of safety related systems. Only allow repair facilities that follow our service and repair instructions to connect their equipment to the data link connector.

Your vehicle has an OBD Data Link Connector (DLC) that is used in conjunction with a diagnostic scan tool for vehicle diagnostics, repairs and reprogramming services. Installing an aftermarket device that uses the DLC during normal driving for purposes such as

remote insurance company monitoring, transmission of vehicle data to other devices or entities, or altering the performance of the vehicle, may cause interference with or even damage to vehicle systems. We do not recommend or endorse the use of aftermarket plug-in devices unless approved by Ford. The vehicle Warranty will not cover damage caused by an aftermarket plug-in device.

Notice to Owners of Pickup Trucks and Utility Type Vehicles

WARNING: Utility vehicles have a

significantly higher rollover rate than other types of vehicles.

WARNING: Vehicles with a higher center of gravity (utility and four-wheel drive vehicles) handle differently than vehicles with a lower center of gravity (passenger cars). Avoid sharp turns, excessive speed and abrupt steering in these vehicles. Failure to drive cautiously increases the risk of losing control of your vehicle, vehicle rollover, personal injury and death.

Before you drive your vehicle, please read this Owner’s Manual carefully. Your vehicle is not a passenger car. As with other vehicles of this type, failure to operate this vehicle correctly may result in loss of vehicle control, vehicle rollover, personal injury or death.

Using your Vehicle as an Ambulance

If your light truck has the Ford Ambulance Preparation Package, it may be utilized as an ambulance. Ford urges ambulance manufacturers to follow the recommendations of the Ford Incomplete Vehicle Manual, Ford Truck Body Builder’s Layout Book and the Qualified Vehicle

2024 E-Series (TE4) Canada/United States of America, enUSA, Edition date: 202210, First-Printing

Introduction

Page 14

Modifiers (QVM) Guidelines as well as pertinent supplements. For additional information, please contact the Truck Body Builders Advisory Service at http://www.fleet.ford.com/truckbbas/ and then by selecting Contact Us or by phone at 1–877–840–4338.

Use of your Ford light truck as an ambulance, without the Ford Ambulance Preparation Package voids the Ford New Vehicle Limited Warranty and may void the emissions warranties. In addition, ambulance usage without the preparation package could cause high underbody temperatures, over-pressurized fuel and a risk of spraying fuel, which could lead to fires.

If your vehicle has the Ford Ambulance Preparation Package, it will be indicated on the Safety Compliance Certification Label. The label is on the driver side door pillar or on the rear edge of the driver door. You can determine whether the ambulance manufacturer followed Ford’s recommendations by directly contacting that manufacturer.

MOBILE COMMUNICATIONS EQUIPMENT

WARNING: Driving while

distracted can result in loss of vehicle control, crash and injury. We strongly recommend that you use extreme caution when using any device that may take your focus off the road. Your primary responsibility is the safe operation of your vehicle. We recommend against the use of any

hand-held device while driving and encourage the use of voice-operated systems when possible. Make sure you are aware of all applicable local laws that may affect the use of electronic devices while driving.

Using mobile communications equipment is becoming increasingly important in the conduct of business and personal affairs. However, you must not compromise your own or others’ safety when using such equipment. Mobile communications can enhance personal safety and security when appropriately used, particularly in emergency situations. Safety must be paramount when using mobile communications equipment to avoid negating these benefits. Mobile communication equipment includes, but is not limited to, cellular phones, pagers, portable email devices, text messaging devices and portable two-way radios.

2024 E-Series (TE4) Canada/United States of America, enUSA, Edition date: 202210, First-Printing

Introduction

Page 15

SYMBOLS USED ON YOUR VEHICLE

These are some of the symbols you may see on your vehicle.

Airbag

E162384

Air conditioning system

E231157

Air conditioning system lubricant type

E67020

Anti-lock braking system

E139220

Avoid smoking, flames or sparks

E67021

Battery

E139227

Battery acid

Blower motor

E139209

Brake fluid - non petroleum based

E67024

Brake system

E270480

Brake system

E139223

Cabin air filter

Check fuel cap

Child safety door lock or unlock

E139211

Child seat lower anchor

E141128

Child seat tether anchor

E332905

Cruise control

E139219

Do not open when hot

E139212

Electric Parking brake

Engine air filter

Engine coolant

E103308

Engine coolant temperature

E67022

Engine oil

E139221

Explosive gas

E139228

Fan warning

Fasten seatbelt

E231160

Flammable

Front fog lamps

2024 E-Series (TE4) Canada/United States of America, enUSA, Edition date: 202210, First-Printing

Symbols Glossary

Page 16

Fuel pump reset

E139214

Fuse compartment

E75790

Hazard flashers

E67019

Headlamp high beams

E270968

Headlamps on

Heated rear window

Hill descent control

E270945

Horn control

Interior luggage compartment release

E139231

Jack

Keep out of reach of children

Lighting control

Low fuel level

E139232

Low tire pressure warning

E139229

Maintain correct fluid level

E67028

Malfunction Indicator Lamp (MIL)

E72343

Note operating instructions

Panic alarm

E139213

Parking aid

E71341

Parking lamps

Passenger airbag activated

Passenger airbag deactivated

Power steering fluid

E139216

Power windows front/rear

E139225

Power window lockout

E231159

Requires registered technician

E65963

Safety alert

E72021

See Owner's Manual

E231158

See Service Manual

Side airbag

2024 E-Series (TE4) Canada/United States of America, enUSA, Edition date: 202210, First-Printing

Symbols Glossary

Page 17

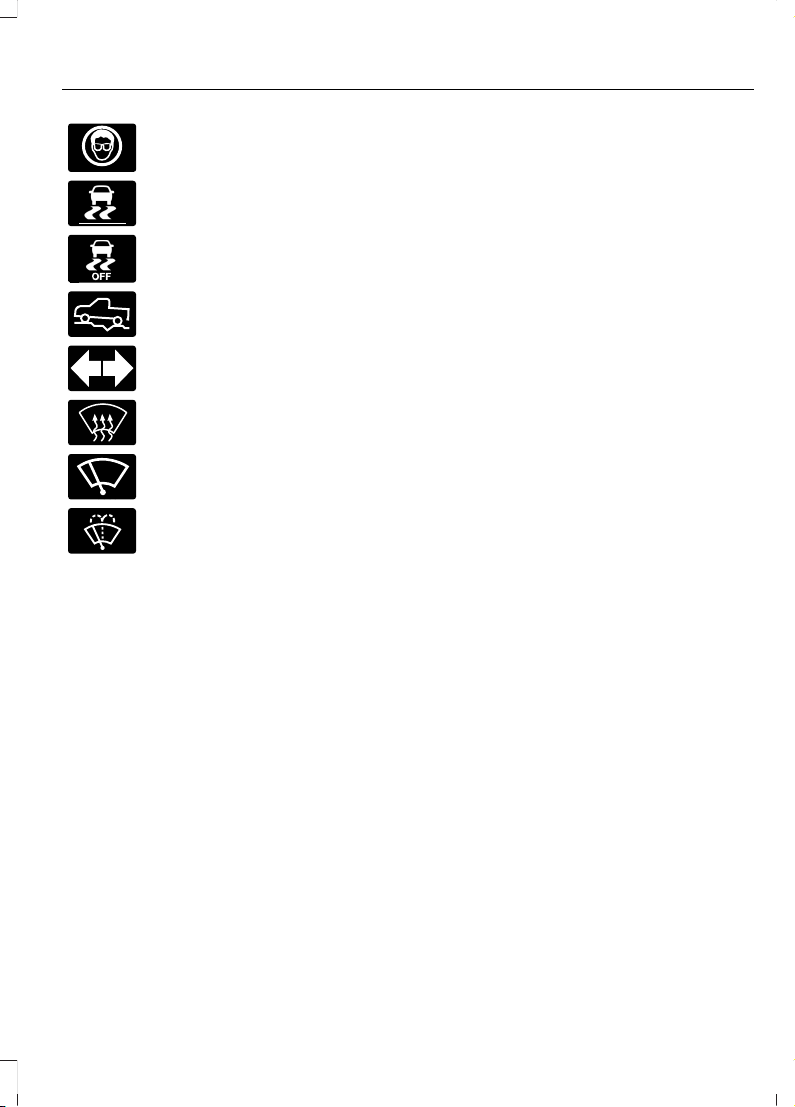

Shield the eyes

E138639

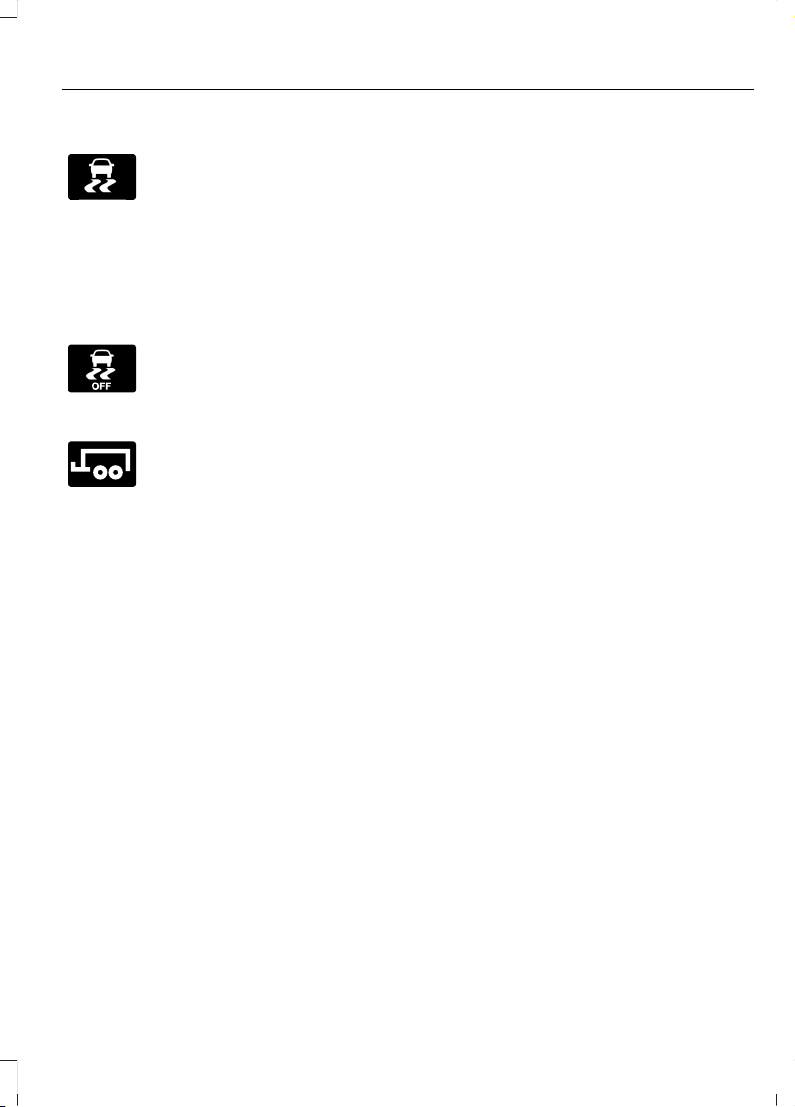

Stability control

E130458

Stability control off

E332910

Trail control

E67018

Turn Signal

E73953

Windshield defrosting system

Windshield wiping system

E270967

Windshield wash and wipe

2024 E-Series (TE4) Canada/United States of America, enUSA, Edition date: 202210, First-Printing

Symbols Glossary

Page 18

WARNING: Do not connect

wireless plug-in devices to the data link connector. Unauthorized third parties could gain access to vehicle data and impair the performance of safety related systems. Only allow repair facilities that follow our service and repair instructions to connect their equipment to the data link connector.

We respect your privacy and are committed to protecting it. The information contained in this publication was correct at the time of release, but as technology rapidly changes, we recommend that you visit the local Ford website for the latest information.

Your vehicle has electronic control units that have data recording functionality and the ability to permanently or temporarily store data. This data could include information on the condition and status of your vehicle, vehicle maintenance requirements, events and malfunctions. The types of data that can be recorded are described in this section. Some of the data recorded is stored in event logs or error logs.

Note: Error logs are reset following a service or repair.

Note: We may provide information in response to requests from law enforcement, other government authorities and third parties acting with lawful authority or through a legal process. Such information could be used by them in legal proceedings.

Data recorded includes, for example:

• Operating states of system components, for example fuel level, tire pressure and battery charge level.

• Vehicle and component status, for example wheel speed, deceleration, lateral acceleration and seatbelt status.

• Events or errors in essential systems, for example headlamps and brakes.

• System responses to driving situations, for example airbag deployment and stability control.

• Environmental conditions, for example temperature.

Some of this data, when used in combination with other information, for example an accident report, damage to a vehicle or eyewitness statements, could be associated with a specific person.

Services That We Provide

If you use our services, we collect and use data, for example account information, vehicle location and driving characteristics, that could identify you. We transmit this data through a dedicated, protected connection. We only collect and use data to enable your use of our services to which you have subscribed, with your consent or where permitted by law. For additional information, see the terms and conditions of the services to which you have subscribed.

For additional information about our privacy policy, refer to the local Ford website.

Services That Third Parties Provide

We recommend that you review the terms and conditions and data privacy information for any services equipped with your vehicle or to which you subscribe. We take no responsibility for services that third parties provide.

14

2024 E-Series (TE4) Canada/United States of America, enUSA, Edition date: 202210, First-Printing

Data Privacy

Page 19

SERVICE DATA

Service data recorders in your vehicle are capable of collecting and storing diagnostic information about your vehicle. This potentially includes information about the performance or status of various systems and modules in the vehicle, such as engine, throttle, steering or brake systems. In order to properly diagnose and service your vehicle, Ford Motor Company (Ford of Canada in Canada), and service and repair facilities may access or share among them vehicle diagnostic information received through a direct connection to your vehicle when diagnosing or servicing your vehicle. Additionally, Ford Motor Company (Ford of Canada, in Canada) may, where permitted by law, use vehicle diagnostic information for vehicle improvement or with other information we may have about you, for example, your contact information, to offer you products or services that may interest you. Data may be provided to our service providers such as part suppliers that may help diagnose malfunctions, and who are similarly obligated to protect data. We retain this data only as long as necessary to perform these functions or to comply with law. We may provide information where required in response to official requests to law enforcement or other government authorities or third parties acting with lawful authority or court order, and such information may be used in legal proceedings. For U.S. only (if equipped), if you choose to use connected apps and services, you consent that certain diagnostic information may also be accessed electronically by Ford Motor Company and Ford authorized service facilities, and that the diagnostic information may be used to provide services to you, personalizing your experience, troubleshoot, and to improve products and services and offer you products and services that may interest

you, where permitted by law. For Canada only, for more information, please review the Ford of Canada privacy policy at www.ford.ca, including our U.S. data storage and use of service providers in other jurisdictions who may be subject to legal requirements in Canada, the United States and other countries applicable to them, for example, lawful requirements to disclose personal information to governmental authorities in those countries.

EVENT DATA

This vehicle is equipped with an event data recorder. The main purpose of an event data recorder is to record, in certain crash or near crash-like situations, such as an airbag deployment or hitting a road obstacle; this data will assist in understanding how a vehicle’s systems performed. The event data recorder is designed to record data related to vehicle dynamics and safety systems for a short period of time, typically 30 seconds or less.

The event data recorder in this vehicle is designed to record such data as:

• How various systems in your vehicle were operating.

• Whether or not the driver and passenger seatbelts were buckled/fastened.

• How far (if at all) the driver was depressing the accelerator and/or the brake pedal.

• How fast the vehicle was traveling.

• Where the driver was positioning the

steering wheel.

This data can help provide a better understanding of the circumstances in which crashes and injuries occur.

2024 E-Series (TE4) Canada/United States of America, enUSA, Edition date: 202210, First-Printing

Data Privacy

Page 20

Note: Event data recorder data is recorded

by your vehicle only if a non-trivial crash situation occurs; no data is recorded by the event data recorder under normal driving conditions and no personal data or information (for example name, gender, age, and crash location) is recorded. However, parties, such as law enforcement, could combine the event data recorder data with the type of personally identifying data routinely acquired during a crash investigation.

To read data recorded by an event data recorder, special equipment is required, and access to the vehicle or the event data recorder is needed. In addition to the vehicle manufacturer, other parties, such as law enforcement, that have such special equipment, can read the information if they have access to the vehicle or the event data recorder.

CONNECTED VEHICLE DATA

The modem has a SIM. The modem was enabled when your

vehicle was built and periodically sends messages to stay connected to the cell phone network, receive automatic software updates and send vehicle-related information to us, for example diagnostic information. These messages could include information that identifies your vehicle, the SIM and the electronic serial number of the modem. Cell phone network service providers could have access to additional information, for example cell phone network tower identification. For additional information about our privacy policy, visit www.FordConnected.com or refer to your local Ford website.

Note: The modem continues to send this information unless you disable the modem or stop the modem from sharing vehicle data by changing the modem settings. See Connected Vehicle (page 238).

Note: The service can be unavailable or interrupted for a number of reasons, for example environmental or topographical conditions and data plan coverage.

Note: To find out if your vehicle has a modem, visit www.FordConnected.com.

EMERGENCY CALL SYSTEM DATA

When the emergency call system is active, it may disclose to emergency services that your vehicle has been in a crash involving the deployment of an airbag or activation of the fuel pump shut-off. Certain versions or updates to the emergency call system may also be capable of electronically or verbally disclosing to emergency services operators your vehicle location or other details about your vehicle or crash to assist emergency services operators to provide the most appropriate emergency services. If you do not want to disclose this information, do not activate the emergency call system.

Note: You cannot deactivate emergency call systems that are required by law.

2024 E-Series (TE4) Canada/United States of America, enUSA, Edition date: 202210, First-Printing

Data Privacy

Page 21

PROTECTING THE ENVIRONMENT

Sustainability is a priority at Ford. We are constantly looking for ways to reduce our impact on the planet while providing customers with great products and delivering a strong business. You should play your part in protecting the environment. Correct vehicle usage and the authorized disposal of waste, cleaning and lubrication materials are significant steps toward this aim.

For additional information about our sustainability progress and initiatives, visit

www.sustainability.ford.com.

2024 E-Series (TE4) Canada/United States of America, enUSA, Edition date: 202210, First-Printing

Environment

Page 22

INSTRUMENT PANEL

E307562

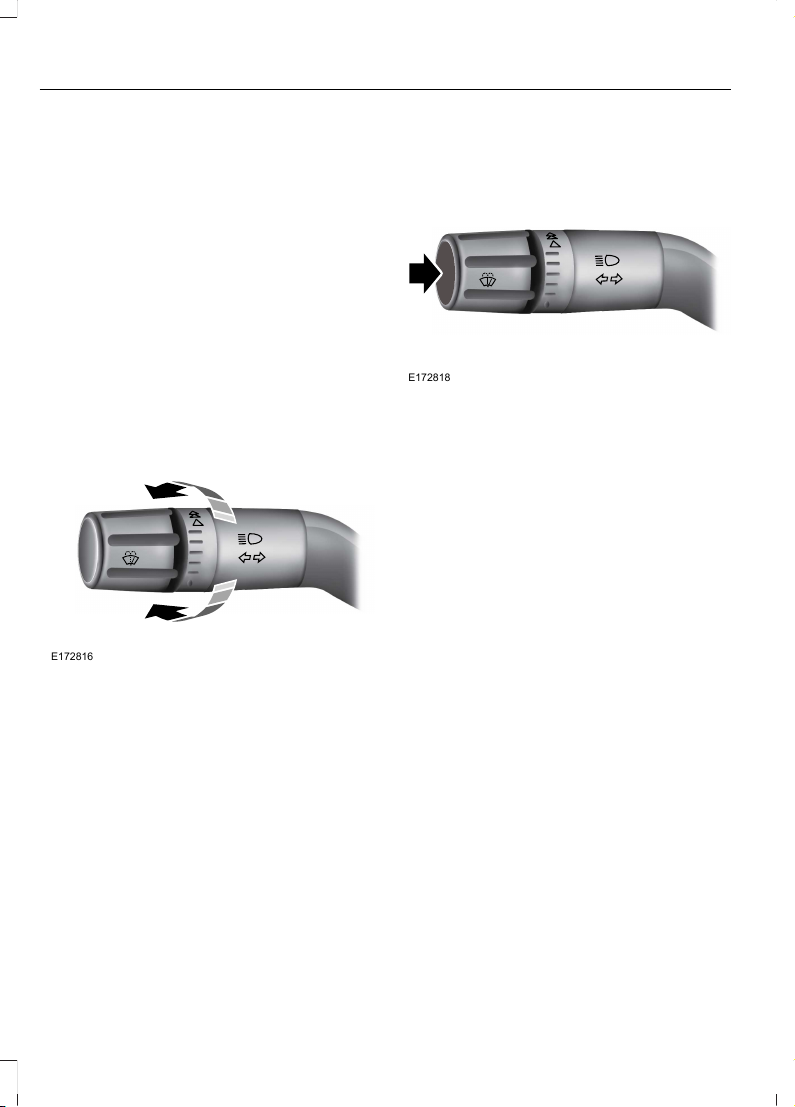

Direction indicators. See Direction Indicators (page 53). Wiper lever. See Windshield Wipers (page 50).

Information display control. See Information Display Control (page 49).B Instrument cluster. See General Information (page 64).C Audio control.D Gearshift lever. See Automatic Transmission (page 95).E Auxiliary switches. See Auxiliary Switches (page 245).F Audio unit. See Audio Unit (page 239).G Passenger airbag deactivation indicator. See Driver and Passenger Airbags

(page 36).

Traction control switch. See Using Traction Control (page 102).I Hazard flasher switch. See Hazard Flashers (page 139).J Climate control. See Manual Climate Control (page 73).K Ignition. See Ignition Switch (page 81).L Horn.M Steering wheel adjustment. See Adjusting the Steering Wheel (page 48).N

2024 E-Series (TE4) Canada/United States of America, enUSA, Edition date: 202210, First-Printing

At a Glance

Page 23

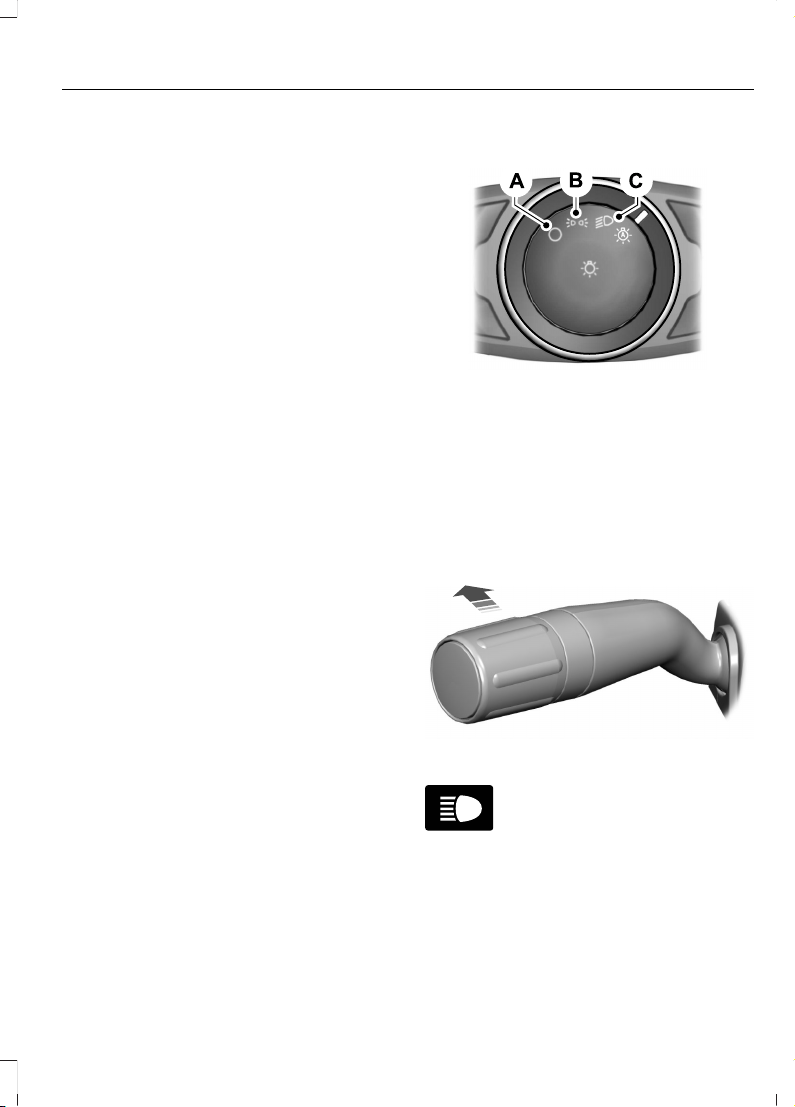

Cruise control. See Cruise Control (page 106).O Lighting control. See Lighting Control (page 51).P

2024 E-Series (TE4) Canada/United States of America, enUSA, Edition date: 202210, First-Printing

At a Glance

Page 24

GENERAL INFORMATION

See the following sections for directions on how to properly use safety restraints for children.

WARNING: Always make sure your child is secured properly in a device that is appropriate for their height, age and weight. Child safety restraints must be bought separately from your vehicle. Failure to follow these instructions and guidelines may result in an increased risk of serious injury or death to your child.

WARNING: All children are shaped differently. The National Highway Traffic Safety Administration and other safety organizations, base their recommendations for child restraints on probable child height, age and weight thresholds, or on the minimum requirements of the law. We recommend that you check with a NHTSA Certified Child Passenger Safety Technician

(CPST) to make sure that you properly install the child restraint in your vehicle and that you consult your pediatrician to make sure you have a child restraint appropriate for your child. To locate a child restraint fitting station and CPST, contact NHTSA toll free at 1-888-327-4236 or go to www.nhtsa.dot.gov. In Canada, contact Transport Canada toll free at 1-800-333-0371 or go to www.tc.gc.ca to find a Child Car Seat Clinic in your area. Failure to properly restrain children in child restraints made especially for their height, age and weight, may result in an increased risk of serious injury or death to your child.

WARNING: On hot days, the temperature inside the vehicle can rise very quickly. Exposure of people or animals to these high temperatures for even a short time can cause death or serious heat related injuries, including brain damage. Small children are particularly at risk.

2024 E-Series (TE4) Canada/United States of America, enUSA, Edition date: 202210, First-Printing

Child Safety

Page 25

Recommendations for Safety Restraints for Children

Recommended Restraint

Type

Child Size, Height, Weight, or AgeChild

Use a child restraint

(sometimes called an

infant carrier, convertible

seat, or toddler seat).

Children weighing 40 lb (18 kg) or less

(generally age four or younger).

Infants or

toddlers

Use a belt-positioning

booster seat.

Children who have outgrown or no longer

properly fit in a child restraint (generally

children who are less than 57 in (1.45 m)

tall, are greater than age four and less

than age 12, and between 40 lb (18 kg)

and 80 lb (36 kg) and upward to 100 lb

(45 kg) if recommended by your child

restraint manufacturer).

Small children

Use a vehicle seatbelt having the lap belt snug and low across the hips,

shoulder belt centered

across the shoulder and

chest, and seat backrest

upright.

Children who have outgrown or no longer

properly fit in a belt-positioning booster

seat (generally children who are at least

57 in (1.45 m) tall or greater than 80 lb

(36 kg) or 100 lb (45 kg) if recommended

by child restraint manufacturer).

Larger children

• You are required by law to properly use child restraints for infants and toddlers in the United States and Canada.

• Many states and provinces require that small children use approved booster seats until they reach age eight, a height of 57 in (1.45 m) tall, or 80 lb (36 kg). Check your local and state or provincial laws for specific requirements about the safety of children in your vehicle.

• When possible, always properly restrain children 12 years of age and under in a rear seating position of your vehicle. Accident statistics suggest that children are safer when properly restrained in the rear seating positions than in a front seating position.

• When installing a rear facing child restraint, adjust the vehicle seats to avoid interference between the child restraint and the vehicle seat in front of the child restraint.

2024 E-Series (TE4) Canada/United States of America, enUSA, Edition date: 202210, First-Printing

Child Safety

Page 26

INSTALLING CHILD RESTRAINTS

Child Seats

E142594

Use a child restraint (sometimes called an infant carrier, convertible seat, or toddler seat) for infants, toddlers, or children weighing 40 lb (18 kg) or less (generally age four or younger).

Using Lap and Shoulder Belts

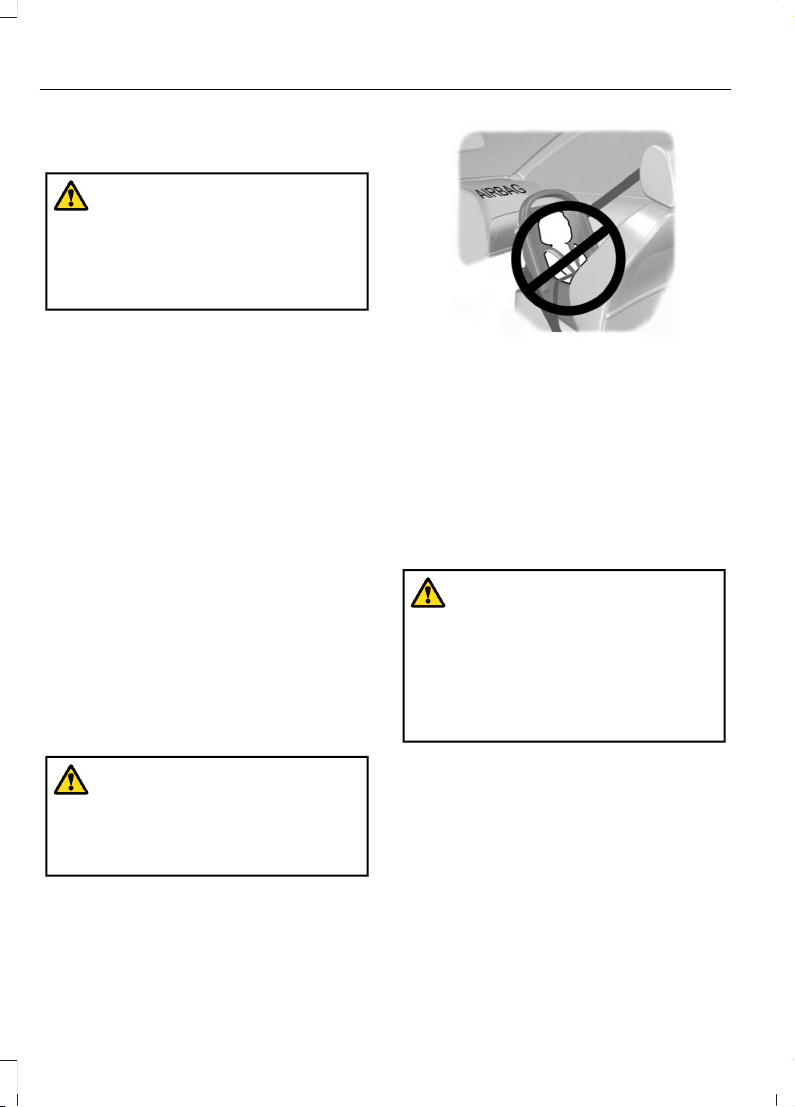

WARNING: Do not place a

rearward facing child restraint in front of an active airbag. Failure to follow this instruction could result in personal injury or death.

WARNING: Properly secure children 12 years old and under in a rear seating position whenever possible. If you are unable to properly secure all children in a rear seating position, properly secure the largest child on the front seat. If you must use a forward facing child restraint on the front seat, move the seat as far back as possible. Failure to follow these instructions could result in personal injury or death.

WARNING: Depending on where you secure a child restraint, and depending on the child restraint design, you may block access to certain seatbelt buckle assemblies and LATCH lower anchors, rendering those features potentially unusable. To avoid risk of injury, make sure occupants only use seating positions where they are able to be properly restrained.

When installing a child restraint with combination lap and shoulder belts:

• Use the correct seatbelt buckle for that seating position.

• Insert the belt tongue into the proper buckle until you hear a snap and feel it latch. Make sure the tongue is securely fastened in the buckle.

• Keep the buckle release button pointing up and away from the child restraint, with the tongue between the child restraint and the release button, to prevent accidental unbuckling.

• Place the vehicle seat in the upright position before you install the child restraint.

• Put the seatbelt in the automatic locking mode. See Step 5. This vehicle does not require the use of a locking clip.

Perform the following steps when installing the child restraint with combination lap and shoulder belts:

Note: Although the child restraint illustrated is a forward facing child restraint, the steps are the same for installing a rear facing child restraint.

2024 E-Series (TE4) Canada/United States of America, enUSA, Edition date: 202210, First-Printing

Child Safety

Page 27

E142528

1. Position the child restraint in a seat with a combination lap and shoulder belt.

E142529

2. Pull down on the shoulder belt and then grasp the shoulder belt and lap belt together.

E142530

3. While holding the shoulder and lap belt portions together, route the tongue through the child restraint according to the child restraint manufacturer's instructions. Make sure that you did not twist the belt webbing.

E142531

4. Insert the belt tongue into the proper buckle (the buckle closest to the direction the tongue is coming from) for that seating position until you hear a snap and feel the latch engage. Make sure the tongue is latched securely by pulling on it.

E142875

5. To put the retractor in the automatic locking mode, grasp the shoulder portion of the belt and pull downward until you pull all of the belt out.

2024 E-Series (TE4) Canada/United States of America, enUSA, Edition date: 202210, First-Printing

Child Safety

Page 28

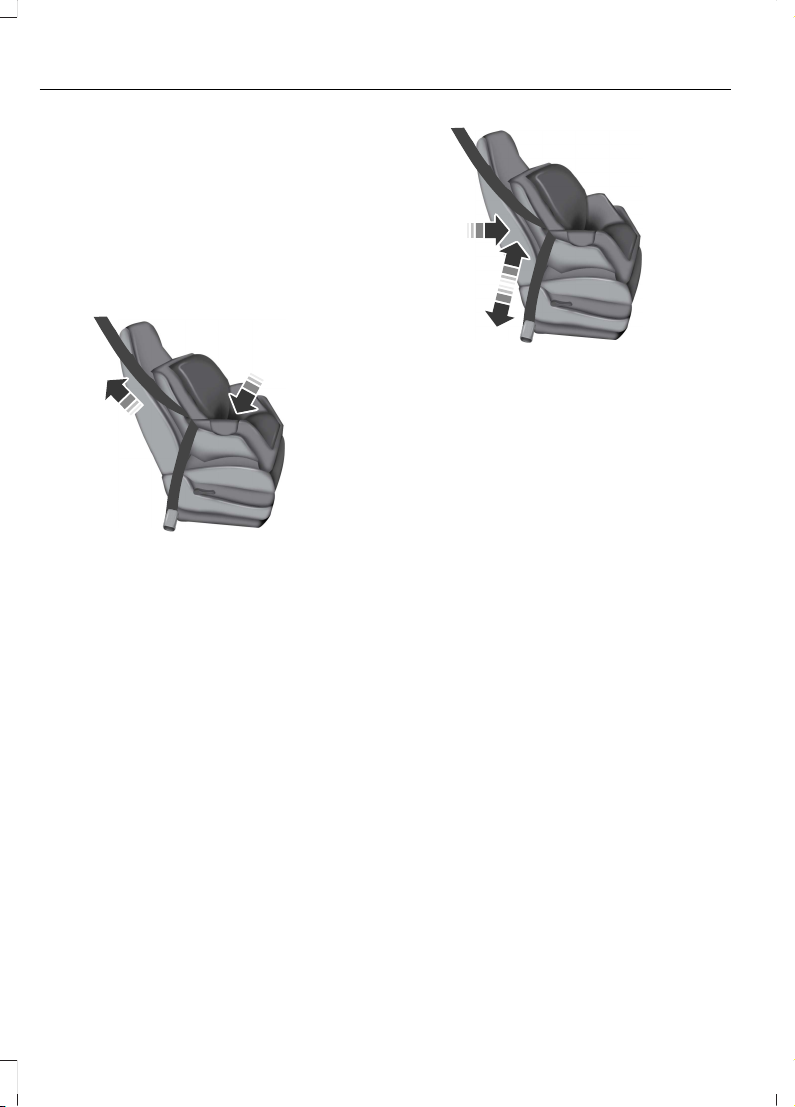

6. Allow the belt to retract to remove slack. The belt clicks as it retracts to indicate it is in the automatic locking mode.

7. Try to pull the belt out of the retractor to make sure the retractor is in the automatic locking mode. You should not be able to pull more belt out. If the retractor is not locked, unbuckle the belt and repeat Steps 5 and 6.

E142533

8. Remove remaining slack from the belt. Force the seat down with extra weight, for example, by pressing down or kneeling on the child restraint while pulling up on the shoulder belt in order to force slack from the belt. This is necessary to remove the remaining slack that exists once you add the extra weight of the child to the child restraint. It also helps to achieve the proper snugness of the child restraint to your vehicle. Sometimes, a slight lean toward the buckle will help to remove remaining slack from the belt.

9. If the child restraint has a tether strap, attach it.

E142534

10. Before placing the child in the seat, forcibly move the seat forward and back to make sure the seat is securely held in place.

To check this, grab the seat at the belt path and attempt to move it side to side and forward and back. There should be no more than 1 in (2.5 cm) of movement for proper installation.

We recommend checking with a NHTSA Certified Child Passenger Safety Technician to make certain the child restraint is properly installed. In Canada, check with Transport Canada for referral to a Child Car Seat Clinic.

Using Tether Straps

Many forward-facing child restraints include a tether strap which extends from the back of the child restraint and hooks to an anchoring point called the top tether anchor. Tether straps are available as an accessory for many older child restraints. Contact the manufacturer of your child restraint for information about ordering a tether strap, or to obtain a longer tether strap if the tether strap on your child restraint does not reach the appropriate top tether anchor in the vehicle.

Attach the tether strap only to the tether anchor as shown. The tether strap may not work properly if attached somewhere other than the correct tether anchor.

2024 E-Series (TE4) Canada/United States of America, enUSA, Edition date: 202210, First-Printing

Child Safety

Page 29

Note: Do not tighten the tether strap

enough to lift the child restraint off the vehicle seat cushion when the child is seated in it. Keep the tether strap just snug without lifting the front of the child restraint. Keeping the child restraint just touching the vehicle seat gives the best protection in a severe crash.

Perform the following steps to install a child restraint with tether anchors:

E319169

You can attach the tether directly to the rear of the front seat.

1. Adjust the front passenger seat fully forward.

2. Route the child restraint tether strap over the back of the front passenger seat as shown.

E190811

3. Clip the tether strap hook to the seat pedestal at the location shown. If the tether strap is clipped incorrectly, the child restraint may not be retained properly in the event of a crash.

4. Adjust the front passenger seat to the full rearward position.

5. Tighten the child restraint tether strap according to the manufacturer’s instructions.

If you do not properly anchor the child restraint, the risk of a child being injured in a crash greatly increases.

2024 E-Series (TE4) Canada/United States of America, enUSA, Edition date: 202210, First-Printing

Child Safety

Page 30

BOOSTER SEATS

WARNING: Do not put the shoulder

section of the seatbelt or allow the child to put the shoulder section of the seatbelt under their arm or behind their back. Failure to follow this instruction could reduce the effectiveness of the seatbelt and increase the risk of injury or death in a crash.

Use a belt-positioning booster seat for children who have outgrown or no longer properly fit in a child safety restraint (generally children who are less than 57 in (1.45 m) tall, are greater than age 4 and less than age 12, and between 40 lb (18 kg) and 80 lb (36 kg) and upward to 100 lb (45 kg) if recommended by your child restraint manufacturer). Many state and provincial laws require that children use approved booster seats until they reach age eight, a height of 57 in (1.45 m) tall, or 80 lb (36 kg).

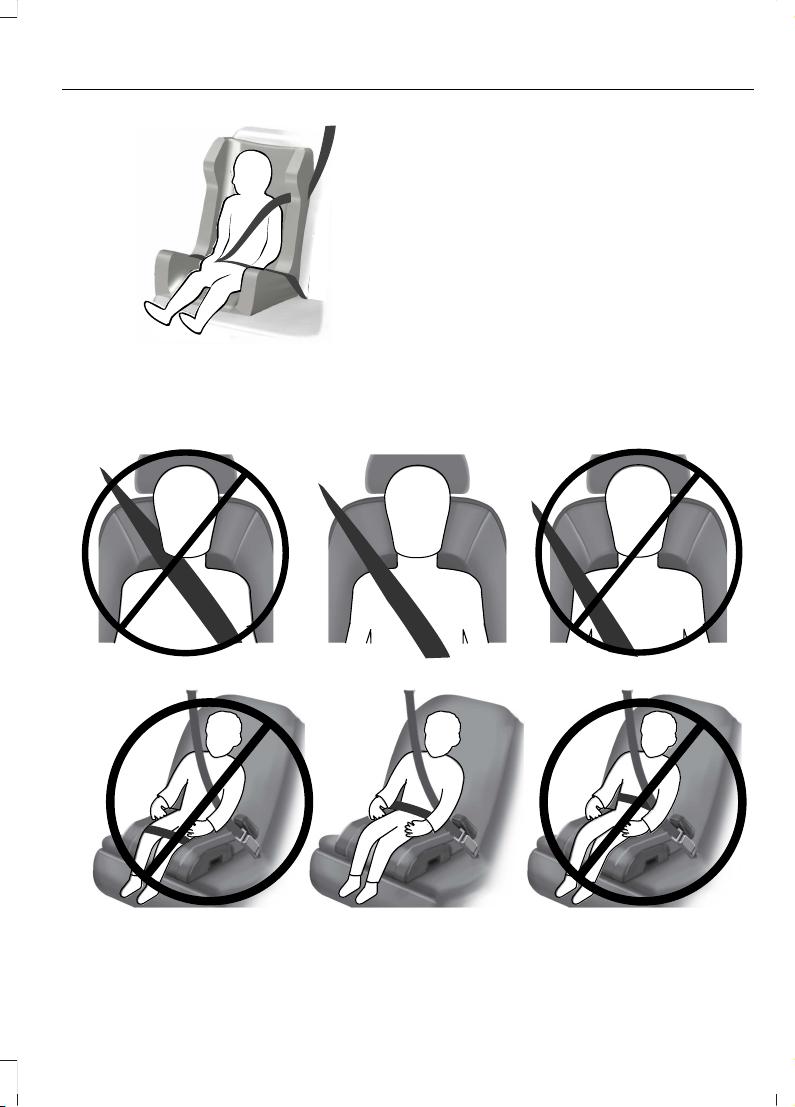

Booster seats should be used until you can answer YES to ALL of these questions when seated without a booster seat:

E142595

• Can the child sit all the way back against their vehicle seat backrest with knees bent comfortably at the edge of the seat cushion?

• Can the child sit without slouching?

• Does the lap belt rest low across the

hips?

• Is the shoulder belt centered on the shoulder and chest?

• Can the child stay seated like this for the whole trip?

Always use booster seats in conjunction with your vehicle lap and shoulder belt.

Types of Booster Seats

E68924

• Backless booster seats

If your backless booster seat has a removable shield, remove the shield. If a vehicle seating position has a low seat backrest or no head restraint, a backless booster seat may place your child's head (as measured at the tops of the ears) above the top of the seat. In this case, move the backless booster to another seating position with a higher seat backrest or head restraint and lap and shoulder belts, or consider using a high back booster seat.

2024 E-Series (TE4) Canada/United States of America, enUSA, Edition date: 202210, First-Printing

Child Safety

Page 31

E70710

• High back booster seats

If, with a backless booster seat, you cannot find a seating position that adequately supports your child's head, a high back booster seat would be a better choice.

Children and booster seats vary in size and shape. Choose a booster that keeps the lap belt low and snug across the hips, never up across the stomach, and lets you adjust the shoulder belt to cross the chest and rest snugly near the center of the shoulder. The following drawings compare the ideal fit (center) to a shoulder belt uncomfortably close to the neck and a shoulder belt that could slip off the shoulder. The drawings also show how the lap belt should be low and snug across the child's hips.

E142596

E142597

2024 E-Series (TE4) Canada/United States of America, enUSA, Edition date: 202210, First-Printing

Child Safety

Page 32

If the booster seat slides on the vehicle seat upon which it is being used, placing a rubberized mesh sold as shelf or carpet liner under the booster seat may improve this condition. Do not introduce any item thicker than this under the booster seat. Check with the booster seat manufacturer's instructions.

CHILD RESTRAINT POSITIONING

WARNING: Do not place a

rearward facing child restraint in front of an active airbag. Failure to follow this instruction could result in personal injury or death.

WARNING: Always carefully follow the instructions and warnings provided by the manufacturer of any child restraint to determine if the restraint device is appropriate for your child's size, height, weight, or age. Follow the child restraint manufacturer's instructions and warnings provided for installation and use in conjunction with the instructions

and warnings provided by your vehicle manufacturer. A safety seat that is improperly installed or utilized, is inappropriate for your child's height, age, or weight or does not properly fit the child may increase the risk of serious injury or death.

WARNING: Do not allow a passenger to hold a child on their lap when your vehicle is moving. Failure to follow this instruction could result in personal injury or death in the event of a sudden stop or crash.

WARNING: Do not use pillows, books or towels to boost your child's height. Failure to follow this instruction could result in personal injury or death.

WARNING: Properly secure child restraints or booster seats when they are not in use. They could become projectiles in a sudden stop or crash. Failure to follow this instruction could result in personal injury or death.

WARNING: Do not put the shoulder section of the seatbelt or allow the child to put the shoulder section of the seatbelt under their arm or behind their back. Failure to follow this instruction could reduce the effectiveness of the seatbelt and increase the risk of injury or death in a crash.

WARNING: Do not leave children or pets unattended in your vehicle. Failure to follow this instruction could result in personal injury or death.

2024 E-Series (TE4) Canada/United States of America, enUSA, Edition date: 202210, First-Printing

Child Safety

Page 33

Recommendations for Attaching Child Restraints

Use Any Attachment Method as Indicated Below by X.

Restraint Type

Seatbelt Only

Seatbelt and Top

Tether Anchor

Combined Weight of

Child and Child

Restraint

XUp to 65 lb (29.5 kg)

Rear-facing

child restraint

XOver 65 lb (29.5 kg)

Rear-facing

child restraint

XUp to 65 lb (29.5 kg)

Forward-facing

child restraint

XOver 65 lb (29.5 kg)

Forward-facing

child restraint

We recommend using a top tether if the child restraint has one, and the child restraint

manufacturer recommends its use.

Note: The child restraint must rest tightly against the vehicle seat upon which it is installed. It may be necessary to lift or remove the head restraint. See Head Restraints (page 76).

2024 E-Series (TE4) Canada/United States of America, enUSA, Edition date: 202210, First-Printing

Child Safety

Page 34

PRINCIPLE OF OPERATION

WARNING: Always drive and ride

with the seat backrest upright and the lap belt snug and low across the hips.

WARNING: To reduce the risk of injury, make sure children sit where they can be properly restrained.

WARNING: Never let a passenger hold a child on his or her lap while your vehicle is moving. The passenger cannot protect the child from injury in a crash which may result in serious injury or death.

WARNING: All occupants of the vehicle, including the driver, should always properly wear their safety belts, even when an airbag supplemental restraint system is provided. Failure to properly wear your safety belt could seriously increase the risk of injury or death.

WARNING: It is extremely dangerous to ride in a cargo area, inside or outside of a vehicle. In a crash, people riding in these areas are more likely to be seriously injured or killed. Do not allow people to ride in any area of your vehicle that is not equipped with seats and safety belts. Be sure everyone in your vehicle is in a seat and using a safety belt properly.

WARNING: In a rollover crash, an unbelted person is significantly more likely to die than a person wearing a safety belt.

WARNING: Each seating position in your vehicle has a specific safety belt assembly which is made up of one buckle and one tongue that are designed to be used as a pair. 1) Use the shoulder belt on the outside shoulder only. Never wear the shoulder belt under the arm. 2) Never swing the safety belt around your neck over the inside shoulder. 3) Never use a single belt for more than one person.

WARNING: When possible, all children 12 years old and under should be properly restrained in a rear seating position. Failure to follow this could seriously increase the risk of injury or death.

WARNING: Safety belts and seats can become hot in a vehicle that has been closed up in sunny weather; they could burn a small child. Check seat covers and buckles before you place a child anywhere near them.

WARNING: Front and rear seat occupants, including pregnant women, should wear safety belts for optimum protection in an accident.

All seating positions in this vehicle have lap and shoulder safety belts. All occupants of the vehicle should always properly wear their safety belts, even when an airbag supplemental restraint system is provided.

The safety belt system consists of:

• Lap and shoulder safety belts.

• Shoulder safety belt with automatic

locking mode, (except driver safety belt).

2024 E-Series (TE4) Canada/United States of America, enUSA, Edition date: 202210, First-Printing

Seatbelts

Page 35

• Height adjuster at the front outboard seating positions.

• Safety belt pretensioner at the front outboard seating positions.

• Safety belt warning light and chime.

• Crash sensors and monitoring system

with readiness indicator.

The safety belt pretensioners at the front seating positions are designed to tighten the safety belts when activated. In frontal and near-frontal crashes, the safety belt pretensioners may be activated alone or, if the crash is of sufficient severity, together with the front airbags.

FASTENING THE SEATBELTS

The front outboard safety restraints in the vehicle are combination lap and shoulder belts.

E142587

1. Insert the belt tongue into the proper buckle (the buckle closest to the direction the tongue is coming from) until you hear a snap and feel it latch. Make sure the tongue is securely fastened in the buckle.

E142588

2. To unfasten, press the release button and remove the tongue from the buckle.

Using Seatbelts During Pregnancy

WARNING: Always ride and drive

with your seatback upright and properly fasten your seatbelt. Fit the lap portion of the seatbelt snugly and low across the hips. Position the shoulder portion of the seatbelt across your chest. Pregnant women must follow this practice. See the following figure.

E142590

2024 E-Series (TE4) Canada/United States of America, enUSA, Edition date: 202210, First-Printing

Seatbelts

Page 36

Pregnant women should always wear their seatbelt. Position the lap belt portion of a combination lap and shoulder belt low across the hips below the belly and worn as tight as comfort allows. Position the shoulder belt to cross the middle of the shoulder and the center of the chest.

Seatbelt Locking Modes

WARNING: If your vehicle is

involved in a crash, have the seatbelts and associated components inspected as soon as possible. Failure to follow this instruction could result in personal injury or death.

All safety restraints in the vehicle are combination lap and shoulder belts. The driver seatbelt has the first type of locking mode. The front outboard passenger seatbelt has both types of locking modes described as follows:

Vehicle Sensitive Mode

This is the normal retractor mode, which allows free shoulder belt length adjustment to your movements and locking in response to vehicle movement. For example, if the driver brakes suddenly or turns a corner sharply, or the vehicle receives an impact of about 5 mph (8 km/h) or more, the combination seatbelts lock to help reduce forward movement of the driver and passengers.

In addition, the retractor is designed to lock if you pull the webbing out too quickly. If the seatbelt retractor locks, slowly lower the height adjuster to allow the seatbelt to retract. If the retractor does not unlock, pull the seatbelt out slowly then feed a

small length of webbing back toward the stowed position. For rear seatbelts, recline the rear seat backrest or push the seat backrest cushion away from the seatbelt. Feed a small length of webbing back toward the stowed position.

Automatic Locking Mode

In this mode, the shoulder belt automatically pre-locks. The belt will still retract to remove any slack in the shoulder belt. The automatic locking mode is not available on the driver seatbelt.

When to Use the Automatic Locking Mode

Use this mode any time a child safety seat, except a booster, is installed in the passenger front seating position. See

Child Safety (page 20).

How to Use the Automatic Locking Mode

E142591

1. Buckle the combination lap and shoulder belt.

2. Grasp the shoulder portion and pull downward until the entire belt is pulled out.

3. Allow the belt to retract. As the belt retracts, you will hear a clicking sound. This indicates the seatbelt is now in the automatic locking mode.

2024 E-Series (TE4) Canada/United States of America, enUSA, Edition date: 202210, First-Printing

Seatbelts

Page 37

How to Disengage the Automatic Locking Mode

Unbuckle the combination lap and shoulder belt and allow it to retract completely to disengage the automatic locking mode and activate the vehicle sensitive (emergency) locking mode.

SEATBELT HEIGHT ADJUSTMENT

WARNING: Position the safety belt

height adjuster so that the belt rests across the middle of your shoulder. Failure to adjust the safety belt properly could reduce the effectiveness of the safety belt and increase the risk of injury in a crash.

Adjust the height of the shoulder belt so the belt rests across the middle of your shoulder.

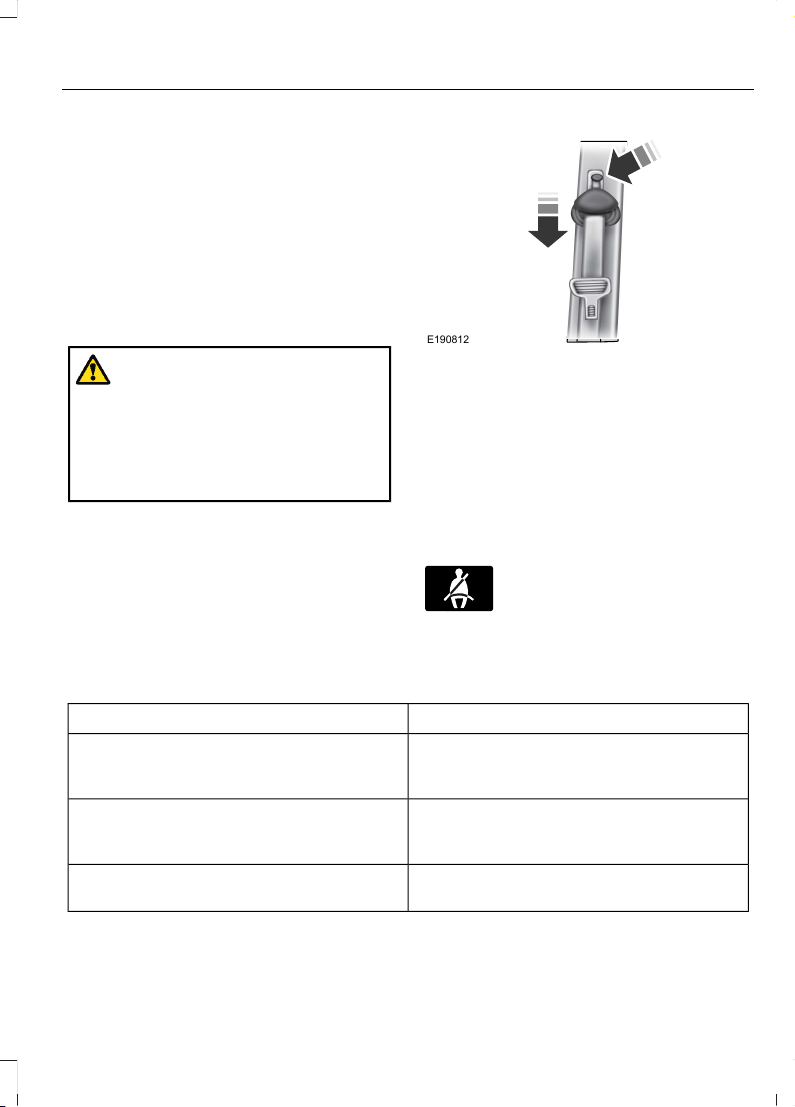

E190812

To adjust the shoulder belt height:

1. Press the button and slide the height adjuster up or down.

2. Release the button and pull down on the height adjuster to make sure it is locked in place.

SEATBELT WARNING LAMP AND INDICATOR CHIME

This lamp illuminates and an indicator chime will sound if the

driver seatbelt has not been fastened when the vehicle's ignition is turned on.

Conditions of operation

ThenIf

The seatbelt warning lamp illuminates and

the indicator chime sounds for a few

seconds.

The driver seatbelt is not buckled before

the ignition switch is turned to the on posi-

tion...

The seatbelt warning lamp and indicator

chime turn off.

The driver seatbelt is buckled while the

warning lamp is illuminated and the indic-

ator chime is sounding...

The seatbelt warning lamp and indicator

chime remain off.

The driver seatbelt is buckled before the

ignition switch is turned to the on position...

2024 E-Series (TE4) Canada/United States of America, enUSA, Edition date: 202210, First-Printing

Seatbelts

Page 38

CHILD RESTRAINT AND SEATBELT MAINTENANCE

Inspect the vehicle seatbelts and child restraint systems periodically to make sure they work properly and are not damaged. Inspect the vehicle seatbelts to make sure there are no nicks, tears or cuts. Replace if necessary. All vehicle seatbelt assemblies, including retractors, buckles, front seatbelt buckle assemblies, buckle support assemblies (slide bar-if equipped), shoulder belt height adjusters (if equipped), shoulder belt guide on seatback (if equipped), rear inflatable seatbelts (if equipped), child restraint LATCH and tether anchors, and attaching hardware, should be inspected after a crash. Read the child restraint manufacturer's instructions for additional inspection and maintenance information specific to the child restraint.

We recommend that all seatbelt assemblies in use in vehicles involved in a crash be replaced. However, if the crash was minor and an authorized dealer finds that the belts do not show damage and continue to operate properly, they do not need to be replaced. Seatbelt assemblies not in use during a crash should also be inspected and replaced if either damage or improper operation is noted.

Properly care for seatbelts. See Cleaning

the Interior (page 185).

SEATBELT EXTENSIONS

WARNING: Persons who fit into

the vehicle's seatbelt should not use an extension. Unnecessary use could result in serious personal injury in the event of a crash.

WARNING: Only use extensions provided free of charge by our dealers. The dealer will provide an extension designed specifically for this vehicle, model year and seating position. The use of an extension intended for another vehicle, model year or seating position may not offer you the full protection of your vehicle's seatbelt restraint system.

WARNING: Never use seatbelt extensions to install child restraints.

WARNING: Do not use extensions to change the way the seatbelt fits across the torso, over the lap or to make the seatbelt buckle easier to reach.

If, because of body size or driving position, it is not possible to properly fasten the seatbelt over your lap and shoulder, an extension that is compatible with the seatbelts is available free of charge from our dealers. Only use our seatbelt extensions made by the original equipment seatbelt manufacturer with our seatbelts. Ask your authorized dealer if your extension is compatible with your vehicle restraint system.

2024 E-Series (TE4) Canada/United States of America, enUSA, Edition date: 202210, First-Printing

Seatbelts

Page 39

PRINCIPLE OF OPERATION

WARNING: Airbags do not inflate

slowly or gently, and the risk of injury from a deploying airbag is the greatest close to the trim covering the airbag module.

WARNING: All occupants of your vehicle, including the driver, should always properly wear their seatbelts, even when an airbag supplemental restraint system is provided. Failure to properly wear your seatbelt could seriously increase the risk of injury or death.

WARNING: Do not place your arms on the airbag cover or through the steering wheel. Failure to follow this instruction could result in personal injury.

WARNING: Do not place a rearward facing child restraint in front of an active airbag. Failure to follow this instruction could result in personal injury or death.

WARNING: Do not attempt to service, repair, or modify the supplementary restraint system or associated components. Failure to follow this instruction could result in personal injury or death.

WARNING: Several airbag system components get hot after inflation. To reduce the risk of injury, do not touch them after inflation.

WARNING: If a supplementary restraint system component has deployed, it will not function again. Have the system and associated components inspected as soon as possible. Failure to follow this instruction could result in personal injury or death.

The airbags are a supplemental restraint system and are designed to work with the seatbelts to help protect the driver and right front passenger from certain upper body injuries. Airbags do not inflate slowly; there is a risk of injury from a deploying airbag.

Note: You will hear a loud bang and see a cloud of harmless powdery residue if an airbag deploys. This is normal.

The airbags inflate and deflate rapidly upon activation. After airbag deployment, it is normal to notice a smoke-like, powdery residue or smell the burnt propellant. This may consist of cornstarch, talcum powder (to lubricate the bag) or sodium compounds (for example, baking soda) that result from the combustion process that inflates the airbag. Small amounts of sodium hydroxide may be present which may irritate the skin and eyes, but none of the residue is toxic.

While the system is designed to help reduce serious injuries, contact with a deploying airbag may also cause abrasions or swelling. Temporary hearing loss is also a possibility as a result of the noise associated with a deploying airbag. Because airbags must inflate rapidly and with considerable force, there is the risk of death or serious injuries such as fractures, facial and eye injuries or internal injuries,

2024 E-Series (TE4) Canada/United States of America, enUSA, Edition date: 202210, First-Printing

Supplementary Restraints System

Page 40

particularly to occupants who are not properly restrained or are otherwise out of position at the time of airbag deployment. Thus, it is extremely important that occupants be properly restrained as far away from the airbag module as possible while maintaining vehicle control.

Routine maintenance of the airbags is not required.

DRIVER AND PASSENGER AIRBAGS

WARNING: Do not place your arms

on the airbag cover or through the steering wheel. Failure to follow this instruction could result in personal injury.

WARNING: Do not place a rearward facing child restraint in front of an active airbag. Failure to follow this instruction could result in personal injury or death.

E151127

The driver and front passenger airbags deploy during significant frontal and near frontal crashes.

The driver and passenger front airbag system consists of:

• Driver and passenger airbag modules.

· Crash sensors and monitoring system with readiness indicator. See Crash Sensors and Airbag

Indicator (page 40).

Passenger Airbag On and Off Switch (If Equipped)

WARNING: Your vehicle may have

an airbag deactivation switch. Before driving, always look at the switch to make sure it is in the appropriate position. Failure to put the switch in the proper position can increase the risk of serious injury or death in a crash.

Note: The passenger airbag on and off switch may be on vehicles with no rear seats.

Switching the Passenger Airbag Off

WARNING: If the light does not

illuminate when the passenger airbag switch is off and you switch the ignition on, have the passenger airbag switch serviced immediately by a qualified technician.

WARNING: To avoid switching on the airbag, always remove the ignition key with the switch in the off position.

WARNING: NEVER use a rearward facing child restraint on a seat protected by an ACTIVE AIRBAG in front of it, DEATH or SERIOUS INJURY to the CHILD can occur.

2024 E-Series (TE4) Canada/United States of America, enUSA, Edition date: 202210, First-Printing

Supplementary Restraints System

Page 41

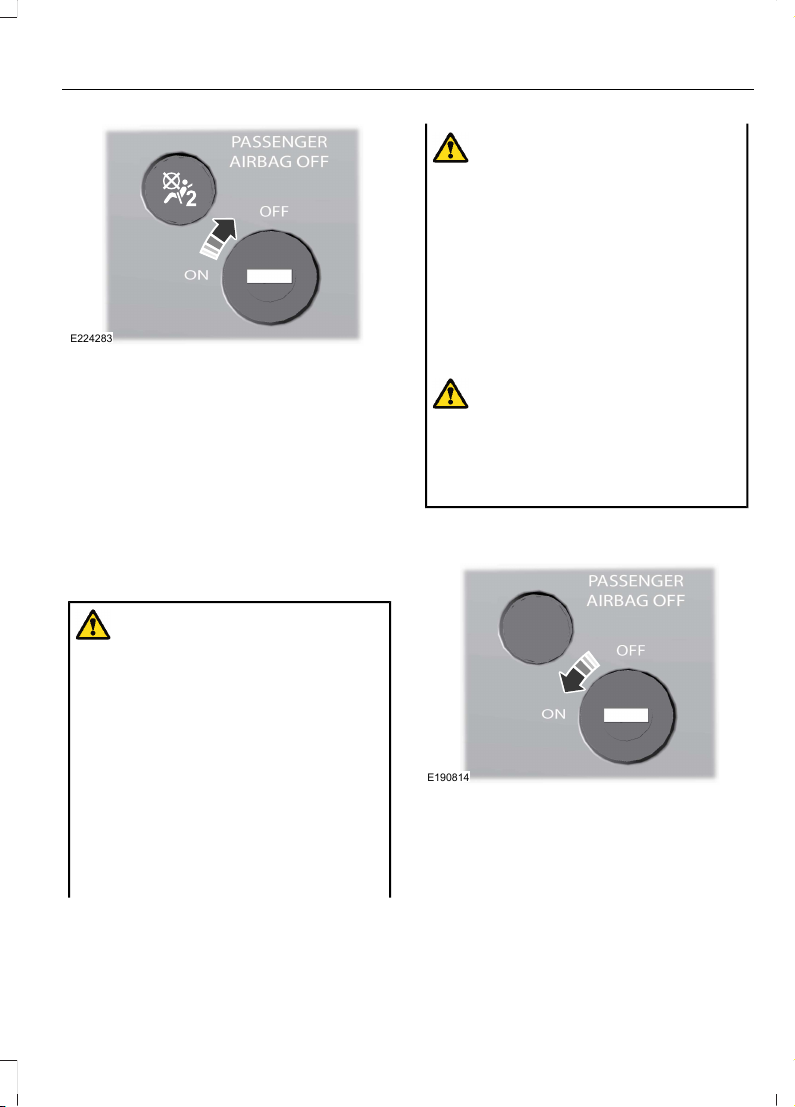

E224283

1. Insert the ignition key into the passenger airbag on and off switch, turn the switch to off and hold it in off while removing the key.

2. When you switch the ignition on and the passenger airbag switch is in the off position, the off light illuminates briefly, momentarily shuts off and then turns back on. This indicates that the passenger airbag is deactivated.

Switching the Passenger Airbag Back On

WARNING: The seatbelts for the

driver and right front passenger seating positions are specifically designed to operate together with the airbags in certain types of crashes. When you switch off your airbag, you not only lose the protection of the airbag, you also may reduce the effectiveness of your seatbelt system. If the passenger does not meet the requirements stated in the National Highway Traffic Safety Administration or Transport Canada deactivation criteria, switching off the airbag can increase the risk of serious injury or death in a crash.

WARNING: If your vehicle has rear seats, always transport children who are 12 and younger in the rear seat. Always use seatbelts and child restraints properly. Do not place a child in a rear facing infant seat in the front seat unless your vehicle is equipped with an airbag on and off switch and the passenger airbag is turned off. This is because the back of the infant seat is too close to the inflating airbag and the risk of a fatal injury to the infant when the airbag inflates is substantial.

WARNING: If the passenger airbag off light is illuminated when the passenger airbag switch is on and the ignition is on, have the passenger airbag switch serviced immediately by a qualified technician.

The passenger airbag remains off until you switch it back on.

E190814

1. Insert the ignition key into the passenger airbag on and off switch and turn the switch to on.

2. The off light briefly illuminates when you switch the ignition on. This indicates that the passenger airbag is operational.

2024 E-Series (TE4) Canada/United States of America, enUSA, Edition date: 202210, First-Printing

Supplementary Restraints System

Page 42

The passenger side airbag should always be on (the airbag off light should not be illuminated) unless the passenger is a person who meets the requirements stated either in Category 1, 2 or 3 of the National Highway Traffic Safety Administration/Transport Canada deactivation criteria which follows.

The vast majority of drivers and passengers are much safer with an airbag than without. To do their job and reduce the risk of life threatening injuries, airbags must open with great force, and this force can pose a potentially deadly risk in some situations, particularly when a front seat occupant is not properly buckled up. The most effective way to reduce the risk of unnecessary airbag injuries without reducing the overall safety of the vehicle is to make sure all occupants are properly restrained in the vehicle, especially in the front seat. This provides the protection of seatbelts and permits the airbags to provide the additional protection they were designed to provide. If you choose to deactivate your airbag, you are losing the very significant risk reducing benefits of the airbag and you are also reducing the effectiveness of the seatbelts, because seatbelts in modern vehicles are designed to work as a safety system with the airbags.

National Highway Traffic Safety Administration Deactivation Criteria (Excluding Canada)

WARNING: This vehicle has special

concentration of force on an occupant's chest and to reduce the risk of certain bone fractures and injuries to underlying organs. In a crash, if the airbag is off, this energy management seatbelt might permit the passenger wearing the seatbelt to move forward enough to have a serious or fatal injury. The more severe the crash, and the heavier the occupant, the greater the risk. Make sure the airbag is on for any passenger who does not qualify under the National Highway Traffic Safety Administration deactivation criteria.

1. Infant. An infant (less than 1 year old) must ride in the front seat because:

• The vehicle has no rear seat.

• The vehicle has a rear seat too small

to accommodate a rear-facing infant seat.

• The infant has a medical condition which, according to the infant's physician, makes it necessary for the infant to ride in the front so that the driver can constantly monitor the child's condition.

2. Child age 1 to 12. A child age 1 to 12 must

ride in the front seat because:

• The vehicle has no rear seat.

• Although children ages 1 to 12 ride in

the rear seat(s) whenever possible, children ages 1 to 12 sometimes must ride in the front because no space is available in the rear seat(s) of the vehicle.

• The child has a medical condition which, according to the child's physician, makes it necessary for the child to ride in the front seat so that the driver can constantly monitor the child's condition.

2024 E-Series (TE4) Canada/United States of America, enUSA, Edition date: 202210, First-Printing

Supplementary Restraints System

Page 43

3. Medical condition. A passenger has a

medical condition which, according to his or her physician:

• Causes the passenger airbag to pose a special risk for the passenger.

• Makes the potential harm from the passenger airbag in a crash greater than the potential harm from turning off the airbag and allowing the passenger, even if belted, to hit the dashboard or windshield in a crash.

Transport Canada Deactivation Criteria (Canada Only)

WARNING: This vehicle has special

energy management seatbelts for the driver and right front passenger. These particular seatbelts are specifically designed to work with airbags to help reduce the risk of injury in a crash. The energy management seatbelt gives or releases additional seatbelt webbing in some accidents to reduce the concentration of force on an occupant's chest and to reduce the risk of certain bone fractures and injuries to underlying organs. In a crash, if the airbag is off, this energy management seatbelt might permit the passenger wearing the seatbelt to move forward enough to have a serious or fatal injury. The more severe the crash, and the heavier the occupant, the greater the risk. Make sure the airbag is on for any passenger who does not qualify under the Transport Canada deactivation criteria.

1. Infant: An infant (less than 1 year old)

must ride in the front seat because:

• My vehicle has no rear seat.

• The rear seat in my vehicle cannot

accommodate a rear-facing infant seat.

• The infant has a medical condition which, according to the infant's physician, makes it necessary for the infant to ride in the front seat so that the driver can monitor the infant's condition.

2. Child age 12 or under: A child age 12 or

under must ride in the front seat because:

• My vehicle has no rear seat.

• Although children age 12 and under ride

in the rear seat whenever possible, children age 12 and under have no option but to sometimes ride in the front seat because rear seat space is insufficient.

• The child has a medical condition that, according to the child's physician, makes it necessary for the child to ride in the front seat so that the driver can monitor the child's condition.

3. Medical condition: A passenger has a

medical condition that, according to his or her physician:

• Poses a special risk for the passenger if the airbag deploys.

• Makes the potential harm from the passenger airbag deployment greater than the potential harm from turning off the airbag and experiencing a crash without the protection offered by the airbag.

2024 E-Series (TE4) Canada/United States of America, enUSA, Edition date: 202210, First-Printing

Supplementary Restraints System

Page 44

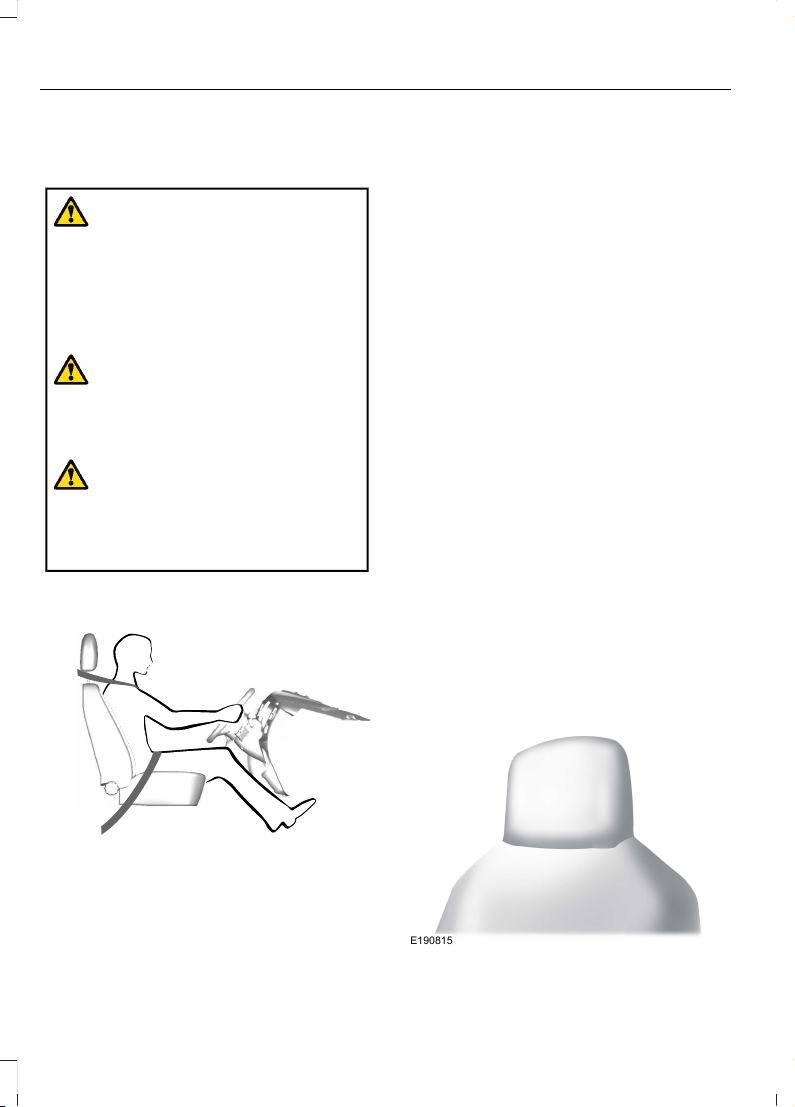

Proper Driver and Front Passenger Seating Adjustment

WARNING: National Highway

Traffic Safety Administration (NHTSA) recommends a minimum distance of at least 10 in (25 cm) between an occupant's chest and the driver airbag module.

To properly position yourself away from the airbag:

• Move your seat to the rear as far as you can while still reaching the pedals comfortably.

• Recline the seat slightly (one or two degrees) from the upright position.

After all occupants have adjusted their seats and put on seatbelts, it is very important that they continue to sit properly. Properly seated occupants sit upright, lean against the seat back, and center themselves on the seat cushion, with their feet comfortably extended on the floor. Sitting improperly can increase the chance of injury in a crash event. For example, if an occupant slouches, lies down, turns sideways, sits forward, leans forward or sideways, or puts one or both feet up, the chance of injury during a crash is greatly increased.

Children and Airbags

WARNING: Do not place a

rearward facing child restraint in front of an active airbag. Failure to follow this instruction could result in personal injury or death.

E142846

Children must always be properly restrained. Accident statistics suggest that children are safer when properly restrained in the rear seating positions than in the front seating position. Failure to follow these instructions may increase the risk of injury in a crash.

CRASH SENSORS AND AIRBAG INDICATOR

WARNING: Modifying or adding

equipment to the front of your vehicle could affect the performance of the airbag system, increasing the risk of injury. This includes the hood, bumper system, frame, front body structure, tow hooks, hood pins, push bar and snowplows.

Your vehicle has a collection of crash and occupant sensors which provide information to the restraints control module. The restraints control module deploys (activates) the front seatbelt pretensioners, driver airbag and passenger airbag. Based on the type of accident, the restraints control module deploys the appropriate safety devices.

2024 E-Series (TE4) Canada/United States of America, enUSA, Edition date: 202210, First-Printing

Supplementary Restraints System

Page 45

The restraints control module also monitors the readiness of the above safety devices plus the crash sensors. The readiness of the safety system is indicated by a warning indicator light in the instrument cluster or by a backup tone if the warning light is not working. See Instrument Cluster (page 58). Routine maintenance of the airbag is not required.

A difficulty with the system is indicated by one or more of the following:

The readiness light will not illuminate immediately after you switch the ignition on.

• The readiness light either flashes or stays lit.

• You hear a series of five tones. The tone pattern repeats periodically until the problem, the light or both are repaired.

If any of these things happen, even intermittently, have the supplemental restraint system serviced at an authorized dealer immediately. Unless serviced, the system may not function properly in the event of a crash.

The seatbelt pretensioners and the airbag supplemental restraint system are designed to activate when the vehicle sustains frontal deceleration sufficient to cause the restraints control module to deploy a safety device.

The fact that the seatbelt pretensioners or airbags did not activate in a crash does not mean that something is wrong with the system. Rather, it means the restraints control module determined the accident conditions (such as crash severity, belt usage) were not appropriate to activate these safety devices.

• The design of the front airbags is to activate only in frontal and near-frontal crashes (not rollovers, side impacts or rear impacts) unless the crash causes sufficient frontal deceleration.

• The design of the seatbelt pretensioners is to activate in frontal or near-frontal crashes and deploy in rollovers.

AIRBAG DISPOSAL

Contact your authorized dealer as soon as possible. Airbags must be disposed of by qualified personnel.

2024 E-Series (TE4) Canada/United States of America, enUSA, Edition date: 202210, First-Printing

Supplementary Restraints System

Page 46

GENERAL INFORMATION ON RADIO FREQUENCIES

This device complies with Part 15 of the FCC Rules and with Licence exempt RSS Standards of Industry Canada. Operation is subject to the following two conditions:

• This device may not cause harmful interference.

• This device must accept any interference received, including interference that may cause undesired operation.

WARNING: Changes or modifications not expressively approved by the party responsible for compliance could void the user's authority to operate the equipment. The term "IC:" before the radio certification number only signifies that Industry Canada technical specifications were met.

The typical operating range for your transmitter is approximately 33 ft (10 m). Vehicles with the remote start feature will have a greater range. One of the following could cause a decrease in operating range:

• Weather conditions.

• Nearby radio towers.

• Structures around the vehicle.

• Other vehicles parked next to your

vehicle.

Other short distance radio transmissions, for example amateur radios, medical equipment, wireless headphones, remote controls and alarm systems can also use the radio frequency used by your remote control. If the frequencies are jammed, you will not be able to use your remote control. You can lock and unlock the doors with the key.

Note: Make sure to lock your vehicle before leaving it unattended.

Note: If you are in range, the remote control will operate if you press any button unintentionally.

Note: The remote control contains sensitive electrical components. Exposure to moisture or impact may cause permanent damage.

REMOTE CONTROL (IF EQUIPPED)

E195660

Note: If there are problems with the remote entry system, make sure to take all remote entry transmitters with you to an authorized dealer in order to aid in troubleshooting the problem.

Note: If your vehicle is fitted with the E-Guard Cargo Protection System™, the remote transmitter unlock command only unlocks the front doors. The side or rear cargo doors can only be unlocked from outside your vehicle using the key.

2024 E-Series (TE4) Canada/United States of America, enUSA, Edition date: 202210, First-Printing

Keys and Remote Controls

Page 47

Changing the Remote Control Battery

WARNING: Keep batteries away

from children to prevent ingestion. Failure to follow this instruction could result in personal injury or death. If ingested, immediately seek medical attention.

WARNING: If the battery compartment does not securely close, stop using the remote control and replace it as soon as possible. In the meantime, keep the remote control away from children. Failure to follow this instruction could result in personal injury or death.

The remote control uses one coin-type three-volt lithium battery CR2032 or equivalent.

E107998

Make sure that you dispose of old batteries in an

environmentally friendly way. Seek advice from your local authority about recycling old batteries.

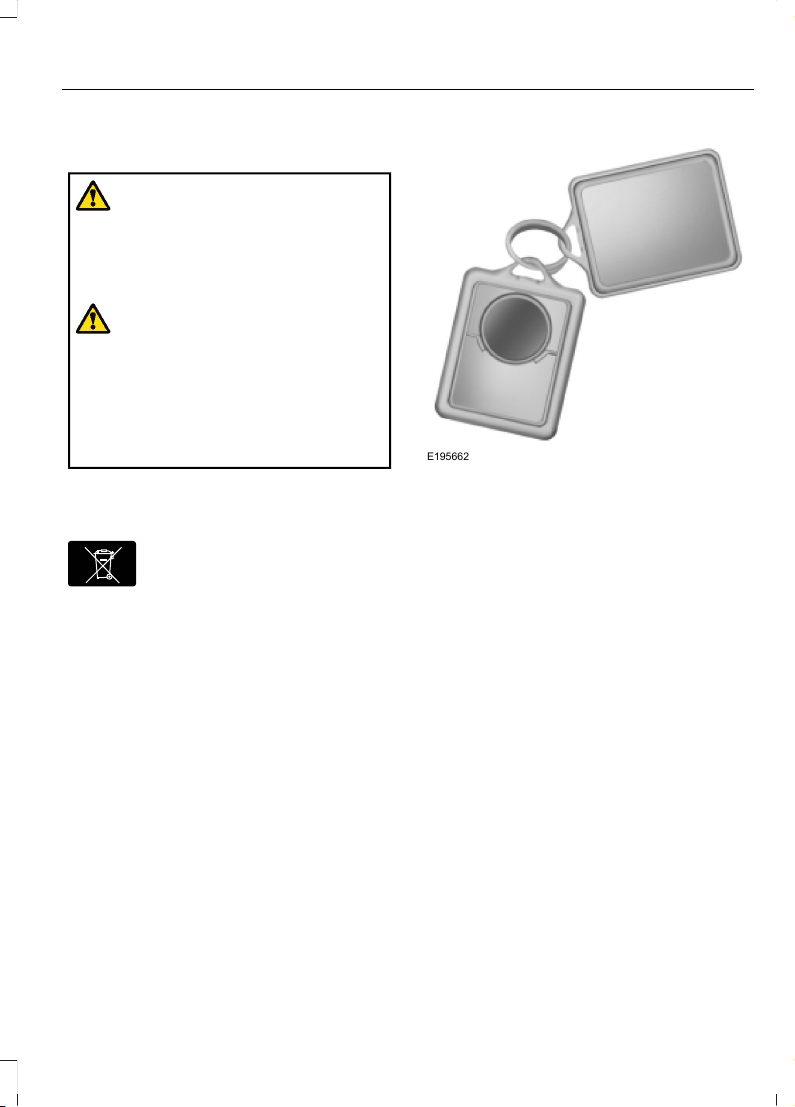

E195662

1. Twist a thin coin in the slot of the transmitter near the key ring to remove the battery cover.

Note: Do not remove the rubber cover and circuit board from the front housing of the remote entry transmitter.

Note: Do not wipe off any grease on the battery terminals or on the back surface of the circuit board.

2. Remove the old battery.

2024 E-Series (TE4) Canada/United States of America, enUSA, Edition date: 202210, First-Printing

Keys and Remote Controls

Page 48

E195661

3. Insert the new battery. Refer to the symbols inside the transmitter for the correct orientation of the battery. Press the battery down to make sure it is fully engaged in the housing.

4. Reinstall the battery housing cover onto the transmitter.

Note: Replacing the battery does not erase the programmed key from your vehicle. The transmitter should operate normally.

Car Finder

E138623

Press the button twice within three seconds. The horn sounds

and the direction indicators flash. We recommend you use this method to locate your vehicle, rather than using the panic alarm.

Sounding the Panic Alarm

E138624

Press the button to sound the

panic alarm. Press the button

again or switch the ignition on to turn it off.

Note: The panic alarm operates regardless of the ignition position.

REPLACING A LOST KEY OR REMOTE CONTROL

Replacement keys or remote controls can be purchased from an authorized dealer. Authorized dealers can program remote controls for your vehicle.

2024 E-Series (TE4) Canada/United States of America, enUSA, Edition date: 202210, First-Printing

Keys and Remote Controls

Page 49

LOCKING AND UNLOCKING

You can use the power door lock control or the remote control to lock and unlock your vehicle.

Note: Do not use the door latch assembly to attach any accessory, such as handles or steps, as this can cause damage to your vehicle.

Power Door Locks (If Equipped)

The power door lock control is on the driver and front passenger door panels.

E195623

Lock.A Unlock.B

Remote Control (If Equipped)

You can use the remote control at any time when the ignition is off.

Unlocking the Doors (Two-Stage Unlock)

E138629

Press the button to unlock the driver door.

Press the button again within three seconds to unlock all doors. The direction indicators flash.

Note: The driver door can be unlocked with the key if the remote control is not functioning.

Note: When you leave your vehicle unattended for several weeks, the remote control turns off. Your vehicle must be unlocked and started. Unlocking and starting your vehicle once enables the remote control.

Reprogramming the Unlocking Function

Note: When you press the unlock button, either all the doors are unlocked or only the driver door is unlocked. Pressing the unlock button again unlocks all the doors.

You can reprogram the unlocking function so that only the driver door is unlocked.

Press and hold the unlock and lock buttons on the remote control simultaneously for at least four seconds with the ignition off. The direction indicators flash twice to confirm the change.

To return to the original unlocking function, repeat the process.

Locking the Doors

E138623

Press the button to lock all doors. The direction indicators flash.

Press the button again within three seconds to confirm that all the doors are closed. The doors lock again, the horn sounds and the direction indicators flash if all the doors are closed.

2024 E-Series (TE4) Canada/United States of America, enUSA, Edition date: 202210, First-Printing

Doors and Locks

Page 50

Note: If any door is open, the horn sounds

twice and the direction indicators do not flash.

Autolock

Autolock locks all the doors when all of the following occur:

• All doors are closed.

• The ignition is on.

• The vehicle reaches a speed greater

than 12 mph (20 km/h).

Autolock repeats when:

• The vehicle is stopped.

• Any door opens and closes while the

ignition is on.

• The vehicle reaches a speed greater

than 12 mph (20 km/h).

Autounlock

Autounlock unlocks all the doors when all of the following occur:

• All the doors are closed and your

vehicle is moving at a speed greater than 12 mph (20 km/h).

• Your vehicle comes to a stop.

• You open the driver door within 10

minutes of switching the ignition off or to the accessory position.

Note: If you open the driver door after 10 minutes, autounlock does not unlock all other doors.

Enabling or Disabling Autounlock

(If Equipped)

You can enable or disable the autounlock feature in the instrument cluster display or an authorized dealer can do it for you.

To enable or disable autounlock, do the following:

1. Switch the ignition on.

2. Press the power door unlock control three times.

3. Switch the ignition off.

4. Press the power door unlock control three times.

5. Switch the ignition on. The horn sounds indicating your vehicle is in programming mode.

6. Press the power door lock control and within five seconds, press the power door unlock control. The horn sounds once if disabled or twice if enabled.

7. Switch the ignition off. The horn sounds indicating programming is complete.

Note: You can also switch this feature on or off using the instrument cluster display. See Information Displays (page 64).

Illuminated Entry

The interior lamps and some exterior lamps illuminate when you unlock the doors with the remote control.

The lamps turn off if:

• The ignition is on.

• You press the lock button on the

remote control.

• 25 seconds have elapsed.

The lamps do not turn off if:

• You switch them on with the lighting control.

• Any door is open.

2024 E-Series (TE4) Canada/United States of America, enUSA, Edition date: 202210, First-Printing

Doors and Locks

Page 51

PASSIVE ANTI-THEFT SYSTEM

Note: The system is not compatible with

non-Ford aftermarket remote start systems. Use of these systems could result in engine starting problems and a loss of security protection.

Note: Prevent these objects from touching the coded key when starting your vehicle. Metallic objects, electronic devices or a second coded key on the same key chain could result in vehicle starting problems, especially if they are too close to the key when starting your vehicle. Switch the ignition off, move all objects on the key chain away from the coded key and restart your vehicle if a problem occurs.

Note: Do not leave a duplicate coded key in your vehicle. Always take your keys and lock all doors when leaving your vehicle.

SecuriLock®

The system helps prevent the engine from starting unless you use a coded key programmed to your vehicle. Using the wrong key may prevent your vehicle from starting. A message may appear in the information display.

If you are unable to start your vehicle with a coded key, it is not operating correctly. A message may appear in the information display.

Automatic Arming

The system arms when you switch the ignition off.

Automatic Disarming

The system disarms when you switch the ignition on with a coded key.

Replacement Keys

Your vehicle may have two integrated keyhead transmitters.

The integrated keyhead transmitter functions as a programmed ignition key that starts your vehicle.

If your programmed transmitters or standard SecuriLock coded keys become lost or stolen and you do not have an extra coded key, you need to have your vehicle towed to an authorized dealer. You need to erase the key codes from your vehicle and program new coded keys.

Store an extra programmed key away from your vehicle in a safe place. To purchase additional spare or replacement keys, contact an authorized dealer.

If you have a spare key, you need to program it. See Replacing a Lost Key or Remote Control (page 44).

2024 E-Series (TE4) Canada/United States of America, enUSA, Edition date: 202210, First-Printing

Security (If Equipped)

Page 52

ADJUSTING THE STEERING WHEEL

WARNING: Do not adjust the

steering wheel when your vehicle is moving.

Note: Make sure that you are sitting in the correct position. See Sitting in the Correct Position (page 76).

E359744

1. Unlock the steering column.

2. Adjust the steering wheel to the position you prefer.

3. Lock the steering column.

CRUISE CONTROL - VEHICLES WITH: ADAPTIVE CRUISE CONTROL

E191337

See Using Adaptive Cruise Control (page 107).

CRUISE CONTROL - VEHICLES WITH: CRUISE CONTROL

E191329

See What Is Cruise Control (page 106).

2024 E-Series (TE4) Canada/United States of America, enUSA, Edition date: 202210, First-Printing

Steering Wheel

Page 53

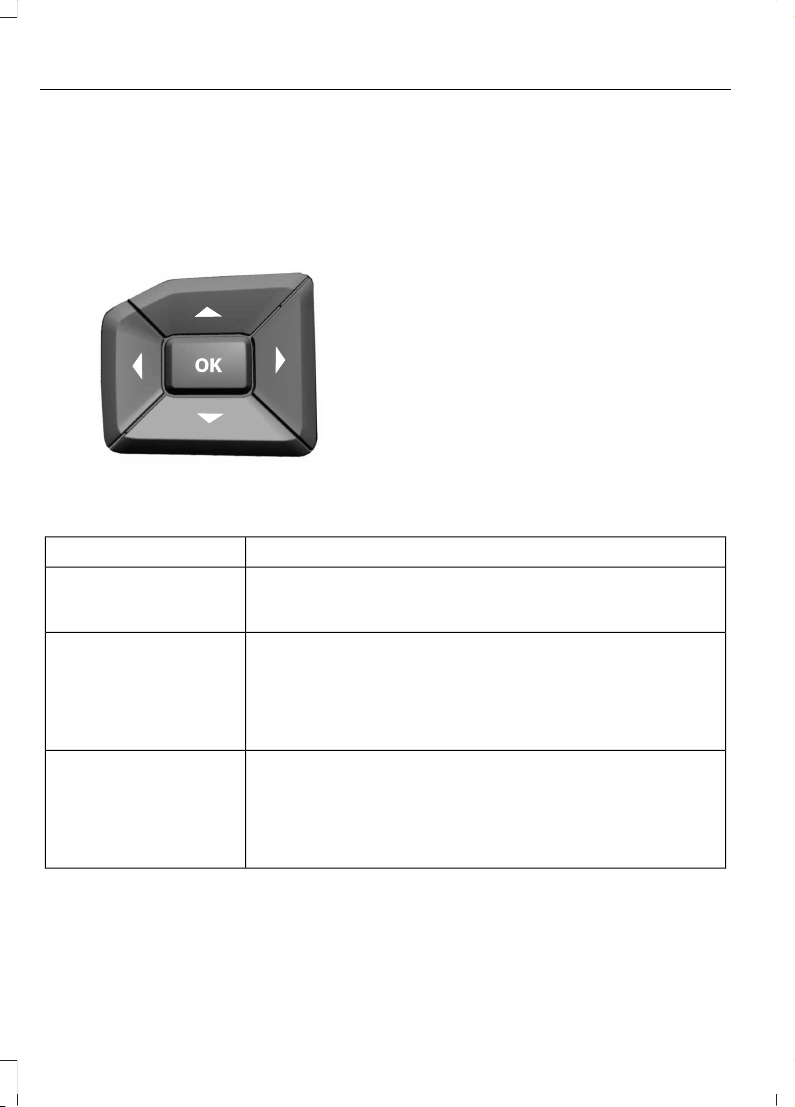

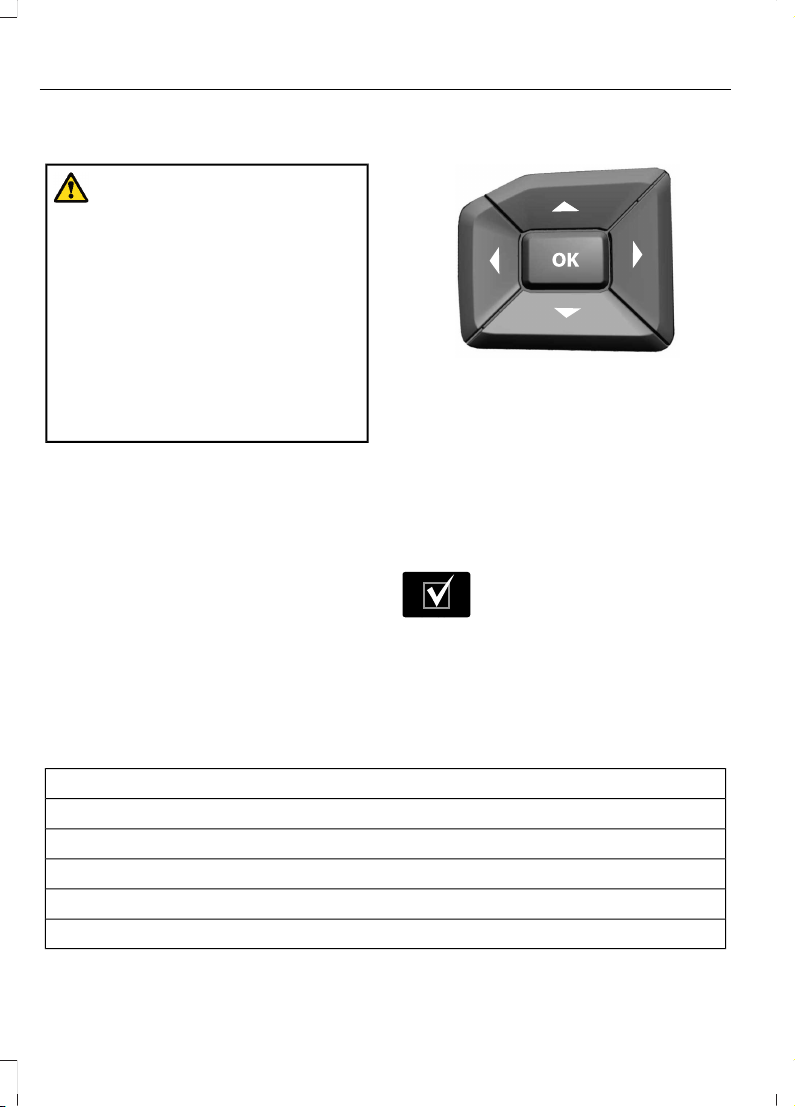

INFORMATION DISPLAY CONTROL

E191336

See Information Displays (page 64).

HORN

E270945

2024 E-Series (TE4) Canada/United States of America, enUSA, Edition date: 202210, First-Printing

Steering Wheel

Page 54

WINDSHIELD WIPERS

Note: Fully defrost the windshield before

you switch the windshield wipers on. Note: Make sure you switch the windshield

wipers off before entering a car wash. Note: If streaks or smears appear on the

windshield, clean the windshield and the wiper blades. If that does not resolve the issue, install new wiper blades.

Note: Do not operate the wipers on a dry windshield. This may scratch the glass, damage the wiper blades or cause the wiper motor to burn out. Always use the windshield washers before wiping a dry windshield.

E172816

• Rotate away from you for a long wipe interval.

• Rotate toward you for a short wipe interval.

Speed Dependent Wipers

When your vehicle speed increases, the interval between wipes decreases.

WINDSHIELD WASHERS

E172818

• A brief press causes a single wipe without washer fluid.

• A brief press and hold causes the wipers to swipe three times with washer fluid.

• A long press and hold turns on the wipers and washer fluid for up to 10 seconds.

A wipe occurs a few seconds after washing to clear any remaining washer fluid. You can switch this feature on or off in the information display. See Information

Displays (page 64). Note: Do not operate the washers when

the washer reservoir is empty. This could cause the washer pump to overheat.

2024 E-Series (TE4) Canada/United States of America, enUSA, Edition date: 202210, First-Printing

Wipers and Washers

Page 55

GENERAL INFORMATION

Condensation in the Exterior Front Lamps and Rear Lamps

Exterior front lamps and rear lamps have vents to accommodate normal changes in air pressure.

Condensation can be a natural by-product of this design. When moist air enters the lamp assembly through the vents, there is a possibility that condensation can occur when the temperature is cold. When normal condensation occurs, a fine mist can form on the interior of the lens. The fine mist eventually clears and exits through the vents during normal operation.

Clearing time may take as long as 48 hours under dry weather conditions.

Examples of acceptable condensation are:

• The presence of a fine mist (no streaks, drip marks or large droplets).

• A fine mist covers less than 50% of the lens.

Examples of unacceptable condensation are:

• A water puddle inside the lamp.

• Streaks, drip marks or large droplets

present on the interior of the lens.

If you see any unacceptable condensation, have your vehicle checked by an authorized dealer.

LIGHTING CONTROL

E142449

Lamps off.A Parking lamps, instrument panel

lamps, license plate lamps and rear lamps.

Headlamps.C

Headlamp High Beam

E308790

E67019

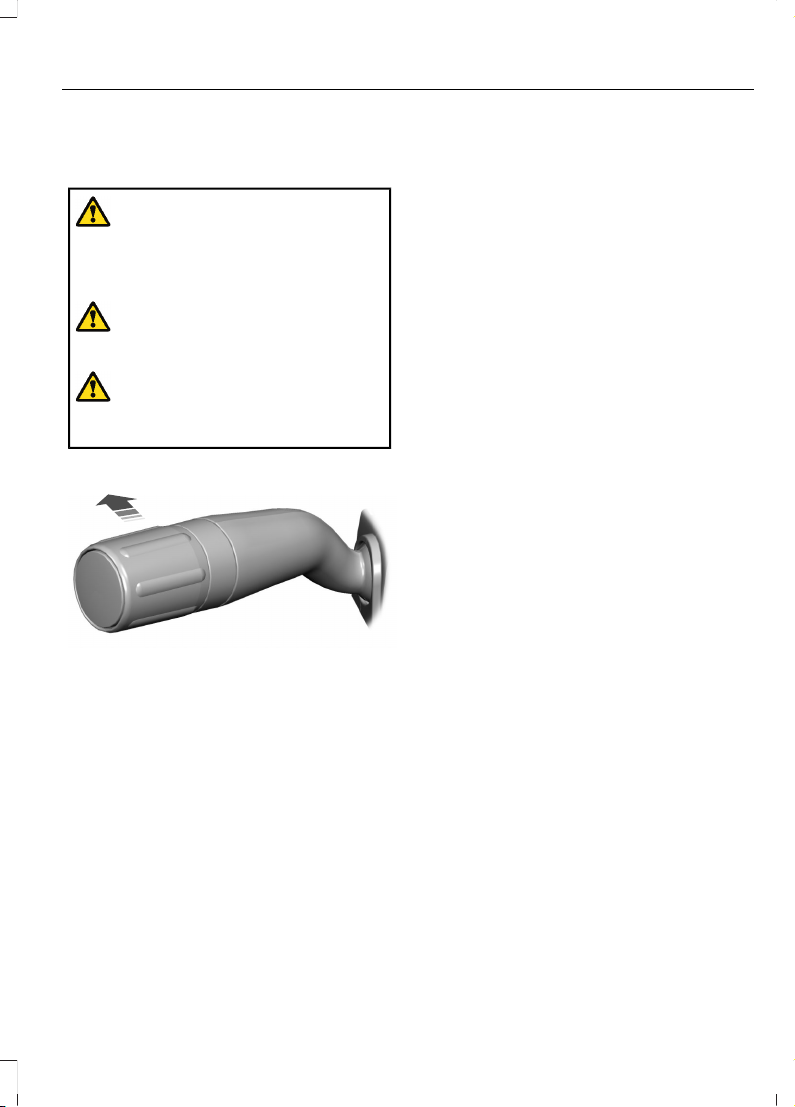

Push the lever away from you to switch the high beam on.

Push the lever forward again or pull the lever toward you to switch the high beams off.

2024 E-Series (TE4) Canada/United States of America, enUSA, Edition date: 202210, First-Printing

Lighting

Page 56

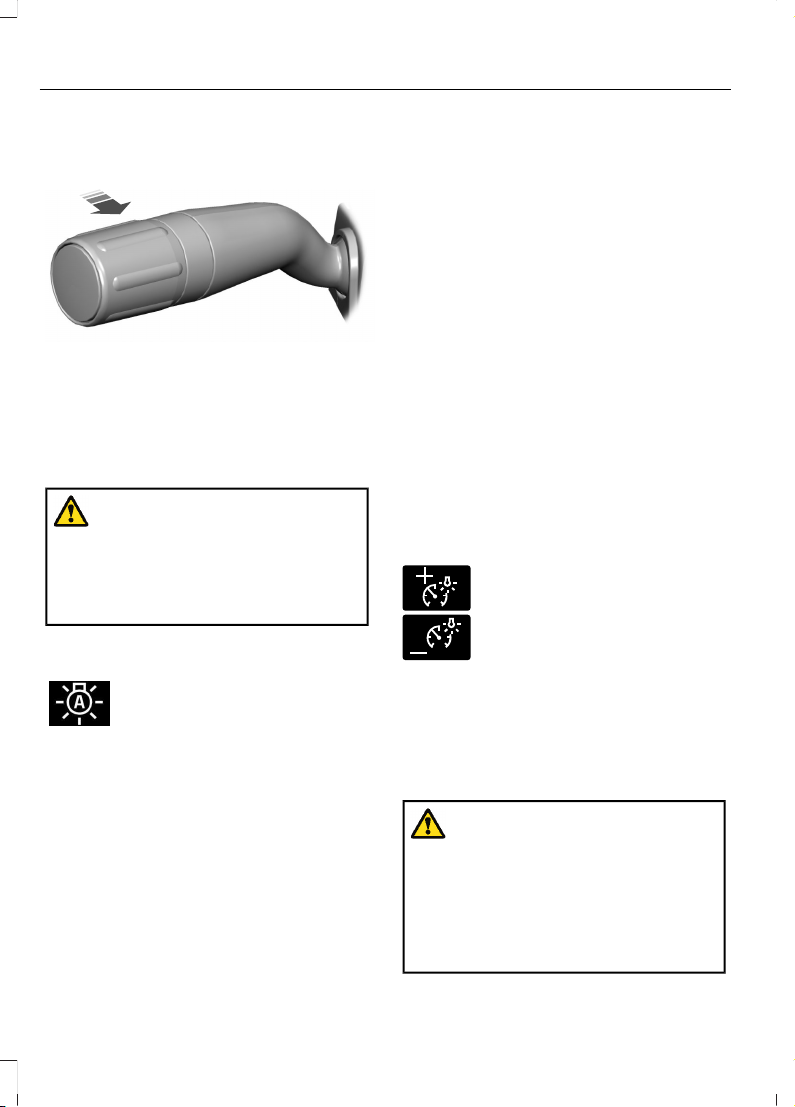

Flashing the Headlamp High Beam

E311233

Slightly pull the lever toward you and release it to flash the headlamps.

AUTOLAMPS

WARNING: The system does not

relieve you of your responsibility to drive with due care and attention. You may need to override the system if it does not turn the headlamps on in low visibility conditions, for example daytime fog.

Autolamps turn the headlamps on in low light situations or when the wipers operate.

Switch the lighting control to the autolamps position.

The headlamps remain on for a period of time after you switch the ignition off. Use the information display controls to adjust the period of time that the headlamps remain on.

Note: If you switch the autolamps on, you cannot switch the high beams on until the system turns the low beams on.

Windshield Wiper Activated Headlamps

When you switch the autolamps on, the headlamps turn on within 10 seconds of switching the wipers on. They turn off approximately 60 seconds after you switch the windshield wipers off.

The headlamps do not turn on with the wipers:

• During a single wipe.

• When using the windshield washers.

• If the wipers are in intermittent mode.

Note: If you switch the autolamps and the autowipers on, the headlamps turn on when the windshield wipers continuously operate.

INSTRUMENT LIGHTING DIMMER

The instrument lighting dimmer buttons are on the lighting control.

E291299

E291298

Repeatedly press one of the buttons to adjust the brightness.

DAYTIME RUNNING LAMPS VEHICLES WITH: CONFIGURABLE DAYTIME RUNNING LAMPS

WARNING: The daytime running

lamps system does not activate the rear lamps and may not provide adequate lighting during low visibility driving conditions. Make sure you switch the headlamps on, as appropriate, during all low visibility conditions. Failure to do so may result in a crash.

2024 E-Series (TE4) Canada/United States of America, enUSA, Edition date: 202210, First-Printing

Lighting

Page 57

Switch the daytime running lamps on or off using the touchscreen:

1. Select Settings.

2. Select Vehicle.

3. Select Lighting.

The daytime running lamps turn on when:

1. The lamps are on in the information display.

2. You switch the ignition on.

3. The transmission is not in park (P) for vehicles with automatic transmissions or you release the parking brake for vehicles with manual transmissions.

4. The lighting control is in the autolamps position.

5. The headlamps are off.

The other lighting control switch positions do not turn on the daytime running lamps.

If the daytime running lamps are off in the information display, the lamps stay off in all switch positions.

DAYTIME RUNNING LAMPS VEHICLES WITH: DAYTIME RUNNING LAMPS (DRL)

WARNING: The daytime running

The system turns the lamps on in daylight conditions.

To switch the system on, switch the lighting control to any position except headlamps.

DIRECTION INDICATORS

E311431

E67018

Push the lever up or down to use the direction indicators.

Note: Tap the lever up or down to make the direction indicators flash three times.

2024 E-Series (TE4) Canada/United States of America, enUSA, Edition date: 202210, First-Printing

Lighting

Page 58

WHAT IS AUTOMATIC HIGH BEAM CONTROL

The system turns on high beams if it is dark enough and no other traffic is present. If it detects an approaching vehicle’s headlamps or tail lamps, or street lighting ahead, the system turns the high beams off. Low beams remain on.

A camera sensor, centrally mounted behind the windshield of your vehicle, continuously monitors conditions to turn the high beams on and off.

SWITCHING AUTOMATIC HIGH BEAM CONTROL ON AND OFF

Switch the system on or off using the information display. See General

Information (page 64).

Activating the Automatic High Beam Control

Switch the lighting control to the autolamps position to activate. See Autolamps (page 52).

Note: Automatic high beams are not available when you do not turn on autolamps.

When active, the high beams turn on if all of the following occur:

• The ambient light level is low enough.

• There is no traffic in front of your

vehicle.

• The vehicle speed is greater than approximately 32 mph (52 km/h).

When active, the high beams turn off if any of the following occur:

• The ambient light level is high enough that it does not require high beams.

• The system detects an approaching vehicle's headlamps or tail lamps.

• The system detects severe rain, snow or fog.

• The camera is blocked.

• The vehicle speed falls below

approximately 27 mph (44 km/h).

Note: The deactivation speed is lower on curves.

Note: There could be a delay in high beam reactivation in certain curvy road situations.

Note: If you have a blocked sensor, the system may not operate properly. Keep the windshield free from obstruction or damage.

Note: The system may not operate properly in cold or inclement conditions. You can switch on the high beams by overriding the system.

Note: If the system detects a blockage, for example bird droppings, bug splatter, snow or ice, the system goes into low beam mode until you clear the blockage. If you have a blocked camera, a message may appear in the information display.

Note: Using much larger tires or equipping vehicle accessories such as snowplows can modify your vehicle's ride height and degrade automatic high beam control performance.

AUTOMATIC HIGH BEAM CONTROL INDICATORS

E146105

The indicator illuminates to confirm when the system is ready to assist.

2024 E-Series (TE4) Canada/United States of America, enUSA, Edition date: 202210, First-Printing

Automatic High Beam Control (If Equipped)

Page 59

OVERRIDING AUTOMATIC HIGH BEAM CONTROL

WARNING: The system does not

relieve you of your responsibility to drive with due care and attention. You may need to override the system if it does not turn the high beams on or off.

WARNING: You may need to override the system when approaching other road users.

WARNING: You may need to override the system during inclement weather.

E308790

Push the lever away from you to switch between high beam and low beam.

2024 E-Series (TE4) Canada/United States of America, enUSA, Edition date: 202210, First-Printing

Automatic High Beam Control (If Equipped)

Page 60

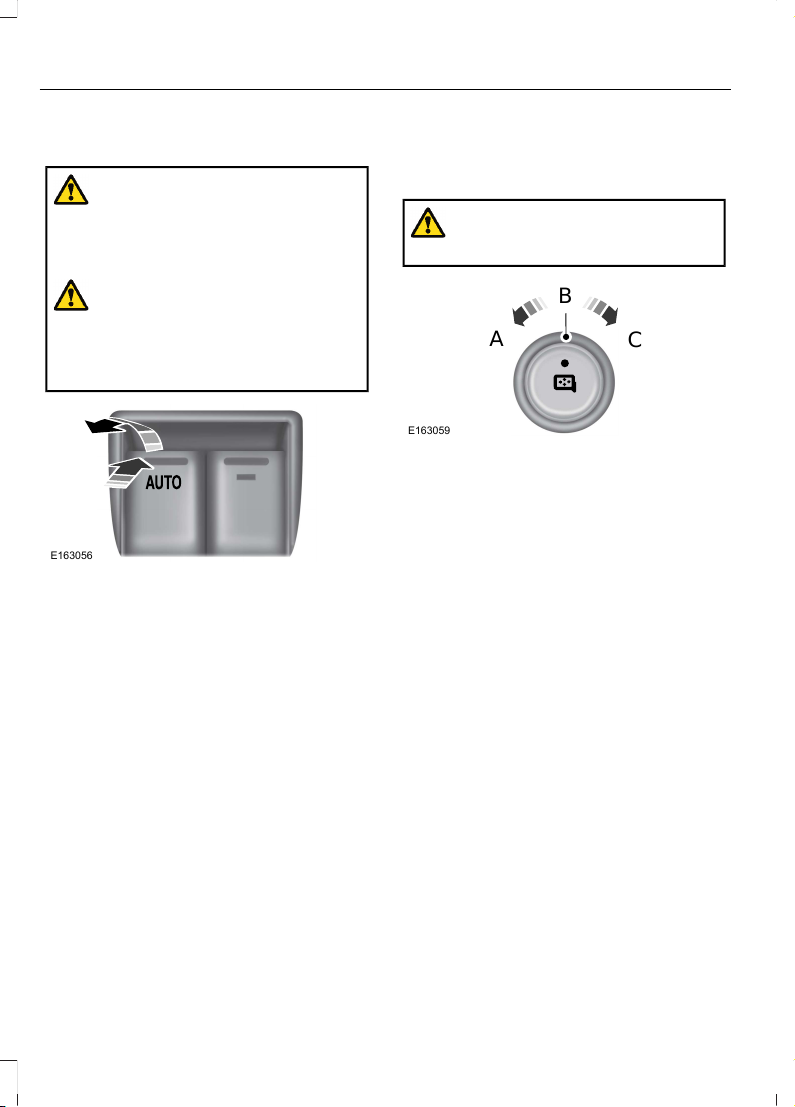

POWER WINDOWS (IF EQUIPPED)

WARNING: Do not leave children

unattended in your vehicle and do not let them play with the power windows. Failure to follow this instruction could result in personal injury.

WARNING: When closing the power windows, verify they are free of obstruction and make sure that children and pets are not in the proximity of the window openings.

E163056

Note: You may hear a pulsing noise when just one of the windows is open. Lower the opposite window slightly to reduce this noise.

Press the switch to open the window. Lift the switch to close the window.

One-Touch Down

Press the switch fully and release it. Press again or lift it to stop the window.

Accessory Delay

You can use the window switches for several minutes when you switch the ignition off or until you open either front door.

EXTERIOR MIRRORS (IF EQUIPPED)

Power Exterior Mirrors (If Equipped)

WARNING: Do not adjust the

mirrors when your vehicle is moving.

E163059

Left mirror.A Off.B Right mirror.C

To adjust your mirrors:

1. Select the mirror you want to adjust.

2. Move the control in the direction you want to tilt the mirror.

3. Return the control to the center position to lock the mirrors in place.

Fold-Away Exterior Mirrors

Push the mirror toward the door window glass. Make sure that you fully engage the mirror in its support when returning it to its original position.

2024 E-Series (TE4) Canada/United States of America, enUSA, Edition date: 202210, First-Printing

Windows and Mirrors

Page 61

Telescoping Mirrors (If Equipped)

E163061

This feature lets you extend the mirror about 3 in (75 mm). It is useful when towing a trailer. You can manually pull out or push in the mirrors to the desired position.

INTERIOR MIRROR (IF EQUIPPED)

WARNING: Do not adjust the

mirrors when your vehicle is moving. This could result in the loss of control of your vehicle, serious personal injury or death.

Note: Do not clean the mirror housing or glass with harsh abrasives, fuel or other petroleum-based cleaning products.

You can adjust the interior mirror to your preference. Some mirrors also have a second pivot point. This lets you move the mirror head up or down and from side to side.

Manual Dimming Mirror

Pull the tab below the mirror toward you to reduce the effect of bright light from behind.

Automatic Dimming Mirror (If Equipped)

Note: Do not block the sensors on the front

and back of the mirror. A rear center passenger or raised rear center head restraint may also block light from reaching the sensor.

The mirror dims to reduce the effect of bright light from behind. It returns to normal when the bright light from behind is no longer present or if you shift into reverse (R).

SUN VISORS (IF EQUIPPED)

Illuminated Vanity Mirror (If Equipped)

E162197

Lift the cover to switch the lamp on.

2024 E-Series (TE4) Canada/United States of America, enUSA, Edition date: 202210, First-Printing

Windows and Mirrors

Page 62

GAUGES

2.3 Inch Display

E219638

Engine oil pressure gauge.A Engine coolant temperature gauge.B Fuel gauge.C Transmission fluid temperature gauge.D Speedometer.E Information display. See General Information (page 64).F Tachometer.G

2024 E-Series (TE4) Canada/United States of America, enUSA, Edition date: 202210, First-Printing

Instrument Cluster

Page 63

8 Inch Display

E299699

Engine oil pressure gauge.A Engine coolant temperature gauge.B Fuel gauge.C Transmission fluid temperature gauge.D Speedometer.E Information display. See General Information (page 64).F Tachometer.G

2024 E-Series (TE4) Canada/United States of America, enUSA, Edition date: 202210, First-Printing

Instrument Cluster

Page 64

Engine Oil Pressure Gauge

Indicates engine oil pressure. At normal operating temperature, the level indicator is in the normal range. If the pressure gauge falls below the normal range, stop your vehicle, switch off the engine and check the engine oil level. Add oil if needed. If the oil level is correct, have your vehicle checked by an authorized dealer.

Engine Coolant Temperature Gauge

WARNING: Do not remove the

coolant reservoir cap when the engine is on or the cooling system is hot. Wait 10 minutes for the cooling system to cool down. Cover the coolant reservoir cap with a thick cloth to prevent the possibility of scalding and slowly remove the cap. Failure to follow this instruction could result in personal injury.

Indicates engine coolant temperature. At normal operating temperature, the level indicator is in the normal range. If the engine coolant temperature exceeds the normal range, stop your vehicle as soon as possible, switch off the engine and let the engine cool.

Fuel Gauge

The fuel gauge indicates about how much fuel is in the fuel tank.

The arrow adjacent to the fuel pump symbol indicates on which side of your vehicle the fuel filler door is located.

Note: The fuel gauge may vary slightly when your vehicle is moving or on a slope.

Low Fuel Reminder

A low fuel level reminder displays and sounds when the distance to empty reaches 50 mi (80 km), 25 mi (40 km), 10 mi (20 km) and 0 mi (0 km) for all vehicle keys.

Note: The low fuel reminder can appear at different fuel gauge positions depending on fuel economy conditions. This variation is normal.

Distance to Empty

Indicates the approximate distance your vehicle can travel on the fuel remaining in the tank. Changes in driving pattern can cause the value to not only decrease but also increase or stay constant for periods of time.

Transmission Fluid Temperature Gauge

Indicates transmission fluid temperature. At normal operating temperature, the level indicator is in the normal range. If the transmission fluid temperature exceeds the normal range, stop your vehicle as soon as possible and verify the airflow is not restricted by snow or debris blocking airflow through the grille.

Special operating conditions such as snowplowing, towing, or off-road use may cause higher than normal operating temperatures. See Special Operating

Conditions Scheduled Maintenance

(page 255). To lower the transmission temperature

into the normal range, alter the severity of your driving conditions. Operating the transmission for extended periods with the gauge in the higher than normal area may cause internal transmission damage. If the gauge continues to show high temperatures, see an authorized dealer.

2024 E-Series (TE4) Canada/United States of America, enUSA, Edition date: 202210, First-Printing

Instrument Cluster

Page 65

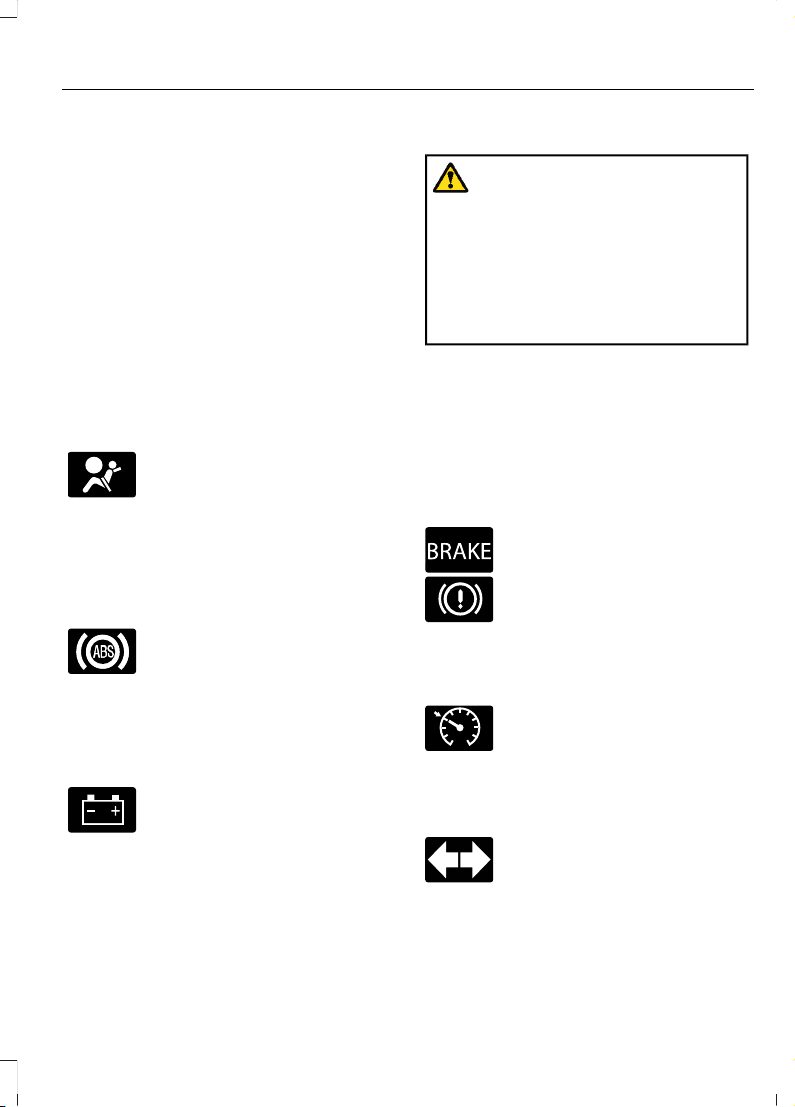

WARNING LAMPS AND INDICATORS

The following warning lamps and indicators alert you to a vehicle condition that may become serious. Some lamps illuminate when you start your vehicle to make sure they work. If any lamps remain on after starting your vehicle, refer to the respective system warning lamp for further information.

Note: Some warning indicators appear in the information display and operate the same as a warning lamp but do not illuminate when you start your vehicle.

Airbag Warning Lamp

If it does not illuminate when you switch the ignition on, continues

to flash or remains on when the engine is running, this indicates a malfunction. Have your vehicle checked as soon as possible.

Anti-Lock Brake System Warning Lamp

E67020

If it illuminates when you are

driving, this indicates a

malfunction. Your vehicle continues to have normal braking without the anti-lock brake system function. Have your vehicle checked as soon as possible.

Battery

E67021

If it illuminates while driving, it

indicates a malfunction. Switch

off all unnecessary electrical equipment and have an authorized dealer check the system immediately.

Brake System Warning Lamp

WARNING: Driving your vehicle

with the warning lamp on is dangerous. A significant decrease in braking performance may occur. It may take you longer to stop your vehicle. Have your vehicle checked as soon as possible. Driving extended distances with the parking brake engaged can cause brake failure and the risk of personal injury.

Note: Indicators vary depending on region.

This lamp is a dual function lamp and will illuminate when:

• You apply the parking brake with the ignition on.

• Your vehicle has a brake fault or low brake fluid level, regardless of parking brake position.

E270480

E67024

If the lamp illuminates while you are moving, you may have the parking brake applied. Be sure that the parking brake is off. Have your vehicle checked as soon as possible if the lamp

continues to illuminate.

Cruise Control Indicator (If Equipped)

E71340

It illuminates when you switch the system on.

See What Is Cruise Control

(page 106).

Direction Indicator

E67018

Illuminates when you switch on the left or right direction

indicator or the hazard warning flasher. If the indicators stay on or flash faster, check for a burned out bulb.

2024 E-Series (TE4) Canada/United States of America, enUSA, Edition date: 202210, First-Printing

Instrument Cluster

Page 66

Engine Coolant Temperature Warning Lamp

E103308

If it illuminates when your vehicle is moving, this indicates that the

engine is overheating. Stop your vehicle as soon as it is safe to do so and switch the engine off. Have your vehicle checked as soon as possible.

Engine Oil

E67022

It illuminates when you switch

the ignition on.

If it illuminates when the engine is running this indicates a malfunction. Stop your vehicle as soon as it is safe to do so and switch the engine off. Check the engine oil level. If the oil level is sufficient, this indicates a system malfunction. Have your vehicle checked as soon as possible.

See Engine Oil Check (page 163).

Fasten Seatbelt Warning Lamp

It illuminates and a tone sounds

until you fasten the seatbelts.

Headlamp High Beam Indicator

E67019

It illuminates when you switch

the headlamp high beam on.

Low Fuel Level Warning Lamp

If it illuminates when you are

driving, refuel as soon as

possible.

Low Tire Pressure Warning Lamp

(If Equipped)

E139232

It illuminates if the tire pressure

in one or more tires is below the

correct tire pressure.

It also illuminates momentarily when you switch the ignition on to confirm the lamp is functional. If it does not illuminate when you switch the ignition on, or begins to flash at any time, have the system checked by your authorized dealer.

Powertrain Malfunction/Electronic Throttle Control

Illuminates when the system detects a powertrain fault, have an authorized dealer check the

system as soon as possible.

Service Engine Soon

E67028

If it illuminates when the engine is running this indicates a

malfunction. The On Board Diagnostics system has detected a malfunction of the vehicle emission control system.

If it flashes, engine misfire may be occurring. Increased exhaust gas temperatures could damage the catalytic converter or other vehicle components. Avoid heavy acceleration and deceleration and have your vehicle serviced immediately.

It illuminates when you switch the ignition on prior to engine start to check the bulb and to indicate whether your vehicle is ready for Inspection and Maintenance (I/M) testing.

Normally, it illuminates until the engine is cranked and automatically turns off if no malfunctions are present. However, if after 15 seconds it flashes eight times, this indicates that your vehicle is not ready for Inspection and Maintenance (I/M) testing. See Emission Law (page 91).

2024 E-Series (TE4) Canada/United States of America, enUSA, Edition date: 202210, First-Printing

Instrument Cluster

Page 67

Traction Control Indicator

E138639

It flashes during a traction control event.

If it does not illuminate when you switch the ignition on, or remains on when the engine is running, this indicates a malfunction. Have your vehicle checked as soon as possible.

Traction Control System Off

E130458

It will illuminate when the driver disables traction control.

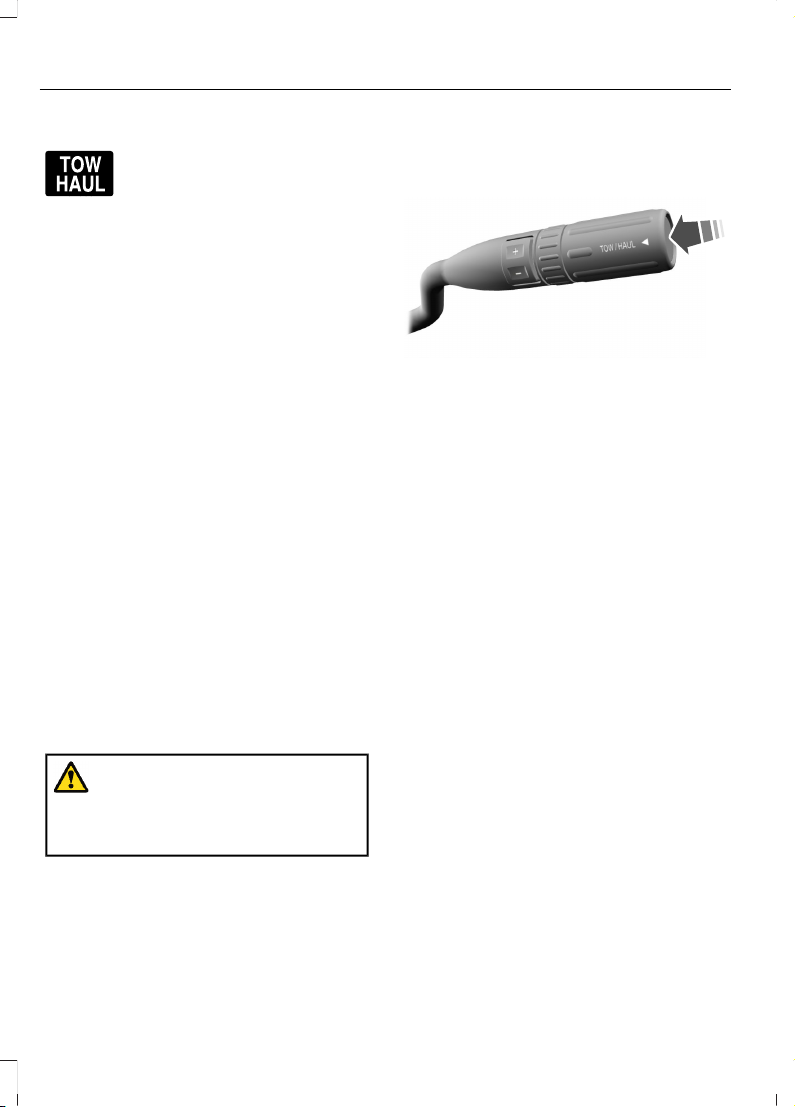

Tow Haul Indicator

Illuminates when the driver activates the tow/haul feature.

If the light flashes steadily, have an authorized dealer check the system immediately, damage to the transmission could occur.

AUDIBLE WARNINGS AND INDICATORS

Headlamps On Warning Chime

Sounds when you remove the key from the ignition and open the driver's door and you have left the headlamps or parking lamps on.

Key in Ignition Warning Chime

Sounds when you open the driver's door and you have left the key in the ignition.

Parking Brake On Warning Chime

Sounds when you have left the parking brake on and drive your vehicle. If the warning chime remains on after you have released the parking brake, have the system checked by your authorized dealer immediately.

2024 E-Series (TE4) Canada/United States of America, enUSA, Edition date: 202210, First-Printing

Instrument Cluster

Page 68

GENERAL INFORMATION

WARNING: Driving while distracted

can result in loss of vehicle control, crash and injury. We strongly recommend that you use extreme caution when using any device that may take your focus off the road. Your primary responsibility is the safe operation of your vehicle. We recommend against the use of any hand-held device while driving and encourage the use of voice-operated systems when possible. Make sure you are aware of all applicable local laws that may affect the use of electronic devices while driving.

Note: Trailer options are not available if your vehicle speed is greater than 3 mph (5 km/h).

Information Display Controls

E184451

• Press the up and down arrow buttons to scroll through and highlight the options within a menu.

• Press the right arrow button to enter a sub-menu.

• Press the left arrow button to exit a menu.

• Press the OK button to choose and confirm settings or messages.

This icon shows the features on or off status. A check in the box indicates the feature is on, and

unchecked indicates the feature is off.

2.3 Inch Display Menu

Note: Some options could appear slightly

different or not at all if the items are optional.

Main Menu

Trip 1

Trip 2

Fuel Economy

Driver Assist

Settings

2024 E-Series (TE4) Canada/United States of America, enUSA, Edition date: 202210, First-Printing

Information Displays

Page 69

Trip 1 or 2

Displays the following of an individual journey.

• Digital speed.

• Distance.

• Time.

• Distance to empty.

• Average fuel economy.

Note: Hold OK to reset fuel history and average fuel economy.

Fuel Economy

Displays the following:

• Instant fuel economy.

• Average fuel economy.

• Average speed.

• Distance to empty.

Note: Hold OK to reset fuel history and average fuel economy.

Driver Assist

Displays the following:

• Progressive range select.

• Engine hours.

• Maintenance monitor.

Settings

Select Your SettingLightingVehicle

Locks

FordPass

Windows

Wiper Controls

Select Your SettingUnitsDispl. Settings

Temperature

Language

8 Inch Display Menu

Note: Some options could appear slightly

different or not at all if the items are optional.

2024 E-Series (TE4) Canada/United States of America, enUSA, Edition date: 202210, First-Printing

Information Displays

Page 70

Main Menu

MyView

Trip/Fuel

Vehicle Info

Settings

MyView

Trip 1

Fuel Economy

For more options, press the OK button.Configure MyView

Trip/Fuel

Trip 1

Trip 2

Fuel Economy

Fuel History

Trip 1 or 2

Displays the following of an individual journey.

• Trip timer.

• Distance to empty.

• Trip odometer.

• Average fuel economy.

Note: Hold OK to reset fuel history and average fuel economy.

Fuel Economy

Displays your instantaneous fuel usage as a bar graph and average mpg.

Fuel History

Displays your fuel usage based on time. The graph is updated each minute with the fuel economy that you achieved during 30 minutes of driving.

2024 E-Series (TE4) Canada/United States of America, enUSA, Edition date: 202210, First-Printing

Information Displays

Page 71

Vehicle Info

Gauge View

Digital Speedometer

Engine Information

Maintenance Monitor

Transmission Temp

• Engine Information - Shows engine hours, engine idle hours and engine oil temp and oil life.

Settings

Turn On or OffDriver Alert

Select Your SettingPre-Collision

Select Your SettingCruise

Control

Select Your SettingGauge Selec-

tion

Select Your SettingLightingVehicleAdvanced

Settings

Locks

FordPass

Windows

Wiper Controls

Select Your SettingUnitsDispl.

Settings

Temperature

Tire Pressure

Language

2024 E-Series (TE4) Canada/United States of America, enUSA, Edition date: 202210, First-Printing

Information Displays

Page 72

INFORMATION MESSAGES

Note: Not all messages will display or be

available depending on your vehicle options and instrument cluster type. The information display may abbreviate or shorten certain messages.

E184451

Press the OK button to acknowledge and remove some messages from the information display. The information display will automatically remove other messages after a short period of time.

You need to confirm certain messages before you can access the menus.

Battery and Charging System

ActionMessage

The charging system needs servicing. If the warning stays on

or continues to come on, contact an authorized dealer as soon

as possible.

Check Charging System

The battery management system detects an extended low-

voltage condition. Your vehicle will disable various features

to help preserve the battery. Turn off as many of the electrical

loads as soon as possible to improve system voltage. If the

system voltage has recovered, the disabled features will

operate again as normal.

Low Battery Features

Temporarily Turned Off

The battery management system determines that the battery

is at a low state of charge. Turn your ignition off as soon as

possible to protect the battery. This message will clear once

you restart your vehicle and the battery state of charge has

recovered. Turning off unnecessary electrical loads will allow

faster battery state-of-charge recovery.

Turn Power Off To Save

Battery

2024 E-Series (TE4) Canada/United States of America, enUSA, Edition date: 202210, First-Printing

Information Displays

Page 73

Doors and Locks

ActionMessage

The driver door is not completely closed.Driver Door Ajar

The passenger door is not completely closed.Passenger Door Ajar

Driver Alert

ActionMessage

Stop and rest as soon as it is safe to do so.Driver Alert Warning Rest Now

Take a rest soon.Driver Alert Warning Rest Suggested

Engine

ActionMessage

The engine has reduced power to help reduce high

engine temperature.

Power Reduced to Lower Engine

Temp

Fuel

ActionMessage

An early reminder of a low fuel condition.Fuel Level Low

The fuel fill inlet may not be properly closed.Check Fuel Fill Inlet

2024 E-Series (TE4) Canada/United States of America, enUSA, Edition date: 202210, First-Printing

Information Displays

Page 74

Lane Departure Warning System

ActionMessage

The system detects a condition that causes

the system to be temporarily unavailable.

Front Camera Temporarily Not Available

The system detects a condition that

requires you to clean the windshield in order

for it to operate properly.

Front Camera Low Visibility Clean Screen

Have the system checked as soon as

possible.

Front Camera Malfunction Service Required

The system requests you to keep your

hands on the steering wheel.

Keep Hands on Steering Wheel

Maintenance

ActionMessage

Stop your vehicle as soon as safely possible and turn off the

engine. Check the oil level. If the warning stays on or continues

to come on with your engine running, contact an authorized

dealer as soon as possible.

Low Engine Oil Pressure

The engine oil life remaining is 10% or less.Change Engine Oil Soon

The oil life left is at 0%.Oil Change Required

The brake fluid level is low, inspect the brake system immedi-

ately. See Brake Fluid Check (page 172).

Brake Fluid Level Low

The brake system needs servicing. Stop your vehicle in a safe

place. Contact an authorized dealer.

Check Brake System

Your vehicle is still in Transport or Factory mode. This may

not allow some features to operate properly. See an author-

ized dealer.

Transport / Factory

Mode Contact Dealer

The powertrain needs service due to a powertrain malfunction.See Manual

2024 E-Series (TE4) Canada/United States of America, enUSA, Edition date: 202210, First-Printing

Information Displays

Page 75

Pre-Collision Assist

ActionMessage

You have a blocked sensor due to bad

weather, ice, mud or water in front of the

radar sensor. You can typically clean the

sensor to resolve.

Pre-Collision Assist Not Available Sensor

Blocked

There is a condition preventing the system

from being available. Have the system

checked as soon as possible.

Pre-Collision Assist Not Available

Power Steering

ActionMessage

The power steering system detects a condition that requires

service. See an authorized dealer.

Steering Fault Service

Now

The power steering system is not working. Stop your vehicle

in a safe place. Contact an authorized dealer.

Steering Loss Stop

Safely

The power steering system detects a condition within the

power steering system or passive entry or passive start system

requires service. Contact an authorized dealer.

Steering Assist Fault

Service Required

The steering lock system detects a condition that requires

service. See an authorized dealer.

Steering Lock Malfunc-

tion Service Now

Traction Control

ActionMessage

The status of the traction control system after you switched

it off. See Using Traction Control (page 102).

Traction Control Off

The status of the traction control system after you switched

it on. See Using Traction Control (page 102).

Traction Control On

2024 E-Series (TE4) Canada/United States of America, enUSA, Edition date: 202210, First-Printing

Information Displays

Page 76

Transmission

ActionMessage

You switched the engine off and shift select lever is in any

position other than park (P).

Shift to Park

Displays when the brake pedal needs to be pressed.Press Brake Pedal

The transmission is overheating and needs to cool. Stop in a

safe place as soon as it is possible.

Transmission Over Temperature Stop

Safely

See an authorized dealer.Transmission Service

Required

The transmission is overheating and needs to cool. Stop in a

safe place as soon as it is possible.

Transmission Too Hot

Press Brake

The transmission has limited functionality. See an authorized

dealer.

Transmission Limited Function See Manual

A reminder to shift into park. In addition, this message is typical

after reconnecting or recharging the battery until you cycle

the ignition to the on mode. See Changing the 12V Battery

(page 173).

Transmission Not in Park

Have your vehicle checked as soon as possible.Transmission Fault

Service Now

Displays when the transmission has adjusted the shift

strategy.

Transmission Adjusted

Displays when the transmission is adjusting the shift strategy.Transmission Adapt-

Mode

Transmission is too cold. Wait for it to warm up before you

drive.

Transmission Warming

Up Please Wait

Displays when the transmission shift lever is locked and unable

to select gears.

Transmission Indicat-

Mode Lockup On

Displays when the transmission shift lever is unlocked and

free to select gears.

Transmission Indicat-

Mode Lockup Off

The transmission is overheating and needs to cool. Stop in a

safe place as soon as it is possible.

Transmission Over-

heating Stop Safely

2024 E-Series (TE4) Canada/United States of America, enUSA, Edition date: 202210, First-Printing

Information Displays

Page 77

MANUAL CLIMATE CONTROL

Heater Only System (If Equipped)

E305221

Note: Depending on your vehicle option package, the controls may look different from what you see here.

Directing the Air

Turn the control to direct the air.

E266044

Direct air to the instrument panel air vents.

E266043

Direct air to the footwell air vents.

E266042

Direct air to the instrument panel and footwell air vents.

Direct air to the windshield air vents. You can also use this setting to defog and clear the

windshield of a thin covering of ice.

Setting the Blower Motor Speed

Turn the control to adjust the volume of air circulated in the vehicle.

Setting the Temperature

E266045

E266046

Turn the control to set the temperature.

Switching the Heater On and Off

Turn the control.

Manual Climate Control (If Equipped)

E305209

Note: Depending on your vehicle option package, the controls may look different from what you see here.

Directing the Air

Turn the control to direct the air.

E266044

Direct air to the instrument panel air vents.

E266043

Direct air to the footwell air vents.

E266042

Direct air to the instrument panel and footwell air vents.

2024 E-Series (TE4) Canada/United States of America, enUSA, Edition date: 202210, First-Printing

Climate Control

Page 78

Direct air to the windshield air vents. You can also use this setting to defog and clear the

windshield of a thin covering of ice.

Switching the Air Conditioning On and Off

E266041

Turn to switch the air conditioning on or off.

Switching Maximum Air Conditioning On and Off

Turn the control for maximum cooling.

Recirculated air flows through the instrument panel vents and air conditioning turns on.

Setting the Blower Motor Speed

Turn the control to adjust the volume of air circulated in the vehicle.

Setting the Temperature

E266045

E266046

Turn the control to set the temperature.

Switching the Climate Control On and Off

Turn the control.

HINTS ON CONTROLLING THE INTERIOR CLIMATE

General Hints

Note: Prolonged use of recirculated air may

cause the windows to fog up. Note: You may feel a small amount of air

from the footwell air vents regardless of the air distribution setting.

Note: To reduce humidity build-up inside your vehicle, do not drive with the system switched off or with recirculated air always switched on.

Note: To reduce fogging of the windshield during humid weather, adjust the air distribution control to the windshield air vents position.

Note: Do not place objects under the front seats as this may interfere with the airflow to the rear seats.

Note: Remove any snow, ice or leaves from the air intake area at the base of the windshield.

Note: To improve the time to reach a comfortable temperature in hot weather, drive with the windows open until you feel cold air through the air vents.

Quickly Heating the Interior

1. Adjust the fan speed to the highest speed setting.

2. Adjust the temperature control to the full heat setting.

3. Direct air to the footwell air vents.

Recommended Settings for Heating

1. Adjust the fan speed to the center setting.

2. Adjust the temperature control to the midway point of the hot settings.

2024 E-Series (TE4) Canada/United States of America, enUSA, Edition date: 202210, First-Printing

Climate Control

Page 79

3. Direct air to the footwell air vents.

Quickly Cooling the Interior

1. Switch MAX A/C on.

2. Drive with the windows open until you feel cold air through the air vents.

Recommended Settings for Cooling

1. Adjust the fan speed to the center setting.

2. Adjust the temperature control to the midway point of the cold settings.

3. Direct air to the instrument panel air vents.

Vehicle Stationary for Extended Periods During Extreme High Ambient Temperatures

1. Apply the parking brake.

2. Place your vehicle in park (P) or neutral (N).

3. Switch MAX A/C on.

4. Adjust the fan speed to the lowest speed setting.

Defogging the Side Windows in Cold Weather

1. Direct air to the instrument panel and windshield vents.

2. Turn to NORM A/C.

3. Adjust the temperature control to the desired setting.

4. Adjust the fan speed to the highest setting.

5. Direct air toward the side windows.

6. Close the instrument panel vents.

REAR PASSENGER CLIMATE CONTROLS

Setting the Blower Motor Speed

E305193

Turn the control to adjust the volume of air circulated in the vehicle.

Note: Depending on your vehicle option package, the controls may look different from what you see here.

Switching the Rear Climate Control On and Off

Turn the control.

2024 E-Series (TE4) Canada/United States of America, enUSA, Edition date: 202210, First-Printing

Climate Control

Page 80

SITTING IN THE CORRECT POSITION

WARNING: Sitting improperly, out

of position or with the seatback reclined too far can take weight off the seat cushion and affect the decision of the passenger sensing system, resulting in serious injury or death in the event of a crash. Always sit upright against your seat back, with your feet on the floor.

WARNING: Do not recline the seat backrest too far as this can cause the occupant to slide under the seatbelt, resulting in personal injury in the event of a crash.

WARNING: Do not place objects higher than the top of the seat backrest. Failure to follow this instruction could result in personal injury or death in the event of a sudden stop or crash.

E68595

When you use them properly, the seat, head restraint, seatbelt and airbags will provide optimum protection in the event of a crash.

We recommend that you follow these guidelines:

• Sit in an upright position with the base of your spine as far back as possible.

• Do not recline the seat backrest so that your torso is more than 30 degrees from the upright position.

• Adjust the head restraint so that the top of it is level with the top of your head and as far forward as possible. Make sure that you remain comfortable.

• Keep sufficient distance between yourself and the steering wheel. We recommend a minimum of 10 in (25 cm) between your breastbone and the airbag cover.

• Hold the steering wheel with your arms slightly bent.

• Bend your legs slightly so that you can press the pedals fully.

• Position the shoulder strap of the seatbelt over the center of your shoulder and position the lap strap tightly across your hips.

Make sure that your driving position is comfortable and that you can maintain full control of your vehicle.

HEAD RESTRAINTS

E190815

2024 E-Series (TE4) Canada/United States of America, enUSA, Edition date: 202210, First-Printing

Seats

Page 81

The front row outboard non-adjustable head restraints consist of a trimmed foam covering over the upper structure of the seatback. Properly adjust the seatback to an upright driving or riding position, so that the head restraint is positioned as close as possible to the back of your head.

MANUAL SEATS (IF EQUIPPED)

WARNING: Make sure the seat fully

locks into place by rocking it backward and forward. Not securing the seat into the locked position can be dangerous in a crash and could cause serious personal injury or death.

Moving the Seat Backward and Forward

E190816

Recline Adjustment (If Equipped)

WARNING: Do not place cargo or

any objects behind the seat backrest before returning it to the original position. Pull on the seat backrest to make sure that it has fully latched after returning the seat backrest to its original position. An unlatched seat may become dangerous if you stop suddenly or have a crash.

WARNING: Always drive and ride with your seatback upright and the lap belt snug and low across the hips.

E190817

Manual Lumbar (If Equipped)

E166702

2024 E-Series (TE4) Canada/United States of America, enUSA, Edition date: 202210, First-Printing

Seats

Page 82

The lumbar control is on the inboard side of the driver seat. Turn the control to adjust your support.

POWER SEATS (IF EQUIPPED)

WARNING: Do not adjust the driver

seat or seat backrest when your vehicle is moving. This may result in sudden seat movement, causing the loss of control of your vehicle.

The control is on the outermost side of the seat cushion.

E190818

• Press A to raise or lower the front portion of the seat cushion.

• Press B to move the seat forward, backward, up or down.

• Press C to raise or lower the rear portion of the seat cushion.

Recline Adjustment (If Equipped)

WARNING: Always drive and ride

with your seatback upright and the lap belt snug and low across the hips.

2024 E-Series (TE4) Canada/United States of America, enUSA, Edition date: 202210, First-Printing

Seats

Page 83

12 Volt DC Power Point

WARNING: Do not plug optional

electrical accessories into the cigar lighter socket. Incorrect use of the cigar lighter can cause damage not covered by the vehicle warranty, and can result in fire or serious injury.

Note: When you switch the ignition on, you can use the socket to power 12 volt appliances with a maximum current rating of 15 amps.

Note: If the power supply does not work after you switch the ignition off, switch the ignition on.

Note: Do not hang any accessory from the accessory plug.

Note: Do not use the power point over the vehicle capacity of 12 volt DC 180 watts or a fuse may blow.

Note: Always keep the power point caps closed when not in use.

Do not insert objects other than an accessory plug into the power point. This damages the power point and may blow the fuse.

Run the vehicle for full capacity use of the power point.

To prevent the battery from running out of charge:

• Do not use the power point longer than necessary when the vehicle is not running.

• Do not leave devices plugged in overnight or when you park your vehicle for extended periods.

Locations

Power points could be in the following locations:

• On the instrument panel.

• Inside the glove box.

• Behind the driver's seat, upper trim

panel.

110 Volt AC Power Point (If Equipped)

WARNING: Do not keep electrical

devices plugged into the power outlet whenever the device is not in use. The outlet provides power when the vehicle is on. Failure to follow this instruction could result in personal injury.

WARNING: Do not use an extension cord or connect multiple devices to the power outlet. Doing so could result in overloading the power outlet. Failure to follow this instruction could result in fire, personal injury or property damage.

Note: The power point turns off when you switch the ignition off, or when the battery voltage drops below 11 volts.

You can use the power point for electric devices that require up to 150 watts. It is on the instrument panel.

79

2024 E-Series (TE4) Canada/United States of America, enUSA, Edition date: 202210, First-Printing

Auxiliary Power Points

Page 84

To gain access to the outlet contacts, press the plug against the outlet and rotate clockwise.

When the indicator light on the power point is:

• On: The power point is working, the ignition is on and a device is plugged in.

• Off: The power point is off, the ignition is off or no device is plugged in.

• Flashing: The power point is in fault mode.

The power outlet temporarily turns off power when in fault mode if the device exceeds the 150 watt limit. Unplug your device and switch the ignition off. Switch the ignition back on, but do not plug your device back in. Let the system cool off and switch the ignition off to reset the fault mode. Switch the ignition back on and make sure the indicator light remains on.

Do not use the power point for certain electric devices, including:

• Cathode-ray, tube-type televisions.

• Motor loads, such as vacuum cleaners,

electric saws and other electric power tools or compressor-driven refrigerators.

• Measuring devices, which process precise data, such as medical equipment or measuring equipment.

• Other appliances requiring an extremely stable power supply such as microcomputer-controlled electric blankets or touch-sensor lamps.

2024 E-Series (TE4) Canada/United States of America, enUSA, Edition date: 202210, First-Printing

Auxiliary Power Points

Page 85

GENERAL INFORMATION

WARNING: Extended idling at high

engine speeds can produce very high temperatures in the engine and exhaust system, creating the risk of fire or other damage.

WARNING: Do not park, idle or drive your vehicle on dry grass or other dry ground cover. The emission system heats up the engine compartment and exhaust system, creating the risk of fire.

WARNING: Do not start the engine in a closed garage or in other enclosed areas. Exhaust fumes are toxic. Always open the garage door before you start the engine. Failure to follow this instruction could result in personal injury or death.

WARNING: Exhaust leaks may result in entry of harmful and potentially lethal fumes into the passenger compartment. If you smell exhaust fumes inside your vehicle, have your vehicle inspected immediately. Do not drive if you smell exhaust fumes.

The powertrain control system meets all Canadian interference-causing equipment standard requirements regulating the impulse electrical field or radio noise.

Note: If you use your vehicle regularly above the altitude of 7,500 ft (2,286 m) and under the temperature of -4.0°F (-20°C), it is recommended to use the alternative engine oil. See Capacities and Specifications (page 226).

If you disconnect the battery, your vehicle may exhibit some unusual driving characteristics for approximately 6 mi (10 km) after you reconnect it. This is because the engine management system must realign itself with the engine. You can disregard any unusual driving characteristics during this period.

When you start the engine, avoid pressing the accelerator pedal before and during operation. Only use the accelerator pedal when you have difficulty starting the engine.

IGNITION SWITCH

E369097

A (lock) - Locks the gearshift lever and allows key removal.

B (accessory) - Allows the electrical accessories, such as the radio, to operate while the engine is not running.

Note: Do not leave the ignition key in this position for too long. This could cause your vehicle battery to lose charge.

C (on) - All electrical circuits are operational and the warning lamps and indicators illuminate.

D (start) - Cranks the engine.

2024 E-Series (TE4) Canada/United States of America, enUSA, Edition date: 202210, First-Printing

Starting and Stopping the Engine

Page 86

STARTING A GASOLINE ENGINE

When you start the engine, the idle speed increases helping to warm up the engine. If the engine idle speed does not slow down, have your vehicle checked as soon as possible.

Before starting the engine check the following:

• Make sure all occupants fasten their seatbelts.

• Make sure the headlamps and electrical accessories are off.

• Make sure the parking brake is on.

• Make sure the transmission is in park

(P) or neutral (N).

• Turn the ignition key to the on position.

Note: Do not press the accelerator pedal.

1. Fully press the brake pedal.

2. Turn the key to the start position to start the engine. Release the key when the engine starts.

Note: The engine may continue cranking for up to 15 seconds or until it starts.

Note: If you cannot start the engine on the first try, wait for a short period and try again.

Failure to Start

If you cannot start the engine after three attempts, wait 10 seconds and follow this procedure:

1. Fully press the brake pedal.

2. Shift into park (P).

3. Fully press and hold the accelerator pedal.

4. Attempt to start your vehicle and wait until the engine stops cranking.

5. Release the accelerator pedal.

6. Start the engine.

Stopping the Engine When Your Vehicle is Stationary

1. Shift into park (P) or neutral (N).

2. Turn the key to the off position.

3. Apply the parking brake.

Stopping the Engine When Your Vehicle is Moving

WARNING: Switching off the

engine when your vehicle is still moving results in a significant decrease in braking assistance. Higher effort is required to apply the brakes and to stop your vehicle. A significant decrease in steering assistance could also occur. The steering does not lock, but higher effort could be required to steer your vehicle. When you switch the ignition off, some electrical circuits, for example airbags, also turn off. If you unintentionally switch the ignition off, shift into neutral (N) and restart the engine.

1. Switch the ignition off to stop the engine.

2. Put the transmission into neutral (N) and use the brakes to bring your vehicle to a safe stop.

3. When your vehicle has stopped, shift into park (P).

4. Apply the parking brake.

Guarding Against Exhaust Fumes

WARNING: Exhaust leaks may

result in entry of harmful and potentially lethal fumes into the passenger compartment. If you smell exhaust fumes inside your vehicle, have your vehicle inspected immediately. Do not drive if you smell exhaust fumes.

2024 E-Series (TE4) Canada/United States of America, enUSA, Edition date: 202210, First-Printing

Starting and Stopping the Engine

Page 87

Important Ventilating Information

If you stop your vehicle and leave the engine idling for long periods of time, we recommend you either open the windows at least 1 in (3 cm) or set the climate control to outside air.

ENGINE BLOCK HEATER (IF

EQUIPPED)

WARNING: Failure to follow engine

block heater instructions could result in property damage or serious personal injury.

WARNING: Do not use your heater with ungrounded electrical systems or two-pronged adapters. There is a risk of electrical shock.

WARNING: Do not fully close the hood, or allow it to drop under its own weight when using the engine block heater. This could damage the power cable and may cause an electrical short resulting in fire, injury and property damage.

Note: The heater is most effective when outdoor temperatures are below 0°F (-18°C).

The heater acts as a starting aid by warming the engine coolant. This allows the climate control system to respond quickly. The equipment includes a heater element, installed in the engine block and a wire harness. You can connect the system to a grounded 120-volt AC electrical source.

We recommend that you do the following for a safe and correct operation:

• Use a 16-gauge outdoor extension cord that is product certified by Underwriter’s Laboratory (UL) or Canadian Standards Association (CSA). This extension cord must be suitable for use outdoors, in cold temperatures, and be clearly marked Suitable for Use with Outdoor Appliances. Do not use an indoor extension cord outdoors. This could result in an electric shock or become a fire hazard.

• Use as short an extension cord as possible.

• Do not use multiple extension cords.

• Make sure that when in operation, the

extension cord plug and heater cord plug connections are free and clear of water. This could cause an electric shock or fire.

• If the block heater cord is under the hood, Do Not remove the wiring from its original location. Do Not close the hood on the extension wiring.

• Make sure your vehicle is parked in a clean area, clear of combustibles.

• Make sure the heater, heater cord and extension cord are firmly connected.

• Check for heat anywhere in the electrical hookup once the system has been operating for approximately 30 minutes.

• Make sure the system is unplugged and properly stowed before starting and driving your vehicle. Make sure the protective cover seals the prongs of the block heater cord plug when not in use.

• Make sure the heater system is checked for proper operation before winter.

2024 E-Series (TE4) Canada/United States of America, enUSA, Edition date: 202210, First-Printing

Starting and Stopping the Engine

Page 88

Using the Engine Block Heater

Make sure the receptacle terminals are clean and dry prior to use. Clean them with a dry cloth if necessary.

The heater uses 0.4 to 1.0 kilowatt-hours of energy per hour of use. The system does not have a thermostat. It achieves maximum temperature after approximately three hours of operation. Using the heater longer than three hours does not improve system performance and unnecessarily uses electricity.

2024 E-Series (TE4) Canada/United States of America, enUSA, Edition date: 202210, First-Printing

Starting and Stopping the Engine

Page 89

SAFETY PRECAUTIONS

WARNING: Do not overfill the fuel

tank. The pressure in an overfilled tank may cause leakage and lead to fuel spray and fire.

WARNING: The fuel system may be under pressure. If you hear a hissing sound near the fuel filler inlet, do not refuel until the sound stops. Otherwise, fuel may spray out, which could cause serious personal injury.

WARNING: Fuels can cause serious injury or death if misused or mishandled.

WARNING: Fuel may contain benzene, which is a cancer-causing agent.

WARNING: When refueling always shut the engine off and never allow sparks or open flames near the fuel tank filler valve. Never smoke or use a cell phone while refueling. Fuel vapor is extremely hazardous under certain conditions. Avoid inhaling excess fumes.

Follow these guidelines when refueling:

• Extinguish all smoking materials and any open flames before refueling your vehicle.

• Always switch the engine off before refueling.

• Automotive fuels can be harmful or fatal if swallowed. Fuel is highly toxic and if swallowed can cause death or permanent injury. If fuel is swallowed immediately call a physician, even if no symptoms are immediately apparent. The toxic effects of fuel may not be apparent for hours.

• Avoid inhaling fuel vapors. Inhaling fuel vapor can lead to eye and respiratory tract irritation. In severe cases, excessive or prolonged breathing of fuel vapor can cause serious illness and permanent injury.

• Avoid getting fuel in your eyes. If you splash fuel in your eyes, immediately remove contact lenses (if worn), flush with water for 15 minutes and seek medical attention. Failure to seek proper medical attention could lead to permanent injury.

• Fuels can be harmful if absorbed through the skin. If you splash fuel on your skin, clothing or both, promptly remove contaminated clothing and thoroughly wash your skin with soap and water. Repeated or prolonged skin contact causes skin irritation.

• Be particularly careful if you are taking Antabuse or other forms of Disulfiram for the treatment of alcoholism. Breathing fuel vapors could cause an adverse reaction, serious personal injury or sickness. Immediately call a physician if you experience any adverse reactions.

FUEL QUALITY - E85

Choosing the Right Fuel - Flex Fuel Vehicles

Flex fuel vehicles have one of the following identifiers:

• Yellow fuel filler cap.

• Yellow bezel around the fuel filler inlet.

• Yellow fuel filler housing.

• Yellow E85 label on the fuel tank filler

door.

2024 E-Series (TE4) Canada/United States of America, enUSA, Edition date: 202210, First-Printing

Fuel and Refueling

Page 90

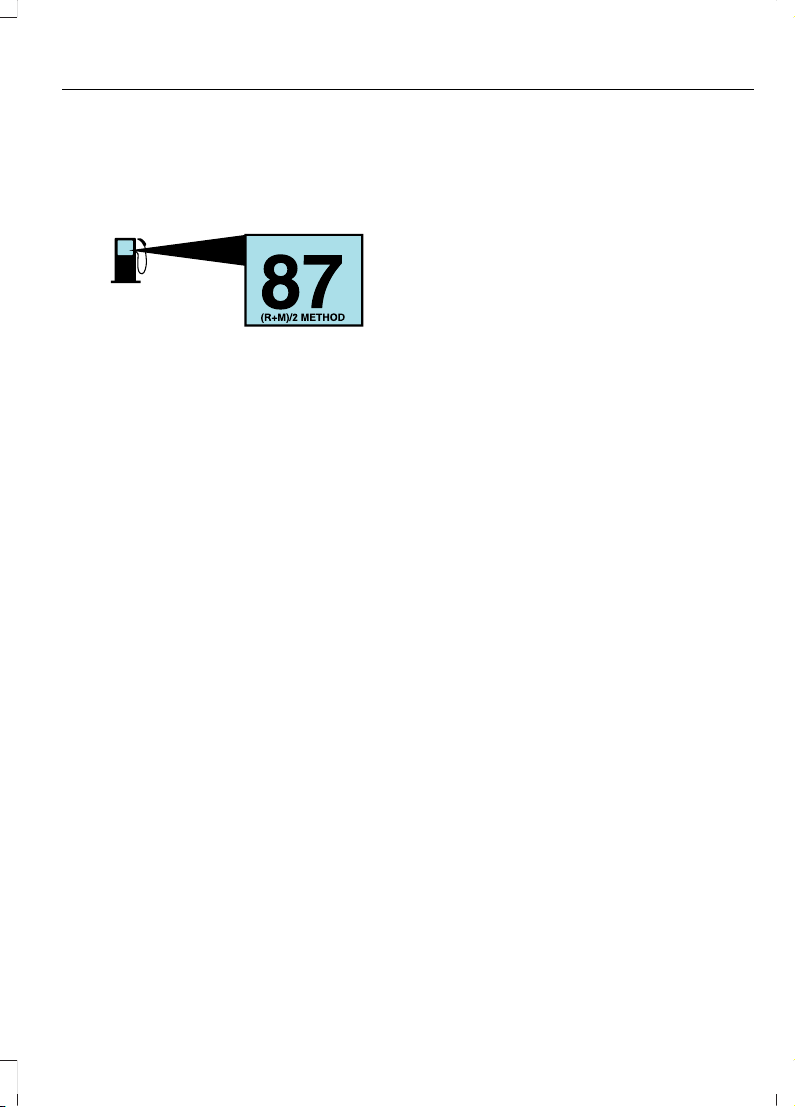

E161513

Your vehicle is designed to operate on regular unleaded gasoline with a minimum pump (R+M)/2 octane rating of 87 or regular unleaded gasoline blended with a maximum of 85% ethanol (E85).

Some fuel stations, particularly those in high altitude areas, offer fuels posted as regular unleaded gasoline with an octane rating below 87. The use of these fuels could result in engine damage that will not be covered by the vehicle warranty.

For best overall vehicle and engine performance, premium fuel with an octane rating of 91 or higher is recommended. The performance gained by using premium fuel is most noticeable in hot weather as well as other conditions, for example when towing a trailer. See Towing (page 127).

Do not be concerned if the engine sometimes knocks lightly. However, if the engine knocks heavily while using fuel with the recommended octane rating, contact an authorized dealer to prevent any engine damage.

We recommend Top Tier detergent gasolines, where available to help minimize engine deposits and maintain optimal vehicle and engine performance. For additional information, refer to www.toptiergas.com.

Note: Use of any fuel for which the vehicle was not designed can impair the emission control system, cause loss of vehicle performance, and cause damage to the engine which may not be covered by the vehicle Warranty.

Do not use:

• Diesel fuel.

• Fuels containing kerosene or paraffin.

• Fuels containing more than 85%

ethanol or E100 fuel.

• Fuels containing methanol.

• Fuels containing metallic-based

additives, including manganese-based compounds.

• Fuels containing the octane booster additive, methylcyclopentadienyl manganese tricarbonyl (MMT).

• Leaded fuel, using leaded fuel is prohibited by law.

The use of fuels with metallic compounds such as methylcyclopentadienyl manganese tricarbonyl (commonly known as MMT), which is a manganese-based fuel additive, will impair engine performance and affect the emission control system.

Switching Between E85 and Gasoline

We do not recommend repeatedly alternating between E85 and gasoline. If you switch from using E85 to gasoline, or from gasoline to E85, add as much fuel as possible, at least half a tank. Drive your vehicle immediately for a minimum of 5 mi (8 km) to allow it to adapt to the change in ethanol concentration. If you use E85 exclusively, we recommend that you fill the fuel tank with regular unleaded gasoline at each scheduled oil change.

2024 E-Series (TE4) Canada/United States of America, enUSA, Edition date: 202210, First-Printing

Fuel and Refueling

Page 91

FUEL QUALITY - GASOLINE

Choosing the Right Fuel

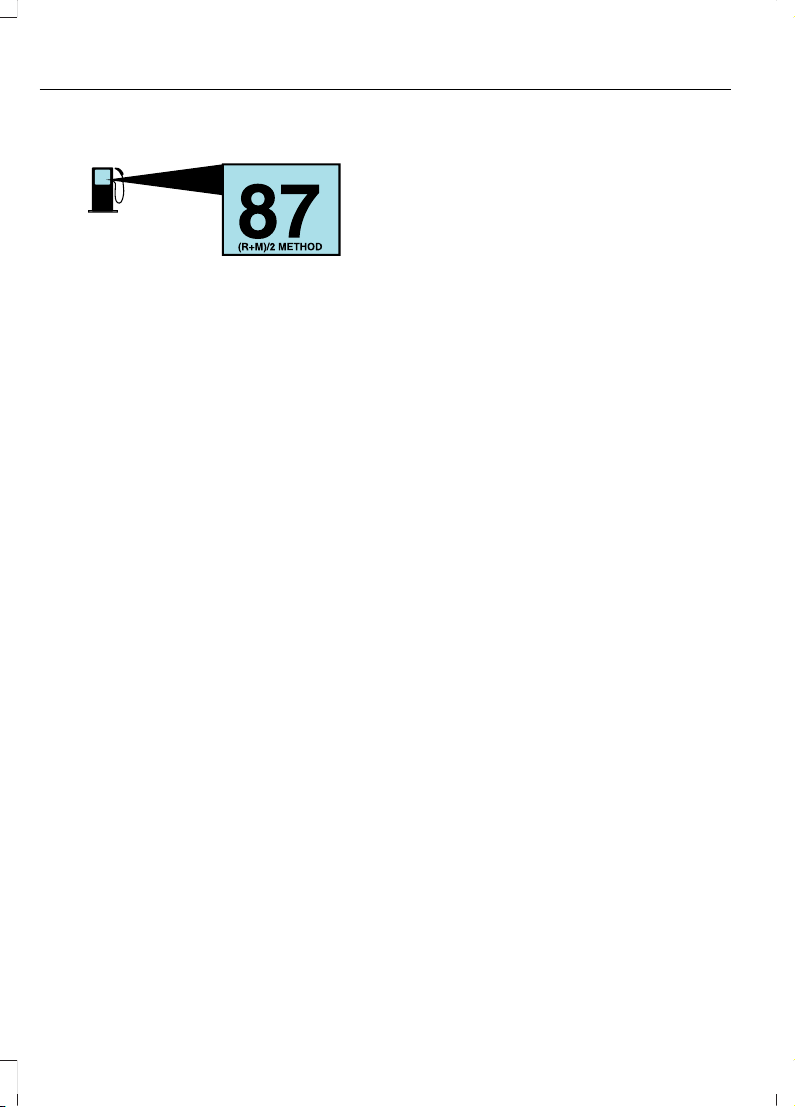

E161513

Your vehicle is designed to operate on regular unleaded gasoline with a minimum pump (R+M)/2 octane rating of 87.

Do not use:

• Diesel fuel.

• Fuels containing kerosene or paraffin.

• Fuel containing more than 15% ethanol

or E85 fuel.

• Fuels containing methanol.

• Fuels containing metallic-based

additives, including manganese-based compounds.

• Fuels containing the octane booster additive, methylcyclopentadienyl manganese tricarbonyl (MMT).

• Leaded fuel, using leaded fuel is prohibited by law.

RUNNING OUT OF FUEL

Avoid running out of fuel. Running out of fuel can cause damage not covered by the vehicle Warranty.

2024 E-Series (TE4) Canada/United States of America, enUSA, Edition date: 202210, First-Printing

Fuel and Refueling

Page 92

If your vehicle runs out of fuel:

• Normally, adding 1.3 gal (5 L) of fuel is enough to restart the engine. If your vehicle is on a steep grade, more fuel may be required.

• You may need to cycle the ignition from off to on several times after refueling to allow the fuel system to pump the fuel from the tank to the engine. On restarting, cranking time will take a few seconds longer than normal.

Filling a Portable Fuel Container

WARNING: Flow of fuel through a

fuel pump nozzle can produce static electricity. This can cause a fire if you are filling an ungrounded fuel container.

Use the following guidelines to avoid electrostatic charge build-up, which can produce a spark, when filling an ungrounded fuel container:

• Only use an approved fuel container to transfer fuel to your vehicle. Place the container on the ground when filling.

• Do not fill a fuel container while it is inside your vehicle (including the cargo area).

• Keep the fuel pump nozzle in contact with the fuel container while filling.

• Do not use a device that holds the fuel pump nozzle lever in the fill position.

REFUELING

WARNING: Fuel vapor burns

violently and a fuel fire can cause severe injuries.

WARNING: Read and follow all the

instructions on the pump island.

WARNING: Stay outside your vehicle and do not leave the fuel pump unattended when refueling your vehicle.

WARNING: Keep children away from the fuel pump. Never let children pump fuel.

WARNING: Wait at least five seconds before removing the fuel pump nozzle to allow any residual fuel to drain into the fuel tank.

WARNING: Stop refueling after the fuel pump nozzle automatically shuts off for the second time. Failure to follow this will fill the expansion space in the fuel tank and could lead to fuel overflowing.

WARNING: Do not remove the fuel pump nozzle from its fully inserted position when refueling.

Use the following guidelines to avoid electrostatic charge build-up when filling an ungrounded fuel container:

• Place approved fuel container on the ground.

• Do not fill a fuel container while it is in the vehicle (including the cargo area).

• Keep the fuel pump nozzle in contact with the fuel container while filling.

• Do not use a device that would hold the fuel pump handle in the fill position.

2024 E-Series (TE4) Canada/United States of America, enUSA, Edition date: 202210, First-Printing

Fuel and Refueling

Page 93

Fuel Filler Cap

WARNING: The fuel system may

be under pressure. If you hear a hissing sound near the fuel filler inlet, do not refuel until the sound stops. Otherwise, fuel may spray out, which could cause serious personal injury.

Note: If you must replace the fuel filler cap, replace it with a fuel filler cap that is designed for your vehicle. The customer warranty may be void for any damage to the fuel tank or fuel system if the correct genuine Ford, Motorcraft or other certified fuel filler cap is not used.

Your vehicle has a threaded fuel filler cap. When fueling your vehicle:

1. Put your vehicle in park (P).

2. Switch the engine off.

3. Carefully turn the fuel filler cap counterclockwise until it spins off.

4. Pull to remove the cap from the fuel filler pipe and place on the fuel door hanging hook if equipped.

5. When the nozzle shuts off, wait at least five seconds, then slightly raise the fuel pump nozzle and slowly remove it.

6. Install the fuel filler cap by rotating it clockwise until it clicks.

If the Check Fuel Cap light or a Check Fuel Cap message appears in the instrument cluster and stays on after you start the engine, you may not have installed the fuel filler properly.

If the fuel cap light remains on, at the next opportunity, safely pull off of the road, remove the fuel filler cap, align the cap properly and reinstall it. The check fuel cap light or Check fuel cap message may not reset immediately. It may take several driving cycles for the indicators to turn off. A driving cycle consists of an engine start-up (after four or more hours with the engine off) followed by normal city and highway driving.

FUEL CONSUMPTION

Advertised Capacity

The advertised capacity is the maximum amount of fuel that you can add to the fuel tank after running out of fuel. Included in the advertised capacity is an empty reserve. The empty reserve is an unspecified amount of fuel that remains in the fuel tank when the fuel gauge indicates empty.

Note: The amount of fuel in the empty reserve varies and should not be relied upon to increase driving range.

Fuel Economy

Your vehicle calculates fuel economy figures through the trip computer average fuel function. See General Information (page 64).

The first 1,000 mi (1,500 km) of driving is the break-in period of the engine. A more accurate measurement is obtained after 2,000 mi (3,000 km).

Impacting Fuel Economy

• Incorrect tire inflation pressures.

• Fully loading your vehicle.

• Carrying unnecessary weight.

2024 E-Series (TE4) Canada/United States of America, enUSA, Edition date: 202210, First-Printing

Fuel and Refueling

Page 94

• Adding certain accessories to your vehicle such as bug deflectors, rollbars or light bars, running boards and ski racks.

• Using fuel blended with alcohol. See Fuel Quality (page 85).

• Fuel economy may decrease with lower temperatures.

• Fuel economy may decrease when driving short distances.

• You may get better fuel economy when driving on flat terrain than when driving on hilly terrain.

2024 E-Series (TE4) Canada/United States of America, enUSA, Edition date: 202210, First-Printing

Fuel and Refueling

Page 95

EMISSION LAW

WARNING: Do not remove or alter

the original equipment floor covering or insulation between it and the metal floor of the vehicle. The floor covering and insulation protect occupants of the vehicle from the engine and exhaust system heat and noise. On vehicles with no original equipment floor covering insulation, do not carry passengers in a manner that permits prolonged skin contact with the metal floor. Failure to follow these instructions may result in fire or personal injury.

U.S. federal laws and certain state laws prohibit removing or rendering inoperative emission control system components. Similar federal or provincial laws may apply in Canada. We do not approve of any vehicle modification without first determining applicable laws.

E67028

Tampering with emissions control systems including

related sensors or the Diesel Exhaust Fluid system can result in reduced engine power and the illumination of the service engine soon light.

Tampering With a Noise Control System

Federal laws prohibit the following acts:

• Removal or rendering inoperative by any person other than for purposes of maintenance.

• Repair or replacement of any device or element of the design incorporated into a new vehicle for the purpose of noise control prior to its sale or delivery to the ultimate purchaser or while it is in use.

• The use of the vehicle after any person removes or renders inoperative any device or element of the design.

The U.S. Environmental Protection Agency may presume to constitute tampering as follows:

• Removal of hood blanket, fender apron absorbers, fender apron barriers, underbody noise shields or acoustically absorptive material.

• Tampering or rendering inoperative the engine speed governor, to allow engine speed to exceed manufacturer specifications.

If the engine does not start, runs rough, experiences a decrease in engine performance, experiences excess fuel consumption or produces excessive exhaust smoke, check for the following:

• A plugged or disconnected air inlet system hose.

• A plugged engine air filter element.

• Water in the fuel filter and water

separator.

• A clogged fuel filter.

• Contaminated fuel.

• Air in the fuel system, due to loose

connections.

• An open or pinched sensor hose.

• Incorrect engine oil level.

2024 E-Series (TE4) Canada/United States of America, enUSA, Edition date: 202210, First-Printing

Engine Emission Control

Page 96

• Incorrect fuel for climatic conditions.

• Incorrect engine oil viscosity for

climactic conditions.

Note: Some vehicles have a lifetime fuel filter that is integrated with the fuel tank. Regular maintenance or replacement is not needed.

Note: If these checks do not help you correct the concern, have your vehicle checked as soon as possible.

Noise Emissions Warranty, Prohibited Tampering Acts and Maintenance

On January 1, 1978, Federal regulation became effective governing the noise emission on trucks over 10,000 lb (4,536 kg) Gross Vehicle Weight Rating (GVWR). The preceding statements concerning prohibited tampering acts and maintenance, and the noise warranty found in the Warranty Guide, are applicable to complete chassis cabs over 10,000 lb (4,536 kg) GVWR.

CATALYTIC CONVERTER

WARNING: Do not park, idle or

drive your vehicle on dry grass or other dry ground cover. The emission system heats up the engine compartment and exhaust system, creating the risk of fire.

WARNING: The normal operating temperature of the exhaust system is very high. Never work around or attempt to repair any part of the exhaust system until it has cooled. Use special care when working around the catalytic converter. The catalytic converter heats up to a very high temperature after only a short period of engine operation and stays hot after the engine is switched off.

Your vehicle has various emission control components and a catalytic converter that enables it to comply with applicable exhaust emission standards.

To make sure that the catalytic converter and other emission control components continue to work properly:

• Do not crank the engine for more than 10 seconds at a time.

• Do not run the engine with a spark plug lead disconnected.

• Do not push-start or tow-start your vehicle. Use booster cables. See Jump Starting the Vehicle (page 139).

• Use only the specified fuel listed.

• Do not switch the ignition off when your

vehicle is moving.

• Avoid running out of fuel.

• Have the items listed in scheduled

maintenance information performed according to the specified schedule.

Note: Resulting component damage may not be covered by the vehicle Warranty.

The scheduled maintenance items listed in scheduled maintenance information are essential to the life and performance of your vehicle and to its emissions system.

If you use anything other than Ford, Motorcraft or Ford-authorized parts for maintenance replacements or for service of components affecting emission control, such non-Ford parts should be equivalent to genuine Ford Motor Company parts in performance and durability.

2024 E-Series (TE4) Canada/United States of America, enUSA, Edition date: 202210, First-Printing

Engine Emission Control

Page 97

Illumination of the service engine soon indicator, charging system warning light or the temperature warning light, fluid leaks, strange odors, smoke or loss of engine power could indicate that the emission control system is not working properly.

An improperly operating or damaged exhaust system may allow exhaust to enter the vehicle. Have a damaged or improperly operating exhaust system inspected and repaired immediately.

Do not make any unauthorized changes to your vehicle or engine. By law, vehicle owners and anyone who manufactures, repairs, services, sells, leases, trades vehicles, or supervises a fleet of vehicles are not permitted to intentionally remove an emission control device or prevent it from working. Information about your vehicle’ s emission system is on the Vehicle Emission Control Information Decal located on or near the engine. This decal also lists engine displacement.

Please consult your warranty information for complete details.

On-Board Diagnostics (OBD-II)

Your vehicle has a computer known as the on-board diagnostics system (OBD-II) that monitors the engine’s emission control system. The system protects the environment by making sure that your vehicle continues to meet government emission standards. The OBD-II system also assists a service technician in properly servicing your vehicle.

E67028

When the service engine soon indicator illuminates, the OBD-II

system has detected a malfunction. Temporary malfunctions may cause the service engine soon indicator to illuminate. Examples are:

1. Your vehicle has run out of fuel—the engine may misfire or run poorly.

2. Poor fuel quality or water in the fuel—the engine may misfire or run poorly.

3. The fuel fill inlet may not have closed properly. See Refueling (page 88).

4. Driving through deep water—the electrical system may be wet.

You can correct these temporary malfunctions by filling the fuel tank with good quality fuel, properly closing the fuel fill inlet or letting the electrical system dry out. After three driving cycles without these or any other temporary malfunctions present, the service engine soon indicator should stay off the next time you start the engine. A driving cycle consists of a cold engine startup followed by mixed city and highway driving. No additional vehicle service is required.

If the service engine soon indicator remains on, have your vehicle serviced at the first available opportunity. Although some malfunctions detected by the OBD-II may not have symptoms that are apparent, continued driving with the service engine soon indicator on can result in increased emissions, lower fuel economy, reduced engine and transmission smoothness and lead to more costly repairs.

Readiness for Inspection and Maintenance (I/M) Testing

Some state and provincial and local governments may have Inspection/Maintenance (I/M) programs to inspect the emission control equipment on your vehicle. Failure to pass this inspection could prevent you from getting a vehicle registration.

E67028

If the service engine soon indicator is on or the bulb does not work, your vehicle may need

service. See On-Board Diagnostics.

2024 E-Series (TE4) Canada/United States of America, enUSA, Edition date: 202210, First-Printing

Engine Emission Control

Page 98

Your vehicle may not pass the I/M test if the service engine soon indicator is on or not working properly (bulb is burned out), or if the OBD-II system has determined that some of the emission control systems have not been properly checked. In this case, the vehicle is not ready for I/M testing.

If the vehicle’s engine or transmission has just been serviced, or the battery has recently run down or been replaced, the OBD-II system may indicate that the vehicle is not ready for I/M testing. To determine if the vehicle is ready for I/M testing, turn the ignition key to the on position for 15 seconds without cranking the engine. If the service engine soon indicator blinks eight times, it means that the vehicle is not ready for I/M testing; if the service engine soon indicator stays on solid, it means that your vehicle is ready for I/M testing.

The OBD-II system checks the emission control system during normal driving. A complete check may take several days.

If the vehicle is not ready for I/M testing, you can perform the following driving cycle consisting of mixed city and highway driving:

1. 15 minutes of steady driving on an expressway or highway followed by 20 minutes of stop-and-go driving with at least four 30-second idle periods.

2. Allow your vehicle to sit for at least eight hours with the ignition off. Then, start the vehicle and complete the above driving cycle. The vehicle must warm up to its normal operating temperature. Once started, do not turn off the vehicle until the above driving cycle is complete.

If the vehicle is still not ready for I/M testing, you need to repeat the above driving cycle.

2024 E-Series (TE4) Canada/United States of America, enUSA, Edition date: 202210, First-Printing

Engine Emission Control

Page 99

AUTOMATIC TRANSMISSION

WARNING: Apply the parking

brake, shift into park (P), switch the ignition off and remove the key before you leave your vehicle. Failure to follow this instruction could result in personal injury or death.

E307627

P R N D M 2 1

Putting your vehicle in or out of gear:

1. Fully press down the brake pedal.

2. Move the gearshift lever into the preferred gear.

3. When you finish driving, come to a complete stop.

4. Move the gearshift lever and securely latch it in park (P).

5. Release the brake pedal and the transmission remains in the selected gear.

Park (P)

This position locks the transmission and prevents the wheels from turning.

Reverse (R)

With the transmission in reverse (R), your vehicle moves backward. Always come to a complete stop before shifting into and out of reverse (R).

Neutral (N)

With the transmission in neutral (N), you can start your vehicle and it is free to roll. Hold the brake pedal down when in this position.

Drive (D)

Drive (D) is the normal driving position for the best fuel economy. The overdrive function allows automatic upshifts and downshifts through gears one through six.

Manual (M)

Moving the gearshift lever to the manual (M) position allows you to manually select the gear you prefer. Only the current gear displays. Use the buttons on the gearshift lever to manually select gears. Press the + button to upshift or the – button to downshift. Return the transmission to a different gearshift position to deactivate manual control.

Second (2)

Transmission operates in second (2) gear only. Use second (2) gear to start-up on slippery roads.

First (1)

• Transmission operates in first (1) gear only.

• Provides maximum engine braking.

• Allows upshifts by moving gearshift

lever.

• Does not downshift into first (1) gear at high speeds; allows for first (1) gear when vehicle reaches slower speeds.

Forced downshifts

• Allowed in drive (D) with the tow/haul feature on or off.

• Press the accelerator to the floor.

• Allows transmission to select an

appropriate gear.

2024 E-Series (TE4) Canada/United States of America, enUSA, Edition date: 202210, First-Printing

Transmission

Page 100

Tow/Haul Mode

To activate tow/haul, press the button on the gearshift lever. The TOW HAUL indicator light

illuminates in the instrument cluster.

The tow/haul feature:

• Delays upshifts to reduce the frequency of transmission shifting.

• Provides engine braking in all forward gears, which slows your vehicle and assists you in controlling your vehicle when descending a slope.

• Depending on driving conditions and load conditions, may downshift the transmission, slow your vehicle and control your vehicle speed when descending a hill, without pressing the accelerator pedal. The amount of downshift braking provided varies based upon the amount you press the brake pedal.

The tow/haul feature improves transmission operation when towing a trailer or a heavy load. All transmission gear ranges are available when using tow/haul.

To deactivate the tow/haul feature and return to normal driving mode, press the button on the gearshift lever again. The TOW HAUL light deactivates. Tow/haul also deactivates when you power down your vehicle.

WARNING: Do not use tow/haul when the road surface is slippery. Failure to follow this instruction could result in the loss of control of your vehicle.

Understanding Your SelectShift Automatic™ Transmission

E318028

Note: When pressing the button on the gearshift lever, you can cycle through the available drive modes.

Your vehicle has a SelectShift Automatic™ transmission gearshift lever. The SelectShift Automatic transmission gives you the ability to change gears up or down without a clutch.

To prevent the engine from running at too low an RPM, which may cause it to stall, SelectShift still makes some downshifts if it has determined that you have not downshifted in time. Although SelectShift makes some downshifts for you, it still allows you to downshift at any time if the SelectShift determines that damage to the engine does not occur from over-revving.

SelectShift does not upshift, even if the engine is approaching the RPM limit. Shift manually by pressing the + button.

Note: Engine damage may occur if you maintain excessive engine revving without shifting.

SelectShift does not automatically upshift, even if the engine is approaching the RPM limit. Shift manually by pressing the (+) paddle.
