Page 1

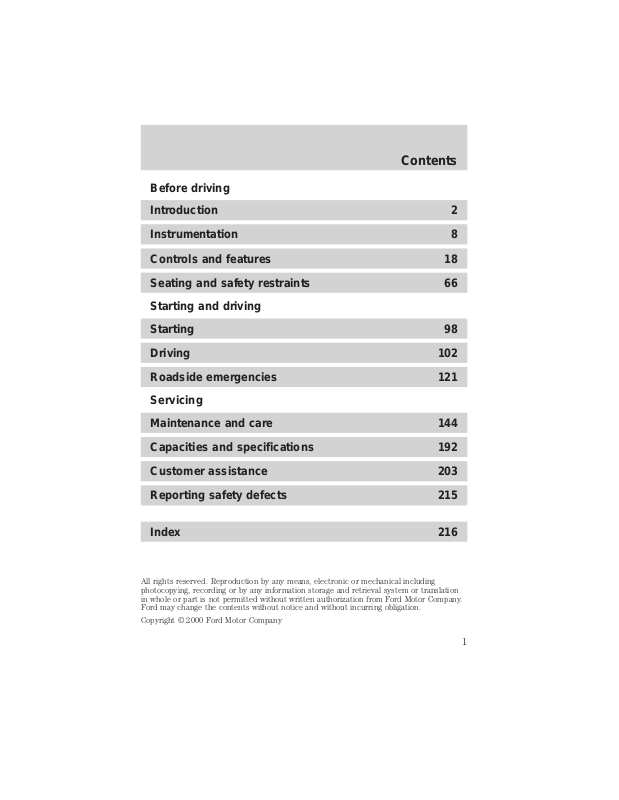

Contents

Before driving Introduction 2

Instrumentation 8 Controls and features 18 Seating and safety restraints 66

Starting and driving Starting 98

Driving 102 Roadside emergencies 121 Servicing

Maintenance and care 144 Capacities and specifications 192 Customer assistance 203 Reporting safety defects 215

Index 216

All rights reserved. Reproduction by any means, electronic or mechanical including photocopying, recording or by any information storage and retrieval system or translation in whole or part is not permitted without written authorization from Ford Motor Company. Ford may change the contents without notice and without incurring obligation.

Page 2

Introduction

The following warning may be required by California law:

CALIFORNIA Proposition 65 Warning

WARNING: Engine exhaust, some of its constituents, and

certain vehicle components contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. In addition, certain fluids contained in vehicles and certain products of component wear contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

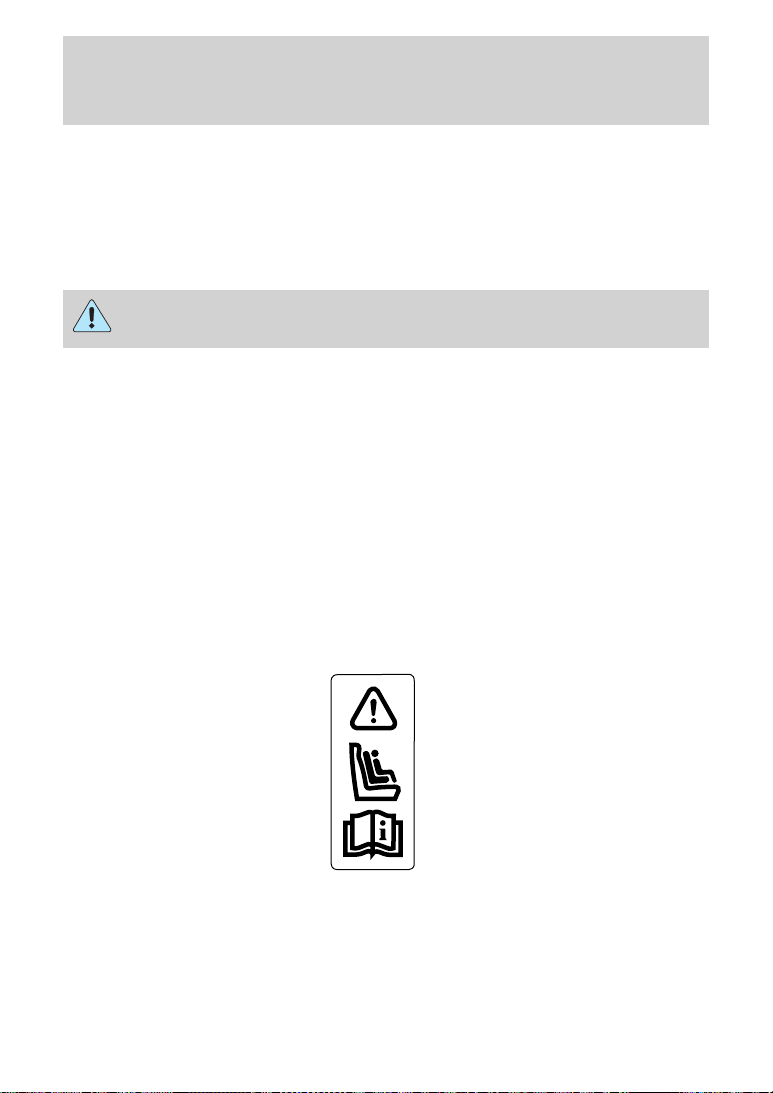

ICONS

Indicates a safety alert. Read the following section on Warnings.

Indicates vehicle information related to recycling and other environmental concerns will follow.

Correct vehicle usage and the authorized disposal of waste cleaning and lubrication materials are significant steps towards protecting the environment.

Indicates a message regarding child safety restraints. Refer to Seating and safety restraints for more information.

Indicates that this Owner Guide contains information on this subject. Please refer to the Index to locate the appropriate section which will provide you more information.

Page 3

Introduction

WARNINGS

Warnings provide information which may reduce the risk of personal injury and prevent possible damage to others, your vehicle and its equipment.

BREAKING-IN YOUR VEHICLE

There are no particular breaking-in rules for your vehicle. During the first 1 600 km (1 000 miles) of driving, vary speeds frequently. This is recommended to give the moving parts a chance to break in.

INFORMATION ABOUT THIS GUIDE

The information found in this guide was in effect at the time of printing. Ford may change the contents without notice and without incurring obligation.

EMISSION WARRANTY

The New Vehicle Limited Warranty includes Bumper to Bumper Coverage, Safety Restraint Coverage, Corrosion Coverage, and 7.3L Power Stroke Diesel Engine Coverage. In addition, your vehicle is eligible for Emissions Defect and Emissions Performance Warranties. For a detailed description of what is covered and what is not covered, refer to the Warranty Guide that is provided to you along with your Owner’s Guide.

Page 4

Introduction

SPECIAL NOTICES Notice to owners of pickup trucks and utility type vehicles

Utility vehicles have a significantly higher rollover rate than

other types of vehicles.

Before you drive your vehicle, please read this Owner’s Guide carefully. Your vehicle is not a passenger car. As with other vehicles of this type, failure to operate this vehicle correctly may result in loss of control or an accident.

Be sure to read Driving off road in the Driving chapter as well as the “Four Wheeling” supplement included with 4WD and utility type vehicles.

Using your vehicle as an ambulance

If your light truck is equipped with the Ford Ambulance Preparation Package, it may be utilized as an ambulance. Ford urges ambulance manufacturers to follow the recommendations of the Ford Incomplete Vehicle Manual, Ford Truck Body Builder’s Layout Book and the QVM guidelines as well as pertinent supplements. For additional information,

please contact the Truck Body Builders Advisory Service 1–877–840–4338.

Use of your Ford light truck as an ambulance, without the Ford Ambulance Preparation Package voids the Ford New Vehicle Limited Warranty and may void the Emissions Warranties. In addition, ambulance usage without the preparation package could cause high underbody temperatures, overpressurized fuel and a risk of spraying fuel which could lead to fires.

Page 5

Introduction

If your vehicle is equipped with the Ford Ambulance Preparation Package, it will be indicated on the Certification label. The label is located on the driver’s side door pillar or on the rear edge of the driver’s door. You can determine whether the ambulance manufacturer followed Ford’s recommendations by directly contacting that manufacturer. Ford Ambulance Preparation Package is only available on certain 7.3L Diesel engine equipped vehicles.

Notice to owners of diesel-powered vehicles

Read the 7.3 Liter Power Stroke Direct Injection Turbo Diesel Owner’s Guide Supplement for information regarding correct operation and maintenance of your diesel-powered light truck.

Notice to owners of natural gas fueled vehicles

Before you drive your vehicle, be sure to read the “Natural Gas Vehicle Owner’s Guide Supplement.” This book contains important operation and maintenance information.

Page 6

Introduction

These are some of the symbols you may see on your vehicle.

Vehicle Symbol Glossary

Safety Alert

Fasten Safety Belt Air Bag-Front

Air Bag-Side Child Seat

Child Seat Installation Warning

Brake System Anti-Lock Brake System

Brake Fluid Non-Petroleum Based

Master Lighting Switch Hazard Warning Flasher

Fog Lamps-Front Fuse Compartment

Fuel Pump Reset Windshield Wash/Wipe

See Owner’s Guide

Child Seat Tether Anchorage

Traction Control

Windshield Defrost/Demist

Power Windows Front/Rear

Rear Window Defrost/Demist

Power Window Lockout

Page 7

Vehicle Symbol Glossary

MAX

MIN

Introduction

Child Safety Door Lock/Unlock

Interior Luggage Compartment Release Symbol

Panic Alarm Engine Oil

Engine Coolant

Engine Coolant Temperature

Do Not Open When Hot Battery

Avoid Smoking, Flames, or Sparks

Battery Acid

Explosive Gas Fan Warning

Power Steering Fluid

Maintain Correct Fluid Level

Emission System Engine Air Filter

Passenger Compartment Air Filter

Jack

Check fuel cap

Page 8

Instrumentation

Instrument cluster

(pg. 10)

Speed control*

(pg. 50)

*if equipped

Headlamp control

(pg. 18)

Turn signal and

wiper/washer control

(pg. 54)

Driver air bag

(pg. 83)

Page 9

Auxiliary power point

(pg. 26)

Instrumentation

Climate control system

(pg. 19)

Gearshift (includes

overdrive button)

(pg. 108)

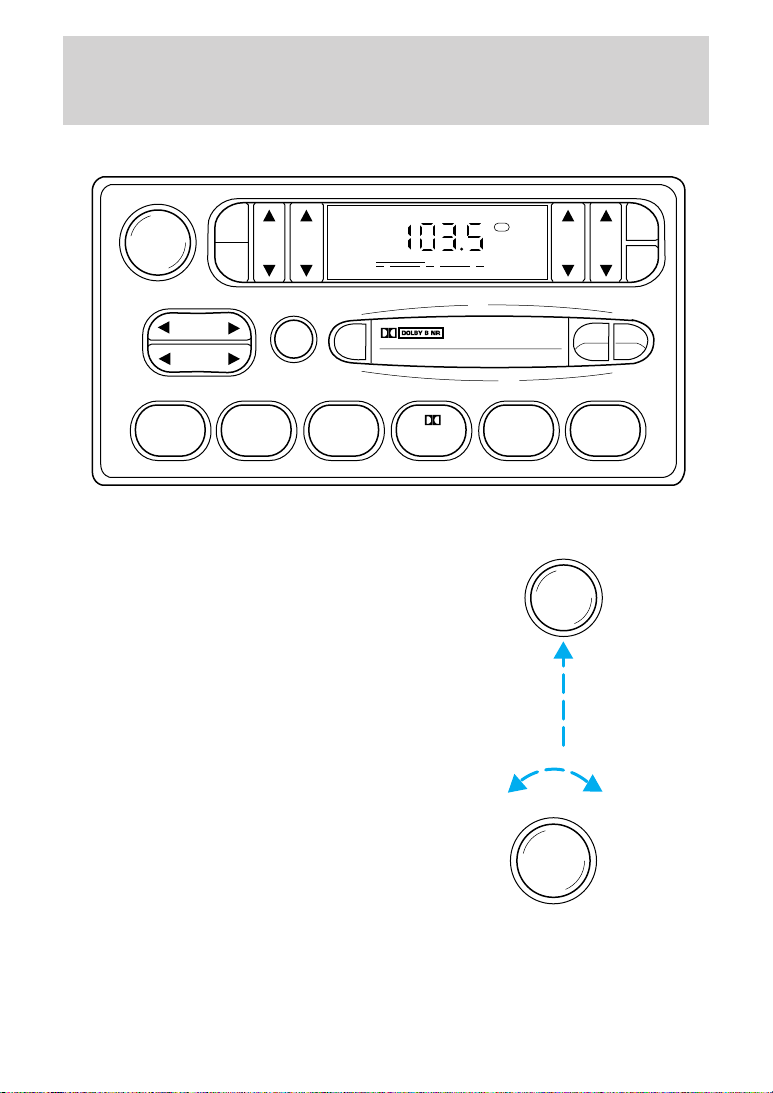

Audio system

(pg. 27)

Page 10

Instrumentation

WARNING LIGHTS AND CHIMES

000000

0000

100

SERVICE

ENGINE SOON

120

140

160

10 0

BRAKE

ABS

20 km/h

MPH

BRAKE

Brake system warning

Momentarily illuminates when the ignition is turned to the ON position to indicate a system check. Also illuminates if the parking brake is engaged. If the brake warning lamp does not illuminate at these times, seek service immediately. Illumination after releasing the parking brake indicates low brake fluid level and the brake system should be inspected immediately.

Anti-lock brake system (ABS)

Momentarily illuminates when the ignition is turned to the ON position to indicate a system check. If the light remains on, continues to flash or fails to illuminate, have the system serviced immediately. With the ABS light on, the anti-lock brake system is disabled and normal braking is still effective unless the brake warning light also remains illuminated with the parking brake released.

Service engine soon

Your vehicle is equipped with a computer that monitors the engine’s emission control system. This system is commonly known as the

SERVICE

ENGINE

SOON

On Board Diagnostics System (OBD II). The OBD II system protects the environment by ensuring that your vehicle continues to meet

Page 11

Instrumentation

government emission standards. The OBD II system also assists the service technician in properly servicing your vehicle.

The Service Engine Soon indicator light illuminates when the ignition is first turned to the ON position to check the bulb. If it comes on after the engine is started, one of the engine’s emission control systems may be malfunctioning. The light may illuminate without a driveability concern being noted. The vehicle will usually be drivable and will not require towing.

What you should do if the Service Engine Soon light illuminates

Light turns on solid:

This means that the OBD II system has detected a malfunction. Temporary malfunctions may cause your Service Engine Soon light to

illuminate. Examples are:

1. The vehicle has run out of fuel. (The engine may misfire or run poorly.)

2. Poor fuel quality or water in the fuel.

3. The fuel cap may not have been properly installed and securely tightened.

These temporary malfunctions can be corrected by filling the fuel tank with high quality fuel of the recommended octane and/or properly installing and securely tightening the gas cap. After three driving cycles without these or any other temporary malfunctions present, the Service Engine Soon light should turn off. (A driving cycle consists of a cold engine startup followed by mixed city/highway driving.) No additional vehicle service is required.

If the Service Engine Soon light remains on, have your vehicle serviced at the first available opportunity.

Light is blinking:

Engine misfire is occurring which could damage your catalytic converter. You should drive in a moderate fashion (avoid heavy acceleration and deceleration) and have your vehicle serviced at the first available opportunity.

Under engine misfire conditions, excessive exhaust temperatures

could damage the catalytic converter, the fuel system, interior floor coverings or other vehicle components, possibly causing a fire.

Page 12

Instrumentation

Transmission control indicator light (TCIL)

Illuminates when the Transmission Control Switch (TCS), refer to

Overdrive control in the Controls and Features chapter, has been

pushed turning the transmission overdrive function OFF. When the TCIL (the word OFF on the gear shift) light is on, the transmission does not operate in the overdrive mode, refer to the Driving chapter for transmission function and operation.

The light may also flash steadily if a transmission malfunction is detected. If the light does not come on when the Transmission Control Switch is depressed or if the light flashes steadily, have your vehicle serviced as soon as possible, damage to the transmission could occur.

Safety belt

Momentarily illuminates when the ignition is turned to the ON position to remind you to fasten your safety belts. For more information, refer to the Seating and safety restraints chapter.

Charging system

Illuminates when the ignition is turned to the ON position and the engine is off. The light also illuminates when the battery is not charging properly, requiring electrical system service.

OVERDRIVE

Air bag readiness

Momentarily illuminates when the ignition is turned ON. If the light fails to illuminate, continues to flash or remains on, have the system serviced immediately.

Page 13

Instrumentation

Turn signal

Illuminates when the left or right turn signal or the hazard lights are turned on. If one or both of the indicators stay on continuously, check for a burned-out turn signal bulb. Refer to Bulbs in the Maintenance and care chapter.

High beams

Illuminates when the high beam headlamps are turned on.

Oil pressure/Engine coolant

This light will come on when the key is in the ON position and the:

• engine coolant temperature is very high

• engine oil pressure is low

The light serves as a notice that a system needs your attention and to check the engine coolant temperature gauge and the engine oil pressure gauge.

Refer to Engine coolant temperature gauge and Engine oil pressure gauge in this chapter for more information.

Safety belt warning chime/buzzer

Sounds to remind you to fasten your safety belts. For information on the safety belt warning chime, refer to the Seating

and safety restraints chapter.

Belt minder chime

Sounds intermittently to remind you to fasten your safety belts. For information on the safety belt minder chime, refer to the Seating

and safety restraints chapter.

Page 14

Instrumentation

Supplemental restraint system (SRS) warning chime

For information on the SRS warning chime, refer to the Seating and safety restraints chapter.

Key-in-ignition warning chime/buzzer

Sounds when the key is left in the ignition in the OFF/LOCK or ACC position and the driver’s door is opened.

Headlamps on warning chime (if equipped)

Sounds when the headlamps or parking lamps are on, the ignition is off (and the key is not in the ignition) and the driver’s door is opened.

GAUGES

000000

0000

100

120

140

160

10 0

20 km/h

MPH

Speedometer

Indicates the current vehicle speed.

20 km/h

000000

0000

MPH

100

120

140

160

10 0

Page 15

Instrumentation

Fuel gauge

Displays approximately how much fuel is in the fuel tank (when the key is in the ON position). The fuel gauge may vary slightly when the vehicle is in motion or after refueling. The ignition should be in the OFF position while the vehicle is being refueled. When the gauge first indicates empty, there is a small amount of reserve fuel in the tank. When refueling the vehicle from an empty indication, the amount of fuel that can be added will be less than the advertised capacity due to the reserve fuel.

Engine coolant temperature gauge

Indicates the temperature of the engine coolant. At normal operating temperature, the needle remains within the normal area (the area between the “H” and “C”). If it enters the red section, the engine is overheating. Stop the vehicle as soon as safely possible, switch off the engine immediately and let the engine cool. Refer to Engine coolant in the Maintenance and care chapter.

Never remove the coolant reservoir cap while the engine is running or hot.

This gauge indicates the temperature of the engine coolant, not the coolant level. If the coolant is not at its proper level the gauge indication will not be accurate. If the gauge enters the red section, the oil pressure/engine coolant and Check Engine/Service Engine Soon indicators illuminate, refer to What you should know about fail-safe cooling in the Maintenance and care chapter.

Page 16

Instrumentation

Engine oil pressure gauge

This shows the engine oil pressure in the system. Sufficient pressure exists as long as the needle remains in the normal range (the area between the “L” and “H”).

If the gauge indicates low pressure, stop the vehicle as soon as safely possible and switch off the engine immediately. Check the oil level. Add oil if needed (refer to Engine oil in the Maintenance and care chapter). If the oil level is correct, have your vehicle checked at your dealership or by a qualified technician.

Battery voltage gauge

This shows the battery voltage when the ignition is in the ON position. If the pointer moves and stays outside the normal operating range (as indicated by arrows), have the vehicle’s electrical system checked as soon as possible.

Odometer

Registers the total kilometers (miles) of the vehicle.

000000

20 km/h

MPH

0000

100

120

140

160

10 0

Page 17

Trip odometer

Registers the kilometers (miles) of individual journeys. To reset, depress the control.

Instrumentation

100

000000

0000

20 km/h

MPH

120

140

160

10 0

Page 18

Controls and features

HEADLAMP CONTROL

• Pull the headlamp control toward you to the first position to turn on the parking lamps, tail lamps, license plate lamps and marker lamps.

• Pull the headlamp control toward you to the outer position to turn on the headlamps (in addition to the previous lamps).

Daytime running lamps (DRL) (if equipped)

Turns the headlamps on with a reduced output. To activate:

• the ignition must be in the ON position and

• the headlamp control is in the OFF or Parking lamps position.

Always remember to turn on your headlamps at dusk or during

inclement weather. The Daytime Running Light (DRL) System does not activate your tail lamps and generally may not provide adequate lighting during these conditions. Failure to activate your headlamps under these conditions may result in a collision.

High beams

Push forward to activate. Pull toward you to deactivate.

Page 19

Controls and features

Flash to pass

Pull toward you to activate and release to deactivate.

PANEL DIMMER CONTROL

To adjust the brightness of the instrument panel:

• Rotate clockwise/counterclockwise when the headlamp control is in the parking lamp or low-beam position.

To turn on the courtesy lamp, cargo lamps or the dome lamp:

• Rotate fully counterclockwise.

The dome lamp will not illuminate if the control switch is in the OFF position.

CLIMATE CONTROL SYSTEM Heater only system (if equipped)

FAN

COOL WARM

Fan speed control

Controls the volume of air circulated in the vehicle.

VENT

OFF

MIX

FLR

FAN

Page 20

Controls and features

Temperature control knob

Controls the temperature of the airflow inside the vehicle. On heater-only systems, the air cannot be cooled below the outside temperature.

Mode selector control

Controls the direction of the airflow to the inside of the vehicle.

• VENT-Distributes outside air through the instrument panel registers.

• FLR-Allows for maximum heating. Distributes outside air through the

floor ducts.

• OFF-Outside air is shut out and the fan will not operate. For short periods of time only, use this mode to prevent undesirable odors from entering the vehicle.

• MIX-Distributes outside air through the floor ducts and the windshield defroster ducts.

•

-Distributes outside air through the windshield defroster ducts.

It can be used to clear ice or fog from the windshield.

Operating tips

• In humid weather conditions, place the climate control system in DEF before driving. This will reduce fogging on your windshield. Once the windshield has been cleared, operate the climate control system as desired.

• To reduce humidity buildup inside the vehicle in cold weather conditions, do not drive with the climate control system in the OFF position.

• Under normal weather conditions, your vehicle’s climate control system should be left in any position other than MAX A/C or OFF when the vehicle is parked. This allows the vehicle to “breathe” through the outside air inlet duct.

COOL WARM

OFF

FLR

VENT

MIX

Page 21

Controls and features

• Under snowy or dirty weather conditions, your vehicle’s climate control system should be left in the OFF position when the vehicle is parked. This allows the climate control system to be free from contamination of outside pollutants.

• Do not place objects under the front seat that will interfere with the airflow to the rear seats (if equipped).

• Remove any snow, ice or leaves from the air intake area at the base of the windshield.

• Do not place objects over the defroster outlets. These objects can block airflow and reduce your ability to see through your windshield. Avoid placing small objects on top of the instrument panel. These objects may fall down into the defroster outlets and block airflow, in addition to damaging the climate control system.

Do not place objects on top of the instrument panel, as these objects may become projectiles in a collision or sudden stop.

Manual heating and air conditioning system (if equipped)

FAN

COOL WARM

NORM

OFF

FLR

VENT

A/C MAX

A/C

MIX

Page 22

Controls and features

Fan speed control

Controls the volume of air circulated in the vehicle.

Temperature control knob

Controls the temperature of the airflow inside the vehicle.

FAN

COOL

WARM

Mode selector control

Controls the direction of the airflow to the inside of the vehicle.

VENT

NORM

A/C

MAX

A/C

OFF

FLR

MIX

The air conditioning compressor can operate in all modes except VENT and FLR. However, the air conditioning will only function if the outside temperature is about 6°C (43°F) or higher.

Since the air conditioner removes considerable moisture from the air during operation, it is normal if clear water drips on the ground under the air conditioner drain while the system is working and even after you have stopped the vehicle.

• MAX A/C-Uses recirculated air to cool the vehicle. MAX A/C is noisier than NORM A/C but more economical and will cool the inside of the vehicle faster. Airflow will be from the instrument panel registers. This mode can also be used to prevent undesirable odors from entering the vehicle.

Page 23

Controls and features

• NORM A/C-Uses outside air to cool the vehicle. It is quieter than MAX A/C but not as economical. Airflow will be from the instrument panel registers.

• VENT-Distributes outside air through the instrument panel registers. However, the air will not be cooled below the outside temperature because the air conditioning does not operate in this mode.

• OFF-Outside air is shut out and the fan will not operate. For short periods of time only, use this mode to prevent undesirable odors from entering the vehicle.

• FLR-Allows for maximum heating by distributing outside air through the floor ducts. However, the air will not be cooled below the outside temperature because the air conditioning does not operate in this mode.

• MIX-Distributes outside air through the windshield defroster ducts and the floor ducts. Heating and air conditioning capabilities are provided in this mode. For added customer comfort, when the temperature control knob is anywhere in between the full hot and full cold positions, the air distributed through the floor ducts will be slightly warmer than the air sent to the windshield defroster ducts. If the temperature is about 6°C (43°F) or higher, the air conditioner will automatically dehumidify the air to reduce fogging.

• DEF ducts. It can be used to clear ice or fog from the windshield. If the temperature is about 6°C (43°F) or higher, the air conditioner will automatically dehumidify the air to reduce fogging.

Operating tips

• To reduce humidity buildup inside the vehicle in cold weather conditions, don’t drive with the climate control system in the OFF or MAX A/C position.

• To reduce humidity buildup inside the vehicle in warm weather conditions, don’t drive with the climate control system in the OFF position.

-Distributes outside air through the windshield defroster

Page 24

Controls and features

• If your vehicle has been parked with the windows closed during warm weather conditions, the air conditioner will perform more efficiently in cooling the vehicle if driven for two or three minutes with the windows open. This will force most of the hot, stale air out of the vehicle. Once the vehicle has been “aired out”, operate the climate control system as desired.

• Do not put objects under the front seat that will interfere with the airflow to the back seats.

• Remove any snow, ice or leaves from the air intake area at the base of the windshield.

Do not place objects on top of the instrument panel, as these objects may become projectiles in a collision or sudden stop.

To aid in side window defogging/demisting in cold weather conditions:

1. Select MIX

2. Set the temperature control to full heat

3. Set the fan speed to HI

Page 25

Controls and features

4. Direct the outer panel vents towards to side windows

To increase airflow to the outer panel vents, close the central panel vents.

Auxiliary heater and air conditioner (if equipped)

If your vehicle is equipped with a factory installed auxiliary unit, the main climate control panel will include separate controls for the front fan speed and the rear fan speed. In conjunction with the front fan speed control, an additional fan speed control is located overhead between the second and third row seating.

REAR

REAR CTRL

OFF

The fan speed of the auxiliary unit can be controlled either by the front

OFF

seat using the front auxiliary control or by the rear seat passengers using the rear auxiliary control, but not

both. To control the auxiliary unit using the rear control, the front control must be in the REAR position.

Air temperature and air distribution are dependent upon the mode that is selected on the main climate control panel:

• MAX A/C-Distributes recirculated air conditioning through the overhead vents of the rear compartment.

• NORM A/C-Distributes recirculated air conditioning through the overhead vents of the rear compartment.

• VENT-Distributes recirculated ambient air through the overhead vents of the rear compartment.

Page 26

Controls and features

• OFF-No air, cooled, ambient, or heated, is distributed through any vents

• FLR-Distributes heated air through the floor vents of the rear compartment.

• MIX-Distributes heated air through the floor vents of the rear compartment.

• (Defrost)-Distributes heated air through the floor vents of the rear compartment.

AUXILIARY POWER POINT

Power outlets are designed

for accessory plugs only. Do not hang any type of accessory or accessory bracket from the plug. Improper use of the power outlet can cause damage not covered by your warranty.

The auxiliary power point is located on the instrument panel.

A second power point (if equipped) is located behind the driver’s seat on the upper trim panel.

Do not plug optional electrical accessories into the cigarette lighter. Use the power point.

Page 27

Controls and features

USING YOUR AUDIO SYSTEM AM/FM Stereo (with 2 speakers)

VOL

PUSH

TONE

CLK

1 2 3 4 AM/FM

AM/FM Stereo (with 4 speakers and fade capability)

VOL

PUSH

TONE

CLK

TONE VOL

ST DX

SEEK TUNE

AM / FM STEREO

1 2 3 4 AM/FM

Page 28

Controls and features

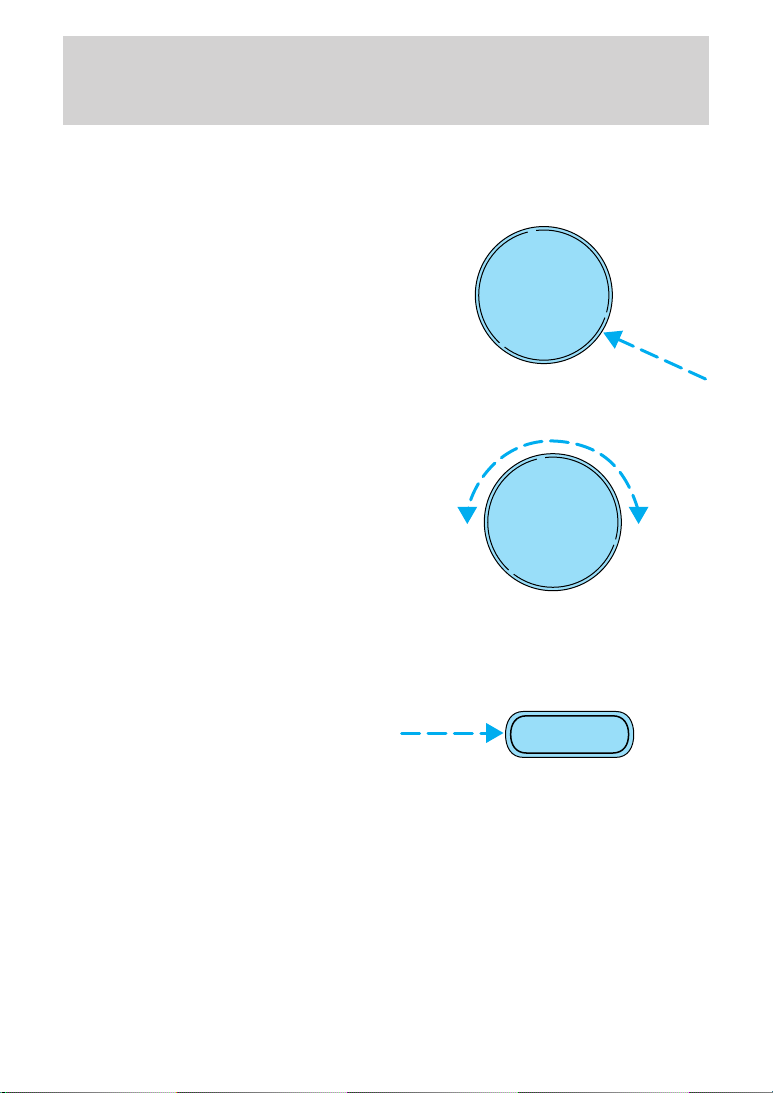

Volume/power control

Press the control to turn the audio system on or off.

VOL

PUSH

Turn the control to raise or lower volume.

VOL

PUSH

If the volume is set above a certain level and the ignition is turned off, the volume will come back on at a “nominal” listening level when the ignition switch is turned back on.

AM/FM select

The AM/FM select control works in radio mode.

AM/FM

AM/FM select in radio mode

This control allows you to select AM or FM frequency bands. Press the control to switch between AM, FM1 or FM2 memory preset stations.

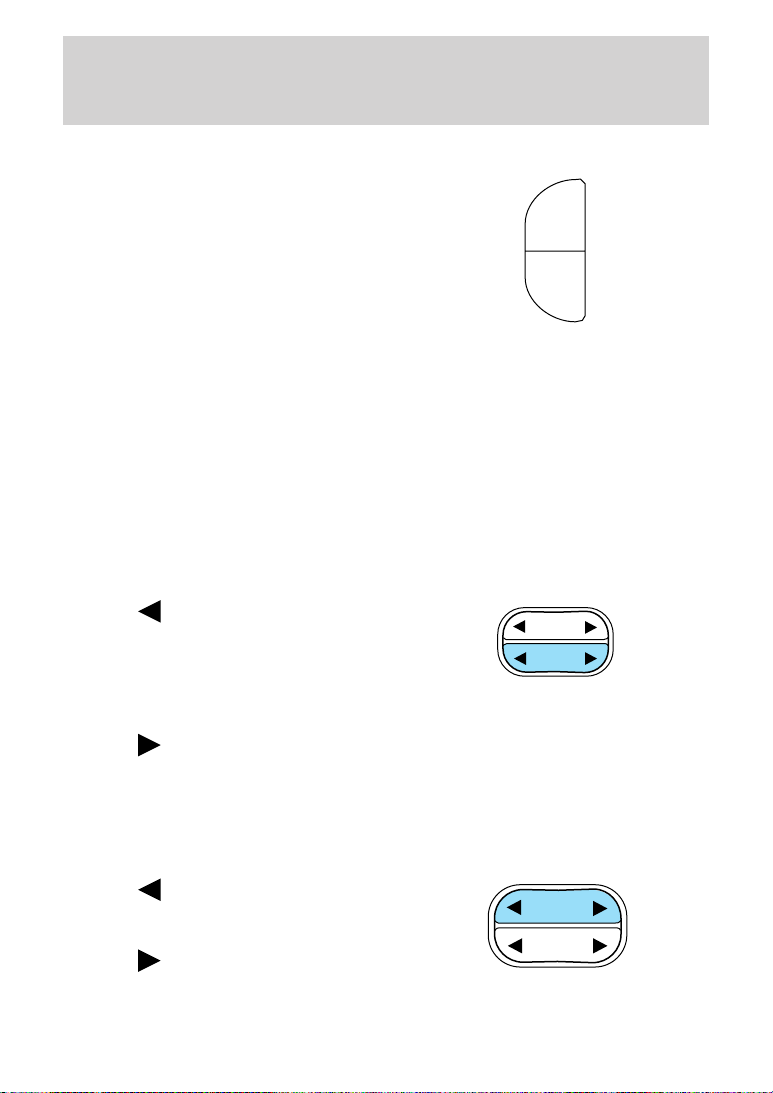

Tune adjust

The tune control works in radio mode.

Tune adjust in radio mode

• Press to move to the next frequency down the band (whether or not a listenable

SEEK TUNE

station is located there). Hold the control to move through the frequencies quickly.

Page 29

Controls and features

• Press to move to the next frequency up the band (whether or not a listenable station is located there). Hold for quick movement.

Seek function

The seek function control works in radio mode.

Seek function in radio mode

• Press to find the next listenable station down the frequency band.

• Press listenable station up the frequency band.

to find the next

Radio station memory preset

The radio is equipped with four station memory preset controls. These controls can be used to select up to four preset AM stations and eight FM stations (four in FM1 and four in FM2).

Setting memory preset stations

1. Select the frequency band with the AM/FM select control.

2. Select a station. Refer to Tune adjust or Seek function for more

information on selecting a station.

3. Press and hold a memory preset control until the sound returns,

indicating the station is held in memory on the control you selected.

SEEK

TUNE

1 2 3 4

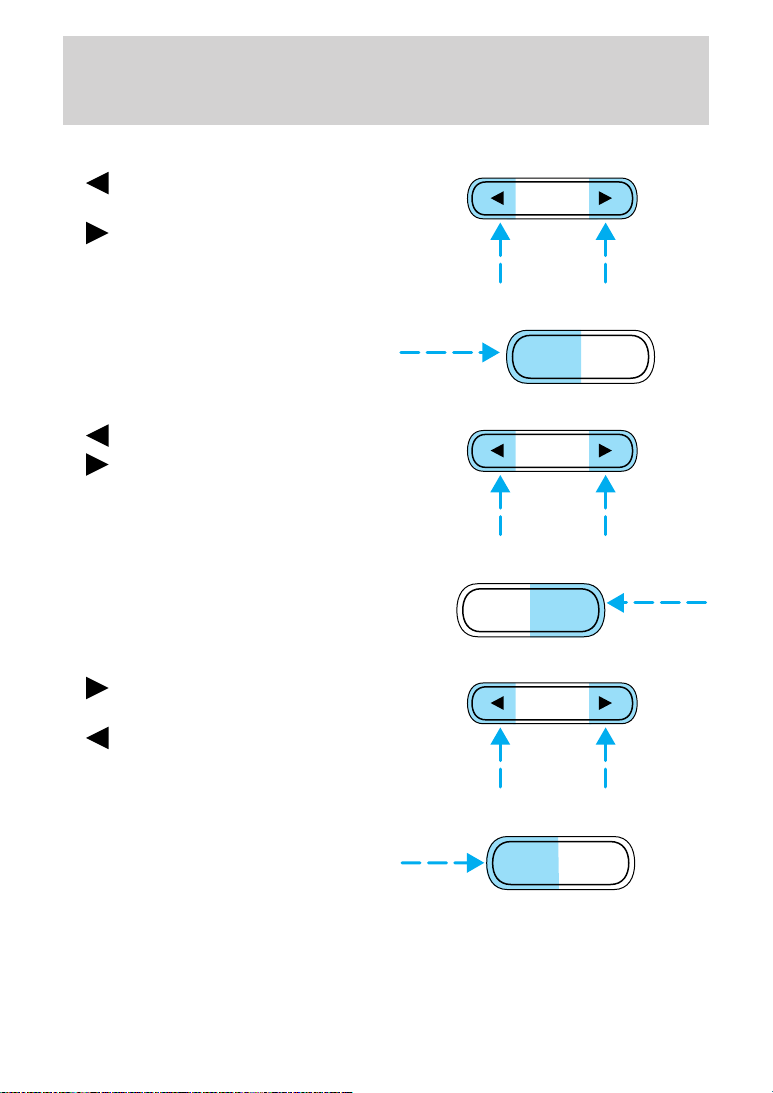

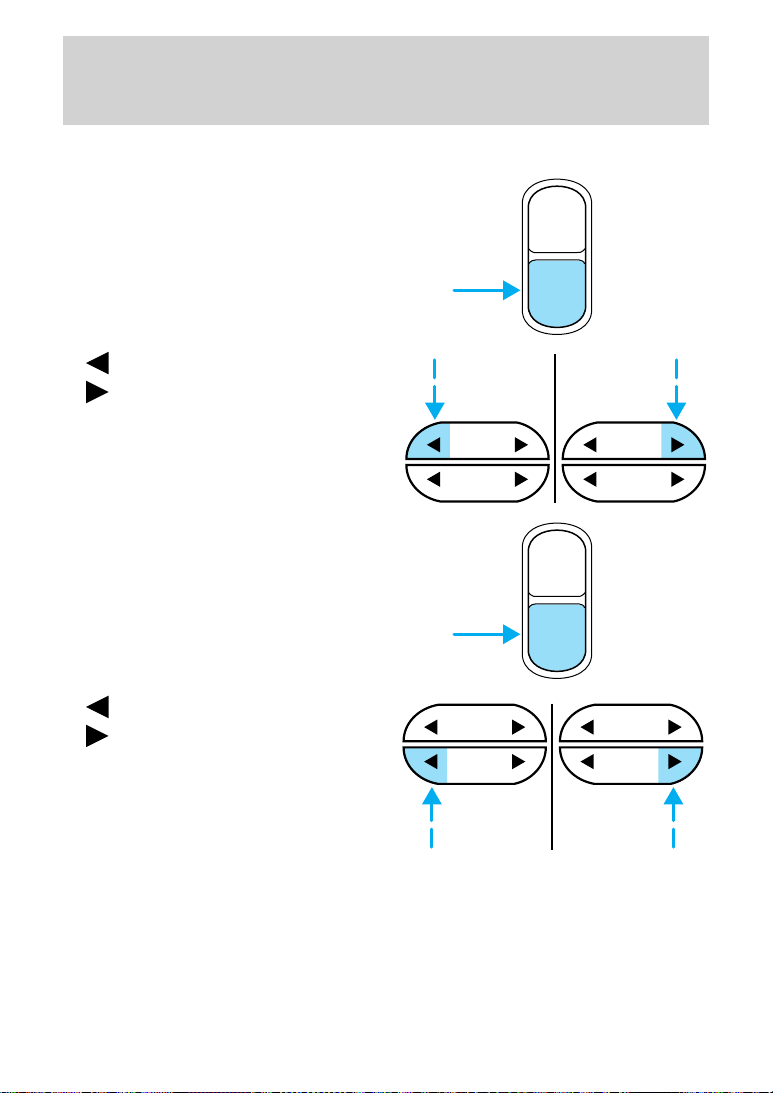

Bass adjust

The bass adjust control allows you to increase or decrease the audio system’s bass output.

Press the TONE control once, then use the volume knob to adjust the desired level.

TONE

CLK

VOL

PUSH

Page 30

Controls and features

Treble adjust

The treble adjust control allows you to increase or decrease the audio system’s treble output.

Press the TONE control twice, then use the volume knob to adjust the desired level.

Speaker balance adjust

Speaker sound distribution can be adjusted between the right and left speakers.

Press the TONE control three times, then use the volume knob to adjust the desired level.

Speaker fade adjust (if equipped)

Speaker sound can be adjusted between the front and rear speakers.

Press the TONE control four times, then use the volume knob to adjust the desired level.

TONE

CLK

TONE

CLK

TONE

CLK

VOL

PUSH

VOL

PUSH

VOL

PUSH

Setting the clock

Press CLK to toggle between listening frequencies and clock mode.

To set the hour, press and hold the CLK control until CLOCK SET appears in the display and press the SEEK control:

TONE

CLK

Page 31

• to decrease hours and

•

To set the minute, press and hold the CLK control until CLOCK SET appears in the display and press the TUNE control:

to increase hours.

Controls and features

SEEK SEEK

TUNE TUNE

TONE

CLK

•

The CLK control will allow you to switch between media display mode (radio station, stereo information, etc.) and clock display mode (time). When in clock mode, the media information will display for ten seconds, when the radio is turned on, and then revert to clock information. Anytime that the media is changed, (new radio station, etc.), the media information will again display for ten seconds before reverting back to the clock. In media mode, the media information will always be displayed.

to decrease minutes and to increase minutes.

SEEK

TUNE

SEEK

TUNE

Page 32

Controls and features

AM/FM stereo cassette

VOL - PUSH ON

BASS TREB BAL FADE

FM1

CLK

TAPE

AMS

SEEK TUNE

SCAN

123456

Volume/power control

Press the control to turn the audio system on or off.

Turn the control to raise or lower volume.

SIDE

REW FF

VOL - PUSH ON

1 - 2

If the volume is set above a certain level and the ignition is turned off, the volume will come back on at a “nominal” listening level when the ignition switch is turned back on.

Page 33

Controls and features

AM/FM select

The AM/FM select control works in radio and tape modes.

AM/FM select in radio mode

This control allows you to select AM or FM frequency bands. Press the AM control to select from AM selections, and press the FM control to select from FM1 or FM2 memory preset stations.

AM/FM select in tape mode

Press this control to stop tape play and begin radio play.

Tune adjust

The tune control works in radio mode.

Tune adjust in radio mode

• Press to move to the next frequency down the band (whether or not a listenable station is located there). Hold the control to move through the frequencies quickly.

• Press a listenable station is located there). Hold for quick movement.

to move to the next frequency up the band (whether or not

Seek function

The seek function control works in radio mode.

Seek function in radio mode

• Press to find the next listenable station down the frequency band.

• Press listenable station up the frequency band.

to find the next

SEEK TUNE

SEEK

TUNE

Page 34

Controls and features

Scan function

The scan function works in radio mode.

Scan function in radio mode

Press the SCAN control to hear a brief sampling of all listenable stations on the frequency band. Press the SCAN control again to stop the scan mode.

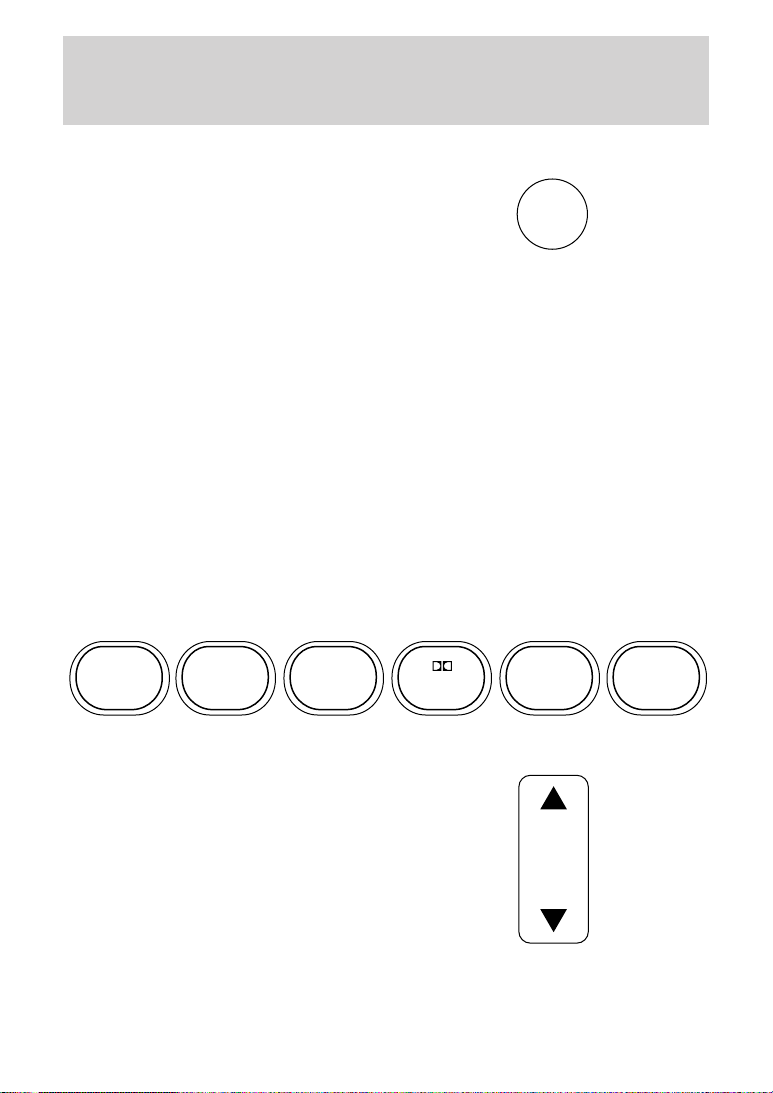

Radio station memory preset

The radio is equipped with six station memory preset controls. These controls can be used to select up to six preset AM stations and twelve FM stations (six in FM1 and six in FM2).

Setting memory preset stations

1. Select the frequency band with the AM or the FM select control.

2. Select a station. Refer to Tune adjust or Seek function for more

information on selecting a station.

3. Press and hold a memory preset control until the sound returns,

indicating the station is held in memory on the control you selected.

SCAN

123456

Bass adjust

The bass adjust control allows you to increase or decrease the audio system’s bass output.

BASS

Page 35

Treble adjust

The treble adjust control allows you to increase or decrease the audio system’s treble output.

Speaker balance adjust

Speaker sound distribution can be adjusted between the right and left speakers.

Speaker fade adjust

Speaker sound can be adjusted between the front and rear speakers.

Controls and features

TREB

BAL

FADE

Tape select

• To enter tape mode while in radio mode, press the TAPE AMS control.

CLK

TAPE

AMS

Page 36

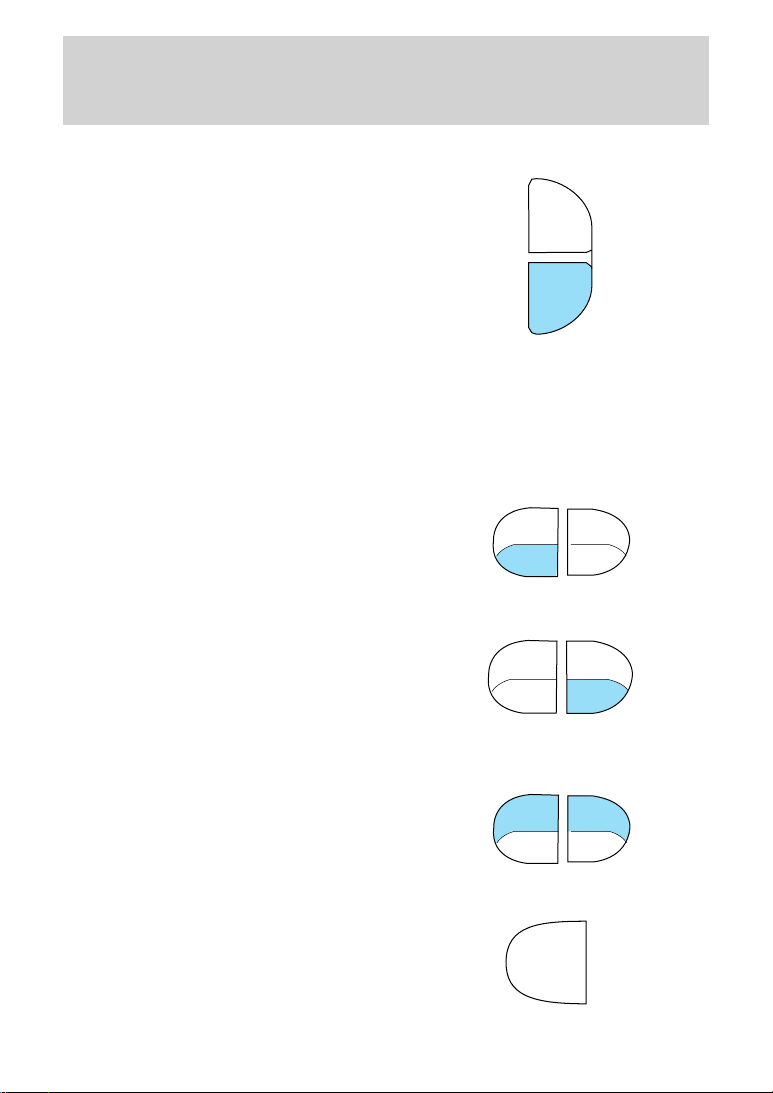

Controls and features

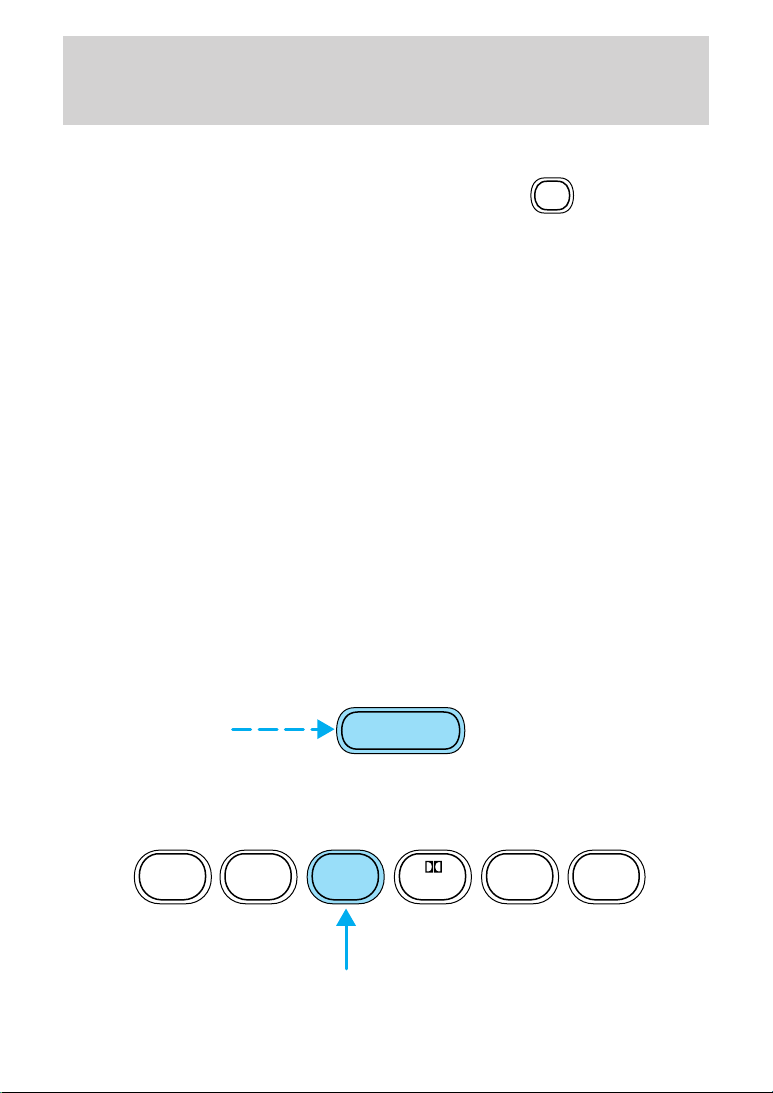

Automatic Music Search

The Automatic Music Search feature allows you to quickly locate the beginning of the tape selection being played or to skip to the next selection.

To activate the feature, momentarily depress the TAPE AMS button. Then, press either REW (for the beginning of the current selection) or FF (to advance to the next selection). The tape deck stops and returns to play mode when the AMS circuit senses a blank section on the tape.

In order to ensure proper operation of the AMS feature, the tape MUST have a blank section of at least four seconds duration between programs.

Rewind

The rewind control works in tape mode.

To rewind in tape mode, press the REW control.

Fast forward

The fast forward control works in tape mode.

• In the tape mode, tape direction will automatically reverse when the end of the tape is reached.

Tape direction select

Press SIDE and 1–2 at the same time to play the alternate side of a tape.

CLK

TAPE

AMS

SIDE

REW FF

SIDE

REW FF

SIDE

REW FF

1 - 2

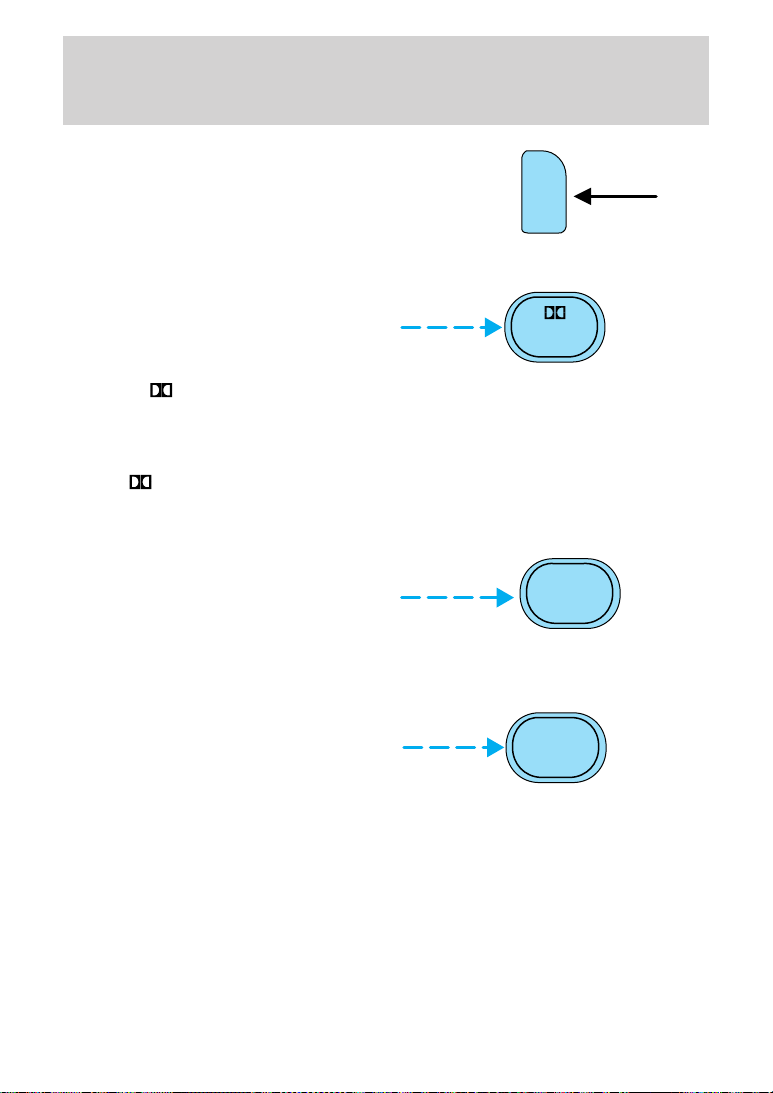

Eject function

Press the control to stop and eject a tape.

Page 37

Controls and features

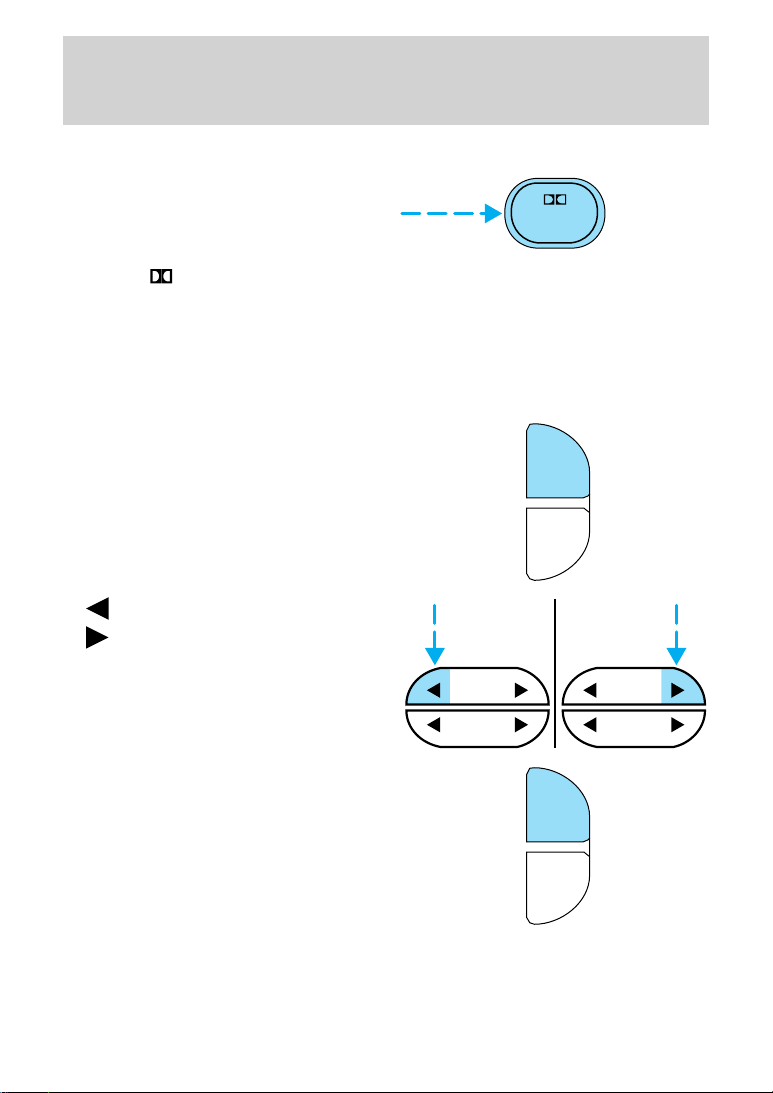

DolbyTnoise reduction

Dolbyt noise reduction operates only in tape mode. Dolbyt noise reduction reduces the amount of hiss and static during tape playback.

Press the reduction.

Dolbyt noise reduction is manufactured under license from Dolbyt Laboratories Licensing Corporation. “Dolbyt” and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation.

Setting the clock

Press CLK to toggle between listening frequencies and clock mode while in radio mode.

To set the hour, press and hold the CLK control and press the SEEK control:

control to activate (and deactivate) Dolbyt noise

CLK

TAPE

AMS

•

To set the minute, press and hold the CLK control and press the TUNE control:

to decrease hours and to increase hours.

SEEK SEEK

TUNE TUNE

CLK

TAPE

AMS

Page 38

Controls and features

• to decrease minutes and

•

to increase minutes.

SEEK

TUNE

SEEK

TUNE

The CLK control will allow you to switch between media display mode (radio station, stereo information, etc.) and clock display mode (time). When in clock mode, the media information will display for 10 seconds, when the radio is turned on, and then revert to clock information. Anytime that the media is changed, (new radio station, etc.), the media information will again display for 10 seconds before reverting back to the clock. In media mode, the media information will always be displayed.

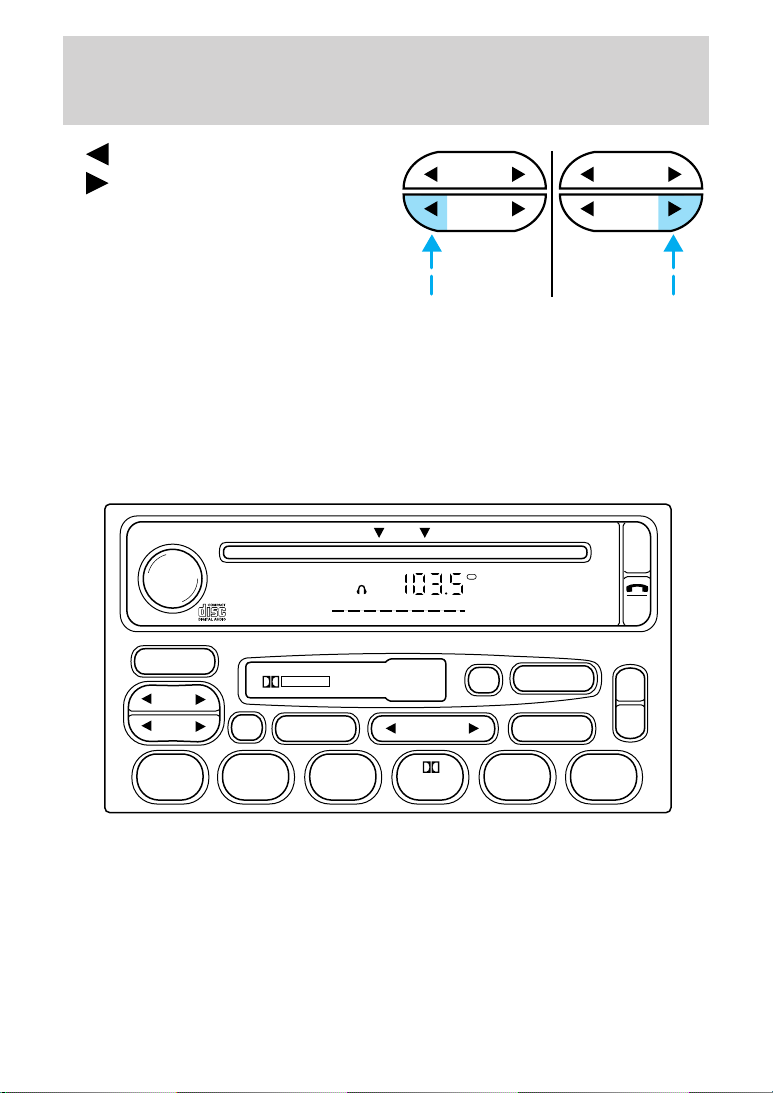

Premium AM/FM Stereo/Cassette/Single CD

VOL PUSH ON

AM FM

SEEK TUNE

FM 1 AMC

BL RF

DOLBY B NR

SCAN

BASS TREB SEL BAL

DISC

TAPE

EJ CD

FADE

MUTE

AUTO

CLK

REW FF

SIDE 1-2 COMP SHUFFLE

123456

Page 39

Volume/power control

Press the control to turn the audio system on or off.

Audio power can also be turned on by pressing the AM/FM select control or the tape/CD select control. Audio power is turned off by using the volume/power control.

Controls and features

VOL

PUSH ON

Turn control to raise or lower volume.

If the volume is set above a certain level and the ignition is turned off, the volume will come back on at a “nominal” listening level when the ignition switch is turned back on.

AM/FM select

The AM/FM select control works in radio, tape and CD modes.

AM/FM select in radio mode

This control allows you to select AM or FM frequency bands. Press the control to switch between AM, FM1 or FM2 memory preset stations.

AM/FM select in tape mode

Press this control to stop tape play and begin radio play.

AM/FM select in CD or CD changer mode (if equipped)

Press this control to stop CD play and begin radio play.

Tune adjust

The tune control works in radio mode.

VOL

PUSH ON

AM FM

Page 40

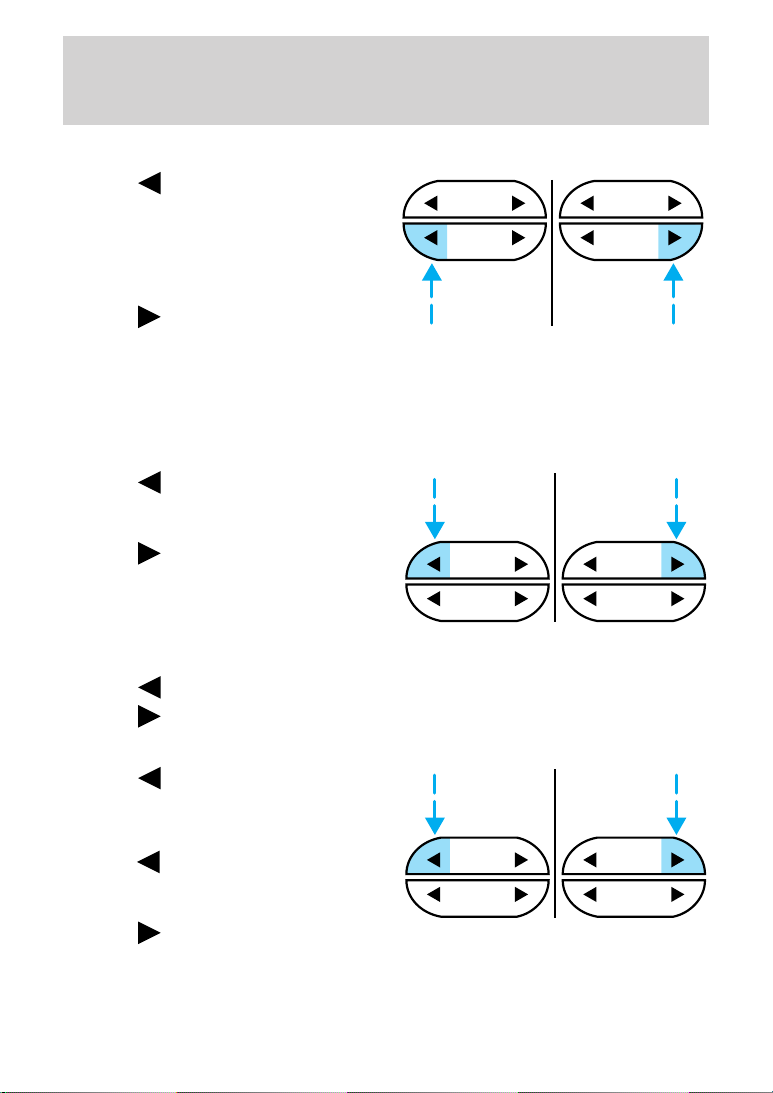

Controls and features

Tune adjust in radio mode

• Press to move to the next frequency down the band (whether or not a listenable station is located there). Hold the control to move through the frequencies quickly.

• Press

to move to the next frequency up the band (whether or not a listenable station is located there). Hold for quick movement.

Seek function

The seek function control works in radio, tape or CD mode.

Seek function in radio mode

• Press to find the next listenable station down the frequency band.

• Press

to find the next listenable station up the frequency band.

Seek function in tape mode

• Press to listen to the previous selection on the tape.

• Press

to listen to the next selection on the tape.

Seek function for CD or CD changer (if equipped)

• Press to seek to the previous track of the current disc. If a selection has been playing for three seconds or more and you press

, the CD changer will replay that selection from the beginning.

• Press

to seek forward to the next track of the current disc. After the last track has been completed, the first track of the current disc will automatically replay.

SEEK

TUNE

SEEK SEEK

TUNE TUNE

SEEK SEEK

TUNE TUNE

SEEK

TUNE

Page 41

Controls and features

Scan function

The scan function works in radio, tape or CD mode.

Scan function in radio mode

Press the SCAN control to hear a brief sampling of all listenable stations on the frequency band. Press the control again to stop the scan mode.

Scan function in tape mode

Press the SCAN control to hear a short sampling of all selections on the tape. (The tape scans in a forward direction. At the end of the tape’s first side, direction automatically reverses to the opposite side of the tape.) To stop on a particular selection, press the control again.

Scan function in CD or CD changer mode (if equipped)

Press the SCAN control to hear a short sampling of all selections on the CD. (The CD scans in a forward direction, wrapping back to the first track at the end of the CD.) To stop on a particular selection, press the control again.

Radio station memory preset

The radio is equipped with six station memory preset controls. These controls can be used to select up to six preset AM stations and twelve FM stations (six in FM1 and six in FM2).

Setting memory preset stations

SCAN

AM FM

1. Select the frequency band with the AM/FM select control.

2. Select a station. Refer to Tune adjust or Seek function for more information on selecting a station.

REW FF SIDE 1-2 COMP SHUFFLE

123456

3. Press and hold a memory preset control until the sound returns, indicating the station is held in memory on the control you selected.

Page 42

Controls and features

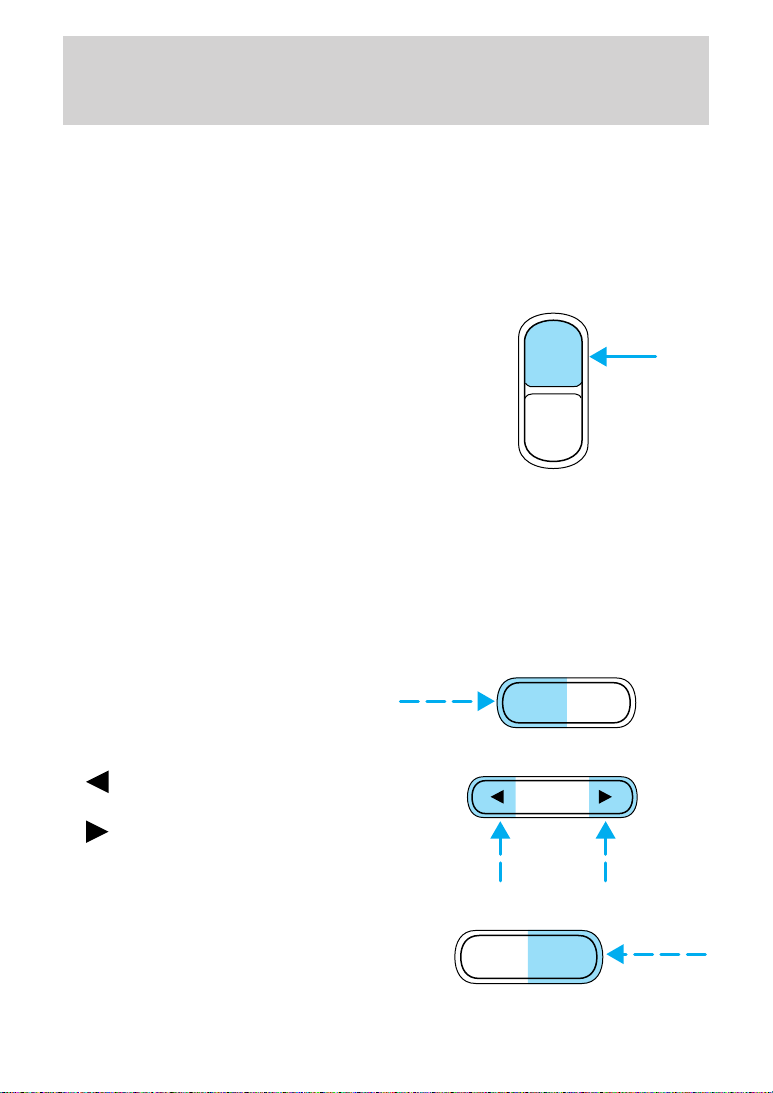

Autoset memory preset

Autoset allows you to set strong radio stations without losing your original manually set preset stations. This feature is helpful on trips when you travel between cities with different radio stations.

Starting autoset memory preset

1. Select a frequency using the AM/FM select controls.

2. Press the AUTO control.

3. When the first six strong stations are filled, the station stored in memory preset control 1 will start playing.

If there are less than six strong stations available on the frequency band, the remaining memory preset controls will all store the last strong station available.

These stations are temporarily stored in the memory preset controls (until deactivated) and are accessed in the same manner of your original presets.

To deactivate autoset and return to your audio system’s manually set memory stations, press the AUTO control again.

Bass adjust

The bass adjust control allows you to increase or decrease the audio system’s bass output.

Press the BASS control then press:

• to decrease the bass output and

• to increase the bass output.

AUTO

CLK

BASS TREB

SEL

Treble adjust

The treble adjust control allows you to increase or decrease the audio system’s treble output.

BASS TREB

Page 43

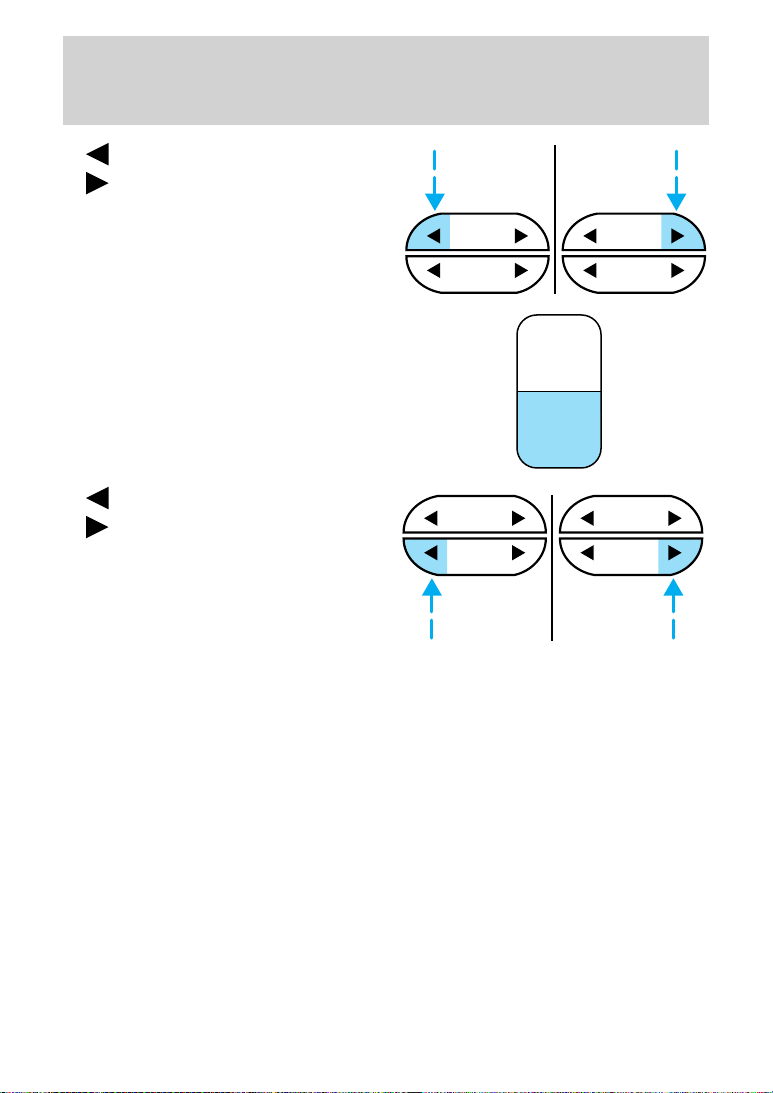

Press the TREB control then press:

•

• to increase the treble output.

to decrease the treble output

and

Speaker balance adjust

Speaker sound distribution can be adjusted between the right and left speakers.

Press the BAL control then press:

• to shift sound to the left and

•

to shift sound to the right.

Speaker fade adjust

Speaker sound can be adjusted between the front and rear speakers.

Press the FADE control then press:

• to shift the sound to the front and

•

to shift the sound to the rear.

Controls and features

SEL

BAL FADE

SEL

BAL FADE

SEL

Tape/CD select

• To begin tape play (with a tape loaded into the audio system) while in the radio or CD mode, press the TAPE control. Press the button during rewind or fast forward to stop the rewind or fast forward function.

TAPE CD

Page 44

Controls and features

• To begin CD play (if CD(s) are loaded), press the CD control. The first track of the disc will begin playing. If returning from radio or tape mode, CD play will begin where it stopped last.

With the dual media audio system, press the CD control to toggle between single CD and CD changer play (if equipped).

Do not insert any promotional (odd shaped or sized) discs, or discs with removable labels into the CD player as jamming may occur.

TAPE CD

Rewind

The rewind control works in tape and CD modes.

• In tape mode, radio play will continue until rewind is stopped (with the TAPE control) or the beginning of the tape is reached.

• In CD mode, pressing the REW control rewinds the CD within the current track.

REW

Fast forward

The fast forward control works in tape and CD modes.

• In the tape mode, tape direction will automatically reverse when the end of the tape is reached.

• In CD mode, pressing the control fast forwards the CD within the current track.

Tape direction select

Press SIDE 1–2 to play the alternate side of a tape.

SIDE 1-2

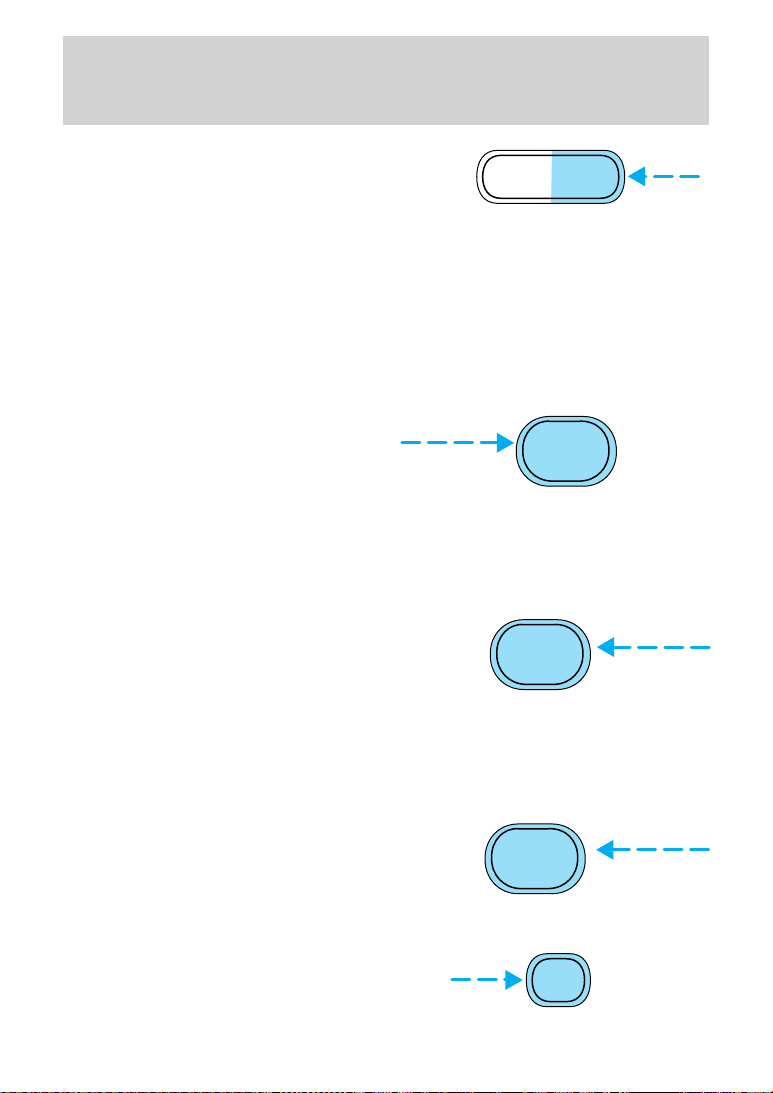

Eject function

Press the EJ control to stop and eject a tape.

Page 45

Controls and features

Press the EJ control to stop and eject a CD.

DolbyTnoise reduction

Dolbyt noise reduction operates in tape mode. Dolbyt noise reduction reduces the amount of hiss and static during tape playback.

Press the reduction.

Dolbyt noise reduction is manufactured under license from Dolbyt Laboratories Licensing Corporation. “Dolbyt” and the double-D symbol Corporation.

Compression adjust

Compression adjust brings soft and loud CD passages together for a more consistent listening level.

Press the COMP control to activate and deactivate compression adjust.

Shuffle feature

The shuffle feature operates in CD mode (if equipped) and plays all tracks on the current disc in random order. If equipped with the CD changer, the shuffle feature continues to the next disc after all tracks on the current disc are played.

Press the SHUFFLE control to start this feature. Random order play will continue until the SHUFFLE control is pressed again.

control to activate (and deactivate) the Dolbyt noise

are trademarks of Dolbyt Laboratories Licensing

COMP

SHUFFLE

Page 46

Controls and features

Setting the clock

To set the hour, press and hold the CLK control and press SEEK:

AUTO

CLK

•

To set the minute, press and hold the CLK control and press TUNE:

•

If your vehicle has a separate clock module, (other than the digital radio display), the CLK button will not function in the above manner.

to decrease hours and to increase hours.

to decrease minutes and to increase minutes.

SEEK SEEK

TUNE TUNE

AUTO

CLK

SEEK

TUNE

SEEK

TUNE

Page 47

Controls and features

The CLK button will allow you to switch between media display mode (radio station, stereo information, etc.) and clock display mode (time). When in clock mode, the media information will display for 10 seconds, when the radio is turned on, and then revert to clock information. Anytime that the media is changed, (new radio station, etc.), the media information will again display for 10 seconds before reverting back to the clock. In media mode, the media information will always be displayed.

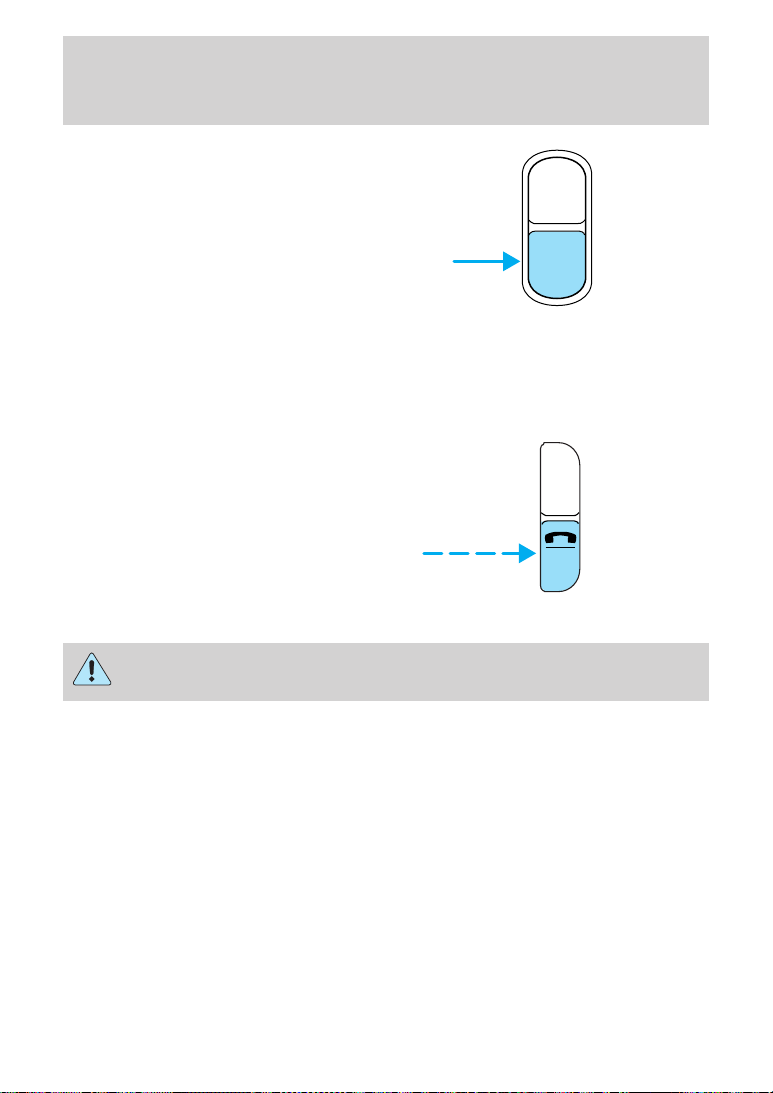

Mute mode

Press the control to mute the playing media. Press the control again to return to the playing media.

Troubleshooting the CD player (if equipped)

The laser beam used in the compact disc player is harmful to the eyes. Do not attempt to disassemble the case.

AUTO

CLK

MUTE

If sound skips:

• You may be traveling on a rough road, playing badly scratched discs or the disc may be dirty. Skipping will not scratch the discs or damage the player.

If your changer does not work, it may be that:

• A disc is already loaded where you want to insert a disc.

• The disc is inserted with the label surface downward.

• The disc is dusty or defective.

• The player’s internal temperature is above 60°C (140°F). Allow the

player to cool down before operating.

• A disc with format and dimensions not within industry standards is inserted.

Page 48

Controls and features

Cleaning compact discs

Inspect all discs for contamination before playing. If necessary, clean discs only with an approved CD cleaner and wipe the center out to the edge. Do not use circular motion.

CD and CD player care

• Handle discs by their edges only. Never touch the playing surface.

• Do not insert more than one disc at a time.

• Do not expose discs to direct sunlight or heat sources for extended

periods of time.

• After playing, store the disc in its case.

Do not insert any promotional (odd shaped or sized) discs, or discs with removable labels into the CD player as jamming may occur.

Cleaning cassette player (if equipped)

Clean the tape player head with a cassette cleaning cartridge after 10 to 12 hours of play in order to maintain the best sound and operation.

Cassette and cassette player care

• Use only cassettes that are 90 minutes long or less.

• Do not expose tapes to direct sunlight, high humidity, extreme heat or

extreme cold. Allow tapes that may have been exposed to extreme temperatures to reach a moderate temperature before playing.

• Tighten very loose tapes by inserting a finger or pencil into the hole and turning the hub.

• Remove loose labels before inserting tapes.

• Do not leave tapes in the cassette player for a long time when not

being played.

Radio frequency information

The Federal Communications Commission (FCC) and the Canadian Radio and Telecommunications Commission(CRTC) establish the frequencies AM and FM stations may use for their broadcasts. Allowable frequencies are:

AM 530, 540–1600, 1610 kHz FM 87.7, 87.9–107.7, 107.9 MHz Not all frequencies are used in a given area.

Page 49

Controls and features

Radio reception factors

Three factors can affect radio reception:

• Distance/strength. The further an FM signal travels, the weaker it is. The listenable range of the average FM station is approximately 40 km (24 miles). This range can be affected by “signal modulation.” Signal modulation is a process radio stations use to increase their strength/volume relative to other stations.

• Terrain. Hills, mountains and tall buildings between your vehicle’s antenna and the radio station signal can cause FM reception problems. Static can be caused on AM stations by power lines, electric fences, traffic lights and thunderstorms. Moving away from an interfering structure (out of its “shadow”) returns your reception to normal.

• Station overload. Weak signals are sometimes captured by stronger signals when you pass a broadcast tower. A stronger signal may temporarily overtake a weaker signal and play while the weak station frequency is displayed.

The audio system automatically switches to single channel reception if it will improve the reception of a station normally received in stereo.

Audio system warranties and service

Refer to the “Warranty Guide” for audio system warranty information. If service is necessary, see your dealer or a qualified technician.

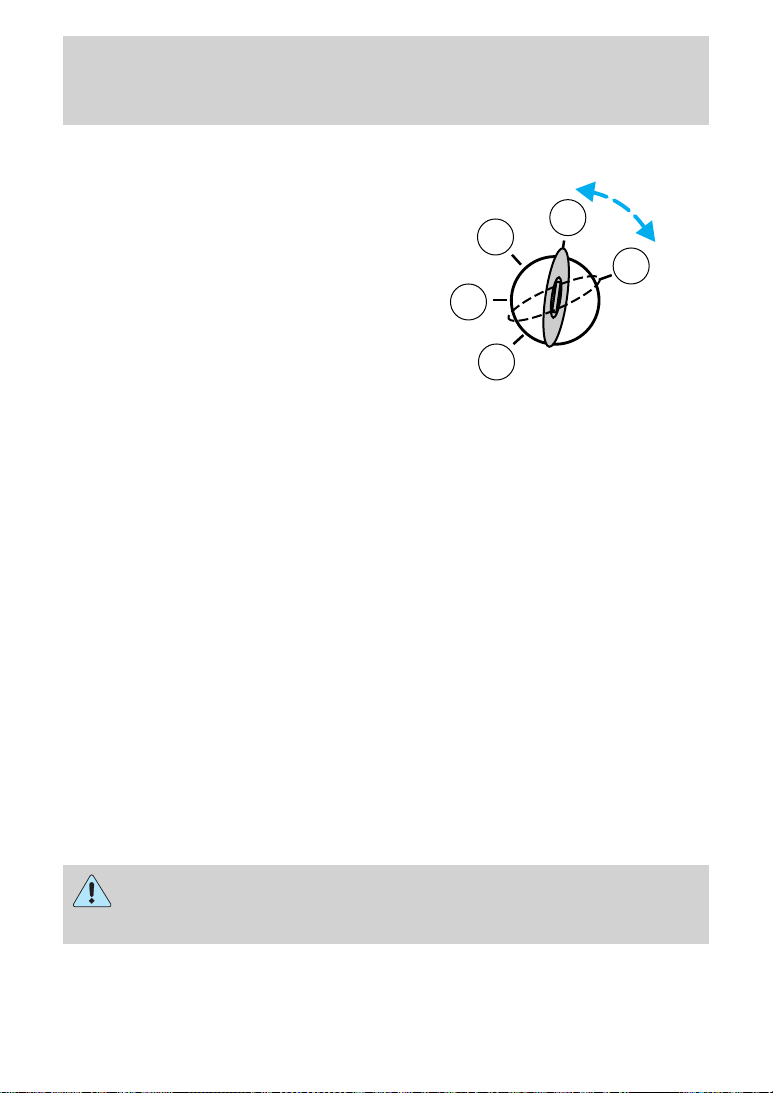

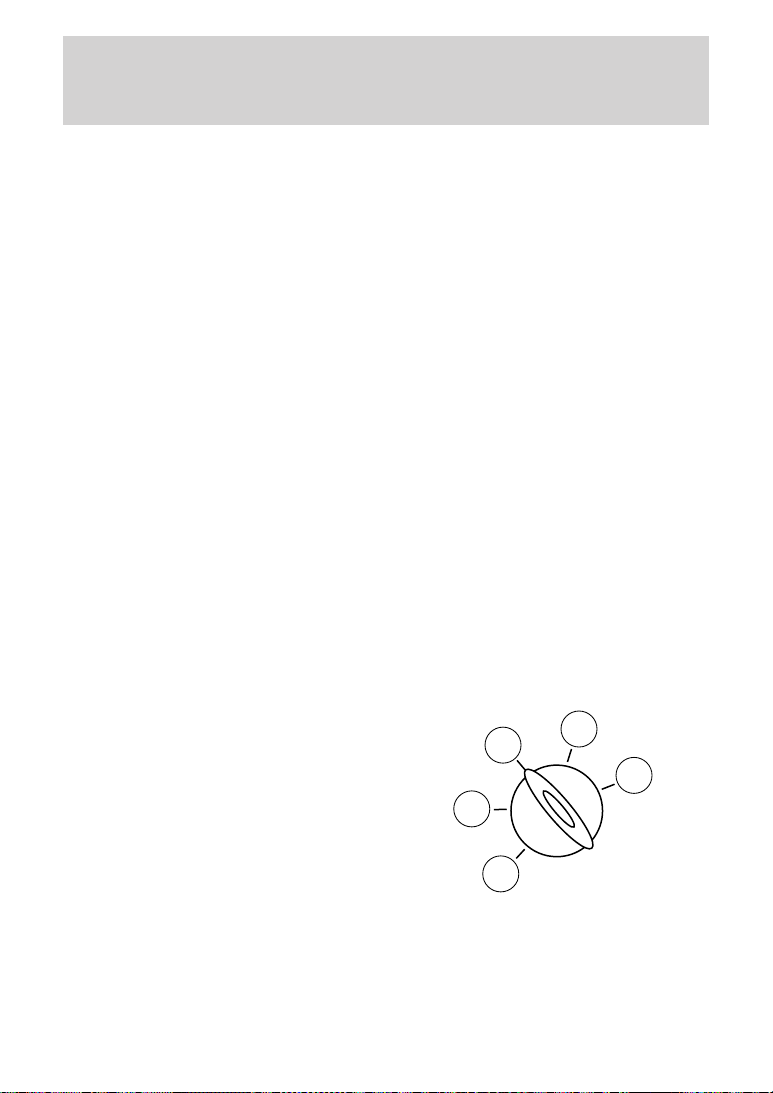

POSITIONS OF THE IGNITION

1. ACCESSORY, allows the electrical

accessories such as the radio to operate while the engine is not running.

2. LOCK, locks the steering wheel,

automatic transmission gearshift lever and allows key removal.

3. OFF, shuts off the engine and all

accessories without locking the steering wheel.

4. ON, all electrical circuits operational. Warning lights illuminated. Key

position when driving.

START, cranks the engine. Release the key as soon as the engine starts.

Page 50

Controls and features

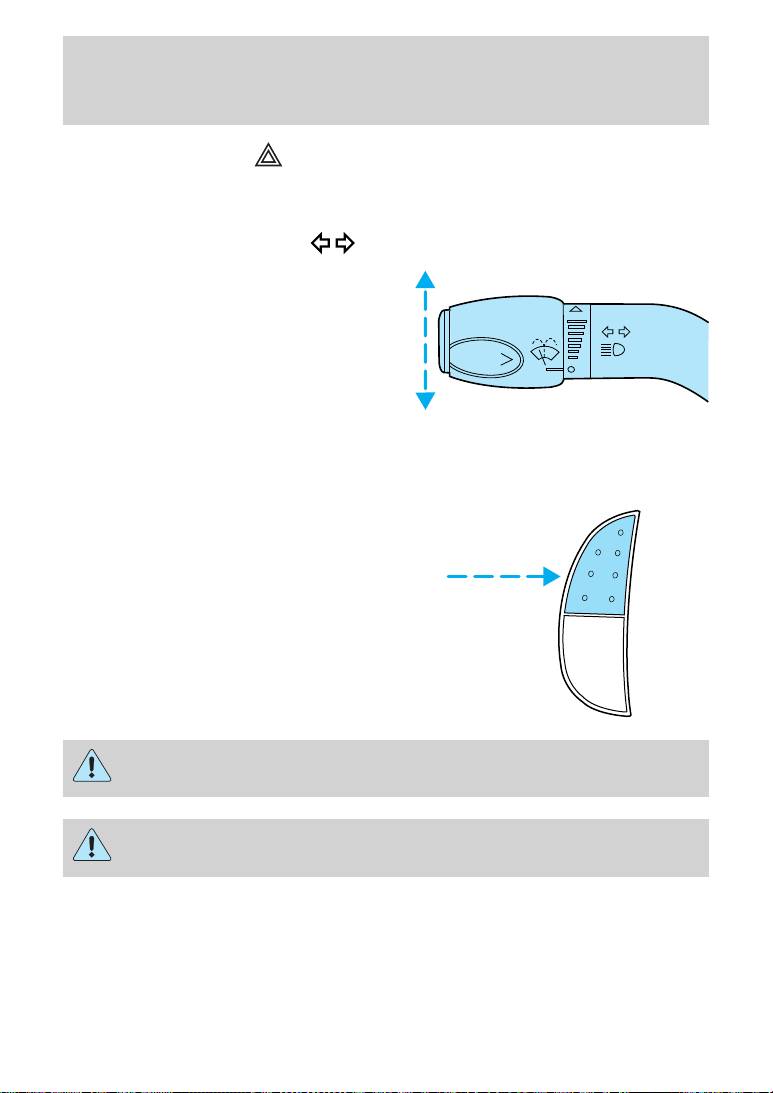

HAZARD FLASHER

For information on the hazard flasher control, refer to Hazard flasher in the Roadside emergencies chapter.

TURN SIGNAL CONTROL

• Push down to activate the left turn signal.

• Push up to activate the right turn signal.

SPEED CONTROL (IF EQUIPPED) To turn speed control on

• Press ON.

Vehicle speed cannot be controlled until the vehicle is traveling at or above 48 km/h (30 mph).

OFF

Do not use the speed control in heavy traffic or on roads that are winding, slippery, or unpaved.

Do not shift the gearshift lever into N (Neutral) with the speed control on.

Page 51

Controls and features

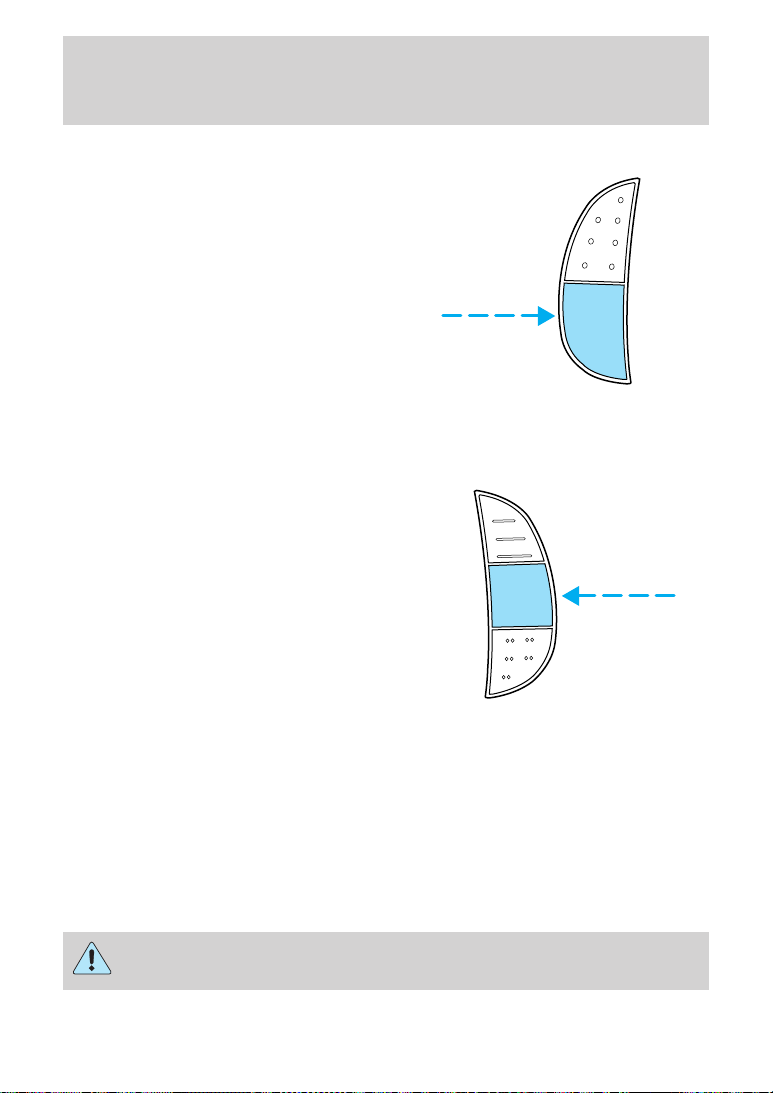

To turn speed control off

• Press OFF or

• Turn off the vehicle ignition.

OFF

Once speed control is switched off, the previously programmed set speed will be erased.

To set a speed

• Press SET ACCEL. For speed control to operate, the speed control must be ON and the vehicle speed must be greater than 48 km/h (30 mph).

RES

SET

ACCEL

COAST

If you drive up or down a steep hill, your vehicle speed may vary momentarily slower or faster than the set speed. This is normal.

Speed control cannot reduce the vehicle speed if it increases above the set speed on a downhill. If your vehicle speed is faster than the set speed while driving on a downhill, you may want to shift to the next lower gear or apply the brakes to reduce your vehicle speed.

If your vehicle slows down more than 16 km/h (10 mph) below your set speed on an uphill, your speed control will disengage. This is normal. Pressing RES will re-engage it.

Do not use the speed control in heavy traffic or on roads that are winding, slippery, or unpaved.

Page 52

Controls and features

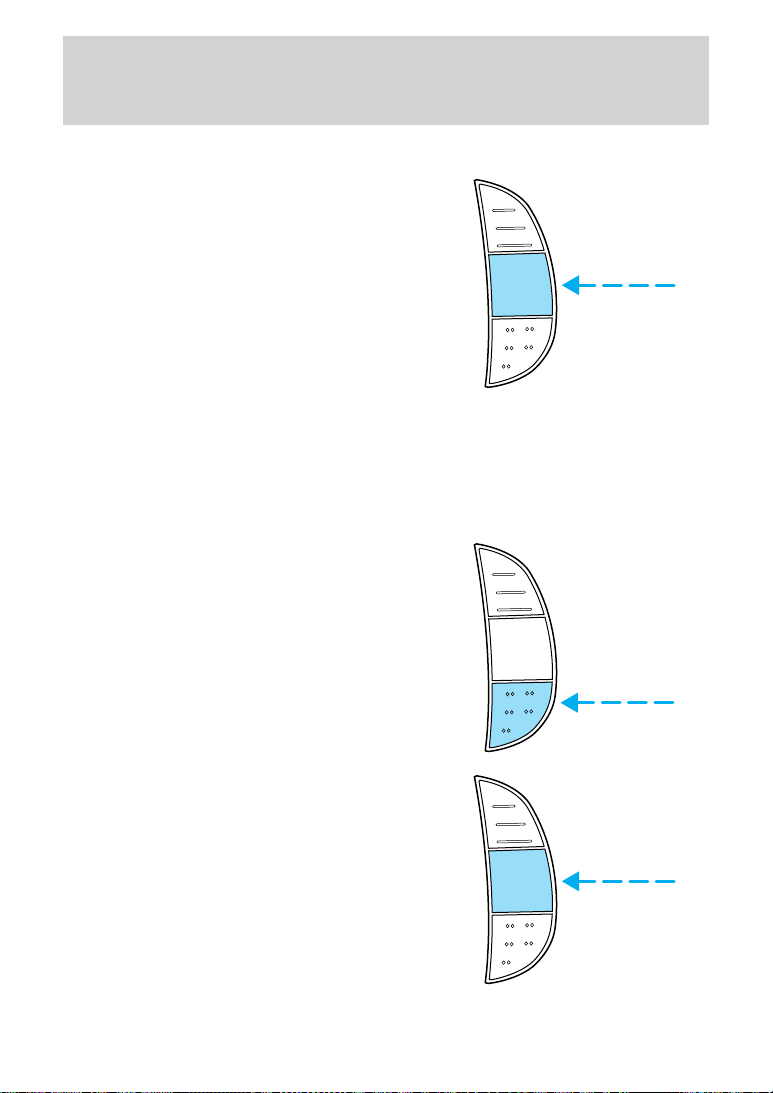

To set a higher set speed

• Press and hold SET ACCEL. Release the control when the desired vehicle speed is reached or

• Press and release SET ACCEL to operate the Tap-Up function. Each press will increase the set speed by 1.6 km/h (1 mph) or

• Accelerate with your accelerator pedal. When the desired vehicle speed is reached, press and release SET ACCEL.

You can accelerate with the accelerator pedal at any time during speed control usage. Releasing the accelerator pedal will return your vehicle to the previously programmed set speed.

To set a lower set speed

• Press and hold COAST. Release the control when the desired speed is reached or

• Press and release COAST to operate the Tap-Down function. Each press will decrease the set speed by 1.6 km/h (1 mph) or

RES

SET

ACCEL

COAST

RES

SET

ACCEL

COAST

• Depress the brake pedal. When the desired vehicle speed is reached, press SET ACCEL.

RES

SET

ACCEL

COAST

Page 53

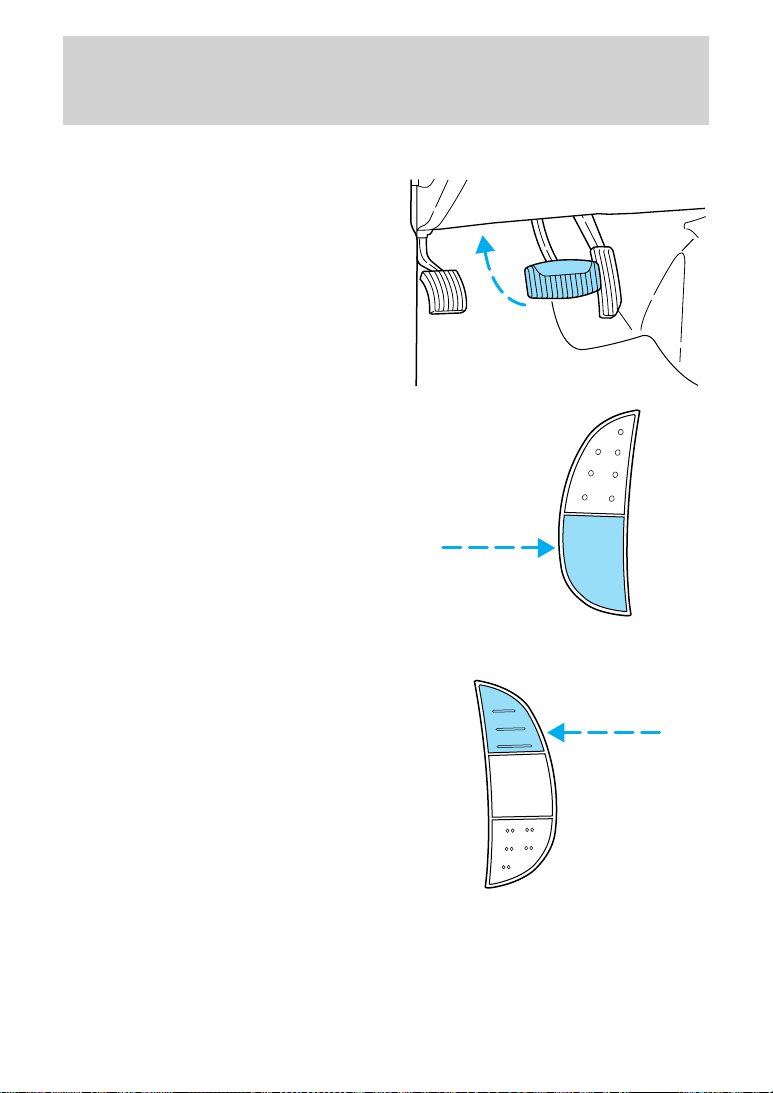

To disengage speed control

• Depress the brake pedal.

Disengaging the speed control will not erase the previously programmed set speed.

Pressing OFF will erase the previously programmed set speed.

To return to a previously set speed

• Press RES. For RES to operate, the vehicle speed must be faster than 48 km/h (30 mph).

Controls and features

OFF

RES

SET

ACCEL

COAST

Page 54

Controls and features

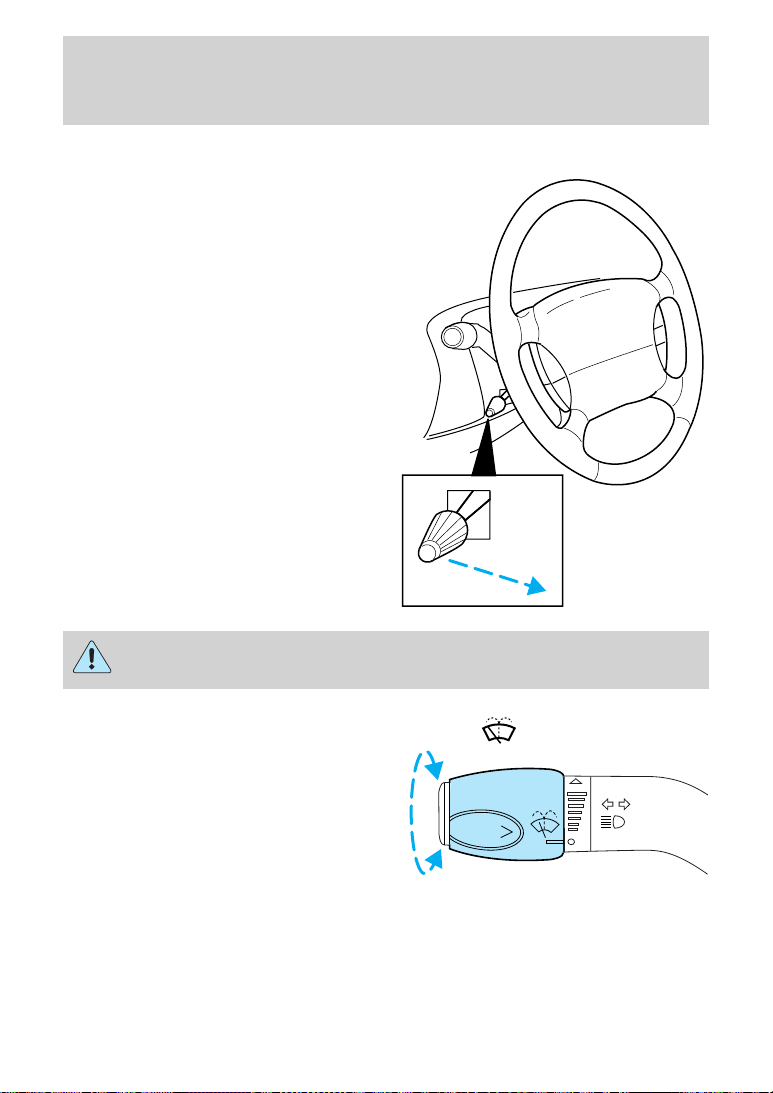

TILT STEERING

Pull the tilt steering control toward you to move the steering wheel up or down. Hold the control while adjusting the wheel to the desired position, then release the control.

Never adjust the steering wheel when the vehicle is moving.

WINDSHIELD WIPER/WASHER CONTROLS

Rotate the windshield wiper control to the desired interval, low or high speed position.

The bars of varying length are for intermittent wipers. When in this position rotate the control upward for fast intervals and downward for slow intervals.

Page 55

Controls and features

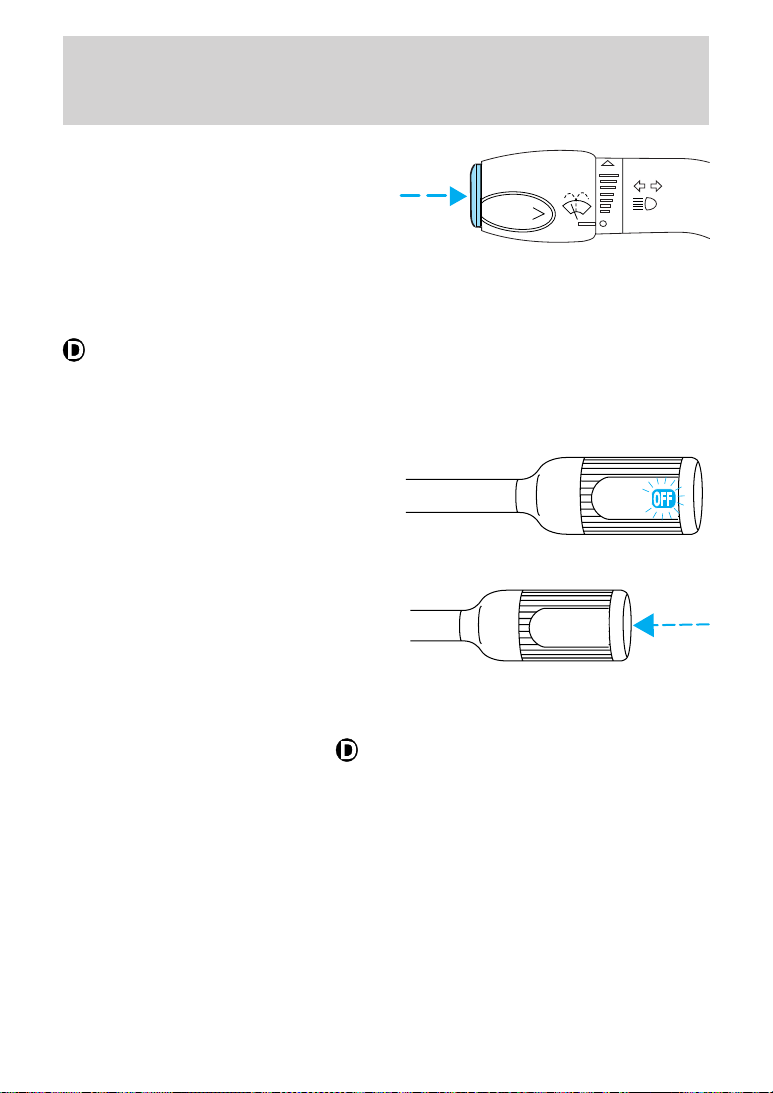

Push the control on the end of the stalk to activate washer. Push and hold for a longer wash cycle. The washer will automatically shut off after ten seconds of continuous use.

OVERDRIVE CONTROL Activating overdrive

(Overdrive) is the normal drive position for the best fuel economy.

The overdrive function allows automatic upshifts and downshifts through all available gears.

Deactivating overdrive

Press the Transmission Control Switch (TCS) located on the end of the gearshift lever. The Transmission Control Indicator Light (TCIL) (the word OFF) will illuminate on the end of the gearshift lever.

The transmission will operate in all gears except overdrive. To return to normal overdrive mode, press the Transmission Control Switch again. The TCIL (the word OFF) will no longer be illuminated.

When you shut off and re-start your vehicle, the transmission will automatically return to normal

For additional information about the gearshift lever and the transmission control switch operation refer to the Automatic Transmission Operation section of the Driving chapter.

(Overdrive) mode.

OVERDRIVE OFF

OVERDRIVE

Page 56

Controls and features

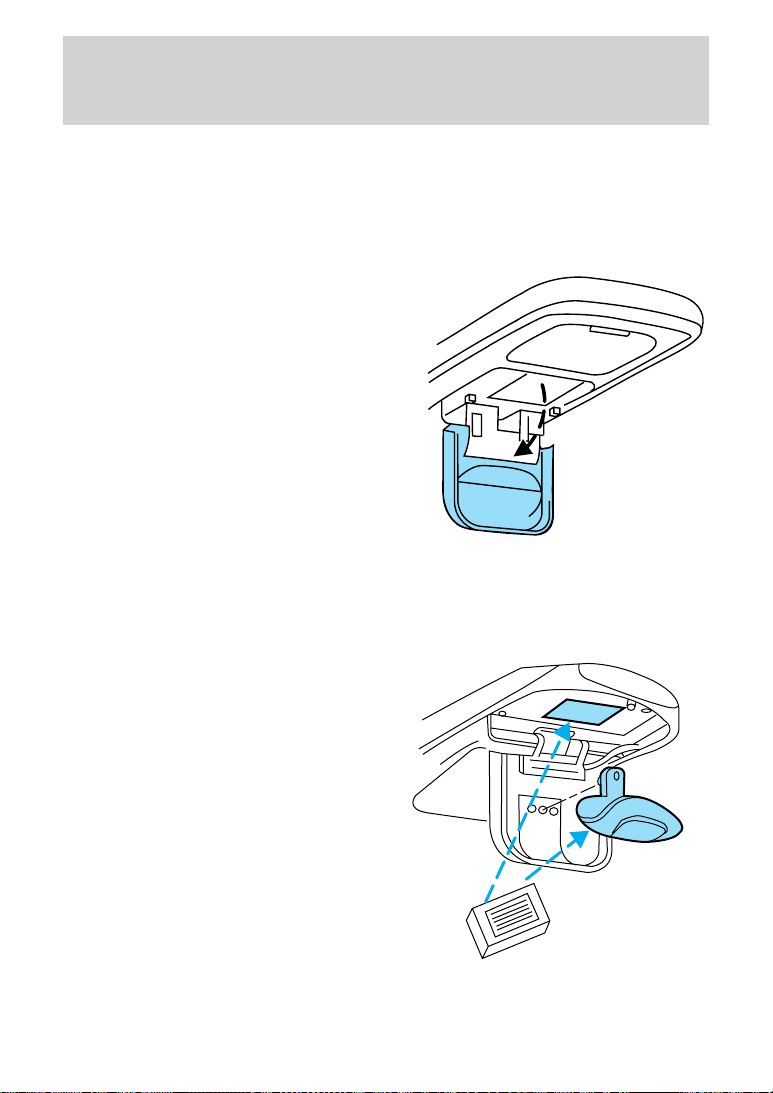

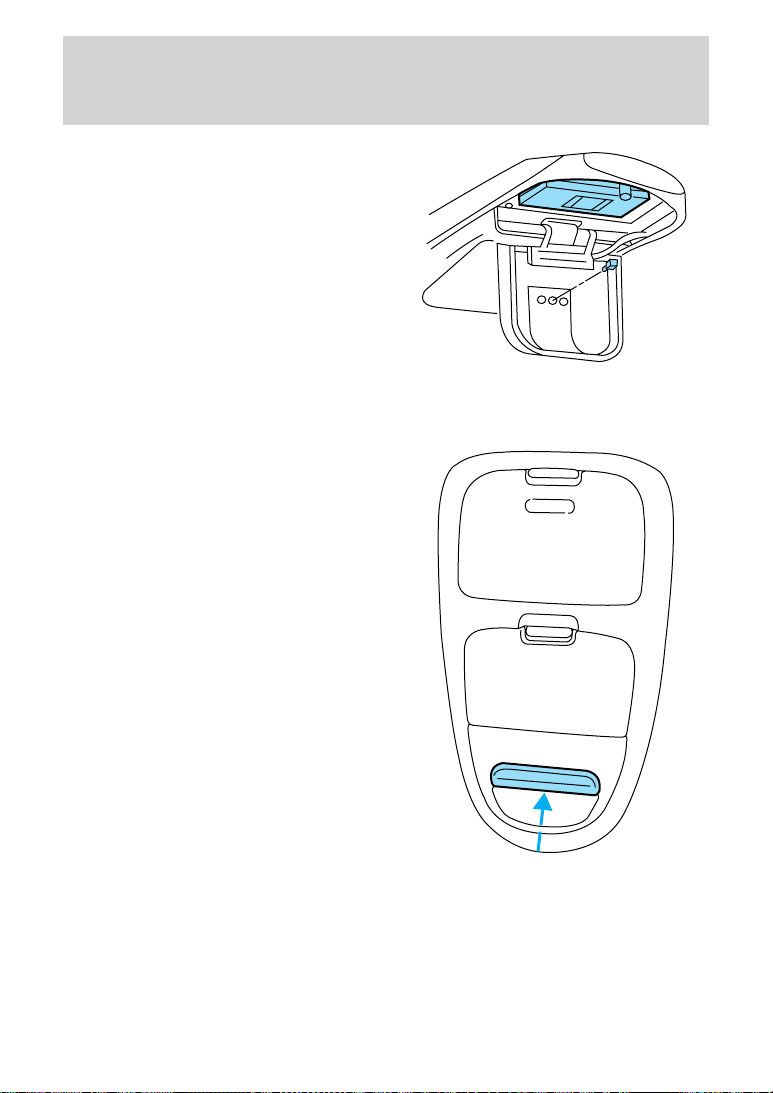

OVERHEAD CONSOLE (IF EQUIPPED)

The appearance of your vehicle’s overhead console will vary according to your option package.

Storage compartment (if equipped)

Press the OPEN control to open the storage compartment. The door will open slightly and can be moved to full open.

The storage compartment may be used to secure sunglasses or a similar object.

Installing a garage door opener (if equipped)

The storage compartment can be converted to accommodate a variety of aftermarket garage door openers:

• Remove the storage clip from the door.

• Place Velcroy hook onto side of aftermarket transmitter opposite of actuator control.

• Place the transmitter into storage compartment, control down.

Page 57

Controls and features

• Place the provided height adaptors onto the back of the GARAGE control as needed.

• Press the GARAGE control to activate the transmitter.

Electronic compass/temperature display (if equipped) Outside air temperature

The outside temperature display is contained in the overhead console.

The temperature display can be turned off and on by pressing the SELECT control on the overhead console. The temperature can be displayed in Centigrade or Fahrenheit by pressing the SELECT control. The ignition key must be in the ON position.

If the outside temperature falls below 3°C (38°F), the display will alternate from “ICE” to the outside temperature at a two second rate for one minute.

73˚ NW

Compass

The compass display is contained in the overhead console. The vehicle heading is displayed as one of N, NE, E, SE, S, SW, W and NW.

The compass reading may be affected when you drive near large buildings, bridges, power lines and powerful broadcast antenna. Magnetic or metallic objects placed in or on the vehicle may also affect compass accuracy. Adjustments may need to be made to the zone and calibration of the compass.

Page 58

Controls and features

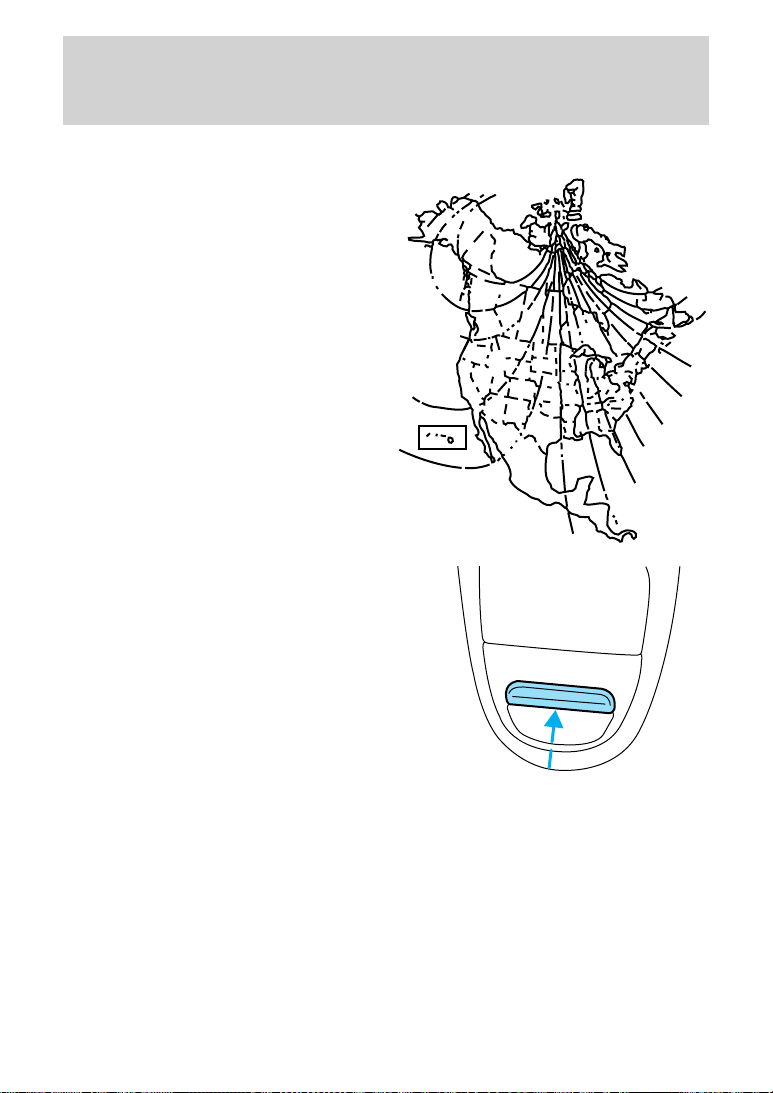

Compass zone adjustment

1. Determine which magnetic zone

you are in by referring to the zone map.

2. Turn the ignition to the ON

position.

3. Press and hold the SELECT

control until VAR appears in the display, then release. The display should show the current zone number.

4. Press the SELECT control until

the desired zone number appears. The display will flash and then return to normal operation. The zone is now updated.

9 VAR

Page 59

Controls and features

Compass calibration adjustment

Perform this adjustment in an open area free from steel structures and high voltage lines:

• Press and hold the SELECT control until CAL appears in the display (approximately eight seconds) and release.

• Drive the vehicle slowly (less than 5 km/h [3 mph]) in circles until CAL indicator turns off in about 2–3 complete circles.

• The compass is now calibrated.

INTERIOR LAMPS Cargo and dome lamps

Rear cargo lamps equipped with an ON/OFF/DOOR control will light when:

• the doors are closed and the control is in the ON position.

• the control is in the DOOR position and any door is open.

• the headlamp control is rotated fully counterclockwise.

When the control is in the OFF position, it will not illuminate when you open the doors or fully rotate the headlamp control.

CAL

DOOR OFF ON

Page 60

Controls and features

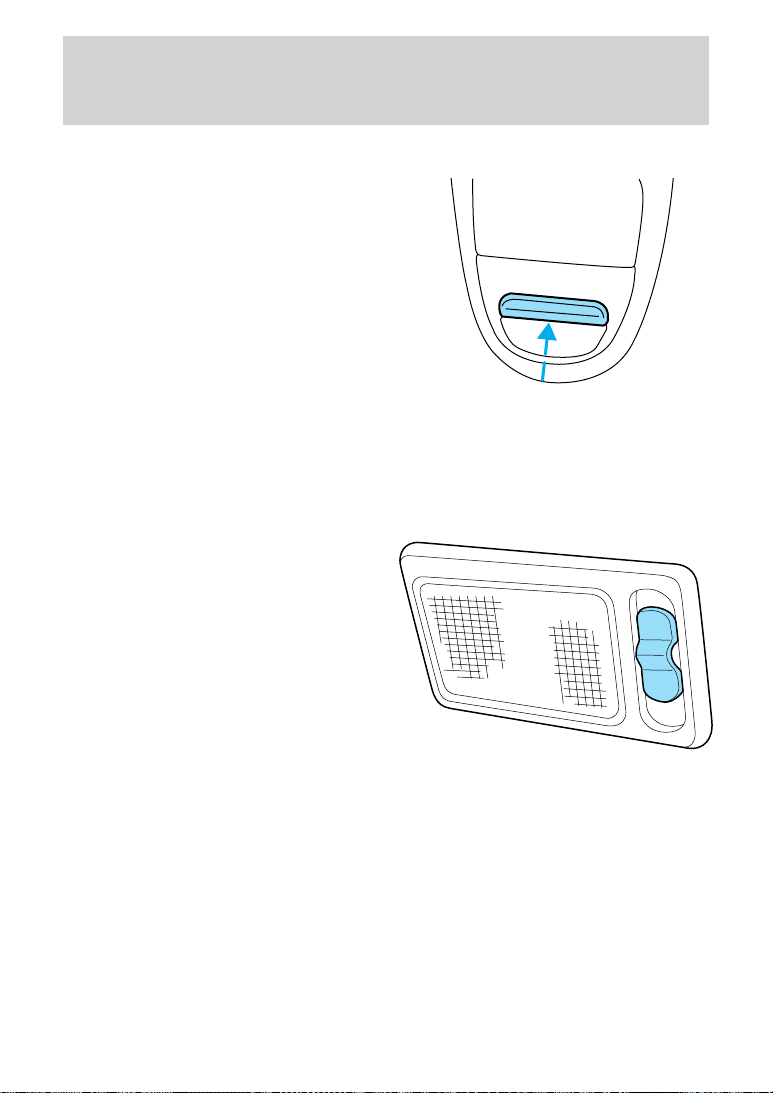

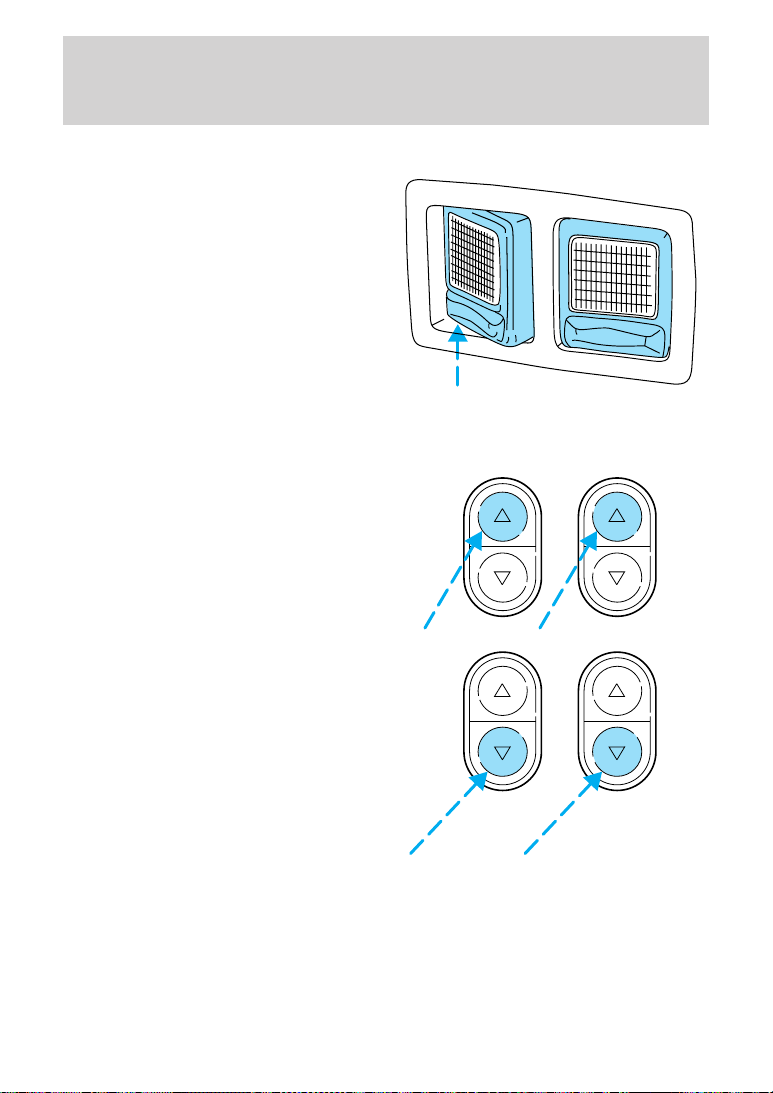

Front and rear courtesy/reading lamps

Rotate the lens to illuminate the lamp.

With the lens in the flat position, the courtesy lamp lights when:

• any door is opened.

• the headlamp control is rotated

fully counterclockwise.

POWER WINDOWS (IF EQUIPPED)

Press and hold the rocker switches to open and close windows.

• Press the top portion of the rocker switch to close.

• Press the bottom portion of the rocker switch to open.

Page 61

Controls and features

POWER DOOR LOCKS (IF EQUIPPED)

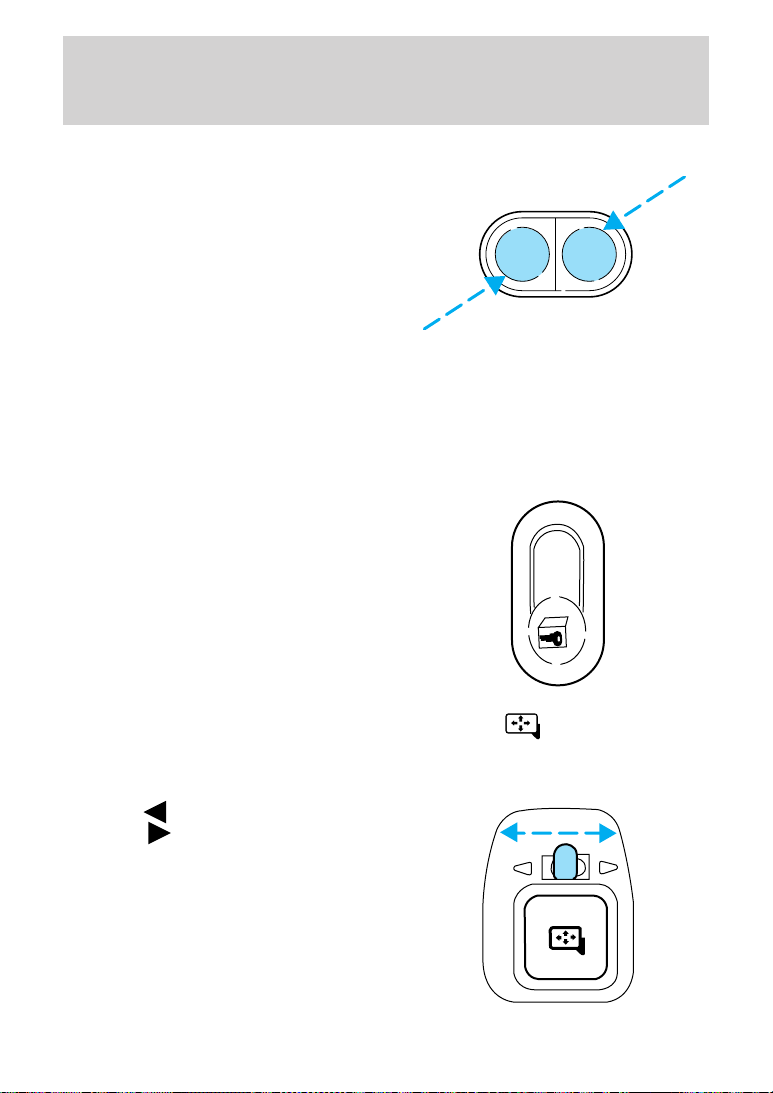

Press U to unlock all doors and L to lock all doors.

Memory lock

If you lock your doors with the power lock switch or the remote transmitter while the sliding door is open, the door will automatically lock after it is closed.

Back cargo door lock (if equipped)

The passenger side rear cargo door has a power door lock control mounted on the inside of the door. When this lock is pressed, all doors will lock/unlock.

POWER SIDE VIEW MIRRORS (IF EQUIPPED)

The ignition may be in any position to adjust the power side view mirrors. To adjust your mirrors:

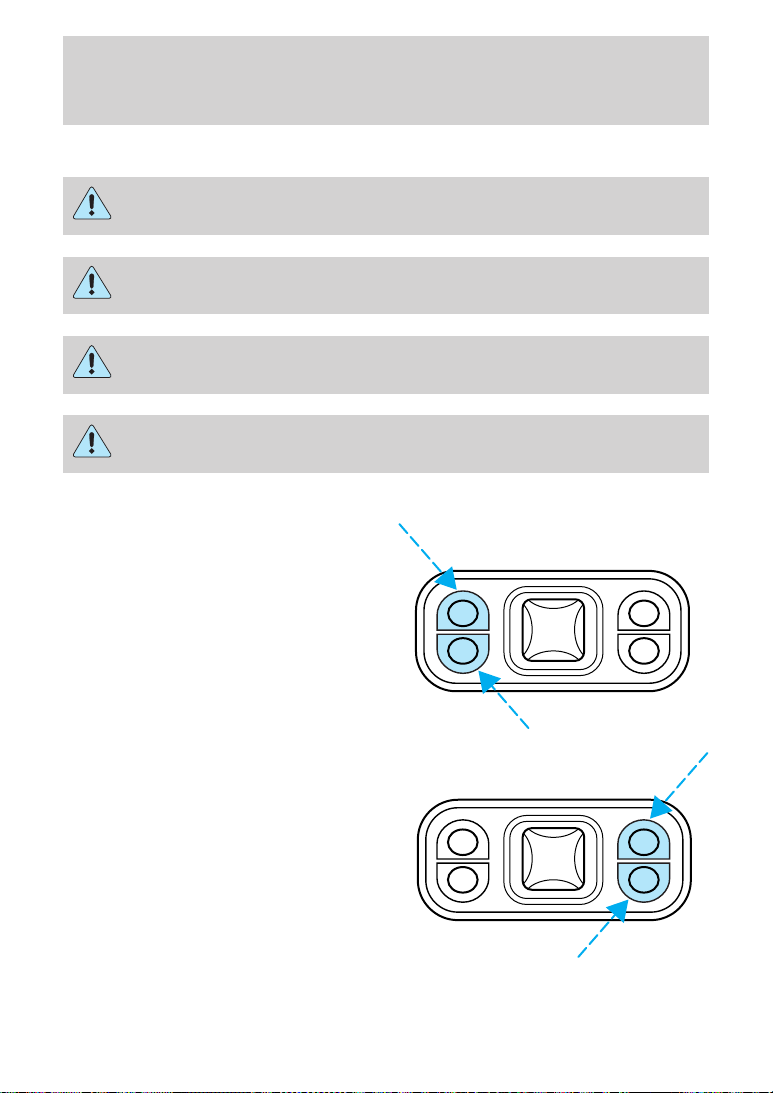

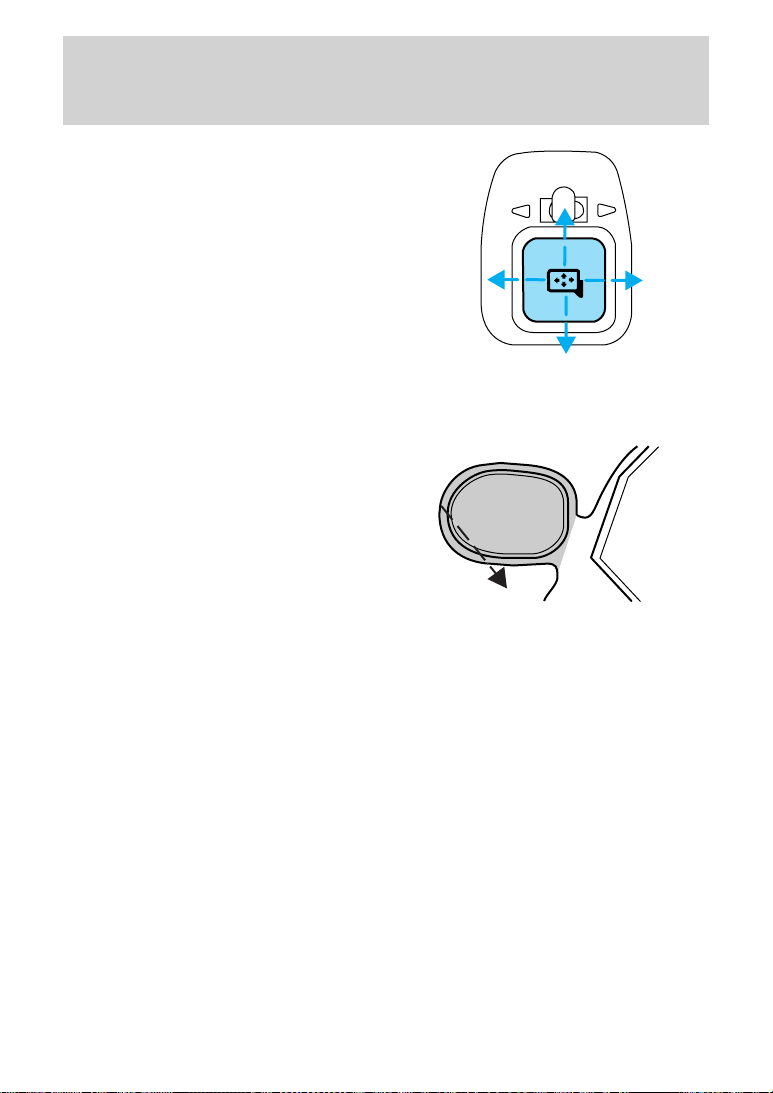

1. Select

mirror or mirror.

to adjust the left

to adjust the right

Page 62

Controls and features

2. Move the control in the direction

you wish to tilt the mirror.

3. Return to the center position to lock mirrors in place.

Fold-away mirrors

Pull the side mirrors in carefully when driving through a narrow space, like an automatic car wash.

REMOTE ENTRY SYSTEM (IF EQUIPPED)

This device complies with part 15 of the FCC rules and with RS-210 of Industry Canada. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

The remote entry system allows you to lock or unlock all vehicle doors without a key.

The remote entry features only operate with the ignition in the LOCK position.

Page 63

Controls and features

If there is any potential remote keyless entry problem with your vehicle, ensure ALL key fobs (remote entry transmitters) are brought to the dealership, to aid in troubleshooting.

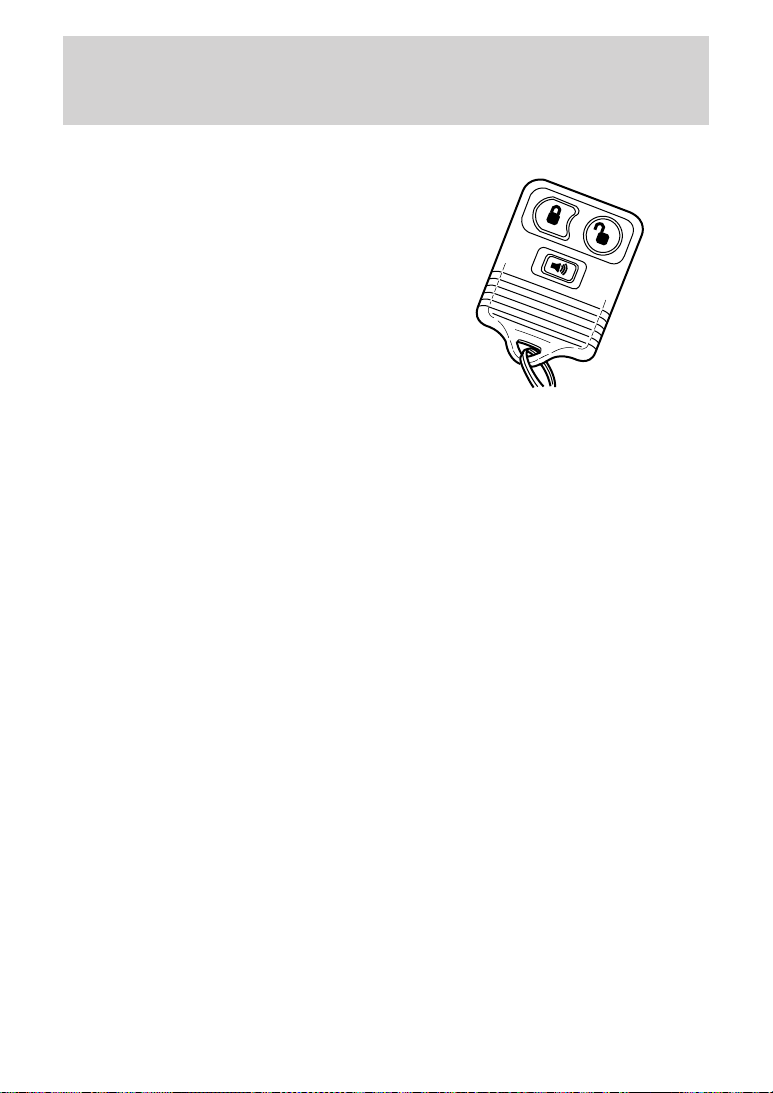

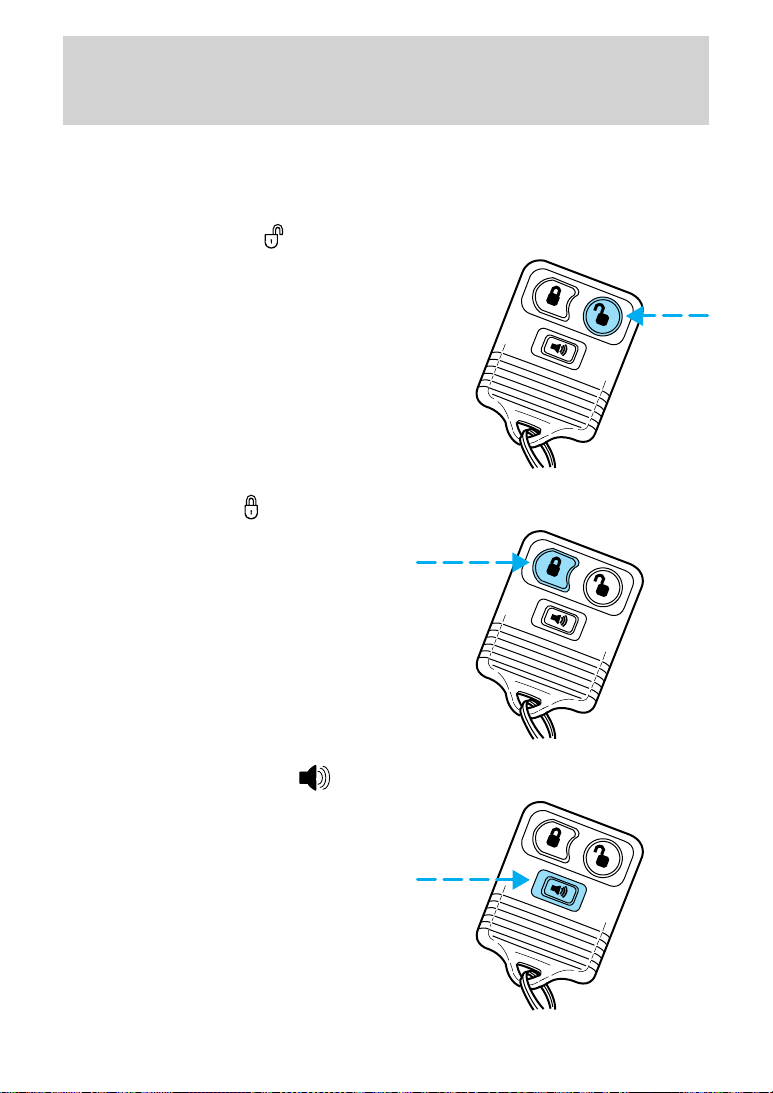

Unlocking the doors

Press this control to unlock the driver’s door. The interior lamps will illuminate.

Press the control a second time within three seconds to unlock all doors.

Locking the doors

Press this control to lock all doors. To confirm all doors are closed and

locked, press the control a second time within three seconds. The doors will lock again and the horn will chirp.

Sounding a panic alarm

Press this control to activate the alarm.

To deactivate the alarm, press the control again or turn the ignition to ACC or ON.

Page 64

Controls and features

Replacing the battery

The transmitter is powered by one coin type three-volt lithium battery CR2032 or equivalent. Typical operating range will allow you to be up to 10 meters (33 feet) away from your vehicle. A decrease in operating range can be caused by:

• weather conditions

• nearby radio towers

• structures around the vehicle

• other vehicles parked next to the vehicle

To replace the battery:

1. Twist a thin coin between the two

halves of the transmitter near the key ring. DO NOT TAKE THE FRONT PART OF THE TRANSMITTER APART.

2. Place the positive (+) side of new

battery UP. Refer to the diagram inside the transmitter unit.

3. Snap the two halves back

together.

Replacement of the battery will not cause the remote transmitter to become deprogrammed from your vehicle. The remote transmitter should operate normally after battery replacement.

Page 65

Controls and features

Replacing lost transmitters

Take all your vehicle’s transmitters to your dealer if service is required.

If you purchase additional transmitters (up to four may be programmed into memory), perform the following procedure:

To reprogram the transmitters yourself, place the key in the ignition and turn from 2 (LOCK) to 3 (OFF) and cycle between 3 (OFF) and 4(ON) eight times in rapid succession (within 10 seconds) ending in the ON position. After doors lock/unlock, press any control on all transmitters (up to four). With each control press of the transmitters, the door should cycle (lock/unlock) to confirm programming. When completed, turn the ignition to OFF. The door locks should cycle (lock/unlock) one last time to confirm completion of programming.

All transmitters must be programmed at the same time.

Illuminated entry

The interior lamps illuminate when the remote entry system is used to unlock the door(s) or sound the personal alarm.

The system automatically turns off after 25 seconds or when the ignition is turned to the RUN or ACC position. The dome lamp control (if equipped) must not be set to the OFF position for the illuminated entry system to operate.

The inside lights will not turn off if:

• they have been turned on with the dimmer control or

• any door is open.

Page 66

Seating and safety restraints

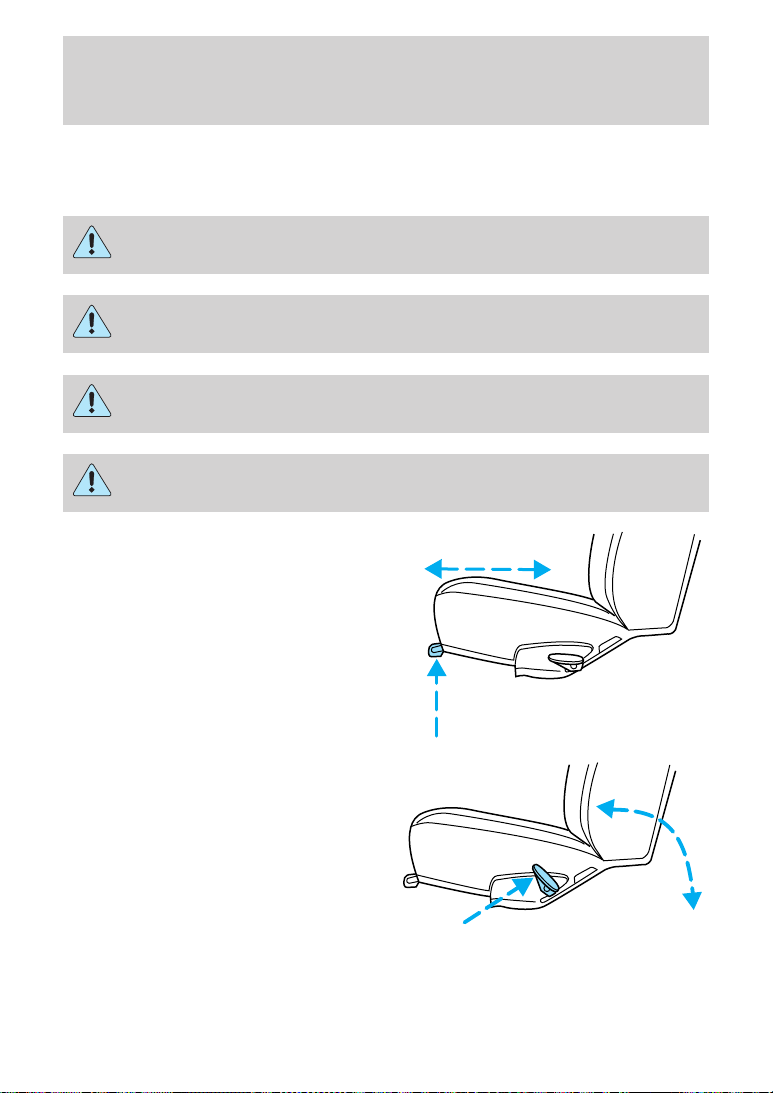

SEATING Adjusting the front manual seat

Never adjust the driver’s seat or seatback when the vehicle is moving.

Do not pile cargo higher than the seatbacks to reduce the risk of injuring people in a collision or sudden stop.

Always drive and ride with your seatback upright and the lap belt snug and low across the hips.

Reclining the seatback can reduce the effectiveness of the seat’s safety belt in the event of a collision.

Lift handle to move seat forward or backward.

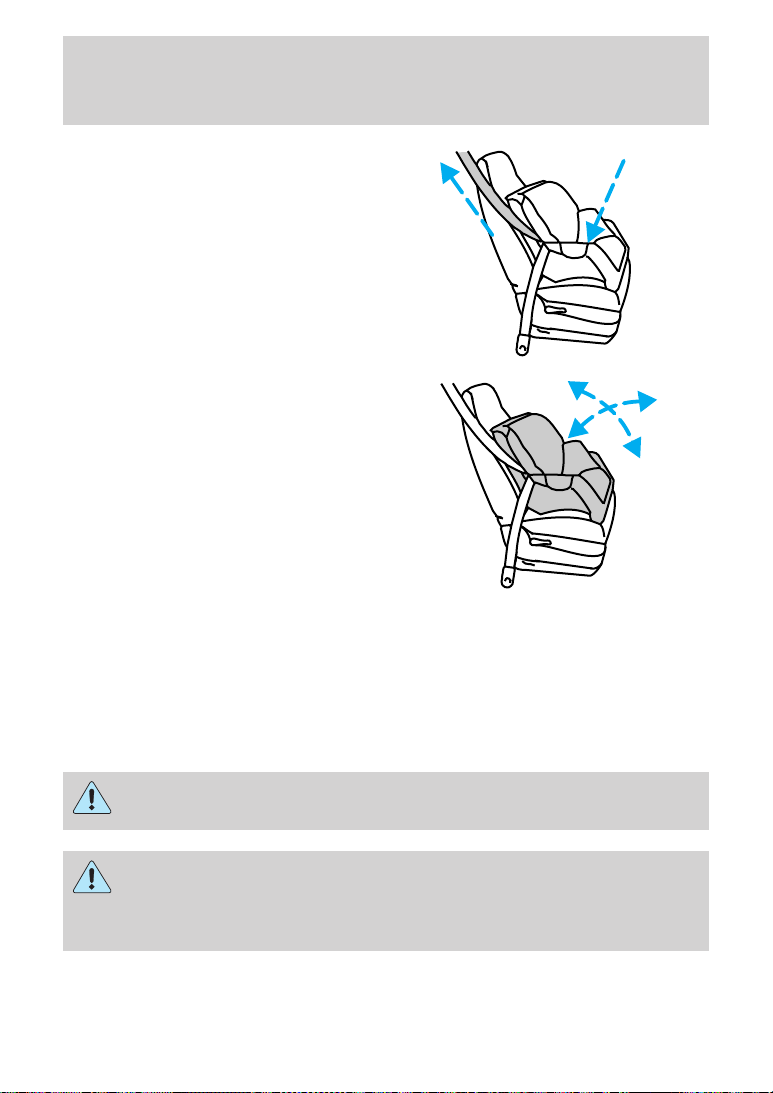

Pull lever up to adjust seatback.

Page 67

Seating and safety restraints

Adjusting the front power seat (if equipped)

Never adjust the driver’s seat or seatback when the vehicle is moving.

Do not pile cargo higher than the seatbacks to avoid injuring people in a collision or sudden stop.

Always drive and ride with your seatback upright and the lap belt snug and low across the hips.

Reclining the seatback can reduce the effectiveness of the seat’s safety belt in the event of a collision.

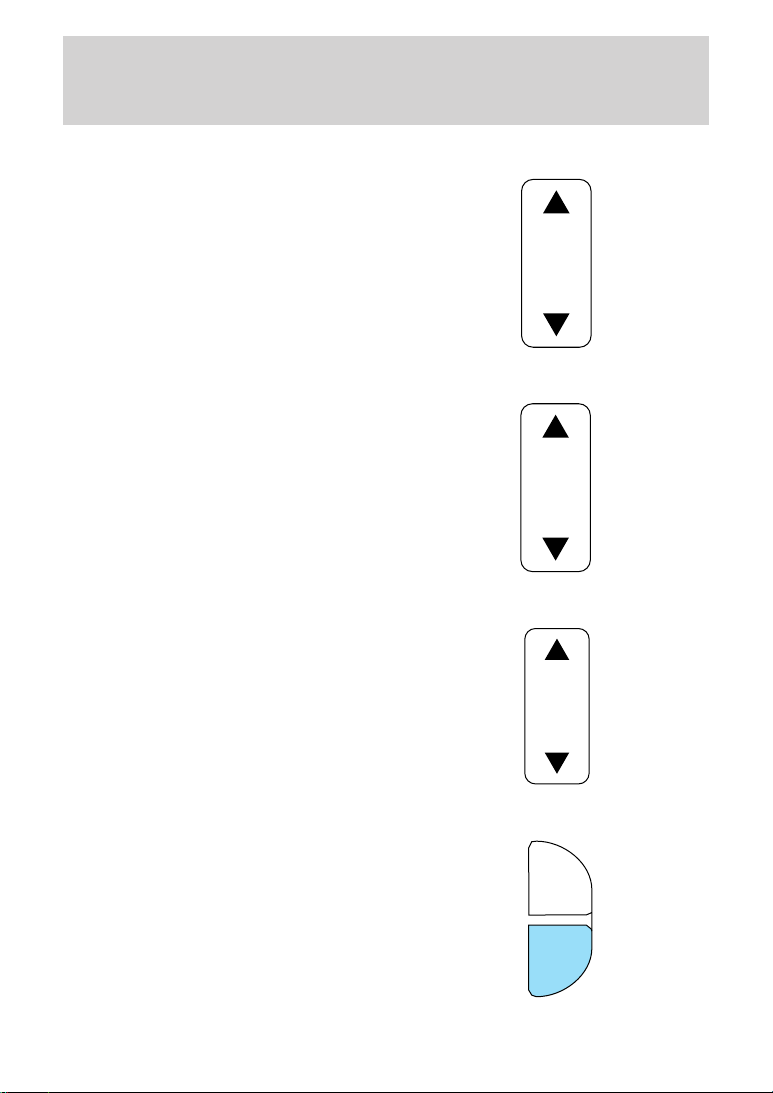

The control is located on the outboard side of the seat cushion. Press front to raise or lower the

front portion of the seat cushion.

Press rear to raise or lower the rear portion of the seat cushion.

Page 68

Seating and safety restraints

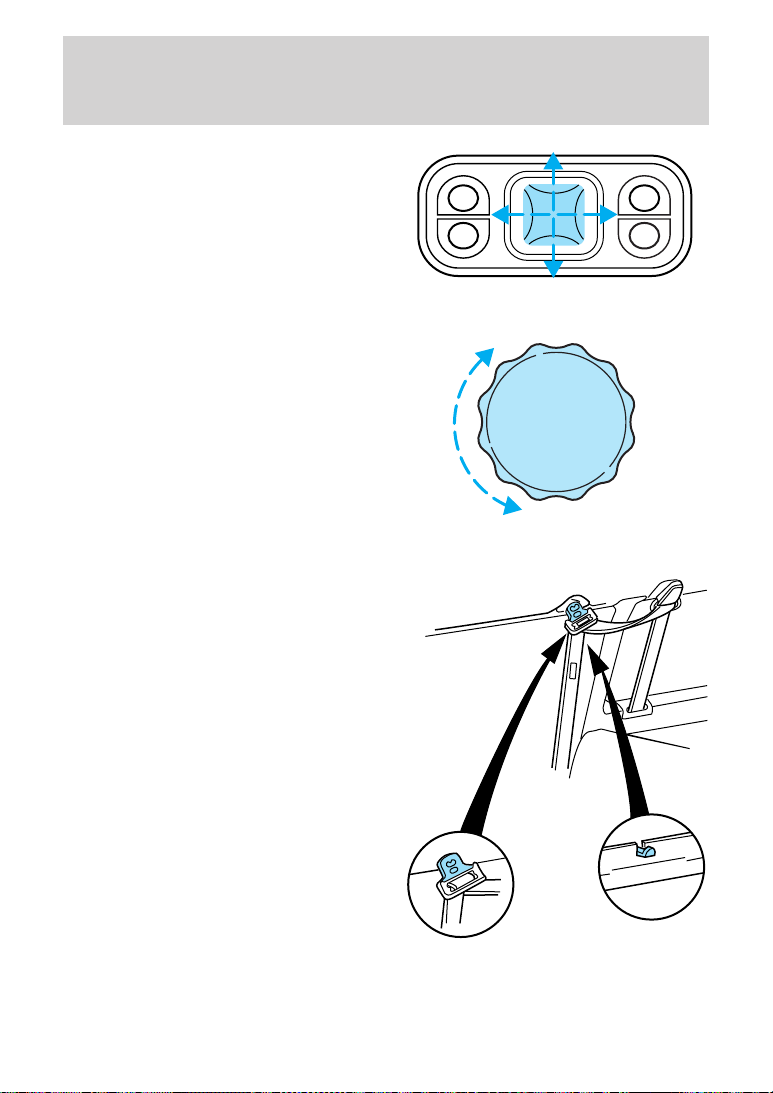

Press the control to move the seat forward, backward, up or down.

Using the manual lumbar support

The lumbar support control is located on the inboard side of the driver’s seat.

Turn the lumbar support control clockwise to increase firmness.

Turn the lumbar support control counterclockwise to increase softness.

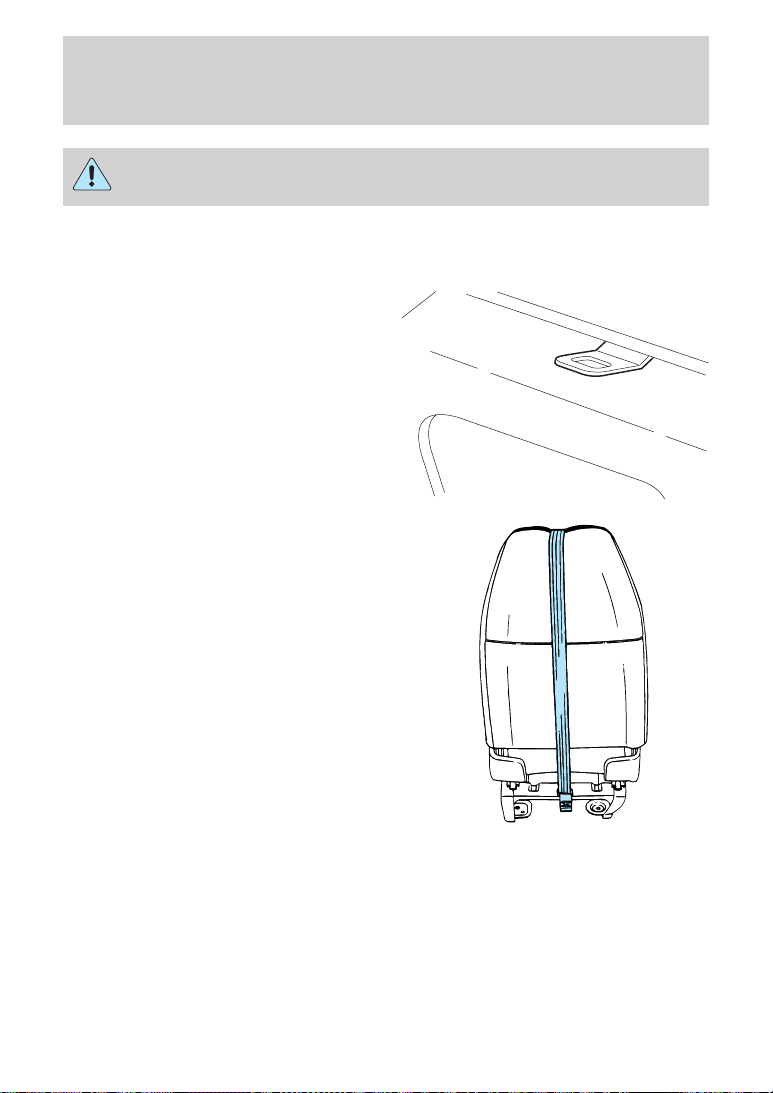

Accessing the 3rd, 4th and 5th row seats (if equipped)

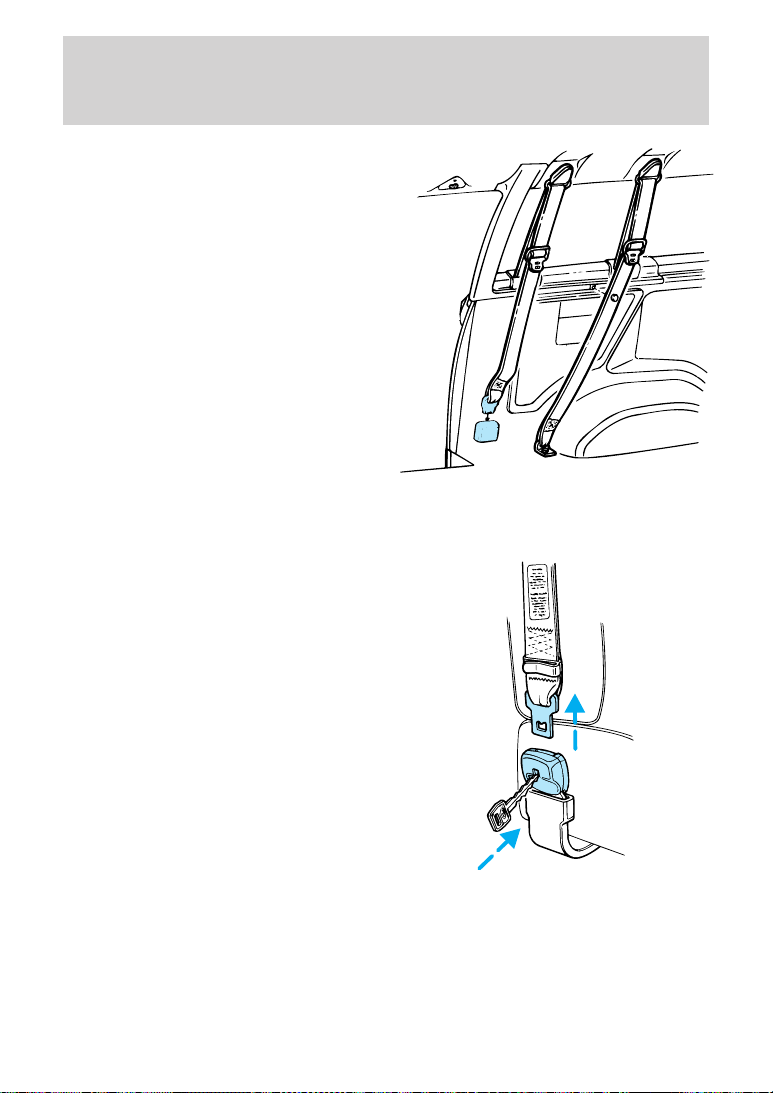

Stow the 2nd row passenger side seat belt on the overhead hook to make access to the rear seats easier.

Page 69

Seating and safety restraints

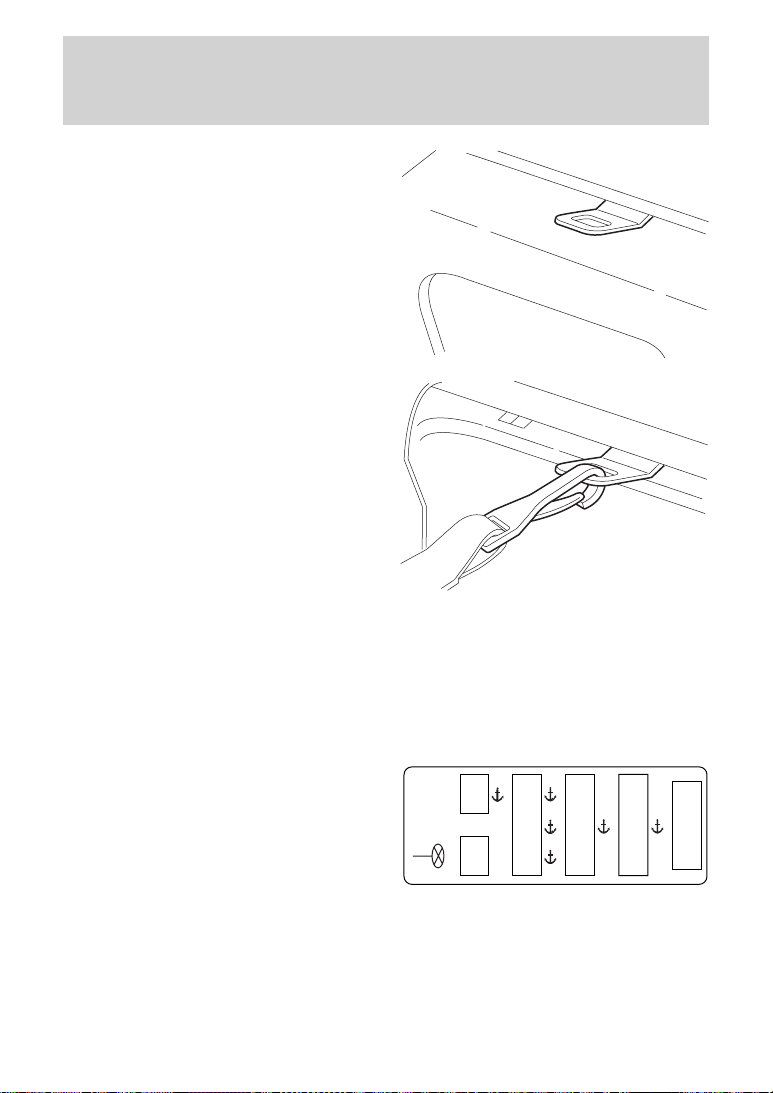

To make access to the 4th and 5th row seats easier, attach the 3rd and 4th row passenger side seat belts to the trim panel by using the snaps attached to the seat belt webbing and the trim panel.

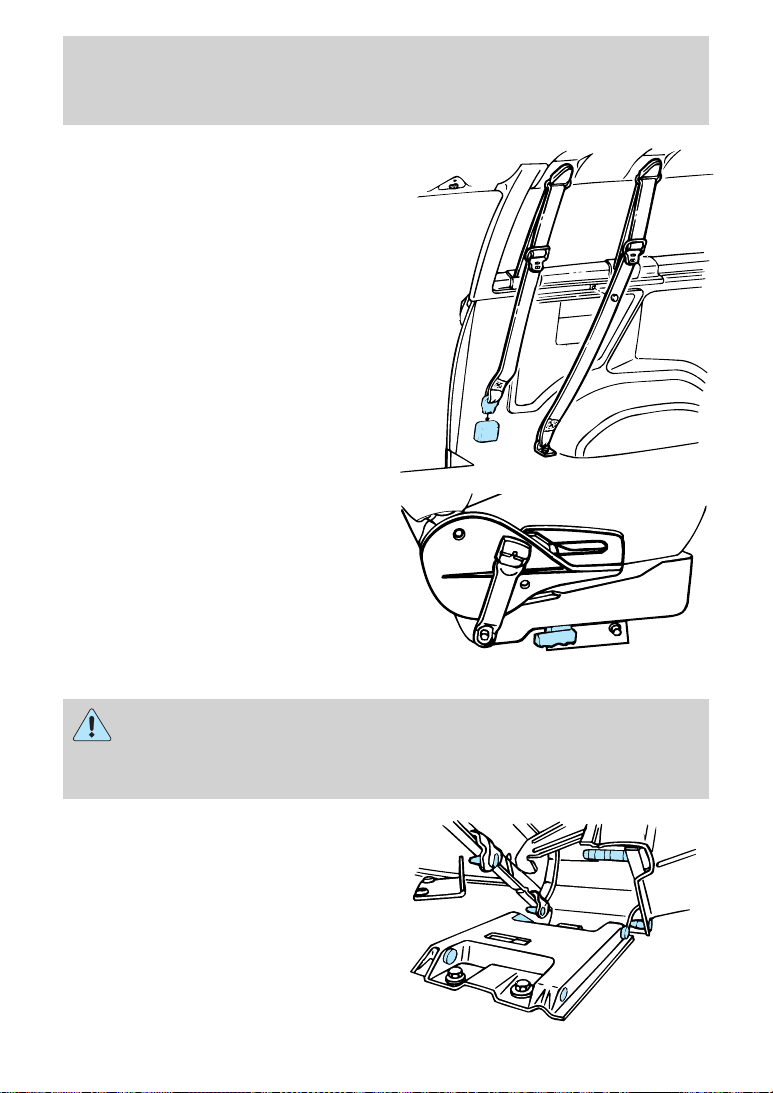

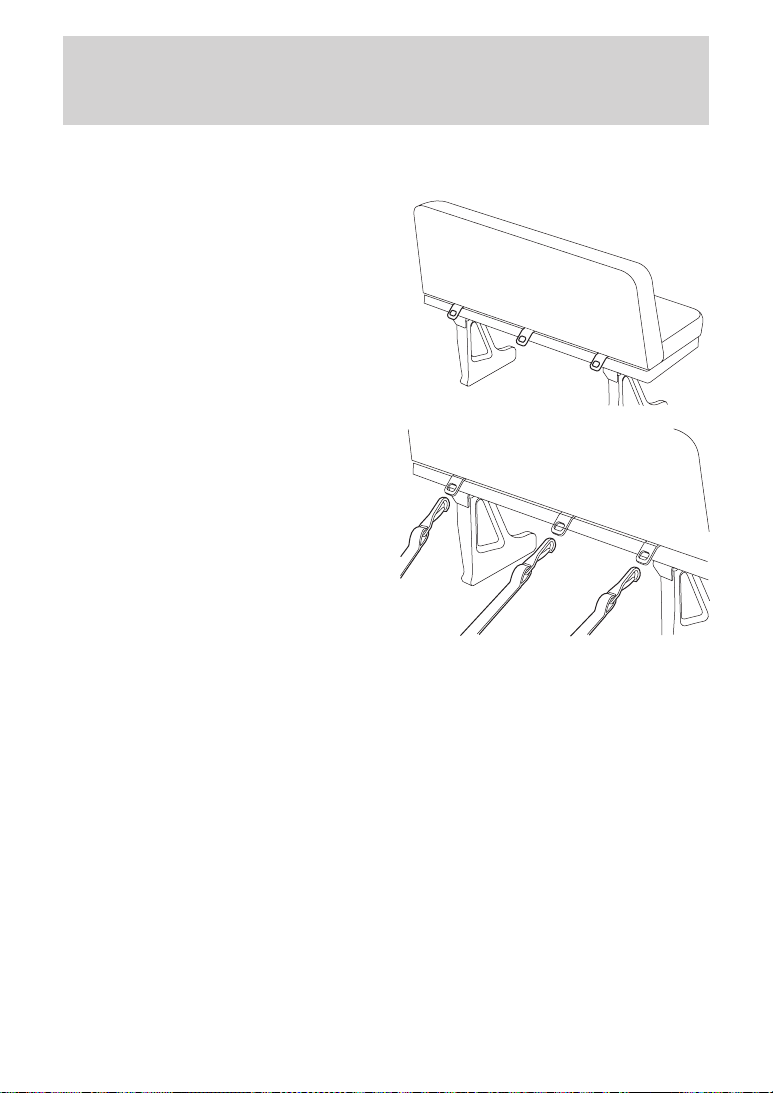

Rear bench seat To remove the seats:

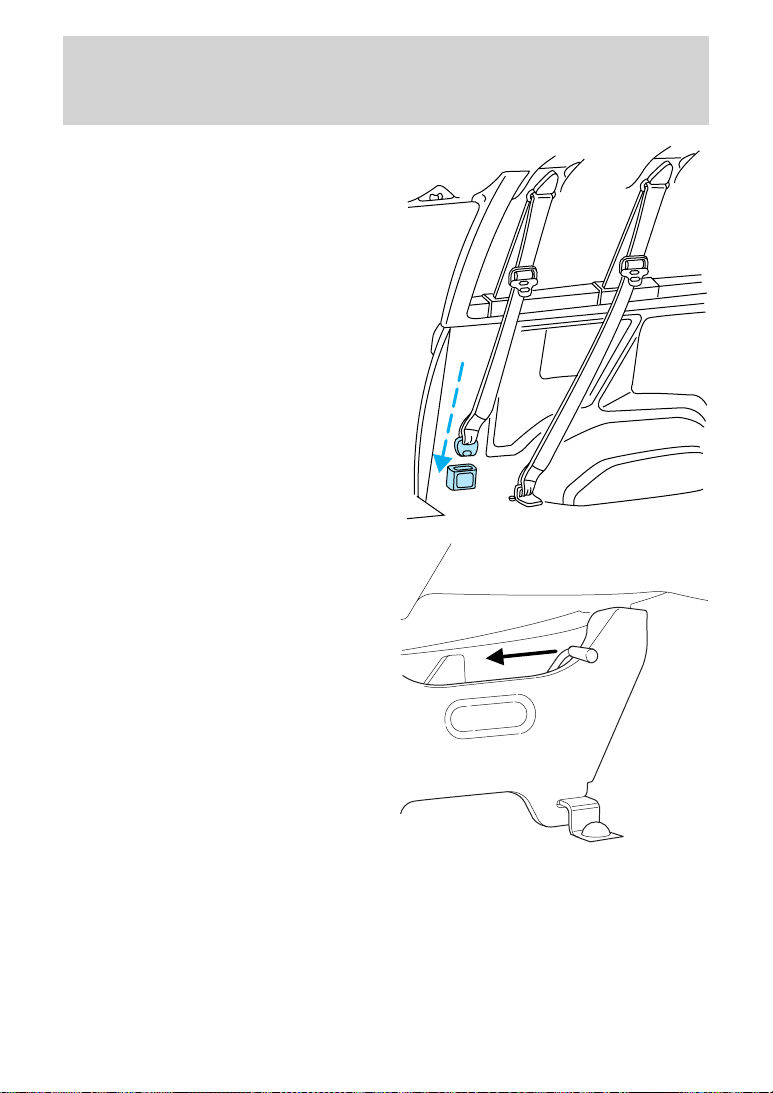

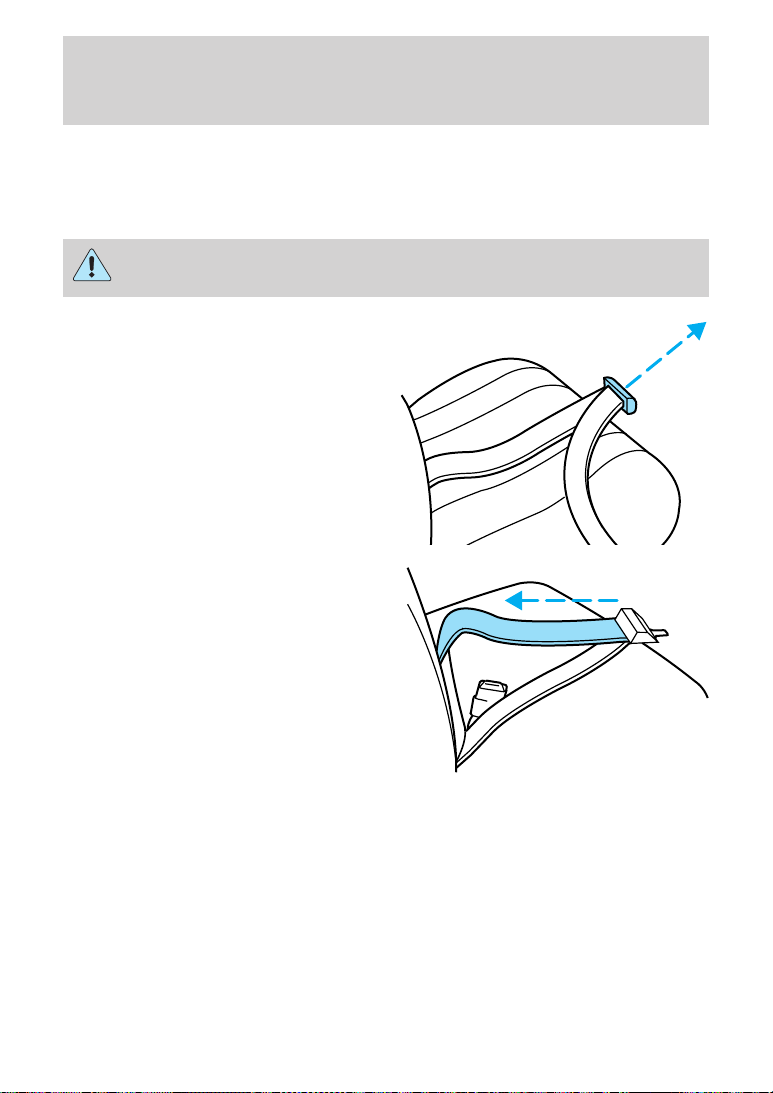

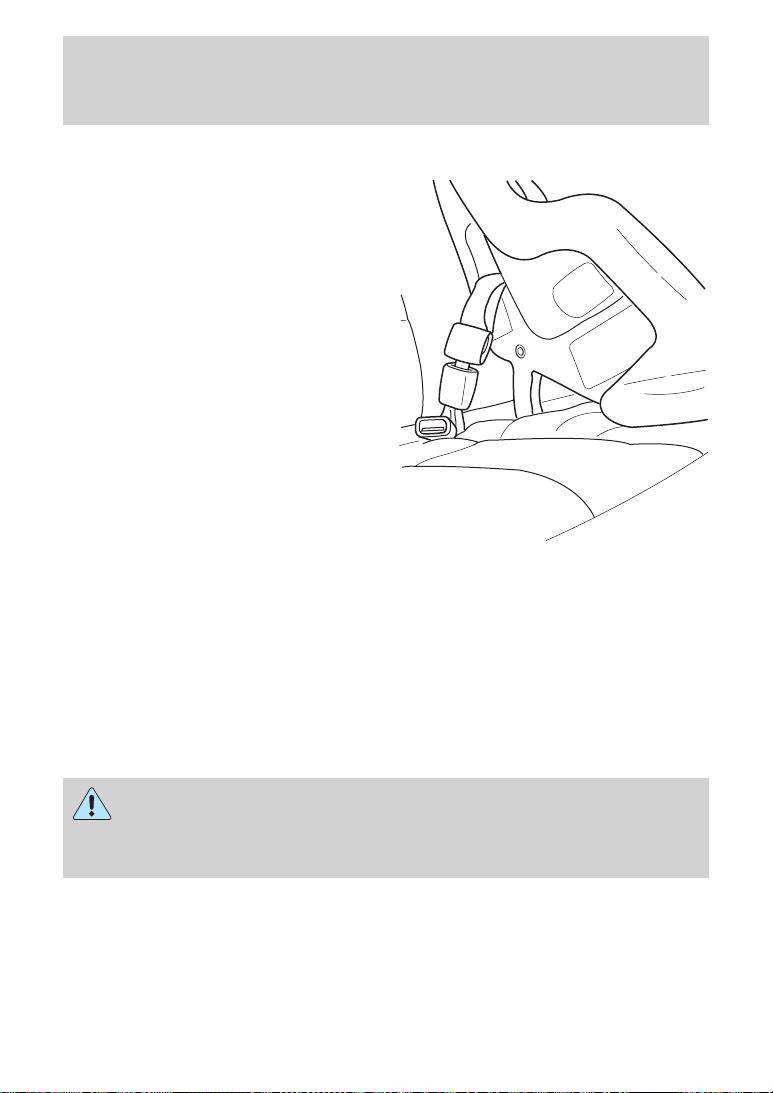

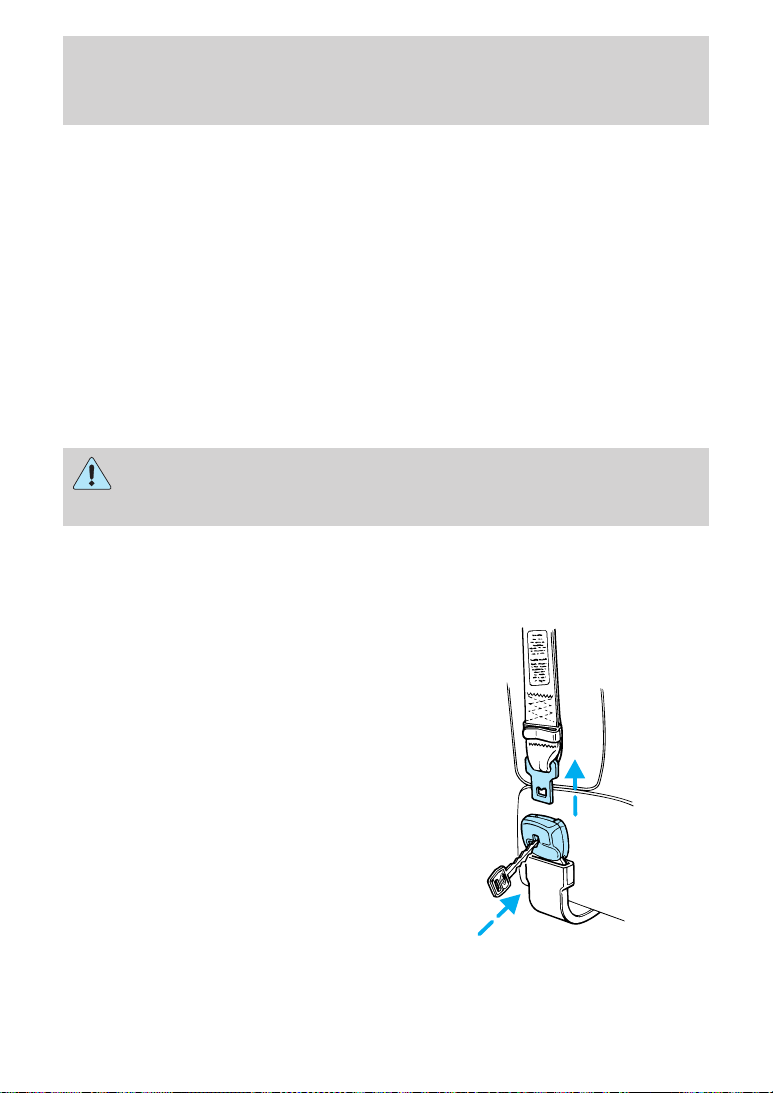

1. Disengage the lap/shoulder belt

from the seat by inserting a key or small screwdriver into the slot in the detachable anchor and lifting upward (2nd row passenger side only).

Page 70

Seating and safety restraints

Stow the tongue end of the detachable anchor (2nd row only).

2. Pull the LH/RH seat latch

handles, located under the seat, rearward to release the latch hook ends from the front strikers.

3. Move the seat rearward and lift the seats rear hooks away from the

rear strikers prior to lifting the front hooks out from the front strikers.

4. With assistance, remove the seat assembly.

• To remove the 3rd, 4th, and 5th row seats (if equipped), repeat steps 2 through 4.

Page 71

Seating and safety restraints

To install the seat:

1. Position the seat in the vehicle.

2. Align front hooks to front strikers, prior to lowering the rear hooks

and aligning them with the rear strikers.

3. Engage the LH/RH latch rod hook ends in the front striker locking

holes.

4. Rotate the LH/RH latch handles forward, and at the same time slide

the seat assembly forward to engage the strikers. Continue forward movement until the seat reaches the end of its travel.

5. Make sure the safety belt is not twisted, then insert the seat belt

tongue into detachable anchor until you hear a “click” and feel the latch engage (2nd row only).

Always latch the vehicle seat to the floor, whether the seat is occupied or empty. If not latched, the seat may cause injury

during a sudden stop.

Quick release captains chair To remove the seats:

1. Disengage the lap/shoulder belt

from the seat by inserting a key or small screwdriver into the slot in the detachable anchor and lifting upward.

Page 72

Seating and safety restraints

Stow the tongue end of the detachable anchor.

2. Pull the seat latch handle, then

pull the seat toward the right side of the vehicle to disengage four pins from the floor mount.

3. Remove the seat.

To install the seats:

Check to see that the seat and seatback is latched securely in

position. Keep floor area free of objects that would prevent proper seat engagement. Never attempt to adjust the seat while the vehicle is in motion.

1. Position the seat to the floor mount.

2. Engage the four pins into the floor mount hole and push the seat toward the left side of the vehicle to fully engage.

Page 73

Seating and safety restraints

3. Pull the seat latch handle downward to lock the seat in position.

4. Make sure the safety belt is not twisted, then insert the seat belt tongue into detachable anchor until you hear a “click” and feel the latch engage.

SAFETY RESTRAINTS Safety restraints precautions

Always drive and ride with your seatback upright and the lap

belt snug and low across the hips.

To reduce the risk of injury, make sure children sit where they

can be properly restrained.

Never let a passenger hold a child on his or her lap while the

vehicle is moving. The passenger cannot protect the child from injury in a collision.

All occupants of the vehicle, including the driver, should always

properly wear their safety belts, even when an air bag SRS is provided.

It is extremely dangerous to ride in a cargo area, inside or

outside of a vehicle. In a collision, people riding in these areas are more likely to be seriously injured or killed. Do not allow people to ride in any area of your vehicle that is not equipped with seats and safety belts. Be sure everyone in your vehicle is in a seat and using a safety belt properly.

In a rollover crash, an unbelted person is significantly more likely

to die than a person wearing a safety belt.

Page 74

Seating and safety restraints

Each seating position in your vehicle has a specific safety belt

assembly which is made up of one buckle and one tongue that are designed to be used as a pair. 1) Use the shoulder belt on the outside shoulder only. Never wear the shoulder belt under the arm.

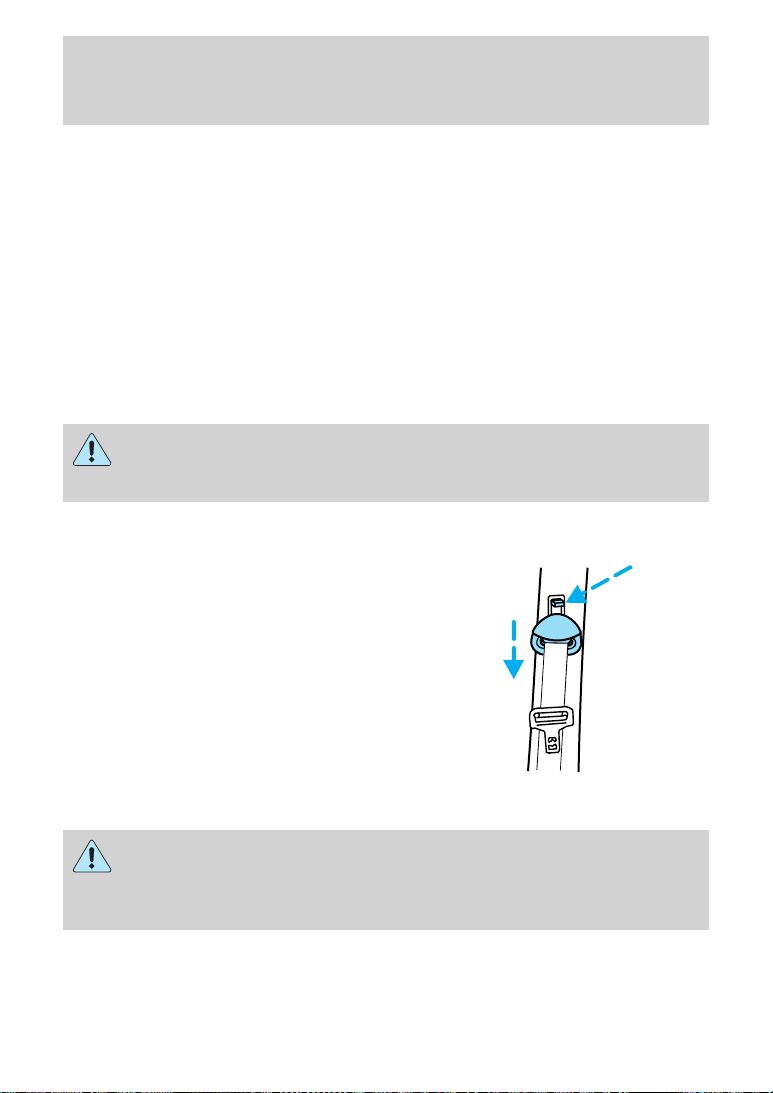

2) Never swing the safety belt around your neck over the inside shoulder. 3) Never use a single belt for more than one person.

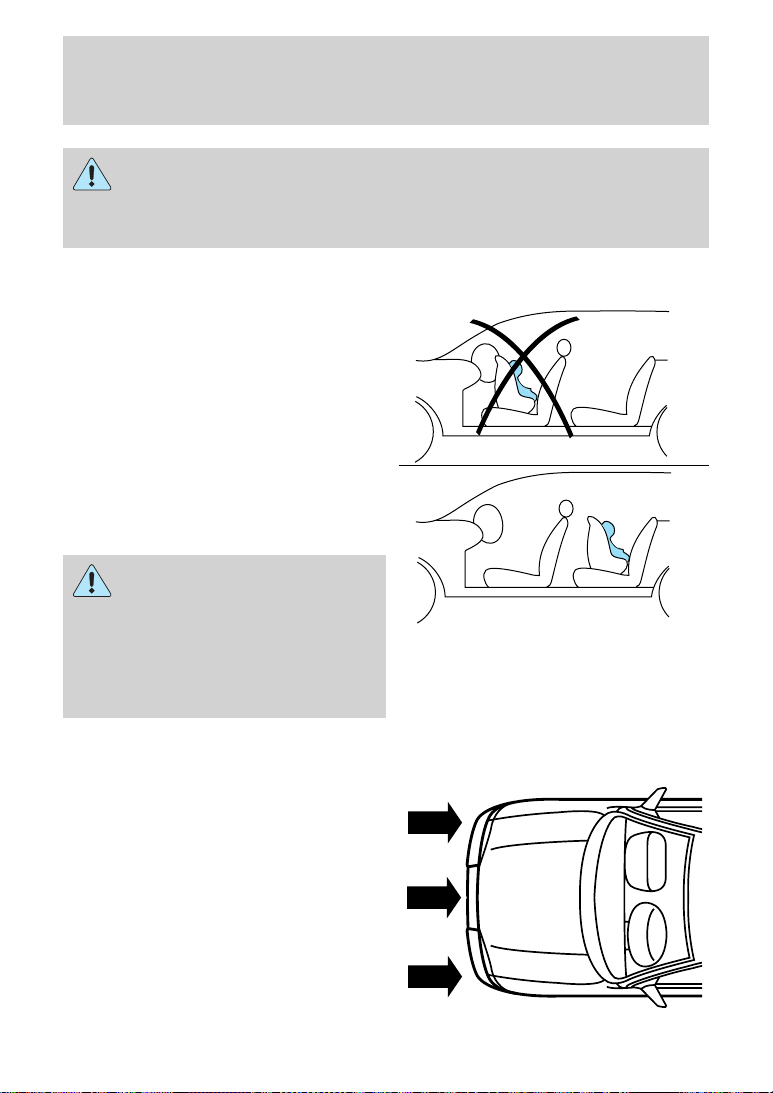

Always transport children 12 years old and under in the back

seat and always properly use appropriate child restraints.

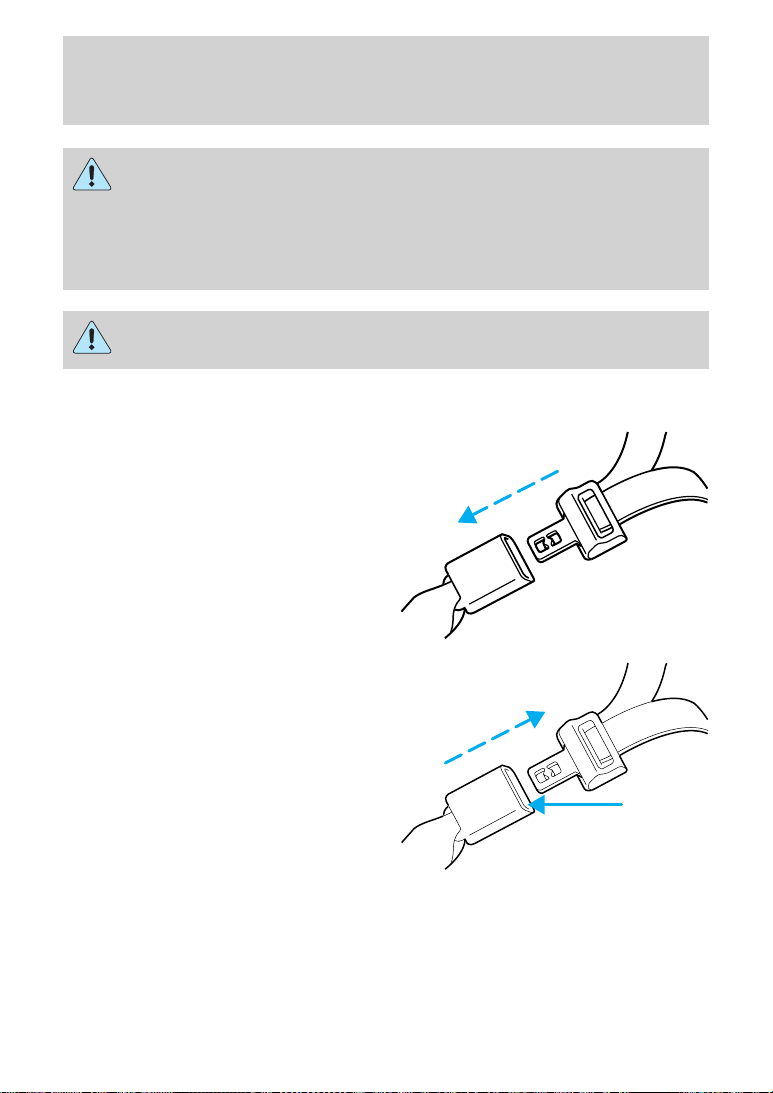

Combination lap and shoulder belts

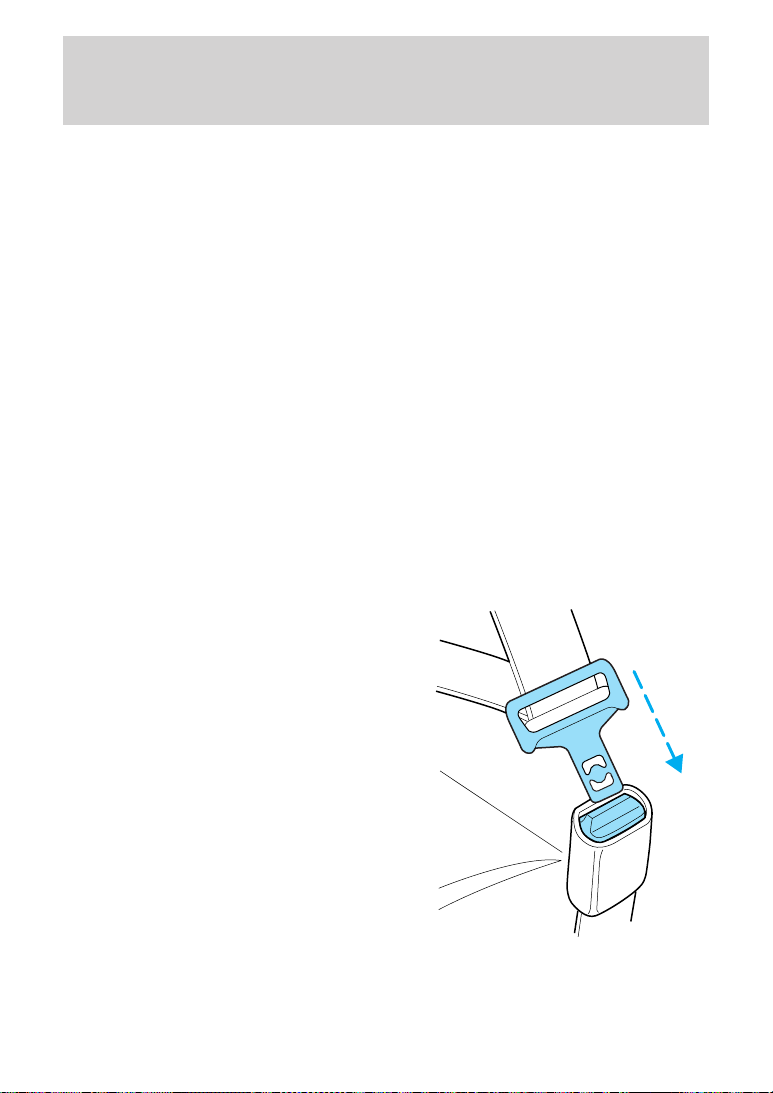

1. Insert the belt tongue into the proper buckle (the buckle closest to the direction the tongue is coming from) until you hear a snap and feel it latch. Make sure the tongue is securely fastened in the buckle.

2. To unfasten, push the release button and remove the tongue from the buckle.

The front and rear outboard safety restraints in the vehicle are combination lap and shoulder belts. The front passenger and rear seat outboard safety belts have two types of locking modes described below:

Page 75

Seating and safety restraints

Vehicle sensitive mode

The vehicle sensitive mode is the normal retractor mode, allowing free shoulder belt length adjustment to your movements and locking in response to vehicle movement. For example, if the driver brakes suddenly or turns a corner sharply, or the vehicle receives an impact of approximately 8 km/h (5 mph) or more, the combination safety belts will lock to help reduce forward movement of the driver and passengers.

Automatic locking mode

In this mode, the shoulder belt is automatically pre-locked. The belt will still retract to remove any slack in the shoulder belt.

The automatic locking mode is not available on the driver safety belt.

When to use the automatic locking mode

• Anytime a child safety seat is installed in a passenger front or outboard rear seating position (if equipped). Children 12 years old and under should be properly restrained in the rear seat whenever possible. Refer to Safety Restraints for Children or Safety Seats for Children later in this chapter.

How to use the automatic locking mode

• Buckle the combination lap and shoulder belt.

Page 76

Seating and safety restraints

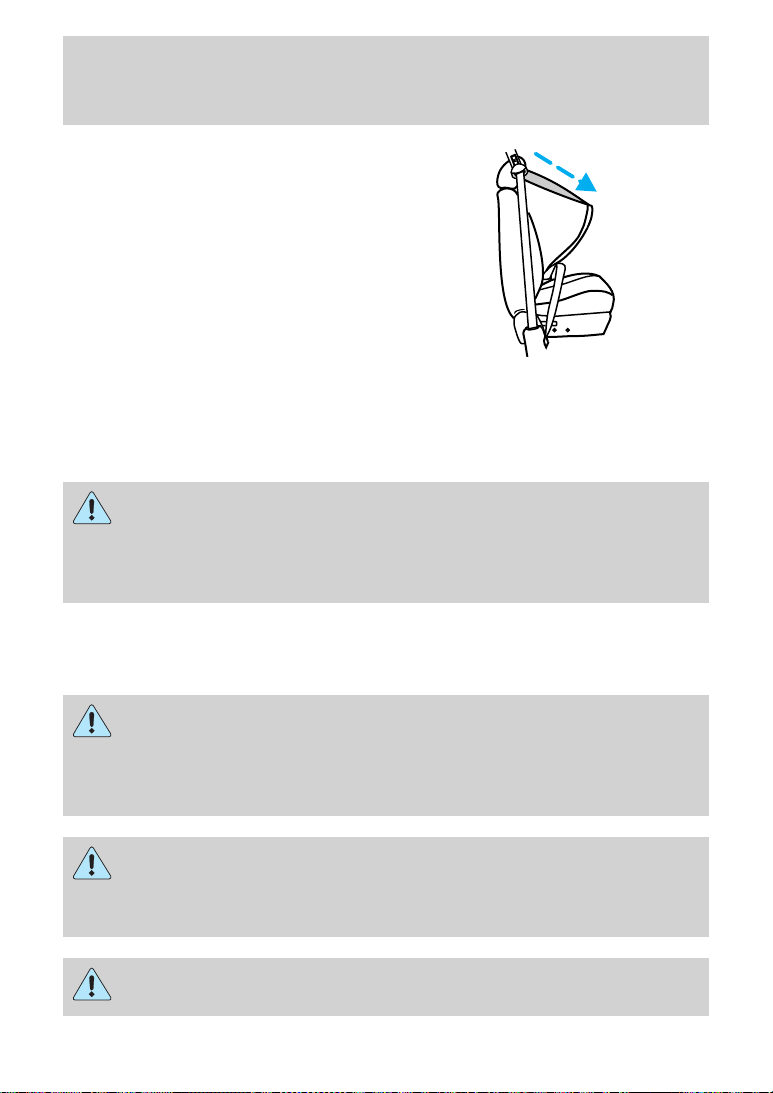

• Grasp the shoulder portion and pull downward until the entire belt is extracted.

• Allow the belt to retract. As the belt retracts, you will hear a clicking sound. This indicates the safety belt is now in the automatic locking mode.

How to disengage the automatic locking mode

Ford recommends that all safety belt assemblies and attaching

hardware should be inspected by a qualified technician after any collision. Safety belt assemblies not in use during a collision should also be inspected and replaced if either damage or improper operation is noted.

Disconnect the combination lap/shoulder belt and allow it to retract completely to disengage the automatic locking mode and activate the vehicle sensitive (emergency) locking mode.

After any vehicle collision, the front passenger outboard seat belt

system must be checked by a qualified technician to verify that the “automatic locking retractor” feature for child seats is still functioning properly. In addition, all seat belts should be checked for proper function.

BELT AND RETRACTOR ASSEMBLY MUST BE REPLACED if

the seat belt assembly “automatic locking retractor” feature or any other seat belt function is not operating properly when checked according to the procedures in Workshop Manual.

Failure to replace the Belt and Retractor assembly could

increase the risk of injury in collisions.

Page 77

Seating and safety restraints

Safety belt pretensioner

Your vehicle is equipped with safety belt pretensioners at the driver and front passenger seating positions.

The safety belt pretensioner is a device which removes excess webbing from the safety belt system. The safety belt pretensioner uses the same crash sensor system as the front air bag supplemental restraint system (SRS). When the safety belt pretensioner deploys, webbing from the lap and shoulder belt is tightened. The driver and front passenger seat belt system (including retractors, buckles and height adjusters) must be replaced if the vehicle is involved in a collision that results in deployment of front air bags and safety belt pretensioners. Refer to the Safety belt maintenance section in this chapter.

Failure to replace the safety belt assembly under the above

conditions could result in severe personal injuries in the event of a collision.

Front safety belt height adjustment

Your vehicle has safety belt height adjustments for the driver and front passenger. Adjust the height of the shoulder belt so the belt rests across the middle of your shoulder.

To lower the shoulder belt height, push the button and slide the height adjuster down. To raise the height of the shoulder belt, slide the height adjuster up. Pull down on the height adjuster to make sure it is locked in place.

Position the shoulder belt height adjusters so that the belt rests

across the middle of your shoulder. Failure to adjust the safety belt properly could reduce the effectiveness of the seat belt and increase the risk of injury in a collision.

Page 78

Seating and safety restraints

Lap belts

Adjusting the center lap belt

The lap belt does not adjust automatically.

The lap belt should fit snugly and as low as possible around the

hips, not across the waist.

Insert the tongue into the correct buckle (the buckle closest to the direction the tongue is coming from). To lengthen the belt, turn the tongue at a right angle to the belt and pull across your lap until it reaches the buckle. To tighten the belt, pull the loose end of the belt through the tongue until it fits snugly across the hips.

Shorten and fasten the belt when not in use.

Safety belt extension assembly

If the safety belt assembly is too short for you, even when fully extended, 20 cm (8 inches) can be added to the safety belt assembly by adding a safety belt extension assembly (part number 611C22). Safety belt extension assemblies can be obtained from your dealer at no cost.

Use only extensions manufactured by the same supplier as the safety belt. Manufacturer identification is located at the end of the webbing on the label. Also, use the safety belt extension only if the safety belt is too short for you when fully extended. Do not use extensions to change the fit of the shoulder belt across the torso.

Page 79

Seating and safety restraints

Safety belt warning light and indicator chime

The seat belt warning light illuminates in the instrument cluster and a chime sounds to remind the occupants to fasten their safety belts.

Conditions of operation

If... Then...

The driver’s safety belt is not buckled before the ignition switch is turned to the ON position...

The driver’s safety belt is buckled while the indicator light is illuminated and the warning chime is sounding...

The driver’s safety belt is buckled before the ignition switch is turned to the ON position...

Belt minder

The Belt Minder feature is a supplemental warning to the safety belt warning function. This feature provides additional reminders to the driver that the driver’s safety belt is unbuckled by intermittently sounding a chime and illuminating the safety belt warning lamp in the instrument cluster.

If... Then...

The driver’s safety belt is not buckled approximately 5 seconds after the safety belt warning light has turned off...

The driver’s safety belt is buckled while the safety belt indicator light is illuminated and the safety belt warning chime is sounding...

The driver’s safety belt is buckled before the ignition switch is turned to the ON position...

The safety belt warning light illuminates and the warning chime sounds 4-8 seconds.

The safety belt warning light and warning chime turn off.

The indicator chime will remain off and the safety belt warning lamp will illuminate for 4-8 seconds.

The Belt Minder feature is activated - the safety belt warning light illuminates and the warning chime sounds for 6 seconds every 30 seconds, repeating for approximately 5 minutes or until safety belt is buckled.

The Belt Minder feature will not activate.

Page 80

Seating and safety restraints

The purpose of the Belt Minder is to remind occasional wearers to wear safety belts all of the time.

The following are reasons most often given for not wearing safety belts: (All statistics based on U.S. data)

Reasons given... Consider...

9Crashes are rare events9

9I’m not going far9 3of4fatal crashes occur within 25 miles of home. 9Belts are

uncomfortable9

9I was in a hurry9 Prime time for an accident. Belt Minder reminds

9Seat belts don’t work9

9Traffic is light9 Nearly 1 of 2 deaths occur in single-vehicle

9Belts wrinkle my clothes9

9The people I’m

with don’t wear belts9

9I have an air bag9 Air bags offer greater protection when used with

9I’d rather be thrown clear9

36 700 crashes occur every day. The more we drive, the more we are exposed to 9rare9 events, even for good drivers. 1 in 4 of us will be

seriously injured in a crash during our lifetime.

Ford designs its safety belts to enhance comfort. If you are uncomfortable - try different positions for the safety belt upper anchorage and seatback which should be as upright as possible; this can improve comfort.

us to take a few seconds to buckle up.

Safety belts, when used properly, reduce risk of death to front seat occupants by 45% in cars, and by 60% in light trucks.

crashes, many when no other vehicles are around.

Possibly, but a serious crash can do much more than wrinkle your clothes, particularly if you are unbelted.

Set the example, teen deaths occur 4 times more often in vehicles with TWO or MORE people. Children and younger brothers/sisters imitate behavior they see.

safety belts. Frontal airbags are not designed to inflate in rear and side crashes or rollovers.

Not a good idea. People who are ejected are 40 times more likely to DIE. Safety belts help prevent ejection, WE CAN’T 9PICK OUR CRASH9.

Page 81

Seating and safety restraints

Do not sit on top of a buckled safety belt to avoid the Belt

Minder chime. Sitting on the safety belt will increase the risk of injury in an accident. To disable (one-time) or deactivate the Belt Minder feature please follow the directions stated below.

One time disable

Anytime the safety belt is buckled and then unbuckled during an ignition ON cycle, Belt Minder will be disabled for that ignition cycle only.

Deactivating/activating the belt minder feature

Read steps1-9thoroughly before proceeding with the deactivation/activation programming procedure.

The Belt Minder feature can be deactivated/activated by performing the following procedure:

Before following the procedure, make sure that:

• the parking brake is set

• the gearshift is in P (Park) (automatic transmission)

• the ignition switch is in the OFF position

• all vehicle doors are closed

• the driver’s safety belt is unbuckled

• the parklamps/headlamps are in OFF position (If vehicle is equipped

with Autolamps, this will not affect the procedure.)

To reduce the risk of injury, do not deactivate/activate the Belt

Minder feature while driving the vehicle.

1. Turn the ignition switch to the RUN (or ON) position. (DO NOT START THE ENGINE)

2. Wait at least one minute after the safety belt warning light turns off.

• Steps 3–5 must be completed within 60 seconds or the procedure will have to be repeated.

3. Buckle then unbuckle the safety belt three times, ending with the

safety belt unbuckled. This can be done before or during Belt Minder warning activation.

4. Turn on the parklamps/headlamps, turn off the parklamps/headlamps.

Page 82

Seating and safety restraints

5. Buckle then unbuckle the safety belt three times, ending with the

safety belt unbuckled.

• After step 5 the safety belt warning light will be turned on for three seconds.

6. Within seven seconds of the safety belt warning light turning off,

buckle then unbuckle the safety belt.

• This will disable Belt Minder if it is currently enabled, or enable Belt Minder if it is currently disabled.

7. Confirmation of disabling Belt Minder is provided by flashing the

safety belt warning light four times per second for three seconds.

8. Confirmation of enabling Belt Minder is provided by flashing the safety

belt warning light four times per second for three seconds, followed by three seconds with the safety belt warning light off, then followed by flashing the safety belt warning light four times per second for three seconds again.

9. After receiving confirmation, the deactivation/activation procedure is

complete.

Safety belt maintenance

Inspect the safety belt systems periodically to make sure they work properly and are not damaged. Inspect the safety belts to make sure there are no nicks, wears or cuts, replacing if necessary. All safety belt assemblies, including retractors, buckles, front seat belt buckle assemblies, buckle support assemblies (slide bar-if equipped), shoulder belt height adjusters (if equipped), shoulder belt guide on seatback (if equipped), child safety seat tether bracket assemblies (if equipped), LATCH child seat tether anchors and lower anchors (if equipped), and attaching hardware, should be inspected after a collision. Ford recommends that all safety belt assemblies used in vehicles involved in a collision be replaced. However, if the collision was minor and a qualified technician finds that the belts do not show damage and continue to operate properly, they do not need to be replaced. Safety belt assemblies not in use during a collision should also be inspected and replaced if either damage or improper operation is noted.

Failure to inspect and if necessary replace the safety belt assembly under the above conditions could result in severe

personal injuries in the event of a collision.

Page 83

Seating and safety restraints

Refer to Cleaning and maintaining the safety belts in the Maintenance and care section.

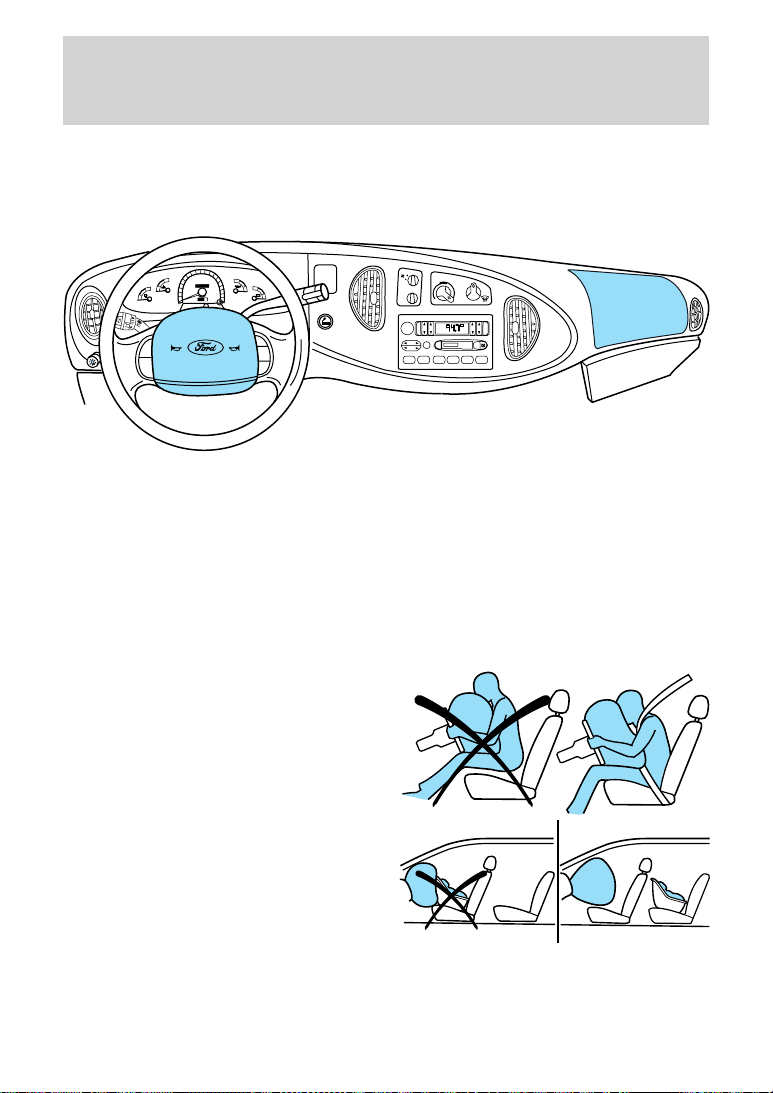

AIR BAG SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

• 100

•

OFF

120

•

000005

40•

•140

20•km/h

•

000

100

P R N D 2 1

+ -

OVERDRIVE

RES

SET

ACCEL

COAST

Your vehicle is equipped with a crash sensing and diagnostic module which records information about the air bag and sensor systems. In the event of a collision this module may save information related to the collision including information about the air bag system and impact severity. This information will assist Ford in the servicing of your vehicle and may help Ford better understand real world collisions and further improve the safety of future vehicles.

Important supplemental restraint system (SRS) precautions

The supplemental restraint system is designed to work with the safety belt to help protect the driver and right front passenger from certain upper body injuries.

Air bags DO NOT inflate slowly or gently and the risk of injury from a deploying air bag is greatest close to the trim covering the air bag module.

FAN

VOL-PUSH ON

OFF

VENT

FLR

MIX

NORM

A/C

MAX A/C

COOL

WARM

FM 1

BAL FADE

BASS

TREB

SEEK

SCAN EJ

TUNE

REW

CLK

DOLBY 8 NR

TAPE

SIDE 1-2

Page 84

Seating and safety restraints

All occupants of the vehicle, including the driver, should always properly wear their safety belts, even when an air bag SRS is

provided.

Always transport children 12 years old and under in the back seat and always properly use appropriate child restraints.

National Highway Traffic Safety Administration (NHTSA) recommends a minimum distance of at least 25 cm (10 inches)

between an occupant’s chest and the driver air bag module.

Never place your arm over the air bag module as a deploying air bag can result in serious arm fractures or other injuries.

Steps you can take to properly position yourself away from the air bag:

• Move your seat to the rear as far as you can while still reaching the pedals comfortably.

• Recline the seat slightly (one or two degrees) from the upright position.

Do not put anything on or over the air bag module. Placing

objects on or over the air bag inflation area may cause those objects to be propelled by the air bag into your face and torso causing serious injury.

Do not attempt to service, repair, or modify the Air Bag

Supplemental Restraint System or its fuses. See your Ford or Lincoln Mercury dealer.

Modifications to the front end of the vehicle, including frame,

bumper, front end body structure and tow hooks may effect the performance of the air bag sensors increasing the risk of injury. Do not modify the front end of the vehicle.

Page 85

Seating and safety restraints

Additional equipment may effect the performance of the air bag

sensors increasing the risk of injury. Please refer to the Body Builders Layout Book for instructions about the appropriate installation of additional equipment.

Children and air bags

For additional important safety information, read all information on safety restraints in this guide.

Children must always be properly restrained. Accident statistics suggest that children are safer when properly restrained in the rear seating positions than in the front seating position. Failure to follow these instructions may increase the risk of injury in a collision.

Air bags can kill or injure a

child in a child seat. NEVER place a rear-facing child seat in front of an active air bag. If you must use a forward-facing child seat in the front seat, move the seat all the way back.

How does the air bag supplemental restraint system work?

The air bag SRS is designed to activate when the vehicle sustains longitudinal deceleration sufficient to cause the sensors to close an electrical circuit that initiates air bag inflation.

The fact that the air bags did not inflate in a collision does not mean that something is wrong with the system. Rather, it means the forces were not of the type sufficient to

Page 86

Seating and safety restraints

cause activation. Air bags are designed to inflate in frontal and near-frontal collisions, not rollover, side-impact, or rear-impacts unless the collision causes sufficient longitudinal deceleration.

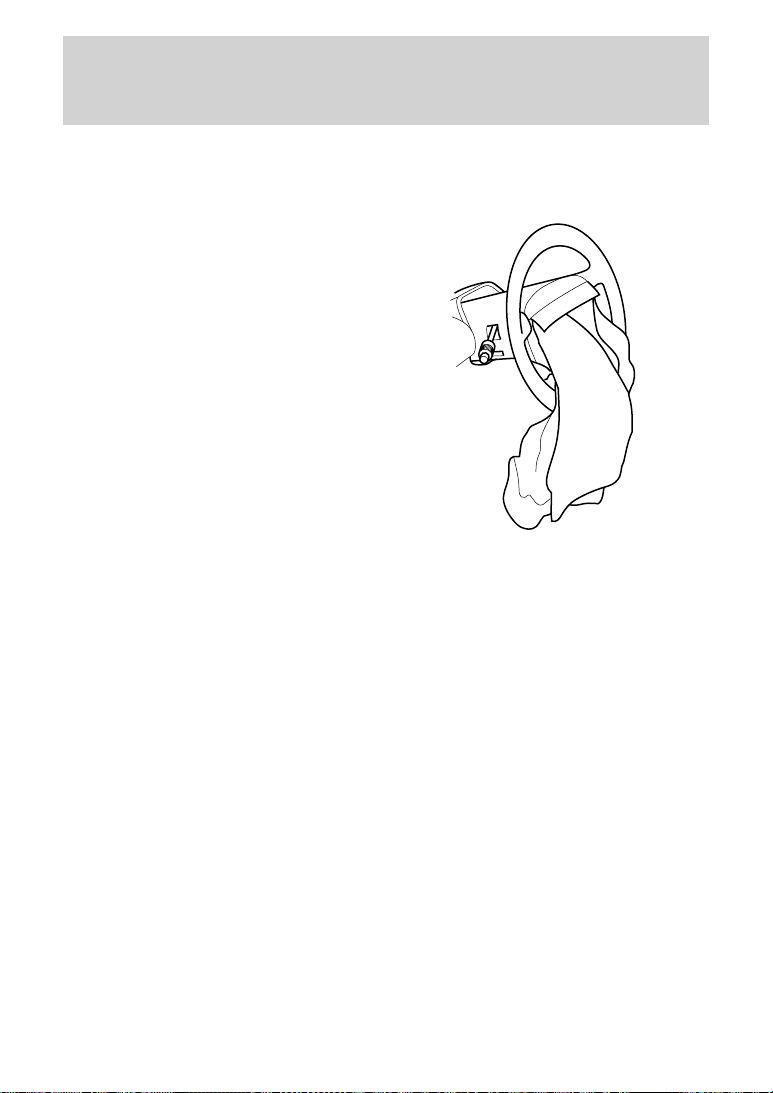

The air bags inflate and deflate rapidly upon activation. After air bag deployment, it is normal to notice a smoke-like, powdery residue or smell the burnt propellant. This may consist of cornstarch, talcum powder (to lubricate the bag) or sodium compounds (e.g., baking soda) that result from the combustion process that inflates the air bag. Small amounts of sodium hydroxide may be present which may irritate the skin and eyes, but none of the residue is toxic.

While the system is designed to help reduce serious injuries, contact with a deploying air bag may also cause abrasions, swelling or temporary hearing loss. Because air bags must inflate rapidly and with considerable force, there is the risk of death or serious injuries such as fractures, facial and eye injuries or internal injuries, particularly to occupants who are not properly restrained or are otherwise out of position at the time of air bag deployment. Thus, it is extremely important that occupants be properly restrained as far away from the air bag module as possible while maintaining vehicle control.

The SRS consists of:

• driver and passenger air bag modules (which include the inflators and air bags),

• one or more impact and safing sensors,

• a readiness light and tone

• a diagnostic module

• and the electrical wiring which connects the components.

The diagnostic module monitors its own internal circuits and the supplemental air bag electrical system warning (including the impact sensors), the system wiring, the air bag system readiness light, the air bag back up power and the air bag ignitors.

Page 87

Seating and safety restraints

Several air bag system components get hot after inflation. Do not touch them after inflation.

If the air bag has deployed, the air bag will not function

again and must be replaced immediately. If the air bag is not replaced, the unrepaired area will increase the risk of injury in a collision.

Determining if the system is operational

The SRS uses a readiness light in the instrument cluster or a tone to indicate the condition of the system. Refer to the Air bag readiness section in the Instrumentation chapter. Routine maintenance of the air bag is not required.

A difficulty with the system is indicated by one or more of the following:

• The readiness light will either flash or stay lit.

• The readiness light will not illuminate immediately after ignition is turned on.

• A series of five beeps will be heard. The tone pattern will repeat periodically until the problem and/or light are repaired.

If any of these things happen, even intermittently, have the SRS serviced at your dealership or by a qualified technician immediately. Unless serviced, the system may not function properly in the event of a collision.

Disposal of air bags and air bag equipped vehicles (including pretensioners)

For disposal of air bags or air bag equipped vehicles, see your local dealership or qualified technician. Air bags MUST BE disposed of by qualified personnel.

SAFETY RESTRAINTS FOR CHILDREN

See the following sections for directions on how to properly use safety restraints for children. Also see Air Bag Supplemental Restraint System (SRS) in this chapter for special instructions about using air bags.

Page 88

Seating and safety restraints

Important child restraint precautions

You are required by law to use safety restraints for children in the U.S. and Canada. If small children ride in your vehicle (generally children who are four years old or younger and who weigh 18 kg [40 lbs] or less), you must put them in safety seats made especially for children. Check your local and state or provincial laws for specific requirements regarding the safety of children in your vehicle.

Never let a passenger hold a child on his or her lap while the vehicle is moving. The passenger cannot protect the child from

injury in a collision.

Always follow the instructions and warnings that come with any infant or child restraint you might use.

When possible, always place children under age 12 in the rear seat of your vehicle. Accident statistics suggest that children are safer when properly restrained in the rear seating positions than in the front seating position.

Install forward-facing convertible safety seats only in vehicle seating positions equipped with lap-shoulder belts. Forward facing convertible safety seats can be used in the center of the three-passenger second row bench seat only if a top tether strap is used. Ford recommends placing forward-facing safety seats in the second row and using safety seats with top tether straps for added protection. For more information on top tether straps, see Attaching safety seats with tether straps in this section.

Any booster seat that places the vehicle’s lap belt or shoulder belt around a shield above and ahead of the child’s hips should not be used in this vehicle.

Do not use a forward–facing safety seat or an infant seat in the last row of a 12– or 15–passenger Club Wagon.

Children and safety belts

If the child is the proper size, restrain the child in a safety seat. Children who are too large for child safety seats (as specified by your

child safety seat manufacturer) should always wear safety belts.

Page 89

Seating and safety restraints

Follow all the important safety restraint and air bag precautions that apply to adult passengers in your vehicle.

If the shoulder belt portion of a combination lap and shoulder belt can be positioned so it does not cross or rest in front of the child’s face or neck, the child should wear the lap and shoulder belt. Moving the child closer to the center of the vehicle may help provide a good shoulder belt fit.

Do not leave children, unreliable adults, or pets unattended in your vehicle.

To improve the fit of lap and shoulder belts on children who have outgrown child safety seats, Ford recommends use of a belt-positioning booster seat that is labelled as conforming to all applicable Federal motor vehicle safety standards. Belt-positioning booster seats raise the child and provide a shorter, firmer seating cushion that encourages safer seating posture and better fit of lap and shoulder belts on the child.

A belt-positioning booster should be used if the shoulder belt rests in front of the child’s face or neck, or if the lap belt does not fit snugly on both thighs, or if the thighs are too short to let the child sit all the way back on the seat cushion when the lower legs hang over the edge of the seat cushion. You may wish to discuss the special needs of your child with your pediatrician.

SAFETY SEATS FOR CHILDREN

Child and infant or child safety seats

Use a safety seat that is recommended for the size and weight of the child. Carefully follow all of the manufacturer’s instructions with the safety seat you put in your vehicle. If you do not install and use the safety seat properly, the child may be injured in a sudden stop or collision.

Page 90

Seating and safety restraints

When installing a child safety seat:

• Review and follow the information presented in the Air Bag

Supplemental Restraint System

section in this chapter.

• Use the correct safety belt buckle for that seating position (the buckle closest to the direction the tongue is coming from).

• Insert the belt tongue into the proper buckle until you hear a snap and feel it latch. Make sure the tongue is securely fastened in the buckle.

• Keep the buckle release button pointing up and away from the safety seat, with the tongue between the child seat and the release button, to prevent accidental unbuckling.

• Place seat back in upright position.

• Put the safety belt in the automatic locking mode. Refer to Automatic

locking mode (passenger side front and outboard rear seating positions) (if equipped).

Ford recommends the use of a child safety seat having a top tether strap. Install the child safety seat in a seating position which is capable of providing a tether anchorage. For more information on top tether straps, refer to Attaching safety seats with tether straps.

Carefully follow all of the manufacturer’s instructions included

with the safety seat you put in your vehicle. If you do not install and use the safety seat properly, the child may be injured in a sudden stop or collision.

Page 91

Seating and safety restraints

Installing child safety seats in combination lap and shoulder belt seating positions

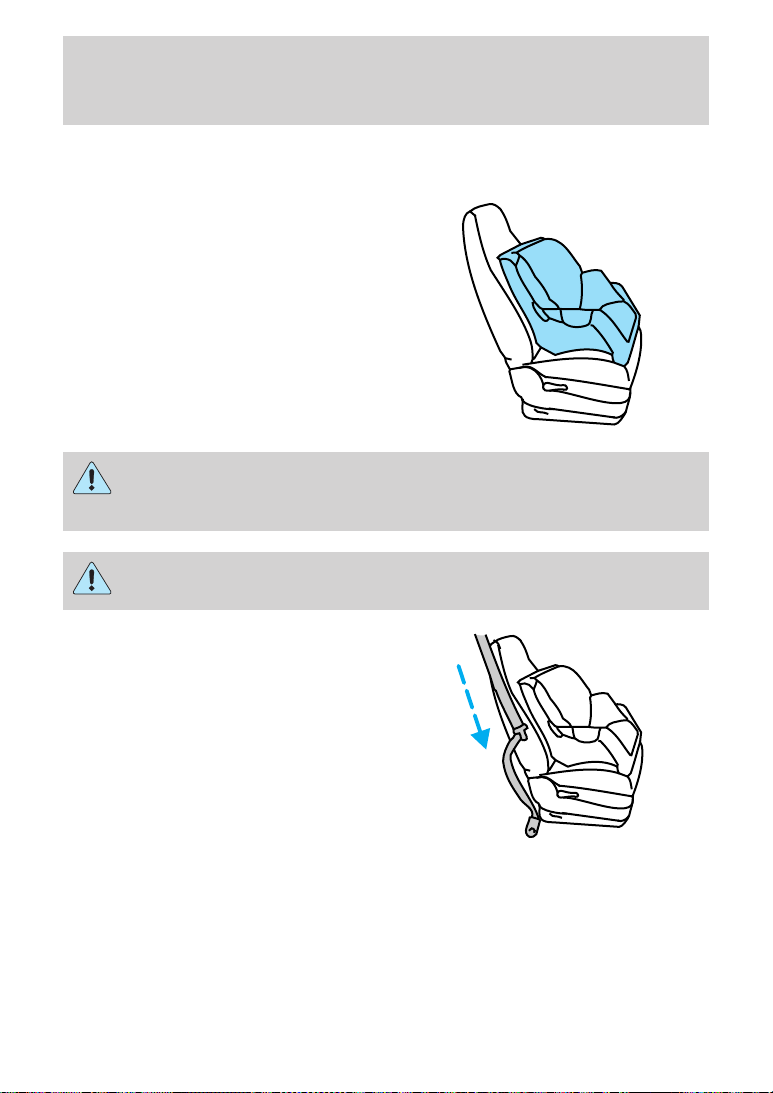

1. Position the child safety seat in a seat with a combination lap and shoulder belt.

An air bag can kill or injure a child in a child seat. If you must

use a forward-facing child seat in the front seat, move seat all the way back.

Children 12 and under should be properly restrained in the rear

seat whenever possible.

2. Pull down on the shoulder belt and then grasp the shoulder belt and lap belt together.

Page 92

Seating and safety restraints

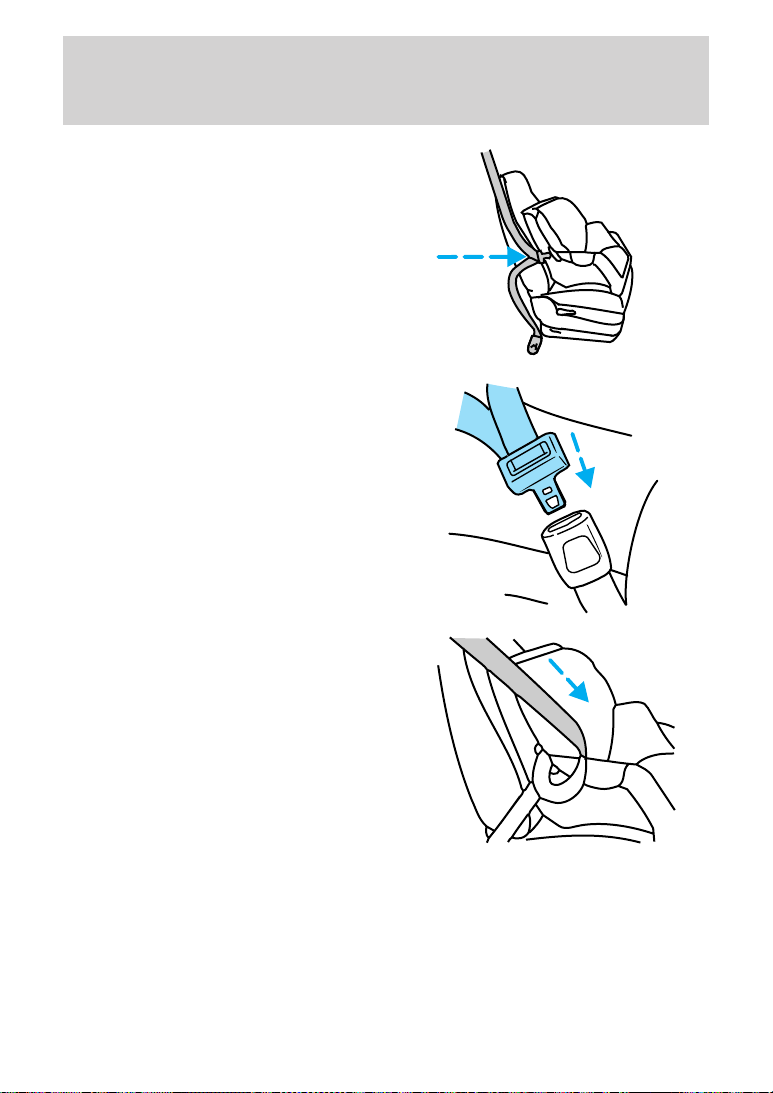

3. While holding the shoulder and lap belt portions together, route the tongue through the child seat according to the child seat manufacturer’s instructions. Be sure the belt webbing is not twisted.

4. Insert the belt tongue into the proper buckle (the buckle closest to the direction the tongue is coming from) for that seating position until you hear a snap and feel the latch engage. Make sure the tongue is latched securely by pulling on it.

5. To put the retractor in the automatic locking mode, grasp the shoulder portion of the belt and pull downward until all of the belt is extracted.

6. Allow the belt to retract. The belt will click as it retracts to indicate it is in the automatic locking mode.

Page 93

Seating and safety restraints

7. Pull the lap belt portion across the child seat toward the buckle and pull up on the shoulder belt while pushing down with your knee on the child seat.

8. Allow the safety belt to retract to remove any slack in the belt.

9. Before placing the child in the seat, forcibly tilt the seat forward and back to make sure the seat is securely held in place.

10. Try to pull the belt out of the retractor to make sure the retractor is in the automatic locking mode (you should not be able to pull more belt out). If the retractor is not locked, unbuckle the belt and repeat steps two through nine.

Check to make sure the child seat is properly secured before each use.

Tether anchorage hardware

Children should be placed in the rear in an appropriate child

safety seat that is properly secured to the vehicle.

When using forward-facing child safety seats in vehicles with

only two seating positions so the forward-facing child safety seat cannot be placed in the rear of the vehicle, move the passenger seat as far back from the instrument panel as possible.

Page 94

Seating and safety restraints

Rear-facing child seats or infant carriers should never be placed

in the front seats.

Front passenger seating position

The tether can be attached directly to the rear of the front seat.

1. Position the child safety seat on the front right-hand passenger seat.

2. Adjust the front right-hand passenger seat full forward.

3. Route the child safety seat tether strap over the back of the front right-hand passenger seat as shown.

Page 95

Seating and safety restraints

4. Clip the tether strap hook to the seat pedestal to the location shown.

5. Adjust the front right hand passenger seat to the full rearward position.

6. Refer to the instructions in this section under Installing child safety seats in combination lap and shoulder belt seating positions to secure the child safety seat.

7. Tighten the child safety seat tether strap according to the manufacturer’s instructions.

Second row bucket seats (Chateau Quads)

The tether strap can be attached directly to the tether bracket provided at the rear of the second row left hand and right hand bucket seats.

Page 96

Seating and safety restraints

1. Position the child safety seat on the second row left hand or right hand bucket seat.

2. Route the child safety tether strap over the back of the left hand or right hand second row bucket seat as shown.

3. Clip the tether strap hook to the seat pedestal at the location shown.

4. Refer to the instructions in this section under Installing child safety seats in combination lap and shoulder belt seating positions to secure the child safety seat.

5. Tighten the child safety seat tether strap according to the manufacturer’s instructions.

Second, Third and Fourth row three passenger bench seats

The tether strap can be attached directly to the tether bracket provided on rear rail of seat cushion frame.

1. For second row 3–Passenger bench seat, place the child safety seat on the left hand outboard position, the center position, or the right hand outboard position as desired.

Page 97

Seating and safety restraints

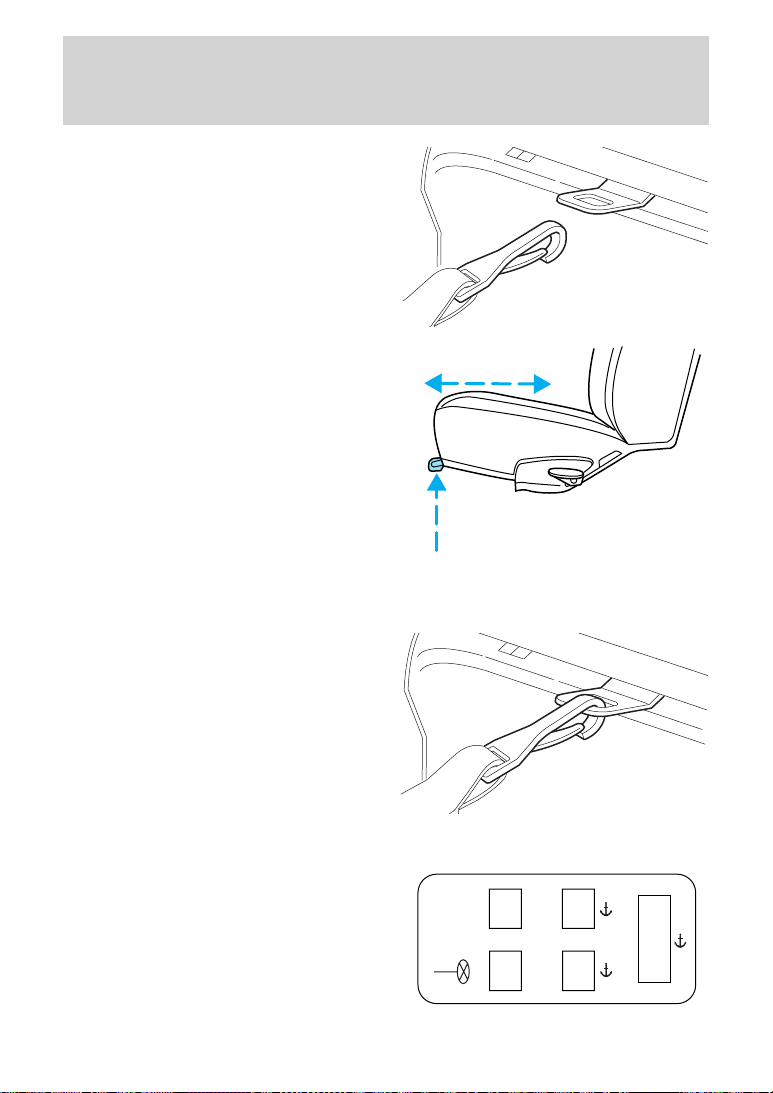

For third row or fourth row 3–Passenger bench seat, place the child safety seat on the center position.

2. Route the child safety tether strap over the back of 3–Passenger bench seat as shown.

3. Clip the tether strap hook to the tether bracket mounted under rear rail of seat cushion frame as shown.

4. Refer to the instructions in this section under installing child safety seats in combination lap and shoulder belt seating positions to secure the child safety seat.

5. Tighten the child safety seat tether strap according to the manufacturer’s instructions.

For additional important safety information on the proper use of seat belts, child seats and infant seats, please read the entire Seating and Safety Restraints chapter in this Owner’s Guide.

Page 98

Starting

PREPARING TO START YOUR VEHICLE

Engine starting is controlled by the powertrain control system. This system meets all Canadian Interference-Causing Equipment standard requirements regulating the impulse electrical field strength of radio noise.

When starting a fuel-injected engine, avoid pressing the accelerator before or during starting. Only use the accelerator when you have difficulty starting the engine. For more information on starting the vehicle, refer to Starting the engine in this chapter.

Extended idling at high engine speeds can produce very high

temperatures in the engine and exhaust system, creating the risk of fire or other damage.

Do not park, idle, or drive your vehicle in dry grass or other dry

ground cover. The emission system heats up the engine compartment and exhaust system, which can start a fire.

Do not start your vehicle in a closed garage or in other enclosed

areas. Exhaust fumes can be toxic. Always open the garage door before you start the engine. See Guarding against exhaust fumes in this chapter for more instructions.

If you smell exhaust fumes inside your vehicle, have your dealer

inspect your vehicle immediately. Do not drive if you smell exhaust fumes.

Important safety precautions

A computer system controls the engine’s idle revolutions per minute (RPM). When the engine starts, the idle RPM runs faster to warm the engine. If the engine idle speed does not slow down automatically, have the vehicle checked. Do not allow the vehicle to idle for more than 10 minutes at the higher engine RPM.

Before starting the vehicle:

1. Make sure all vehicle occupants have buckled their safety belts. For more information on safety belts and their proper usage, refer to the Seating and safety restraints chapter.

2. Make sure the headlamps and vehicle accessories are off.

Page 99

Starting

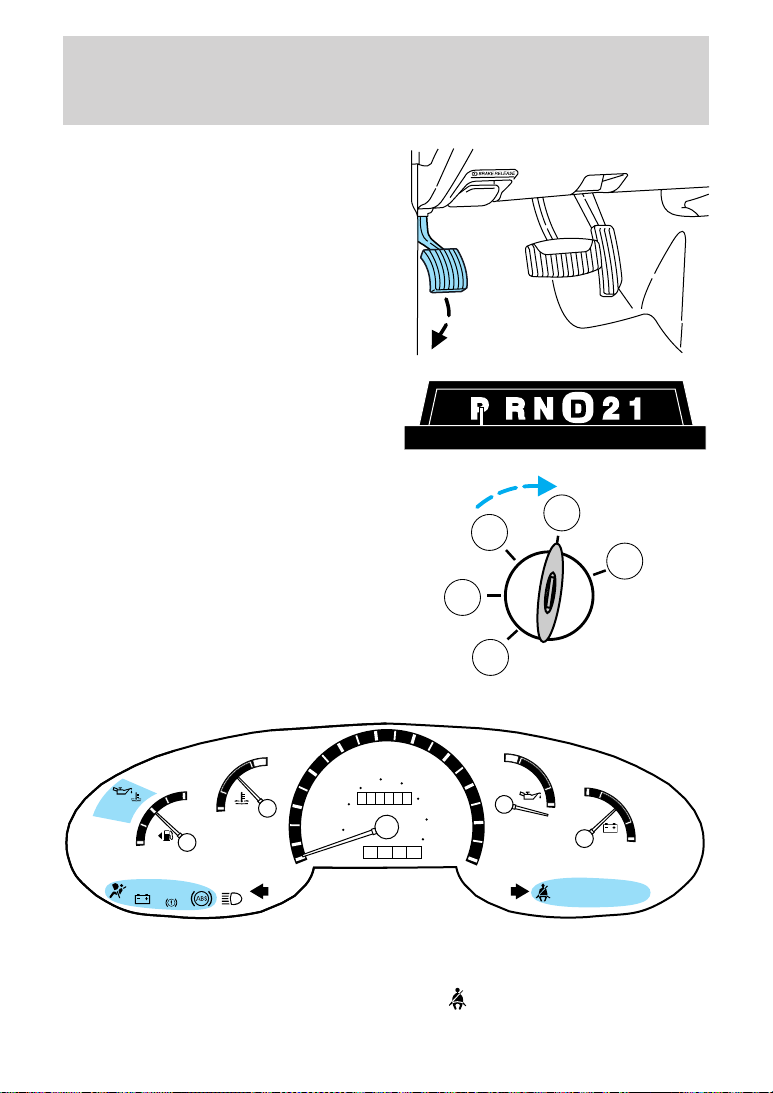

3. Make sure the parking brake is set.

4. Make sure the gearshift is in P (Park).

5. Turn the key to 4 (ON) without turning the key to 5 (START).

If there is difficulty in turning the

key, firmly rotate the steering wheel left and right until the key turns freely. This condition may occur

when:

• front wheels are turned

• front wheel is against the curb

• steering wheel is turned when getting in or out of the vehicle

BRAKE

20 km/h

MPH

100

000000

0000

120

140

160

10 0

SERVICE

ENGINE SOON

Make sure the corresponding lights illuminate or illuminate briefly. If a light fails to illuminate, have the vehicle serviced.

• If the driver’s safety belt is fastened, the

light may not illuminate.

Page 100

Starting

STARTING THE ENGINE

1. Turn the key to 5 (START) without pressing the accelerator pedal and release as soon as the engine starts. The key will return to 4 (ON).

2. If the temperature is above –12°C (10°F) and the engine does not start within five seconds on the first try, turn the key to OFF, wait 10 seconds and try again.

3. If the temperature is below -12° C (10° F) and the engine does not start in 15 seconds on the first try, turn the key OFF and wait 10 seconds and try again. If the engine does not start in two attempts, press the accelerator pedal all the way to floor and hold. Turn the key to START position.

4. When the engine starts, release the key, then release the accelerator pedal gradually as the engine speeds up.

5. After idling for a few seconds, apply the brake and release the parking brake.

Using the engine block heater (if equipped)

An engine block heater warms the engine coolant, which improves starting, warms up the engine faster and allows the heater-defroster system to respond quickly. Use of an engine block heater is strongly recommended if you live in a region where temperatures reach -23°C (-10°F) or below.

For best results, plug the heater in at least three hours before starting the vehicle. Using the heater for longer than three hours will not harm the engine, so the heater can be plugged in the night before starting the vehicle.

adapters.

100

To prevent electrical shock, do not use your heater with

ungrounded electrical systems or two-pronged (cheater)
