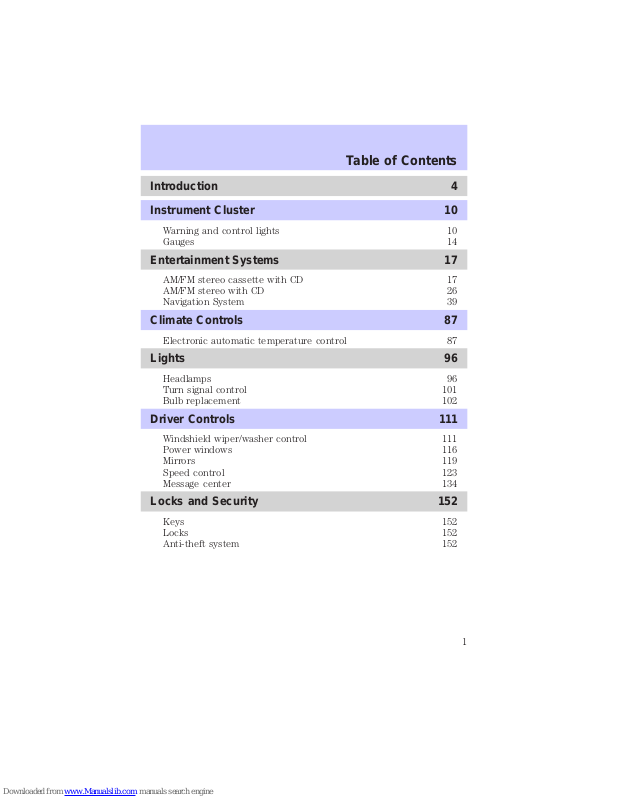

Table of Contents

Introduction 4 Instrument Cluster 10

Warning and control lights 10 Gauges 14

Entertainment Systems 17

AM/FM stereo cassette with CD 17 AM/FM stereo with CD 26 Navigation System 39

Climate Controls 87

Electronic automatic temperature control 87

Lights 96

Headlamps 96 Turn signal control 101 Bulb replacement 102

Table of Contents

Driver Controls 111

Windshield wiper/washer control 111 Power windows 116 Mirrors 119 Speed control 123 Message center 134

Locks and Security 152

Keys 152 Locks 152 Anti-theft system 152

Page 2

Table of Contents

Seating and Safety Restraints 170

Seating 170 Safety restraints 182 Air bags 192 Child restraints 199

Driving 212

Starting 212 Brakes 215 Traction control/AdvanceTrac 218 Transmission operation 222 Vehicle loading 239 Trailer towing 241

Roadside Emergencies 248

Getting roadside assistance 248 Hazard flasher switch 249 Fuel pump shut-off switch 249 Fuses and relays 250 Changing tires 259 Jump starting 267 Wrecker towing 272

Customer Assistance 273

Reporting safety defects (U.S. only) 281

Cleaning 282

Page 3

Table of Contents

Maintenance and Specifications 288

Hood 289 Engine compartment 290 Engine oil 292 Battery 295 Fuel information 301 Part numbers 317 Refill capacities 317 Lubricant specifications 319

Accessories 324 Index 328

All rights reserved. Reproduction by any means, electronic or mechanical including photocopying, recording or by any information storage and retrieval system or translation in whole or part is not permitted without written authorization from Ford Motor Company. Ford may change the contents without notice and without incurring obligation.

Page 4

Introduction

CALIFORNIA Proposition 65 Warning

WARNING: Engine exhaust, some of its constituents, and

certain vehicle components contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. In addition, certain fluids contained in vehicles and certain products of component wear contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

CONGRATULATIONS

Congratulations on acquiring your new Lincoln. Please take the time to get well acquainted with your vehicle by reading this handbook. The more you know and understand about your vehicle the greater the safety and pleasure you will derive from driving it.

For more information on Ford Motor Company and its products visit the following website:

• In the United States: www.ford.com

• In Canada: www.ford.ca

• In Mexico: www.ford.com.mx

• In Australia: www.ford.com.au

Additional owner information is given in separate publications. This Owner’s Guide describes every option and model variant available

and therefore some of the items covered may not apply to your particular vehicle. Furthermore, due to printing cycles it may describe options before they are generally available.

Remember to pass on the Owner’s Guide when reselling the vehicle. It is an integral part of the vehicle.

Fuel pump shut-off switch In the event of an accident the

safety switch will automatically cut off the fuel supply to the engine. The switch can also be activated through sudden vibration (e.g. collision when parking). To reset the switch, refer to the Fuel pump shut-off switch in the Roadside emergencies chapter.

Page 5

Introduction

SAFETY AND ENVIRONMENT PROTECTION

Warning symbols in this guide

How can you reduce the risk of personal injury and prevent possible damage to others, your vehicle and its equipment? In this guide, answers to such questions are contained in comments highlighted by the warning triangle symbol. These comments should be read and observed.

Warning symbols on your vehicle

When you see this symbol, it is imperative that you consult the relevant section of this guide before touching or attempting adjustment of any kind.

Protecting the environment

We must all play our part in protecting the environment. Correct vehicle usage and the authorized disposal of waste cleaning and lubrication materials are significant steps towards this aim. Information in this respect is highlighted in this guide with the tree symbol.

BREAKING-IN YOUR VEHICLE

Your vehicle does not need an extensive break-in. Try not to drive continuously at the same speed for the first 1,600 km (1,000 miles) of new vehicle operation. Vary your speed to allow parts to adjust themselves to other parts.

Drive your new vehicle at least 800 km (500 miles) before towing a trailer.

Do not add friction modifier compounds or special break-in oils during the first few thousand kilometers (miles) of operation, since these additives may prevent piston ring seating. See Engine oil in the Maintenance and specifications chapter for more information on oil usage.

Page 6

Introduction

SPECIAL NOTICES Emission warranty

The New Vehicle Limited Warranty includes Bumper-to-Bumper Coverage, Safety Restraint Coverage, Corrosion Coverage, and 7.3L Power Stroke Diesel Engine Coverage. In addition, your vehicle is eligible for Emissions Defect and Emissions Performance Warranties. For a detailed description of what is covered and what is not covered, refer to the Warranty Guide that is provided to you along with your Owner’s Guide.

Data Recording

Computers in your vehicle are capable of recording detailed data potentially including but not limited to information such as:

• the use of restraint systems including seat belts by the driver and passengers,

• information about the performance of various systems and modules in the vehicle, and

• information related to engine, throttle, steering, brake or other system status.

Any of this information could potentially include information regarding how the driver operates the vehicle potentially including but not limited to information regarding vehicle speed, brake or accelerator application or steering input. This information may be stored during regular operation or in a crash or near crash event.

This stored information may be read out and used by:

• Ford Motor Company.

• service and repair facilities.

• law enforcement or government agencies.

• others who may assert a right or obtain your consent to know such

information.

Special instructions

For your added safety, your vehicle is fitted with sophisticated electronic controls.

Please read the section Supplemental Restraint System (SRS) in the Seating and safety restraints chapter. Failure to follow

the specific warnings and instructions could result in personal injury.

Page 7

Introduction

Front seat mounted rear facing child or infant seats should NEVER be used in front of a passenger side air bag unless the

air bag can be and is turned OFF.

Notice to owners of pickup trucks and utility type vehicles

Utility vehicles have a significantly higher rollover rate than other types of vehicles.

Before you drive your vehicle, please read this Owner’s Guide carefully. Your vehicle is not a passenger car. As with other vehicles of this type, failure to operate this vehicle correctly may result in loss of vehicle control, vehicle rollover, personal injury or death.

Be sure to read Driving off road in the Driving chapter.

Using your vehicle with a snowplow

Do not use this vehicle for snowplowing.

Using your vehicle as an ambulance

Do not use this vehicle as an ambulance.

Your vehicle is not equipped with the Ford Ambulance Preparation Package.

Middle East/North Africa vehicle specific information

For your particular global region, your vehicle may be equipped with features and options that are different from the ones that are described in this Owner Guide; therefore, a supplement has been supplied that complements this book. By referring to the pages in the provided supplement, you can properly identify those features, recommendations and specifications that are unique to your vehicle. Refer to this Owner

Guide for all other required information and warnings.

Page 8

Introduction

These are some of the symbols you may see on your vehicle.

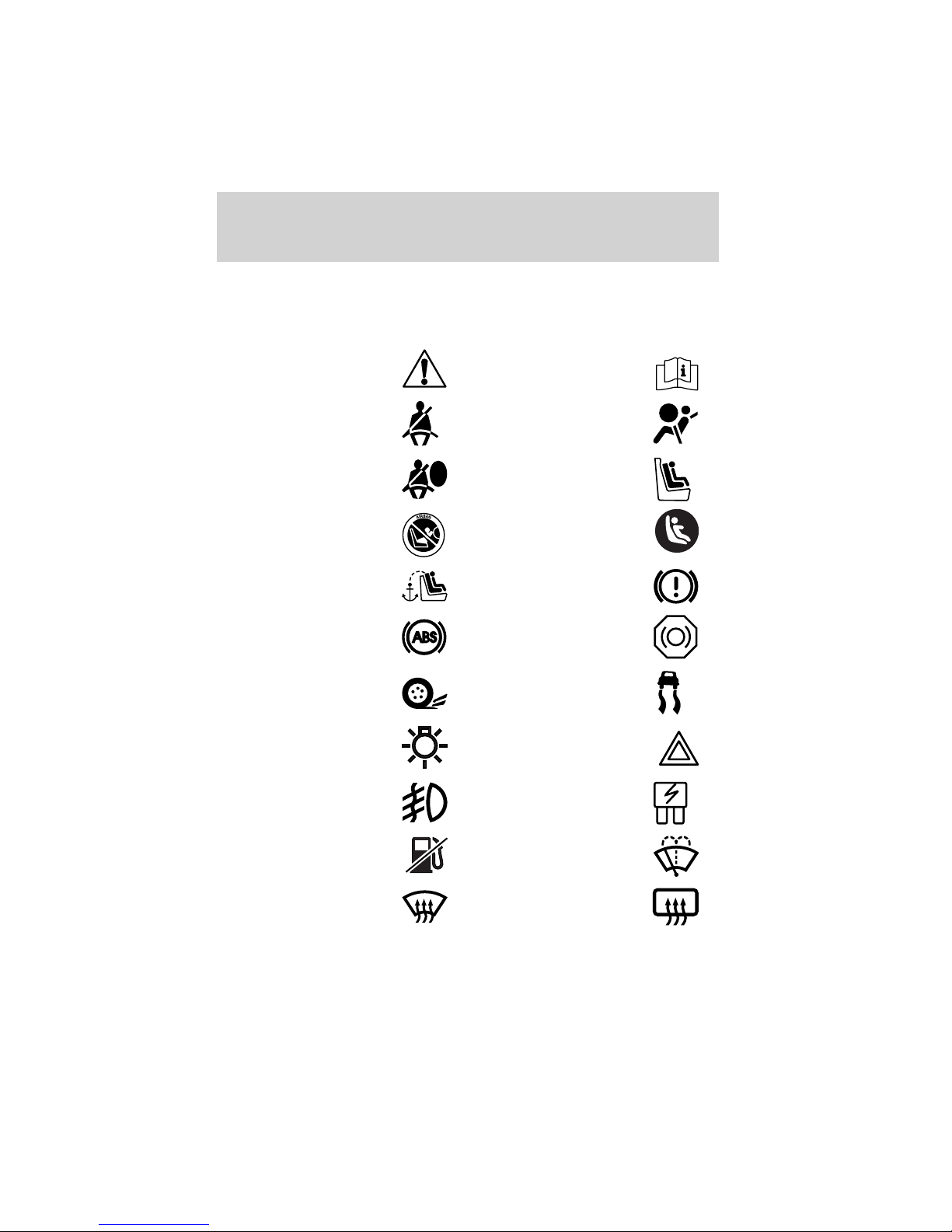

Vehicle Symbol Glossary

Safety Alert

Fasten Safety Belt Air Bag-Front

Air Bag-Side Child Seat

Child Seat Installation Warning

Child Seat Tether Anchor

Anti-Lock Brake System

Traction Control AdvanceTracy

Master Lighting Switch Hazard Warning Flasher

Fog Lamps-Front Fuse Compartment

See Owner’s Guide

Child Seat Lower Anchor

Brake System

Brake Fluid Non-Petroleum Based

Fuel Pump Reset Windshield Wash/Wipe

Windshield Defrost/Demist

Rear Window Defrost/Demist

Page 9

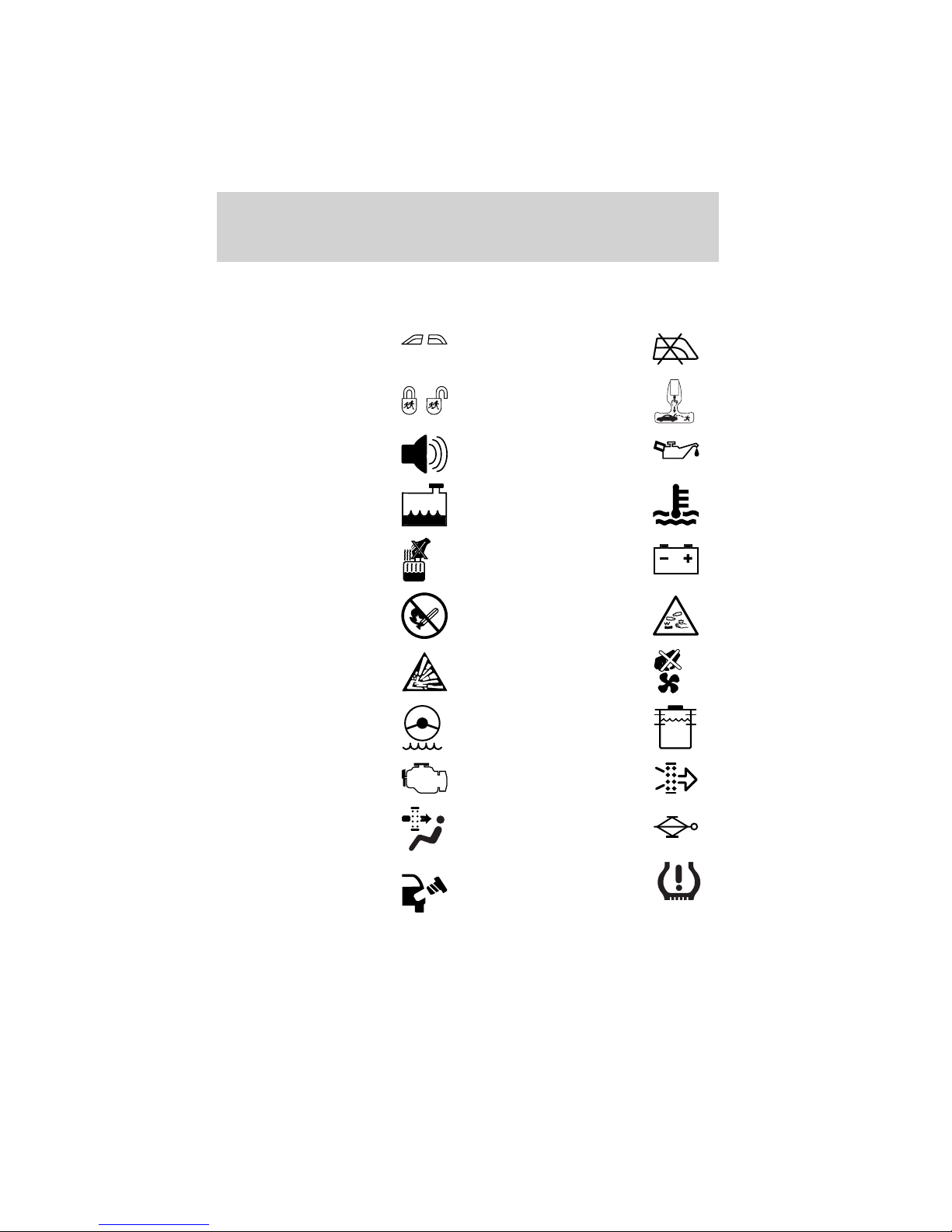

Vehicle Symbol Glossary

Introduction

Power Windows Front/Rear

Child Safety Door Lock/Unlock

Power Window Lockout

Interior Luggage Compartment Release Symbol

Panic Alarm Engine Oil

Engine Coolant

Engine Coolant Temperature

Do Not Open When Hot Battery

Avoid Smoking, Flames, or Sparks

Battery Acid

Explosive Gas Fan Warning

Power Steering Fluid

Maintain Correct Fluid Level

Emission System Engine Air Filter

MAX

MIN

Passenger Compartment Air Filter

Check fuel cap Low tire warning

Jack

Page 10

Instrument Cluster

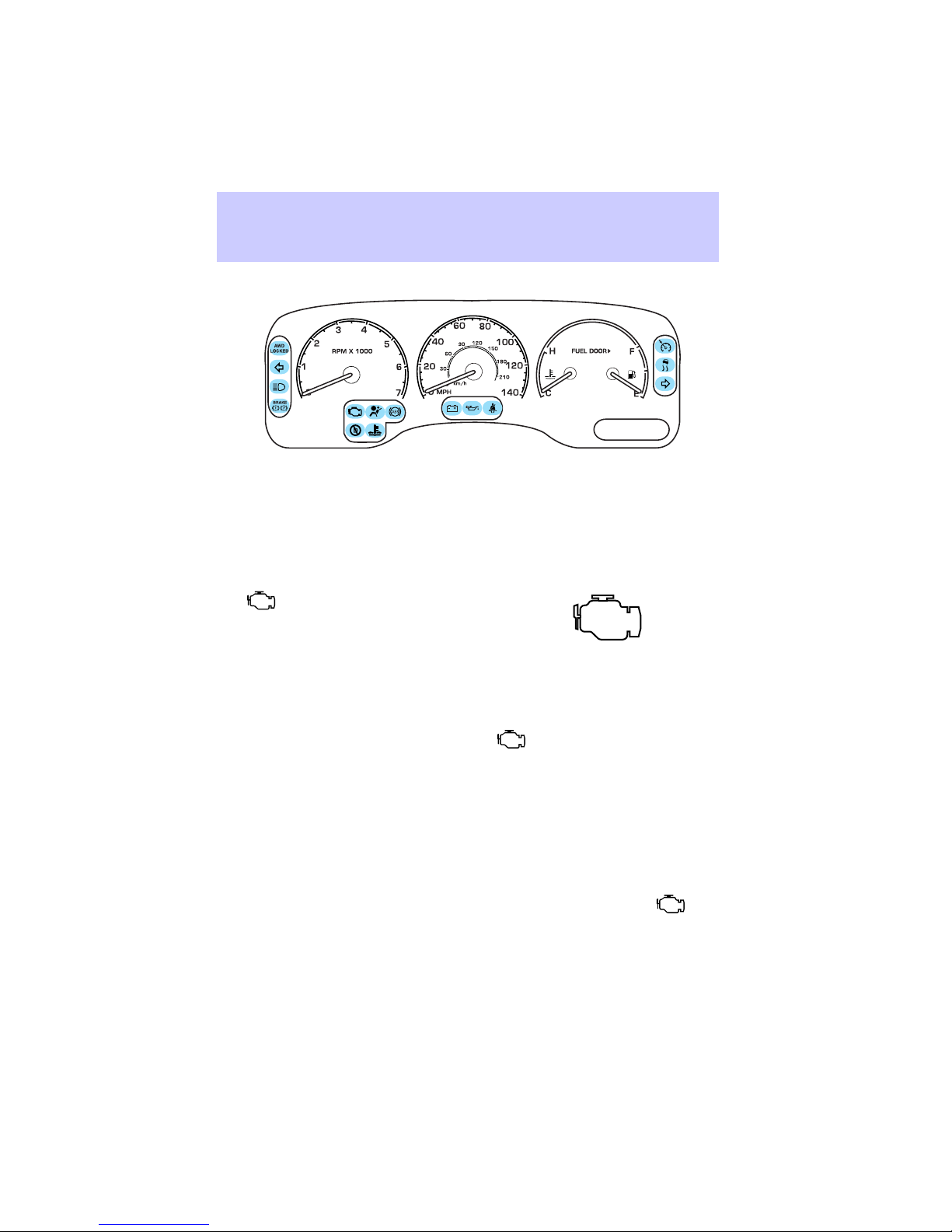

WARNING LIGHTS AND CHIMES

Warning lights and gauges can alert you to a vehicle condition that may become serious enough to cause expensive repairs. A warning light may illuminate when a problem exists with one of your vehicle’s functions. Many lights will illuminate when you start your vehicle to make sure the bulb works. If any light remains on after starting the vehicle, have

the respective system inspected immediately.

Service engine soon

The ensure the system is functional. If it comes on after the engine is started, one of the engine’s emission control

systems may be malfunctioning. The light may illuminate without a driveability concern being noted. The vehicle will usually be drivable and will not require towing.

Light remains on:

Temporary malfunctions may cause your Examples are:

1. The vehicle has run out of fuel.

2. Poor fuel quality or water in the fuel.

3. The fuel cap may not have been properly installed and securely

tightened. These temporary malfunctions can be corrected by filling the fuel tank

with high quality fuel of the recommended octane and/or properly installing and securely tightening the fuel cap. After three driving cycles without these or any other temporary malfunctions present, the light should turn off. (A driving cycle consists of a cold engine startup followed by mixed city/highway driving.) No additional vehicle service is required.

light illuminates briefly to

light to illuminate.

Page 11

Instrument Cluster

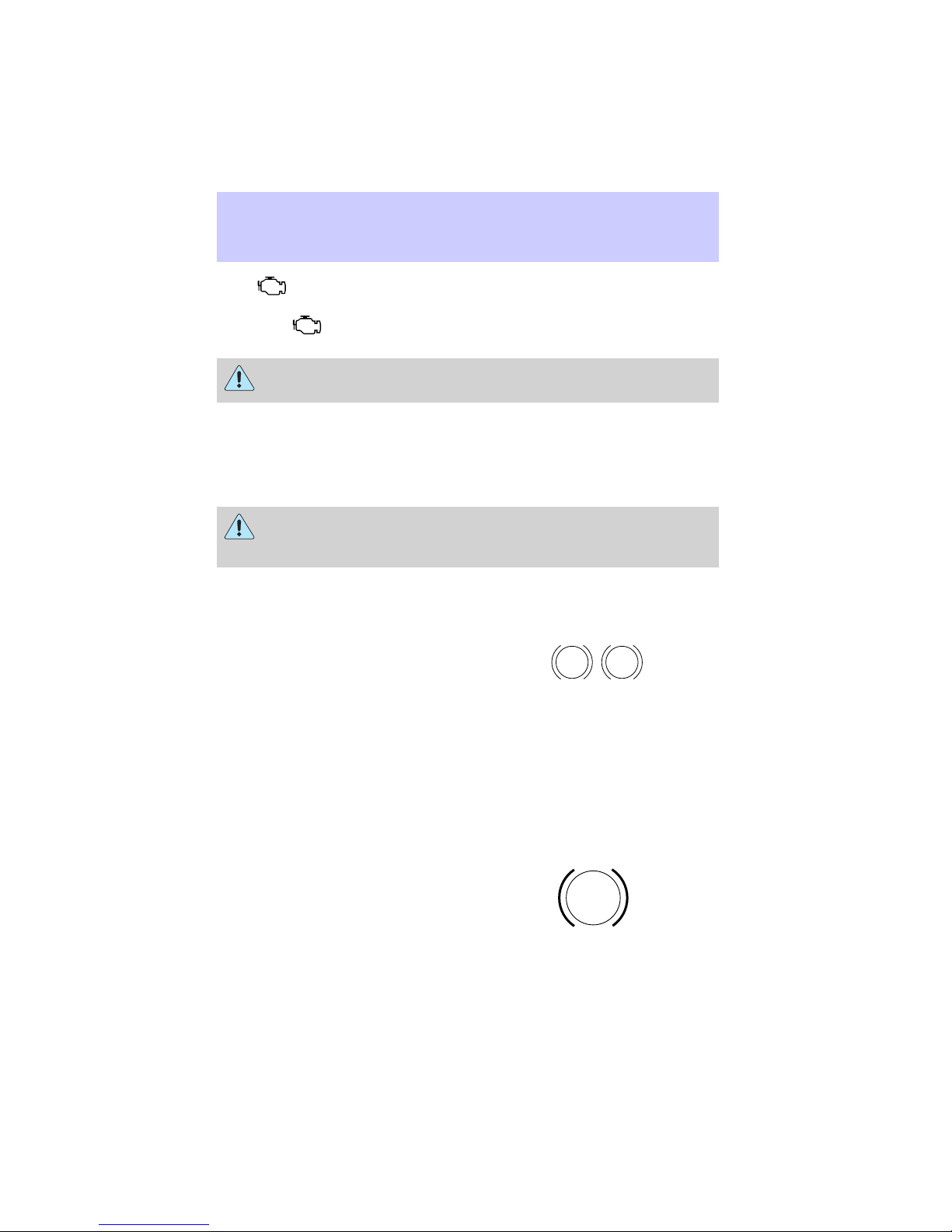

If the light remains on, have your vehicle serviced at the first available opportunity.

Note: The with the engine running.

Never refuel vehicle with the engine running.

Light is blinking:

Engine misfire is occurring which could damage your catalytic converter. You should drive in a moderate fashion (avoid heavy acceleration and deceleration) and have your vehicle serviced at the first available opportunity.

Under engine misfire conditions, excessive exhaust temperatures could damage the catalytic converter, the fuel system, interior

floor coverings or other vehicle components, possibly causing a fire.

Brake system warning

To confirm the brake system warning light is functional, it will momentarily illuminate when the ignition is turned to the ON position (alternatively for some vehicles when the ignition is moved from the ON position to START position, the light will momentarily illuminate prior to reaching the START position). It also illuminates if the parking brake is engaged. If the brake system warning light does not illuminate as described, seek service immediately. Illumination after the parking brake is released indicates low brake fluid level or a brake system malfunction and the brake system should be serviced immediately by a qualified technician.

Refer to Brakes in the Driving chapter for more information.

light will illuminate if vehicle refueling is conducted

BRAKE

Anti-lock brake system (ABS)

To confirm the anti-lock brake system (ABS) warning light is functional it will momentarily illuminate when the ignition is turned to the ON position (alternatively for some vehicles when the ignition is moved from the ON

ABS

Page 12

Instrument Cluster

position to the START position, the light will momentarily illuminate just prior to reaching the START position). If the light remains on, continues to flash or fails to illuminate, have the ABS serviced immediately. If the ABS light remains on, it means the anti-lock brake system has malfunctioned and is disabled, however, the normal brake system will still function unless the brake warning light also remains illuminated and parking brake is off. Refer to Brakes in the Driving chapter for more information.

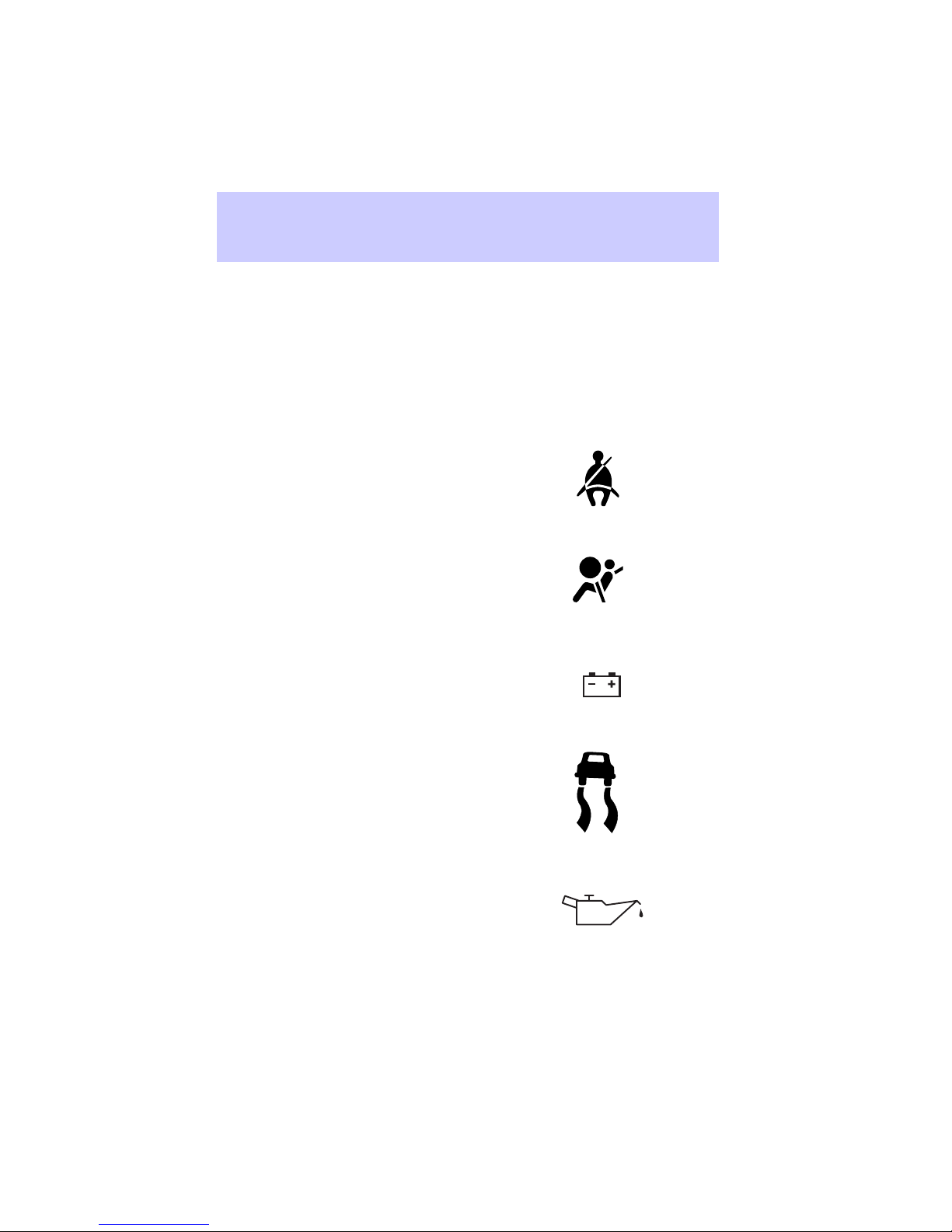

Safety belt

Illuminates to remind you to fasten your safety belts. For more information, refer to the Seating and safety restraints chapter.

Air bag readiness

Illuminates to confirm that the air bags (front or side) are operational. If the light fails to illuminate, continues to flash or remains on, have the system serviced immediately.

Charging system

Illuminates when the battery is not charging properly.

AdvanceTracY (if equipped)

Flashes when the AdvanceTracy system is active. If the light remains on, have the system serviced immediately.

For more information, refer to the Driving chapter.

Engine oil pressure

Illuminates when the oil pressure falls below the normal range. Check the oil level and add oil if needed. Refer to Engine oil in the Maintenance and specifications chapter.

Page 13

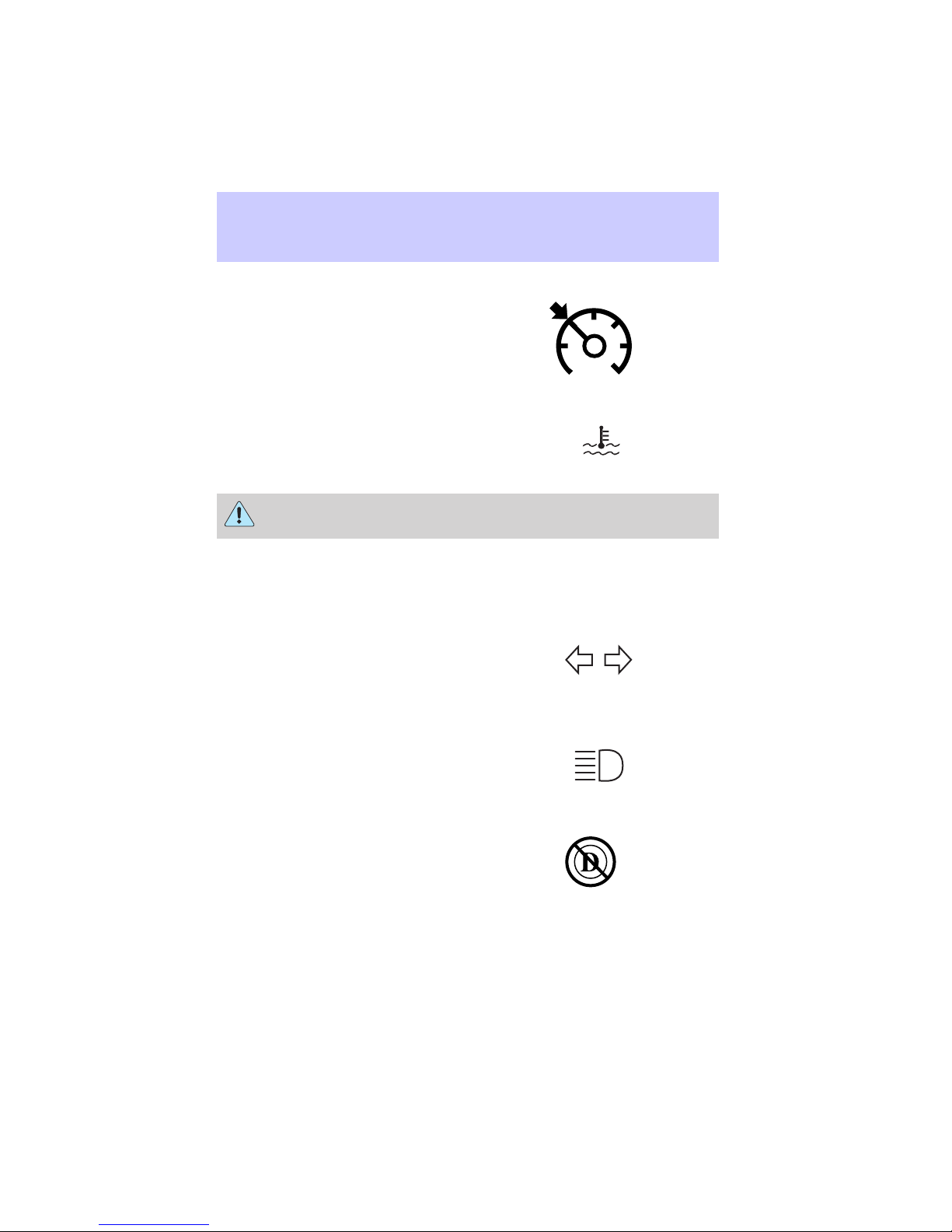

Instrument Cluster

Speed control

Illuminates when the speed control is activated.

Engine coolant temperature

Illuminates when the engine coolant temperature is high. Stop the vehicle as soon as safely possible, switch off the engine and let it cool.

Never remove the coolant recovery cap while the engine is running or hot.

Refer to Engine coolant in the Maintenance and specifications chapter. If light stays on or continues to turn on after the vehicle warms up, have your vehicle serviced.

Turn signals

Illuminates when the turn signals or the hazard lights are turned on. If the lights stay on continuously or flash faster, check for a burned-out bulb.

High beams

Illuminates when the high beam headlamps are turned on.

O/D off

Illuminates when the overdrive function has been cancelled by using the Transmission Control Switch (TCS) on the side of the gear shift, refer to Automatic transmission in the Driving chapter. This lamp will flash if a transmission concern is detected. To prevent additional transmission damage have your vehicle serviced as soon as possible.

Page 14

Instrument Cluster

AWD locked (if equipped)

Illuminates when all wheel drive (AWD) is locked. If the light continues to flash have the system serviced.

Safety belt warning chime

Sounds to remind you to fasten your safety belts.

BeltMinderY chime

Sounds intermittently to remind you to fasten your safety belts.

Supplemental restraint system (SRS) warning chime

Sounds when a malfunction in the supplemental restraint system (front or side airbags) has been detected. Have the supplemental restraint system inspected immediately.

Headlamps on warning chime

Sounds when the headlamps or parking lamps are on, the key is removed from the ignition and the driver’s door is opened.

Key-in-ignition warning chime

Sounds when the key is left in the ignition and the driver’s door is opened.

AWD

LOCKED

Door ajar warning chime

Sounds when any door or liftgate is opened (or not fully closed).

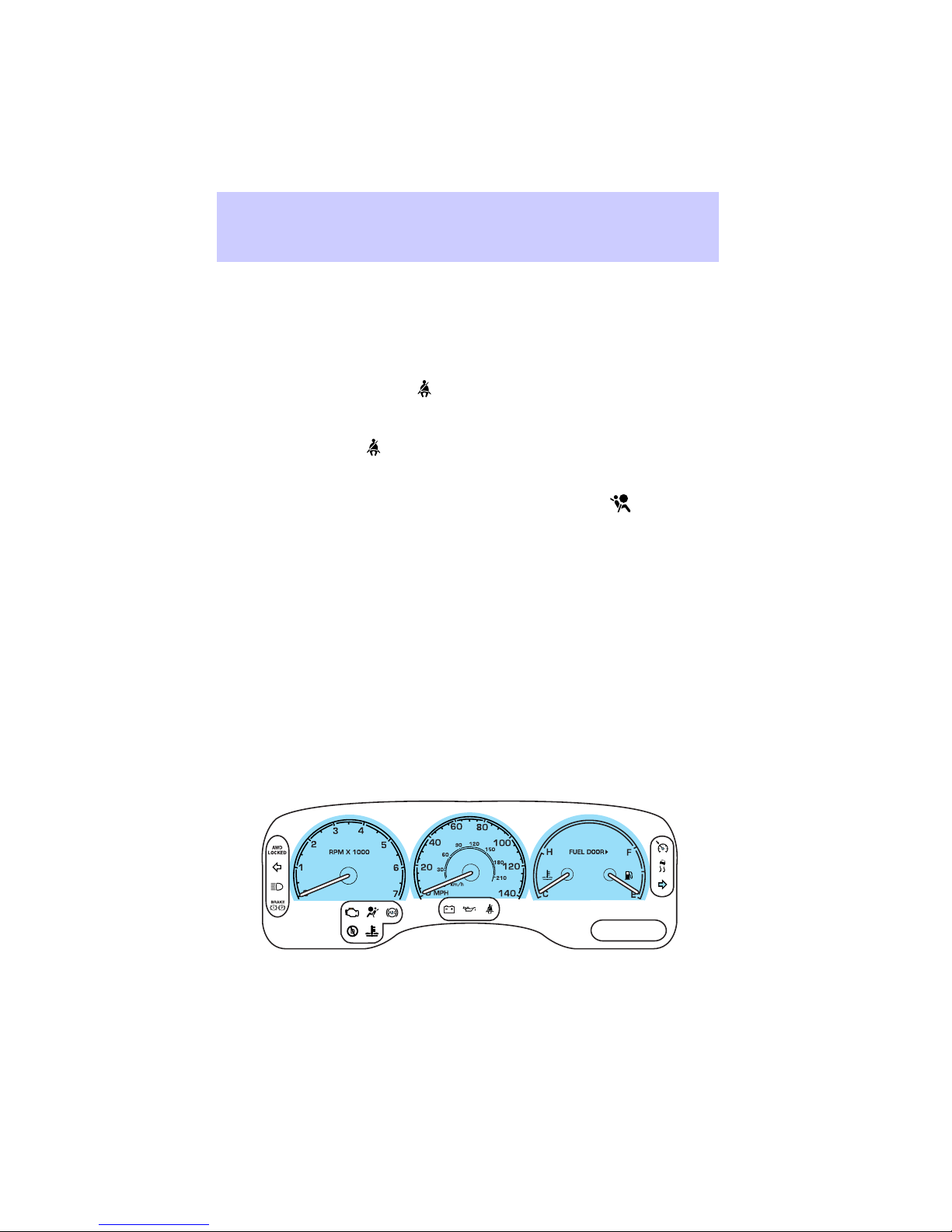

GAUGES

Page 15

Instrument Cluster

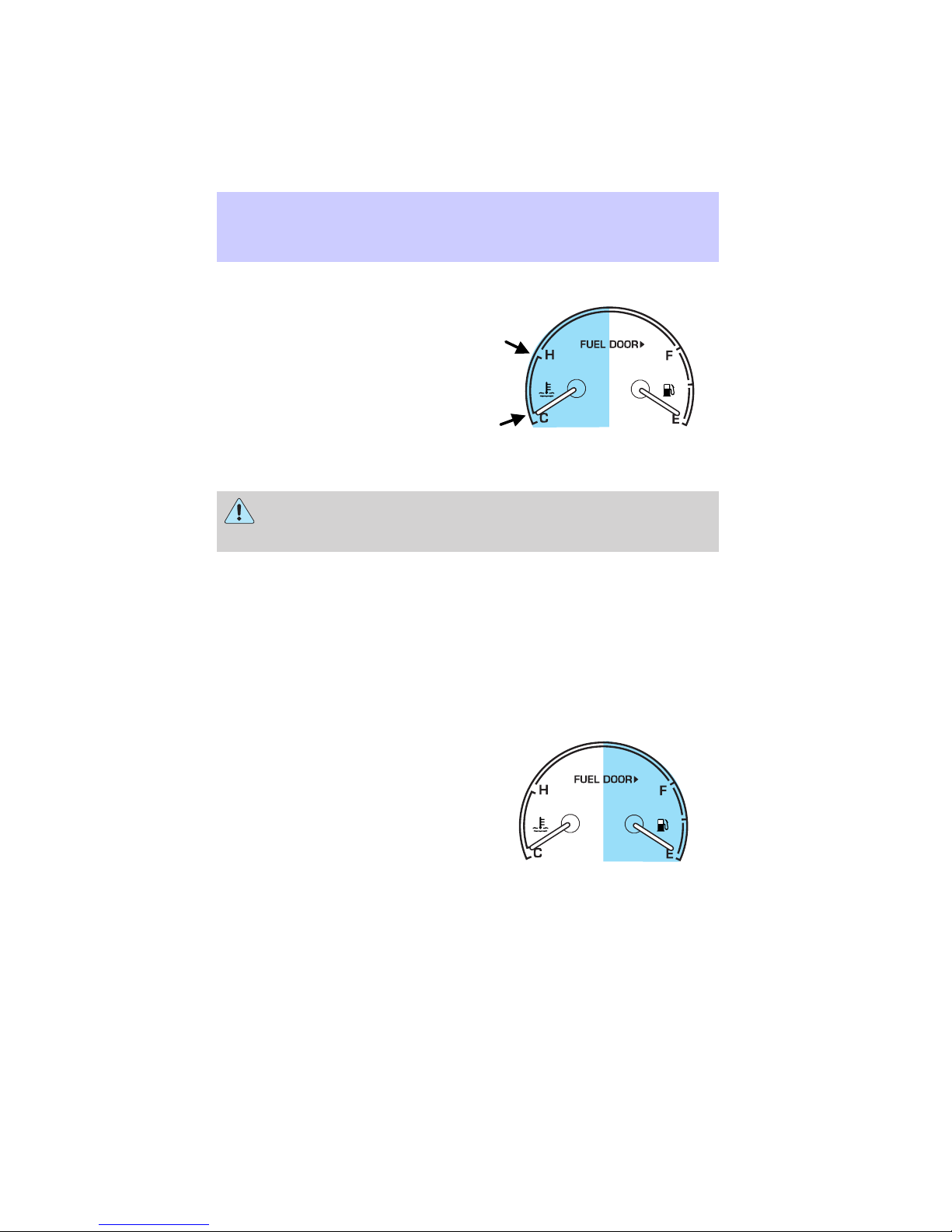

Engine coolant temperature gauge

Indicates the temperature of the engine coolant. At normal operating temperature, the needle remains within the normal area (the area between the “H” and “C”). If it enters the red section, the engine is overheating. Stop the vehicle as soon as safely possible, switch off the engine immediately and let the engine cool. Refer to Engine coolant in the Maintenance and specifications chapter.

Never remove the coolant reservoir cap while the engine is running or hot. Steam and scalding liquid from a hot cooling

system can burn you badly.

This gauge indicates the temperature of the engine coolant, not the coolant level. If the coolant is not at its proper level the gauge indication will not be accurate. If the gauge enters the red section, the oil pressure/engine coolant and Check Engine/Service Engine Soon indicators illuminate, refer to What you should know about fail-safe cooling in the Maintenance and specifications chapter.

Fuel gauge

Displays approximately how much fuel is in the fuel tank. The fuel gauge may vary slightly when the vehicle is in motion or on a grade.

When refueling the vehicle from empty indication, the amount of fuel that can be added will be less than the advertised capacity due to the reserve fuel.

If the key is left in the ON position during fueling, a minimum of 22.2 L (six gallons) must be added to the fuel tank in order for the gauge to instantaneously update. If less than six gallons is added, the gauge will take between five to twenty minutes to update.

Page 16

Instrument Cluster

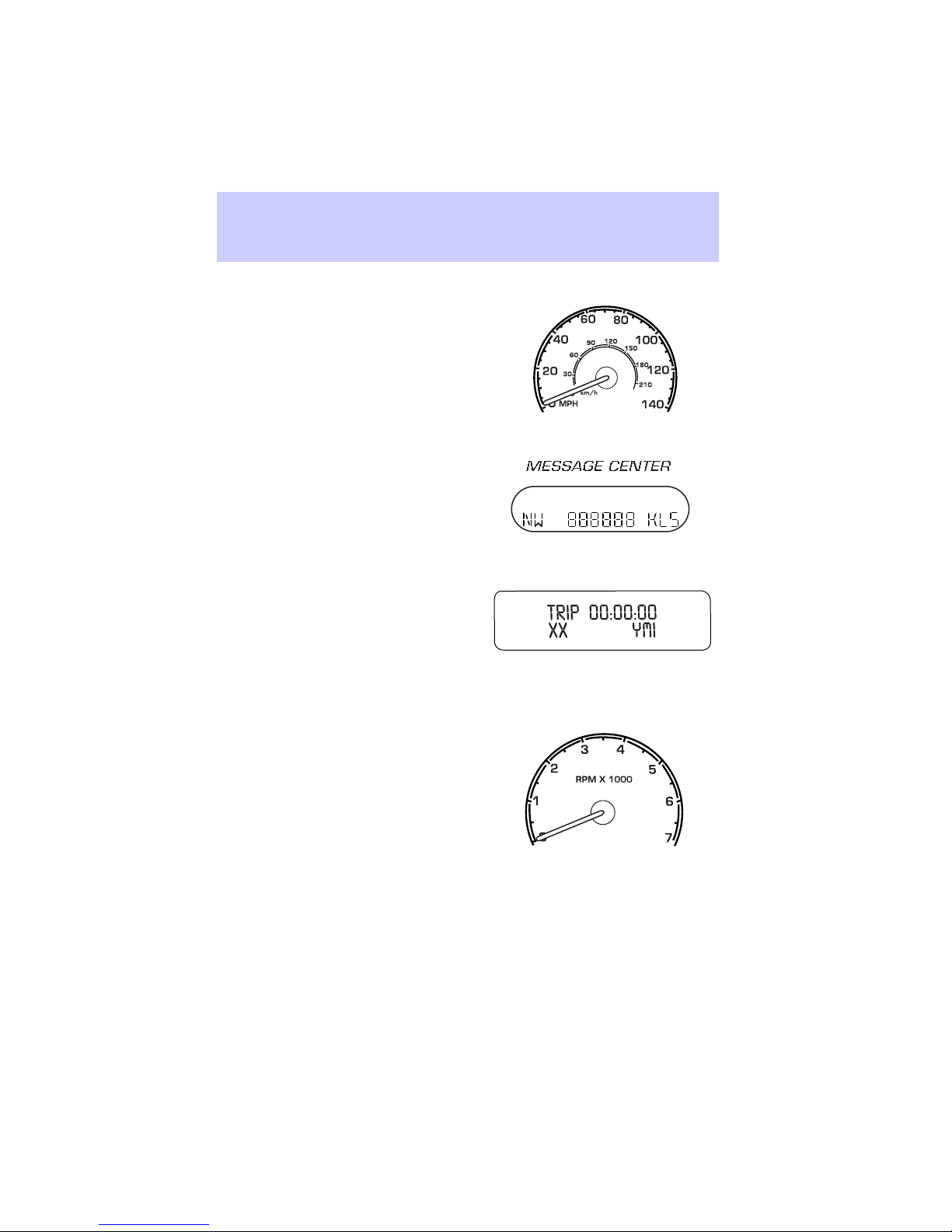

Speedometer

Indicates the current vehicle speed.

Odometer

Registers the total kilometers (miles) of the vehicle.

Trip odometer

Registers the kilometers (miles) of individual journeys. Press and release the message center INFO button until ’Trip’ appears in the display (this represents the trip mode). Press and hold the RESET button for three seconds to reset.

Tachometer

Indicates the engine speed in revolutions per minute.

Driving with your tachometer pointer continuously at the top of the scale may damage the engine.

Page 17

Entertainment Systems

PREMIUM AM/FM STEREO/CASSETTE/SINGLE CD

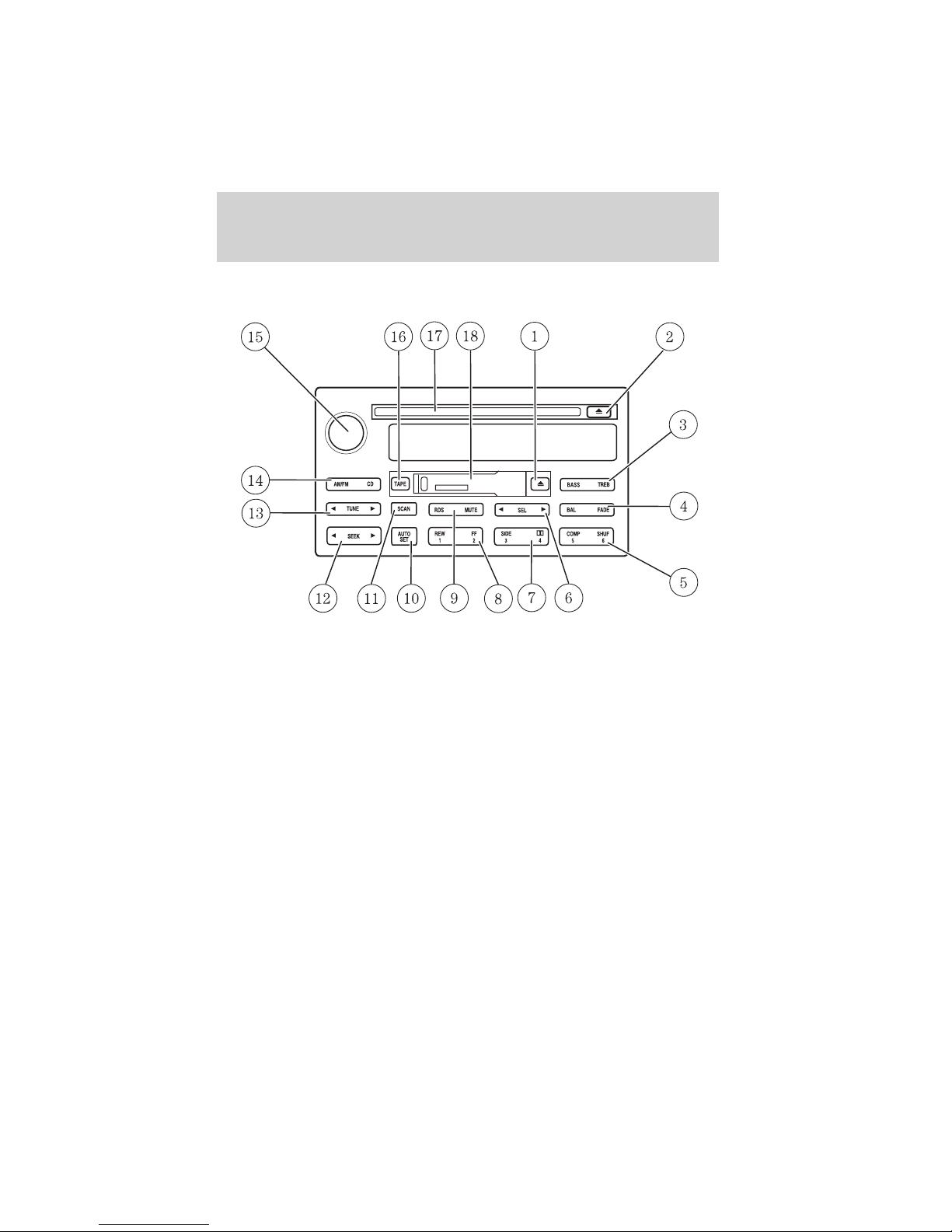

1. Tape eject control

2. CD eject control

3. Bass/treble control

4. Balance/fade control

5. Compression/shuffle control

6. Select control

7. Side direction/Dolby control

8. Rewind/fast forward control

9. RDS/Mute control

10. Autoset control

11. Scan control

12. Seek control

13. Tune control

14. AM/FM/CD control

15. Power/volume control

16. Tape control

17. CD door

18. Cassette door

Page 18

Entertainment Systems

Volume/power control

Press the control to turn the audio system on or off.

Turn control to raise or lower volume.

If the volume is set above a certain level and the ignition is turned off, the volume will come back on at a “nominal” listening level when the ignition switch is turned back on.

Audio power can also be turned on by pressing the AM/FM select control or the TAPE/CD select control.

Speed sensitive volume

With this feature, radio volume automatically changes slightly with vehicle speed to compensate for road and wind noise.

The recommended level for speed sensitive volume is from level 1 through level 3. Level 0 turns the speed sensitive volume off and level 7 is the maximum setting.

With the radio on, press and hold the volume control for five seconds, until the display reads SPEED VOL, then press:

•

to increase volume

compensation

to decrease or shut off the

volume compensation

AM/FM select

The AM/FM select control works in radio, tape and CD modes.

AM/FM select in radio mode

This control allows you to select AM or FM frequency bands. Press the control to switch between AM, FM1 or FM2 memory preset stations.

AM/FM select in tape mode

Press this control to stop tape play and begin radio play.

Page 19

Entertainment Systems

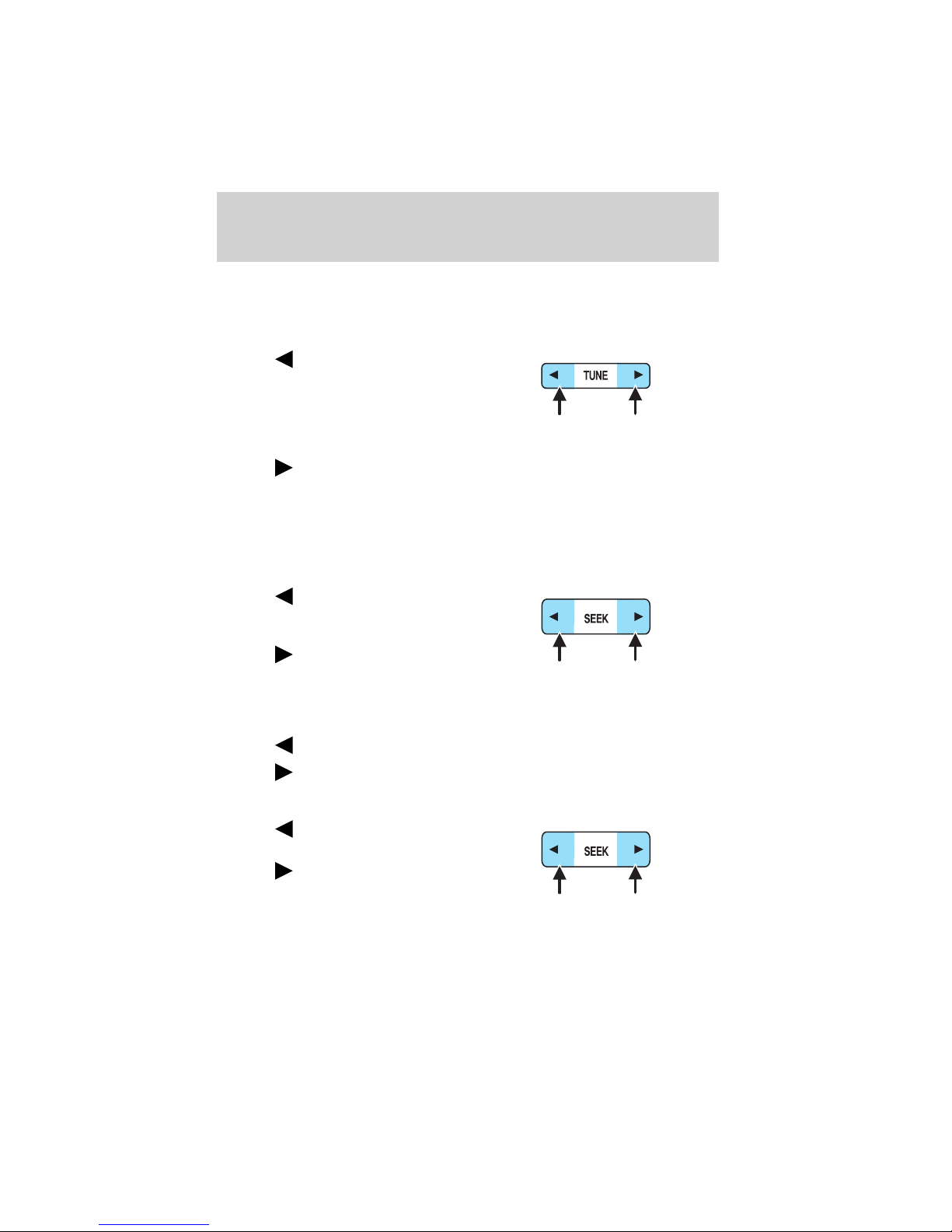

Tune adjust

The tune control works in radio mode.

Tune adjust in radio mode

• Press to move to the next frequency down the band (whether or not a listenable station is located there). Hold the control to move through the frequencies quickly.

• Press a listenable station is located there). Hold for quick movement.

Seek function

The seek function control works in radio, tape or CD mode.

Seek function in radio mode

• Press to find the next listenable station down the frequency band.

• Press listenable station up the frequency band.

to move to the next frequency up the band (whether or not

to find the next

Seek function in tape mode

• Press to listen to the previous selection on the tape.

• Press

to listen to the next selection on the tape.

Seek function in CD mode

• Press to seek to the previous track of the current disc.

• Press next track of the current disc. After the last track has been completed, the first track of the current disc will automatically replay.

to seek forward to the

Page 20

Entertainment Systems

Scan function

The scan function works in radio, tape or CD mode.

Scan function in radio mode

Press the SCAN control to hear a brief sampling of all listenable stations on the frequency band. Press the control again to stop the scan mode.

Scan function in tape mode

Press the SCAN control to hear a short sampling of all selections on the tape. (The tape scans in a forward direction. At the end of the tape’s first side, direction automatically reverses to the opposite side of the tape.) To stop on a particular selection, press the control again.

Scan function in CD mode

Press the SCAN control to hear a short sampling of all selections on the CD. (The CD scans in a forward direction, wrapping back to the first track at the end of the CD.) To stop on a particular selection, press the control again.

Radio station memory preset

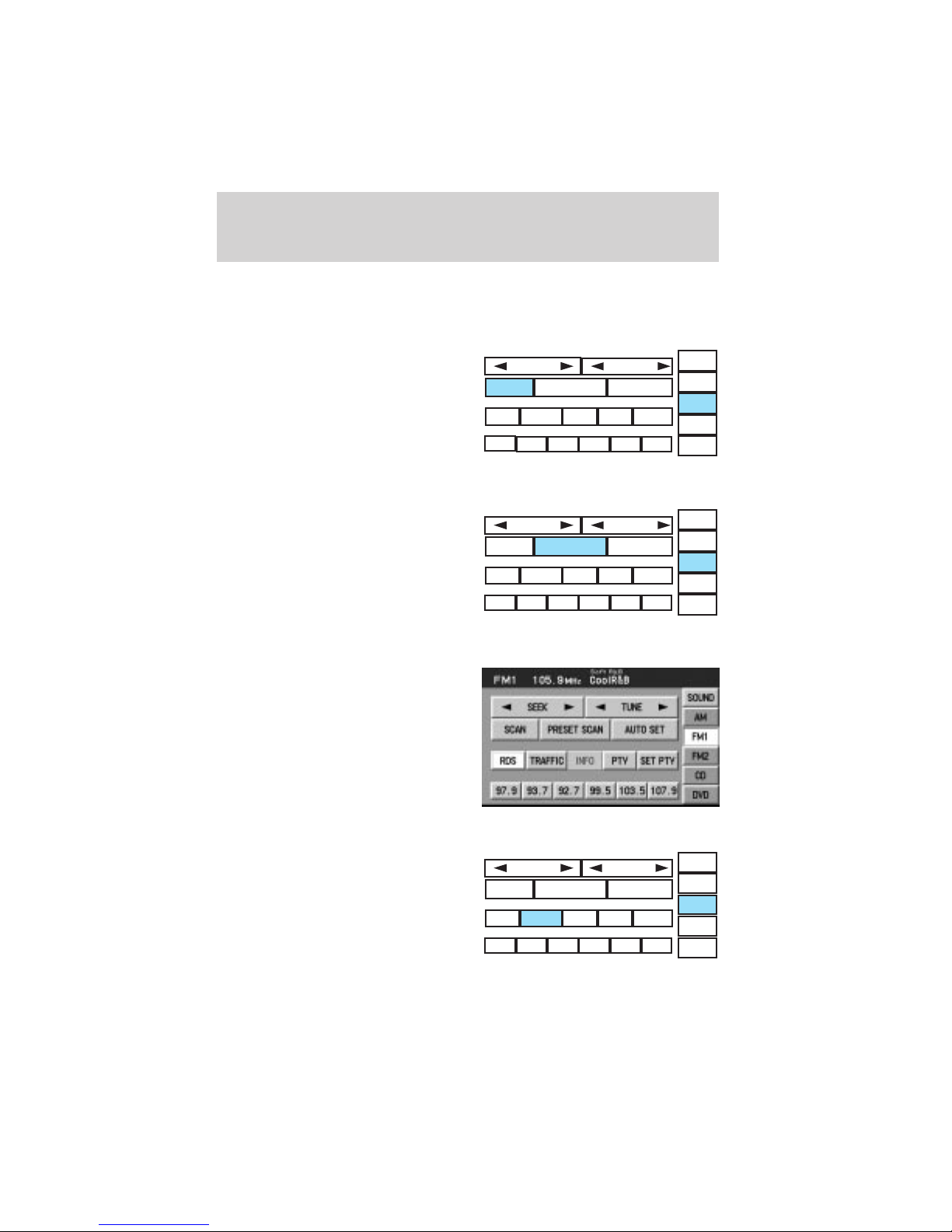

The radio is equipped with six station memory preset controls. These controls can be used to select up to six preset AM stations and twelve FM stations (six in FM1 and six in FM2).

Setting memory preset stations

1. Select the frequency band with

the AM/FM select control.

2. Select a station. Refer to Tune

adjust or Seek function for more information on selecting a station.

3. Press and hold a memory preset control until the sound returns,

indicating the station is held in memory of the control you selected.

Autoset memory preset

Autoset allows you to set strong radio stations without losing your original manually set preset stations. This feature is helpful on trips when you travel between cities with different radio stations.

Page 21

Entertainment Systems

Starting autoset memory preset

1. Select a frequency using the AM/FM select controls.

2. Press the control.

3. When the first six strong stations

are filled, the station stored in memory preset control 1 will start playing.

If there are less than six strong stations available on the frequency band, the remaining memory preset controls will all store the last strong station available.

These stations are temporarily stored in the memory preset controls (until deactivated) and are accessed in the same manner as your original presets.

To deactivate autoset and return to your audio system’s manually set memory stations, press the AUTO control again.

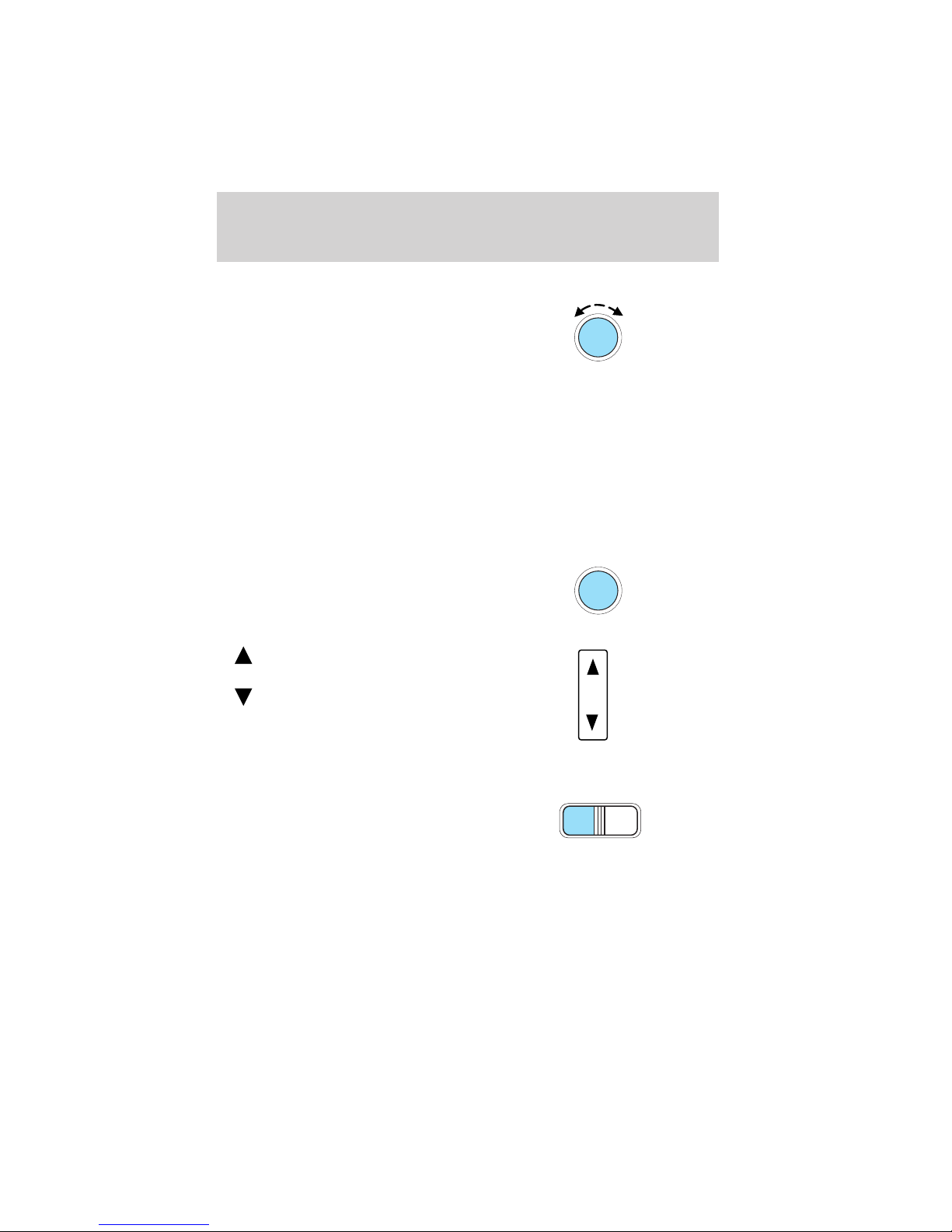

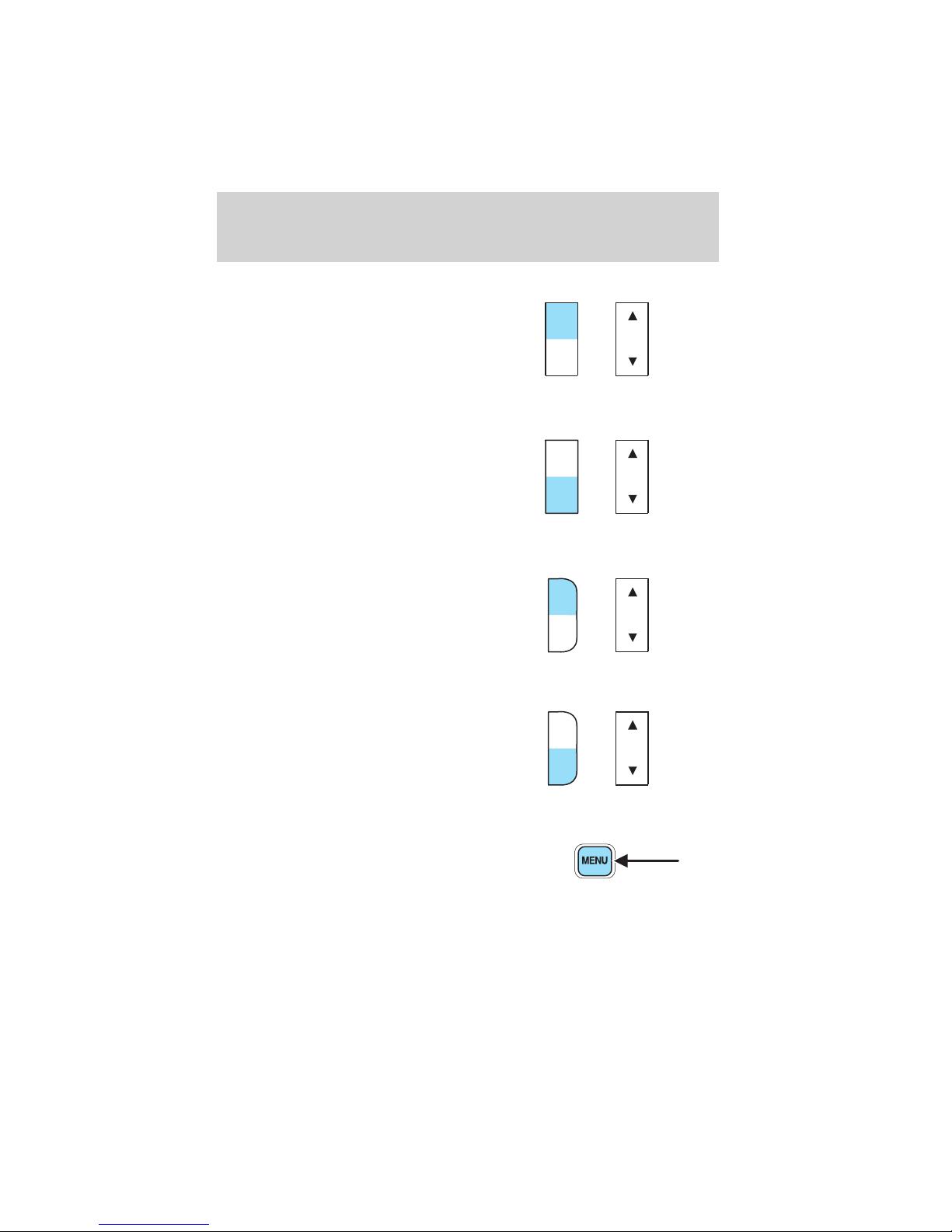

Bass adjust

The bass adjust control allows you to increase or decrease the audio system’s bass output.

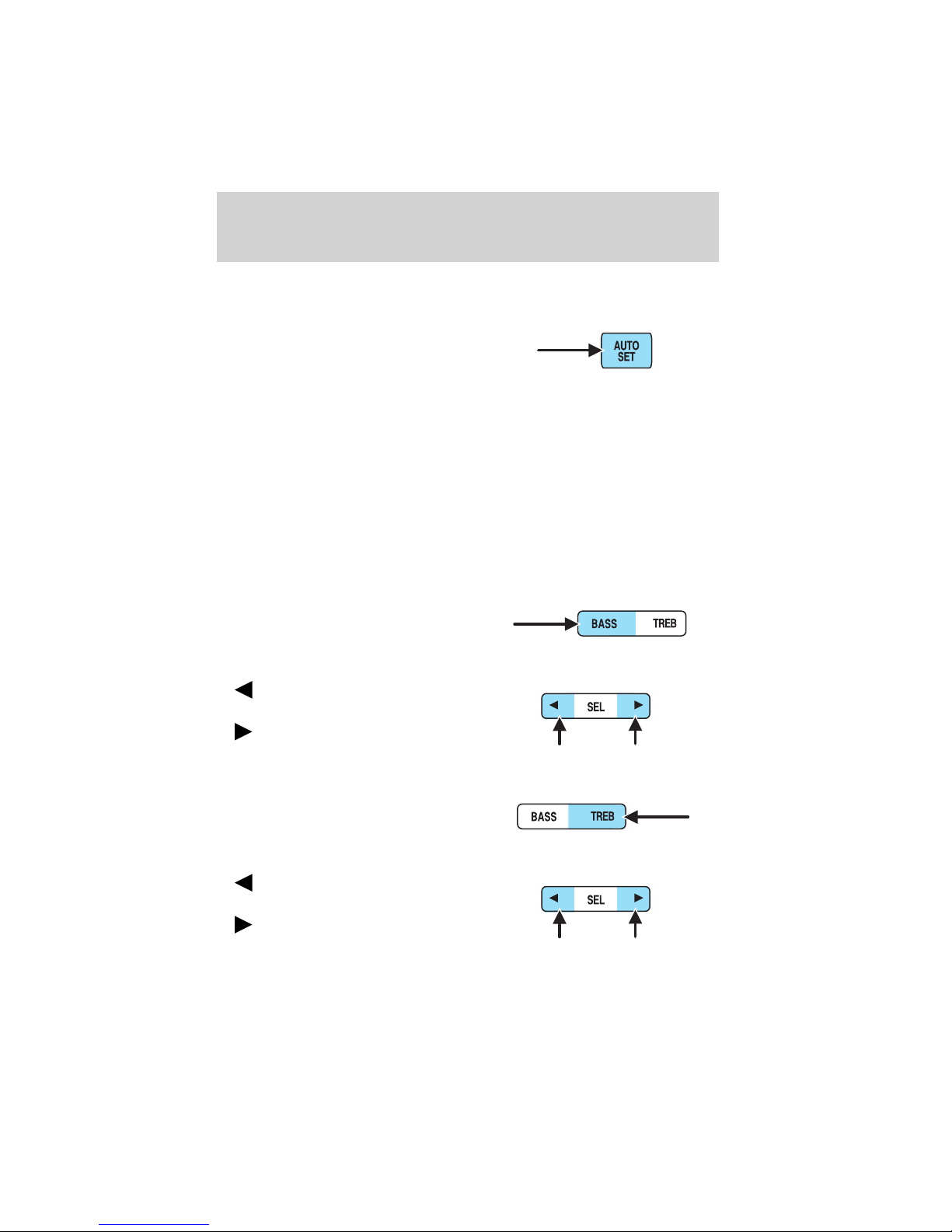

Press the BASS control then press:

•

to decrease the bass output

and

to increase the bass output.

Treble adjust

The treble adjust control allows you to increase or decrease the audio system’s treble output.

Press the TREB control then press:

•

to decrease the treble output

and

to increase the treble output.

Page 22

Entertainment Systems

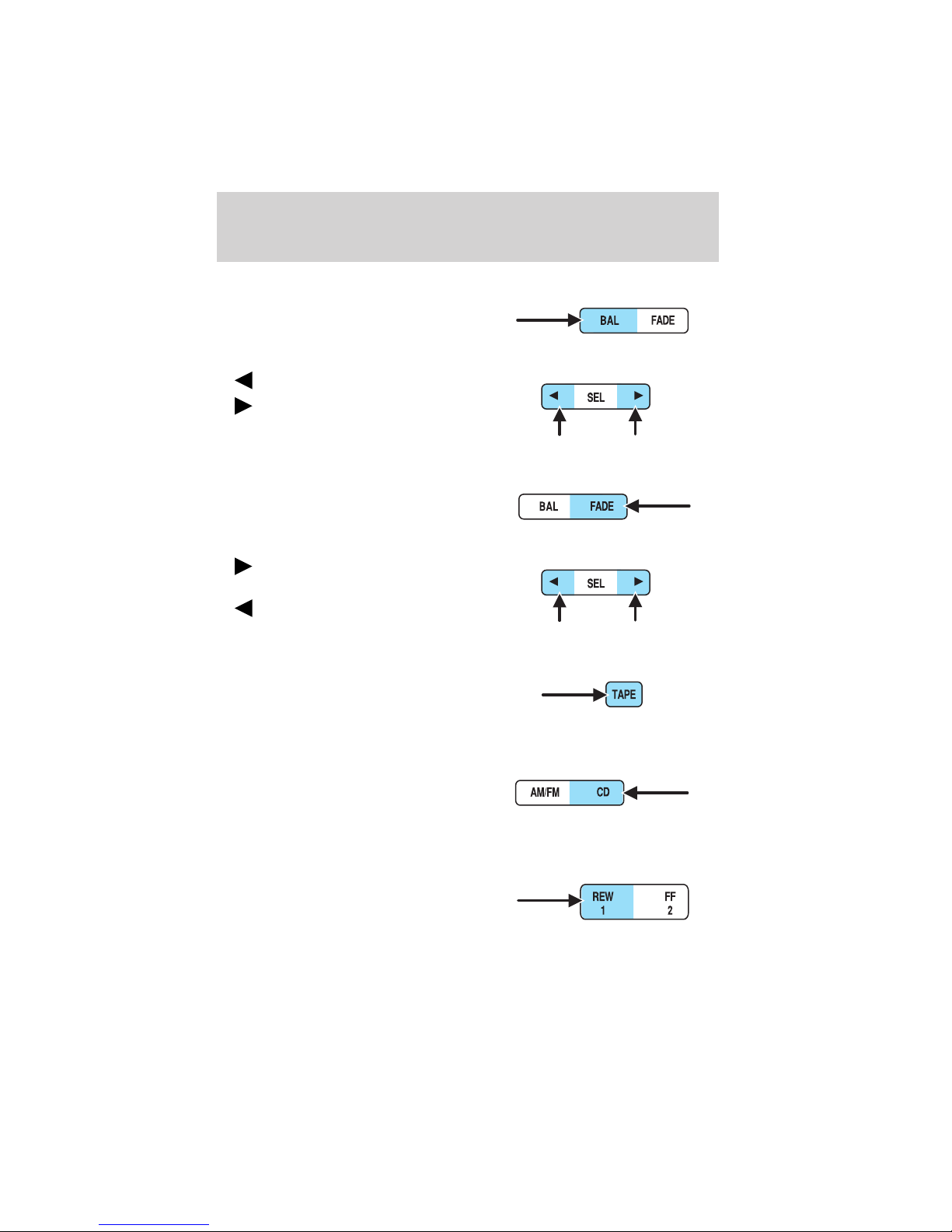

Speaker balance adjust

Speaker sound distribution can be adjusted between the right and left speakers. Press the BAL control then press:

•

Speaker fade adjust

Speaker sound can be adjusted between the front and rear speakers. Press the FADE control then press:

•

Tape/CD select

• To begin tape play (with a tape

• To begin CD play (if CD is

Rewind

The rewind control works in tape and CD modes.

• In tape mode, radio play will

to shift sound to the left and to shift sound to the right.

to shift the sound to the

front and

to shift the sound to the rear.

loaded into the audio system) while in the radio or CD mode, press the TAPE control. Press the button during rewind or fast forward to stop the rewind or fast forward function.

loaded), press the CD control. The first track of the disc will begin playing. If returning from radio or tape mode, CD play will begin where it stopped last.

continue until rewind is stopped (with the TAPE control) or the beginning of the tape is reached.

Page 23

Entertainment Systems

• In CD mode, pressing the REW control rewinds the CD within the current track.

Fast forward

The fast forward control works in tape and CD modes.

• In the tape mode, tape direction will automatically reverse when the end of the tape is reached.

• In CD mode, pressing the control fast forwards the CD within the current track.

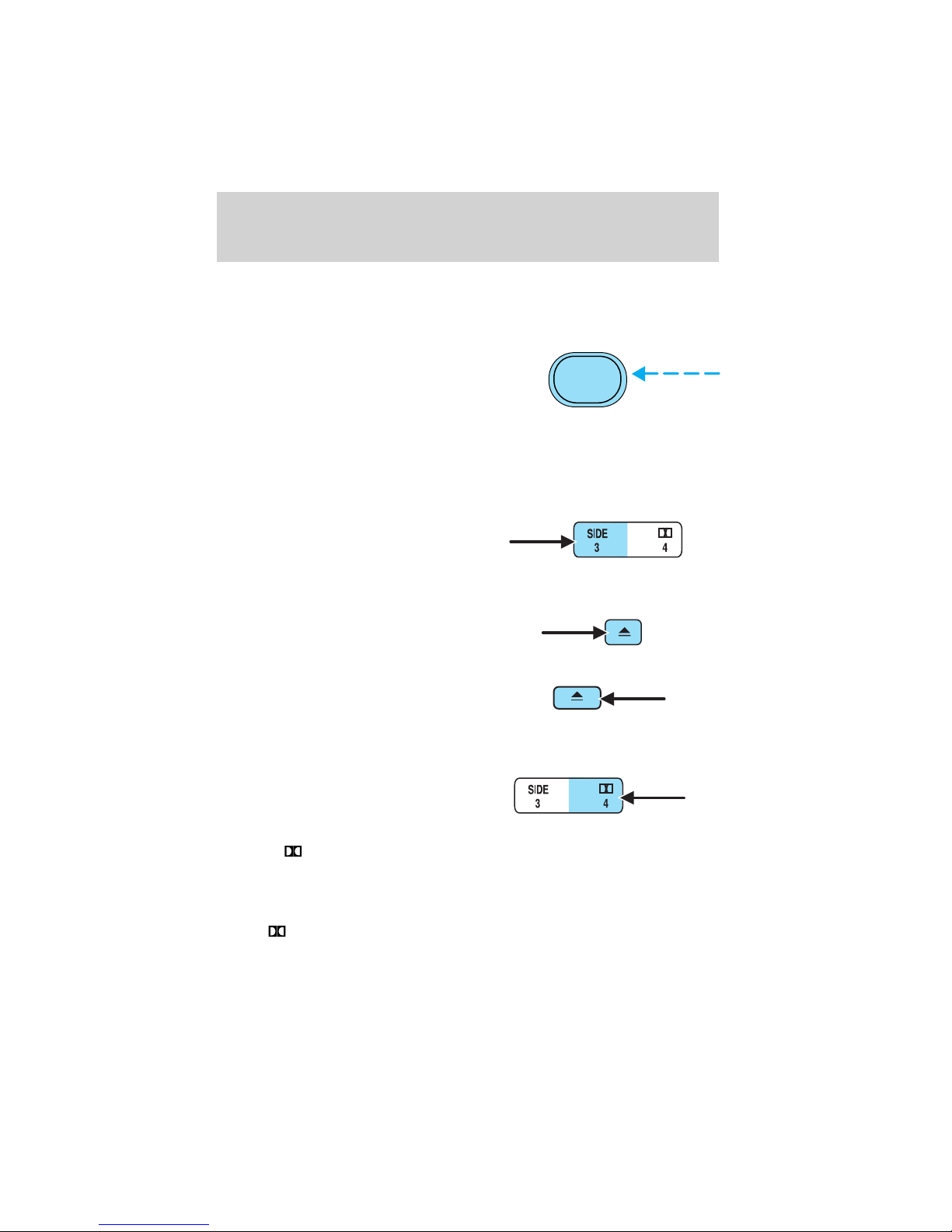

Tape direction select

Press to play the alternate side of the tape.

Eject function

Press the EJ control to stop and eject a tape.

Press the EJ control to stop and eject a CD.

DolbyT noise reduction

Dolbyt noise reduction operates in tape mode. Dolbyt noise reduction reduces the amount of hiss and static during tape playback.

Press the reduction.

Dolbyt noise reduction is manufactured under license from Dolbyt Laboratories Licensing Corporation. “Dolbyt” and the double-D

symbol Corporation.

control to activate (and deactivate) the Dolbyt noise

are registered trademarks of Dolbyt Laboratories Licensing

Page 24

Entertainment Systems

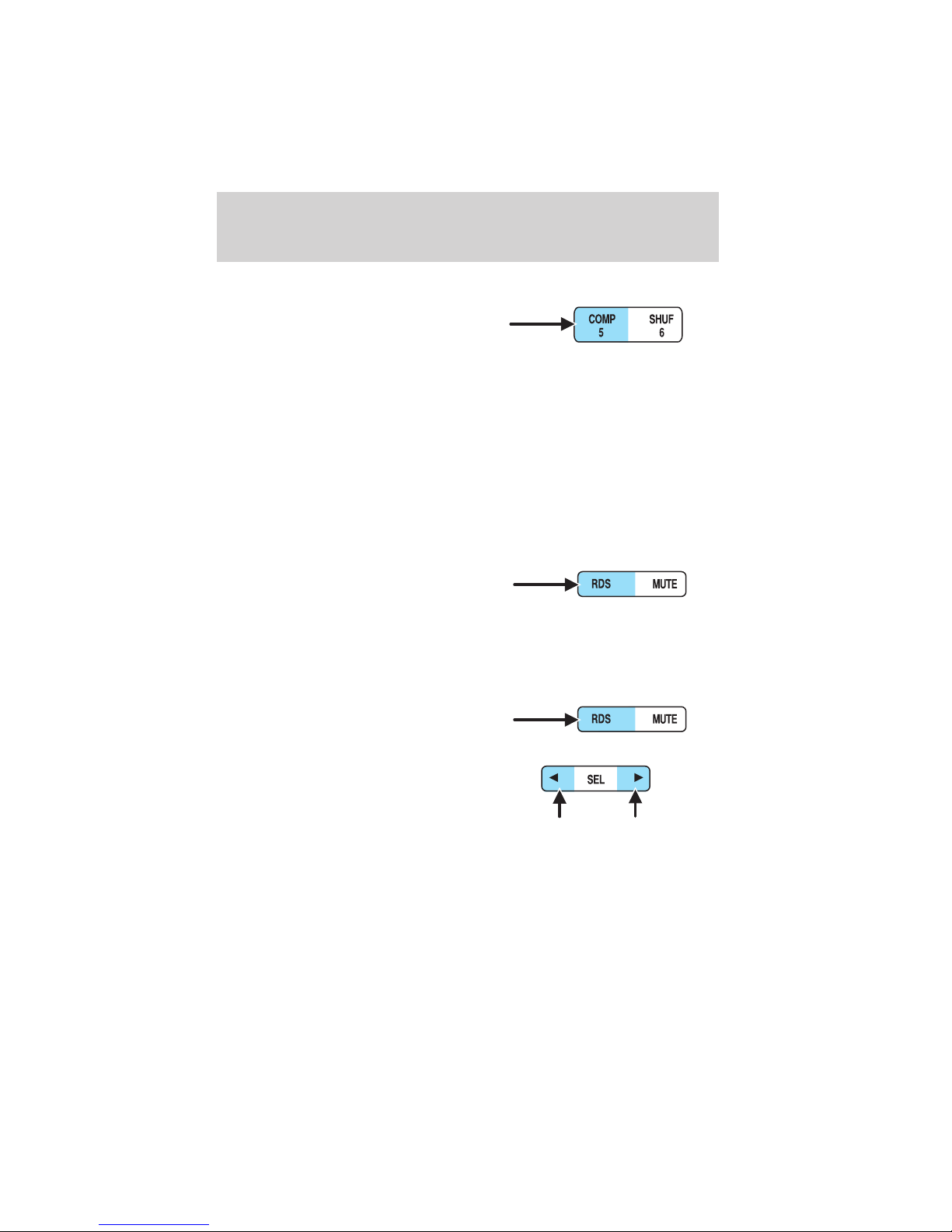

Compression adjust

Compression adjust brings soft and loud CD passages together for a more consistent listening level.

Press the COMP control to activate and deactivate compression adjust.

Radio data system (RDS) feature

This feature allows your audio system to receive station identification or program type from RDS-equipped FM radio stations.

The Federal Communications Commission (FCC) and the Canadian Radio and Telecommunications Commission (CRTC) recommend that FM radio broadcasters use RDS technology to transmit information. FM radio stations are independently operated and individually elect to use RDS technology to transmit station ID and program type as desired.

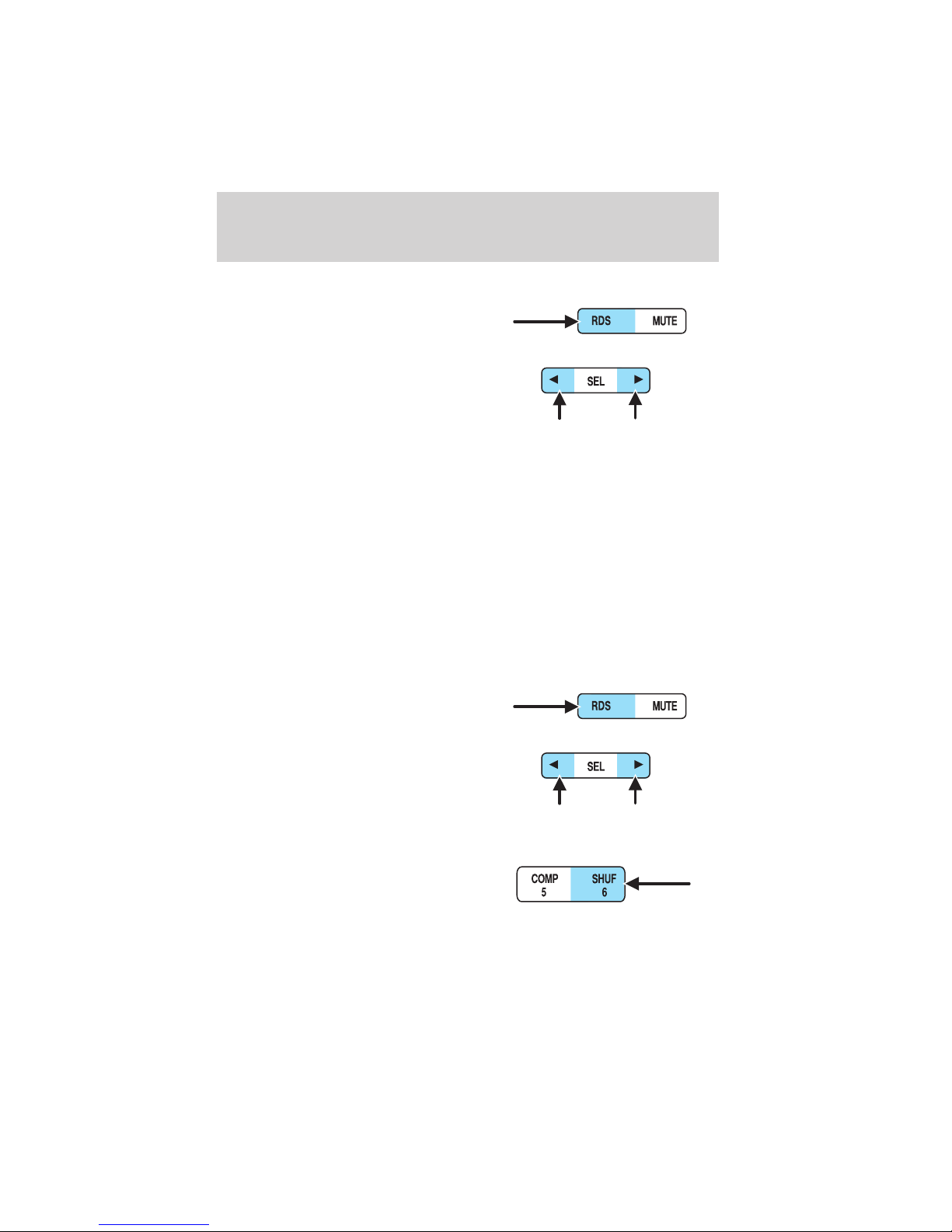

Press the RDS control until RDS ON or RDS OFF appears in the display. Use the SEL control to enable (ON) or disable (OFF) the feature. With the RDS activated, press the RDS control to scroll through the following selections:

Traffic

• Press the RDS control until TRAFFIC is displayed.

• Use the SEL control to select ON or OFF. With the feature on, use the SEEK or SCAN control to find a radio station broadcasting a traffic report (if it is broadcasting RDS data).

This feature also allows you to control the volume of traffic announcements. With the display reading TRAFFIC ON, adjust the volume (using the volume control) to the desired level. The volume level will show at the bottom of the display. Interrupting traffic announcements will be at the selected volume level.

Traffic information is not available in most U.S. markets.

Page 25

Program type

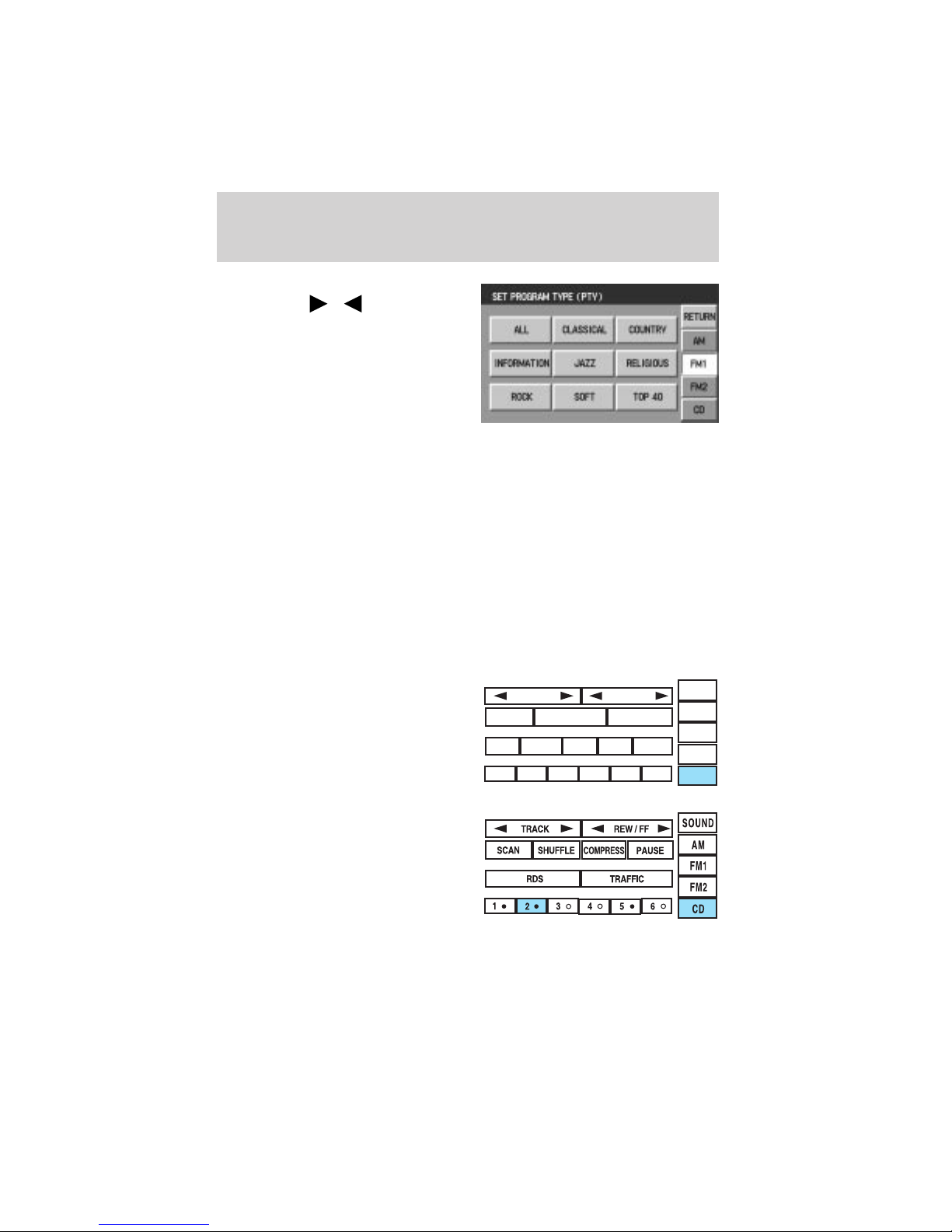

• Press the RDS control until the FIND program type is displayed.

• Use the SEL control to select the program type. With the feature on, use the SEEK or SCAN control to find the desired program type from the following selections:

• Classic

• Country

• Info

• Jazz

• Oldies

• R&B

• Religious

• Rock

• Soft

• Top 40

Show

• With RDS activated, press the RDS control until SHOW is displayed.

• Use the SEL control to select TYPE (the display shows the program type), NAME (the display shows the call letters of the station) or FREQ.

Entertainment Systems

Shuffle feature

The shuffle feature operates in CD mode and plays all tracks in random order.

Press the SHUFFLE control to start this feature. Random order play will continue until the SHUFFLE control is pressed again.

Page 26

Entertainment Systems

Mute mode

Press the MUTE control to mute the playing media. Press the MUTE control again to return to the playing media.

Soft mute

When the vehicle is in reverse, and an obstacle is detected by Rear Park Assist, the radio volume is reduced to a level that allows the warning to be heard. After the obstacle warning is gone, the radio will return to the previously set volume level.

Setting the clock

Your vehicle is equipped with a separate instrument panel mounted clock. Please refer to Clock in the Driver controls chapter for instructions on setting the clock.

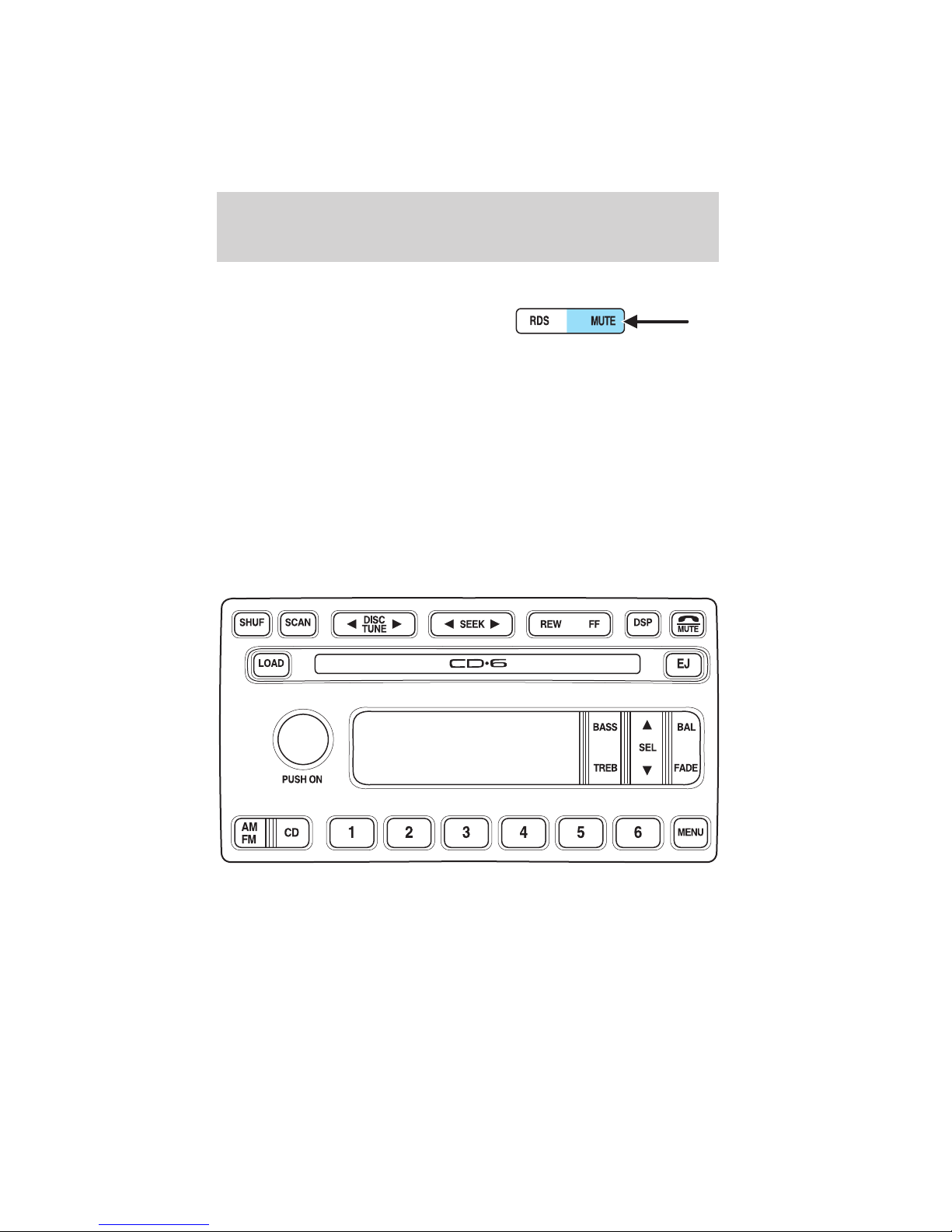

AUDIOPHILE AM/FM STEREO IN DASH SIX CD RADIO

Page 27

Entertainment Systems

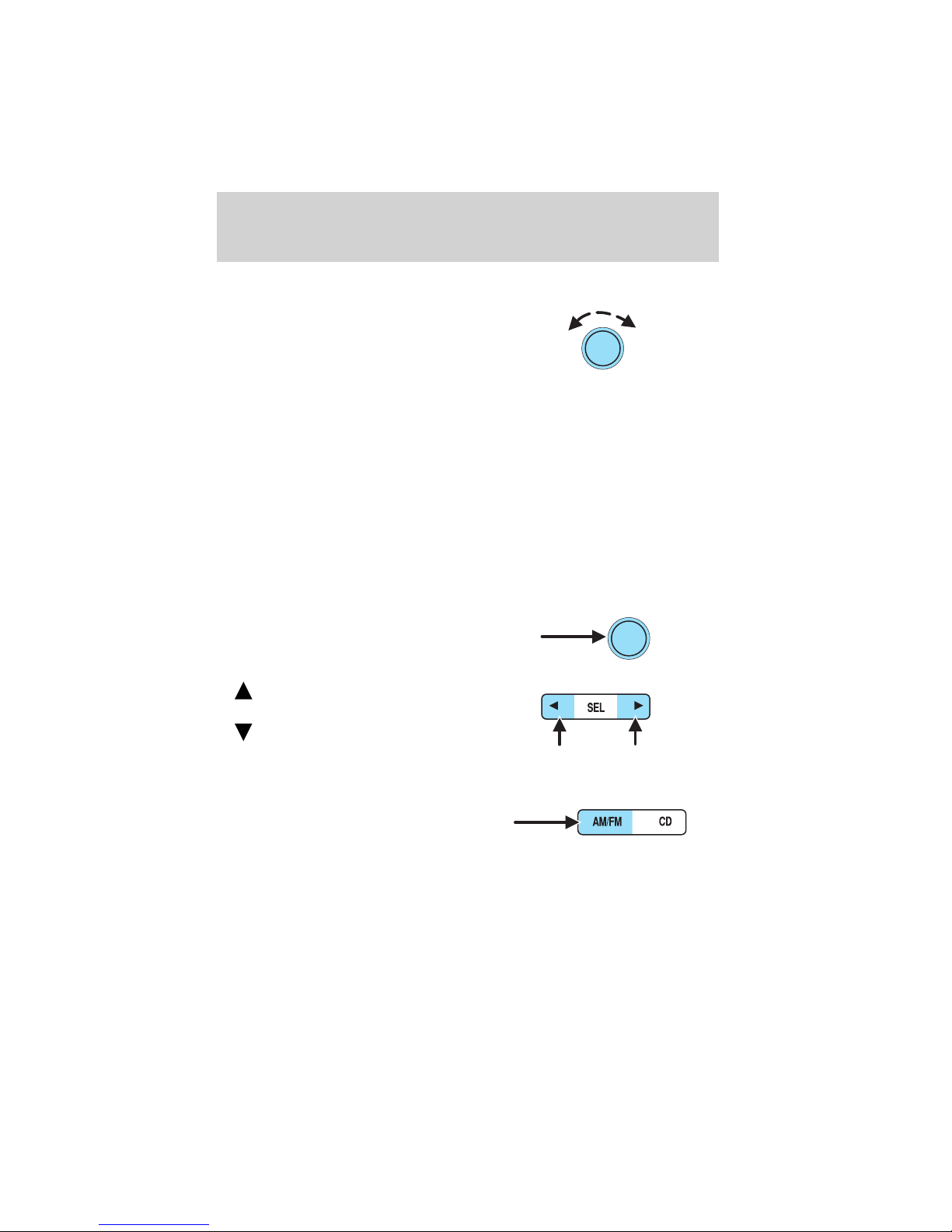

Volume/power control

Press the control to turn the audio system on or off. Turn the control to raise or lower volume.

PUSH ON

If the volume is set above a certain level and the ignition is turned off, the volume will come back on at a “nominal” listening level when the ignition switch is turned back on.

Speed sensitive volume

With this feature, radio volume changes automatically and slightly with vehicle speed to compensate for road and wind noise.

The recommended level for speed sensitive volume is from level 1 through level 3. Level 0 turns the speed sensitive volume off and level 7 is the maximum setting.

To engage the speed sensitive volume feature, press and hold the volume control for five seconds (with the radio on), then press:

PUSH ON

•

to increase volume

compensation.

•

to decrease or shut off the

SEL

volume compensation.

The selected level will appear in the display.

AM/FM select

The AM/FM select control works in radio and CD modes.

AM FM

AM/FM select in radio mode

This control allows you to select AM or FM frequency bands. Press the control to switch between AM, FM1 or FM2 memory preset stations.

AM/FM select in CD mode

Press this control to stop CD play and begin radio play.

Page 28

Entertainment Systems

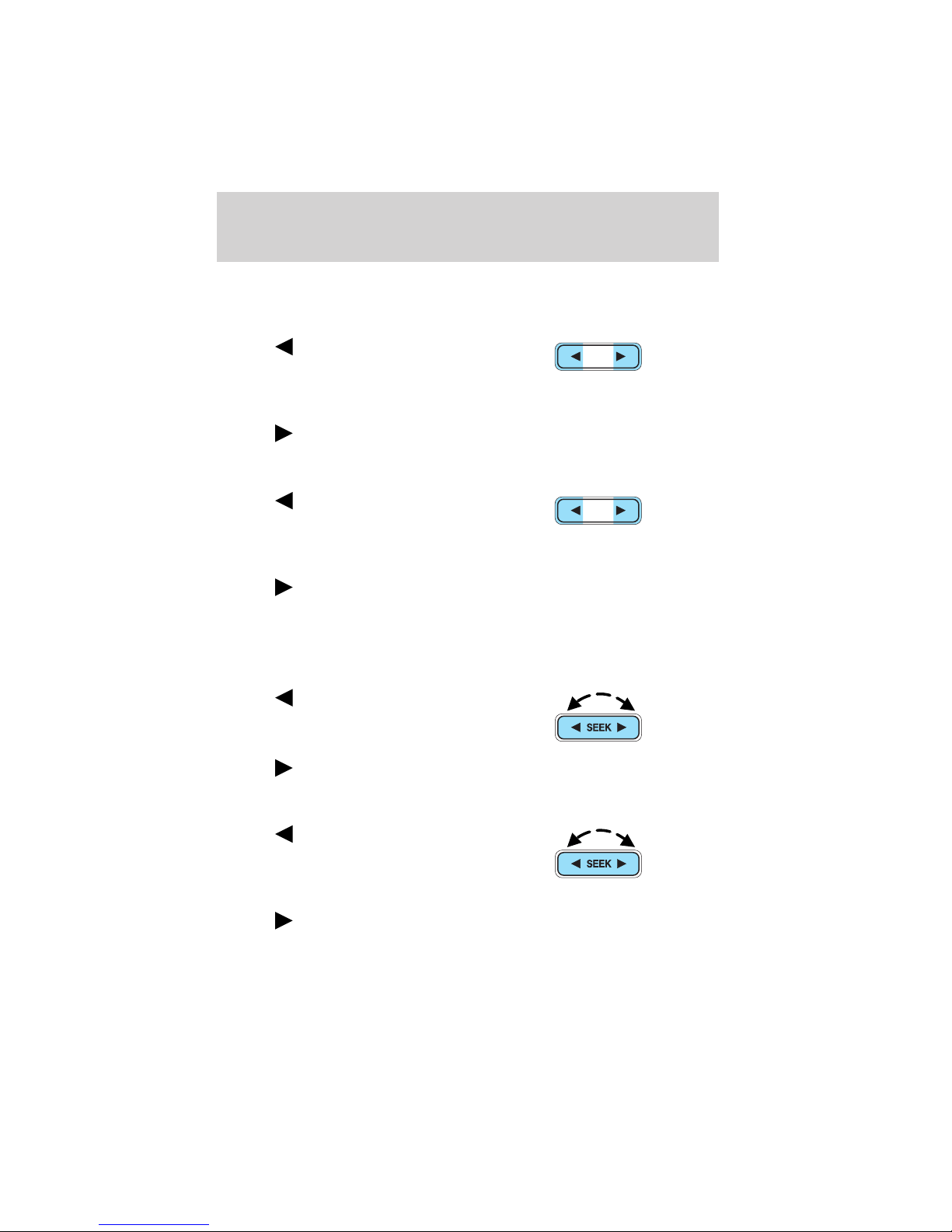

Tune/disc adjust

The tune control works in radio or CD mode.

Tune adjust in radio mode

• Press to move to the next frequency down the band (whether or not a listenable station is located there). Hold the control to move through the frequencies quickly.

• Press

to move to the next frequency up the band (whether or not

a listenable station is located there). Hold for quick movement.

Disc adjust for CD mode

• Press to select the previous disc. (Play will begin on the first track of the disc unless shuffle mode is engaged.) Refer to Shuffle feature for more information. Hold the control to continue reversing through the discs.

• Press

to select the next disc. Hold the control to fast-forward

through the remaining discs.

Seek function

The seek function works in radio or CD mode.

Seek function in radio mode

• Press to find the next listenable station down the frequency band. SEEK DOWN will display.

• Press

to find the next listenable station up the frequency band.

SEEK UP will display.

Seek function in CD mode

• Press to seek to the previous track of the current disc. If the beginning of the disc is reached, the CD player seeks to the beginning of the last track on the current disc and begins playing.

• Press

to seek forward to the next track of the current disc. After the last track has been completed, the first track of the current disc will automatically replay.

DISC

TUNE

DISC

TUNE

Page 29

Entertainment Systems

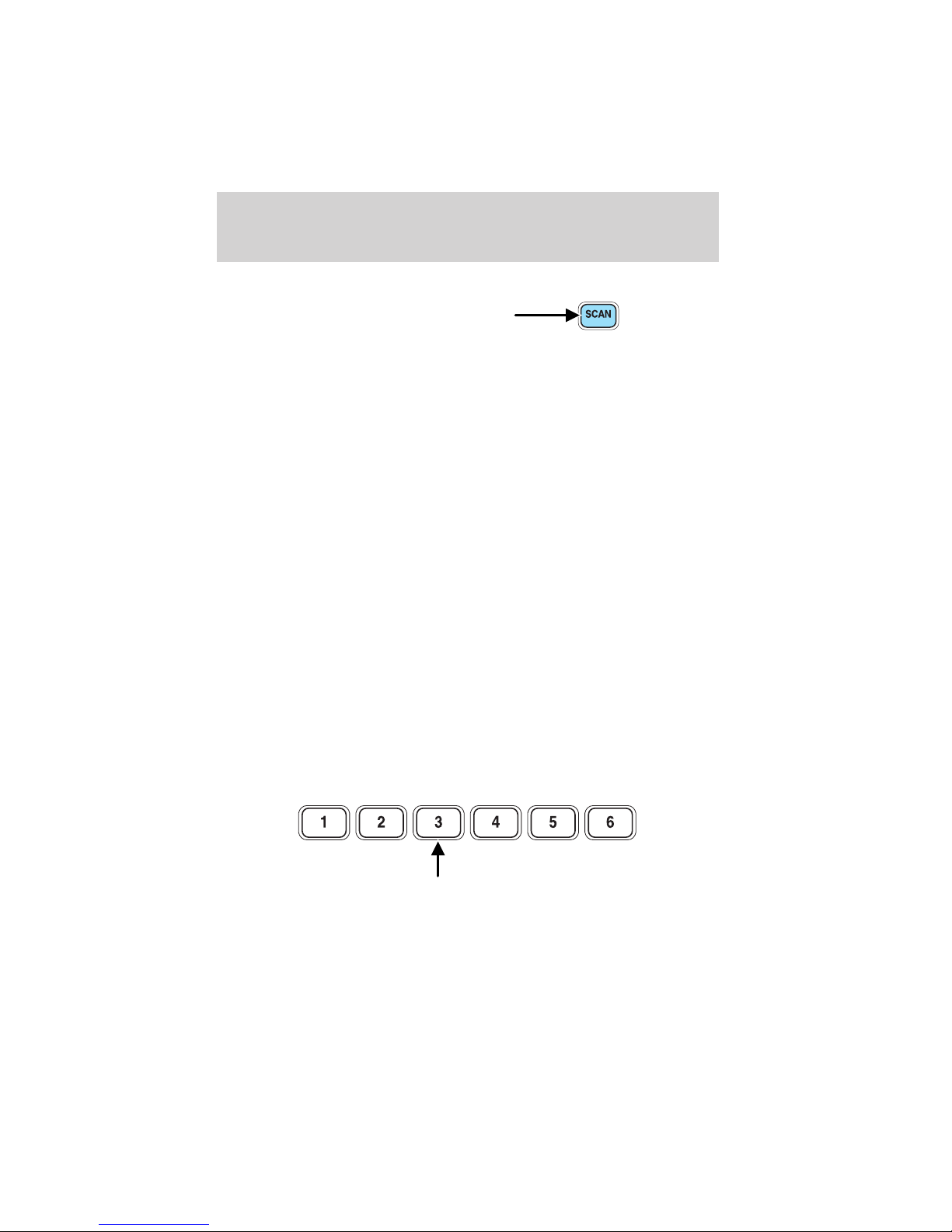

Scan function

The scan function works in radio or CD mode.

Scan function in radio mode

Press the SCAN control to hear a brief sampling of all listenable stations on the frequency band. Press the SCAN control again to stop the scan mode.

Scan function in CD mode

Radio station memory preset

The radio is equipped with six station memory preset controls. These controls can be used to select up to six preset AM stations and twelve FM stations (six in FM1 and six in FM2).

Setting memory preset stations

1. Select the frequency band with the AM/FM select control. Press the AM/FM control to toggle between AM, FM1, or FM2.

2. Press the SEEK control to access the next listenable station up or down the frequency band. Press the TUNE control to go up or down the listening band in individual increments.

3. Select a station. Refer to Seek function for more information on selecting a station.

4. Press and hold a memory preset control. The playing media will mute momentarily. When the sound returns, the station is held in memory on the control you selected. The display will read SAVED.

Autostore

Autostore allows you to set the strongest local radio stations without losing your original manually set preset stations. This feature is helpful on trips when you travel between cities with different radio stations.

Page 30

Entertainment Systems

Starting autostore

1. Press and momentarily hold the AM/FM control.

2. AUTOSET will flash in the display as the frequency band is scrolled through.

3. When the six strongest stations are filled, the station stored in memory preset control 1 will start playing.

If there are fewer than six strong stations available on the frequency band, the remaining memory preset controls will all store the last strong station available.

To deactivate autoset and return to your audio system’s manually set memory stations, press the AM/FM control again.

CD select

CD mode may be entered by pressing the CD control. The first track of the disc will begin playing. After that, CD play will begin where it stopped last.

If an alternative CD is desired, press the corresponding preset control (1–6) of a loaded CD, or press the TUNE control to access the other loaded CDs.

NO CD will display if the CD control is activated when there is not a CD present in the audio system.

If the CD control is pressed followed by with a preset number and that particular slot is empty, NO CD will display and the system will begin to play the next available disc.

Display description

Six circles are always lit in the digital display. These signify the six CD slots in the audio system. When a disc is loaded into a particular slot (1–6), the number inside that specific circle lights. If the circle is empty, there is no CD in that particular slot.

Load

The load feature allows you to load single CDs into the player internal to the radio.

This six disc CD player is equipped with a CD door. Compact discs should only be inserted into the player after the CD door has been opened by the player. Do not attempt to force the door open. Compact discs should only be loaded by pressing the LOAD control.

AM FM

LOAD

Page 31

Entertainment Systems

Press the LOAD control. (You can choose which slot will be loaded by pressing the desired preset number. If you do not choose a slot, the system will choose the next available one.) Wait until the CD door opens. Load the CD into the player. LOADING CD# is displayed. When the CD has been loaded, the door will close and the CD will begin to play. For example, to load a CD into slot 2, press the LOAD control and then press preset 2.

Auto load

This feature allows you to autoload up to 6 discs into the multi disc CD player internal to the radio.

Press and hold the LOAD control until AUTO LOAD# is displayed. The CD door will open. Load the desired discs, one at a time. The CD is loaded into position and the audio system will display CD#. Each time the CD door opens, AUTO LOAD# is displayed. The door will close and the player will move to the next slot after each disc has been loaded. The process is repeated until all 6 slots are full. The audio system plays the last CD loaded and the display is updated. If some slots are already full and autoload is activated, the system will fill all empty slots.

Eject

Press the EJ control to stop and eject a CD. You can choose which CD will be ejected by pressing the EJ control and the desired preset number (1–6). For example, to eject CD 2, press the EJ control and then press the preset 2 control. If you do not choose a specific CD, the player will eject the current CD.

If a CD is ejected and not removed from the door of the CD player, the player will automatically reload the CD. This feature may be used when the ignition is ON or OFF.

LOAD

Auto eject

Press and momentarily hold the EJ control to engage auto eject. All CDs which are present in the player will be ejected one at a time. If a CD is ejected and not removed from the door of the CD player, the player will automatically reload the CD. This feature may be used when the ignition is ON or OFF.

Page 32

Entertainment Systems

Rewind

The rewind control works in CD modes.

Press and hold the REW control until the desired selection is reached. If the beginning of the disc is reached, the CD will begin play at the first track. Release the control to disengage rewind mode.

When in rewind mode, your audio system will automatically lower the volume level of the playing media.

Fast forward

The fast forward control works in CD modes.

Press and hold the FF control until the desired selection is reached. If the end of the disc is reached, the CD will return to the first track. Release the control to disengage fast forward mode.

When in fast forward mode, your audio system will automatically lower the volume level of the playing media.

Shuffle feature

Press the SHUF control until the desired shuffle mode is displayed. The audio system will then engage the desired shuffle mode.

When engaged, the shuffle feature has two different modes: SHUFFLE DISC and SHUFFLE TRK.

SHUFFLE DISC randomly plays tracks from all the discs presently in the audio system.

SHUFFLE TRK plays all the tracks on the current disc in random order.

Compression feature

The compression feature operates in CD mode and brings soft and loud CD passages together for a more consistent listening level.

REW FF

SEL

Press the MENU control until compression status is displayed. Press the SEL control to enable the compression feature when COMPRESS OFF is displayed. Press the SEL control again to disable the feature when COMPRESS ON is displayed.

Page 33

Entertainment Systems

Bass adjust

The bass adjust control allows you to increase or decrease the audio system’s bass output.

Press the BASS control. Use the SEL control to increase or decrease the amount of bass.

Treble adjust

The treble adjust control allows you to increase or decrease the audio system’s treble output.

Press the TREB control. Use the SEL control to increase or decrease the amount of treble.

Speaker balance adjust

Speaker sound distribution can be adjusted between the right and left speakers.

Press the BAL control. Use the SEL control to adjust the sound between the left and right speakers.

Speaker fade adjust

Speaker sound can be adjusted between the front and rear speakers.

Press the FADE control. Use the SEL control to adjust the sound between the front and rear speakers.

Menu mode

The MENU control allows you to access many different features within your audio system. There are three sets of menus available depending upon which mode or feature is activated.

While in FM mode, two menus are available. If RDS is turned OFF, you can access :

• RDS OFF — Refer to Radio data system feature.

BASS

TREB

BASS

TREB

BAL

FADE

BAL

FADE

SEL

Page 34

Entertainment Systems

If RDS is turned ON, you can access the following:

• TRAFFIC ON/OFF-Refer to Traffic announcements.

• FIND type-Refer to Program type.

• SHOW (NAME, TYPE, NONE)- Refer to Radio data system feature.

• RDS ON— Refer to Radio data system feature.

You can also access COMP ON/OFF. TRAFFIC ON/OFF— Traffic announcements can be programmed as local

or distant. Refer to Traffic announcements. RDS ON/OFF— This feature allows your audio system to receive text

information from RDS-equipped FM radio stations. Refer to Radio Data

System feature.

FIND type — Allows you to select your desired FM program type and search for that selection.

SHOW — Allows you to select from NAME (displays the name of the radio station), TYPE (displays the RDS program type: rock, jazz, etc.), or NONE (deactivates the RDS display).

Traffic announcements

This feature allows you to hear traffic announcements. When in this mode, traffic announcements will interrupt radio and CD play.

When in FM mode and RDS is activated, press the MENU until TRAFFIC OFF displays. Press the SEL control to engage the feature. The display will read TRAFFIC ON.

This feature also allows you to control the volume of traffic announcements. With the display reading TRAFFIC ON, adjust the volume using the volume control to the desired level. The volume level will show at the bottom of the display. Interrupting traffic announcements will be at the selected volume level.

To disengage the feature, press the MENU control until TRAFFIC ON displays. Press the SEL control. The display will read TRAFFIC OFF.

RDS traffic seek feature

When in traffic mode, you can use the SEEK feature to seek up or down the listenable traffic capable frequencies.

With the RDS activated, press MENU until TRAFFIC ON is displayed. Press and hold the SEEK control until the desired selection is reached. The feature disengages when the control is released.

SEL

Page 35

Entertainment Systems

RDS traffic scan feature

When in traffic mode, you can use the SCAN feature to scan up the frequency band for listenable traffic capable frequencies.

With the RDS activated, press the MENU control until TRAFFIC ON is displayed. Press the SCAN control. SCAN TRAFFIC will display. The audio system will scan to all traffic capable frequencies. If no valid stations are found after one pass, the scan function is cancelled and NOT FOUND displays.

Traffic announcements are not available in most U.S. markets.

Radio data system (RDS) feature

This feature allows your audio system to receive text information from RDS-equipped FM radio stations.

To activate RDS:

• When in FM mode, press the MENU control until RDS OFF displays.

• Press the SEL control to engage this feature (RDS ON).

RDS features:

Once the RDS feature is on, press the MENU control to scroll through the following selections:

Traffic announcements

This feature allows you to hear traffic announcements while in CD mode. These announcements are broadcast by traffic capable RDS stations.

When in this mode, traffic announcements will interrupt radio and CD play.

• Press the MENU control until TRAFFIC is displayed.

• Press the SEL control to engage the feature. The display will read

TRAFFIC ON.

To disengage the feature, press the MENU control until TRAFFIC ON displays. Press the SEL control. The display will read TRAFFIC OFF.

Traffic announcements are not available in most U.S. markets.

SEL

Page 36

Entertainment Systems

Program type

This feature allows you to search for RDS stations selectively by their program type.

Press the MENU control until FIND program type is displayed.

Use the SEL control to select the program type. With the feature on, use the SEEK or SCAN control to find the desired program type from the following selections:

• Classic

• Country

• Info

• Jazz

• Oldies

• R&B

• Religious

• Rock

• Soft

• Top 40

Show

This feature allows you to select the type of RDS broadcast information the radio will regularly show in the display.

With RDS activated, press the MENU control until SHOW is displayed.

Use the SEL control to select TYPE (displays the RDS program type: rock, jazz, etc), NAME (displays the name of the radio station) or NONE (deactivates the RDS display).

SEL

Mute mode

Press the control to mute the playing media. Press the control again to return to the playing media.

Soft mute

Page 37

Entertainment Systems

Setting the clock

Your vehicle is equipped with a separate instrument panel mounted clock. Please refer to Clock in the Driver controls chapter for instructions on setting the clock.

Digital signal processing (if equipped)

The digital signal processing (DSP) feature allows you to change the signal mode to suit your listening tastes.

Press the DSP control to access the DSP menu.

Use the SEL control to select the desired signal mode (the selected mode will appear in the display). The following can be selected:

• DSP OFF—disengages the feature

• STADIUM—outdoor stadium with

a capacity of about 30 000

• CHURCH—church with a high vault

• HALL—rectangular concert hall capacity of about 2 000

• JAZZ CLUB—jazz club with clearly reflected sounds

• NEWS “voice-only” type of sound with a limited audio band

Press the DSP control again to access the occupancy modes. Use the SEL control to optimize the sound based upon the occupants in the vehicle.

The following occupancy modes can be selected:

• ALL SEATS

• DRIVER SEAT

• REAR SEATS

DSP ambiance feature (if equipped)

Your vehicle may be equipped with the ambiance feature. This feature gives the feeling of “being there” to your music, creating increased clarity as well as an open and spacious feel to the music.

DSP

SEL

Page 38

Entertainment Systems

Press DSP to access the ambiance menu. Press SEL to engage/disengage.

Turn the volume control to increase/ decrease the level of ambiance.

Press the DSP control again to access the occupancy modes. Use the SEL control to optimize the sound based upon the occupants in the vehicle.

The following occupancy modes can be selected:

• ALL SEATS

• DRIVER SEAT

• REAR SEATS

CLEANING COMPACT DISCS

Inspect all discs for contamination before playing. If necessary, clean discs only with an approved CD cleaner and wipe from the center out to the edge. Do not use circular motion.

CD AND CD CHANGER CARE

• Handle discs by their edges only. Never touch the playing surface.

• Do not expose discs to direct sunlight or heat sources for extended

periods of time.

• Do not insert more than one disc into each slot of the CD changer magazine.

CD units are designed to play commercially pressed 12 cm (4.75 in) audio compact discs only. Due to technical incompatibility, certain recordable and re-recordable compact discs may not function correctly when used in Ford CD players. Irregular shaped CDs, CDs with a scratch protection film attached, and CDs with homemade paper (adhesive) labels should not be inserted into the CD player. The label may peel and cause the CD to become jammed. It is recommended that homemade CDs be identified with permanent felt tip marker rather than adhesive labels. Ball point pens may damage CDs. Please contact your dealer for further information.

DSP

SEL

RADIO FREQUENCY INFORMATION

The Federal Communications Commission (FCC) and the Canadian Radio and Telecommunications Commission(CRTC) establish the frequencies AM and FM stations may use for their broadcasts. Allowable frequencies are:

AM 530, 540–1600, 1610 kHz

Page 39

Entertainment Systems

FM 87.7, 87.9–107.7, 107.9 MHz Not all frequencies are used in a given area.

RADIO RECEPTION FACTORS

Three factors can affect radio reception:

• Distance/strength. The further an FM signal travels, the weaker it is. The listenable range of the average FM station is approximately 40 km (24 miles). This range can be affected by “signal modulation.” Signal modulation is a process radio stations use to increase their strength/volume relative to other stations.

• Terrain. Hills, mountains and tall buildings between your vehicle’s antenna and the radio station signal can cause FM reception problems. Static can be caused on AM stations by power lines, electric fences, traffic lights and thunderstorms. Moving away from an interfering structure (out of its “shadow”) returns your reception to normal.

• Station overload. Weak signals are sometimes captured by stronger signals when you pass a broadcast tower. A stronger signal may temporarily overtake a weaker signal and play while the weak station frequency is displayed.

The audio system automatically switches to single channel reception if it will improve the reception of a station normally received in stereo.

AUDIO SYSTEM WARRANTIES AND SERVICE

Refer to the Warranty Guide for audio system warranty information. If service is necessary, see your dealer or a qualified technician.

LINCOLN NAVIGATION SYSTEM (IF EQUIPPED)

Your vehicle may be equipped with a Lincoln Navigation System which allows you to listen to the radio, play CDs and also navigate the vehicle using a navigation DVD.

Your system has a large range of features, yet is easy to use. Guidance is shown on the display screen and is supplemented with voice prompts. The display screen provides full information for operating the system through use of menus, text screens and map displays. Screen selections are made by touching the desired selection on the screen.

Page 40

Entertainment Systems

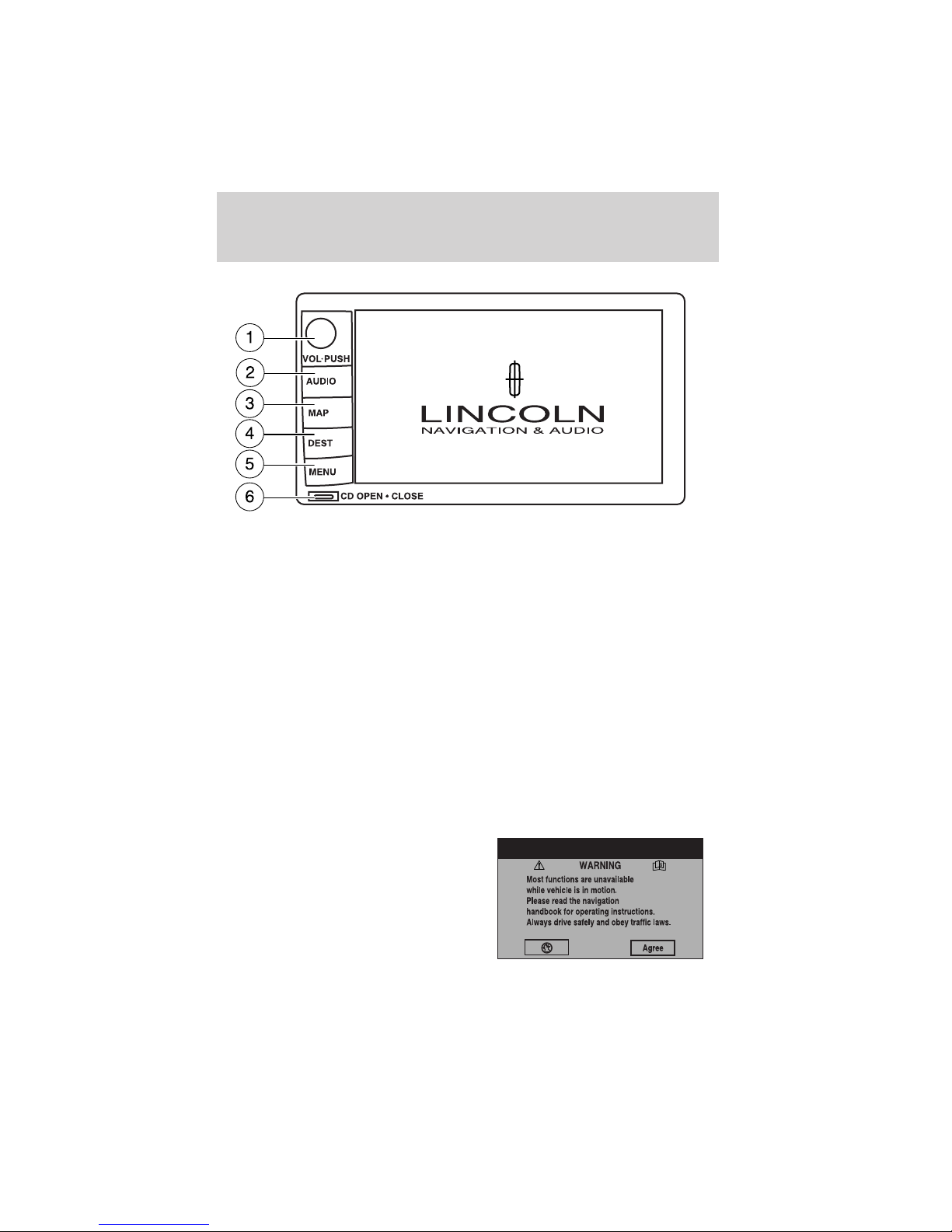

1. VOL-PUSH: Press to turn the system ON/OFF. Turn to adjust the

audio volume level.

2. AUDIO: Press to enter audio mode and access radio, CD, CDDJ, DVD

(if equipped) settings.

3. MAP: Press to enter map mode and view your current vehicle position

on the map. Press and hold to obtain additional position information.

4. DEST: Press to enter Destination Entry mode. This allows you to

enter a destination and route to it. With an active route, pressing DEST allows the user to request a Detour, display entire route, select route preferences, or change or cancel the destination.

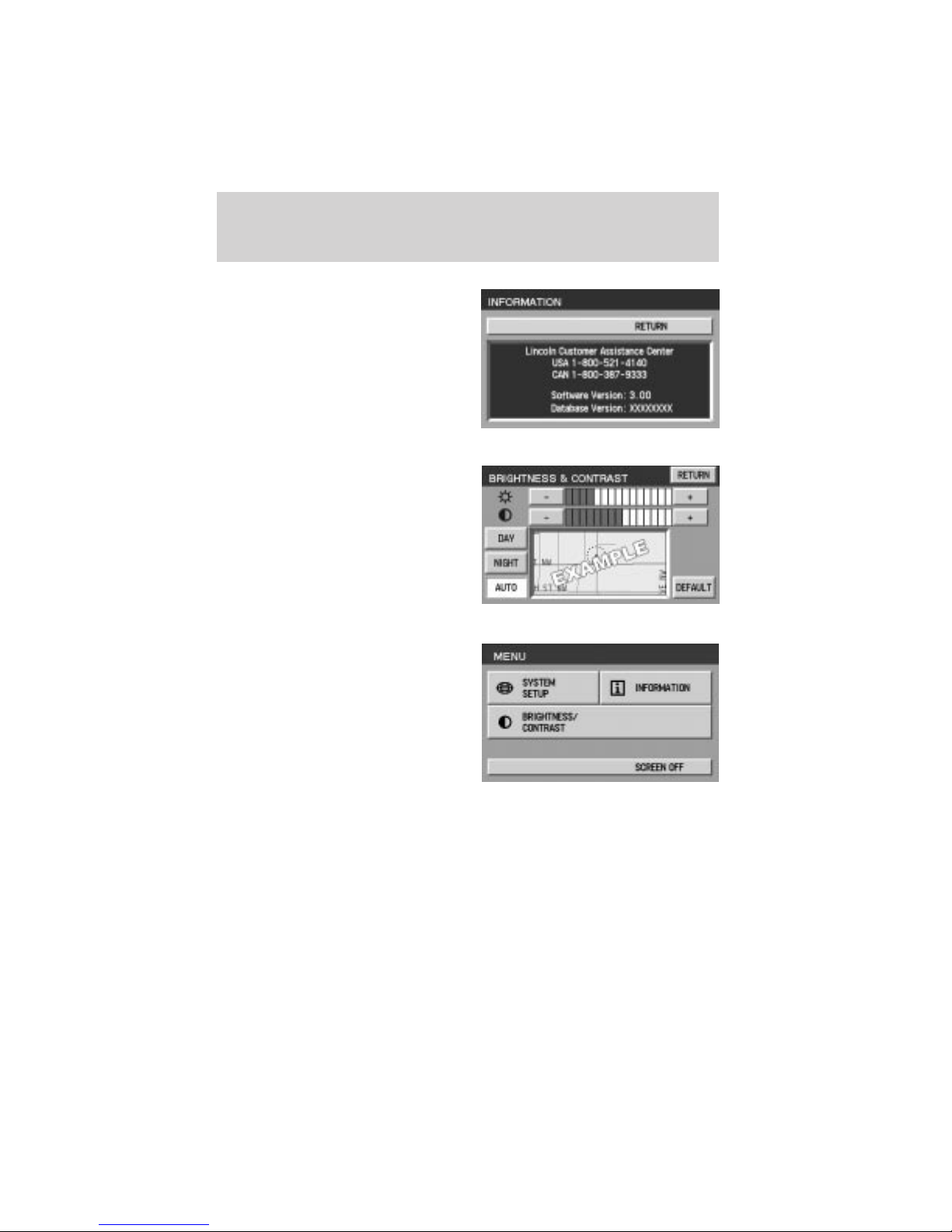

5. MENU: Press to access system settings such as display, brightness,

clock mode, etc.

6. CD OPEN CLOSE: Press to open/close the display screen and access

the CD player.

Initial map display

After pressing AGREE to the initial WARNING screen, you will move into the initial map screen which shows the current vehicle location. Pressing the globe icon will take you to the user settings — audible feedback, navigation units, language and clock.

Page 41

Entertainment Systems

Quick Start — How to get going

To play a radio station:

1. Ensure that the vehicle ignition is on.

2. Press AUDIO.

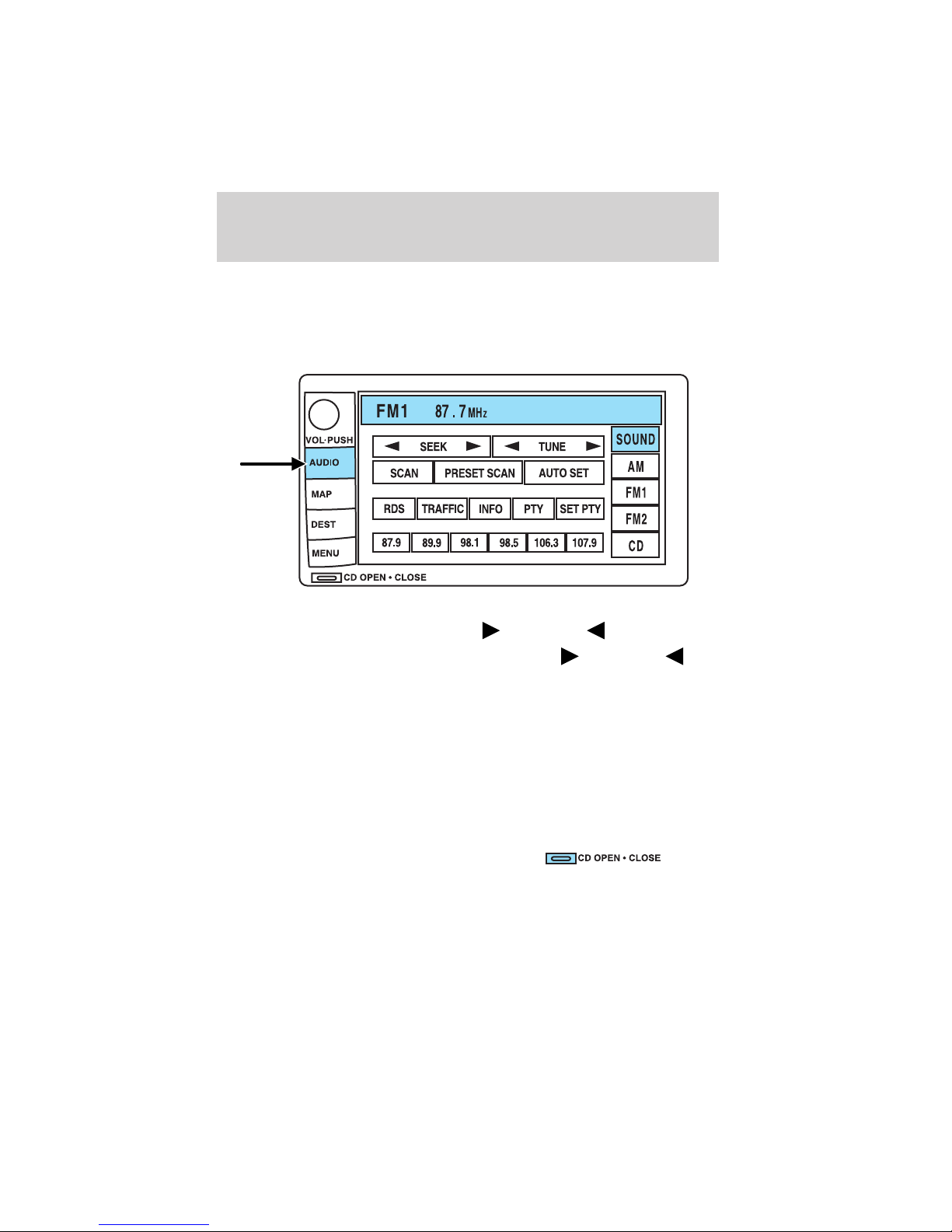

3. Select AM, FM1 or FM2.

4. Press TUNE to adjust manually up (

5. Press SEEK to find the next strong station up (

Note: If PTY (program type) is selected, the station selection will be limited.

To play a previously loaded CD:

1. Ensure that the vehicle ignition is on.

2. Press AUDIO.

3. Press CD to select a CD which is already loaded. (NO CD will appear

in the display if there are not CDs loaded into the system).

4. CD will begin to play.

To load CDs:

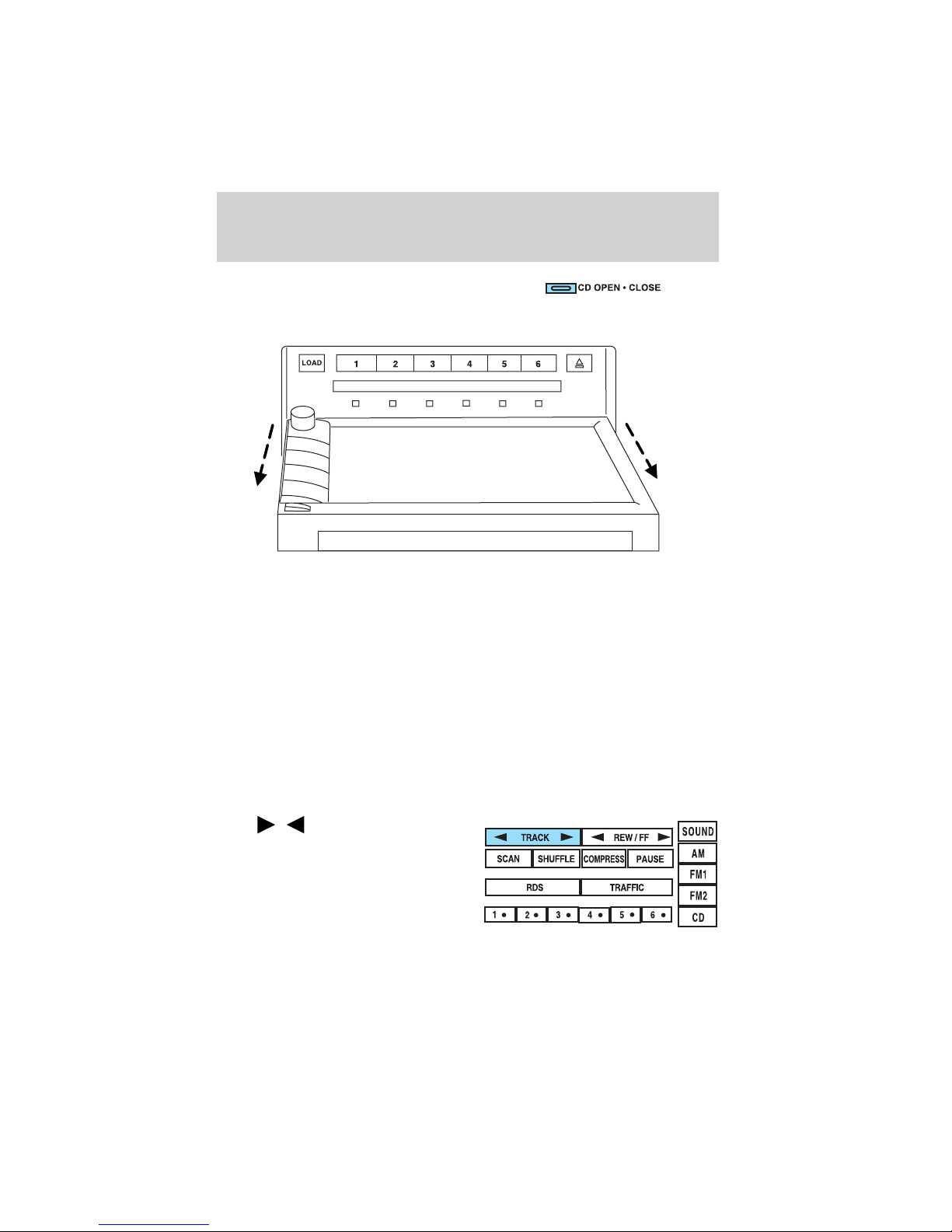

1. Press CD OPEN CLOSE at the

bottom of the screen to load a CD. (The screen will open).

2. Press LOAD and select the desired slot. Or, press and hold LOAD to

auto load all available slots. The slot indicator lights blink rate will increase when the system is ready to accept a disc. Push CD OPEN CLOSE to close the screen. Once closed, the CD will begin to play.

) or down ( ).

Page 42

Entertainment Systems

3. Use the touch controls to advance tracks, scan, pause, etc. The slot

number indicators at the bottom will signify which disc is currently playing.

To use the Navigation system:

1. Ensure that the vehicle ignition is on, and the navigation DVD is

loaded into the navigation DVD player.

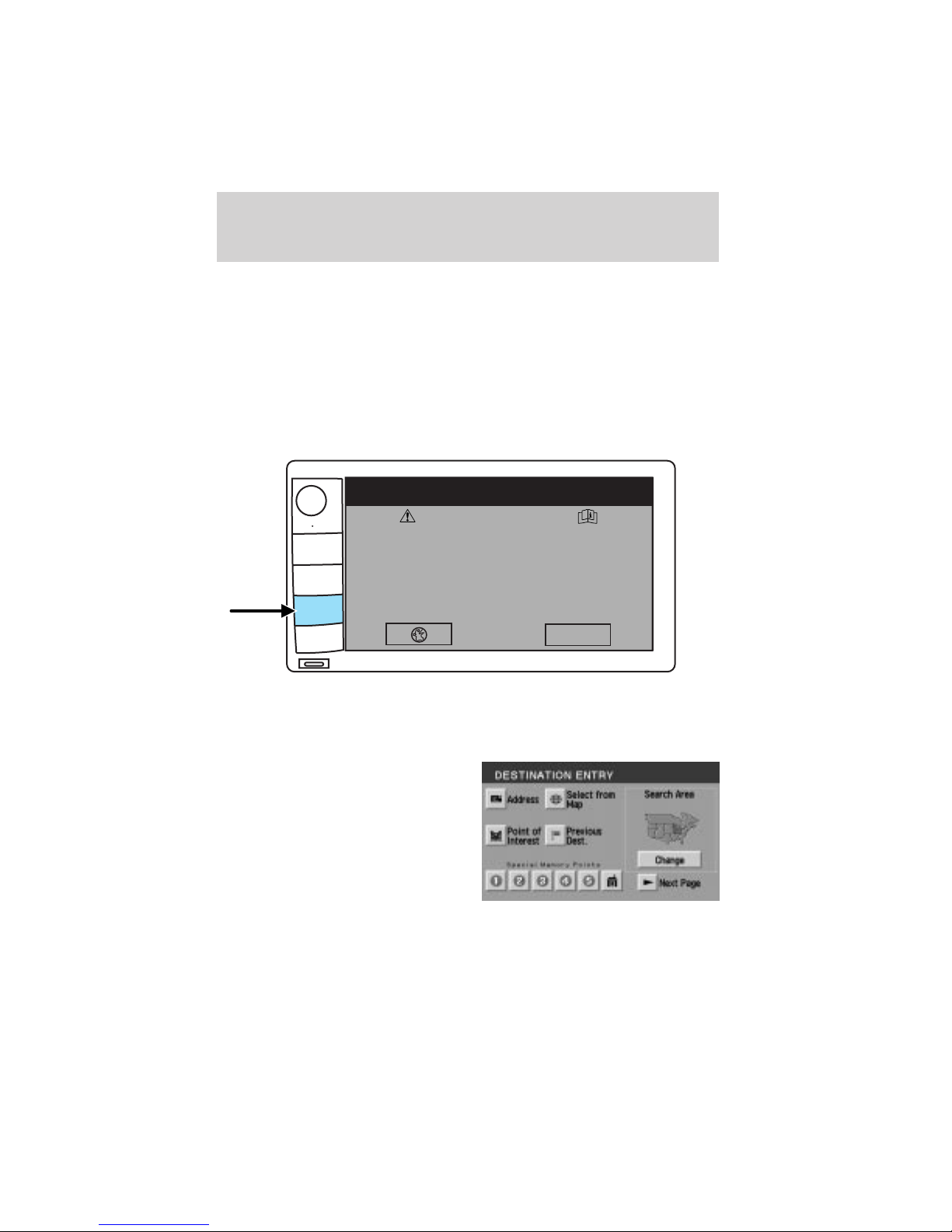

2. Press DEST. The warning screen will appear. After reading, press

AGREE. The screen will show a map with your current location. Press DEST again.

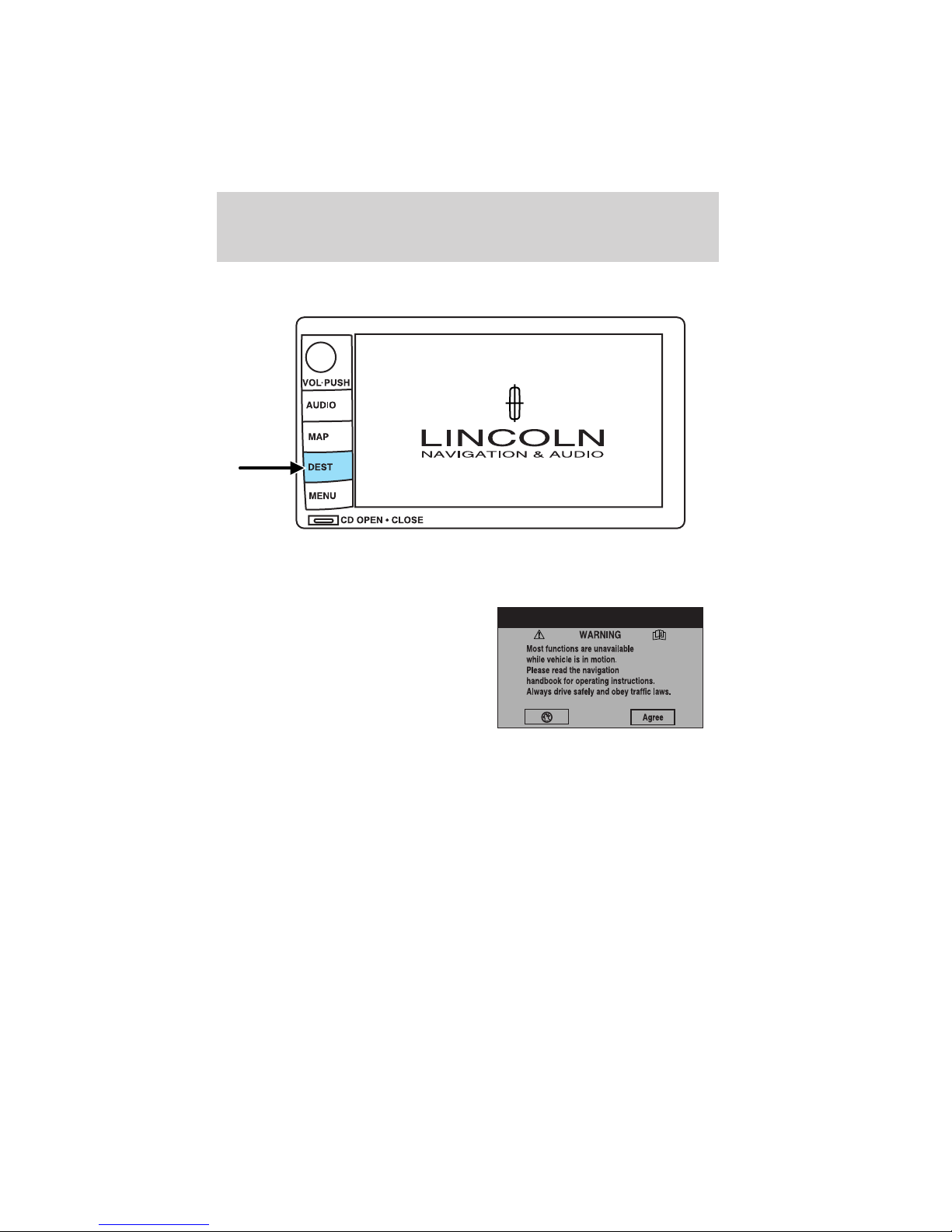

VOL PUSH

AUDIO

MAP

DEST

Most functions are unavailable while vehicle is in motion. Please read the navigation handbook for operating instructions. Always drive safely and obey traffic laws.

CD OPEN • CLOSE

WARNING

Agree

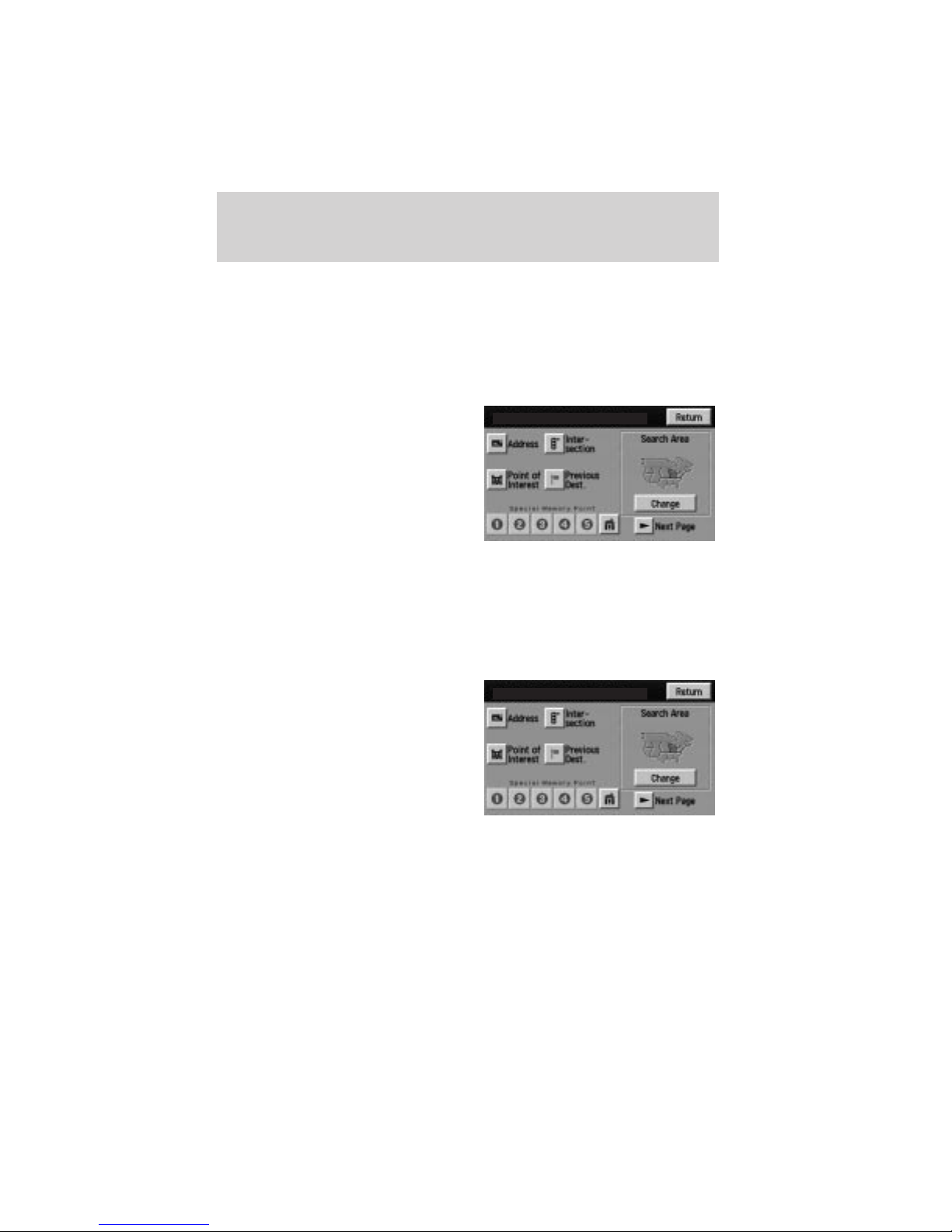

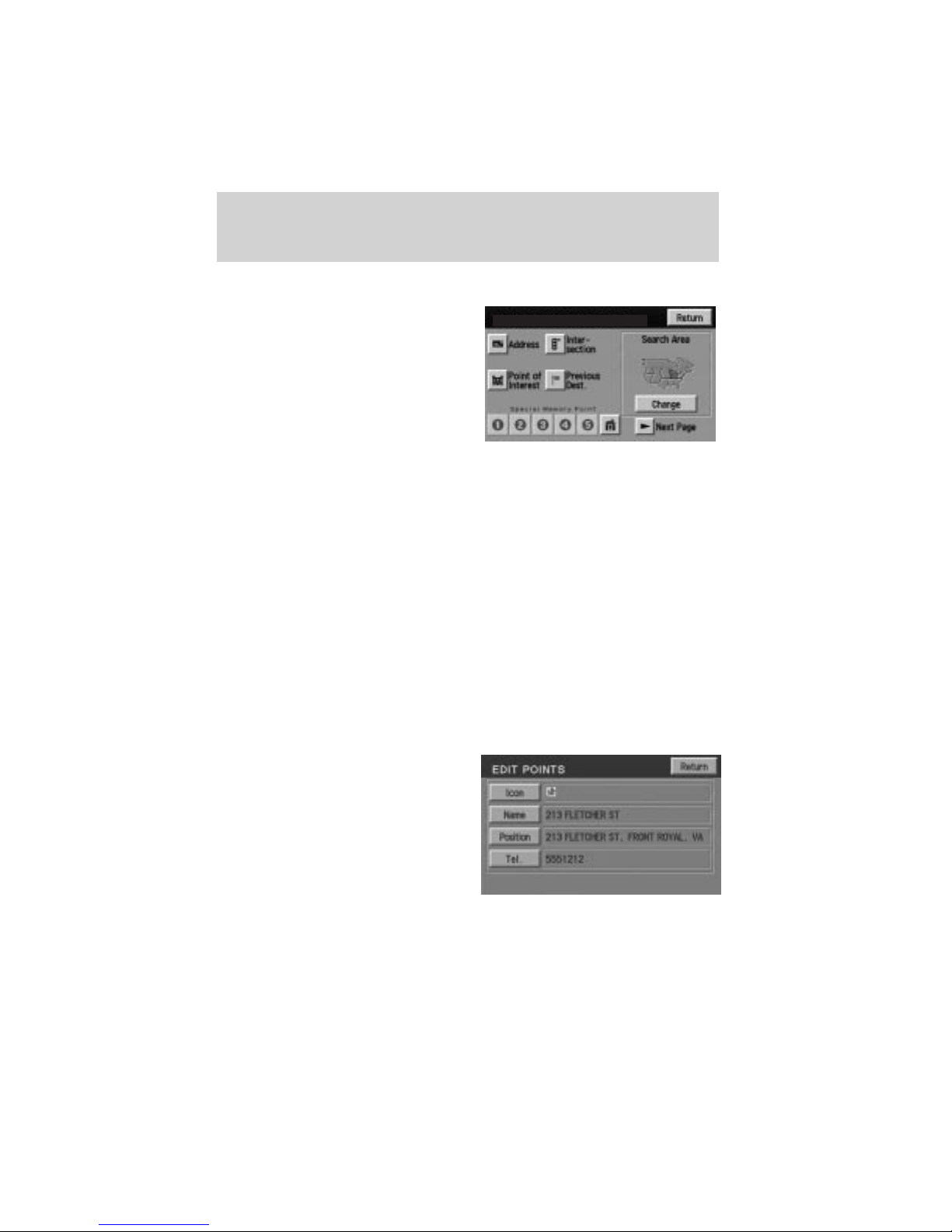

3. Select the desired type of destination entry; Address, Point of Interest;

Previous Dest; Special Memory Point; Select from map; Memory Point and Freeway Ent/Exit. Enter the required information.

4. Press DEST at the bottom of the

map screen.

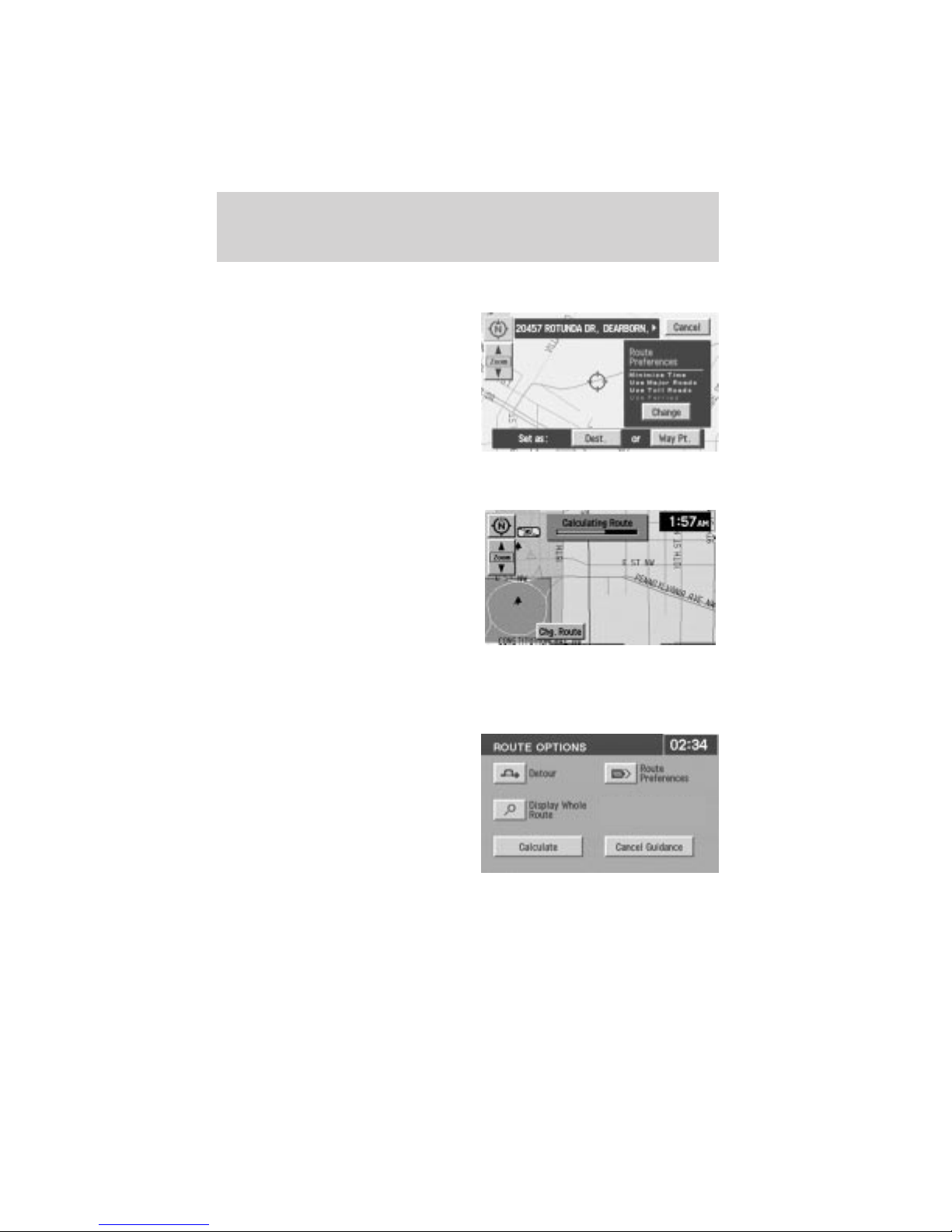

5. Choose the desired route by

pressing the NEXT button (if it appears). There can be up to three alternative routes.

6. Press START to begin the

navigation guidance.

Page 43

Entertainment Systems

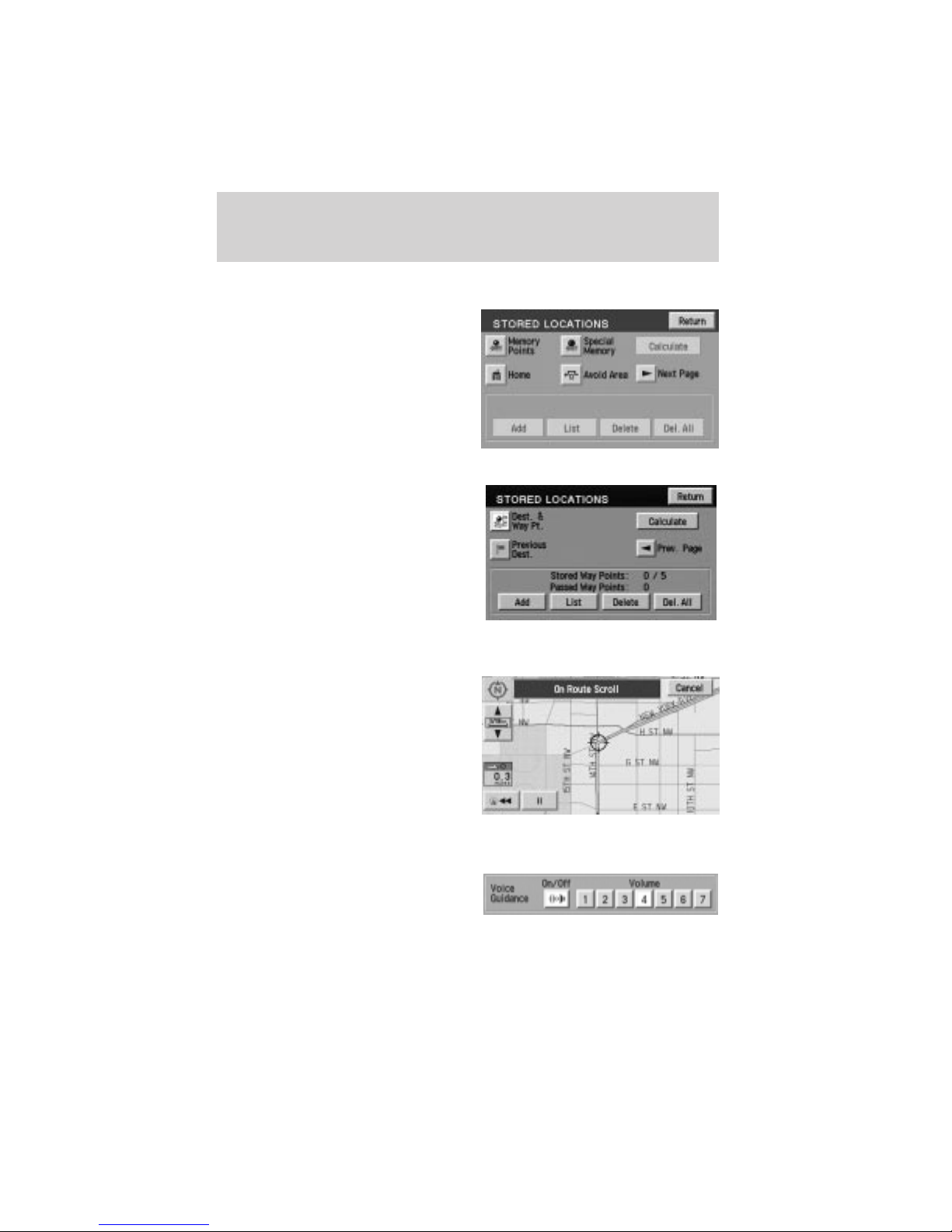

To adjust the voice guidance volume:

Press to turn the voice guidance option on/off and to determine the volume level of the guidance voice prompts.

Audio mode

Your Lincoln Navigation Audio System has many features including a full range of audio functions. To access these functions, press AUDIO on the main bezel. This will take you into audio mode.

Volume/power control

Press knob to turn the audio system on/off. Turn to raise or lower volume. The levels will be displayed on the screen.

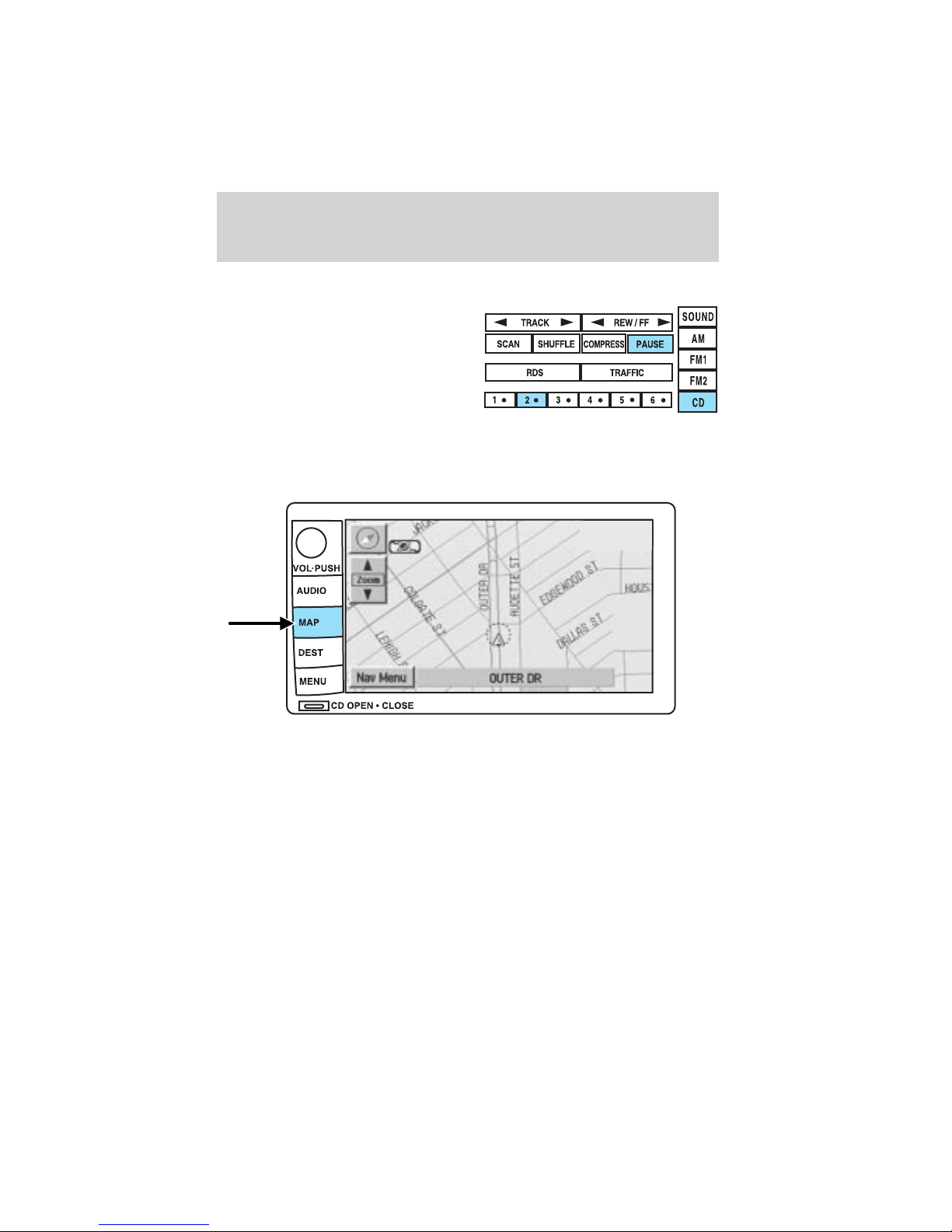

To activate the navigation mode, press MAP or DEST.

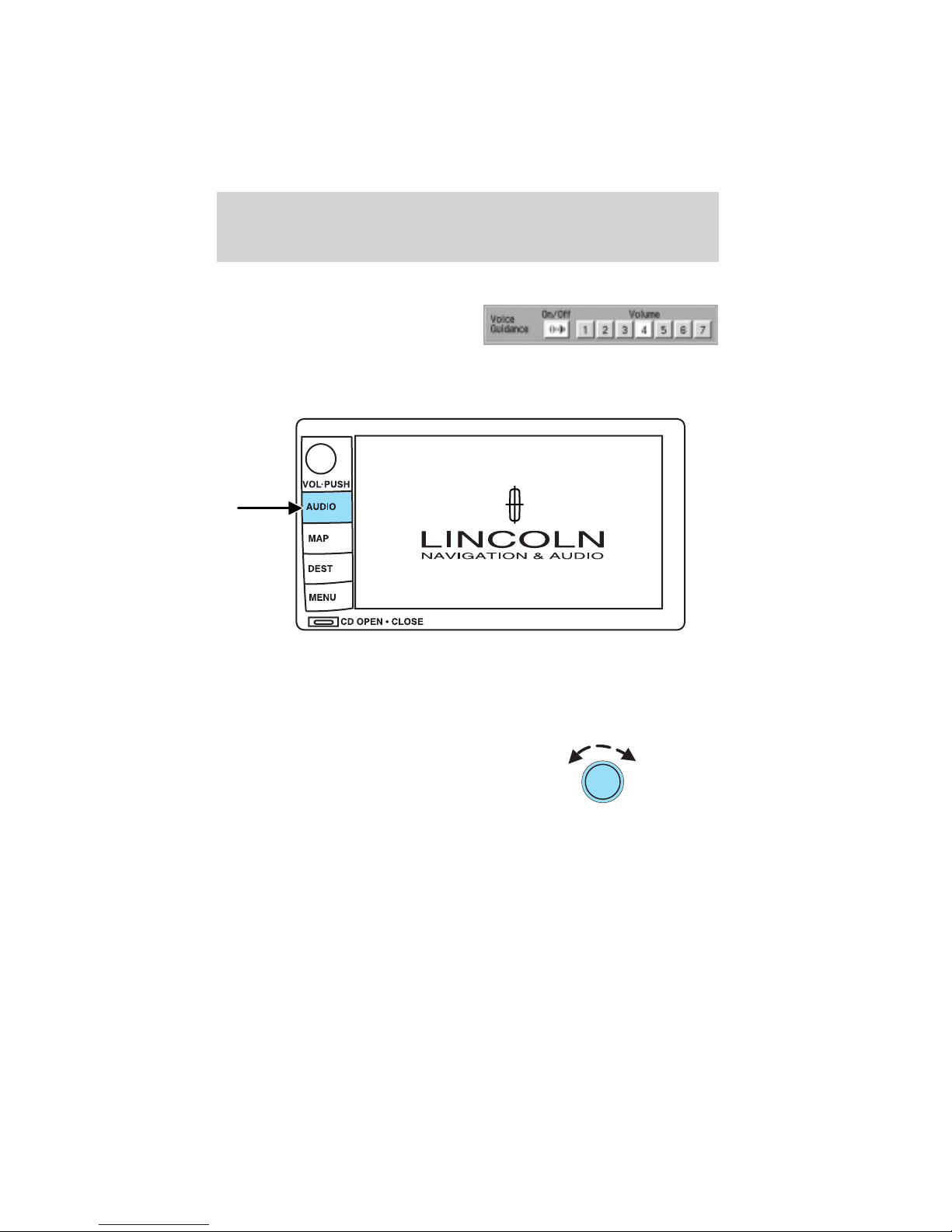

To adjust the navigation voice output level, select the NAV MENU button via the map screen.

Speed compensated volume (SCV)

With this feature, radio volume changes automatically with vehicle speed to compensate for road and wind noise. To engage the SCV feature:

1. Press AUDIO.

Page 44

Entertainment Systems

2. Press SOUND.

3. SCV is located in the middle of

the screen. Press to turn on.

4. Select setting 1 to 7 or turn off.

SCAN

RDS

87.9

SEEK

PRESET SCAN

TRAFFIC

98.1

89.9

TUNE

AUTO SET

INFO PTY

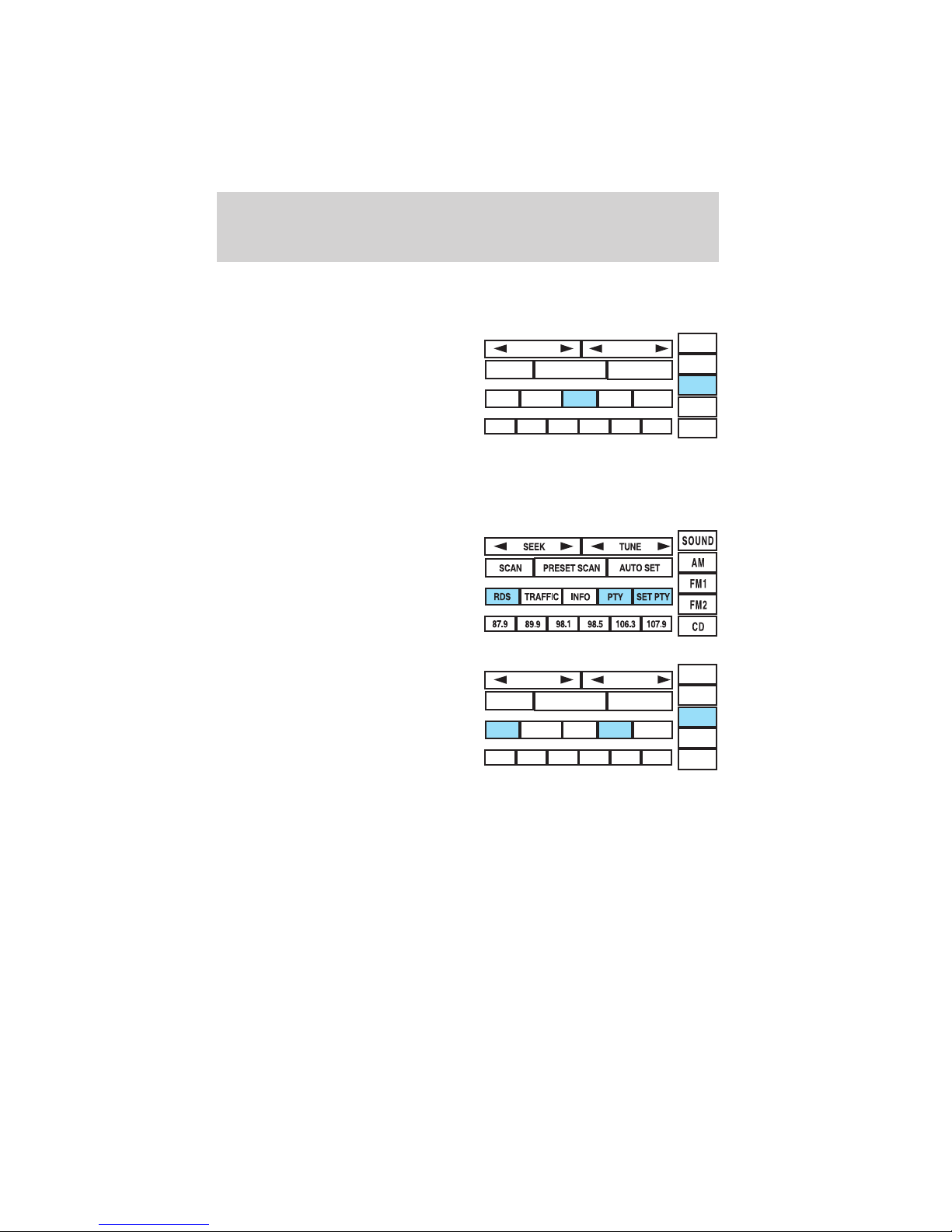

98.5 106.3 107.9

SET PTY

SOUND

AM FM1 FM2

The AM/FM control works in radio, CD and navigation modes.

AM/FM select in radio mode

Press to switch between AM/FM1/FM2 memory preset stations.

AM/FM select in CD mode

Press to stop CD play and begin radio play.

Radio reception factors:

AM/FM select in navigation mode

The radio will continue to play in the background of the navigation screens. To access, press AUDIO then AM/FM1/FM2.

Page 45

Entertainment Systems

Sound functions

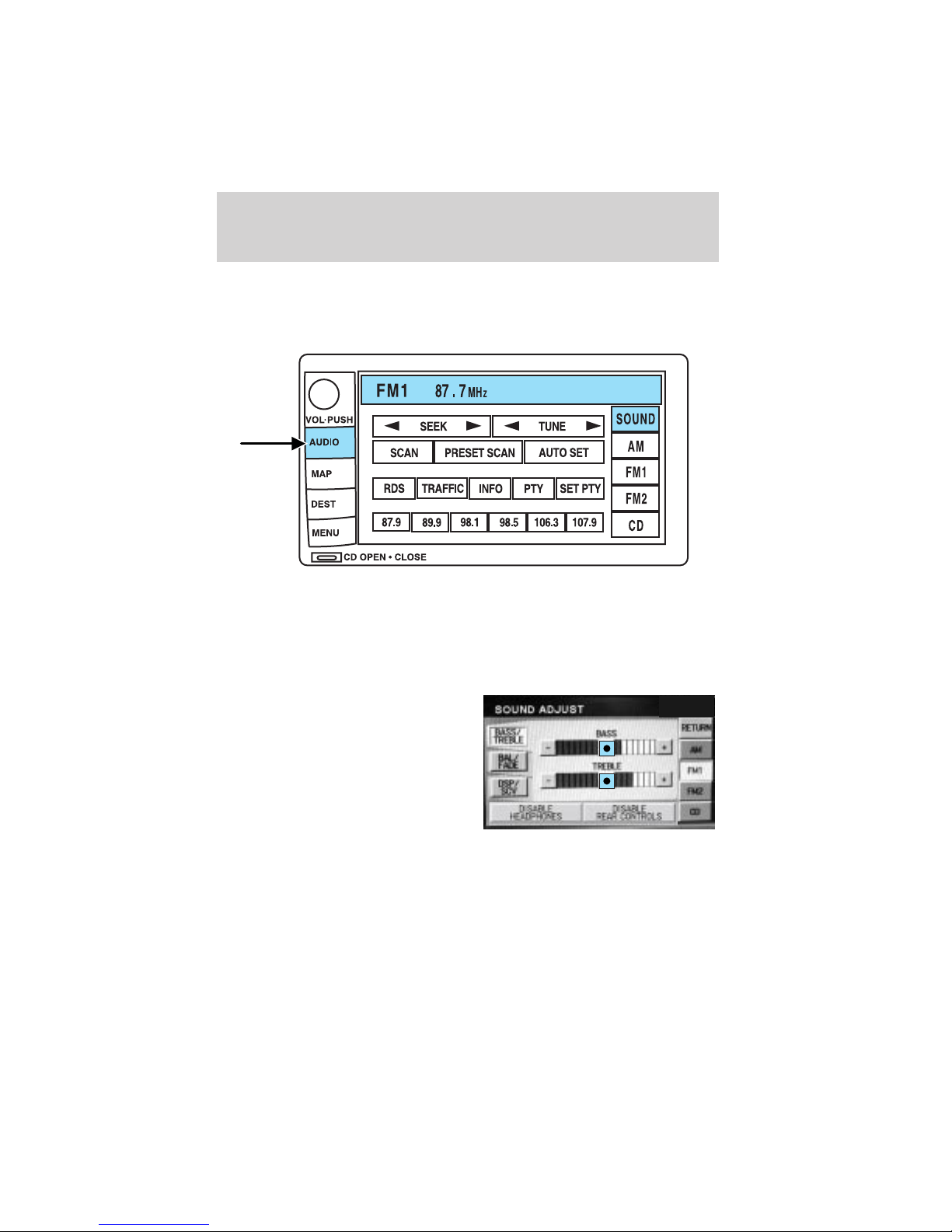

To access settings for Bass, Treble, Balance, Fade, DSP (Digital Signal Programing), SCV (Speed Compensated Volume), and Occupancy modes:

1. Press AUDIO.

2. Press SOUND.

3. Select from Bass/Treb; Bal/Fade; DSP/SCV.

4. Press +/— to increase/decrease the levels.

Bass : Allows you to increase or decrease the audio system’s bass output.

Treble : Allows you to raise or lower the audio system’s treble output.

Page 46

Entertainment Systems

Fade : Allows you to adjust sound between the front and rear speakers.

Balance : Allows you to adjust the sound distribution between the right and left speakers.

SCV (Speed Compensated Volume) Automatically compensates for road wind and noise. Refer to Speed compensated volume earlier in this chapter.

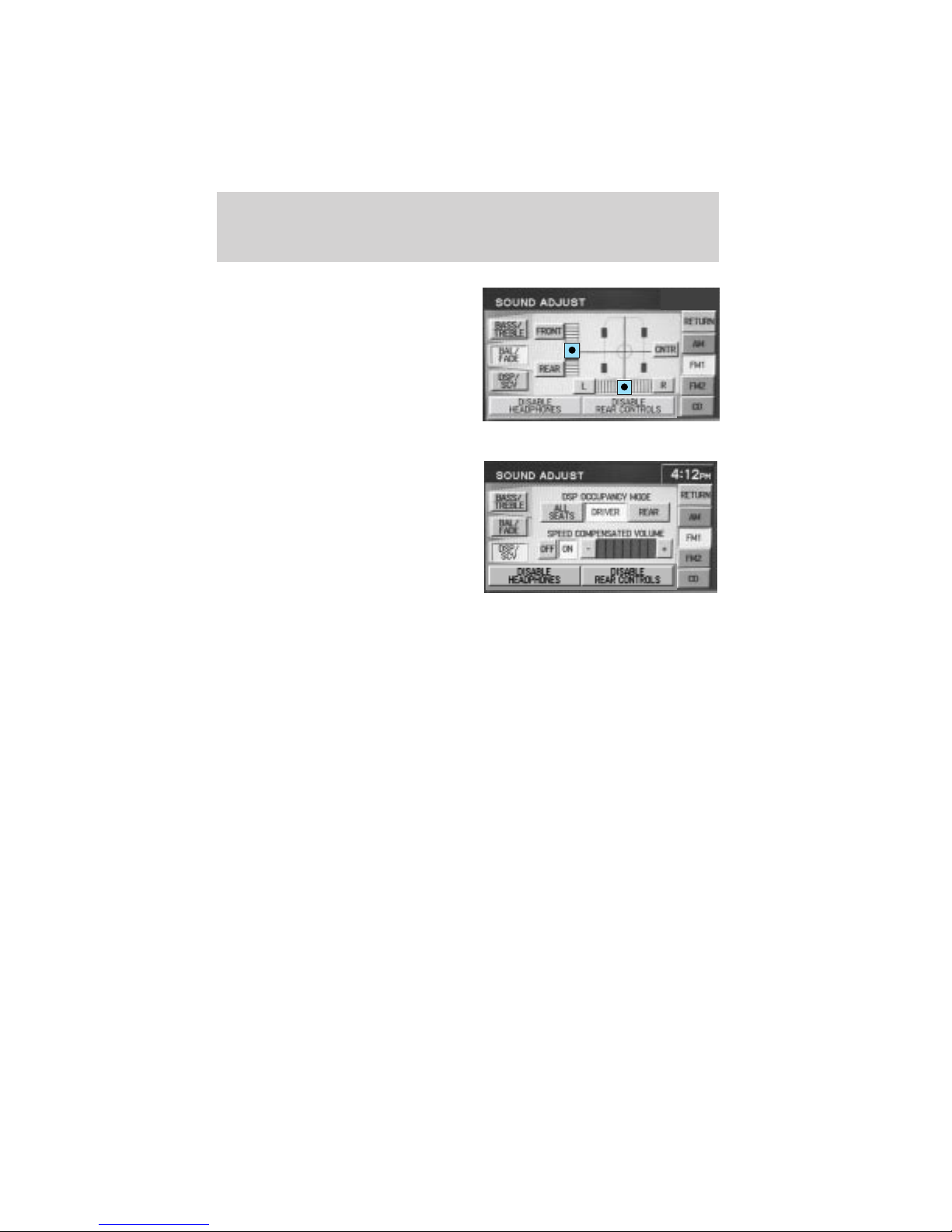

DSP Occupancy mode :Use to optimize the sound based upon the occupants in the vehicle. Select from ALL SEATS, REAR SEATS or DRIVER SEAT.

If your vehicle is equipped with rear seat controls, DISABLE HEADPHONES and DISABLE REAR CONTROLS will appear as options at the bottom of the screen. These controls allow you to turn off the headphones and the rear controls for the rear seat passengers. Press the appropriate button to turn the headphones or rear controls off. The button will highlight when the function is disabled. When the button is not highlighted, the function is on (headphones and rear seat controls are operating and able to be controlled by the rear seat passengers.)

The radio is equipped with six station memory preset controls. These controls can be used to select up to six preset AM stations and twelve FM stations (six in FM1 and six in FM2).

Setting memory preset stations

1. Select the frequency band with the AM/FM select control.

2. Select a station.

3. Press and hold a memory preset until the sound returns. The

frequency will appear in the preset.

Page 47

Entertainment Systems

Seek

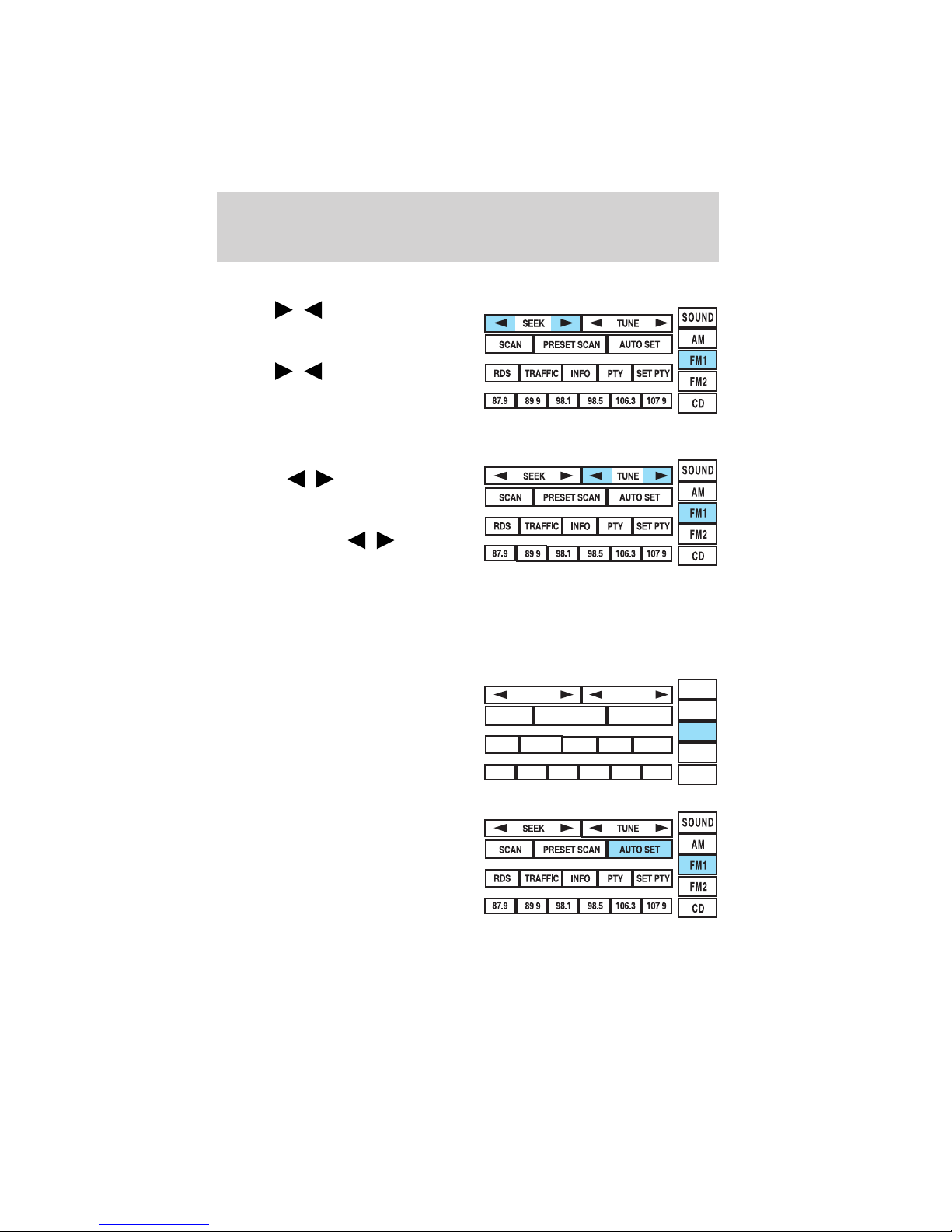

• Press / to find the next listenable station up/down the

frequency band.

• Press next/previous track on a CD.

Tune adjust

Press TUNE to manually move down/up ( band.

In CD mode, press TRACK to select the previous/next (

Autoset memory preset

Starting autoset memory preset

1. Select a frequency band using

AM/FM1/FM2.

/ to advance to the

/ ) the frequency

/ ).

SCAN

RDS

87.9

SEEK

PRESET SCAN

TRAFFIC

98.1

89.9

TUNE

AUTO SET

INFO PTY

98.5 106.3 107.9

SET PTY

SOUND

AM FM1 FM2

2. Press AUTO SET.

3. When the first six strong stations are filled, the station stored in memory preset control 1 will start playing.

If there are less than six strong stations available on the frequency band, the remaining memory preset controls will all store the last strong station available.

Page 48

Entertainment Systems

To deactivate autoset and return to your audio system’s manually set memory stations, press the AUTO SET again.

Scan

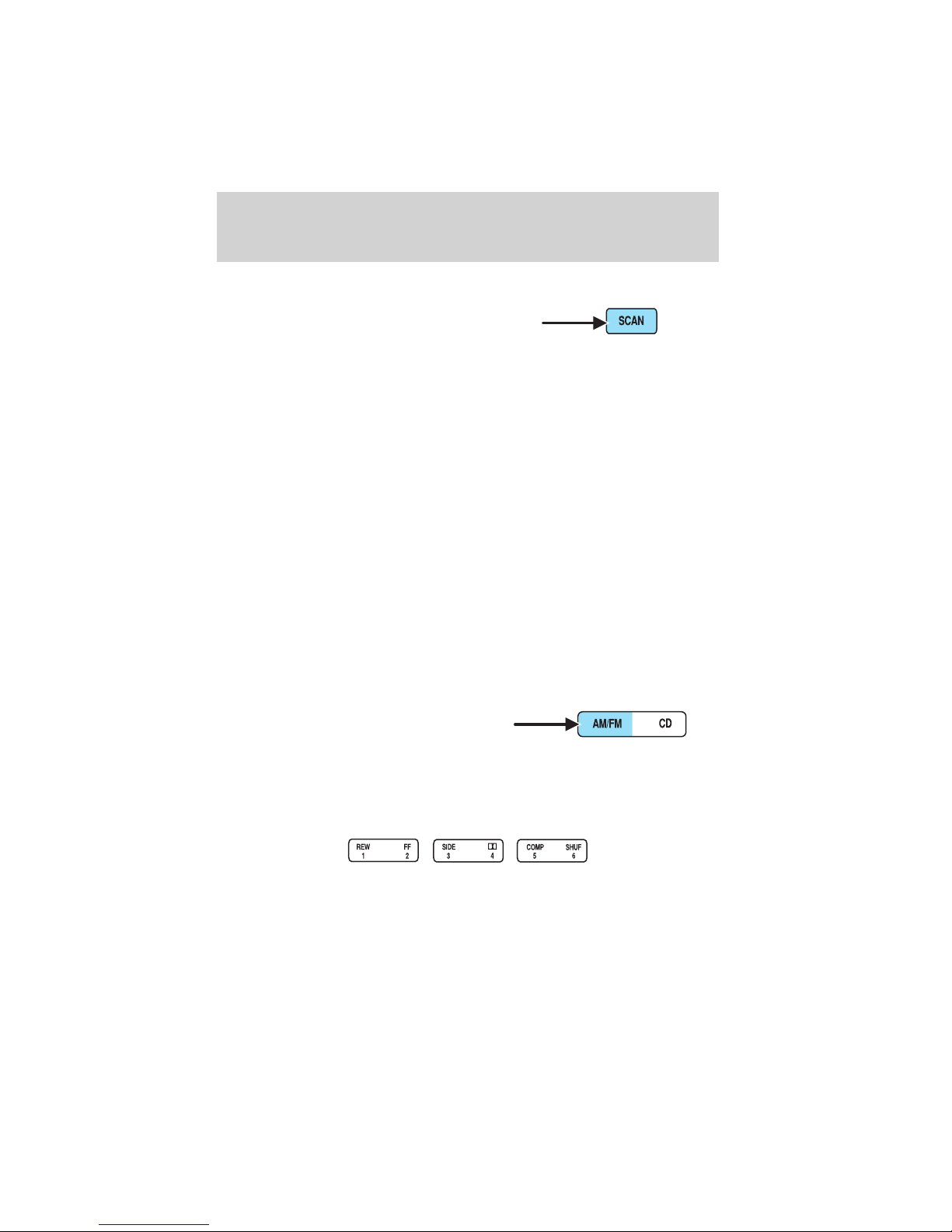

Press SCAN for a brief sampling of all listenable stations and CD tracks. Press again to disable and remain on the current selection.

Preset scan

Press PRESET SCAN to scan the stations stored in the memory presets.

Radio data system (RDS) feature

This feature allows your audio system to receive text information from RDS-equipped FM radio stations. When in FM mode, press RDS to activate/deactivate.

SCAN

RDS

87.9

SCAN

RDS

87.9

SEEK

PRESET SCAN

TRAFFIC

98.1

89.9

SEEK

PRESET SCAN

TRAFFIC

98.1

89.9

TUNE AUTO SET

INFO PTY

98.5 106.3 107.9

TUNE AUTO SET

INFO PTY

98.5 106.3 107.9

SET PTY

SOUND

AM FM1 FM2

SOUND

AM FM1 FM2

Traffic function

Select TRAFFIC for traffic information broadcast from certain stations which will automatically interrupt radio or CD playback at a preset volume level.

SCAN

RDS

87.9

SEEK

PRESET SCAN

TRAFFIC

98.1

89.9

TUNE

AUTO SET

INFO PTY

98.5 106.3 107.9

SET PTY

SOUND

AM FM1 FM2

Page 49

Entertainment Systems

Traffic information not available in most U.S. markets.

Information feature

Press INFO to view the frequency, call letters and PTY category of the selected FM station.

SCAN

RDS

87.9

SEEK

PRESET SCAN

TRAFFIC

98.1

89.9

INFO PTY

TUNE

AUTO SET

98.5 106.3 107.9

Program type (PTY)

This feature allows you to search for Radio Data System (RDS) stations selectively by their program type.

Ensure that the RDS function is turned on. Press PTY to turn the feature on/off.

SET PTY

SOUND

AM FM1 FM2

To set/change PTY:

Ensure that the RDS function is turned on. Press SET PTY to select from the following program types:

• All

• Classical

• Country

• Information

• Jazz

SEEK

SCAN

RDS

TRAFFIC

87.9

89.9

• Religious

• Rock

• Soft

• Top 40

PRESET SCAN

INFO PTY

98.1

98.5 106.3 107.9

TUNE AUTO SET

SET PTY

SOUND

AM FM1 FM2

Page 50

Entertainment Systems

Once PTY has been programmed, press SEEK ( initiate a search up or down the

frequency. Preset scan and Autoset also initiate PTY searches. The search will stop when the desired program type has been reached. If no program type is found, a message will display.

CD mode

To begin CD play (if a CD is already loaded), press AUDIO hard button and then CD.

/ ) or SCAN to

SCAN

RDS

87.9

SEEK

PRESET SCAN

TRAFFIC

98.1

89.9

TUNE

AUTO SET

INFO PTY

98.5 106.3 107.9

SET PTY

SOUND

AM FM1 FM2

Press CD. CD play will begin where it stopped last.

If a CD is not already loaded into the system:

Page 51

Entertainment Systems

1. Press CD OPEN CLOSE on the bezel.

2. The navigation screen will fold down, allowing you access to the in-dash six CD system.

3. Press LOAD and the desired CD slot number. The indicator light will blink slowly at first, then quickly, signaling the system is ready.

4. Insert a disc.

5. To load more than one disc, press and hold LOAD. This will initiate autoload and will allow you to load all open CD slots. After an allotted time, the screen will close automatically or you may press CD OPEN CLOSE on the bezel again.

6. Once the screen closes, the system will start playing the last CD loaded.

Track

Press / to advance to the next/previous track.

Page 52

Entertainment Systems

Rewind/fast forward in CD mode

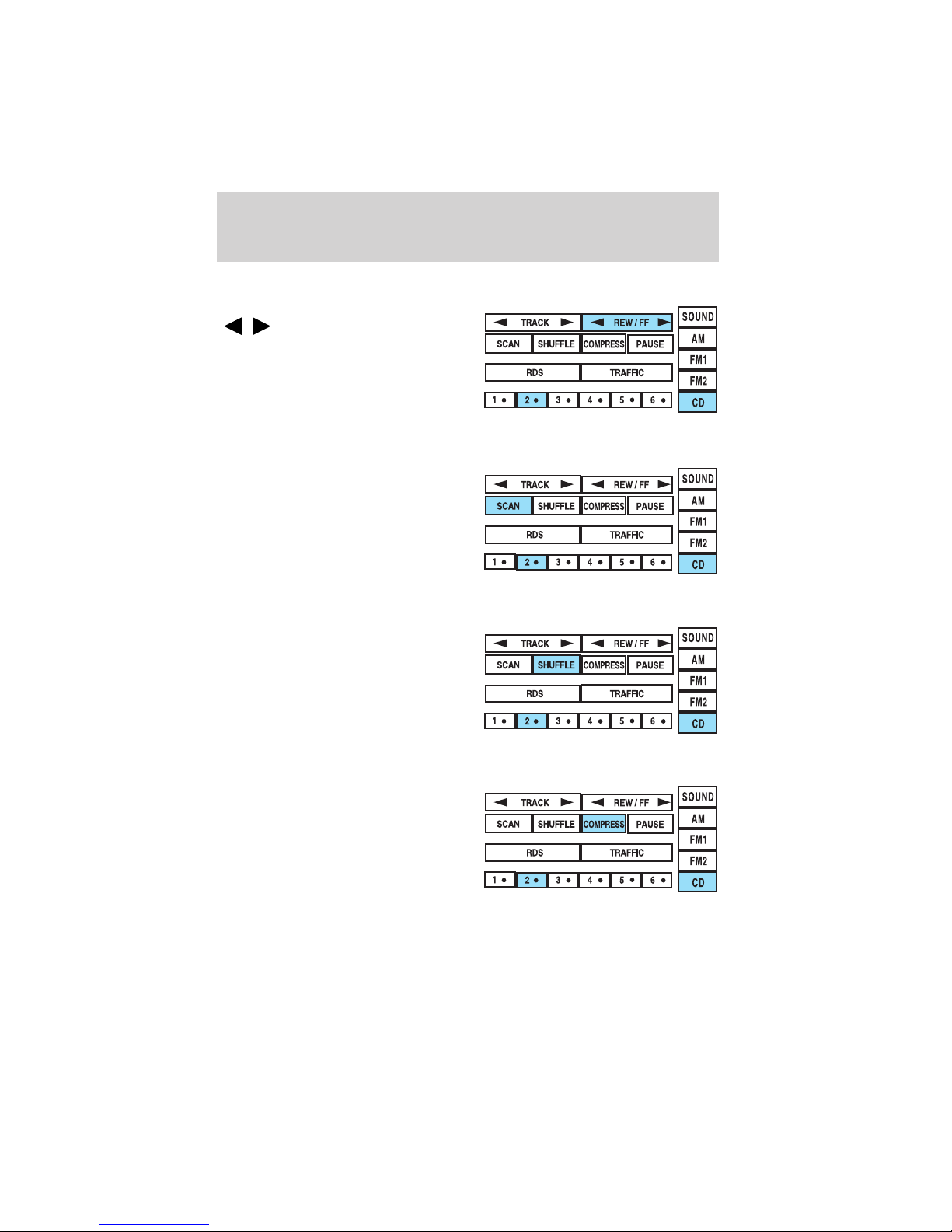

Press to reverse or advance (

/ ) in the current CD track.

Scan feature in CD mode

Press to hear a brief sampling of all tracks on the current CD.

Shuffle feature in CD mode

When in CD or CDDJ mode, press SHUFFLE to engage and disengage the shuffle feature. Select from shuffling between tracks or between CDs. All tracks will be played in random order.

Compression feature

The compression feature works in CD mode and boosts more quiet music and lowers louder music to minimize the need for volume adjustments.

When in CD or CDDJ mode, press COMPRESS to engage or disengage the compression feature.

Page 53

Pause

In CD mode, press PAUSE to pause the current playing media. Press again to enable the media to continue playing.

Map mode

Map display information

Entertainment Systems

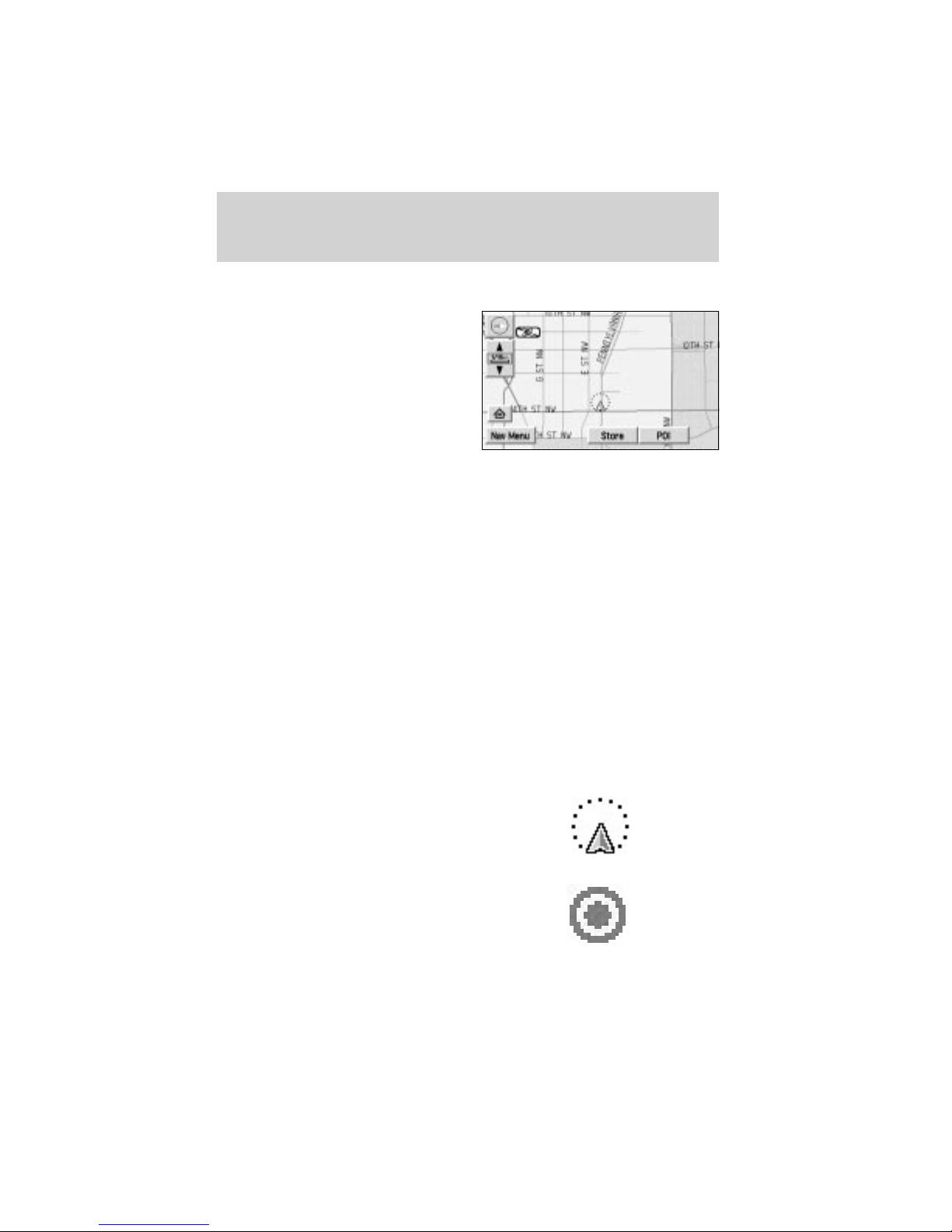

To access the map display, press MAP on the bezel. Once pressed, the current map display will appear on the screen showing

the current vehicle location.

Zoom control

When the zoom control is pressed, the scale indicator is shown on the screen. The scale markings are: 1/32, 1/16,1/4, 1/8, 1, 2, 4, 8, 16, 32, 64, 128 miles. The control can be used in a number of ways:

• touch and hold one of the arrow buttons for the map to be displayed again at each zoom level.

• touch one of the arrow buttons repeatedly for the map to be displayed again at the final zoom level.

• touch one of the segments of the scale indicator for the map to be displayed at the selected zoom level.

Page 54

Entertainment Systems

Additional map function buttons

To initiate the display of additional map function buttons, tap the map anywhere on the screen. The following buttons will appear:

• STORE - stores current vehicle location as a memory point

• POI- brings up the Quick POI menu which allows the user to perform

two functions: Display POI icons on the map for one category. Select local map area POIs as destinations or waypoints. The list of local area POIs can be sorted by distance, name, or icon.

• NEXT - Press for the system to step through a list of the POIs requested and display them on the map.

• INFO - Press to access the address and phone number of a selected POI.

If home has been previously programmed in the “Nav Menu”, the home icon (house) will appear on the screen and is able to be selected as a destination.

To delete POI icons from the map, touch the map again and press the POI off button.

Screen symbols

Navigation symbol — Indicates the current vehicle position and heading.

Destination symbol — Indicates the current route destination.

Page 55

Entertainment Systems

Next turn symbol — Shows the action to be taken at the next point on the route ahead.

North up button — Indicates that the map is displayed with north to the top of the screen. Press to toggle between “North up” and “Heading up” map display states.

Heading up button — Indicates that the map is displayed with the vehicle heading to the top of the screen. The position of the pointer indicates the direction of north on the map. Press to toggle between “North up” and “Heading up” map display states.

Avoid areas or points — The left-hand symbol indicates an area to be avoided in route calculations. The right-hand symbol indicates an avoid point.

If the avoid point is enlarged to an avoid area, it will appear on the screen as a shaded box.

Way point symbol — Indicates the location of a way point on the map.

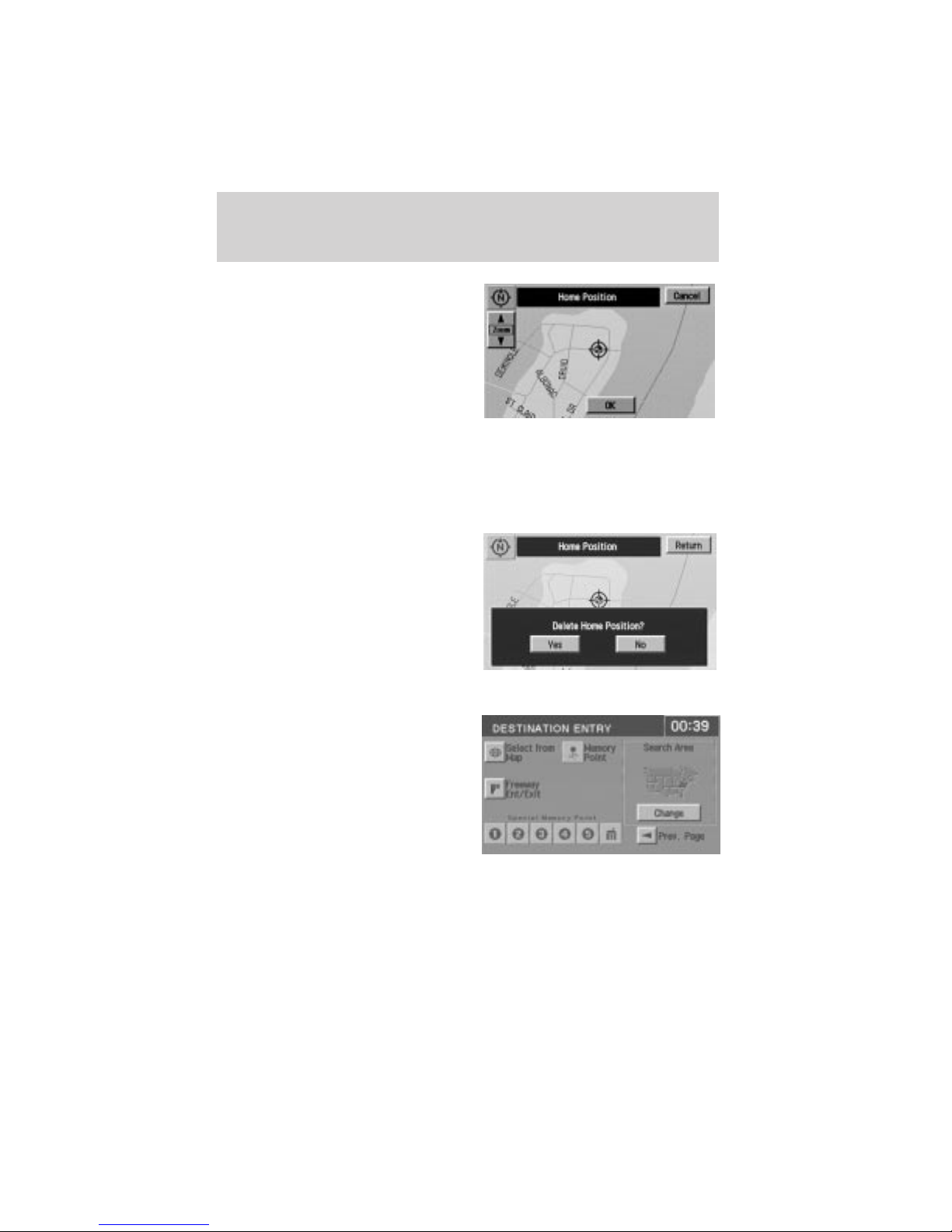

Home position symbol — Indicates the location on the map, currently stored as the home position.

Page 56

Entertainment Systems

Stored location symbol — Indicates the location of a memory point. This is the default symbol used when the point is stored. (If desired, an icon of your own choice can be selected from the 15 icons available.) Refer to Choosing from the icon list.

GPS symbol— Indicates that insufficient GPS satellite signals are being received for accurate map positioning. The symbol is not displayed under normal operation.

Speaker icon symbol— Press to turn voice guidance on/off.

Navigation menu

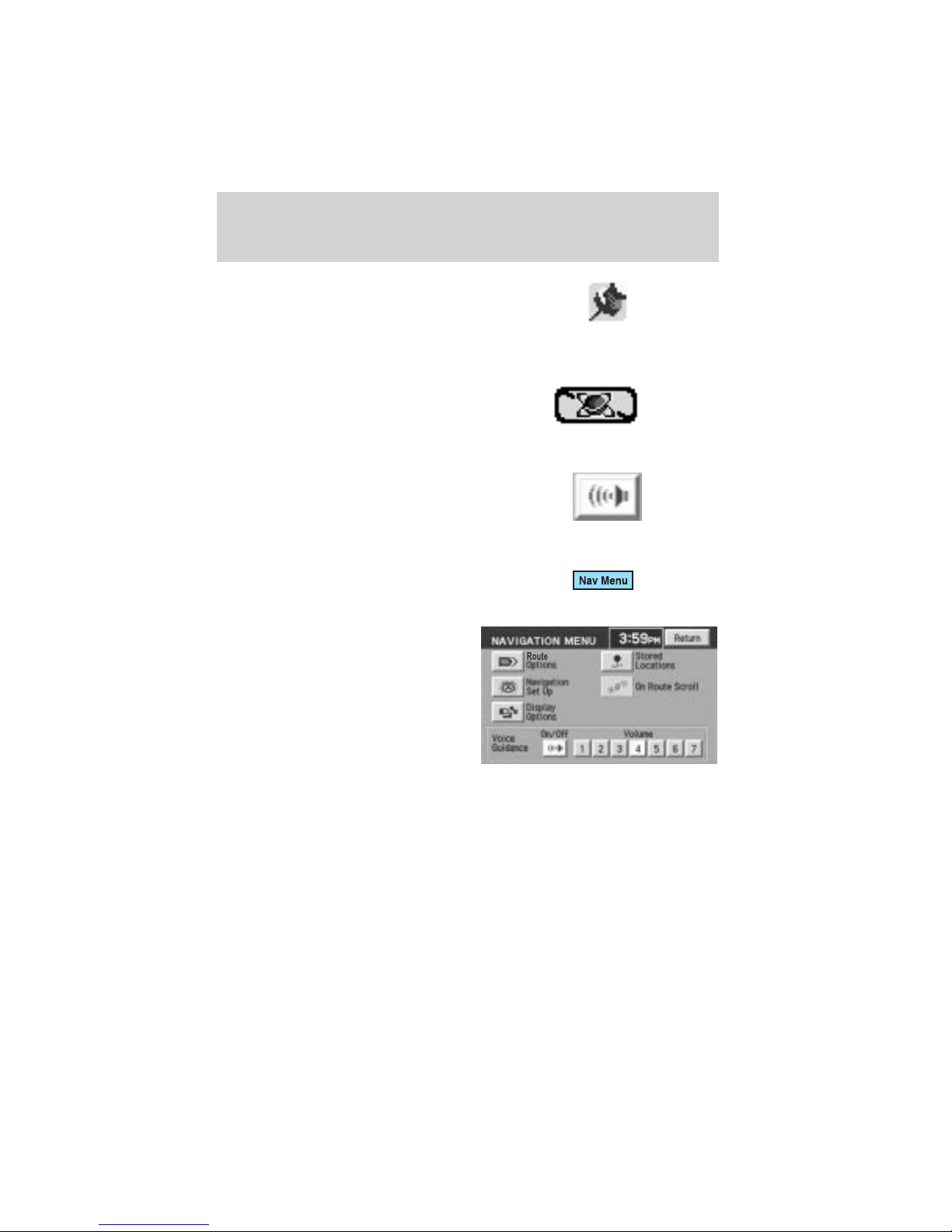

To access the Navigation Menu, press NAV MENU at the bottom of the map screen.

Once pressed, the Navigation Menu will display showing the following options:

• Route Options/Preferences

• Navigation Set Up

• Display Options

• Stored Locations

• On Route Scroll

• Voice Guidance/Volume

Depending upon whether or not a route is active will determine if route options/route preferences is contained on the Navigation Menu.

Page 57

Entertainment Systems

Route options (destination entered)

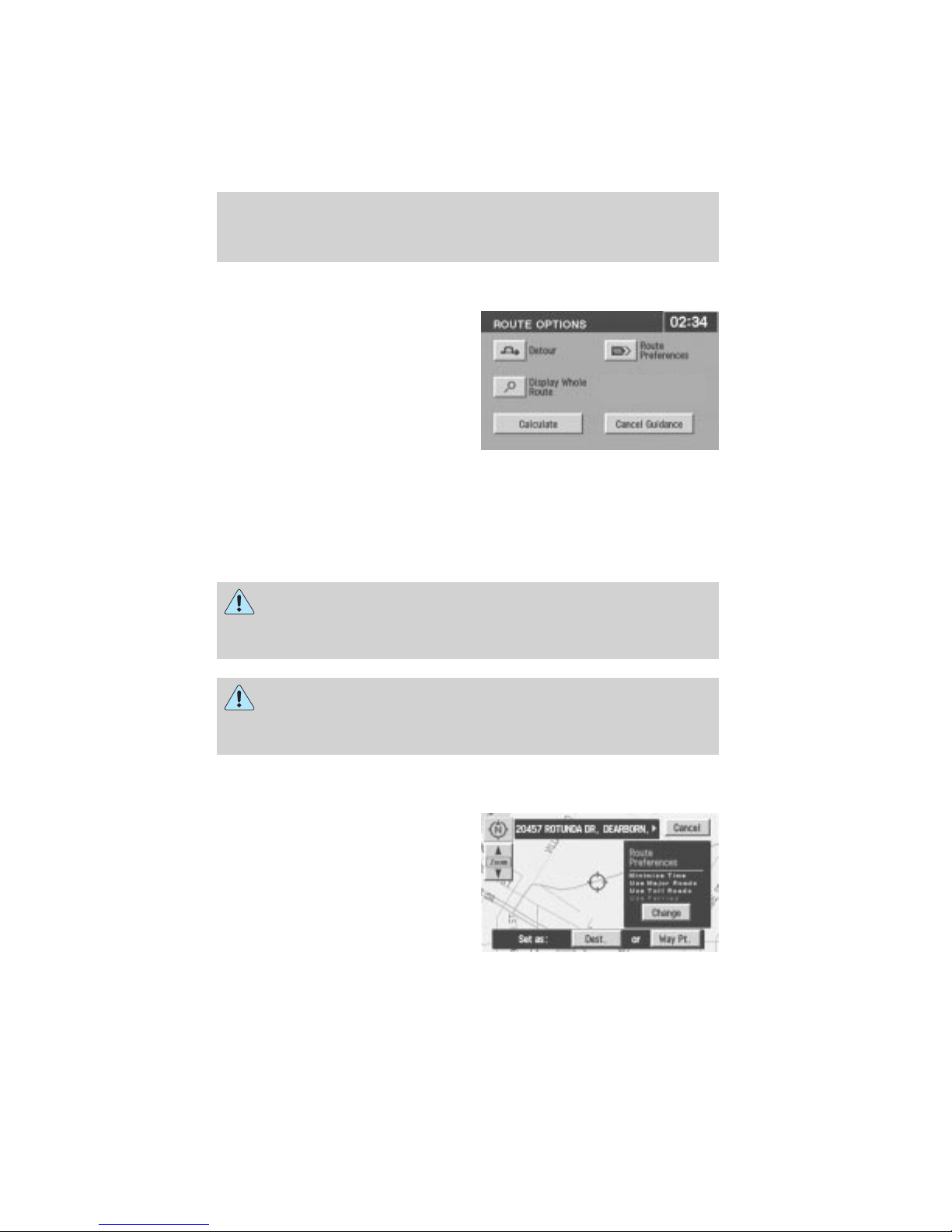

Once in navigation mode and a route is currently active, press “Chng. route” to access the ROUTE OPTIONS screen. Choose from the following selections:

• Detour — Press to select a detour around the current route.

• Route Preferences — When creating a destination, select from: Minimize Time/Distance, Use Major Roads, Use Toll Roads, Use Ferries.

• Display Whole Route: Will enter MAP mode and display your entire chosen route.

Note: Route preference appears on the Nav menu when no destination is entered.

While driving under route guidance, only follow an instruction

when it is safe to do so as the system cannot be aware of changing conditions. Use voice guidance as much as possible, and only view the display when driving conditions permit.

Ensure that you follow highway code restrictions and do not

take any risks. For example, if you are unable to make a U-turn, continue on your journey. The navigation system will recalculate your route to get you back to an appropriate road to your destination.

Route preferences

After entering a destination, the Route options will appear on the screen showing what is currently selected. You may choose to activate/deactivate selections which the system will factor in when calculating your route. Those options are:

Page 58

Entertainment Systems

• Minimize Time

• Use Major Roads

• Use Toll Roads

• Use Ferries

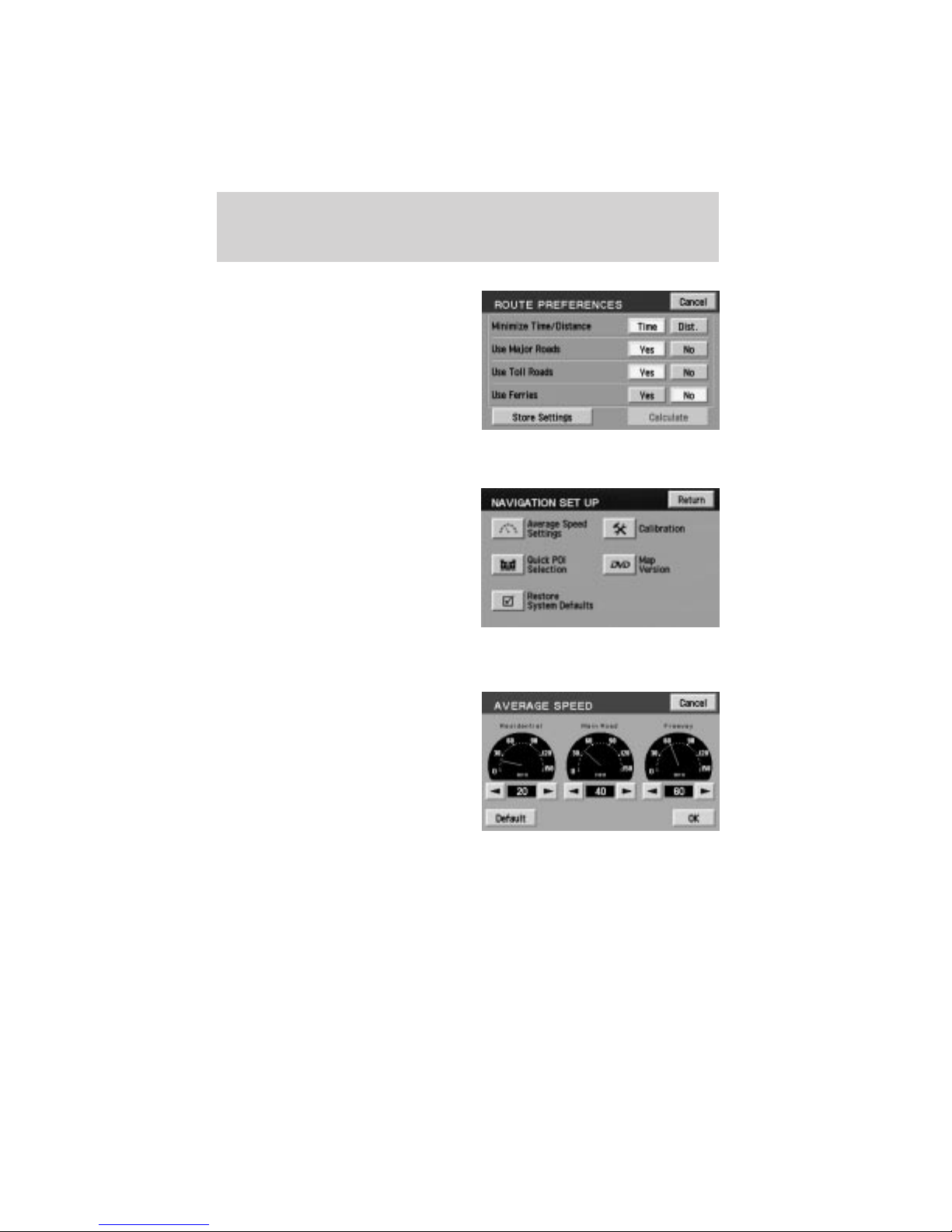

Navigation set up

The Navigation Set up screen will allow you to make adjustments to the navigation displays.

Average speed settings

Allows you to set approximate speeds you drive. These speeds enable the navigation system to aid in calculating timing for routes.

Page 59

Entertainment Systems

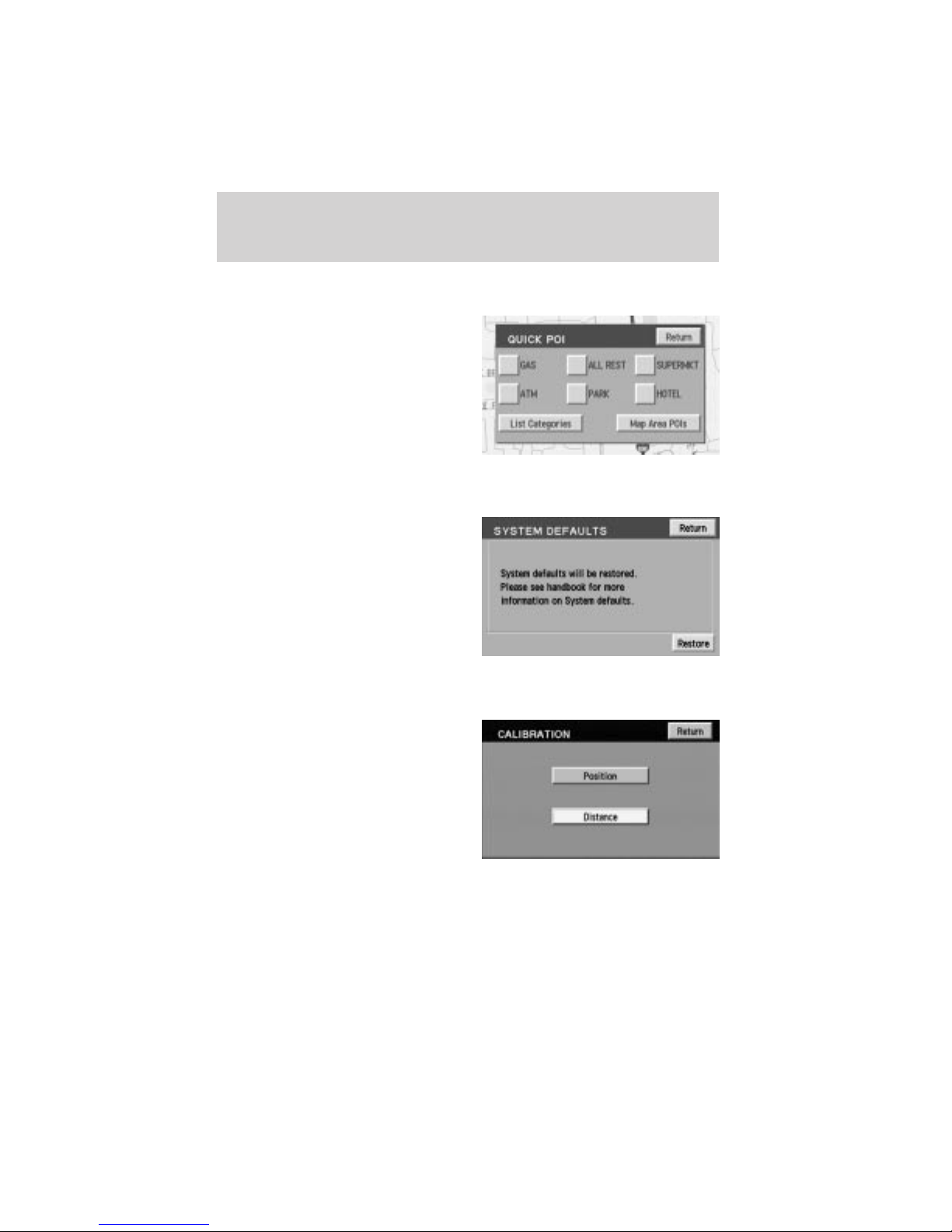

Quick POI

Allows you to change the Q-POI menu settings.

Restore system defaults

Resets all system user-selectable options to factory default values (i.e, guidance, voice, search area and route preferences).

Calibration

Press “Position” to reposition the vehicle location. This is helpful if the car has been towed, or is not registering at the correct location on the map. Press the screen to scroll the map to the desired location and press OK to confirm. Press “Distance” to calibrate by distance and improve the navigation accuracy. It is recommended to activate this function after ever tire replacement. When the button is highlighted, calibration is in process and will turn off automatically when complete.

Page 60

Entertainment Systems

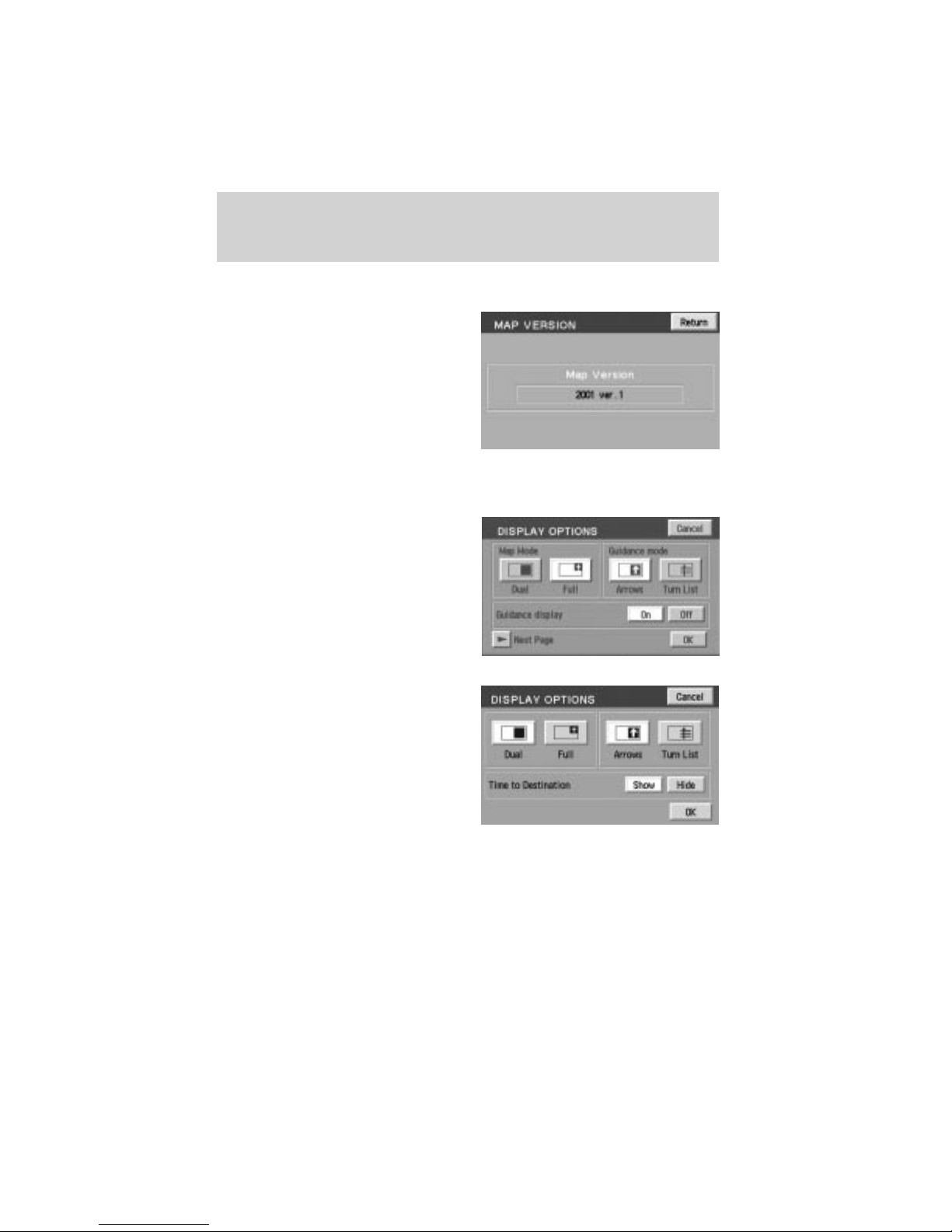

DVD map version

Displays the version of the inserted navigation DVD. Refer to Ordering additional map DVDs for further information.

Display Options

The Display Options screen will allow you make adjustments to the navigation display screen. You can choose from:

• Map Mode (Dual or Full)

• Guidance Mode (Arrows or Turn

list)

• Guidance Display (On or Off)

• Time to destination (Show or

Hide)

Page 61

Stored locations

The Stored locations screen will allow you to choose from destinations that have been saved into the navigation system.

In this screen, you can select from Memory Points, Special Memory Points, Home, Avoid Area, Destination and Way Point, or Previous Destination. Please refer to the Destination menu section for a complete description of the functions.

On route scroll

The system automatically scrolls through the entire planned navigation route either forwards or backwards. To activate, press the arrow buttons at the bottom of the map screen.

Entertainment Systems

Voice guidance/volume

Allows you to turn the voice guidance option on/off and to determine the volume level of the guidance voice prompts.

Page 62

Entertainment Systems

Destination menu

Press DEST on the main bezel to access the navigation mode.

Initial map display

Note: There may be a slight time delay between the soft key and the hard key functions.

Page 63

Entertainment Systems

Route options

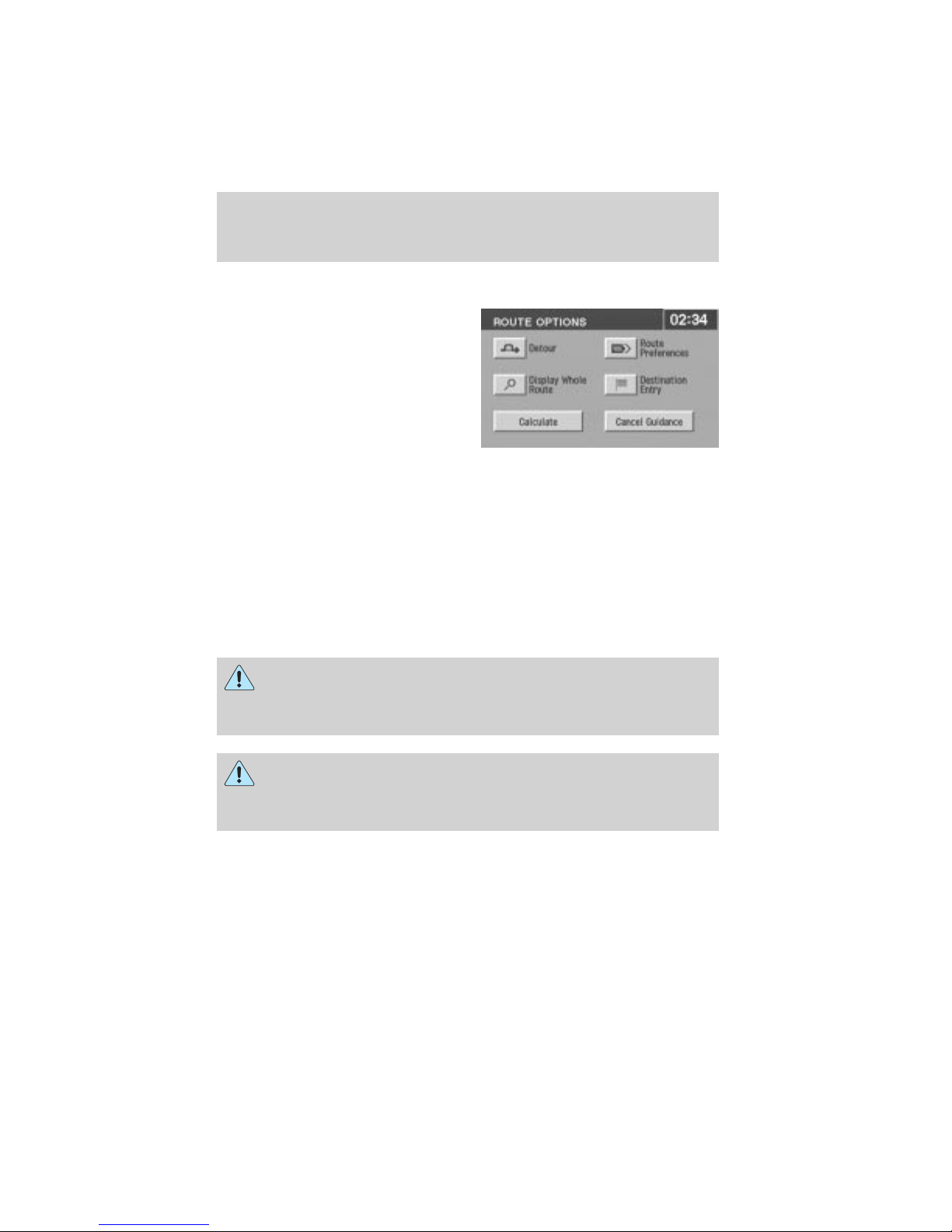

Once in navigation mode and a route is currently active, the ROUTE OPTIONS screen will appear and allow you to choose from the following selections:

• Detour — Press to select a detour around the current route.

• Route Preferences — When creating a destination, select from:

Minimize Time/Distance, Use Major Roads, Use Toll Roads, Use Ferries.

• Display Whole Route: Will enter MAP mode and display your entire chosen route.

• Destination Entry: Allows you to enter a new destination or select from entries in: Address book, Points of Interest, Previous Destinations, and Intersections.

While driving under route guidance, only follow an instruction

when it is safe to do so as the system cannot be aware of changing conditions. Use voice guidance as much as possible, and only view the display when driving conditions permit.

Ensure that you follow highway code restrictions and do not

Page 64

Entertainment Systems

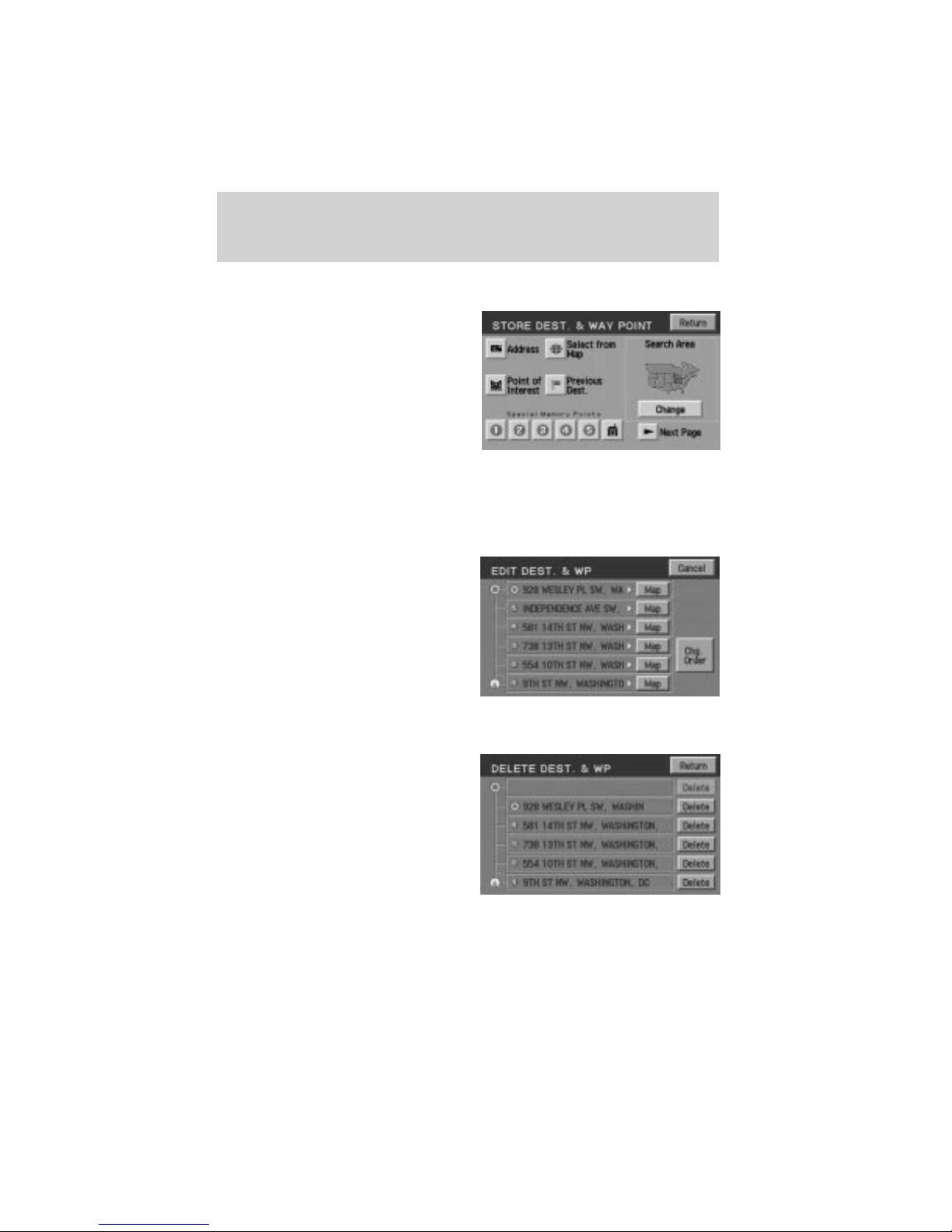

Destination entry Selecting a destination

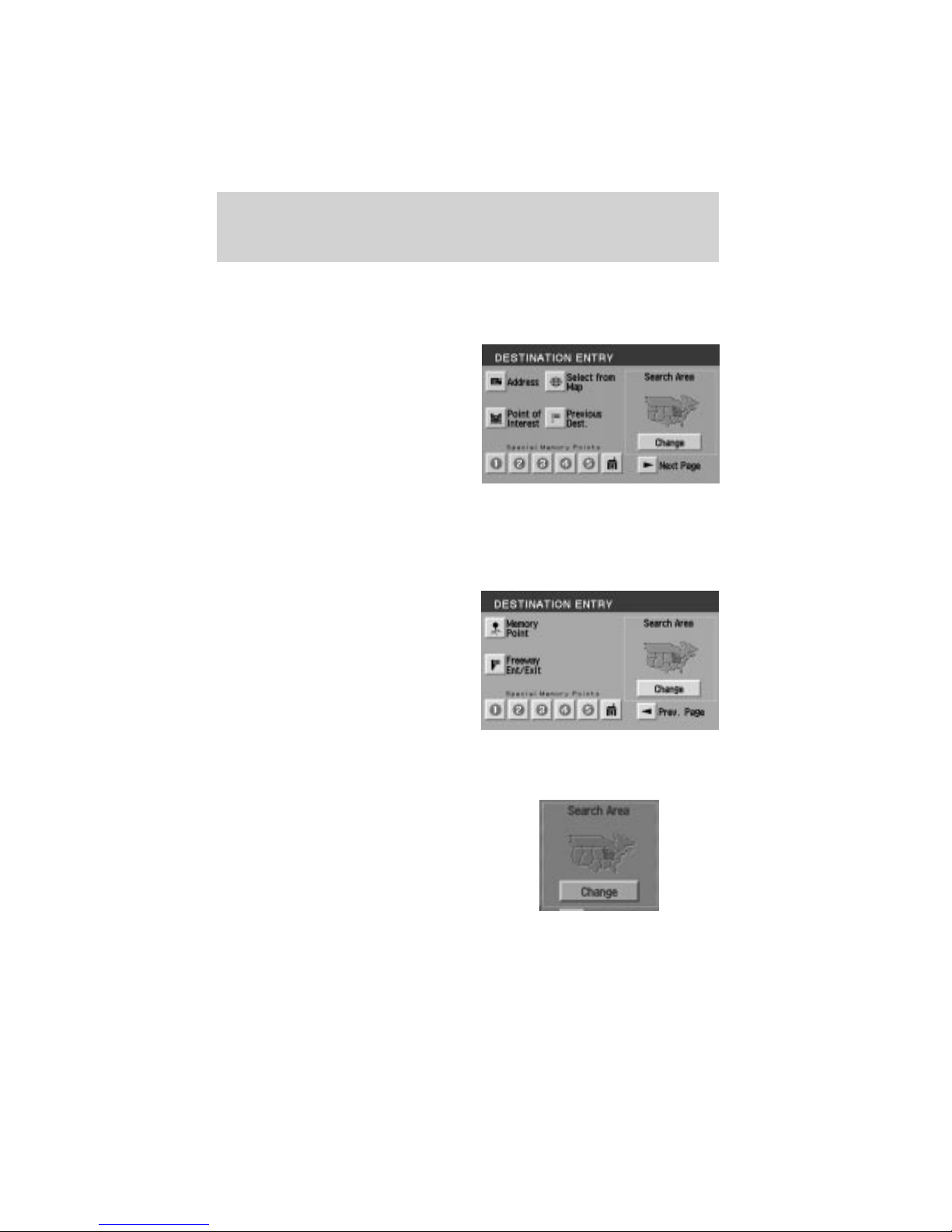

Press DEST to set a destination. From this menu, you may select from the following options:

• Address— Use to select a destination based on a known street address or intersection.

• Point of Interest— Use to select a destination that is a point of interest location (i.e., airport, restaurant, hospital).

• Select from map —Use to select a place on the map.

• Previous Destination — Use to select a destination from among the

last 20 entered destinations

The next page will allow you to select from the following selections:

• Memory point — Use to select from a memory point.

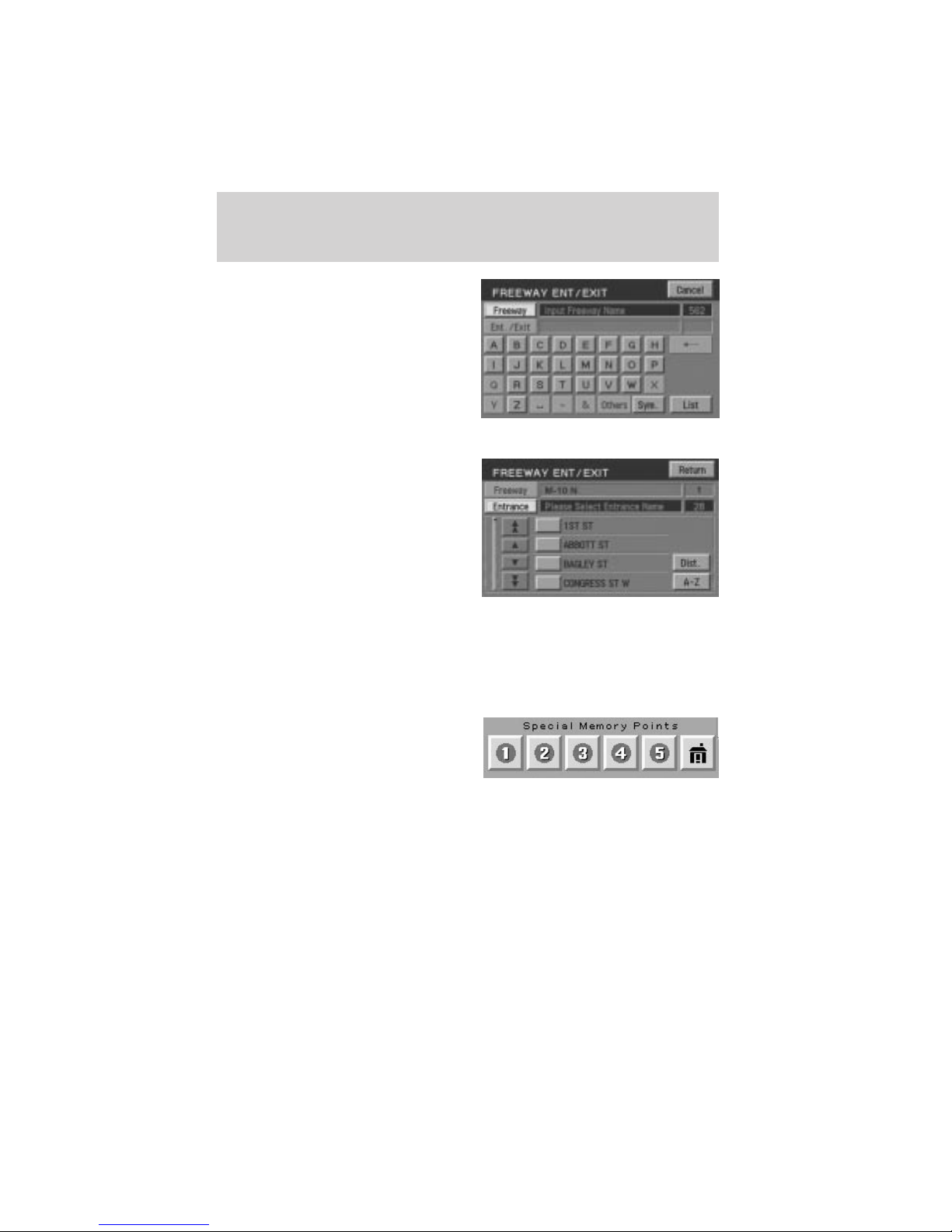

• Freeway exit/entrance — Use to select a certain freeway exit or entrance.

• Special Memory Points — Use to select a destination from previously stored entries.

Search area

Your navigation system uses a regional search area. This area is the area from which navigational directions will be used. To check your area or reset, press CHANGE under the search area listing. The map will open and allow you to select another regional area. Ensure that your search area is correct prior to setting your destination.

Page 65

Entertainment Systems

Points of interest (POI)

Select “Point of Interest” from the Destination Entry Menu. In this next menu, you will have the following options:

• By Name— Enter POI name on the keyboard. Touch “List” to display the list of matching points of interest. If there are too many matches being listed, try entering the town name first.

• By Category — Press “Category”. Scroll down the list to select the category, then sub-category desired. Once you have selected a category, your entry of the POI will be restricted to that category.

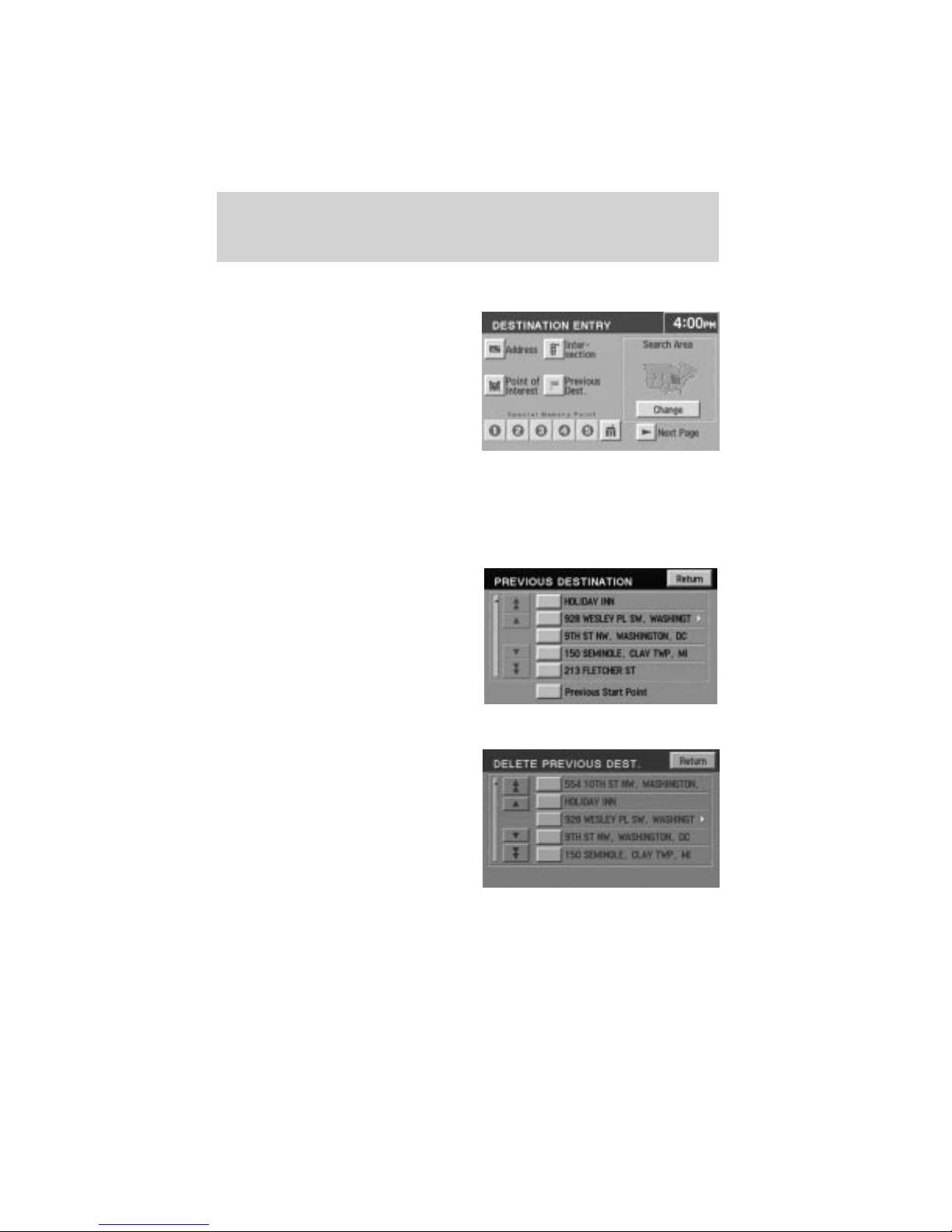

Previous destination

Press “Previous Destination” on the Destination Entry Menu.

• Select the desired item from the list of destinations previously reached.

• Confirm destination details.

Deleting previous destination

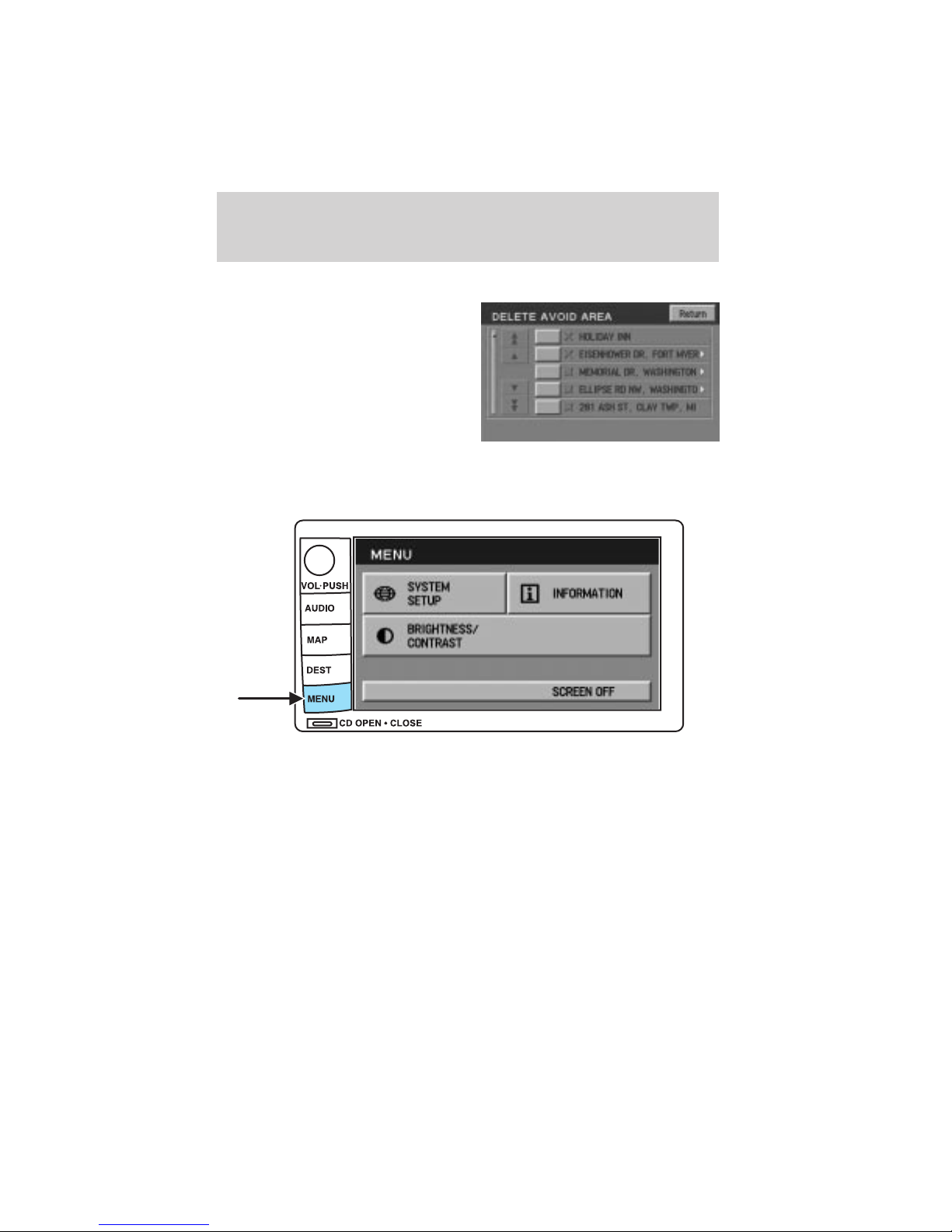

Press “Delete”. The list of previous destinations is displayed showing “Delete Previous Destination” at the top of the screen.

Select the entry to be deleted. Press YES to confirm. Press DELETE ALL to delete all

previous destination.

Page 66

Entertainment Systems

Memory point

Select “Memory Point” from the Destination Entry Menu.

• Select the desired item from the list of stored memory points.

• Confirm destination details.

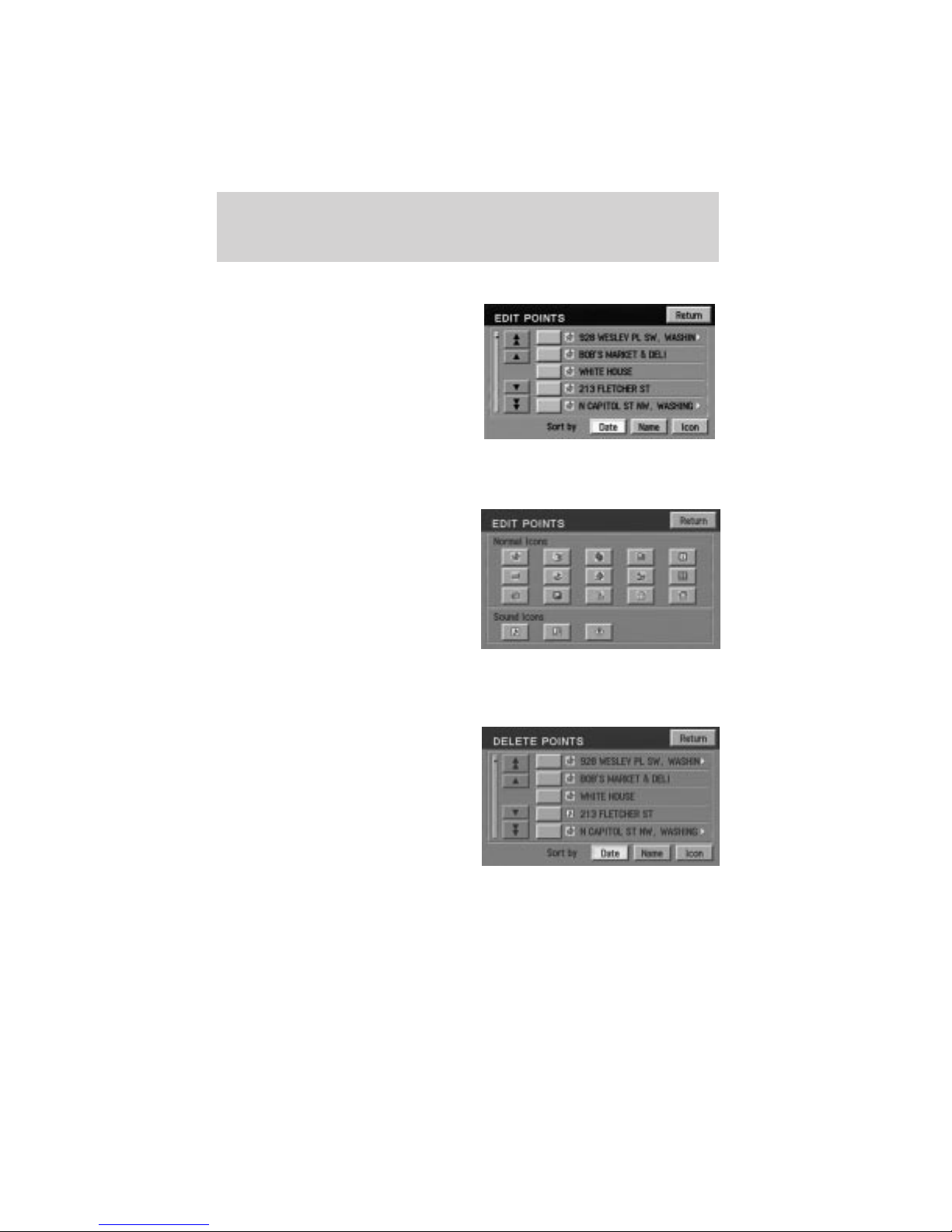

Note: The list can be sorted by date, name or icon by pressing the appropriate button.

Adding a memory point

• Once in the Store Memory Point Menu, press ADD.

• Select the desired menu item.

• Enter/select any required details. The new point will be added to the

stored list of memory points.

To give the new memory point a name:

• Select it from the list.

• Press NAME.

• Enter the desired name.

STORE MEMORY POINT

Accessing memory point lists

• Press LIST

• Select the desired entry to view

its location details.

Page 67

Sorting memory point lists

• Access the desired list.

• Press the button to sort the list

as desired (i.e. date, name, distance or icon).

When sorted by distance, the points are ordered by distance from the current vehicle location. When sorting by icon, the icons are listed in the order they appear on the icon selection screen.

Choosing from the icon list

After choosing ICON to edit, 15 normal and three audible icons will be displayed. Press the icon you wish to use.

The normal icons will be displayed on the map to indicate the map location identified with that icon. The audible icon will sound a distinctive chime when the vehicle is approaching the memory point associated with that icon.

Deleting a memory point

• In the Memory Point Menu, press DELETE.

• Select the entry to be deleted.

• The system will ask you to

confirm deletion. Press YES to confirm.

The screen will briefly show “Memory Point Deleted”.

Entertainment Systems

Page 68

Entertainment Systems

Deleting all memory points

• In the Memory Point Menu, press DELETE ALL.

• The system will ask you to confirm deletion. Press YES to confirm.

The screen will briefly show “All Memory Points Deleted”.

Home

To set home for the first time:

• Press MAP.

• Press “Nav. Menu”.

• Press “Stored Locations.”

• Press “Home”.

• Press “Add”. Set home by

selecting the correct address, POI, Previous destination, or selecting from the map.

To view home, press the home icon (house) on the Destination Entry screen.

Once home is set, you may select home as a destination.

Adding a home location

• Select the desired menu item you wish to set as Home (Address, Memory Point, Point of Interest, Previous Destination).

• Enter the required details.

SET HOME

Page 69

Entertainment Systems

• Press OK to set the home position.

To view the set home position:

From the stored locations menu with home selected, press LIST to view the location of the stored home position.

Deleting a home location

• Once in the stored locations menu with home selected, press DELETE.

• The system will ask you to confirm.

• Press YES to confirm.

Freeway Entrance/Exit

Select “Freeway Entrance/Exit” from the second page of the Destination Entry menu. Follow these steps:

Page 70

Entertainment Systems

1. Enter freeway name— Enter

the freeway name using the keyboard. Press “List” to select a freeway from those displayed.

To enter numbers in the freeway name, press “Sym”.

2. Select entrance/exit— Press

“Entrance” if you wish to join the freeway at this junction. Press “Exit” if you wish to leave the freeway at this junction.

3. Select Junction— The screen

will display a list of junctions on the freeway. They can be listed either by distance, (from the current vehicle location), by pressing the “Dist” button or alphabetically by pressing the “A-Z” button. Select the desired entrance or exit.

The destination details are displayed for confirmation.

Special memory points

There are five possible memory points that you can set.

To set a memory point:

• Press MAP.

• Press “Nav Menu”.

• Press “Stored locations”.

• Press “Special Memory Point”.

• Select “Add” and input destination.

• Press OK to confirm.

Page 71

Entertainment Systems

To delete a memory point:

• Press “Delete”. The list will display.

• Select the special memory point to delete.

• Press “Del. all” to delete all entered special memory points.

• Press “Yes” to confirm.

Once all five special memory points are entered, the “Add” control will read as “Full”. You must delete points before more can be added.

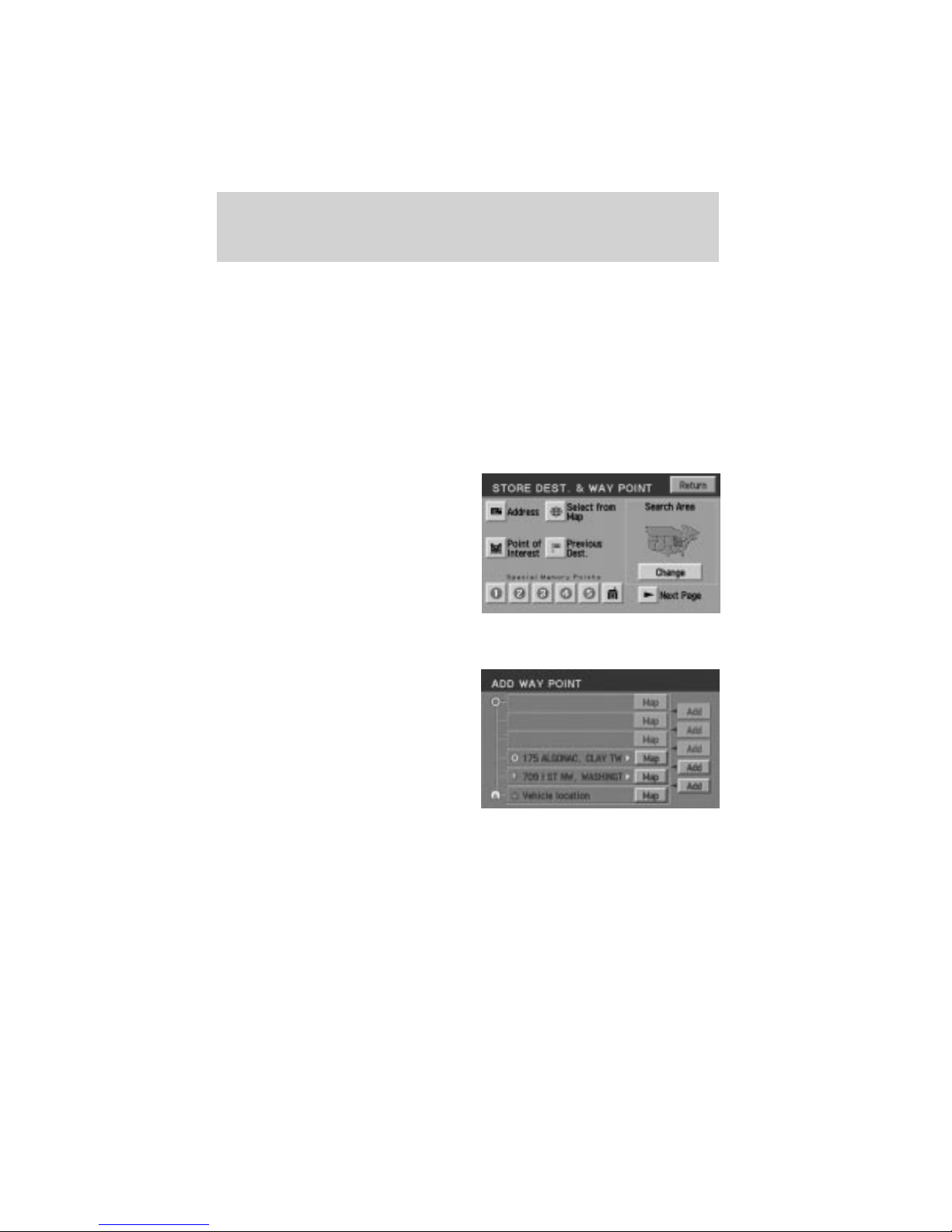

Destination and way points

The Store Dest. & Way Point menu is used after a destination or way point has been entered for the first time using the Destination Entry menu. You can store and delete destinations and way points (locations you wish to visit in route to your ultimate destination). You can also select the order in which you visit them.

Adding (storing) a destination or way point

• Once a destination is entered, press ADD to store the location. The Store Dest. & Way Point menu is displayed.

• Select whether you want to store an Address, Point of Interest or Previous Destination.

• Enter the necessary details for the selection.

• If a destination was entered, it will be stored as the current location. If a way point was entered, it will be added to the list of way points.

Page 72

Entertainment Systems

Listing destinations and way points

Press LIST to display the stored way points and destination (if entered).

The first way point to be visited is at the bottom of the list and the destination is at the top.

You may view the map location of any entry. On the map, location details for the entry are displayed at the top of the screen.

To adjust the position of the way point (or destination), scroll the map as required.

Press OK.

Editing and changing order of way points and destination

Press “Chg. Order” to change the order in which the way points are visited. The points are listed chronologically from bottom up, the destination being on the top.

Press the MAP button to edit the way point location on the map display.

Press OK to confirm.

Deleting way points and destination

After pressing DELETE, the list of way points and the destination (if entered) is displayed, showing the ’Delete Dest. &Way Pt.’ menu.

Select the entry to be deleted. Press YES to confirm.

Press DELETE ALL to delete all way points. Press YES to confirm.

Page 73

Entertainment Systems

Selecting route criteria

Once you have selected a destination, you may change the routing criteria by pressing “Change” in the route preferences screen. Refer to Route preferences for further information.

Route calculation

Once the route criteria is selected, the navigation system automatically calculates the selected destination. The route appears on the display screen and a voice prompt provides instructions.

The system may calculate up to four routes for the desired destination. Press “Next” to scroll through the various planned routes. Press “Start” to confirm the route selection and begin route guidance.

Detour options

You may engage the detour option when on the map display by going to the “Nav menu” and selecting “Route Options”.

Page 74

Entertainment Systems

Press DETOUR to activate. Use the soft controls to select and enter the number of miles you want to deviate off of the current road.

Press NEW ROUTE if you would like the system to plan a different route.

Press DETOUR to confirm the selection.

Route interruptions

In the course of your destination, you may decide to temporarily leave your planned route for gas, food, etc. If you turn off the ignition, the option to continue the route guidance will be displayed when the ignition is turned on again. The route can be accessed once again after you press “Agree” on the warning screen.

Route alterations or cancellations

To cancel or change your current route from the map, press DEST or select “Nav Menu” and “Route Options”. You may then select from Detour, Display whole route, change route preferences or cancel guidance.

Page 75

Entertainment Systems

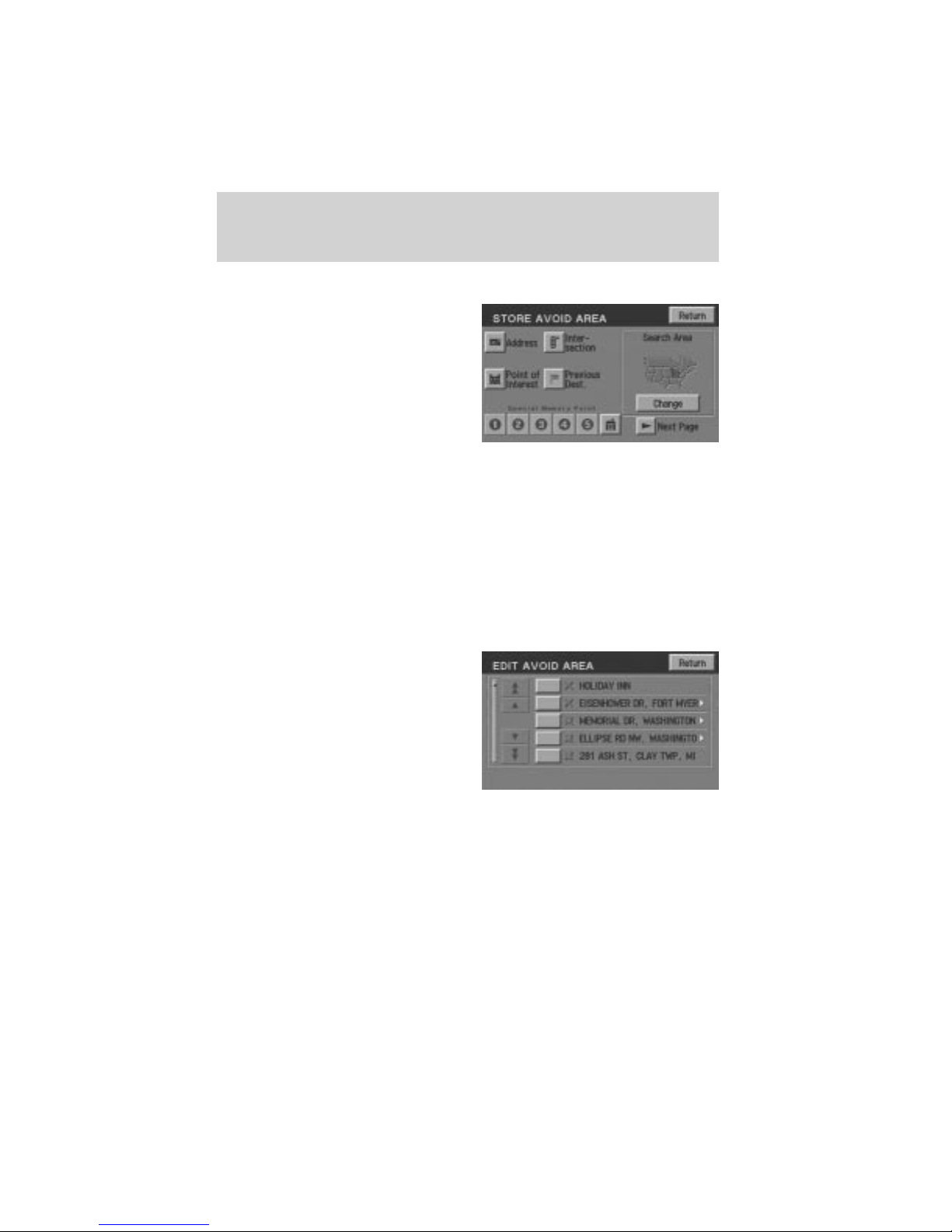

Avoiding an area while under guidance

For one reason or another, you may choose to avoid a certain area while in route to your destination. To select the area to avoid:

• From the MAP screen, press Nav Menu.

• Select Route Options, then Display Whole Route

• Press Turn List

• Press Avoid next to the street to

be avoided

• Choose OK to confirm

• Press Reroute to activate

The new area is added to the list of stored avoid areas. Note: In some circumstances, it may not be possible to avoid all selected

areas.

Listing areas to avoid

You can list all areas noted as “avoid”.

• Press “Nav Menu”.

• Press “Stored locations”.

• Press “Avoid area”.

• Press LIST to view all previously

stored selections.

• Select the desired one. The map screen will be displayed, showing the location and address of the selected area.

Press Enlarge or Reduce to adjust the size of the visible area. Scroll the map as required.

Page 76

Entertainment Systems

Deleting areas to avoid

To delete a selection from the “Avoid area” list:

• From the stored locations menu, select “Avoid area”.

• Press DELETE

• Select the desired area to be

deleted.

• Press DEL. ALL to delete all stored areas.

• Press YES to confirm.

To access menu mode, press the MENU hard control. Menu mode allows you to access:

• System Set-up

Page 77

• Information — Gives you the Lincoln Customer Assistance Center information.

• Brightness/Contrast — Allows you to adjust the brightness and contrast on the screen.

• Screen off — Allows you to turn off the navigation screen.

Entertainment Systems

Page 78

Entertainment Systems

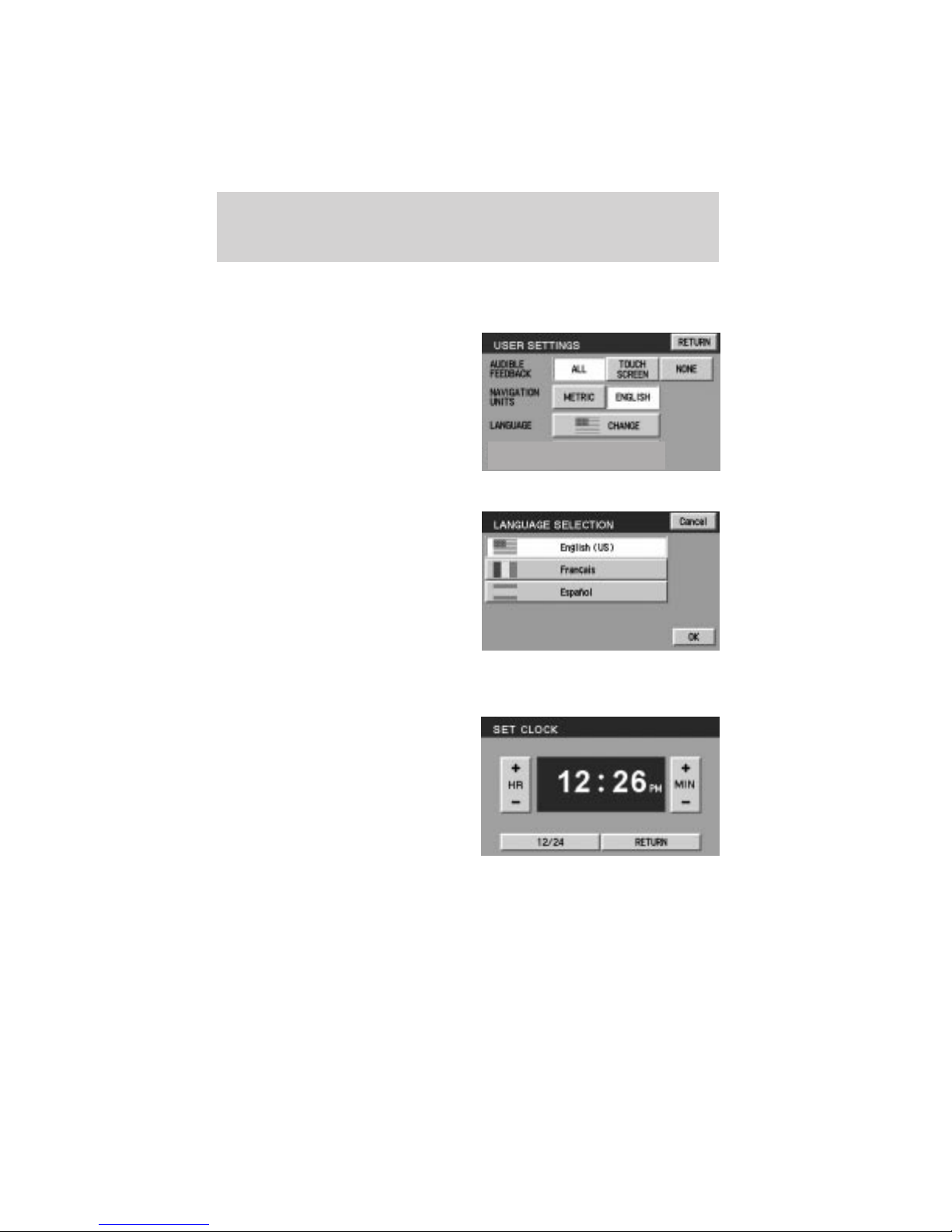

System setup

The system set up menu contains the following user settings:

• Audible Feedback — Press to activate audible voice navigation commands. Press again to deactivate.

• Navigation Units — Press to toggle between Metric/English units.

• Language — Press to toggle between English, French, or Spanish.

Setting the clock

Once in Menu mode, press CLOCK to set the hours/minutes.

DVD interaction (if equipped)

Your vehicle may be equipped with a DVD player. Your Lincoln Navigation System (LNS) will interact with your DVD player, providing you access and messages to the status of the system.

Page 79

Entertainment Systems

• Press AUDIO.

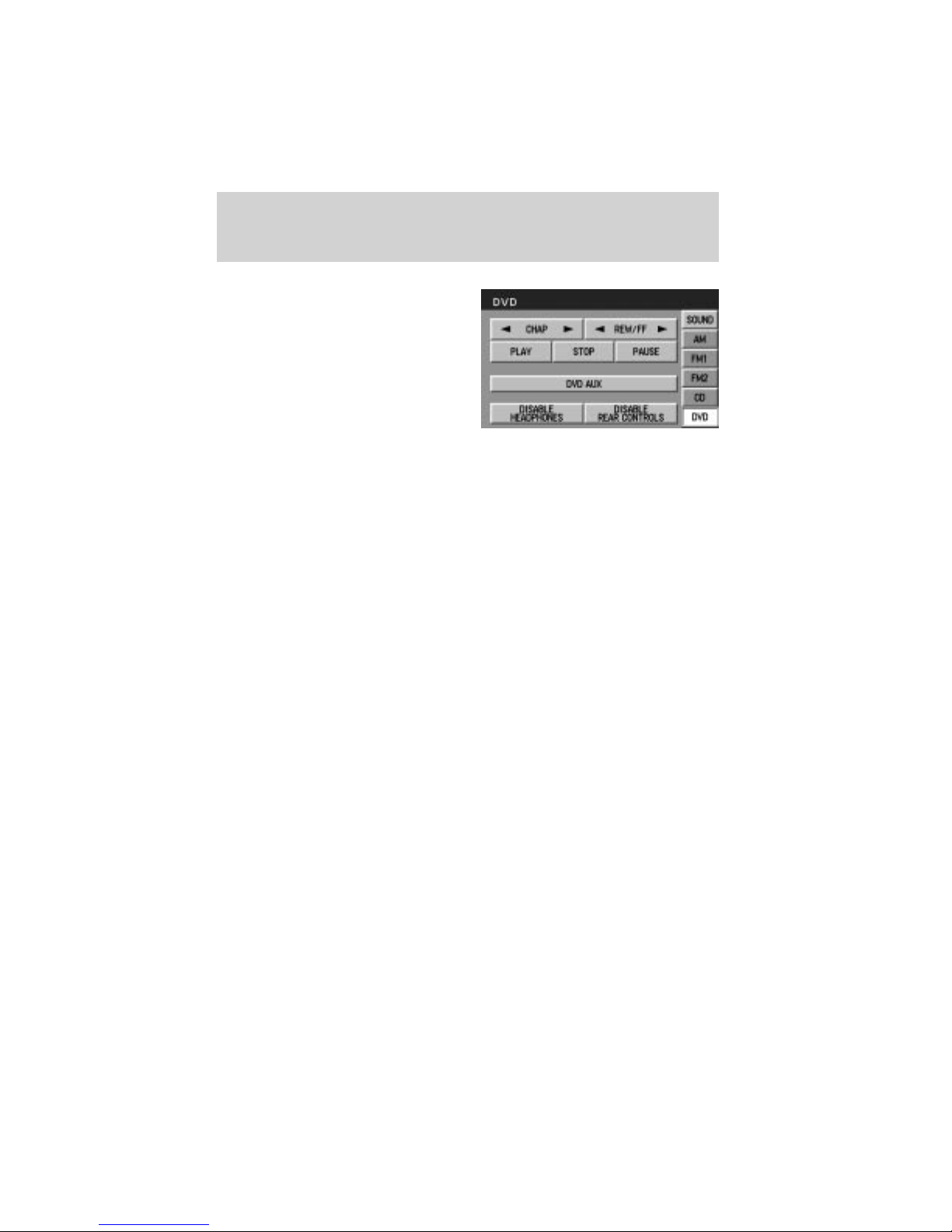

• Press DVD to access the DVD

screen.

You may select from different chapters, rewind or fast forward within the current chapter, stop, play or pause the DVD. You may also select DVD AUX mode (which would allow you to plug in and play games), to enable/disable headphones, or to enable/disable rear seat controls. For further information, refer to Rear seat audio controls (if equipped) and Family entertainment DVD system (if equipped)earlier in this chapter.

Voice activated commands (if equipped)

Your Lincoln Navigation System (LNS) may be equipped with a voice activated feature which allows you to “speak” certain commands to the system. Speaking clearly will help to ensure that the system correctly responds to your commands.

At any time, you may say these commands:

• AM

• FM1

• FM2

• CD

• DVD (if equipped)

During normal radio operation, you may say:

• Seek up

• Seek down

During CD play with the in-dash 6 disc player:

• Track up

• Track down

• Disc up

• Disc down

Page 80

Entertainment Systems

While in navigation map mode, the following commands are available by voice activation:

• Zoom in

• Zoom out

• Minimum scale

• Maximum scale

While in navigation destination (DEST) mode, the following commands are available by voice activation:

• Home

• Detour

While in navigation map mode, the following commands are available by voice activation:

• Gas station

• Gas

• Hospital

• Police station

• Restaurant

• Hotel

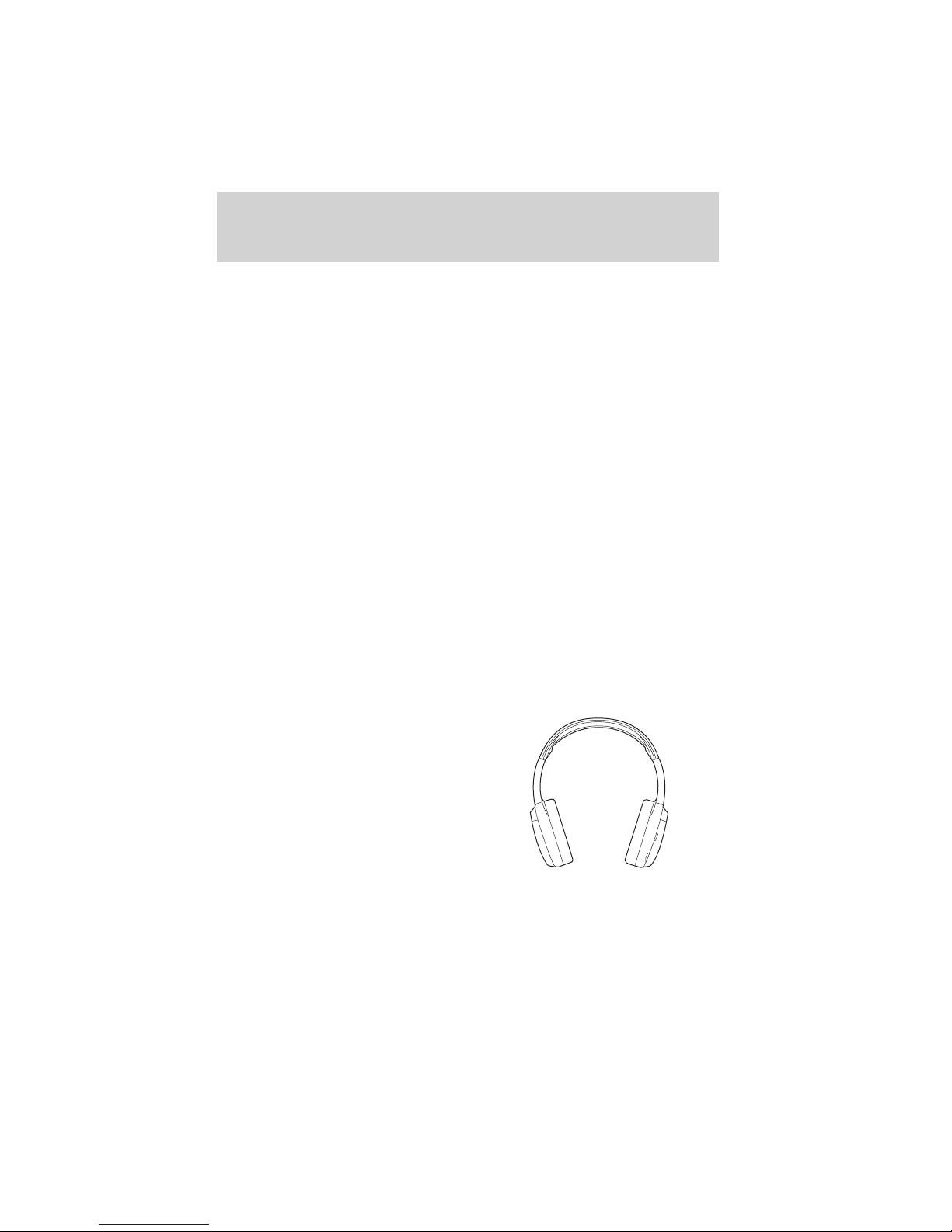

Wireless headphones

Your system is equipped with 2 sets of wireless headphones. (Two AAA batteries are needed to operate the headphones.) Batteries are included.

Page 81

Entertainment Systems

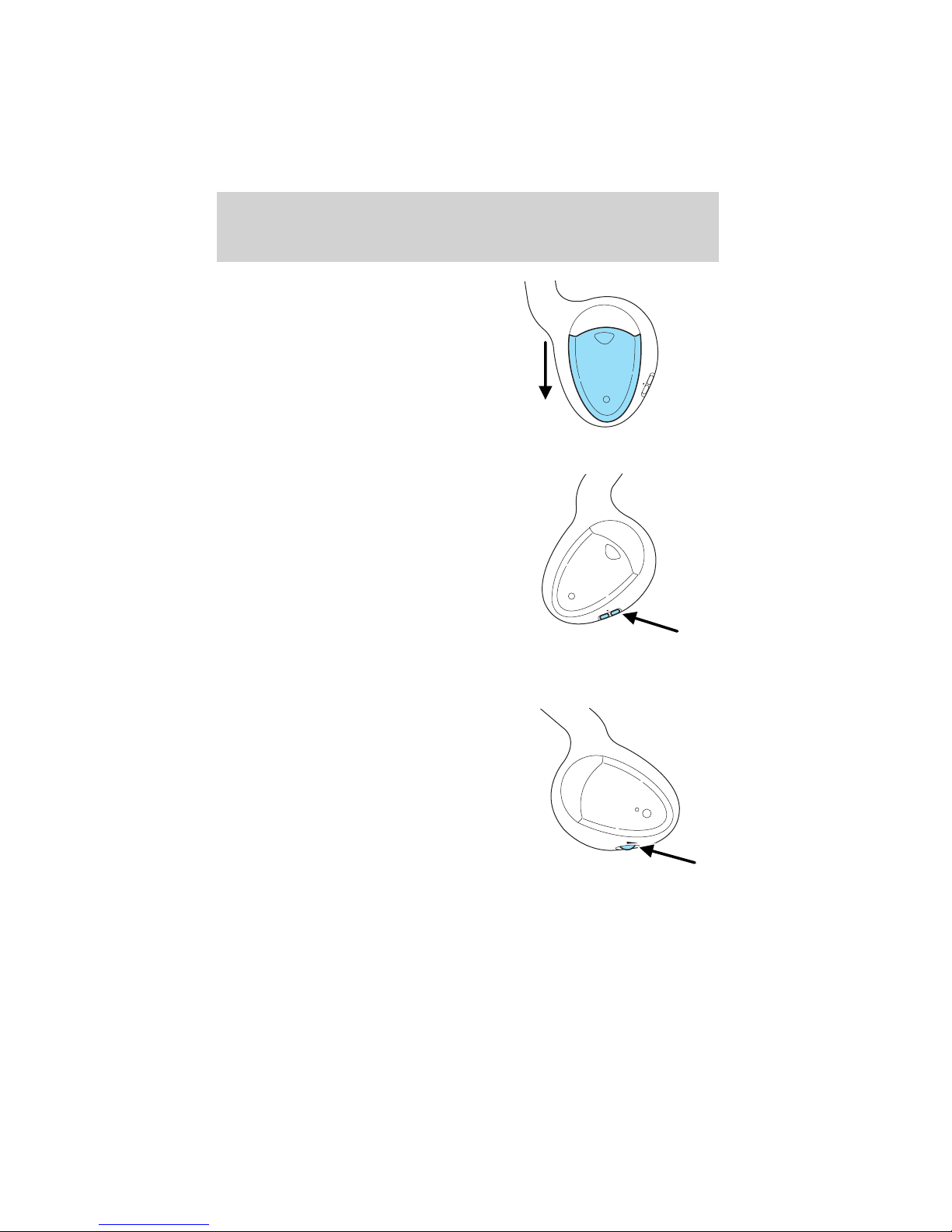

To install the batteries, lightly press down on the top of the left earpiece and slide the cover off.

When replacing the batteries, use two new batteries (alkaline recommended) and install them with the correct (+) and (-) orientation.

Wireless headphone operation

To operate the headphones:

• Press the ON/OFF button on the left-hand earpiece. The LED light on the right-hand earpiece will illuminate. Press again to turn off.

• Adjust the headphones to comfortably fit your head.

• Adjust the volume control to a comfortable listening level.

Note: The volume level of the wireless headphones can only be controlled by the thumbwheel. Neither the remote control nor the rear seat controls will affect the volume output of the wireless headphones.

When not using the headphones, shut them off to preserve battery power. The headphones will automatically turn off after five minutes if they have not received an infrared audio signal from the overhead pod.

Ensure that the line of sight between the headphone and infrared transmitter (mounted on the DVD housing) is not obstructed.

ON OFF

POWER

VOL

Page 82

Entertainment Systems

General information

Safety information

Please read and follow all stated safety precautions. Failure to do so may increase your risk of collision and personal injury. Ford Motor Company shall not be liable for any damages of any type arising from failure to follow these guidelines.

Do not attempt to service, repair or modify the system. See your Ford or Lincoln Mercury dealer.

The driver must not attempt to operate any detailed operation of

the navigation system while the vehicle is in motion. Give full attention to driving and to the road. Pull off the road and park in a safe place before performing detailed operations.

If the system is used for an extended period of time with the

vehicle stationary, ensure that the engine is running to avoid draining the battery.

Do not apply pressure to the display screen. The navigation system is not a substitute for your personal judgement. Route suggestions should not supersede local traffic regulations or safe

driving practices. Do not follow route suggestions if they direct you to perform an unsafe

or illegal maneuver, would place you in an unsafe situation, or would route you into an area that you consider unsafe.

Drivers should not rely on screen displays while their vehicle is in motion. Let the voice guide you. If viewing is necessary, pull off the road to a safe location.

Do not use the navigation system to locate emergency services. For road safety reasons, the driver should program the system only when

the vehicle is stationary. Certain functions will therefore not operate while the vehicle is in motion.

The map database DVD does not reflect road detours, closures or construction, road characteristics such as rough road surface, slope or grade, weight or height restrictions, traffic congestion, weather or similar conditions.

To use the system as effectively and safely as possible, obtain up-to-date map database DVD whenever they become available.

Page 83

Entertainment Systems

Set the volume level so that you can hear directions clearly. Do not disassemble or modify the system as this may lead to damage and

void your warranty. If a problem occurs, stop using the system immediately and contact your Ford or Lincoln Dealer.

Federal Communication Commission (FCC) Compliance

Changes or modifications not approved by Ford Lincoln Mercury could void user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to consult the dealer or an experienced radio/TV technician for help.

The database reflects reality as existing before you received the

database and it comprises data and information from government and other sources, which may contain errors and omissions. Accordingly, the database may contain inaccurate or incomplete information due to the passage of time, changing circumstances, and due to the nature of the sources used. The database does not include or reflect information on neighborhood safety, law enforcement, emergency assistance, construction work, road or land closures, vehicle or speed restrictions, road slope or grade, bridge height, weight or other limits, road or traffic conditions, special events, traffic congestion, or travel time.

Principles of GPS (global positioning system) operation

Your system directs you based on information derived from global positioning satellites, road maps stored on the DVD, sensors in your vehicle and the desired destination. The system compiles all necessary information to guide you to your selected destination. Space satellites determine the vehicle’s current location and transmit position and time signals to your car.

Page 84

Entertainment Systems

If the vehicle has been parked for a long period of time, the navigation function may be temporarily unresponsive. The navigation system will operate reliably again once GPS reception is available for a few minutes.

Limited GPS reception

System performance may be adversely affected if GPS reception is interrupted or interference occurs over a distance of several miles. The following are possible causes for GPS reception being interrupted. If the vehicle is:

• in multi-story parking garages

• in tunnels and under bridges

• inside or in between buildings

• by forests or tree-lined avenues

• in heavy rain showers and thunderstorms

• in valleys and in mountainous regions

• roads under cliffs

Ensure that you do not have any metal objects on the rear parcel shelf and that if your windows are tinted, they use non-metal tinting instead of metal oxide tinting. Both of these factors can also interrupt GPS reception.

Cleaning the display

Do not spray cleaning fluid directly onto the unit. Instead, spray onto a soft cloth and gently wipe the unit. Only recommended products should be used.

Do not clean any part of the system with benzene, paint thinner or any other solvent.

Do not spill liquids of any kind onto the unit.

Loading the map DVD

• Your navigation DVD unit is either located: in the front lower center stack area by the passenger’s feet (access door), in the trunk, or in the jack compartment.

• Ensure that the vehicle ignition is ON.

• If a DVD is already loaded in the Navigation unit, push the eject

button.

• Load the DVD with the printed side up. Do not allow moisture or foreign objects to enter the slot.

Page 85

Entertainment Systems

The navigation system utilizes a database stored in a special format on a DVD. It is recommended always to use the latest update of this map DVD.

• The navigation system will only work with DVDs specifically intended for your navigation system.

• Always store the map DVDs in their protective cases when not in use.

Ordering additional map DVDs

If you wish to order a replacement or additional map, please call 1–888–NAV-MAPS (1–888–628–6277) or to log onto www.navtech.com.

Latest map DVDs

The map content is constantly changing due to new roads, traffic restrictions, etc. . Therefore, it is not always possible to exactly match the DVD map with the current roadways. For best results, always use the latest version of the map DVD. Map information is regularly updated, but all areas are not necessarily covered to the same level of detail. Some areas, in particular private roads, may not be included on the database. To help with accuracy, always use the latest DVD version for navigation.

Customer service

If you need help operating your navigation/audio system, want to report a map database error or want to obtain a map DVD, please call 1 (888) 628–6277 (NAV-MAPS) or log onto www.navtech.com.

RADIO FREQUENCIES

AM and FM frequencies are established by the Federal Communications Commission (FCC) and the Canadian Radio and Telecommunications Commission (CRTC). Those frequencies are:

AM - 530, 540–1700, 1710 kHz FM- 87.7, 87.9–107.7, 107.9 MHz

RADIO RECEPTION FACTORS

There are three factors that can affect radio reception:

• Distance/strength: The further you travel from an FM station, the weaker the signal and the weaker the reception.

• Terrain: Hills, mountains, tall buildings, power lines, electric fences, traffic lights and thunderstorms can interfere with your reception.

• Station overload: When you pass a broadcast tower, a stronger signal may overtake a weaker one and play while the weak station frequency is displayed.

Page 86

Entertainment Systems

CASSETTE/PLAYER CARE

Do:

• Use only cassettes that are 90 minutes long or less.

• Tighten very loose tapes by inserting a finger or pencil into the hole

and turning the hub.

• Remove loose labels before inserting tapes.

• Allow tapes which have been subjected to extreme heat, humidity or

cold to reach a moderate temperature before playing.

• Clean the cassette player head with a cassette cleaning cartridge after 10–12 hours of play to maintain good sound/operation.

Don’t:

• Expose tapes to direct sunlight, extreme humidity, heat or cold. Leave tapes in the cassette player for a long time when not being played.

•

CD/CD PLAYER CARE

Do:

• Handle discs by their edges only. Never touch the playing surface.

• Inspect discs before playing. Clean only with an approved CD cleaner

and wipe from the center out.

Don’t:

• Expose discs to direct sunlight or heat sources for extended periods of time.

• Insert more than one disc into each slot of the CD changer magazine.

• Clean using a circular motion.

AUDIO SYSTEM WARRANTY AND SERVICE

Refer to the Warranty Guide for audio system warranty information. If service is necessary, see your dealer or qualified technician.

Page 87

Climate Controls

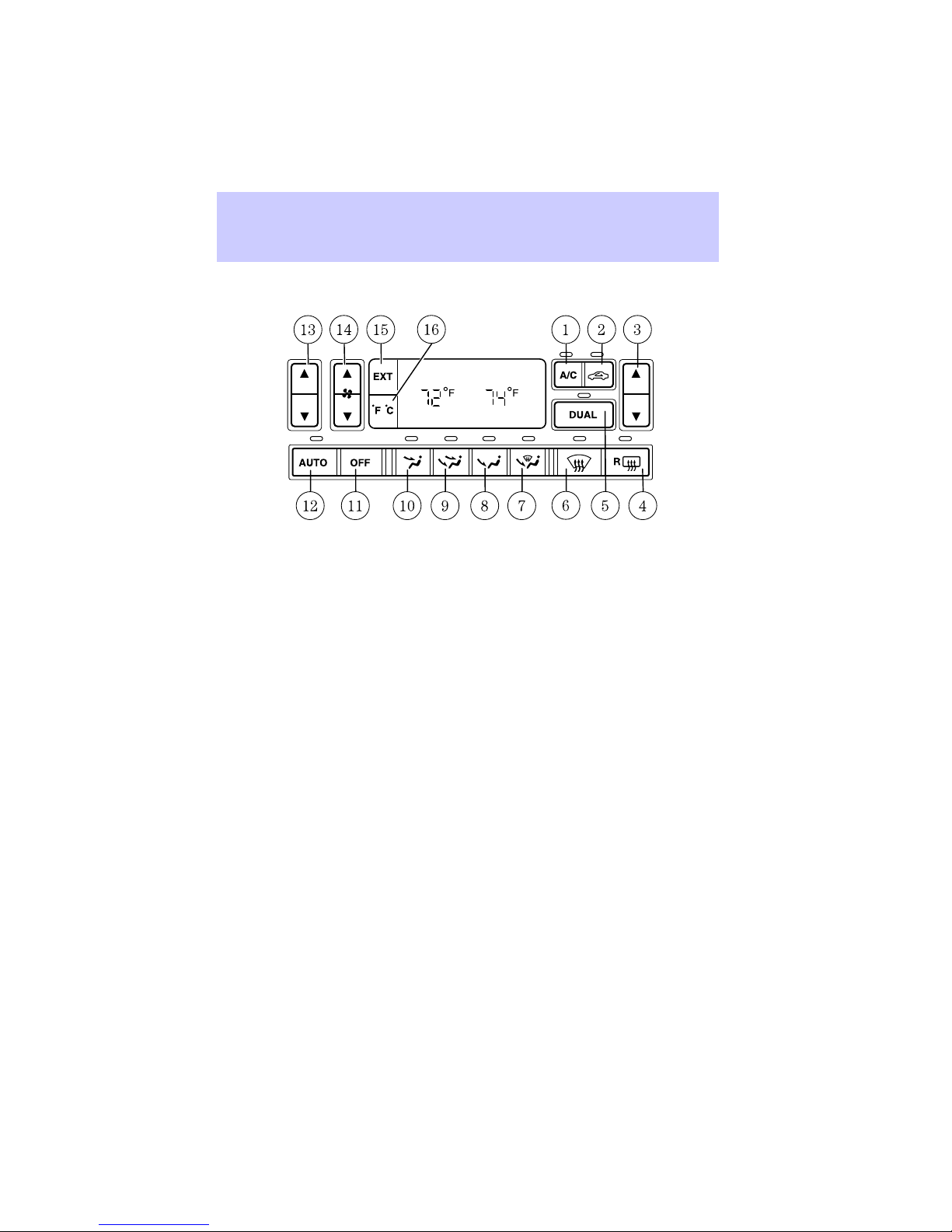

DUAL AUTOMATIC TEMPERATURE CONTROL (DATC) SYSTEM

1. A/C control

2. Recirculated air control

3. Passenger temperature control

4. Rear defrost control

5. DUAL control

6. Defrost control

7. Floor & Defrost control

8. Floor control

The DATC system will maintain a selected temperature setting and automatically control the fan speed and airflow location.

The dual temperature zone feature allows the driver and front passenger to set their own independent temperature set points for individual comfort. The system uses common controls for air distribution and fan speed for both driver and passenger.

9. Panel & floor control

10. Panel control

11. OFF control

12. AUTO control

13. Driver temperature control

14. Fan speed control

15. Exterior temperature display

16. Temperature conversion control

Page 88

Climate Controls

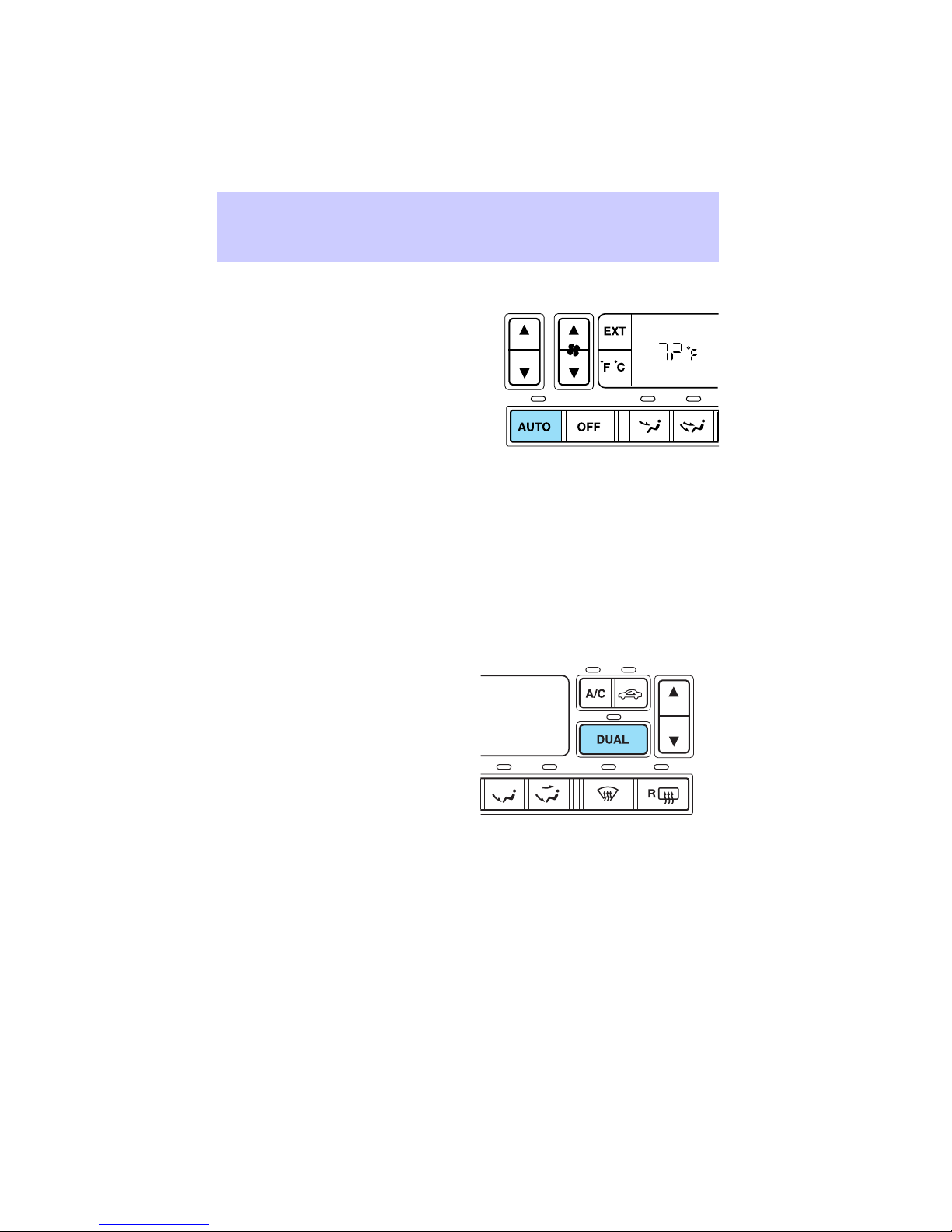

Automatic operation

Press AUTO and select the desired temperature. The system will either heat or cool the vehicle to achieve the selected temperature. The system will automatically determine fan speed, airflow location and whether outside or recirculated air is required.

When in automatic operation and weather conditions require heat, the air will be sent to the floor ducts. However, until the engine is warmed, the fan speed will operate at a low speed and airflow will be directed to the windshield defroster ducts. Upon engine warm up, the system will automatically direct airflow to the floor ducts and operate at the required fan speed to achieve the selected temperature.

If unusual conditions exist (i.e. window fogging, etc.), the manual overrides allow you to select airflow locations and fan speed. To return to automatic operation after an airflow selection, press AUTO.

Single/dual temperature zone

Press DUAL to enable or disable the dual zone temperature feature. When DUAL is pressed, the display window indicates the current temperature setting for the driver and the last temperature setting for the passenger. In addition to the DUAL control, the passenger may manually enable the dual zone temperature feature by pressing the passenger temperature control.

The DUAL indicator will be lit when the dual zone temperature feature is selected.

Page 89

Climate Controls

Driver/passenger temperature selection

To control the temperature, select the desired temperature by pressing the driver/passenger temperature controls.

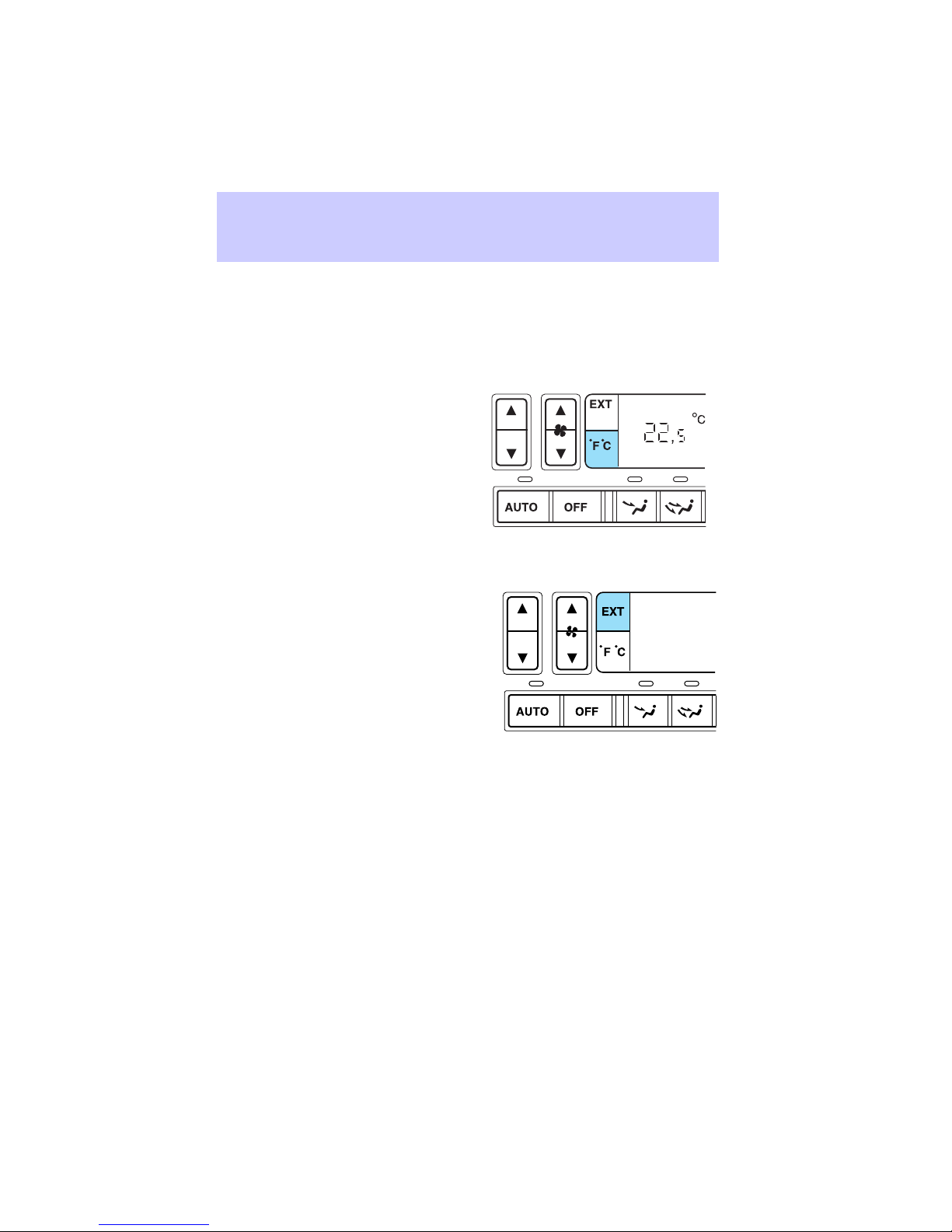

Temperature conversion

Press the Fahrenheit/Celsius (°F /°C) control to switch between Fahrenheit and Celsius.

Displaying outside temperature

Press Ext to display the outside temperature. The outside temperature will be displayed until Ext has been pressed again.

If the interior temperature or fan speed are adjusted or a manual override is selected while the outside temperature is being displayed, the new temperature, fan speed or override control will appear in the display window for four seconds, the outside temperature will then return to the display window.

The outside temperature reading is most accurate when the vehicle is moving. Higher temperature readings may be displayed when the vehicle is not moving. Due to locations, the outside temperature readings from the vehicle may not agree with those obtained from the radio station broadcasts.

Page 90

Climate Controls

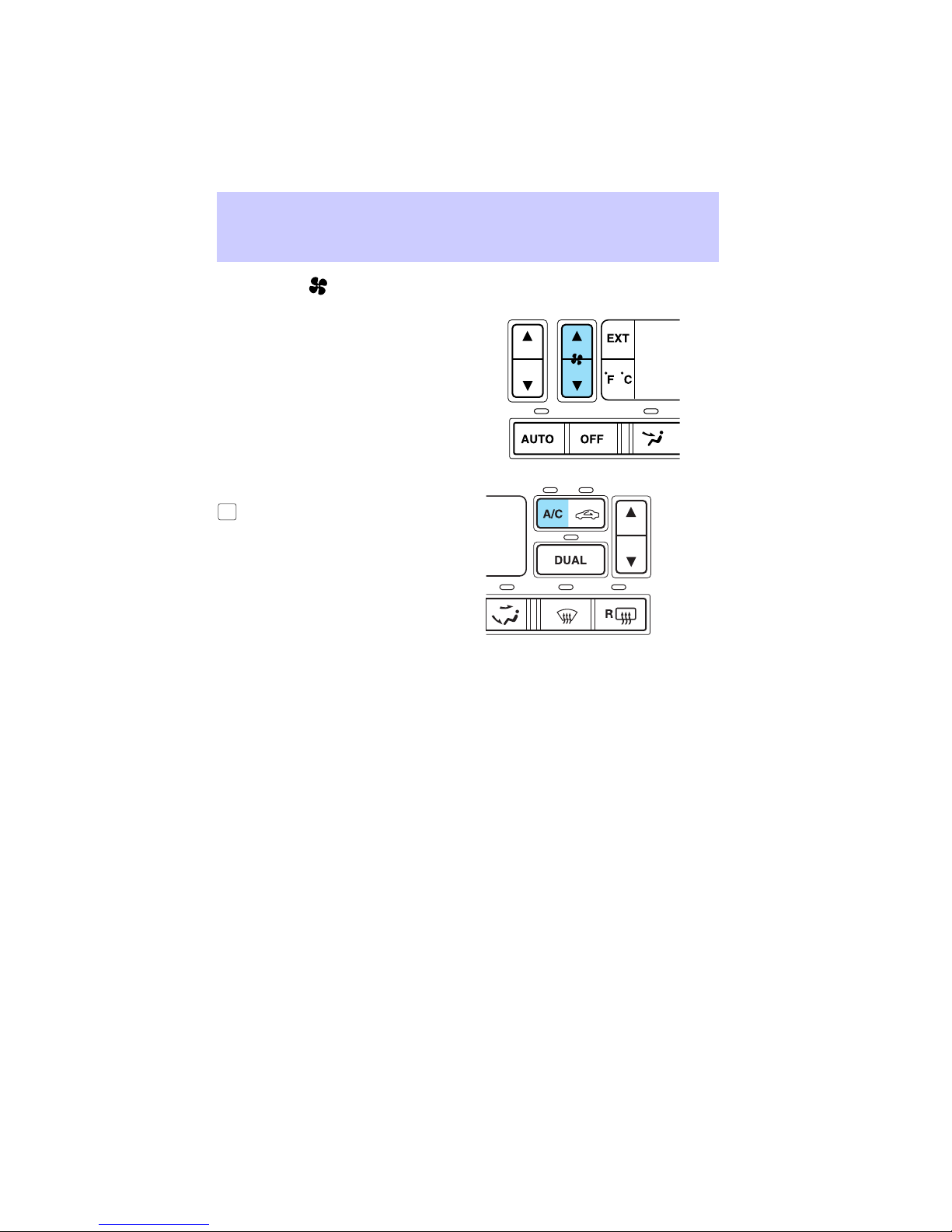

Fan speed ( )

When in automatic operation, fan speed operates as necessary to achieve the selected temperature. If desired, the fan speed can be adjusted manually through the use of the fan speed control.

• A/C control

A/C

(air conditioning) — Used to manually enable or disable air conditioning in all modes except Defrost. The A/C will only function if the outside temperature is above approximately 2°C (35°F). In Defrost, the A/C will operate automatically if the outside temperature is above approximately 2°C (35°F). However, the A/C indicator will not be lit in Defrost mode.

In automatic operation, the air conditioning operates as necessary to achieve the selected temperature and the A/C indicator will be lit if the outside temperature is above approximately 2°C (35°F). You may override the automatic A/C operation at any time. To manually control the A/C operation and cancel automatic A/C operation, press the A/C control. When the air conditioning is manually controlled in automatic operation, the AUTO indicator will remain lit. To return to automatic air conditioning operation, press AUTO.

Since the air conditioner removes moisture from the air, it is considered normal operation if clear water drips on the ground under the air conditioner drain.

Page 91

Climate Controls

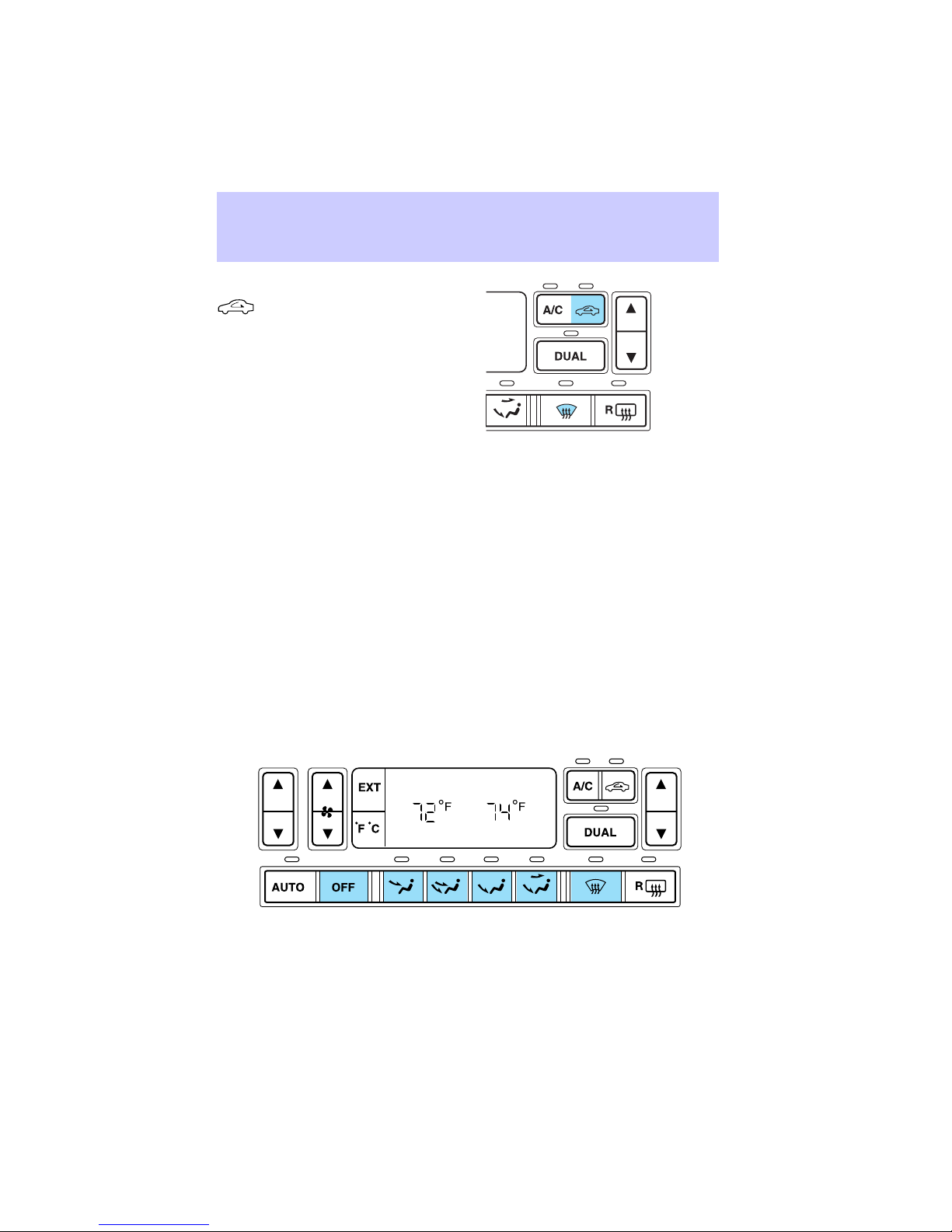

• Recirculated air

(recirculated air) — Used to manually enable or disable the operation of recirculated air in all modes except Defrost. When the air conditioning is operating, recirculated air helps to reduce the amount of time required to cool the inside of the vehicle. Recirculated air will reduce undesirable odors

from entering the vehicle. Recirculated air cannot be selected in Defrost, as interior fogging may

occur. In Floor and Floor and Defrost modes, the recirculated air control can be enabled. However, to reduce the risk of fogging, the recirculated air button will be disabled in approximately 4 minutes.

In automatic operation, the recirculated air operates automatically as necessary to achieve the selected temperature. If desired, recirculated air can be controlled manually through the use of the recirculated air control. When recirculated air is controlled while in automatic operation, the AUTO indicator will remain lit and the system will remain in automatic operation. To return to automatic recirculated air, press AUTO.

Under cold or damp conditions, do not leave the climate control system in recirculated air for extended periods of time as this may cause interior fogging of the windows.

Manual override controls

The manual override controls allow you to determine where airflow is directed. To return to full automatic control, press AUTO.

Page 92

Climate Controls

• Off-Outside air is shut out and the fan will not operate. This mode will

reduce undesirable odors from entering the vehicle but may increase the possibility of interior window fogging.

• Panel - Distributes outside or recirculated air through the instrument

panel registers. The A/C compressor will only function if the outside temperature is above approximately 2°C (35°F). The system will allow some airflow through the floor ducts.

• Panel and Floor -Distributes outside or recirculated air through the

instrument panel registers and floor ducts. The A/C compressor will only function if the outside temperature is above approximately 2°C (35°F). The air distributed through the floor ducts will be slightly warmer than that sent to the instrument panel registers.

• Floor -Distributes outside or recirculated air through the floor ducts.

The A/C compressor will only function if the outside temperature is above approximately 2°C (35°F).

• Floor & Defrost -Distributes outside or recirculated air through the

floor ducts, windshield defroster ducts and the side window demisters. The A/C compressor will operate automatically if the outside temperature is above approximately 2°C (35°F). The air distributed through the floor ducts will be slightly warmer than that sent to the windshield defroster ducts and the side window demisters.

• Defrost-Distributes outside air through the windshield defroster ducts

and the side window demisters. The A/C compressor will operate automatically if the outside temperature is above approximately 2°C (35°F). This mode will clear ice and fog from the windshield.

Operating tips

• To reduce fogging in humid weather, place the climate control system

in Defrost mode and Rear Defrost before driving.

• To reduce humidity buildup inside the vehicle in warm weather

conditions, don’t drive with the climate control system in the Off mode.

• To reduce humidity buildup inside the vehicle in cold weather

conditions, don’t drive with the climate control system in recirculation mode or Off mode.

• Remove any snow, ice or leaves from the exterior base of the

windshield.

• To increase the efficiency of the A/C, drive with the windows slightly

open for 2–3 minutes after start up or until the vehicle has been “aired out.”

Page 93

Climate Controls

• Do not place objects under the front seat or over the defroster ducts.

They may reduce visibility, fall into the ducts, or degrade the performance of your climate control system.

Do not place objects on top of the instrument panel, as these

objects may become projectiles in a collision or sudden stop.

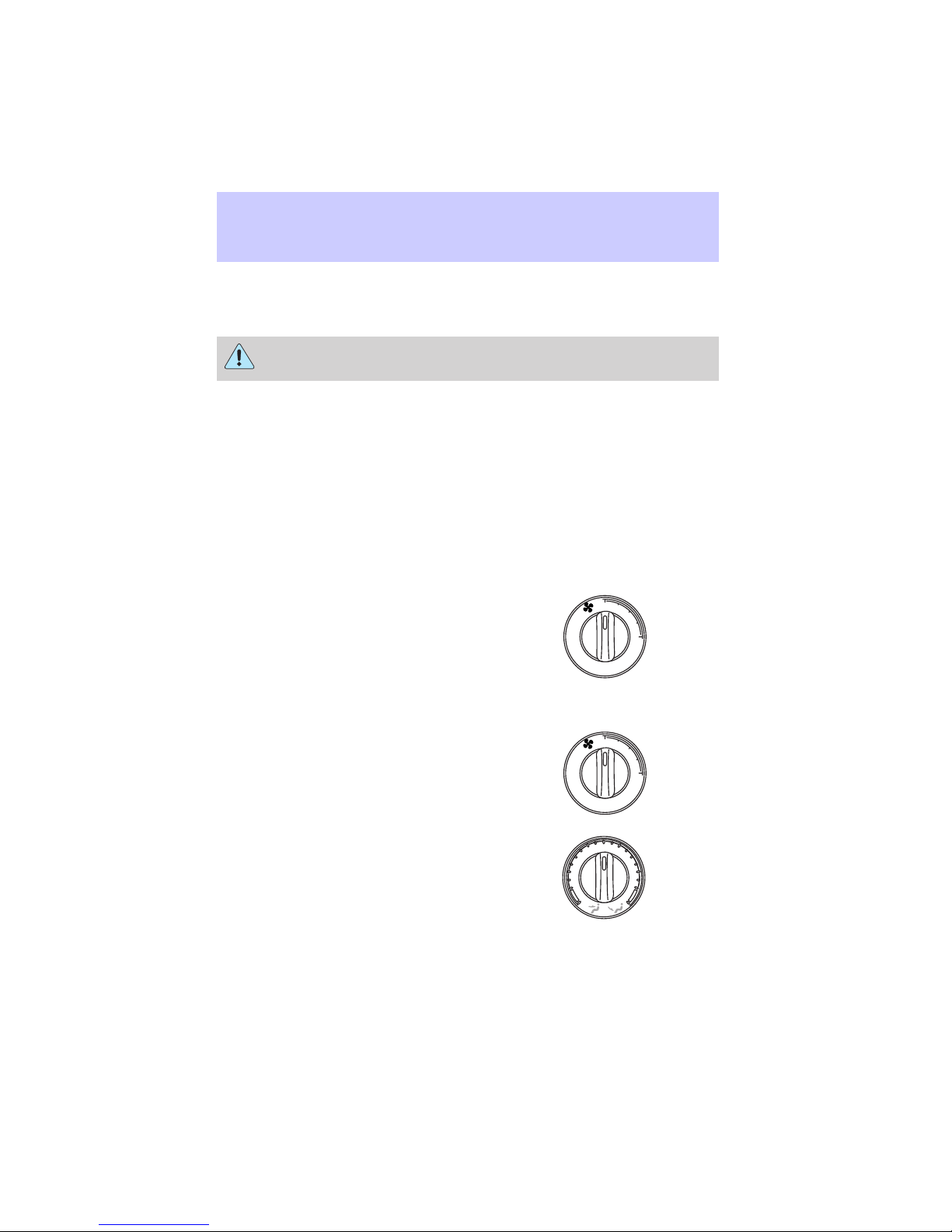

AUXILIARY CLIMATE CONTROLS

The auxiliary climate control feature provides increased capacity to quickly heat or cool the vehicle. The auxiliary climate controls are located in the overhead console of the first row seating and in the floor console of the second row seating.

The auxiliary climate controls are independent of the main climate control system. If the main climate control system is in the Off position, the auxiliary climate controls will still operate. However, if the main climate control system is ON, the auxiliary air will not be cooled unless the air conditioning is functioning on the main climate control system.

The auxiliary unit can be controlled either by the front seat passengers using the front auxiliary control or by the rear seat passengers using the rear auxiliary control, but not both. To control the auxiliary unit using the rear control, the front control must be in the REAR position.

Controls the fan speed in the rear of the vehicle.

REAR

Controls the temperature of the airflow in the rear of the vehicle.

Page 94

Climate Controls

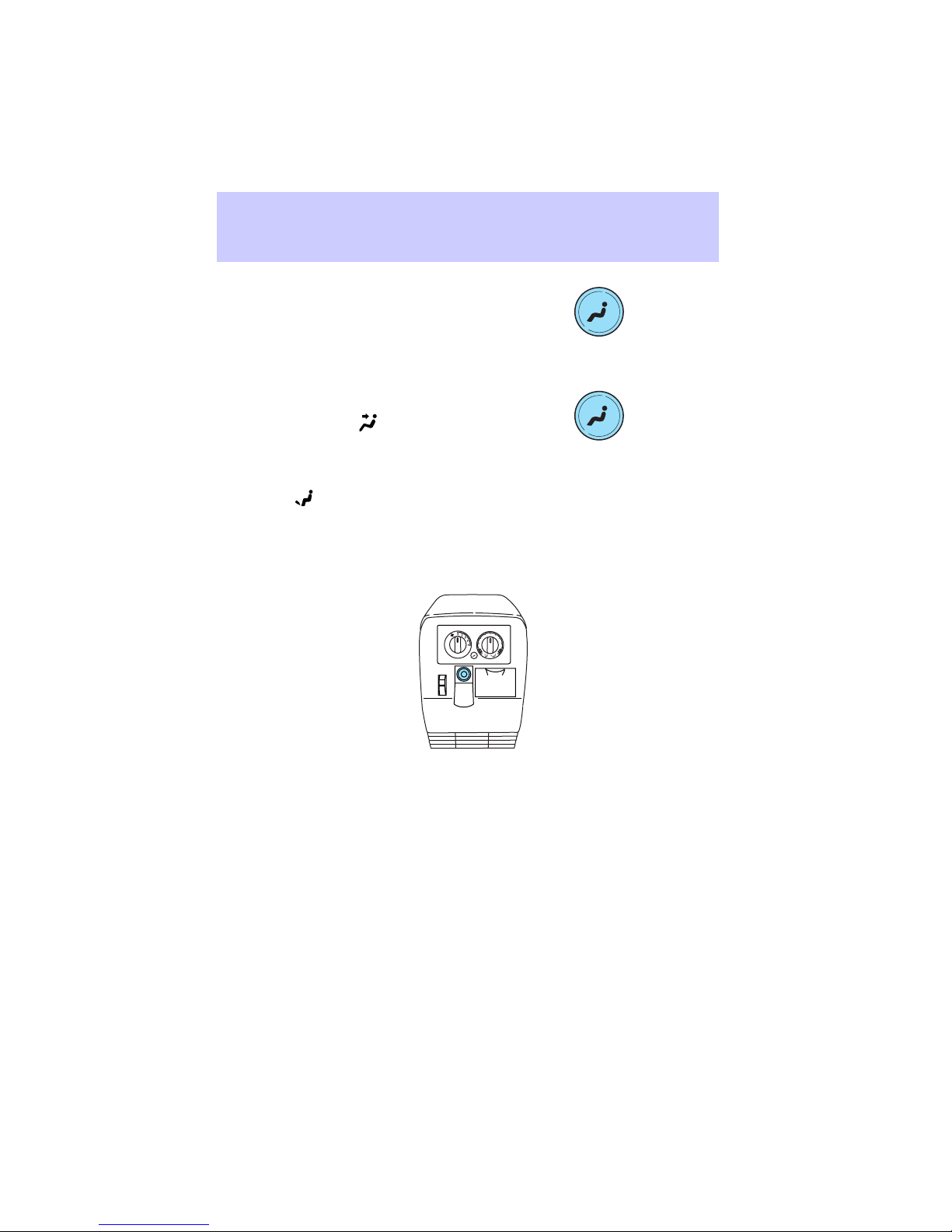

Controls the direction of the airflow in the rear of the vehicle. When Floor is selected, airflow will be directed through the floor registers. When Panel is selected, airflow is directed through the overhead registers.

Press the mode selector once to select air distribution through the overhead vents. The illuminate on the temperature selector.

Press the mode selector again to select air distribution through the floor vents. The auxiliary control head (front or rear) that is active will have the indicator lights functioning.

FLOOR CONSOLE CLIMATE CONTROLS

icon will illuminate on the temperature selector. Only the

icon will

The floor console climate control system allows the rear passengers to manually enable or disable airflow through the floor console. However, air temperature and fan speed are controlled by the main climate control system and by the auxiliary climate control system.

Page 95

Climate Controls

AIRFLOW CONTROL

Controls whether airflow will or will not be distributed through the floor console.

To select airflow from the registers of the floor console, slide the airflow control to the top.

To select no airflow from the registers of the floor console, slide the airflow control to the bottom.

REAR WINDOW DEFROSTER

Used to manually enable or disable rear window defrost in all modes. After approximately 10 minutes of rear defrost operation, the climate control system will automatically disable the rear defrost operation. If desired, the rear defrost can be manually disabled through the use of the rear defrost button. When operating, the rear defrost indicator will be lit.

Page 96

Lights

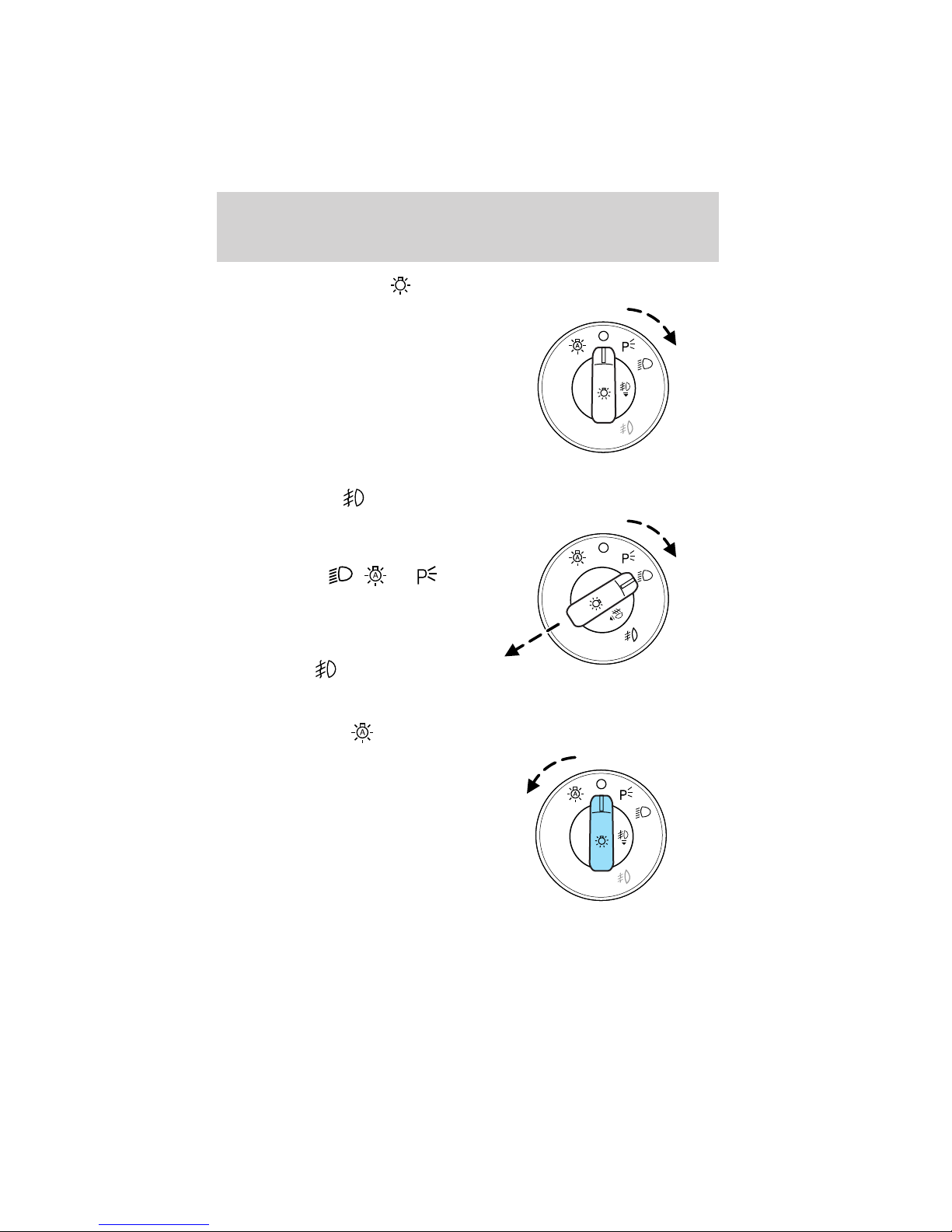

HEADLAMP CONTROL

Rotate the headlamp control clockwise to the first position to turn on the parking lamps. Rotate clockwise to the second position to also turn on the headlamps.

Foglamp control

The headlamp control also operates the foglamps. The foglamps can be turned on only when the headlamp

control is in the position and the high beams are not

turned on. Pull headlamp control towards you

to turn foglamps on. The foglamp indicator light the ignition is in the Run and Key

On position.

, or

will illuminate if

Autolamp control

The autolamp system provides light sensitive automatic on-off control of the exterior lights normally controlled by the headlamp control.

The autolamp system also keeps the lights on for approximately 20 seconds after the ignition switch is turned to the OFF position.

• To turn autolamps on, rotate the

control counterclockwise.

• To turn autolamps off, rotate the control clockwise to the OFF

position.

Page 97

Lights

Autolamp exit time delay, manual sequence

This option allows you to change the length of the autolamp exit delay. To program the auto lamp exit time delay:

1. Start with the ignition in OFF and the autolamps selected.

2. Deselect the auto lamps.

3. Put the ignition on RUN.

4. Put the ignition in OFF.

5. Select the autolamps.

• NOTE: Steps 2 through 5 must be performed within a 10 second

period.

• At this point, the headlamps and park lamps will turn on.

6. Deselect the auto lamps after the desired auto lamp delay time (maximum of 3 minutes).

• At this point, the headlamps and park lamps will turn off. The default for autolamp exit delay time is 20 seconds. Following a

vehicle battery disconnect/reconnect auto lamp delay exit time will be retained.

Autolamp exit time delay, message center sequence

This option allows you to change the length of time of the autolamp exit delay using the message center. You will have the ability to change the autolamp exit delay time of the autolamp ON time when the instrument cluster (IC) message center is enabled (ignition in run or accessory position).

There are 8 distinct and separate set points or values for auto lamp delay exit time in seconds. The following are predefined set points or auto lamp exit delay time values: 0, 10, 20, 30, 60, 90, 120, 180, seconds (i.e. 0 to 3 minutes).

The following steps are used to program the autolamp exit time delay using the message center:

1. The message center will display the last autolamp exit delay time in seconds.

2. You can respond to this message by 1 of 4 methods:

• No Response - The message center then times out after 4 seconds

and displays it’s normal text information.

• Press the info button - The message center then displays its normal

text information.

Page 98

Lights

• Press the setup button - The message center then displays the next

menu selection in its list. (6)

• Press the reset button - The message center then proceeds to the

next sequence/step (3) below.

• The message center sends/issues the “Autolamp Delay Command” to

the body security module (BSM).

• The body security module responds within 100 milliseconds with next

auto lamp exit delay time.

3. Next sequence/step number is one (1) steps 1,2,3,4 & 5 are repeated until exit via step 2.

4. The message center displays the next menu selection.

Daytime running lamps (DRL) (if equipped)

To activate DRL:

• the ignition must be in the ON position and

• the headlamp control is in the OFF or Parking lamps position

• the parking brake must be disengaged.

Always remember to turn on your headlamps at dusk or during

inclement weather. The Daytime Running Light (DRL) System

does not activate your tail lamps and generally may not provide adequate lighting during these conditions. Failure to activate your headlamps under these conditions may result in a collision.

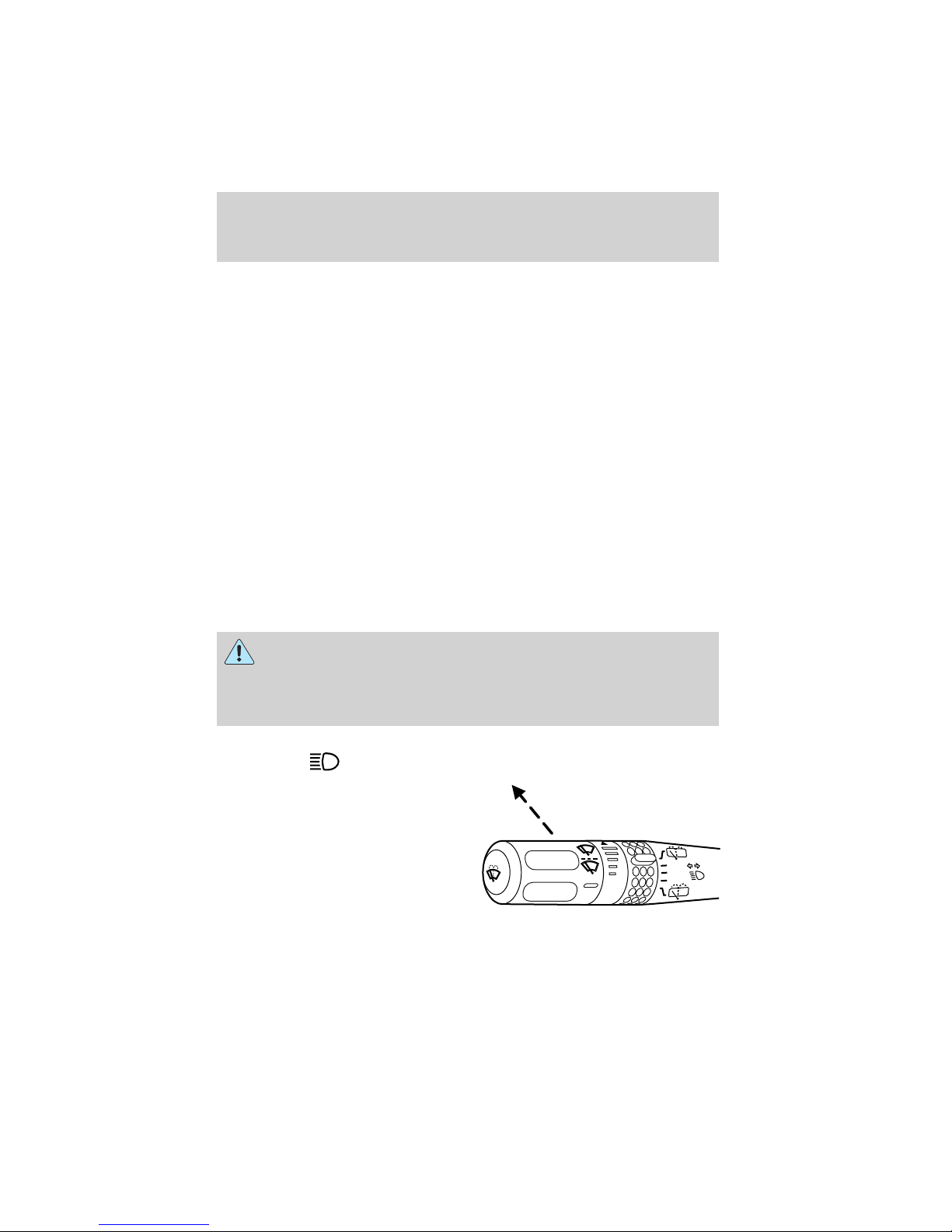

High beams

Push the lever toward the instrument panel to activate. Pull the lever towards you to deactivate.

OFF

INT2

INT1

OFF

Page 99

Lights

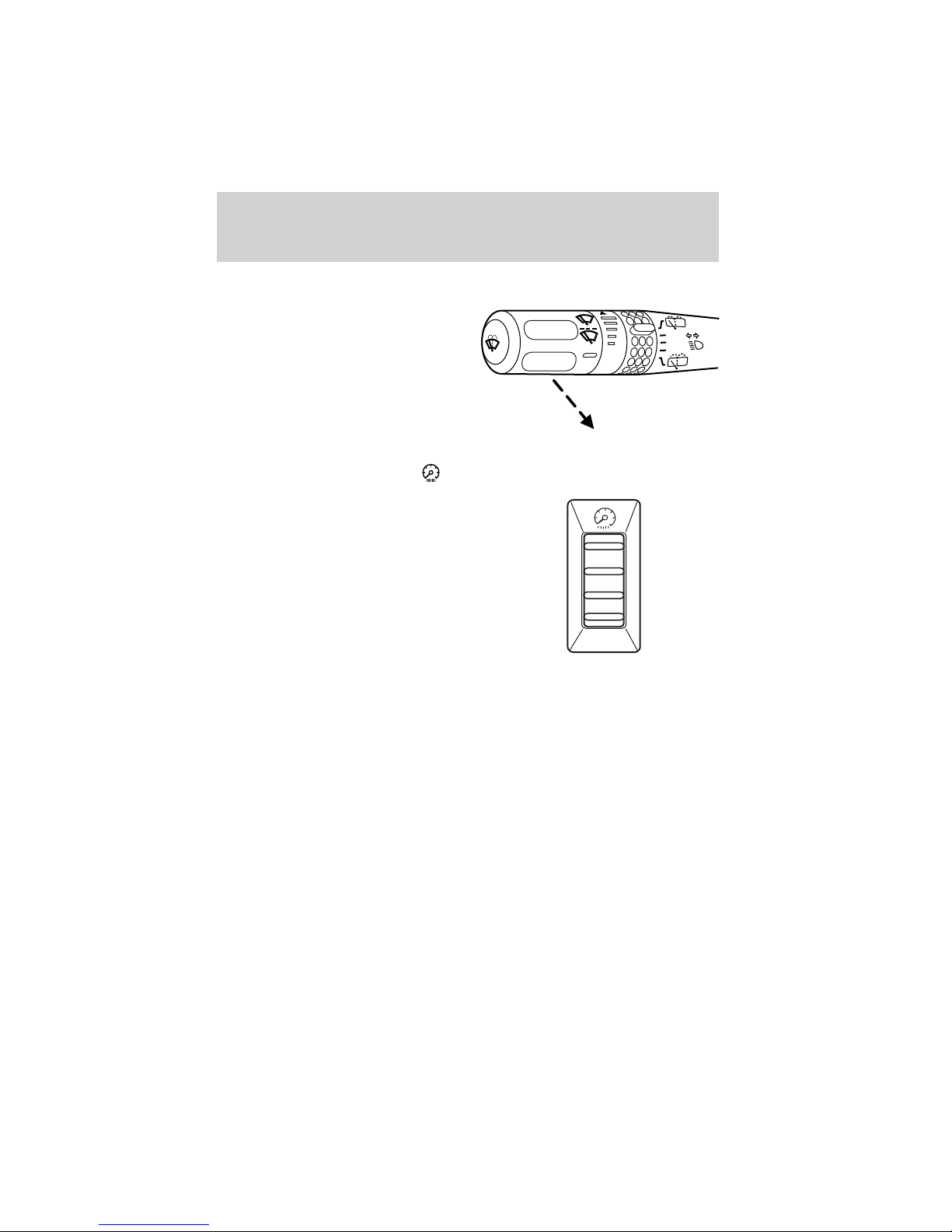

Flash to pass

Pull toward you slightly to activate and release to deactivate.

OFF

PANEL DIMMER CONTROL

Use to adjust the brightness of the instrument panel and all applicable switches in the vehicle during headlamp and parklamp operation.

Move the control to the full upright position, past detent, to turn on the interior lamps.

Move the control to the full down position, past detent, to prevent the interior lights from illuminating when the doors are opened. When the control is in the full down position, it acts as a dome defeat/override.

INT2

INT1

OFF

VERTICAL AIM ADJUSTMENT

Your vehicle is fitted with either VOR (conventional halogen) or VOL (High Intensity Discharge - HID) headlamps. The adjustment procedure depends on the type of headlamps that are equipped on your vehicle. VOR or VOL is marked on the bottom of the headlamp in the center of the lamp. Please check the lens markings prior to adjusting the vehicle aim.

1. Park the vehicle on a level surface approximately 7.6 meters (25 feet) from a vertical wall or screen directly in front of it.

• (1) Eight feet

• (2) VOR – Measurement of the center height of lamp to ground

VOL – Subtract 50 mm’s (2 inches) from the measurement of the center height of the lamp to ground

• (3) Twenty-five feet

• (4) Horizontal reference line

Page 100

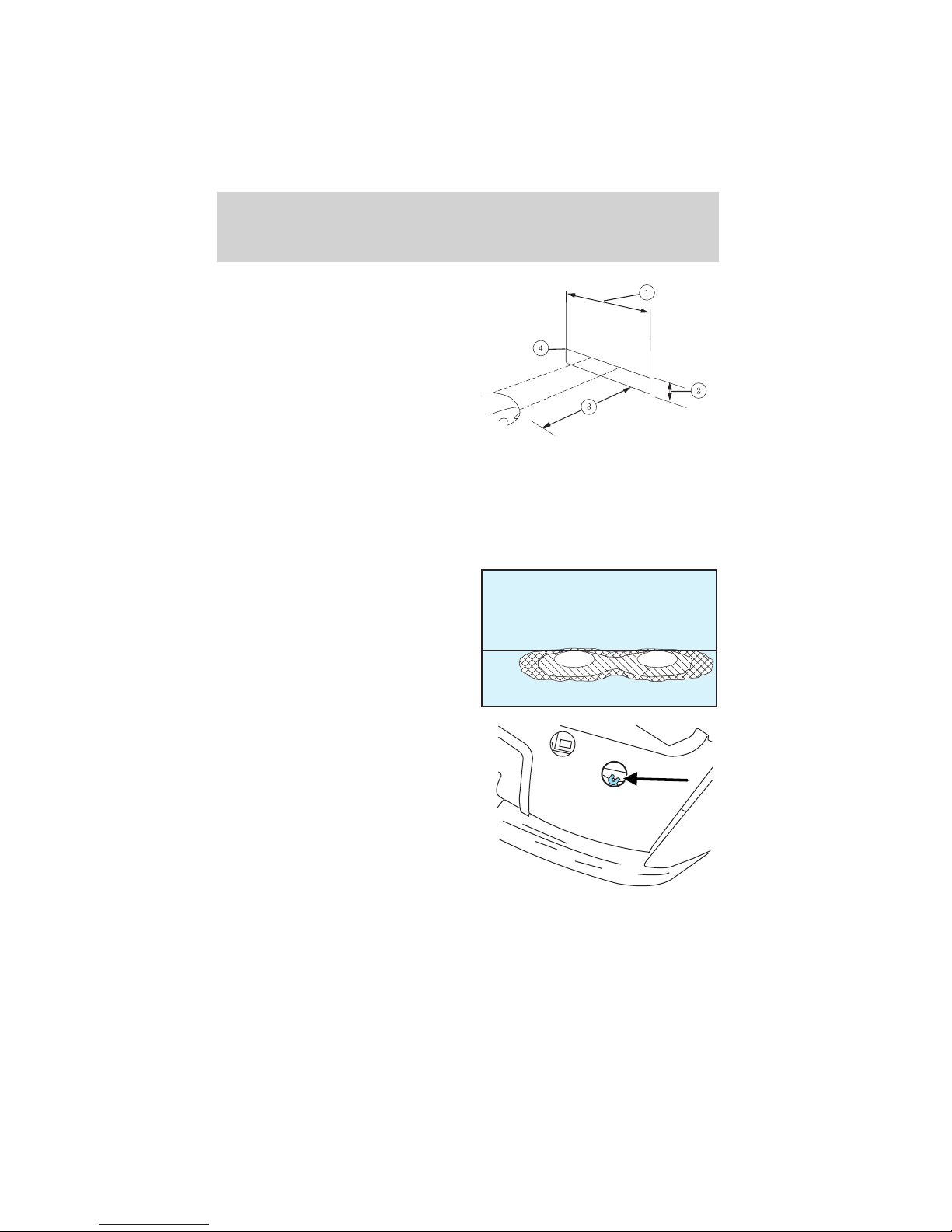

Lights

2. VOR: Measure the height from the center of your headlamp to the ground and mark a 2.4 meter (8 foot) horizontal reference line on the vertical wall or screen at this height (a piece of masking tape works well). The center of the lamp is marked by a 3.0 mm circle on the headlamp lens. VOL: Measure the height from the center of your headlamp to the ground, subtract 50 mm’s, (2.1 inches), and mark a 2.4 meter (8 foot) horizontal reference line on the vertical wall or screen at this height (a piece of masking tape works well). The center of the lamp is marked by a 3.0 mm circle on the headlamp lens.

3. Turn on the low beam headlamps to illuminate the wall or screen and open the hood.

4. On the wall or screen you will observe a light pattern with a distinct horizontal edge of high intensity with a slight angle towards the right. If this is not at the horizontal reference line, the beam will need to be adjusted.

5. Locate the vertical adjuster hole in the upper radiator sight shield. The hole is located on the top of the headlamp. Insert a standard #2 Phillips screwdriver into the hole until it engages the vertical adjuster gear. Turn the screwdriver either counterclockwise (to adjust down) or clockwise to (to adjust up) aligning the upper edge of the light pattern up to the horizontal line.

6. HORIZONTAL AIM IS NOT REQUIRED FOR THIS VEHICLE AND IS NON-ADJUSTABLE.

7. Close the hood and turn off the lamps.

100
