OWNER’S MANUAL
CAUTION!
Read all precautions and instructions in this manual before using this equipment.
Single Station Multi-Gym with chest press and leg extension/leg curl - 150lbs pin loaded weight stack
JX-DS913
Page 2
This exercise equipment is built for optimum safety. However, certain precautions apply whenever you
Assembly
• The product must be installed on a stable and level
surface.
• Assemble the item as close to its final position
(in the same room) as possible.
• Make sure you have enough space to layout the
parts before starting.
• Keep children and animals away from the exercise
area, small parts could pose a choking hazard if
swallowed.
• Dispose of all packaging carefully and responsibly.
• Check you have all the components and tools
listed in the parts list, bearing in mind that, for
ease of assembly, some components are pre-
assembled.
• The assembly of this equipment is best carried out
by 2 people.
Use
• It is the responsibility of the owner to ensure that all
users of this product are properly informed as to how
to use this product safely.
• This product is intended for domestic use only.
Do not use in any commercial, rental, or institutional
setting.
• Use the equipment only for intended use, as
described in this manual. Do not use attachments not
recommended by the manufacturer.
• Keep this equipment indoors, away from moisture
and dust. Do not put the equipment in a garage,
outbuilding, covered patio, or near water.
• Your product is intended for use in clean dry
conditions. You should avoid storage in excessively
cold or damp places as this may lead to corrosion
and other related problems that are outside our
control.
• Keep unsupervised children away from the
equipment.
• Parents and others in charge of children should be
aware of their responsibility because the natural play
instinct and the fondness of experimenting of
children can lead to situations and behavior for which
the training equipment is not intended.
• If children are allowed to use the equipment under
supervision, their mental and physical development
should be taken into account. They should be
controlled and instructed to the correct use of the
equipment. The equipment is under no
circumstances suitable as a toy.
• Disabled persons should not use the equipment
without a qualified person or doctor in attendance.
This product is not suitable for therapeutic
purposes.
• Always wear appropriate workout clothing when
exercising. Do not wear loose or baggy clothing, as
it may get caught in the equipment. Wear trainers
to protect your feet while exercising.
• Do not place any sharp objects around the
equipment.
• Keep hands away from all moving parts.
• If any of the adjustment devices are left projecting,
they could interfere with the user’s movement.
• Before using the equipment to exercise, always
perform stretching exercises to properly warm up.
• Only one person at a time should use the
equipment.
• A spotter is recommended during exercise.
• If the user experiences dizziness, nausea, chest
pain, or other abnormal symptoms stop the workout
and seek immediate medical attention.
• Injuries to health may result from incorrect or
excessive training.
• This product is suitable for a maximum user weight
Important – Please read fully before assembly or use
Safety information
1
operate a piece of exercise equipment. Be sure to read the entire manual before you assemble, operate or use this equipment.
Warning: Before beginning any exercise program, consult your doctor. This is especially important for people over the age of 35 or persons with pre-existing health problems or those who have not exercised for a period of time. You MUST read all instructions before using any fitness equipment. FORCE USA and its associates assume no responsibility for personal injury or property damage sustained by or through the use of this product.
of: 120kg.
Page 3
Note: Some of the smaller components may be pre-fitted to larger components. Please check carefully
Components - Parts
Please check you have all parts listed below
10#Left butterflyX1PC
8# Front press baseX1PC
11# HandleX2PC
7# Leg developer X1PC
5# Leg developer holderX1PC
6# Seat pad supportX1PC
2
15# Cross double floating pulley bracketX1PC
13#Arm curl pad supportX1PC
4# Rear stabilizerX1PC
3# Base FrameX1PC
2# Front Vertical FrameX1pc
1# Upper FrameX1 PC
14# Swivel pulley bracketX2PCS
12# U shape BracketX1PC
9# Right butterflyX1PC
before contacting us regarding any missing components. Total mass of the product is 122.2 kg. Total size of the equipment is76.6 cm × 168.4 cm × 197 cm.
Page 4
18# Lat barX1PC
36# Weight plateX13PCS
35#Weight stemX1PC
34# 7#Gourd hookX5PCS
3
33# 15 joint ChainX2PCS
32# Selector PinX1pc
30# Double floating pulley bracketX2PCS
29# Weight stack cover bracketx2pc
28# Foam roll X4PCS
27# Foam roll X2PCS
26#Arm curl pad X1PC
25# Seat pad X1PC
24# Backrest pad X1PC
19# Selector Rod X1PC
23# Foam Roll tubeX2PCS
17# Guide RodX2PCS
20# BracketX4PCS
16# Weight stack coer X1PC
22# Lock Knob X1PC
Page 5
47# Ankle StrapX1PC
43#BushingX16PCS
42# Pulleyx18pcs
41# Rubber bumperX2PC
50#Lower cableX1Pc
49# Butterfly cableX1PC
53#φ50 End cap×5
57# Single StrapX1PC
58# M10 aircraft nut coverX4PCS
61#RetainerX8PCS
82# BushingX8PCS
80# End capX4PCS
48#Upper CableX1 Pc
4
39# Handle X1PC
Page 6
Note: The quantities below are the correct amount to complete the assembly. In some cases more
Components - Fixings
Please check you have all parts listed below
5
4#,5# Allen bolt wrench Each one 6# Allen bolt wrenchX2
M10*30 Allen boltX1
M10×50mm Allen boltX4
M6 Aircraft nut X2
M10 Aircraft nutX39
Φ25washer ×6
Φ6washer ×10
Φ8washer ×8
Φ10washer ×50
M6×20mm Allen boltX8
M8X16Allen boltX6
M8×70mm Allen bolt×2
M10×20mm Allen bolt×2
67#M10×45mm Allen boltX6
66#M10×25mm Allen BoltX6
M10*55Allen boltX2
M10×65mm Allen boltX12
M10×70mm Carriage bolt×10
57MM swivel axleX1
Front press base axleX1
Butterfly axle X 2
hardware may be supplied than are required. Some of the fixings are pre-fitted to the larger components. Please check carefully before contacting us regarding any missing fixings.
Page 7
Assembly Instructions
Insert 2 pcs guide rods (17#) into the holes of the Rear Stabilizer(4#) separately and tighten them with 2 pcsM10*25 Allen Bolt(66#) and 2pcs φ10 washers(73#).
Notes: part (31), were pre-fitted in the factory already.
Step 1
6
Page 8
4
Step 2
7
Assembly Instructions
Attach the Base Frame(3#) to the Rear Stabilizer(4#) as the diagram shows and tighten them with 2pcs
M10*70 carriage bolt(63#),1pc bracket(12#),2pcsφ10 washers(73#) and 2pcs M10 Aircraft nuts(77#)
Notes: part (31)(52), were pre-fitted in the factory already.
7
Page 9
Assembly Instructions
a. Attach the front vertical frame(2#) onto the base frame(3#). Carefully align the holes and secure them
with M10*70 carriage bolt(63#), 1 pc bracket(20#),2pcs φ10 washers(73#) and 2pcs M10 Aircraft nuts(77#) .
Notes: part (45) is pre-fitted.
Step 3
8
Page 10
Assembly Instructions
Place 13pcs weight plate(36#) along the guide rods(17#) from the top to the bottom, Insert the Selector Rod(19#) into the center hole of the weight plates. And then place the weight stem(35#) again.
Select the desired weight with the selector pin(32#) during the exercising.
Notes: Part (51#) is pre-fitted.
Step 4
9
Page 11
Assembly Instructions

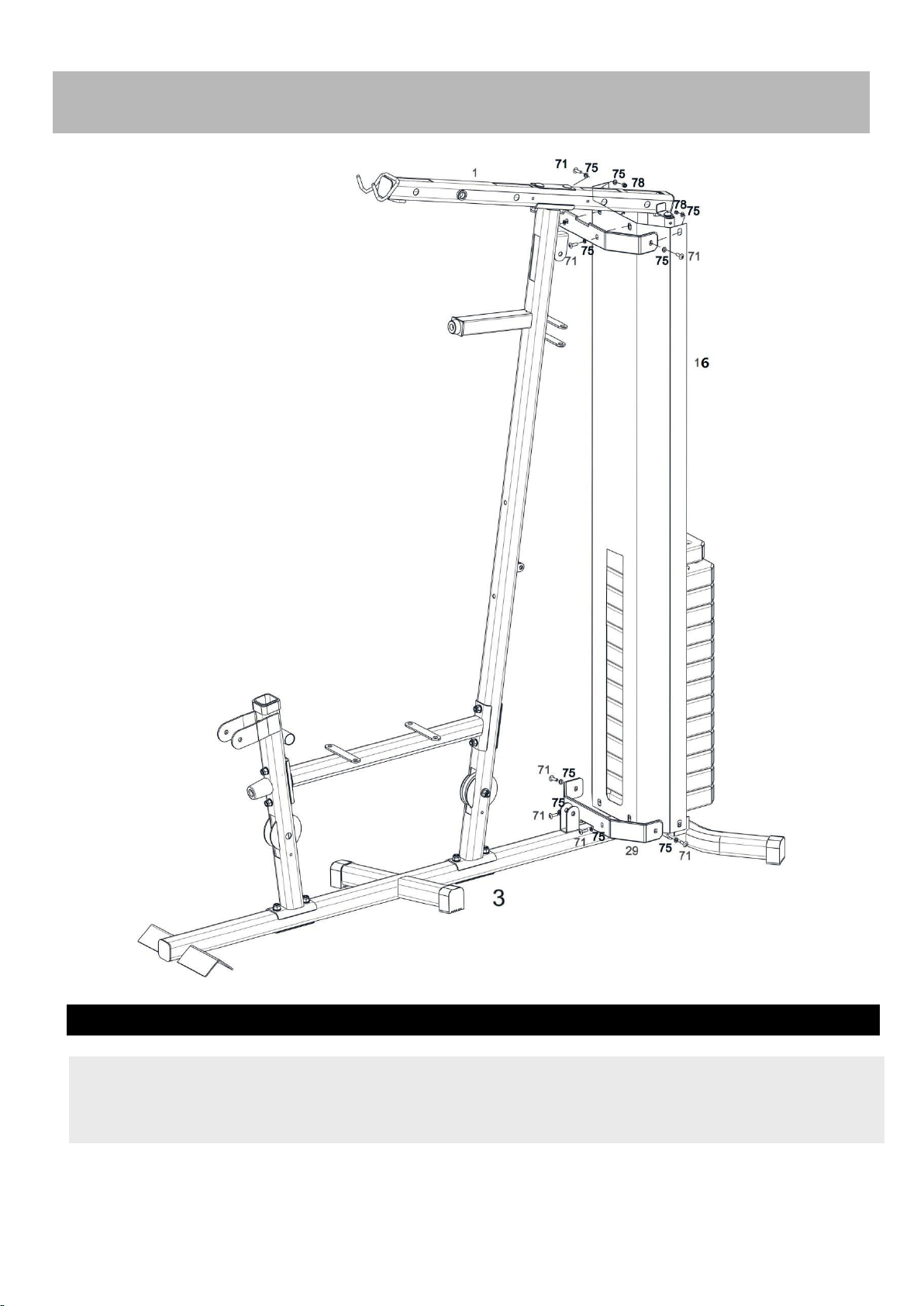

Place the Upper Frame(1#) onto the Front Vertical Frame(2#) and 2pcs Guide Rod(17#), Align the holes and secure them with 2pcs M10*25 Allen Bolt (66#),2pcsφ10 washers(73#) ,2pcs M10*70 Carriage
bolt(63#),1 pc bracket(20#),2pcs φ10 washers(73#),2pcs M10 Aircraft nuts(77#) .
Step 5
10
Page 12
Assembly Instructions

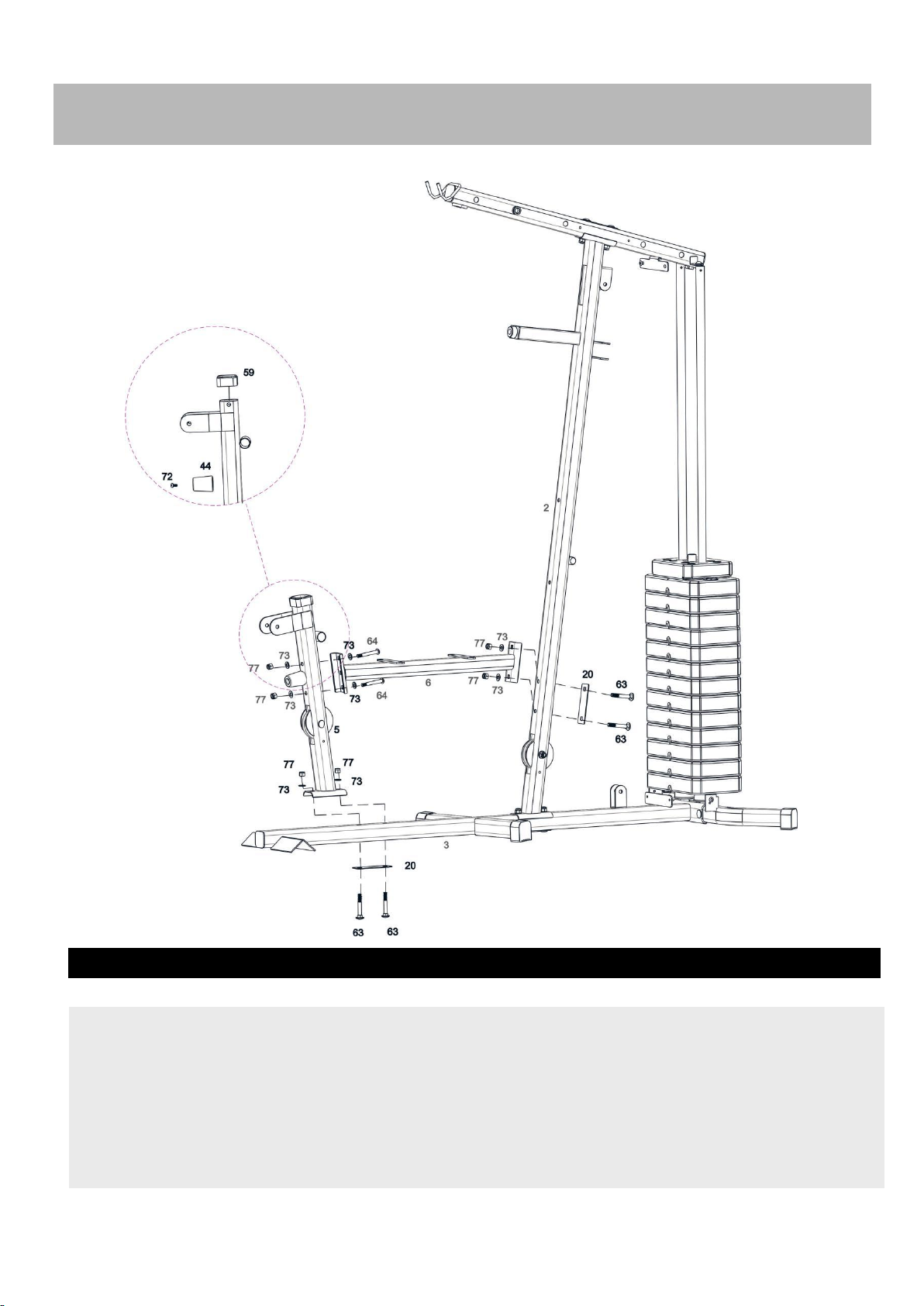

a.Attach the seat pad support(6#) to the front vertical frame(2#) and secure them with 2pcs M10*70
Carriage bolt(63#),1pc bracket(20#),2pcsφ10 washers(73#),2pcs M10 Aircraft nuts(77#) .
b.Attach the Leg developer Holder(5#) onto the base frame, Secure them with 2pcs M10*70 Carriage
bolt(63#),1pc bracket(20#),2pcs φ10 washers(73#),2pcs M10 Aircraft nuts(77#) .
c.Attach the Leg Developer Holder(5#) and another end of the seat pad support (6#)together,Secure
them with 2pcs M10*65 Allen Bolt (64#),4pcs φ10 washers(73#) and 2pcs M10 Aircraft nuts(77#) .
Step 6
11
Page 13
Assembly Instructions
Step 7
Attach the Weight Stack Cover(16#) and 2pcs Weight stack Bracket(29#) as the diagram show, Secure them with 8pcs M6×20mm Allen Bolt(#71),10 pcs φ6 washers(#75),2pcs M6 Allen Bolt(78#),
12
Page 14

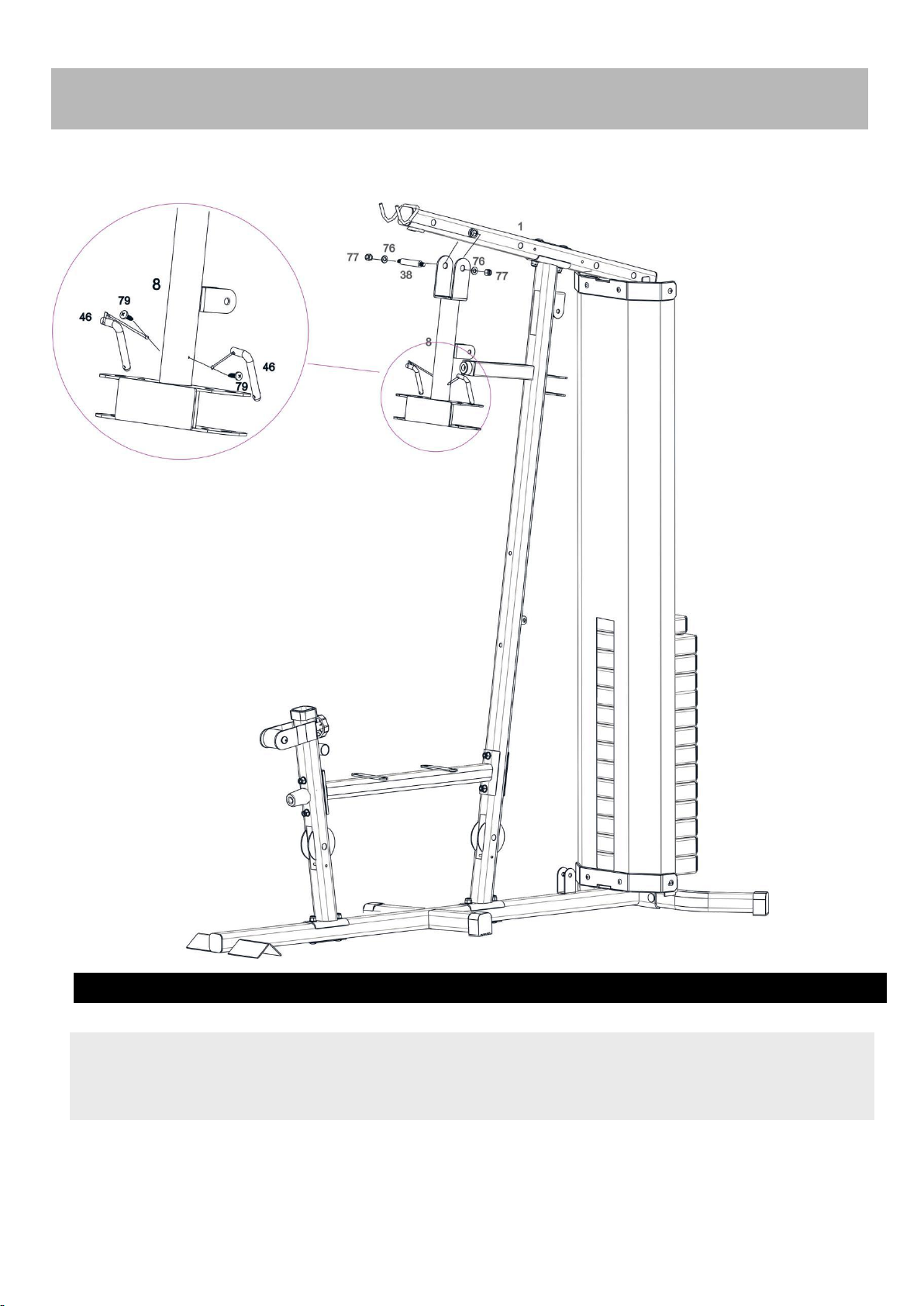

Assembly Instructions
Step 8
Attach the Front Press Frame(8#) to the Upper Frame(1#), Secure them with 1pcs axle(38#),2pcs φ10 washer(76#)and 2pcs M10 Aircraft nut (77#).
13
Page 15
Assembly Instructions
Step 9

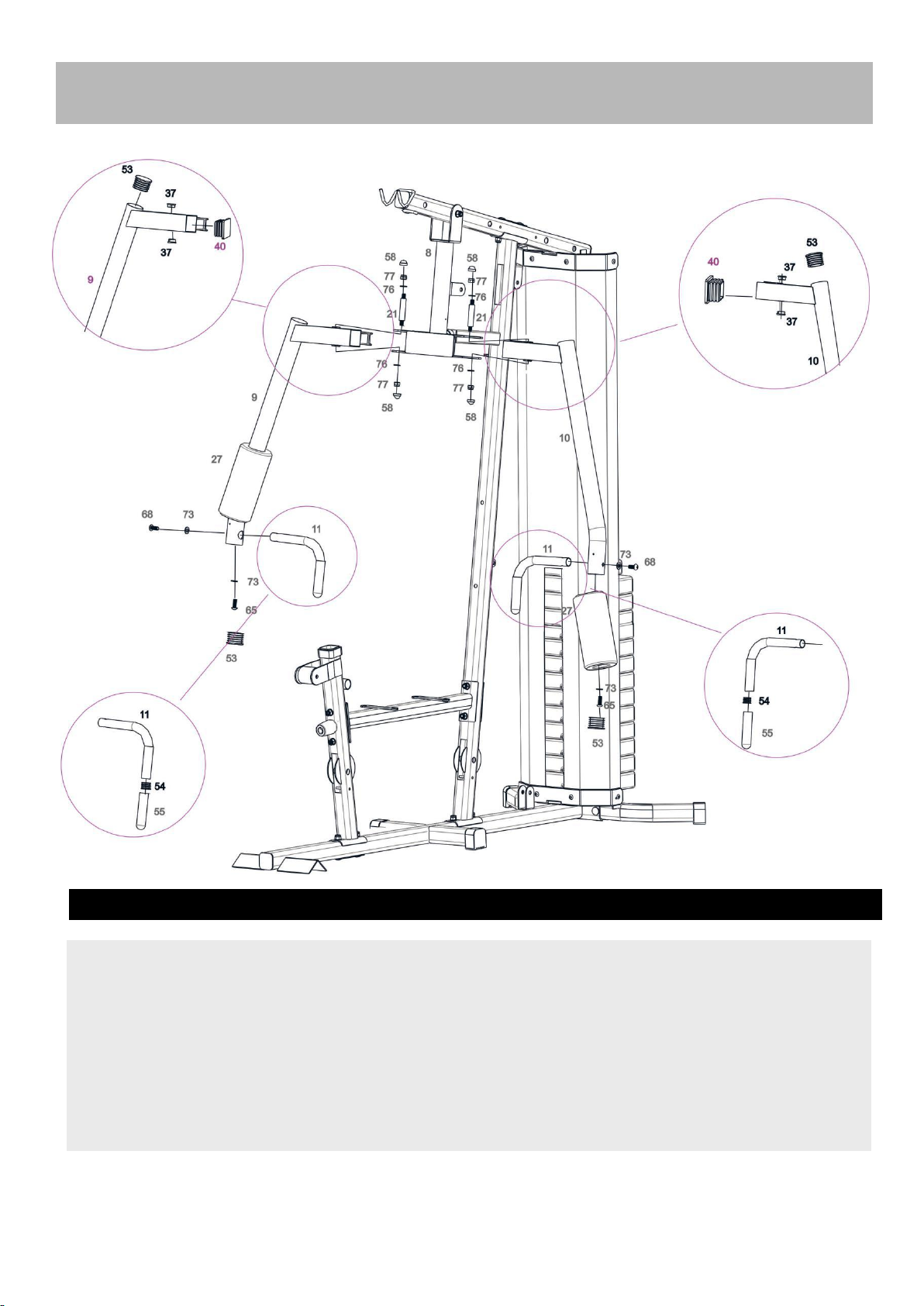

Attach the Right butterfly(9#) to the front press base(8#),Secure them together with 1pc butterfly axle(21#),2pcsφ10 washer (76#),2pcs M10 Aircraft nut(77#) and 2cps nut cover(58#).
Push 1pc butterfly foam roll(27#) as the diagram shows.Attach the handle(11#) into the hole of the butterfly ans secure them with 1pc M10×55 Allen Bolt (65#),1pc M10×20 Allen Bolt (68#) and 2pcs
φ
10 washer(73#).
Repeat the same way to install the left butterfly.
14

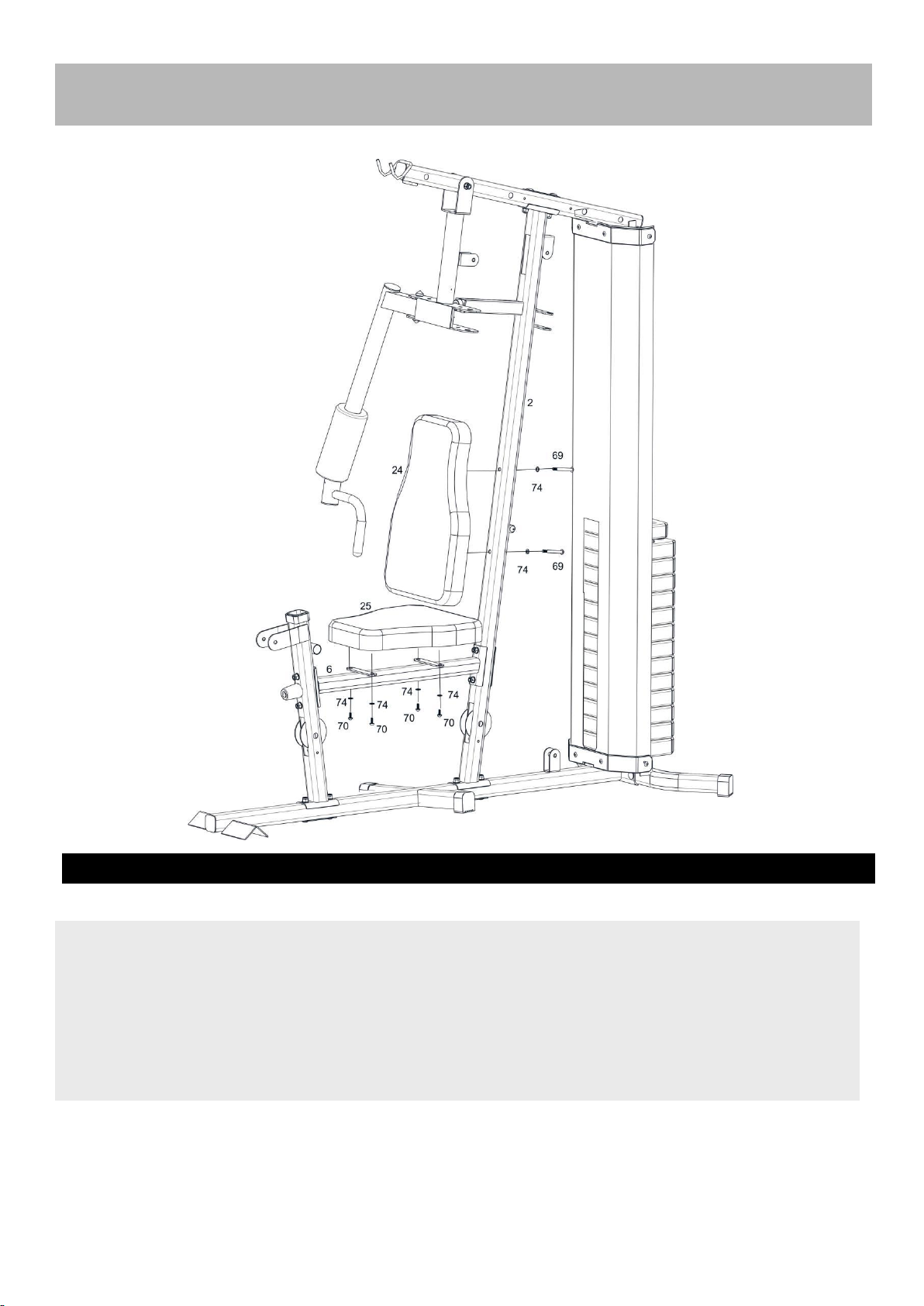

Page 16
Assembly Instructions
Step 10
Attach the seat pad (25) onto the seat pad support and secure it with 4pcs M8×16 Allen Bolt (70#),4pcsφ8 washer(74#).
Attach the backrest pad(24#) to the front vertical frame(2#), Secure it with 2pcs M8×70 Allen Bolt (69#)and2pcs φ8 washer(74#).
15

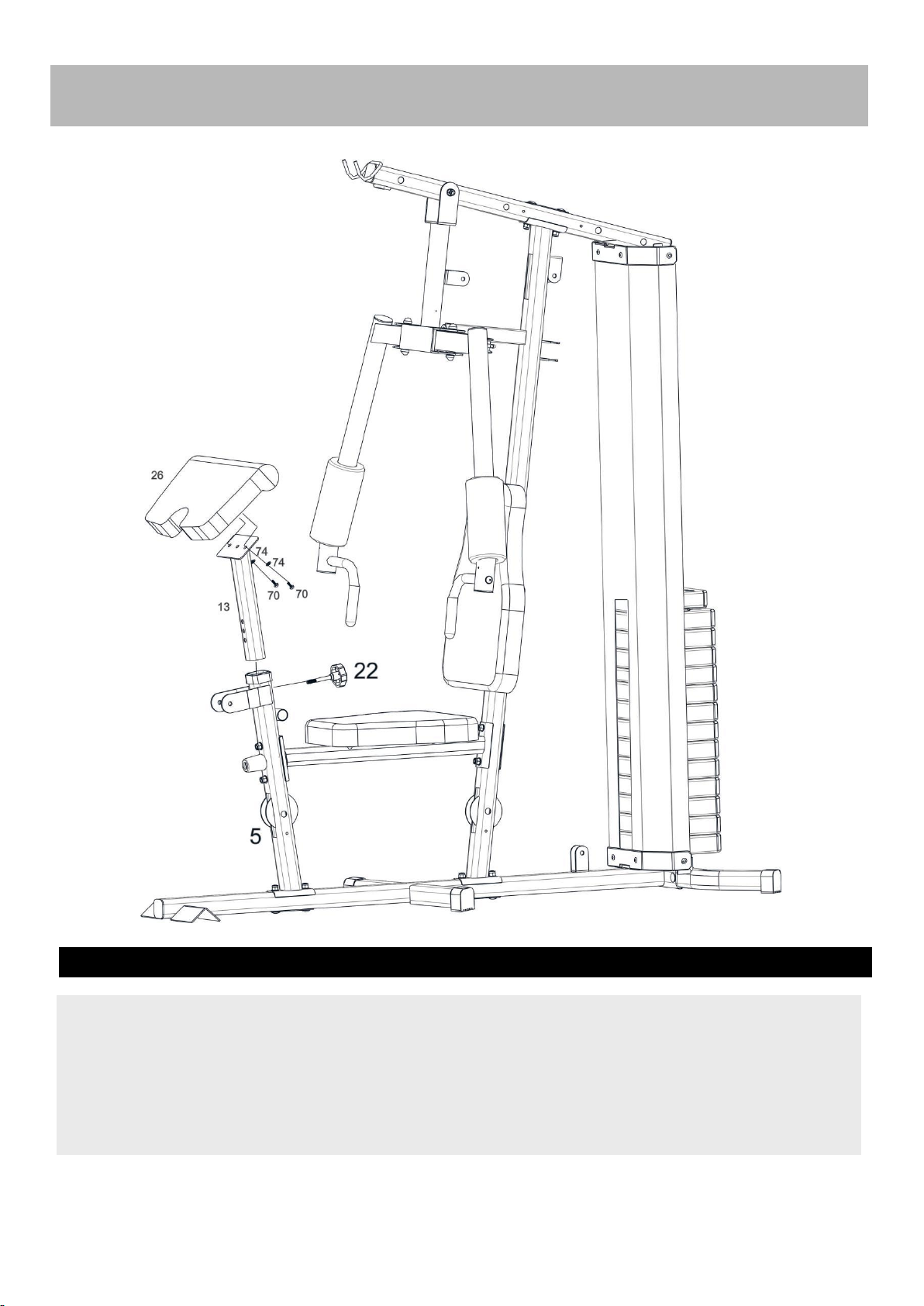

Page 17
Assembly Instructions
Step 11
Attach the Arm Curl Pad support(13#) into the Leg Developer Holder and select the desired height with 1pc Lock Knob(22#).
Attach the Arm curl pad (26#) to the support and secure it with 2pcs M8×16 Allen Bolt(70#) and 2pcs
φ
8 washer (74#).
16

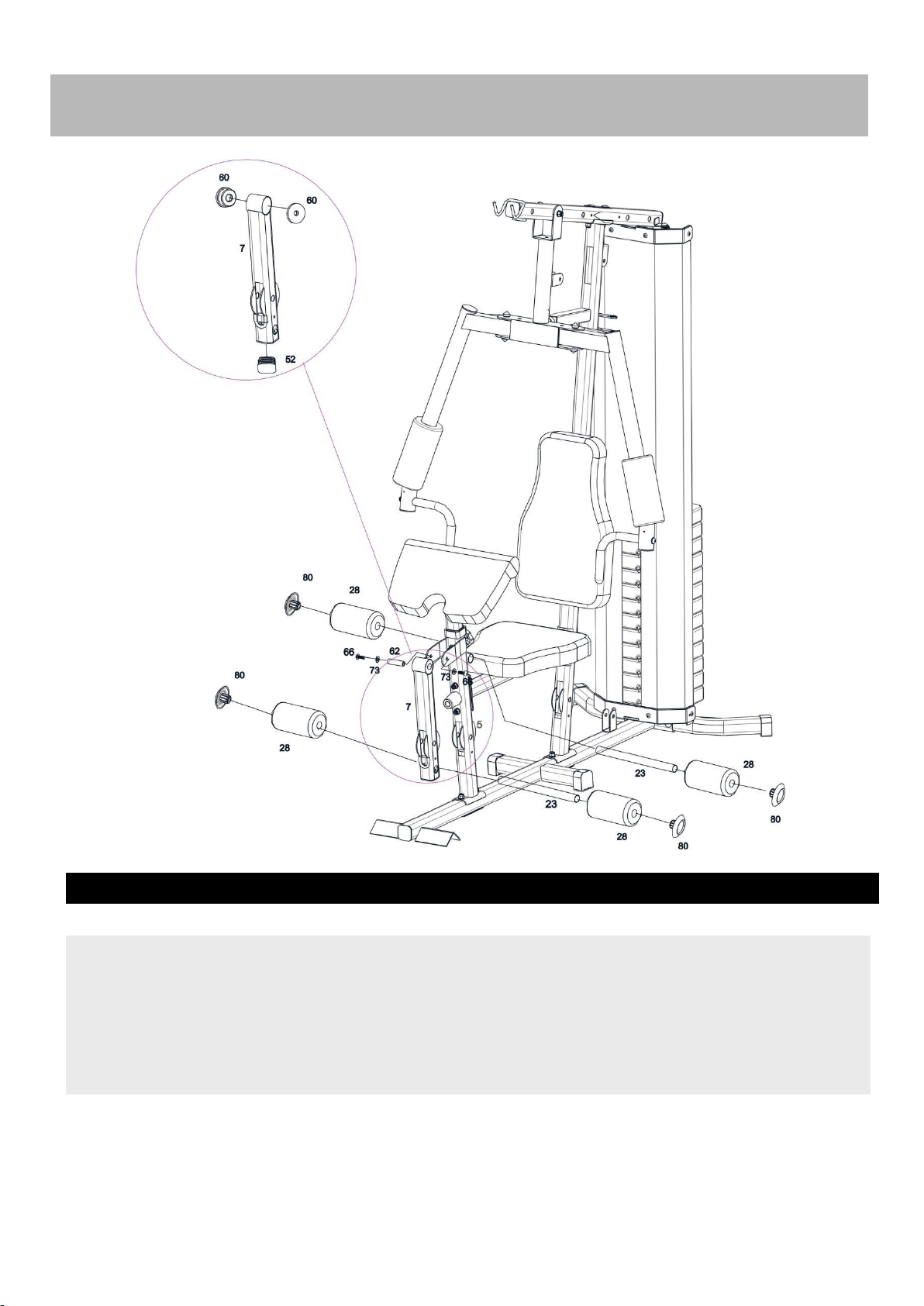

Page 18
Assembly Instructions
Step 12
Attach the Leg Developer(7#) to the bracket and secure it with 1pc Axle(62#),2pcsφ10 washer (73#),2pcs M10×25 Allen Bolt(66#).
Insert the 2pcs Foam Roll tube(23#) as the diagram shows. And push 4pcs form roll(28#)from both ends and then push 4pcs End Cap (80#) again .
17
Page 19
Assembly Instructions
Page 20
Step 13
Important: Study and follow the diagram carefully.

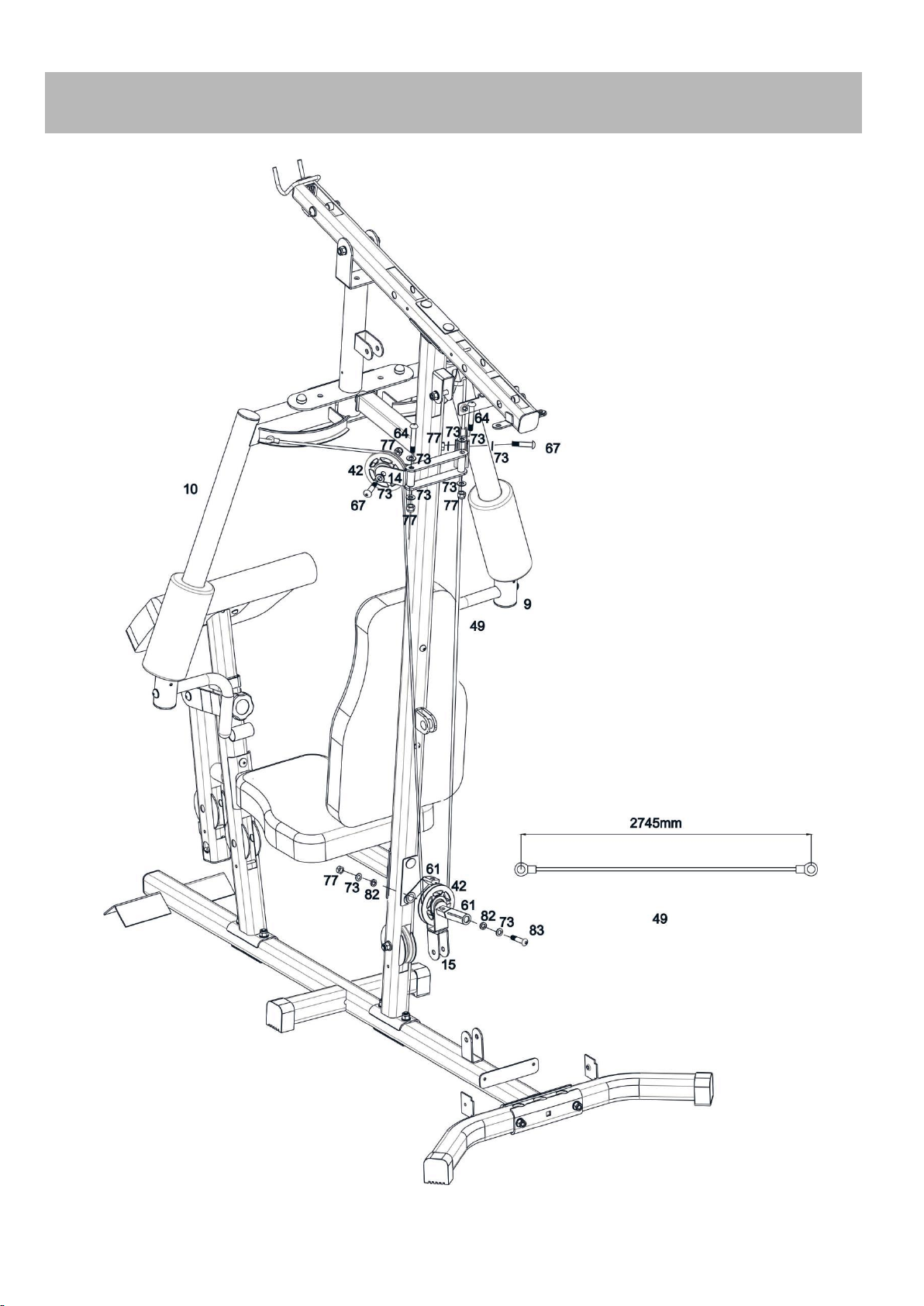

A. Attach the swivel pulley bracket(14#) to the support as the diagram shows, and secure it with 1pc
M10*65Allen Bolt (64#) ,2Xφ10 washer (73#) and 1pcM10 Aircraft nut (77#).
B Attach the end of the 2745 MM butterfly cable(49#) to the hook and place 1X pulley (42#) below the cable , Secure the pulley to the swivel pulley bracket(14#) with 1X M10X45 Allen bolt (67#),2X φ10 washer (73#) and 1pcM10 Aircraft nut (77#).
C Draw the cable around the pulley and downwards ,Place 1X pulley (42#) onto the cable , Secure the pulley with cross double floating pulley bracket(15#) together with the 1pc M10*50 Allen Bolt(83#),2pcs
φ
10 washers(73#),bushing(82#), 2 pcs retainer(61#),and 1 pc M10 Aircraft nut(77#).
D Draw the cable around the pulley and upwards, Install another pulley with the same way in above A and B.
19
Page 21
Assembly Instructions
Page 22
Step 14
Important: Study and follow the diagram carefully.

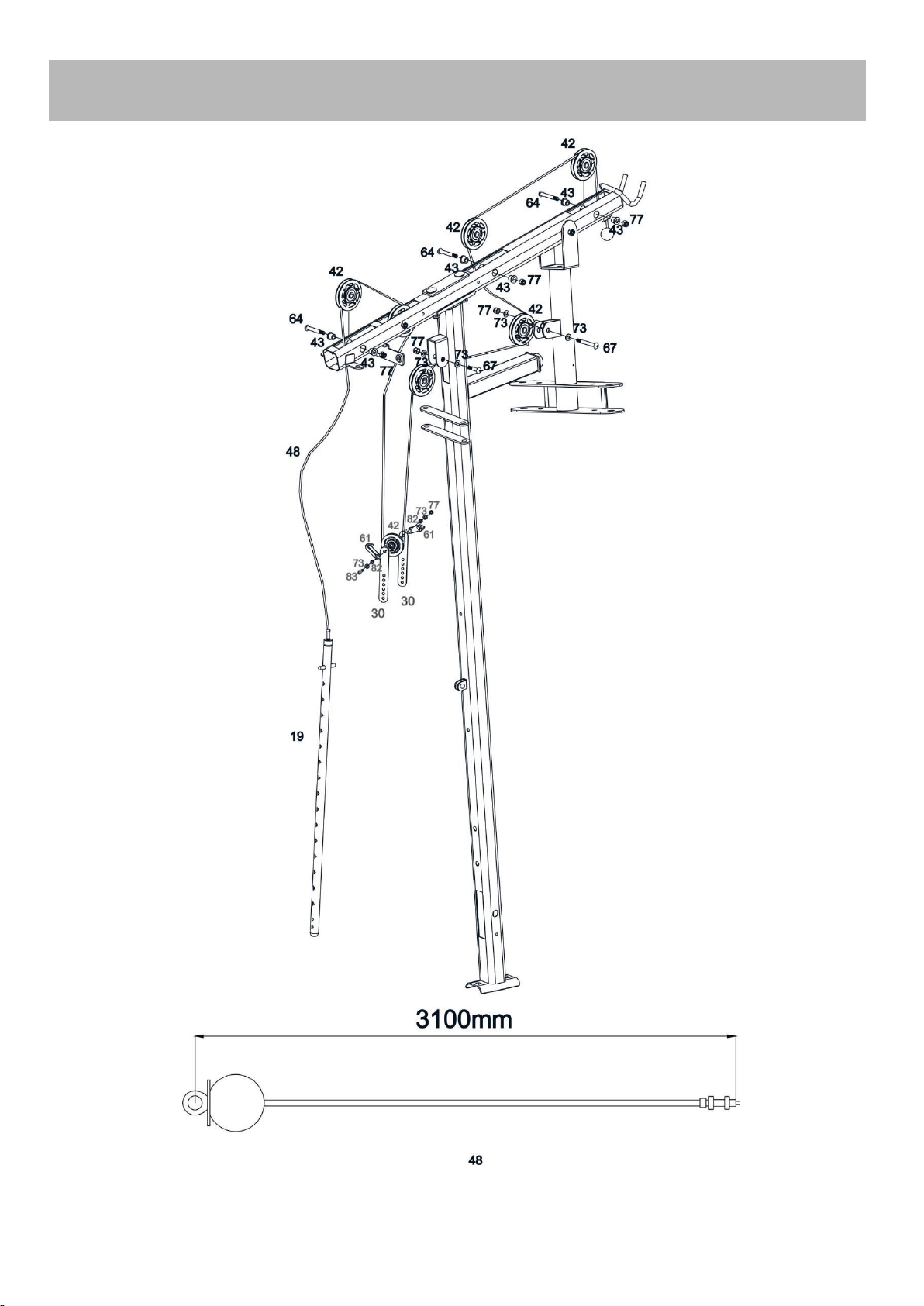

A Feed the bolt end of the 3100mm Upper cable (48#) up through opening in Upper frame . Place 1PC
Pulley (42#) below the cable and secure the 1stpulley using 1PCM10 × 65 Allen bolt (64) ,2PC Bushing (43#)and 1XM10 Aircraft nut (77#).
B Draw the cable backwards and place the 2stpulley below the cable , Secure the pulley with the same way in A.
C Draw the cable around the pulley and front , Place the 3stpulley below the cable and secure them with 1PC M10×45Allen bolt (67), 2pcsφ10 washers(73#),and 1 pc M10 Aircraft nut(77#).
D Draw the cable around the pulley and backwards,Place the 4stpulley below the cable and secure it with the same way in C.
E Draw the cable around the pulley and downwards,Place the 5stpulley onto the cable, Secure the pulley with double floating pulley bracket(30#) together with the 1pc M10*50 Allen Bolt(83#),2pcs φ10 washers(73#),2 pcs bushing(82#), 2 pcs retainer(61#),and 1 pc M10 Aircraft nut(77#).
F Draw the cable around the pulley and upwards ,Place the2X 6stpulley below the cable and secure them with the same way in A.
G Draw the cable around the pulley and downwards,thread the end of the upper cable to the top opening of the selector rod at least 5 laps to keep safe.
21
Page 23
Assembly Instructions
22
Page 24
23

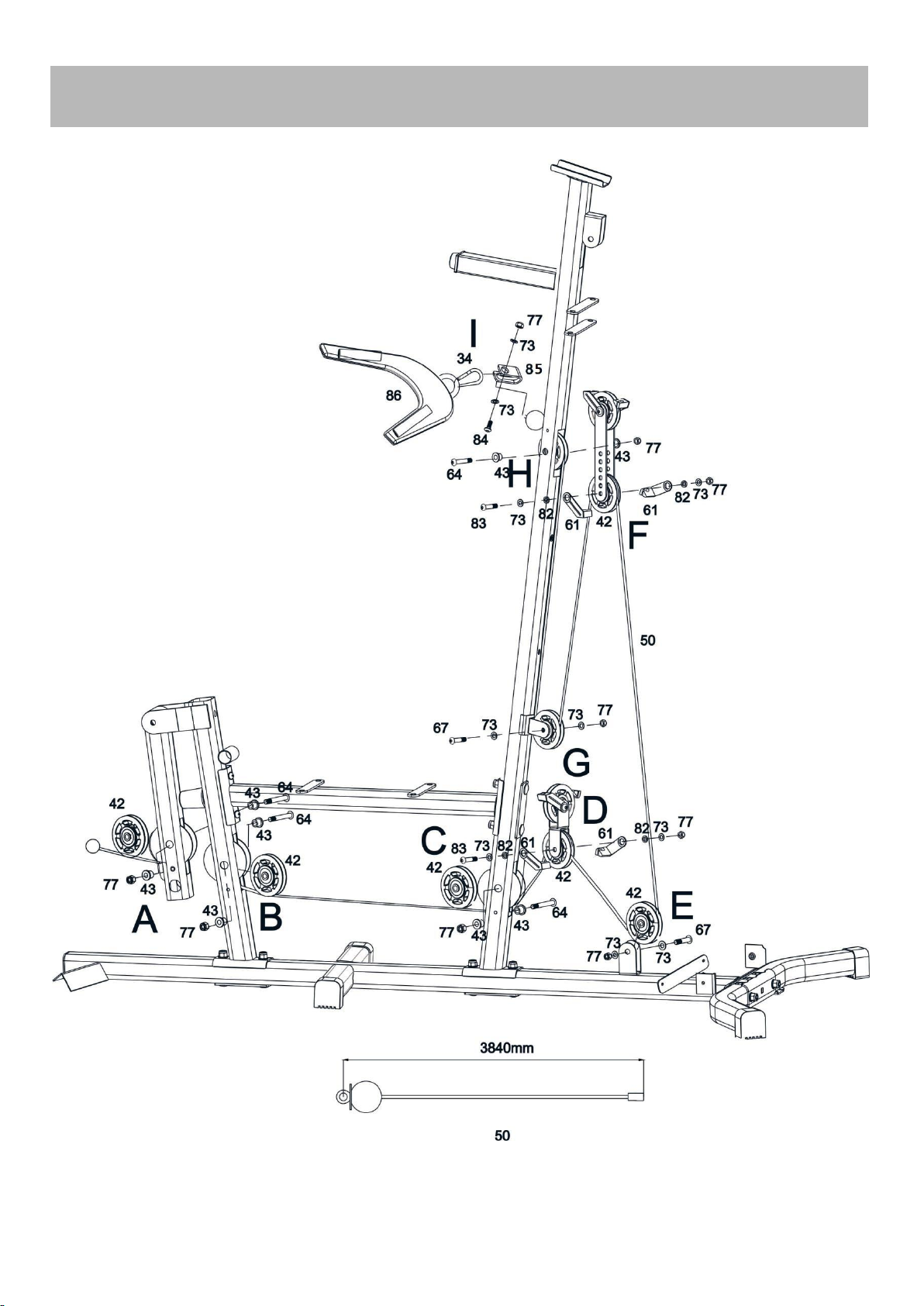

Step 15
A Attach the 3840 mm lower cable(50) through the opening of the leg developer,place 1stpulley onto the cable and secure the pulley with 1PC M10X65 Allen bolt (64#),2pcs Bushing (43#) and 1pc M10 Aircraft nut (77).
B Draw the cable backwards and place the 2stpulley onto it , Secure the pulley with the same way in A.
C Draw the cable backwards again and place 3stpulley onto it , Secure the pulley with the same way in A.
D Draw the cable around the pulley and place the 4stpulley below the cable,Secure the pulley with the way in STEP 13 procedure C.
E Draw the cable around the pulley and downwards,Place the 5stpulley onto the cable and secure the pulley with 1 pc M10*45 Allen Bolt,2pcs φ10 washers(73#) and 1 pc M10 aircraft nut(77#).
F Draw the cable around the pulley and upwards,Place the 6stpulley below the cable and secure the pulley with the same way in STEP 14 procedure E.
G Draw the cable around the pulley and reach the U shape Bracket ,Secure the it with the same way in E.
H Draw the cable around and upwards until it reach the opening of the front vertical frame,place 1 pc pulley under the cable and secure it with the same way in C.
Attach the buckle (85#) to the end of the lower cable and secure it with 1pc M10*30 Allen bolt(84#),2pcsφ10 washers(73#) and 1 pc M10 aircraft nut(77#).
Attach the abdominal strap(86#) to the buckle with C-clip(34#).
Page 25
Assembly Instructions
Step 15

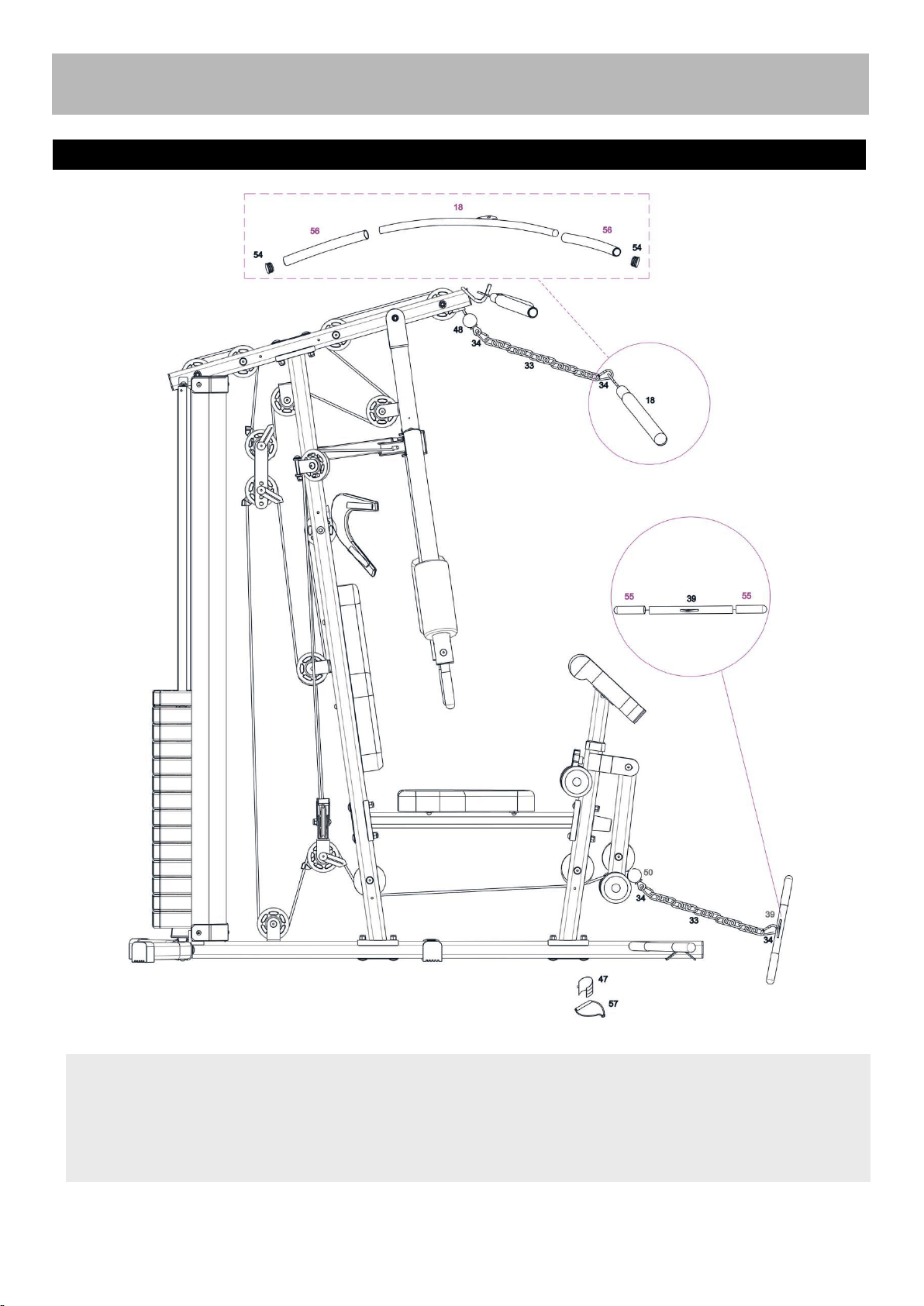

A Attach the lat bar(18#) to the end of upper cable with 1pc 15 joint Chain (33#) and 2pcs 7# Gourd hook (34#).
B Attach the handle(39#) to the end of the lower cable with 1pc 15 joint Chain (33#) and 2pcs 7# Gourd hook (34#).
24
Page 26

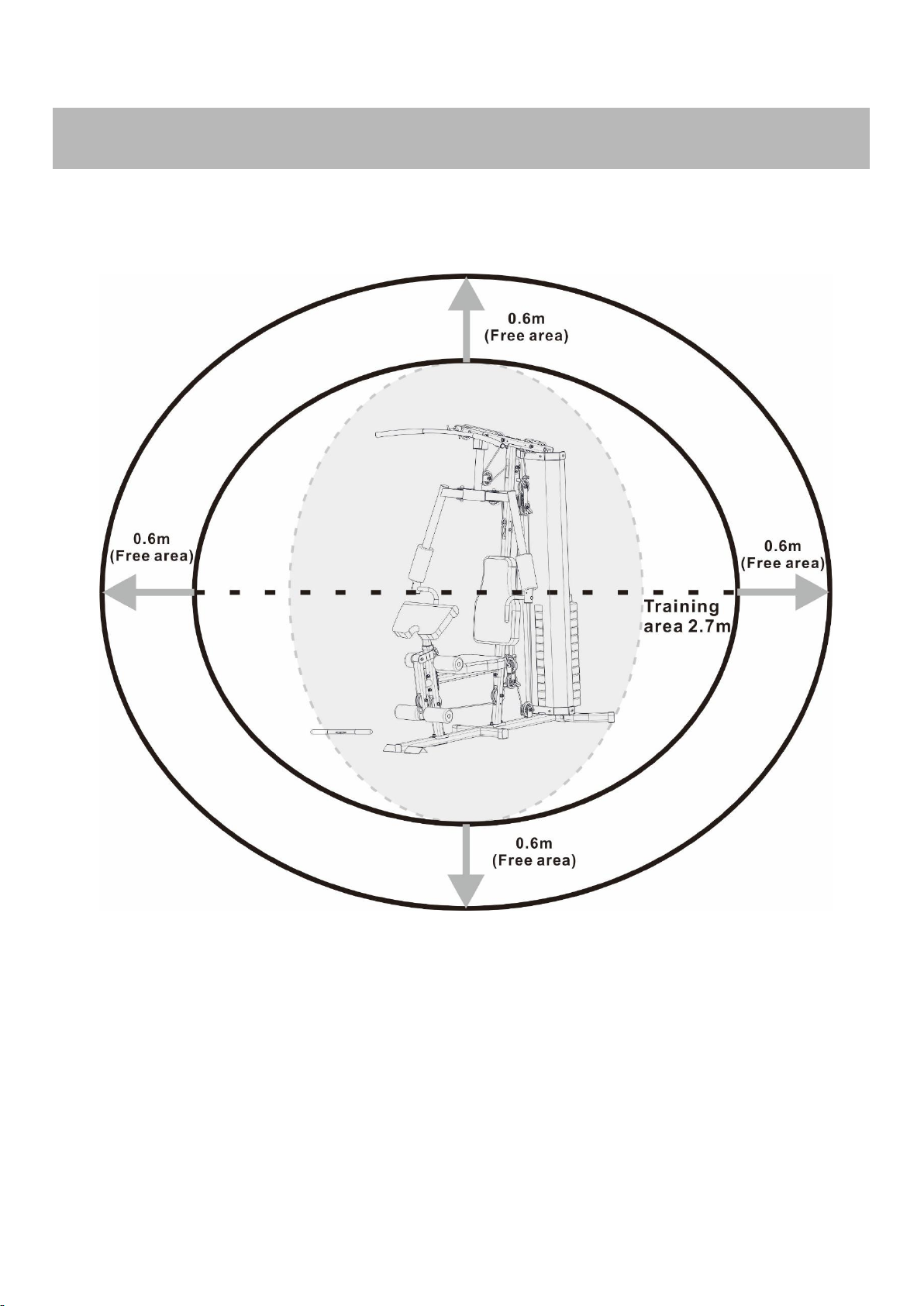

The free area must be at least 0.6m greater than the training area. This is a space where you can safely
Workout Area
25
dismount, without obstruction, in case of an emergency. Where two pieces of equipment are positioned adjacent to each other the free area may be shared.
Only one person should be within the training area when the equipment is in use.

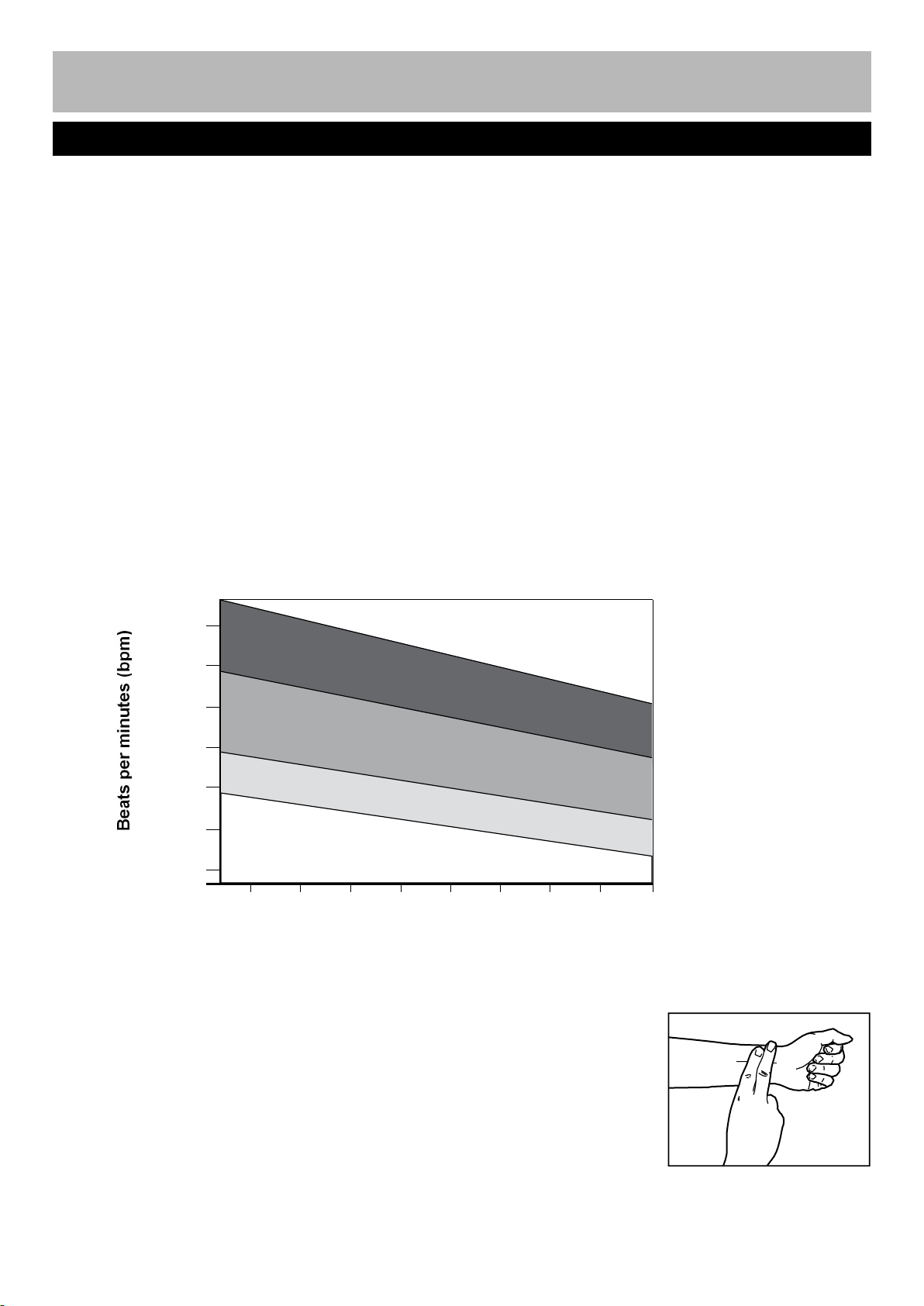

Page 27
85% to Max
65% to 85%
55% to 65%
Up to 55%
Tailor your exercise program according to your physical condition. If you have been inactive for several
Exercise intensity
200
180
160
140
120
100
80
Age
During the first few months of your exercise program, keep your heart rate near the low end of your target zone
as you exercise. After a few months, your heart rate can be increased gradually until it is near the middle of your
target zone as you exercise.
Exercise Information
Cardiovascular performance
Intermediate aerobic
Effective fat burning
Before starting
26
years, or are overweight, you must start slowly and increase your time on the equipment; a few minutes per workout increase is advisable.
Initially, you may be able to exercise only for a few minutes in your target zone, however, your aerobic fitness will improve over the next six to eight weeks. Don’t be discouraged if it takes longer. It’s important to work at your own pace.
Please remember these essentials:
• Have your doctor review your training and diet programs to advise you of a workout routine you should adopt.
• Begin your training program slowly with realistic goals.
• Monitor your pulse frequently. Establish your target heart rate based on your age and condition.
• Set up your equipment on a flat even surface with adequate training area, as prescribed in this manual.
To maximize the benefits of exercising, it is important to exercise at an appropriate intensity. The intensity level can be found by using your heart rate as a guide. For effective aerobic exercise, your heart rate should be maintained at a level between 65% and 85% of your maximum heart rate as you exercise. This is known as your target zone. You can find your target zone in the table below.
25 30 35 40 45 50 55 60 70
To measure your heart rate, stop exercising but continue moving your legs or walking around and place two fingers on your wrist. Take a six-second heartbeat count and multiply the results by 10 to find your heart rate. For example, if your six-second heartbeat count is 14, your heart rate is 140 beats per minute. (A six-second count is used because your heart rate will drop rapidly when you stop exercising.) Adjust the intensity of your exercise until your heart rate is at the required level.
Page 28
Aerobic Exercise
Aerobic exercise improves the fitness of your lungs and heart - your body’s most important muscle. Aerobic
Weight Training

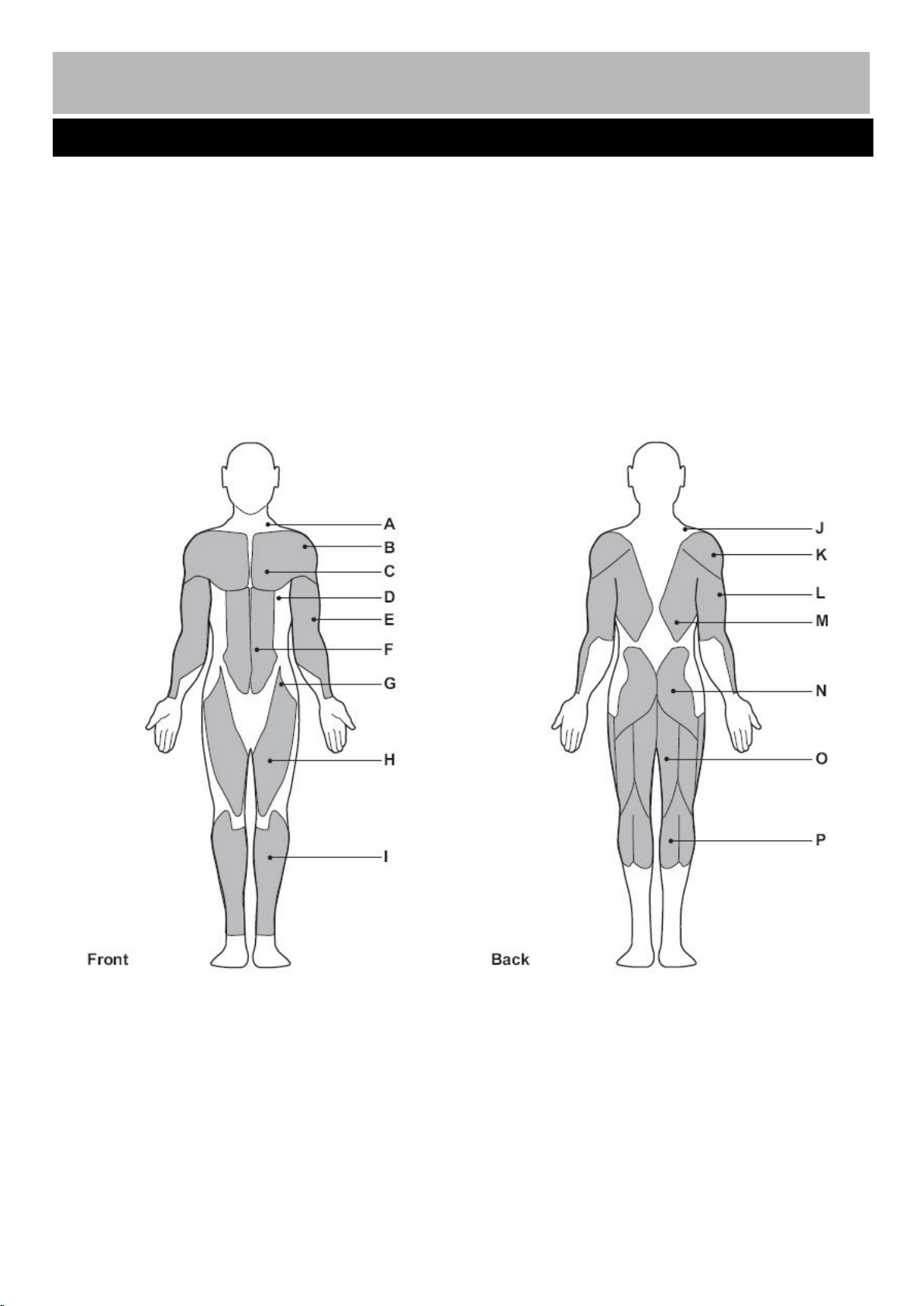

Targeted Muscle Groups
A: Trapezius B: Anterior Deltoid C: Pectoralis Major D: Serratus Anterior
E: Biceps F: Abdominal G: Sartorius H: Quadriceps
I: Tibialis Anterior J: Trapezius K: Posterior Deltoid L: Triceps
M: Latissimus Dorsi N: Gluteals O: Hamstrings P: Gastrocnemius
Muscle Chart
Exercise Information
27
exercise is promoted by any activity that uses your large muscles (arms, legs, or buttock, for example).
Along with aerobic exercising which helps get rid of and keep off the excess fat that our bodies can store, weight training is an essential part of an exercise routine. Weight training helps tone, build and strengthen muscle. If you are working above your target zone, you may want to do a lower number of reps.
The exercise routine that is performed on the home gym will develop combined total body muscle groups. These muscle groups are highlighted on the muscle chart below.
Page 29
Each workout should include the following three parts:
Exercise Frequency

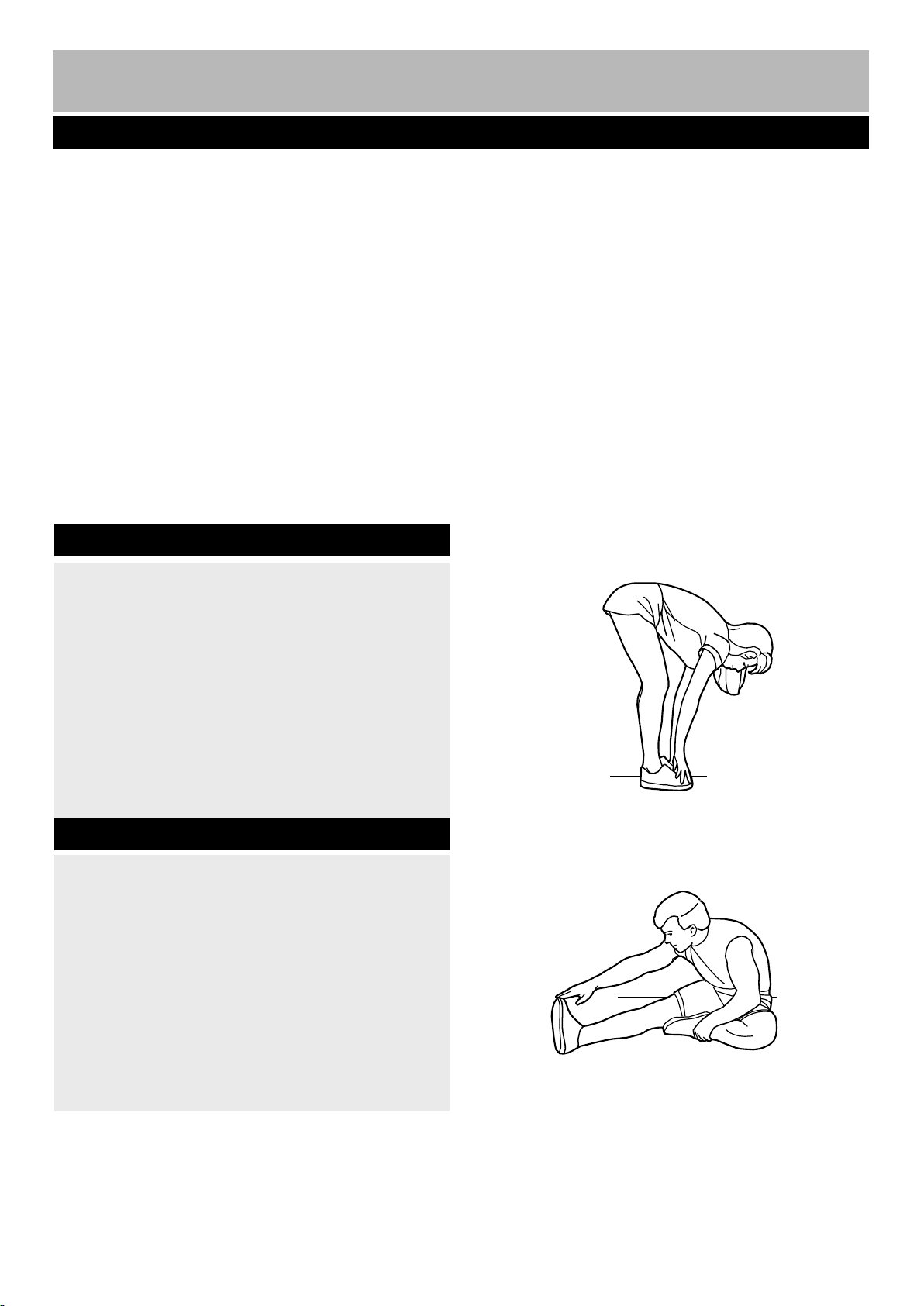

Toe touch stretch
Hamstring stretch
Warming up and Cooling down
Exercise Information
28
1. A warm-up, consisting of 5 to 10 minutes of stretching and light exercise. A proper warm-up increases your body temperature, heart rate, and circulation in preparation for exercise.
2. Training zone exercise, consisting of 20 to 30 minutes of exercising with your heart rate in your training zone. (Note: During the first few weeks of your exercise program, do not keep your heart rate in your training zone for longer than 20 minutes.)
3. A cool-down, with 5 to 10 minutes of stretching. This will increase the flexibility of your muscles and will help to reduce post-exercise muscle soreness.
To maintain or improve your fitness, plan three workouts each week, with at least one day of rest between workouts. After a few months of regular exercise, you may complete up to five workouts each week, if desired. Remember, the key to success is make exercise a regular and enjoyable part of your everyday life.
Stand with your knees bent slightly and slowly bend forward from your hips. Allow your back and shoulders to relax as you reach down towards your toes as far as possible.
Hold for 15 counts, then relax
Repeat 3 times.
Stretches: Hamstrings, back of knees and back.
Sit with one leg extended. Bring the sole of the opposite foot toward you and rest it against the inner thigh of your extended leg. Reach towards your toes as far as possible.
Hold for 15 counts, and then relax.
Repeat 3 times for each leg.
Stretches: Hamstrings, lower back and groin.
Page 30

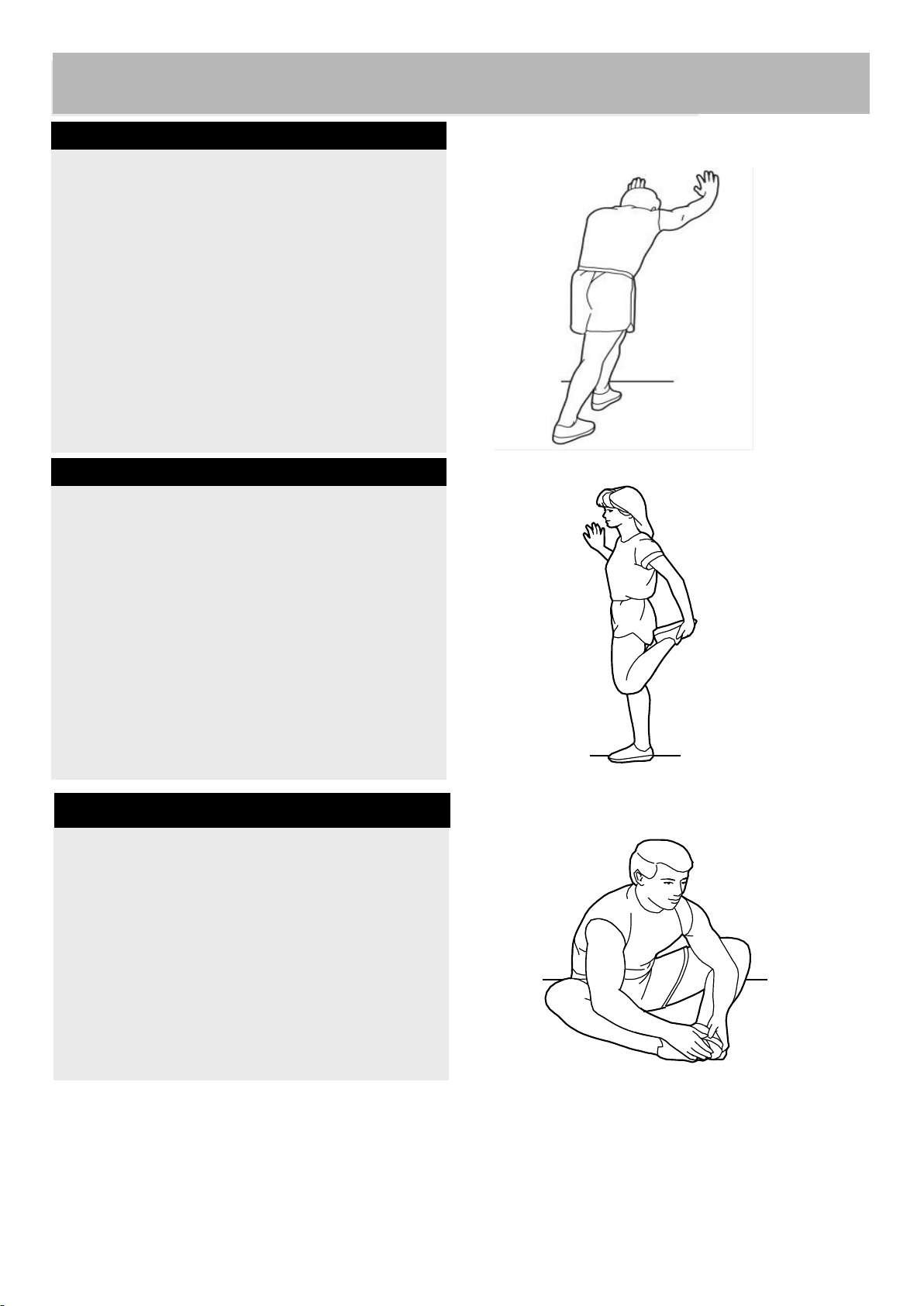

Inner thigh stretch
Calf/Achilles stretch
With one leg in front of the other, reach
Quadriceps stretch
Stretches: Quadriceps and Hip muscles.
Sit with the soles of your feet together
and your knees outwards. Pull your feet
towards your groin area as far as
possible, and push your knee down
towards the ground.
Stretches: Quadriceps and Hip muscles.
29
Exercise Information
forward and place your hands against a wall. Keep your back leg straight and your back foot flat on the floor. Bend your front leg, lean forward and move your hips toward the wall.
Hold for 15 counts, then relax.
Repeat 3 times for each leg. To cause further stretching of the Achilles tendons, bend your back leg as well.
Stretches: Calves, Achilles tendons and ankles.
With one hand against the wall for balance, reach back and grasp one foot with your other hand. Keeping your bent knee pointing directly down towards the floor, gently pull your heel towards your buttock until you feel a gentle stretch in the target area.
Hold for 15 counts, and then relax.
Repeat 3 times for each leg.
Hold for 15 counts, and then relax.
Repeat 3 times.
Page 31
Important:
Read all caution and warning stickers before using this equipment.
Before using, inspect the equipment for loose, frayed, or worn parts, if in doubt.
Do not use the equipment until the parts have been replaced.
Before beginning any exercise programme it is suggested to have a complete medical examination and
to obtain your doctor’s approval of your exercise/conditioning programme.
A lock hole under the weight plates, using the select pin to lock the weight plates after finish exercising.
We recommend that you always exercise with a partner or someone who can assist you in case the
weights become too heavy for you to lift on your own.
30
Exercise Information
Using the Home Gym
When working out, do the following for each exercise: exhale while exerting/lifting and inhale while returning to starting position in a slow and controlled manner.
Always warm up your muscles before exercising. Prepare your body with easy stretching (without bouncing) and light callisthenic, for several minutes.
Page 32
1. The safety level of the
equipment can only be maintained if it is examined regularly for damage and wear e.g. ropes, pulleys and connection points.
2. Lubricate moving parts with
light oil periodically to prevent premature wear.
3.
Inspect and tighten all parts
before using the equipment.
Replace defective components immediately and/or keep the equipment out of use until repair. Pay special attention to components most susceptible to wear.
4. The equipment can be
cleaned using a damp cloth and mild non-abrasive detergent. Do not use solvents.
5. Do not attempt to repair
this equipment yourself. Should you have any difficulty with assembly, operation or use of your exercise product or if you think that you may have parts missing, contact the agent.
Warranty:
31
Care and Maintenance
For warranty purposes, please retain your purchase receipt.
Page 33
Part #
Description
QTY
Part #
Description
QTY
1
Upper Frame
146L shape Pin
2
2
Front Vertical Frame
147Ankle Strap
1
3
Base Frame
148Upper cable
1
4
Rear Stabilizer
149Butterfly cable
1
5
Leg developer Holder
150Lower cable
1
6
Seat Pad support
1
51
φ25 End Cap
17Leg Developer
1
52
□50 End Cap
1
8
Front press base
1
53
φ50 End cap
59Right butterfly
1
54
φ25 End Cap
4
10
Left butterfly
155Handle grip
2
11
handle256
Handle grip
2
12
U shape Bracket
157Single Strap
1
13
Arm curl pad support
158M10 Aircraft nut cover
4
14
swivel pulley bracket
259Sleeve
2
15
Cross Double Floating pulley bracket
160bushing
2
16
Weight stack Cover
161retainer
8
17
Guide Rod
262Swivel axle
1
18
Lat bar
163M10*70 Carriage bolt
10
19
Selector Rod
164M10*65 Allen bolt
12
20
Bracket
465M10*55 Allen bolt
2
21
Butterfly axle
266M10*25 Allen bolt
6
22
Lock knob
167M10*45 Allen Bolt
6
23
Foam roll tube
268M10*20 Allen bolt
2
24
Backrest pad
169M8*70 Allen bolt
2
25
Seat pad
170M8*16 Allen bolt
6
26
Arm curl pad
171M6*20 Allen bolt
8
27
φ48*φ100*220 Foam roll
272M6*16 Philips screw
2
28
φ22*φ100*180 Foam roll
4
73
φ10 washer
50
29
Weight stack cover bracket
2
74
Φ8 washer
8
30
double floating pulley bracket
2
75
Φ6 washer
10
31
Foot476
φ10 washer(φ25*φ11*δ2)
6
32
Selector Pin
177M10 Aircraft nut
39
33
15 joint Chain
278M6 Aircraft nut
2
34
7#Gourd Hook
5
79
ST5*10 philips screw
2
35
Weight stem
180End cap
4
36
Weight plate
1381Handle grip
2
37
bushing
682bushing
8
38
Front press base axle
183M10*50 Allen bolt
4
39
handle184
M10*30 Allen bolt
1
40
□50 End Cap
285Buckle
1
41
Rubber Bumper
286Abdominal strap
1
42
pulley1887
4#,5#,6#Allen bolt wrench
ecah
43
φ22*φ16*15 pulley bushing
16
44
φ44*55 Long rubber bumper
1
45
φ37*16 small rubber bumper
1
Parts List
32
Page 34
Loading...
