USER MANUAL

Visit us online at force1rc.com for product information, replacement parts, and ight tutorials.

0.6 Miles

FOR MORE INFORMATION

Page 2

ATTENTION:

PLEASE WATCH THIS

FLIGHT INSTRUCTION

VIDEO BEFORE

FLYING YOUR DRONE.

https://youtu.be/tk3qzsUwoWs

Page 3

FORCE1 RC

CONTENTS

Welcome & General Safety Precautions ······················· 3

LI-PO Battery Care ·······················································4

Drone Battery Charging ···············································5

Contents & Drone Overview ········································6

Transmitter Overview ····················································7

Transmitter Battery Installation ····································· 8

Channel Selection & Signal Connection ·······················9

Throttle Mode Selection ·············································10

Drone Assembly ·························································11

Calibration ·································································· 13

Preflight Checklist ·······················································14

Basic Flight Controls ···················································15

Functions ···································································· 16

Force1-F200W App Overview ··································· 19

Indicator Lights Overview ··········································21

Spare Parts ·································································23

Troubleshooting ························································24

Page 4

F200W Shadow User Manual

WELCOME!

SAFETY PRECAUTIONS

Welcome to the Force 1 RC Team, and thank you for your Force1 drone purchase. Please read this manual carefully before drone operation.

(1) This drone is not a toy! It’s a pro-level drone suitable for experienced RC drone users aged 14 years and

older. You accept all liability for operation.

(2) This drone does not require FAA registration or permitting, but FAA rules still apply. Please download

the B4UFLY mobile app for the most up-to-date zoning info, and heed all local government ordinances.

(3) The ying eld must be legally approved by your local government.

Any questions? We’d love to hear from you! Please contact us at [email protected] any time and we’ll be happy to help.

*Please use only original Force1 parts and accessories. *Please keep the packaging and this user manual for future reference.

This drone is suitable for experienced RC drone operators aged 14 years and older. It contains small parts, and should be kept out of reach of small children.

Please follow these safety procedures:

(1) Flight Zone

This drone does not require FAA registration or permitting, but FAA rules still apply. Please download

the B4UFLY mobile app for the most up-to-date zoning info, and heed all local government ordinances.

(2) Avoid Moisture

Humidity and water can damage your drone, which in turn may cause accidents.

(3) Fly Safely

Please operate your drone as your skill level allows. User fatigue, impairment and improper operation

can cause accidents.

(4) Avoid Moving Parts & Hot Motors

Do not touch propellers, motors or other moving parts while your drone is on.

(5) Avoid Heat

Keep your drone away from heat and prolonged exposure to direct sunlight to avoid damage.

Page 5

FORCE1 RC

LI-PO BATTERY CARE

Avoid Overheating

Your batteries will sometimes be warm/hot to the touch after use. This is normal, but beware that battery components will fail if not allowed to cool down between uses. Also, do not leave batteries exposed to direct sunlight.

Store Properly

Store batteries at room temperature, between 5C°/40°F and 27°C/80°F.

Use Carefully

• Leave time between charging and using the battery

• To extend the lifetime of the battery time your ights to leave about 20% power remaining in the batteries (rather than completely draining them)

• If the battery is pushed beyond its limits, the battery could get hot and the performance will drop

• When using the battery for a long time, the battery will increase in temperature. If it is sealed, the air inside will inate rapidly causing further heating

Charging

• DO NOT overcharge the battery; never charge batteries unattended, and stop charging as soon as your batteries indicate they are charged

• DO NOT attempt to charge batteries that appear damaged in any way (cracking, swelling, discoloration, etc.)

• If you feel a battery isn’t charging properly, try using another charger if possible. If you nd your battery or charger is defective, please visit force1rc.com for a replacement, or email us at [email protected]

• To inspect a battery, remove it from the device and examine the battery, battery pins and contacts. If you notice damage, please visit force1rc.com for a replacement, or email us at [email protected]

• Check your battery and connections after every crash

• Please use genuine factory parts and replacements from force1rc.com

WARNING:

DO NOT LEAVE BATTERY

CHARGING UNSUPERVISED

Page 6

F200W Shadow User Manual

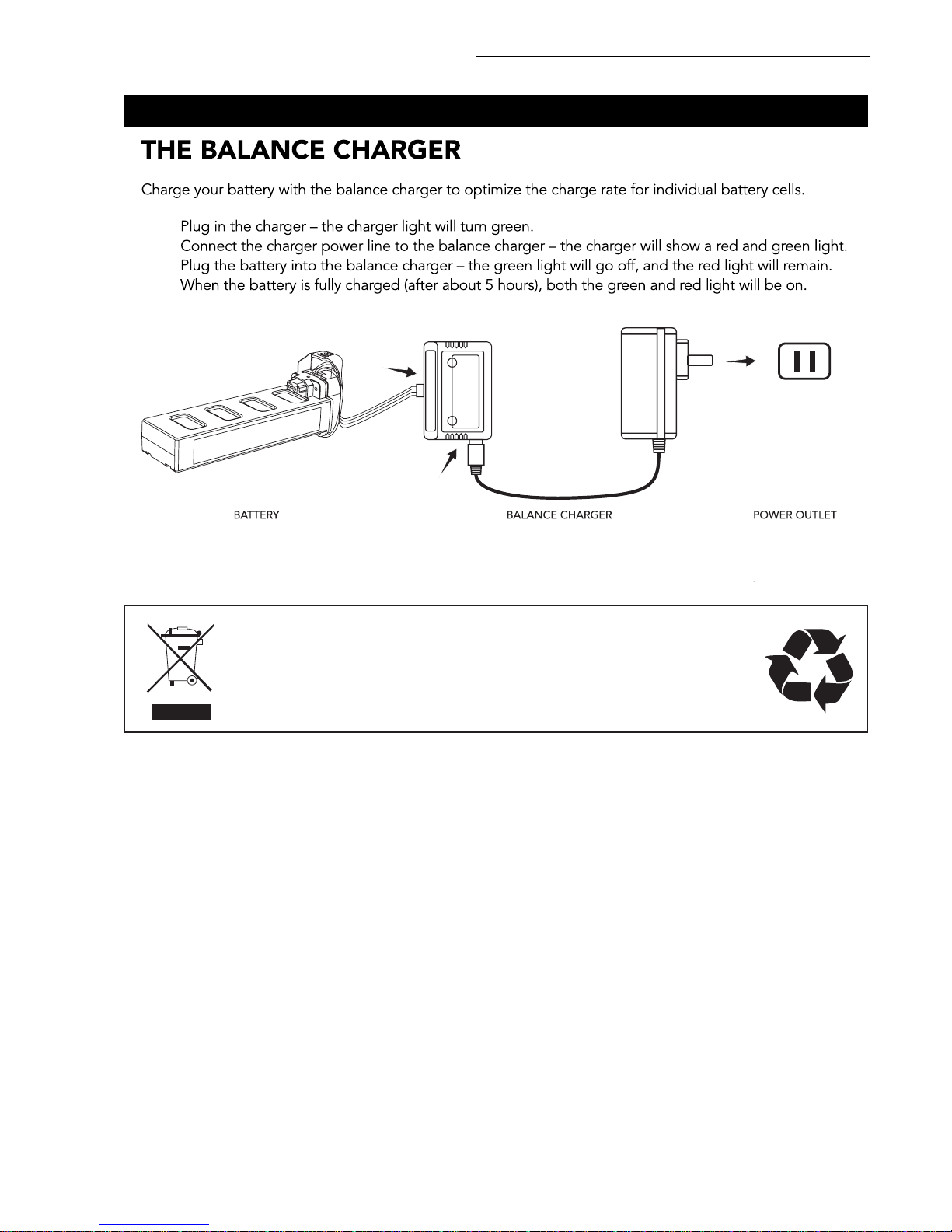

DRONE BATTERY CHARGING

LI-PO BATTERY DISPOSAL & RECYCLING

Do not put lithium-polymer batteries in household trash. Please contact your

local waste management agency or LI-PO battery recycling center for more info.

Page 7

FORCE1 RC

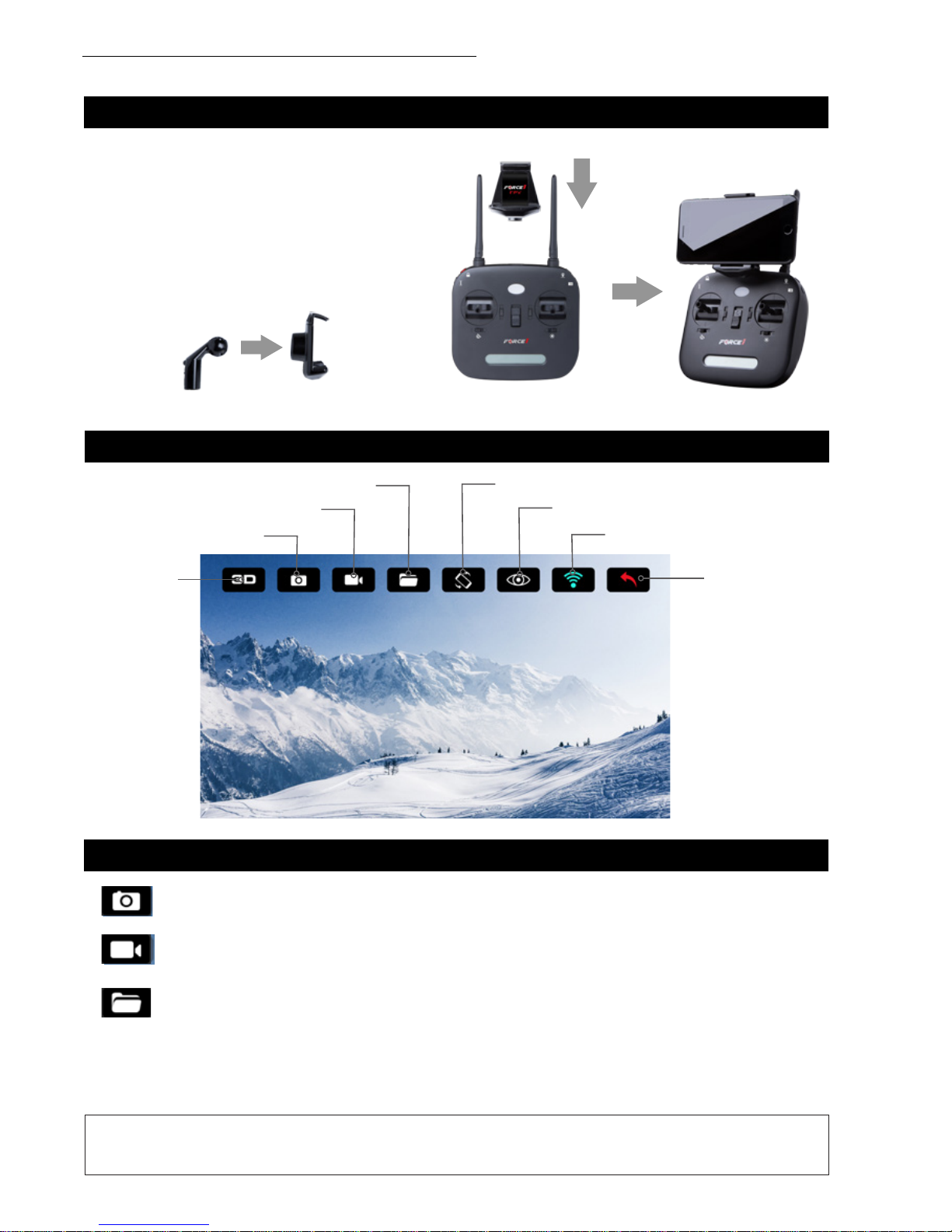

PHONE CLIP

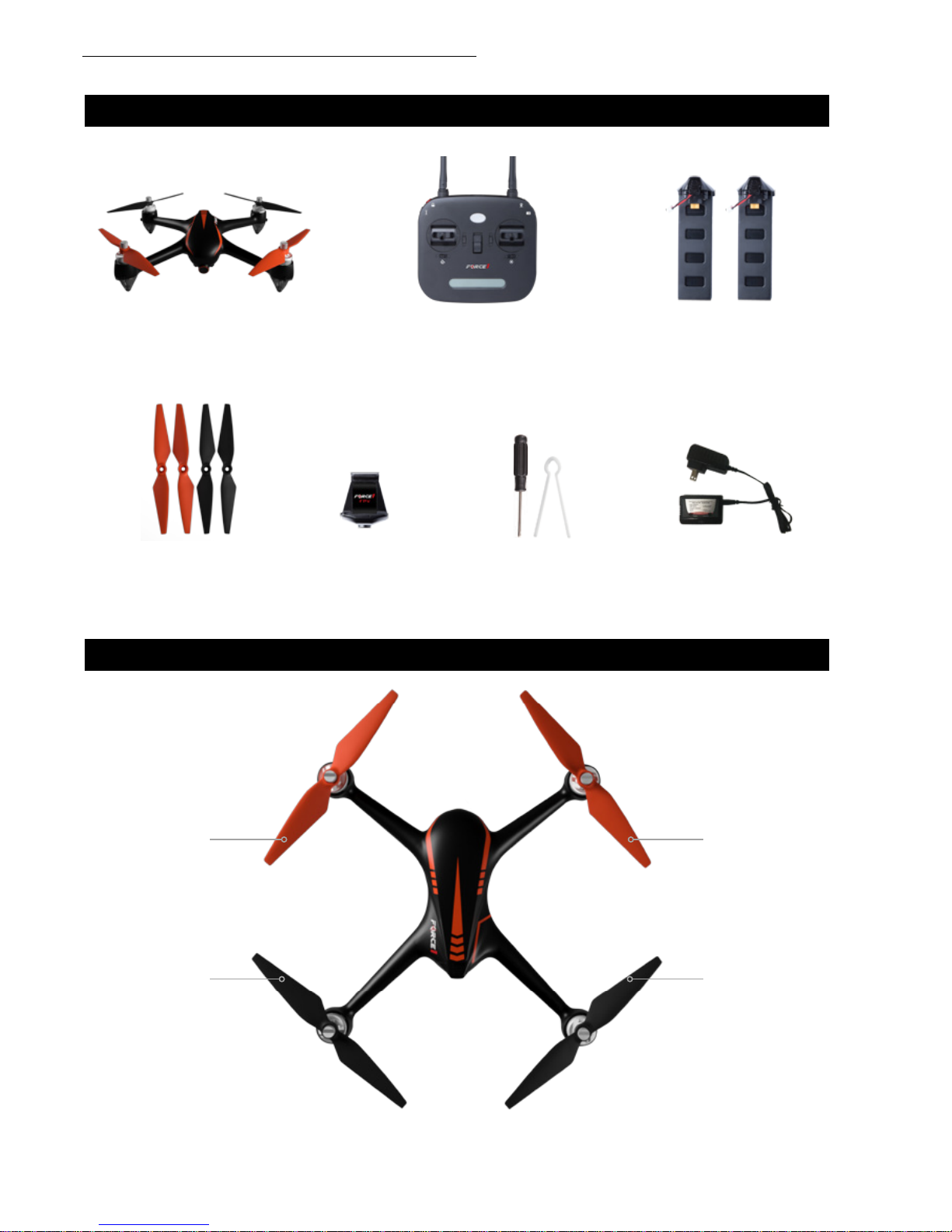

BOX CONTENTS

DRONE WITH CAMERA TRANSMITTER 7.4V 1800MAH LIPO BATTERY (2)

PROPELLERS (4)

BALANCE CHARGER

DRONE TOOLS

DRONE OVERVIEW

FRONT

B PROPELLER COUNTERCLOCKWISE

A PROPELLER

CLOCKWISE

A PROPELLER CLOCKWISE

B PROPELLER

COUNTERCLOCKWISE

REAR

RIGHTLEFT

Page 8

F200W Shadow User Manual

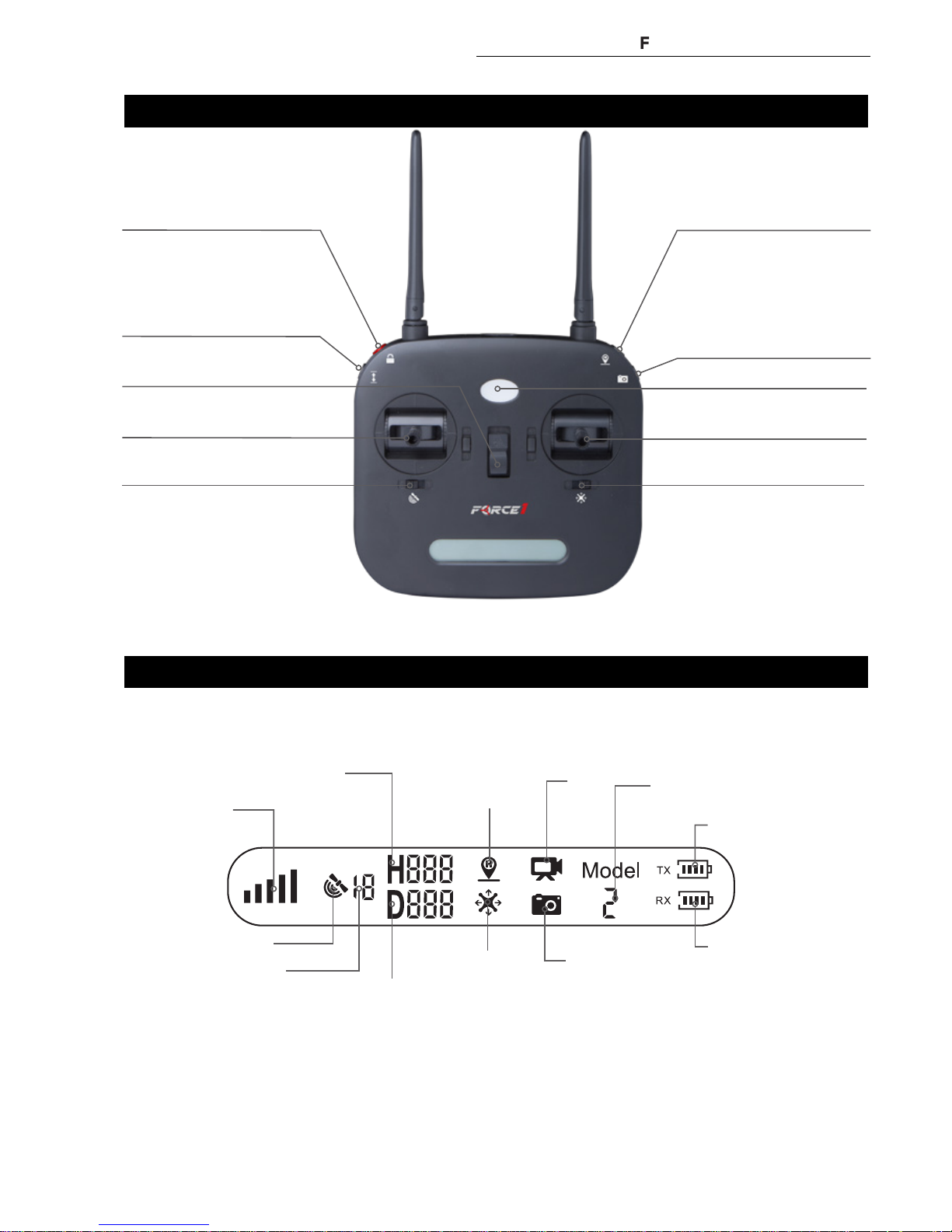

TRANSMITTER OVERVIEW

LCD SCREEN

PHOTO (SHORT-PRESS)/

VIDEO (LONG-PRESS)*

ONE-KEY TAKE OFF/ ONE-KEY LANDING

ENTER/EXIT RETURN TO HOME

POWER SWITCH

POWER INDICATOR

THROTTLE/RUDDER STICK (DEFAULT)

UNLOCK (SHORT-PRESS) LOCK (LONG-PRESS)

DIRECTION CONTROL STICK (DEFAULT)

HEADLESS MODE SWITCHGESTURE/GPS MODE SWITCH

*APPLICABLE WHEN A MEMORY CARD IS INSERTED. IF THERE IS NO MEMORY CARD, PHOTOS AND VIDEOS CAN BE TAKEN AND SAVED WITH THE F200W APP.

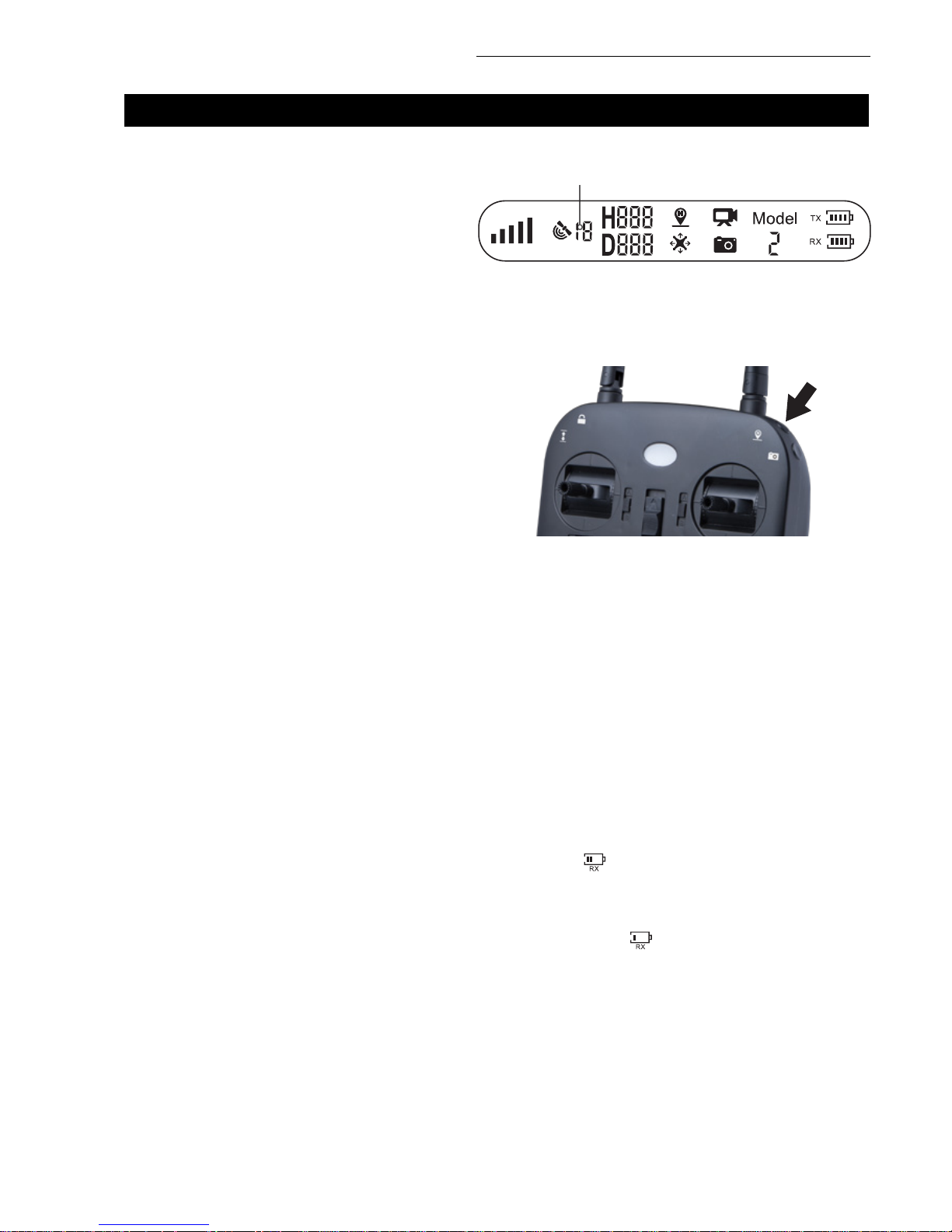

SATELLITE

NUMBER

GPS MODE

(7+ SATELLITES)

SIGNAL

STRENGTH

ALTITUDE FROM

HOME POINT

1-KEY RETURN

VIDEO

PHOTOHEADLESS

MODE

DISTANCE FROM

HOME POINT

DRONE BATTERY LEVEL

TRANSMITTER BATTERY LEVEL

TRANSMITTER THROTTLE MODE

Page 9

FORCE1 RC

TRANSMITTER BATTERY INSTALLATION

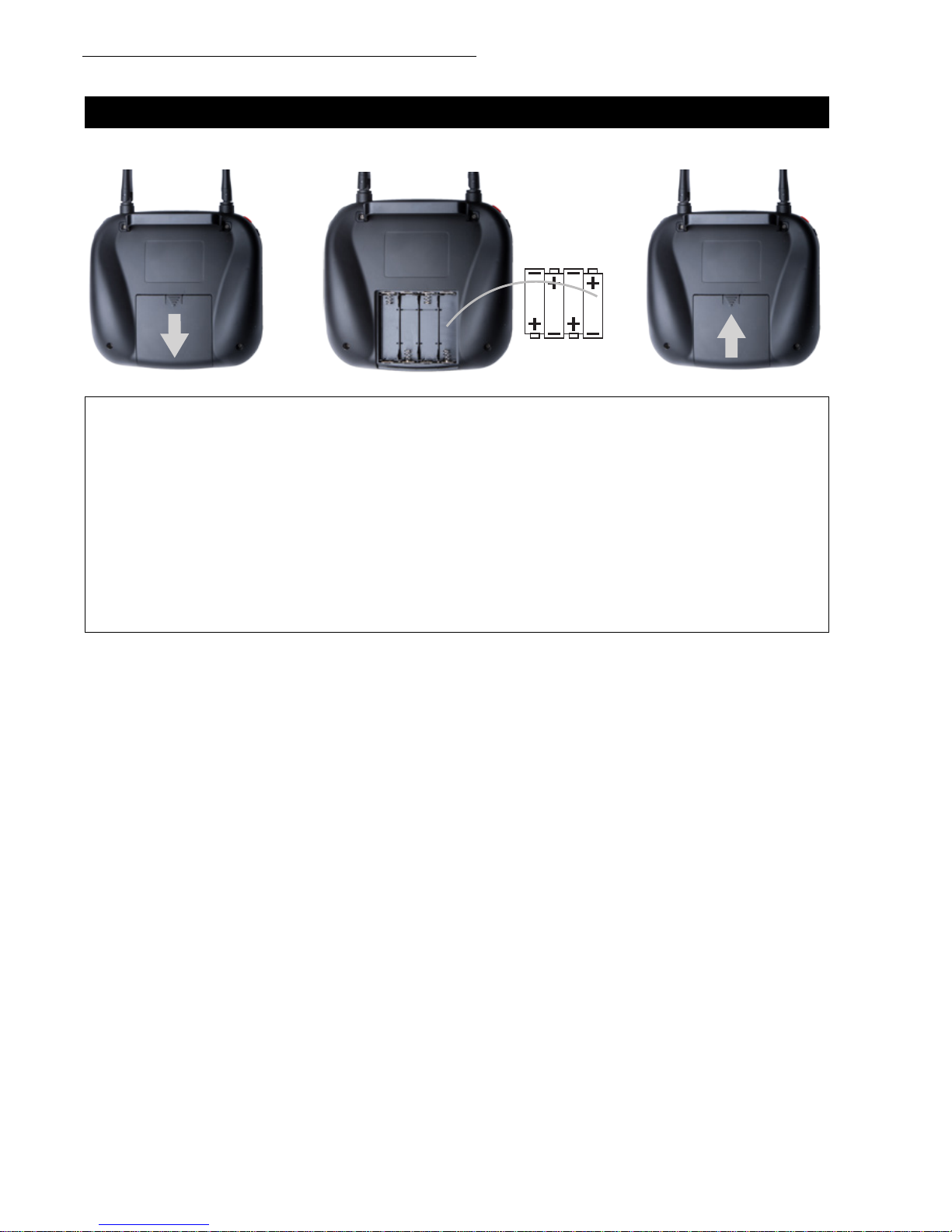

Open the battery cover and insert 4 AA batteries as shown below.

• The transmitter needs 4 AA batteries to work

• Insert batteries in correct polarity (+) and (-)

• Don’t mix old and new batteries

• Don’t mix alkaline, standard (carbon-zinc) and rechargeable (nickel-cadmium) batteries

• Remove rechargeable batteries before charging

• Only charge batteries under adult supervision

• Remove spent batteries from the transmitter

• Regularly inspect the charging cable, cord, plug, enclose and other parts; if you notice damage,

please visit Force1rc.com for a replacement, or email us at [email protected]

CAUTION:

Page 10

F200W Shadow User Manual

TRANSMITTER SIGNAL CONNECTION

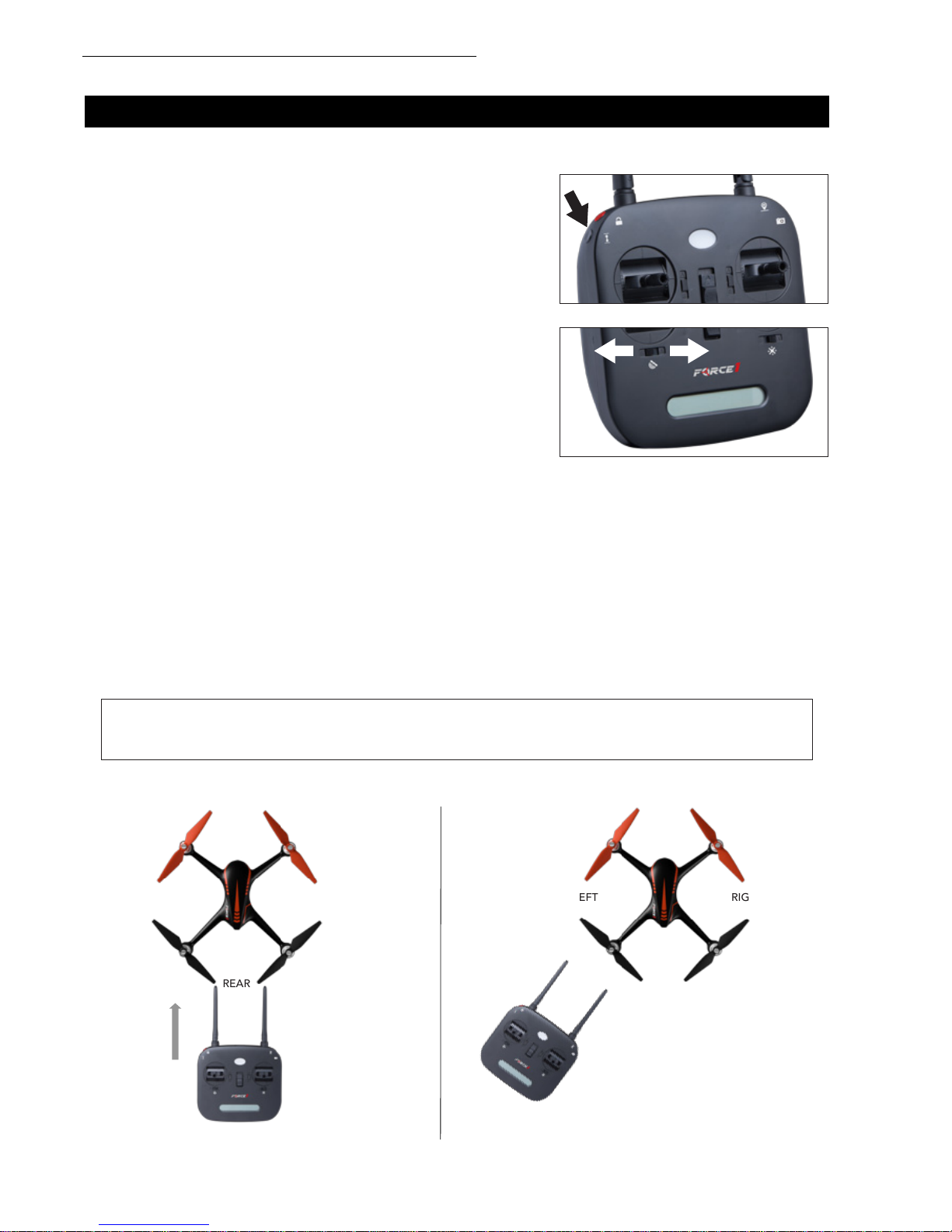

TRANSMITTER CHANNEL SELECTION

Keep the transmitter steady during this process, or it may result in signal connection failure.

CAUTION:

Press and hold the top-left red button and then power on the transmitter (Fig. 2). It will beep twice, and the indicator light will flash as the transmitter establishes a GPS satellite signal. Flashing will stop when a signal is found.

Your transmitter (remote controller) uses 5G Wi-Fi and works on channels 36 (5180 MHz) and 149 (5745 MHz), both of which are available in the United States. The factory default setting is channel 36.

Channel Selection

• Press and hold the bottom-right corner button until the transmitter beeps twice (Fig. 1)

• This indicates a switch between channels 36 and 149

FIGURE 2

NOTE

• You should see no difference in operation, as both channels work in the U.S.

• If you are outside the U.S., contact [email protected] for more detailed frequency info

FIGURE 1

Page 11

FORCE1 RC

THROTTLE MODE SELECTION

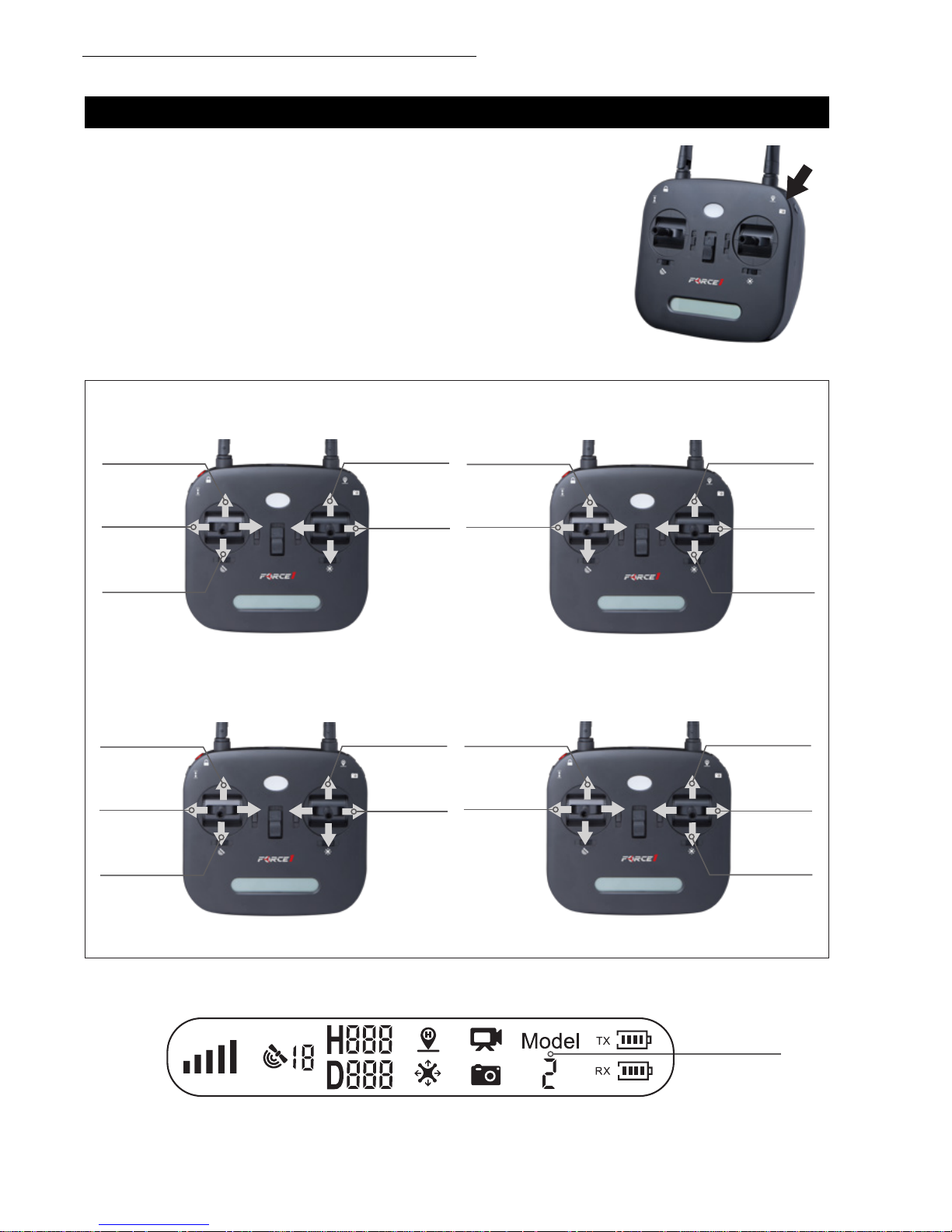

4 MODES

Your transmitter allows for left or right-hand throttle in a total of 4 different modes, depending on your preference.

To change the throttle mode press and hold the top-right button for 3 seconds (Fig. 3). The mode number is shown on the LCD screen (Fig. 4). Keep pressing to cycle through modes, but note: Mode 2 is the default.

NOTE

Mode selection must occur when your transmitter is in signal connection and the transmitter light is blinking.

ROTATE LEFT/RIGHT

LEFTWARD/ RIGHTWARD

ROTATE LEFT/RIGHT

LEFTWARD/ RIGHTWARD

FORWARD

THROTTLE

FOREWARD

LEFTWARD/

RIGHTWARD

ROTATE

LEFT/RIGHT

LEFTWARD/

RIGHTWARD

ROTATE

LEFT/RIGHT

BACKWARDS

MODE 1

MODE 3

MODE 2

MODE 4

THROTTLE

FOREWARD

BACKWARDS

FORWARD

THROTTLE

BACKWARDS

FIGURE 3

THROTTLE

MODE DISPLAY

FIGURE 4

Page 12

F200W Shadow User Manual

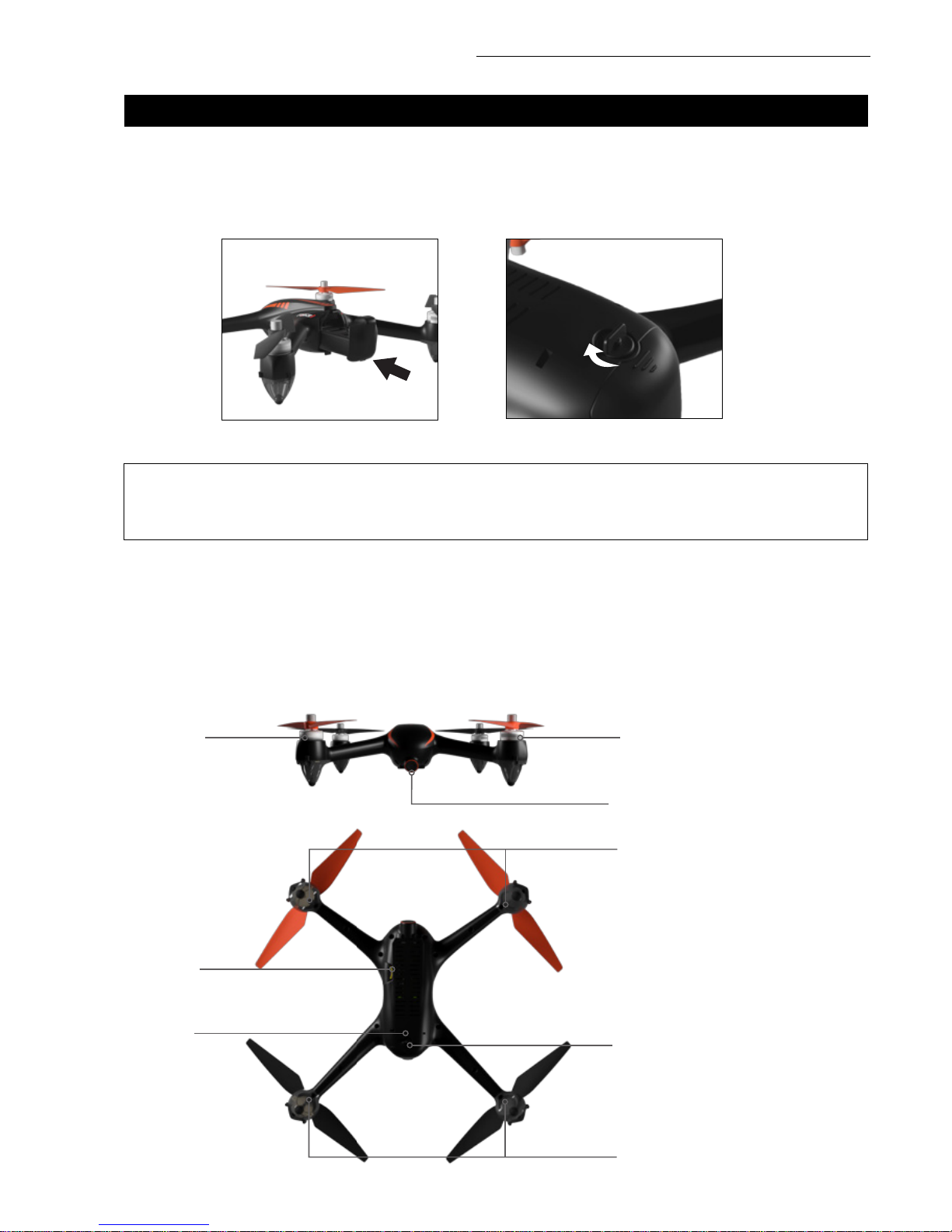

BATTERY REMOVAL

Turn the lock button counterclockwise 90° to the “unlock position.” Use your thumb to press down the tab and remove the battery. NOTE: Battery removal is the ONLY WAY to power off the drone.

DRONE ASSEMBLY

BATTERY INSTALLATION

Insert the battery into the battery compartment until you hear a click. Turn the lock button on the bottom 90° to the “lock position.”

DRONE OVERVIEW

SLIDE BATTERY IN COMPARTMENT LOCK COMPARTMENT

[1] BRUSHLESS MOTOR

[2] PROPELLER

[3] CAMERA

[4] MEMORY CARD SLOT [5] LOCK/UNLOCK [6] FRONT INDICATOR LIGHT

[7] BATTERY [8] REAR INDICATOR LIGHT

[1]

[2]

[6]

[7]

[8]

[4]

[5]

[3]

Install the battery rmly; failure to do so may affect ight safety.

CAUTION:

Page 13

FORCE1 RC

DRONE ASSEMBLY

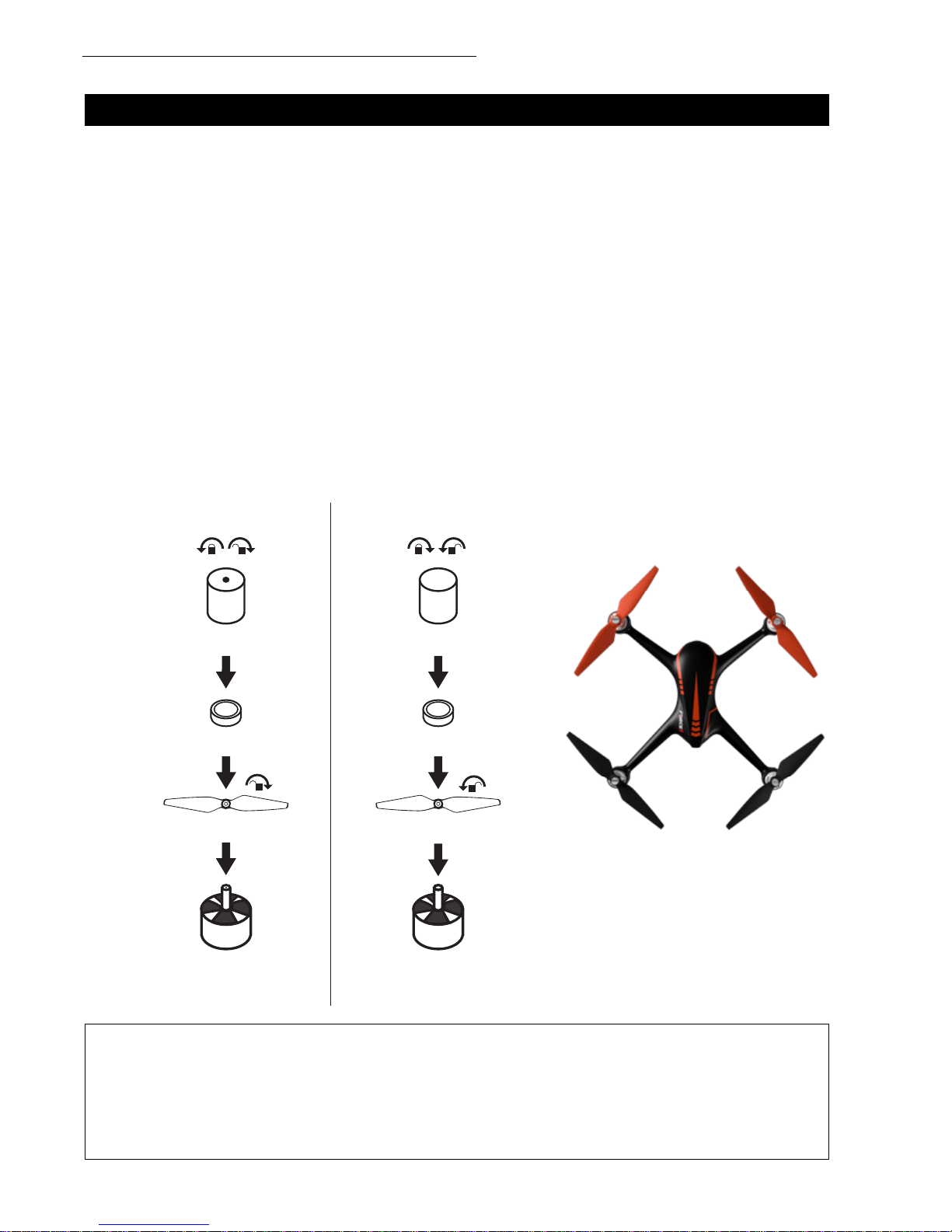

PROPELLER INSTALLATION/REMOVAL

PROPELLER A INSTALLATION Place propeller A on the corresponding motor shaft (Fig. 5). The side marked A should be facing

upwards. Fix the rotor propellers by rotating them as per the “lock direction shown on the propellers.” Place the rubber ring into the center bore of the propeller, then tighten the screws counterclockwise. Propeller A screws have a dot on top.

PROPELLER B INSTALLATION Place propeller B on the corresponding motor shaft (Fig. 5). The side marked B should be facing

upwards. Fix the rotor propellers by rotating them as per the “lock direction shown on the propellers.” Place the rubber ring into the center bore of the propeller, then tighten the screws clockwise. Propeller B screws do not contain a dot on the top.

REMOVAL Hold the brushless motor and unscrew the A screws clockwise and the B screws counterclockwise. Then

rotate and remove the propellers as per the “unlock” direction shown on the propellers.

• Please be sure to install the correct propellers (matching A and B)

• Be careful with propellers, as they can be sharp

• Purchase extra propellers at force1rc.com

CAUTION:

SCREW WITH DOT

PROPELLER A REMOVAL PROPELLER B REMOVAL

RUBBER RING

PROPELLER A (CLOCKWISE) PROPELLER B (COUNTERCLOCKWISE)

CLOCKWISE ROTATING

MOTOR IS MARKED

WITH A WHITE DOT.

COUNTERCLOCKWISE

ROTATING MOTOR IS MARKED

WITH A BLACK DOT.

RUBBER RING

SCREW WITHOUT DOT

FRONT

REAR

A B

FIGURE 5

Page 14

F200W Shadow User Manual

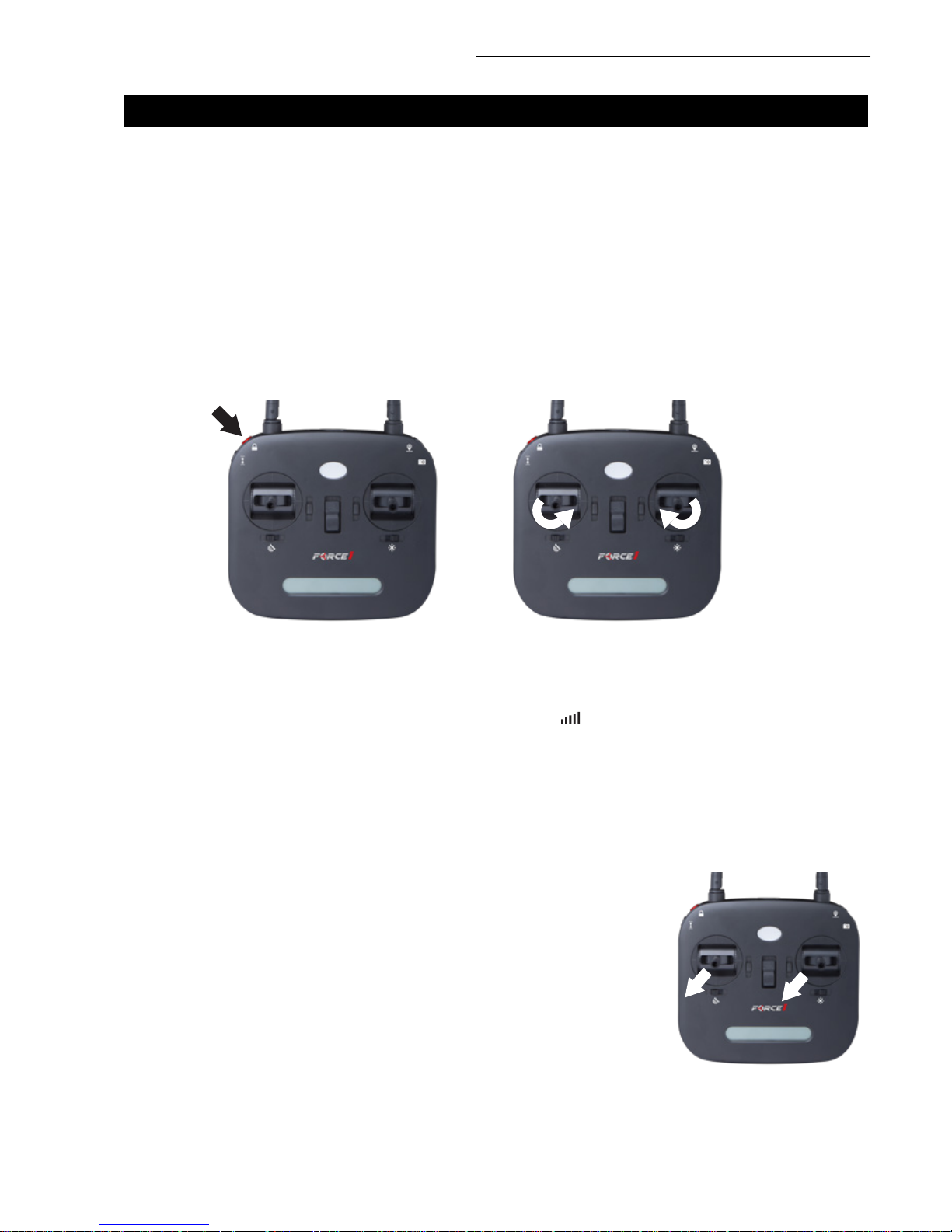

CALIBRATION

TRANSMITTER CALIBRATION

1. Turn on the transmitter.

2. Push the Calibration button and hold for 3 seconds (Fig. 6).

3. Transmitter will beep 3 times, and the indicator light will start flashing slowely.

4. Rotate control sticks in any direction for 2 full rotations (Fig. 7).

5. Push the Calibration button and hold again for 3 seconds.

6. Transmitter will beep 3 times, and the indicator light will start flashing faster indicating calibration completion.

NOTE

Your transmitter is calibrated when manufactured, but may be required after a crash or notice of improper operation.

PAIRING WITH DRONE

When the transmitter is in signal connection status, power on the drone by inserting the battery. The transmitter will emit a single beep sound, and the signal icon will appear on the LCD screen. This means that the drone has successfully linked to the transmitter.

GYROSCOPE CALIBRATION

Set the drone on a horizontal surface. Push down both of the control sticks to the lower left corner (Fig.

8). When the front and rear lights are both green and ashing rapidly, it means that the gyroscope is under calibration. When the lights turn solid, the calibration is successful.

NOTE

• All drone gyroscopes have been calibrated when manufactured

• Gyroscope calibration is required if pilots nd the drone cannot exit the aircraft initialization detection procedure

• Do not power on the drone when calibrating the transmitter

DRONE INITIATION

After signal connection, the drone enters Initialization Detection Mode, and the front and rear lights flash red, light green and green. Make sure the drone is on a flat, still surface for this; it takes about 8 seconds. Once the front and rear lights glow light green and flash, initialization detection is done and the drone enters compass calibration.

FIGURE 7FIGURE 6

FIGURE 8

Page 15

FORCE1 RC

2 WAYS TO LOCK/UNLOCK YOUR DRONE

UNLOCK

1. Press the red button; the motors rotate and the drone is unlocked (Fig. 6).

2. Push the left stick to the lower-right corner and the right stick to the lower-left corner at the same time (Fig. 11).

LOCK

3. Pull the throttle control stick to the bottom position, then press and hold

the red button (Fig. 6) for 3 seconds. The motor will stop immediately and the drone will lock.

4. After the drone lands on the ground, pull down the throttle control stick to the

bottom position and hold for 3 seconds. The motor will stop immediately and the drone will lock.

DRONE COMPASS CALIBRATION

Drone compass calibration should be done before every flight, after every battery change and after every successful initialization detection.

FIGURE 11

HORIZONTAL CALIBRATION When the drone’s front and rear lights ash light green, hold the drone upright and rotate it 360° 3 times along the central axis (Fig. 9). The ashing lights will change from light green to green.

VERTICAL CALIBRATION Hold the drone with its camera facing down and rotate it 360° along its central axis 3 times until the front light and rear light of the aircraft stop ashing and stay on (Fig. 10). Now compass calibration is successful.

NOTE

• To fly in GPS mode, choose an open flight area and make sure the satellite number is 7+

• Don’t calibrate the compass in strong magnetic areas like parking lots or construction areas

• Don’t carry magnetic materials with you like key fobs and cellphones

PREFLIGHT CHECKLIST

1. Fly in an open area and abide by all local and federal guidelines. Check the FAA’s B4UFLY mobile app for up-to-date drone flight info.

2. Make sure your drone and transmitter batteries are fully charged.

3. Put the left stick of the transmitter in the middle position.

4. Follow power off/on instructions closely. Always turn ON your transmitter first before flying, and turn OFF the drone first when you’re finished.

5. Make sure the connection is solid between your battery and motor; vibration may cause loosening.

6. Make sure the propellers are installed correctly and the motors are working normally after unlocking.

FIGURE 9

FIGURE 10

Page 16

F200W Shadow User Manual

BASIC FLIGHT CONTROLS

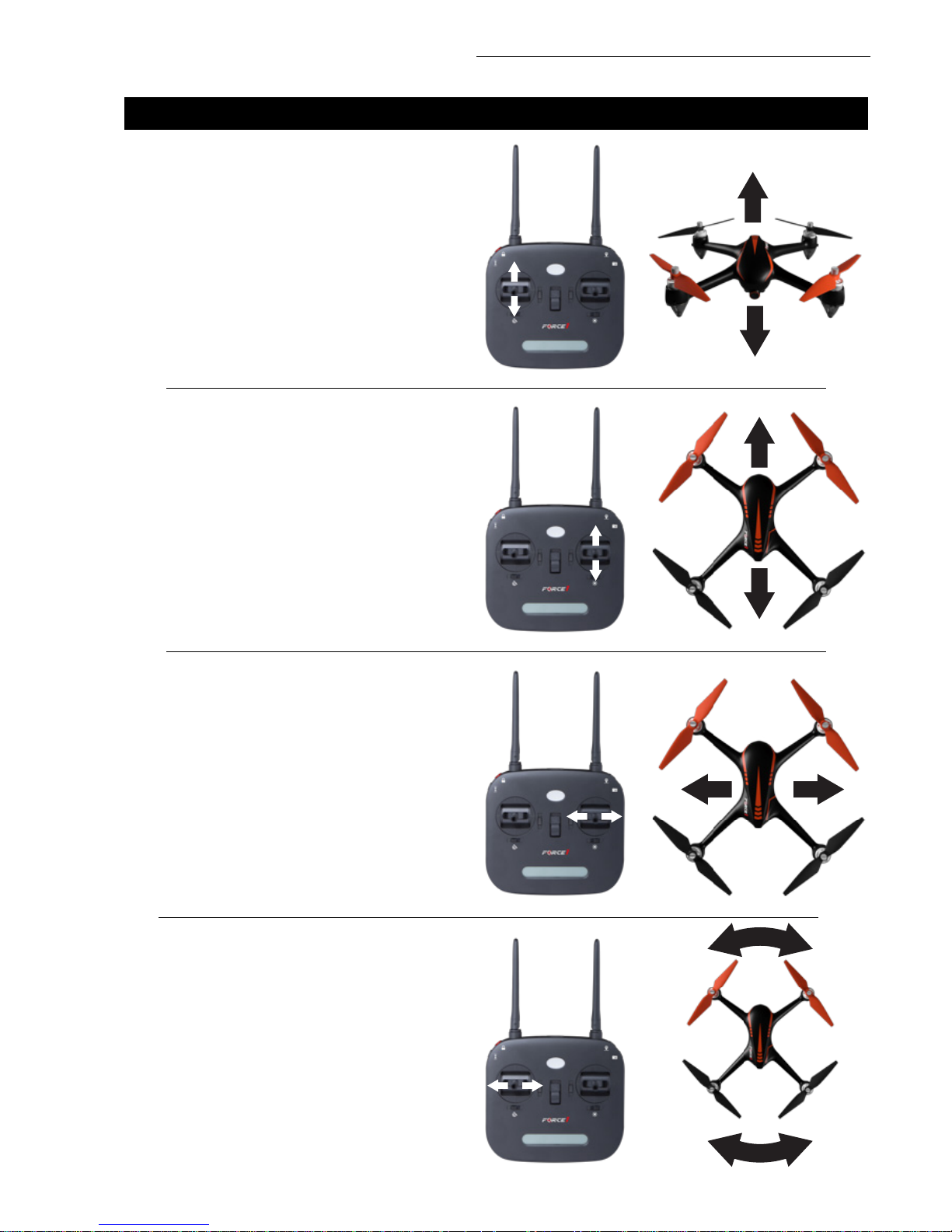

HOVER UP AND DOWN

Push the THROTTLE/RUDDER STICK up to y the drone up, and pull the THROTTLE/RUDDER

STICK down to y the drone down.

FLY FORWARD OR BACKWARD

Push the DIRECTION CONTROL STICK up to y the drone forward, and pull the DIRECTION CONTROL STICK down to y the drone backward.

FLY LEFT OR RIGHT

Move the DIRECTION CONTROL STICK to the left to y the drone to the left, and move the DIRECTION CONTROL STICK to the right to y the drone to the right.

ROTATE LEFT OR RIGHT

Move the THROTTLE/RUDDER STICK to the left to rotate the drone to the left, and move the THROTTLE/RUDDER STICK to the right to rotate the drone to the right.

Page 17

FORCE1 RC

FUNCTIONS

ONE-KEY TAKEOFF / LANDING

GESTURE MODE

GPS MODE

HEADLESS MODE

•

After the drone is unlocked, press the one-key button (Fig.

12). The drone will automatically take off and hover at an

altitude of around 5 feet

• When the drone is ying, press the one-key button; drone

will automatically land

To activate Gesture Mode, slide the Gesture/GPS button to position A (Fig. 13). In Gesture Mode, the drone uses its barometer to maintain altitude rather than GPS. It cannot y with precise positioning and hovering. Gesture Mode requires a skilled pilot.

In GPS mode, the drone can precisely position and hover using the GPS module. To activate GPS mode, slide the Gesture/GPS button to position B (Fig. 13).

FRONT

REAR

RIGHTLEFT

Headless Mode allows you to fly your drone without knowing its orientation. Slide the Headless Mode button to position B. When the drone is in Headless Mode, push the right stick forward/backward/left/ right and the drone will fly accordingly. Prerequisite: Position the drone in such a way that its front is your front (Fig. 14).

FRONT

REAR

RIGHTLEFT

✔ ✖

FIGURE 14 FIGURE 15

FIGURE 12

FIGURE 13

TIP: Do not change the orientation of the transmitter (Fig. 15) after entering Headless Mode.

Page 18

F200W Shadow User Manual

FUNCTIONS

RETURN TO HOME (RTH)

The Return-to-Home function brings your drone back to the last recorded home point.

A GPS signal of 7+ must be available for the drone to record its home point (Fig. 16).

There are three RTH functions: Smart RTH, Failsafe RTH and Low-Battery RTH.

SMART RTH

If you have a 7+ GPS signal and your home point is recorded, press the RTH button (Fig. 17) and the drone will return to the previously recorded home point. During Smart RTH, you can use the transmitter to guide the drone around obstacles. Press the button again to exit RTH and regain drone control.

FAILSAFE RTH

If you have a 7+ GPS signal and your home point is recorded, Failsafe RTH is triggered when the transmitter signal is lost for more than 6 seconds. The drone will automatically return to the previously recorded home point. Press the button again to exit RTH and regain drone control if you regain the signal.

LOW-BATTERY RTH

Your drone will return automatically if it detects a low battery while flying at an altitude of 100+ meters or at a distance of 300+ meters when you see this battery icon: . Your drone’s lights will also slowly flash red.

Similarly, your drone will return automatically if it detects a low battery while flying at an altitude of 15+ meters or at a distance of 15+ meters when you see this battery icon: . Your drone’s lights will also slowly flash red.

NOTE

• Your drone will not avoid obstacles during Failsafe RTH

• The drone cannot return if the GPS signal is weak (less than 7+ GPS signal)

• Your drone will land slowly if there is no GPS signal and the transmitter signal is lost for more than 6

seconds

NOTE

You can’t regain control of your drone in Low-Battery RTH Mode.

FIGURE 17

FIGURE 16

GPS SIGNAL

STRENGTH

Page 19

FORCE1 RC

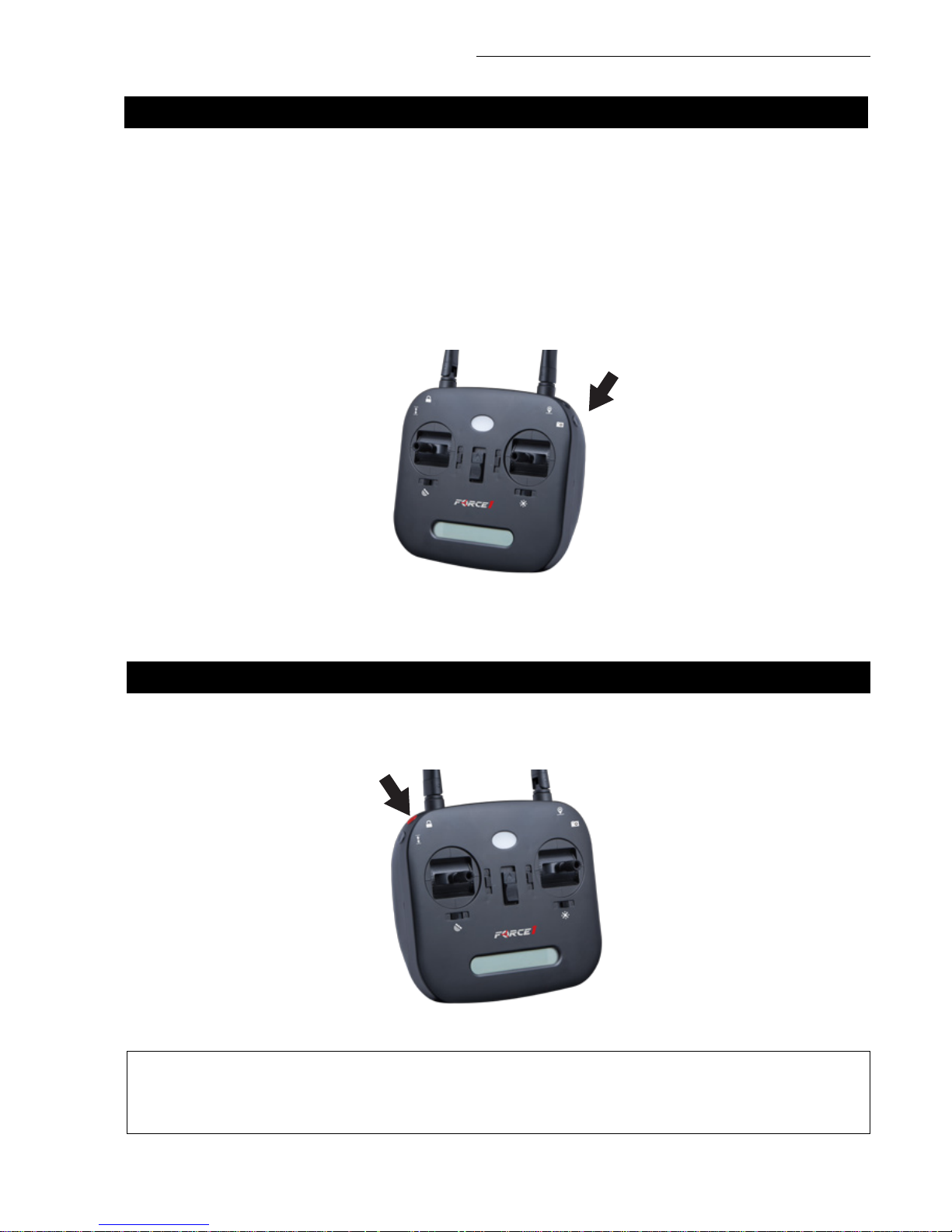

• Press the photo/video button on the top right of the

transmitter to take a photo (Fig. 18). The camera icon on the LCD screen will flash once indicating that a photo has been taken

• Press and hold the photo/video button to start recording

video. The video icon on the LCD screen will flash slowly, indicating that a video is being recorded. Press the button again to stop recording

FUNCTIONS

PHOTO / VIDEO

NOTE

If there is no memory card inserted into the drone camera, photos and videos can only be taken using the F200W app (see page 19).

LOW BATTERY WARNING

•

The battery is nearing low voltage when the battery icon in Figure 19 appears on the LCD screen and

the rear lights of the drone flash slowly (the front lights remain the same)

• Low voltage is indicated by the battery icon in Figure 20, and the rear lights of the drone flash rapidly

(the front lights remain the same)

FRONT INDICATOR LIGHTS

BACK INDICATOR LIGHTS

FIGURE 18

FIGURE 19

FIGURE 20

Page 20

F200W Shadow User Manual

The Force1-F200W app is what you will use to enjoy first-person view (FPV) control and photo/video capture via your mobile device while flying your F200W Shadow drone. The app is compatible with iOS and Android phones. To download the app from the App Store or Google Play:

1. Scan the QR code on the product box or below, OR

2. For iOS phones: Search for the Force1-F200W app in the App Store;

3. For Android phones: Search for the Force1-F200W app in Google Play.

Force1-F200W

1. DOWNLOAD AND INSTALL THE FORCE1-F200W APP

GETTING TO KNOW YOUR APP

1. Install the battery and power on the drone. Put the drone on a flat surface in a horizontal position.

2. Make sure your mobile device Wi-Fi settings are on and connect to the Wi-Fi name Force1_******. Return to your home screen after successful connection.

3. Open the Force1-F200W app and click on “START” to fly in FPV and capture photos/video via your mobile device.

2. HOW TO PAIR YOUR MOBILE DEVICE & DRONE WI-FI

Page 21

FORCE1 RC

PHONE CLIP ATTACHMENT & USE

1. Connect the phone clip to the round knob attachment (Fig. 21).

2. Insert the clip vertically, down into the transmitter (Fig. 22). Make sure the clip is firmly in place.

3. Put the phone into the clip and then release the clamp; the clamp should hold your phone tightly (Fig. 23).

FIGURE 22

FIGURE 21 FIGURE 23

8. AERIAL PHOTOGRAPHY & VIDEO

Library: Click on this icon to view photos/videos.

If there is a memory card inserted into the drone camera, photos and videos taken on the F200W app will be stored there. Videos and photos will save to the app if there is no memory card in the camera, and you may download them from there.

TIP: Make sure your mobile device supports 5G Wi-Fi before linking

the Force1-F200W app to the drone camera.

Photo: Click on this icon to take a photo.

Video: Click on this icon to record video. The recording time will show at the bottom of the

screen. Click on the icon again to nish recording.


VIDEO

LIBRARY

SCREEN ROTATION

HIDE

WI-FI SIGNAL

BACK

3. APP ICONS OVERVIEW

Page 22

F200W Shadow User Manual

DRONE INDICATOR LIGHT

The front and rear lights of the drone flash light green rapidly.

The transmitter is not linked to the aircraft, and it requires completing the signal connection steps.

The drone is in initialization detection mode.

No GPS signal, the drone is in gesture mode.

Good GPS signal, drone is preparing for GPS mode.

The drone is nearly low voltage, 1/4 of the battery is left.

The drone is in low voltage, only 1/6 of the battery is remaining.

Something is wrong with the gyroscope.

Something is wrong with the barometer.

Something is wrong with the compass.

Something is wrong with the GPS module.

The drone is in gyroscope calibration mode.

The drone is in horizontal compass calibration.

The drone is in vertical compass calibration.

The front and rear lights of the drone alternate flashing green, red and light green.

The front lights glow solid red, the rear lights glow solid green.

The front lights glow solid red, the rear lights flash red slowly.

The front lights glow solid red, the rear lights flash red rapidly.

The front and rear lights flash once, then stop for 1.5 seconds.

The front and rear lights flash twice, then stop for 1.5 seconds.

The front and rear lights flash three times, then stop for 1.5 seconds.

The front and rear lights flash four times, then stop for 1.5 seconds.

Front and rear lights flash green rapidly.

The front and rear lights alternate flashing light green.

The front and rear lights alternate flashing green.

The front lights glow solid red, the rear lights glow solid light green.

STATUS DESCRIPTIONNO.

Page 23

FORCE1 RC

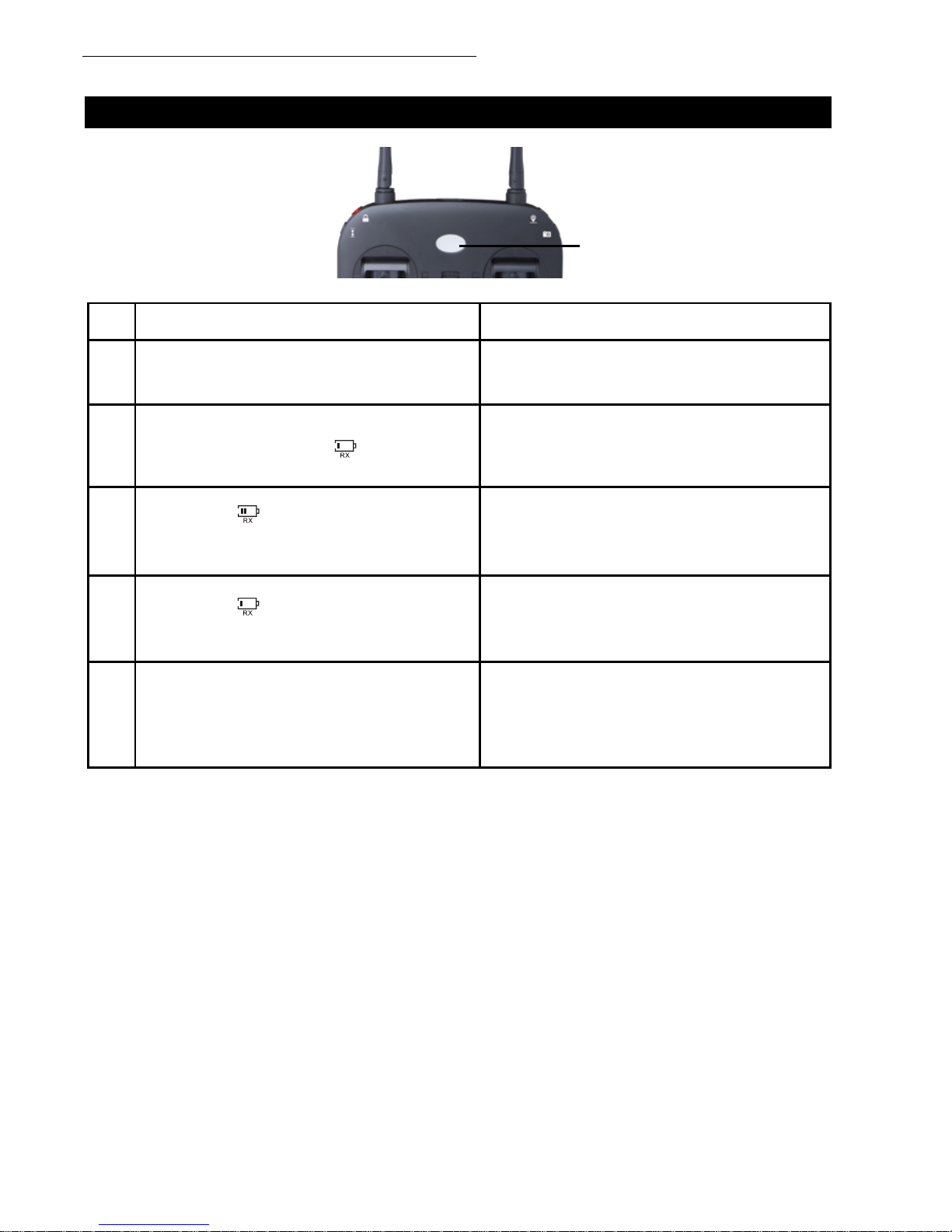

Battery icon on LCD display is shown, with a steady beeping sound.

TRANSMITTER INDICATOR LIGHT

POWER INDICATOR LIGHT

TRANSMITTER STATUS

Indicator lights ash rapidly.

Indicator lights ash slowly with a steady

beep and the battery icon on display is

ashing.

Battery icon on LCD display is shown, with a long beeping sound.

Signal legend on LCD display is less than two grids or not displaying, with a steady beeping sound.

1) The distance between the drone and transmitter is so far that the signal is weak.

2) The battery was removed after the drone connected to the transmitter.

Battery is running out. The aircraft will return when drone is at an altitude is over 100m or a distance of over 300m.

Battery is low. The drone will return when the alititude is over 15m or the distance is over 15m.

The transmitter is under signal connection status.

The transmitter has low voltage.

OPERATION

Page 24

F200W Shadow User Manual

SPARE PARTS

Upper Cover

001

Screws A/B

005

Clockwise Motor

013

Propeller Changing Tool

017

Lower Cover

002

Counterclockwise Motor

014

Silicone Rubber Ring

018

Anti-Vibration Pad

019

Transmitter

020

Propellers (A/B)

003

Compass

011

Battery

015

Front/Rear Light Covers

004

Camera PCB

007

Receiver PCB

012

ESC

B2C009

Front/Rear LED Indicator

006

GPS Module

008

Interleaving Paper

010

Screws Pack

016

Page 25

FORCE1 RC

The front and rear lights of the drone flash

green rapidly.

The transmitter is not linked to the aircraft, and it requires completing

the signal connection steps.

1) Check to see if the drone is in the stationary state.

2) Recalibrate the gyroscope.

1) Complete the horizontal compass calibration steps.

2) The compass of the drone is broken and needs to be replaced.

1) Complete the vertical compass calibration steps.

2) The compass of the drone is broken and needs to be replaced.

1) The GPS signal is weak; fly in another location.

2) The drone cannot receive a satellite signal while taking off; fly the

drone again when you have a 7+ GPS signal.

1) The battery of the drone is low; replace/charge the battery.

2) The drone is in initialization status; re-calibrate the gyroscope.

The front and rear lights of the drone flash

red, light green and green alternately and

do not change.

The front and rear lights of the drone flash

green alternately.

The drone isn’t positioning propertly.

The return point of the drone is far away

from the takeoff point.

The drone fails to unlock.

The front and rear lights of the drone flash

light green alternately.

PROBLEM SOLUTIONNO.

TROUBLESHOOTING

NOTE

• Changes or modications not expressly approved by the party responsible for compliance could void

the user’s authority to operate the equipment

• This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guaantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the antenna

• Increase the separation between the equipment and receiver

• Connect the equipment to an outlet on a circuit different from that to which the reciever is

connected

• Consult the dealer or an experience radio/TV technician for help

Page 26

Page 27

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide residential protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not Installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception. Which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on the circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced technician for help.

The equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. Modifications not authorized by the manufacturer may void user’s authority to operate this device.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and

2. This device must accept any interference received, including interference that may cause undesired operation.

FCC INFORMATION

FCC WARNING

force1rc.com
