SMART UV
Water Purifier
Fresh & Safe Water
USER MANUAL
Page 2
Welcome to the Forbes family!
We know your greatest joy is to see your family healthy and happy. And by
selecting Forbes you’ve ensured your child’s health and happiness for life.
Because only Forbes can give your child infinite water protection with
complete solutions for your water problem.
Backed by 25 years’ expertise and the trust of 40 lakh mothers, we unveil a
compact yet complete purifier, the new Forbes Smart UV. A next generation
water purification system which ensures that your child gets only safe water or
no water at all.
Your new Forbes Smart UV is equipped with powerful UV protection. This
ensures clear safe drinking water, free from excess chlorine, organic
contamination, harmful pesticides and dangerous Volatile Organic
Compounds.
To learn how the Forbes protects your child’s health, do read the rest of this
user manual. Should you have any further questions, visit www.forbeslux.com
or for any assistance you can be rest assured that we are just a call away.
The Forbes Advantage
Certified by Water Quality Association
Manufactured at ISO 9001 and 14001
certified manufacturing facilities
Backed by 25 years' experience
Page 3

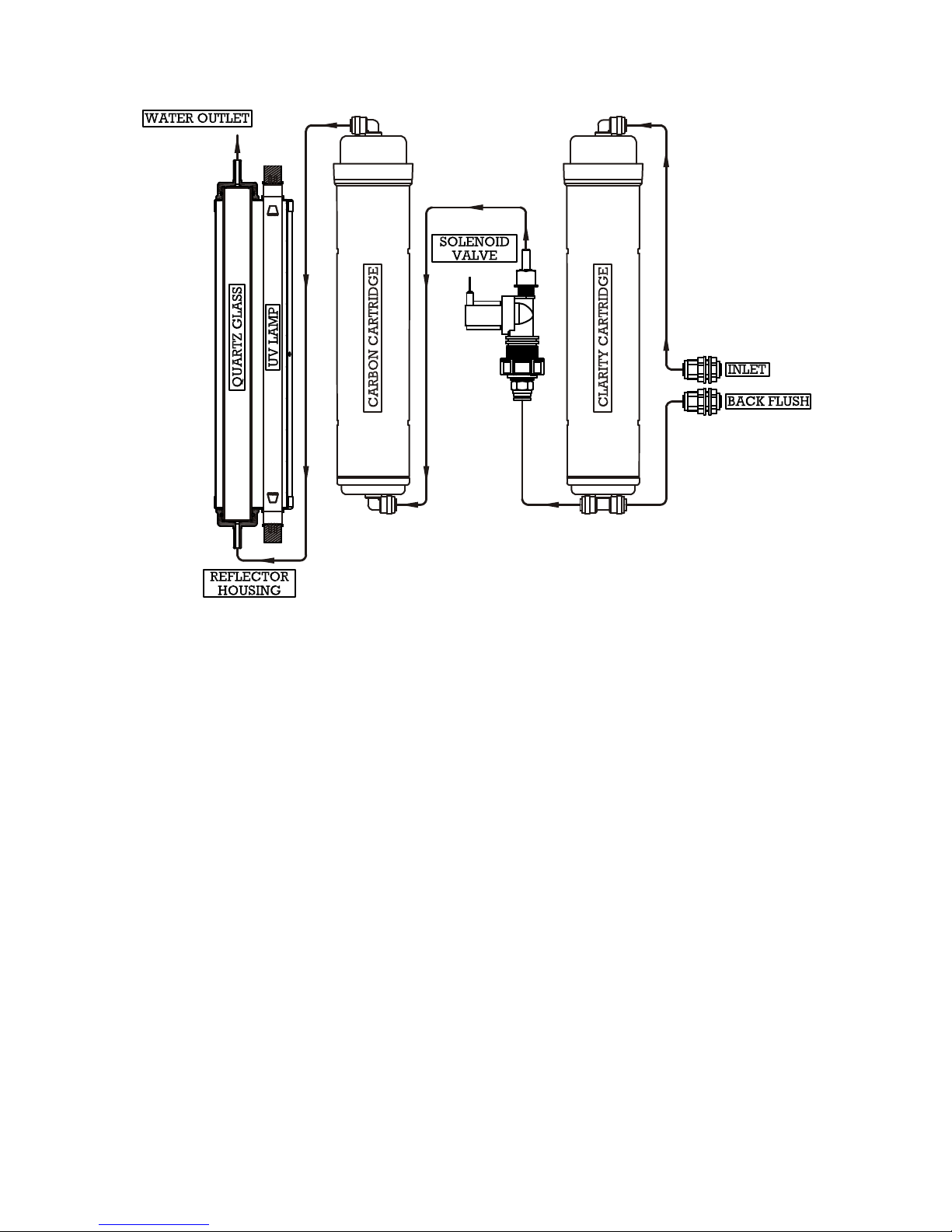

Water flow diagram for Forbes Smart UV
3-Stage UV Filtration
1) Sediment Filter: Spun bonded polypropylene cartridge which removes
##
suspended & physical impurities from water. Filter capacity - 6000 ltrs or 1
year.
2) Silver Impregnated Activated Carbon: Removes excess chlorine colour,
foul odour and organic impurities. Imparts bacteriostatic property to the
##
purified water and revives the original taste of water. Filter capacity - 6000
ltrs or 1 year.
3) UV-Disinfection: Water passes through a special grade of quartz glass
column. It doesn't come in contact with any metal part and also uses powerful
germicidal UV rays for killing water borne disease-causing bacteria, viruses
and protozoa, thus ensuring pure water.
Installing your Forbes Smart UV
Being compact, Forbes Smart UV is easy to install on the wall. All you need is a
voltage range of 150 V to 270 V supply and a 6 amp electrical point of 3 pin type
and properly earthed. Your Forbes Smart UV will be installed by a trained Forbes
technician.
##
Filter capacity may vary as per input quality of water.
Page 4
Your Forbes Smart UV gives you more
In-built Voltage Stabilizer: Ensures your purifier works even
at fluctuation and low voltage ranging from (150V to 270V).
150v-270v
Hi Flo: Delivers 2 litres (max.) in a minute
ltrs/min
Energy Saver Mode: The UV lamp is switched off if water is not
drawn for 10 mins, thus enhancing the life of the UV lamp and
saving energy.
Compact & Sleek Design: Blends perfectly with the modern
urban kitchen, it can be conveniently mounted on the wall.
Cross Beam Technology: Water passes through a high grade
quartz glass without contacting any metal part. The germicidal UV
rays in cross beam pattern penetrateand deactivate the bacteria,
viruses and parasites.
Error Indicator: Alerts you if any error occurs in the purifier.
Buzzer Indication: Buzzer indication is an alarm sound that the
machine generates for any alert signal.
Easy Back Flush: The cartridge can be easily cleaned by just
interchanging the inlet and backflush connection.
Smart LED Display: Three LED indicators to guide you through
the purification process.
UV Lamp Sensing Mechanism: It senses the functioning of UV
lamp and always dispenses safe water. In case of malfunction it
stops delivering water.
UV Lamp
Sensing
Mechanism
Page 5
Step-by step guide to safe drinking water :
Trouble Shooting :
Unit does
not turn on
Loose power cord
connection / power cord
failure
Fix the plug properly / call
authorized Forbes
service technician to
check and replace the
power cord
Fault in the main switch
Fuse blown off
Call
service technician
authorized Forbes
Call authorized Forbes
service technician
Fault related to electronics
or electrical system
Yellow LED
blinks
Water does
not come
out of the
spout
No input water supply
Check supply of water
input
Choked filter
Flush the sediment filter
for smooth flow
Fault related to valve Call authorized Forbes
service technician
Possible Cause ActionProblem
2) RED, YELLOW and GREEN
LED will glow, indicating that the
machine is ok. GREEN will get
off after 1 sec. while RED and
YE LLOW will cont inue to
remain ON.
3) YELLOW LED will glow for 60
seconds, indicating the process
and then get OFF
1) Fit the plug into the socket
and then switch ON the unit by
pressing the power knob of the
unit.
5) Switch on the flow knob to get
pure and safe water
6) If the flow button is not
pressed within 10 minutes then
the machine will automatically
go on the Power Safe Mode,
which is indicated by the
blinking of GREEN LED
7) To restart the machine,
press the flow knob or switch
OFF /ON, the power switch.
4) After YELLOW, GREEN LED
will glow and a beep sound will
come which indicates that the
machine is ready to dispense
pure and safe water.
Power Button
Flow Button
Page 6
Note: 1) In case the water pressure in your area is lower that the minimum
specified, we recommend the use of a pump. If the pressure is higher
than the maximum specified, use of the pressure reducing valve is
recommended (as an additional accessory).
2) Where ever the turbidity level is high in the input water, please install
prefilter (as an additional accessory) to enhance the life of the cartridge
and it also minimises the choking problem. Pre-filter as an additional
accessory with additional cost is only available with Forbes service
technician.
*Specification are subject to change without prior notice.
**Flow rate depends on the input of water pressure and condition of the filters.
#
As per the manufacturer’s specification.
Please do this
üWhen your Forbes Smart UV is not in use, please keep the outlet spout
covered with the cap.
üPut off the main switch when your Forbes Smart UV will not be used for
more than 3 to 4 hours.
üStore water from your Forbes Smart UV in clean containers. For hygienic
reasons it is preferable not to store water for more than 2 days.
üWe recommend regular routine check-ups for your Forbes Smart UV.
üIf your Forbes Smart UV has not been used for a long time, allow 3 to 4
glasses of water to flow out before collecting the water for use.
Technical Specifications*
Dimension ( W x D x H ) in mm 310 x 400 x 170
Net Weight 4.1 kg
Ultra Violet Lamp 8 watts
Power rating 20 watts
Input Voltage 230 V AC / 50 Hz - 60 Hz
Water Pressure 0.4 to 2.0 kg/sq. cm
Recommended Output Flow 2 ltr/min (max)**
#
Lamp Life
#
Cartridge Life 6000 ltrs.
5000 glowing hours
Page 7
Please do not do this
û Forbes
water can get recontaminated.
ûConnect ordinary pipes, tubing to the outlet spout to collect water from your
Forbes Smart UV
ûUse extension box for power connection
ûConnect hot water supply to Forbes Smart UV
ûInstall Forbes Smart UV close to your gas stove or cooking range
ûSpill water over the unit

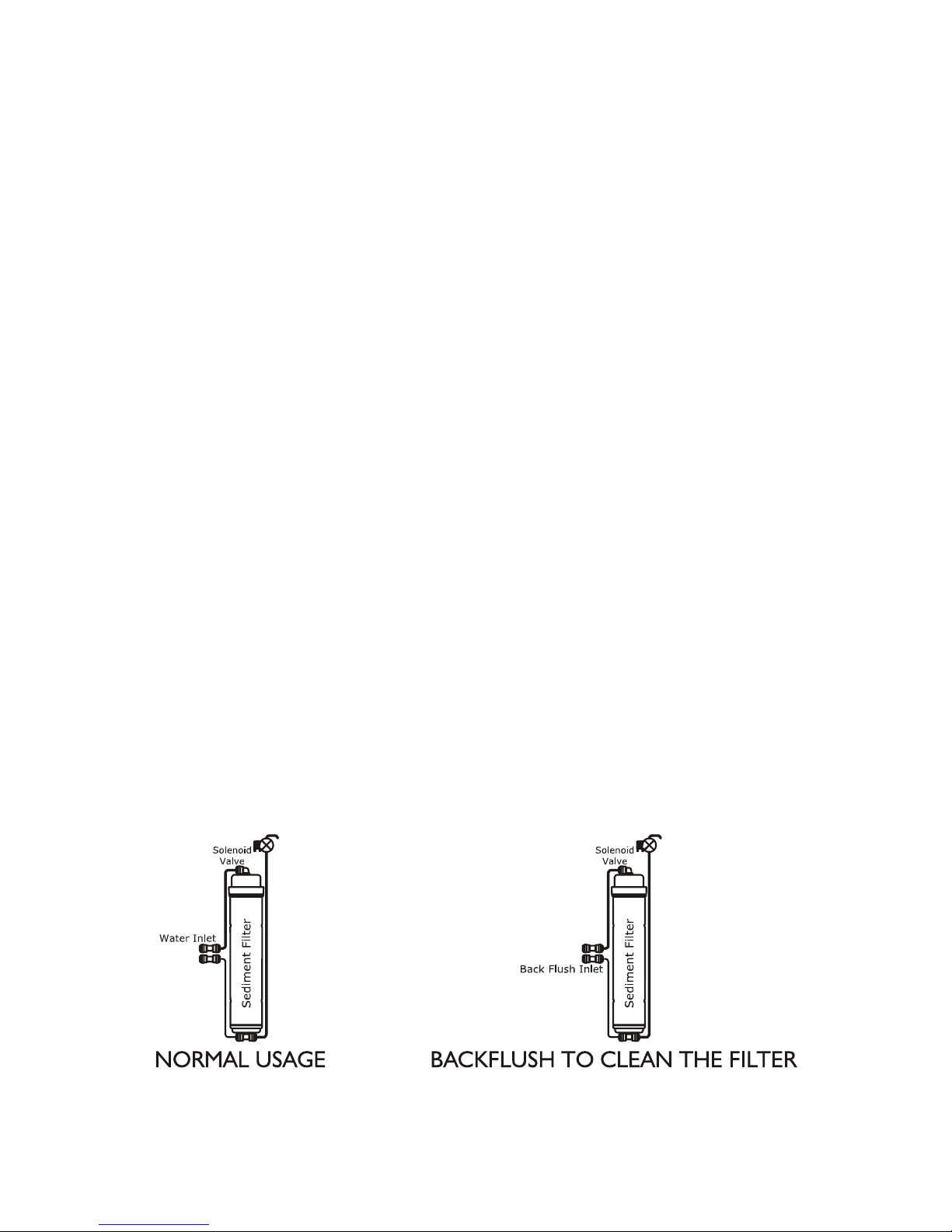

How to do manual back flush
1) Stop flow from the tap by rotating the diverter valve.
2) Disconnect the inlet pipe from the inlet nozzle and dummy plug from the
back flush nozzle.
3) Connect inlet pipe to back flush nozzle and leave the inlet nozzle open.
4) Turn on the tap and allow water to flow for 10 mins.
5) Turn off the tap and disconnect the inlet pipe from the back flush nozzle and
connect it to the inlet nozzle.
6) Insert the dummy plug in the back flush nozzle.
7) Turn on the tap to allow the water to flow for normal operation.
Your Forbes Smart UV Water Purifier is now ready for use.
Store water from your Smart UV in matkas and candle filters, as the
Page 8
Produced for Forbes Lux Grou p,
Switzerland
Dubai Office:
Forbes Lux FZE, # 207, LOB Building 17, P.O. Box 261698,
Jebel Ali Free Zone, Dubai, UAE, Tel: +9714-8810115
For more information visit us at www.forbeslux.com
