Fora V30a Read Before Use

1

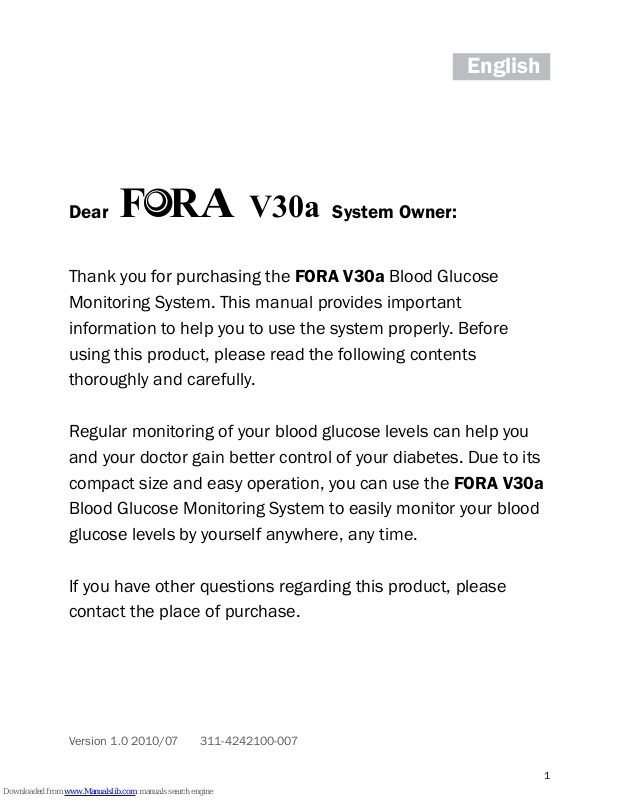

Dear System Owner:

Thank you for purchasing the FORA V30a Blood Glucose
Monitoring System. This manual provides important
information to help you to use the system properly. Before
using this product, please read the following contents
thoroughly and carefully.

Regular monitoring of your blood glucose levels can help you
and your doctor gain better control of your diabetes. Due to its
compact size and easy operation, you c

an use the FORA V30a
Blood Glucose Monitoring System to easily monitor your blood
glucose levels by yourself anywhere, any time.

If you have other questions regarding this product, please
contact the place of purchase.

V30a

Version 1.0 2010/07 311-4242100-007

English

2

IMPORTANT SAFTY INSTRUCTIONS

READ BEFORE USE

1. Use this device ONLY for the intended use described in this
manual.

2. Do NOT use accessories which are not specified by the
manufacturer.

3. Do NOT use the device if it is not working properly or if it
is damaged.

4. Do NOT use the equipment in places where aerosol sprays
are being used or where oxygen is being administered.

5. Do NOT use under any circumstances on neonates.

6. This device does NOT s

erve as a cure for any symptoms
or diseases. The data measured is for reference only.
Always consult your doctor to have the results interpreted.

3

7. Before using this device to test blood glucose, read all
instructions thoroughly and practice the test. Carry out all
the quality control checks as directed.

8. Keep the device and testing equipment away from young
children. Small items such as the battery cover, batteries,
test strips, lancets and vial caps are choking hazards.

9. Use of this instrument in a dry environment, especia

lly if
synthetic materials are present (synthetic clothing, carpets
etc.) may cause damaging static discharges that may cause
erroneous results.

10.Do not use this instrument in close proximity to sources of
strong electromagnetic radiation, as these may interfere
with the accurate operation.

KEEP THESE INSTRUCTIONS IN A SAFE PLACE

4

TABLE OF CONTENTS

BEFORE YOU BEGIN 06

Important Information 06

Intended Use 07

Test Principle 07

Contents of System 08

Meter Overview 09

Display Screen 10

Test Strip 11

Speaking Function 12

Setting the Meter 13

THE FOUR MEASURING MODES 18

BEFORE TESTING 20

Control Solution Testing 20

Performing a Control Solution Test 21

TESTING WITH BLOOD SAMPLE 24

Overview of the Lancing Device 24

Setting up the Lancing Device 24

Preparing the Puncture Site 27

Alternative Site Testing 29

Performing a Blood Gluc

ose Test 31

METER MEMORY 34

Reviewing Test Results 34

Reviewing Blood Glucose Day Average Results 36

Downloading Results onto a Computer 39

5

MAINTENANCE 41

Battery 41

Caring for Your Meter 43

Caring for Your Test Strips 44

Important Control Solution Information 45

SYSTEM TROUBLESHOOTING 46

Result Readings 46

Error Messages 47

Troubleshooting 49

DETAILED INFORMATION 51

Reference Values 51

Comparing Meter and Laboratory Results 52

SPECIFICATIONS 54

6

BEFORE YOU BEGIN

Important Information

• Severe dehydration and excessive water loss may cause readings
which are lower than actual values. If you believe you are suffering
from severe dehydration, consult a healthcare professional
immediately.

• If your blood glucose results are lower or higher than usual, and
you do not have any symptoms of illness, first repeat the test. If you
have symptoms or co

ntinue to get results which are higher or lower
than usual, follow the treatment advice of your healthcare
professional.

• Use only fresh whole blood samples to test your blood glucose.
Using other substances will lead to incorrect results.

• If you are experiencing symptoms that are inconsistent with your
blood glucose test results and you have followed all the instructions
given in th

is owner’s manual, contact your healthcare professional.

• We do not recommend using this product on severely hypotensive
individuals or patients in shock. Readings which are lower than
actual values may occur for individuals experiencing a
hyperglycaemic-hyperosmolar state, with or without ketosis.
Please consult the healthcare professional before use.

7

Intended Use

This system is intended for use outside the body (in vitro diagnostic
use) by people with diabetes at home and by health care professionals
in clinical settings as an aid to monitoring the effectiveness of
diabetes control. It is intended to be used for the quantitative
measurement of glucose (sugar) in fresh whole blood samples (from
the finger, palm, forearm, upper arm, calf and thigh).

This

system is not intended for the diagnosis of or screening for
diabetes and is not intended to be used on neonates. Alternative site
testing (AST) in this system can be used only during steady-state blood
glucose conditions described in the section “about AST”.

This meter has some speaking functions but is not intended for use by
the visually impaired.

Test Principle

Your system measures the amount of sugar (glucose) in whole blood.
The glucose testing is based on the measurement of electrical current
generated by the reaction of glucose with the reagent of the strip. The
meter measures the current, calculates the blood glucose level, and
displays the result. The strength of the current produced by the
reaction depends on the amount of glucose in the blood sample.

8

Contents of System

Your new FORA V30a system kit includes:

Test strips, control solutions (high and normal) and lancets are op­tional. They are not included in the kit (please check the contents on
your product box). They can be purchased separately.

NOTE

If any items are missing from your kit or opened prior to use, please contact

local customer services or place of purchase for assistance.

6

6

1

1

4

4

5

5

3

3

7

7

2

2

Warranty Card
2X1.5V AAA alkaline batteries

Meter
Owner’s Manual
Protective Wallet
Quick Start User Guide
Daily Log Book

9

Meter Overview

Front Side Back

Test Slot

Insert test strip here to turn
the meter on for testing.

Display Screen
M Button

Enter the meter memory and
silence a reminder alarm

Test Strip Ejector

Eject the used strip by push­ing up this button.

1

3

4

2

Data Port

Download test results with a
cable connection.

SET Button

Enter and confirm the meter
settings.

C Button

Marks a control solution test.

5

7

6

1

37

2

4

5

6

10

Display Screen

Low Battery Symbol
Test Strip Symbol
Blood Drop Symbol
Volume Symbol
Test Result
Memory Symbol
Alarm Function Indicator
Measuring Mode

Date
Time
Ketone Warning
Day Average
Measurement Unit
Error
Control Solution Mode

1

6

4

7

8

5

3

2

13

9

10

12

11

13

14

15

14

14 3 2

8

6

7

9

5

10

15

12

11

11

Test Strip

NOTE

The FORA V30a meter should only be used with FORA V30a Test Strips.

Using other test strips with this meter can produce inaccurate results.

Absorbent Hole

Apply a drop of blood here.
The blood will be

automatically absorbed.

Conrmation Window

This is where you confirm if
enough blood has been
applied to the absorbent

hole in the strip.

Test Strip Handle

Hold this part to insert the

test strip into the slot.

Contact Bars

Insert this end of the test
strip into the meter. Push
it in firmly until it will go no

further.

ATTENTION:
Test results might be wrong if the contact bar
is not fully inserted into the test slot.

The front side of the
test strip should face
up when inserting
the test strip.

Front Back

1

4

3

2

12

Speaking Function

FORA V30a “speaks” aloud step by step instructions to guide you
through the process of blood glucose testing. The following table tells
you when and what the meter “speaks”.

WHEN does the meter say? WHAT does the meter say?

When turning on the meter

Thank you for using this product.
Please relax during measure­ment.

When room temperature is out­side operating range, which is
50ºF to 104ºF (10ºC to 40ºC).

Room temperature out of range,
unable to measure.

After inserting test strip.

Please apply blood onto the test
strip.

When the meter is ready to test.
(Symbol appears on display)

When

the test is completed.

(Result appears on display)

The blood glucose is (number)
milligrams per decilitre.

When the test result is outside
measurement range, which is
20 to 600 mg/dL (1.1 to 33.3
mmol/L).

The blood glucose is out of
range, unable to measure.

13

Setting the Meter

Before using your meter for the first time or if you change the meter
battery, you should check and update these settings. Make sure you
complete the steps below and have your desired settings saved.

► Entering the Setting Mode.

Start with the meter off (no test strip
inserted). Press SET to turn on the meter.

Step 1

Setting the date.

With the year flashing, press

until the

correct year appears. Press SET.

With the month flashing, press

until the

correct month appears. Press SET.

14

With the day flashing, press

until

the correct day appears. Press SET.

Step 2

Setting the time format.

Press and release

to select the
desired time format --- 12h or 24h.
Press SET.

Step 3

Setting the time.

With the hour flashing, press

until

the correct hour appears. Press SET.

With the minute flashing, press

until

the correct minute appears. Press SET.

15

Step 4

Deleting the memory.

With “dEL” and “

” symbol on the display, press

and select “no”

to keep the results in memory then press SET to skip.

To delete all the results, press

and select “YES”.
Then press SET to delete all memory. “OK” is displayed in the meter,
which indicates that all data stored is deleted.

Step 5

Setting the Speaking Volume.

There are seven (7) speaking volume op­tions to choose from. Press

to choose a
volume from 0 to 7. To confirm your selec­tion, press SET.
Volume 0 indicates that the speaking func­tion is turned off, and “

” will not display
during testing. Volume 1 to 7 indicates
speaking volume from low to high, and “
”

will be displayed throughout the testing.

16

Step 7

Setting the reminder alarm.

You may set up any or all of the reminder alarms (1-4). The meter
displays “On” or “OFF” and “

”

, press

to turn on or turn off to

set the first reminder alarm.

Press

to select “On”, then press SET to set the hour. When the

hour is flashing, press

to add an hour. Press SET to confirm and go

to minutes, press

to add one minute. Hold

longer to add faster.

Press SET to confirm and go to the next alarm setting.

Step 6

Choosing a Language.

Press

to select L1/L2.The default language for the meter is L1,

which is English. To confirm your selection, press SET.

If you do not want to set an alarm, press SET to skip this step.

17

If you want to turn off an alarm, find the alarm number by pressing
SET in the setting mode, press

to change from “ON’ to “OFF”.

At the time of your alarm, the meter will beep and automatically turn
on. You can press

to silence the alarm and insert a test strip to

begin testing. If you do not press

, the meter will beep for 2
minutes then switch off. If you do not want to test at this time,
press

to switch off the meter.

Congratulations! You have completed all settings!

NOTE

• These parameters can ONLY be changed in the setting mode.

• If the meter is idle for 3 minutes during the setting mode, it will switch off

automatically.

18

THE FOUR MEASURING MODES

The meter provides you with four modes for measuring, General, AC,
PC and QC.

MODES USE WHEN

any time of day without regard to time since last meal

no food intake for at least 8 hours

2 hours after a meal

testing with the control solution

You can switch between each mode by:

Step 1

Start with the meter switched off.
Insert a test strip to turn on the meter.
The screen will display a flashing blood
drop and “Gen”.

19

Step 2

Press

to switch between General, AC,and PC mode.

Step 3

Press

to switch to QC mode.

NOTE

AC and PC results are NOT included in the general day average results.

20

BEFORE TESTING

Control Solution Testing

FORA Control Solution contains a known amount of glucose that
reacts with test strips and is used to ensure your meter and test strips
are working together correctly.

Do a control solution test when:

• you first receive the meter,

• at least once a week to routinely check the meter and test strips,

• you begin using a new vial of test strips,

• you suspect the meter or test strips are not working properly,

•

your blood glucose test results are not consistent with how you feel,

or if you think the results are not accurate,

• practicing the testing process, or

• you have dropped or think you may have damaged the meter.

21

Performing a Control Solution Test

Step 1

Insert the test strip to turn on the meter.

Insert the test strip into the meter. Wait for the meter to display the
test strip and blood drop symbols.

Step 2

Press

to mark this test as a control solution test.

If you press

again, the “QC” will disappear and this test is no longer

a control solution test.

22

Step 3

Apply control solution.

Shake the control solution vial thoroughly before use. Squeeze out a
drop and wipe it off, then squeeze out another drop and place it on
the tip of the vial cap.

Hold the meter to move the absorbent hole of the test strip to touch
the drop. Once the confirmation window fills completely, the meter will
begin counting down.

To avoid contaminating the control solution do not directly apply
control solu

tion onto a strip.

Step 4

Read and compare the result.

After counting down to 0, the control
solution test result will appear on the
display. Compare this result with the range
printed on the test strip vial and it should
fall within this range. If not, please read the
instructions again and repeat the control
solution test.

23

Out-of-range results.

If you continue to have test results fall outside the range printed on
the test strip vial, the meter and strips may not be working properly.
Do NOT test your blood. Contact the local customer service or place of
purchase for help.

NOTE

• The control solution range printed on the test strip vial is for control

solution use only. It is not a recommended range for your blood glucose

level.

• See the Maintenance section for important information about your

control solutions.

24

TESTING WITH BLOOD SAMPLE

Overview of the Lancing Device

If your lancing device differs from the one shown here, please refer to
the manufacturer’s manual to ensure proper usage.

NOTE

To reduce the chance of infection:

• Never share a lancet or the lancing device.

• Always use a new, sterile lancet. Lancets are for single use only.

• Avoid getting hand lotion, oils, dirt, or debris in or on the lancets and the

lancing device.

12

3 4

5 76

8

9

Cap
Adjustable Tip
Depth Indicator
Arrow

1

4

3

2

Lancet Holder
Ejector
Release Button
Cocking Control

5

7

6

8

A Clear Cap

9

25

Setting up the Lancing Device

Step 1

Pull off the cap of the lancing device.

Step 2

Insert a lancet into the lancet holder and
push down firmly until it is fully secured.

Step 3

Twist the protective disk off the lancet.

Step 4

Replace the cap by aligning the arrow on
the cap with the release button.

Step 5

Select the depth of penetration by turning
the adjustable tip in either direction so that
the arrow on the cap points to the desired
depth.

26

The lancing device is now ready for use. Set aside for later use.

Step 6

Pull the cocking control back until it clicks.
You will see a color change inside the
release button when it is ready.

If it does not click, the device may have
been cocked when the lancet was inserted.

27

Preparing the Puncture Site

Stimulating blood perfusion by rubbing the puncture site before blood
extraction has a significant influence on the glucose value obtained.
Blood from a site that has not been rubbed exhibits a measurably
different glucose concentration than blood from the finger. When the
puncture site was rubbed prior to blood extraction, the difference was
significantly reduced.

Please follow the suggestions below before obtaining a drop of
blood:

• Wash a

nd dry your hands before starting.

• Select the puncture site either at fingertips or another body parts
(please see section “Alternative Site Testing” (AST) on how to select
the appropriate sites).

• Clean the puncture site using cotton moistened with 70% alcohol
and let it air dry.

• Rub the puncture site for about 20 seconds before penetration.

• Use a clear cap (included in the kit) while setting

up the lancing

device.

28

► Fingertip Testing

Press the lancing device’s tip firmly
against the lower side of your fingertip.
Press the release button to prick your
finger, then a click indicates that the
puncture is complete.

► Blood from Sites Other Than the Fingertip

Replace the lancing device cap with the clear
cap for AST. Pull the cocking control
back until it clicks. When lancing the
forearm, upper arm, hand, thigh, or
calf, avoid lancing the areas with
obvious veins because of ex

cessive

bleeding.

NOTE

• Choose a different spot each time you test. Repeated punctures at the

same spot may cause soreness and calluses.

• Please consult your health care professional before you begin AST.

• It is recommended to discard the first drop of blood as it might contain

tissue fluid, which may affect the test result.

29

Alternative Site Testing

Important: There are limitations with AST (Alternative Site Testing).

Please consult your health care professional before you perform

AST.

What is AST?

Alternative site testing (AST) means that
people use parts of the body other than
the fingertips to check their blood glucose
levels. This system allows you to test on
the palm, the forearm, the upper arm, the
calf or the thigh with results equivalent to
fingertip testing.

What is the advantage?

Fingertips feel pain more readily because
they are full of nerve endings (receptors).
At other body

sites, since nerve endings
are not so condensed, you will not feel as
much pain as on the fingertips.

When to use AST?

Food, medication, illness, stress and exercise can affect blood glucose
levels. Capillary blood at the fingertip reflects these changes faster
than capillary blood at other sites. Thus, when testing blood glucose
during or immediately after a meal, physical exercise, or any other
event, take a blood sample from your nger only.

30

We strongly recommend that you perform AST ONLY at the following
times:

• In a pre-meal or fasting state (more than 2 hours since the last
meal).

• Two hours or more after taking insulin.

• Two hours or more after exercise.

Do NOT use AST if:

• You think your blood glucose is low.

• You often do not notice when your blood glucose is low.

• You think your blood glucose is high.

• Your AST results do not m

atch the way you feel.

• Your routine glucose results are often fluctuate.

31

Performing a Blood Glucose Test

Step 1

Insert the test strip to turn on the meter.

Wait for the meter to display the test strip “

” and blood drop “ ”

symbol.

Step 2

Select the appropriate measuring mode by pressing

.

For selecting the measuring mode, please refer to the “FOUR
MEASURING MODES” section on page 18.

Step 3

Obtaining a blood sample.

Use the pre-set lancing device to puncture the
desired site. After penetration, discard the first drop
of blood with a clean cotton swab. Gently squeeze
the punctured area to obtain another drop of blood.
Be careful NOT to smear the blood sample.

The volume of blood sample must be at least 0.5
microli

ter (μL) of volume. ( actual size).

32

Step 4

Apply the sample.

Hold the blood drop to touch the absorbent hole of the test strip.
Blood will be drawn in and after the confirmation window is
completely filled, the meter begins counting down.

NOTE

• Do not press the punctured site against the test strip or try to smear the

blood.

• If you do not apply a blood sample to the test strip within 3 minutes, the

meter will automatically turn off. You must remove and reinsert the test

strip to start a new test.

• The confirmation window should be filled with blood before the meter

begins to count down. NEVER try to add more blood to the test strip

after

the drop of blood has moved away. Discard the used test strip and retest

with a new one.

• If you have trouble filling the confirmation window, please contact your

health care professional or the local customer service for assistance.

33

Step 5

Read your result.

The result of your blood glucose test will appear af­ter the meter counts down to 0. This blood glucose
result will automatically be stored in the memory.

Step 6

Eject the used test strip and remove the lancet.

To eject the test strip, point the strip at a disposal
container for sharp items. The meter will switch
itself off automatically after the test strip is ejected.

Step 7

Always follow the instructions in the lancing device insert when

removing the lancet.

WARNING!

The used lancet and test strip may be biohazards. Please discard them

carefully according to the recommendations of your healthcare provider.

34

METER MEMORY

The meter stores the 450 most recent blood glucose test results along
with respective dates and times in its memory. To enter the meter
memory, start with the meter switched off.

Reviewing Test Results

Step 1

Press

.

“

”will appear on the display. Press

again, and the first reading
you see is the last blood glucose result along with date, time and the
measuring mode.

Step 2

Press

to recall the test
results stored in the meter
each time you press.

35

Step 3

Exit the meter memory.

After the last test results, press

again and the meter will be turned

off.

36

Reviewing Blood Glucose Day Average Results

Step 1

Press

.

When “

” appears on the display, keep pressing

for 3 seconds

until the flashing

“

”

appears. Release

and then your 7-day

average result measured in general mode will appear on the display.

Step 2

Press

to review 14-, 21-, 28-, 60- and 90- day average results

stored in each measuring mode in the order of Gen, AC, then PC.

37

38

Step 3

Exit the meter memory.

Keep pressing

and the meter will turn off after displaying the last

test result.

NOTE

• Any time you wish to exit the memory, keep pressing

for 5 seconds or

leave it without any action for 3 minutes. The meter will switch off

automatically.

• Control solution results are NOT included in the day average.

• If using the meter for the first time, “---” displays when you recall the test

results or review the average result. It indicates that there is no test result

in the memory.

• AC and PC results are NOT included in the general day

average results.

39

Step 1

Obtaining the required cable and installing the software.

To download the Health Care Software System, please visit the
Fora Care Inc, website at www.foracare.com/usa.

Step 2

Connecting to a personal computer.

Connect the cable to a serial port on your computer. With the meter
switched off, connect the other end of the interface cable to the me­ter data port. “PC” will appear on the meter display, indicating that the
meter is in communication mode.

Downloading Results onto a Computer

You can use the meter with an interface cable and the Health Care
Software System to view your test results on your personal computer.
To learn more about the Health Care Software System or to obtain an
interface cable separately, please contact local customer services or
the place of purchase for assistance.

40

Step 3

Data transmission.

To transmit data, follow the instructions provided with the software.
Results will be transmitted with date and time. Remove the cable and
the meter will automatically switch off.

WARNING!

While the meter is connecting to the PC, it will be unable to perform a blood

glucose test.

41

MAINTENANCE

Battery

Your meter comes with two 1.5V AAA size alkaline batteries.

► Low Battery Signal

The “

” symbol appears along with

display messages: The meter is functional
and the result remains accurate, but it is
time to change the battery.

The “

” symbol appears with E-b,

Error and low:

The power is not enough to do a test.
Please change the battery immediately.

42

► Replacing the Battery
To replace the battery, make sure that the meter is turned off.

Step 1

Press the edge of the battery cover and lift it up to remove.

Step 2

Remove the old batteries and replace with two 1.5V AAA alkaline
batteries.

Step 3

Close the battery cover. If the batteries are inserted correctly, you will
hear a “beep” afterwards.

NOTE

• Replacing the batteries does not affect the test results stored in the

memory.

• As with all small batteries, these batteries should be kept away from small

children. If swallowed, promptly seek medical assistance.

• Batteries might leak chemicals if unused for a long time. Remove the

batteries if you are not going to use the device for an extended period (i.e.,

3 months or more).

• Proper

ly dispose of the battery according to your local environmental

regulations.

43

Caring for Your Meter

To avoid the meter and test strips attracting dirt, dust or other
contaminants, please wash and dry your hands thoroughly before use.

► Cleaning

• To clean the meter exterior, wipe it with a cloth moistened with tap
water or a mild cleaning agent, then dry the device with a soft and
dry cloth. Do NOT rinse with water.

• Do NOT use organic solvents to clean the meter.

► Meter Storage

• Storage condition

s: -4°F to 140°F (-20°C to 60°C), below 95%

relative humidity.

• Always store or transport the meter in its original storage case.

• Avoid dropping and heavy impact.

• Avoid direct sunlight and high humidity.

44

Caring for Your Test Strips

• Storage conditions: 39.2°F to 104°F (4°C to 40°C), below 85%
relative humidity. Do NOT freeze.

• Store your test strips in their original vial only. Do not transfer to
another container.

• Store test strip packages in a cool and dry place. Keep away from
direct sunlight and heat.

• After removing a test strip from the vial, immediately close the vial
cap tightly.

• Touch the test strip with clean and dry hands.

• Use each test strip immediately after removing it from the vial.

• Write the opening date on the vial label when you first opened it.

Discard remaining test strips after 3 months.

• Do not use test strips beyond the expiry date. This may cause
inaccurate results.

• Do not bend, cut, or alter a test strip in any way.

• Keep the strip vial away from

children since the cap and the test
strip may be a choking hazard. If swallowed, promptly see a doctor
for help.

For further information, please refer to the test strip package insert.

45

Important Control Solution Information

• Use only FORA control solutions with your meter.

• Do not use the control solution beyond the expiry date or 3

months after first opening. Write the opening date on the control
solution vial and discard the remaining solution after 3 months.

• It is recommended that the control solution test be done at
room temperature (68°F to 77°F / 20°C to 25°C). Ma

ke sure your
control solution, meter, and test strips are at this specified
temperature range before testing.

• Shake the vial before use, discard the first drop of control solution,
and wipe off the dispenser tip to ensure a pure sample and an
accurate result.

• Store the control solution tightly closed at temperatures between

35.6°F and 86°F (2°C and 30°C). Do NOT freeze.

46

SYSTEM TROUBLESHOOTING

If you follow the recommended action but the problem persists, or
error messages other than the ones below appear, please call your
local customer service. Do not attempt to repair by yourself and never
try to disassemble the meter under any circumstances.

Result Readings

APPEARS WHEN GLUCOSE

< 20 mg/dL (1.1mmol/L)

> 600 mg/dL (33.3mmol/L)

≥ 240 mg/dL (13.3 mmol/L)

47

Error Messages

MESSAGE WHAT IT

MEANS

WHAT DOES

METER SAY?

WHAT TO DO

Appears when
the
batteries cannot
provide enough
power for a test.

Battery is dead.
Please replace.

Replace the bat­teries immedi­ately.

Remove the
strip after apply­ing blood to the
absorbent hole.

Test strip has
been removed
during testing.

Appears when a
used test strip
is inserted.

The test strip
has been used.
Please replace.

Re-test with a
new test strip.

Repeat with a
new test strip.

Appears when
ambient
temperature is
below system
operation range.

System op­eration range is
50°F to 104°F
(10°C to 40°C).
Repeat the test
after the
meter and test
strip are in the
above tempera­ture range.

Room tem­perature is
out of range.
Thus unable to
measure.

Appears when
ambient
temperature is
above system
operation range.

48

Problem with
the meter.

Repeat the test
with a new test
strip. If the me­ter still does not
work, please
contact the
customer
service for as­sistance.

System error.

MESSAGE WHAT IT

MEANS

WHAT TO DOWHAT DOES

METER SAY?

49

Troubleshooting

1. If the meter does not display a message after inserting a test strip:

POSSIBLE CAUSE WHAT TO DO

Replace the batteries.

Insert the test strip with contact
bars end first and facing up.

Please contact customer
services.

Batteries exhausted.

Test strip inserted upside down
or incompletely.

Defective meter or test strips.

2. If the test does not start after applying the sample:

POSSIBLE CAUSE WHAT TO DO

Repeat the test using a new test
strip with larger volume of blood
sample.

Repeat the test with a new test
strip.

Repeat the test with a new test
strip. Apply sample only when
flashing “

” appears on the

display.

Please contact customer
services.

Insufficient blood sample.

Defective test strip.

Sample applied after automatic
switch-off (2 minutes after last
user action).

Defective meter.

50

3. If the control solution testing result is out of range:

POSSIBLE CAUSE WHAT TO DO

Read instructions thoroughly
and repeat the test again.

Shake the control solution
vigorously and repeat the test
again.

Check the expiry date of the
control solution.

Control solution, meter, and test
strips should be at room
temperature (68°F to 77°F /
20°C to 25°C) before testing.

Repeat the test with a new test
strip.

Please contact customer
services.

Error in performing the test.

Control solution vial was poorly
shaken.

Expired or contaminated control
solution.

Control solution that is too
warm or too cold.

Defective test strip.

Meter malfunction.

51

DETAILED INFORMATION

Reference Values

Blood glucose monitoring plays an important role in diabetes control.
A long-term study showed that maintaining blood glucose levels
close to normal can reduce the risk of diabetes complications by up
to 60%

*1

. The results provided by this system can help you and your
healthcare professional monitor and adjust your treatment plan to
gain better control of your diabetes.

Source: American Diabetes Association (2008). Clinical Practice

Recommendations. Diabetes Care, 31 (Supplement 1): S1-108.

Please consult your doctor to determine a target range that works

best for you.

References:

*1: American Diabetes Association position statement on the Diabetes Control

and Complications Trial (1993).

Time of day Normal plasma glucose range for people

without diabetes (mg/dL)

< 100 mg/dL (5.6 mmol/L)

< 140 mg/dL (7.8 mmol/L)

Fasting and before meal

2 hours after meals

52

Comparing Meter and Laboratory Results

The meter provides you with plasma equivalent results. The result
you obtain from your meter may differ somewhat from your laboratory
result due to normal variation. Meter results may be affected by
factors and conditions that do not affect laboratory results in the
same way. To make an accurate comparison between meter and
laboratory results, follow the guide

lines below

Before going to the lab:

• Perform a control solution test to make sure that the meter is
working properly.

• Fast for at least eight hours before doing comparison tests,
if possible.

• Take your meter with you to the lab.

While staying at the lab:

Make sure that the samples for both tests are taken and tested within
15 minutes of each other.

• Wash your hands before obtaining a blood sample.

• Never use your meter with blood that ha

s been collected in a

gray-top test tube.

• Use fresh capillary blood only.

53

You may still have a variation from the result because blood glucose
levels can change significantly over short periods of time, especially if
you have recently eaten, exercised, taken medication or experienced
stress

*2

. In addition, if you have eaten recently, the blood glucose level
from a finger prick can be up to 70 mg/dL (3.9 mmol/L) higher than
blood drawn from a vein (venous sample) used for

a lab test*3.
Therefore, it is best to fast for eight hours before doing comparison
tests. Factors such as the amount of red blood cells in the blood (a
high or low hematocrit) or the loss of body fluid (dehydration) may also
cause a meter result to be different from a laboratory result.

References:

*2: Surwit, R.S., and Feinglos, M.N.: Diabetes Forecast (1988), April, 49-51.

*3: Sacks, D.B.: “Carbohydrates. “ Burtis, C.A., and Ashwood, E.R.( ed.), Tietz

Textbook of Clinical Chemistry. Philadelphia: W.B. Saunders Company (1994),

959.

54

SPECIFICATIONS

Model No.: TD-4242

Dimension & Weight: 96(L) x 50(W) x 23(H) mm, 76.15g

Power Source: two 1.5V size AAA alkaline batteries

Display: LCD

Memory: 450 measurement results with respective date and time

External Output: RS232 PC interface

Auto electrode insertion detection
Auto sample loading detection
Auto reaction time count-down
Auto switch-off after 3 minutes without action
Temperature Warning

Operating Conditions:
50°F to 104°F (10°C to 40°C), below 85% R.H. (non-condensing)

Storage / Transportation Condition:

-4°F to 14

0°F (-20°C to 60°C), below 95% R.H.

Measurement Units: mg/dL

Measurement Range: 20 to 600mg/dL (1.1 to 33.3mmol/L)

This device has been tested to meet the electrical and safety
requirements of: IEC/EN 61010-1, IEC/EN 61010-2-101, IEC/EN
61326-1, IEC/EN 61326-2-6

55

56
