FOR-A MV-40F Specifications

4ch Multi Viewer

MV-40F

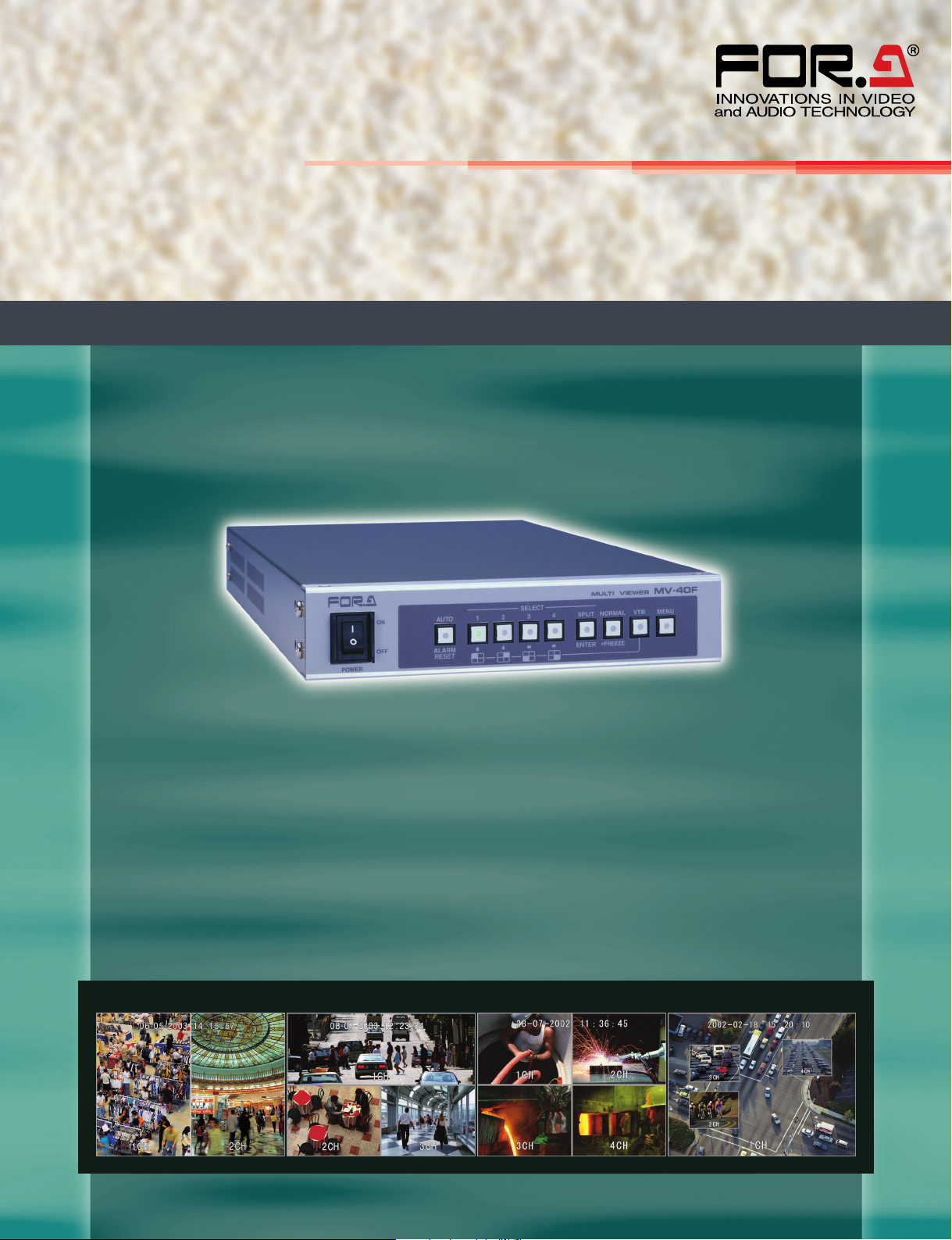

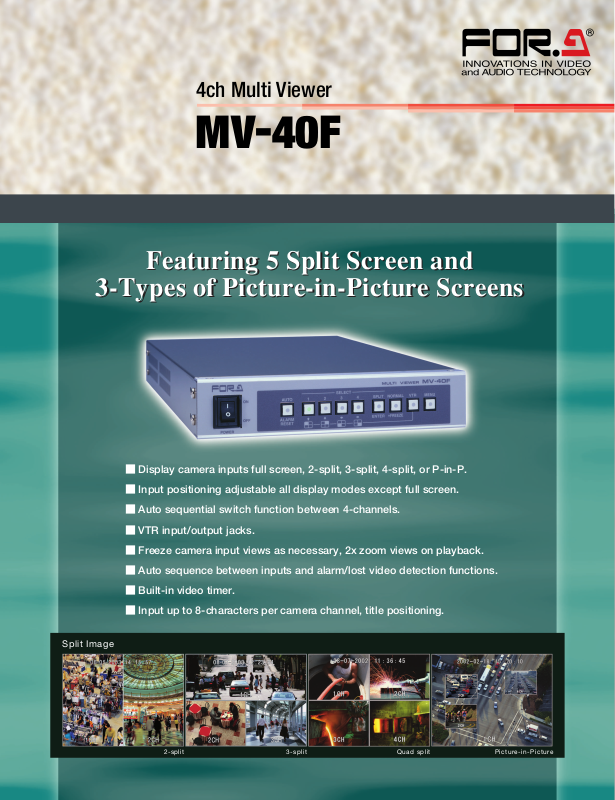

Featuring 5 Split Screen and

Featuring 5 Split Screen and

3-Types of Picture-in-Picture Screens

3-Types of Picture-in-Picture Screens

Split Image

■ Display camera inputs full screen, 2-split, 3-split, 4-split, or P-in-P.

■ Input positioning adjustable all display modes except full screen.

■ Auto sequential switch function between 4-channels.

■ VTR input/output jacks.

■ Freeze camera input views as necessary, 2x zoom views on playback.

■ Auto sequence between inputs and alarm/lost video detection functions.

■ Built-in video timer.

■ Input up to 8-characters per camera channel, title positioning.

2-split 3-split Quad split Picture-in-Picture

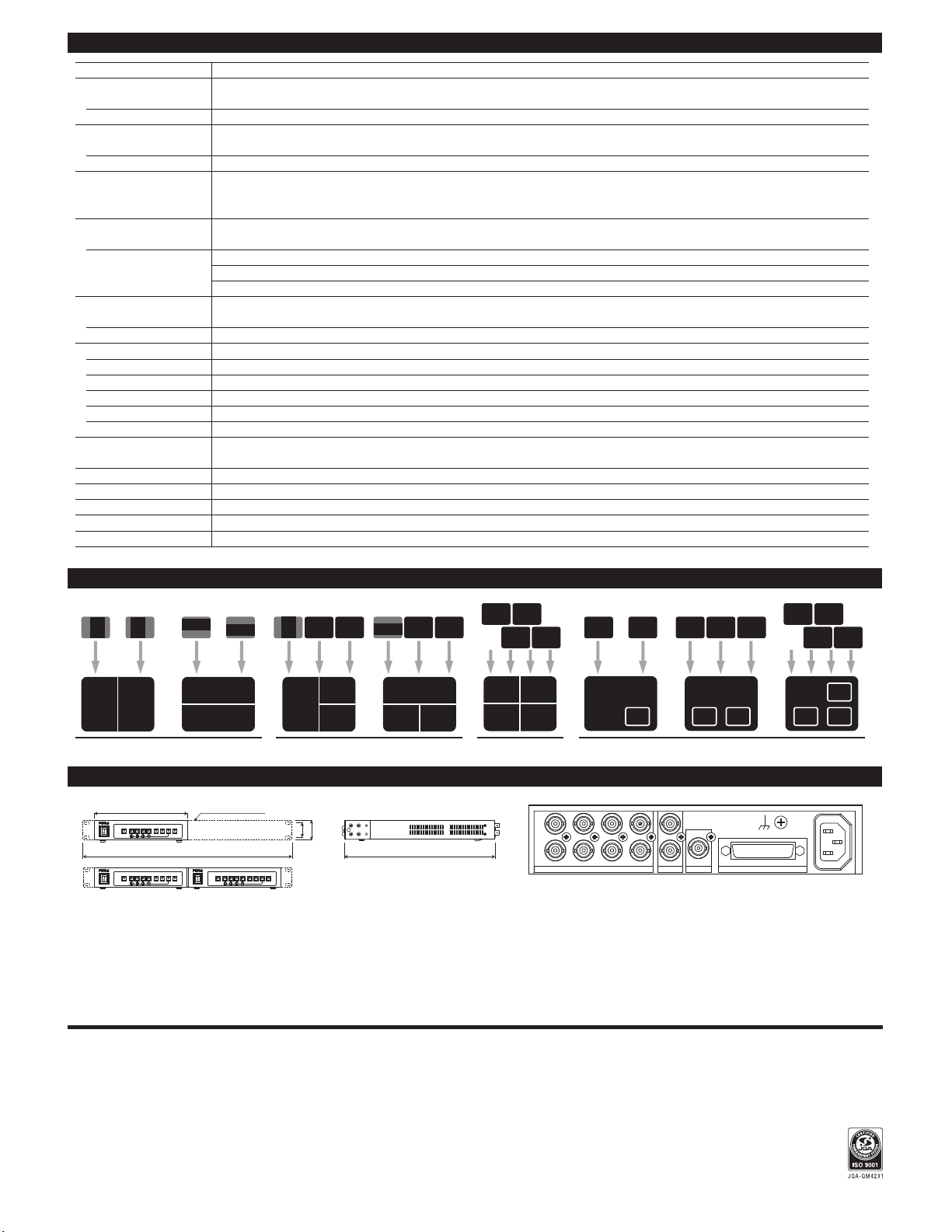

Specications

Standard NTSC or PAL (Factory setup)
Video Input
Monitor Input Analog composite: 1.0Vp-p, 75Ω or loopthrough (automatic terminal), 4ea., BNC (color or B/W) (asynchronous acceptable)
VTR Input Analog composite: 1.0Vp-p, 75Ω, 1ea., BNC
Video Output
Monitor Output
VTR Output Analog composite: 1.0Vp-p
Display Modes Full, Quad, P-in-P 1-3 (1 full screen and between 1-3 insert screens), 2-split and 3-split vertical, 2-split and 3-split horizontal
(VTR playback allows Quad
view of 2-split or 3-split can be user adjusted.)
Character Display
Camera Title Alphabet, numbers, symbols, 8 characters / 1 line max, positionable.
Date / Time MM-DD-YYYY, H:M:S (24 hour indication) for NTSC,
DD-MM-YYYY, H:M:S for PAL as factory default.
Date format YYYY-MM-DD can also be selected.
Special Display
Alarm display Automatically changes to alarm screen, "ALARM" text display
Screen freeze Each channel can be frozen
Interfaces Remote/alarm input/output connector, 25-pin D-sub (female)
Remote TTL negative logic pulse (more than 100ms width)
Time Adjust TTL negative logic pulse (more than 100ms width), minute signal
Alarm Input TTL negative logic pulse (more than 100ms width) or level
Alarm Output Make break contact, max. 24VDC 100mA
RS-232C Asynchronous, half duplex, 9600 bps transmission speed, 8-bit data length, 1-bit stop bit, and no parity
Storage System
5 years after the power is shut down for Setting Data (when using a lithium battery)
Temperature / Humidity 0ºC - 40ºC / 30% - 90% (no condensation)
Power / Consumption 100VAC - 240VAC ±10%, 50/60Hz / Approx. 16VA (10W) at 100VAC, Approx. 22VA (12W) at 220VAC
Dimensions / Weight 215 (W) x 44 (H) x 350 (D) mm / Approx. 1.9 kg
Accessories Operation manual / AC cord
Options Single mount or dual mount rack brackets

Analog composite: 1.0Vp-p ±0.1V, 75Ω, 1ea., BNC (Full screen view or split screen view)

±0.1V

, 75Ω, 1ea., BNC

screens to be Individually zoomed, P-in-P screens can be user positioned and

Menu setting details and time for timer are backed up, maintained for approximately

half size screen

Split Pattern

1 2 32 321 2 1 21 321

1

1 2

2

1

2

1

1

3

2 3

2-split 3-split Quad-split Picture-in-Picture

21

3 4

1 2

3 4

1

2

External Dimensions

212

Dual Mount

Extender Bracket

480

IN

44

32

350

1 2 3 4

OUT

VIDEO IN (75Ω AUTO TERM)

REC OUT

PB IN

1 2

3 4

1

2

3

OUT

REMOTE/ALARMMONITORVTR

4

1

2

3

AC100 - 240V~50/60Hz IN
