Page 1
HD/SD Portable Digital Video Switcher
HVS-600HS "1M/E HANABI Portable"
HD/SD Portable Digital Video Switcher
HVS-600HS
"1M/E HANABI Portable"
Page 2
A Low Cost,
High Performance,
Custom-Built Switcher with DVE
This HVS-600HS is developed to further expand on the functions of the HVS-500HS for
responding to customers who asked for more advanced features. It is custom-built to fit
the customer's exact needs. No more extra cost for functions you'll never use and no more
wasted I/O's. Take advantage of FOR-A's proven broadcast technology in a low-cost,
fully-customizable, and portable One Box System.
Page 3

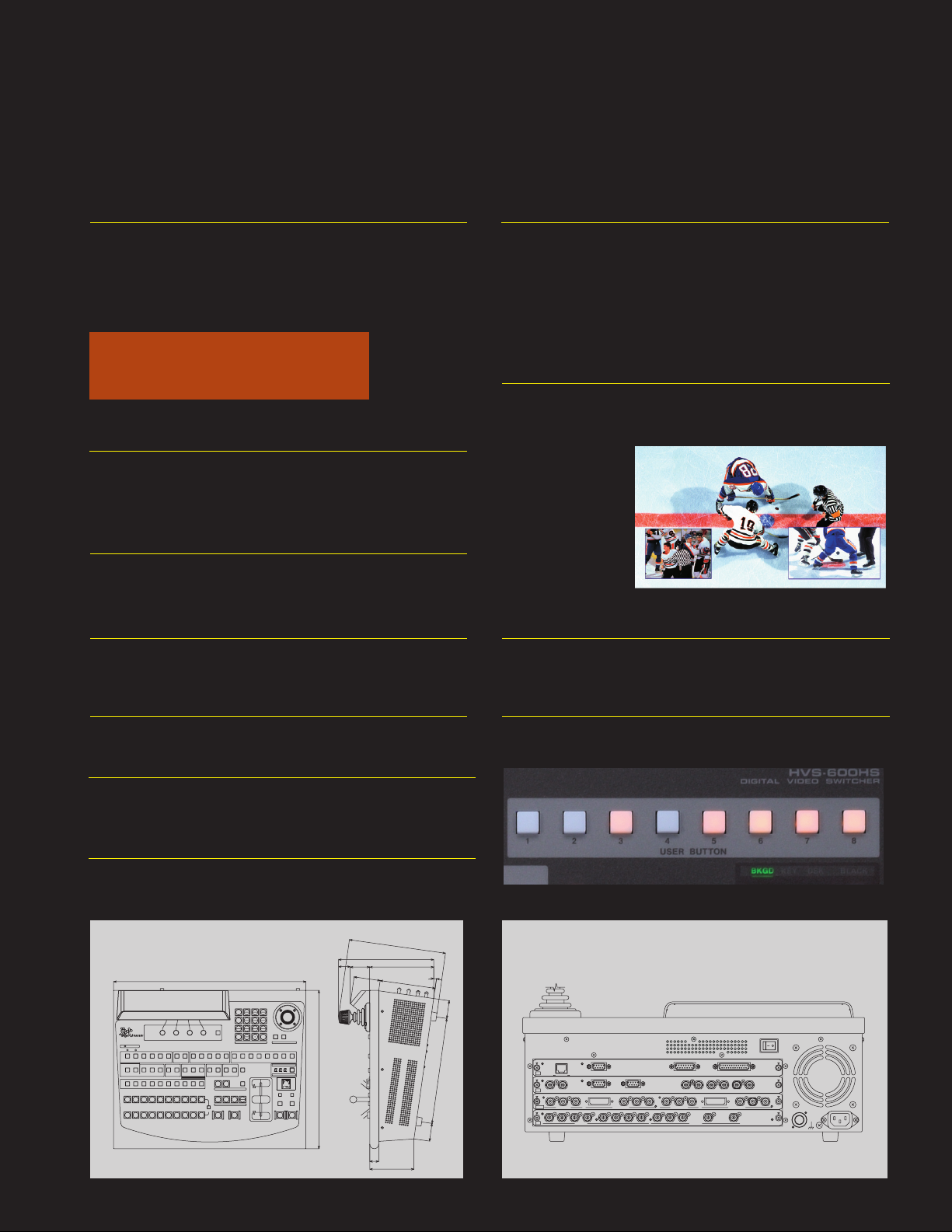

Simple & Compact, but Powerful
The HVS-600HS is an HD/SD-compatible, yet portable switcher that combines the easy operation and powerful features that
FOR-A's HANABI series is famous for. The compact case houses a wide array of functions to give you unrivaled mobility.
Selectable Inputs and Outputs
Both digital and analog input and output boards are available for users to
freely create their own combinations to match their needs. 10 different con-
figurations with several hundred variations of signal I/O formats are possi-
ble. The HVS-600HS enables you to find the optimal I/O configuration for
your particular operating environment.
Maximum I/O configuration
HD/SD-SDI: 8 inputs and 5 outputs
Analog Signal: 4 inputs or 2 inputs and 3 outputs
*See the table (Slot Configuration) in the next page for more details.
One Box System
The HVS-600HS uses an integrated main unit and operation unit to provide
HANABI's trademark compact body and enhanced mobility design for ena-
bling superior portability and usage in any possible operating environment.
Two Still Stores
The basic input provides two still stores. USB memory is supported for im-
porting images created on a workstation or exporting still stores.
DSK with Chroma Key Function
The HVS-600HS includes one DSK channel with a chroma key function as
standard features.
HD/SD Switchable
HVS-600HS is switchable between HD or SD formats by simply reinitializ-
ing the mode setup. It supports various HD formats such as 1080/60i and
720/60p and SD formats.
Supported formats;
HD formats:
1080/60i, 59.94i, 50i, 24p, 23.98psf, 720/60p, 59.94p, 50p.
SD formats: 525/60, 625/50, NTSC, PAL.
Picture-in-Picture Function
A dedicated picture-in-picture function is provided with the basic configura-
tion. This enables the building of composites with up to two reduced-size
screens without using DVEs.
Picture-in-Pincture Sample
Wide Array of Effects
In addition to the regular MIX transitions, NAM, FAM, and WIPE transi-
tions are available. The HVS-600HS has 100 different preset wipe patterns.
Freely-Assignable DSK
DSK can be assigned to either PGM, AUX 1, 2, or 3.
Event Memory / User Buttons
The HVS-600HS includes an event memory that can store the data for up to
100 events and setting conditions. It can be assigned 8 user buttons.
Process Control
Both input and offset levels can be independently adjusted, enabling easy col-
or correction and color matching on-site when using multiple cameras.
Gradation Matte
A vertical, horizontal, or diagonal gradation matte can be installed for assign-
ing to backgrounds, wipe borders, and keyer mattes.
External Dimensions Rear Panel (Full option)
430
789
456
123
0
HVS-600HS
8
1039176542
10987654312
26
354
(216)
212
14343
8
º
40
237
40
20
99
CPU
GL
AI/AO
I/O
EDITOR GPI IN GPI/TALLY OUT
RS-422 ALARM TRI SYNC IN BB IN REF OUT
ARCNET
ANALOG IN 9
1234 PGM 1PGM 2 AUX 1 AUX 2 AUX 3
SDI INPUT
ANALOG IN 10
5678
ANALOG OUT 1
SDI OUTPUT
ANALOG OUT 2
POWER
ON OFF
21
R-YB-YDVI-I COMP/YB-YCOMP/YR-YR-YCOMP/Y B-YR-Y DVI-ICOMP/Y B-Y
AC100-240V 50/60Hz IN
DC24V IN
Page 4

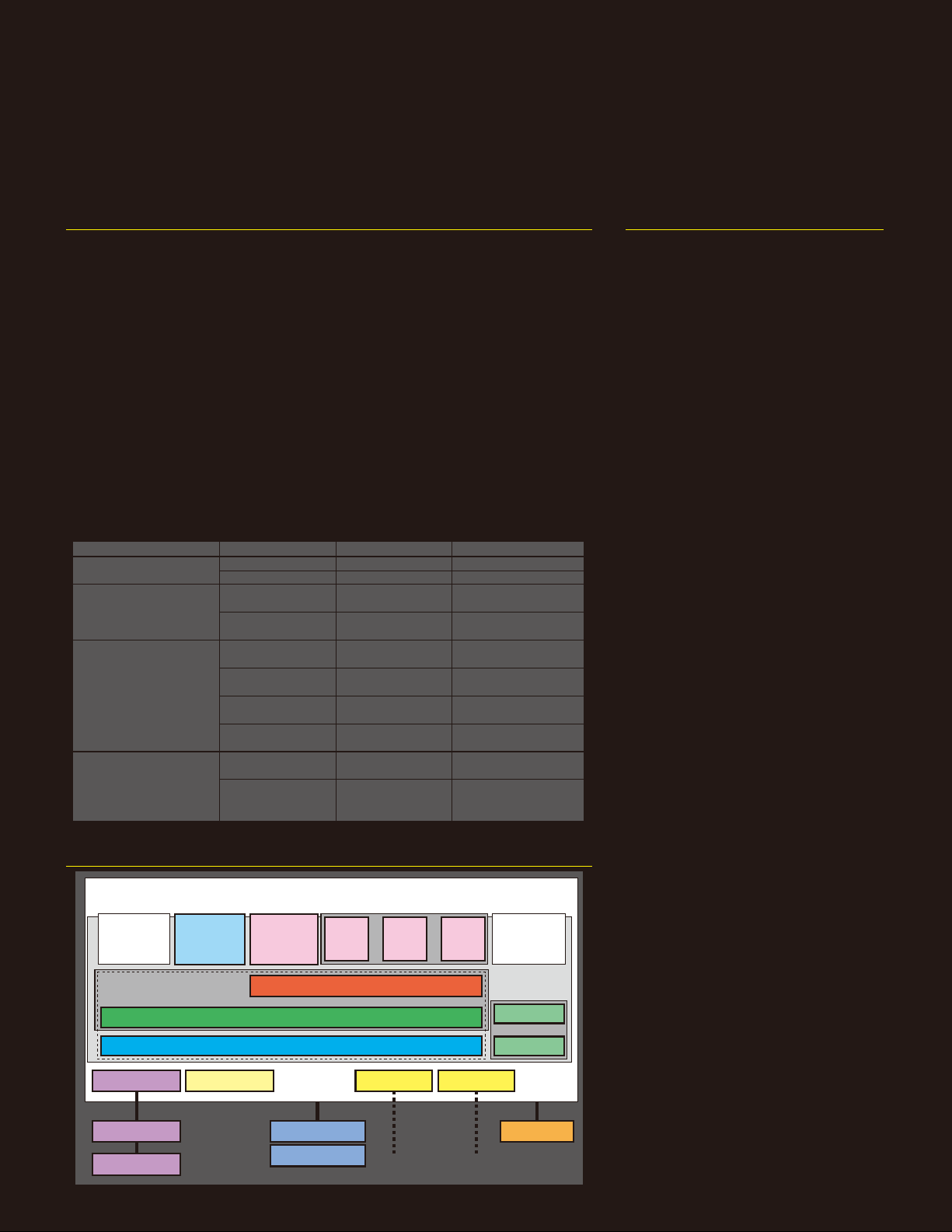

Fully-customizable Configuration
With the HVS-600HS, you can go beyond the standard configuration with customized inputs and outputs and a diverse array of other
available options. Since you only add the required functions to match your operating environment or system, you can use different func-
tion combinations to transform the HVS-600HS into a switcher with performance optimized for your application.
Selectable Inputs and Outputs
HVS-60HSDI: HD/SD-SDI Input Card
Install up to 8 HD/SD-SDI inputs. (4 inputs/card)
Maximum two cards can be installed.
HVS-60HSDO: HD/SD-SDI Output Card
5 HD/SD-SDI outputs. (PGM x 2, AUX x 3)
Maximum one card can be installed.
HVS-60HSAI: HD/SD Analog Input Card
Choose your analog input format from the following card
configurations. Maximum two cards can be installed.
- Component (HD/SD) x 2
- Component (SD) x 1 and Composite (SD) x 1
- DVI-I (RGB)* x 1 and Component (HD/SD) x 1
- DVI-I (RGB)* x 1 and Composite (SD) x 1
- Composite (SD) x 2
HVS-60FS or HVS-60AIF required for analog inputs
*
*
HVS-60FS or HVS-60AIF with HVS-60UC required for DVI inputs
Slot Configuration
Five slots are provided for I/O boards. Each slot supports a specific card configuration for enabling the 10 combinations shown below.
I/O Configuration Input Signal Output Signal Required Option
Digital Input / Digital Output HD/SD-SDI x 4 HD/SD-SDI x 5 Standard
Digital Input / HD/SD-SDI x 4 HD/SD-SDI x 5, HVS-60HSAO (HSAOA) x 1
Digital & Analog Output HD/SD Analog x 3 (2)
Digital & Analog Input / HD/SD-SDI x 4, HD/SD-SDI x 5 HVS-60HSAI x 1*
Digital Output HD/SD Analog x 2
Digital & Analog Input / HD/SD-SDI x 4, HD/SD-SDI x 5, HVS-60HSAI x 1*,
Digital & Analog Output HD/SD Analog x 2 HD/SD Analog x 3 (2) HVS-60HSAO (HSAOA) x 1
*Required HVS-60FS or HVS-60AIF card if installed.
HD/SD-SDI x 8 HD/SD-SDI x 5 HVS-60HSDI x 1
HD/SD-SDI x 8 HD/SD-SDI x 5, HVS-60HSDI x 1,
HD/SD-SDI x 4, HD/SD-SDI x 5 HVS-60HSAI x 2*
HD/SD Analog x 4
HD/SD-SDI x 8, HD/SD-SDI x 5 HVS-60HSDI x 1,
HD/SD Analog x 2 HVS-60HSAI x 1*
HD/SD-SDI x 8, HD/SD-SDI x 5 HVS-60HSDI x 1,
HD/SD Analog x 4 HVS-60HSAI x 2*
HD/SD-SDI x 8, HD/SD-SDI x 5, HVS-60HSDI x 1,
HD/SD Analog x 2 HD/SD Analog x 3 (2) HVS-60HSAI x 1*,
HVS-60HSAO: HD/SD Analog Output Card
Choose your analog output format from the following card
configurations. Maximum one card can be installed.
- Component (HD/SD) x 2 and DVI-I (RGB)* x 1
Component (SD) x 1, Composite (SD) x 1 and DVI-I (RGB)* x 1
-
- Composite (SD) x 2 and DVI-I (RGB)* x 1
HVS-60HSAOA: HD/SD Analog Output Card
Choose your analog output format from the following card
configurations. Maximum one card can be installed.
- Component (HD/SD) x 2
Component (SD) x 1, Composite (SD) x 1
-
- Composite (SD) x 2
*DVI-I (RGB) signal is supported below:
INPUT HD mode: up to SXGA (1280 x 1024 pixel)
SD mode: up to SVGA (800 x 600 pixel)
OUTPUT HD mode: SXGA (1280 x 1024 pixel)
SD mode: VGA (640 x 480 pixel)
HD/SD Analog x 3 (2) HVS-60HSAO (HSAOA) x 1
HVS-60HSAO (HSAOA) x 1
Hardware/Software Options
HVS-60DVE2D/3D: DVE Card
One DVE card that enables magnification, reduction, or rotation can be installed. It functions as a one-channel DVE in HD
mode and two-channel DVE in SD mode. 3D DVE option enabling advanced effects supporting Real 3D DVEs using a polygon system are also available.
HVS-60FS: Frame Synchronizer/Still Store Card
The frame synchronizer option provides 4 extra inputs specifically for A/D conversion of analog inputs or mixing SD signals
with HD signals. Also the frame synchronizer card can be used
in still store mode for enabling four additional still stores.
HVS-60AIF: Analog Interface Card
When synchronous analog signals are input, the HVS-60AIF
should be installed instead of the FS card. (The FS card is required when non-synchronous analog signals are input.)
HVS-60UC: Up-Converter Card (2ch)
Two channels of SD signals can be up-converted and processed as HD signals. Analog signals can also be used as HD format.
HVS-60KEYER: Keyer Card
One keyer incorporating a chroma key function can be added.
Of course, our high quality edges and shadow effects can be
applied to the key.
HVS-60ED: Editor Interface Software
This software program is used to support the GVG-100 and
BVS-3000 editing protocols.
HVS-ARCNET: ARCNET Card
This unit is used to connect HANABI peripheral devices such
as HVS-AUX16 AUX control panel.
HVS-60LAN: Ethernet Card
Ethernet interface for connecting to workstations and other devices, and transferring still picture files.
Configurations of Options
HVS-60HSDI
(Standard)
HVS-ARCNET HVS-60EDHVS-60KEYER
HVS-AUXRK
HVS-60HSDI
HVS-60HSAI
HVS-600HS
HVS-
60HSAI
OR
HVS-60FS
HVS-60UC
RS-422 EDITORARCNET Ethernet DC IN
HVS-TALR20/32
HVS-TALOC20/32
HVS-
60HSAO
HVS-60AIF
EDITOR PC
HVS-
OROR
60HSAOA
HVS-60LAN
HVS-60HSDO
(Standard)
HVS-60DVE2D
OR
HVS-60DVE3D
HVS-60PSHVS-AUX16
HVS-60PS: Redundant Power Supply Unit
Redundant power supply unit is available as an option (uses a
separate case and DC input).
HVS-AUX16: AUX Control Panel
A maximum of 4 x AUX switch units can be connected. (Optional HVS-ARCNET is required for connection.)
HVS-AUXRK: AUX Panel Extension Kit
This kit provides an extension for connecting a separate HVSAUX16 panel to the main unit. The maximum extension distance is 5-meters.
HVS-TALR20/32: Tally Relay Unit
This unit is a contact output-type tally relay unit. It contains
20/32 independent output circuits. Free assign available for
each output.
HVS-TALOC20/32: Tally Open Collector Unit
This unit is an open collector-type tally unit. It contains 20/32
independent output circuits. Free assign available for each output.
Page 5

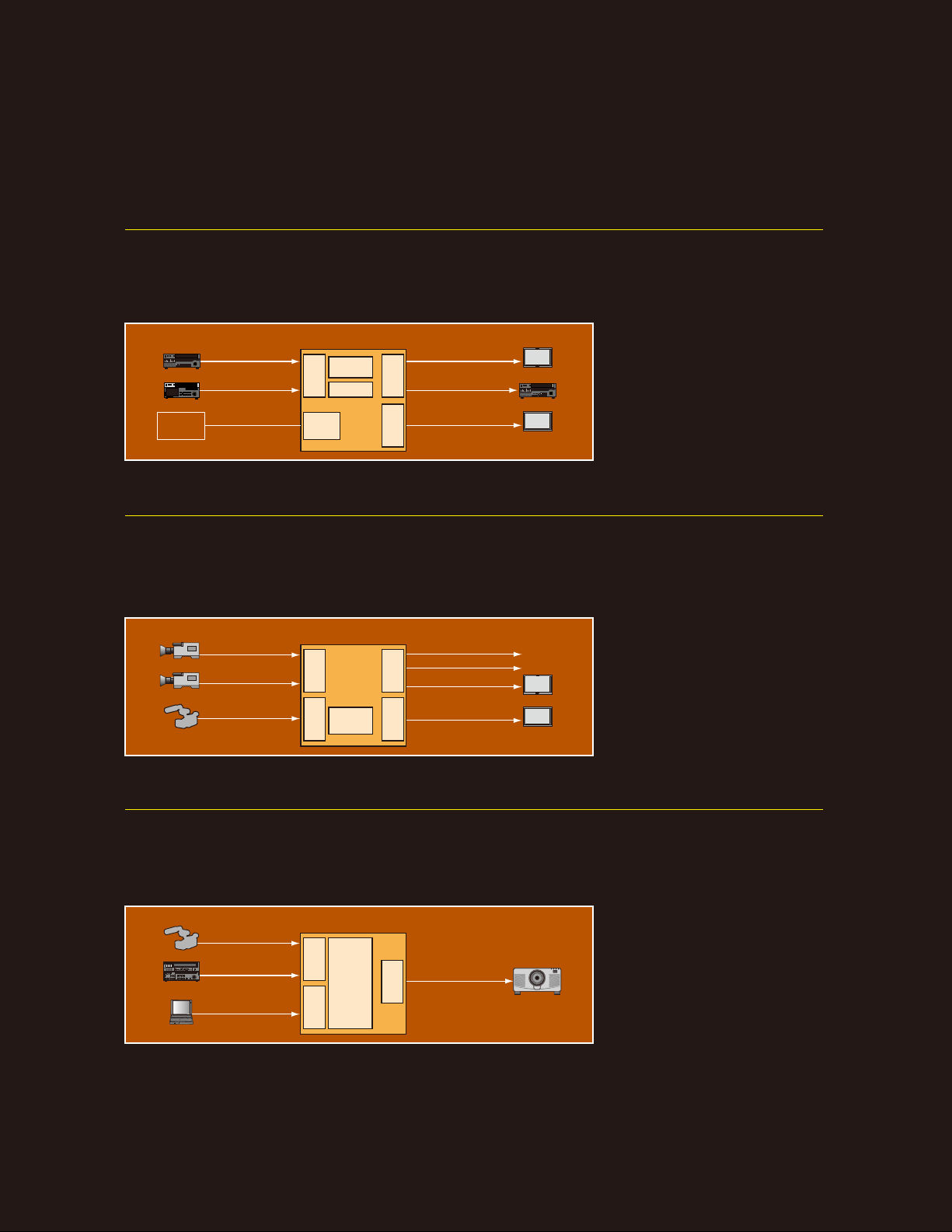

System Configuration Examples
The HVS-600HS can be custom-tailored to fit your specific application.
Here are some examples of ways that the HVS-600HS can be used.
Compact Editing System
The HD/SD-SDI I/O's provides a compact digital video switcher with up to 8 inputs and 5 outputs. If the editor interface is installed, the HVS-600HS can be
fully utilized as an HD compatible compact editing system. When the up-converter feature is installed, SD contents can be used directly in HD editing. An an-
alog output board can also be installed for output to consumer monitors for building a monitoring environment without high-priced monitors.
Required Options for this system
HD VTR
SD VTR
Linear Editor
HD-SDI
SD-SDI
HVS-600HS
Frame
Synchronizer
DI
Up Converter
Editor
Interface
HD-SDI
DO
AO
HD-SDI
HD Analog ComponentRS-422
HD Monitor
HD VTR
Consumer Monitor
- HVS-60HSAO (HSAOA) x 1: Analog Output Card
- HVS-60FS x 1: FS/Still Store Card
- HVS-60UC x 1: Up Converter Card
- HVS-60ED x 1: Editor Interface Card
OB Van
The One-Box design with integrated main unit and operation unit enables installation even in the smallest of spaces. Because I/O's can be selected by the
user, switcher upgrades are possible without wasting the equipment that you already have. By installing the frame synchronizer option direct input of video
from not only asynchronous signal input devices, but also camcorders, STB, tuners, and other devices without external synchronization is possible. Even
when not installed in an OB Van, the HVS-600HS is an ideal switcher for field productions that require mobility.
Required Options for this system
- HVS-60HSAI x 1: Analog Input Card
- HVS-60HSAO (HSAOA) x 1: Analog Output Card
- HVS-60FS x 1: FS/Still Store Card
HD Camera
HD Camera
HDV camcorder
HD-SDI
HD-SDI
HD Analog Component
HVS-600HS
DI
AI
Frame
Synchronizer
DO
AO
HD-SDI
HD-SDI
HD-SDI
HD Analog Component
PGM
PREV
HD Monitor
Consumer Monitor
Large Screen Output at Events
Digital and analog I/O's can be installed to enable user-controlled switching inputs from an HD camera, SD camera, PC video, VCR, and other devices for up
to 12 inputs. The picture-in-picture function also includes two inputs for supporting output to large screens at events or for showing presentations with great-
er impact. When PC output is selected for the analog output, resolutions from VGA to SXGA are supported for using PDP and other large displays or projectors
for showing high-resolution video on a wide variety of display devices.
HD Analog Component
HDV camcorder
SD Analog component
SD Analog VTR
RGB (PC)
PC
HVS-600HS
AI
AI
Frame
Synchronizer
AO
RGB (PC)
This is just a small sample of the wide range of
applications that can be realized with the HVS-600HS.
Use your imagination to custom-tailor its power and
performance for your specific applications.
Projector
Required Options for this system
- HVS-60HSAI x 2: Analog Input Card
- HVS-60HSAO x 1: Analog Output Card
- HVS-60FS x 1: FS/Still Store Card
Page 6

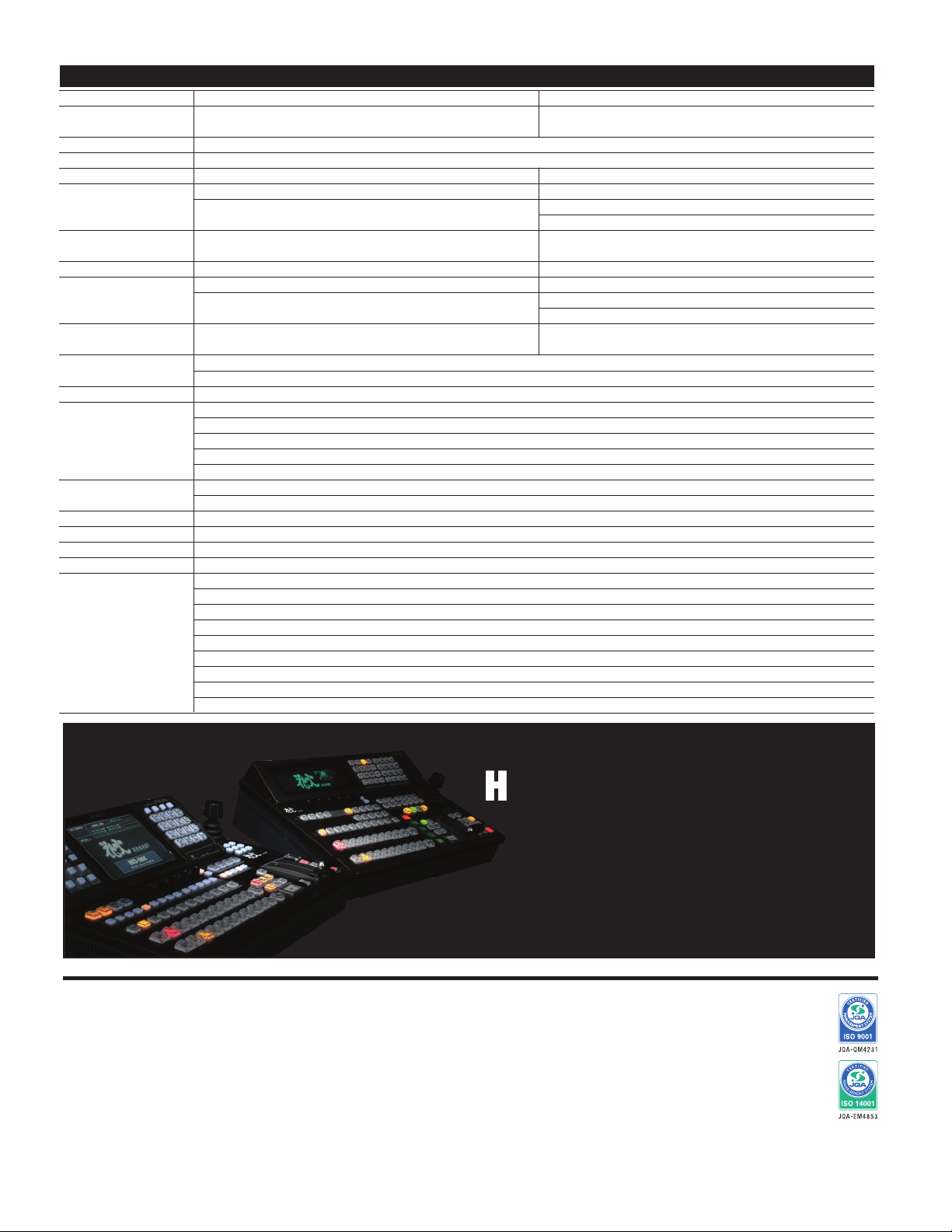

Specifications
HD mode SD mode
Standard 1080/60i, 59.94i, 50i, 24p, 24PsF, 23.98p, 23.98PsF, 525/60 (NTSC), 625/50 (PAL)
720/60p, 59.94p, 50p (selectable at menu) (selectable at menu)
Processing 4:2:2:4, 10-bit, digital component
Quantization Y: 10-bit, C: 10-bit, KEY: 10-bit
Video Input HD-SDI: 1.485Gbps or 1.485/1.001Gbps, 75Ω, 4ea., BNC SD-SDI: 270Mbps, 75Ω, 4ea., BNC
Video Input HD Analog component: Y: 1.0Vp-p, PB/PR: 0.7Vp-p, 75Ω, BNC SD Analog component: Y: 1.0Vp-p, R-Y/B-Y: 0.7Vp-p, 75Ω, BNC
(Option) RGB (up to SXGA resolution): DVI-I connector RGB (up to SVGA resolution): DVI-I connector
Analog composite: 1.0Vp-p, 75Ω, BNC
Reference Input BB: NTSC: 0.429Vp-p/PAL: 0.45Vp-p; or Tri-level sync: ±0.3Vp-p, BB: NTSC: 0.429Vp-p/PAL: 0.45Vp-p
75Ω or loopthrough, 1ea., BNC 75Ω or loopthrough, 1ea., BNC
Video Output HD-SDI: 1.485Gbps or 1.485/1.001Gbps, 75Ω, 5ea., BNC SD-SDI: 270Mbps, 75Ω, 5ea., BNC
Video Output HD Analog component: Y: 1.0Vp-p, PB/PR: 0.7Vp-p, 75Ω, BNC SD Analog component: Y: 1.0Vp-p, R-Y/B-Y: 0.7Vp-p, 75Ω, BNC
(Option) RGB (SXGA resolution): DVI-I connector RGB (SVGA resolution): DVI-I connector
Analog composite: 1.0Vp-p, 75Ω, BNC
Reference Output BB: NTSC: 0.429Vp-p/PAL: 0.45Vp-p; or Tri-level sync: ±0.3Vp-p, BB: NTSC: 0.429Vp-p/PAL: 0.45Vp-p
75Ω or loopthrough, 1ea., BNC 75Ω or loopthrough, 1ea., BNC
I/O Delay 1H
1 frame+1H (Using frame synchronizer option or DVE option)
Backup Device USB memory device
Interface EDITOR: 1 ea., 9-pin D-sub (female)
RS-422: 1 ea., 9-pin D-sub (female)
GPI IN: 1 ea., 15-pin D-sub (female) (10 inputs)
GPI/TALLY OUT: 1 ea., 25-pin D-sub (female) (20 outputs. open collector)
ALARM OUT: 1 ea., 9-pin D-sub (female)
Interface ARCNET: 1 ea., 75Ω or loopthrough, BNC (HVS-ARCNET)
(Option) Ethernet: 10/100Base-T, 1 ea., RJ-45 (HVS-60LAN)
Temperature / Humidity 0ºC - 40ºC / 30% - 90% (no condensation)
Power / Consumption 100VAC - 240VAC, 50/60Hz / 170W (at 100VAC), 270W (at 100VAC, full option)
Dimensions / Weight 430 (W) x 208 (H) x 354 (D) mm / Approx. 13kg
Accessories Operation manual, AC cord
Options HVS-60HSDI: HD/SD-SDI input card HVS-60HSAI: HD/SD Analog input card
HVS-60DVE2D: HD/SD DVE card HVS-60DVE3D: HD/SD Real 3D DVE card
HVS-60HSAO (HSAOA): HD/SD Analog output card HVS-60FS: Frame synchronizer/Still store card
HVS-60AIF: Analog Interface Card HVS-60UC: Up converter card
HVS-60KEYER: Keyer expansion card HVS-60ED: Editor interface software
HVS-ARCNET: ARCNET expansion card HVS-60LAN: Ethernet expansion card
HVS-60PS: Redundant power supply unit HVS-TALOC20/32: Tally open collector unit
HVS-TALR20/32: Tally relay unit HVS-AUX16: AUX control panel (16-button)
HVS-AUXRK: AUX control panel extension kit

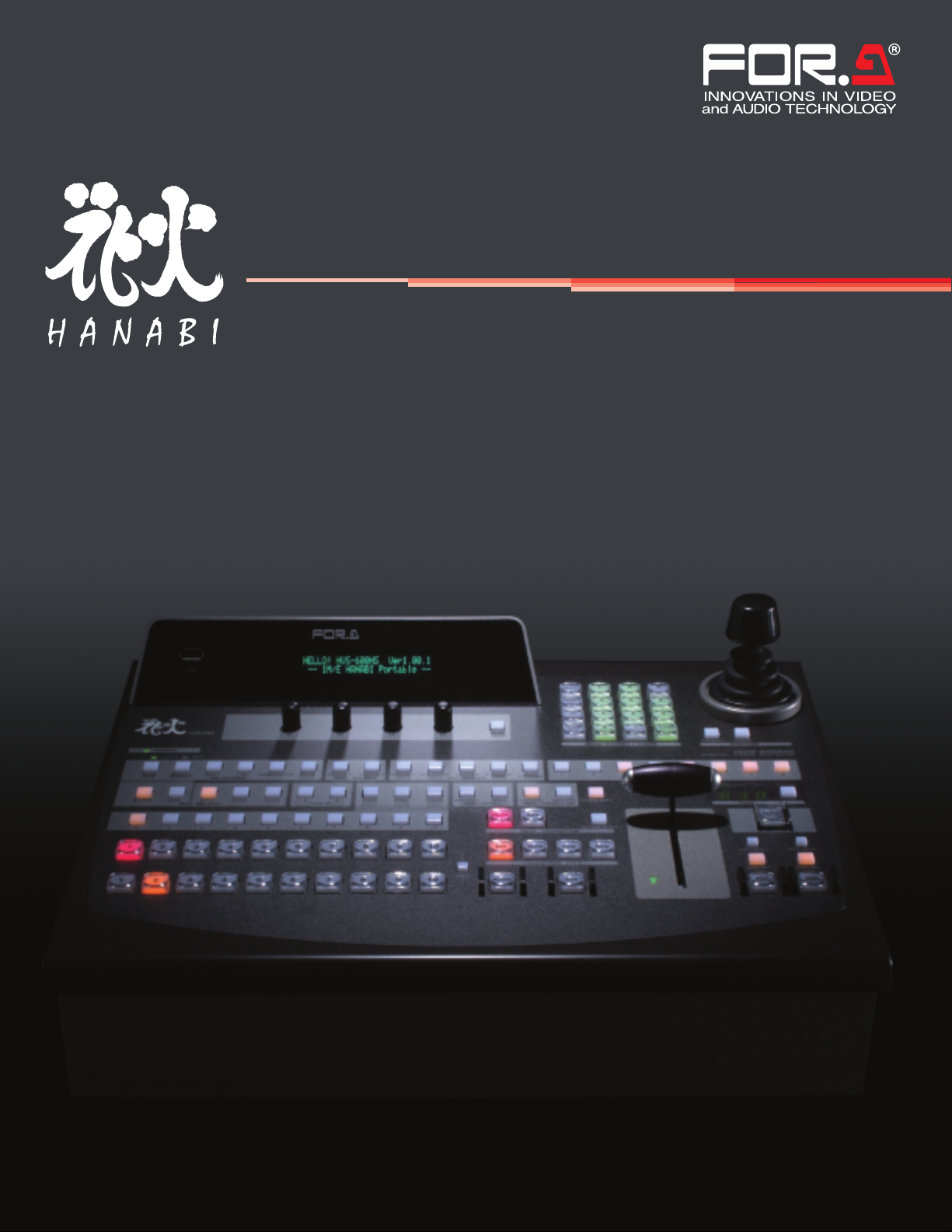

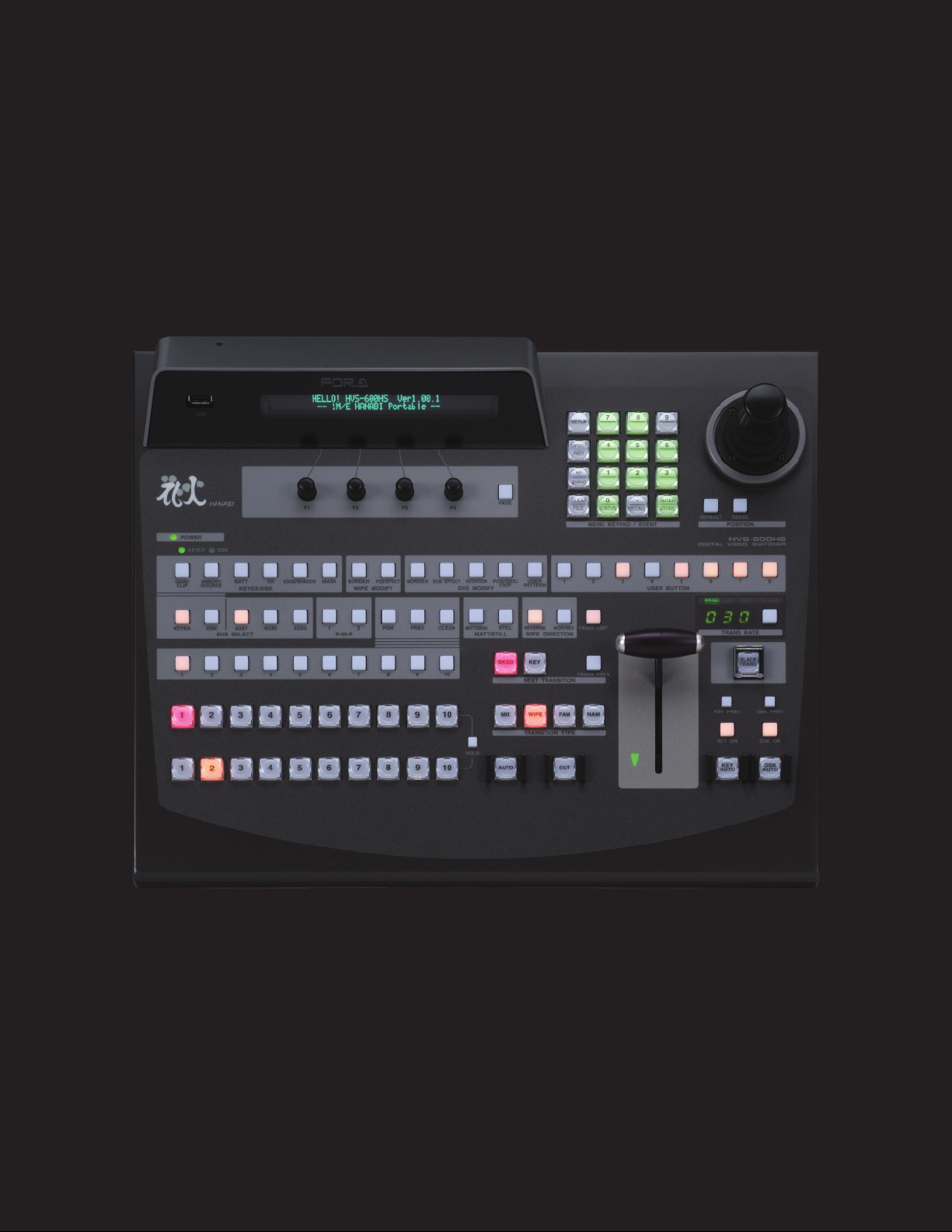

HD/SD 1M/E Digital Video Switcher
HVS-1000HS "1M/E HANABI"
*Two versions are available. A TYPE-E package designed for post
production editing, and a TYPE-L package for live/event applications.
*In addition to our standard DVEs, optional DVEs enabling advanced effects
supporting Real 3-dimensional DVEs using a polygon system are also available.
*Optional color corrector can be installed in the primary inputs and keyers.
Proc Amp, color correction and Gumat correction are all available.
*The rich array of options allows creating a wide range of configuration covering
from simple transmission to editing.
FOR-A COMPANY LIMITED Homepage:http://www.for-a.com/
Head Office : 3-8-1 Ebisu, Shibuya-ku, Tokyo 150-0013, Japan +81 (0)3-3446-3936 Fax : +81 (0)3-3446-1470
FOR-A America Corporate Office : 11125 Knott Ave., Suite #A, Cypress, CA 90630, USA +1 714-894-3311 Fax : +1 714-894-5399
FOR-A America East Coast Office : 1065 Avenue of the Americas, Suite #1701A, New York, NY 10018, USA +1 212-861-2758 Fax : +1 212-861-2793
FOR-A America Distribution & Service Center : 2400 N.E. Waldo Road, Gainesville, FL 32609, USA +1 352-371-1505 Fax : +1 352-378-5320
FOR-A Latin America & the Caribbean : 5200 Blue Lagoon Drive, Suite #760, Miami, FL 33126, USA +1 305-931-1700 Fax : +1 305-264-7890
FOR-A Corporation of Canada : 425 Queen St. W. #210, Toronto, Ontario M5V 2A5, CANADA +1 416-977-0343 Fax : +1 416-977-0657
FOR-A UK Limited : UNIT C71, Barwell Business Park, Leatherhead Road, Chessington Surrey, KT9 2NY, UK +44 (0)20-8391-7979 Fax : +44 (0)20-8391-7978
FOR-A Italia S.r.l. : Viale Europa 50 20093, Cologno Monzese (MI), Milan, Italy +39 02-254-3635/6 Fax : +39 02-254-0477
FOR-A Corporation of Korea : 801 Dangsan Bld., 53-1 Dangsan-Dong, Youngdeungpo-Gu, Seoul 150-800, Korea +82 (0)2-2637-0761 Fax : +82 (0)2-2637-0760
FOR-A China Limited :
© 2008 FOR-A Company Ltd. FOR-A is a registered trademark of FOR-A Company Ltd. Design and specifications subject to change without notice. Printed in Japan. 0805KM0C
Room C302 Tia Hao International Bld., 116 Zizhu-Yuan Road, Hai Diang District, Beijing, China
+86 (0)10-5170-9870 Fax : +86 (0)10-5170-9772
Loading...
