FONESTAR AIP-4010 Instruction Manual
AIP-4010
IP AUDIO TRANSMITTER
INSTRUCTION MANUAL
- 2-
We take this opportunity to thank you for buying this product.
W
e recommend you read the instruction manual before switching on the machine and follow the instruc-
tions that are given. Keep the manual for future reference.
SECURITY AND THE ENVIRONMENT
ELECTRICAL SECURITY
C
heck that the current in the mains connection where the machine is to be installed corresponds to the
power supply of the machine.
To avoid damaging the equipment, electrical shocks, fire or physical injury when you connect or disconnect
the equipment from the power supply, pull the plug firmly out of the mains socket holding the plug, never the
cable.
Always do this with dry hands.
Keep the power supply cable far from sources of heat. Do not put heavy objects on top of it or change it.
Clean dust and dirt off the power supply cable regularly.
Do not open the machine; you could get an electric shock.
CAUTION
While installing the machine, make sure it is switched off and unplugged.
Do not open the machine. Touching the internal parts is dangerous and you could receive an electric shock.
The machine must not be splashed or dripped on. Never place recipients with liquid inside on the machine.
Do not place anything inside the machine.
LOCATION
Place the equipment on a horizontal surface with enough space around it to allow ventilation.
Avoid direct sunlight, heat sources and excessive dust.
Do not place the machine near magnetic fields or static electricity.
Do not use surfaces which vibrate or receive impact.
Do not pile machines on top of one another.
VENTILATION
Never block or cover the ventilation slits on the machine.
Do not expose it to direct sunlight or place it near sources of heat.
PERIODS OF INACTIVITY
When the machine is not going to be used for a long period of time, disconnect it from the mains.
If you are using an adapter, take into account that it will continue using electricity even if the machine is switched off. If it is not going to be used for a long period of time, disconnect it from the mains.
THE ENVIRONMENT
To save energy, switch the machine off when you are not going to use it for a long time. The machine could
contain substances that are harmful to the environment or human health. To minimize the effect of these
substances the machine must be correctly managed and recycled when you decide to dispose of it.
When you dispose of it remember: it cannot be thrown into a conventional rubbish bin.
If it contains or uses batteries, these must be disposed of separately.
The machine (without batteries) must be disposed of correctly. Put it in a container specially intended for the
collection of electronic and electrical appliances, at the dump or hand it over to the dealer when you purchase
similar equipment, so that the dealer can dispose of it correctly (at no added cost).
E
N
SIGNIFICANCE OF THE SYMBOLS ON THE MACHINE*
The symbol formed by the expression “Class 1 laser product” written in a rectangle indicates that visible or invisible laser radiation could be produced. Avoid direct expose to the
laser.
The symbol formed by a ray of lightening inside a triangle shows that the machine has conn
ection terminals or a circuit with areas with a current which could cause an electric shock,
even in normal working conditions.
The symbol formed by an exclamation mark in a triangle shows that the instruction manual
must be referred to for information on how the machine works and its use.
The symbol formed by one square inside another square shows that the machine has double electrical insulation.
The European Community symbol shows that the machine complies with the current European Union legislation, as well as its transposition to local legislation.
The symbol of a rubbish bin crossed out and over a horizontal line shows that when the product is disposed of it must be done properly, placing it in a special selective electronic and
electrical equipment container or through a dealer when purchasing a similar product, at no
additional cost. It also shows that the machine was put on the market after 13th August
2005 (European Community Directive 2002/96/CE of Electrical and Electronic recycling,
and its Spanish equivalent R.D.208/2005).
In accordance with what is set out in the aforementioned decree, FONESTAR is registered
in the RAEE (Registro de Aparatos Eléctricos y Electrónicos) in a special section REI (Registro de establecimientos Industriales), with the entry number 001851.
*It is possible that some of these symbols do not appear on the machine.
EXEMPTION OF LIABILITY
The characteristics of the equipment and the content of the manual can change without forewarning.
FONESTAR, S.A. does not assume responsibilities regarding the inappropriate use of the equipment or the
information supplied in this instruction manual, and specifically disclaims any implied liability for marketability or fitness for any other use.
All rights reserved by FONESTAR, S.A.
- 3-
E
N
DESCRIPTION
- IP audio transmitter with line input.
- For transmitting an analogue audio signal to a local area network.
- With 4 level inputs and 4 output relays for activating events and controlling external devices.

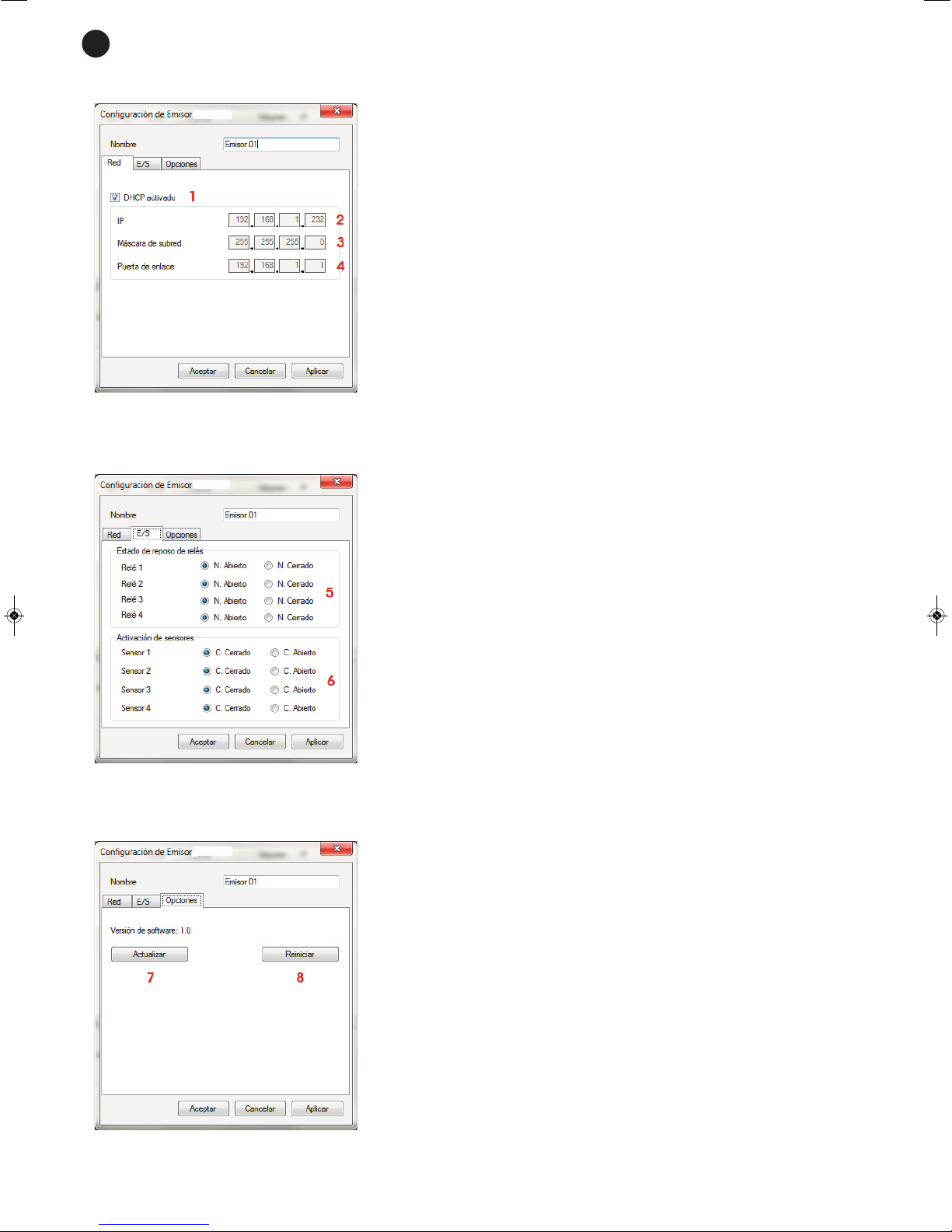

- Automatic setting of network parameters.
- Perfect solution for large shopping centres, schools, office buildings, etc.
CONTROLS AND FUNCTIONS
FRONT PANEL
1.- On/off switch.
2.- LED power indicators.
3.- LINE IN: line input, 3.5 mm stereo jack connector.
4.- Connection port for SD memory cards. Only valid for updating firmware.
5.- Connection port for USB storage devices. Only valid for firmware updating.
6.- Reset button.
BACK PANEL
1.- ETHERNET: port for connecting a local network using a Cat 5e/6, RJ-45 connector.
2.- RS-232 CONTROL: port for connecting to other pieces of equipment, female D9 connector.
3.- LINE IN: line input, 2 x RCA connectors.
4.- OUTPUT: isolated programmable contact opening and closing outputs, euroblock connectors.
5.- INPUT: isolated programmable inputs for activating events through contact closure, euroblock
connectors.
6.- Input for connecting the AC power cable.
- 4-
E
N
