Follett Ice Manager Operation And Service Manual

Ice Manager™ Diverter Valve System

for use with Horizon Elite 1010,1410, 1810 and 2110 Ice Machines

Order parts online
www.follettice.com

(1) Horizon Elite

Chewblet® Ice Machine

(purchased separately)

™

Operation and Service Manual

Ice Manager

Control Panel

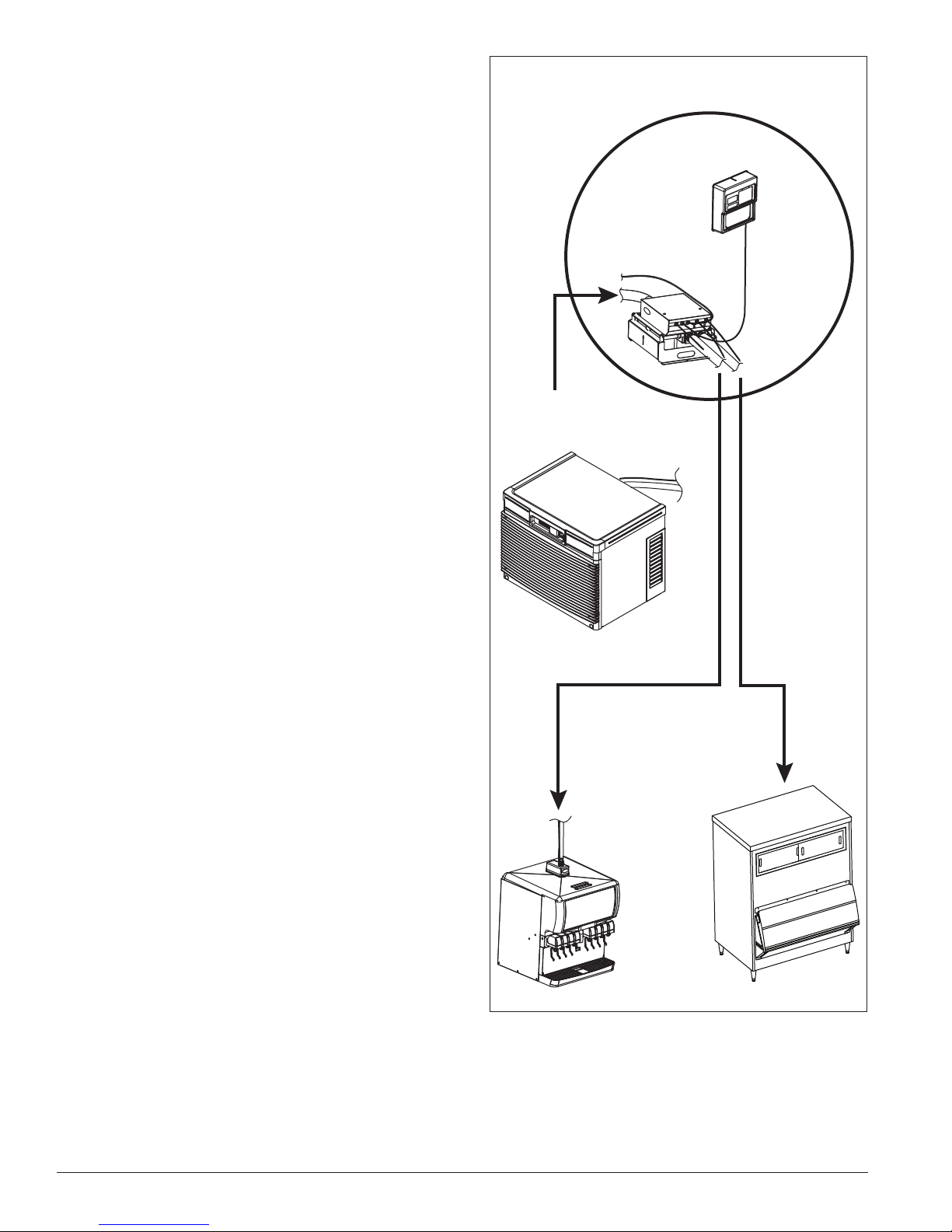

Ice Manager

Diverter Valve

(2) ice storage units

(purchased separately)

Any combination of bins or dispensers

Lane 2

Lane 1

Following installation, please forward this manual

to the appropriate operations person.

801 Church Lane • Easton, PA 18040, USA
Toll free [phone] • [phone]
www.follettice.com

01096148R01

Chewblet® Ice Machine Model Number Configurations

HC 1810D SVA

MC Maestro™

Chewblet
(425 Series)

HC Horizon

Chewblet
(710, 1010,
1410, 1810,
2110 Series)

HM Horizon

Micro Chewblet

C 208-230/60/1 (icemaking head)

®

Self-contained only.

D 115/60/1 (icemaking head)

Self-contained and remote. If remote
unit, high side is 208-230/60/1.

E 230/50/1 (icemaking head)

Self-contained only.

F 115/60/1 (icemaking head)

Remote only. High side is
208-230/60/3.

425 up to

425 lbs
(193 kg)

710 up to

675 lbs
(306 kg)

1010 up to

1061 lbs
(482 kg)

1410 up to

1466 lbs
(665 kg)

1810 up to

1790 lbs
(812 kg)

2110 up to

2039 lbs
(925 kg)

CondenserSeriesVoltageIcemaker

A Air-cooled, self-contained
W Water-cooled, self-contained
R Air-cooled, remote condensing unit
N Air-cooled, no condensing unit for

connection to parallel rack system

V Vision™
H Harmony™
B Ice storage bin
J Drop-in
M Ice Manager

diverter valve
system

P Cornelius Profile

PR150

ConfigurationApplication

S RIDE™

(RIDE remote
ice delivery
equipment)

T Top-mount

2 Ice Manager Diverter Valve System Operation and Service Manual

Table of contents

Welcome to Follett

Before you begin .......................................................... 4

Specications

Electrical ................................................................ 5

Plumbing ................................................................ 5

Temperature requirements .................................................. 5

Dimensions .............................................................. 5

Operation

General information ........................................................ 6

Audible alarm ............................................................ 6

Cleaning and preventive maintenance ......................................... 7

Preventive maintenance .................................................. 7

Weekly exterior care ..................................................... 7

Cleaning and sanitizing ................................................... 7

Service

System components ...................................................... 18

System operation ........................................................ 18

Control logic .......................................................... 18

Auto mode ............................................................ 18

Manual mode ......................................................... 18

Diverter valve module ..................................................... 19

Control board ......................................................... 19

Divert gearmotor ....................................................... 19

Divert paddle .......................................................... 19

Ice Manager diverter valve wiring diagram ................................... 20

Control panel ............................................................ 21

Membrane switch ...................................................... 21

LCD screen ........................................................... 21

Audible alarm ......................................................... 21

Ultrasonic sensor ........................................................ 22

Ice level set points ........................................................ 23

To view ice levels ...................................................... 23

To view set points ...................................................... 23

To change set points .................................................... 23

Troubleshooting

Ice shortage with audible alarm ........................................... 24

Ice shortage without audible alarm ......................................... 25

Service Parts

Diverter valve module ..................................................... 26

Control panel ............................................................ 27

Sensor distribution unit .................................................... 28

Follett Vision™ VU155 Ice Manager kit ........................................ 29

Follett Vision™ VU300 Ice Manager kit ........................................ 30

Cables ................................................................. 31

Ice Manager Diverter Valve System Operation and Service Manual 3

Welcome to Follett

Follett equipment enjoys a well-deserved reputation for excellent performance, long-term reliability and
outstanding after-the-sale support. To ensure that this equipment delivers the same degree of service, we ask
that you review the installation manual (provided as a separate document) before beginning to install the unit.
Our instructions are designed to help you achieve a trouble-free installation. Should you have any questions or
require technical help at any time, please call our technical service group at [phone] or
+1(610)252-7301.

Before you begin

After uncrating and removing all packing material, inspect the equipment for concealed shipping damage. If
damage is found, notify the shipper immediately and contact Follett Corporation so that we can help in the ling
of a claim, if necessary.

• Warranty does not cover exterior or outside installations.

• Moving parts. Do not operate with front cover removed.

• Hot parts. Do not operate with cover removed.

• To reduce risk of shock, disconnect power before servicing.

• Most ice machine cleaners contain citric or phosphoric acid, which can cause skin irritation. Read caution
label on product and follow instructions carefully.

• Ice is slippery. Maintain counters and oors around dispenser in a clean and ice-free condition.

• Ice is food. Follow recommended cleaning instructions to maintain cleanliness of delivered ice.

4 Ice Manager Diverter Valve System Operation and Service Manual

CAUTION

Specications

Diverter Valve with Mounting Bracket Control Panel

Electrical

115V, 60Hz, 1ph, 1.5 amps.
8' (2.4m) cord with NEMA 5-15 plug provided. If local code requires hard-wiring, separate disconnects also required.

Plumbing

Drain line – 15' (4.6m) 3/8" nylon tubing, supplied

Temperature requirements

Ice Manager components, including ice transport tube, must be operated in ambient temperatures between 40 F and
120 F (5 C and 49 C). Relative humidity not to exceed 55%.

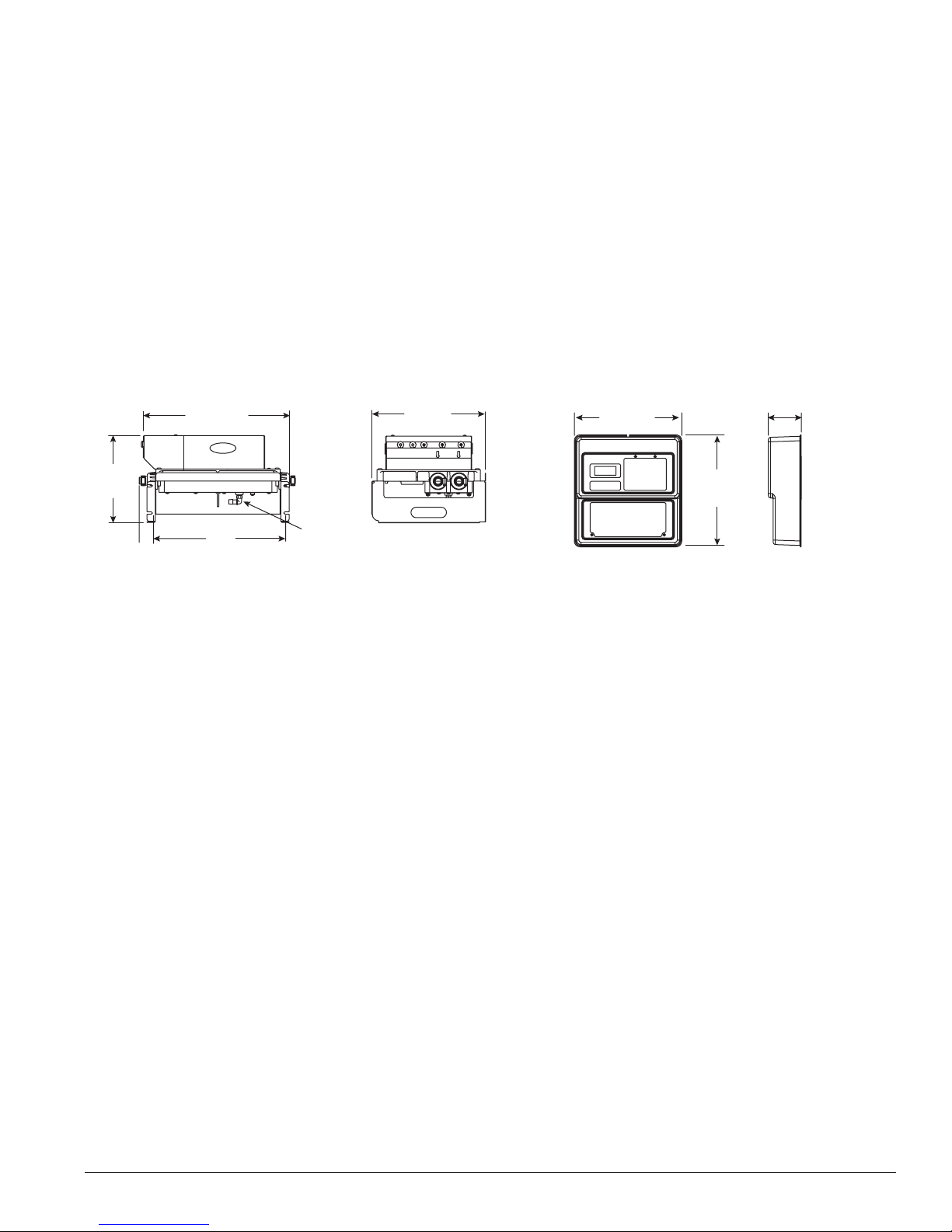

Dimensions

10.375"

(264mm)

Front View Side ViewFront View Side View

17.5"

(445mm)

16"

(407mm)

3/8" NPT
barbed drain fitting

13.625"

(346mm)

LANE 2

LANE 1

12"

(305mm)

12.5"

(318mm)

3.75"

(96mm)

Ice Manager Diverter Valve System Operation and Service Manual 5

Operation

General information

The Ice Manger diverter valve system is designed to
direct ice from one Horizon ice machine to two ice
storage units. AUTO is the standard operating mode.
When selected, ice is directed to the lane 1 storage
unit until it reaches the MIN (minimum) set-point.
Ice is then directed to the lane 2 storage unit and
will continue to ll this lane until the FULL level is
achieved. If at any time the ice level in lane 1 storage
unit goes below the MIN set-point, ice will be directed
back to lane 1 until the MIN level is satised. When
lane 2 reaches its FULL level, ice will be directed back
to lane 1. When both lanes reach their FULL level, the
Horizon ice machine will shut off. After a 15-minute
delay, the ice machine will be ready to start as soon
as the ice level in either of the storage units drops
below the FULL set-point.

Audible alarm

In the event a system error occurs that could cause
ice shortages, the audible alarm will be turned ON
accompanied by an appropriate error message on the
LED screen. To silence the alarm, press any of the
push buttons on the control panel. This will silence
the alarm for 4 hours, however the error message
displayed on the LED screen will remain until the
problem is addressed. After 4 hrs, if the error has not
been addressed, the audible alarm will resume.

Ice Manager

Diverter Valve

(1) Horizon

Chewblet® Icemaker

(purchased separately)

™

ICE MANAGER SYSTEM

Ice Manager

Control Panel

Placing the system in MANUAL MODE will also
prevent the alarm from sounding. The error message
on the LED screen will still ash, but the alarm will not
resume.

See troubleshooting guide on page 26 for causes.

(2) ice storage units

(purchased separately)

Any combination of bins or dispensers

Lane 2

Lane 1

6 Ice Manager Diverter Valve System Operation and Service Manual

Cleaning and preventive maintenance

Preventive maintenance

Periodic cleaning of Follett’s Ice Manager diverter valve system is required to ensure peak performance and delivery
of clean, sanitary ice. Cleaning of the Ice Manager system, in most cases, should be performed by your facility’s
maintenance staff or a Follett authorized service agent. Regardless of who performs the cleaning, it is the operator’s
responsibility to see that this cleaning is performed every 6 months or more often if conditions dictate. Service
problems resulting from lack of preventive maintenance will not be covered under the Follett warranty.

Weekly exterior care

The exterior of the diverter valve and control panel may be cleaned with a soft cloth and mild detergent. The ice
machine exterior may be cleaned with a stainless cleaner such as 3M Stainless Steel Cleaner & Polish or equivalent.

Note: Do not use bleach to sanitize or clean the ice machine or diverter valve.

WARNING

• Wear rubber gloves and safety goggles (and/or face shield) when handling ice machine cleaner or sanitizer

CAUTION

• Use only Follett approved SafeCLEAN Plus™ (item# 01050863) and NU-CALGON IM-III Sanitizer.

• Do not mix SafeCLEAN Plus™ and NU-CALGON IMS-III solutions together

• DO NOT USE BLEACH

• It is a violation of Federal law to use these solutions in a manner inconsistent with their labeling

• Read and understand all labels printed on packaging before use

Note: Complete procedure for cleaning and sanitizing MUST be followed in order shown. Ice must be collected for
10 minutes from each lane before putting ice machine and Ice Manager system back into service.

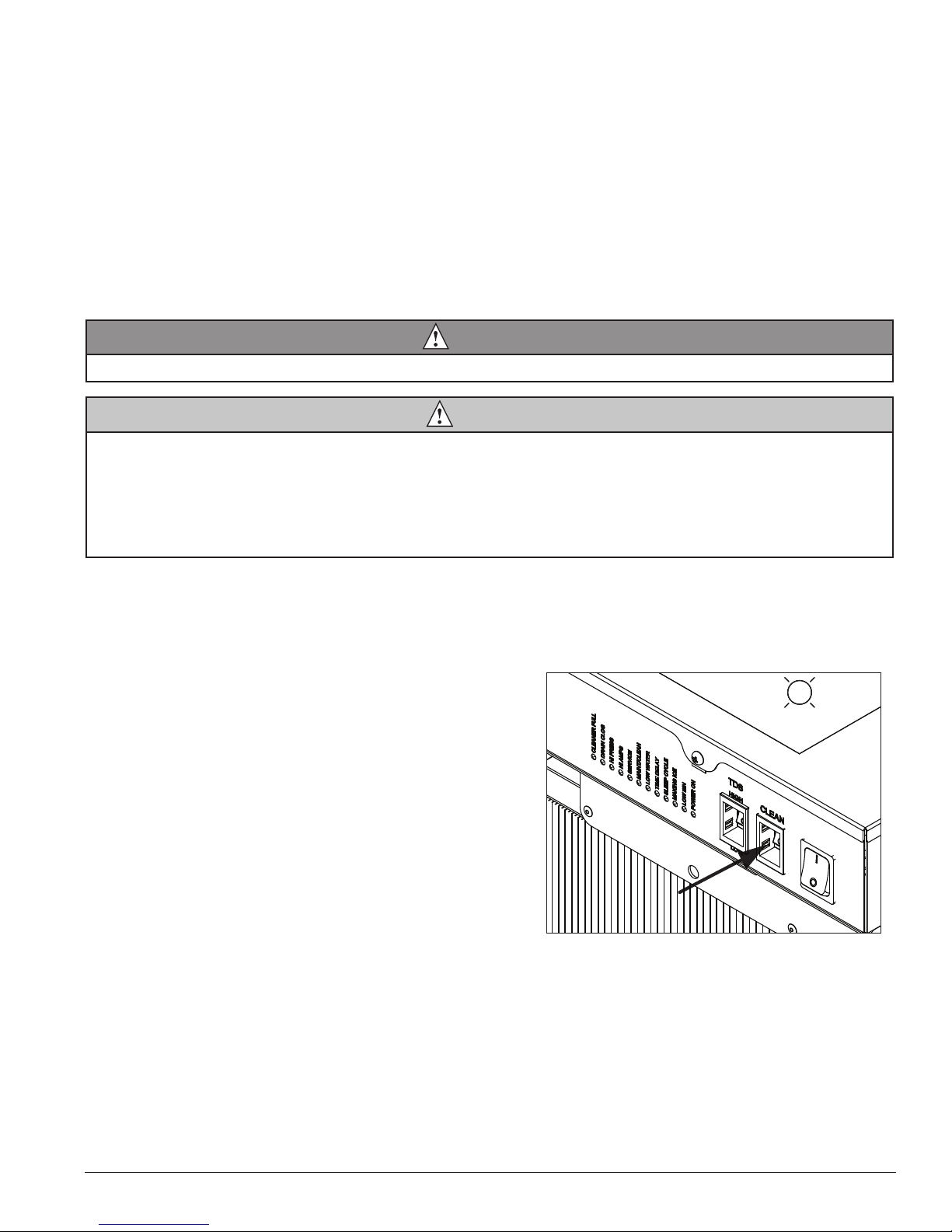

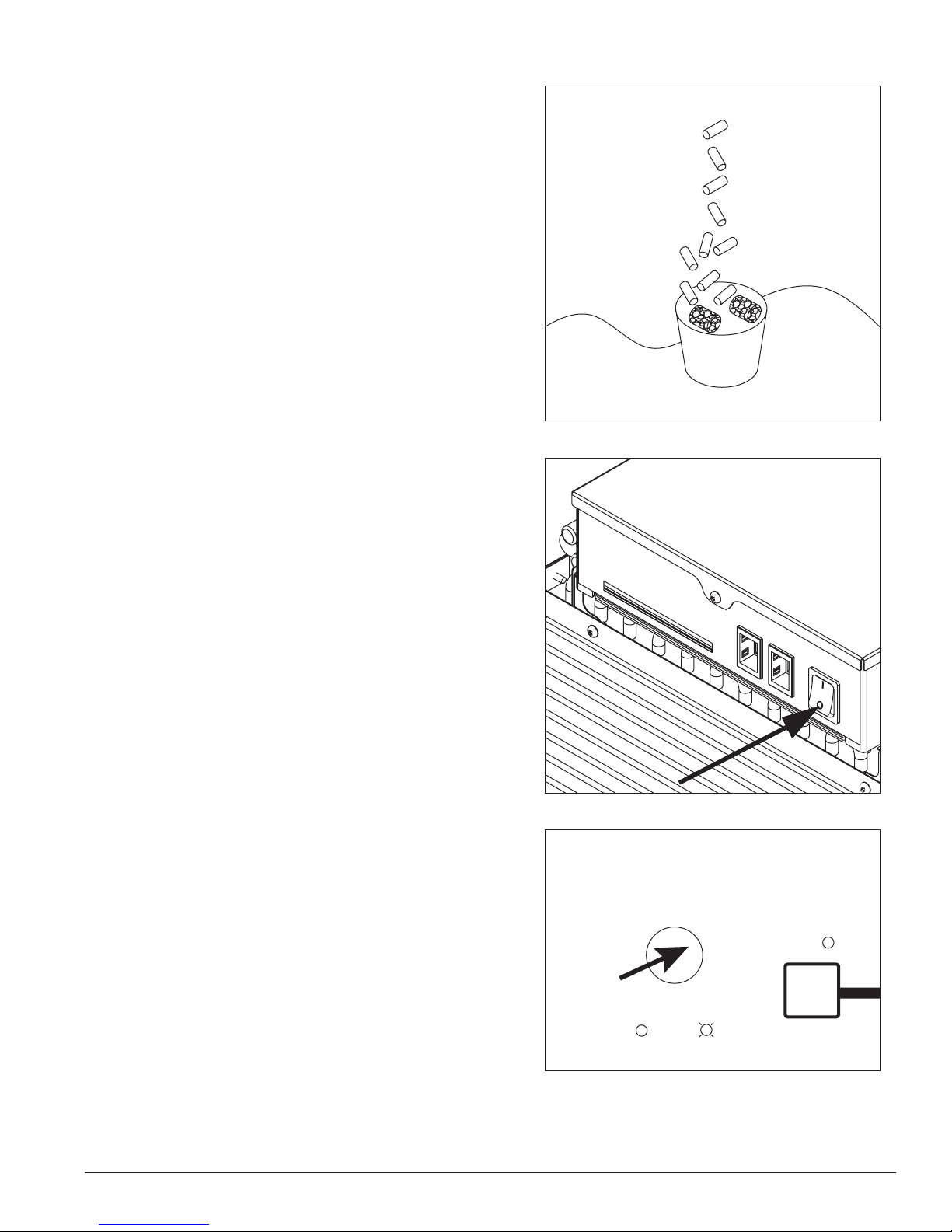

Fig. 1

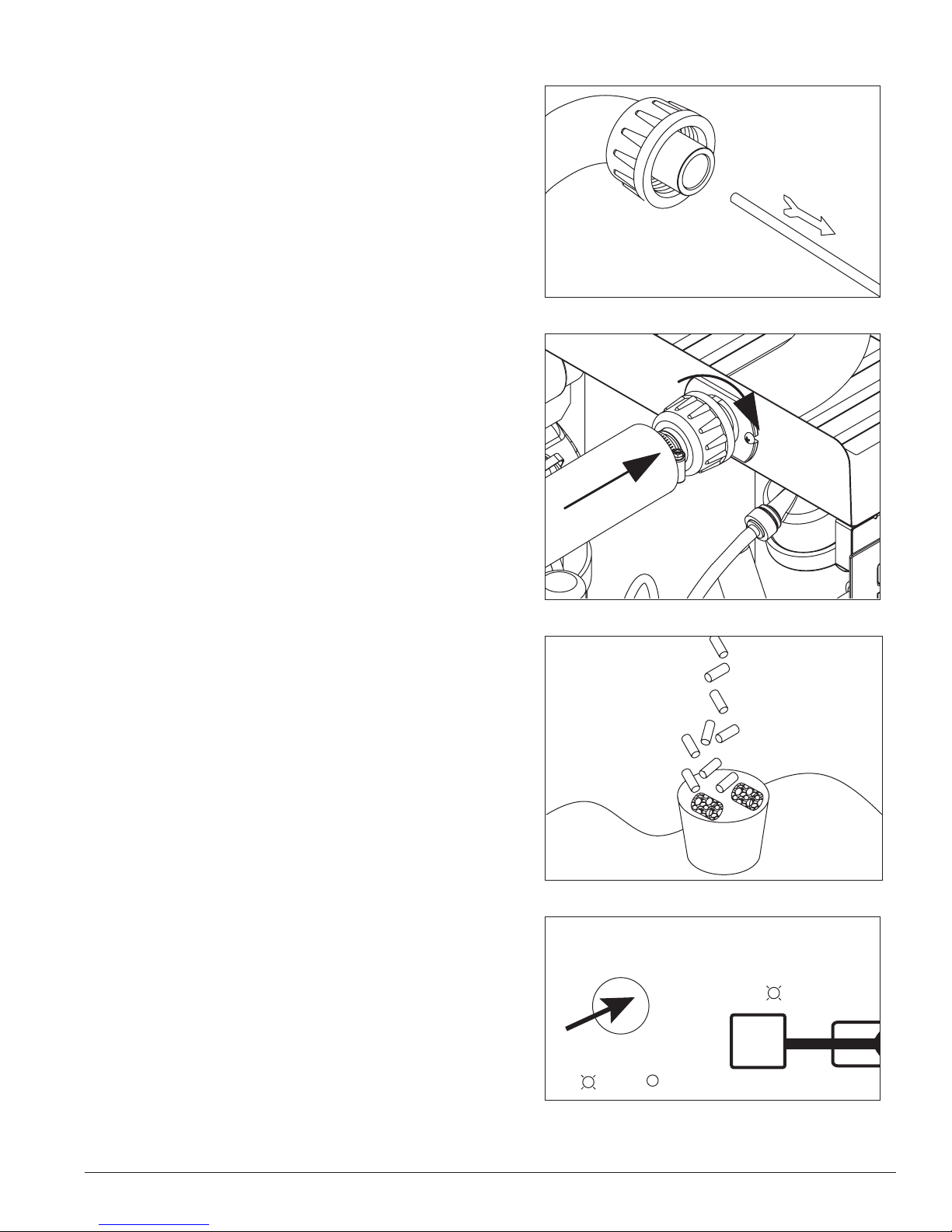

1. Press the CLEAN button. The machine will drain. The

auger will run for a short time and then stop. Wait for
the LOW WATER light to come on.

LO WATER

Ice Manager Diverter Valve System Operation and Service Manual 7

2. Mix 1 gal. (3.8L) 120 F (49 C) water and one 7oz.
(198g) packet of Follett SafeClean Plus (P/N

01050863).

3. Using a 1 quart (1L) container, slowly ll cleaning cup
until CLEANER FULL light comes on. Do not overll.

4. Place one Sani-Sponge™ in remaining sanitizing and
cleaning solution and retain for Step 34.

Note: Do not use bleach to sanitize or clean the icemaker.

5. Replace cover on cleaner cup. Machine will clean,

then ush 3 times in approximately 15 minutes. Wait
until machine restarts.

Fig. 2

CLEANER FULL

Fig. 3

6. Press power switch OFF.

15

Fig. 4

8 Ice Manager Diverter Valve System Operation and Service Manual

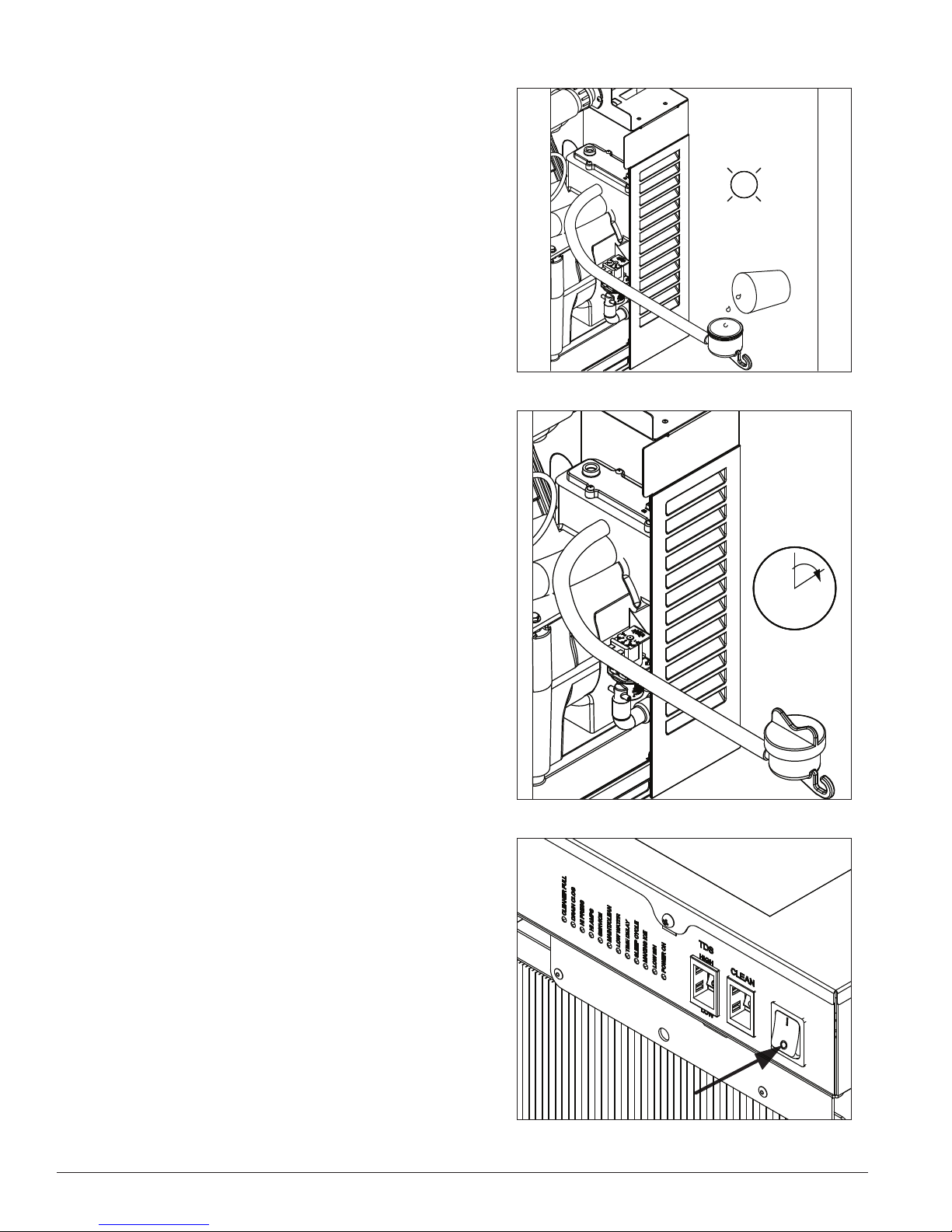

Fig. 5

ON

Full

Full

Lane 1

Min

Full

Full

Min

7. Locate Ice Manager
control panel.

Mode

Auto

select

Manual

Icemaker

ON

8. To sanitize Lanes 1 and 2, diverter valve must be in
manual mode. Press the MODE SELECT button on
the Ice Manager control panel. Manual light will come
on. If auto light comes on, press MODE SELECT
button again.

Fig. 6

Lane 1

ON

Lane 2

ON

Mode

select

Full

Min

Full

Icemaker

ON

9. To sanitize Lane 1 – Press LANE 1 button. Lane 1
light will come on.

Fig. 7

Fig. 8

Auto

Manual

Lane 1

ON

Lane 2

ON

Ice Manager Diverter Valve System Operation and Service Manual 9

10. Disconnect ice transport tubes from diverter valve
unit. Be sure to note Lane 1 (Fig. 8.1), Lane 2 (Fig.

8.2) and inlet (Fig. 8.3) ice transport tube connections
to avoid confusion when reattaching.

11. Mix 1 gallon 120 F (49 C) water and 1.6 oz (48 ml)
NU-CALGON IMS-III SANITIZER.

Note: Do not use bleach to sanitize or clean the

diverter valve.

3

1

2

Fig. 9

12. Soak supplied brush in sanitizer solution and scrub

inside of the diverter valve Lane 1 for at least 60 s,
re-wetting the brush with sanitizer as needed.

13. Re-wet brush with sanitizer and scrub diverter valve
inlet for at least 60 s, re-wetting the brush with
sanitizer as needed.

Fig. 10

10 Ice Manager Diverter Valve System Operation and Service Manual

14. To sanitize Lane 2 – Press LANE 2 button. Lane 2

Full

Full

Min

light will come on.

15. Soak supplied brush in sanitizer solution and scrub
inside of the diverter valve Lane 2 for at least 60 s,
re-wetting the brush with sanitizer as needed.

Fig. 11

Lane 1

ON

Lane 2

ON

Fig. 12

16. Re-wet brush with sanitizer and scrub inlet for at

least 60 seconds, re-wetting the brush with sanitizer
as needed.

Note: Inlet must be scrubbed with both Lane 1 and Lane

2 settings to be sure each lane is cleaned and
sanitized.

Ice Manager Diverter Valve System Operation and Service Manual 11

Fig. 13

1 7. Rinse brush in potable, 120 F (49 C) water. Rinse

Lane 1 (Fig. 14.1), Lane 2 (Fig. 14.2), and inlet
(Fig. 14.3) with clean potable water for at least 60 s to
be sure each lane is rinsed thoroughly.

18. Re-connect ice transport tube to Lane 1 (Fig. 15.1),
Lane 2, (Fig. 15.2) and inlet (Fig. 15.3).

Fig. 14

3

1

2

H2O

Fig. 15

19. To sanitize Lane 1 ice transport tube – Press ice

machine power switch OFF.

3

1

2

Fig. 16

12 Ice Manager Diverter Valve System Operation and Service Manual

20. Verify that Ice Manager is in manual mode. Manual

ON

Full

Full

Lane 1

Min

Full

Full

Min

light should be on. If auto light is on, press MODE
SELECT button to switch to manual mode.

Fig. 17

Mode

select

Icemaker

ON

2 1. Press LANE 1 button. Lane 1 light will come on.

22. Disconnect coupling from ice machine as shown.

Fig. 18

Fig. 19

Auto

Manual

Lane 1

ON

Lane 2

ON

Ice Manager Diverter Valve System Operation and Service Manual 13

23. Using disposable food service grade gloves, insert
dry Sani-Sponge.

24. Insert Sani-Sponge soaked in SafeClean Plus (from
Step 4).

25. Push both Sani-Sponges down ice transport tube
with supplied pusher tube.

26. Remove 16” (407 mm) pusher tube.

Fig. 20

Fig. 21

1

16"

(407 mm)

2

3

2 7. Reconnect coupling. Press ice machine power switch

ON. Ice pushes Sani-Sponges through tube.

Fig. 22

14 Ice Manager Diverter Valve System Operation and Service Manual

28. Place a sanitary (2 gallon or larger) container in bin

ON

Full

Full

Lane 1

Min

or dispenser to collect Sani-Sponges and ice for
10 minutes. Collect 5.5 lbs (3 kg) of ice from unit.
Discard ice and Sani-Sponge.

29. To sanitize Lane 2 ice transport tube – Press ice
machine power switch OFF.

Fig. 23

Fig. 24

30. Verify that Ice Manager is in manual mode. Manual

light should be on. If auto light is on, press MODE
SELECT button to switch to manual mode.

Ice Manager Diverter Valve System Operation and Service Manual 15

Fig. 25

Mode

select

Auto

Icemaker

ON

Manual

3 1. Press LANE 2 button. Lane 2 light will come on.

Full

Full

Min

32. Disconnect coupling from ice machine as shown.

Fig. 26

Lane 1

ON

Lane 2

ON

Fig. 27

33. Using disposable food service grade gloves, insert

dry Sani-Sponge.

34. Insert Sani-Sponge soaked in SafeClean Plus (from
Step 4).

35. Push both Sani-Sponges down ice transport tube
with supplied pusher tube.

16 Ice Manager Diverter Valve System Operation and Service Manual

Fig. 28

1

16"

(407 mm)

2

3

36. Remove and discard 16” (407 mm) pusher tube.

ON

Full

Full

Lane 1

Min

3 7. Reconnect coupling. Press ice machine power switch

ON. Ice pushes Sani-Sponges through tube.

Fig. 29

Fig. 30

38. Place a sanitary (2 gallon or larger) container in bin

or dispenser to collect Sani-Sponges and ice for
10 minutes. Collect 5.5 lbs (3 kg) of ice from unit.
Discard ice and Sani-Sponges.

39. Press MODE SELECT button on Ice Manager control
panel to switch to auto mode. Auto light will come on.

Fig. 31

Fig. 32

Auto

Mode

select

Manual

Icemaker

ON

Ice Manager Diverter Valve System Operation and Service Manual 17

Service

System components

Follett’s Ice Manager diverter valve system consists of following major components:

• Diverter valve module

• Control panel module

• Ice transport tube lane 1 with a dedicated sensor cable 1

• Ice transport tube lane 2 with a dedicated sensor cable 2

• Ice level sensor / ice distribution module for lane 1

• Ice level sensor / ice distribution module for lane 2

System operation

The Ice Manager diverter valve system is designed to control the feeding of ice from one Horizon ice machine to two
ice storage units. There are different ice level set-points for ice storage units.

The ice storage unit for lane 1 has two ice level set points, MIN and FULL, while the ice storage unit for lane 2 has
only one - FULL. There is also a DIF (Differential) setting for each lane that initiates rell of ice.

Note: Ice Manager diverter valve system comes with factory pre-set values for MIN, FULL and DIF (differential)
parameters. If required the pre-set values can be eld modied. (See the ice level set point on page 25.)

Control logic

Ultrasonic sensors for lane 1 and lane 2 detect ice level and send an analog signal between 0.5vdc to 4.5vdc back to
diverter valve control board. This signal is converted into distance (in inches) from the sensor face to the ice surface.

An appropriate light on the control panel comes on indicating the ice level reached either MIN or FULL levels for
lane 1 or FULL level for a lane 2 units.

Auto mode

AUTO is the standard operating mode for the Ice Manager diverter valve system. In AUTO mode, the system will
automatically direct the ice according to the sensor set point levels.

On start up, when AUTO mode is selected the diverter valve directs ice through lane 1 to the ice storage unit until the
MIN level is satised.

The diverter valve will then switch and direct ice through lane 2 until its ice storage unit FULL level is satised.

If during this time the ice level in lane 1 ice storage unit drops below the MIN level, then the diverter valve will
re-direct ice ow back to lane 1 and continue feeding ice through the lane 1 until the ice storage unit MIN level is
satised again. The cycle will continue until FULL level for both ice storage units are reached.

When the ice level in both ice storage units is at the FULL level the diverter valve shuts off the signal to the ice
machine which goes into a 15 min delay. When the delay period expires, the control logic will allow the ice machine to
restart when either sensor detects ice level drop below the FULL set-point.

Note: There is a 30 second time delay function programmed into the control logic. This function requires
30 seconds of a steady ice level reading exceeding a set-point before the control logic initiates any action.
Therefore, a momentary ice level change measured by the ice level sensors will not trigger a shut-down
or divert.

Manual mode

For Ice Manager diverter valve system cleaning and sanitizing, and some special situations (see a troubleshooting
guide on page 26), a MANUAL mode is available. MANUAL mode overrides AUTO mode and allows the operator to
select the lane.

In order to switch between AUTO and MANUAL modes push the MODE SELECT button located on the control panel.
While in MANUAL mode, pressing either lane 1 or lane 2 buttons will divert ice ow accordingly.

Note: When in manual mode ice level sensors will not control the divert action, however the ice sensors will
continue to control the ice machine. When the FULL ice level in designated ice storage unit is satised the
ice machine will be shut off.

18 Ice Manager Diverter Valve System Operation and Service Manual

Diverter valve module

There are three major functional components within the
diverter valve.

Fig. 36

lane 1

lane 2

no connection

power

gearmotor

Control board

(Fig. 36)
The control board manages all functions of the Ice
Manager diverter valve system based on signals
received from lane 1 and lane 2 ice level sensors. It
diverts ice ow from one lane to another, while ice
storage units are lled and shuts off ice machine when
both dispensers are at the FULL level.

The control board communicates with the Horizon ice
machine and the sensors for the lane 1 and lane 2 via
appropriate signal cables. It supplies 120/60/1 electrical
power to the divert gearmotor assembly and monitors
the divert gearmotor position status based on inputs
from two magnetic switches mounted to the gearmotor
bracket. It also provides 12vdc power to the control
panel via the gray control cable.

Divert gearmotor

(Fig. 37)
The divert gearmotor assembly is linked to the divert
paddle assembly and manages ice ow direction.

Divert paddle

(Fig. 38)
Located inside of the body of the diverter valve module,
the divert paddle is driven by the gearmotor and
switches ice ow from one internal channel to another.

Fig. 37

Fig. 38

lane 1
switch

lane 2
switch

lane 1

magnetic switch

lane 2

magnetic switch

Ice Manager Diverter Valve System Operation and Service Manual 19

Ice Manager diverter valve wiring diagram

TO

PANEL

CONTROL

TO

HORIZON

ICE MACHINE

BLUE

123

HNG

GREEN

115Vac/60HZ

GRAY

5 PIN PLUG

CONNECTOR

POWER INLET

123

5 PIN PLUG

123

5 PIN PLUG

4 PIN PLUG

(NOT USED)

BLACK

WHITE

BLUE

1234

BLUE

WHITE

WHITE

HN

PANEL

HORIZON CONTROL

LANE 2

SENSORSENSOR

LANE 1

DIVERT

MOTOR

(115 Vac)

(12vdc)(12vdc)

POS SW

LANE 2

LANE 1

POS SW

BLACK

BLACK

BLACK

WHITE

BLACK

BLACK

GREEN

MAIN CONTROL BOX

123

RED (+12 VDC)

BLACK (Grnd)

5 PIN PLUG

YELLOW (.5-4.5 VDC)

RED (+12 VDC)

BLACK (Grnd)

YELLOW (.5-4.5 VDC)

LANE 2 LEVEL SENSOR

LANE 1

TOP SWITCH

LANE 1 LEVEL SENSOR

LANE 2

BOTTOM SWITCH

DIVERT MOTOR

LANE 1

TOP SWITCH

LANE 2

DIVERT

MOTOR

BOTTOM SWITCH

MOTOR COMPARTMENT

20 Ice Manager Diverter Valve System Operation and Service Manual

Control panel

(Fig. 39)
The control panel is powered with
12vdc coming from the diverter valve
control board via the gray control
cable. It contains a membrane switch
and an LCD screen.

Note: The diverter valve control

board receives power
directly from the outlet. The
system will be running even
if the control panel is not
operational.

Membrane switch

(Fig. 39)
The membrane switch contains LED indicators offering
a quick system status.

ICE MACHINE ON light - a steady LED indicates the
ice machine is running.

LANE 1 ON light - a steady LED indicates ice is
directed through lane 1

Fig. 39

Mode

select

Auto

Manual

Fig. 40

Sensor Reading:
Lane 1: ___"
Lane 2: ___"
Status : OK

Icemaker

ON

Lane 1

ON

Lane 2

ON

Full

Min

Full

LANE 2 ON light - a steady LED indicates ice is
directed through lane 2

FULL light – a steady LED indicates the ice has
reached the FULL level set-point

MIN light – a steady LED indicates the ice has
reached the minimum level set-point

LCD screen

(Fig. 40)
The LCD screen shows ice level readings in both ice
storage units and overall Ice Manager diverter valve
system status. In case of System errors the LCD
screen displays the nature of the failure and provides
necessary details.
(See troubleshooting on page 26 for details.)

Audible alarm

In the event a system error occurs that could cause
ice shortages, the audible alarm will be turned ON
accompanied by an appropriate error message on the
LCD screen. To silence the alarm, press any of the
push buttons on the control panel. This will silence
the alarm for 4 hours, however the error message
displayed on the LCD screen will remain until the
problem is addressed. After 4 hrs, if the error has not
been addressed, the audible alarm will resume.

Placing the system in MANUAL MODE will also
prevent the alarm from sounding. The error message
on the LCD screen will still ash, but the alarm will not
resume.

See troubleshooting guide for causes.

Ice Manager Diverter Valve System Operation and Service Manual 21

Ultrasonic sensor

(Fig. 42)
The ultrasonic sensor measures ice level in each ice
storage unit. The sensor outputs an analog voltage
between 0.5vdc and 4.5vdc corresponding the ice
level distance from the face of the sensor.

Fig. 41

red

black

yellow

22 Ice Manager Diverter Valve System Operation and Service Manual

Ice level set points

Ice level set points are set at the factory and normally do not
need to be changed. Setting recommendations are shown in the
table below. Please contact Follett Technical Services toll free at
(877)612-5086 or [phone] prior to changing ice level set
points.

Factory settings

LANE

1

LANE

2

Full 10"
Min 14"

Dif 3"

Full 10"

Dif 3"

Fig. 43

Sensor Reading:
Lane 1: ___"
Lane 2: ___"
Status : OK

Fig. 44

Lane 1 Setup:
Full: 10.0"
Min: 14.0"
Dif: 3.0"

Mode

select

Lane 1

Lane 2

To view ice levels

1. Locate LED screen on Ice Manager control panel. Initial screen
will show ice levels for lane 1 and lane 2 and diverter valve
status (Fig. 43).

To view set points

1. Press and hold both MODE SELECT and LANE 1 buttons until
LANE 1 SETUP appears on the display (Fig. 44).
Note: Default/factory-set ice level sensor settings are shown.

2. To view lane 2, press MODE SELECT to navigate to lane 2
setup (Fig. 45).

To change set points

1. Press and hold both MODE SELECT and LANE 1 buttons until
LANE 1 SETUP appears on the display (Fig. 44).
Note: Default/factory-set ice level sensor settings are shown.

2. Press LANE 1 button to move through FULL, MIN and DIF ice
level sensor settings. When selected, choice will ash (Fig. 46).

3. Press MODE SELECT button to change ice level sensor set
point (Fig. 47).

4. Press LANE 1 button to increase ice level sensor set point
and LANE 2 to decrease ice level sensor set point, (Fig. 48) to
correspond to the drop-in dispenser ice level sensor settings
listed in table above.

5. Press MODE SELECT to save new ice level sensor setting
(Fig. 49).

6. Press LANE 1 to continue to navigate through and set the Full,
Min, and Dif ice level sensor settings for lane 1 (Fig. 50).

7. Press MODE SELECT to navigate to lane 2 setup (Fig. 51).

Fig. 45

Lane 2 Setup:
Full: 10.0"
Dif: 3.0"

Fig. 46

Lane 1 Setup:
Full: 10.0"
Min: 14.0"
Dif: 3.0"

Fig. 47

Lane 1 Setup:
Full: 10.0"
Min: 10.0"
Dif: 9.0"

Fig. 48

Lane 1 Setup:
Full: 10.0"
Lane 1/2: Scroll
Mode: Save Value

Fig. 49

Lane 1 Setup:
Full: 10.0"
Min: 10.0"
Dif: 9.0"

Mode
select

Mode

select

Mode
select

Mode

select

Mode

select

Lane 1

Lane 2

Lane 1

Lane 2

Lane 1

Lane 2

Lane 1

Lane 2

Lane 1

Lane 2

8. Repeat steps 2 through 6 to complete changes to lane 2 ice
level sensor settings.

Ice Manager Diverter Valve System Operation and Service Manual 23

Fig. 50

Lane 1 Setup:
Full: 10.0"
Min: 14.0"
Dif: 3.0"

Fig. 51

Lane 2 Setup:
Full: 10.0"
Dif: 3.0"

Mode

select

Mode
select

Lane 1

Lane 2

Lane 1

Lane 2

Troubleshooting

Ice shortage with audible alarm

To silence audible alarm press any push buttons on the face of the control panel. Use the chart below to diagnose
the cause.

Control Panel Error Message Indicator or Possible Cause Corrective Action

Ice machine LED is ashing and
ICEMAKER ERROR message is
displayed

Lane 1 or lane 2 LED is ashing
and SENSOR ERROR message is
displayed

Lane 1 or lane 2 LED is ashing
and SENSOR CONNECT ERROR
message is displayed

Both lane 1 and lane 2 LEDs are
alternately ashing and DIVERT
ERROR message is displayed

DIVERT TO L1 or DIVERT TO L2
message is displayed

• Signal cable between Horizon ice
machine and diverter valve module
is not properly engaged

• Horizon ice machine has shut off
on a SERVICE error

• Malfunctioning sensor • Check supply and return dc voltage

• Sensor is disconnected from a
signal cable

• Signal cable is disconnected from
diverter valve

• Both upper (lane 1) and lower
(lane 2) magnetic positioning
switches mounted to the gearmotor
bracket inside the diverter valve are
in closed or open position at the
same time.

• Divert valve fails to switch to
another lane due to lane magnetic
positioning switch not closing

• Diverter valve fails to switch to
another lane due to mechanical
jamming inside the diverter valve

• Mechanical linkage between the
gearmotor and divert paddle is
disconnected

• Check the signal cable connections

• Troubleshoot Horizon ice machine

at sensor connections. Supply
should read 12vdc between red
and black wires. Return should
read between .5 - 4.5 vdc between
yellow and black wires.

• Recycle power to sensor and see if
error clears.

• Check sensor connections to cable

• Check signal cable connection to
diverter valve

• Check both magnetic positioning
sensors. One should be closed
when it is engaged by the
positioning disc, while the other
should be open.

Note: To manually rotate the disc

depress the gearmotor brake.

• Check to be sure magnetic
positioning switch is properly
connected to the control board

• Check the positioning switch for
continuity while it is engaged by
the positioning disc

• Manually switch between lane 1
and lane 2 to free divert paddle

• Check the linkage between the
gearmotor and divert paddle

24 Ice Manager Diverter Valve System Operation and Service Manual

Ice shortage without audible alarm

Use the chart below to diagnose the cause.

Control Panel Error Message Indicator or Possible Cause Corrective Action

No error message • Signal cables and ice transport

tubes are not connected to correct
ice storage/ice dispenser (lane)

No error message • Ice level reading as displayed

on control panel is signicantly
different from the actual distance
between the ice and the sensor
face

No error message • Horizon ice machine goes into

TIME DELAY mode within a few
minutes of start up of lane change

• Check to be sure that signal
cables and ice transport tubes are
connected to correct lane

• Recycle power to the diverter valve.
Make sure to re-start the Horizon
ice machine which will go into
TIME DELAY mode

• Manually switch ice to another lane
and restart Horizon ice machine.
Let ice machine produce ice for 5
to 8 minutes and manually switch
ice back to the “troublesome” lane.
See if “start-up” ice clears through

• If the above procedure does not
work, investigate a potential ice
lane restriction issue (i.e. transport
tube, bulkhead ttings, sensor
distribution unit, diverter valve)

• Check ice level set-points. Be sure
they match factory settings or
drop-in requirements shown in the
Ice level set point section of this
manual on page 24

Ice Manager Diverter Valve System Operation and Service Manual 25

Service Parts

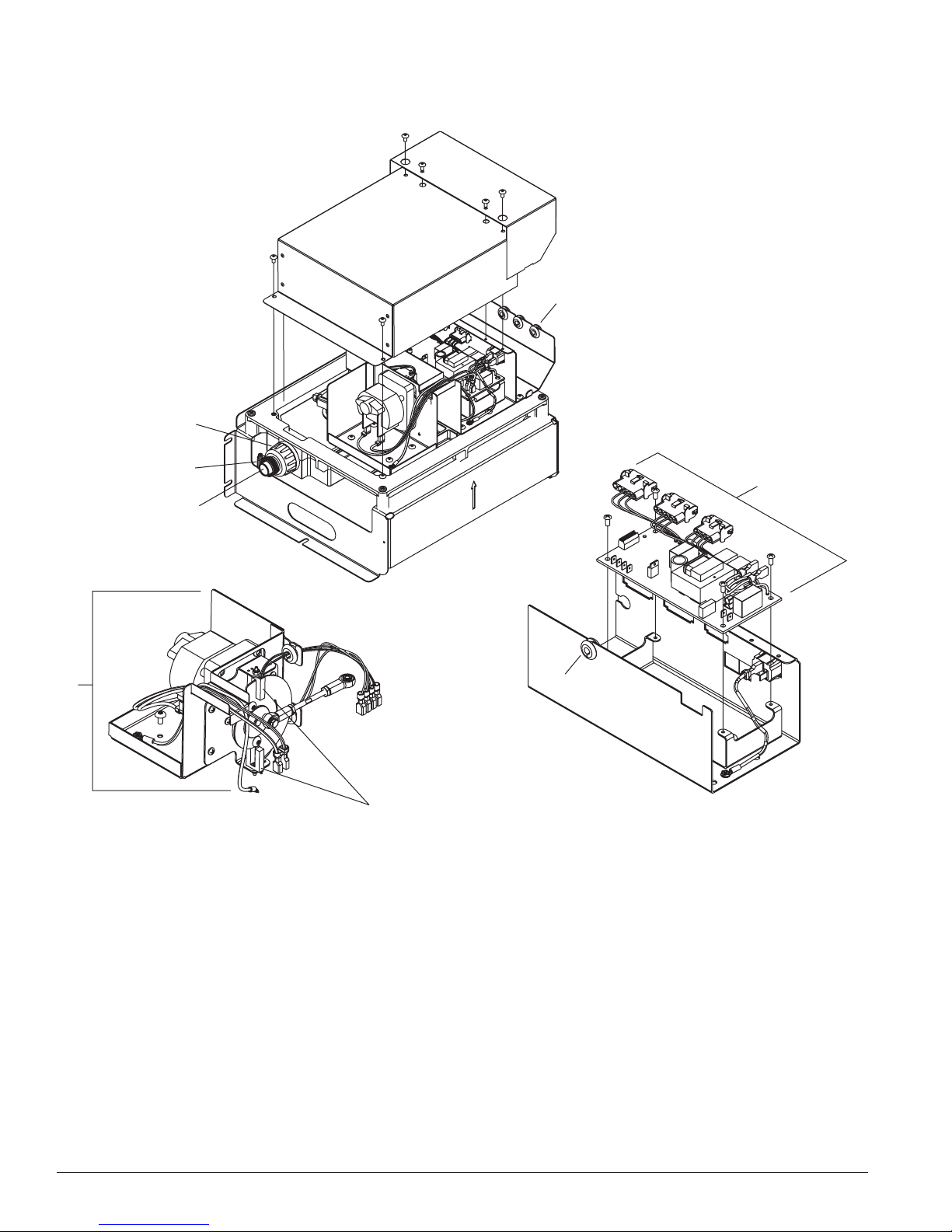

Diverter valve module

1

Order parts online
www.follettice.com

5

2

3

4

7

Reference # Description Part #

1 Nut 00145342
2 Clamp 500378
3 Coupling 00175141
4 Gearmotor assembly 00175166
5 Grommet 205577A
6 Main control board 00173955
7 Switch, magnetic (1) 00168096
Not shown O-ring, ice tube 00144675
Not shown Power cord 00153130
Not shown Elbow, drain 00159178
Not shown Hose, drain 206429

5

6

26 Ice Manager Diverter Valve System Operation and Service Manual

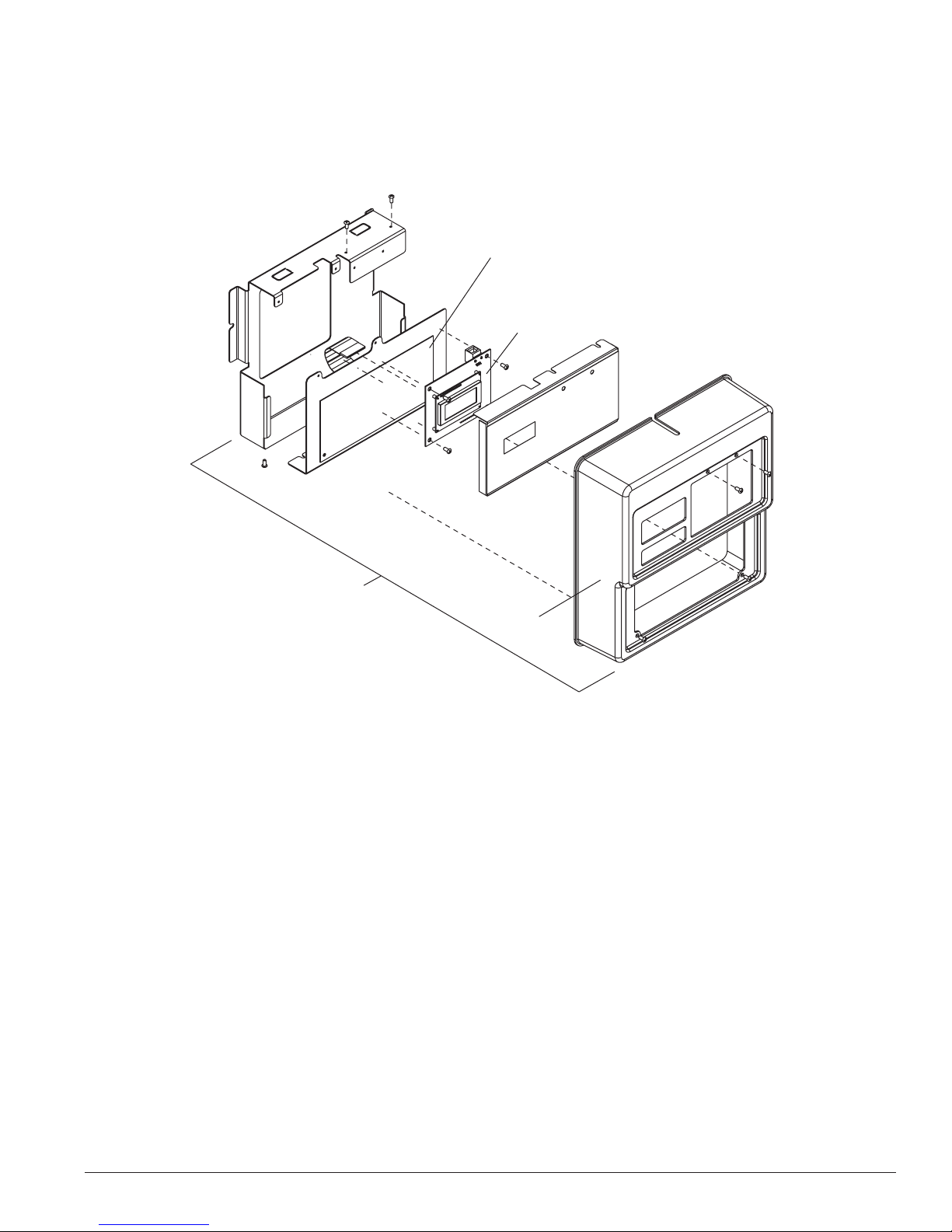

Control panel

Order parts online
www.follettice.com

2

3

1

4

Reference # Description Part #

1 Control module (includes gray control cable) 00159350
2 Membrane switch 00172627
3 Control panel board 00172684
4 Control panel cover 00175133

Ice Manager Diverter Valve System Operation and Service Manual 27

Sensor distribution unit

Order parts online
www.follettice.com

1

13

12

11

10

9

2

3

4

5

6

7

8

14

Reference # Description Part #

1 Cover 00155812
2 Clamp 500378
3 Nut 00145342
4 Coupling 00175141
5 O-ring 00145300
6 Clamp, positioning (includes nut and bolt) 00182451
7 Nut, wing and rod 00182469
8 Distribution unit 00146803
9 Nut, hex stainless steel 1/4-20 200864
10 Carriage screw, 1/4-20 2/5” long 00134312
11 Sensor, ultrasonic 00175174
12 Insert 00146738
13 Thumb screw 00150755
14 Sensor distribution assembly 00149377

28 Ice Manager Diverter Valve System Operation and Service Manual

Follett Vision™ VU155 Ice Manager kit

12

3

Order parts online
www.follettice.com

9

7

5

4

Reference # Description Part #

1 Cover, 155 sensor 00182550
2 Lid, rear, 155 sensor 00182568
3 Vision sensor cable 00167098
4 Polywire tube, insulated see page 35
5 Clamp, hose 500378
6 Nut 00145342
7 Coupling (includes 00145300) 00175141
8 O-ring 00145300
9 Bulkhead tting 00155747
10 Nut, bulkhead tting 00155788

6

8

10

Ice Manager Diverter Valve System Operation and Service Manual 29

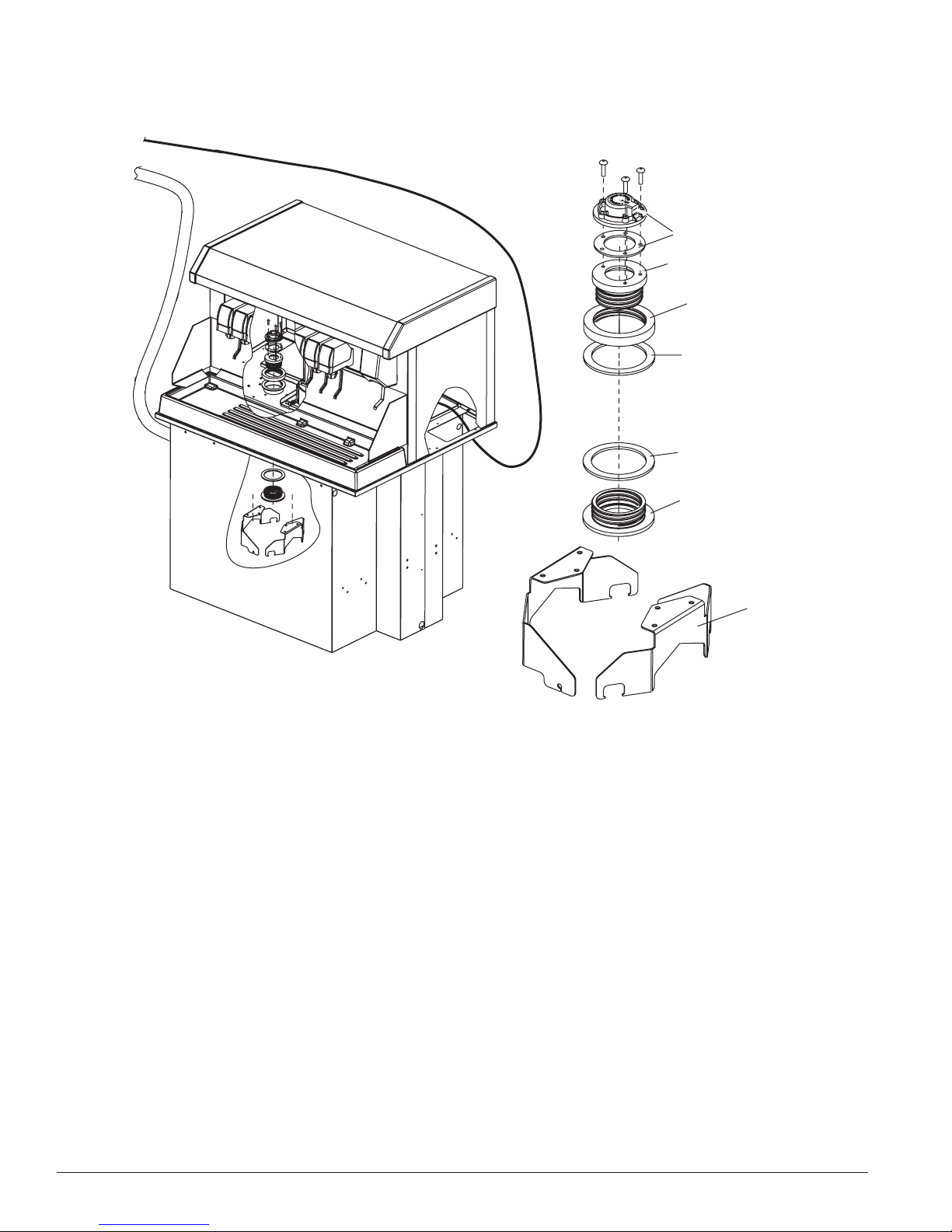

Follett Vision™ VU300 Ice Manager kit

Order parts online
www.follettice.com

1

2

3

4

4

5

6

Reference # Description Part #

1 Sensor, ultrasonic, service 00175174
2 Tube, sensor mount 00164152
3 Locking ring, coupling 00164632
4 Gasket, coupling 00126532
5 Coupling, sensor mount 00164145
6 Bracket, ice tube 00175208

30 Ice Manager Diverter Valve System Operation and Service Manual

Cables

Reference # Description Part #

Not shown Cable, control panel to diverter valve, 30' (9m) 00163212
Not shown Cable, diverter valve lane sensor, 10' (3m) 00170449
Not shown Cable, diverter valve lane sensor, 25' (7.6m) 00170456
Not shown Cable, diverter valve lane sensor, 50' (15.2m) 00153106
Not shown Cable, diverter valve lane sensor, 75' (22.9m) 00170464
Not shown Cable, Horizon to diverter valve, 20' (6m) 00188169
Not shown Cable, Horizon board interface 00187526
Not shown Ice transport tube, 10'* 00171280
Not shown Ice transport tube, 20'* 00171298
Not shown Ice transport tube, by the foot* 00174896
Not shown Shuttle assy., heavy spring 00185140

* All ice transport tube includes insulation, shipped loose.

Order parts online
www.follettice.com

Ice Machine Retrot Kits

Reference # Description Part #

Not shown HCD/HCC 1010/1410 01116177

Ice Manager Diverter Valve System Operation and Service Manual 31

32 Ice Manager Diverter Valve System Operation and Service Manual

Ice Manager Diverter Valve System Operation and Service Manual 33

34 Ice Manager Diverter Valve System Operation and Service Manual

Ice Manager Diverter Valve System Operation and Service Manual 35

Horizon, Ice Manager, SafeCLEAN, Sani-Sponge, RIDE and Vision are trademarks of Follett LLC.
Follett and Chewblet are registered trademarks of Follett LLC, registered in the US.

801 Church Lane • Easton, PA 18040, USA
Toll free [phone] • [phone]
www.follettice.com

01096148R01

© Follett LLC 4/17
