Countertop and Freestanding Ice and Water
Dispenser with Chewblet® Ice Icemaker
Installation, Operation and Service Manual
Serial numbers D25455 to E01086
7CI100A 7FS100A
7CI100A, 7FS100A
Following installation, please forward this manual
totheappropriate operations person.
801 Church Lane • Easton, PA 18040, USA
Toll free (877) 612-5086 • +1 (610) 252-7301
www.follettice.com
Order parts online:
www.follettice.com
00951640R06
Page 2
Contents
Welcome . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Before You Begin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Important Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Speci cations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Ambient Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Plumbing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Speci cations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Water . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Clearances . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Electrical . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Refrigeration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Heat Rejection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Detailed Drawing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Countertop Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Freestanding Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Maintenance/Cleaning Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Accessing Internal Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Filter Display Indicator Activation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Cleaning and Sanitizing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
LED Indicator Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Water Feed Schematic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Bin Melt Water/Evaporator Feed/Clean Out System Schematic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Vent System Schematic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

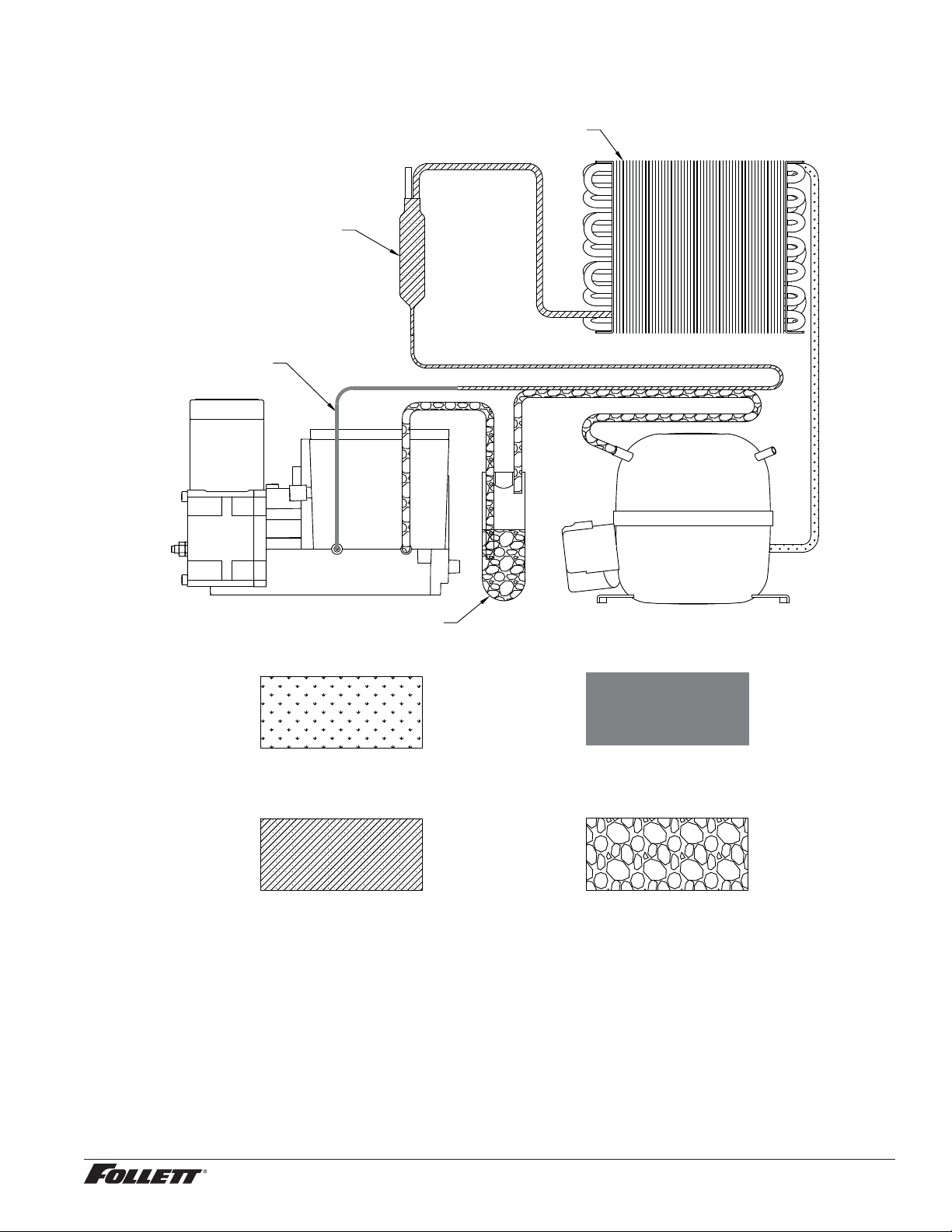

Refrigeration Schematic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Condenser Fan Motor Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

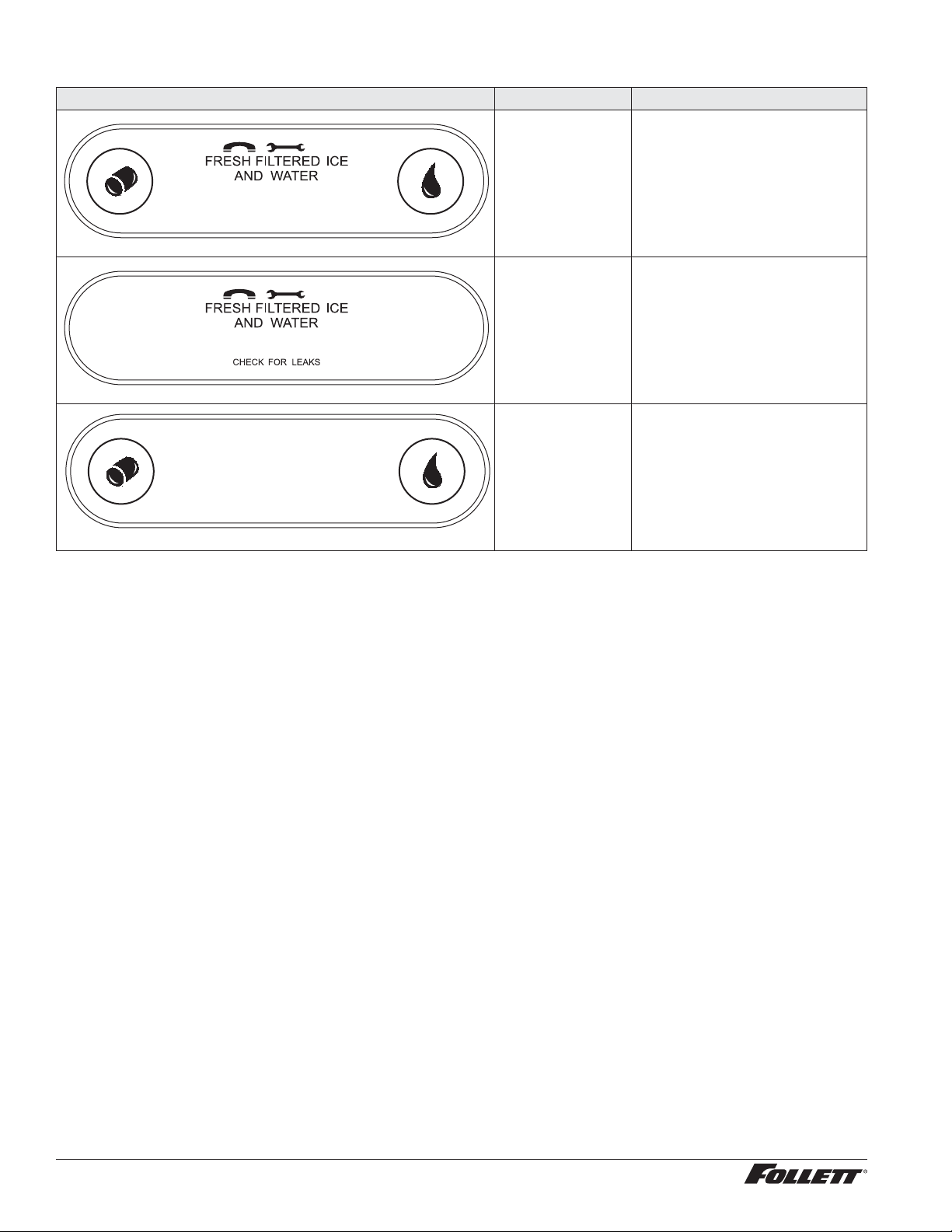

User Interface Display Identi cation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Electrical Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Exterior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Interior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Bin Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Evaporator Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Base Stand . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
2 Dispenser and Icemaker 7CI100A/7FS100A
Page 3
Welcome ––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
Follett equipment enjoys a well-deserved reputation for excellent performance, long-term reliability, and outstanding
after-the-sale support. To ensure that this product delivers that same degree of service, we ask that you take a
moment to review this manual before beginning the installation. Should you have any questions or require technical
help at any point, please call our technical service group at (877) 612-5086 or +1 (610) 252-7301.

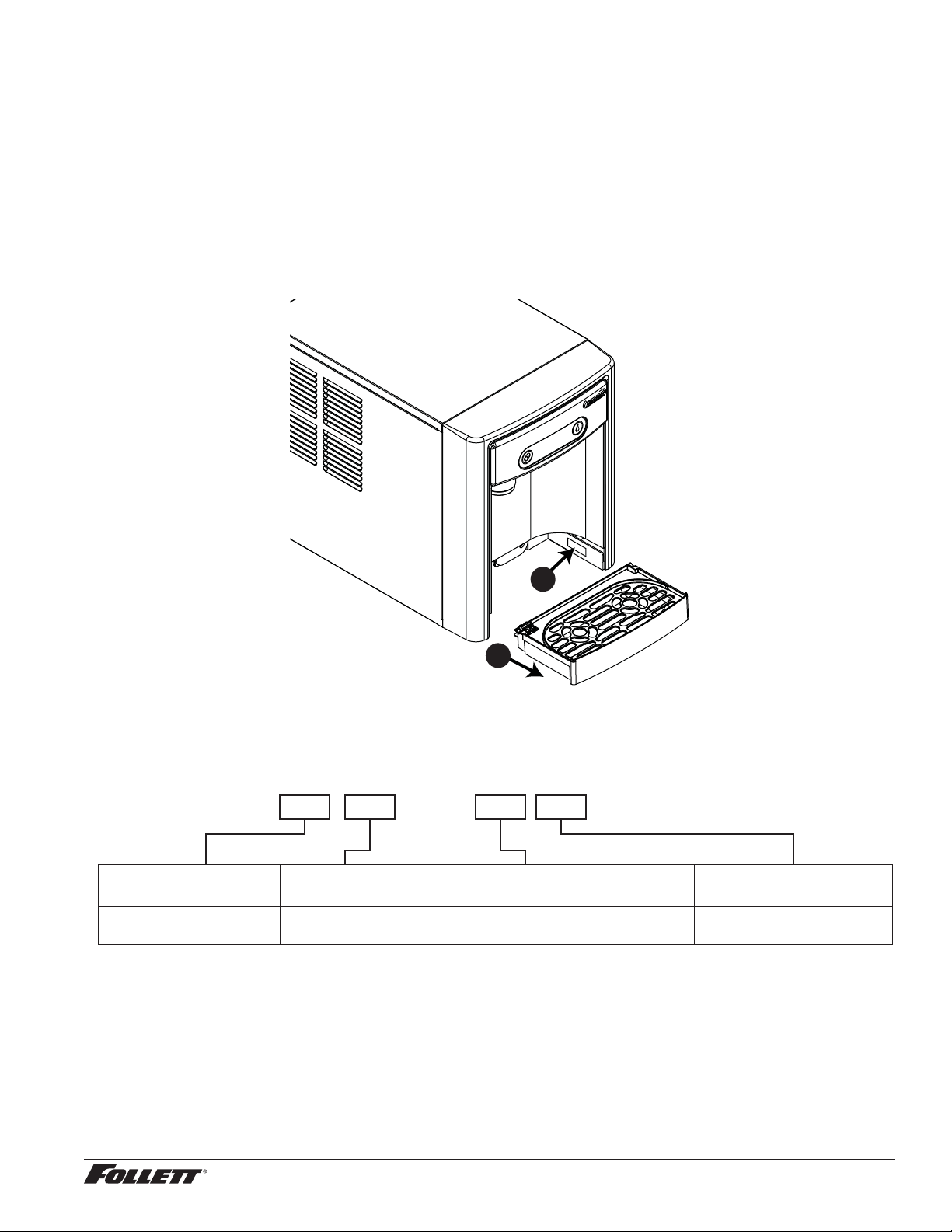

Before You Begin –––––––––––––––––––––––––––––––––––––––––––––––––––
After uncrating and removing all packing material, inspect the equipment for concealed shipping damage. If damage
is found, immediately notify the shipper and contact Follett Corporation so that we can help in the ling of a claim,
if necessary. If needed, the serial number of your dispenser can be found by removing the drip tray (1) and locating
the serial number label (2).
2
1
Check your paperwork to verify that you received the correct dispenser. Follett con guration numbers are designed
to provide information about the type of dispenser you are receiving. The following is an explanation of the different
model numbers.
7CI 100A
Dispenser Storage
Capacity
7 lb CI Countertop
Con guration Icemaker Capacity Condenser
100 lb per day A Air-cooled
FS Freestanding
Dispenser and Icemaker 7CI100A/7FS100A 3
Page 4
Important Safety Information –––––––––––––––––––––––––––––––––––––––––
Please read and adhere to the following safety information while installing, using, or servicing your Follett 7 Series
Ice Dispenser.
1. Always disconnect power before servicing the dispenser.
2. Ice is slippery. Maintain counters and oors around dispenser in a clean and ice-free condition.
3. Ice is food. Follow the recommended cleaning and sanitizing instructions to maintain cleanliness of
delivered ice.
Speci cations –––––––––––––––––––––––––––––––––––––––––––––––––––––
Dimensions
7CI100A 7FS100A
Width 14.55" (370 mm) 14.55" (370 mm)
Depth 22.05" (560 mm) 22.05" (560 mm)
Height 17.53" (450 mm) 41.93" (1065 mm)
Unit Shipping Weight 90 lb (41 kg) 120 lb (54.4 kg)
Ambient Information
CAUTION!
The 7CI100A and 7FS100A are for indoor use only.
Maximum* Minimum*
Air Temperature
Water Temperature 90 F (32.2 C) 40 F (4.5 C)
Water Pressure 70 psi 10 psi
Relative Humidity 55% at 78 F (25.5 C)
* Use outside of these limitations is misuse and will void warranty.
† Best performance is achieved between 80 F (27 C) and 50 F (10 C).
†
100 F (38 C) 50 F (10 C)
Plumbing
Water Inlet: 1/4" MPT
Optional Drain Accessory Kit (item# 00956375 or 00981977): 1/2" ID tubing
Water shut-off recommended within 5 ft. (1.5 m) of dispenser
4 Dispenser and Icemaker 7CI100A/7FS100A
Page 5
Speci cations –––––––––––––––––––––––––––––––––––––––––––––––––––––
Water
WARNING!
Connect to potable water supply only.
Water Mineral Content:
– TDS: greater than 5 ppm (mg/l) but less than 400 ppm (mg/l)
– Hardness: Less than 200 mg/l (12 gpg)
Not recommended for use with softened water
Clearances
3" (77 mm) behind and on each side of dispenser for electrical and connection and ventilation
Electrical
115V, 60 Hz, 1 phase, 5A, maximum fuse 15A
Connect to dedicated 15A circuit, fuse or breaker
Must be grounded - requires 3-prong outlet. Do not remove ground.
Refrigeration
WARNING!
Do not damage the refrigerant circuit. Refrigerant can cause personal injury and/or damage dispenser.
Refrigerant R134a – 7.2 ounces (204 grams)
Heat Rejection
1700 BTU/hr (498 W)
Dispenser and Icemaker 7CI100A/7FS100A 5
Page 6
Speci cations (continued) ––––––––––––––––––––––––––––––––––––––––––––––

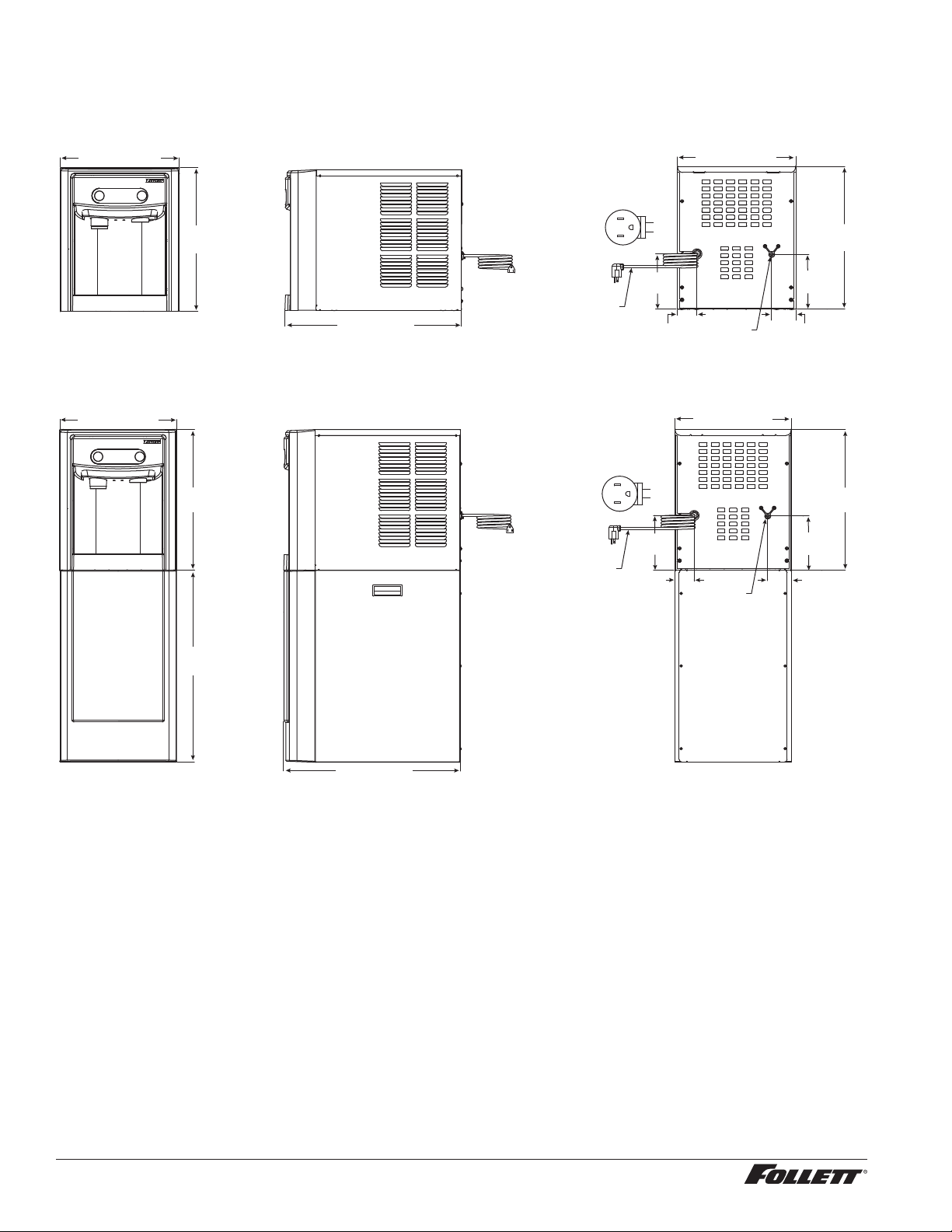

Detailed Drawing
Countertop models
14.55" (370 mm)
14.55" (370 mm)
17.54"
(446 mm)
Freestanding models
14.55" (370 mm)
17.54"
(446 mm)
24.39"
(620 mm)
22.05" (560 mm)
NEMA 5-15
right angle
power cord
NEMA 5-15
right angle
power cord
L2
L1
L2
L1
G
(172 mm)
(61 mm)
G
(172 mm)
2.40"
(61 mm)
6.79"
2.40"
6.79"
1/4" MPT
water inlet
14.55" (370 mm)
1/4" MPT
water inlet
(446 mm)
6.72"
(171 mm)
2.98"
(76 mm)
(446 mm)
6.72"
(171 mm)
2.98"
(76 mm)
17.54"
17.54"
22.05" (560 mm)
6 Dispenser and Icemaker 7CI100A/7FS100A
Page 7

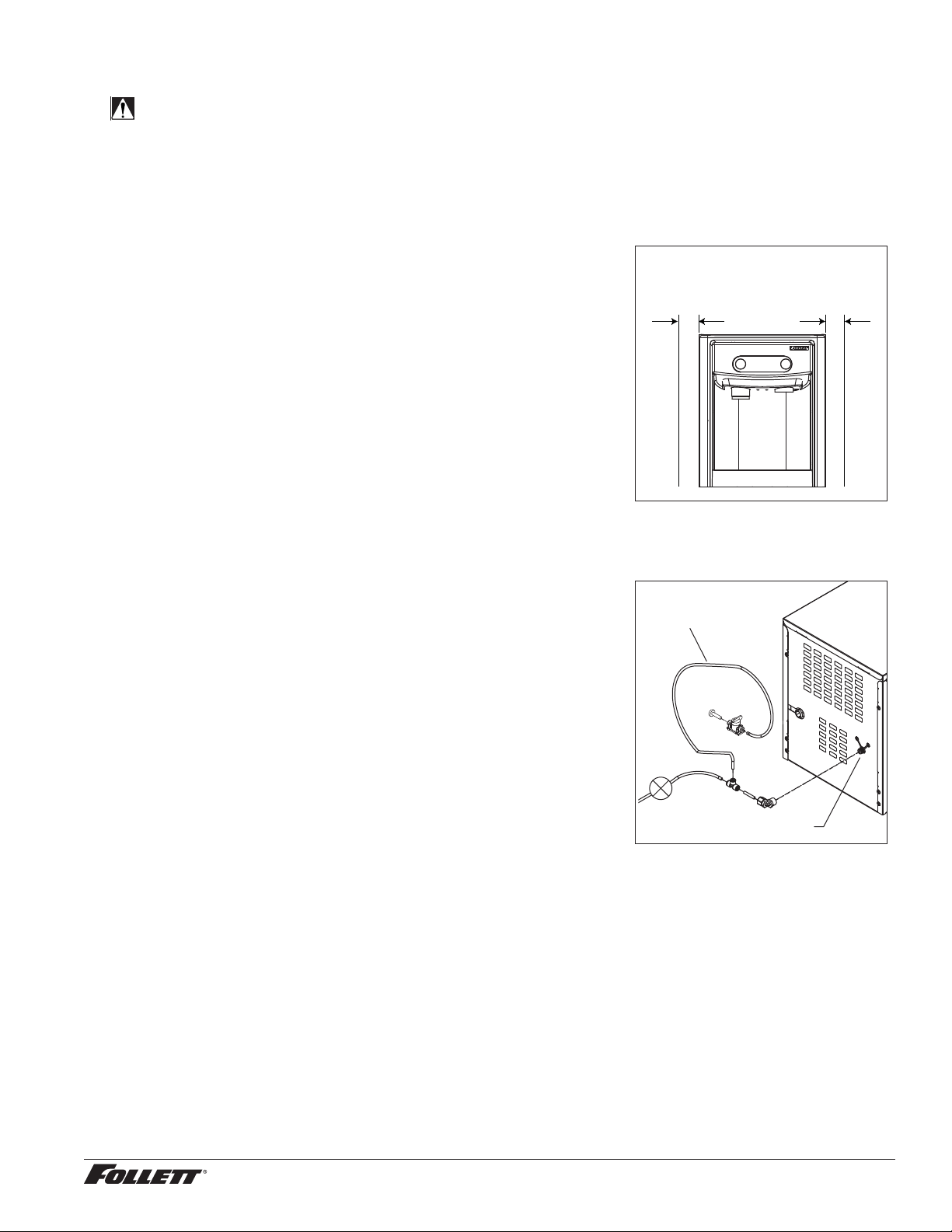

Installation ––––––––––––––––––––––––––––––––––––––––––––––––––––––––
CAUTION!
No service or maintenance should be performed until the technician
has thoroughly read this service manual. Except for routine cleaning
and sanitizing, only quali ed technicians should attempt to service
or maintain this equipment.
Countertop Installation
Installation instructions for freestanding model may be found on page 8.
1. A clearance of at least 3" (77 mm) is required behind and on
each side of the dispenser for electrical connection and ventilation
(Fig.1).
2. Rough-in the electrical service and water line.
Electrical: 115V, single phase, 15A receptacle required. The dispenser
has an integral 8 ft. (2.4 m) cord and plug.
Water: supply line (with shut-off valve) connects to the dispenser's 1/4"
MPT inlet.
NOTICE!
If installing optional Drip Tray Drain Kit or Leg Accessory,
complete those steps before proceeding. Refer to instructions
included with the Drip Tray Drain Kit, or see page 8 for Leg
Accessory instructions.
3. Connect water line. Recommended routing (Fig. 2) allows easy access
to water for cleaning and sanitizing procedure.
4. If installing the optional internal water lter*, please see Optional
Internal Water Filter Installation on page 10 before proceeding.
If not, proceed to step 5.
* If your dispenser has the internal water lter option, the water lter must be
installed for the dispenser to operate. Because internal components will need to
be accessed for both procedures, Follett recommends installing the water lter
just prior to initial sanitizing.
5. Connect power supply.
6. Sanitize the dispenser prior to use (see Cleaning and Sanitizing
on page 13).
Fig. 1
Fig. 2
3' (91.4 cm)
Plug
countertop models
minimum 3" (77 mm)
clearance required
Val ve
1/4" MPT
Dispenser and Icemaker 7CI100A/7FS100A 7
Page 8
Installation (continued) –––––––––––––––––––––––––––––––––––––––––––––––––

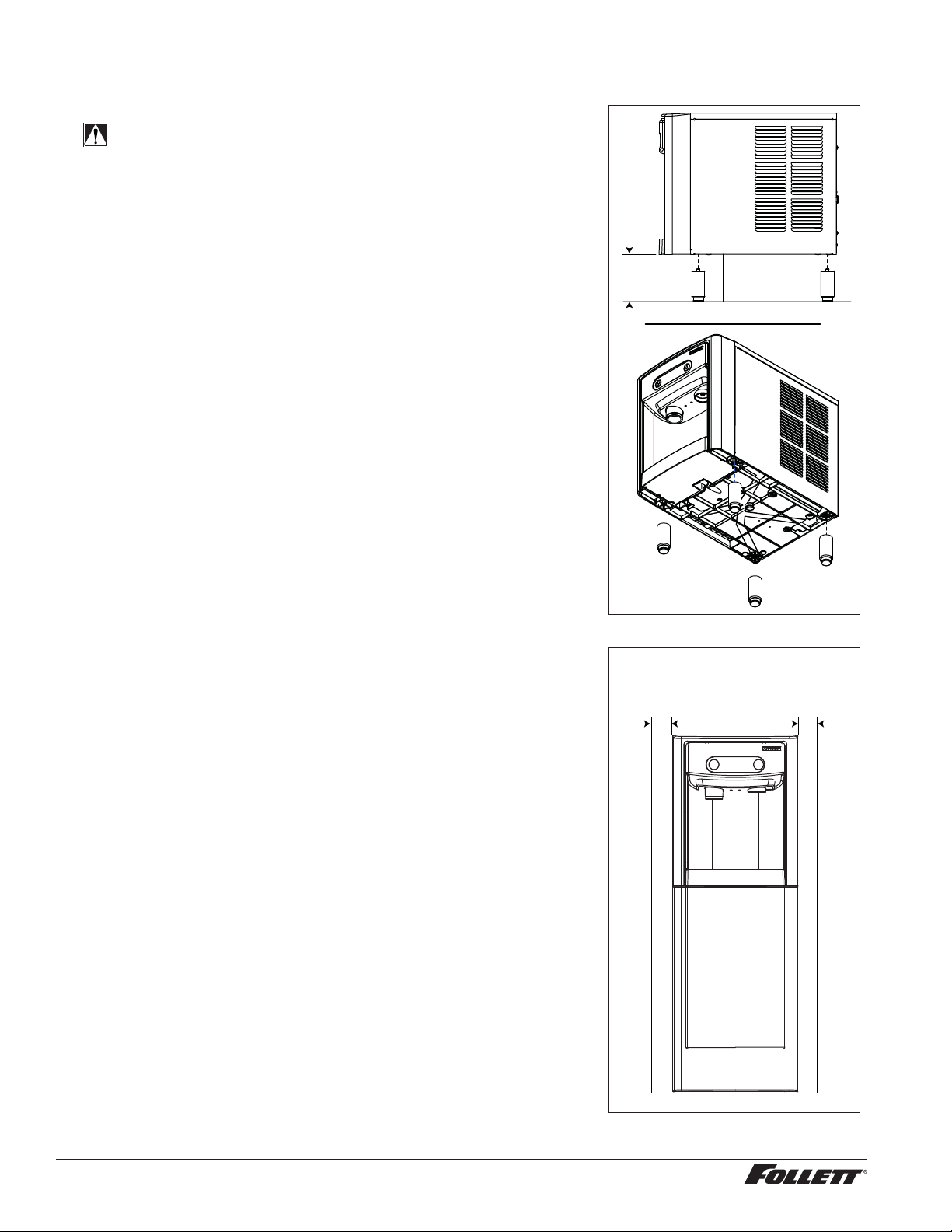

Optional Leg Accessory Installation
CAUTION!
Use caution when tipping the dispenser during leg installation. Do
not lay unit on back or side. DO NOT EXCEED 30° angle. Tipping
more than 30° can result in compressor malfunction.
1. If installing optional 4" Leg Accessory (item# 00956300), place a 5"
(127 mm) spacer underneath the dispenser to ease installation.
2. Remove four plastic, thread-protecting plugs from bottom of
dispenser.
3. Screw each leg into chassis (Fig. 3).
Fig. 3
5" (127 mm)
min.
spacer
Freestanding Installation
Installation instructions for countertop model may be found on Countertop
Installation on page 7.
1. A clearance of at least 3" (77 mm) is required behind and on
each side of the dispenser for electrical connection and ventilation
(Fig.4).
2. Rough-in the electrical service and water line.
Electrical: 115V, single phase, 15A receptacle required. The dispenser
has an integral 8 ft. (2.4 m) cord and plug.
Water: supply line (with shut-off valve) connects to the dispenser's 1/4"
MPT inlet.
NOTICE!
If installing optional Leg Accessory, complete those steps before
proceeding. See page 10 for Leg Accessory instructions.
Fig. 4
freestanding models
minimum 3" (77 mm)
clearance required
8 Dispenser and Icemaker 7CI100A/7FS100A
Page 9

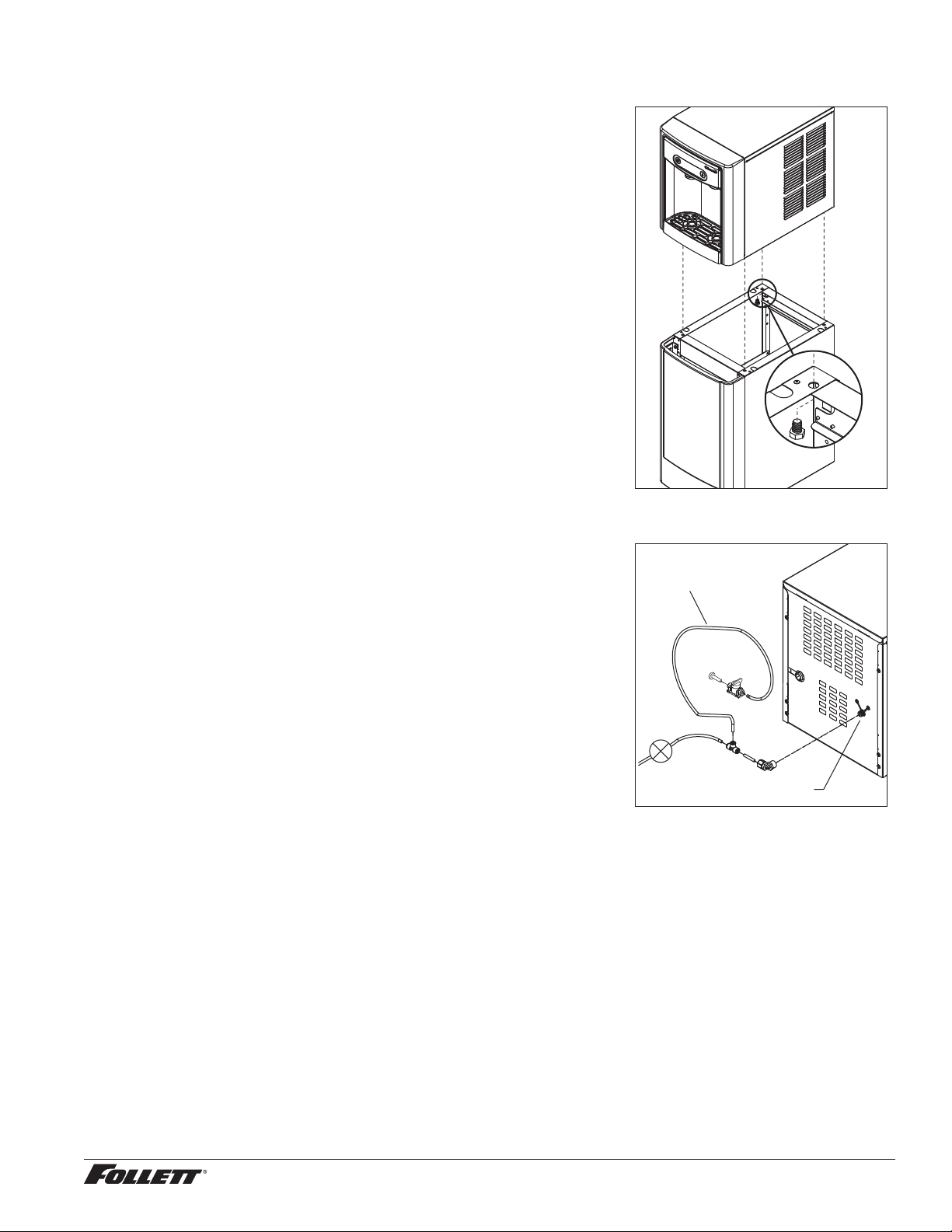

Installation (continued) –––––––––––––––––––––––––––––––––––––––––––––––––
3. Remove four plastic, thread-protecting plugs from bottom of
dispenser.
4. Attach dispenser to base stand with supplied hardware (Fig. 5).
NOTICE!
If installing optional Drip Tray Drain Kit, refer to instructions
included with the Drip Tray Drain Kit.
5. Connect water line. Recommended routing (Fig. 6) allows easy access
to water for cleaning and sanitizing procedure.
6. If installing the optional internal water lter*, please see Optional
Internal Water Filter Installation on page 10 before proceeding.
If not, proceed to step 7.
* If your dispenser has the internal water lter option, the water lter must be
installed for the dispenser to operate. Because internal components will need to
be accessed for both procedures, Follett recommends installing the water lter
just prior to initial sanitizing.
7. Connect power supply.
8. Sanitize the dispenser prior to use (see Cleaning and Sanitizing
on page 13).
Fig. 5
X4
Fig. 6
3' (91.4 cm)
Plug
Val ve
1/4" MPT
Dispenser and Icemaker 7CI100A/7FS100A 9
Page 10
Installation (continued) –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
9. Secure unit to wall or cove molding with supplied bracket (Fig. 7) to
prevent tipping.
Note: Fasteners must be supplied by installer.
WARNING!
Freestanding unit must be secured to wall to prevent tipping.
Failure to do could result in personal injury or damage to the
unit.

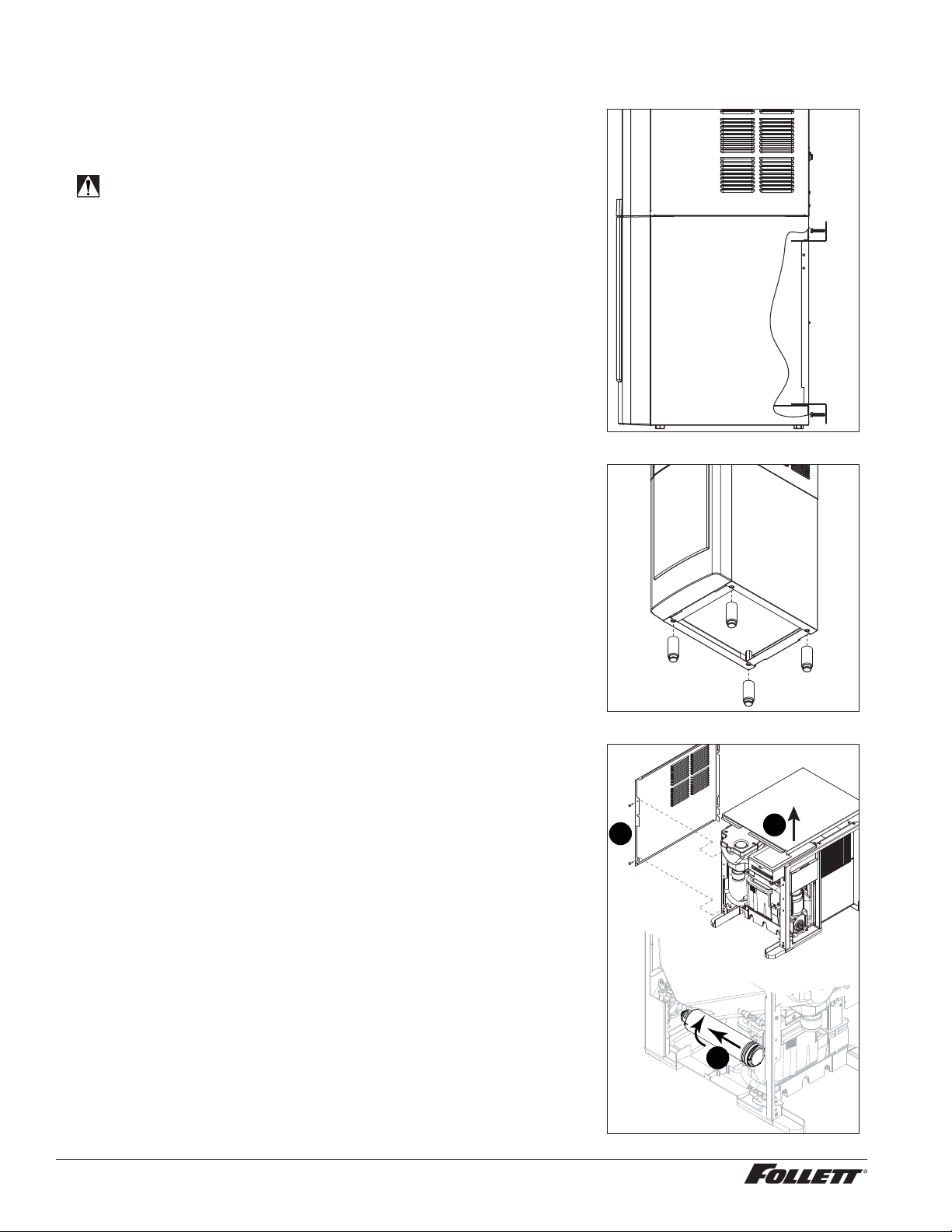

Optional Leg Accessory Installation
1. If installing optional 6" Leg Accessory (item# 00956318), tilt or lay
base stand on side and screw each leg into stand (Fig.8).
Fig. 7
Fig. 8
Optional Internal Water Filter Installation
If your dispenser has the internal water lter option, the water lter must be
installed for the dispenser to operate. Because internal components will need
to be accessed for both procedures, Follett recommends installing the water
lter just prior to initial sanitizing.
1. If installing the optional internal water lter, please complete the
steps shown in Accessing Internal Components on page 11
before proceeding.
2. Lift and remove the top panel, set aside (Fig. 9.1).
3. Remove two screws (Fig. 9.2) and remove left side panel.
4. Install lter as shown. Turn lter clockwise until it is fully seated
(Fig.9.3).
10 Dispenser and Icemaker 7CI100A/7FS100A
Fig. 9
2
1
3
Page 11

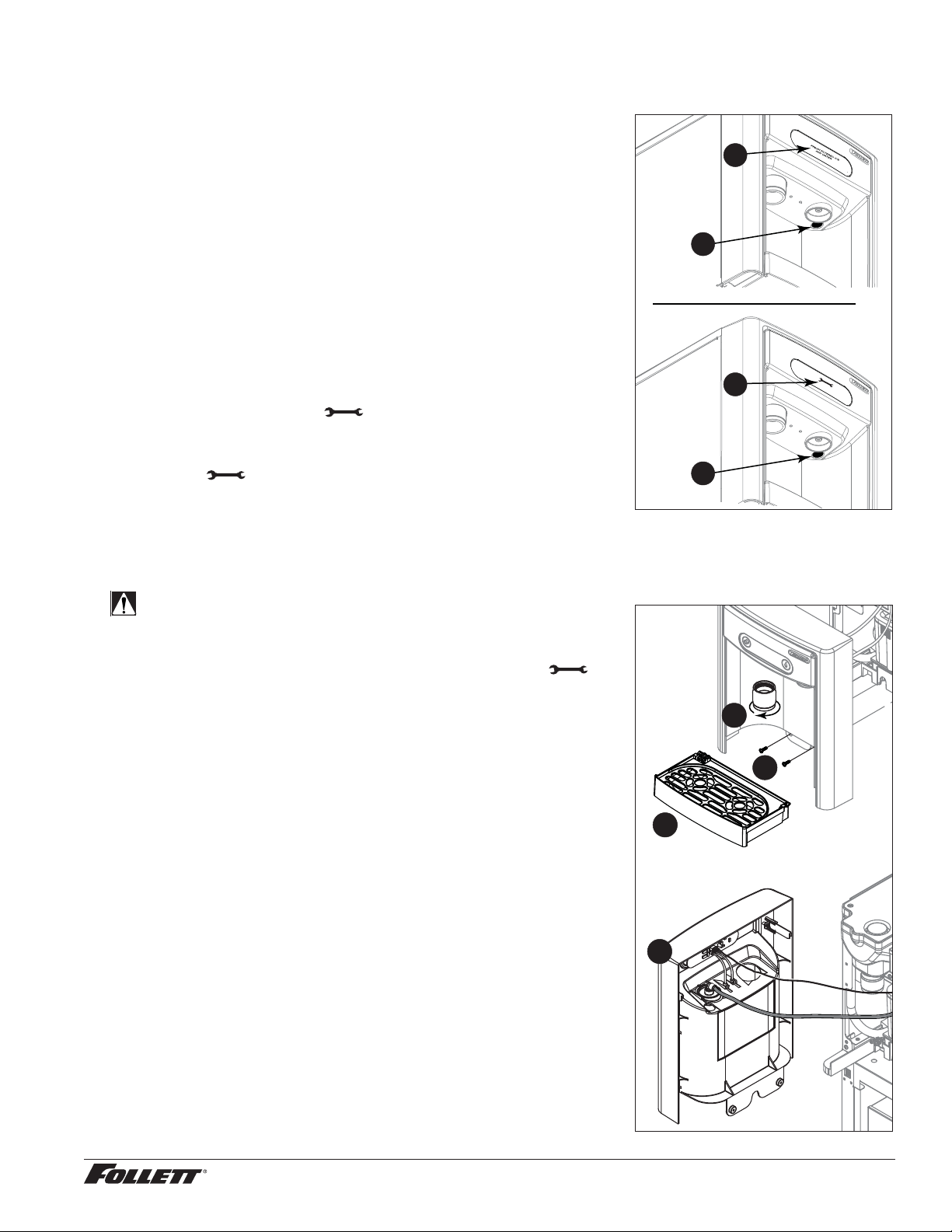

Maintenance/Cleaning Mode –––––––––––––––––––––––––––––––––––––––––
Cleaning Mode (Dispensing Disabled) - Use when cleaning surface
Entering Cleaning Mode disables the User Interface and allows you to clean
the outside of the dispenser without accidentally dispensing water or ice.
1. To enter Cleaning Mode, press and immediately release the
maintenance/clean switch (Fig. 10.1) so that only "FRESH
FILTERED ICE AND WATER" displays in the user interface
(Fig.10.2).
2. To exit Cleaning Mode, press and immediately release the
maintenance/clean switch so that the ice and water icons also
display in the user interface.
Maintenance Mode (All Operations Disabled) - Use when cleaning ice
machine
Entering Maintenance Mode disables all operations and allows you to safely
clean and/or sanitize the icemaker and dispenser.
1. To enter Maintenance Mode, press and hold the maintenance/
clean switch (Fig. 10.3) until displays in the user interface
(Fig.10.4).
2. To exit Maintenance Mode, press and hold the maintenance/clean
switch until no longer displays in the user interface.
Note: Entering and exiting Maintenance Mode will reset the six-month
periodic maintenance reminder.
Fig. 10
2
1
4
3

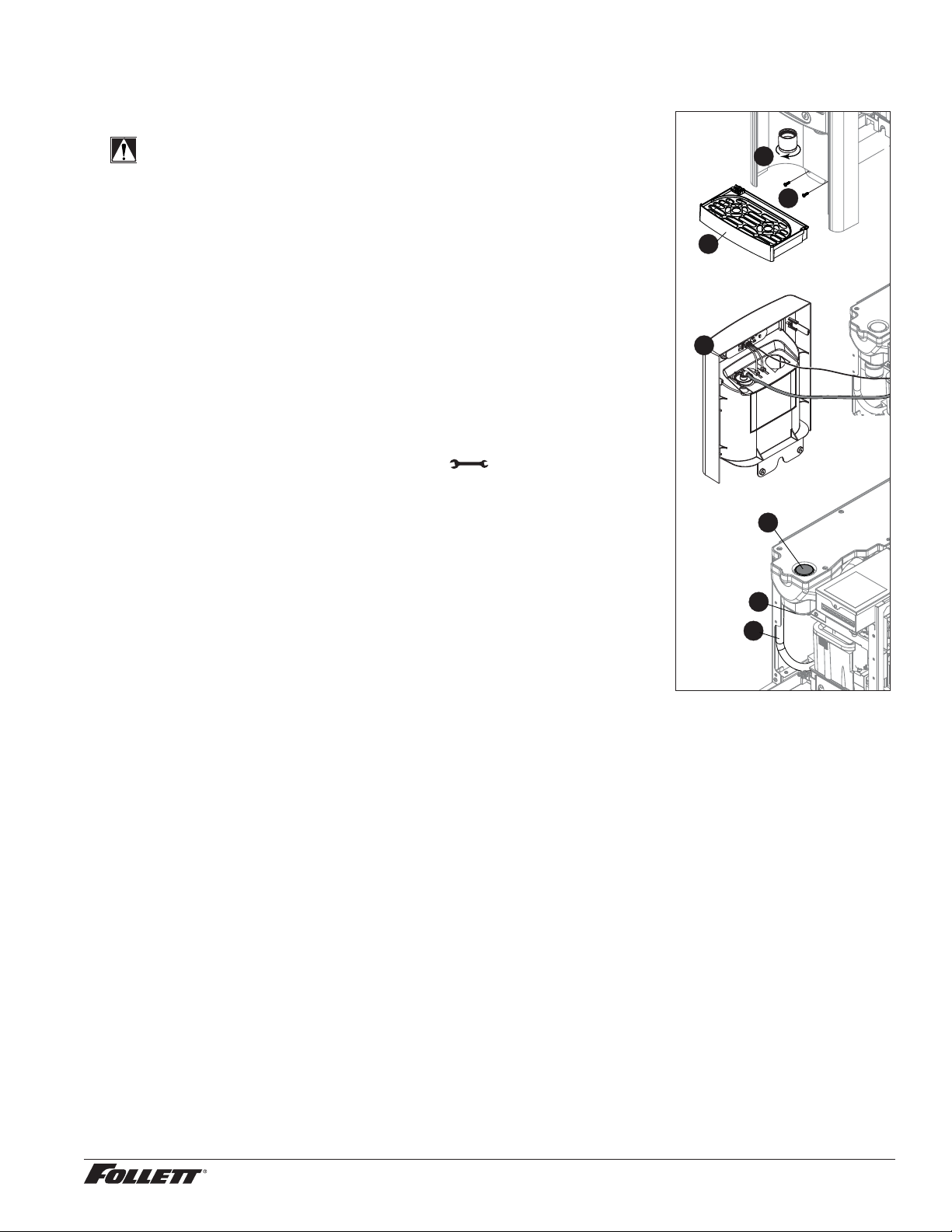

Accessing Internal Components ––––––––––––––––––––––––––––––––––––––
Fig. 11
CAUTION!
Except for routine cleaning and sanitizing, only quali ed
technicians should attempt to service or maintain this equipment.
1. Press and hold the maintenance/clean switch (Fig. 10.1) until
displays in the user interface (Fig. 10.2).
2. Remove (unscrew) chrome ice dispenser chute (Fig. 11.1).
3. Remove the drip tray (Fig. 11.2).
4. Remove the two screws (Fig. 11.3) on the front panel (behind the
drip tray).
5. Remove and set aside the front panel (Fig. 11.4) - do not
disengage the plug on the back of the User Interface or the
tubing at the water dispenser chute (if so equipped).
2
4
1
3
Dispenser and Icemaker 7CI100A/7FS100A 11
Page 12

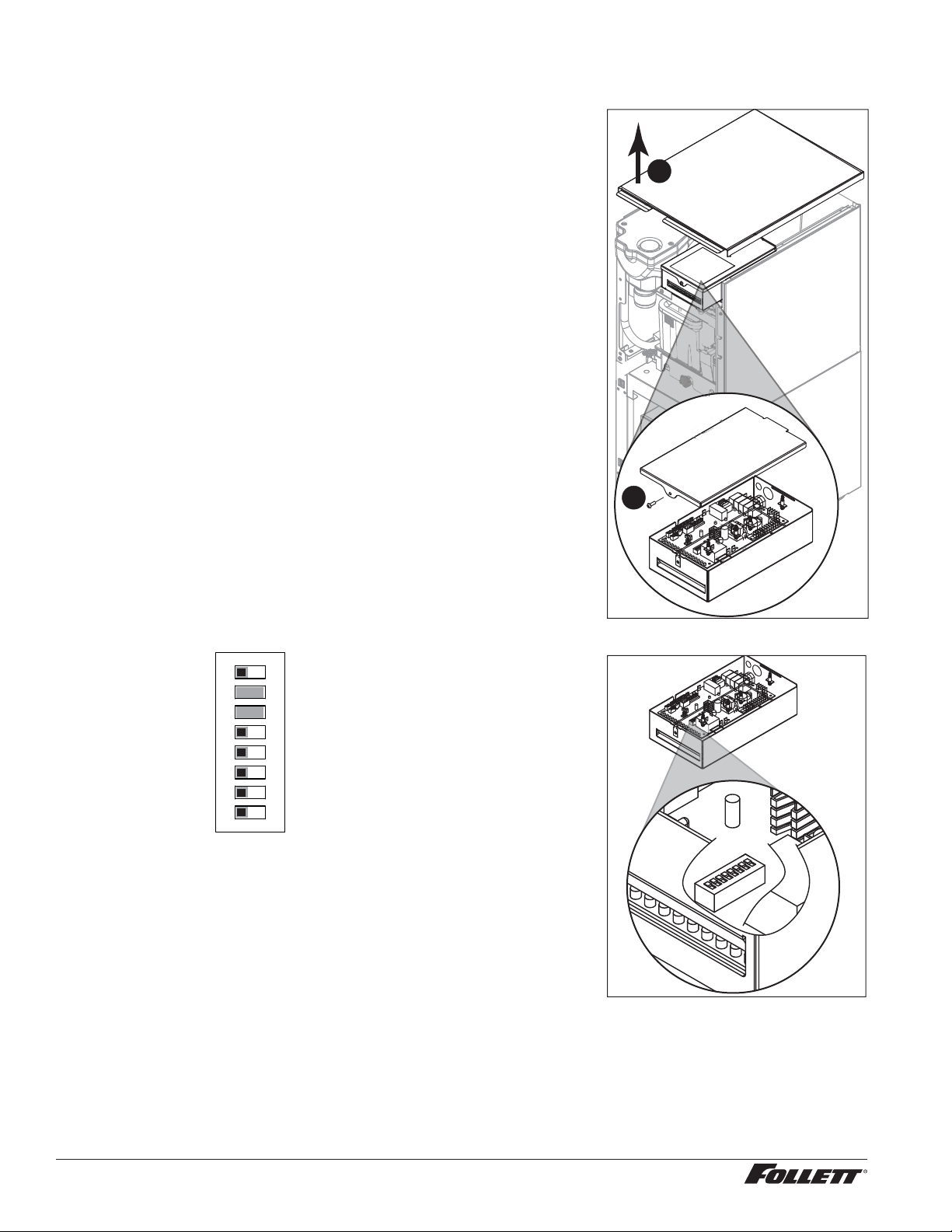

Filter Display Indicator Activation –––––––––––––––––––––––––––––––––––––
If you purchased your dispenser with a Follett lter, the lter display indicator
activation has been preset at the factory.
If you are using an “after market lter,” an adjustment may be made to
activate the “Fresh Filtered Ice & Water” display.
Activating “Fresh Filtered Ice & Water”
1. Remove the front panel as explained in Accessing Internal
Components on page 11 then refer to Fig. 12.
2. Remove top panel (Fig. 12.1).
3. Remove (1) screw and top of control board enclosure (Fig. 12.2).
4. Locate the DIP switches on the dispenser's control board (Fig. 13).
Use a ne-pointed object to move the “Filter” DIP switch (DIP switch
#3) to the ON position.
Deactivating the Six-Month Maintenance/Filter Change Reminder
1. Use a ne-pointed object to move the “PM” DIP switch (DIP switch
#8) to the ON position.
Fig. 12
1
2
Not used (OFF position)
Ice only
No internal filter
Not used (OFF position)
Not used (OFF position)
15 minute delay
Not used (OFF position)
Six-month PM enabled
OFF ON
Fig. 13
12345678
Ice & water
Internal filter supplied or to display "Fresh Filtered"
30 minute delay
Six-month PM disabled
12 Dispenser and Icemaker 7CI100A/7FS100A
Page 13
Cleaning and Sanitizing –––––––––––––––––––––––––––––––––––––––––––––
Cleaning and sanitizing should be performed at least every 6 months (more often if
Fig. 14
local water conditions dictate). For initial startup, only sanitizing is required.
WARNING!
1
Place the dispenser in Maintenance Mode prior to servicing or
cleaning the ice machine. See Maintenance/Cleaning Mode on
page 11.
For protection, rubber gloves and safety goggles (and/or face shield)
should be worn when handling Cleaner or Sanitizer.
2
3
Do not mix Cleaner and Sanitizer together. It is a violation of federal
law to use these solutions in a manner inconsistent with their labeling.
Do not use bleach, it will damage the dispenser.
Required Supplies
4
(3) x 7 oz. SafeCLEAN™ environmentally-friendly icemaker cleaner packets
Nu-Calgon IMS-II sanitizing concentrate
Funnel and Bucket
Cleaning: Icemaker and Dispenser
1. Dispense all the ice out of the unit.
2. Press and hold maintenance/clean switch until displays in the user
interface to enter Maintenance Mode.
3. Remove (unscrew) chrome ice dispense chute (Fig. 14.1).
4. Remove drip tray (Fig. 14.2).
6
5. Remove (2) screws located behind the drip tray (Fig. 14.3).
6. Move front panel and place on top or beside unit (Fig. 14.4).
7. Remove plug cap from the end of drain tube (Fig. 14.5) and lower tube
to drain water into bucket.After the system has been drained of water
replace plug cap in drain tube.
8. After the system has been drained of water replace plug cap in drain tube.
7
5
9. Secure tube in holder.
10. Remove cap from bin lid cover (Fig. 14.6).
11. Screw bin lid cover cap onto ice discharge chute (Fig. 14.7).
12. Mix SafeCLEAN Ice Machine Cleaner, (3) x 7 oz. packets, with 11.4 L (3gal.) of water.
13. Pour cleaning solution into bin lid access spout until solution reaches the spout neck.
14. Allow the solution to remain in unit for 15 minutes.
15. While machine is cleaning, remove top and right side panel to access and clean air-cooled condenser.
16. Drain system by lowering drain tube into bucket.
17. Secure drain tube into holder.
18. Fill one time with potable water and drain with tube. Secure drain tube.
Sanitizing: Icemaker and Dispenser
1. Complete steps 1-11 above.
2. Mix a sanitizing solution of 9.5L (2.5 gal.) of water and 118 ml (4 oz.) of Nu-Calgon IMS-II sanitizing
concentrate.
3. Pour sanitizing solution into bin lid access spout until solution reaches the spout neck.
4. Allow the solution to remain in unit for 5 minutes.
5. Drain system by lowering drain tube.
6. Secure drain tube into holder.
7. Fill and drain three times with potable water.
8. Place a bucket under the dispense chute and remove cap. Note: Some sanitizing solution will remain and
drain out when cap is removed. Reposition cap on bin lid spout.
9. Reinstall front panel, ice dispense chute, and drip tray.
10. Press and hold maintenance/clean switch to exit Maintenance Mode.
Dispenser and Icemaker 7CI100A/7FS100A 13
Page 14
Cleaning and Sanitizing (continued) ––––––––––––––––––––––––––––––––––––––
Cleaning: User Interface and Exterior Cabinet
1. Press and release maintenance/clean switch so that only "FRESH FILTERED ICE AND WATER" displays
in the user interface to enter Cleaning Mode (and disable dispensing).
2. Plastic parts, including the user interface, can be cleaned with a non-abrasive glass cleaner. Clean
stainless steel panels with stainless steel cleaner.
3. Press and release maintenance/clean switch to put unit back into service.
Service –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
LED Indicator Description
The LED Indicator is located behind the front panel.
Fig. 15
Clean
LED Name LED Color Description
Clean Green The dispenser is in Cleaning Mode. Dispenser is disabled to allow for cleaning of front panel.
— N/A Not used.
PM Red Six-month periodic maintenance required.
Drip tray Red Drip tray full.
Water leak Red Internal leak in dispenser.
High amps Red Auger gearmotor has exceeded 0.55A. The HI amps and Time delay LEDs will illuminate,
Service Red 8000 hour bushing check (call Follett technical service group at (877) 612-5086 or
Maintenance Yellow Enter Maintenance Mode by pressing and holding maintenance/clean switch for 5 seconds.
Low water Yellow Insufficient water supply to machine or no low bin LED upon startup.
Time delay Yellow Ice production will not resume for at least 15 minutes after a full bin is achieved and a
Sleep cycle Green After a full bin and 10 minutes of non-use, the unit goes into standby and will not produce ice
Making ice Green Gearmotor, compressor, and fan motor energized.
Low bin Green Bin switch closed calling for ice.
Power on Green Power supplied to unit.
PM
Drip tray
Water leak
HI press
HI amps
Service
Maint
Low water
Time delay
Sleep cycle
Making ice
Low bin
Power ON
See Maintenance/Cleaning Mode on page 11.
the machine will shut down for one hour, the LEDs will turn off, and the machine will resume
normal operation.
+1 (610) 252-7301).
Unit will not make or dispense ice.
minimum amount of dispense activity has elapsed.
until either 12 hours has elapsed or ice or water has dispensed.
14 Dispenser and Icemaker 7CI100A/7FS100A
Page 15
Service (continued) ––––––––––––––––––––––––––––––––––––––––––––––––––––

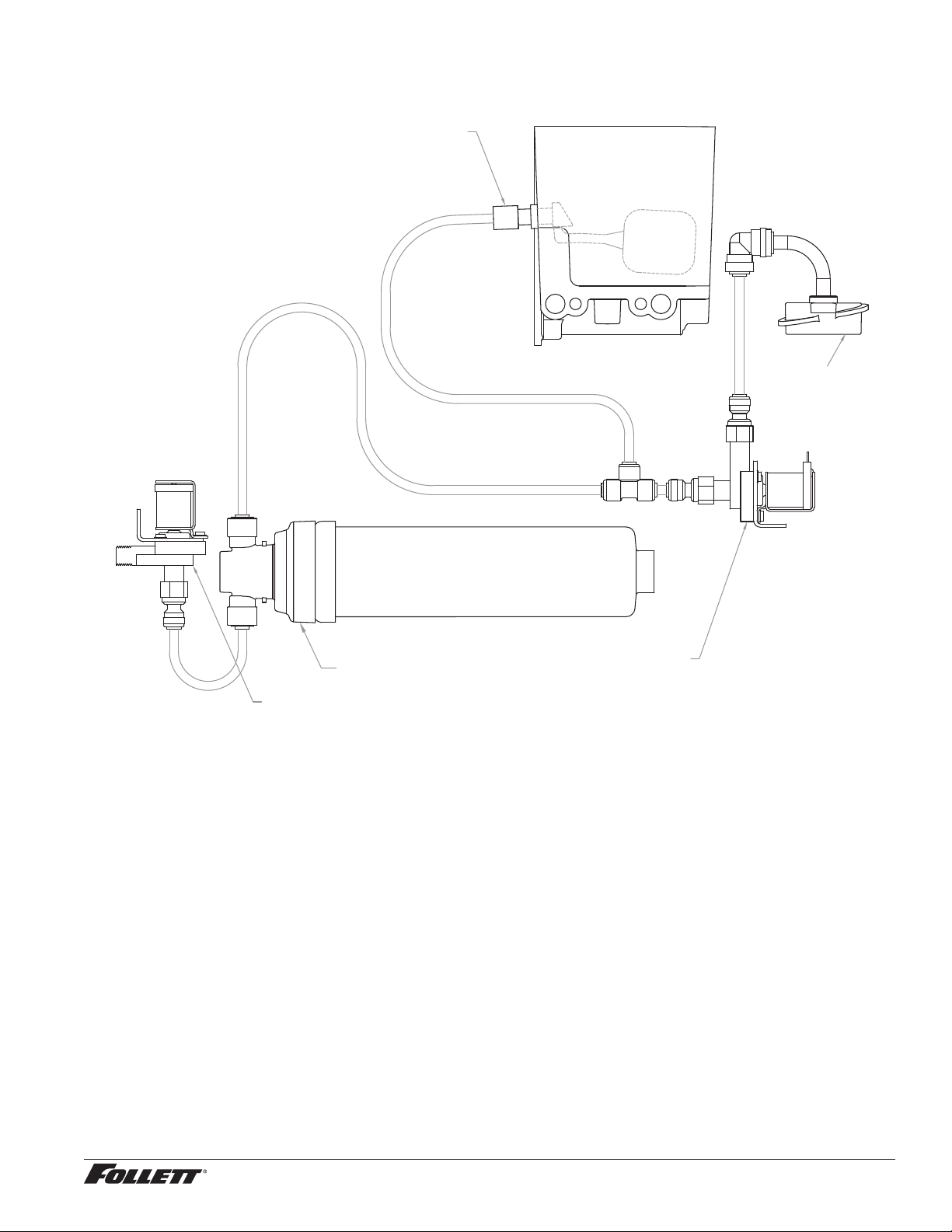

Water Feed Schematic
Evaporator
Float
Water Chute
(optional)
Filter (optional)
Water Solenoid Valve
Water Solenoid Valve
(optional)
Dispenser and Icemaker 7CI100A/7FS100A 15
Page 16
Service (continued) ––––––––––––––––––––––––––––––––––––––––––––––––––––

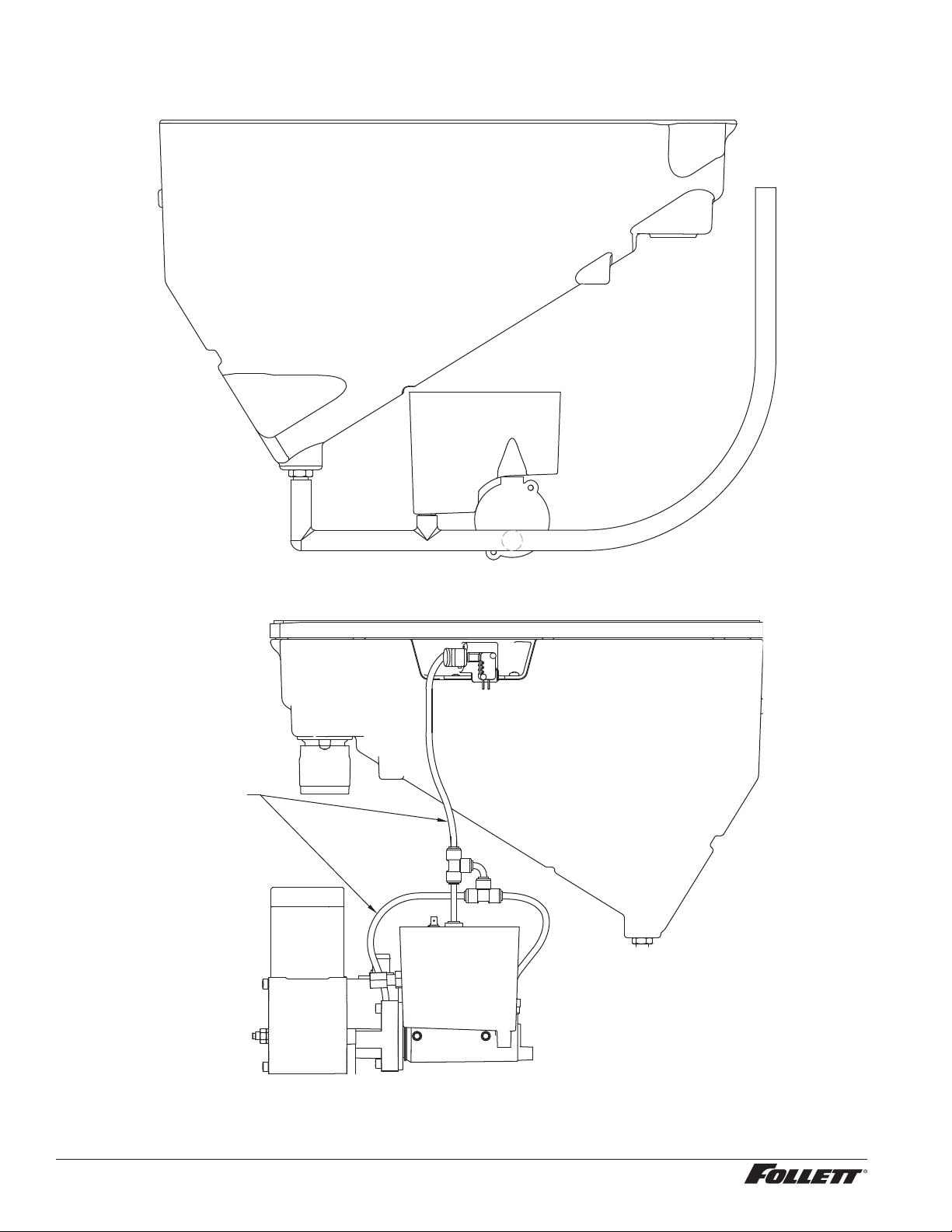

Bin Melt Water/Evaporator Feed/Clean Out System Schematic
Storage Bin
Vent System Schematic
Vent Tube
Storage Bin
Reservoir
16 Dispenser and Icemaker 7CI100A/7FS100A
Page 17
Service (continued) ––––––––––––––––––––––––––––––––––––––––––––––––––––
Refrigeration Schematic
CONDENSER
FILTER-DRIER
CAP TUBE
COMPRESSOR
EVAPORATOR
ACCUMULATOR
HIGH PRESSURE VAPOR
HIGH PRESSURE LIQUID LOW PRESSURE VAPOR
LOW PRESSURE LIQUID
Dispenser and Icemaker 7CI100A/7FS100A 17
Page 18
Service (continued) ––––––––––––––––––––––––––––––––––––––––––––––––––––

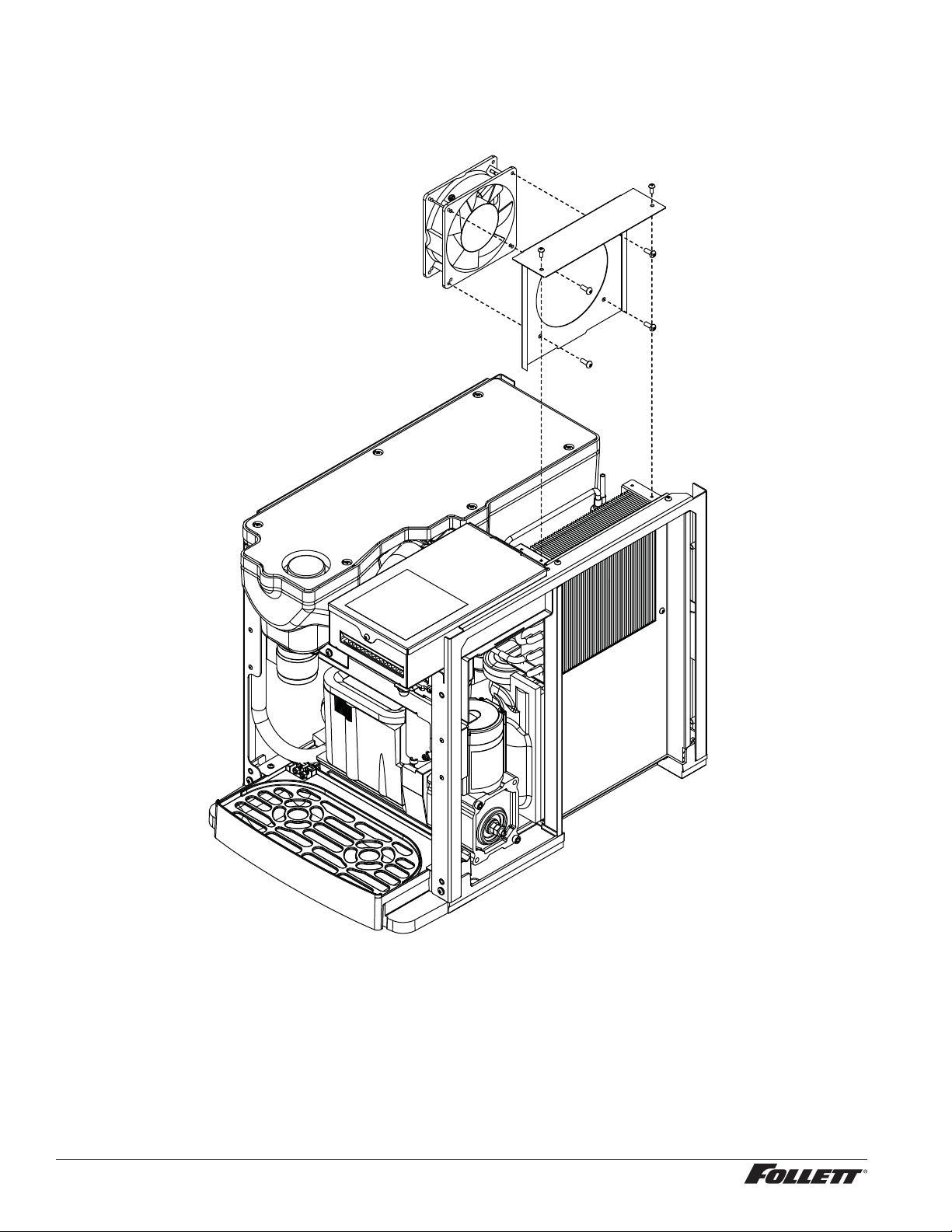

Condenser Fan Motor Removal
18 Dispenser and Icemaker 7CI100A/7FS100A
Page 19
Service (continued) ––––––––––––––––––––––––––––––––––––––––––––––––––––

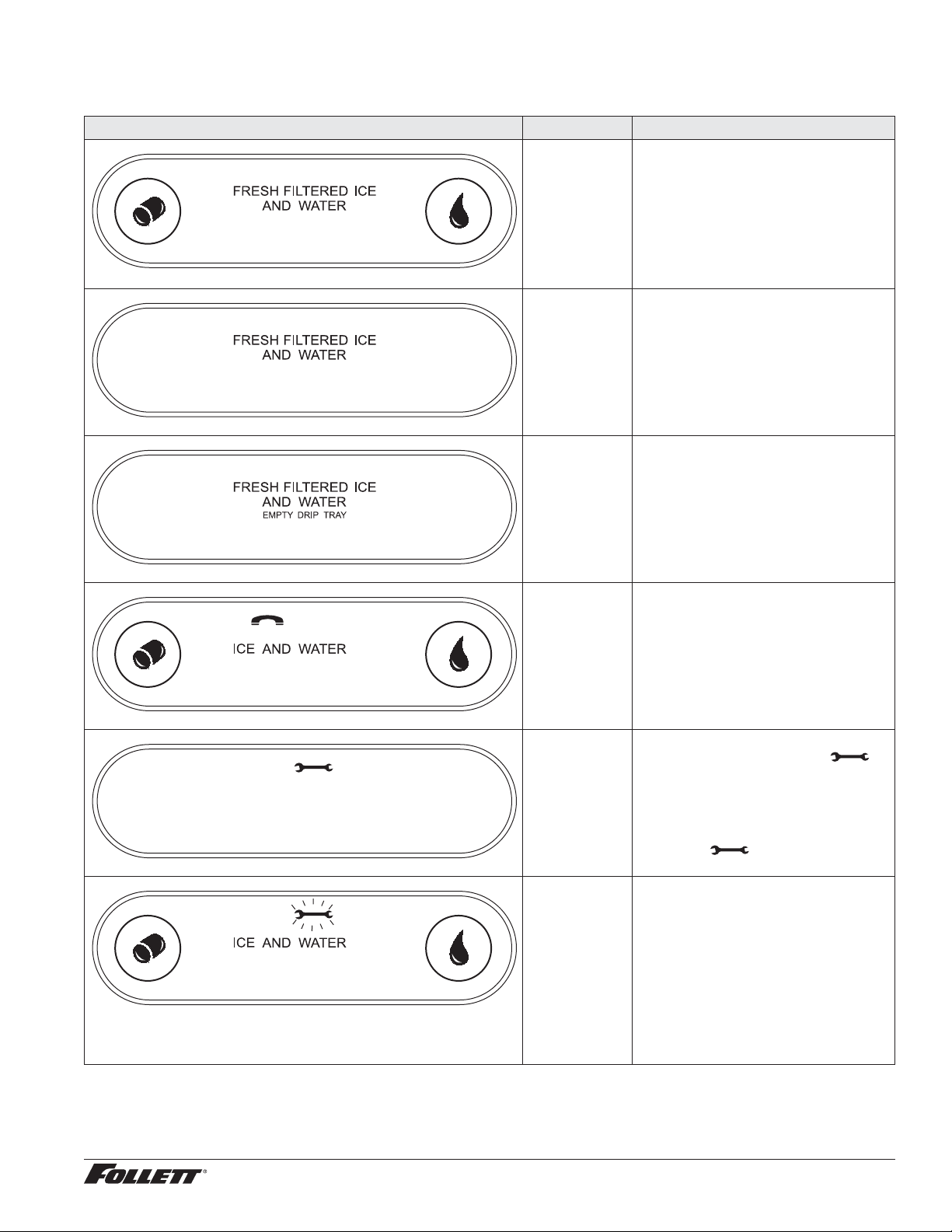

User Interface Display Identi cation
Operation Display
Condition
Normal
operation
Cleaning Mode Press and release maintenance/clean
Drip tray full Empty drip tray.
switch to clean the user interface
without dispensing ice or water (see
Maintenance/Cleaning Mode on page
11
).
Procedure
—
PM
Six-month
periodic
maintenance
required
Maintenance
Mode
Service 8000 hr
bushing check
Follow Maintenance Mode procedure
(below) and also see
Sanitizing on page 13
Enter Maintenance Mode by pressing
maintenance/clean switch until
displays. Complete the cleaning and
sanitizing procedure shown on
13
and change the lter, if so
equipped. Exit Maintenance Mode by
pressing and holding maintenance/clean
switch until
Call Follett Technical Service Group at
(877) 612-5086 or +1 (610) 252-7301.
The ashing wrench indicates that the
8000 hr bushing check is required.
Cleaning and
.
page
no longer displays.
Dispenser and Icemaker 7CI100A/7FS100A 19
Page 20
Service (continued) ––––––––––––––––––––––––––––––––––––––––––––––––––––
Service Display Condition Procedure
High amps Contact Follett technical service
group at (877) 612-5086 or
+1 (610) 252-7301.
Note: For dispensers after serial
number D45191, the phone
and wrench will not be
illuminated.
Internal leak in
dispenser
Sleep mode Press either dispense button to
Locate leak and repair - Press reset
on control board. Contact Follett if
icemaker is leaking.
return to normal operation.
20 Dispenser and Icemaker 7CI100A/7FS100A
Page 21
Service (continued) ––––––––––––––––––––––––––––––––––––––––––––––––––––

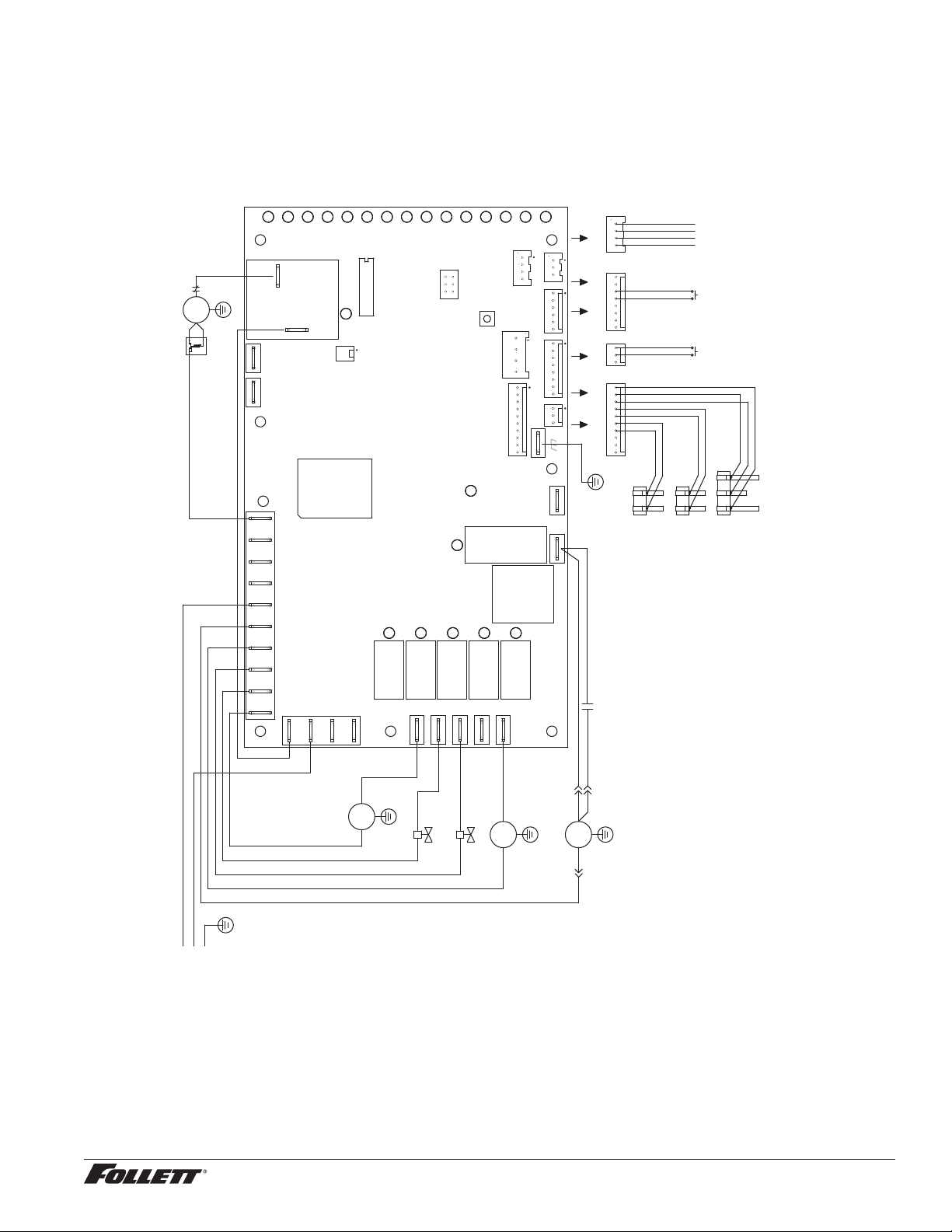

Electrical Wiring Diagram
POWER
LOW BIN
MAKING ICE
SLEEP CYCLE
TIME DELAY
LOW WATER
MAINTENANCE
SERVICE
HI AMPS
HI PRESSURE
WATER LEAK
DRIP TRAY
PM
CLEAN
D1
D2
D3
COMPRESSOR
BLACK
#1
O.L.
C
S
#2 WHITE
GRN-YEL
#3
COMP.
R
START
RELAY
P16
P15
ICE AUX WATER AUX
T1
#20 BLACK
D6
D5
D4
S1
K1
D16
HI PRS
P14
D8
D7
MODEL SELECT
D9
D11
D12
D10
5
6
PROGRAM
1
P9
2
RESET
S2
P10
D37
UV ON
D18
K3
D13
D14
RS485 UI
P7
SERIAL COMM
P17
WATER LEVELS
P18
D15
P8
SPARE CTS
P13
P11
BIN CLEAN SAFE RS485
P12
UV LIGHT
P5
P4
AUGER
BINP12 CLEAN SAFEP11
P17
WATER LEVELS
#19
RS485 UI
P7
GRN-YEL
USER
INTERFACE
CLEAN
MAINT.
BIN
YELLOW
ORANGE
BLACK
P2
N NNNNN NN N
D19
D22
K7K6
K4K2
#14
ICE DISP
GRN-YEL
#16
P6
WHITE
L1 L1L1
P1
BLACK
#12
DISP.
WHITE
#13
P21
#15 BLACK
FAILSAFE SOLENOID VALVE
D21
FSWD
P20
T2
CURRENT SENS
D20
K5
CO2
P19
P3
#17 BLACK
WATER DISPENSE VALVE
D17
BLUE
#5
AUGER
CAP
FAN
BLUE
BLACK
#7
#8
BLACK
GRN-YEL
#4
FAN
BLACK
BLUE/
WHITE/
PINK
GRAY
BLACK
AUGER
#11
GRN-YEL
WATER SENSOR
CHASSIS
SENSOR
DRIP TRAY WATER
WATER SENSOR
RESERVOIR
#18 WHITE
WHITE
#10
N
L1
GND
POWER
Dispenser and Icemaker 7CI100A/7FS100A 21
Page 22
Parts –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––

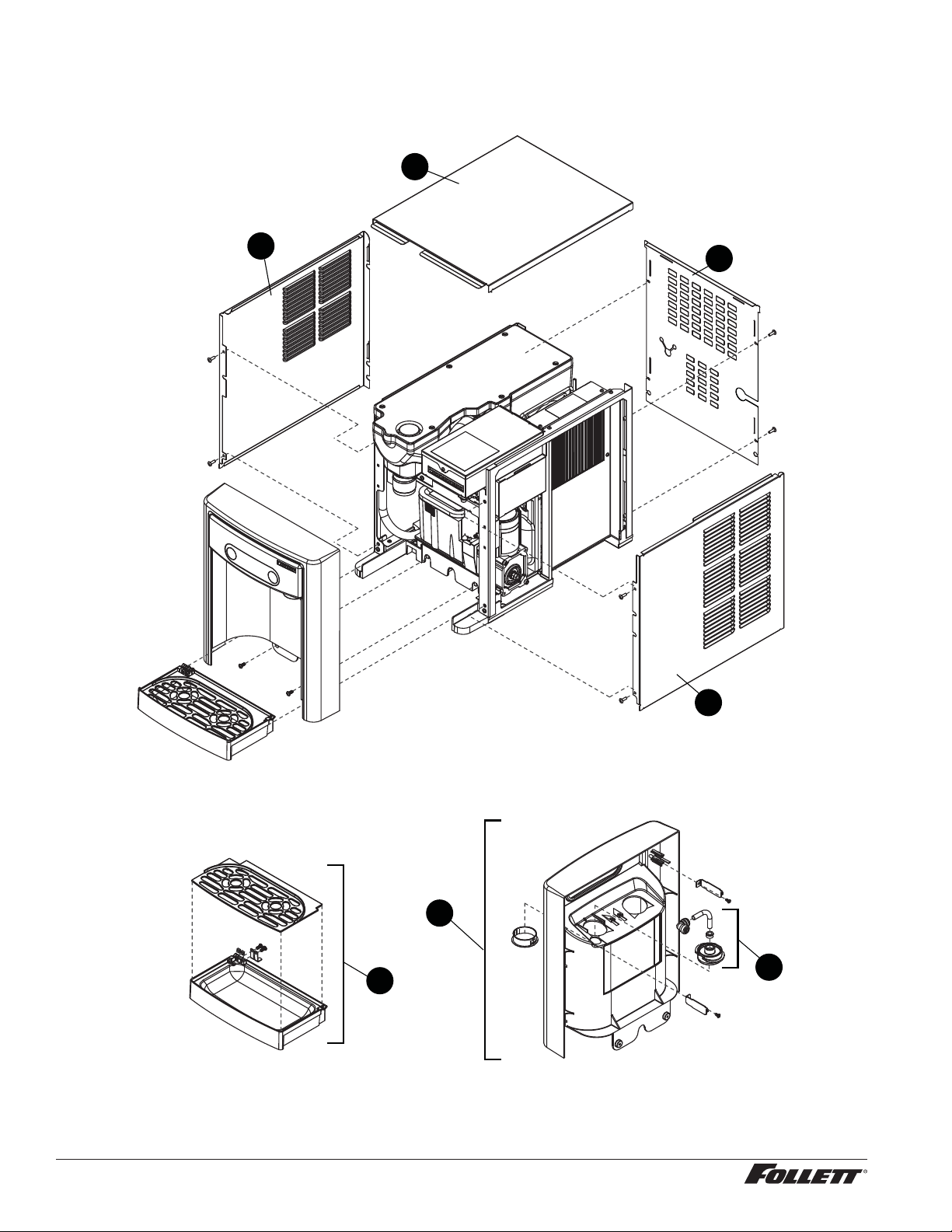

Exterior
6
4
7
5
2
1
3
22 Dispenser and Icemaker 7CI100A/7FS100A
Page 23
Parts (continued) ––––––––––––––––––––––––––––––––––––––––––––––––––––––
Exterior
Reference # Description Part #
1 Drip Tray Assy 00957613
2 Panel, Front Assy - Includes Water Nozzle and Plug 00957621
3 Chute, Water (water option) 00957688
4 Panel, Left 00957639
5 Panel, Right 00957647
6 Panel, Top 00957654
7 Panel, Rear 00957662
Not Shown Cord, 115 VAC 00958058
Not Shown Packaging for Returns, Dispenser 00957993
Not Shown Fitting, Elbow - 1/4" FPT x 1/4" Tube 00974261
Not Shown Drip Tray Drain Kit 00956375
Not Shown Drip Tray Drain Kit with 4" legs 00981977
Not Shown Covers, Agion, User Interface 00969030
Dispenser and Icemaker 7CI100A/7FS100A 23
Page 24
Parts (continued) ––––––––––––––––––––––––––––––––––––––––––––––––––––––

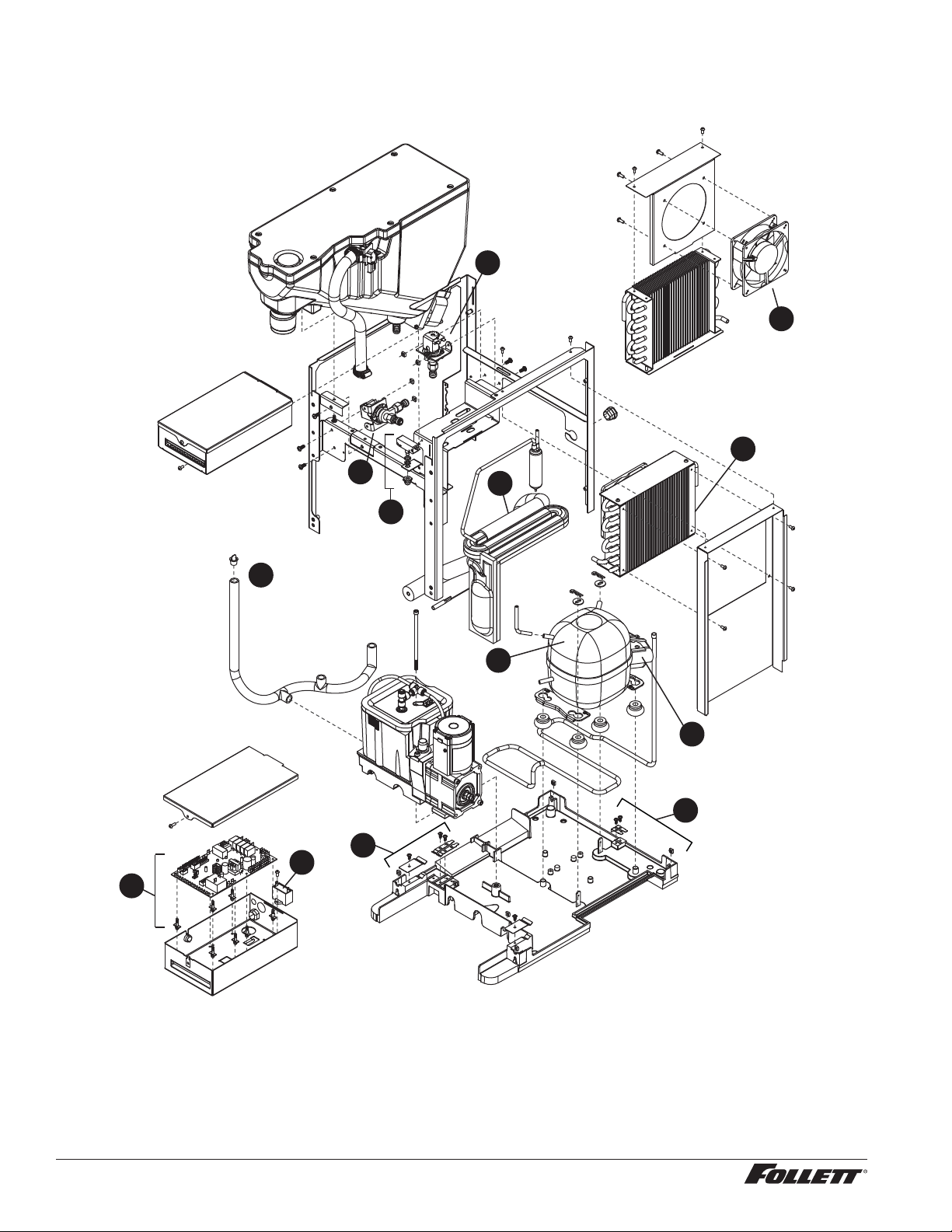

Interior
4
7
6
1
2
12
3
5
11
10
10
9
8
24 Dispenser and Icemaker 7CI100A/7FS100A
Page 25
Parts (continued) ––––––––––––––––––––––––––––––––––––––––––––––––––––––
Interior
Reference # Description Part #
1 Valve, Dispense Solenoid (water option) 00957704
2 Switch, Cleaning 00957712
3 Drain/Feed Tube with Cap 00957720
4 Valve, Failsafe Solenoid 00957738
5 Compressor with Mounting Hardware 00958009
6 Condenser 00958017
7 Condenser Fan and Cord 00958025
8 Control Board with Stand-offs 00958033
9 Capacitor, Gearmotor 00958041
10 Sensor, Retainer Hardware Kit 00958066
11 Relay and Overload 00958090
12 Refrigeration, Piping Assy 00958132
Dispenser and Icemaker 7CI100A/7FS100A 25
Page 26
Parts (continued) ––––––––––––––––––––––––––––––––––––––––––––––––––––––

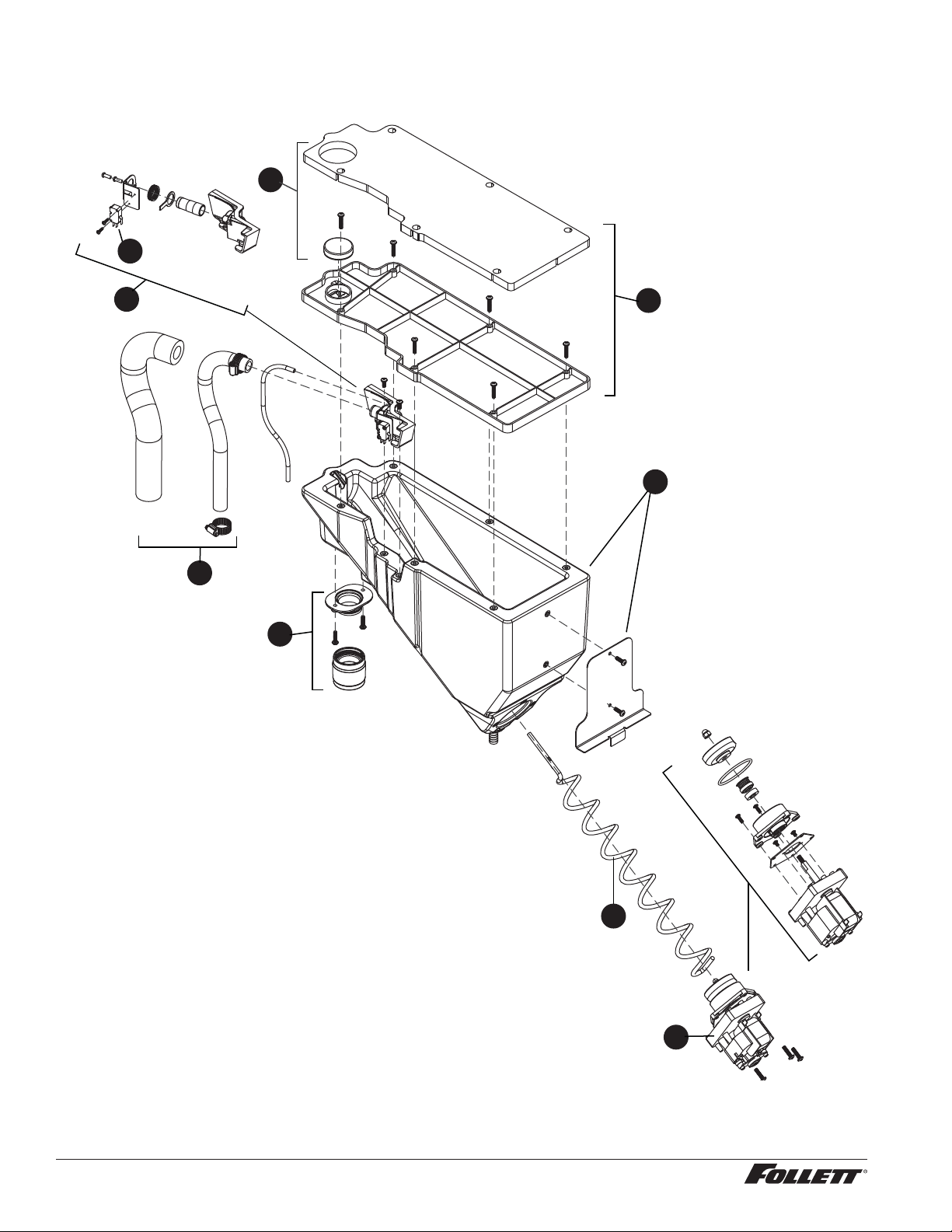

Bin Assembly
9
3
4
2
1
5
6
26 Dispenser and Icemaker 7CI100A/7FS100A
7
8
Page 27
Parts (continued) ––––––––––––––––––––––––––––––––––––––––––––––––––––––
Bin Assembly
Reference # Description Part #
1 Ice Chute Assembly 00957670
2 Ice Transport Tubing with Insulation 00957746
3 Switch, Shuttle 00957753
4 Shuttle, Complete Assy 00957761
5 Lid, Bin Assy 00957779
6 Bin, Assy 00957787
7 Auger, Dispense 00957795
8 Motor, Dispense 00957803
9 Cap and Insulation, Bin 00957936
Not Shown For serial numbers D17619 and below:
Bin Cap 00931519
Ice Chute 00927210
Chute Adapter 00926550
Dispenser and Icemaker 7CI100A/7FS100A 27
Page 28

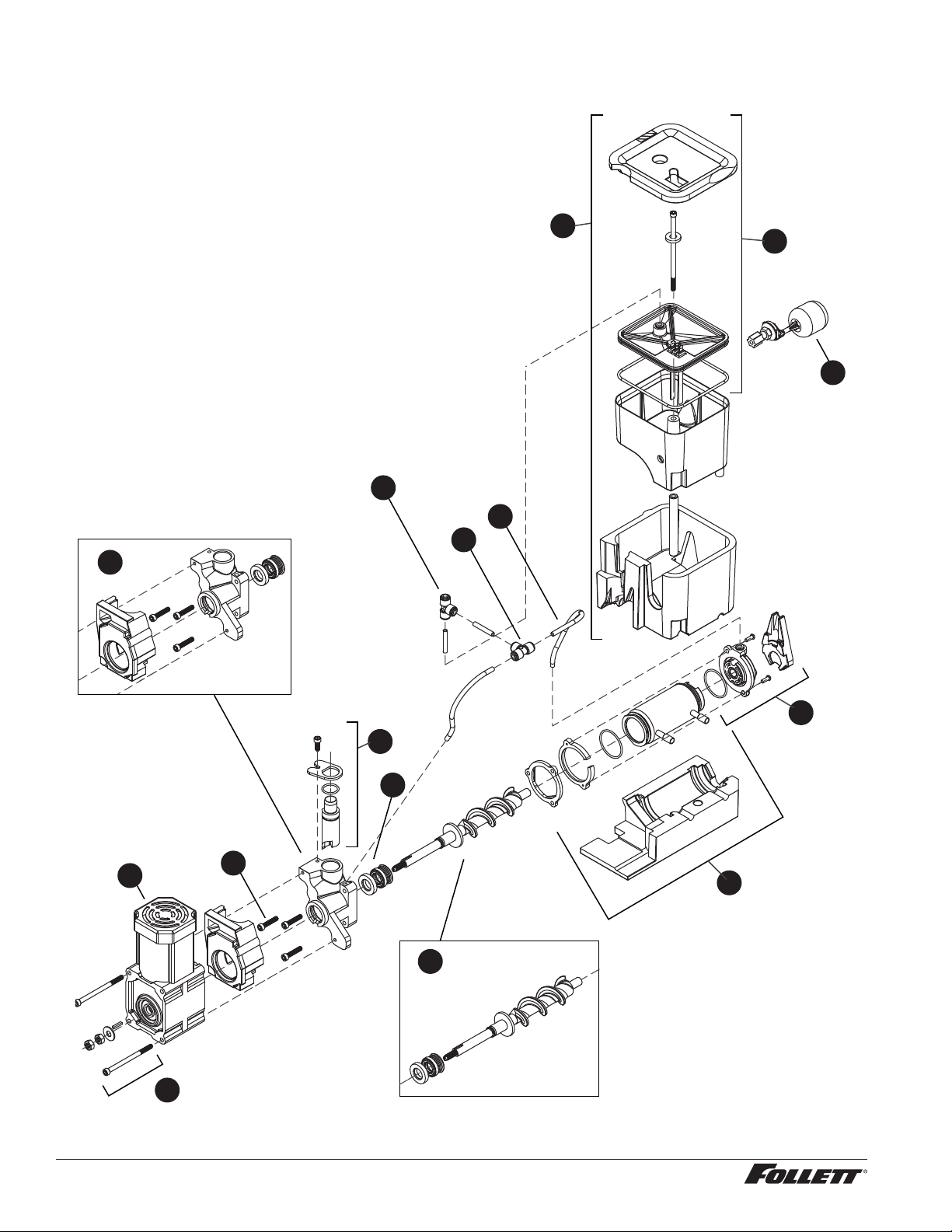

Parts (continued) ––––––––––––––––––––––––––––––––––––––––––––––––––––––
Evaporator Assembly
10
11
12
13
14
13
2
8
5
6
1
3
7
4
9
28 Dispenser and Icemaker 7CI100A/7FS100A
Page 29
Parts (continued) ––––––––––––––––––––––––––––––––––––––––––––––––––––––
Evaporator Assembly
Reference # Description Part #
1 Gearmotor 00957811
2 Main Housing with Front Seal and Screws 00957829
3 Screws, Main Housing 00957837
4 Auger with front seal 00957845
5 Ice Compression Nozzle Assy 00957852
6 Front Seal and O-Ring 00957860
7 Evaporator Assembly with Insulation 00957878
8 Housing, Bushing with Insulation 00957886
9 Hardware kit, Gearmotor 00957894
10 Reservoir and Float Complete Assy 00957902
11 Lid, Reservoir with Insulation and O-Ring 00957910
12 Float Valve 00957928
13 “T” Fitting - 1/4" 502923
14 Tubing - 1/4" (sold in 12" increments) 502079
Dispenser and Icemaker 7CI100A/7FS100A 29
Page 30
Parts (continued) ––––––––––––––––––––––––––––––––––––––––––––––––––––––

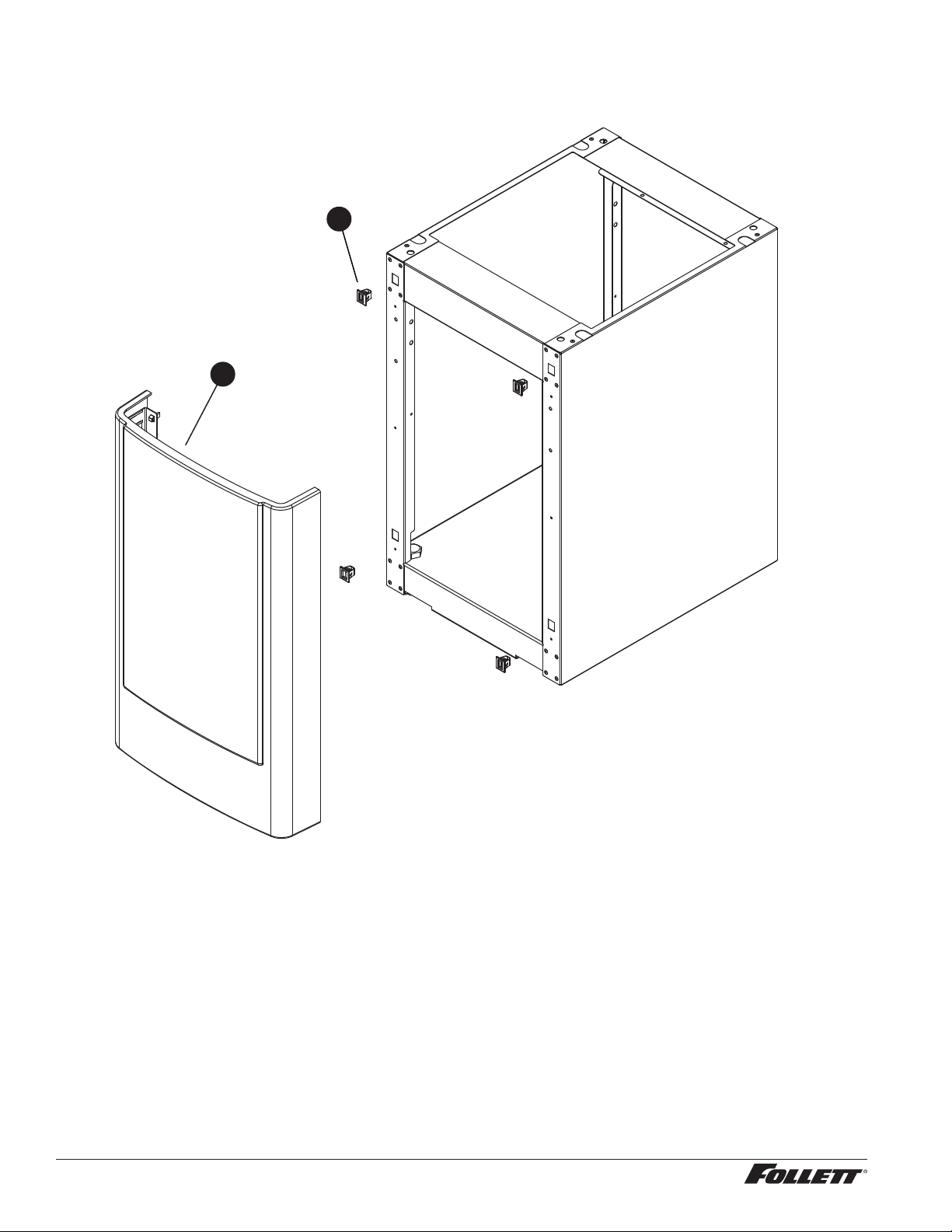

Base Stand
2
1
30 Dispenser and Icemaker 7CI100A/7FS100A
Page 31
Parts (continued) ––––––––––––––––––––––––––––––––––––––––––––––––––––––
Base Stand
Reference # Description Part #
1 Front Panel, Base 00958108
2 Latches with Bayonets, Base 00958116
Not Shown Tray, Base 00958124
Not Shown Packaging for Returns, Base 00957985
Miscellaneous
Reference # Description Part #
Not Shown Water lter cartridge, 5 micron 00968107
Not Shown Cleaning and sanitizing kit, single use 00979856
Not Shown SafeClean, case of 24 00132001
Not Shown IMS II sanitizer concentrate, 16 oz 00979674
Not Shown 6" Legs for base stand, set of 4 00956318
Not Shown 4" Legs for countertop dispenser, set of 4 00956300
Dispenser and Icemaker 7CI100A/7FS100A 31
Page 32
SafeCLEAN is a trademark of Follett Corporation.
Chewblet and Follett are registered trademarks, and Horizon is a trademark of Follett Corporation, registered in US.
801 Church Lane • Easton, PA 18040, USA
Toll free (877) 612-5086 • +1 (610) 252-7301
www.follettice.com
00951640R06
© Follet Corporation 5/13
Loading...
