Folio LINE WALL User Manual

.LINE

WALL

USER MANUAL

Remote power supply

EN

.LINE

Index

05 Components

06 Installation of fixing system

Electrical connection

07

®

08 FOLIO

Power supplies

09

10 WARNING

Handling

11

Cleaning

12

13 Damaged appliances

14 Dismantlement

LINE installation

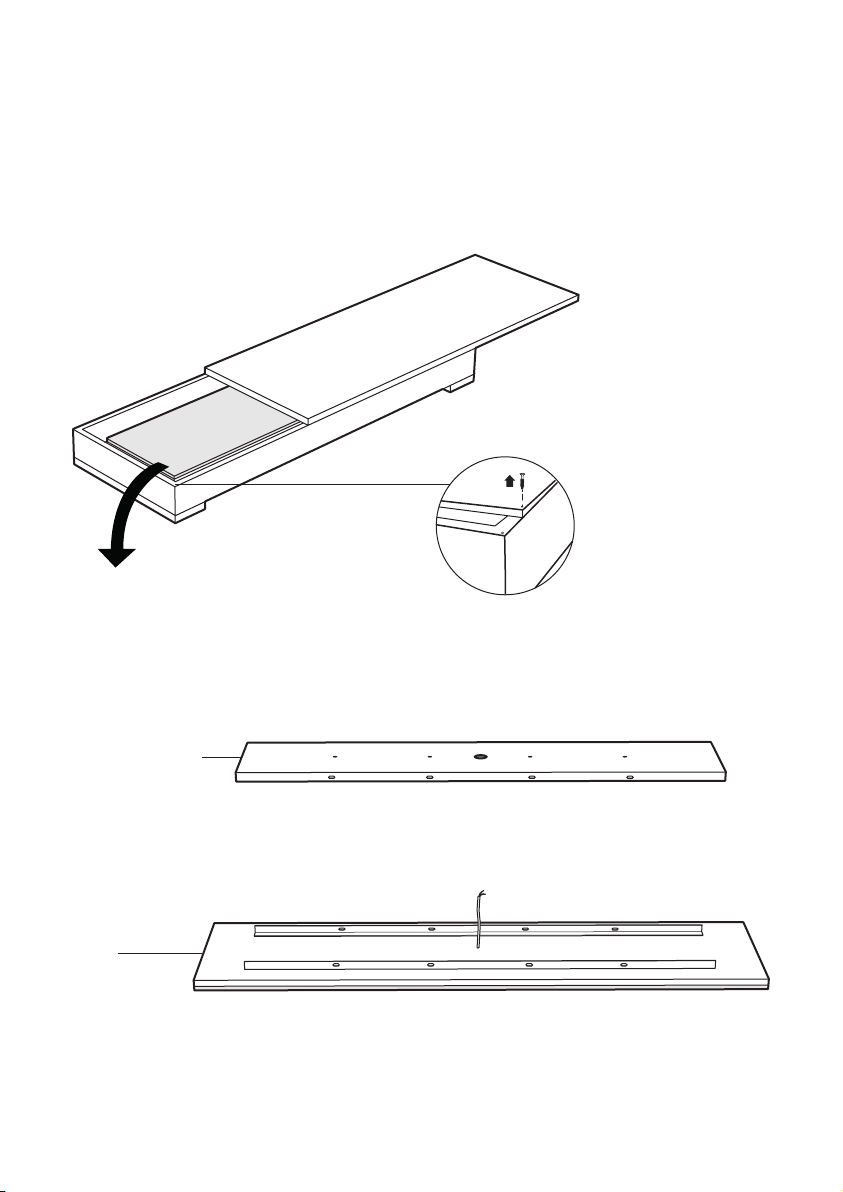

.COMPONENTS

Inside the crate you can find:

• FOLIO® LIGHTING PANEL(S) LINE

• FIXING SYSTEM

Unscrew the fixing
screw to open the
crate

FIXING SYSTEM

LINE

05

.INSTALLATION OF FIXING SYSYEM

Positioning the wall FIXING SYSTEM by passing the 24V cable (by you
previously installed) through the central hole. Install the FIXING SYSTEM to the
wall by usign appropriate screws.

Hole for electric
cable (24V)

06

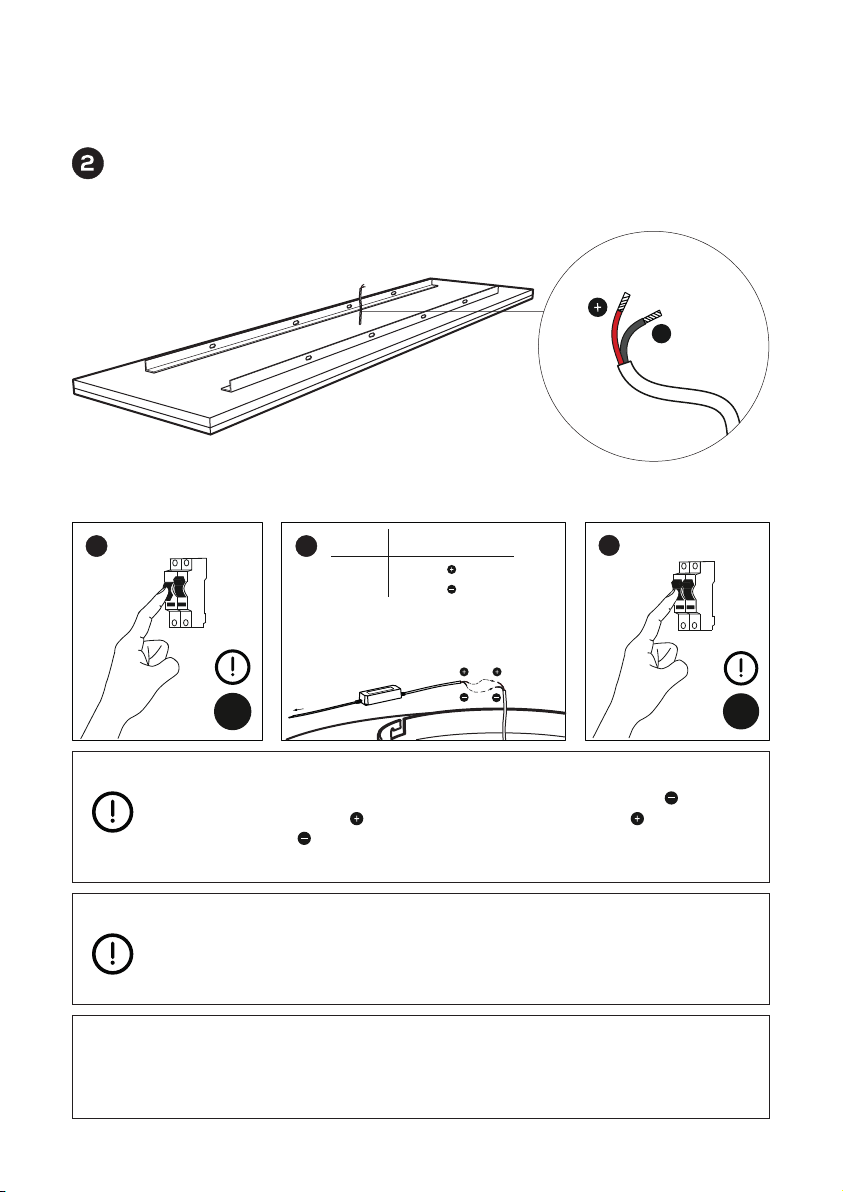

.ELECTRICAL CONNECTION

Connect the power supply cable to the LINE’s cable in a suitable and consonant
manner.

_

OFF

Make sure to disconnect the power supply, connect the cable of the LED
panel to the driver as shown in step b. Connecting the red cable of the
panel with the red cable of the driver and the black cable of the panel
to the black cable of the driver. Subsequently connect the driver to the
electrical system with the 220 V cable and power the system.

Use class II transformers with adequate absorption with regards to the
consumption of the FOLIO® panel, with an exit current of 24V and with SELV
exits EN 61347-2-13 compliant. It is recommended to connect maximum
4/5 Folio panels to one driver.

DIMMING

Dimmable:
PWM - DALI - DMX

220 V

DIMMER

ba

24 V

PWM - DALI - DMX

red

black

c

ON

07

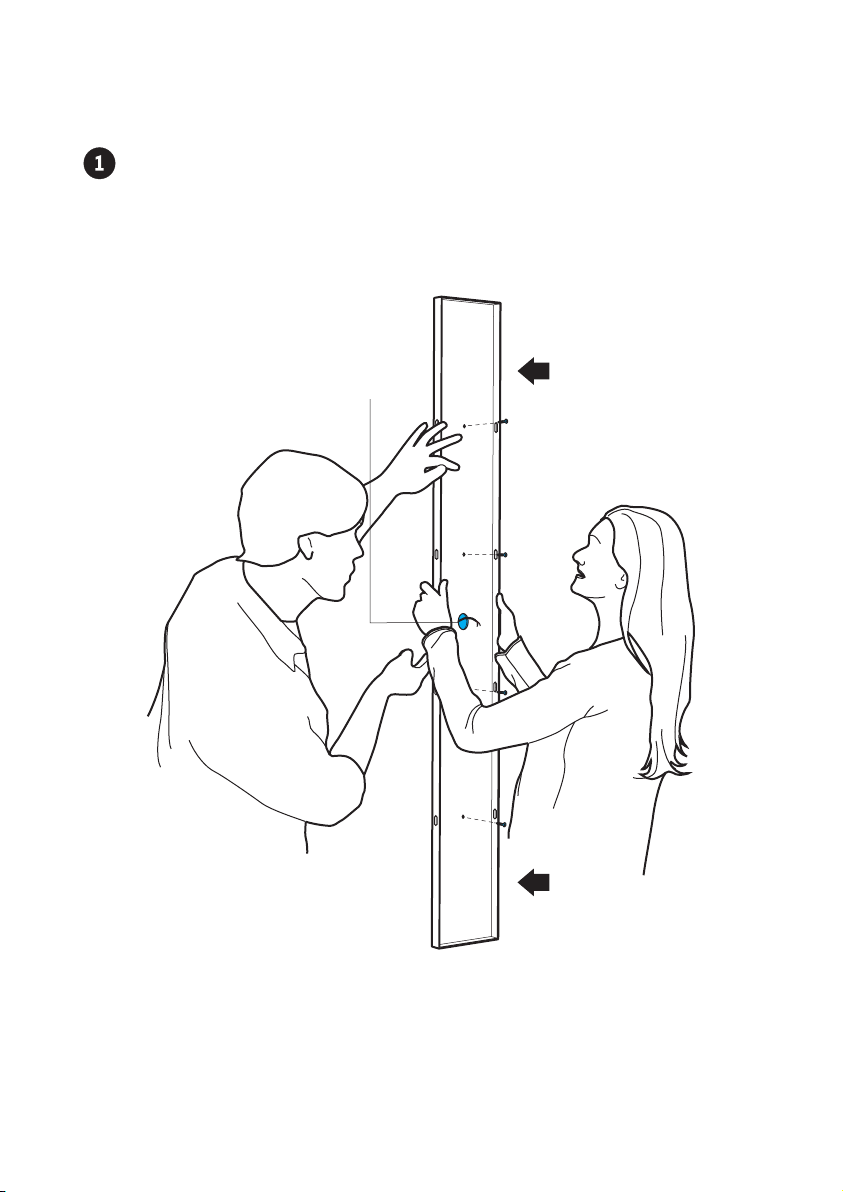

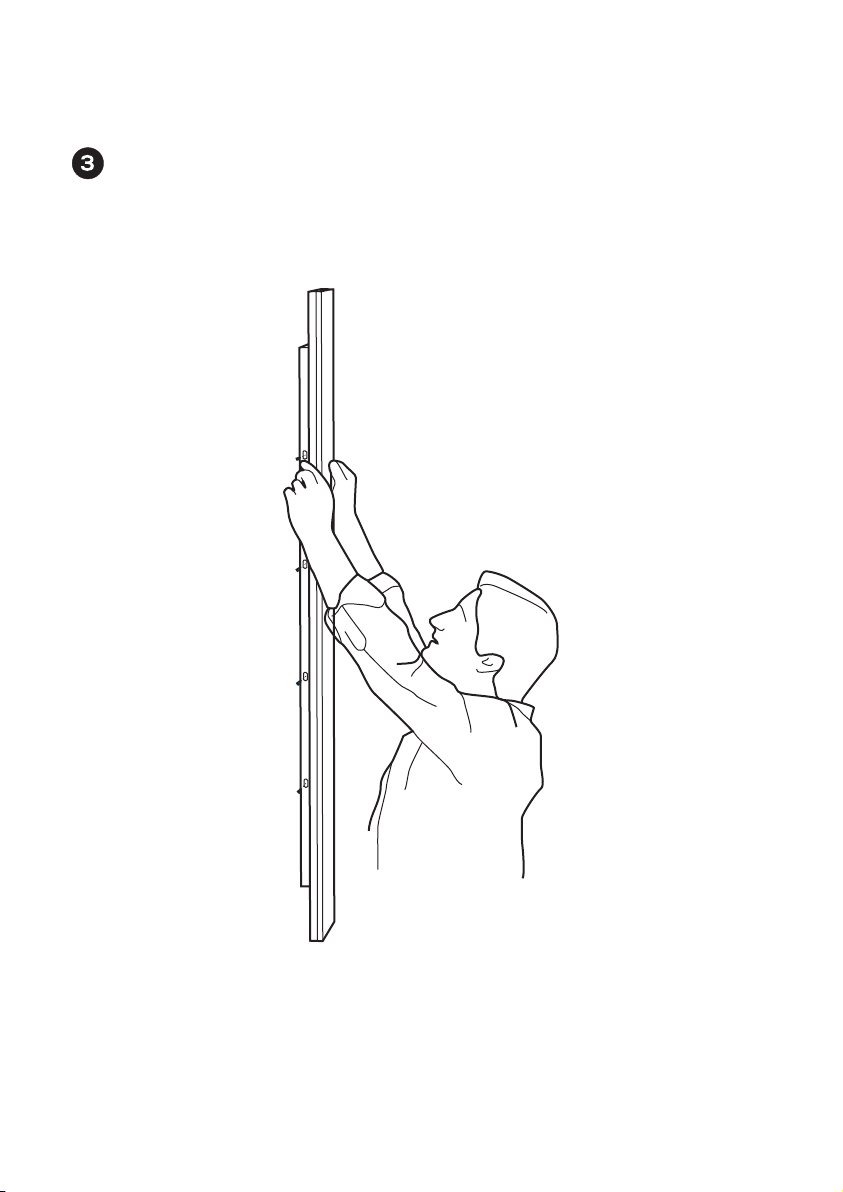

.FOLIO® LINE INSTALLATION

After the cables connection, fix the LINE WALL to the FIXING SYSTEM with the
safety screws (from both sides).

08

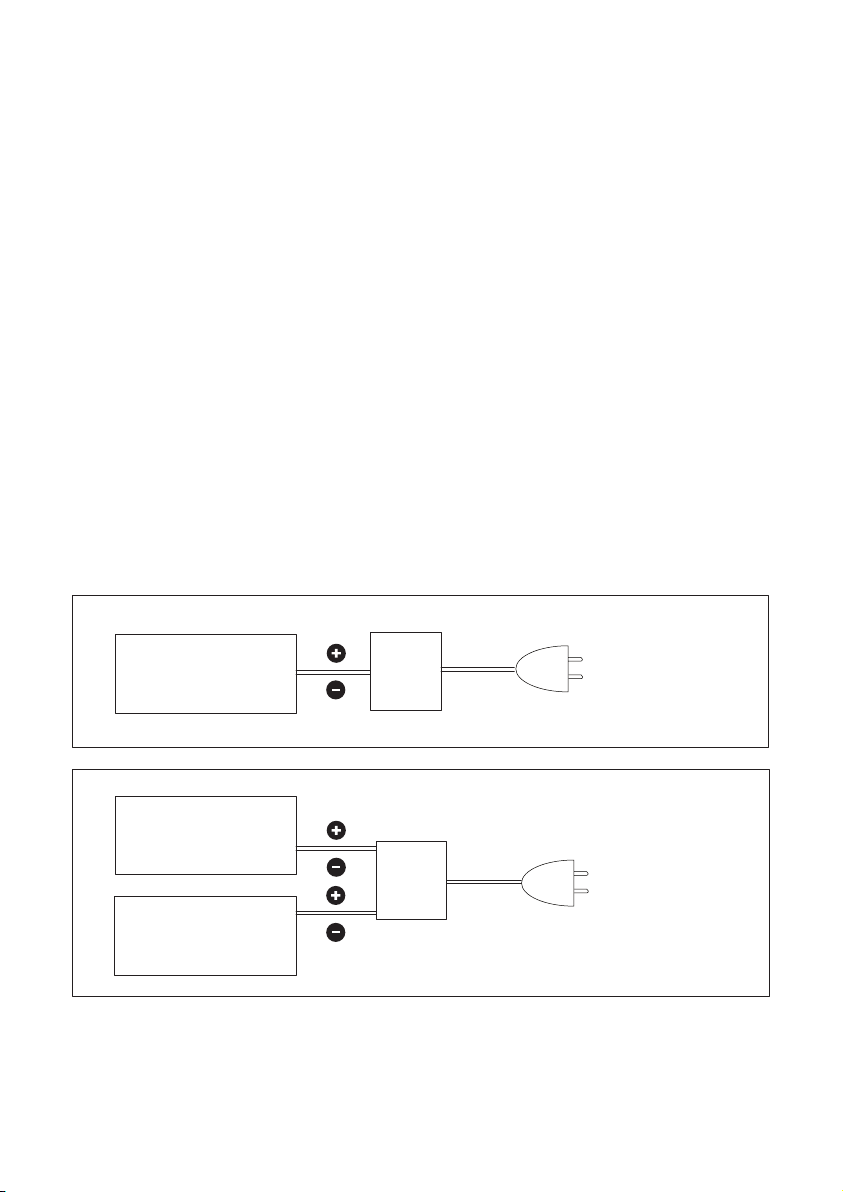

.POWER SUPPLIES

Use 24V power supplies
Use power supplies with the correct Wattage with regards to what indicated on the
label positioned on the back of each FOLIO® LED panel.

Pay particular attention to the data on the label before connection the appliance to the
mains.

IN CASE OF MALFUNCTION, DISCONNECT THE APPLIANCE.

Use class II drivers with adequate absorption with regards to the consumption of the

FOLIO® panel, with an exit current of 24V and with SELV exits EN 61347-2-13 compliant.

It is recommended to connect maximum 4/5 FOLIO® panels to one driver.

24V

FOLIO

®

panel

power

supply

220V

FOLIO® panel

®

panel

FOLIO

24V

power

supply

09

SINGLE PANEL FOLIO

220V

TWO OR MORE PANELS FOLIO

®

®

.WARNING

Consult the company Cifralluminio s.r.l. before intervening in any way on the
FOLIO® panels. For any doubts on the functioning of the device or on its mainte­nance consult Cifralluminio s.r.l..

• Do not open or tamper with the FOLIO® panel.

• Do no flex/bend the panel.

• Do not unscrew/tamper with any screw on the panel.

• Do not spray/pour directly on the panel any kind of liquid/detergent.

• Keep in a dry place.

• Do not store at temperatures above 25°C.

• Keep away from heat sources.

• Do not expose to direct sunlight.

• Keep away from combustible substances.

• Avoid contact with vapors, fumes, dust, gas and liquids.

• Avoid accumulation of electrostatic charges.

• Avoid hitting or friction.

• For cleaning use the notes/instructions/products indicated in the manual.

• Before cleaning, the lighting fixture must be switched off.

• The FOLIO

• Do not connect the FOLIO® panel directly to the mains. The FOLIO

always be connected to a driver, which will be successively connected to the
mains.

• Do not hit, pull or damage the electrical and panel’s cables.

®

panel must be installed in a place accessible for maintenance.

® panel must

10

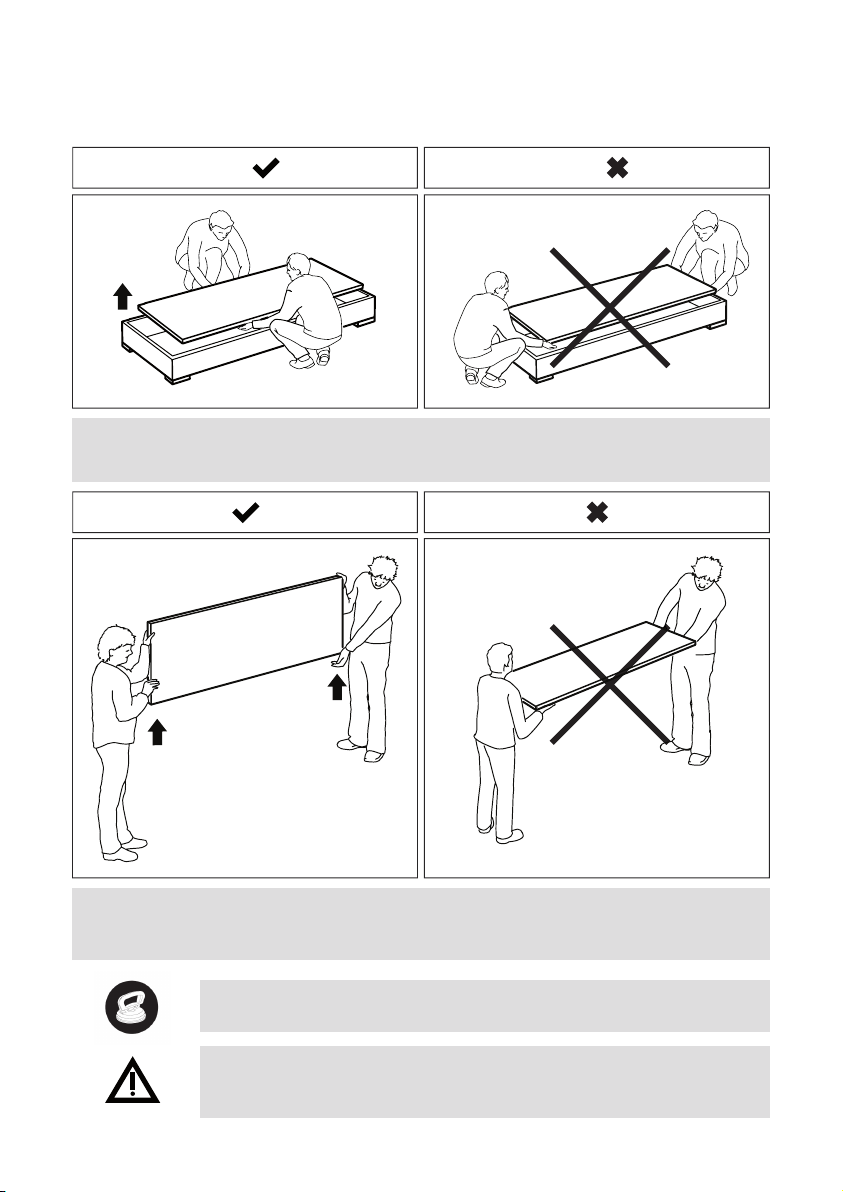

.HANDLING

Remove the FOLIO® folio panel from the wooden case, not from the edges but from
the middle, prevent bending and curving and carry it vertically.

Carry the FOLIO® panel vertically to prevent every possibility of bending and
curving. Pay attention not to pull the power cables.

Do not use suction cups for the handing or installation of the

®

FOLIO

panel.

In addition to the images pay attention to:

• avoid hitting, pulling or damaging the electrical cables

• avoid contact of the FOLIO® panel with liquid.

11

.CLEANING

General indications for proper care of FOLIO® products:

• To enable an efficent performance of FOLIO® panel we recommended regular
cleaning.

• The parts influencing the performance of the light (such as white acrylic sheets,
marbles or glass) should be cleaned following the instructions below.

• The cleaning of EXTERNAL parts and SURFACES which are part of the FOLIO
panel can be executed in according to the following table:

COMPONENTS TOOLS CLEANING SPECIFICATIONS

®

Aluminium or iron

parts

Transparent plastic

spotlight

Glass, marble, onyx

spotlight

Opal plastic spotlight

Damp, soft, non-abra-

sive cloth and dry, soft

non-abrasive cloth

Dry, soft non-abrasive

cloth

Slightly damp, soft,

non-abrasive cloth

Slightly damp, soft,

non-abrasive cloth

Dampen a soft cloth using warm water with

little chlorine-free liquid soap and clean the

product a second time using a clean dry soft

cloth

Avoid possible static before cleaning. While

cleaning apply light pressure to the parts.

NOTICE : do not use any type of cleaning

agents, neither liquid nor solid

Avoid possible static before cleaning. While

cleaning apply light pressure to the parts.

NOTICE : use cleaning agents suitable for glas,

marble or onyx

Avoid possible static before cleaning. While

cleaning apply light pressure to the parts.

NOTICE : use only diluted alcohol-free clean-

ing agents suitable for plastic

NOTICE: DO NOT SPRAY OR POUR DIRECTLY ON THE PANEL ANY TYPE OF
CLEANING AGENT BUT DISTRIBUTE THE CLEANING AGENTS (LIQUID OR SOLID)
ON A SOFT AND NON-ABRASIVE CLOTH. IT IS POSSIBLE TO CLEAN THE PANEL
BY USING JUST A DRY, SOFT AND NON-ABRASIVE CLOTH.

Should any doubt concerning the cleaning of the FOLIO® panel arise, please
contact us by email at the following address: [email protected]

SAFETY NOTICE

• Before cleaning, the lighting fixture must be switched off.

• All the electrical connections must be disconnected.

12

.DAMAGED APPLIANCES

Do not install or connect these appliances if one or more parts appear damaged.
Non-compliance with these instructions may cause injuries or damage the appliances
and other goods.

Installation of this appliance must be entrusted exclusively to qualified personnel that is
fully aware of all relevant instructions.

Before working on the appliance, disconnect the power supply from the mains.

Before proceeding with visual inspections, trials or maintenance operations on this
appliance, disconnect all current and voltage sources.

Proper functioning of this appliance depends on the correct operations of handling,
installation and use.
Non-compliance with the fundamental installation requirements can cause injuries to
people and damage electrical appliances and other goods.

Verify that the supply voltage is compatible with the voltage and current necessary for
the regular functioning of the appliance you are about to install: the primary factor to
consider is the data on the FOLIO® LED panels’ label.

13

.DISMANTLEMENT

Dismantlement of the appliance must be commissioned to qualified internal or external
personnel.
Dismantlement operations must be carried out in accordance with current regulations,
considering that some of the materials used are not recyclable and some others may
be harmful.

In accordance with Italian LEGISLATIVE DECREE 14 March 2014, no. 49 (in the field of
electric and electronic appliances) we inform you that the appliance this instruction
manual refers to cannot be disposed of as urban waste but must be destined to waste
sorting facilities.

The symbol:

pon the data label indicates the product must be recycled once dismantled.

Non-compliance with the law will be heavily sanctioned with fines.

14
