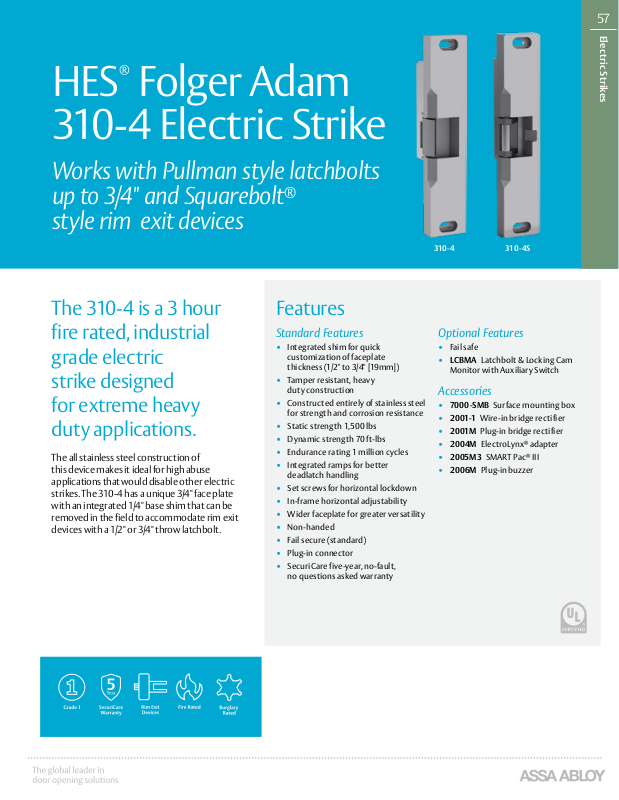

Page 1

HES® Folger Adam 310-4 Electric Strike

Works with Pullman style latchbolts

up to 3/4" and Squarebolt style rim exit devices

Electric Strikes

310- 4 310- 4S

The 310-4 is a 3 hour fire rated, industrial grade electric strike designed for extreme heavy duty applications.

The all stainless steel construction of this device makes it ideal for high abuse applications that would disable other electric strikes. The 310-4 has a unique 3/4" face plate with an integrated 1/4" base shim that can be removed in the field to accommodate rim exit devices with a 1/2" or 3/4" throw latchbolt.

Features

Standard Features

• Integrated shim for quick

customization of faceplate thickness (1/2" to 3/4" [19mm])

• Tamper resistant, heavy

duty construction

• Constructed entirely of stainless steel

for strength and corrosion resistance

• Static strength 1,500 lbs

• Dynamic strength 70 ft-lbs

• Endurance rating 1 million cycles

• Integrated ramps for better

deadlatch handling

• Set screws for horizontal lockdown

• In-frame horizontal adjustability

• Wider faceplate for greater versatility

• Non-handed

• Fail secure (standard)

• Plug-in connector

• SecuriCare five-year, no-fault,

no questions asked warranty

Optional Features

• Fail safe

• LCBMA Latchbolt & Locking Cam

Monitor with Auxiliary Switch

Accessories

• 7000-SMB Surface mounting box

• 20 01-1 Wire-in bridge rectifier

• 2001M Plug-in bridge rectifier

• 2004M ElectroLynx

• 2005M3 SMART Pac

• 2006M Plug-in buzzer

adapter

III

Page 2

HES Folger Adam 310-4 Electric Strike

Dimensions

Electric Strikes58Electric Strikes

8-1/4"

[209.6mm]

1-3/4"

[44.5mm]

Model 310-4 shown

[228.6mm]

1-13/ 64"

[30.5mm]

1/2 "

[12.7mm]

1/4"

[6.3mm]

5-5/8"

[142.9 mm]

Specifications

Certifications

• UL 10C, 3-hour fire rated (fail secure only)

• CAN4-S104 (ULC-S104) fire door conformant

• UL 1034, burglary-resistant listed

• UL 294 (6th Edition) listed

• ANSI/BHMA A156.31, Grade 1

• NFPA-252 fire door conformant

• ASTM-E152 fire door conformant

• RoHS compliant

Electrical (Continuous Duty)

• 510 mA at 12 VDC/250 mA at 24 VDC

310-4

For up to 3/4" [19mm] Pullman style

latchbolts on single doors

PK keeper standard

310-4S

For Squarebolt® style rim exit devices such as;

• Corbin Russwin

and ED5200SA SecureBolt

• Yale

SK keeper standard

7150(F), 7250, 7270M(F)

Squarebolt

ED4200S, ED5200S

Exit Devices

3/4"

[19mm]

How to Order

Series Fail Secure / Safe Voltage Finish* Option (s)

310 -4 (S) – F – 12D – 605 – LCBMA

Complete Pacs

310- 4 PK keeper standard; For use with

3/4" Pullman style latchbolts

310-4(S) SK keeper standard; For use with

Squarebolt

style rim exit devices

1-3/4"

[44.4mm]

1-1/8"

[28.5mm]

(blank) Fail Secure

(standard)

F Fail Safe

12D 12 Vol t

24D 24 Volt

605 Bright Brass

606 Satin Brass

612 Satin Bronze

613 Bronze Toned

629 Bright Stainless Steel

630 Satin Stainless Steel

LCBMA Latchbolt &

locking cam monitor with auxiliary switch
