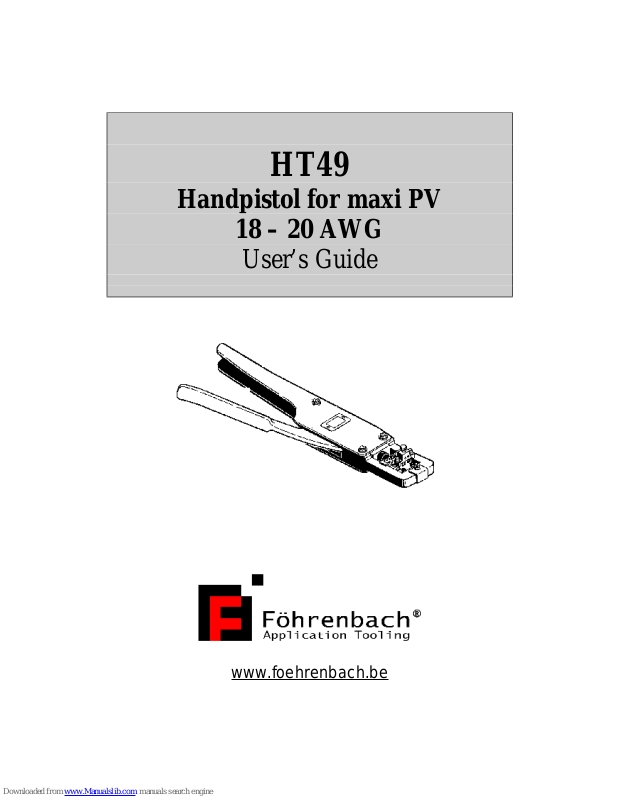

HT49
Handpistol for maxi PV
18 – 20 AWG
User’s Guide
www.foehrenbach.be
Page 2
Instruction manual HT49 Manual Part No. 166810-001 www.foehrenbach.be
Date: August 2007 Documentrev.: 3 Page: 2 / 3

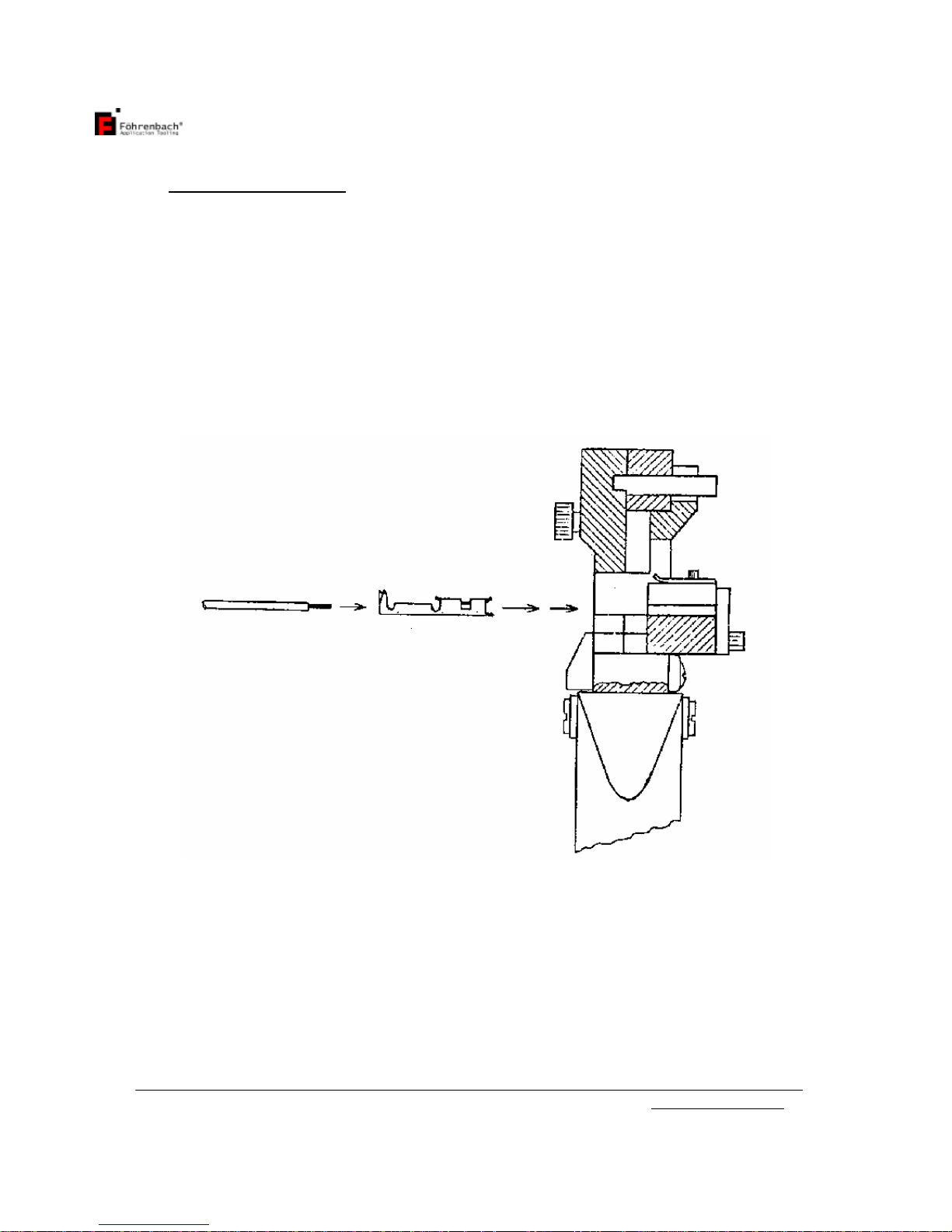

Crimping Instructions
To Load Terminal:
1. With “U” shape of terminal facing up, insert into terminal holder until
terminal comes into contact with terminal stop.
To Load Wire:
1. With wire having the insulation stripped away to the proper length,
insert to the proper depth.
To Crimp:
1. Crimp by holding wire and closing hand tool.
Page 3
Instruction manual HT49 Manual Part No. 166810-001 www.foehrenbach.be
Date: August 2007 Documentrev.: 3 Page: 3 / 3
HT-49 – Wire Size 18 – 20
The technical data in this publication has been carefully checked and assembled. No liability from inaccuracies or errors is assumed.
The right to change or improve this document without notice is reserved.

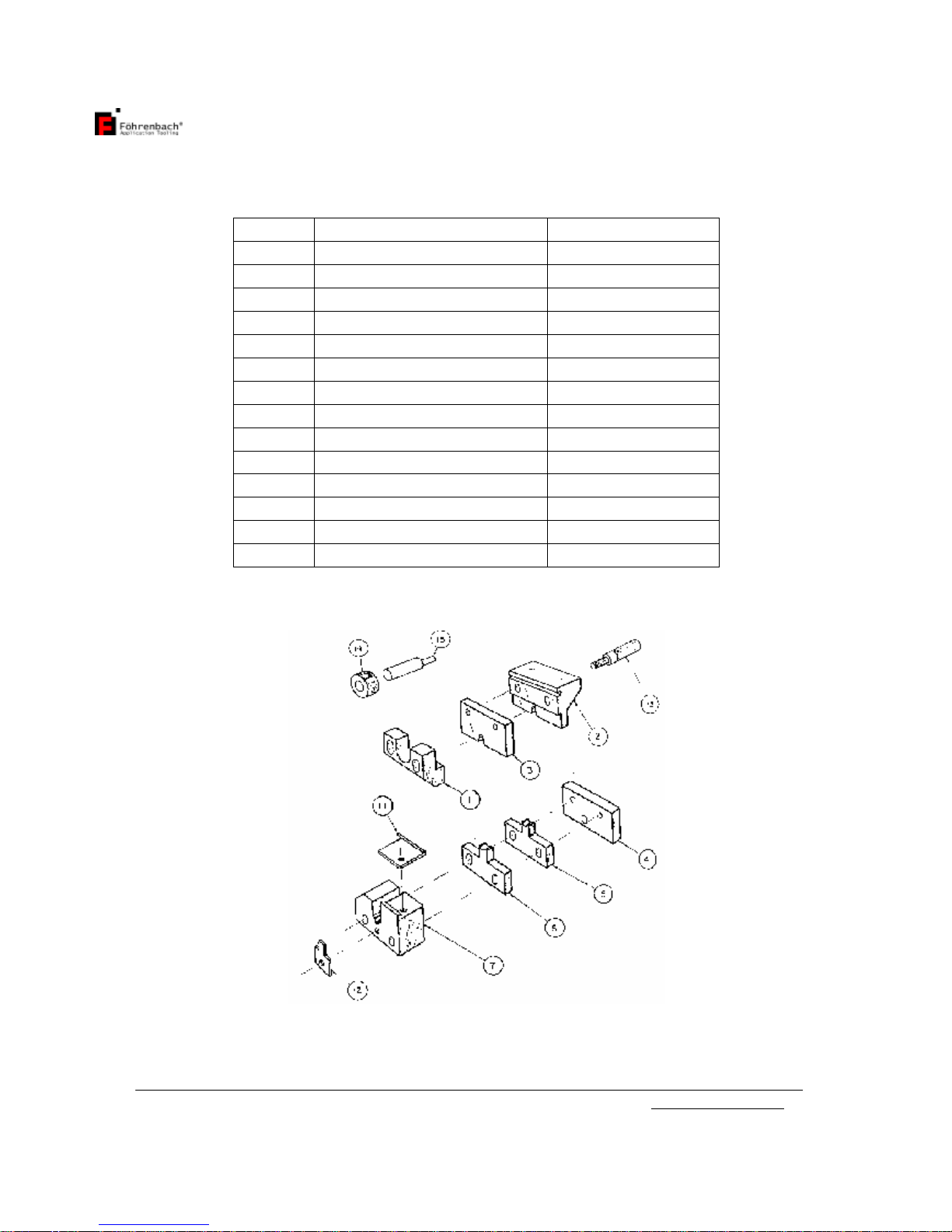

Detail No.
Description Part No.
1 Hand tool Crimper Holder A105614-1
2 Insulation Support Crimper A-1113-8
3 Wire Barrel Crimper A-105615-1
4 Hand tool Anvil Holder A-858-4
5 Insulation Support Anvil A-1114-7
6 Wire Barrel Anvil A-105616-1
7 Terminal Holder A-1175
8 Adjustable Tool Holder A-856-1 Not Shown
9 Name Tag A-810-1 Not Shown
11 Spring A-1174
12 Stop Plate A-1176
13 Lock Screw A-1117-2
14 Knob A-1170
15 Cam A-1169
