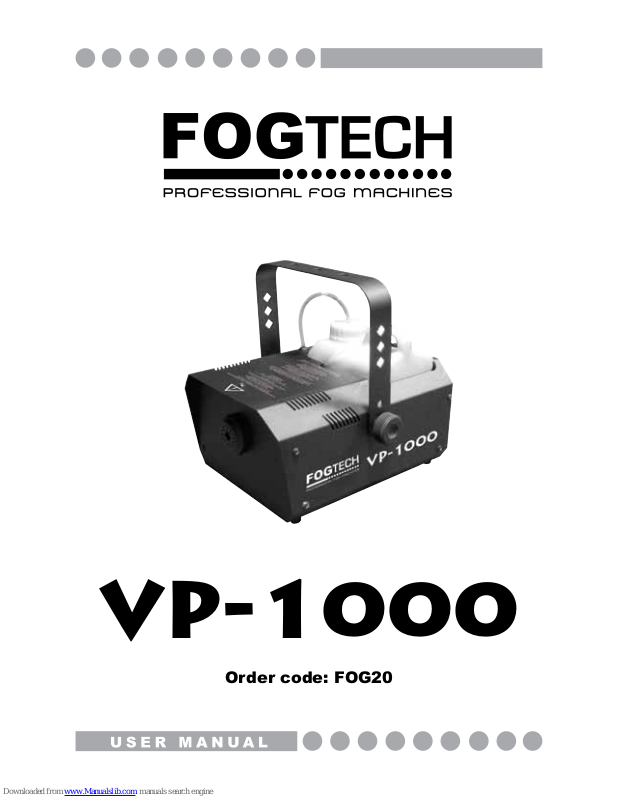

VP-1000
Order code: FOG20
WARNING
FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY
BEFORE YOUR INITIAL START-UP!
CAUTION!
Keep this equipment away from rain,
moisture and liquids.
SAFETY INSTRUCTIONS
Every person involved with the installation, operation & maintenance of this
equipment should:
- Be competent
- Follow the instructions of this manual
CAUTION! TAKE CARE USING THIS EQUIPMENT!
HIGH VOLTAGE-RISK OF ELECTRIC SHOCK!!
Before your initial start-up, please make sure that there is no damage caused
during transportation. Should there be any, consult your dealer and do not use
the equipment.
To maintain the equipment in good working condition and to ensure safe operation, it is necessary
for the user to follow the safety instructions and warning notes written in this manual.
Please note that damages caused by user modications to this equipment are not
subject to warranty.
IMPORTANT:
The manufacturer will not accept liability for any resulting damages caused by the
non-observance of this manual or any unauthorised modication to the equipment.
• Never let the power-cable come into contact with other cables. Handle the power-cable
and all mains voltage connections with particular caution!
• Never remove warning or informative labels from the equipment.
• Do not open the equipment and do not modify the equipment.
• Only use the equipment indoors.
• Do not expose to ammable sources or gases.
• Always disconnect the power from the mains when equipment is not in use or before
cleaning! Only handle the power-cable by the plug. Never pull out the plug by pulling the
power-cable.
• Make sure that the available voltage is between 220v/240v.
• Make sure that the power-cable is never crimped or damaged. Check the equipment and
the power-cable periodically.
• If the equipment is dropped or damaged, disconnect the mains power supply immediately.
Have a qualied engineer inspect the equipment before operating again.
• If the equipment has been exposed to drastic temperature uctuation (e.g. after
transportation), do not switch it on immediately. The arising condensation might damage
the equipment. Leave the equipment switched off until it has reached room temperature.
• If your product fails to function correctly, discontinue use immediately. Pack the unit
securely (preferably in the original packing material), and return it to your Prolight dealer
for service.
• Only use fuses of same type and rating.
• Repairs, servicing and power connection must only be carried out by a qualied
technician. THIS UNIT CONTAINS NO USER SERVICEABLE PARTS.
• WARRANTY: One year from date of purchase.
OPERATING DETERMINATIONS
If this equipment is operated in any other way, than those described in this manual,
the product may suffer damage and the warranty becomes void.
Incorrect operation may lead to danger e.g. short-circuit, burns, electric shocks etc.
Do not endanger your own safety and the safety of others!
Incorrect installation or use can cause serious damage to people and property.
Before lling the unit disconnect the mains. Never ll with hot liquids.
Only use high quality, water based smoke uid recommended by the manufacturer. Other smoke uids
may cause clogging and void the warranty.
Always make sure there is sufcient smoke uid in the tank. Operating this smoke machine without
smoke uid will cause damage to the pump as well as over heating of the heater.
Operate the unit only after you have familiarized yourself with its functions, Do not permit operation by
persons not qualied for operating the unit and always drain the tank and use the original packaging if the
unit is to be transported.
Overview:
VP-1000
LC-1 Remote Controller
Identication:
A, Bracket
B, Fog uid container
C, Indicator lamp
D, Remote socket
E, IEC power socket
F, Fuse
G, Bracket knob
H, Low uid indicator (front)
OVERVIEW
Identication:
A, 1/4” Jack cable
B, Orange button
C, Green LED (Fog ready)
D, Red LED (Heating)
E, 1/4” Jack plug
Once the fog machine is powered up, the Red LED on
this remote will illuminate. When the fog machine has
heated up to the correct temperature, the Green LED
will illuminate indicating the machine is now ready for
use. To emit fog press the Orange button. Between
heating cycles the Green LED Lamp will go OFF (for a
short time) and turn back On again when the machine
is ready to fog again.
STARTING OPERATION
The uid tank of the unit needs to be lled with smoke uid before switching on.
Always disconnect it from the mains supply as uid could be spilled.
Only use quality smoke uids recommended by your dealer. We recommend high quality
smoke uids. You must not use substances which are classied as
“DANGEROUS WORKING MATERIALS” or “FLAMMABLE FLUIDS”.
If uid should get inside the main housing, disconnect the unit from the mains immediately and
consult a technician.
INSTALLATION
Install the unit in a well-ventilated area. Use in an insufciently ventilated room can lead to the
condensation of the smoke uid. The resulting slippery surface can cause accidents. Keep a
minimum distance of 20cm around the unit.
Furthermore do not orientate the output nozzle directly in the direction of the audience’s eyes. In
order to create the best effect, there should be a distance between the unit and the audience of at
least 1.5M.
Only install the smoke machine on re resistant, scratch resistant and water resistant surfaces.
Please make sure that the installation angle does not exceed 15˚.
This unit is constructed for a free standing or hanging installation. If the unit is to be installed
overhead, please follow the safety instructions below:
RIGGING INSTALLATION
The installation has to be built and constructed in a way that it can hold 10 times the weight of the
unit(s) to be installed for 1 hour without any deformation.
The unit must always be secured with a secondary safety attachment, e.g. an appropriate catch
net or safety wire. The secondary safety attachment must be constructed in a way that no part of
the installed unit can fall down if the main attachment fails.
When rigging, derigging or servicing, do not allow personnel to be directly underneath the unit.
DANGER OF FIRE!
When installing the unit, make sure there is no highly ammable
material (decoration articles etc) within a minimum distance of 0.5M
OPERATION
The operator must always make sure that the safety-relating and machine-technical installations
are approved by an expert before operation for the rst time and after any further changes
are made.
The operator has to make sure that the safety-relating and machine-technical installations are
approved by an expert after every four years in the form of an acceptance test.
The operator has to make sure that the safety-relating and machine-technical installations are
approved by a qualied person once a year.
PROCEDURE
When hanging, the unit must not be installed in areas where persons may walk by or be seated.
IMPORTANT! OVERHEAD RIGGING REQUIRES EXTENSIVE EXPERIENCE, including (but not
limited to) calculating working load limits, installation materials being used, and periodic safety
inspection of all installation materials and the unit. If you are not qualied, do not attempt the
installation yourself, but instead use a professional structural rigger. Improper installation can
result in bodily injury and or damage to property.
The unit has to be installed out of the reach of people.
CAUTION: Units in overhead installations may cause severe injuries when falling! If you have
doubts concerning the safety of a possible installation, do not install the unit.
Mount the unit with the bracket to your hanging system using an appropriate clamp or bolt.
For overhead use, always install a safety wire which can hold at least 12 times the weight of the
unit. You must only use safety wires with link screw caps.
The maximum drop distance must never exceed 20cm.
A safety wire which has already held the strain of a fallen item or which is defective must not be
used again.
Adjust the desired installation angle via the mounting bracket and tighten the screws.
DANGER TO LIFE!
Before operation for the rst time, the
installation has to be approved by an expert!
OPERATION
OPERATION
Switch the unit ON via the power switch. Connect the remote control to the Remote Control socket.
The Red indicator on the remote control will illuminate. After the units warm up time the Green
indicator turns ON and the unit is ready for operation. Press and hold the button until the desired
amount of smoke is emitted.
If the Green indicator on the remote will go out when the unit is re-heating, no smoke can be
produced at this time. Please wait until the indicator goes OFF.
CLEANING AND MAINTENANCE
We recommend a frequent cleaning of the unit. Please use a soft lint-free and moistened cloth.
Never use alcohol or solvents!
Clean the output nozzle frequently from smoke uid residues.
The smoke uids we recommend are non-hazardous to the environment and can be
disposed of via the sewage system.
There are no user serviceable parts inside this unit except for the fuse. Maintenance and service
operations are only to be carried out by authorized dealers.
REPLACING THE FUSE
Only replace the fuse with a fuse of same type and rating.
Before replacing the fuse, disconnect from the mains.
Procedure:
Step 1: Open the fuse holder on the rear panel with a suitable screwdriver.
Step 2: Remove the old fuse from the fuse holder,
Step 3: Install the new fuse in the fuse holder
Step 4: Replace the fuse holder in the housing.
Should you need any spare parts, only use genuine parts.
If defective, please dispose of the unusable unit in accordance with the current legal regulations.
Should you have any further questions, please contact your dealer.
DANGER TO LIFE!
Disconnect from the mains before
starting maintenance
OPERATION
TECHNICAL SPECIFICATIONS
VP-1000
LC-1 Controller
Smoke output
Warm up time
Tank capacity
Power consumption
Power supply
Dimensions
Weight
7,000 cu.ft per minute
approx. 8 min
2.5 L
1000W
240V
300 x 220 x 160mm
6.1Kgs
Cable length
Connector
Function
Dimensions
Weight:
5M
1/4” Jack plug
On/Off
90 x 50 x 24mm
0.28Kgs
SPECIFICATIONS
www.prolight.co.uk
