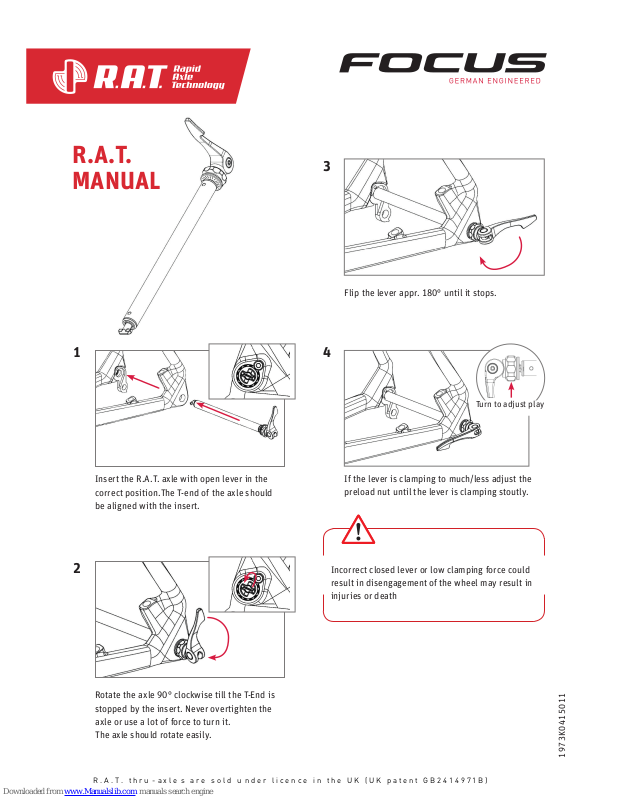

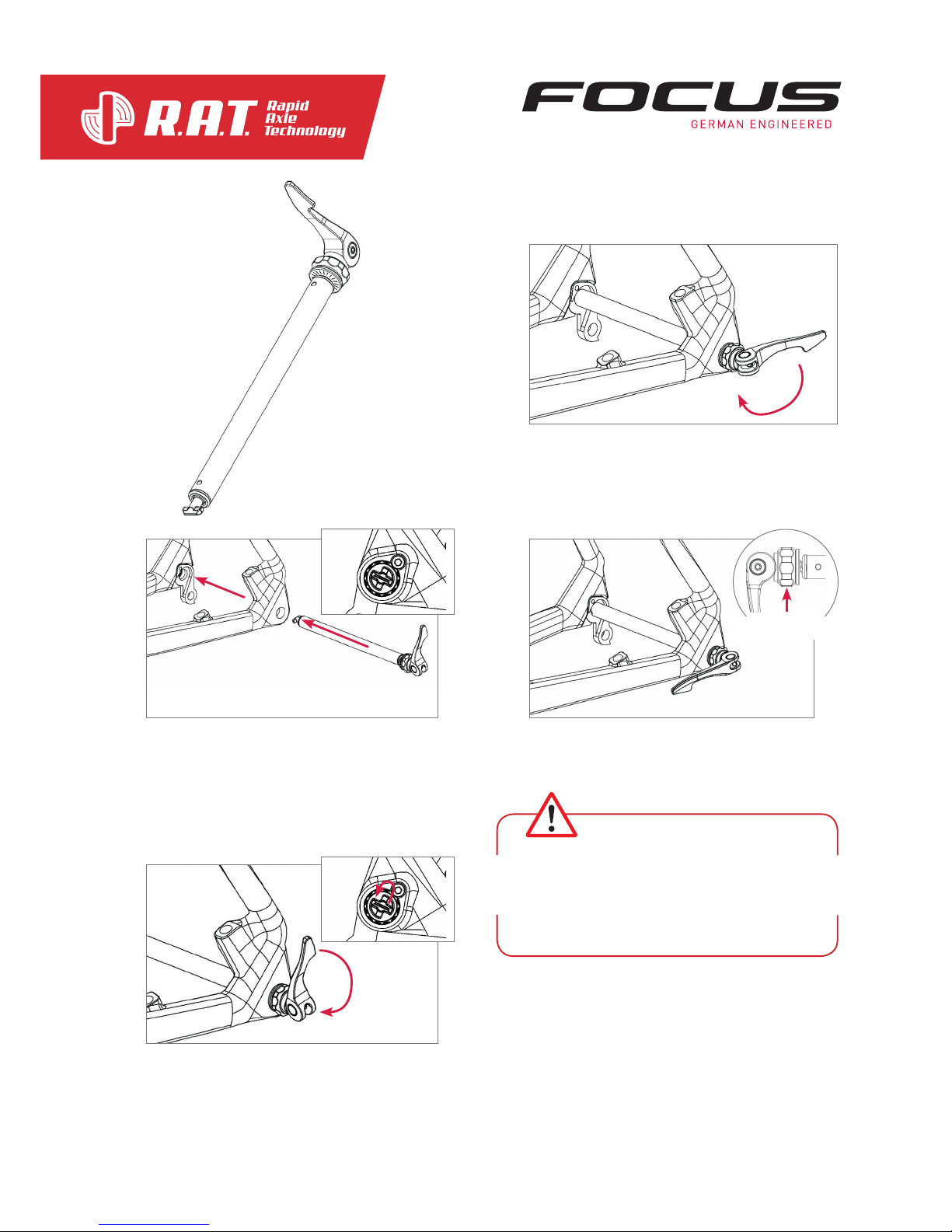

Page 1
1
Insert the R.A.T. axle with open lever in the
correct position.The T-end of the axle should
be aligned with the insert.
2
Rotate the axle 90° clockwise till the T-End is
stopped by the insert. Never overtighten the
axle or use a lot of force to turn it.
The axle should rotate easily.
3
Flip the lever appr. 180° until it stops.
4
Turn to adjust play
If the lever is clamping to much/less adjust the
preload nut until the lever is clamping stoutly.
Incorrect closed lever or low clamping force could
result in disengagement of the wheel may result in
injuries or death
R.A.T.
MANUAL
1973K0415011
R
.A.T. thru -axle s are sold u nder licence in the UK (UK patent GB2414971B)
Page 2

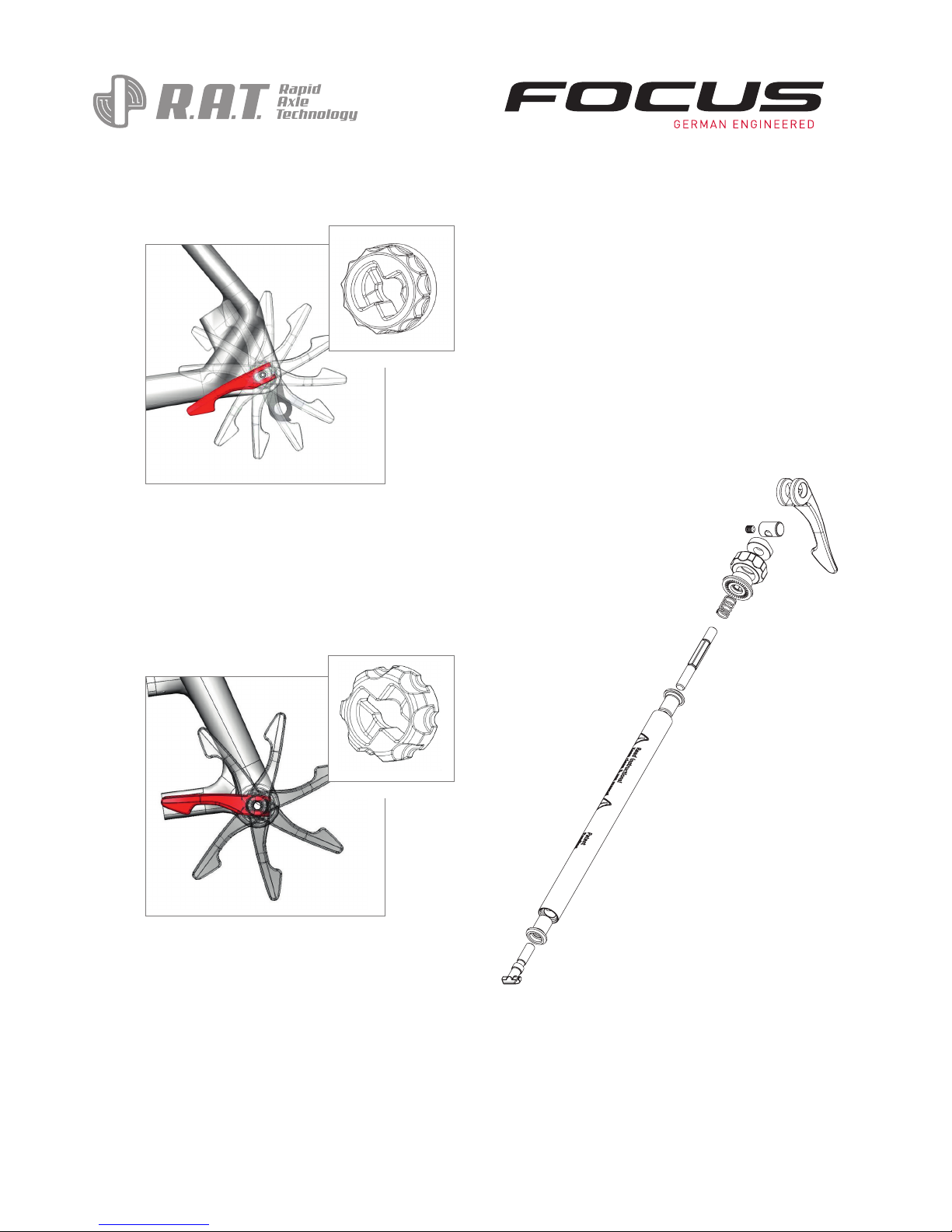

Insert rear
Rear lever position can be adjusted like your
personal preference. Just turn the Insert on the
drive side in the position you want.
Each grooving is changing the position about
30° degree.
Insert front
Front lever position can be adjusted as well.
The front insert has 7 positions. Each grooving
is changing the position about 51,5° degree.
5 Facts about R.A.T. :
› It‘s all about alignment!!!
› brakecaliper and disc rotor must always be in
the same position
› R.A.T. is the only fast thru axle system for road
available
