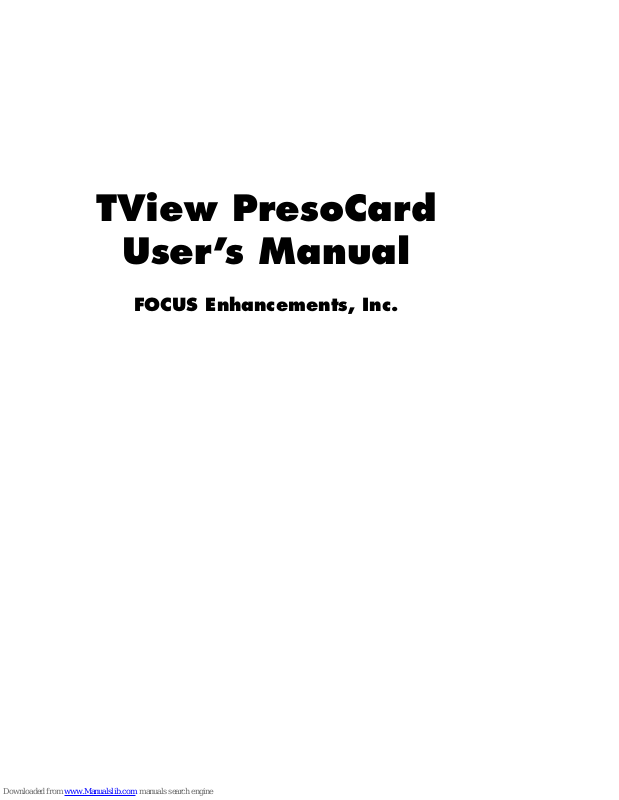

Page 1
TView PresoCard
User’s Manual
FOCUS Enhancements, Inc.
Page 2
FOCUS Enhancements TView PresoCard User’s Manual
FCC NOTICE
This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not
installed and used in accordance with the installation
manual, may cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by on or more of the following measures:
• This unit was tested with shielded cable, therefore, for
continued compliance, use the shielded cables provided
with the unit.
• Reorient or relocate the unit.
• Increase the separation between the equipment and
receiver.
• Connect the equipment into an outlet on a circuit different form that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
You may find the following booklet, "How to Identify and
Resolve Radio-TV Interference Problems" (stock number
004-000-000345-4) helpful. It is available form the U.S.
Government Printing Office, Washington DC 20402.
ii
Page 3
COPYRIGHT
This document and the software described in it are copyrighted under United States Copyright Laws. No part of
this document or software may be copied without prior
written consent from FOCUS Enhancements, Inc. except in
the normal use of the software as described in this document. All printed circuits, their physical implementation
on printed circuit boards including the LCA program's
configuration bit streams, and associated software are
copyrighted with all rights reserved. Under the copyright
laws, the printed circuit board, or the software programs
provided may not be copied in whole or in part, without
written consent of FOCUS Enhancements, Inc. except in
the normal use of the software programs to make a backup copy. This exception does not allow copies to be made
for others, whether sold or not, but all of the material may
be sold, given, or loaned to another person. Under the law,
copying includes translating into another language or format.
FOCUS Enhancements TView PresoCard User’s Manual
Microsoft Windows, Windows 95, and Microsoft are
trademarks of Microsoft Corporation. All other products
named are trademarks of their respective manufacturers.
© 1994-7 FOCUS Enhancements, Inc. All Rights Reserved.
iii
Page 4
FOCUS Enhancements TView PresoCard User’s Manual
iv
Page 5
Table of Contents
Section 1: Installation
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Section 2: Software Configuration
PresoCard Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
PC Driver Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Section 3: Connecting to Your Television
The TView PresoCard Cable . . . . . . . . . . . . . . . . . . . . . . . .11
Television Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Section 4: Reference
Basic Tips for Advanced Presentations . . . . . . . . . . . . . . . . .19
VCRs, RF Modulators, and You . . . . . . . . . . . . . . . . . . . . . .20
Frequently Asked Questions . . . . . . . . . . . . . . . . . . . . . . . .22
Troubleshooting Matrix . . . . . . . . . . . . . . . . . . . . . . . . . . .24
Technical Support and Warranty Repair . . . . . . . . . . . . . . .27
v
Page 6
FOCUS Enhancements TView PresoCard User’s Manual
vi
Page 7
Section 1: Installation
INTRODUCTION
The TView PresoCard from FOCUS Enhancements puts
PC-to-TV video conversion technology into the smallest
and lightest form factor available on a personal computer.
The PresoCard PC-to-TV video converter fits into any PC
laptop Type II or Type III PC Card slot for unparalleled
mobility. Because every ounce makes a difference when
you travel, the PresoCard is ideal for the mobile exhibitor.
It delivers big screen impact without the size and weight
associated with presentation monitors and portable projection devices.
The TView PresoCard offers the ultimate in portability.
No power adapters, no cable collection, no carrying case.
And you’ll stay in control of the image positioning, filtering and video output of your PC through an easy to use
software control panel. But that isn’t the only way the
PresoCard is good for your image. Custom image stabilization techniques and 3-line averaging make you look as
brilliant as the 16.7 million colors on your television.
PACKING LIST
The TView Presocard is shipped with the following items:
• TView Presocard PCMCIA card
• User’s Manual with registration card
• Proprietary adapter cable
• Quick Start Card
• TView PresoCard diskette
To receive future updates, please fill out and return the
registration card on the back cover of this manual immediately. You can also register online by visiting our Website
at http://www.focusinfo.com.
1
Page 8
FOCUS Enhancements TView PresoCard User’s Manual
OPTIONAL ACCESSORIES
• Audio Patch Cable
• S-Video patch cable
• TView Commander
• Infrared Keyboard
• Carrying Case
SET-UP
Compatibility
The TView PresoCard works with any IBM PC
Compatible laptop computer which supports video VGA
output of 640 x 480, 60Hz. This includes most PC laptop
systems under the DOS, Windows 3.X, and Windows 95
operating systems. NOTE: Some PC laptops may not display in Presentation Mode.
Televisions and VCRs need an S-Video, Comp. Video, or
RF input port. If you have an RF input but no other inputs,
you must utilize a VCR with Comp. Video or S-Video
input. If you do not have a VCR with Comp. Video or SVideo input, you must obtain an RF Modulator from
Radio Shack (part number 15-1283, see “VCRs, RF
Modulators, and You” in the Reference section at the end
of this manual).
2
Page 9
FOCUS Enhancements TView PresoCard User’s Manual
Windows 95 Installation
Your TView PresoCard requires software to operate.
Please follow the instructions below for Windows 95
setup. If you have any trouble with this setup, use the
built-in help features of Windows 95 to initiate the installation process with the Windows Hardware Wizard.
Step 1: Insert the TView PresoCard into the PCMCIA
slot of your computer.
The PresoCard can be inserted in either the upper or
lower PC card port, if you have more than one port.
• A window titled “New Hardware Found” will appear.
3
Page 10
FOCUS Enhancements TView PresoCard User’s Manual
Step 2: Install the PresoCard software.
• Select the option “Driver from disk provided by hardware manufacturer” with your mouse.
• Insert the TView PresoCard software diskette into your
floppy drive.
• Click OK.
Step 3: Complete installation.
• Follow the Windows 95 prompts to complete the installation.
Windows 3.1 Installation
Step 1: Insert the TView PresoCard software diskette into
your disk drive.
Step 2: From within the Windows 3.1 Program Manager,
select Run... from the File menu.
Step 3: Type a : \ s e t u p and press ENTER. Follow the
installer prompts and insert your TView PresoCard
when instructed to complete the installation.
4
Page 11
FOCUS Enhancements TView PresoCard User’s Manual
Section 2: Software Configuration
PRESOCARD CONTROLLER
After installing the TView PresoCard software, you’ll find
a new control panel that looks like this:
The PresoCard controller window has five menus:
File, Position, Filter, Setup, and Help.
Initial Setup
There are two settings which need be configured only
once for any given combination of television and the
TView PresoCard. The last values for these settings are
recorded in the applications initialization file (INI file) and
automatically restored when the Preso card is next
plugged in. The two settings are the TV Operation Mode
(NTSC for example) and the Clock Phase and are both set
from the Setup menu.
5
Page 12
FOCUS Enhancements TView PresoCard User’s Manual
File Menu Commands
The File menu offers the following commands:
Reset
This operation will reset the Preso PC Card to the default
operating mode.
Key shortcut: ALT-F+ALT-R
Exit
Use this command to end your Preso Controller session.
You can also use the Close command on the application
Control menu. Preso Controller prompts you to save documents with unsaved changes.
Mouse shortcut: Double-click the application's Control
menu button.
Key shortcut: ALT+F4
Position menu commands
The Position menu offers the following commands:
Up
This operation moves up the computer screen image on
your TV screen.
Key shortcut: ALT-P+ALT-U
Down
This operation moves down the computer screen image on
your TV screen.
Key shortcut: ALT-P+ALT-D
Left
This operation moves the computer screen image to the
left on your TV screen.
Key shortcut: ALT-P+ALT-L
6
Page 13
FOCUS Enhancements TView PresoCard User’s Manual
Right
This operation moves the computer screen image to the
right on your TV screen.
Key shortcut: ALT-P+ALT-R
Filter menu commands
The Filter menu offers the following commands:
No Filter
This operation will apply no flicker filter.
Key shortcut: ALT-F+ALT-N
2-Line
This operation will apply 2-line filter to reduce flicker.
This filter is usually best for display with small characters.
Key shortcut: ALT-F+ALT-2
3-Line
This operation will apply 3-line filter to reduce flicker.
This filter is usually best for graphic display without small
characters.
Key shortcut: ALT-F+ALT-3
Color Bars
This operation will display color bars for testing and calibration.
Key shortcut: ALT-F+ALT-C
7
Page 14
FOCUS Enhancements TView PresoCard User’s Manual
Setup menu commands
The Setup menu offers the following commands:
NTSC
This is the television broadcast signal standard in the
United States, Canada and Mexico. If your television
operates with television broadcast signals in these locales,
select this mode.
Key shortcut: ALT-S+ALT-N
NTSC-Japan
This is the television broadcast signal standard in Japan. If
your television operates with television broadcast signals
in Japan, select this mode.
Keys: ALT-S+ALT-J
PAL 640x480
PAL is the television broadcast signal standard in Europe
and in some parts of Central and South America. If your
television operates with television broadcast signals in
these locales, and if your computer monitor resolution is
set to 640x480, select this item.
Key shortcut: ALT-S+ALT-P
PAL 800x600
PAL is the television broadcast signal standard in Europe
and in some parts of Central and South America. If your
television operates with television broadcast signals in
these locales, and if your computer monitor resolution is
set to 800x600, select this item.
Key shortcut: ALT-S+ALT-A
PAL/M
This is the television broadcast signal standard in Brazil.
If your television operates with television broadcast signals in Brazil, select this item.
Key shortcut: ALT-S+ALT-L
8
Page 15
FOCUS Enhancements TView PresoCard User’s Manual
Clock Phase 1 and Clock Phase 2
The Setup menu contains the two clock phase entries.
The current selection is indicated with a check mark. To
change the clock phase, select the item which is not currently selected.
The clock phase setting need be set only once for any
given Preso card. The last selection will be saved in the
application initialization file and automatically restored
when the Preso card is next plugged in. There are two
clock phase selections, Clock Phase 1 and Clock Phase 2.
Try each phase and select the one which appears to give
the least amount of noise and jitter on the TV screen.
Key shortcut: ALT-S+ALT-1
Key shortcut: ALT-S+ALT-2
Help menu commands
The Help menu offers the following commands, which
provide you assistance with this application:
Index command
Use this command to display the opening screen of Help.
From the opening screen, you can jump to step-by-step
instructions for using the TView PresoCard as well as various types of reference information.
Using Help command
Use this command to display the opening screen of Help.
From the opening screen, you can jump to step-by-step
instructions for using the TView PresoCard and various
types of reference information.
About command
Use this command to display the copyright notice and version number of your copy of PresoCard Controller.
9
Page 16
FOCUS Enhancements TView PresoCard User’s Manual
DRIVER SETUP
NOTE: Your computer’s video driver must be set to a VGA-com-
patible setting.
CRT Activation Key
When using the TView PresoCard, you should use the
CRT Activation key combination specific to your computer. Most Laptop computers have an “F” key (such as F1,
F6, F12 - each model is different) with "CRT" marked on
the side facing you. Others have an icon of a monitor.
Find this key and press it in combination with the "Fn" key
to activate the CRT output of your Laptop. If you cannot
find the CRT Activation F-key on your Laptop, consult
your Laptop manual for more information about connecting an external (CRT) monitor.
10
Windows 95
Open the Control Panel, then the Display Icon. Click the
Settings Tab. Click Change Display Type, and make sure
that your Display type is set to VGA Standard 640x480. If
the signal is still distorted, repeat the previous steps and
set the Adapter Type to Standard VGA.
NOTE: Whenever changing your control panel settings, be sure
to write the previous settings down on a piece of paper,
just in case you need to change it back.
Windows 3.1x
Use the Windows Setup program (located in the Main
Program Group) to specify your Display Driver.
Recommended Windows 3.1 drivers include: VGA,
Super VGA-640x480, VGA 3.0, GD5434 640x480x256, and
GD5434 640x480x64K.
Page 17
Section 3: Connecting the Television
THE TVIEW PRESOCARD CABLE
Your TView PresoCard includes a special, proprietary
cable that only works with the PresoCard.
This cable connects between your PresoCard and the 15pin VGA port on the back of your laptop computer.
PresoCard interface
S-Video and Composite
Video Out ports
VGA Pass-through
(to optional computer monitor)
VGA Input
(from laptop VGA port)
Top ViewSide View
11
Page 18
FOCUS Enhancements TView PresoCard User’s Manual
Connecting the TView PresoCard
Cable
This cable can only be attached one way.
• Attach the cable’s VGA Input port to your laptop’s
VGA Monitor Out port and tighten the thumbscrews.
• Attach the PresoCard Interface connector to the
PresoCard. Press this connector into the card’s matching port until you feel its latches engage.
• If you wish to use a separate VGA or Multisync monitor while using the PresoCard, attach the monitor’s 15pin cable to the VGA Pass-through connector on the
PresoCard cable.
TView PresoCard provides two
major connection-types:
S-video
A high-quality video connection used by some video cameras and VCRs. The connector on an S-video cable has a
round plug with several small metal pins and plug into
the S-video output port on the back of the computer.
S-video connector
S-video cable (not included)S-video
S-video
S-video output port
out
12
Page 19
FOCUS Enhancements TView PresoCard User’s Manual
To determine whether or not your television or VCR supports S-video look for a port on your device that matches
the S-video output port on the back of the computer. This
port on your external device may or may not be labeled as
S-video in. S-video is recommended for external video display because of its higher picture quality capability.
WARNING: The S-video connector resembles other computer connec-
tors such as those used for a printer, modem, mouse, or
keyboard. When using an S-video cable make sure to plug
it only into the S-video output port. Connecting an Svideo device to the wrong port may damage your equipment.
Composite video
A connection type used by most televisions, VCRs,
laserdisc players, and certain LCD panels. The connectors
on a composite video cable have an RCA-type plug with a
long metal pin projecting from the center of the plug and
plug into the composite video out port on the back of your
computer.
RCA-type plug
Single RCA cable (not included)RCA
Composite video
output port
out
RCA
13
Page 20
FOCUS Enhancements TView PresoCard User’s Manual
To determine whether or not your television or VCR supports composite video look for a port that matches the
composite video out port on the back of your computer.
This port on your television or VCR may or may not be
labeled as video in.
NOTE: Your computer may have also come with hardware that
allows you to input video from an external source. In this
case additional ports for S-video input and composite
video input will also be provided. Make sure not to mistake these input ports for the ones used for Video Out.
14
Page 21
FOCUS Enhancements TView PresoCard User’s Manual
Using the optional audio
out connection
It is important to remember that both the S-video and
composite video cables only carry the video signal out
from your computer. In many cases the built in speakers
that came with your Macintosh computer or monitor are
better for presentations than the ones found in the television. However, if you also want sound from the computer
to go to the VCR or television you need to use an additional cable; miniplug-to-dual RCA-plug cable. This cable is
required if you want to record sound along with your presentation on to a video tape.
This cable connects the Sound output port on the back of
your computer to the Left and Right Audio-In ports on
either your television or VCR. In the following illustrations, the optional audio connection using the miniplugto-dual RCA-plug cable is shown along with the required
video connection.
Stereo miniplug
RCA
Dual RCA-to-stereo miniplug cable (not included)
Sound output port
Stereo miniplug
15
Page 22
FOCUS Enhancements TView PresoCard User’s Manual
CONNECTING TO YOUR TELEVISION
You will need either an S-Video cable or Composite Video
cable to connect your TView PresoCard to your television.
Step 1: Look at your TVs Video Input ports. Identify
whether your TV has an S-Video input, a Comp. Video
input or an RF input.
A. If your TV has an S-Video input, attach one end of
the S-Video cable to the S-Video port on your TView
PresoCard cable and attach the other end to the S-Video
input port on your television.
B. If your TV has an Comp. Video input, attach one end
of the Comp. Video cable to the Comp. Video port on
your TView PresoCard cable and attach the other end
to the Comp. Video Input port on your television.
C. If your TV has an RF input but no other inputs, you
must utilize a VCR with Comp. Video or S-Video input.
If you do not have a VCR with Comp. Video or S-Video
input, you must obtain an RF Modulator from Radio
Shack (part number 15-1283, see “RF Modulators,
VCRs, and You” in the Reference section at the end of
this manual).
16
You may use both S-Video and RCA outputs at the same
time (to send video to two televisions, for example).
Step 2: If desired, connect your computer monitor’s 15-pin
cable to the 15-pin VGA Pass-through port on the
TView PresoCard cable.
Step 3: Turn on your Television. Set your TV to “AUX” or
“Video Input.” Video In can usually be set by remote
control, with a button labeled TV/Video, Line In, Input
Select, Video, AUX, or similar. Sometimes Video selection takes place in an onscreen menu system.You must
make sure to set your TV to an Input channel instead of
a numbered channel, such as channel 3, because channel 3 is an RF channel, not a Video channel (RF
Modulator and VCR users should leave the TV on
Page 23
FOCUS Enhancements TView PresoCard User’s Manual
channel 3, as detailed in the Reference section at the
end of this manual). If necessary, consult your TV manual or manufacturer for more information on Video
Input. When you have set your TV to Video In, you will
probably see an indicator such as VIDEO or AUX in
colored letters in the corner of your TV screen.
Step 4: The computer’s image should now pop up on the
TV. If it isn’t, check the Reference section of this manual
for tips on configuring your computer’s settings to activate the TView PresoCard. You’ll also find up-to-date
tips and advanced information on our Website at
http://www.focusinfo.com.
17
Page 24
FOCUS Enhancements TView PresoCard User’s Manual
18
Page 25
Section 4: Reference
BASIC TIPS FOR ADVANCED PRESENTATIONS
Good presentations are part art and part science, but experienced, successful presenters tend to follow these guidelines:
Keep it simple.
Use large pictures and characters.
Use large type: At least 18-point size.
Use motion to add interest to your presentation.
Avoid intense backgrounds. Pastels provide palatable con-
trasts.
Use solid colors for backgrounds. Increase the color choices
by using video cards that support more colors.
Avoid red colors. Reds do not display as accurately as
greens or blues.
On PAL televisions avoid large areas of bright color.
Changing to NTSC output may eliminate panel flicker.
Don't use the entire screen. Leaving space around the edges
accommodates different video formats and overscan.
Rehearse. Run through your presentation several times.
Practice using the Electronic Marker and the features of
your own presentation package until they become second
nature.
Get there early. Set up well before the class or meeting
begins. Check for overscan on the television or video projector you'll be using. Make adjustments ahead of time.
19
Page 26
FOCUS Enhancements TView PresoCard User’s Manual
VCRS, RF MODULATORS, AND YOU
Connecting to a VCR
To use your VCR to connect a TView PresoCard to your
TV, first find the Comp. Video cable and S-Video cable.
Then connect either the Comp. Video cable or S-Video
cable from the TView PresoCard to a port on your VCR
labeled “Video Input” (also known as AUX IN, or AV IN it will probably be a yellow RCA/Phono type connector
on the back of your VCR). Now find the connector on your
VCR marked ANT Out, To TV,or RF Out. This port usually has a Cable-TV type cable screwed in, connecting it to
your TV. Next, tune your TV to channel 3 or 4, and turn
on your VCR. Find a button on the front of the VCR called
Line, TV/Video, Video Input, or similar and press it. If
your VCR does not have a button to specify Video In, try
to find an onscreen menuing system with your VCR’s
remote control. Then confirm that your computer is
turned on and the Scan Converter has its power light lit.
20
RF Modulators
If you do not have a VCR with Comp. Video or S-Video,
you need a special adapter called an RF Modulator. This
device converts the Comp. Video signal from your TView
PresoCard to an Antenna Signal, which can then be tuned
in on your TV using Channel 3 or 4. FOCUS Technical
Support recommends the Radio Shack RF Modulator,
available under Radio Shack part number 15-1283.
Advanced Setup
This section serves as a compilation of suggestions and
tips we have collected while using Video Converter products here at FOCUS Enhancements. These Hints and Tips
are designed to improve the picture quality of your television, help you better understand your Video Converter,
and give you some insight into special features.
Page 27
FOCUS Enhancements TView PresoCard User’s Manual
Recording Audio to the VCR
If your computer has an Audio Out port, you can simultaneously record all computer sounds or music to videotape.
An extra cable (FOCUS Part number 444-1315) is needed
to connect the audio from the computer to the television
monitor. The sound-out port on most computers is a standard stereo mini-jack (headphone type) connector. If your
TV or VCR has an Audio In port, connect the computer’s
sound-out port to the TVs Audio In RCA port with the
FOCUS Audio Patch Cable. Attach the other end of the
audio cable to the Audio In on your television monitor or
VCR.
Choosing a Desktop Pattern (Themes)
Because of a television’s relatively low resolution, some
desktop patterns can produce bizarre effects. If undesirable, avoid using desktop patterns with very intricate
designs or single color dots. As an alternative, use either a
black Desktop Pattern, a limited gray design, or a simple
solid pattern with only a few muted colors. In our experimentation, fine lines produce a wildly flickering display,
while solid darker colored patterns prove to be most effective for a stable image.
Better Font Display
Perhaps the most important step to ensure readability is to
increase the point size of the display font in the Desktop.
We recommend a size of 14 point or higher. Windows
users can install software from our TView PresoCard disk,
which includes TV Fonts and a Windows 95 Desktop
Theme called TV.
Closed Circuit Television
If you plan to use L•TV over a closed circuit network or
with a cable longer than 25 feet it is essential to use a video
distribution amplifier. These types of amplifiers can be
found in most consumer Television and HiFi stores, such
as Radio Shack.
21
Page 28
FOCUS Enhancements TView PresoCard User’s Manual
Connecting Multiple Televisions
When connecting several television monitors together use
a video “loop through” cabling method as illustrated
below. Make sure the last television monitor in the chain is
terminated (many television monitors have a video termination or “loop” switch). If your total cable length will
exceed 25 feet (or 8 meters) it may be necessary to use a
video distribution amplifier.
FREQUENTLY ASKED QUESTIONS
What is a Video Converter?
FOCUS Enhancements Video Converters are portable,
external devices that allow you to convert your computer’s video signal into a television signal so your monitor’s
picture can be displayed on any television. Your Video
Converter will support DOS, OS2, Windows 3.1, 3.11,
Windows 95, and most Macintosh systems.
How does the Video Converter connect to a computer?
Video Converters connect to desktop and laptop computers through the 15-pin VGA or Macintosh RGB port.
How does a Video Converter connect to a television set?
FOCUS Enhancements Video Converters are connected to
a television with an RCA connector (“composite video” or
“Video In”), S-Video connector, or a type F (antenna) connector with an RF modulator. S-Video is a special high
performance input utilized by some televisions and VCRs
produced in the last few years. S-Video is a round connector with 4 pins. We recommend using S-Video input if
your television is equipped with one.
If your television has neither composite Video In or SVideo but has a type F (antenna), you will need to purchase an RF Modulator to convert from an RCA jack
(Video In) to a type F (antenna) connector. We recommend
the Radio Shack model number 15-1283. Connect the
Video Out from the FOCUS Enhancements Video
Converter to Video In on an RF modulator and set the
22
Page 29
FOCUS Enhancements TView PresoCard User’s Manual
modulator to Channel 3 or 4. The modulator then connects
to your television set using the type F (antenna) cable. The
television set needs to be set to the same channel as the
modulator (3 or 4).
Do FOCUS Enhancements Video Converters work with
large screen televisions?
Yes. The size of the television is not relevant to its ability
to display an NTSC signal. Any television that can accept
a composite video signal from a VCR can accept a signal
from your FOCUS Enhancements Video Converter.
What causes colors in the white letters on my television?
This is a characteristic of the NTSC television standard.
Historically, when color was added to black and white
broadcasts, the color information was overlaid on the
black and white signal. Because of this overlay, some televisions become confused and can’t tell whether elements
of the signal are meant to contain color or brightness information. This confusion results in color rainbows seen in
the small white letters and some other pictures. These
effects generally are not noticed in broadcast pictures
which have large objects, complex scenes, and motion.
Using an S-Video input with the FOCUS Enhancements
Video Converter will minimize this condition.
Will I see a color picture on the television if I have black
and white laptop?
Yes. If your laptop has a VGA or Macintosh RGB output
port, it will support color operation when it is connected a
color monitor or television.
Will I see the picture on my computer monitor and the
television simultaneously?
FOCUS Enhancements Video Converters provide a VGA
passthrough cable or port that enables viewing of your
television and VGA monitor at the same time. Some older
laptops will not allow simultaneous use of the television
and the laptop screen.
23
Page 30
FOCUS Enhancements TView PresoCard User’s Manual
TROUBLESHOOTING
Problem
My TV shows a distorted
signal that I know is the
computer, but it is flipping
around like crazy (or is
showing a blue screen)
My PC is showing only 16
colors, and the display
looks worse on the
computer monitor.
I use a Laptop PC, and the
internal display is fine but
the TV is distorted (or
blank).
Reason
Your computer is not
sending a 640x480@60Hz
signal.
You need to experiment
with video drivers.
Your VGA port needs to be
activated.
Windows 95
Open the Control Panel,
then the Display Icon.
Click the Settings Tab.
Click Change Display
Type, and make sure that
your Display type is set to
VGA Standard 640x480.
If the signal is still distorted, repeat the previous
steps and set the Adapter
Type to Standard VGA.
Check your system specifications to determine what
kind of Video Card is
installed in your PC, and
see the question above for
instructions on changing
your Adapter Type.
You should use the CRT
Activation key combination specific to your computer. Most Laptop computers have an “F” key
(such as F1, F6, F12 - each
model is different) with
"CRT" marked on the side
facing you. Others have
an icon of a monitor. Find
this key and press it in
combination with the "Fn"
key to activate the CRT
output of your Laptop. If
you cannot find the CRT
Activation F-key on your
Laptop, consult your
Laptop manual for more
information about connecting an external (CRT) monitor.
Windows 3.x
Use the Windows Setup
program (located in the
Main Program Group) to
specify your Display
Driver.
Recommended Windows
3.1 drivers include: Super
VGA 640x480, VGA 3.0,
GD5434 640x480x256, and
GD5434 640x480x64K.
See above.
See left.
Macintosh 7.x
Open the Monitors
Control Panel, click
Options, and select
640x480@60Hz (VGA).
Open the Monitors Control
Panel and select a higher
number of colors.
If your Powerbook is
showing a desktop pattern
on the TV, you need to
turn on Video Mirroring.
Use the PowerBook
Display control panel to
turn on Video Mirroring.
My TV has the computer
screen on it, but the edges
are overflowing. How can
I fix this?
This condition is called
Overscan. Your television
can only display a resolution of about 608x432 with
standard Video
Converters.
If your Video Converter
has the FOCUS Hardware
Compression button
(Usually marked
“Compress” and only
available on certain models - check your manual),
you can fit 800x600 or up
to 1024x768 on your TV.
24
Continued
See left.
If you do not have the
Hardware Compression
feature, Macintosh Screen
Squeeze software is available for free on our website, at www.focusinfo.com
Page 31
FOCUS Enhancements TView PresoCard User’s Manual
Problem
Everything is connected
properly, but the TV only
shows snow. What's
wrong?
My TV does not have a
Video Input connector that
matches the cables with
my Video Converter. The
TV only has an ‘Antenna
In’ connector. Do I need
an adapter?
Can I use my VCR to connect a Video Converter to
my TV
I see the computer image
on the TV, but the image
has a far lesser quality
image than my computer
monitor. Is my Video
Converter broken?
Reason
The input source of your
TV needs to be set to
“Video Input” instead of a
numbered channel, such as
channel 3.
Yes. You need a special
adapter called an RF
Modulator. (If you have a
VCR see the note below.)
Yes. To use your VCRs built-in RF Modulation, connect the Composite or S-Video cable from the Video Converter
to the Video Input (also known as Aux IN, or AV in - it will probably be a yellow RCA/Phono type connector on
the back of your VCR). Now make sure your RF output is connected to your TV. Then tune your TV to channel 3
or 4, and turn on your VCR. Find a button on the front of the VCR (or remote control) called Line In, TV/Video,
Video Input, or similar and press it to activate video in.
No, your Video Converter is just fine. A television can provide only 30 frames per second. A computer monitor
provides over 60 frames per second. Merging these two media has always been technically very challenging.
These two very different frame rates cause flicker, and RGB color reduction. FOCUS Enhancements’ engineering
team develops the best Video Converter technology available today. Our products dramatically reduce the flicker
and provide the highest color transfers possible.
Windows 95
Video In is usually specified with your remote control, with a button labeled
TV/Video, Line In, Input
Select, or similar.
Sometimes the Video selection takes place in an
onscreen menu system. If
necessary, consult your TV
manual or manufacturer
for more information on
Video Input.
This device converts the
Composite Video signal
from your Video
Converter to an Antenna
Signal, which can then be
tuned in on your TV using
Channel 3 or 4. FOCUS
Technical Support recommends the Radio Shack RF
Modulator, available
under Radio Shack part
number 15-1283.
Windows 3.x
See left.
See left.
Macintosh 7.x
See left.
See left.
Can I use my Video
Converter to watch television on my computer monitor?
My Macintosh does not
have a Monitor Out connector. Is it possible to
make a Video Converter
work with one-piece
Macintoshes?
Your Video Converter is a one-way device for converting a computer video signal into an NTSC (also known as
Composite) video signal.
Yes
You need to contact Apple
Computer and ask for a
Video Out Connector for
your particular Macintosh
model.
25
Page 32
FOCUS Enhancements TView PresoCard User’s Manual
26
Page 33
FOCUS Enhancements TView PresoCard User’s Manual
TECHNICAL SUPPORT AND WARRANTY
REPAIR
If after reading this User Guide, you are experiencing
problems or you still have additional questions please
contact our Technical Support Department for assistance.
In order for us to have you up and running as quickly as
possible, please be prepared to give a detailed description
of your problem when you call. If possible, call from in
front of your computer, as the Technical Support
Representative may ask you to perform additional tests to
determine the cause of the problem.
Before calling technical support, please check our website
for up-to-date configuration information and new software updates. Our technicians work from the information
on the www.focusinfo.com website, so you can save yourself a phone call by checking there first.
FOCUS Enhancements Technical Support:
[email protected]
http://www.focusinfo.com
508-371-8500
FOCUS Enhancements Customer Service:
[email protected]
http://www.focusinfo.com
800-538-8862
Technical Support Hours:
9 A.M. to 8 P.M. Eastern Standard Time (EST) Monday
through Friday.
FOCUS Enhancements
142 North Road
Sudbury, MA 01776
27
Page 34
FOCUS Enhancements TView PresoCard User’s Manual
LIMITED WARRANTY
FOCUS Enhancements, Inc. warrants this product against
defects in materials and workmanship for a period of
THREE (3) YEARS from the date of original purchase.
If you discover a defect, FOCUS Enhancements, Inc. will,
at its sole option, repair or exchange the product at no
charge to you, provided you contact FOCUS
Enhancements, Inc. Technical Support to obtain a Return
Material Authorization (RMA) Number and instructions
on where and how to obtain repair. Note that a copy of the
bill of sale bearing the FOCUS Enhancements, Inc. serial
numbers as proof of date of original purchase is required
for each product returned for warranty service. Before
returning product, remove all non-FOCUS Enhancements,
Inc. RAM, accessories, and options. FOCUS
Enhancements, Inc. cannot be liable for the return or care
of any non-FOCUS Enhancements, Inc. products, nor
accept responsibility for loss or damage of product in transit.
28
This warranty does not apply if the product has been
damaged by accident, installation or removal of product,
abuse, misuse, misapplication, accident, neglect, fire,
water, lightning, or other acts of nature, failure to follow
supplied instructions; has been modified, repaired or
undergone attempted repair by unauthorized personnel
without the written consent of FOCUS Enhancements,
Inc.; has a serial number that has been removed, modified,
or defaced. FOCUS Enhancements, Inc. reserves the right
to use re-manufactured, refurbished, or used parts and
components in making warranty repairs.
FOCUS Enhancements, Inc. products are designed to work
with Macintosh and PC computers. Certain features of
third-party software or hardware designed for the host
system may not he available when used with this product.
Accordingly, FOCUS Enhancements, Inc. does not warrant
or represent that all software or hardware will function
error-free when used in conjunction with this FOCUS
Page 35
FOCUS Enhancements TView PresoCard User’s Manual
Enhancements, Inc. product.
THIS WARRANTY IS IN LIEU OF ALL OTHER WAR-
RANTIES, WHETHER ORAL OR WRITTEN, EXPRESS
OR IMPLIED. ALL EXPRESS AND IMPLIED WARRANTIES FOR THIS PRODUCT, INCLUDING THE
IMPLIED WARRANTIES OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED
IN DURATION TO THE WARRANTY PERIOD. NO
WARRANTIES, EXPRESS OR IMPLIED, WILL APPLY
AFTER THIS PERIOD. FOCUS ENHANCEMENTS, INC.
SHALL NOT BE LIABLE FOR ANY LOST PROFITS,
DAMAGE TO OTHER PROPERTY CAUSED BY ANY
DEFECT IN THIS PRODUCT, DAMAGES BASED UPON
INCONVENIENCE, LOSS OF USE OF THE PRODUCT,
LOSS OF TIME, COMMERCIAL USE, INCIDENTAL
AND/OR CONSEQUENTIAL DAMAGES FOR THE
BREACH OF ANY EXPRESS OR IMPLIED WARRANTY,
INCLUDING DAMAGE TO PROPERTY AND, TO THE
EXTENT PERMITTED BY LAW, DAMAGES FOR PERSONAL INJURY, EVEN IF FOCUS ENHANCEMENTS,
INC. HAS BEEN ADVISED OF THE POSSIBILITY OF
SUCH DAMAGES.
Some states do not allow the inclusion or limitation of
incidental or consequential damages or limitations on how
long an implied warranty lasts, so the above limitation or
exclusion may not apply to you. This warranty gives you
specific legal rights, and you may have other rights which
vary from state to state.
Product specifications and information are subject to
change without notice.
29
Page 36
FOCUS Enhancements L•TV Micro & PC Micro Presenter User’s Manual
30
Page 37
FOCUS Enhancements L•TV Micro & PC Micro Presenter User’s Manual
31
Loading...
