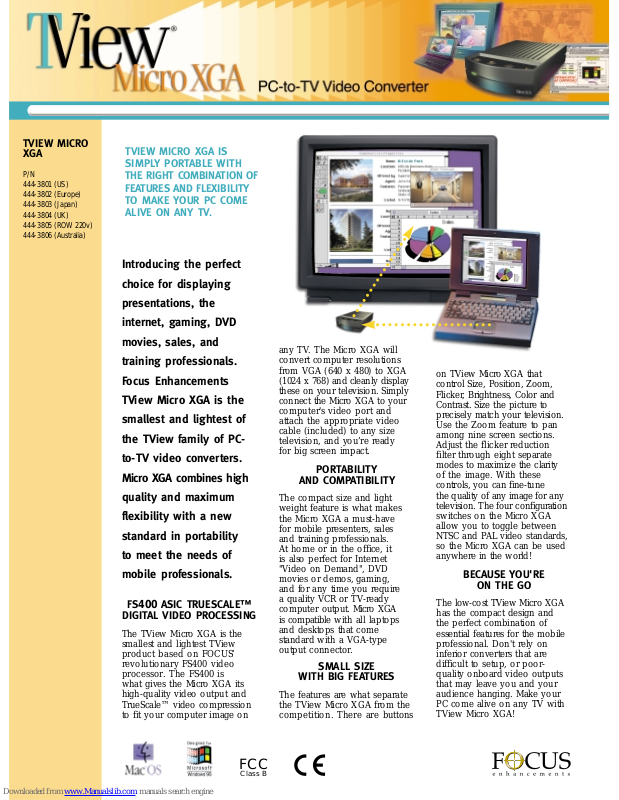

Focus TView Micro XGA Specifications

TVIEW MICRO
XGA

P/N
444-3801 (US)
444-3802 (Europe)
444-3803 (Japan)
444-3804 (UK)
444-3805 (ROW 220v)
444-3806 (Australia)

TVIEW MICRO XGA IS
SIMPLY PORTABLE WITH
THE RIGHT COMBINATION OF
FEATURES AND FLEXIBILITY
TO MAKE YOUR PC COME
ALIVE ON ANY TV.

FCC

Class B

Introducing the perfect

choice for displaying

presentations, the

internet, gaming, DVD

movies, sales, and

training professionals.

Focus Enhancements

TView Micro XGA is the

smallest and lightest of

the TView family of PC-

to-TV video converters.

Micro XGA combines high

quality and maximum

flexibility with a new

standard in portability

to meet the needs of

mobile professionals.

FS400 ASIC TRUESCALE™

DIGITAL VIDEO PROCESSING

The TView Micro XGA is the
smallest and lightest TView
product based on FOCUS’
revolutionary FS400 video
processor. The FS400 is
what gives the Micro XGA its
high-quality video output and
TrueScale™ video compression
to fit your computer image on

any TV. The Micro XGA will
convert computer resolutions
from VGA (640 x 480) to XGA
(1024 x 768) and cleanly display
these on your television. Simply
connect the Micro XGA to your
computer's video port and
attach the appropriate video
cable (included) to any size
television, and you’re ready
for big screen impact.

PORTABILITY

AND COMPATIBILITY

The compact size and light
weight feature is what makes
the Micro XGA a must-have
for mobile presenters, sales
and training professionals.
At home or in the office, it
is also perfect for Internet
"Video on Demand", DVD
movies or demos, gaming,
and for any time you require
a quality VCR or TV-ready
computer output. Micro XGA
is compatible with all laptops
and desktops that come
standard with a VGA-type
output connector.

SMALL SIZE

WITH BIG FEATURES

The features are what separate
the TView Micro XGA from the
competition. There are buttons

on TView Micro XGA that
control Size, Position, Zoom,
Flicker, Brightness, Color and
Contrast. Size the picture to
precisely match your television.
Use the Zoom feature to pan
among nine screen sections.
Adjust the flicker reduction
filter through eight separate
modes to maximize the clarity
of the image. With these
controls, you can fine-tune
the quality of any image for any
television. The four configuration
switches on the Micro XGA
allow you to toggle between
NTSC and PAL video standards,
so the Micro XGA can be used
anywhere in the world!

BECAUSE YOU'RE

ON THE GO

The low-cost TView Micro XGA
has the compact design and
the perfect combination of
essential features for the mobile
professional. Don't rely on
inferior converters that are
difficult to setup, or poor­quality onboard video outputs
that may leave you and your
audience hanging. Make your
PC come alive on any TV with
TView Micro XGA!

TView Micro XGA

P/N

444-3801 (US), 444-3802 (Europe), 444-3803 (Japan), 444-3804 (UK), 444-3805 (ROW 220v), 444-3806 (Australia)

FEATURES

• Revolutionary new FS400 Chip
Technology

• XGA (1024 x 768) resolution

• 16.7 Million Color Output (24-bit)

• Micro-touch Buttons for
Position, Compression,
Brightness, and Color Control

• TrueScale™ Digital Video
Processing

• Composite (RCA) Video Output

• Combo SCART/S-Video Output

• Weighs under 7 ounces - small
and easily portable

• 1-year warranty

PRODUCT DESCRIPTION

The low-cost, portable TView XGA accepts
computer resolutions from VGA (640 x 480)
to XGA (1024 x 768), and converts to TV
with unparalleled picture quality.

Specifications subject to change.
All brand and product names are trademarks
of their respective companies.
©FOCUS Enhancements, Inc. MANL-0837-01

SPECIFICATIONS

Compatibility Any desktop or laptop with VGA video

output running Windows or MacOS

Television Compatibility Works with any size television

monitor with an RCA (composite),
S-Video, or SCART input connector
supporting NTSC or European PAL
video standards; for television
receivers, RF modulator may
be required

Color Modes & Resolution Support up to 16.7 million colors

(24-bit); supports resolutions from
640x480 to 1024x768 at frequencies
up to 152Hz

User Modes Left/Right Position and Width, Up/Down,

Height, Zoom, Flicker, Video Adjustment
and Reset

Included Micro XGA computer monitor connector

cable, RCA (composite) cable, S-Video
cable or SCART cable, 5V power supply,

QuickStart guide and manual
Power Supply Maximum consumption 5 volt DC, 700mA
Unit weight and size 6.5 ounces (without power supply or

cables), 4.25” x 2.75” x .88”

(108mm x 70mm x 22mm)

1370 Dell Avenue Campbell, CA 95008
Info: 800 338-3348 Main: 408 866-8300 Fax: [phone]
http://www.FOCUSinfo.com email:[email protected]

TVIEW MICRO XGA INCLUDES:

• TView Micro XGA with power adapter

• S-Video, Composite, or SCART
video cables

• UniViewer monitor cable

• Manuals and QuickStart guide

S-Video

Composite

Video

4 Adjustable
DIP Switches

Left/Right
Positions,
Left/Right

Width

Up/Down,

Height

Zoom,

Video

Adjustment

Flicker, Video
Adjustment
