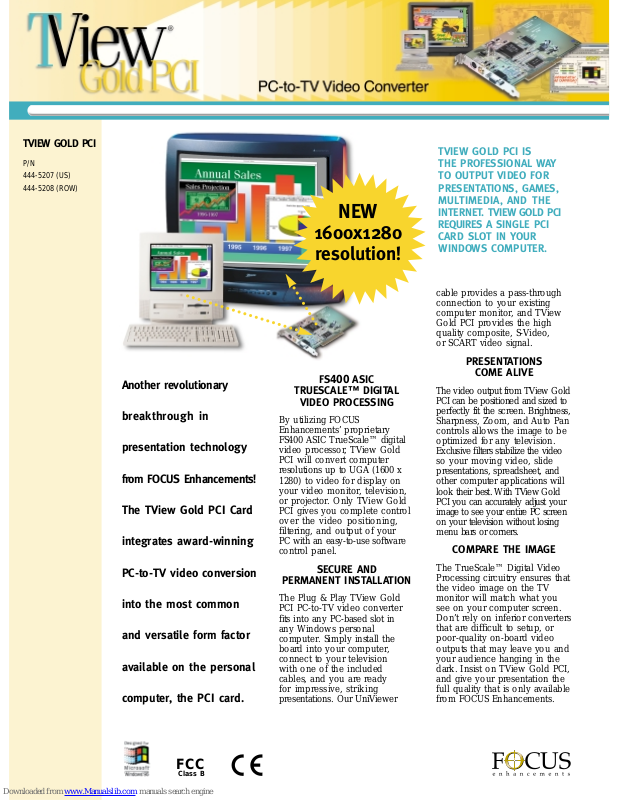

Focus TView Gold PCI Specifications

TVIEW GOLD PCI

P/N
444-5207 (US)
444-5208 (ROW)

Another revolutionary

breakthrough in

presentation technology

from FOCUS Enhancements!

The TView Gold PCI Card

integrates award-winning

PC-to-TV video conversion

into the most common

and versatile form factor

available on the personal

computer, the PCI card.

FS400 ASIC

TRUESCALE™ DIGITAL

VIDEO PROCESSING

By utilizing FOCUS
Enhancements’ proprietary
FS400 ASIC TrueScale™ digital
video processor, TView Gold
PCI will convert computer
resolutions up to UGA (1600 x

1280) to video for display on
your video monitor, television,
or projector. Only TView Gold
PCI gives you complete control
over the video positioning,
filtering, and output of your
PC with an easy-to-use software
control panel.

SECURE AND

PERMANENT INSTALLATION

The Plug & Play TView Gold
PCI PC-to-TV video converter
fits into any PC-based slot in
any Windows personal
computer. Simply install the
board into your computer,
connect to your television
with one of the included
cables, and you are ready
for impressive, striking
presentations. Our UniViewer

cable provides a pass-through
connection to your existing
computer monitor, and TView
Gold PCI provides the high
quality composite, S-Video,
or SCART video signal.

PRESENTATIONS

COME ALIVE

The video output from TView Gold
PCI can be positioned and sized to
perfectly fit the screen. Brightness,
Sharpness, Zoom, and Auto Pan
controls allows the image to be
optimized for any television.
Exclusive filters stabilize the video
so your moving video, slide
presentations, spreadsheet, and
other computer applications will
look their best. With TView Gold
PCI you can accurately adjust your
image to see your entire PC screen
on your television without losing
menu bars or corners.

COMPARE THE IMAGE

The TrueScale™ Digital Video
Processing circuitry ensures that
the video image on the TV
monitor will match what you
see on your computer screen.
Don’t rely on inferior converters
that are difficult to setup, or
poor-quality on-board video
outputs that may leave you and
your audience hanging in the
dark. Insist on TView Gold PCI,
and give your presentation the
full quality that is only available
from FOCUS Enhancements.

TVIEW GOLD PCI IS
THE PROFESSIONAL WAY
TO OUTPUT VIDEO FOR
PRESENTATIONS, GAMES,
MULTIMEDIA, AND THE
INTERNET. TVIEW GOLD PCI
REQUIRES A SINGLE PCI
CARD SLOT IN YOUR
WINDOWS COMPUTER.

FCC

Class B

NEW

1600x1280

resolution!

TView Gold PCI

P/N 444-5207 (US), 444-5208 (ROW)

FEATURES

• Standard PCI interface

• UGA (1600 x 1280) resolution

• 16.7 Million Color Output (24 bit)

• 2D Flicker Filter

• UniViewer cable with video

pass-through

• Screen position, Overscan,
Underscan, Brightness,
Sharpness, Zoom, and Auto
Pan controls

• TrueScale™ Digital
Video Processing

• Composite (RCA) and S-video
output or European PAL/SCART
compatible

• 1-year warranty

PRODUCT DESCRIPTION

The TView Gold PCI card accepts computer
resolutions from VGA (640 x 480) to UGA
(1600 x 1280), and converts to TV with
unparalleled picture quality.

Specifications subject to change.
All brand and product names are trademarks
of their respective companies.
©FOCUS Enhancements, Inc. MANL-0835-02

SPECIFICATIONS

Compatibility PC with Windows 95

or later and VGA-type output

Television Compatibility Works with any size television

monitor with an RCA (composite),
S-Video, or SCART input connector,
supports NTSC or European PAL
video standards. For television
receivers, an RF modulator may
be required.

Color Modes & Resolution Supports up to 16.7 million colors

(24-bit), supports resolutions from
VGA (640 x 480) to UGA (1600 x 1280)
at frequencies up to 152Hz.

Unit size Single slot, PCI Card form factor

1370 Dell Avenue Campbell, CA 95008
Info: 800 338-3348 Main: 408 866-8300 Fax: [phone]
http://www.FOCUSinfo.com email:[email protected]

TVIEW GOLD PCI INCLUDES:

• TView GOLD PCI Card

• UniViewer™ monitor cable

• RCA, S-Video, or SCART Cable

• Software control panel (CD-ROM)

• Quick Start Card and Manual (CD-ROM)

Plug and play
installation
for your PC

Full underscan
capability, no lost
menus or images

Resolution
support up to
1600 x 1280
