Focus T.E.C. Pack Box Original User Manual

T.E.C. PACK

FOR SHIMANO STEPS E8000

ORIGINAL USER GUIDE | EN

Version 1 I 22.02.2017

FOR SAFETY, BE

SURE TO READ THIS

USER´S MANUAL

THOROUGHLY BEFORE

USE, AND FOLLOW THEM

F

OR CORRECT USE.

TAYLORED
ENERGY
CONCEPT

EN-2 Additional Guide | T.E.C. PACK for Shimano Steps E8000 Version 1

I. Introduction EN-3

I.I Explanation of the safety

information symbols EN-3

1. Delivery EN-4

2. Mount the Bone Rail EN-5

3. Battery EN-5

3.1 Safety information EN-5

3.1.1 Storage EN-7

3.1.2 Range EN-7

3.2 Technical details EN-8

3.3 Overview and functions EN-9

3.3.1 Overview EN-9

3.3.2 Display eld EN-9

3.3.3 Battery charge level EN-9

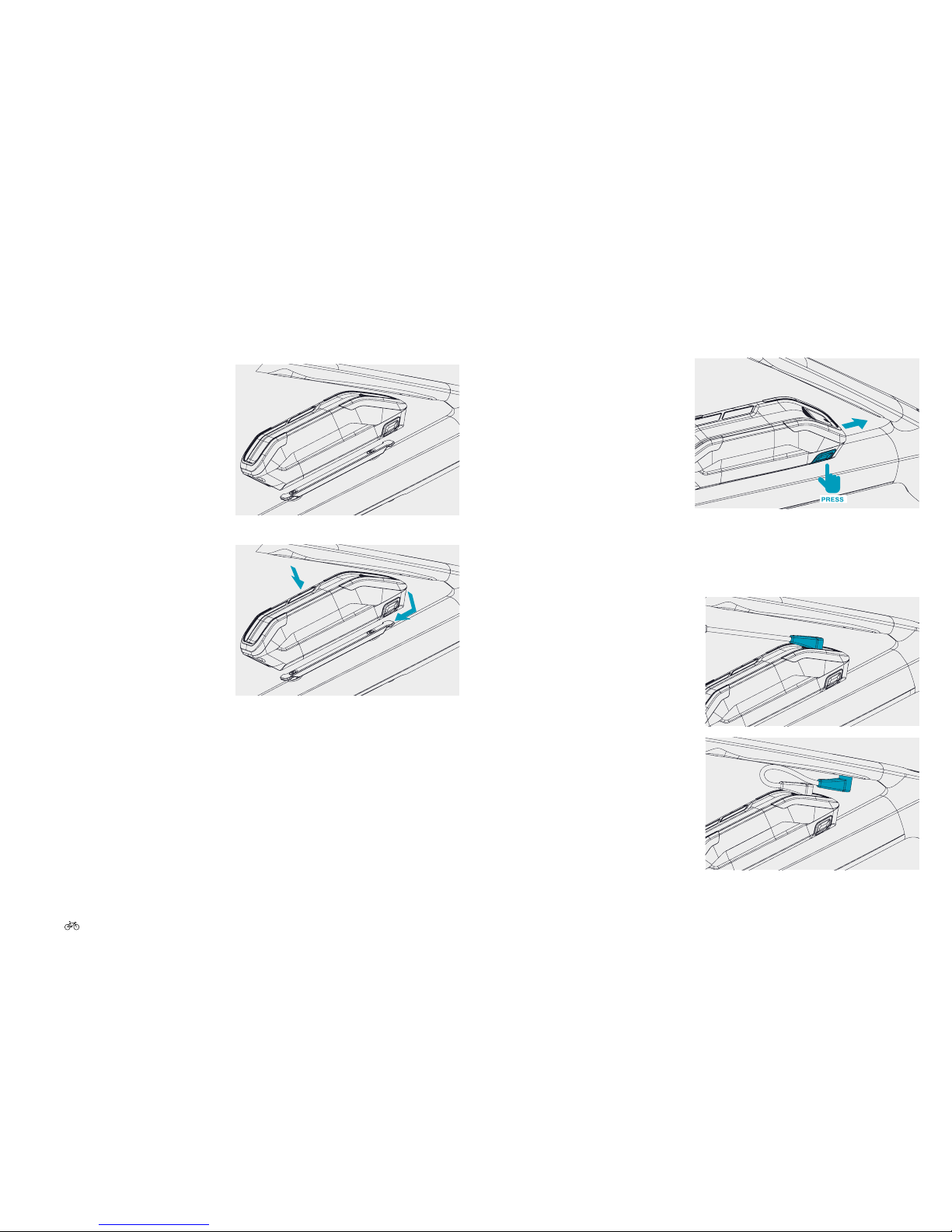

3.3.4 Inserting the battery EN-10

3.3.5 Removing the battery EN-10

3.3.6 Fix the connector EN-10

3.3.7 Remove connector EN-11

3.4 Fault EN-12

4. Charger EN-13

4.1 Charging the battery EN-13

5. Installing a bottle holder EN-13

6. Smart Rack EN-13

6.1 Fix the Smart Rack EN-13

6.2 Remove the Smart Rack EN-14

TABLE OF CONTENTS

Additional Guide | T.E.C. PACK for Shimano Steps E8000 Version 1 EN-3

I. Introduction

The Tailored Energy Concept T.E.C. opens up unprecedented possibilities
to adapt the energy supply to individual needs. One battery is optimally
integrated in the lower tube and the drive is supported in technical
demanding passages with the necessary thrust. For long tours the T.E.C.
Pack can be easily installed.

https://www.youtube.com/watch?v=zsbIYN_23uk

This user guide will help you to enjoy all the benets of your Focus T.E.C.

Pack and to use ist correctly.

GEFAHR

Prior to initial use, carefully read this manual. Familiarise yourself
with the meaning and depiction of safety information in the user
guide. Ensure to contact your cycle dealer in the event clarication is

required. Failure to comply with safety symbols and instructions can

cause electric shock, re, serious injury and/or damage to the cycle.

The manufacturer's liability and warranty are deemed null and void
for damage and injury caused by a failure to adhere to safety symbols
and instructions.

GEFAHR

Make sure your dealer has provided you with all of the documentation
that was delivered with the pedelec. BKeep the user guides for
informational and reference purposes in the future. The guides
must be passed on to all those using, looking after and repairing
this Pedelec. Refer to your dealer for mounting and adjustments not
described in the instructions. Otherwise uncertainties can arise that

could result in death, severe injuries and/or damage to the pedelec.

You can download this guide as PDFs from
our website: www.derby-cycle.com/en/
downloads/downloads.html.

I.I Explanation of the safety information symbols

DANGER

This symbol combined with the signal word “DANGER” indicates
a potentially dangerous situation. Failure to comply with this safety
instruction can result in death or very serious injuries.

WARNING

This symbol in conjunction with the signal word “WARNING”
indicates a potentially dangerous situation. Failure to comply with
this safety warning can result in serious injury.

EN-4 Additional Guide | T.E.C. PACK for Shimano Steps E8000 Version 1

CAUTION

This symbol combined with the signal word “CAUTION” indicates
a potentially dangerous situation. Failure to comply with this safety
instruction can result in minor injuries.

IMPORTANT

This symbol combined with the signal word “IMPORTANT”
indicates a potentially dangerous situation. Failure to comply with
this safety instruction can result in damage to the pedelec and its
components.

This symbol indicates helpful tips, useful or important
information about the product or its additional uses. It does
not indicate a dangerous or harmful situation.

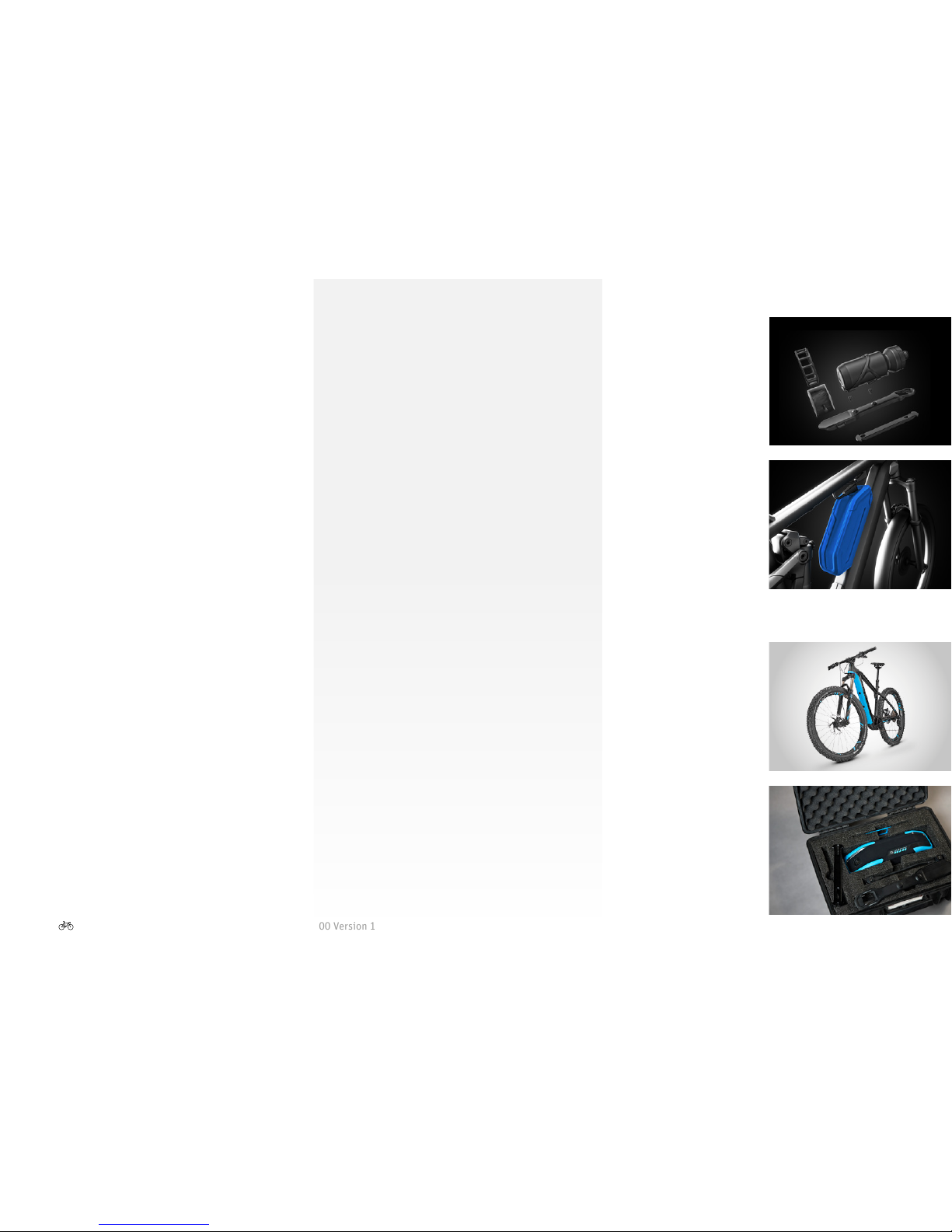

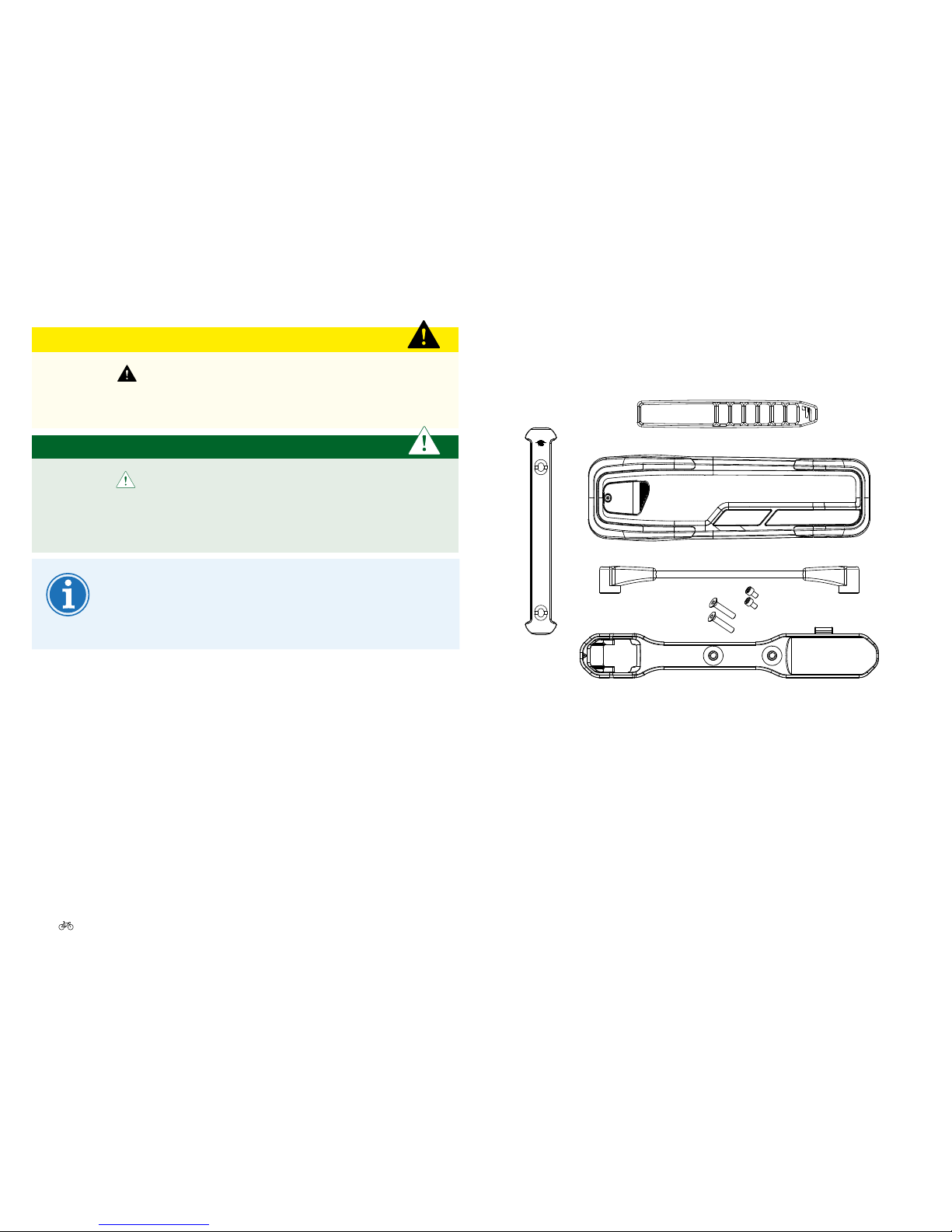

1. Delivery

T.E.C. Pack Box // AM170816501

T.E.C. Pack Box // AM170816501

➋

➌

➌

➍

➎

➏

➐

➑

➊

➊

Rubber Band

DCW = 325917053

➋

T.E.C. Pack

DCW = 170817060

➌

Protection Rubber

Blue DCW = 325917079/90
Black DCW = 325917048/49

➍

Connector

DCW = 170817064

➎

Bottlecage Screws

DCW = 199117041

➏ Bone Rail Screws

DCW = 199117037

➐

Bone Rail

DCW = 325917060

➑

Smart Rack

DCW = 325917052

Additional Guide | T.E.C. PACK for Shimano Steps E8000 Version 1 EN-5

3. Battery

3.1 Safety information

WARNING

Only use your Pedelec with the correct, original battery. Using other

batteries can result in explosions, serious burns and re. Malfunction

and limited service life can also entail.

Only use your Pedelec with the correct, original charger. Using other

chargers can result in explosions, serious burns and re. Malfunction

and limited service life can also entail.

Keep batteries away from sparks and res. Prevent batteries from

heating up too much. They can explode and cause serious burns and

res. Further consequences can include malfunctions and a limited

battery life. Keep batteries away from sources of heat (e.g. direct
sunlight and radiators). When charging the battery, ensure there is
adequate ventilation and observe the permitted ambient temperature
range: 0 - 40 °C. Do not extinguish a burning battery with water, only

the surrounding burning material. Fire extinguishers with metal re

powder (Class D) are more suitable. If it is possible to take the battery

safely outside, smother the re with sand.

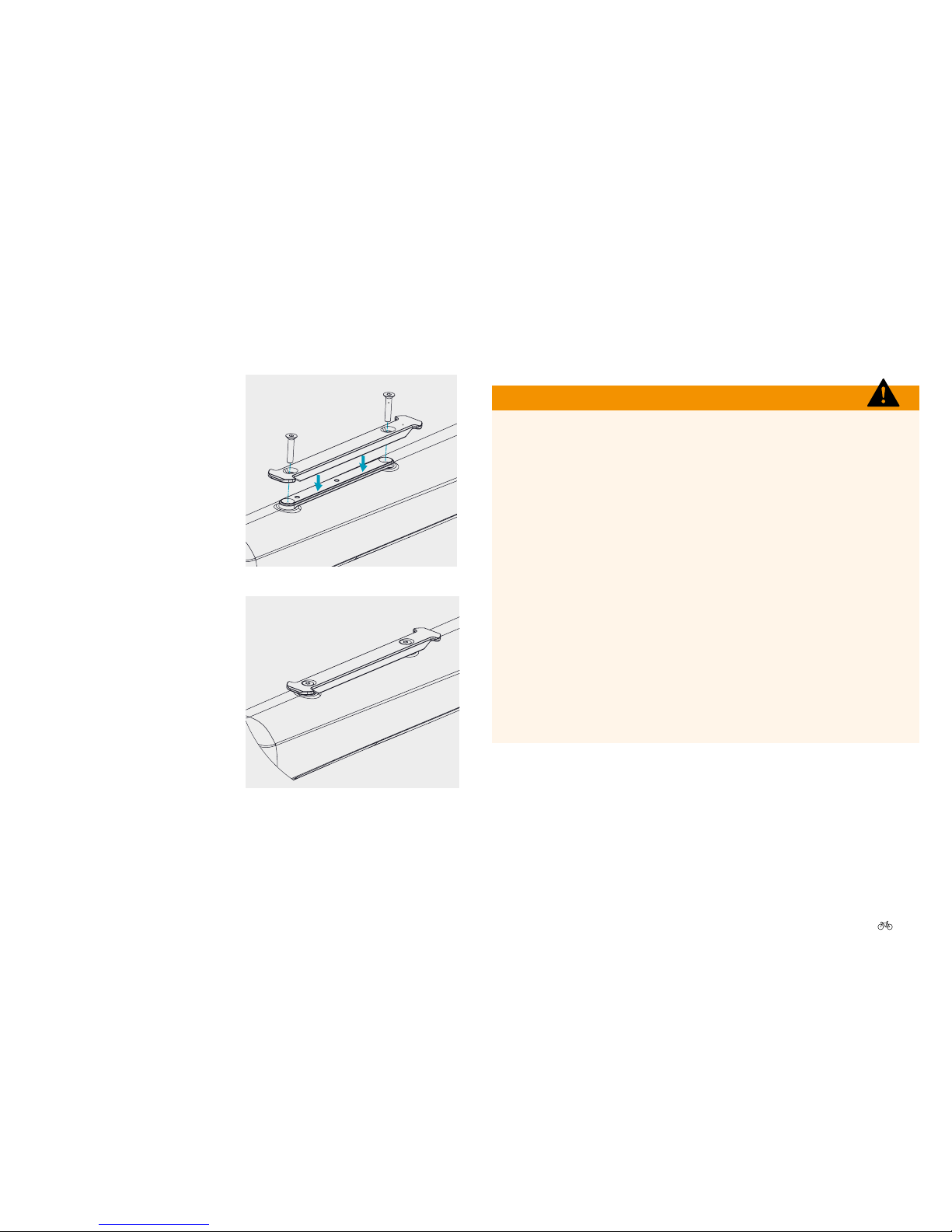

2. Mount the Bone Rail

1. Use the both Bone Rail screws

(DCW = 199117037) to mount
the Bone Rail onto the bracket.
Tighten the M5 screws with
4 - 5 Nm.

for 1. Mount the Bone Rail

for 1. Mounted Bone Rail

EN-6 Additional Guide | T.E.C. PACK for Shimano Steps E8000 Version 1

CAUTION

Batteries must not be immersed in water. This presents a risk of

explosion. Do not extinguish a burning battery with water, only the

surrounding burning material. Fire extinguishers with metal re

powder (Class D) are more suitable. If it is possible to take the battery

safely outside, smother the re with sand. But you need not be afraid

of the battery exploding under you when you ride the cycle through
rain. The battery is sealed to prevent moisture and spray water from
entering.

IMPORTANT

Batteries must not be subjected to mechanical impact. This poses a

risk of damage. A battery can still be damaged after a drop or impact

even if there are no visible signs of damage. A battery which looks ne

on the outside should therefore also be subjected to an inspection.
Please contact your cycle dealer.

Perform a ‘learning cycle’: A new, fully charged battery should be
run down once until the motor assist stops and without recharging in
between. In that way the battery ‘learns’ its capacity, and the actual
capacity will agree with the level indicated on the battery status
display. As soon as the battery enters Sleep mode, press the battery
button for one second. Then the learn cycle can be continued. Please
perform a learn cycle every six months or 5,000 kilometres. When the
battery becomes older and you do not repeat the cycle from time to

time, the dierence between actual battery capacity and charge level

display will become greater and greater.

WARNING

Batteries must not be destroyed, shredded, taken apart, opened up or
repaired. They can explode and cause serious burns and res. Contact

your cycle dealer for help if you have problems with the battery.

Damaged batteries must not be charged, used or transported.

» They can explode and cause serious burns and res.

» Gases can be released and irritate the airways. Ensure there is a

supply of fresh air and consult a doctor in the event of discomfort.

» Liquid can escape and cause skin irritation. Prevent contact with

it. In the event of accidental contact, wash o the liquid with
water. If the liquid gets into the eyes, ush out with plenty of

water and seek medical help.

Do not send batteries by post. Batteries are dangerous goods that

under certain conditions may explode, causing severe burns and res.

Only trained personnel may prepare and transport batteries. If you
have a complaint about a battery, please always go through your cycle
dealer. Dealers are able to have batteries collected free of chargeunder
hazardous goods regulations.

Additional Guide | T.E.C. PACK for Shimano Steps E8000 Version 1 EN-7

3.1.2 Range

Various factors determine how far you can go with your battery:

When you go on a long trip it is worth taking a spare battery
or battery charger with you.

Ride prole: You need the most power in the highest ride prole. The range

becomes shorter.

Vary the assist modes you use. If there is a tailwind when
going downhill or on the level, you can still go fast with a
lower assist mode.

Tyre pressure: If the tyre pressure is too low it is harder for the tyres to
rotate. The drive unit needs to provide more assistance and the range
decreases.

Riding style: A low pedalling speed combined with high gears results in
high power consumption.

Change down in good time to maintain constant cadence,
especially when starting.

Your tness level: The tter you are, the less assistance you will need.

IMPORTANT

Only use the battery to operate this pedelec, otherwise there is a risk

of damage to the device.

Batteries are subject to the dangerous goods regulations.
Private users are permitted to transport them on the
road without further conditions. When transported by
commercial third parties (such as by air, freight forwarders

and logistics rms), special requirements of packaging

and labelling must be observed. Please contact your cycle
dealer if you have any questions about transportation.

3.1.1 Storage

1. Store the battery in a dry, not excessively warm room. The battery

should not be exposed to direct sunshine. The recommended storage
temperature range is 18 to 23 °C.

IMPORTANT

The battery should not be stored in a fully charged state. A charge

level of 50–70% is ideal. Since the battery loses charge very slowly,
you should only recharge it when only one or two LEDs come on, but
after six months at the latest.

EN-8 Additional Guide | T.E.C. PACK for Shimano Steps E8000 Version 1

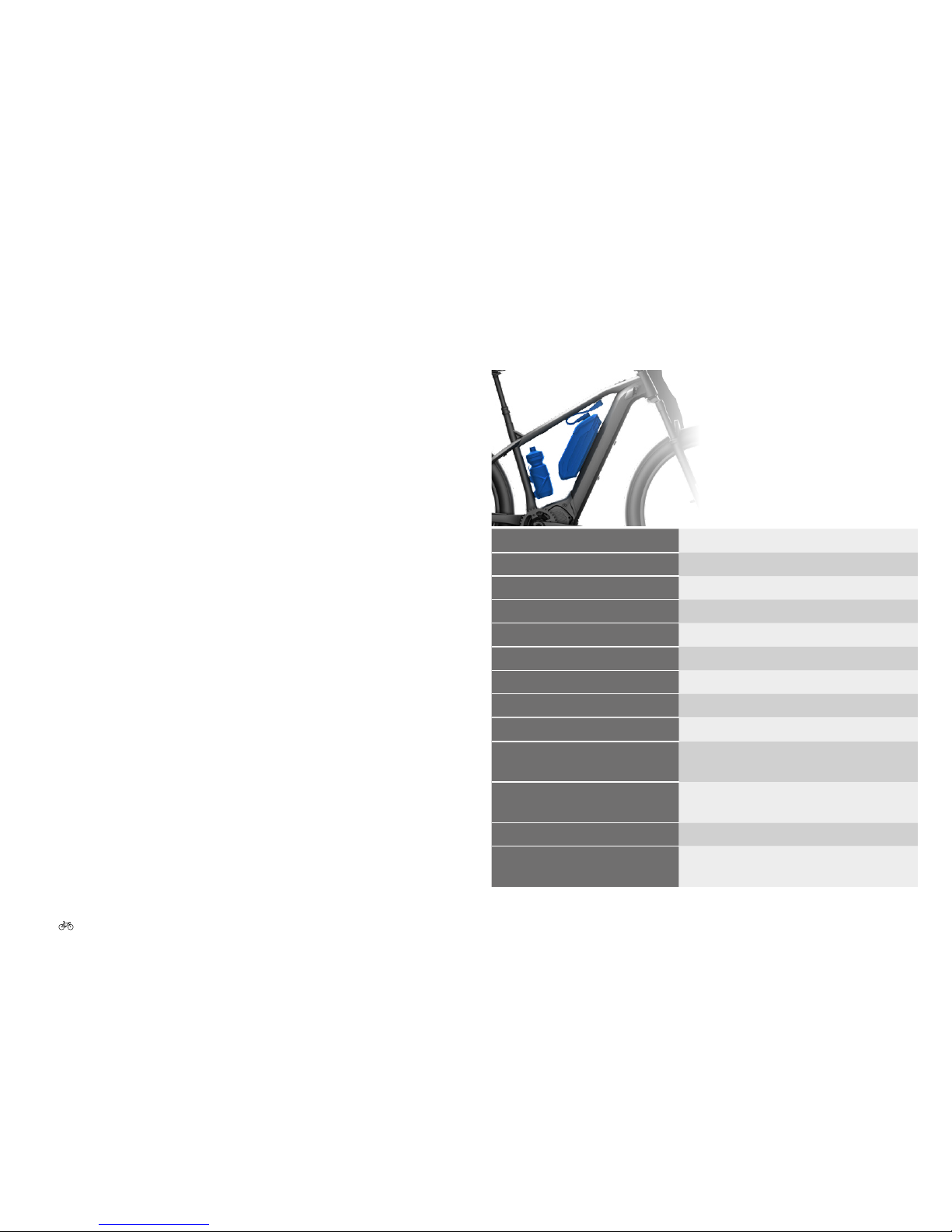

3.2 Technical details

Type

DCW-04 lithium ion battery, external (T.E.C. pack)

Position

Down tube

Nominal capacity

10,5 Ah

Power

378 Wh

Nominal voltage

36 V

Weight

2100 g

Charge time*

approx. 3 h.

Charge cycles

1100

Cell

Li-Ion

Permissible ambient
temperature in operation

-10 to +40 °C

Permissible ambient
temperature when charging

0 to 40 °C

Storage temperature

-10 to +50 °C

Recommended storage
temperature

18 to 23 °C

* With a 4 A charger, until battery is fully charged (95% battery capacity).

Total weight: The lower the total weight supported by the bike, the easier
it will be to ride.

Outside temperatures: The lower the outside temperatures (e.g. cold in
winter), the shorter the range.

Route selected: You need to pedal harder when cycling uphill or against
strong head wind. This is registered by the power sensor, which in turn
requires the motor to work harder.

Additional Guide | T.E.C. PACK for Shimano Steps E8000 Version 1 EN-9

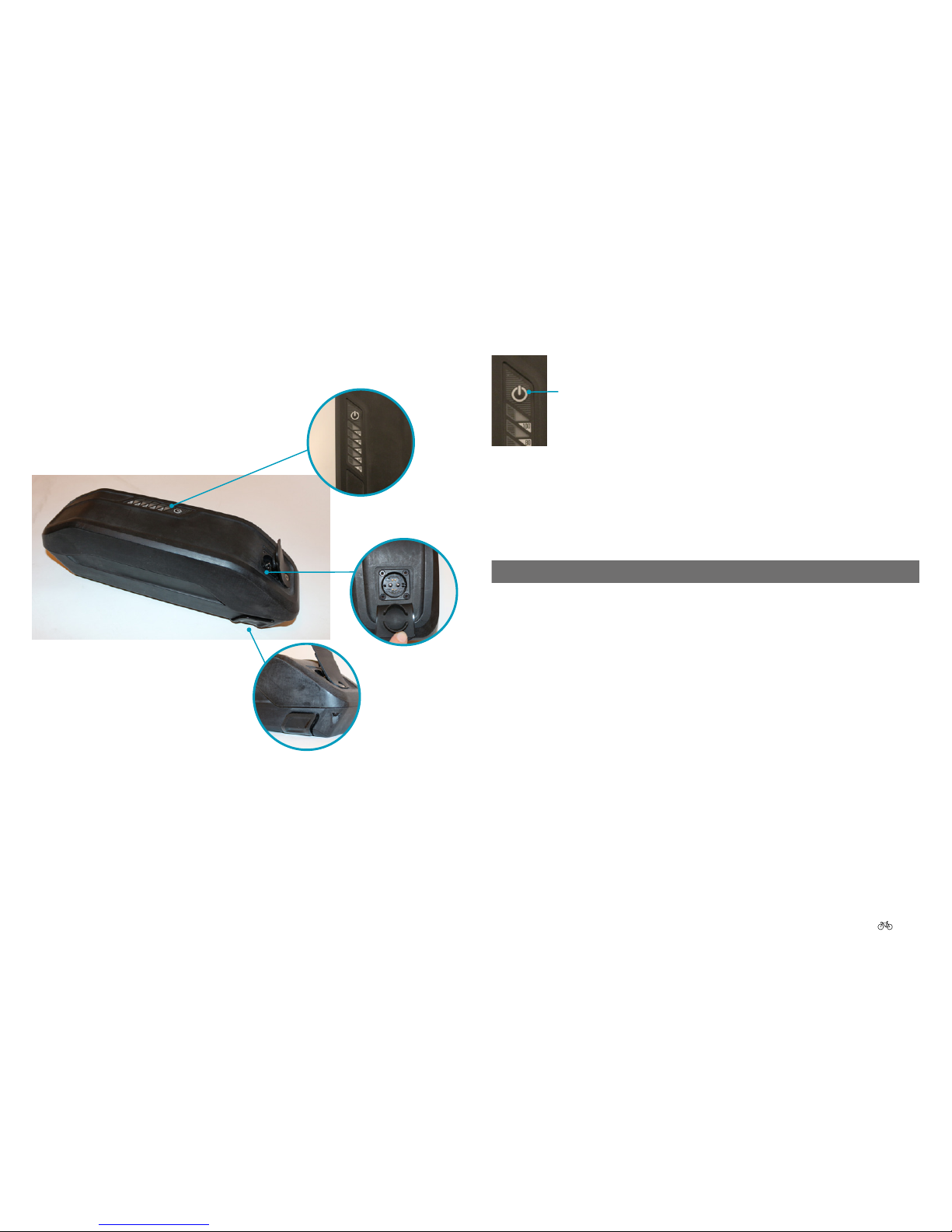

3.3 Overview and functions

3.3.1 Overview

Display panel

Power jack

Locking button

3.3.2 Display eld

Battery
button

On the outside of the battery there is a display

panel with ve LEDs and a battery button. The LEDs

show percentage values. The LEDs light up when
you press the battery button. The number lighting
up, and how, provides information on the battery.

3.3.3 Battery charge level

1. Press the battery button for two seconds. The LEDs light up.

Display Description Battery charge level

100

¢¢¢¢¢

Five LEDs light up 100 – 81 %

80

¢¢¢¢

Four LEDs light up 80 – 61 %

60

¢¢¢

Three LEDs light up 60 – 41 %

40

¢¢

Two LEDs light up 40 – 21 %

20

¢

One LED lights up 20 – 0 %

EN-10 Additional Guide | T.E.C. PACK for Shimano Steps E8000 Version 1

3.3.4 Inserting the battery

1. Hold battery at docking bar.

for 1. Hold at docking bar

2. Place battery on the docking

bar whilst simultaneously
pushing downward until it
clicks into place.

for 2. Place on the docking bar and simultaneously push
downwards

3.3.5 Removing the battery

1. Press the locking button

whilst simultaneously
pushing the battery upwards,
until it can be removed.

for 1. Press the locking button and slide the battery
upwards

3.3.6 Fix the connector

1. Connect the T.E.C. Connector

with the power jack of the
battery.

2. Connect the T.E.C. Connector

with the socket on the frame

Additional Guide | T.E.C. PACK for Shimano Steps E8000 Version 1 EN-11

First, the external battery discharges. Accordingly the

battery state of the external battery rst appears on the

display. When the external battery is empty the motor

support switches o. The T.E.C. Connector between battery

and socket on the frame must be released. The pedelec goes

o and must be switched on about the

-button again.

3.3.7 Remove connector

1. For easy transport plug in the

T.E.C. Connector on bottom
side of the toptube.

for 1. Plug in the T.E.C. Connector

for 1. Safe transport of the Connector

EN-12 Additional Guide | T.E.C. PACK for Shimano Steps E8000 Version 1

3.4 Fault

Description Cause Remedy

The battery cannot be
recharged.

a) The power plug of the charger is not securely inserted into the

electrical outlet.

a) Disconnect the power plug of the charger. Reconnect it, and then repeat the recharging

operation.

a) Charging plug of the charger is not securely inserted into the

battery.

b) Disconnect and then reconnect the charging plug of the charger. Then repeat the

charging process.

c) Damaged battery.

c) Damaged batteries must not be charged or used for any other purpose.

The battery may have to be replaced.

d) Charger defective. d) This may have to be replaced.

The battery gets hot. The temperature of the battery may have exceeded the operating

temperature range.

Stop charging, wait for a while and then start charging again. If the battery is too hot to
touch, it may indicate a problem with the battery.

An abnormal odour can be
detected.

The battery may be defective. Stop using the battery immediately.

Smoke is coming out from the
battery.

The battery may be defective. Stop using the battery immediately.

The battery quickly loses its
charge.

The battery may be at the end of its service life. Replace the battery with a new one.

The range appears too short The range depends on:

» Ride prole
» Assist mode
» Tyre pressure
» Riding style
» Physical condition
» Overall weight
» Outside temperatures
» Battery capacity
» The route selected

a) There are many reasons why the range may seem low.

Additional Guide | T.E.C. PACK for Shimano Steps E8000 Version 1 EN-13

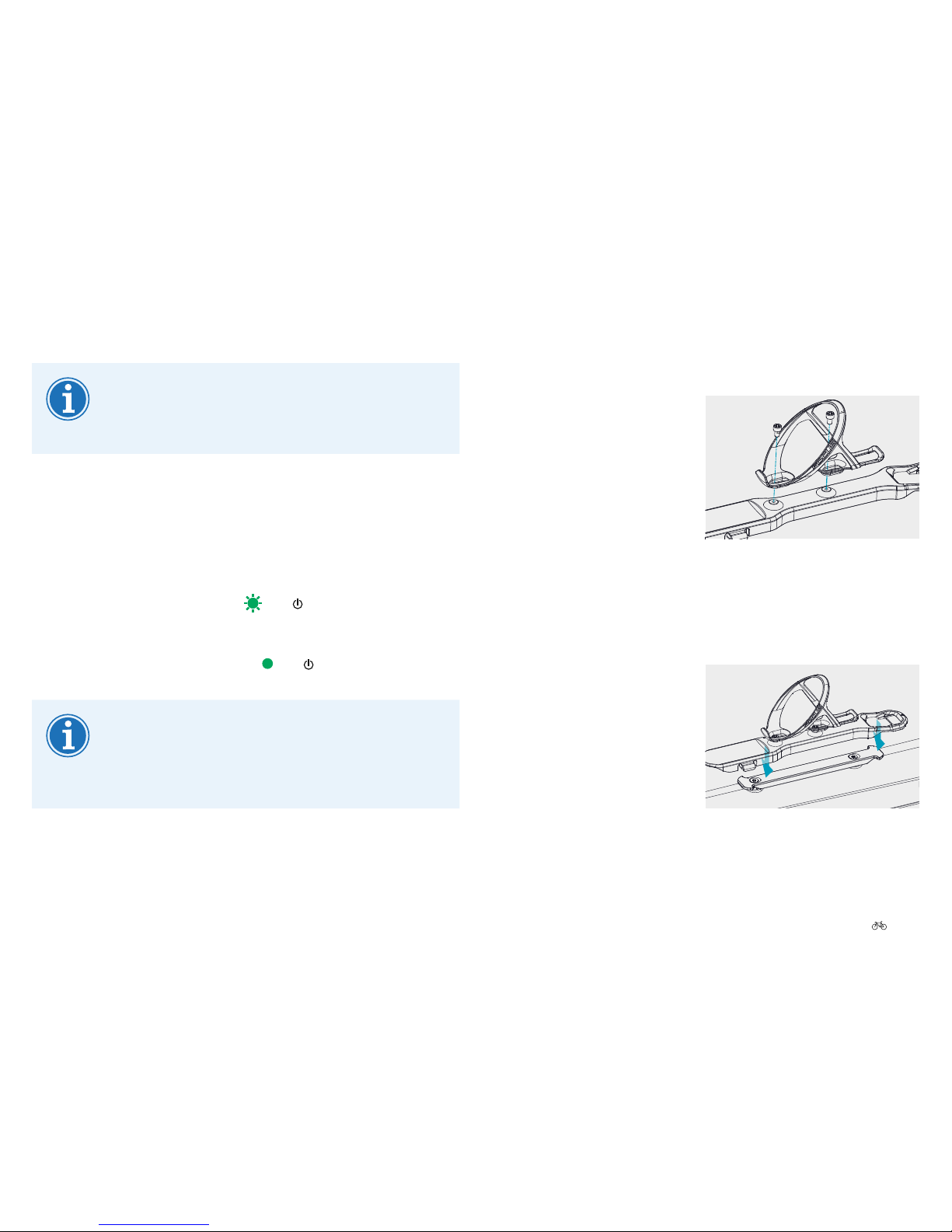

5. Installing a bottle holder

To install a bottle holder, you need the Smart Rack. Follow these steps:

1. Fix the bottle holder with the

two bottle holder screws on
the Smart Rack. Tighten the

M5 screws with 4 - 5 Nm.

for 1. Mount the bottle holder

6. Smart Rack

6.1 Fix the Smart Rack

1. Place the Smart Rack with the

mounted bottle holder on the
Bone Rail.

for 1. Place the Smart Rack on the Bone Rail

4. Charger

Please refer to chapter 8 of the "Owner's Manual Shimano

E8000" for information on the safety and function of the
charger. Error messages that may occur on the charger can
be found in chapter 9.3 of the manual.

4.1 Charging the battery

Connect the power cable to the battery charger.

1. Connect the charging cable to the charging socket on the battery (it

clicks into place).

2. Plug the mains connector into a socket. The green LED on the charger

ashes rapidly at a constant rate

. The button on the crossbar

lights up blue.

3. The charger switches o once the battery is fully charged. The green

LED on the charger is continually on

. The button on the crossbar

lights up blue.

If the battery now stays on the charger, it regularly checks
whether the battery is still fully charged. The LED on the

charger then starts to ash green again. After checking and

ascertaining that the battery is full, the charger switches
back to “light continually”.

4. Remove the power cable from the socket after completing the charging

process.

5. Remove the charging cable from the battery charging socket on the

battery.

EN-14 Additional Guide | T.E.C. PACK for Shimano Steps E8000 Version 1

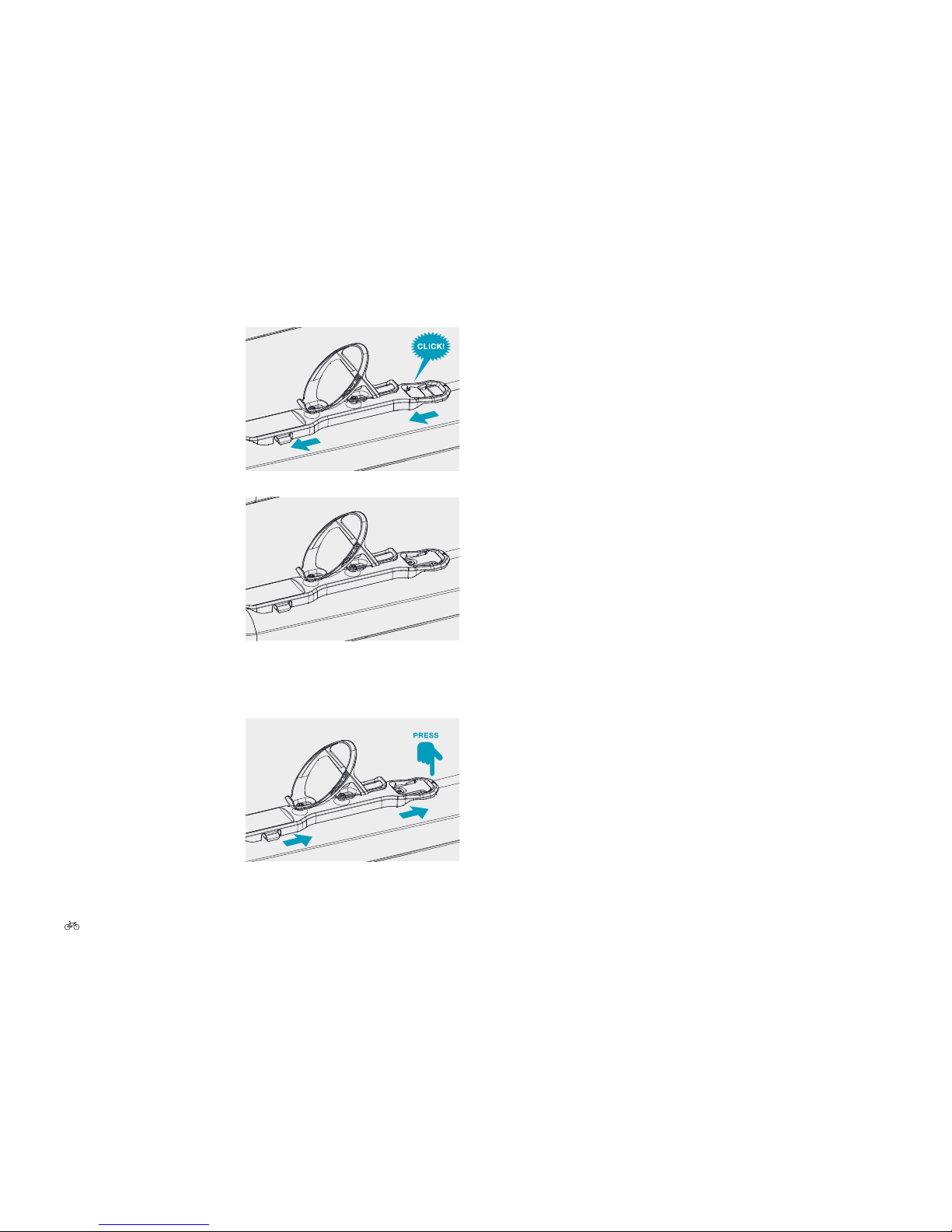

2. a) Slide the Smart Rack from

back to the Bone Rail till it
clicks. b) The Smart Rack is
locked.

for 2. a) Slide the Smart Rack from back to the Bone Rail.

for 2. b) The Smart Rack is locked.

6.2 Remove the Smart Rack

1. To remove the Smart Rack,

press the release button and
push the Smart Rack forward
at the same time.

for 1. Remove the Smart Rack

Notizen/Notes

Anleitungen, Service-Heft und Konformitätserklärungen
zum Download als PDF:

User guides, service book and declarations of conformity
are available for download in PDF format at:

www.derby-cycle.com/de/downloads/downloads.html

Finden Sie Ihren Fachhändler in Ihrer Nähe:
Find dealers:

www.focus-bikes.com

EN-16 Additional Guide | T.E.C. PACK for Shimano Steps E8000 Version 1

DERBY CYCLE WERKE GMBH

Siemensstraße 1-3
49661 Cloppenburg, Germany

www.derby-cycle.com

© Copyright, Nachdruck, Vervielfältigung und Verbreitung, auch auszugsweise, nur mit Genehmigung der Derby Cycle Werke GmbH.

Druckfehler, Irrtümer und technische Änderungen vorbehalten.

© Copyright, reprinting, reproduction and distribution, even in part, only with the permission of Derby Cycle Werke GmbH.

Subject to misprints, errors and technical alterations.

www.focus-bikes.com

1973k001800
