RKR-360 is a nice combo set, which combing 2.4Ghz RF mini keyboard and MCE
Remote Control together.
All of them are based on 2.4Ghz radio frequency, 10-30 meters effective working
range and 360 degree navigation, with sleek and elegant design. mini keyboard
with trackball remote control, elegant and smart. You don't need to install any
driver, it will automatic start all of function when you plug the receiver, It is great
device to Media Center PCs, Home Theater PCs, Living Room, or Car PCs or IPTV
or IP Settop Box.
You will like this speical mini keyboard with remote combo, there is no cables
connected to the keyboard or remote, you can put it away to save spce when you
finish using it. it is orgonomically designed allwoing for comfortable use one table
or lap. or you can put even on bed or settee when you are lie-in.
TV program, Internet, E-mail, music, all of them, just use a small2.4G wireless
remote controller, Integrated with FOCUS 2.4G wireless keyboard, Switch the
program or surf the Internet and E-mail, carry on the on-line game or work happily
will be more convenience
Please read carefully the information and instructions contained in this manual,
and you are sure to obtain a obtain a higher level of computing enjoyment.
Page:
1
Page 3
Receiver:
Patent No.:
USB Dongle.
Dimension: 78 x 21.5 x 10 mm.
Remote: (RM-518)
2.4GHz wireless with 8 channels, 360-degree navigation.
Working range; 10 meters.
Built-in optical trackball, mouse key.
Trackball: 19mm optical, 800DPI.
Key: Including 45 hot keys & 2 mouse keys & MCE directly keys.
2-AA batteries included for up to 3 months use.
Dimension: 178 x 50 x 33 mm.
Keyboard: (RK-360)
2.4 Ghz radio frequency, 10 meters effective working.
360-degree navigation, sleek and elegant design.
86 keys Mini Keyboard, with 10 Internet / Multimedia hot-keys.
Bounce Time: less than 10m sec.
Non-skid rubber feet.
2-AA batteries included for up to 3 months use.
Dimension: 304 x 151 x 23 mm.
Page:
2
Specification
Compatible with Windows 2000 / Windows XP / Windows Vista / Windows 7.
ZL 2006 2 0002046.8
ZL 2007 2 0143404.1
M 318157
M 296544
Nr 20 2006 002 499.9
Page 4

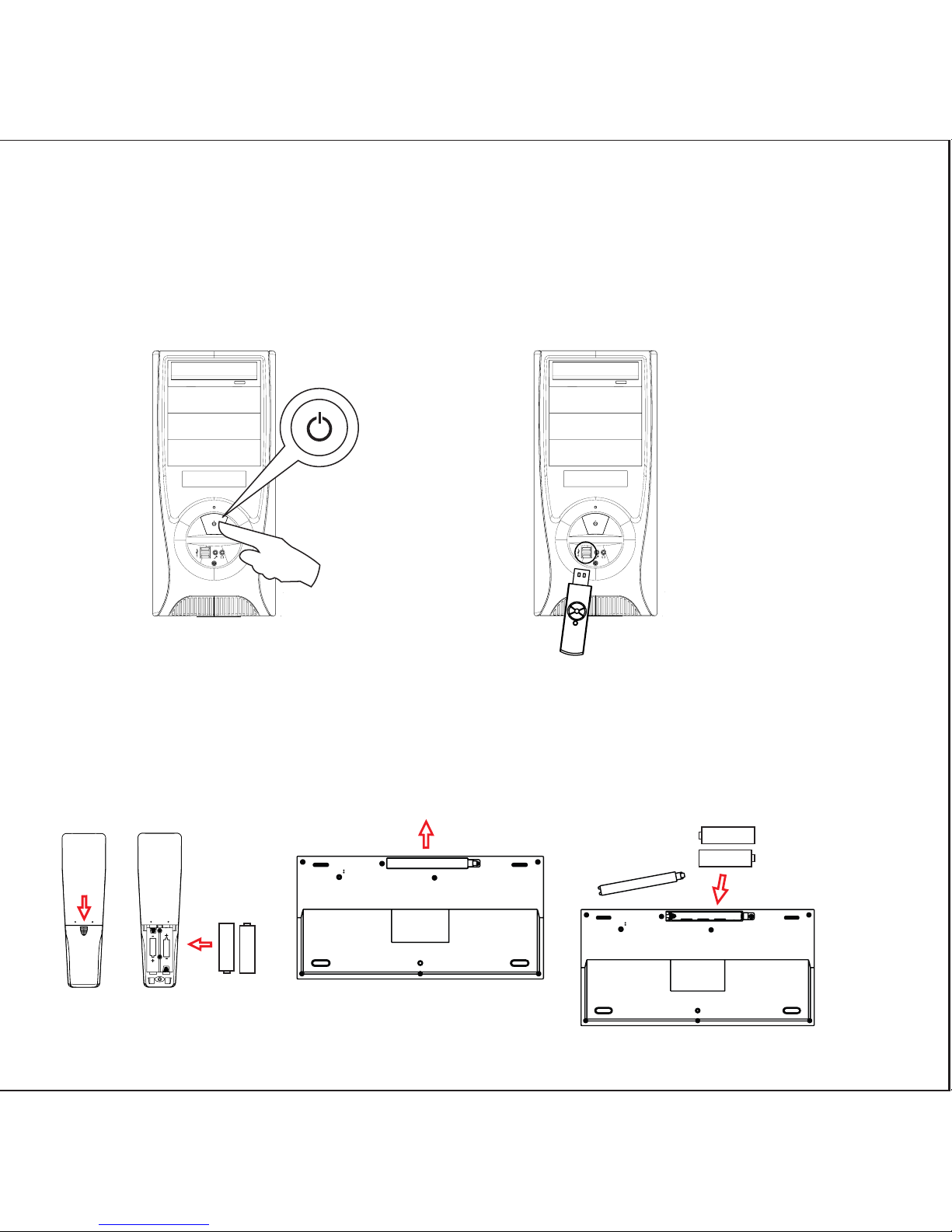

1. Turn on the Computer.
2. Plug the USB Receiver of the
keyboard unto the USB ports
of your computer.
3. Open the battery cover on back of keyboard and Remote control,
place AAA ba tt eries inside the battery compartment. Close the
battery compartment cover.
Push to open
Push to open
Installation
Page:
3
place AAA batteries inside
the battery compartment
Page 5

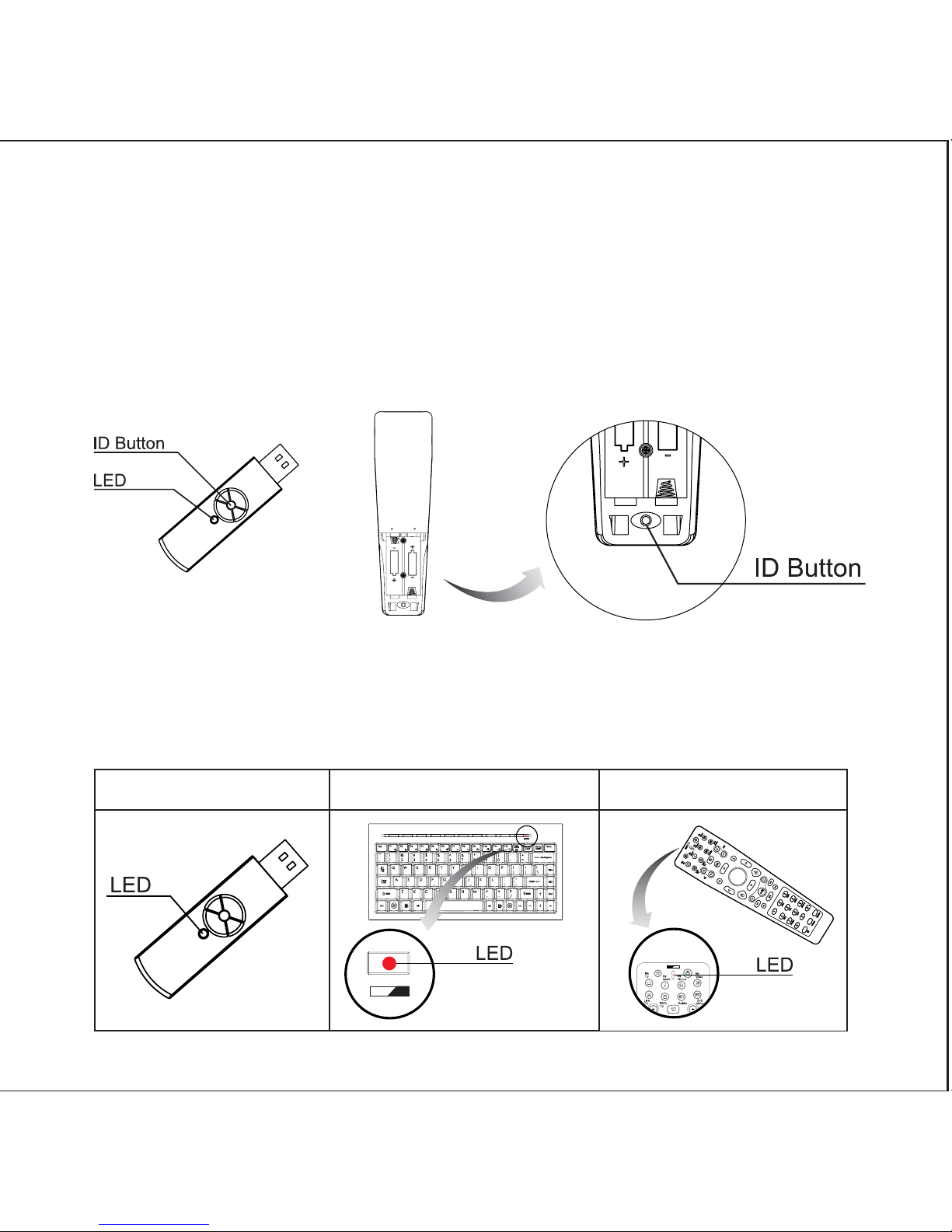

4. Setting ID
Keyboard Setting:

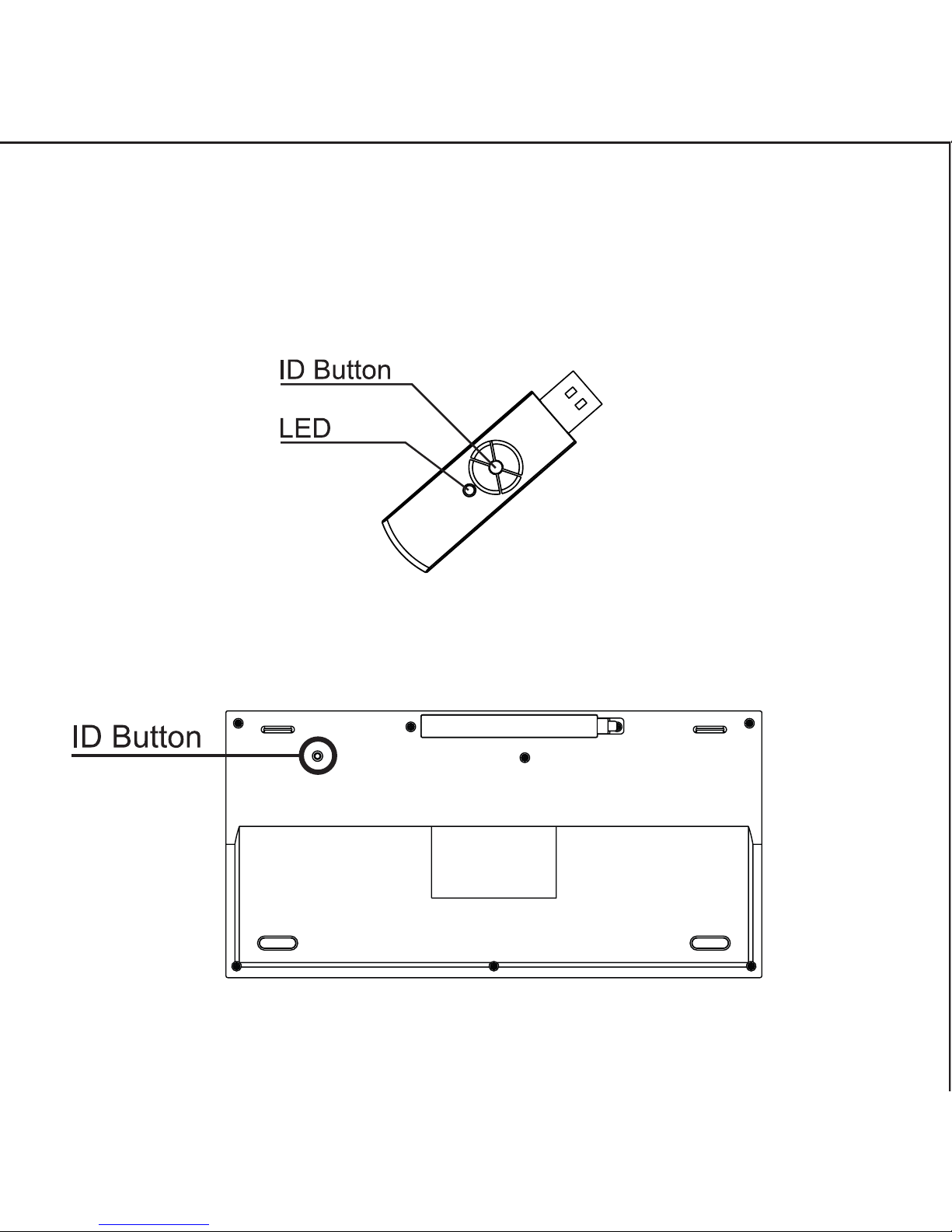

Press ID button on the receiver, the LED is on flash which means
ID is searching.
(Picture A)
Press ID button on Back of the keyboard, the LED is off
which means setting is successful. (Picture B)
b.
(Picture A)
Page:
4
a.
(Picture B)
Page 6
Remote Setting:
1. RF Signal LED on the receiver will flash when the keyboard or remote
is being used. (Picture A)
2. When Battery Low LED lights, it means the keyboard or Remote
requires changing batteries. (Picture B C)
Page:
5
Remarks
Open the battery cover.
Press ID button on the receiver, the LED is on flash which means
ID is searching. (Picture A)
Press ID button on the back of remote, the LED on the receiver is
off which means setting is successful. (Picture B)
b.
c.
a.
Receiver(A) Keyboard(B) Remote(C)
(Picture B)
(Picture A)
Page 7
Page:
6

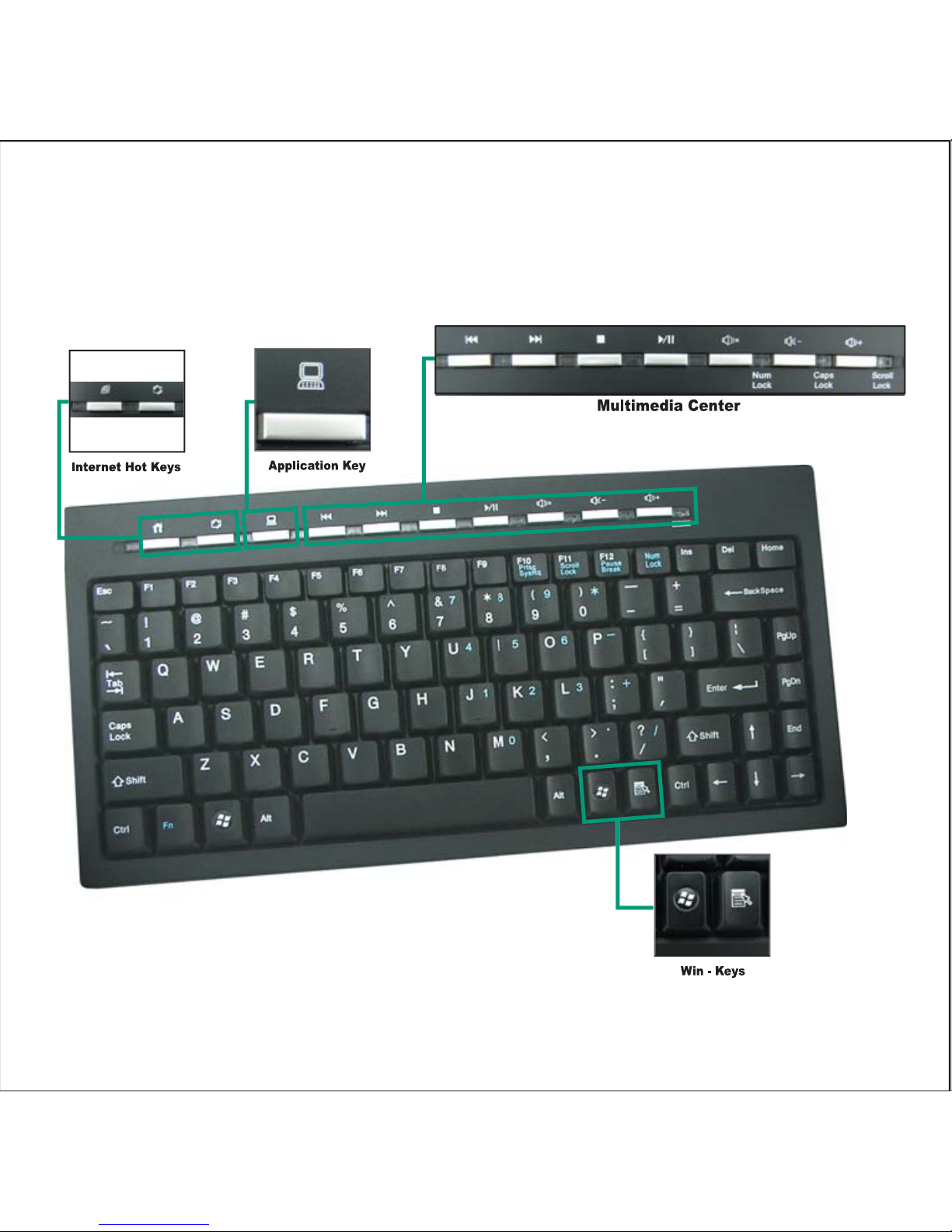

Keyboard Description
Keys Description
Page 8

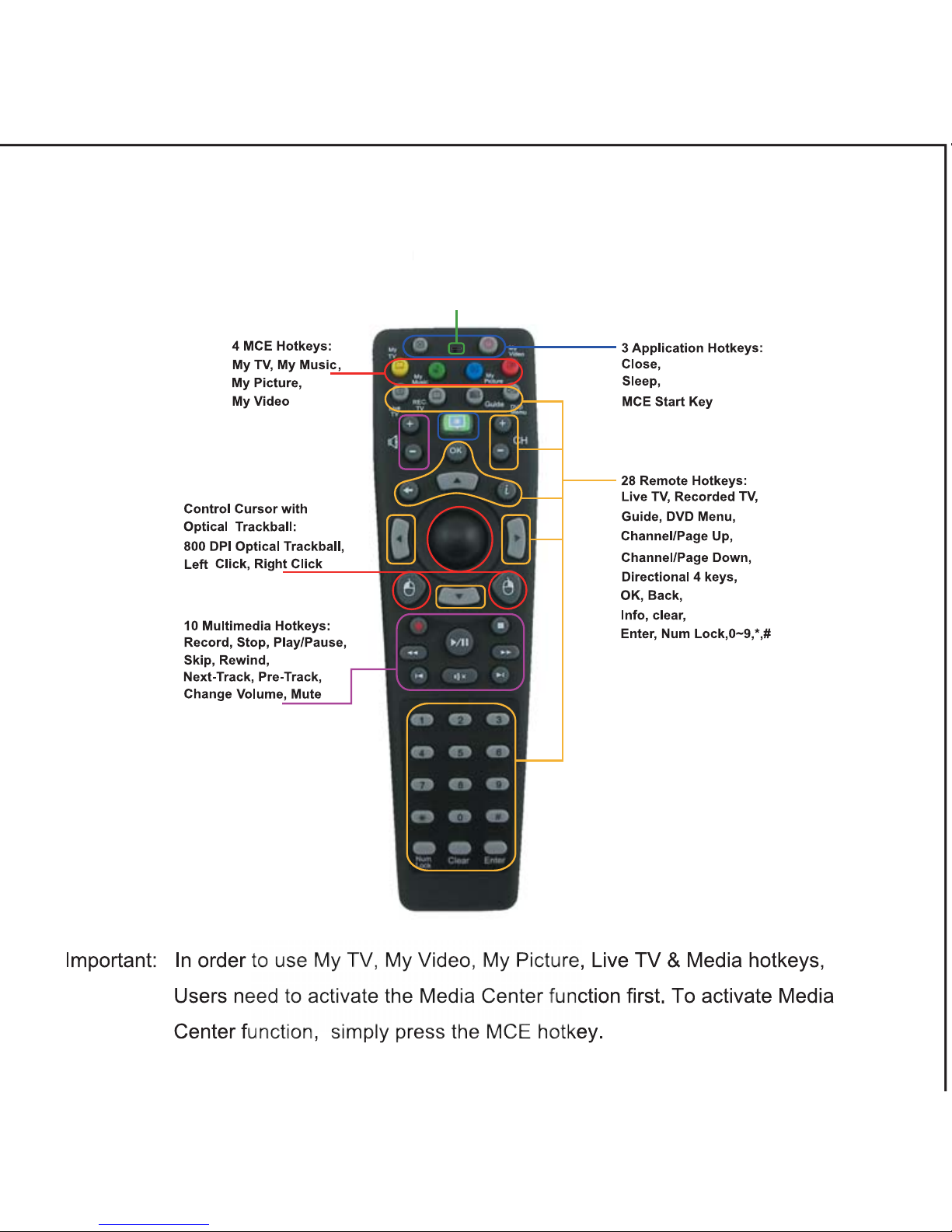

Remote Control Description
l Description
Battery Low
Page:
7
Page 9
Trouble Shooting:
a.
b.
c.
Notice:
Impor tant note:
If your keyboard or remote control can not work after installation, please
check followings:
The changes or modifications not expressly approved by the party res pon sib le
for compliance could void the user ’s authority to operate the equipment.
To comply with the FCC RF exposure compliance requirements, no change
to the antenna or the device is permitted. Any change to the antenna or the
device could result in the device exceeding the RF exposure requirements and
vo i d u s er’s authority to operate the device.
Make sure you have connected the receiver correctly to the computer;
the receiver has been properly plugged onto computer’s USB port.
Make sure you have inserted AAA & AA batteries each into keyboard and
remote, and they are compartment correctly.
(2 pcs for keyboard,2 pcs for remote)
If without any interference, such as other computer peripherals, the
working distance (the distance between keyboard and the receiver) is about
10 meters.
Page:
8
Page 10
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected. Consult the dealer or an experienced radio/TV technician for help.
Page:
9
The Federal Communication Commission Radio Frequency Interference Statement
includes the following paragraph:
The equipment has been tested and found to comply with the limits for a Class B Digital
Device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation.
This equipment generates uses and can radio frequency energy and, if not installed
and used in accordance with the instruction, may cause harmful interference to radio
communication.
However, there is no grantee that interference will not occur in a particular installation.
If this equipment dose cause harmful interference to radio or television reception,
which can determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
