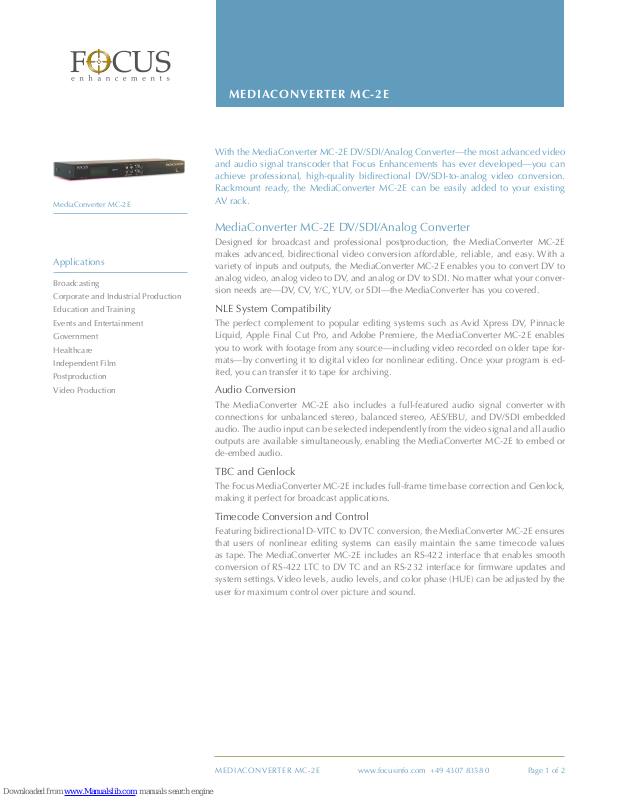

MEDIAC O N V E R T E R M C - 2 E
ME DIACO NVE RTE R M C-2E Page 1 of 2
www.focusinfo.com +49 4307 8358 0
With the MediaConverter MC-2E DV/SDI/Analog Converter—the most advanced video
and audio signal transcoder that Focus Enhancements has ever developed—you can
achieve professional, high-quality bidirectional DV/SDI-to-analog video conversion.
Rackmount ready, the MediaConverter MC-2E can be easily added to your existing
AV rack.
MediaConverter MC-2E DV/SDI/Analog Converter
Designed for broadcast and professional postproduction, the MediaConverter MC-2E
makes advanced, bidirectional video conversion affordable, reliable, and easy. With a
variety of inputs and outputs, the MediaConverter MC-2E enables you to convert DV to
analog video, analog video to DV, and analog or DV to SDI. No matter what your conver
-
sion needs are—DV, CV, Y/C, YUV, or SDI—the MediaConverter has you covered.
NLE System Compatibility
The perfect complement to popular editing systems such as Avid Xpress DV, Pinnacle
Liquid, Apple Final Cut Pro, and Adobe Premiere, the MediaConverter MC-2E enables
you to work with footage from any source—including video recorded on older tape for
-
mats—by converting it to digital video for nonlinear editing. Once your program is ed
-
ited, you can transfer it to tape for archiving.
Audio Conversion
The MediaConverter MC-2E also includes a full-featured audio signal converter with
connections for unbalanced stereo, balanced stereo, AES/EBU, and DV/SDI embedded
audio. The audio input can be selected independently from the video signal and all audio
outputs are available simultaneously, enabling the MediaConverter MC-2E to embed or
de-embed audio.
TBC and Genlock
The Focus MediaConverter MC-2E includes full-frame time base correction and Genlock,
making it perfect for broadcast applications.
Timecode Conversion and Control
Featuring bidirectional D-VITC to DV TC conversion, the MediaConverter MC-2E ensures
that users of nonlinear editing systems can easily maintain the same timecode values
as tape. The MediaConverter MC-2E includes an RS-422 interface that enables smooth
conversion of RS-422 LTC to DV TC and an RS-232 interface for firmware updates and
system settings. Video levels, audio levels, and color phase (HUE) can be adjusted by the
user for maximum control over picture and sound.
Applications
Broadcasting
Corporate and Industrial Production
Education and Training
Events and Entertainment
Government
Healthcare
Independent Film
Postproduction
Video Production
MediaConverter MC-2E
Page 2
MEDIAC O N V E R T E R M C - 2 E
ME DIACO NVE RTE R M C-2E Page 2 of 2
www.focusinfo.com +49 4307 8358 0
European Headquarters
COMO Computer & Motion GmbH
A Focus Enhancements Company
Lise-Meitner-Str.15
24223 Raisdorf
Germany
P +49 4307 8358 0
F +49 4307 8358 99
E [email protected]
©2006. Focus Enhancements, Inc. Specifications are subject to change. All brand and
product names are trademarks of their respective companies. MANL1009-01
Corporate Headquarters
Focus Enhancements
1370 Dell Avenue
Campbell, CA 95008
P 800 338 3348 (toll free)
P 408 866 8300
F 408 866 4859
E [email protected]
E [email protected]
Technical Specifications
Support
When you purchase video production
solutions from Focus Enhancements,
you not only receive reliable products
that deliver superior performance ev-
ery day, you also receive unconditional service and support from a team
of seasoned video professionals. All
products are backed by comprehensive warranties and optional support
contracts that cover installation, training, 24/7 phone support, and priority
parts replacement.
Consultation
With extensive experience in designing, configuring, and integrating vid-
eo production solutions for leading
companies around the world, the Fo-
cus team can help you select the right
products for your business. If you have
special requirements, solution consultation and custom configuration ser-
vices are available.
MODEL MediaConverter MC-2E
Audio Input/Output Analog unbalanced stereo audio signal: line level -10 dBV, 47 kilo-
ohms, RCA
Analog balanced stereo audio signal: +4 dbm, low impedance, XLR
Digital stereo audio signal (AES/EBU): balanced, XLR
Video Input/Output DV/DV CAM on IEEE-1394 6-pin interface
SDI (with embedded audio) (270 Mb/s) SMPTE 259M/CCIR656-III, BNC
Analog component signal: Y 1.0 Vpp, B-Y/ R-Y 0.7 Vpp, 75-ohm,
SMPTE/EBU, BNC
S-video signal: Y 1.0 Vpp, C 0.43 Vpp, 75-ohm (4-pin mini-DIN)
CVBS signal: 1.0 Vpp, 75-ohm, BNC
Reference video signal: blackburst 0.3 Vpp, 75-ohm, BNC
Broadcast Standard NTSC or PAL
Control RS-232 9-pin interface for firmware updates and system settings
RS-422 for bidirectional VTR control
Timecode DV embedded, D-VITC or LTC
Power Source External 12V DC 1000mA wallmount (country appropriate)
Dimensions 17.3125" x 1.75" x 1.5625" (440mm x 44mm x 40mm)
Form Factor 19" 1U rackmount metal case
Weight
4.5 lbs. (2.05 kg)
Compliance CE, C-Tick, and FCC
Warranty 2 years
