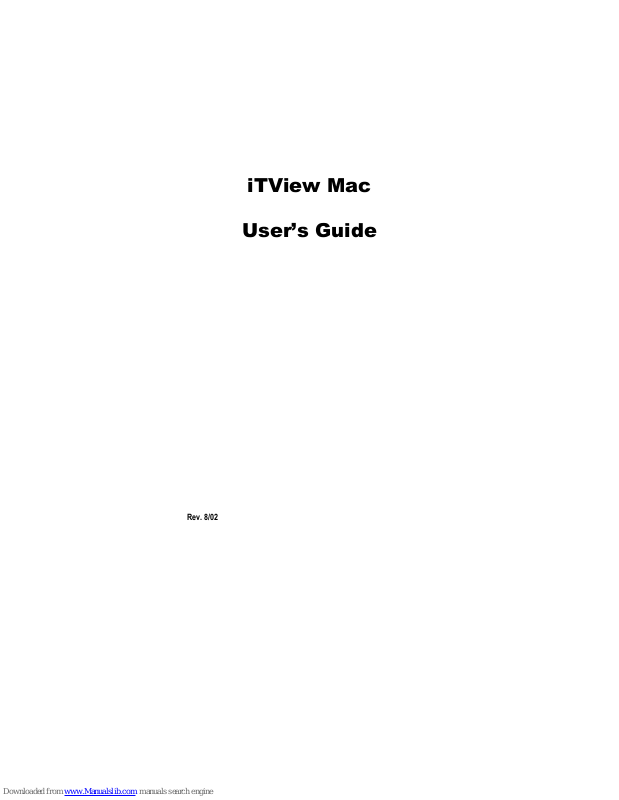

iTView Mac
User’s Guide
Rev. 8/02
Page 2
FCC NOTICE
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy, and if not
installed and used in accordance with the installation manual, may
cause harmful interference to radio communications. However, there
is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the
equipment on and off, the user is encouraged to try to correct the
interference by one or more of the following measures:
• This unit was tested with shielded cable. Therefore, for
continued compliance, use the shielded cables provided with the
unit.
• Re-orient or relocate the unit or receiving antenna.
• Increase the separation between the computer/converter and
television.
• Connect the equipment to an outlet on a circuit different from
that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for
help.
You may find the following booklet helpful:
How to Identify and Resolve Radio-TV Interference Problems (stock
number 004-000-000345-4)
To order the booklet, write to:
The U.S. Government Printing Office
Washington D.C. 20402
Page 3
COPYRIGHT
This document and the software described in it are copyrighted under
United States Copyright Laws. No part of this document or software
may be copied without prior written consent from FOCUS
Enhancements, Inc. except in the normal use of the software as
described in this documentation. All printed circuits, their physical
implementation on printed circuit boards and associated software are
copyrighted with all rights reserved. Under the copyright laws, the
printed circuit board, or the software programs provided may not be
copied in whole or part, without written consent of FOCUS
Enhancements, Inc., except in the normal use of the software
programs to make a backup copy. This exception does not allow
copies to be made for others, whether sold or not, but all of the
material may be sold, given, or loaned to another person. Under the
law, copying includes translating into another language or format.
Mac OS 7.1, 8.5, 9.0 and X are trademarks of the Apple Corporation.
All other products named are trademarks of their respective
manufacturers.
©2002 FOCUS Enhancements, Inc. All Rights Reserved
Page 4
This is a blank page
Table of Contents
CHAPTER 1 INTRODUCTION 4
CHAPTER 2 HARDWARE INSTALLATION 10
Packing List 11
Inspecting the Equipment 11
Installing the RGB Cover on your iMac (Older Models) 13
Connecting the iTView Mac to a Television 15
Connecting the iTView Mac to a VCR 20
CHAPTER 3 ITVIEW MAC SOFTWARE 22
Installing the iTView Mac Control Panel Software 22
Functions of the iTView Mac LED 24
Screen Controls 24
TV Output Controls 27
Picture Setup 29
Additional Features 31
CHAPTER 4 TUNING YOUR TELEVISION 34
Brightness 35
Color 35
Sharpness 35
Tint or Hue 35
CHAPTER 5 TROUBLESHOOTING 36
Returning a Damaged or Failed iTView Mac Unit 38
Page 5
iTView Mac User’s Guide
About the User’s Guide
The iTView Mac User’s Guide is designed to help you to quickly and
easily connect the hardware and install the software for this product.
The guide is divided into the following chapters:
Chapter 1: Introduction, which describes the key features and
functionality of the product and some of its many uses. The chapter
also discusses the notation conventions used in the guide.
Chapter 2: Hardware Installation, which describes the information
you should know before installing and connecting the iTView Mac
hardware, and the steps required to perform the installation.
Chapter 3: iTView Mac Software. Describes the steps required to
install the iTView Mac software control panel and how to operate the
program.
Chapter 4:Tuning Your Television , this chapter describes the
methods you can use to tune the image on your television
Chapter 5:Troubleshooting , describes possible problems that you
might encounter and ways to solve them.
Preface 1
Page 6
iTView Mac User’s Guide
Notation Conventions
This user’s guide uses the following conventions to specify certain
types of information.
Warns you about potential problems and hazards during
the installation or use of the product. Read these
warnings carefully, and be sure you understand how
they relate to the installation procedures before
proceeding.
Note: Points out important or useful information.
Contact Information
To get information on the reseller nearest to you, to order
replacements parts, or for technical support contact one of the
following:
Worldwide Headquarters
1370 Dell Avenue
Campbell, CA 95008
Customer Service 800-338-3348 (U.S. Only)
Technical Support 408-370-9963
2 About This Guide
Page 7
Page 8
iTView Mac User’s Guide
Chapter 1 Introduction
The iTView Mac converts the VGA output from your computer into
video that can be displayed on a television or recorded to a VCR.
iTView Mac automatically detects VGA ,SVGA, and XGA output
frequencies up to 152Hz and synchronizes it with your television. The
result is a high quality, flicker-free television display from your
computer.
Features
The iTView Mac includes the following features:
• Contains the industry leading FS 401 Chip which provides the
best possible resolution for PC-to-TV scan conversion
• Screen position controls
• Variable horizontal and vertical scaling controls
• Variable zoom controls
• Image freeze control
• Auto Pan in all directions via mouse control while in 2X Zoom
Mode
• Brightness, Contrast, Color Saturation, Sharpness, 2D Flicker
Filter Controls
• Easy plug-and-play installation for any iMac Flatpanel G4, G3,
and iMac DV personal computers
• Compatibility with any size television monitor (NTSC/PAL) with
an RCA (composite), S-Video, or SCART (Europe only) input
connector
• Support for 640 x 480 (VGA), 800 x 600 (SVGA) and 1024 x 768
(XGA) resolution at frequencies up to 152Hz
• Support for 24-bit color
4 Introduction
Page 9
iTView Mac User’s Guide
• TrueScale™ image compression that precisely fits the image on
your television without dropping lines or altering video resolution
• Support NTSC and PAL systems
• Supports Composite and S-Video
• Works with multiple platforms including Mac OS 7.1 up to and
including Mac OS X
Chapter 1 5
Page 10
iTView Mac User’s Guide
Modes of Operation
The iTView Mac has ability to operate in two separate modes:

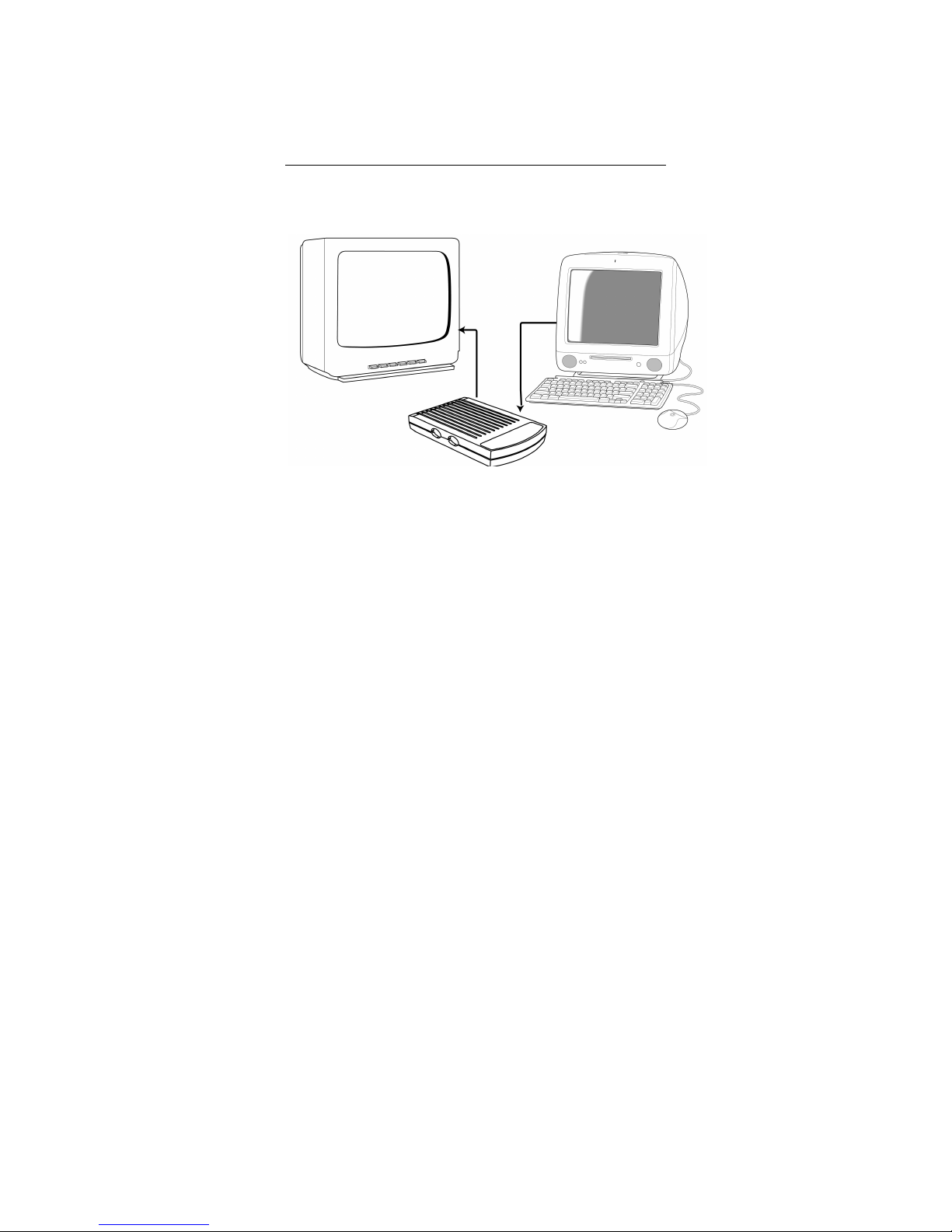

Figure 1-1: Presentation Mode
1. Presentation Mode: Display the same image on your computer
and your television.
6 Introduction
Page 11
iTView Mac User’s Guide

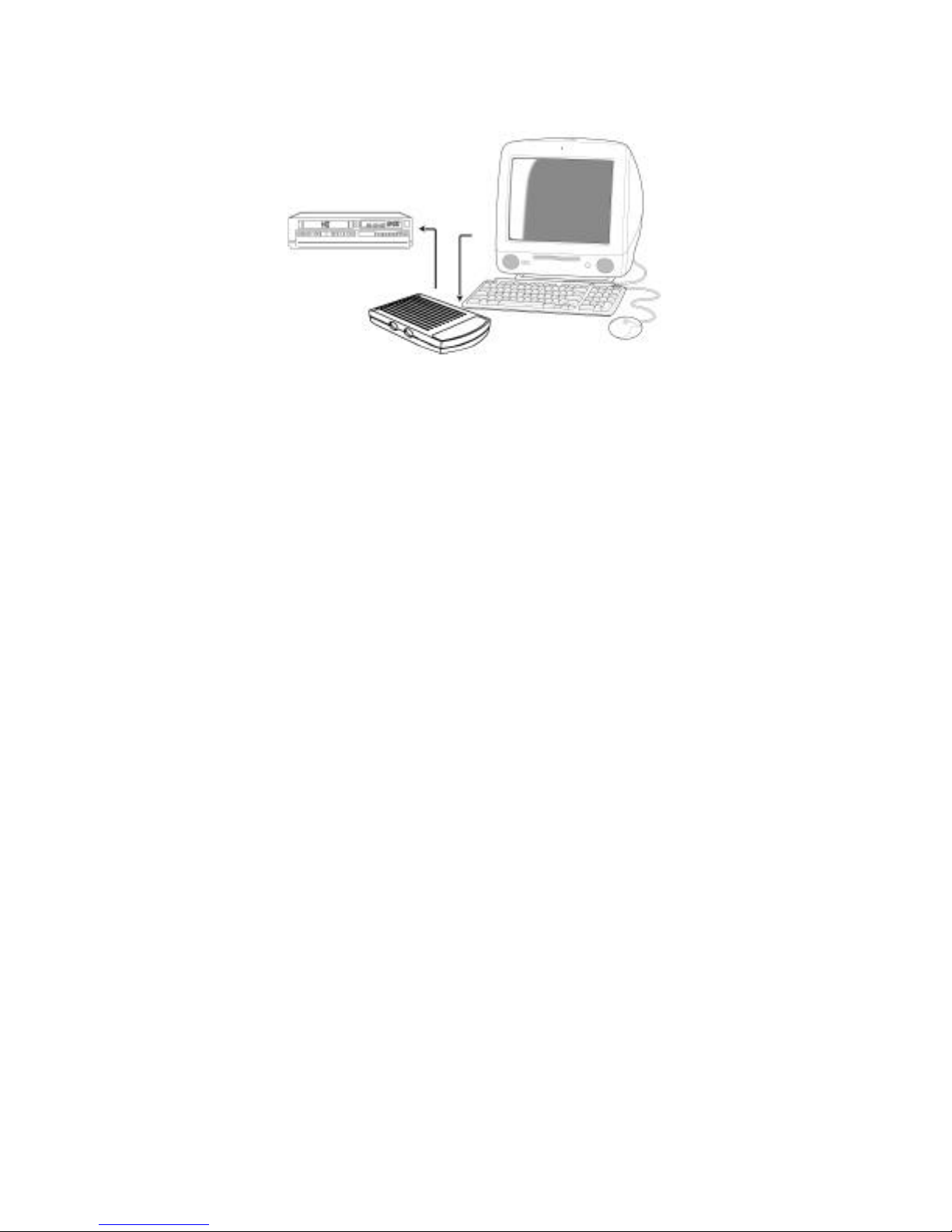

Figure 1-2: Video Record Mode
2. Video Record Mode: Record your video image or digital movie
directly to videotape.
Chapter 1 7
Page 12
iTView Mac User’s Guide
Suggested Uses for the iTView Mac
The iTView Mac can be used for many purposes. For example:
• Bring sales or other multimedia presentations from a laptop to a
large TV
• Create training tapes or outfit a training room
• View DVD movies from your computer straight to your television
• Demonstrate a new software package using a large screen TV
• Project computer games onto a TV screen
• Cruise the Internet on a television
• Conferencing via TV
• E-Mail
• Collaborating with others on computer-based projects
8 Introduction
Page 13
iTView Mac User’s Guide
• Any iMac Flatpanel G4, iMac G3 & iMac DV working
Specifications
Table 1: iTView Mac Specifications.
Computer Compatibility
on MacOS systems 7.1 or higher
Television Compatibility • Works with any size television monitor (NTSC/PAL)
with an RCA (composite), S-Video, or SCART
(Europe only) input connector. For television
receivers or televisions without composite or S-Video
inputs, an RF Modulator is required (Radio Shack
#15—1244 & Phillips/Magnavox MRF200BK)
Color Modes and
Resolution
Power Supply • Maximum consumption 5 volt regulated DC,
Unit Weight • 184 grams (without cables)
Unit Dimensions • 12 cm x 7cm x 2.5cm
• Supports up to 16,777,216 colors (24-bit), and up to
1024 x 768 at refresh rates up to 152Hz
700 mA
Chapter 1 9
Page 14
iTView Mac User’s Guide
Chapter 2 Hardware
Installation
This chapter describes the information you should know before
installing and connecting the iTView Mac hardware, and the steps
required to perform the installation.
System Requirements
The following Apple desktop and laptop models listed below will work
with the iTView Mac and MacOS System Software 7.1 or higher:
IMac Flatpanel G4, iMac G3 & iMac DV (Any Flavor)
Before installation, the following are system requirements for the
operation with the iTView Mac:
• iMac Flatpanel G4 : requires the use of a special mini VGA
adapter (Sold separately at Apple webstore)
• iMac Flatpanel G3: VGA Out Port available
• iMac DV personal computer with VGA Out Port already
available
• Television with S-Video or Composite Video output.
10 Hardware Installation
Page 15
iTView Mac User’s Guide
Checking the Packing List
Check the packing list that is included in this manual. Compare the
list with the equipment you have purchased. Be sure that you have
received everything that is on the list. If anything is missing, contact
FOCUS Enhancements Customer Service department by calling
1-800-338-3348.
Packing List
Your iTView Mac includes the following items:
• iTView Mac
• Power adapter 5V @700mA
• S-Video and Composite video cables (US only)
• SCART Cable Adapter(Europe only)
• Electronic User Manual and Quick-Start Guide on CD ROM
• iTView Mac Control Panel Software
Inspecting the Equipment
Before installing and connecting the hardware, inspect it for any
damage, which may have been incurred during shipment. Perform a
thorough inspection, looking for dents, scratches, or loose parts.
Look for anything that appears unusual or out-of-the ordinary. If any
of the equipment is damaged, contact FOCUS Enhancement’s
Customer Service department by calling 1-800-338-3348.
Chapter 2 11
Page 16
iTView Mac User’s Guide
Connecting the iTView Mac to a iMac Computer
This section describes the steps to connect your iTView Mac to a
television or VCR. The following sections describe how to connect to
the iMac Flatpanel G4, G3 and iMac DV.
Notes: You may need to enable “Video Mirroring using the monitors
control panel. Refer to your iMac owner’s manual.
Performing the following steps to connect the iTView
Mac to a Macintosh iMac Flatpanel G4, G3 or iMac
(older models)
• Turn the computer and monitor off.
• Locate the Video in Cable (labeled “VGA Input”) attached to the
rear of the iTView Mac unit.
• For the iMac Flatpanel G4 use the special mini VGA adapter
(Sold separately at the Apple Webstore) to connect the VGA
Input Cable from the iTView Mac to the Mini Video Output port
located at the rear of the computer. Follow the same instructions
when attaching the iMac G3 and iMac DV excluding having to
use the mini VGA adapter. (Refer below on how to replace the
standard iMac DV cover with an RGB Cover to have easy
access to the Video Output Port in connecting your iTView
Mac.)
• Connect the power adapter to the rear of the iTView Mac
labeled 5V DC. Plug the adapter into the nearest wall outlet.
The LED at the front of the unit will illuminate; indicating the
iTView Mac is ON.
12 Hardware Installation
Page 17
iTView Mac User’s Guide
Installing the RGB Cover on your iMac (Older
Models)
To obtain access to the RGB port on your iMac DV you will need to
install the RGB Cover on the rear of the computer. The following
outlines the procedure for removing the standard cover and installing
the RGB cover
.
Standard Cover

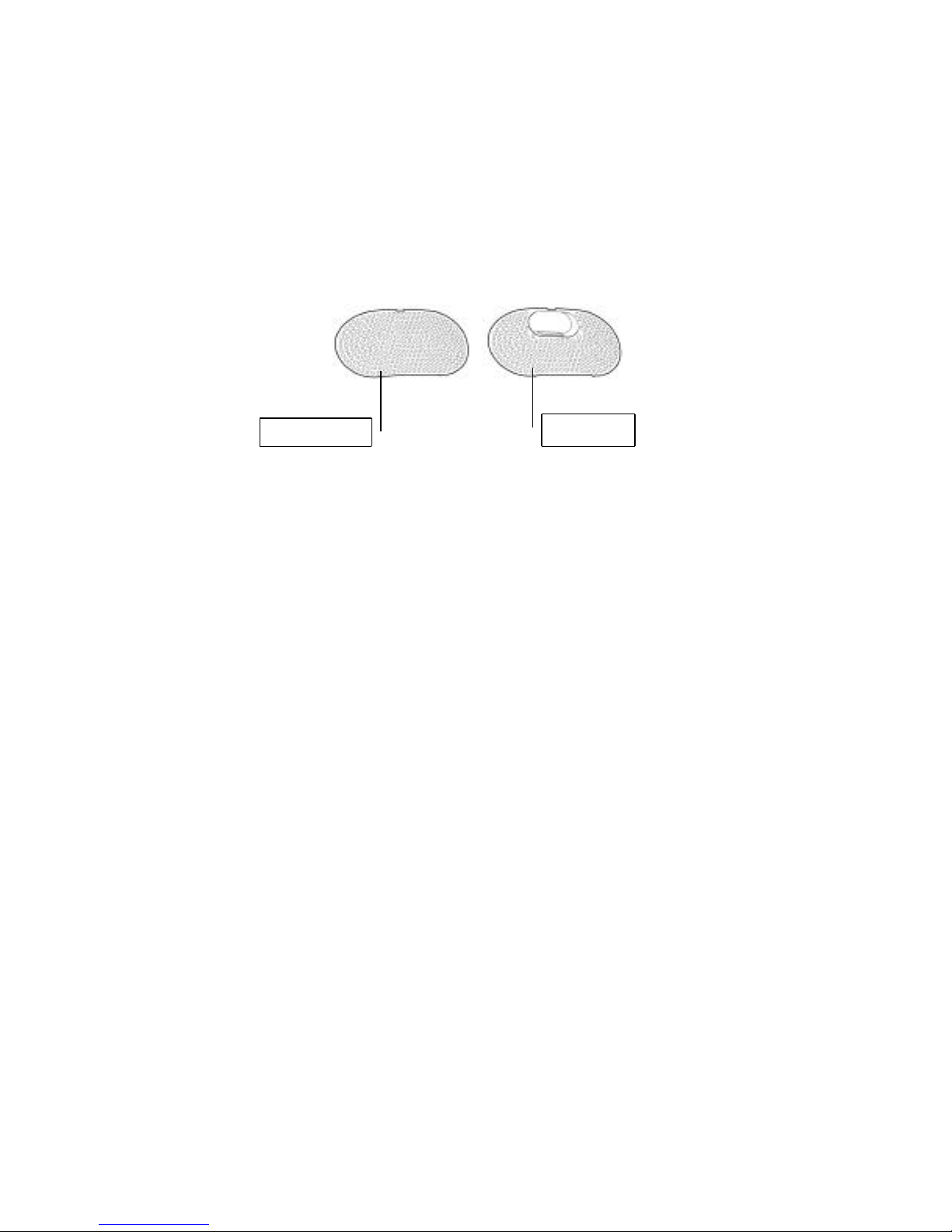

Comparison of covers
Perform the following steps to install the RGB Cover on your
iMac:
1. Turn off your iMac and unplug the power cord from the wall. If
your internal modem is connected to a telephone line,
disconnect the telephone line from the modem.
2. Place a soft cloth or towel large enough to cover the front of the
iMac on a desk, table, or other flat surface.
3. Carefully, place the computer, screen down, on the cloth.
RGB Cover
Chapter 2 13
Page 18
iTView Mac User’s Guide

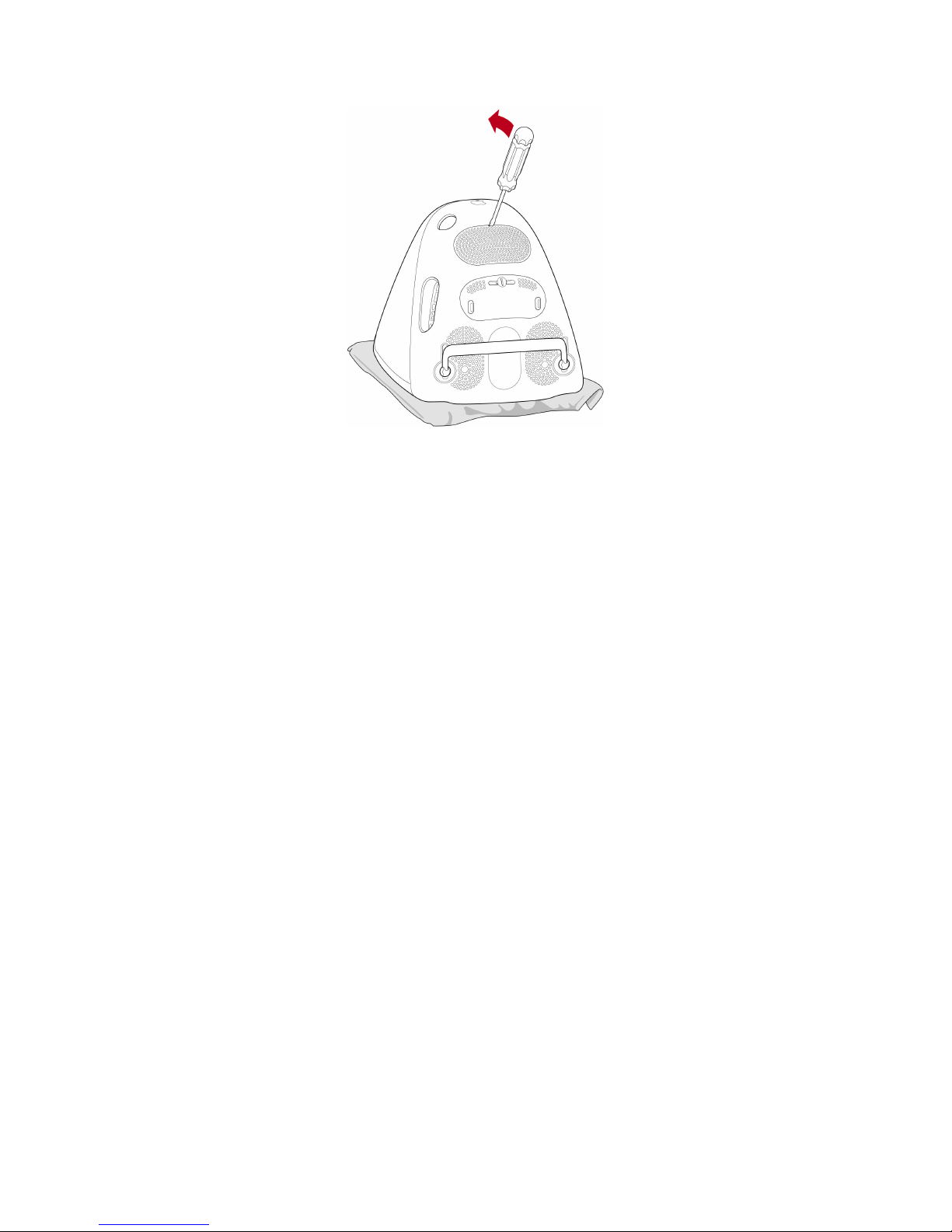

Removal of standard cover
4. Using a flat screwdriver, remove the panel covering the VGA
connector. Refer to the image above.
14 Hardware Installation
Page 19
iTView Mac User’s Guide

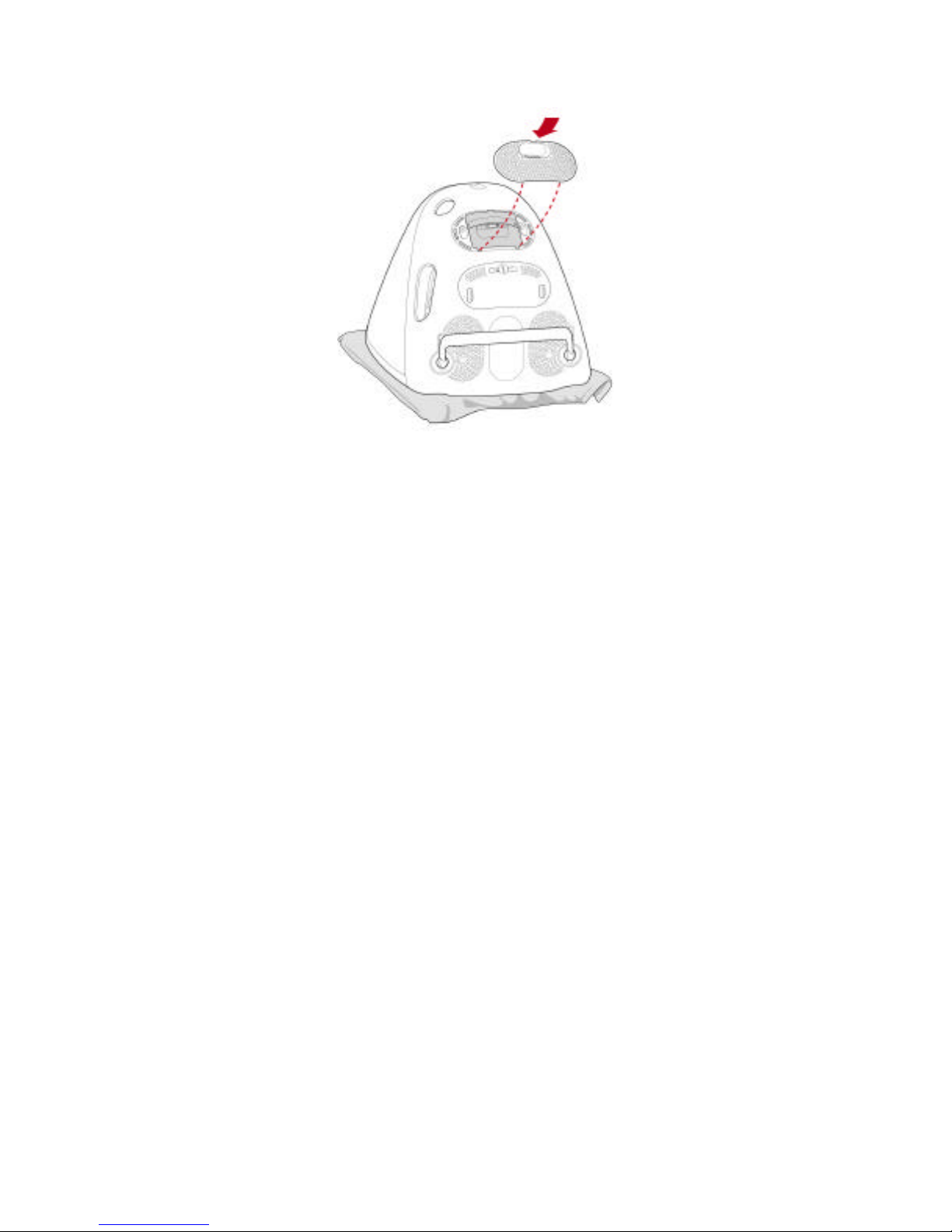

5. Insert the RGB Cover into the slots on the rear of the iMac.
Connecting the iTView Mac to a Television
After installing the RGB cover and connecting the RGB cable to the
iMac, you will need to connect the iTView Mac to a television or VCR.
This section describes the connections available and how to use
them. (If you are planning to connect to a VCR, see "Connecting to a
VCR" below.) There are three possible ways to connect to a
television:
• Using a Composite video connection
• Using an S-Video connection
• Using a SCART cable (Europe only)
Chapter 2 15
Page 20
iTView Mac User’s Guide
Composite Video Connection
Composite video is a connection type used by most televisions,
VCRs, laserdisc players, and certain LCD panels. The connectors on
a composite video cable have an RCA-type plug. The plug has a long
metal pin projecting from its center and plugs into the composite
video in port at the rear of the television.

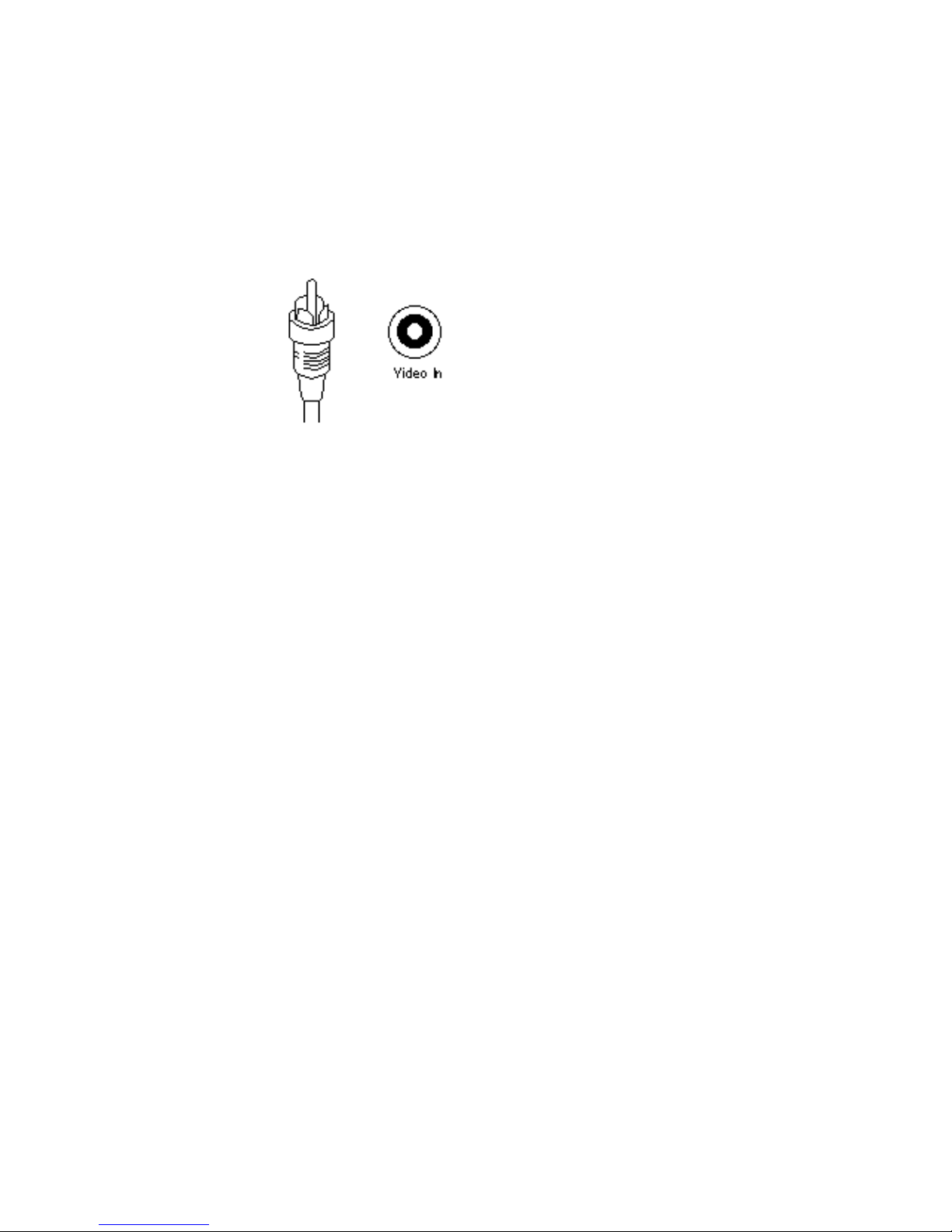

Figure 2-3: Composite Video Connectors
To determine if your television supports composite video, look for a
port on your television that matches the composite video out port at
the side of the iTView Mac unit.
Note: The composite video port on the television may or may
not be labeled "video in.” The Video input jack will have
a yellow center.
S-Video Connection
S-Video is a high-quality video connection used by some televisions,
video cameras and VCRs. The connector on an S-Video cable has a
round plug with several small metal pins. It plugs into the S-Video
output port at the side of the iTView Mac unit.
16 Hardware Installation
Page 21
iTView Mac User’s Guide
Note: The S-Video connection is a newer video standard. This
type connection improves color, clarity, and resolution.
The S-Video connection is the recommended connection
to use, if present..

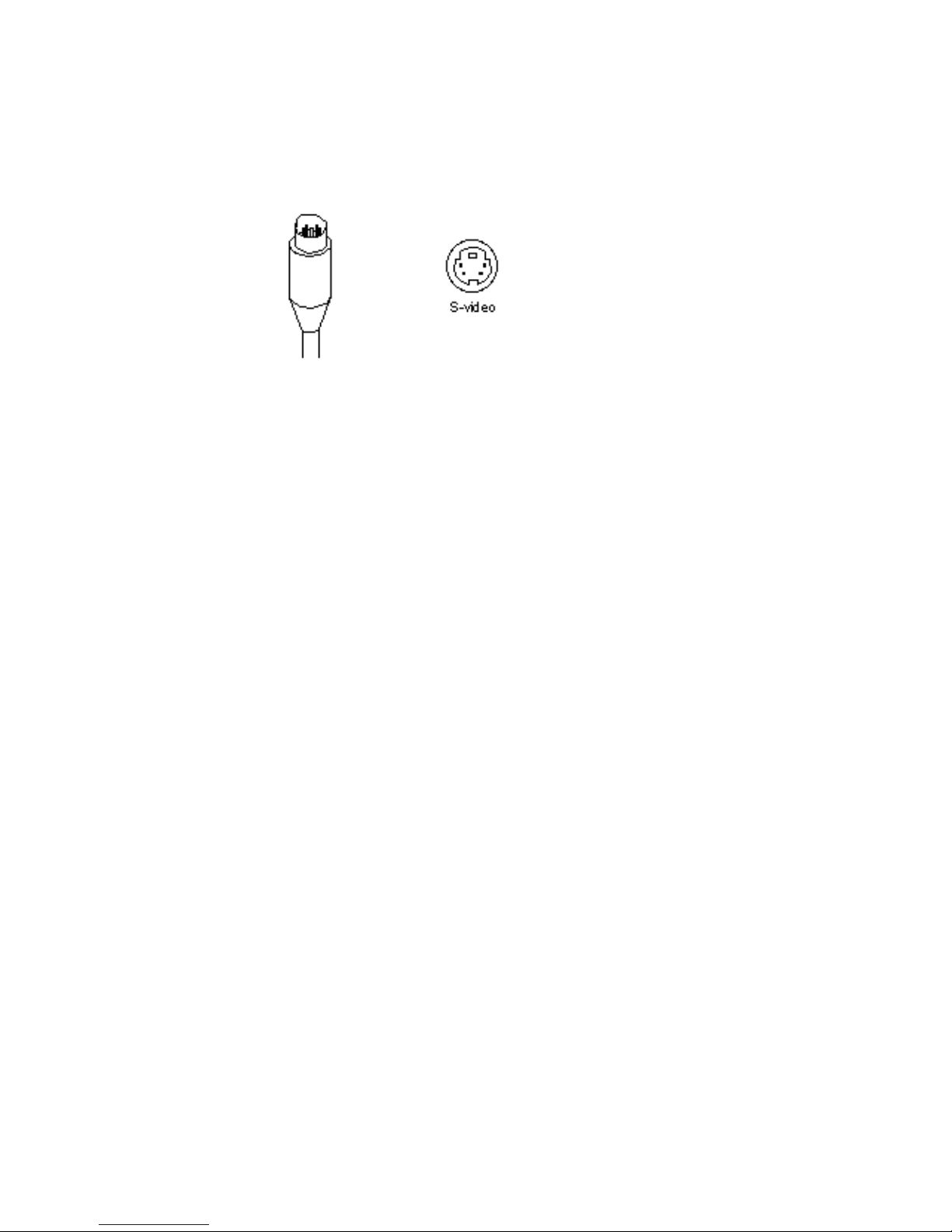

Figure 2-4: S-Video Connectors
To determine if your television or supports S-Video, look for a port at
the rear of the television that matches the S-Video output port at the
side of the iTView Mac Unit.
Note: The S-Video port on the television may or may not be
labeled "S-Video in."
SCART Connection (Europe Only)
SCART is a high-quality video connection used on most televisions
and VCR's in Europe. The connector on the SCART cable provided
with the iTView Mac has two different connectors. The larger end of
the cable is rectangular in shape and contains 20 small metal pins.
This larger end of the cable plugs into the matching port on the
television or VCR. The smaller end of the SCART cable has a round
plug with several small metal pins and connects to the port labeled
SCART/S-Video on the iTView Mac.
Additionally, the SCART connector provided with the iTView Mac can
Chapter 2 17
Page 22
iTView Mac User’s Guide
accept audio input from your computer. To utilize this function,
connect a standard 1/8" male mini stereo cable (not included) to the
female connector attached to the larger end of the SCART cable.
To connect the iTView Mac unit to your television, perform the
following steps:
1. Connect one end of the supplied composite video cable to the
“Comp Video” port located on the side of the iTView Mac unit, or
connect the male end of the S-Video cable to the port on the
side of the iTView Mac labeled either "SCART/S-Video."
2. Connect the other end of the composite cable or S-Video cable
to the Comp Video in or S-Video in port at on the television.
3. Turn the television on and set the TV to the composite S-Video
input mode. (See TV’s owners manual for more info)
4. Plug in the power adapter for the iTView Mac.
5. Turn your computer on. If the cables have been connected
correctly, the image from the computer monitor should now
appear on the television screen.
Note: The TV input mode is an important step. Therefore if you get
no image or see snow on the TV concentrate on this issue. As
always if you have not used this connection before consult your TV’s
owners manual
18 Hardware Installation
Page 23
iTView Mac User’s Guide

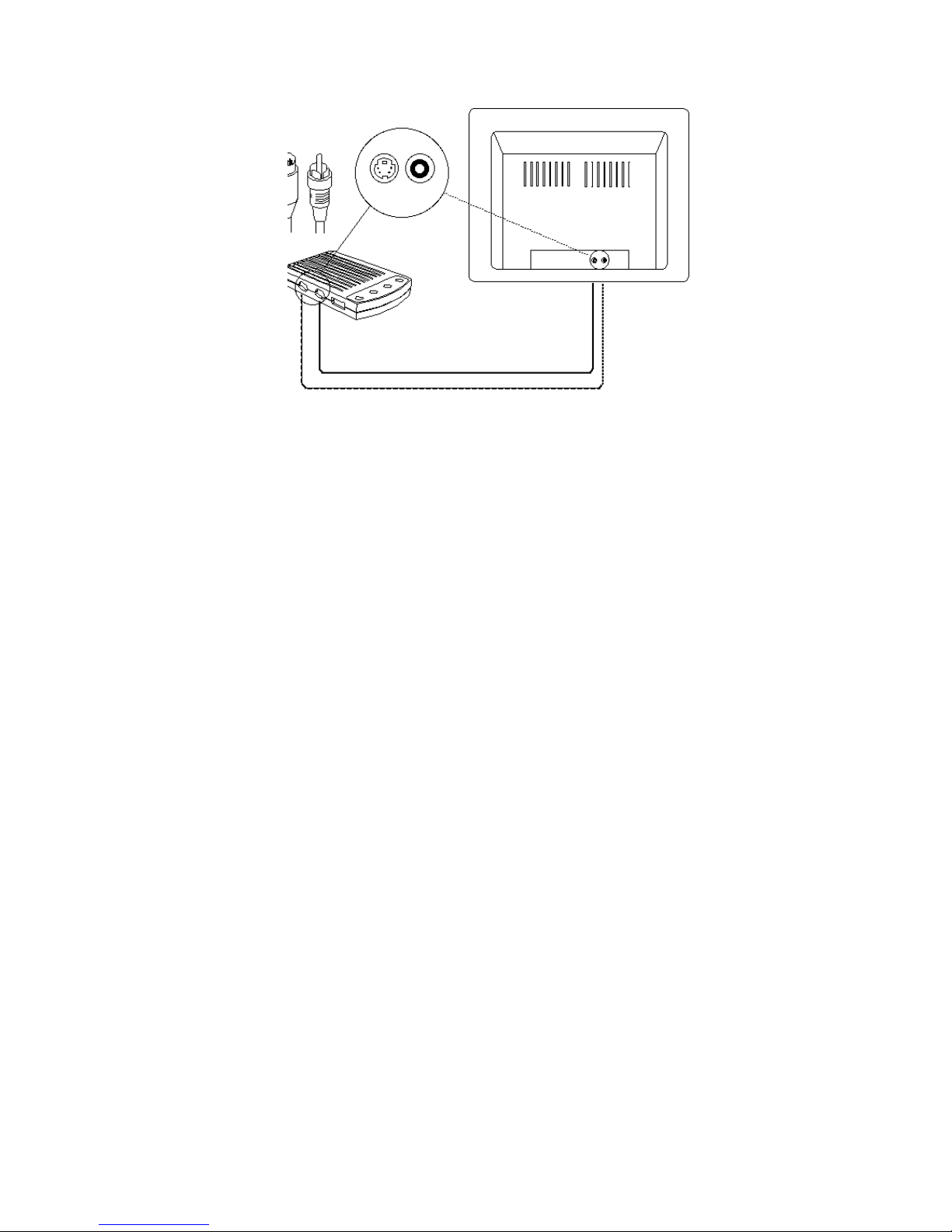

Figure 2-5: Connecting iTView Mac to the Television
When you are looking at the television to make these connections,
you may see an input labeled ANT IN. This input is used by cable TV
companies and uses a different type of video than that used by
iTView Mac. It is not possible to connect directly to this input. If this is
the only input available, and you do not have a VCR, this input can
be used with an RF modulator.
Note: Because the port may not be labeled, you will need to
match the port to the connector you are using.
Chapter 2 19
Page 24
iTView Mac User’s Guide
Connecting the iTView Mac to a VCR
In certain configurations, the video will be run through a VCR.
Therefore the unit must be connected to the VCR. By connecting the
iTView Mac unit, you will also be able to record the computer screen
to videotape.
To connect your iTView Mac to a VCR, perform the following
steps:
1. Connect one end of the supplied composite video cable to the
“Comp Video” port located on the side of the iTView Mac unit, or
connect the male end of the S-Video cable to the port on the
side of the iTView Mac labeled "SCART/S-Video.”
2. Connect the other end of the composite cable or S-Video cable
to the port at the rear of your VCR labeled "Video Input" or
“AUX-IN,” “AV-IN,” or “S-VIDEO IN.”
3. Turn on the VCR.
4. Turn on your television and tune it to channel 3 or 4.
5. Plug in the power supply for the iTView Mac.
6. Turn the computer on.
7. Find a button on the front of the VCR called "Line," "TV/Video,"
"Video Input," or something similar. Press the button. If the
cables have been connected correctly, the image from the
computer monitor should now appear on the television screen.
20 Hardware Installation
Page 25
iTView Mac User’s Guide
Note If your VCR does not have a button specifying video-in,
use your VCR’s remote control to find an on-screen
programming system. Using the programming system to
set the VCR to receive external video. If you are unsure
about how to do this, refer to the VCR owner’s manual.

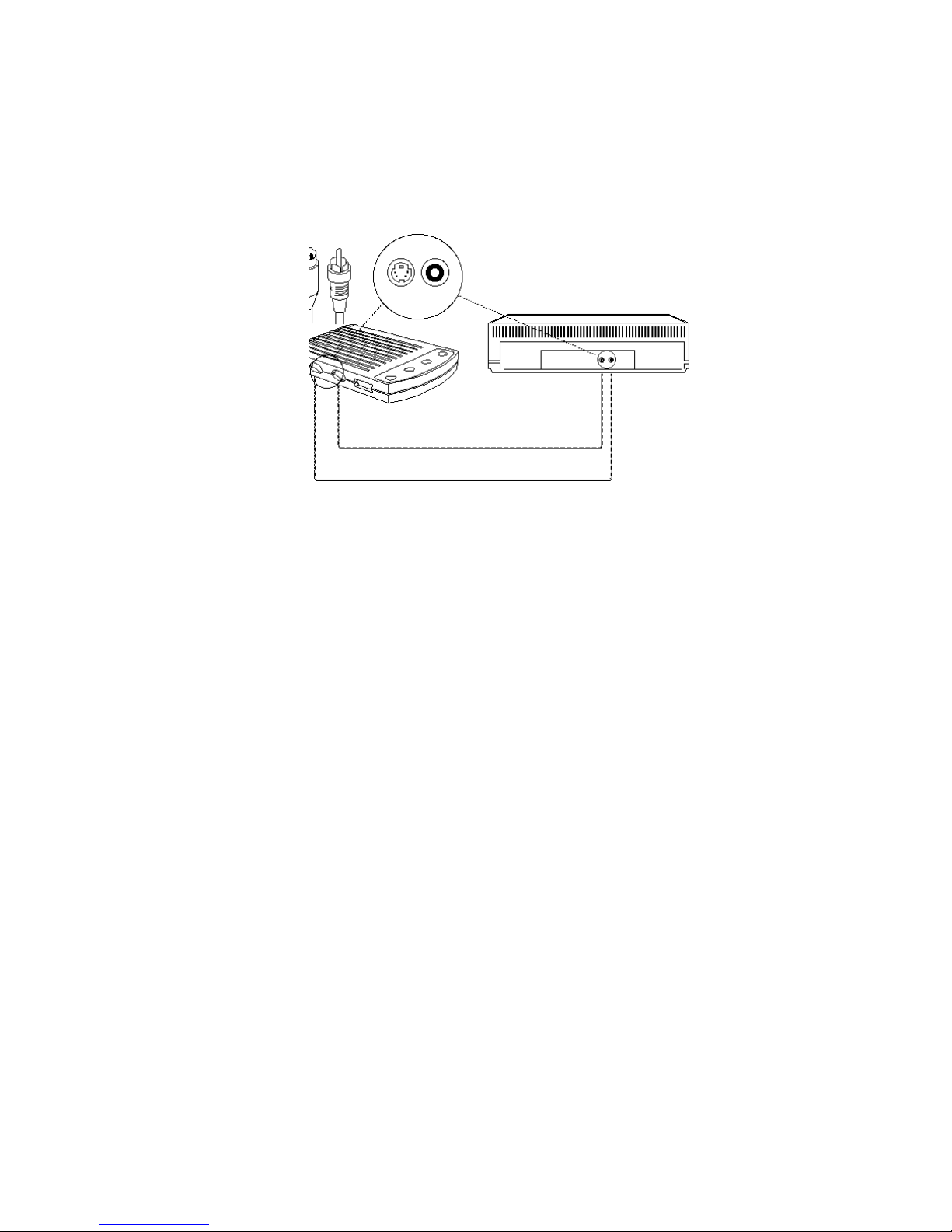

Figure 2-6: Connecting the iTView Mac to a VCR
Chapter 2 21
Page 26
iTView Mac User’s Guide
Chapter 3 iTView Mac
Software
This chapter describes how to install the iTView Mac Control Panel
Software that was shipped with the iTView Mac. The chapter also
describes how to use the software to manipulate the computer image
on the television screen.
Installing the iTView Mac Control Panel
Software
Perform the following steps to install the iTView Mac control panel on
your Macintosh
1. Insert the iTView Mac CD-ROM into the CD ROM drive.
2. Open the iTView Mac CD-ROM when it appears on the desktop.
3. When the CD ROM icon appears on your desktop click on it.
4. When the CD ROM folder opens on your desktop click on the
installer file. This will install the iTView Mac control panel
software on your computer’s hard drive and preference page on
OS X. (OS 9 will install on the computer’s hard drive and control
strip)
Re-Boot your MAC. You may now access the iTView Mac Control
Panel via the Control Panels option under the Apple Menu.
22 Image Control
Page 27

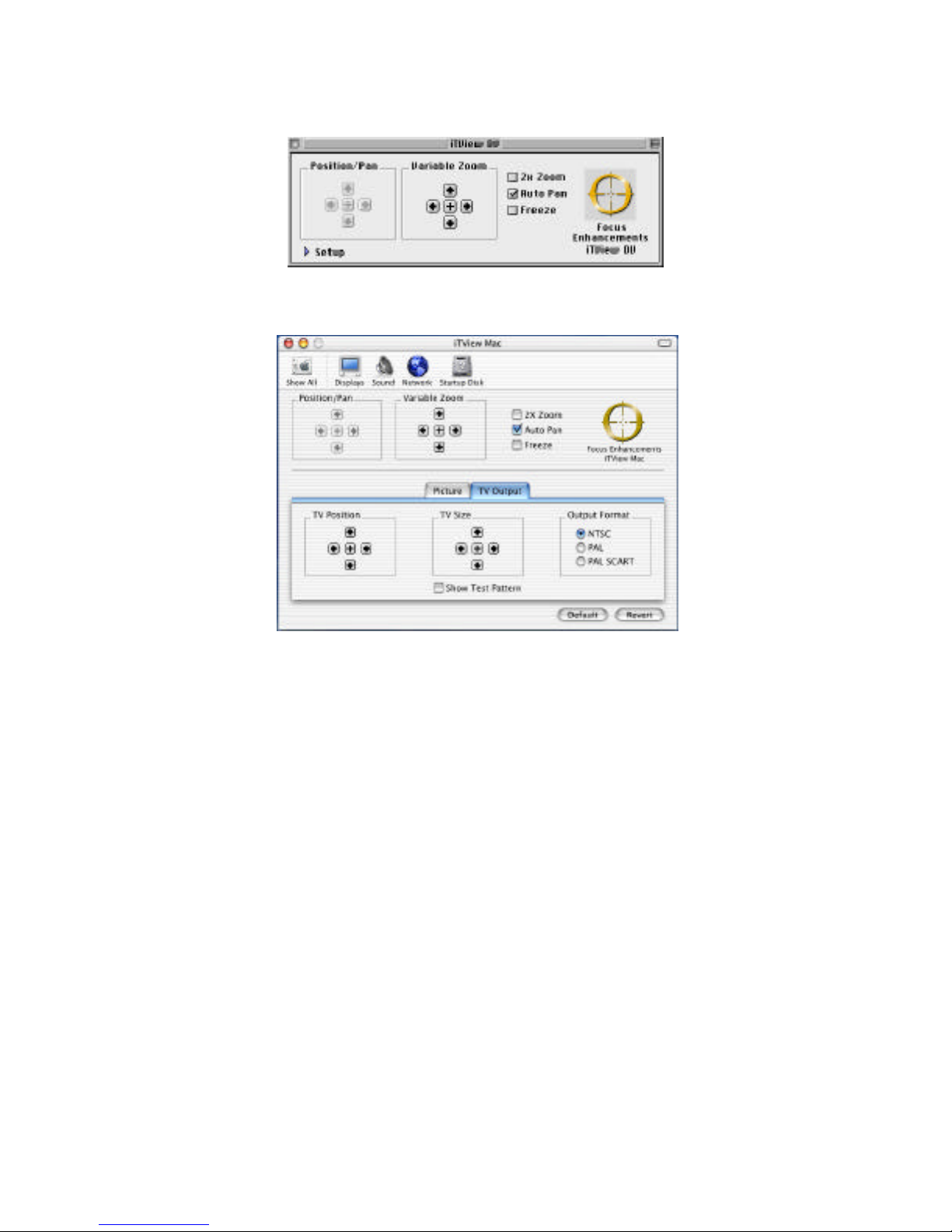

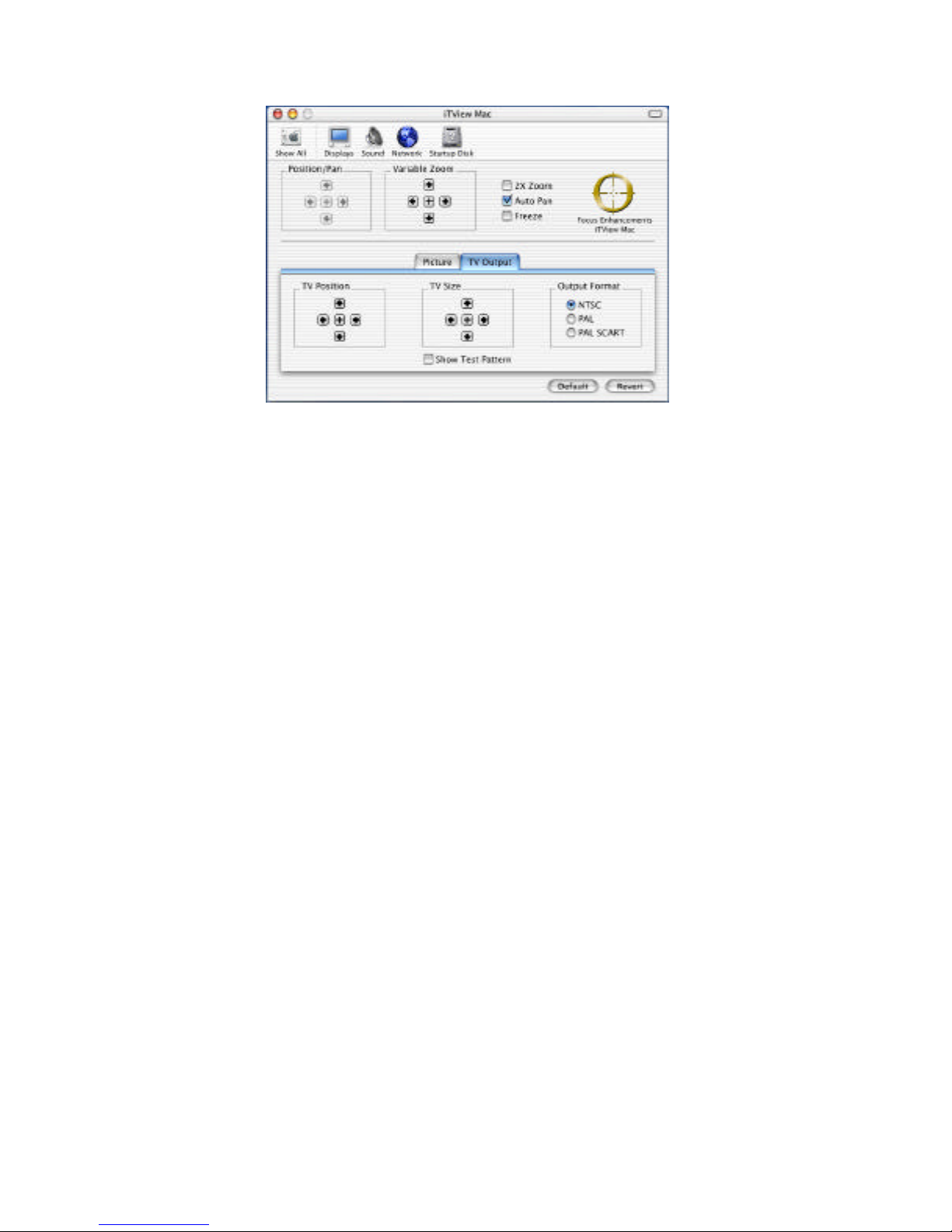

Figure 3-1 iTView Mac/iTView DV Control Panel in OS 9
iTView Mac User’s Guide
Figure 3-2 iTView Mac Control Panel in OS X
Chapter 3 23
Page 28
iTView Mac User’s Guide
Functions of the iTView Mac LED
The LED located on the front of the iTView Mac indicates a
connection has been established between the iMac and the
iTView Mac. The LED will glow green if there is a good
connection.
Screen Controls
From the main control panel you will be able to adjust the following
aspects of the computer image on the TV.
• Screen Position
• Image Zoom
• Image Freeze
• Control Strip Feature in OS 9
Screen Position
After powering on your iTView Mac you might notice that the
computer image is not centered on the television screen. Using the
four directional arrow keys on the control panel you can position the
computer image to fit precisely on your television.
Image Zoom
The iTView Mac control panel software also gives you the ability to
zoom into any area on the television screen. You have two options
for zooming into an image.
24 Image Control
Page 29
iTView Mac User’s Guide
• 2X Zoom: By clicking on the 2X Zoom button you can zoom the
entire screen by 2X. Once in Zoom mode use the mouse to pan
in any direction on the screen.
• Variable Zoom: You can also zoom the image on the TV screen
by using the four-directional arrow keys on the control panel.
The variable zoom feature allows you to control the zoom factor
for both horizontally and vertically. By clicking on the directional
arrow keys you can zoom the image.

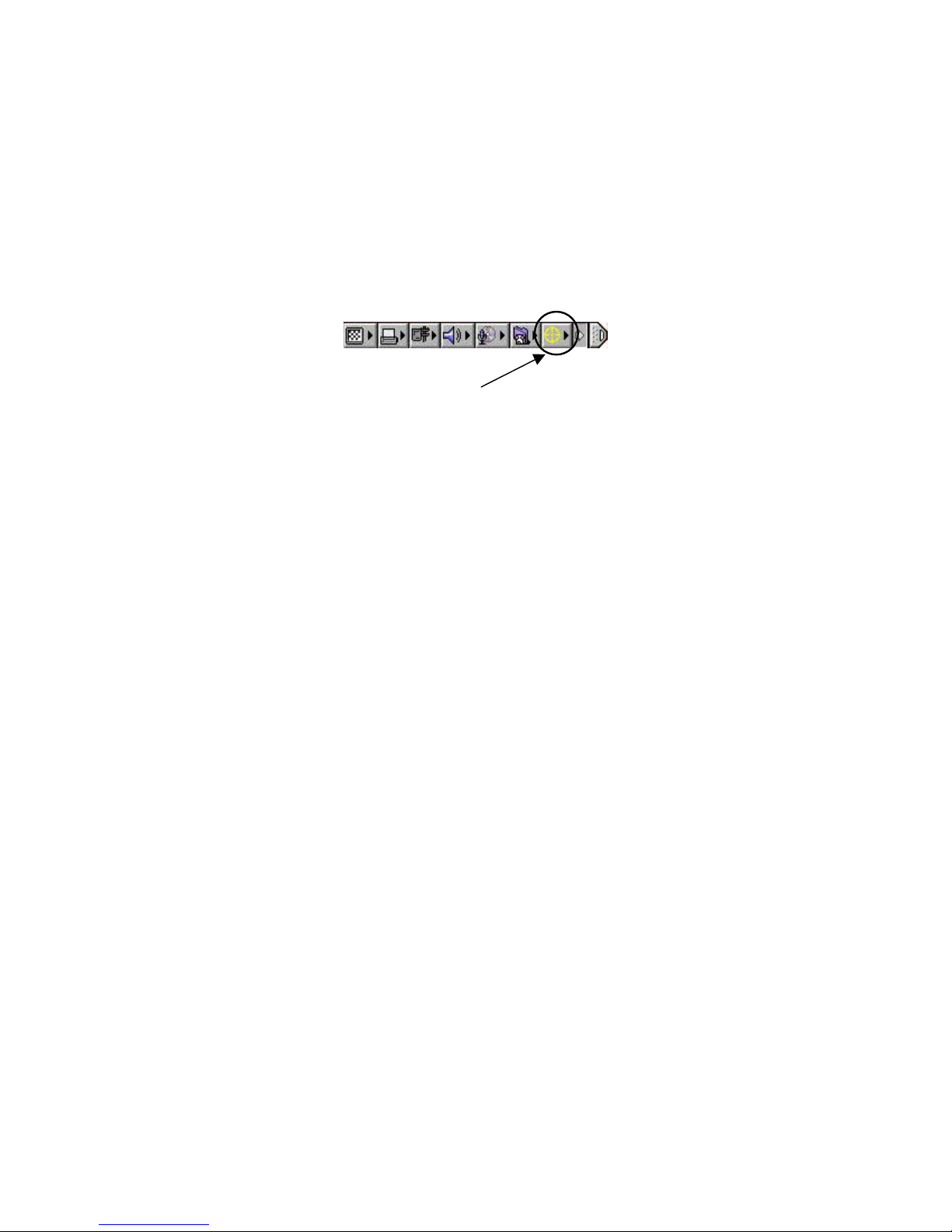

iTView Mac Control Strip with Mac OS 9
• Control Strip Feature in OS 9: By clicking on the control strip on
your desktop you can obtain access to the iTView Mac’s control
strip feature. This feature allows you to easily control 2x Zoom,
Auto Pan, and Freeze.
Click on the control strip with the FOCUS Crosshairs to obtain
access to these features.
Image Freeze
By clicking on the image freeze check box on the control panel you
can freeze the current screen on the television. While the image is
frozen on the screen changes to the computer image will not be
visible on the television. To advance the screen image, turn off the
freeze control.
Access to Setup Controls
There are two additional menus available to you within the iTView
Chapter 3 25
Page 30
iTView Mac User’s Guide

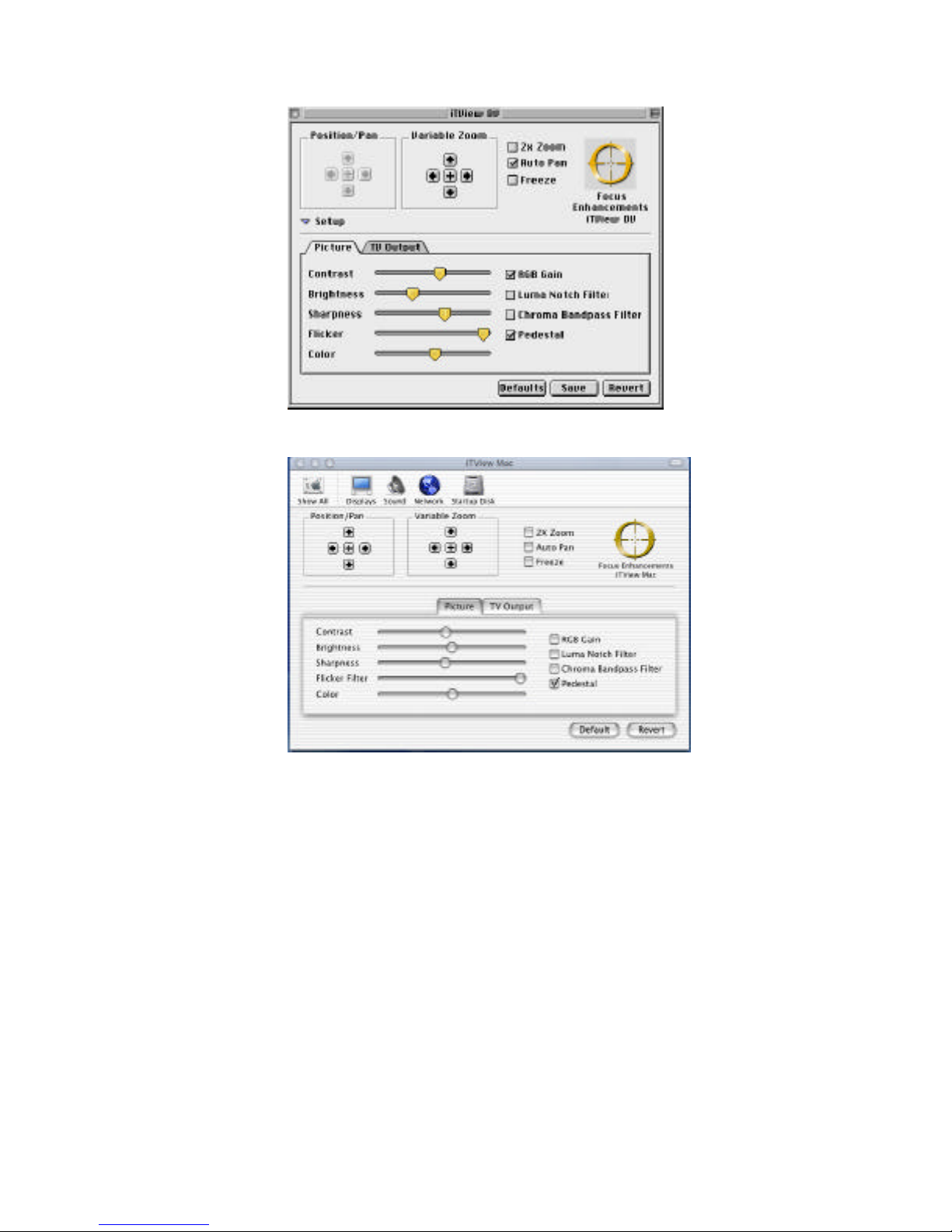

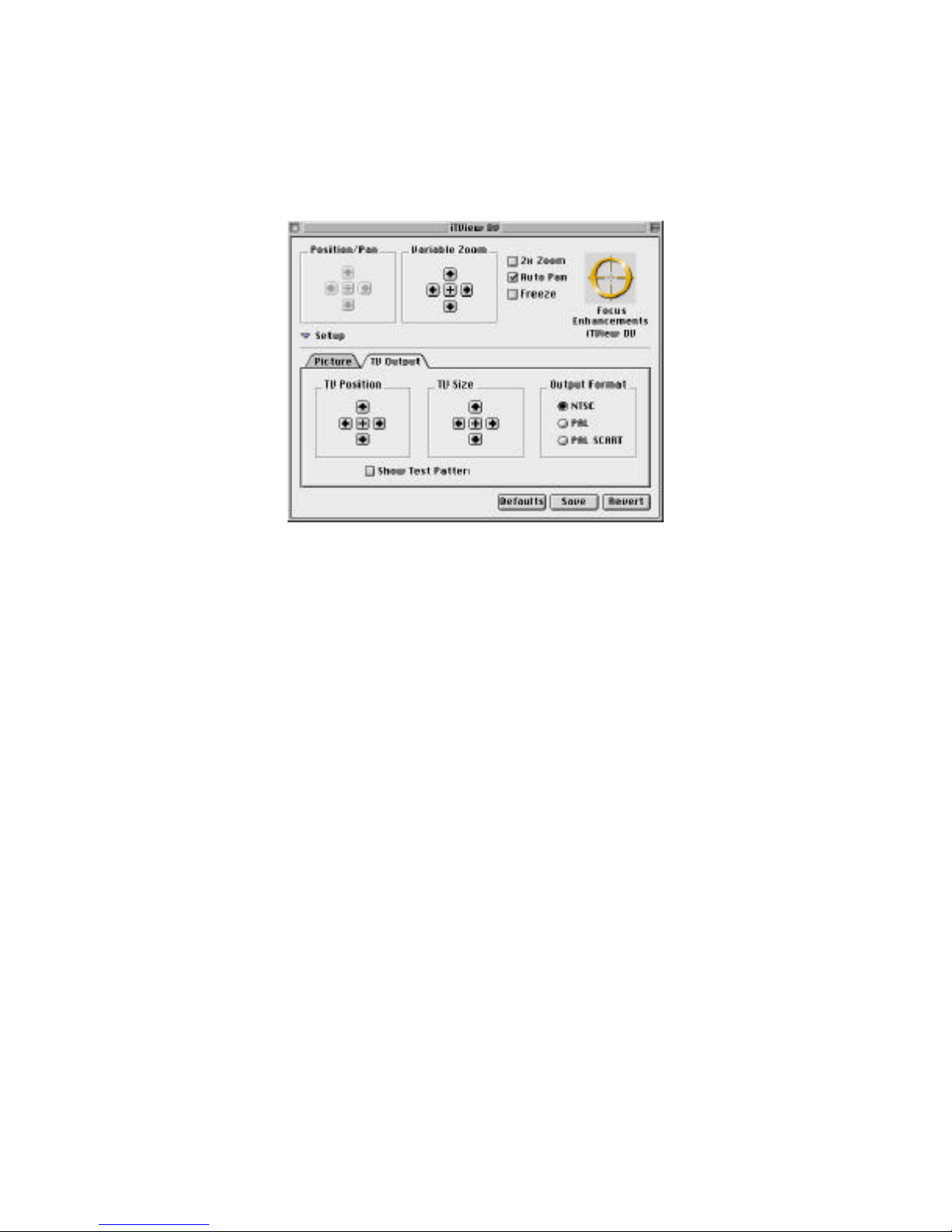

Mac control panel, these are Picture Setup and TV Setup. To access
these controls click on the arrow icon to the left of the word setup in
the lower, left-hand corner of the control panel in Mac OS 9. (refer to
figure 3-1 above) In OS X Picture Setup and TV Setup are accessible
automatically. (refer to figure 3-2 above)
Figure 3-3 iTView Mac/iTView DV TV Setup for OS 9
26 Image Control
Page 31
Figure 3-4 iTView Mac TV Setup for OS X
TV Output Controls
iTView Mac User’s Guide
The TV Output screen controls the following:
• TV Position
• TV Size
• Output Format
• Test Pattern Generator
Output Format
Your iTView Mac can output video in three formats. These are:
NTSC, PAL, and PAL SCART. If you are located in North America,
Central America, Japan, Taiwan, or Korea you will use the NTSC
Chapter 3 27
Page 32
iTView Mac User’s Guide
setting. If you are located in The UK or Europe you will need to set
the control panel to PAL. If you are using a television equipped with
a SCART input you will need to set the control panel to PAL SCART.
(see Figure 3-2 above)
TV Position/TV Size/Test Pattern Generator
The iTView Mac fits your computer image on the television screen by
setting that image into a user-defined window. You have the ability
to set the size and position of this window. This control should only
need to be set once. The parameters you set will be saved for the
next time you use the iTView Mac.
Note: The setting you choose may need to be adjusted if you
connect a different television to the system.
The fastest way to set these controls is to click on the “Show Test
Pattern” button first. (see figure 3-2 above) After clicking on the test
pattern button the iTView Mac will project a test pattern on your
television. This test pattern will enable you to easily adjust screen
positioning, screen sizing, and all color adjustments.
Once the test pattern is on the television, use the arrow buttons on
the control panel to size and position the computer image on the
television screen.
Automatic Save Setting
Once you have set the TV Output Format and adjusted the sizing
and positioning of the computer image you can save your settings by
clicking on the “Save” Button on the control panel in OS 9. After
28 Image Control
Page 33
iTView Mac User’s Guide
clicking on this button, your preferences will be saved until you
choose to change them and click on the save button again. In OS X
or OS 9 the settings will automatically save and not change until
adjustments are made or the driver is taken off the hard drive and reinstalled.
If you are unhappy with your settings and would like to go back to
your last saved set of preferences simply click on the “Revert” key on
the control panel. This will set all user-definable preferences back to
your last saved setting. If you would like to set all controls to the
factory default click on the button marked “Defaults”.
Picture Setup
After setting your user preferences for the TV Setup you will want to
adjust the quality of the image on the television screen. You will
need to click on the folder tab labeled “Picture” to access the picture
adjustments.
Chapter 3 29
Page 34
iTView Mac User’s Guide
Figure 3- 5 iTView Mac/iTView DV Picture Adjustments for OS 9
Figure 3- 6 iTView Mac Picture Adjustments for OS X
30 Image Control
Page 35
iTView Mac User’s Guide
After clicking on the Picture tab you will see the controls which will
allow you to adjust the following aspects of the computer image on
the TV:
• Contrast
• Brightness
• Sharpness
• Flicker Filter
• Color (Color Level)
Contrast/Brightness/Sharpness
Adjusting the Contrast, Brightness, and Sharpness of the computer
image on the television is very simple. The slider bars on the control
panel can be “grabbed” by hovering over the desired control with the
cursor and holding down the mouse button. After grabbing the slider
control with the mouse you can increase Contrast, Brightness, or
Sharpness by dragging the slider to the right. To decrease Contrast,
Brightness, or Sharpness drag the appropriate slider to the left. See
Figure 3-5 & 3-6 above.
Additional Features
There are four additional controls you can manipulate within this
section of the iTView Mac Control Panel. These are:
• RGB Gain
• Luma Notch Filter
• Chroma Bandpass Filter
Chapter 3 31
Page 36
iTView Mac User’s Guide
• Pedistal
These controls are intended for specific situations, these situations
are outlined below.
RGB Gain
By clicking on the RGB gain button you will optimize the output from
the iTView Mac for SCART output. If you are in Europe and using
the PAL/SCART connection you will be able to improve the quality of
the image by clicking the RGB Gain button.
Luma Notch Filter
The Luma Notch Filter is intended to isolate a certain video
frequency present in all video signals that may cause distortion in the
image. By clicking the Luma Notch Filter on you will see an
improved picture on many TVs not equipped with this type of filter
already.
Chroma Bandpass Filter
The Chroma Bandpass filter is much like the Luma Notch Filter, in
that the filter is designed to isolate a specific video frequency.
However, the Chroma Bandpass filter works only when you are
outputting to composite video. If you are using a composite video
connection, you will see an improvement in the computer image on
the TV.
Pedistal
If you are in the United States, you should turn pedistal on. Your
32 Image Control
Page 37
iTView Mac User’s Guide
North American television set is designed to operate this way.
If you are in Japan, you will need to turn this feature off.
Chapter 3 33
Page 38
iTView Mac User’s Guide
Chapter 4 Tuning Your
Television
This chapter describes the methods you can use to tune the image
on your television.
Using Your Television’s Video Settings
Picture quality varies from television to television. To obtain the
clearest and sharpest picture from your television, it is important to
spend some time adjusting the television’s video settings. The
following are some suggestions for tuning the video output you see
on the screen.
Note: The items listed below are general tips for all televisions.
Most televisions have one or more of the controls listed.
However, the results of adjusting these items depend on
your specific television.
Note: Depending on the model of the television, the image is
adjusted using buttons or on-screen programming.
Check your owner’s manual to determine how the image
is adjusted on your television.
34 Tuning Your Television
Page 39
iTView Mac User’s Guide
Brightness
The Brightness adjustment on the television adjusts the brightness
levels in black areas of the picture. Raise or lower the brightness until
the picture appears bright without a "blooming" effect. The sides of
the picture should be straight, not curved or bowed.
Color
The color adjustment on the television adjusts the intensity in the
colors of the picture. Adjust the color control until the picture is clear
and has a minimal amount of "color-bleeding." If the color is turned
up too high, the color will be over-saturated.
Sharpness
The Sharpness adjustment on your television adjusts the clarity of
the edges around objects for the clearest picture quality. The general
rule when adjusting sharpness is to turn it up anywhere from its
middle to highest level.
Tint or Hue
The Tint or Hue adjustment on your television adjusts the color of the
flesh tones to more green or red. The most effective way to use this
adjustment is to display row or column of colors side-by-side and
then adjust them until the color appears correct to you.
Chapter 4 35
Page 40
iTView Mac User’s Guide
• Check the connection from the computer’s video output
Chapter 5
Troubleshooting
This chapter describes possible problems that you might encounter
and ways to solve them.
Problem Possible Causes/Solutions
No video from the
iTView Mac
port to the VGA in port at the rear of the iTView Mac
unit.
• Check the connection from the comp video out port or
S-Video out port to the input on your monitor or VCR.
• Ensure that the TV or VCR is ON.
• Check the connection from the power supply. Is the
TView unit plugged in? Is the LED ON and green?
Flicker, or other
Distortion on your
36 Returns
• Ensure that your television or VCR has been
configured to accept auxiliary video input.
• Ensure that the iTView Mac is connected to the
appropriate video connector on your TV or VCR. At the
TV or VCR end, the cable should be connected to the
VIDEO IN, or AUX IN port.
• Use of an RF modulator may cause image quality
problems. If at all possible, avoid those devices that
Page 41
iTView Mac User’s Guide
• Adjust the brightness and contrast control of the iTView
• Use the iTView Mac’s horizontal and vertical controls to
screen convert the iTView Mac signal into an antenna signal.
Colors are poor
quality or non-
existent
TV image overshoots
or fails to fill the
screen
Green LED does not
light
• Adjust the color controls on the iTView Mac control
panel.
Mac in the Control Panel Software.
• Use of an RF modulator may cause image quality
problems. If at all possible, avoid those devices that
convert the iTView Mac signal into an antenna signal.
adjust positioning.
• Adjust the iTView Mac’s TV size control to the
appropriate setting.
.
• Check power connections.
• Check software configuration (if the iTView Mac is not
communicating with the software control panel, the
controls will be grayed out.
• Possible power supply or iTView Mac failure.
iTView Mac failure • Inspect the iTView Mac unit for signs of damage (i.e.
broken pins, severed wires, etc.).
TroubleShooting 37
Page 42
iTView Mac User’s Guide
Returning a Damaged or Failed iTView Mac
Unit
To return a iTView Mac unit, follow these steps:
1. Contact FOCUS Enhancements Technical Support at 1-408370-9963. A representative is available from 8:00 AM to
5:00PM Pacific Standard Time (PST). Explain the nature of the
problem and any evidence of damage you may have found. The
customer representative will either assist you with the specific
problem or give you a Return Materials Authorization Number.
Note: No goods will be accepted for warranty repair or return
without an RMA number.
2. Pack the iTView Mac carefully. If possible, use the original
shipping package. Send the package pre-paid and insured via
United Parcel Service (UPS) or US Mail to:
ATTN: RMA# (Your RMA Number)
FOCUS Enhancements
1370 Dell Avenue
Campbell, CA 95008
FOCUS Enhancements will repair or replace your iTView Mac within
5-15 working days. For units not covered under the 1-year warranty,
or where the warranty has been voided, a minimum fee of $90.00.
38 Returns
Page 43
iTView Mac User’s Guide
Limited Warranty
FOCUS Enhancements, Inc. warrants this product against defects in
materials and workmanship for a period of ONE YEAR from the date
of original purchase.
If you discover a defect, FOCUS Enhancements, Inc. will, at its sole
option, repair or exchange the product at no charge to you, provided
you contact FOCUS Enhancements, Inc. Technical Support to obtain
a Return Material Authorization (RMA) Number and instructions on
where and how to obtain repair. Note that a copy of the bill of sale
bearing the FOCUS Enhancements, Inc. serial numbers as proof of
date of original purchase is required for each product returned for
warranty service. Before returning product, remove all non-FOCUS
Enhancements, Inc. RAM, accessories, and options. FOCUS
Enhancements, Inc. cannot be liable for the return or care of any
non-FOCUS Enhancements, Inc. products, nor accept responsibility
for loss or damage of product in transit.
This warranty does not apply if the product has been damaged by
accident, installation or removal of product, abuse, misuse,
misapplication, accident, neglect, fire, water, lightening, or other acts
of nature, failure to follow supplied instructions; has been modified,
repaired or undergone attempted repair by unauthorized personnel
without the written consent of FOCUS Enhancements, Inc.; has a
serial number that has been removed, modified, or defaced. FOCUS
Enhancements, Inc. reserves the right to use re-manufactured,
refurbished, or used parts and components in making warranty
repairs.
FOCUS Enhancements, Inc. products are designed to work with
Windows and MacOS computers. Certain features of third-party
software or hardware designed for the host system may not be
available when used with this product. Accordingly, FOCUS
Warranty 39
Page 44
iTView Mac User’s Guide
Enhancements, Inc. does not warrant or represent that all third-party
software or hardware will function error-free when used in
conjunction with this FOCUS Enhancements, Inc. product.
THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES,
WHETHER ORAL OR WRITTEN, EXPRESS OR IMPLIED. ALL
EXPRESS AND IMPLIED WARRANTIES OF MERCHANTABILITY
AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN
DURATION TO THE WARRANTY PERIOD. NO WARRANTIES,
EXPRESS OR IMPLIED WILL APPLY AFTER THIS PERIOD.
FOCUS ENHANCEMENTS, INC. SHALL NOT BE LIABLE FOR ANY
LOST PROFITS, DAMAGE TO OTHER PROPERTY CAUSED BY A
DEFECT IN THIS PRODUCT, DAMAGES BASED UPON
INCONVENIENCE, LOSS OF USE OF THE PRODUCT, LOSS OF
TIME, COMMERCIAL USE, INCIDENTAL AND/OR
CONSEQUENTIAL DAMAGES FOR THE BREACH OF ANY
EXPRESS OR IMPLIED WARRANTY, INCLUDING DAMAGE TO
PROPERTY AND, TO THE EXTENT PERMITTED BY LAW,
DAMAGES FOR PERSONAL INJURY, EVEN IF FOCUS
ENHANCEMENTS, INC. HAS BEEN ADVISED OF THE
POSSIBILITY OF SUCH DAMAGES.
Some states do not allow the inclusion or limitation of incidental or
consequential damages or limitations on how long an implied
warranty lasts, so the above limitation or exclusion may not apply to
you. This warranty gives you specific legal rights, and you may have
other rights, which vary, from state to state.
Product specifications and information are subject to change without
notice.
40 Warranty
Loading...
